Actiontec
802MBN
Single-Band Draft-802.11n 2x2 MIMO
MiniPCI Wireless Network Card
User Guide
2
1. Description:
Actiontec 802MBN provides ultra-high performance (up to 300 Mbps) transmission rate in 2.4GHz bands.
Backward compatible with the current 802.11b/g network devices gives your laptop the freedom of
wireless connectivity with the performance, security, and manageability that businesses desire. A
firmware-based architecture is capable of supporting the latest industry standards in the security and
quality of service (QoS), as the draft 802.11i and 802.11e standards, respectively. The 802MBN is
complemented by drivers and networking tools for various versions of embedded operating system (e.g. Linux).
Extensive technical documentation on integration issues such as antenna design, customizing drivers,
and management software can be obtained by request.
2. Features:
IEEE 802.11 b/g/n standard compliant
2x2 MIMO wireless system
Ultra-high data rate up to 300 Mbps
Auto fallback data rate under noisy environment
Support both 2.4Ghz band operation
Support WEP (64-bit/128-bit), 802.1x, and WPA/WPA2
Conformable to industry-standard Mini-PCI Card Type III-A specification
Easy integration into mobile and hand-held platforms
Flexible for design and antenna placement
Low power consumption & Automatic power management to reduce battery use
Independent Tx Power Control on a per channel
Automatic Tx Gain adjustment during temperature variations
3. Application:
Home and/or office wireless networking
Wireless multimedia
Wireless extension of existing wired network
3
4. Product Specifications:
WLAN Standards IEEE 802.11 b/g/n
Antenna Connector IPEX
Medium Access Protocol CSMA/CA (Collision Avoidance) with ACK
Frequency Band 2.4~2.4835 GHz
Number of Channels Up to 14 Channels depending on regions
Modulation CCK, DQPSK, DBPSK, OFDM
Supported Rates 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2, 1 Mbps
20 MHz BW: 130, 117, 104, 78, 52, 39, 26, 13 Mbps
40 MHz BW: 300, 270, 243, 216, 162, 108, 81, 54, 27
Mbps
Maximum Receive Level -20dBm (with PER< 10%) for 802.11g
Antenna External
Output Power
2x2: 13.5~16.5 dBm
11g: 13.5~16.5 dBm
11b: 15.5~18.5 dBm
802.11g Receive Sensitivity
Data Rates Receive Sensitivity
54 Mbps -68 dBm (typ)
11 Mbps -85dBm (typ.)
6 Mbps -86 dBm (typ.)
1 Mbps -93 dBm (typ.)
Voltage 3.3 VDC from host (+/-0.2V)
Power Consumption Standby (average) < 20mW
Security WEP (64-bit/128-bit), 802.1x
WPA/WPA2 (TKIP, AES)
Operating System Linux
Operation Environment Temperature: 0 ~ 40
Humidity: 5~95% RH (non-condensing)
Storage Environment Temperature: -10 ~ 70
Humidity: 95% RH (non-condensing)
4

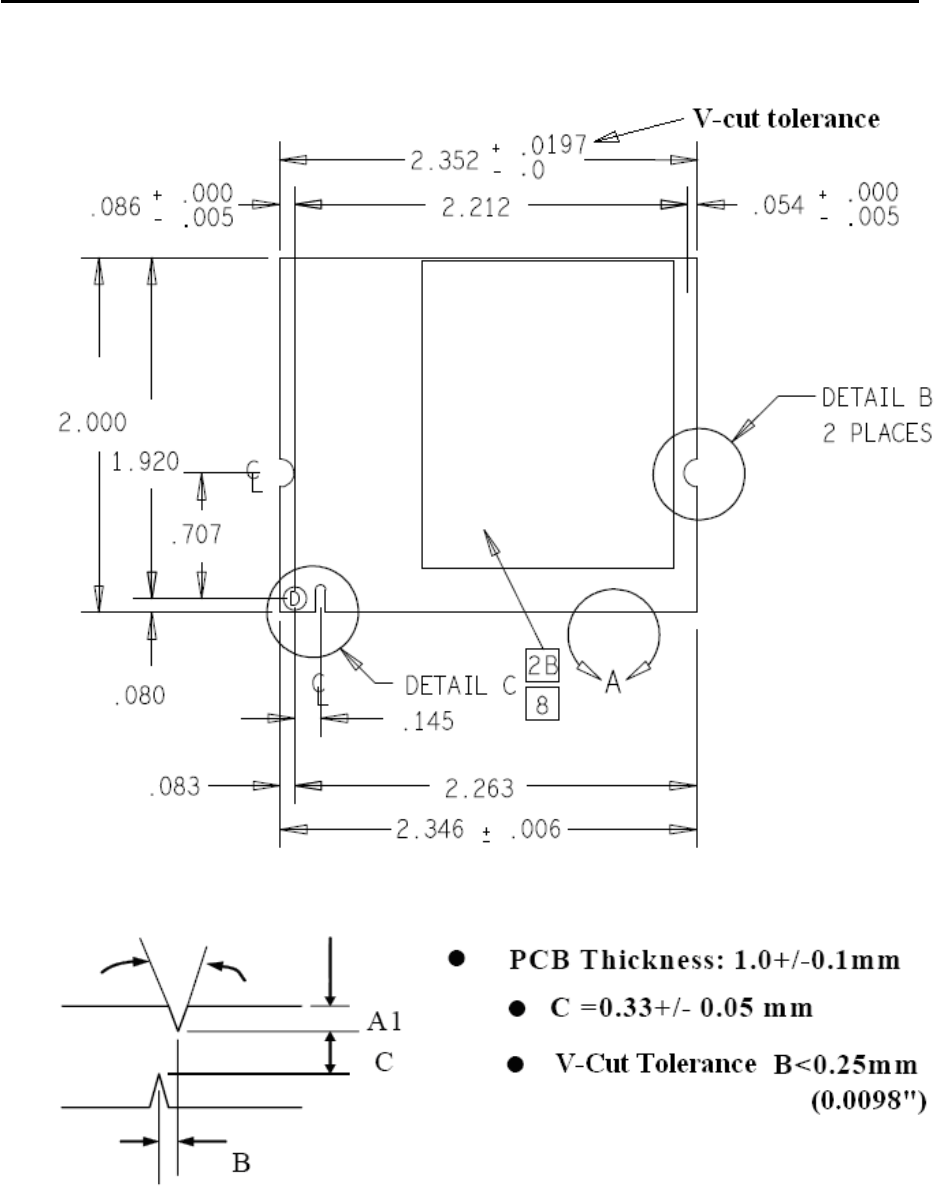

5. PCB dimension
5.1 V-Cut Tolerance :
Regulatory Statements for 802MBN
USA-Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy. If not installed and used in
accordance with the instructions, it may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Caution: Exposure to Radio Frequency Radiation.
To comply with FCC RF exposure compliance requirements, a separation distance
of at least 20 cm must be maintained between the antenna of this device and all persons.
This device must not be co-located or operating in conjunction with any other antenna or
transmitter.
