SPECIFICATIONS
of Low Profile PCI 802.11b Card:
802PI25
Version 0.5
Date: 08/09/01
Specifications of Low Profile PCI 802.11b Card 2
Contents:
Device Overall Description
802.11 Wireless LAN
- Features
- Block Diagram
- Modulation Methods
- Channel Assignment
- Security (WEP Key)
- PCI PME & Vaux
- RF Characteristics
- Software & OS support
- Regulation
- Interoperability
Operating Conditions
Device Overall Description
The 802PI25 is designed to provide wireless LAN function on a Low Profile PCI form factor.
The wireless LAN function is based on Intersil Prism 2.5 chipset, which implements the full IEEE802.11b
standard date rates up to 11Mbps.
Specifications of Low Profile PCI 802.11b Card 3
802.11 Wireless LAN
Features
- Intersil Prism II.V chipset
- IEEE802.11 Direct Sequence Spread Spetrum (DSSS)
- IEEE802.11 Standard Data Rates: 1, 2, 5.5 and 11Mbps
- Full Implementation of the MAC Protocol Specified in IEEE Standards 802.11-1999 and 802.11b
- Internal Encryption Engine Executes IEEE802.11 WEP
- 128-bit WEP encryption, backward compatible with 64-bit solutions.
- Support BSS (Infrastruture mode) and IBSS (Ad hoc mode).
- Support BSS and IBSS operation under Distributed Coordination Function (DCF) and Ponit
Coordination Function (PCF)
- Support Psuedo IBSS mode which allows two computers to communicate in Ad Hoc configuration and
allows backward compatibility with previous generation of Intersil products.
- Onboard Diversity Antenna
Specification Compliance
- IEEE 802.11b
- PCI Bus Interface Spec. 2.2
Form factor
- Low Profile PCI Card MD1 form factor
- 119.91mm x 64.41mm (LxH)

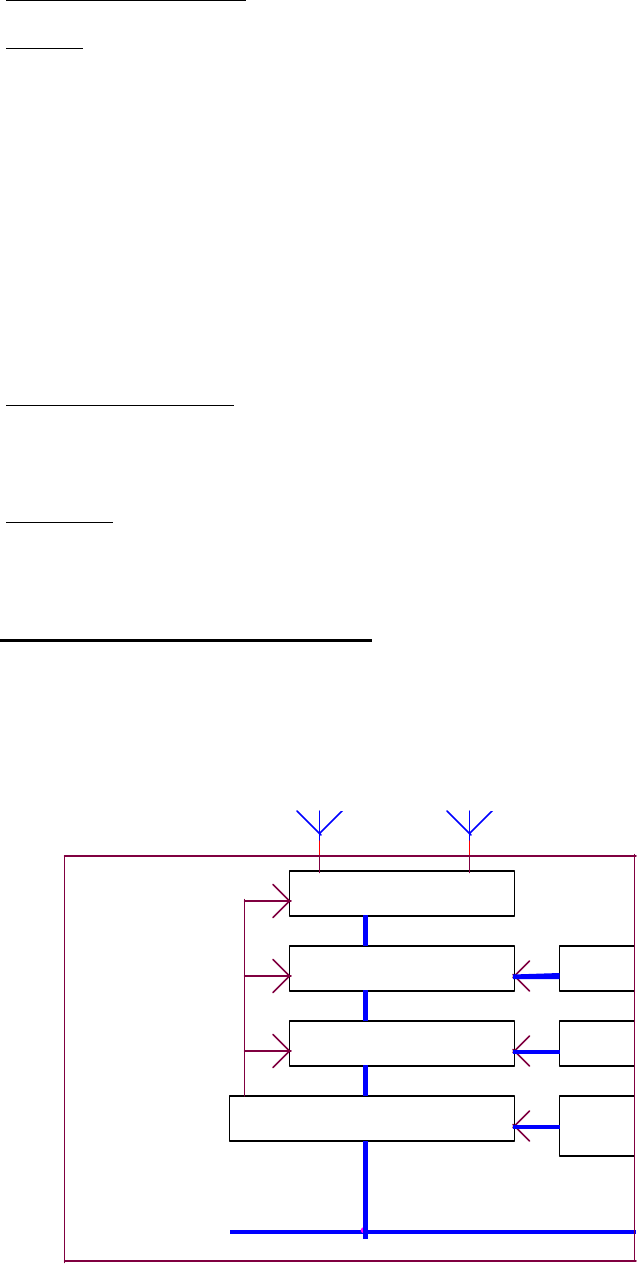

802.11 Wireless LAN Block Diagram
ICW3874A: Intersil, Wireless LAN integrated Medium Access Controller with Baseband Processor
ICW3783: Intersil, I/Q Modulator/Demodulator and Synthesizer
ICW3183: Intersil, 748MHz Voltage Controlled Oscillator
ICW3685: Intersil, 2.4GHz RF/IF Converter and Synthesizer
ICW3984: Intersil, 2.4GHz Power Amp and Detector
PCI
3874A MAC+BBP SRAM
FLASH
CLOCK
3783 MODEM SYNT VCO
CLOCK
3685 RF/IF
CONVERTER VCO
DIVERSITY SW.
3984 POWER AMP
Specifications of Low Profile PCI 802.11b Card 4
Modulation Methods
Modulation spec.
1 Mbps DBPSK 802.11
2 Mbps DQPSK 802.11
5.5 Mbps CCK 802.11b
11 Mbps CCK 802.11b
Channel Assignment
Channel Frequency FCC IC ETSI France Japan
12412MHz X X X X
22417MHz X X X X
32422MHz X X X X
42427MHz X X X X
52432MHz X X X X
62437MHz X X X X
72442MHz X X X X
82447MHz X X X X
92452MHz X X X X
10 2457MHz X X X X X
11 2462MHz X X X X X
12 2467MHz XXX
13 2472MHz XXX
14 2484MHz X
Many countries and region are currently revising the channel assignment.
Security (WEP Key)
Support the IEEE 802.11b compatible 64 bit WEP in all data rate modes.
Support 128 bit 128RC4 algorithm in all data rate modes.
PCI PME & Vaux
There is no standard specification of Wakeup-on-WirelessLAN defined. Therefore, PME pin is not
necessary. The PME pin on PCI bus is not connected to this device.
This card is default to get power from PCI +3.3V. There is an option to get power from PCI Vaux pin.
Specifications of Low Profile PCI 802.11b Card 5
RF Characteristics
RF Characteristics Minimum Typical Maximum Units
Form Factor Low Profile PCI
PC Interface 32-bit PCI PCI 2.2
Plug and Play Compatible Yes
Access Point Capable Yes
Internal Antenna Impedance 50 ohms
Ambient Operating Temperature
Range 0 70 C
Storage Temperature Range -20 +85 C
Supply Voltage (3.3 V only) 3.0 3.3 3.6 V
RX Supply Current (at 3.3 V) 235 mA
TX Supply Current (at 3.3 V) 280 mA
802.11 Sleep Supply Current 10 20 mA
Initialization Supply Current 70 mA
RX Adjacent Channel Rejection 35 dB
RX Sensitivity, 1 Mbps -90 -88 dBm
RX Sensitivity, 2 Mbps -87 -85 dBm
RX Sensitivity, 5 Mbps -85 -83 dBm
RX Sensitivity, 11 Mbps -83 -81 dBm
Diversity Isolation 15 20 dB
TX Output Power +13.5 +15 dBm
TX Carrier Suppression 15 dB
TX Spectral Mask, 1st side-lobe -30 dBc
TX Spectral Mask, 2nd side-lobe -50 dBc
1 Mbps Multipath Tolerance 500 nsec 802.11
2 Mbps Multipath Tolerance 500 nsec 802.11
5.5 Mbps Multipath Tolerance 200 nsec 225 nsec 802.11
11 Mbps Multipath Tolerance 100 nsec 120 nsec 802.11
Maximum input Level 4dbm
Over-voltage protection +17dbm
Dual Antenna Diversity, Short Preamble BBP HW
Dual Antenna Diversity, Long Preamble BBP HW
Preamble Length Short/Long
SRAM 128K X 16
Serial Flash 128KX8
802.11 Compliance Compliant
Note: Sensitivity based upon 1 kbyte packet length, 8% PER, single antenna driven, diversity enabled.
Note: Adjacent channel rejection based upon 1 kbyte packet length, 8% PER, 25 MHz jammer offset.
Note: Multipath tolerance based upon 1 kbyte packet length, 8% PER, signal level > -60 dBm, single antenna
driven, diversity enabled, broadcast packets.
Note: All measurements at the end of 6" of cable through RF Connector with local diversity option.
Specifications of Low Profile PCI 802.11b Card 6
Software & OS support
OS Driver
Win95, OSR2 NDIS4
NT4 NDIS4
Win98 NDIS5
Windows Millennium NDIS5
Win2000 NDIS5
User Configuration Utility Available
Regulation
US FCC 15.247
Canada RSS
Europe ETSI 300 826 11:1997
ETSI 300 328 11:1996, 2nd Edition
ETSI 300 328 A1 07:1997, 2nd Edition
ERC/DEC/(96) 17, ERC Decision of 1 November 1996
CE Mark
Japan Telec
Others upon requested
Interoperability
Actiontec is an active member of Wireless Ethernet Compatibility Alliance (WECA).
All Actiontec 802.11b Wireless product will be certified by WECA Wi-fi test to assure interoperability
between vendor’s of 802.11b.
Specifications of Low Profile PCI 802.11b Card 7
Operating Conditions
Voltage Range 3.3V +-0.3V
Operating Temperature Range 0°C - 65°C
Storage Temperature Range -20°C - 85°C
Relative Humidity during Operating 95%
Relative Humidity during Storage 95%
