Users Manual
MyWirelessTV allows video and audio to be sent from video
source to the TV wirelessly. Therefore, you have the freedom to
place the TV virtually anywhere within the home and enjoy live
TV without the wiring mess.
Make sure you identify which ‘source device’ that you want to
connect to the Transmitter. Video from that ‘source device’ will be
transmitted to your receiver box(s).
INSTALLATION for the MyWirelessTV is EASY. Both units come
pre-paired to work with each other. All you need to do is connect
the cables according to the diagram or, if you want, follow the
detailed step-by-step instructions.
AHow MyWirelessTV Works
Step1b(Optional) If the source device is
previously connected to an HDTV, unplug
the HDMI cable from the back of the
source, then plug the free end of the HDMI
cable into the HDMI port that labels
Out-to-TV on the back of the Transmitter.
Step1cOtherwise, get an HDMI cable
from MyWirelessTV 2 Kit. Plug one end
into the HDMI Input port on the back of
the Transmitter.
Step1aSelect the Source Device (i.e. a Cable/Satellite set-top
box or Blu-ray player) you wish to transmit signal to the TV, and
power off that device. Get the Wireless HD Video Transmitter
unit from MyWirelessTV 2 Kit and follow the steps below.
BSetting Up Transmitter & Receiver
Step3aGet the Wireless HD Video
Receiver, HDMI cable and power
supply. Go to the TV that you want to
connect.
Step3bPlug one end of this HDMI
cable into an HDMI port on the HDTV.
Step2aGet the power supply from MyWirelessTV 2 Kit.
Plug the smaller end of the power supply into the 5VDC port
on the back of the Transmitter.
Step3dTurn on the TV and switch the source to the HDMI
input that the Receiver is connected to.
Step4aPlug the smaller end of the
power supply into the 5VDC port on
the back of the Receiver.
Step3cPlug the other end of the
HDMI cable into the HDMI port labels
Out-to-TV on the back of the Re-
ceiver.
Step4bPlug the larger end of the
power supply into a power outlet.
Step4cMake sure the Power Light
on the Receiver is SOLID Green.
Flip this Quick Start Guide over to continue NEXT
Note: Only use power adapter, Actiontec Electronics Inc., Model # WA-10P05FU
Note: The LINK light will blink.
Up to
150 ft.
range*
RECEIVER MWTV2RX
TRANSMITTER MWTV2TX
HDTV
(Optional)
(Optional)
(Optional)
HDTV
POWER
OUTLET POWER
OUTLET
SOURCE
DEVICE 2
1b
4
3
5
6

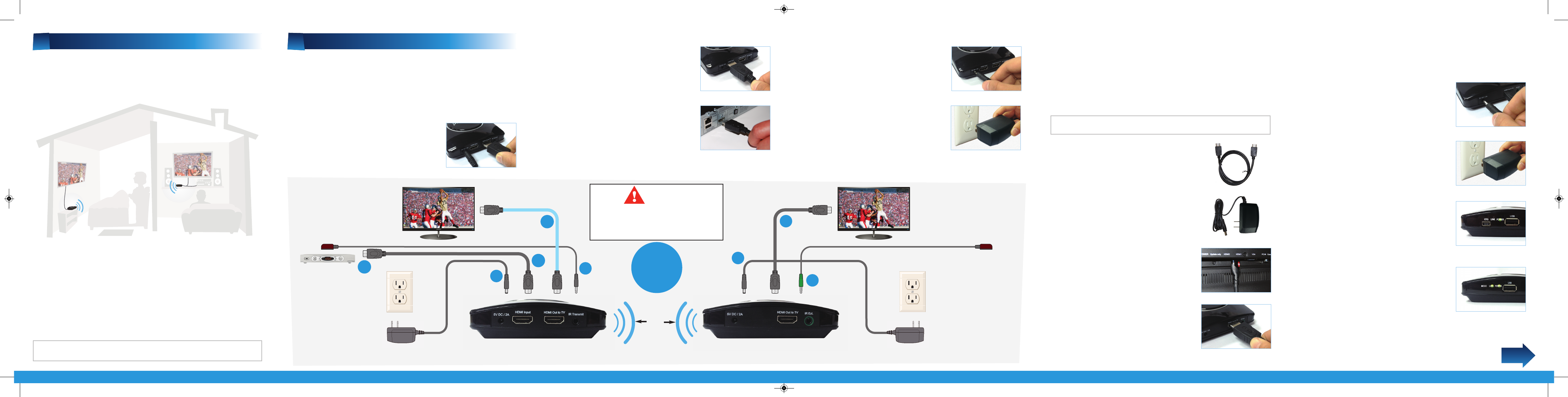

Please refer to
this illustration
while connecting
cables
Step4dWait for a bit as the Receiver
connects to the Transmitter. The LINK
light should show SOLID Green once
they’re connected.
CAUTION
Do NOT place the MyWirelessTV
Transmitter or Receiver on top of
or near a heat-generating source.
*Range subject to change. Walls, ceilings
and floors may reduce the wireless range.
Step1dPlug the other end into the
HDMI port on the Source Device.
Step2bPlug the larger end of the
power supply into a power outlet.
Step2cVerify the Power Light on
the Transmitter is SOLID Green.
Note: If the Transmitter and Receiver are in the same room, you
may skip to Step 1c.
Step2aGet the power supply from
MyWirelessTV 2 Kit. Plug the smaller end
of the power supply into the 5VDC port
on the back of the Transmitter.
1c
1d
Step2dNow power on your video Source Device.
pic
MWTV2_QSG-0530-0731-000-v5_QS sngl pnl 2014/5/5 16:37 页 1
MyWirelessTV 2
Multi-Room Wireless
HD Video Kit
NEXT
Model# MWTV2TX & MWTV2RX
DTroubleshooting
CSetting Up IR Control (Optional)
Quick Start Guide
This Quick Start Guide will walk you through the easy steps
to set up MyWirelessTV 2 Kit.
AHow MyWirelessTV Works
BSetting Up Transmitter & Receiver
CSetting Up IR Control
DTroubleshooting
You will need the following items from your MyWirelessTV 2 kit:
• Wireless HD Transmitter •Wireless HD Receiver
• Two (2) Power Supplies •Two (2) HDMI Cables
• IR Blaster Cable •IR Receiver Extension Cable
© 2014 Actiontec Electronics, Inc. Actiontec, Actiontec Installation Buddy, Creative Solutions for the Digital Life,
and the Actiontec logo are trademarks or registered trademarks of Actiontec Electronics, Inc. in the U.S. or other
countries. All other names are properties of their respective owners.
Product photo may differ from actual product, however functionality remains as stated above.
Specifications are subject to change without notice.
FREQUENTLY ASKED QUESTIONS
1 QDo I must connect a TV to the Transmitter’s HDMI Out-
to-TV port?
ANo. This step is optional.
2 QI’m not seeing video on the TV that’s connected to the
Transmitter.
ACheck the power and connection from the video source to
the Transmitter, and the connection from the Transmitter
to TV.
3 QI’m not seeing video on the TV that’s connected to the
Receiver.
ACheck the power and connection from Receiver to the TV,
and make sure the correct source input is selected on the
TV.
4 QThe audio and video on the Receiver’s TV seems
slower than on Transmitter’s TV.
AThis is expected since the Receiver receives AV transmis-
sion from the Transmitter over the air.
Your HDTVs and cable/satellite box should be connected as
shown in the previous diagram. You can now start enjoying
HDTV anywhere you want it!
Step6bPlug the IR Extender cable’s
green connector in to the Green port
on the back of the Receiver.
5 QThe video quality is poor and sometimes there’s no
video displays on the Receiver’s TV.
AYou may need to adjust the orientation of the Transmitter
and Receiver units, and direct them to be facing each
other. You can view the MyWirelessTV connection
strength on the Menu page of the Receiver. To access the
Menu page, press the MENU button once on the Receiver.
6 QI cannot control the source device with its remote con-
trol, via the MyWirelessTV Receiver OR the source de-
vice is slow to respond to the remote control.
AMake sure the IR Blaster cable is connected to the Trans-
mitter “IR Transmit” port, and the sensor is mounted di-
rectly on top of the source device’s IR Sensor window.
Also make sure the Receiver or the IR Receiver cable sen-
sor is in line-of-sight of the remote control.
7 QWhat is the MENU button on the Receiver?
AThe MENU button provides access to the Menu screen.
You can view the device firmware version, signal strength,
change the language for display and video stream mode.
Step5dLocate the Infrared (IR) sensor
on your source device box, and mount the
IR Blaster head on top of the box over the
sensor of the source device.
Step6aGet the IR Extender cable
(with a green connector) from the
MyWirelessTV 2 kit.
Step5aGet the IR Blaster cable
from MyWirelessTV 2 kit. The IR Blaster
cable has a black connector.
Step5bPlug the IR Blaster cable’s
black connector into the Transmit port
on the back of the Transmitter.
Step5cRemove the adhesive tape from the bottom of the
IR Blaster head.
Part No: 0530-0731-000 QS1155/0811
The IR Blaster Cable connects to your Wireless HD Video
Transmitter. The IR Blaster can receive IR signal from your
Source Device’s remote control over MyWirelessTV network, and
emits the IR signal to control the Source Device. Thus, you can
control the Source Device from wherever the TV and Wireless HD
Video Receiver are located.
The IR Receiver Extension Cable extends the IR receiver of the
Wireless HD Video Receiver. Thus, it allows the Receiver to
receives IR signal from the remote control, if the unit is placed in
an area where IR signal is not in line-of-sight of the source’s
remote control. Use of this cable is optional.
Note: If the Receiver and Transmitter are in the same room,
setting up IR Blaster cable is not required.”
For Technical Support call
1-888-436-0657
How to Videos, User Manual, Latest Firmware and additional
information are available Online at
http://www.actiontec.com/mwtv2
Step6cRemove the protective cov-
ering of the double stick tape and at-
tach the flat end of the IR Extender
cable to the front corner of the HDTV
bezel or frame.
MWTV2_QSG-0530-0731-000-v5_QS sngl pnl 2014/5/5 16:37 页 2
General Regulatory and Compliance Notices
Important Safety Instructions
If applicable, when using telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electrical
shock, and personal injury, including the following:
•Do not use this product near water – for example, near a bathtub, kitchen sink, laundry tub, or swimming pool, or in a wet basement;
•Avoid using a telephone (other than a cordless type) during an electrical storm, as there may be a remote risk of electrical shock
due to lightning;
•Do not use the telephone to report a gas leak in the vicinity of the leak;
•Use only the power cord and batteries indicated in this manual;
•Do not dispose of batteries in fire, as they may explode – check with local codes for possible special disposal instructions.
Telephone Line Cord Caution
To reduce the risk of fire, use only No. 26 AWG or larger (e.g., 24 AWG) UL Listed or CSA Certified Telecommunication Line Cord.
Coaxial Cable
If applicable, the coaxial cable screen shield needs to be connected to the Earth at the building entrance per ANSI/NFPA 70, the National Electrical
Code (NEC), in particular Section 820.93, “Grounding of Outer Conductive Shield of a Coaxial Cable,” or in accordance with local regulation.
For Audio/Video Apparatus
This reminder is provided to call the CATV system installer's attention to Section 820.93 of the National Electric Code (NEC), which provides
guidelines for proper grounding and, in particular, specifies that the coaxial cable shield shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.
Please heed all warnings; read, keep and follow all instructions. Do not use this apparatus near water and only clean with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Do not install near any heat sources such
as radiators, heat registers, stoves, or other apparatus including amplifiers that produce heat.
FCC Class B Equipment
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try and correct the interference by implementing one or more of the following measures:
•Reorient or relocate the receiving antenna;
•Increase the separation between the equipment and receiver;
•Connect the equipment to an outlet on a circuit different from that to which the receiver is connected;
•Consult the dealer or an experience radio or television technician for help.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by
Actiontec Electronics, Inc, may void the user’s authority to operate the equipment.
Declaration of conformity for products marked with the FCC logo – United States only.
This devices complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to
the following two conditions:
1.This device may not cause harmful interference;
2.This device must accept any interference received, including interference that may cause undesired operation of the device.
Canadian Industry Regulations
This product meets the applicable Industry Canada technical specifications.
The Class [B] digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulation.
Important Note
If applicable, this equipment complies with FCC/Industry Canada radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible.
The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that
this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the
technology.
The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile
satellite systems.
The maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply with the e.i.r.p. limits specified for point-to-
point and non point-to-point operation as appropriate.
The transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
For questions regarding your product or the FCC/Industry Canada declaration, contact:
Actiontec Electronics, Inc
760 North Mary Avenue, Sunnyvale, CA 94086, United States
Tel: (408) 752-7700 Fax: (408) 541-9005
PN 0530-0601-103 PI1176/0113
FCC_GR&CN_pkginsrt_Canada10_FCC Reg_Comp sheet_10x6 2/7/13 10:08 AM Page 1
Avis d’application de la réglementation et de conformité généraux
Consignes de sécurité importantes
Afin de réduire les risques d’incendie, de blessures corporelles ou d’électrocution, suivez toujours ces mesures préventives de base
lorsque vous utilisez votre téléphone.
•N’utilisez pas ce produit près de l’eau, par exemple, à proximité d’une baignoire, d’un évier de cuisine, d’une cuve à lessive,
d’une piscine ou dans un sous-sol humide.
•Évitez d’utiliser un téléphone (autre qu’un sans fil) pendant un orage électrique; les éclairs peuvent être à l’origine d’une électrocution.
•N’utilisez pas le téléphone pour rapporter une fuite de gaz à proximité de celle-ci.
•N’utilisez que le cordon d’alimentation et les piles indiqués dans ce guide.
•Ne jetez pas les piles dans le feu, car elles peuvent exploser. Consultez les autorités locales afin de connaître les instructions de
recyclage des piles.
Mise en garde concernant le cordon téléphonique
Pour réduire les risques d’incendie, utilisez seulement un cordon téléphonique 26 AWG ou plus large (p. ex., 24 AWG) répertorié
UL ou certifié CSA.
Câble coaxial
S’il y a lieu, l’écran protecteur du câble coaxial doit être mis à terre à l’entrée du bâtiment, conformément au paragraphe 820.93 du Code national
de l’électricité, ANSI/NFPA 70, “mise à terre de l’écran conducteur externe d’un câble coaxial”, ou conformément à la réglementation locale.
Pour appareils audiovidéo
L’objet du présent rappel est d’attirer l’attention de l’installateur du système de télédistribution sur l’article 820.93 du National Electric Code
(NEC), qui contient des lignes directrices sur la bonne manière de mettre le circuit à la terre et, plus précisément, il mentionne que le
blindage du câble coaxial doit être raccordé à l’installation de mise à la terre du bâtiment, aussi près du point d’entrée du câble que possible.
Veuillez porter attention à tous les avertissements et lire, conserver et suivre toutes les consignes. Ne pas utiliser l’appareil à proximité
d’eau et le nettoyer uniquement à l’aide d’un chiffon sec.
N’obstruer aucune des prises d’air de ventilation. Installer l’appareil conformément aux instructions du fabricant. Ne pas installer l’appareil
à proximité d’une source de chaleur comme un radiateur, un registre de chaleur, un four ou tout autre appareil produisant de la chaleur,
notamment un amplificateur
Équipement de classe B
Ce matériel a été contrôlé et satisfait aux limites imposées pour les appareils numériques de classe B, conformément à l'alinéa 15 de la
réglementation FCC. Ces limites sont destinées à assurer une protection raisonnable contre les interférences dans un environnement
résidentiel. Cet appareil produit, utilise et peut émettre de l’énergie haute fréquence et, s’il n’est pas installé et utilisé conformément aux
instructions, il peut provoquer des interférences dans les communications radio. Cependant, les risques d'interférences ne peuvent pas
être totalement exclus. S'il constate des interférences lors de la réception d'émissions de radio ou de télévision (il suffit, pour le constater,
d'allumer et d'éteindre successivement l'appareil), l'utilisateur devra prendre les mesures nécessaires pour les éliminer.
•Réorientez ou déplacez l’antenne réceptrice.
•Éloignez l’équipement de l’appareil récepteur.
•Branchez l’appareil sur une prise ou un circuit différent de celui de l’appareil récepteur.
•Consultez le revendeur ou un technicien de radio ou de télévision expérimenté.
Modifications
Conformément à la réglementation FCC, tout changement ou modification non autorisé explicitement par Actiontec Electronics, Inc.
est de nature à priver l’utilisateur de l’usage de l’appareil.
Déclaration de conformité des produits munis du logo FCC, États-Unis uniquement.
Cet appareil est conforme à l’alinéa 15 de la réglementation FCC et avec Industrie Canada exempts de licence standard RSS. Son
fonctionnement est soumis à deux conditions:
1.il ne doit pas provoquer aucune interférence gênante;
2.doit pouvoir supporter toute interférence reçue, y compris celles susceptibles d’en affecter le fonctionnement.
Industrie Canada
Le présent matériel est conforme aux specifications techniques applicables d'Industrie Canada.
Cet appareil numerique de la class [B] repecte toutes les exigences du Reglement sur le materiel brouilleur du Canada.
Remarque importante
Cet appareil respecte les limites d’exposition aux radiations de la FCC/Industrie Canada, définies pour un environnement non contrôlé.
Cet équipement doit être installé et utilisé avec une distance minimale de 20 centimètres entre le radiateur et votre corps.
Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection d'autres canaux
n'est pas possible.
Le dispositif pourrait automatiquement cesser d'émettre en cas d'absence d'informations à transmettre, ou une défaillance
opérationnelle. Notez que ce n'est pas l'intention d'interdire la transmission des informations de contrôle ou de signalisation ou
l'utilisation de codes répétitifs lorsque requis par la technologie.
Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire
les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
Le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5725-5825 MHz) doit se conformer à la limite de p.i.r.e.
spécifiée pour l’exploitation point à point et non point à point, selon le cas.
Le transmetteur ne doit pas être situé ou fonctionner en conjonction avec une autre antenne ou un autre transmetteur.
Pour toute question concernant votre produit ou la déclaration de conformité des produits munis du logo FCC/Industrie Canada,
veuillez vous adresser au service suivant:
Actiontec Electronics, Inc
760 North Mary Avenue, Sunnyvale, CA 94086, United States
Téléphone: (408) 752-7700 Télécopieur: (408) 541-9005
FCC_GR&CN_pkginsrt_Canada10_FCC Reg_Comp sheet_10x6 2/7/13 10:08 AM Page 2
