R3010SUW User Manual HTML Version

Users Manual

Table of Contents

Introduction 2

Package Contents 2

System Requirements 2

Contacting Technical Support 3

Introduction to the Wireless Cable/DSL Router 4

Before you Connect the Wireless Cable/DSL Router 6

Connecting the Actiontec Wireless Cable/DSL Router 17

Installing the USB Drivers 18

Configuring the Actiontec Wireless Cable/DSL Router 30

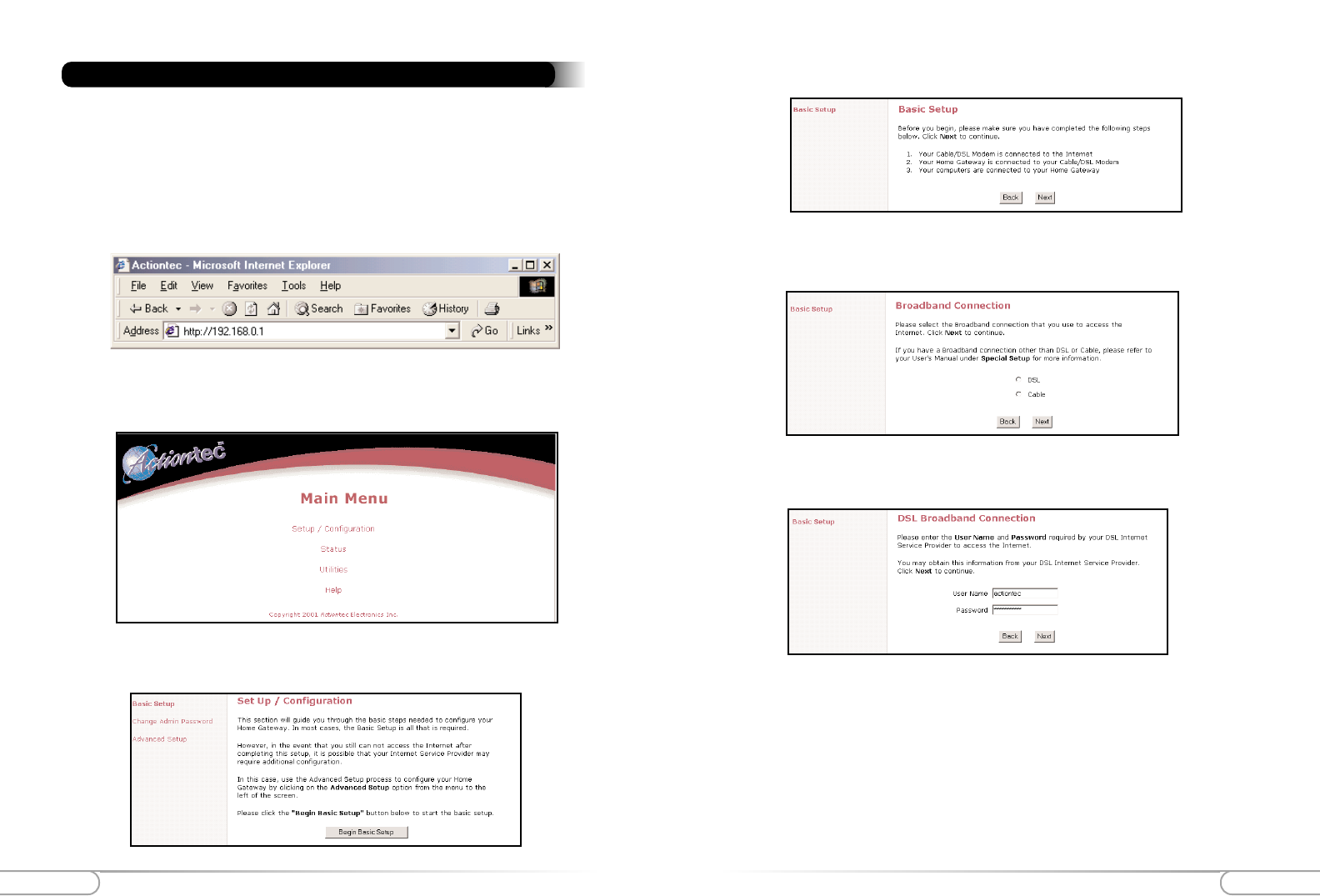

Basic Setup 30

Status Screen 33

Advanced Configuration of the Wireless Cable/DSL Router 36

WAN IP Address 38

Wireless Settings 40

LAN IP Address 42

DHCP Server 42

DHCP Server Configuration 43

Services Blocking 43

Website Blocking 44

Remote Management 44

Port Forwarding 45

DMZ Hosting 45

MAC Address Cloning 46

Utilities 47

Troubleshooting 49

Glossary 50

Specifications 53

Environmental 54

Appendix A 55

Appendix B 68

Appendix C 78

Appendix D 81

Table of Contents

0530-????-000

Page

2 3

Contacting Technical SupportIntroduction

Actiontec Electronics prides itself on making high-quality, durable, high-performance

products. If you should need assistance, the Actiontec Technical Support Department is

available 6 am to 11pm Mon - Sun (Mountain Time), to provide professional support.

Contacting Technical Support

Actiontec Electronics, Inc.

760 N. Mary Avenue

Sunnyvale, CA 94086

Technical Support

Phone: 1-719-884-8300

E-mail: techsupp@actiontec.com

Website: www.actiontec.com/support

Thank you for purchasing the Actiontec Wireless Cable/DSL Router. The Wireless

Cable/DSL Router is the simplest way to connect a small number of PC’s to a single

high speed Broadband modem. This easy to use product is perfect for the home office

or small business. If you would like to take your computing to the next level then the

Actiontec Wireless Cable/DSL Router is the key to your success.

Package Contents

One Actiontec Wireless Cable/DSL Router 4-Port Ethernet/USB

One Actiontec Wireless Cable/DSL Router 1-Port Ethernet/USB

One power adapter

One RJ-45 Ethernet cable

One USB Cable

Installation CD

This User’s Manual and Quick Start Guide

Warranty & Registration Card

Minimum System Requirements

Broadband Internet connection using an external Ethernet modem

PC with an 10Mbps or 10/100Mbps Ethernet connection

Microsoft Windows 95, Microsoft Windows 98, Microsoft Windows Second

Edition (SE), Microsoft Windows Millennium (ME), Microsoft Windows NT4,

Microsoft Windows 2000, Microsoft Windows XP, MacOS 7.1+, MacOS 8.0+,

MacOS 9.0+, or MacOS X+ (Note: USB LAN port is not supported on

Microsoft Windows 95, Microsoft Windows NT 4.0and MacOS)

Internet Explorer 4.0 or higher (5.x recommended) or Netscape Navigator 4.0

or higher (4.7 recommended)

TCP/IP Network Protocol installed on each computer

Introduction

Introduction to the Wireless Cable/DSL Router

4Introduction to the Wireless Cable/DSL Router

Description of the LEDs and Reset Switch for the Wireless Cable/DSL Router 4-

Port Ethernet/USB (GE144000-01)

Power LED: The Power LED displays the Gateway’s current status. If the LED is

solid green the Gateway is powered and fully operational. When the LED is rapidly

flashing, the Gateway is initializing. If the LED is not illuminated when the power

adapter is plugged in, the Gateway has suffered a critical error and you should con-

tact Technical Support.

Internet LED: When the Internet LED is steadily illuminated, the Gateway is con-

nected to your broadband modem.

Wireless LED: When the Wireless LED is steadily illuminated, the Gateway is ready

for wireless networking.

Ethernet Network LED: The Ethernet Network LEDs illuminate when a network

link is established with a computer. A flashing LED signifies network traffic across

that specific Ethernet connection.

Reset Switch: Depressing the reset switch for 1-2 seconds will reset the Home DSL

Gateway. To restore the default configuration settings inside the Gateway, depress

and hold the reset switch for 10 seconds.

Description of the LEDs and Reset Switch for the Wireless Cable/DSL Router

1-Port Ethernet/USB (GE344000-01)

Power LED: The Power LED displays the Gateway’s current status. If the LED is

solid green the Gateway is powered and fully operational. When the LED is rapid-

ly flashing, the Gateway is initializing. If the LED is not illuminated when the

power adapter is plugged in, the Gateway has suffered a critical error and you

should contact Technical Support.

Internet LED: When the Internet LED is steadily illuminated, the Gateway is con-

nected to your broadband modem.

Wireless LED: When the Wireless LED is steadily illuminated, the Gateway is ready

for wireless networking.

Introduction to the Wireless Cable/DSL Router LAN LED: The LAN LED will illuminate when a network link is established with a

computer. A flashing LED signifies network traffic across the Ethernet connection.

USB LED: The USB LED will illuminate when you connect the router to your com-

puter using a USB cable.

Reset Switch: Depressing the reset switch for 1-2 seconds will reset the Wireless

Cable/DSL Router. To restore the default configuration settings inside the Gateway,

depress and hold the reset switch for 10 seconds.

Before you Connect the Wireless Cable/DSL Router

6Before you Connect the Wireless Cable/DSL Router

3. The following screen will appear. Click Details to continue.

You will need specific information from your ISP to configure the Wireless Cable/DSL Router.

You can obtain most of this information from your broadband configured PC by following these

4 steps. (Windows XP instructions shown below. For all other Operating Systems please see

Apendix A at the back of this manual)

Note: If you have previously installed Internet Connection Sharing (Ex.

Microsoft ICS) or Proxy Server software (Ex. WINPROXY) you will need to

uninstall them now.

1. Click Start, then Settings and finally Network Connections.

Before you Connect the Wireless Cable/DSL Router 2. On the right hand side of the screen, left click once on you the LAN or high speed

interenet connection that is listed. Then on the left hand side of the screen click

View status of this Connection.

Before you Connect the Cable/DSL Router

8Before you Connect the Cable/DSL Router

Your Host/Computer name and Workgroup name (Your ISP may use this information

to verify your identity on their network) (Cable only)

___________________________ ___________________________

Host Name __________________________

(Example: CY57640-A.cospgs1.co.home.com)

DNS Servers ______.______.______.______

(Example: 24.5.68.33)

Your Secondary DNS server address ______.______.______.______

(Click on the ... button to change the listing)

IP address __________________________

(Example: 24.253.117.45)

Subnet Mask (If assigned) ______.______.______.______

(Example: 255.255.255.0)

For a listing of the information required for the major broadband ISP’s, please

visit the following Website and select your specific ISP. Please make sure that

you have this information available when you configure the Actiontec

Wireless Cable/DSL Router.

HTTP://www.actiontec.com/support/homegateway/index.html

4. The Network Connection Details screen will supply you with neccessary informa-

tion. Write down this information for installation and future reference:

Default Gateway (If assigned) ______.______.______.______

(Example: 24.253.117.1)

Adapter Address _____-_____-_____-_____-_____-_____

(Example: 00-20-78-0F-B8-F0)

Your LOGIN name and PASSWORD (DSL only, provided by your ISP)

___________________________ ___________________________

Mail and Web Server Information

Some broadband providers use single words to direct the connection to their E-mail or

web servers (i.e. web, mail, pop3, www). If your ISP uses single words rather than a

whole internet address (pop.mail.actiontec.com), or IP address (24.55.224.34), then

you will need the full address information to configure your internet browser and/or E-

mail clients.

If this information was not provided during the installation and configuration of your

broadband connection, then you will need to contact your ISP and ask for it.

Before you Connect the Cable/DSL Router

10 Before you Connect the Cable/DSL Router

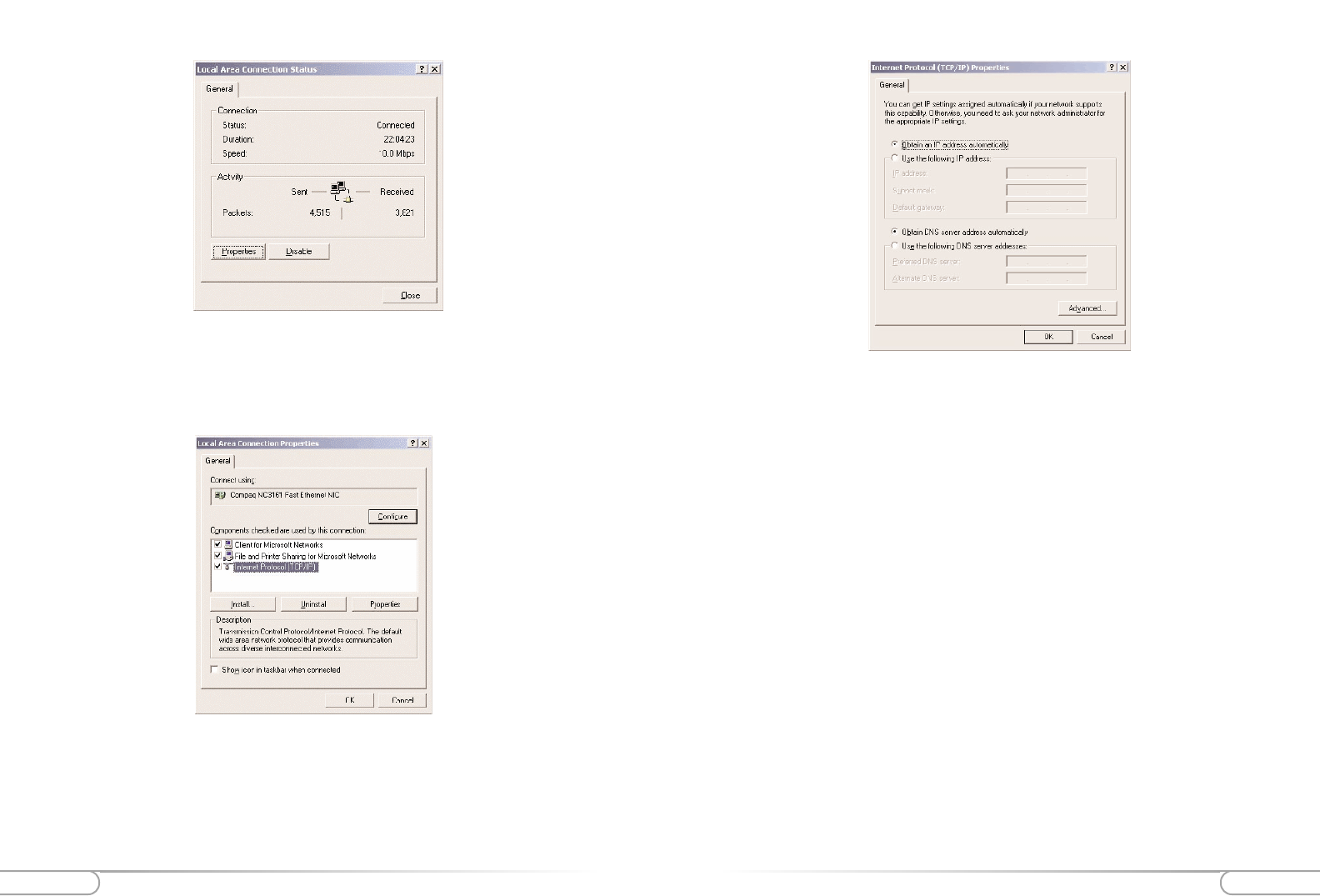

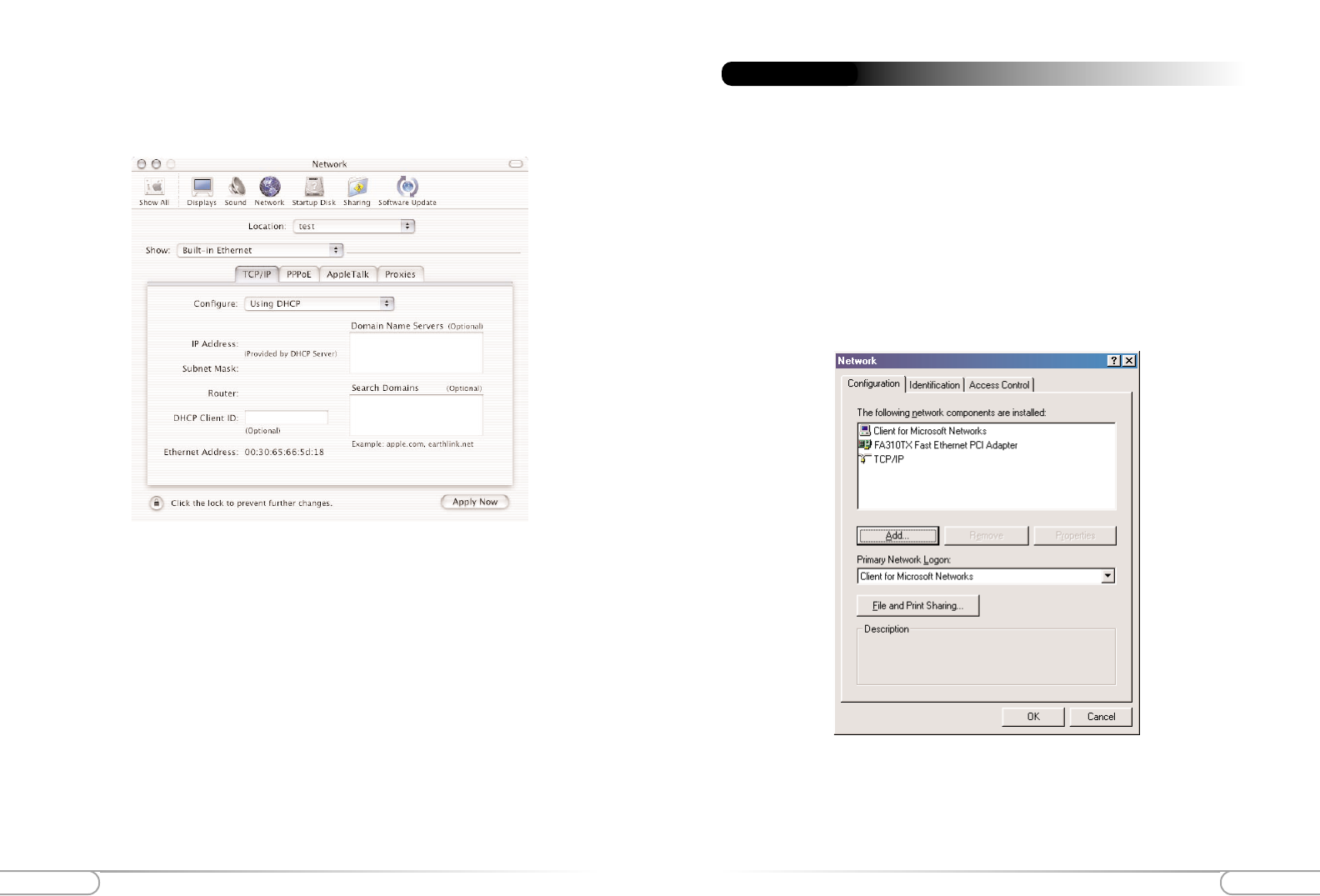

4. Under the General tab select Obtain an IP address automatically, then selct

Obtain DNS server automatically. Click OK.

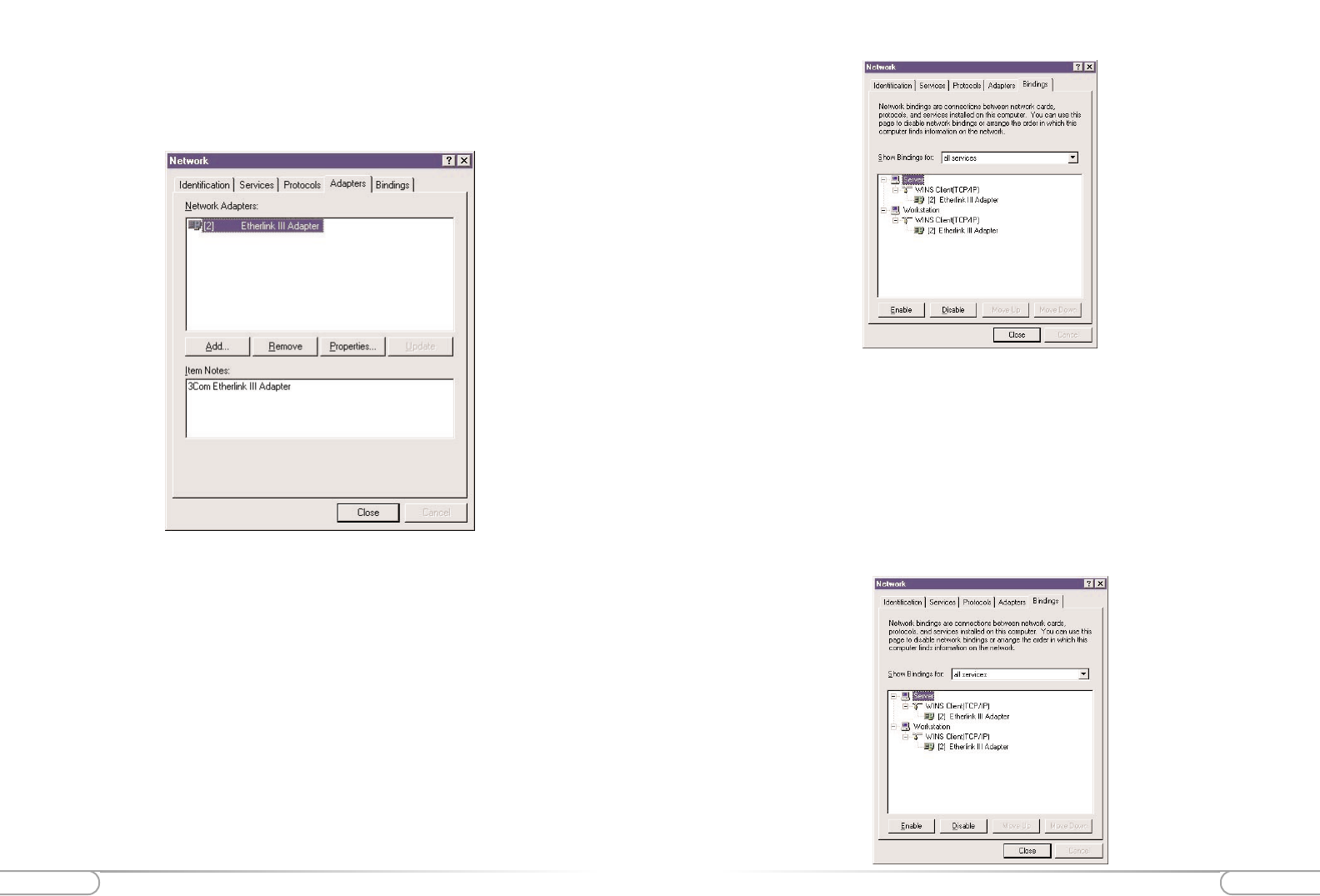

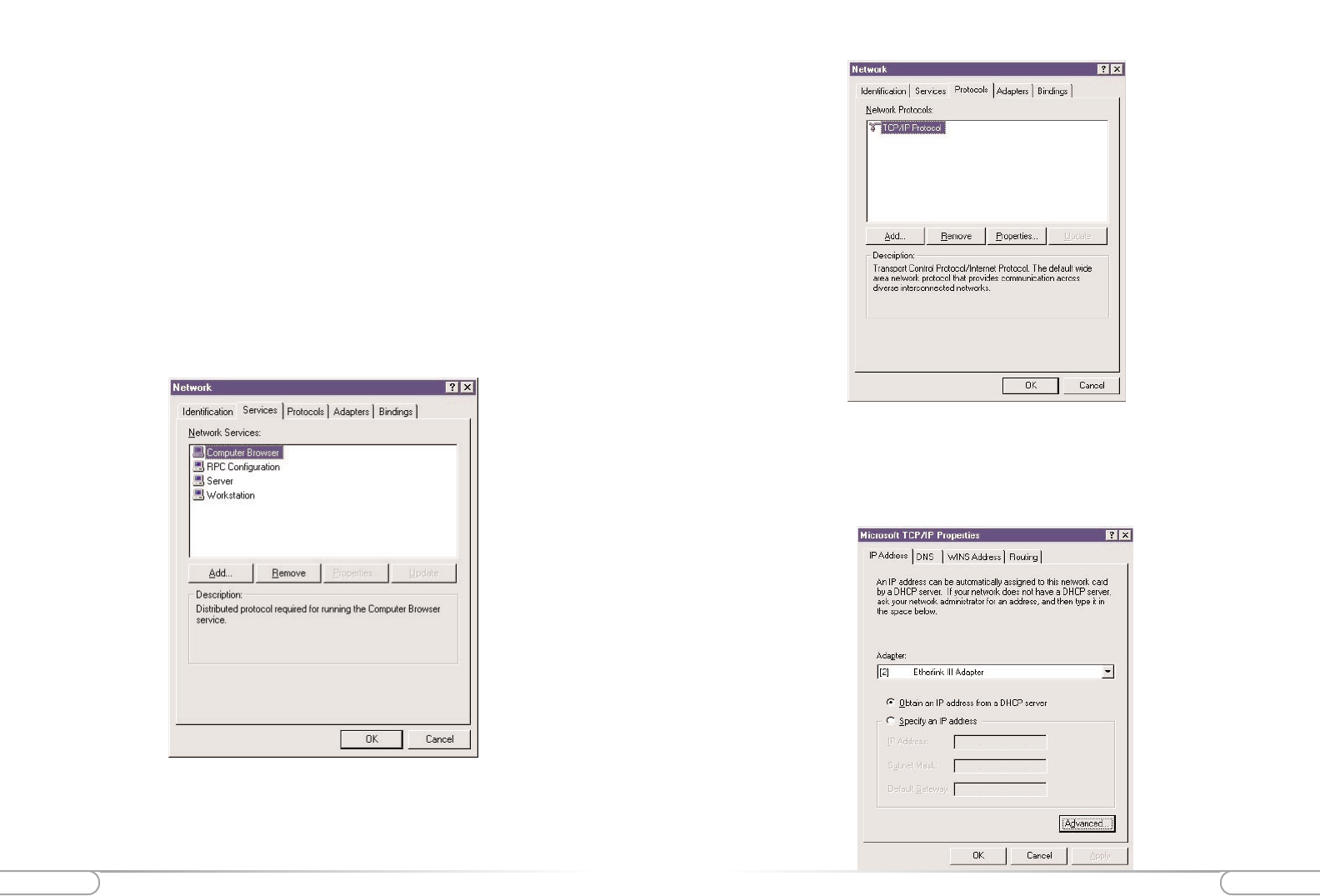

3. In the Local Area Connection Properties window select TCP/IP and then click

Properties. If there is not a listing for TCP/IP then refer to Appendix B for instal-

lation instructions now. If there are no Ethernet Adapters listed, then refer to the

Ethernet card manufacturer for installation instructions.

Configuring your Computer for Networking

Before configuring the Wireless Cable/DSL Router, a computer must be configured for

standard networking. If you are not running Windows XP, (shown below), then refer to

Appendix A for information on configuring other Windows or MacOS based operating

systems. It may be necessary to have the Windows CD or Ethernet card driver diskette

to complete the configuration.

1. Click Start, then Settings and finally

Network Connections.

2. On the right hand side of the screen, left click once on you the LAN or high speed

interenet connection that is listed. Then on the left hand side of the screen click

Change settings of this Connection.

Before you Connect the Wireless Cable/DSL Router

12 Before you Connect the Wireless Cable/DSL Router

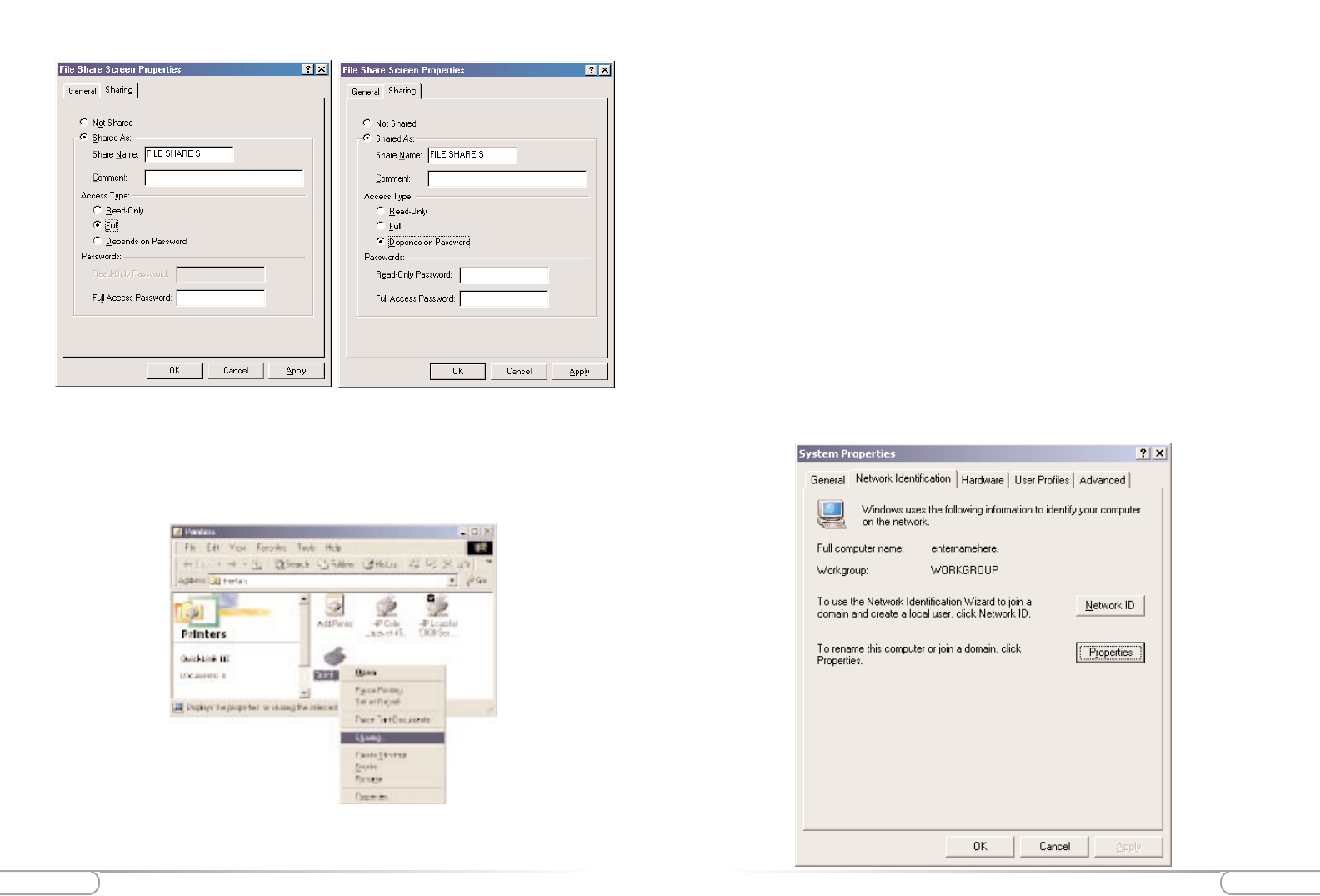

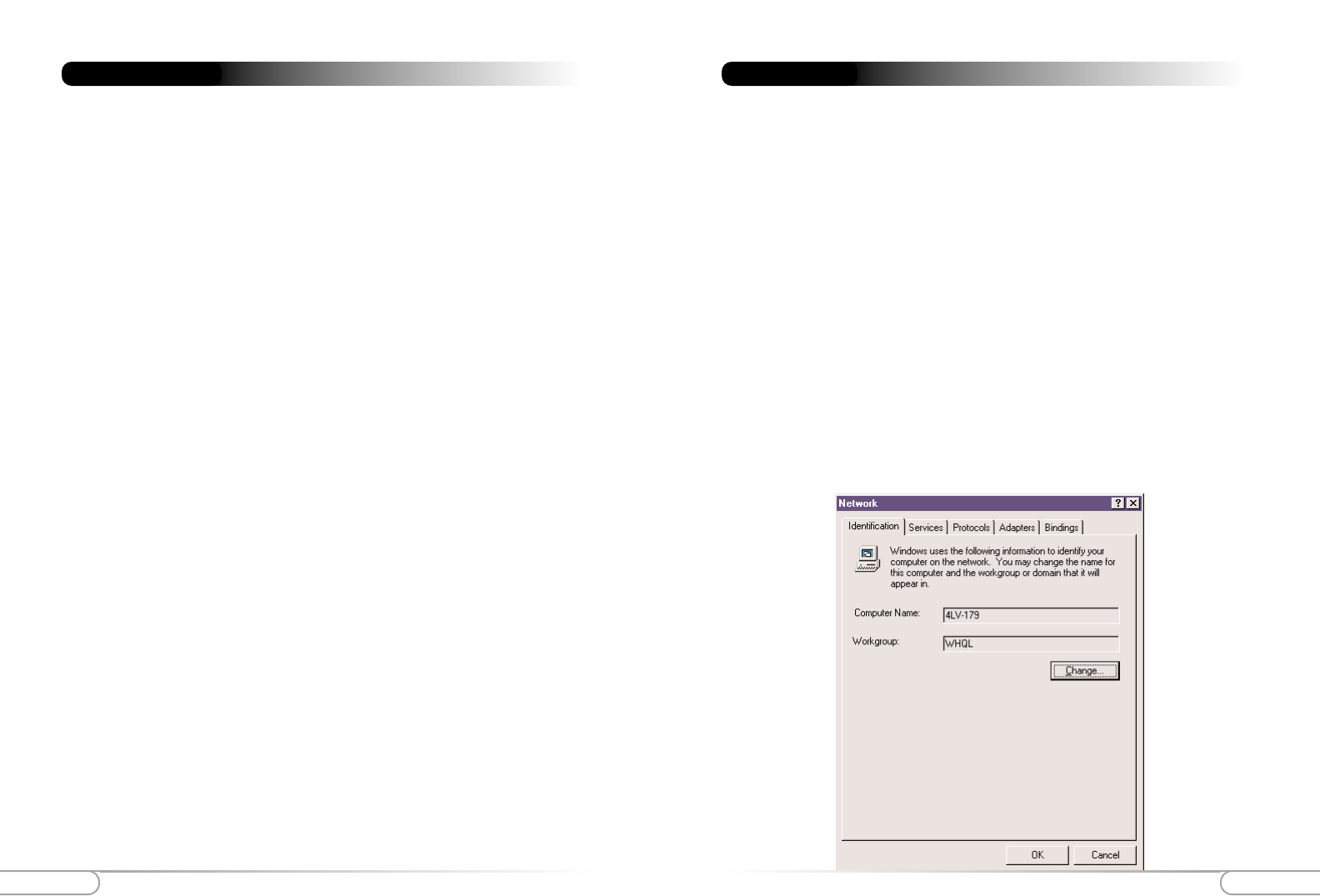

6. The System Properties window will appear. Click the Computer Name tab. The

“Computer Description” field can be anything you want. (A location name or the

main user’s name is generally used) Click Change.

5. On your computer’s desktop right click on My Computer and select Properties

from the given list.

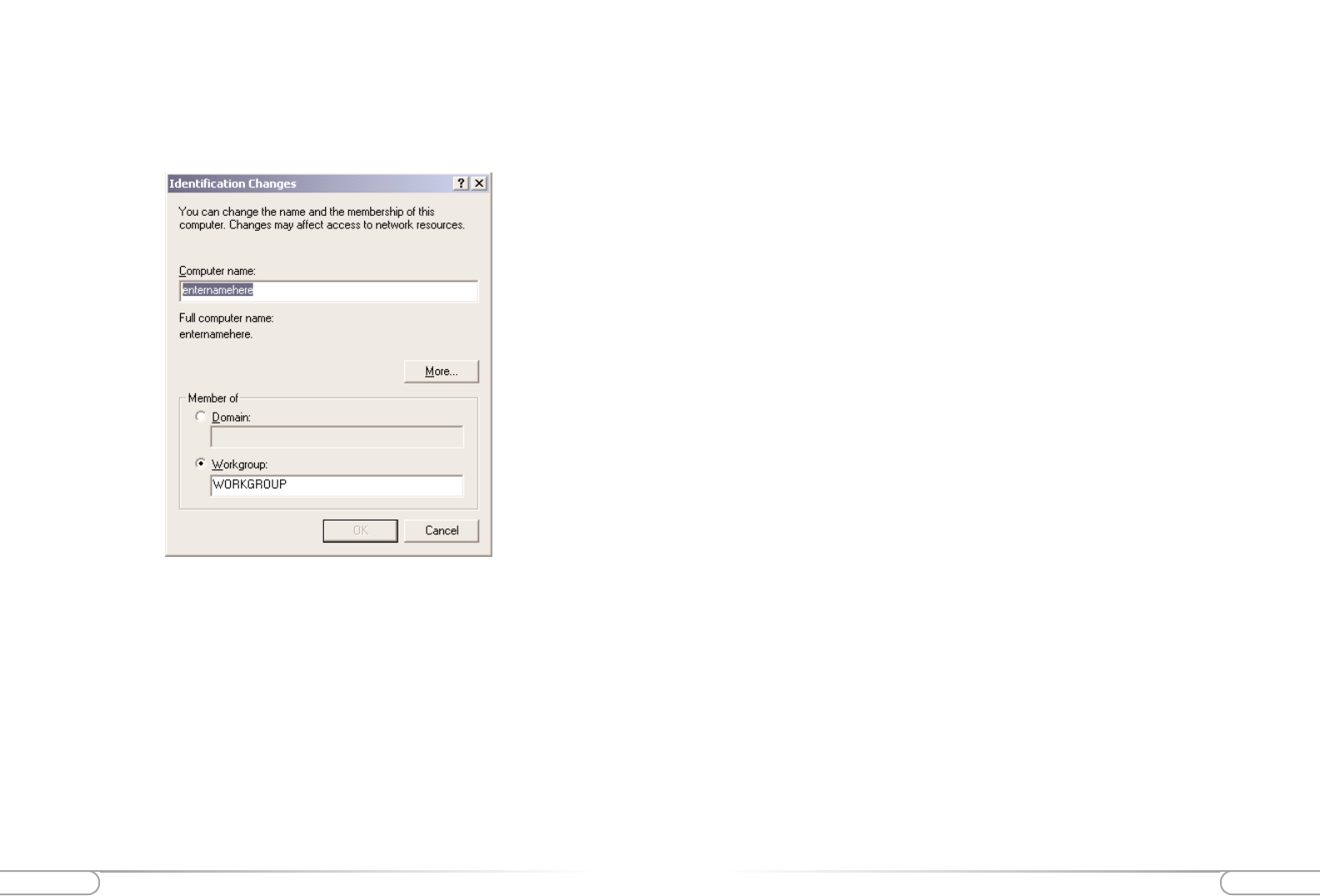

7. Type your chosen computer name in the given field. The “Computer name” field

must have a 15 character limit and must be unique. Make sure that Workgroup is

selected, and then type in the name of your workgroup. The “Workgroup” field

must have the same name on all computers attached to your network. Click OK

when you are finished. You will return to the same screen in step 6, click OK again.

Please restart your computer even if you are not asked to.

8. Once the computer restarts and Windows has finished loading, you will be

prompted for a password. DO NOT PRESS ESCAPE. This is the password that

Windows will use to authenticate your permission to be on the network. The pass-

word you enter now will become your permanent network password. You may also

just press OK or <Enter> and your password will be set to blank.

Note: This password will be required each time you restart Windows.

Repeat steps 1 thru 8 for each PC connected to your network.

Ensure you use the same Workgroup name on each PC.

Before you Connect the Wireless Cable/DSL Router

Before you Connect the Wireless Cable/DSL Router 1514

4. Click on Proxies and ensure that Direct connection to the Internet is selected.

5. Click OK to close the Preferences window.

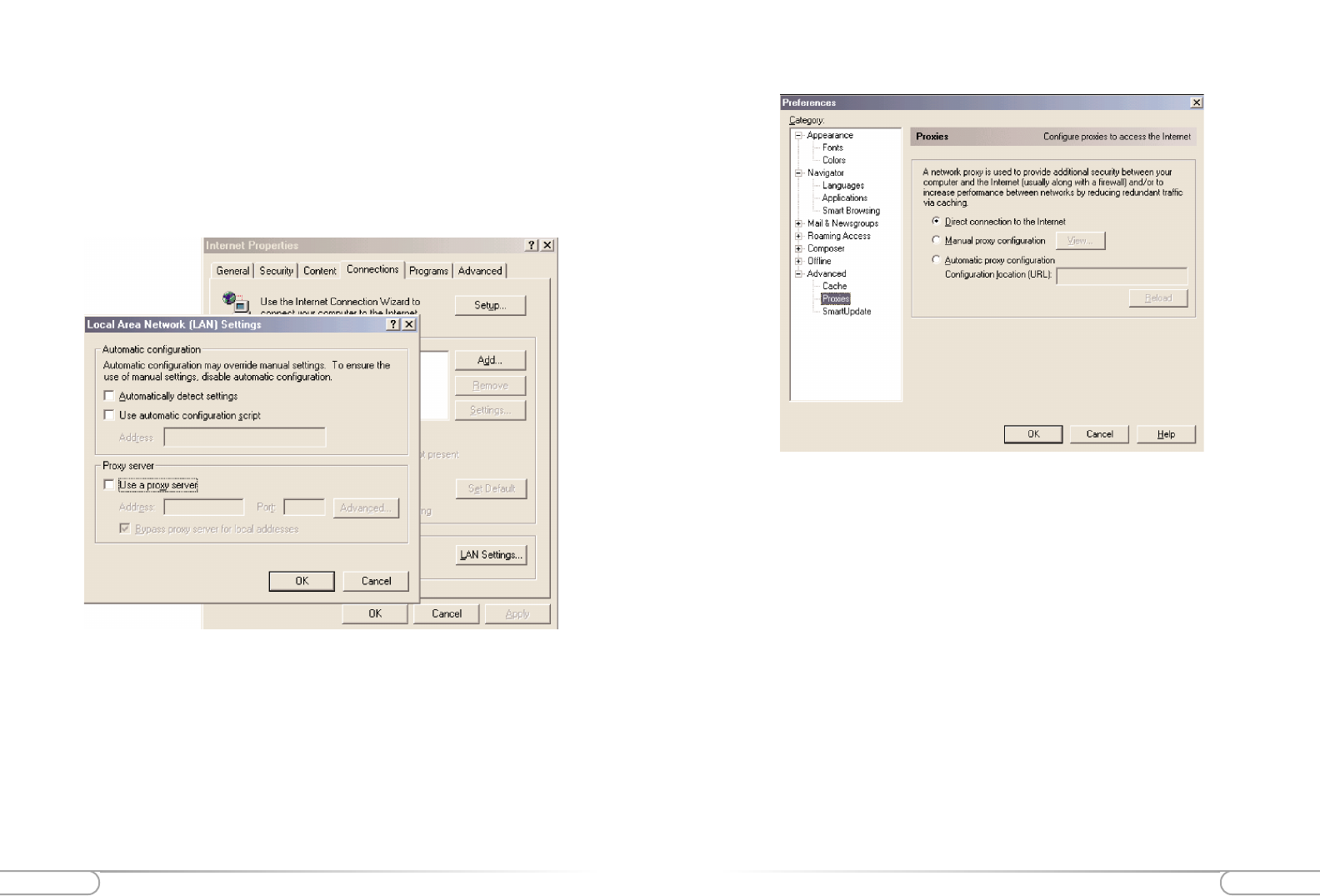

Configuring Your Internet Browser

If “Internet Explorer” is your default browser:

1. Click Start, click Settings, select Control Panel.

2. Double click Internet Options, select the Connections tab.

3. Click LAN Settings. Remove any checks from the 3 boxes and click OK.

4. Click OK to close the Internet Properties window.

5. Close the Control Panel window.

If “Netscape Navigator” is your default browser:

1. Open Netscape Navigator.

2. From the top menu bar select Edit and then click Preferences.

3. Under the Category windows click on the + (plus icon) next to Advanced.

Connecting the Actiontec Wireless Cable/DSL RouterConnecting the Actiontec Wireless Cable/DSL Router 17

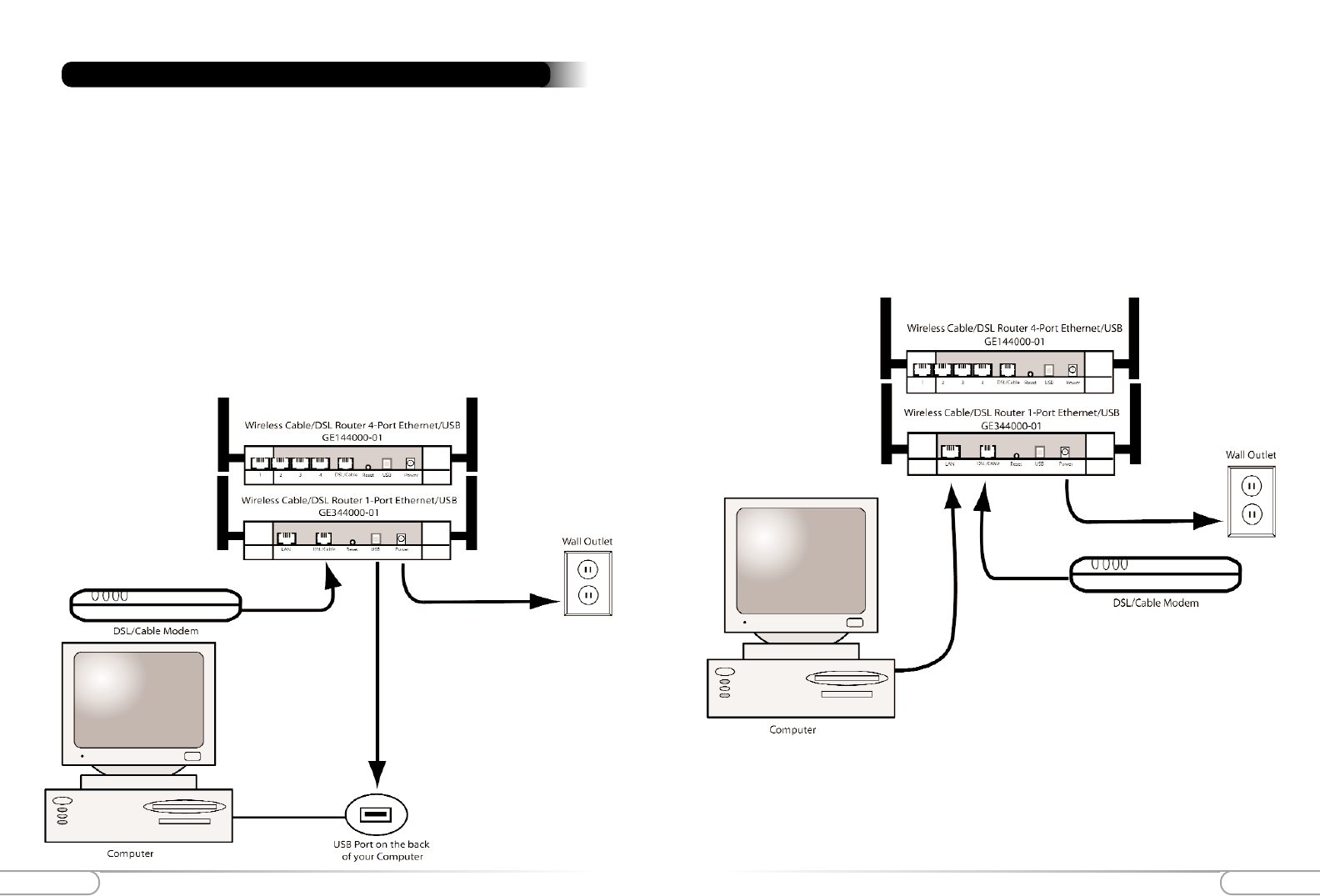

For Ethernet Connection:

1. Please start up your computer.

2. After your computer has started up, locate the blue Ethernet cable marked

"Ethernet cable". Connect the cable to the back of the Actiontec Wireless

Cable/DSL Router and then to your Computer, into the Ethernet slot.

3. Plug the Power Supply into a wall outlet, then plug the other end to the port

labeled “Power”, on the back of the Actiontec Wireless Cable/DSL Router.

The Actiontec Wireless Cable/DSL Router allows you to connect to your computer in

two (wired) ways, by USB cable or Ethernet cable, and wireless. Follow these instruc-

tions for the connection you choose:

For USB Connection:

1. Please start up your computer.

2. After your computer has started up, locate the USB Cable. Connect the square end to the

slot on the ActiontecWireless Cable/DSL Router labeled “USB”. On your PC, connect

the other, rectangular end to the appropriate USB slot.

3. Plug the Power Supply into a wall outlet, then plug the other end to the port

labeled “Power”, on the back of the Actiontec Wireless Cable/DSL Router.

Connecting the Actiontec Wireless Cable/DSL Router

Installing the USB Drivers

18 Installing the USB Drivers

3. Click the box for CD-ROM drive. Before advancing to the next screen, insert the

Actiontec Gateway Installation CD-ROM into the computer’s CD-ROM drive.

Finally, click the Next button.

4. Windows will find the appropriate file on the CD-ROM. Click the Next button.

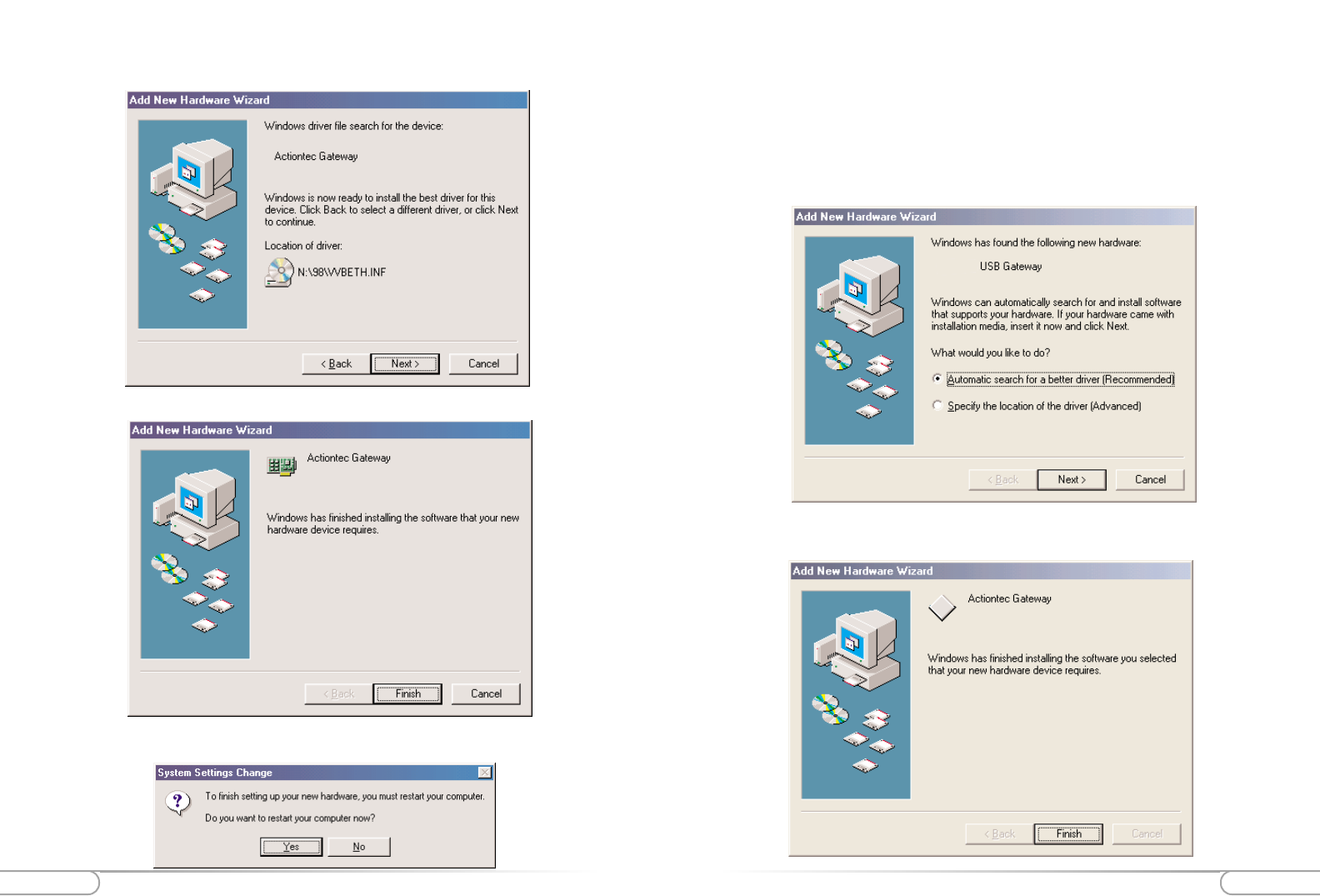

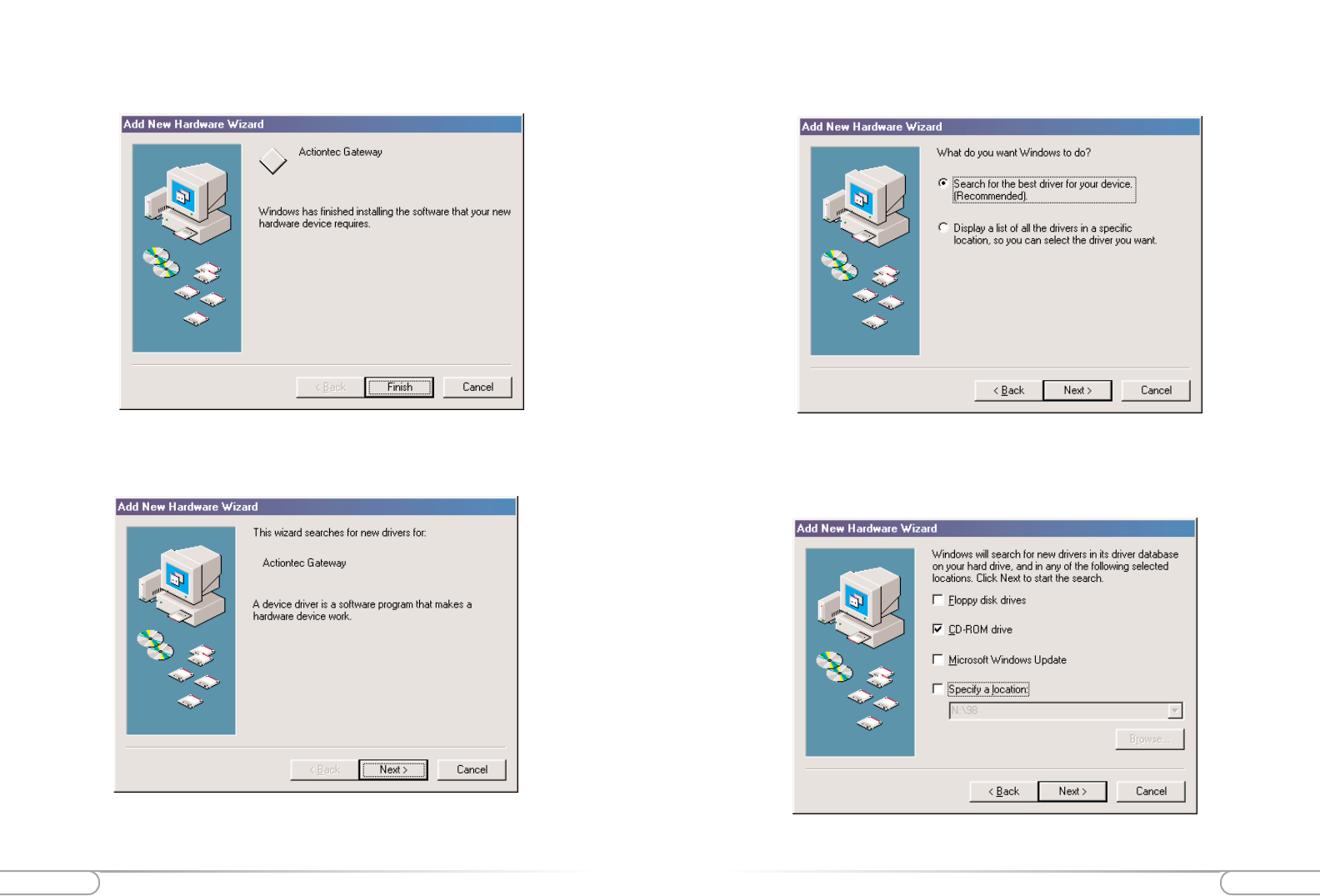

For Windows 98

Note: There are two drivers that will need to be installed, so please follow these instruc-

tions

1. After you have connected the Wireless Cable/DSL Router to your computer, the

Add New Hardware Wizard screen will appear. Click Next to continue.

Installing the USB Drivers

2. Select the option “Search for the best driver for your device (Recommended)” and

then click the Next button.

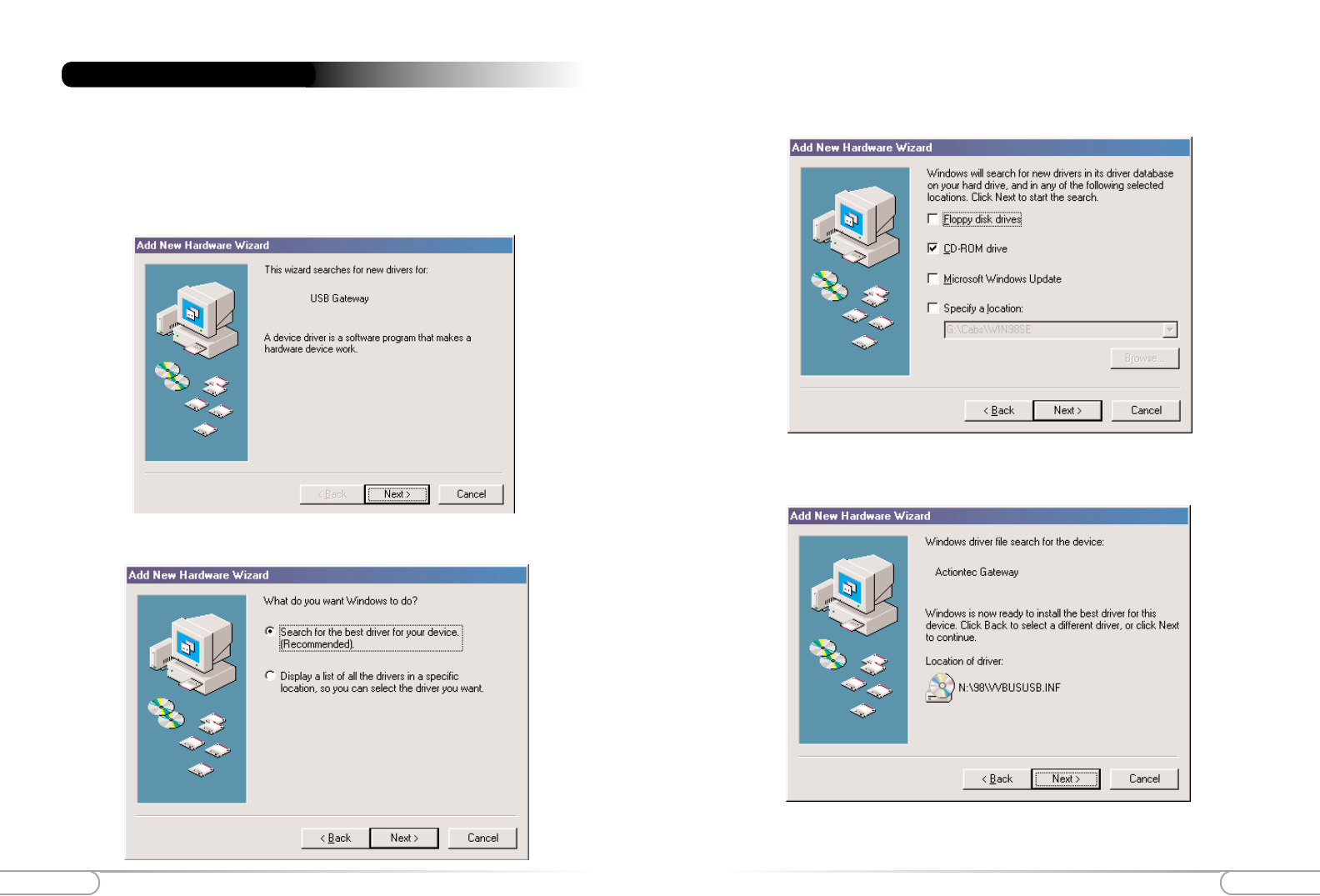

Installing the USB Drivers

20 Installing the USB Drivers

6. Select the option “Search for the best driver for your device (Recommended)” and

then click Next.

7. Click the box for CD-ROM drive. and then click the Next button.

5. Windows will install the first drivers needed for your computer. Click the Finish

button to continue.

6. The following screen will appear. Click Next to install the second driver.

Installing the USB Drivers

22 Installing the USB Drivers

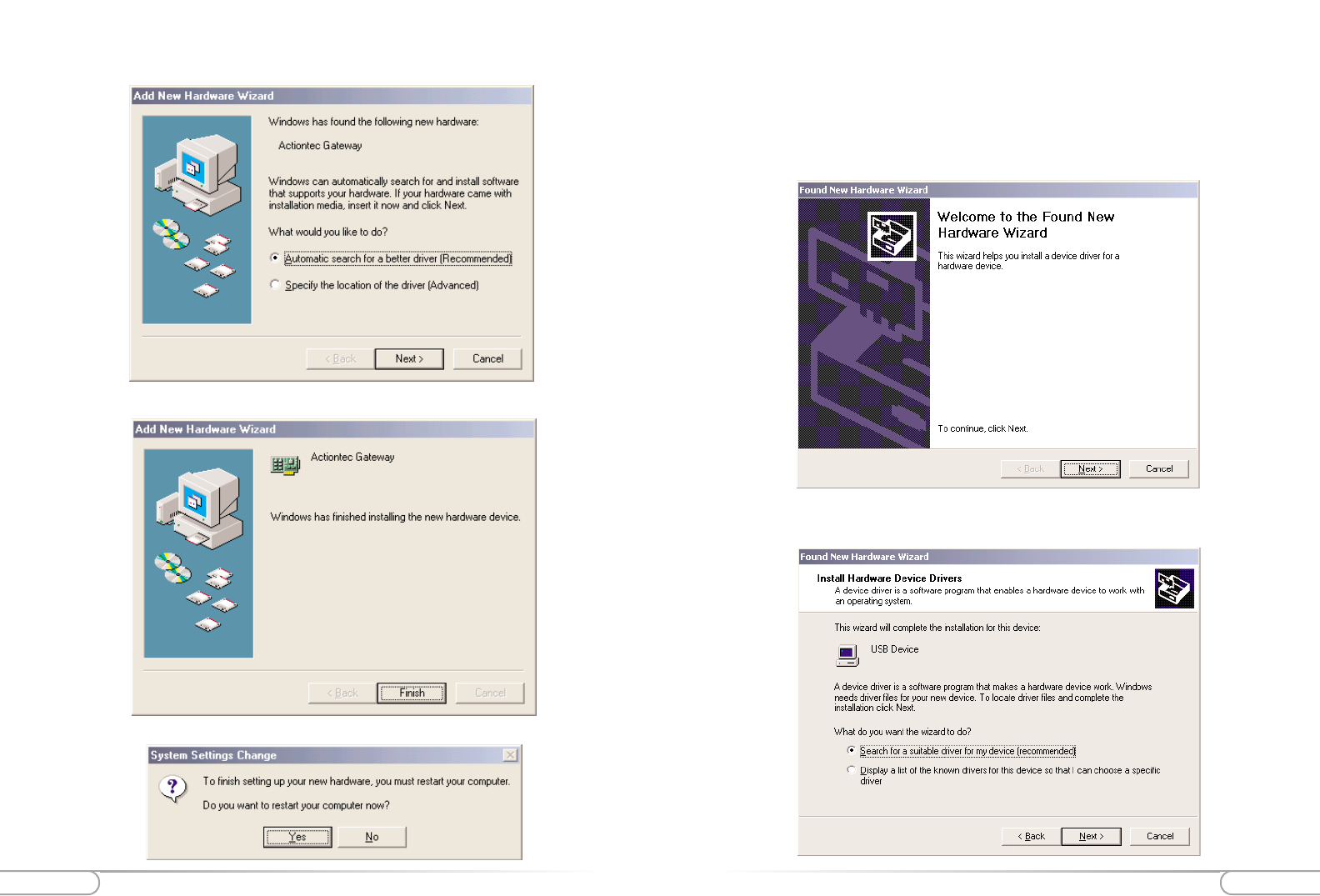

For Windows ME

Note: There are two drivers that will need to be installed, so please follow these instruc-

tions

1. After you have connected the Wireless Cable/DSL Router to your computer, the

Add New Hardware Wizard screen will appear. Make sure “Automatic search...” is

selected and then click Next to continue.

2. Windows will install the first drivers needed for your computer. Click the Finish

button to continue.

8. Windows will find the appropriate file on the CD-ROM. Click the Next button.

9. Click Finish to end the installation process.

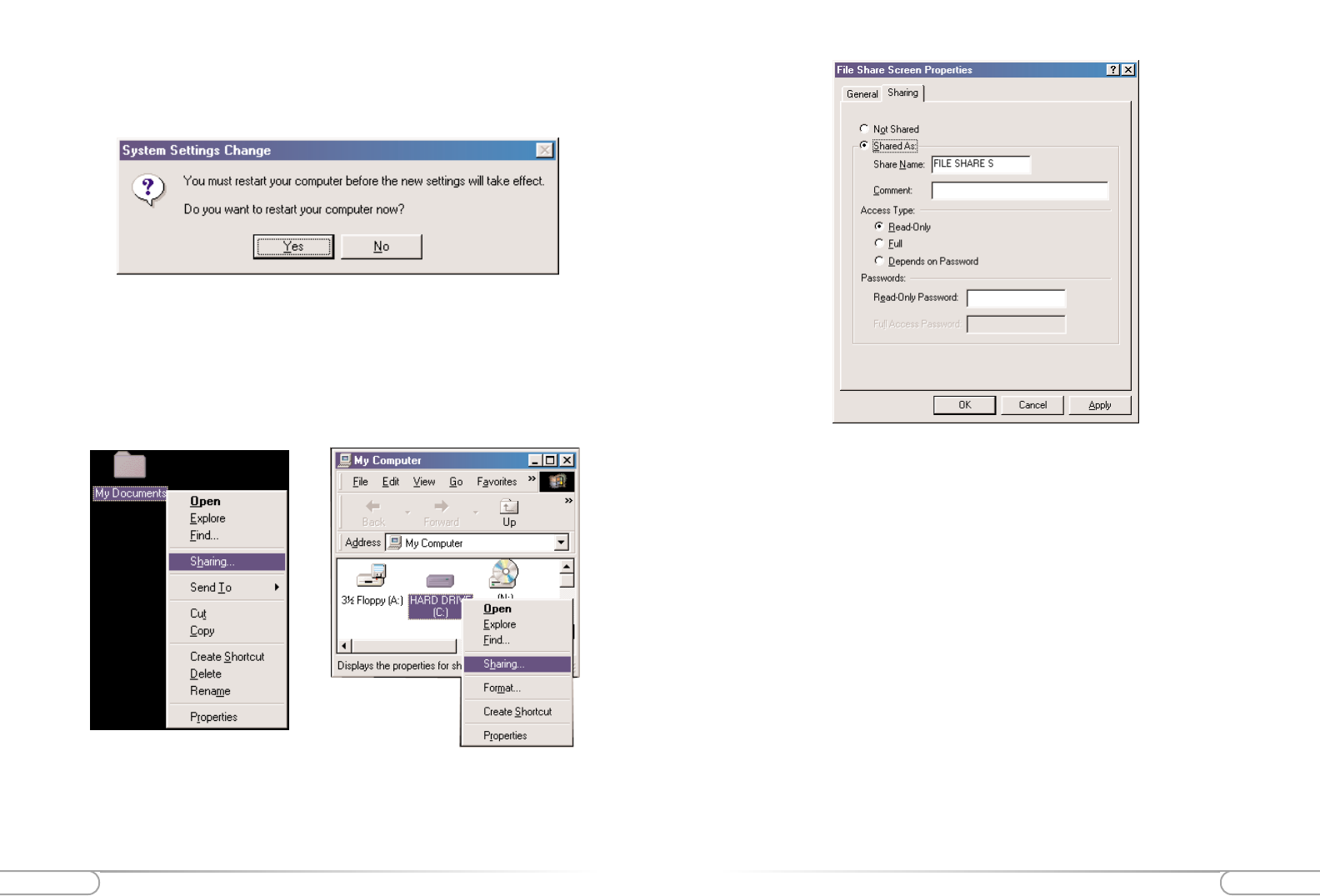

10. When the following screen appears, click Yes to restart your computer.

Installing the USB Drivers

24 Installing the USB Drivers

For Windows 2000

Note: There are two drivers that will need to be installed, so please follow these instruc-

tions

1. After you have connected the Wireless Cable/DSL Router to your computer, the

Found New Hardware Wizard screen will appear. Click Next to continue.

2. Select the option “Search for a suitable driver for my device (Recommended)” and

then click the Next button.

3. Make sure “Automatic search...” is selected and then click Next to continue.

4. Click Finish to end the installation process.

5. When the following screen appears, click Yes to restart your computer.

Installing the USB Drivers

26 Installing the USB Drivers

5. Click Finish to end the installation process.

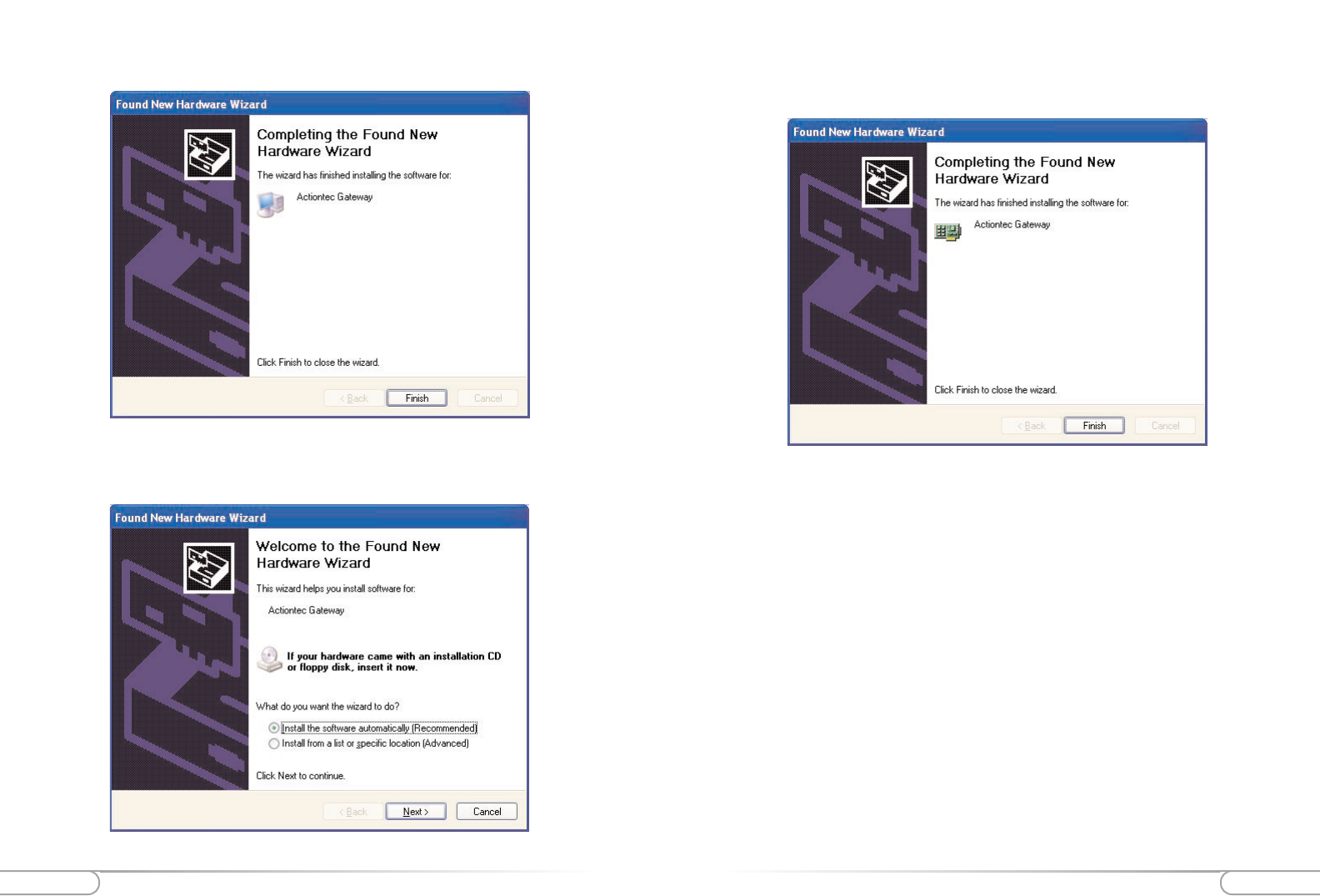

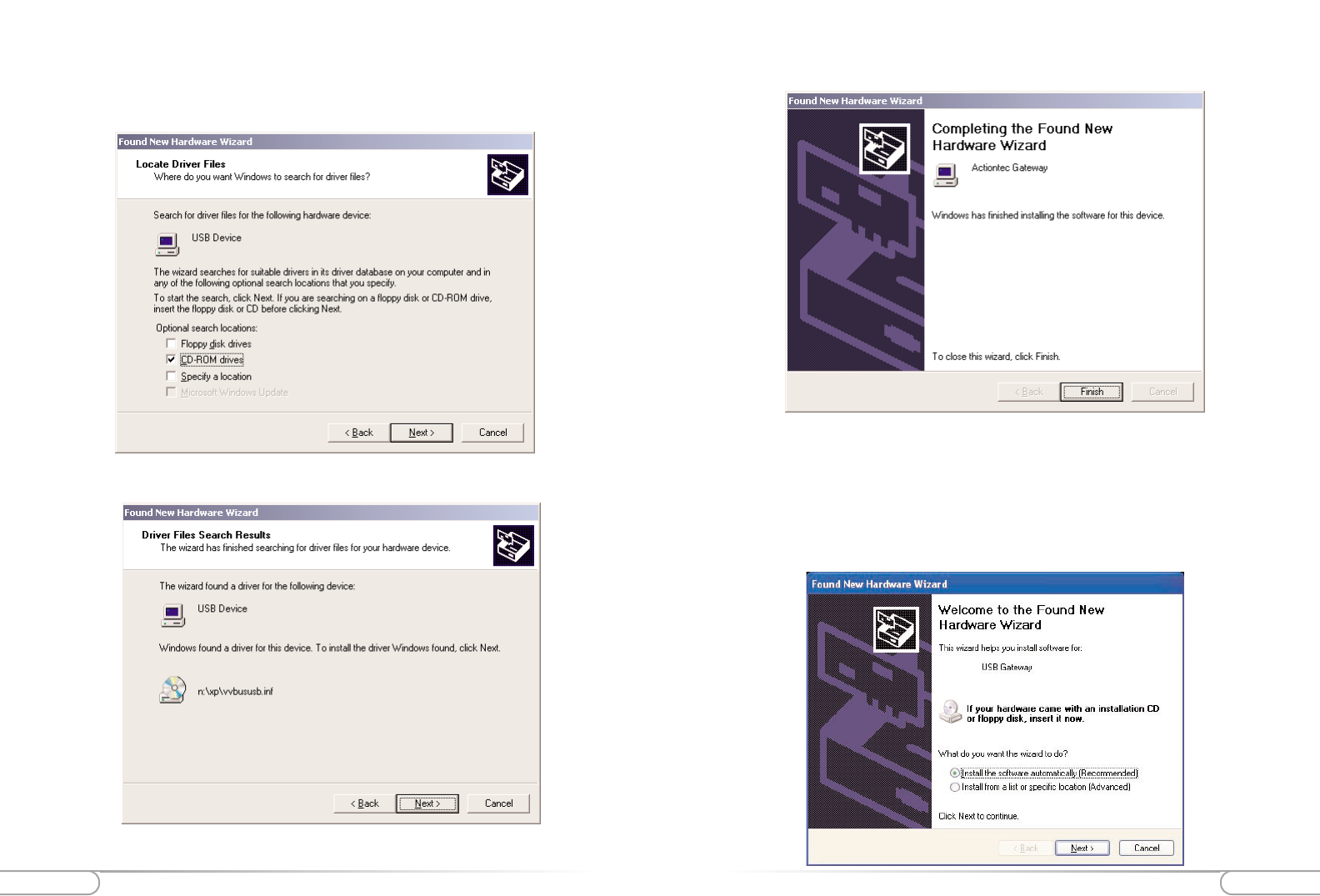

For Windows XP

Note: There are two drivers that will need to be installed, so please follow these instruc-

tions

1. After you have connected the Wireless Cable/DSL Router to your computer, the

Found New Hardware Wizard screen will appear. Make sure “Install software auto-

matically (Recomended)” is selected and then click Next to continue.

3. Click the box for CD-ROM drive. Before advancing to the next screen, insert the

Actiontec Gateway Installation CD-ROM into the computer’s CD-ROM drive.

Finally, click the Next button.

4. Windows will find the appropriate file on the CD-ROM. Click the Next button.

Installing the USB Drivers

28 Installing the USB Drivers

4. Windows XP will Install the final set of drivers. Click Next to finish the installa-

tion process.

2. Windows XP will Install the first set of drivers. Click Next to continue.

3. The following screen will appear. Make sure “Install software automatically

(Recomended)” is selected and then click Next to continue.

Configuring the Actiontec Wireless Cable/DSL RouterConfiguring the Actiontec Wireless Cable/DSL Router 31

4. Make sure that you have completed the 3 steps listed then click Next.

5. Select either DSL or Cable depending on your broadband service then click Next.

(If your have a T1 Line or Fixed Point Broadband, click Cable.)

6a. If you selected DSL enter your user name and password provided by your ISP.

Click Next.

3. Follow the on-screen instructions and then click Begin Basic Setup.

Basic Setup

Follow the step below to configure your Cable/DSL Router:

1. Open your Internet Web Browser and in the address bar type: http://192.168.0.1

and then press the <Enter> key.

Configuring the Actiontec Wireless Cable/DSL Router

2. When the web page is loaded, the following screen will appear. Click

Setup/Configuration.

Configuring the Actiontec Wireless Cable/DSL Router Configuring the Actiontec Wireless Cable/DSL Router 33

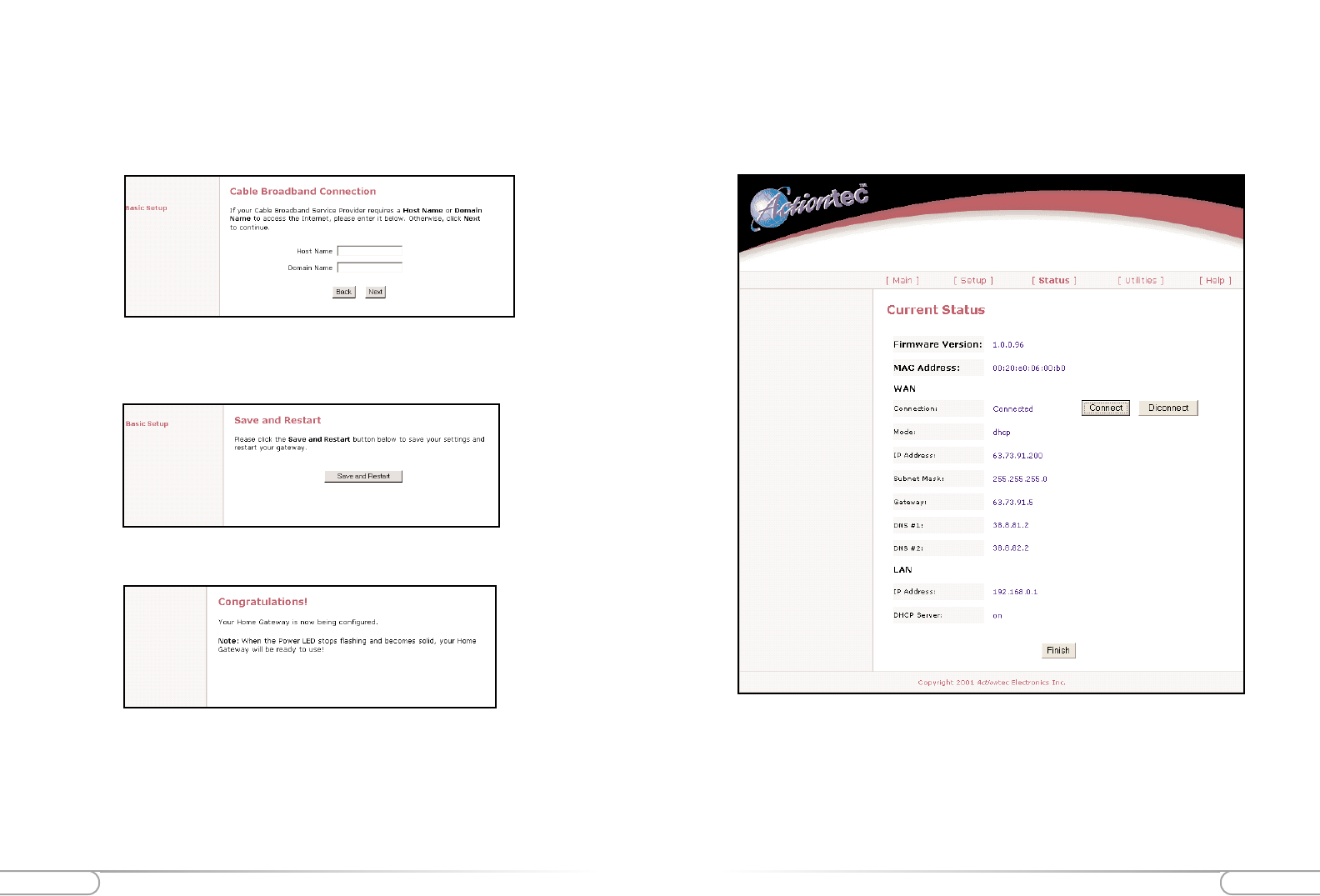

Status Screen

After you have configured your Wireless Cable/DSL Router with the Basic Setup fea-

ture, you can check the status of your Wireless Cable/DSL Router. Click Status an the

main page of the Wireless Cable/DSL Routers’ web based utility. (See second screen

shot, under step 2, on page 18)

Firmware Version:

This will give you the version number of the current firmware.

MAC Address:

This field will display the MAC address of the Wireless Cable/DSL Router. The MAC

address is an identifier that is specific to each device that can connect to any network,

sort of a fingerprint for the Internet. Some ISP’s use this information to validate the PC’s

6b. If you selected Cable and your ISP requires a Host Name or Domain name to

access their network enter it now. Click Next.

Note: If your Cable ISP does not require a host or domain name then leave the

fields blank.

7. Your Actiontec Wireless Cable/DSL Router is now finished with the configuration

process. Click Save and Restart.

8. A congratulations screen will announce the end of the Basic Setup.

The power LED will flash rapidly while the Wireless Cable/DSL Router restarts, before

turning a solid green. The Wireless Cable/DSL Router is now ready and you can begin

surfing the web.

If you receive an error that your browser was unable to connect to the Internet, check

your configuration settings. Please ensure that you entered all the information required

by your ISP.

Configuring the Actiontec Wireless Cable/DSL RouterConfiguring the Actiontec Wireless Cable/DSL Router 35

This is the primary Domain Name Server address. This is like a telephone book

of all internet addresses.

DNS #2

This is the secondary Domain Name Server address.

LAN

IP Address

The IP Address of the Wireless Cable/DSL Router as seen by the PC’s within

your LAN.

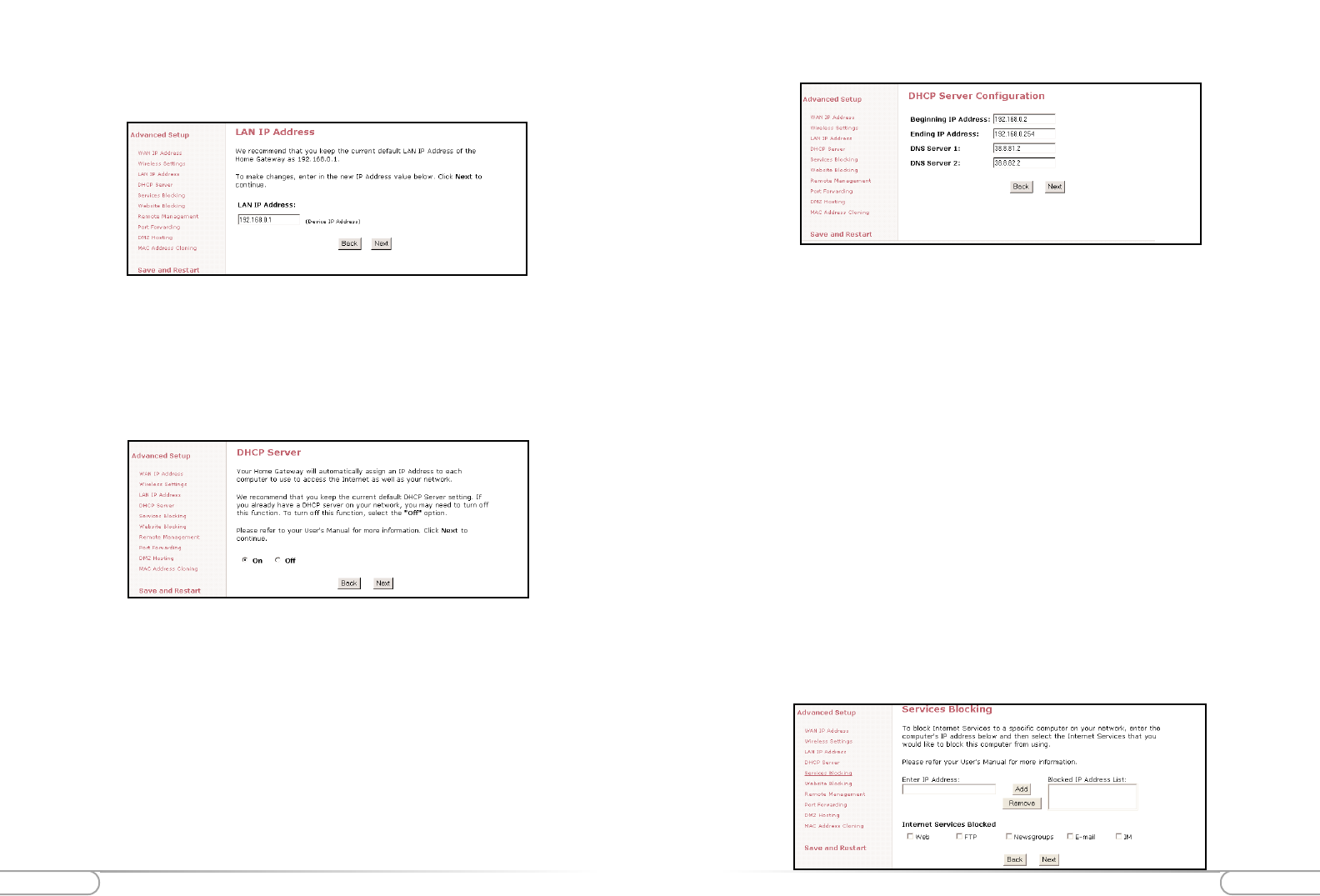

DHCP Server

On: This means that all of your PC’s will receive their IP address and other con-

figuration data from the Wireless Cable/DSL Router each time they connect.

Off: This means that each machine is configured individually with an IP, subnet

mask, gateway and DNS server information.

identification before it will allow you to access its network.

WAN

Connection:

Connected: A valid connection through the Cable/DSL modem to the Internet

exists.

Connecting...: The Cable/DSL Router is trying to establish a connection with

the ISP.

Disconnected: A valid connection to the Cable/DSL modem exists, but there is

no connection to the Internet.

Off: A valid physical connection to the Cable/DSL modem is not present

Mode:

Static: Static IP Address information for the connection that was entered in the

setup is being used

DHCP: The Wireless Cable/DSL Router is being assigned an IP address and

being sent other connection information each time the connection to the ISP is

renewed

PPPoE: The connection is being made through Point to Point Protocol. This is

usually the case for DSL broadband.

IP Address

The IP address currently assigned and being used by the Wireless Cable/DSL

Router to connect to the ISP

Subnet Mask

The subnet mask being used is normally 255.255.255.0 (Class C IP Address)

Gateway

This is the IP address that the Wireless Cable/DSL Router uses to send all

requests to the Internet.

DNS #1

Advanced Configuration of the Wireless Cable/DSL RouterAdvanced Configuration of the Wireless Cable/DSL Router 37

4. Click on Begin Advanced Setup.

5. You will see the following screen showing all the options available in Advanced

Setup. If you want to check all the settings, or are unsure of which setting you want

to modify, select Next. If you want to modify a specific configuration, simply click

on its name in the left menu bar.

Note: You may click Save and Restart on the bottom left hand side of the screen

when you have finished configuring any one or more of the advance settings.

3. Follow the on-screen instructions and then click Advanced Setup.

The Advanced Setup section allows advanced users to configure such features as the

wireless settings. The following sections explain each feature you can configure in the

advanced setup section.

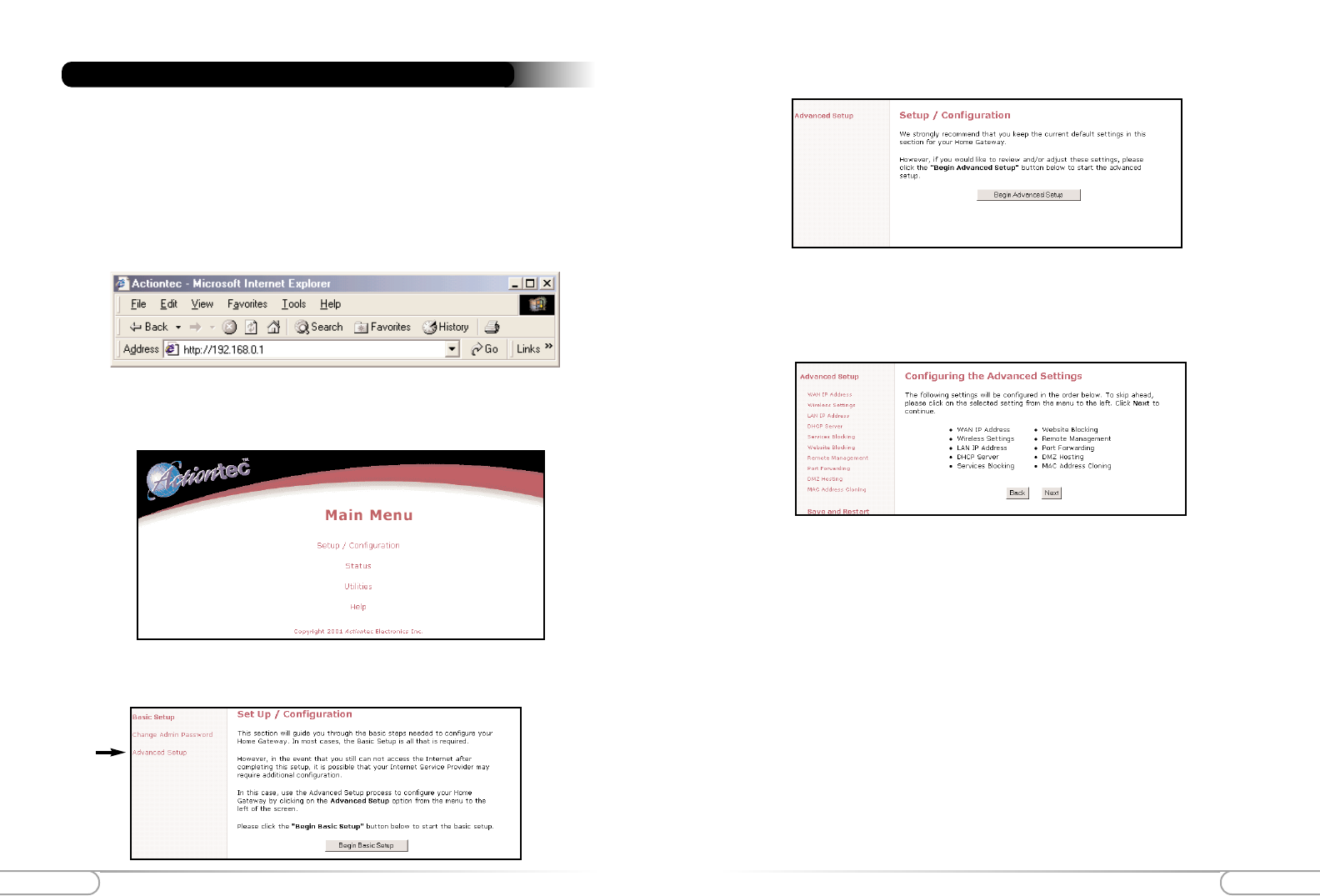

1. Open your Internet Web Browser and in the address bar type: http://192.168.0.1

and then press the <Enter> key.

Advanced Configuration of the Wireless Cable/DSL Router

2. When the web page is loaded, the following screen will appear. Click

Setup/Configuration.

Advanced Configuration of the Wireless Cable/DSL RouterAdvanced Configuration of the Wireless Cable/DSL Router 39

Note: For the Host Name and Domain Name you may also find this informa-

tion from your PC which was originally connected to the cable modem. Please

see the Before you Begin section on pages 6-7. If your cable modem ISP does not

require these settings, then you may leave them blank.

Specify a Static IP Address

This setting is used if you have been assigned a static (Specific) IP Address by your ISP.

You will need to enter the IP Address and Default Gateway provided by your ISP. You

may also need to enter your Host Name and Domain Name if required.

with their host name and/or domain name. Please check with your ISP for what host

name and domain name you have to use in the following fields.

IP Address: IP Address of your Wireless Cable/DSL Router as seen by external

users on the Internet.

Subnet Mask: This will be provided by your ISP.

Default Gateway: This will be provided by your ISP.

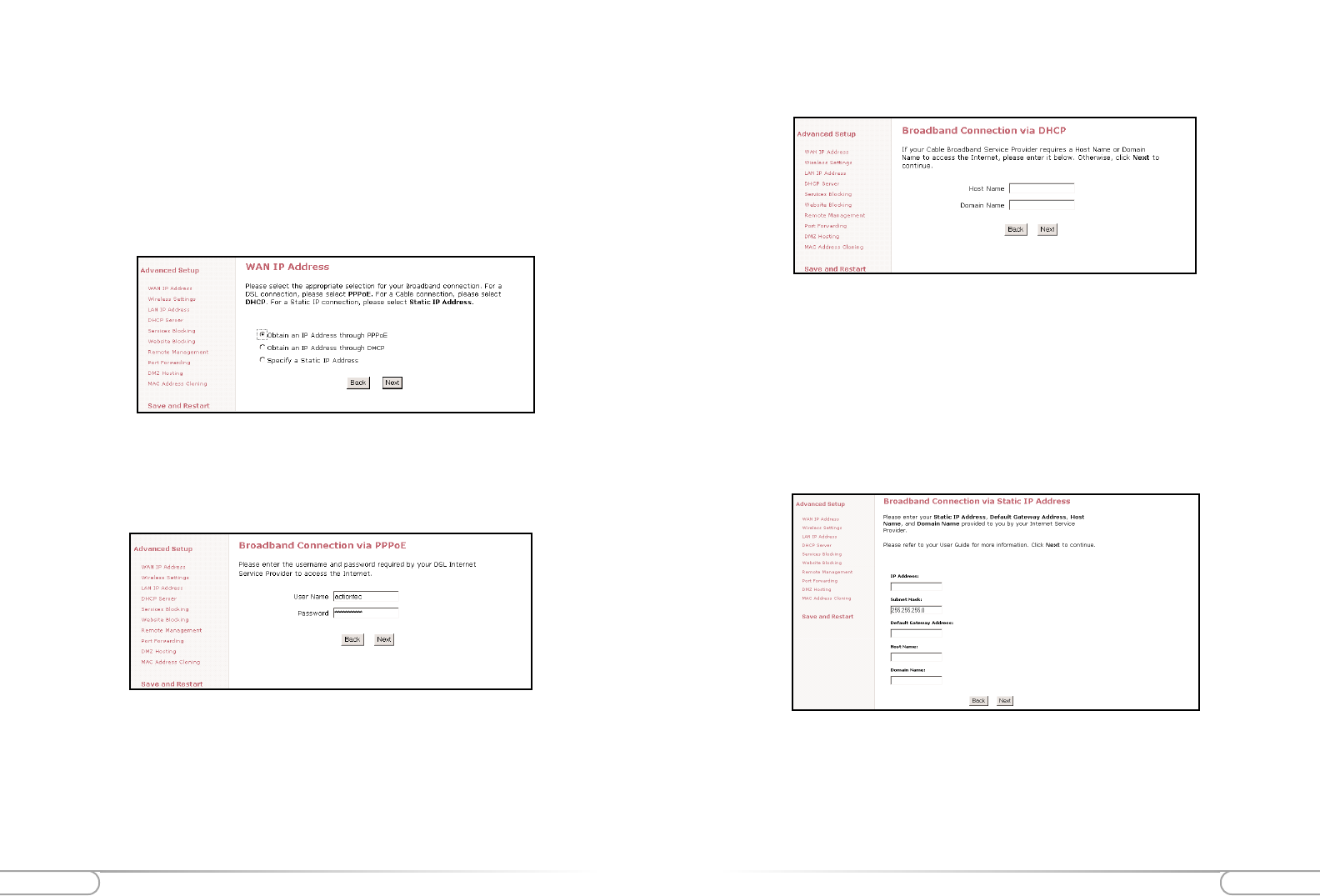

Wan IP Address

This screen allows you to manually set up your Wireless Cable/DSL Router. The fol-

lowing are three methods by which your ISP will assign an IP Address to your Wireless

Cable/DSL Router.

Note: Some DSL providers use PPPoE to establish communication with an end

user, while others use static IP. Cable modem providers and other broadband

Internet access such as fixed point wireless may use either DHCP or Static IP

address. If you are unsure, please check with your ISP.

Obtain and IP Address through PPPoE

This setting is used for DSL connections and it allows the modem to use the Point-to-

Point over Ethernet (PPPoE) protocol. If you already entered the user name and pass-

word in the Basic Setup, then it should be displayed now. Click Next to continue.

User Name: User name given to you by your DSL provider to access the Internet.

Password: Password given to you by your DSL provider to access the Internet.

Obtain an IP through DHCP

This setting is used for Cable modem configurations that do not have a Static IP

assigned by the ISP. This allows the modem to query the ISP and receive an IP address

and routing information. Some cable modem providers need to authenticate the users

Advanced Configuration of the Wireless Cable/DSL RouterAdvanced Configuration of the Wireless Cable/DSL Router 41

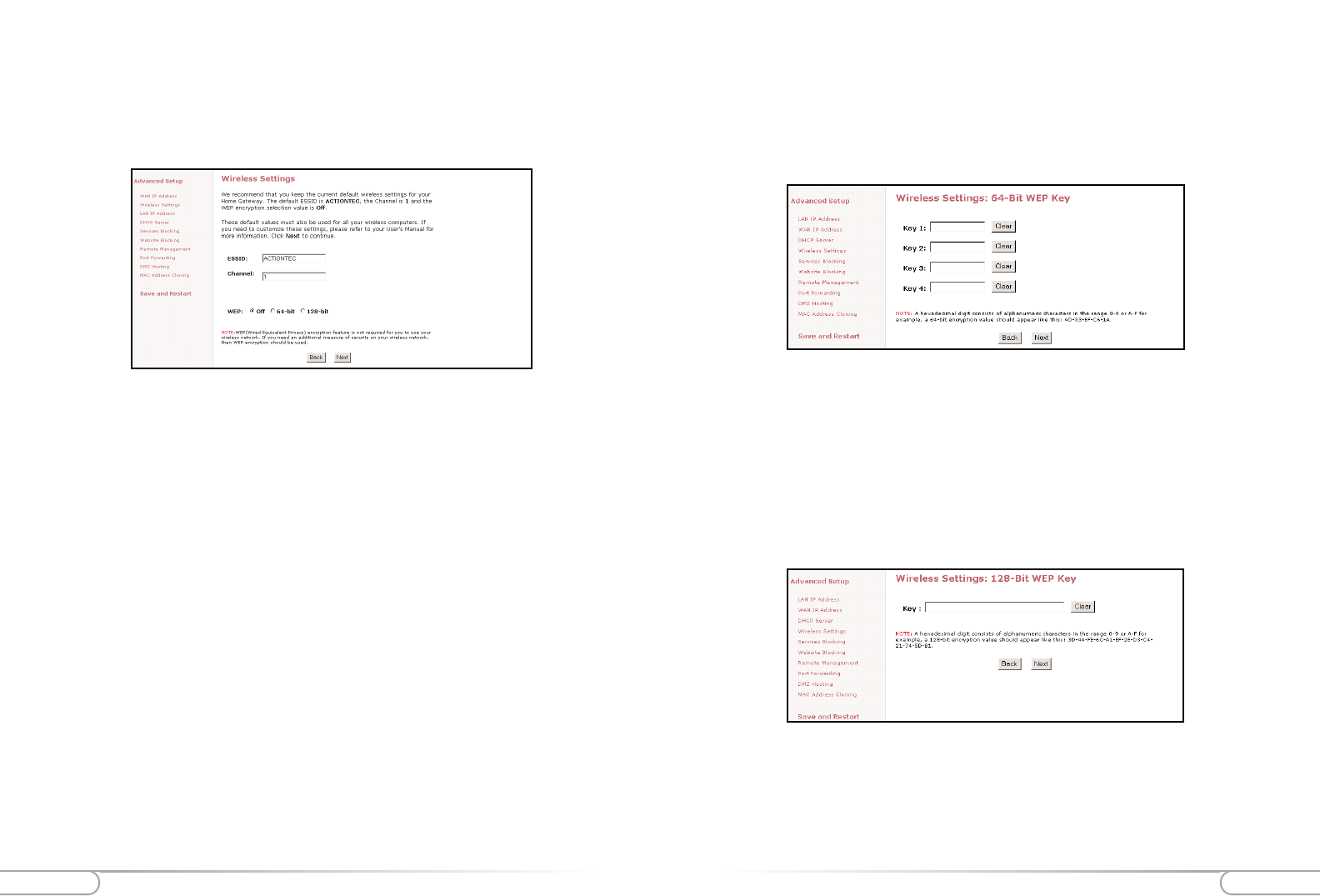

128-bit Wireless Equivalent Privacy (WEP)

The 128-bit encryption requires a single field of 13 hexadecimal pairs (A hexadecimal

digit consists of alphanumeric characters in the range 0-9 or A-F). An example of 128-

bit encryption would be: 3D-44-FE-6C-A1-EF-2E-D3-C4-21-74-5D-B1.If you do

create this key, make sure you enter it in your Wireless PC Card exactly as you have it

in the Wireless Cable/DSL Router.

Note: Do not use the 128-BIT WEP Key if your PC Card does not support it.

64-bit Wireless Equivalent Privacy (WEP)

The 64-bit eencryption requires 4 fields of 5 hexadecimal pairs. (A hexadecimal digit

consists of alphanumeric characters in the range of 0-9 or A-F). An example of 64-bit

encryption would be: 4E-23-3D-68-72. If you do create this key, make sure you enter

it in your Wireless PC Card exactly as you have it in the Wireless Cable/DSL Router.

Wireless Settings

The Wireless Settings screen allows you to take advantage of the Wireless Cable/DSL

Router’s wireless capabilities.

ESSID

(Default value set to ACTIONTEC) This is an arbitrary network name that you assign

to your wireless network. You may use alphanumeric characters (i.e.: A-Z, a-z, 0-9). It

is important that you set your Wireless PC Cards to the same ESSID value. (For the

Actiontec 802.11b Wireless PC Card the ESSID value should be the same as the SSID

value) This will enable the Wireless PC Cards to communicate with your Wireless

Cable/DSL Router.

Channel

This assigns the frequency band in which the Wireless Cable/DSL Router can commu-

nicate at. In the United States you may use channels 1-11. (Default value set to 1)

Wireless Equivalent Privacy (WEP)

This is an encryption method used in the 802.11b standard, to ensure data security over

your wireless network. The Actiontec Wireless Cable/DSL Router offers three levels of

encryption.If you do not require the encryption, it is recommended that you keep this

feature disabled (off). It is not required for wireless operation, and can reduce network

performance since each piece of data must be encrypted and decrypted.

Advanced Configuration of the Wireless Cable/DSL RouterAdvanced Configuration of the Wireless Cable/DSL Router 43

DHCP Server Configuration

Beginning IP Address

Enter the IP Address for the DHCP Server to start when assigning IP Address. It is rec-

ommended that you keep the default settings of 192.168.0.2

Ending IP Address

Enter the IP Address for the DHCP Server to end when assigning IP Address. It is rec-

ommended that you keep the default settings of 192.168.0.254

DNS Server 1

Enter the primary DNS provided by your ISP. You may keep the default settings if you

wish.

DNS Server 2

Enter the secondary DNS provided by your ISP. You may keep the default settings if you

wish.

Services Blocking

This screen enables you to create Client or Internet privileges for certain computers’ on

your network. If you do not specify any settings then all of the computers on your net-

work will have full priviledges.

LAN IP Address

This is the IP Address of the Wireless Cable/DSL Router as seen on the internal LAN.

It is recommended that you keep the default settings, but if you need to change them

then be sure to verify the DHCP Server range is within the same subnet.

DHCP Server

Your Wireless Cable/DSL Router has a built-in Dynamic Host Configuration Protocol

(DHCP) Server that can automatically assign an IP Address to each computer on your

network.

It is highly recommended that you keep the default DHCP Server settings. If you wish

to disable your DHCP Server, select Off. You will need to ensure that the IP Address of

your computers are in the same subnet as that of the Wireless Cable/DSL Router. To be

in the same subnet, the IP address must begin with the same numbers for the first 3

fields. (Example: 192.168.0.1 would mean your IP address would have to be

192.168.0.x, with x being 2 - 254.)

Advanced Configuration of the Wireless Cable/DSL RouterAdvanced Configuration of the Wireless Cable/DSL Router 45

DMZ Hosting

DMZ hosting is used to support online gaming and Internet confrencing services. These

programs usually require multiple ports to be open on the Wireless Cable/DSL Router,

making the rest of your network vulnerable to the Internet. DMZ hosting will symbol-

ically place the designated computer (By IP address) outside of the Wireless Cable/DSL

1. Find out the WAN IP Address of your Wireless Cable/DSL Router from the Status

page.

2. From a location outside of your network, open your Internet browser. In the

address field type your WAN IP address (i.e. http//192.123.4.1) and press <Enter>.

This will bring up your Wireless Cable/DSL Router menu or password prompt (if

a password has been set.

Port Forwarding

Because the Wireless Cable/DSL Router is acting as a firewall for your network, some

programs may not be able to communicate over the Internet without some additional

configuration. This feature is useful if you want to host a webserver or ftp server on your

private LAN. You will need to open each port that your programs need and specify to a

specific IP (Computer). It is recommended that if you need to open more than 10 ports

at once to use DMZ hosting instead. For a listing of commonly used programs and their

port numbers refer to Appendix C or the Actiontec web site.

Remote Management

The Remote Management feature allows users to access the Wireless Cable/DSL Router

through the Internet. It is recommended that you do not alter the Remote Management

properties. For security reasons, it is disabled by default.

To access the Wireless Cable/DSL Router from the Internet:

1. Enter the clients IP address in the given field.

2. At the bottom of the page select the Internet services that you want blocked for that

particular client PC.

3. Click Add to place your choice in the “Blocked IP Address List”.

4. If you would like to remove any of the blocked services, click on the IP Address in

the “Blocked IP Address List” and click Remove.

Website Blocking

This feature enables you to block specific websites. Simply enter the name of the web-

site into the appropriate field and click Add. When the user tries to access a blocked

website, the website will not be displayed. If you would like to remove a blocked web-

site, click on it in the “Blocked Website List” and then click Remove.

Note: Once a blocked website is selected, no user on the network will be able to

access that site

UtilitiesAdvanced Configuration of the Wireless Cable/DSL Router 47

On the main screen of your Wireless Cable/DSL Router you will find a section called

Utilities. This section allows you to view your Web Activity Log, Restore Default

Settings and Upgrade your Firmware. Follow the steps in each section below to use these

features:

Utilities

Web Activity Log

This allows you to view the websites that each computer connected to your Wireless

Cable/DSL Router, has viewed.

1. Click on Utilities

2. Click on Web Activity Log.

Router. You will be unable to access your network resources while in the DMZ. It is rec-

ommended to place the computer in the DMZ mode only as long as it is necessary. You

will also be unable to access your network resources.

WARNING: This computer will be vulnerable to outside hackers while in the

DMZ mode.

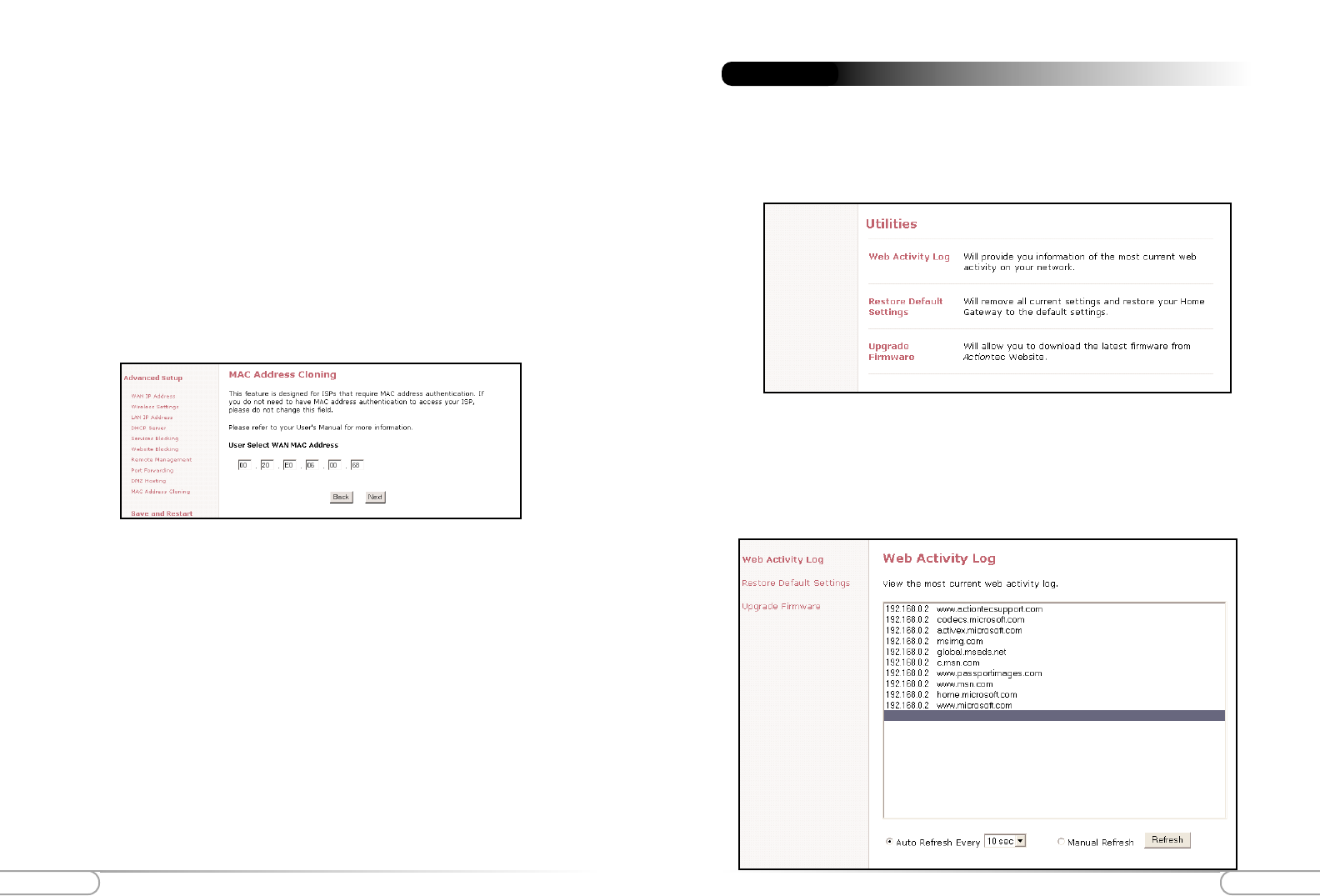

MAC Address Cloning

The MAC address is an identifier that is specific to each device that connects to any

network, simular to a fingerprint for the Internet. Some ISP’s require this information

to validate a computers permission to be on the network. If your ISP requires this infor-

mation, you will need to determine the MAC address of the computer that was origi-

nally configured for your service (Appendix D has instructions to determine the MAC

address).

TroubleshootingUtilities 49

There is a LAN connection failure to the Wireless Cable/DSL Router.

Make sure that the Wireless Cable/DSL Router is properly installed, the LAN con-

nections are correct and the power is on. Next, confirm that your PC and the

Wireless Access Point and Gateway are on the same network segment. If you are

not sure, let the PC get the IP address automatically by initiating the DHCP func-

tion. Then, verify that your PC is using an IP address within the default range of

192.168.1.2 to 198.168.1.XXX. If your PC is not using an IP address within the

range then it will not be compatible with the Gateway. Finally, the Subnet Mask

must be set to 255.255.255.0 to match the Gateway. In the Gateway you can check

this by clicking on Status on the Wireless Cable/DSL Routers start page.

I am unable to browse through the Wireless Cable/DSL Router.

First, make sure that both ends of the power adapter and network cables are prop-

erly connected and the status LEDs on the front panel are infact working proper-

ly. Then, if you are using Windows 95 or 98, check your computer’s TCP/IP setup:

On your desktop click Start, then select Run, type winpcfg in the given box and

then hit Enter. Your computer should have an IP address of 192.168.XXX (the

“XXX” value could be from 2 to 254.) Also the Subnet Mask should be

255.255.255.0. Then, check the Wireless Cable/DSL Router settings to verify that

they are the same as your computer. You can do this by clicking on Status on the

Wireless Cable/DSL Routers start page.

I get a time out error when I enter a URL or IP Address,

First, verify that all your computers are working properly. Then make sure that all

your IP settings are correct. If you are still having trouble make sure that the

Wireless Cable/DSL Router is on and connected properly. If it is connected prop-

erly open up your web browser and access the Wireless Cable/DSL Router’s start

page. Verify that the Wireless Cable/DSL Router settings are correct by clicking on

Status. If this too is properly configured then check your Cable or DSL modem by

attempting to connect to the Internet.

I am unable to get an IP Address from my Cable or DSL Modem.

First, make sure that your Wireless Cable/DSL Router is properly connected to

your computer and is plugged in. Then, shut off your Cable or DSL modem and

wait a few seconds. Turn it back on, wait for it to go through its self test and then

check for the IP Address. Then, verify that your modem is DHCP compatible. Go

to the Wireless Cable/DSL Router’s web based utility and make sure you entered

the user name and password for either your DSL or Cable modem.

Troubleshooting

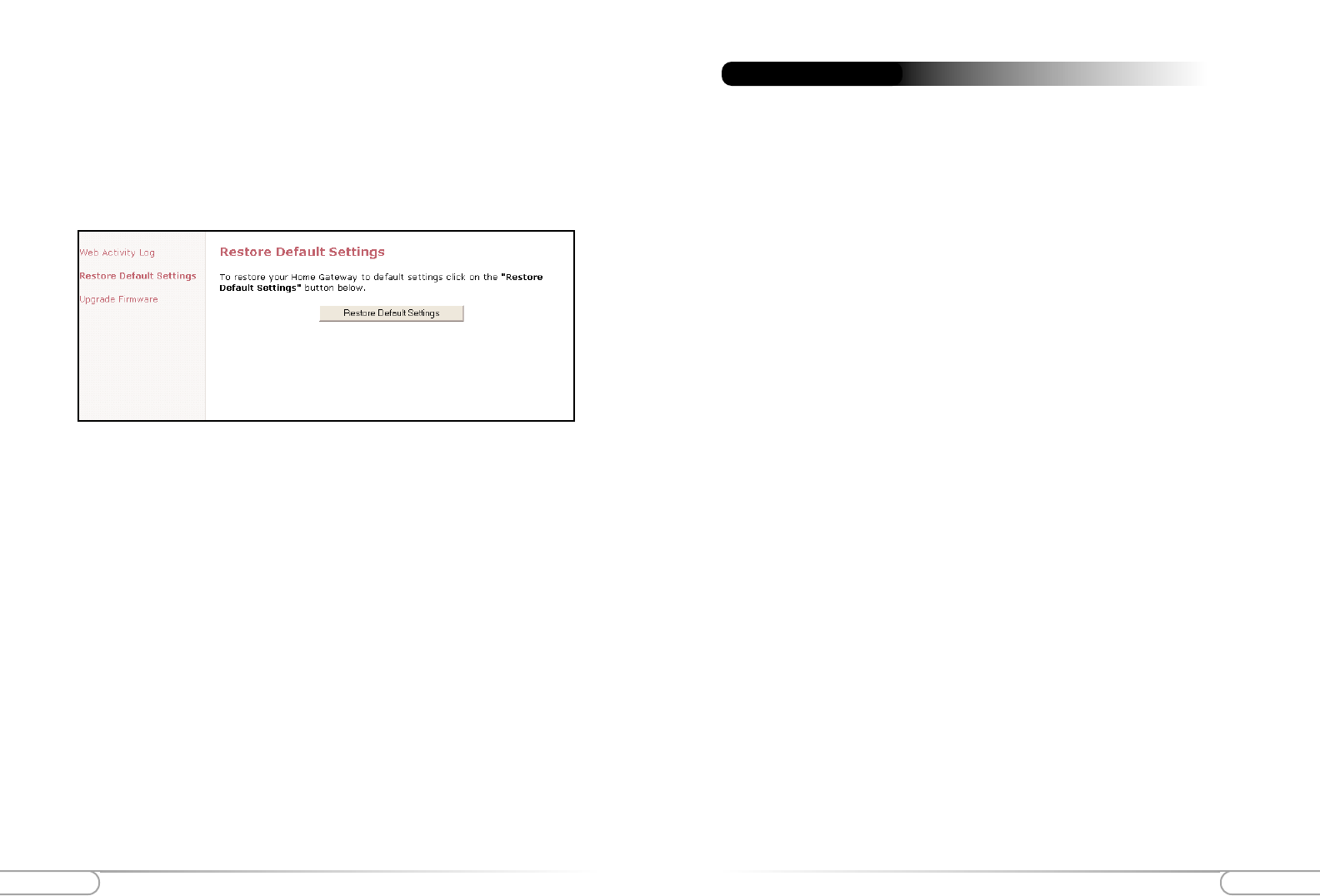

Restore Default Settings

This allows you to restore your Wireless Cable/DSL Router to its original default set-

tings.

1. Click on Utilities

2. Click on Restore Default Settings.

3. Click the Restore Default Settings button.

Upgrading your Firmware

From time to time, Actiontec will post firmware upgrades to enhance your Wireless

Cable/DSL Router’s usability. To upgrade your Wireless Cable/DSL Router’s

firmware:

1. Click on Utilities

2. Click on Upgrade Firmware. Follow the onscreen instructions.

3. After downloading the upgrade files and extracting it to a folder on your hard drive,

double click on upgrade.exe.

4. Input the IP address of your Wireless Cable/DSL Router (typically it will be

192.168.0.1), and click Start. The upgrade progress will begin.

5. After the Upgrade is complete, unplug the power from the Wireless Cable/DSL

Router then re-plug it.

6. Wait for the power LED to stop blinking and become a steady green.

7. You will need to reconfigure your Wireless Cable/DSL Router settings.

GlossaryGlossary 51

ESSID (Extended Service Set Identifier)

You must have the same ESSID entered into the gateway and each of its wireless clients.

The ESSID is a unique identifier for your wireless network.

Ethernet

Ethernet networks are connected by cables and hubs, and move data around. This is a

standard for computer networks.

Firewall

A Firewall prevents anyone outside of your network from accessing your computer and

possibly damaging or viewing your files.

Gateway

A central device that manages all the data traffic of your network, as well as to the

Internet.

IP Address (Internet Protocol)

An IP address consists of a series of four numbers separated by periods, that identifies a

unique Internet computer host.

ISP Gateway Address (see ISP for definition)

The ISP Gateway Address is an IP address for the Internet router. This address is only

required when using a cable or DSL modem.

ISP (Internet Service Provider)

An ISP is a business that allows individuals or businesses to connect to the Internet.

LAN (Local Area Network)

A LAN is a group of computers and devices connected together in a relatively small

area (such as a house or an office). Your home network is considered a LAN.

MAC Address (Media Access Control)

A MAC address is the hardware address of a device connected to a network.

NAT (Network Address Translation)

Access Point

An access point is a device that allows wireless clients to connect to other wireless clients

and it acts as a bridge between wireless clients and a wired network’ like Ethernet.

Wireless clients can be moved anywhere within the coverage area of the access point and

still connect with eachother. If connected to an Ethernet network, the access point mon-

itors Ethernet traffic and forwards appropriate Ethernet messages to the wireless net-

work, while also monitoring wireless client radio traffic and forwarding wireless client

messages to the Ethernet LAN.

Channel

The home wireless gateway allows you to choose different radio channels in the wireless

spectrum. A gateway operates within the 2.4 GHz spectrum and a channel is within a

FCC specified range, simular to any radio channel.

Client

A client is the desktop or mobile PC that is connected to your network.

DHCP (Dynamic Host Configuration Protocol)

This automatically assigns an IP address for every computer on your network.

DNS Server Address (Domain Name System)

DNS allows Internet host computers to have a domain name and one or more IP

addresses. A DNS server keeps a database of host computers and their respective domain

names and IP addresses, so that when a user enters a domain name into the internet

browser, the user is sent to the proper IP address. The DNS server address used by the

computers on your home network is the location of the DNS server your ISP has

assigned.

DSL Modem (Digital Subscriber Line)

A DSL modem uses your existing phone lines to transmit data at high speeds.

Encryption

This provides wireless data transmissions with a level of security.

Glossary

Glossary Specifications 53

Model Number: GE344000-01 Wireless Cable/DSL Router 1-Port

GE144000-01 Wireless Cable/DSL Router 4-Port

Standards: IEEE 802.3 (10BaseT), IEEE 802.3u (100BaseTX), IEEE

802.11b (Wireless)

Protocol: CSMA/CD

WAN: One 10Base-T RJ-45 Port for Cable/DSL Modem

LAN: (GE144000-01) Four 10/100 RJ-45 Switched Ports, One USB

port

(GE344000-01) One 10/10100 RJ-45One Shared Uplink

Port, One USB port

Expansion: One PCMCIA expansion slot

Speed: WAN - 10Mbps, LAN Ethernet - 10/100Mbps Wireless (See

Below)

Cabling Type: 10BaseT: UTP/STP Category 3 or 5

100BaseTX: UTP/STP Category 5

Button: Reset

Operation Range:

(Wireless)

Indoors: Up to 30M (100 ft.) @ 11 Mbps

Up to 50M (165 ft.) @ 5.5 Mbps

Up to 70M (230 ft.) @ 2 Mbps

Up to 91M (300 ft.) @ 1 Mbps

Outdoors: Up to 152M (500 ft.) @ 11 Mbps

Up to 270M (885 ft.) @ 5.5 Mbps

Up to 396 (1300 ft.) @ 2 Mbps

Up to 457M (1500 ft.) @ 1 Mbps

Topology: Star (Ethernet)

LED Indicators: 1-Port Router: Power, Internet, Wireless, LAN, USB

4-Port Router: Power, Internet, Wireless, Ethernet Network

WAN: Link

LAN: Link/Activity

Specifications

This process allows all of the computers on your home network to use one IP address.

This will enable access to the Internet from any computer on your home network with-

out having to purchase more IP addresses from your ISP.

PC Card

This is an ethernet card that connects to the PCMCIA slot on your lap top or desktop

PC. This enables the computer to communicate with with the Wireless Cable/DSL

Router.

PPPoE (Point-to-Point Protocol over Ethernet.)

Point-to-Point Protocol is a method of secure data transmission.

Subnet Mask

A subnet mask is a set of four numbers configured like an IP address. It is used to cre-

ate IP address numbers used only within a particular network.

TCP/IP (Transmission Control Protocol/Internet Protocol)

This is the standard protocol for data transmission over the Internet.

WAN (Wide Area Network)

A network that connects computers located in separate areas, (i.e., different buildings,

cities, countries). The Internet is a wide area network.

WECA (Wireless Ethernet Compatibility Alliance)

An industry group that certifies cross-vender interoperability and compatibility of IEEE

802.11b wireless networking products and to promote that standard for enterprise,

small business, and home environments.

WLAN (Wireless Local Area Network)

This is a group of computers and other devices connected wirelessly in a small area. A

wireless network is referred to as LAN or WLAN.

Appendix AEnvironmental 55

Configuring TCP/IP For Windows NT 4.0

Please make sure you have your Windows NT Workstation 4.0 installation disks or CD-

ROM handy before beginning. Windows NT Workstation 4.0 may need to copy some

driver information during the configuration process. If your Ethernet card was supplied

with a driver diskette, be sure to have that available as well.

Note: As with all software, you should consult your users manual or the help files

for detailed information. Actiontec provides the information that follows as a

guideline only.

Network, Username, Computer Name Identification

To configure your NT Workstation v 4.0 click Start, go to Settings and then to Control

Panel. In Control Panel, double-click the Network icon. In the Network dialog box,

click the Identification tab and enter a Computer Name if needed and a Work Group.

Note: Do not change both Computer name and Workgroup at the same time.

Change one first and then restart. Then change the other and restart a second

time.

Appendix A

Power Input: External, 5V DC, 2.5 A

Certifications: FCC Class B, FCC Class C, CE Mark Commercial, UL, Wi-Fi

Operating Temperature: 0º C to 40º C (32ºF to 104ºF)

Storage Temperature: -20ºC to 70ºC (-4ºF to 158ºF)

Operating Humidity: 10% to 85% Non-Condensing

Storage Humidity: 5% to 90%, Non-Condensing

Environmental

Appendix AAppendix A 57

TCP/IP Properties, IP Addressing, DHCP

With the TCP/IP Protocol highlighted, click Properties, and then click the IP Address

tab and click Obtain an IP Address from a DHCP Server. Click the Advanced tab to

verify that DHCP is enabled.

Services Configuration

Click the Services tab, and make sure the following default services are listed. These are

installed by default when you initially installed TCP/IP. Note that not all of the servic-

es listed below are required for the Actiontec Wireless Cable/DSL Router. For addition-

al information, refer to your NT Workstation documentation or Microsoft support

services.

Computer Browser

RPC Configuration

Server

Workstation

If you need to add a Service, click Add and do so.

Protocol Configuration

Click the PROTOCOLS tab, and then verify that the TCP/IP Protocol is listed. If it is

not, add it.

Appendix AAppendix A 59

Routing Configuration

Click the Routing tab, and then verify that the Enable IP Forwarding is not checked.

Click OK to return to the Network dialog box.

DNS and Host Name Settings

Click the DNS tab to display the host name properties.

WINS Address Configuration

Click the WINS Address tab. Verify that the only entry here is your Ethernet card.

(Please see the screen image on the next page.)

Appendix AAppendix A 61

Click OK, then click Close and restart your computer when prompted.

Protocols

Select All Protocols from the drop down list in the Bindings tab. (This is not the same

as the Protocols tab)

Expand all entries by clicking on plus (+) signs

TCP/IP Protocol should be bound to the adapter

WINS Client (TCP/IP) should be bound to the adapter

Adapter Settings

Click the Adapters tab, and then verify that your Ethernet Card is listed. If your card is

not listed, please add it.

Bindings Configuration: Protocols, Services, Adapters

The Bindings tab contains a drop down list box that allows you to display different

views of your networking configuration.

Services

Click the Bindings tab, select All Services from the drop down list, and verify that you

have at a minimum, TCP/IP bound to the Ethernet Card.

Appendix AAppendix A 63

Configuring TCP/IP for Windows 2000

Please make sure you have your Windows 2000 installation disks or CD-ROM handy

before beginning. Windows 2000 may need to copy some driver information during the

configuration process. If your Ethernet card was supplied with a driver diskette, be sure

to have that available as well.

Note: As with all software, you should consult your users manual or the help files

for detailed information. Actiontec provides the information that follows as a

guideline only.

Windows 2000 installs with the default TCP/IP configuration. If you have a new

machine with Windows 2000, or have just installed the Operating System, you simply

need to connect your machine to your Wireless Cable/DSL Router.

If your Windows 2000 TCP/IP settings have been changed since installation, please fol-

low the following directions. Also, make sure you have your Windows installation disks

or CD handy before beginning. If your Ethernet card was supplied with a driver

diskette, be sure to have that available as well. (Note that Windows 2000 includes built-

in drivers for some Ethernet cards)

Note: As with all software, you should consult your users manual or the help files

for detailed information. Actiontec provides the information that follows as a

guideline only.

To configure TCP/IP for Windows 2000:

1. Click on Start, and then select Settings and then Control Panel. Double click the

Network and Dial-Up Connections icon.

2. If the Ethernet card in your computer is installed correctly, the Local Area

Connection icon will be present. Double-click on the icon. Click Properties in the

Local Area Connection Status window.

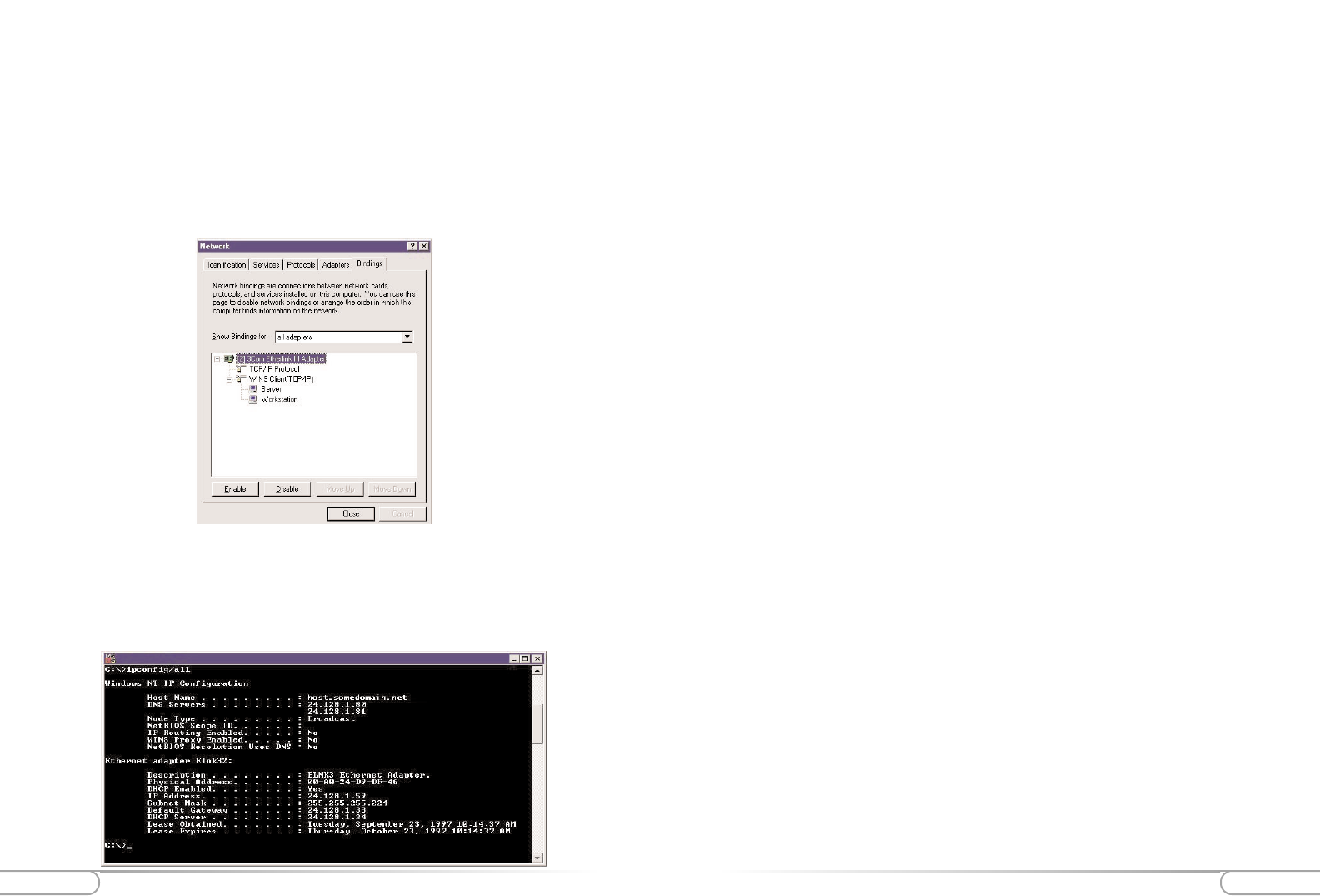

Adapters

Select All Adapters from the drop down list in the Bindings tab.

Expand all entries by clicking on plus (+) signs

The adapter should be bound to the TCP/IP Protocol

WINS Client (TCP/IP) should be bound to Server and Workstation

Verifying Settings

After you have restarted your computer, verify your settings. Click Start, select

Programs and then select Command Prompt. At the command prompt, type "ipcon-

fig/all" to verify that you received an IP address. You may close this window once you

have verified your IP address.

Appendix AAppendix A 65

5. Click OK to finish

3. Under Connect Using, the Ethernet card to which the Local Area Connection in

question is pointing is displayed. Underneath, the components that are bound to

the card are shown, with a check box next to them if they are currently active. Verify

that there is a check next to TCP/IP, and place one there if it is not checked.

Highlight the Internet Protocol (TCP/IP) option, and click Properties.

4. The Internet Protocol (TCP/IP) Properties window will open. There is only one

tab. Obtain an IP address automatically should be selected in the first section, and

Obtain DNS server address automatically should be selected in the second section.

Appendix A Appendix A 67

5. Make sure the Use 802.3 option is unchecked.

6. Disregard any # in the IP Address field. This will be correct after your first con-

nection.

7. Click the Options button and set TCP/IP to Active. Uncheck the option Load

only when needed, and click OK when finished.

8. No entries should be made in any of the other fields (which are shown as blank in

the sample image above).

9. Click Close Box in the upper left hand corner of the TCP/IP window, and then

select Save to save your settings.

10. Go to the toolbar and select Restart from the Special menu to restart your com-

puter.

Configuring TCP/IP For Mac OS

As with all software, you should consult your users manual or the Macintosh help files

for detailed information. Actiontec provides the information that follows as a guideline

only.

Configuring Open Transport 2.5.2

To configure Open Transport:

1. From the top toolbar, click the Apple icon. Select TCP/IP from the Control Panels

menu.

2. Once the TCP/IP control panel is open, on the top toolbar click User Mode from

the Edit menu, and set the mode to Advanced. When done, click OK.

3. In the Connect via selection, select Ethernet.

4. In the Configure selection, select Using DHCP Server.

Appendix A

Configuring File and Print Sharing For Windows 95, 98 and ME

With your Wireless Cable/DSL Router you can establish a network that will allow you

to share files and printers. This is an easy method to set up a network in your home or

small office. Please follow these steps to setup file and print sharing:

1. On your computer’s desktop click Start, then select Settings and then select

Control Panel. In the “Control Panel” window double click the Network icon.

2. The following “Network” screen should appear. If File and Print Sharing is not

present, then click the Add button.

Appendix B

3. In the “Select Network Component Type” screen, click Service and then click the

Add button.

68 Appendix A

Configuring MacOS X:

To configure MacOS X for DHCP:

1. Open the System Preference application via the Dock or Apple Menu.

2. Select Built-In Ethernet from the Show menu.

3. In the TCP/IP tab, select Using DHCP from the Configure menu.

4. Click Apply Now and quit the System Preferences application.

Appendix B

70 Appendix A

6. After you have clicked OK you will return to the network screen from step 2. Please

click on the Identification tab (see the first image on page 26).

Computer Name: In this field you can type any name you want. (i.e. My

Computer, John, CPU654) Do not use the same name for each computer you

wish to have on your network, and we do not recommend including spaces in

the computer name.

Workgroup: This field enables you to set a unique name for your network. This

name must be set up on every other computer you wish to have on your net-

work.

Computer Description: You can enter anything you wish. Traditionally, the

location name or main user’s name is used in this field.

7. Click on the Configuration tab. This will take you back to the screen from step 2.

In the “Primary Network Logon:” box, located just above the “File and Print

Sharing” button, make sure that Client for Microsoft Networks is selected. If it is

not then click the down arrow and select it from the given list. Click OK.

8. A screen will appear asking you to restart your computer. Click Yes to restart the

computer. If you do not see this screen please restart your computer manually. After

4. In the following screen please select File and printer sharing for Microsoft

Networks from the given list. Click OK.

5. In the “File and Print Sharing” screen make sure that both of the selections have a

check mark beside them. If they do not, please click on the box next to each state-

ment and then click OK.

Appendix B

72 Appendix B

Read Only: This will allow other users on your network to view and read the file

or drive you selected. They will not be able to modify it in any way. You can fur-

ther restrict their privileges by entering a password in the appropriate field.

Full: This will allow other users on your network to read, modify, move and

delete any information in the shared drive or file. You can further restrict their

privileges by entering a user name and password.

Depends on Password: This will allow you to set both Read Only and Full access

on the shared file or drive. The level of access will depend on the passwords you

enter in the appropriate field.

When you are finished click Apply and then OK.

your computer restarts you will be asked to supply a User Name and Password.

Enter whatever you would like but be sure to write down these values, as they will

enable you to access your network.

9. After your computer has restarted and you entered a password and user name, you

must enable a file or drive for sharing. Locate the file or drive you wish to share.

(The easiest way to achieve this is through your Windows Explorer, located in the

start menu) Right click on the File or Drive you wish to share. In the given menu

select Sharing.

10. The following screen will appear. Please select Shared As. This will enable other

users on your network to see the file or drive you selected. Then you can chose the

Access Type:

Appendix B

74 Appendix B

13. The next step will be to enable the sharing by selecting the “Share As” button. It

will automatically insert a default name for the Share Name. You may set a pass-

word for the printer at this time if you want to restrict who on the network can use

this resource. You may also set the default printer settings by modifying informa-

tion on the other tabs of this window.

For Windows 2000

1. After you have installed and configured your PC Card, Windows 2000 will auto-

matically enable file and print sharing for your computer. The only item that needs

to be altered is your workgroup settings. All the computers on your network must

have the same workgroup name but different computer names. To check or change

this locate the “My Computer” icon on your desktop. Right click on it and select

Properties from the given list.

2. In the “System Properties” click on the Network Identification tab. If the

“Workgroup” name is already the same as all the other computers on your network,

then you do not need to change it. Click OK. If it is not the same then click

Properties.

11. Next you need to share your printer. On your desktop, click Start, click Settings,

and then select Printers.

12. Right click on the printer you want to share. Select “Sharing” from the given list.

Appendix B 77

76 Appendix B

and the buttons underneath should both say “Start”. If this is the case, file sharing

is disabled. Exit the File Sharing window.

3. If “File Sharing Off” and “Program Linking Off” is selected and the buttons

underneath indicate “Stop”, click the Stop button to disable sharing and linking.

Enter 0in the dialog box that prompts you to indicate how many minutes until file

sharing is turned off or how long before you want to disconnect other users con-

nected to your computer.

4. Click OK

5. Exit the File Sharing window.

If you need to enable file sharing on your computer, you can reduce your susceptibility

to hackers by setting a password for access to all of your shared files and directories.

To set a password:

1. Click the Apple menu in the upper left corner. Select Control Panels and then

select File Sharing.

2. Under “Network Identity”, enter an owner name and owner password. To deter

potential hackers from being able to guess your password, we recommend that your

password contain a minimum of eight characters and a mix of upper- and lower-

case letters and numbers.

3. The two sections toward the bottom should say “File Sharing Off” and “Program

Linking Off”, and the buttons underneath should both say “Start”. Click Start to

enable file sharing and/or program linking.

4. The indication above the Start button(s) will change from “Off” to “Starting Up”

to “On”.

5. Close the File Sharing window by clicking the small box in the upper left corner.

6. File sharing and/or program linking are now enabled. However, users will need to

know your Owner Name and Owner Password in order to access files or programs

on your Macintosh.

To allow others to use the printer attached to your computer:

1. Click the Apple menu in the upper left corner and scroll down to Control Panels;

then scroll right and up to Appletalk.

3. In the “Computer Name:” box type a name that is different from your other PC’s

on your network. Then, in the “Workgroup” box type the name that you are using

to identify your network. This will be the same on each computer on your network.

Click OK and you will return to the “Network Properties” screen. Click OK again

and even if you are not asked to do so, please restart your computer.

Configuring File and print sharing for MAC

There are other, much more secure ways to share your files with other Internet users. For

example, you can simply e-mail files you want to share with someone else directly to that

person or you can require a password to access your files.

Following are instructions for disabling and more securely enabling file and print shar-

ing.

To disable file sharing:

1. Click the Apple menu in the upper left corner. Select Control Panels and then

select File Sharing.

2. The default selections should be “File Sharing Off” and “Program Linking Off”,

Appendix B Appendix C 79

Standard Program and Port List:

Appendix C

Application Type Application Notes˚ Required Settings for Port Forwarding

SERVICES NOTES Outgoing Connection Incoming Connection

HTTP Netscape, IE None 80 /client IP

FTP Windows FTP, Cuteftp None 21 /client IP

TELNET Windows Telnet, Neterm None 23 /client IP

POP3 Eudora None 110 /client IP

SMTP Eudora None 25 /client IP

mIRC mIRC None .

Network Time Protocol (NTP) 123 123 /client IP

PPTP Windows PPTP None 1723 /client IP

APPLICATIONS NOTES Outgoing Connection Incoming Connection

BAYVPN 500 /client IP

CarbonCopy32 1023 - 1680 /client IP

CITRIX 1494 /client IP

Cu-SeeMe2Cornell 1.1 None 7648 /client IP

.White Pine 3.1.2 7648 /client IP &

24032 /client IP

Default /client IP

.White Pine 4.0

(CuSeeMe Pro )

7648 /client IP &

24032 /client IP

Default /client IP

Direct Connect 375 - 425 /client IP

FW1VPN 259 /client IP

ICQ For file transfer, we must enable:

ICQ -> preference -> connections -

> firewall and set the firewall time

out to 80 seconds in firewall

setting.

None for Chat. Default /client IP

2. In the drop-down menu after Connect via, choose Ethernet or Ethernet Built-In.

3. Close the Appletalk window by clicking the small box in the upper left corner.

4. You may be asked to save changes to your Appletalk setting. If so, click the OK but-

ton.

5. Click the Apple menu in the upper left corner and scroll down to Chooser; then,

after the word Appltalk toward the bottom right, click the radio button before the

word “Active”.

6. You'll be asked to make sure you are connected to an Appletalk network. Click the

OK button.

7. Close the Chooser window by clicking the small box in the upper left corner.

Note: When print sharing is enabled, you cannot use a password to protect your

printer. Therefore, we strongly recommend that your leave this option enabled

only during the time you wish to share your printer with other users. When the

other users have finished printing their files on your printer, we recommend you

reverse the above process. To do so, you need not change your Appletalk settings

again. All you need to do is call up Chooser and disable Appletalk by clicking

the radio button before Inactive in the lower right corner.

Appendix CAppendix C 81

MSN Game Zone 6667 /client IP

28800 - 29000 /client IP

MSN Game Zone (DX) 2300 - 2400 /client IP

47624 /client IP

Myth 3453 /client IP

Need for Speed 9442 /client IP

Need for Speed 3 1030 /client IP

Outlaws 5310 /client IP

Quake I4 None Default /client IP

QuakeII5 None 27910 /client IP

QuakeIII

Each computer must use a

different port number. Add 1 for

each player starting with 27660.

None 27660 (+1 for each player) /cl

Rainbow Six 2346 /client IP 2346 /client IP

Rogue Spear 2346 /client IP 2346 /client IP

StarCraft 6112 /client IP

Tiberian Sun 1140 - 1234 /client IP

4000 /client IP

1140 - 1234 /client IP

4000 /client IP

Ultima

5001 - 5010 Game

7775 - 7777 Login

8888, 9999 Patch

8800 - 8900 Messenger

7875 Monitor

Unreal Tournament

Need to modify the

[UWeb.WebServer] section of the

server.ini file: Set ListenPort to

8080; Set ServerName to the

Public IP of your router.

7777 (game)

7778 (server)

7779 - 7783 (UdpLink)

27900 (server query)

8080 (UT Server Admin)

IP/TV Cisco IP/TV 2.0.0 None .

Laplink 1547 /client IP

Lotus Notes 1352 /client IP

NetMeeting3Microsoft NetMeeting 2.1 & 2.11 None 1720 /client IP

1503 /client IP

PC Anywhere Host must be on the LAN side and

client IP set. 22 /client IP

5631 - 5632 /client IP

RealPlayer RealPlayer G2 None .

Remote Anything 3996 - 4000 /client IP

Shiva VPN Need to set the mobile option to be

your public IP address. 2233 /client IP 2233 /client IP

Virtual Network Computing

(VNC)

5500 /client IP

5800 /client IP

5900 /client IP

VDOLive .None .

GAMES NOTES Outgoing Connection Incoming Connection

Aliens vs. Predator

80 /client IP

2300 - 2400 /client IP

8000 - 8999 /client IP

Asheron's Call May need to open MSN / DX

ports. 9000 - 9013 /client IP 9000 - 9013 /client IP

Black and White

2611 - 2612 /client IP

6500 /client IP

6667 /client IP

27900 /client IP

ark Reign 2 26214/client IP

elta Force

3100 /client IP

3568 /client IP

3999 /client IP

3100 /client IP

3568 /client IP

3999 /client IP

une 2000 1140 - 1234 /client IP

4000 /client IP

1140 - 1234 /client IP

4000 /client IP

lite Force

26000 /client IP

27500 /client IP

27910 /client IP

27960 /client IP

verquest

1024 - 6000 /client IP

7000 /client IP

-22 Lightning 3 4533 - 4660 /client IP

ighter Ace II 50000 - 50100 /client IP

ighter Ace II (DX)

2300 - 2400 /client IP

47624 /client IP

50000 - 50100 /client IP

alf Life 27015 /client IP

eretic II 28910 /client IP

exen II

Each computer must use a different

port number. Add 1 for each player

starting with 26900.

26900 (+1 for each player)

ALI

Each computer must use a different

port number. Add 1 for each player

starting with 2213.

2213 (+1 for each player) /clie

6666 /client IP

Appendix D Appendix D 83

7. Make note of the Physical Address of the Ethernet Adapter (labeled 'Physical

Address') as it is the same as you MAC address

To determine the MAC address of an installed Ethernet card on Windows NT:

1. Click the Start menu

2. Select Programs

3. Select Command Prompt

4. Type: ipconfig/all

5. Press Enter

6. A window will display, with information pertaining to the Ethernet Adapter

7. Make note of the Physical Address of the Ethernet Adapter (labeled 'Physical

Address') as it is the same as you MAC address

To determine the MAC address of an installed Ethernet card on a Macintosh:

1. Select the Apple menu.

2. Select Control Panels

3. Select TCP/IP

4. Select the Info button (If the Info button does not appear, select the Edit menu,

then User Mode and then select Advanced)

5. A window will display showing the hardware address

6. Carefully make note of this Hardware address as it is the same as the MAC address

To determine the MAC address of an installed Ethernet card on Windows

95/98:

1. Click the Start menu

2. Select Run

3. In the text field type: winipcfg

4. Click OK

5. An IP Configuration window will appear

6. Carefully make note of the Adapter Address as it is the same as you MAC address

To determine the MAC address of an installed Ethernet card on Windows ME:

1. Click the Start menu

2. Select Run

3. In the text field type: winipcfg

4. Click OK

5. An IP Configuration window will appear

6. Carefully make note of the Adapter Address as it is the same as you MAC address

To determine the MAC address of an installed Ethernet card on Windows 2000:

1. Click the Start menu

2. Select Programs, and then Accessories

3. Select Command Prompt

4. Type: ipconfig/all

5. Press Enter

6. A window will display, with information pertaining to the Ethernet Adapter

Appendix D

FCC StatementFCC Statement 85

For questions regarding your product, or the FCC declaration, contact:

Actiontec Electronics, Inc

760 North Mary Ave,

Sunnyvale, CA 94086

United States

Tel: (408) 752-7700

Fax: (408) 541-9005

Regulatory Compliance Notices Class B Equipment

This equipment has been tested and found to comply with the limits for a Class B dig-

ital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or tel-

evision reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

Consult the dealer or an experienced radio or television technician for help.

Modifications

The FCC requires the user to be notified that any changes or modifications made to this

device that are not expressly approved by Actiontec Electronics, Inc may void the user’s

authority to operate the equipment.

Declaration of conformity for products marked with the FCC logo – United States only

This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-

lowing two conditions: (1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may

cause undesired operation.

"IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements

the antenna used for this transmitter must be installed to provide a separation distance

of at least 20 cm from all persons and must not be co-located or operating in conjunc-

tion with any other antenna or transmitter."

FCC Statement

Actiontec Electronics R3010SUW Ethernet Router User Manual Reno

Actiontec Electronics Inc Ethernet Router Reno

Users Manual

Navigation menu

Namespaces

Views

Navigation
