Actiontec Electronics SBWD60A ScreenBeam Mini2 Wireless Display Receiver User Manual

Actiontec Electronics Inc ScreenBeam Mini2 Wireless Display Receiver Users Manual

Contents

Users Manual

Mini Wireless
Display Receiver
Installation Guide
This Installation Guide will walk you through the easy steps
to set up your ScreenBeam Mini 2 Wireless Display
Receiver. During this process, we’ll show you how to :
A Install the Receiver
B1 Connect Using Windows 8.1 or Higher
B2 Connect Using Intel WiDi App
B3 Connect Using WiFi Miracast-enabled Device
C Switch Display Modes
D Install ScreenBeam Conguration Utility
Model# SBWD60A
Part No: 0530-0734-000
Welcome!
Step2 Plug the small male connector of the USB cable to
the Receiver’s micro USB port labeled “Power”.
Step3 Plug the Receiver into an available HDMI port on
your HDTV.
A Install the Receiver
Thank you for your purchase of a ScreenBeam Mini 2 Wireless
Display Receiver (hereinafter referred to as the Receiver). The
Receiver connects to your Intel WiDi or Miracast-capable de-
vice wirelessly, and displays the device’s screen on your HDTV.
Step1 Get the Receiver, power adapter, USB cable, and
HDMI extension cable from the Receiver’s box.
Step4 Plug the large male connector of the USB cable to
the power adapter, and plug the power adapter to a power
outlet.
Step5 Turn on your TV and switch the input source until
you see the Ready To Connect screen.
Note: If you cannot plug the Receiver into an HDMI port on
your TV (due to other components, or a poorly accessible
port), use the included HDMI extension cable to connect the
Receiver.
B1 Connect Using Windows 8.1 or Higher

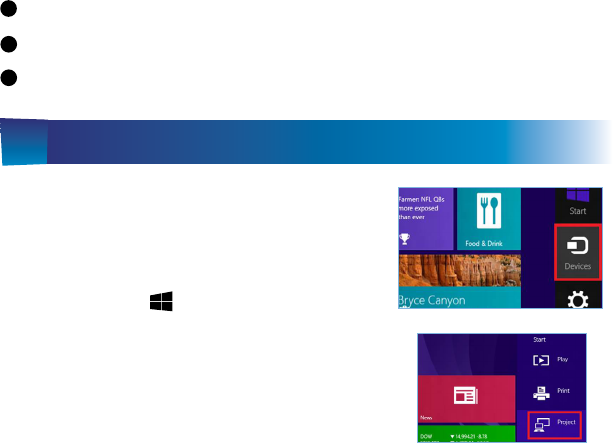

Step1 From the Windows desktop,
navigate to the Charms menu and
select Devices. You can also use the
shortcut keys, + K.
Step2 From the Charms menu,
click the Project icon.
The Receiver is now connected to your HDTV. Proceed to one
of the next three sections of this Guide (depending on the
device you are using to connect to the Receiver) to nish the
connection procedure.
For Windows 8.1 devices, please proceed to section B1;
For Windows 7/8 devices, please proceed to section B2;
For Android devices, please proceed to section B3.

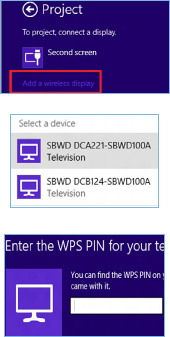

Step4 Select the ScreenBeam
Receiver from the list.
Step5 Enter the PIN as displayed
on the television screen, then
connect and display.
Note: If you are running Windows 8.1 and the screens above
do not appear, go to http://www.actiontec.com/widi81 for
the latest software updates.
Step3 From the Project screen,
select Add a wireless display.

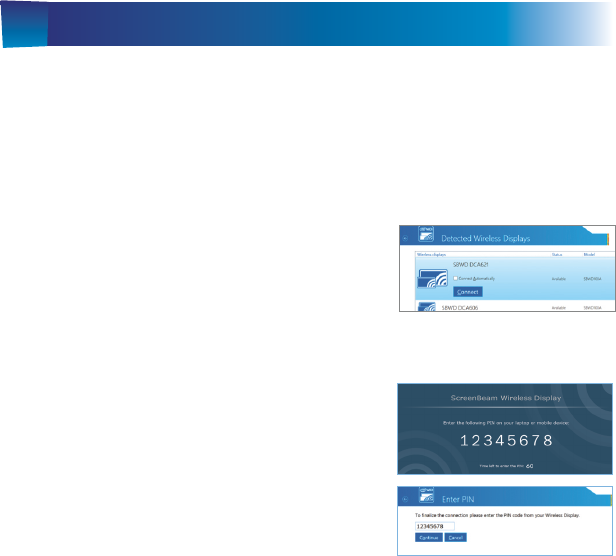

Step2 The device scans for
available receivers. Select the same
receiver name as seen on the HDTV
and click Connect. (The Connect
Automatically checkbox is optional.)
Step3 Wait until the Receiver
displays a PIN on the HDTV, and a
PIN entry box on the screen of the
WiDi device. Enter the PIN in the
PIN entry box on the WiDi device,
and then click Continue.
Step1Find the Intel Wireless Display application on the
device and launch it. To nd the application, go to Windows
Search on your device and search for “Intel WiDi” in your apps.
B2 Connect Using Intel WiDi App
Step4 The HDTV displays
messages to show the status of the
connection process.
Step5 A Connection Successful
screen appears on your device’s
screen, as well as on the HDTV.
Display Tip: If the edges of the device screen cannot be
seen on the HDTV, adjust cropping. To do this, enter the WiDi
application and click Settings. Navigate to the “Picture and
Sound” section, click Adjust cropping…, and adjust the
HDTV picture by clicking plus (+) or minus (-).
Note: Make sure the device supports Intel Wireless Display
(WiDi) software version 3.5 or higher. To nd out what version
of Intel WiDi your device has, enter the Intel WiDi application
and click Help, and then navigate to the “About WiDi” section.
To obtain the latest Intel WiDi software and drivers, go to:
http://www.intel.com/go/wirelessdisplayupdate
Step2 The Wireless Display Application scans for available
receivers. Select the ScreenBeam Receiver from the list.
Step3 Wait for the device to associate with the Receiver.
When it does, the device’s screen will be displayed on the HDTV.
Step1 On a Miracast-enabled Android device, locate and
open the Wireless Display Application.
B3 Connect Using Miracast-enabled Device
You can connect to the Receiver from a Miracast-enabled
Android device, such as a smartphone, tablet, or game console
(nd the wireless display feature in Settings). Also, the device
should be running the latest software for best performance.
Note: The name of the Wireless Display Application depends
on the device type and model. Refer to the device’s carrier or
manufacturer user manual for more details.

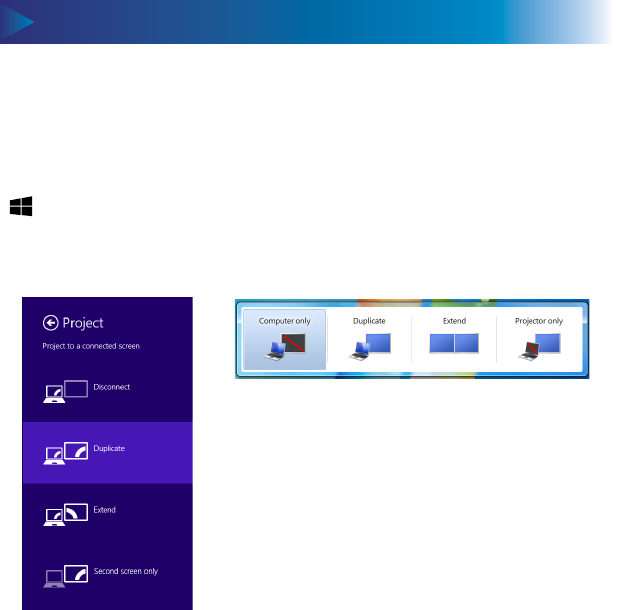

The Receiver supports three display modes when connected
with a compatible wireless display application (Intel WiDi or
Windows 8.1 Project, for example).
In Windows, press the Windows logo + P keys simultaneously
( + P) to launch the display options and select the desired
display mode from the options.
Windows 8.1 Windows 7
Switch Display Modes
Go to http://international.actiontec.com/support for
product support, updates, and more information including:
• Firmware Updates • Troubleshooting • Registration • FAQs
C Product Support & Additional Information
Actiontec’s ScreenBeam Conguration Utility allows
conguring and upgrading ScreenBeam series receivers wire-
lessly. There are three versions available: Desktop, Metro, and
Android.
Access the following address to download ScreenBeam
Conguration Utility for Desktop, Metro, or Android:
http://www.actiontec.com/sbupdate
For Windows 8.1 and Android devices, you can also install the
Utility on Microsoft Store and Google Play Store, respectively.
(tip: searching for “ScreenBeam”)
Install ScreenBeam Conguration Utility
• Increase the separation between the equipment and receiver;
• Connect the equipment to an outlet on a circuit dierent from that to which the receiver is connected;
• Consult the dealer or an experience radio or television technician for help.
Modications
The FCC requires the user to be notied that any changes or modications made to this device that
are not expressly approved by Actiontec Electronics, Inc, may void the user’s authority to operate the
equipment.
Declaration of conformity for products marked with the FCC logo – United States only.
This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS stan-
dard(s). Operation is subject to the following two conditions:
General Regulatory and Compliance Notices
Important Safety Instructions
If applicable, when using electronic equipment, basic safety precautions should always be followed to
reduce the risk of re, electrical shock, and personal injury, including the following:
• Do not use this product near water – for example, near a bathtub, kitchen sink, laundry tub, or swim-
ming pool, or in a wet basement.
• FCC Class B Equipment
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmfulinterference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged to try and correct the
interference by implementing one or more of the following measures:
• Reorient or relocate the receiving antenna;
1.This device may not cause harmful interference;
2.This device must accept any interference received, including interference that may cause undesired
operation of the device.
Canadian Industry Regulations
This product meets the applicable Industry Canada technical specications.
The Class [B] digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulation.
Important Note
If applicable, this equipment complies with FCC/Industry Canada radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and operated with minimum distance 20 cm between the radiator
and your body.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other
channels is not possible.
The device could automatically discontinue transmission in case of absence of information to transmit, or
operational failure. Note that this is not intended to prohibit transmission of control or signaling informa-
tion or the use of repetitive codes where required by the technology.
The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interfer-
ence to co-channel mobile satellite systems.
The maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply with the
e.i.r.p. limits specied for point-to-point and non point-to-point operation as appropriate.
The transmitter must not be co-located or operating in conjunction with any other antenna or transmit-
ter.
For questions regarding your product or the FCC/Industry Canada declaration, contact:
Actiontec Electronics, Inc.
760 North Mary Avenue, Sunnyvale, CA 94086, United States
Tel: (408) 752-7700 Fax: (408) 541-9005
Declarations of Conformity (DoC)
To obtain the complete DoC form in softcopy, go to the Actiontec Electronics Declarations of Conformity
EU/EEA website at http://international.actiontec.com/support/doc
The symbol at right is placed in accordance with the European Union Directive
2002/96 on the Waste Electrical and Electronic Equipment (the WEEE Directive). If
disposed of within the European Union, this product should be treated and recycled
in accordance with the laws of your jurisdiction implementing the WEEE Directive.
This product may include GNU General Public License (GPL). To view a copy of the GPL license agreement,
go to: http://international.actiontec.com/support/doc/gplnotice.pdf
Warranty
This product has a 1-year Limited Hardware Warranty and 90-day free software updates from date
of purchase.
Local Law
This Limited Warranty Statement gives the customer specic legal rights. The customer may also have
other rights which vary from state to state in the United States, from province to province in Canada, and
from country to country elsewhere in the world.
To the extent that this Limited Warranty Statement is inconsistent with local law, this Statement shall be
deemed modied to be consistent with such local law.
Under such local law, certain disclaimers and limitations of this Warranty Statement may not apply to
the customer.
Go to http://www.actiontec.com/products/warranty.php for information.
© 2014 Actiontec Electronics, Inc. ScreenBeam Pro and the Actiontec logo are registered trademarks or
trademarks of Actiontec Electronics, Inc., in the U.S. or other countries. All other names are properties of
their respective owners.
