User Manual
Mini Wireless
Display Receiver
Installation Guide
This Installation Guide will walk you through the easy steps
to set up your ScreenBeamEnterprise Wireless Display
Receiver. During this process, we’ll show you how to :
A Install the Receiver
B1 Connect Using Windows 8.1 or Higher
B2 Connect Using Intel WiDi App
B3 Connect Using WiFi Miracast-enabled Device
C Switch Display Modes
D Device Management
Model# SBWD700A
Part No:
Meeting ScreenBeam Enterprise
LED Indicator: indicates power supply status
USB port: for conguring MGT connection data
VGA In: reserved
On/O: the power switch
VGA Out: connects to HDTV/projector with a VGA port for
video output
HDMI Out: connects to HDTV/projector with an HDMI port
for video and audio output
Ethernet: Connects to Ethernet for receiver management
with ScreenBeam Central Management System
Reset Button: resets system to defaults
DC IN: for power supply
Welcome!
Step2 Plug one end of the HDMI/VGA cable into the HDMI/
VGA Out port on the Receiver, and the other end into an
available HDMI/VGA port on the HDTV/Projector.
Step3 Plug the connector of the power cord into the DC IN
port of the Receiver, and the AC adapter into a power outlet.
A Install the Receiver
Thank you for your purchase of a ScreenBeam Enterprise Wire-
less Display Receiver (hereinafter referred to as the Receiver).
The Receiver connects to your Intel WiDi or Miracast-capable
device wirelessly, and displays the device’s screen on your
HDTV.
Step1 Get the Receiver, power adapter, and HDMI cable or
VGA cable from the Receiver’s box.
Step4 Press the On/O button to switch the power on.
Note: You can switch the receiver o by pressing the On/O
button again.
Step5 Turn on your TV and switch the input source until
you see the Ready To Connect screen.
B1 Connect Using Windows 8.1 or Higher
Step1 From the Windows desktop,
navigate to the Charms menu and
select Devices. You can also use the
shortcut keys, + K.
Step2 From the Charms menu,
click the Project icon.
The Receiver is now connected to your HDTV. Proceed to one
of the next three sections of this Guide (depending on the
device you are using to connect to the Receiver) to nish the
connection procedure.
For Windows 8.1 devices, please proceed to section B1;
For Windows 7/8 devices, please proceed to section B2;
For Android devices, please proceed to section B3.
Step4 Select the ScreenBeam
Receiver from the list.
Step5 Enter the PIN provided by
your system administrator (or the
one displayed on the television
screen), then connect and display.
Note: If you are running Windows 8.1 and the screens above
do not appear, go to http://www.actiontec.com/widi81 for
the latest software updates.

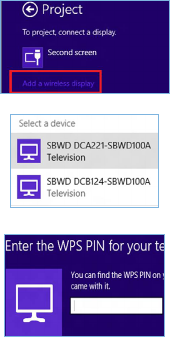

Step3 From the Project screen,
select Add a wireless display.
Note: The PIN for connection is “12345670” by default if no
PIN is displayed.
Step2 The device scans for
available receivers. Select your re-
ceiver on the list and click Connect.
(The Connect Automatically check-
box is optional.)
Step3 Enter the PIN provided by
your system administrator (or the
one displayed on the TV screen)
on the WiDi device, and then click
Continue.
Step1Find the Intel Wireless Display application on the
device and launch it. To nd the application, go to Windows
Search on your device and search for “Intel WiDi” in your apps.
B2 Connect Using Intel WiDi App
Note: The default PIN is “12345670”.
You can obtain the PIN from your
system administrator if no PIN is dis-
played on the HDTV.
Step4 The HDTV displays
messages to show the status of the
connection process.
Step5 A Connection Successful
screen appears on your device’s
screen, as well as on the HDTV.
Display Tip: If the edges of the device screen cannot be
seen on the HDTV, adjust cropping. To do this, enter the WiDi
application and click Settings. Navigate to the “Picture and
Sound” section, click Adjust cropping…, and adjust the
HDTV picture by clicking plus (+) or minus (-).
Note: Make sure the device supports Intel Wireless Display
(WiDi) software version 3.5 or higher. To nd out what version
of Intel WiDi your device has, enter the Intel WiDi application
and click Help, and then navigate to the “About WiDi” section.
To obtain the latest Intel WiDi software and drivers, go to:
http://www.intel.com/go/wirelessdisplayupdate
Step2 The Wireless Display Application scans for available
receivers. Select your receiver from the list.
Step3 Enter the PIN provided by your system administrator
(or the onedisplayed on the TV screen) if required, and then
connect.
Step1 On a Miracast-enabled Android device, locate and
open the Wireless Display Application.
B3 Connect Using Miracast-enabled Device
You can connect to the Receiver from a Miracast-enabled
Android device, such as a smartphone, tablet, or game console
(nd the wireless display feature in Settings). Also, the device
should be running the latest software for best performance.
Note: The name of the Wireless Display Application depends
on the device type and model. Refer to the device’s carrier or
manufacturer user manual for more details.
Note: The default PIN is “12345670”. You can obtain the PIN
from your system administrator if no PIN is displayed on the
HDTV.
The Receiver supports three display modes when connected
with a compatible wireless display application (Intel WiDi or
Windows 8.1 Project, for example).

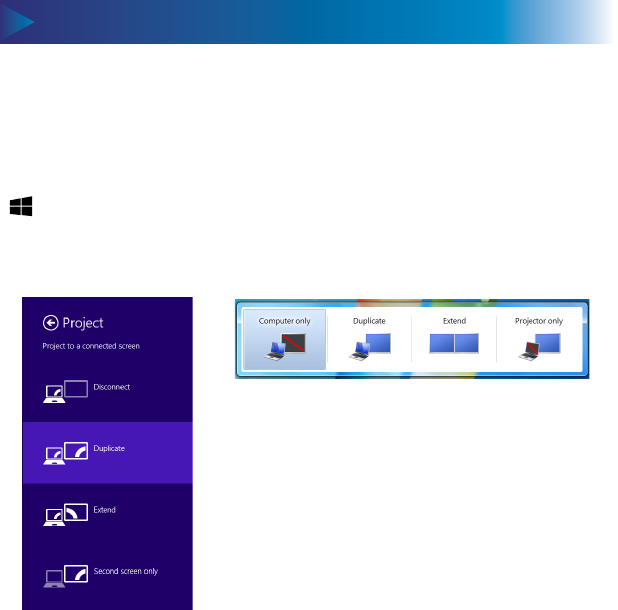

In Windows, press the Windows logo + P keys simultaneously
( + P) to launch the display options and select the desired
display mode from the options.
Windows 8.1 Windows 7
Switch Display Modes
The device management webpage provides the ability to
manage the receiver’s settings.
Device Management
Log into the IT Management Console
Step1 Find the receiver’s SSID in the
lower left corner of the Ready To Con-
nect screen.
Step2 Right-click the WiFi network icon
on the taskbar of your device and select
Open Network and Sharing Center.
Step3 The Network and Sharing Cen-
ter window appears. Click Set up a new
connection or network.
Step4 The Set up a new connection
or network window appears. Click the
Manually connect to a wireless network
option.
Device Management (continued)
Step5 The Manually connect to a wire-
less network window appears. Type in or
select the following information.
Network name: The SSID of the Screen-
Beam receiver you wish to connect to.
Security type: WPA2 Personal
Encryption type: AES
Security key: 12345678 (default)
Step6 Check Start this connection automatically if you
want to automatically connect to this wireless network when
it is in range.
Step7 Check Connect even if the network is not broadcast-
ing. Click Next.
Step8 The receiver’s SSID will be added successfully. Click
Close. Your device will connect to the SSID automatically.
Step9 An URL (it is “http://192.168.51.1” in this example) is
displayed on the connected display.
Device Management (continued) Device Management (continued)
Step10 Access the URL address
(“http://192.168.51.1” in this example)
with a web browser on the laptop.
Step11 The web server login interface
appears. Type the username and pass-
word in the Username and Password
boxes and click the Login button.
Note:
By default, the Username is “Administrator” and Password
is “Actiontec”.
The username and password are case sensitive.
Setting up PIN Pairing Method
Step1Go to the Features tab page, and set the Force PIN
Pairing on First Connection feature to On or O.
Select “O” to disable the PIN enforcement function. PIN
entry or PBC is required when connecting your device to
the receiver for the rst time.
Select “On” to enable the PIN enforcement function. In this
case, you must enter a PIN code on the device connecting
to the receiver for the rst time. When this function is en-
abled, the system provides two PIN generation methods:
Random and Static.
Random: A PIN code is generated randomly by the sys-
tem and displayed on the connected HDTV/projector.
Static: Users can enter seven (7) digits in the Static box,
then click the “Apply” button, and the system generates
an eight (8) digit PIN and display it on the Static PIN
eld. This PIN will not be displayed on the connected
HDTV/projector.
Step2 Click the “Apply” button to save your settings.
Device Management (continued)
Setting up PIN Pairing Method (continued)
Device Management (continued)
Always On: Selecting this option, the HDMI output is
always on.
Screensaver: Selecting this option, the system will run the
screensaver after the dened idle time expires. Users can
dene the idle time (5-9999 seconds) in the Wait time box.
HDMI O: Selecting this option, the HDMI output will be
turned o after the dened idle time expires. Users can
dene the idle time (5-9999 seconds) in the Wait time box.
Device Management (continued)
Managing HDMI Port Output
Step1Go to the Features tab page, and select the desired
option in the HDMI Port Power management drop-down
box. There are three options: Always On, Screensaver, and
HDMI O.
Step2 Click the “Apply” button to save your settings.
Device Management (continued)
Modifying the Receiver’s SSID
Step1Go to the Wireless Network Settings tab page, and
type a new name in the Network Name (SSID) box and a new
password in Network Password box.
Step2 Click the “Apply” button to save your settings.
Setting up Broadcast LMI Beacon
Step1Go to the Wireless Network Settings tab page, and
set the Broadcast LMI Beacon feature to Enable or Disable.
By default, the Broadcast LMI Beacon feature is disabled.
Step2 Click the “Apply” button to save your settings.
Note: The receiver’s SSID is not broadcasted when the Broad-
cast LMI Beacon function is disabled.
Device Management (continued) Device Management (continued)
Modifying the Receiver’s Ethernet Settings
Step1Go to the Ethernet Interface Setting section on the
Ethernet Network Settings tab page, and set the IP Policy to
Auto or Static.
Step2 Click the “Apply” button to save your settings.
Auto: The receiver will be assigned an IP address by the
DHCP server.
Static: You can dene the IP address, subnet mask, and
default gateway for the receiver. If you select Static, you
must dene a DNS server.
Device Management (continued)

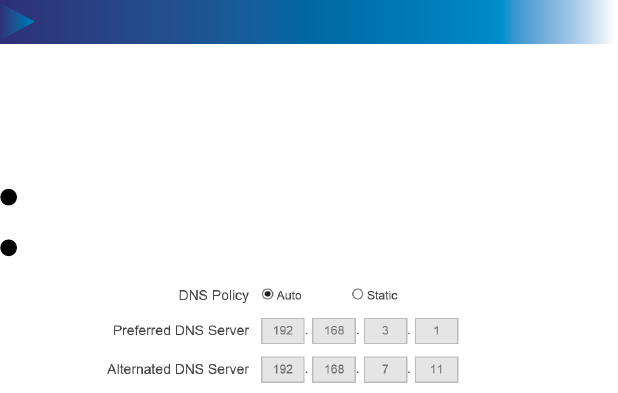

Dening a DNS Server for the Receiver
Step1Go to the Ethernet Interface Setting section on the
Ethernet Network Settings tab page, and set the DNS Policy
to Auto or Static.
Step2 Click the “Apply” button to save your settings.
Auto: The receiver will be assigned a DNS server automat-
ically.
Static: You can dene a DNS server for the receiver.
Device Management (continued) Device Management (continued)

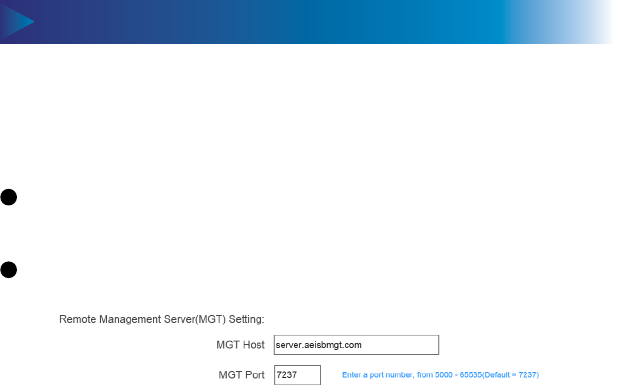

Dening the SCMS Server (MGT Server) for the Receiver
Step1Go to the Remote Management Server (MGT) Set-
ting section on the Ethernet Network Settings tab page, and
dene the MGT Host and the MGT Port.
Step2 Click the “Apply” button to save your settings.
MGT Host: It is the IP address/host name/domain name of
the server that hosts the SCMS server. A DNS server and a
DHCP server are receommended.
MGT Port: It is the port number of the SCMS server.
Go to http://international.actiontec.com/support for
product support, updates, and more information including:
• Firmware Updates • Troubleshooting • Registration • FAQs
C Product Support & Additional Information
C Specications
Language: English, French, German, Italian, Japanese, Simpli-
ed Chinese, Traditional Chinese, Russian, and Spanish
A/V Interface: HDMI output (Type-A male connector), VGA
input, and VGA output
Video Output: up to full HD 1080p30 (H.264)
Audio Output: up to 5.1 surround sound
Data port: USB 2.0 (Type A)
Ethernet: RJ-45, 10/100 Mbps
Firmware Upgrade: Wireless upgrade
Wireless: IEEE 802.11a/b/g/n, dual-band 2.4 GHz and 5 GHz
Operation Frequency: 2.4G (2402 MHz – 2480 MHz);
5G (5180 MHz – 5240 MHz, 5725 MHz – 5850 MHz)
Antenna Type: PCB antenna
Wireless Security: WPA2, WPS PIN Pairing, AES 128-bit
Content Protection: HDCP 2.x
Power Input: 5 V / 2 A
Power Consumption: < 5 W
C Specications
LED Indicator: Power On
Dimensions: 7.66 x 4.70 x 1.40 inch (194.5 x 119.5 x 35.5mm)
Certication: Wi-Fi Miracast™, Intel® WiDi
Regulatory Compliance: ?
Warranty: Localized to country of sale
System Requirements
An HDTV/projector with one HDMI port (Type A) or one VGA
port available
Supported Devices
- Intel WiDi laptops: Ultrabooks and laptops with Intel WiDi
3.5 or higher
- Wi-Fi Miracast capable devices: smartphones, tablets, and
laptops with Wi-Fi Miracast
• Windows 8.1 / Android 4.2 or higher
- Actiontec ScreenBeam USB Transmitter
• Windows 7 or higher
C Specications (continued)
FCC Information and Copyright
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment .This equipment should be installed and operated with minimum distance 20cm
between the radiator& your body. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
statement:Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
