Actiway Electronics MSM2050 MOTORCYCLE AND YACHT AUDIO SYSTEM User Manual YDW CB100 4A FCC manual

Shenzhen Actiway Electronics Co.Ltd. MOTORCYCLE AND YACHT AUDIO SYSTEM YDW CB100 4A FCC manual

user manual

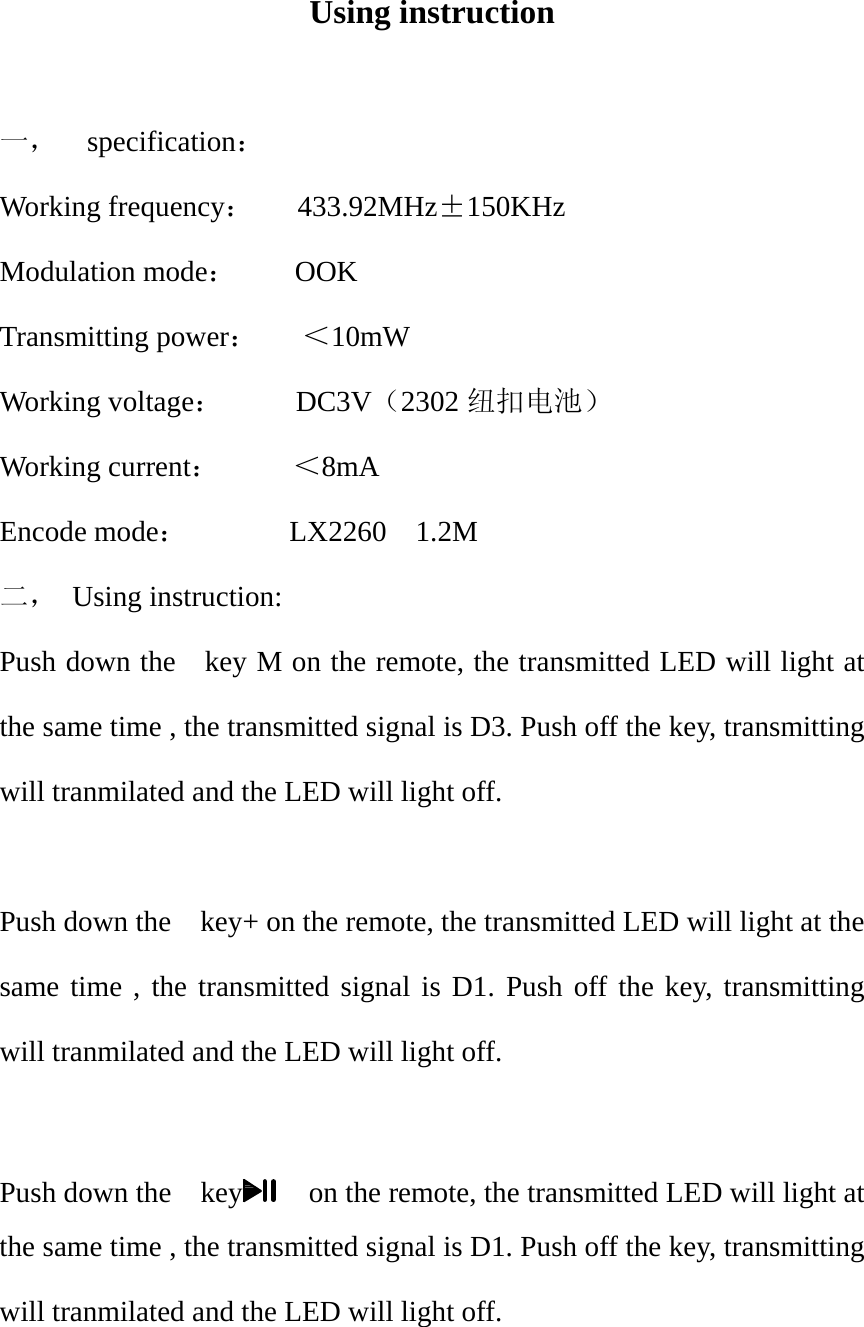

Using instruction  一, specification: Working frequency:   433.92MHz±150KHz Modulation mode:    OOK Transmitting power:   <10mW Working voltage:     DC3V(2302 纽扣电池) Working current:     <8mA Encode mode:       LX2260  1.2M  二, Using instruction: Push down the    key M on the remote, the transmitted LED will light at the same time , the transmitted signal is D3. Push off the key, transmitting will tranmilated and the LED will light off.  Push down the    key+ on the remote, the transmitted LED will light at the same time , the transmitted signal is D1. Push off the key, transmitting will tranmilated and the LED will light off.  Push down the    key    on the remote, the transmitted LED will light at the same time , the transmitted signal is D1. Push off the key, transmitting will tranmilated and the LED will light off.

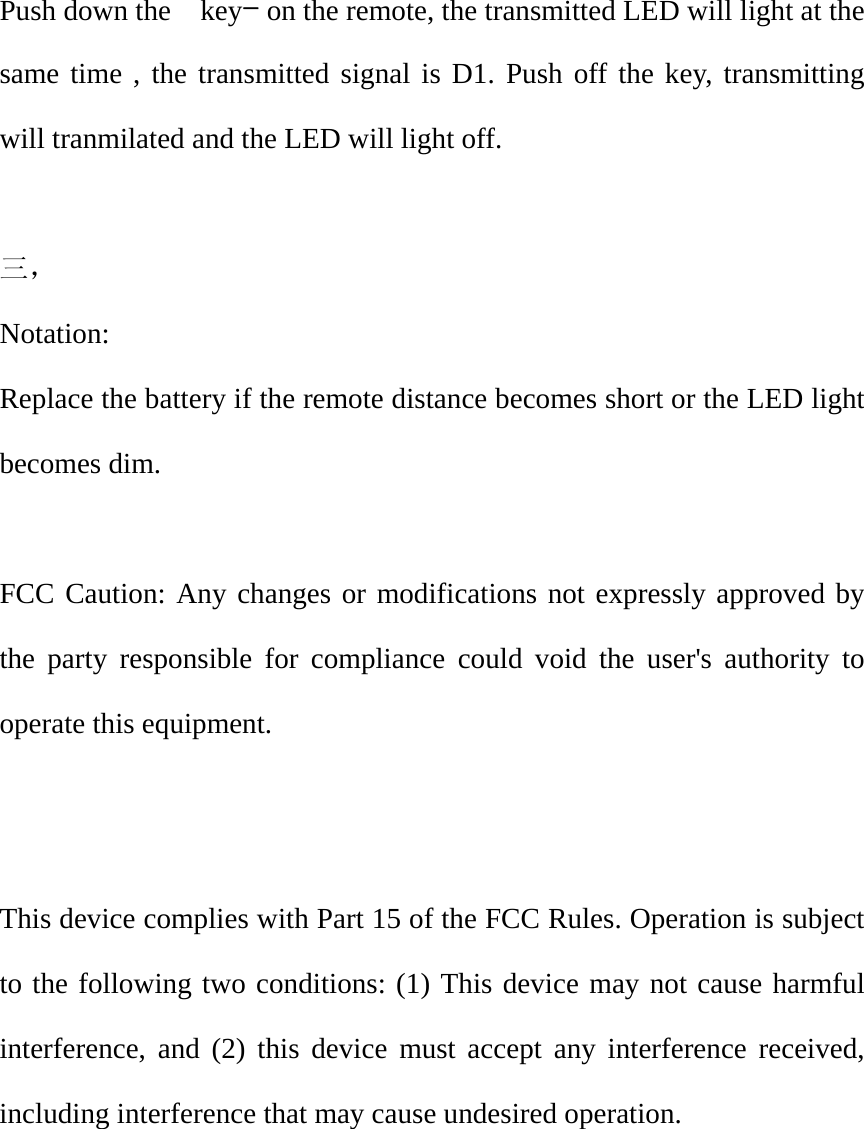

 Push down the    key- on the remote, the transmitted LED will light at the same time , the transmitted signal is D1. Push off the key, transmitting will tranmilated and the LED will light off.  三,  Notation: Replace the battery if the remote distance becomes short or the LED light becomes dim.  FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.   This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
