Adams Rite Manufacturing Co. 260 Santa Fe Street Pomona, CA 91767 Phone: 800-872-3267 Fax: 800-232-7329 www.adamsrite.com eForce® Keyless Entry Adams Rite Manufacturing Co. 260 Santa Fe Street Pomona, CA 91767 Phone: 800-872-3267 www.adamsrite.com Owner’s Manual & Installation Instructions For Models 3090AC & 3090ACK D R A F T 10-6-11

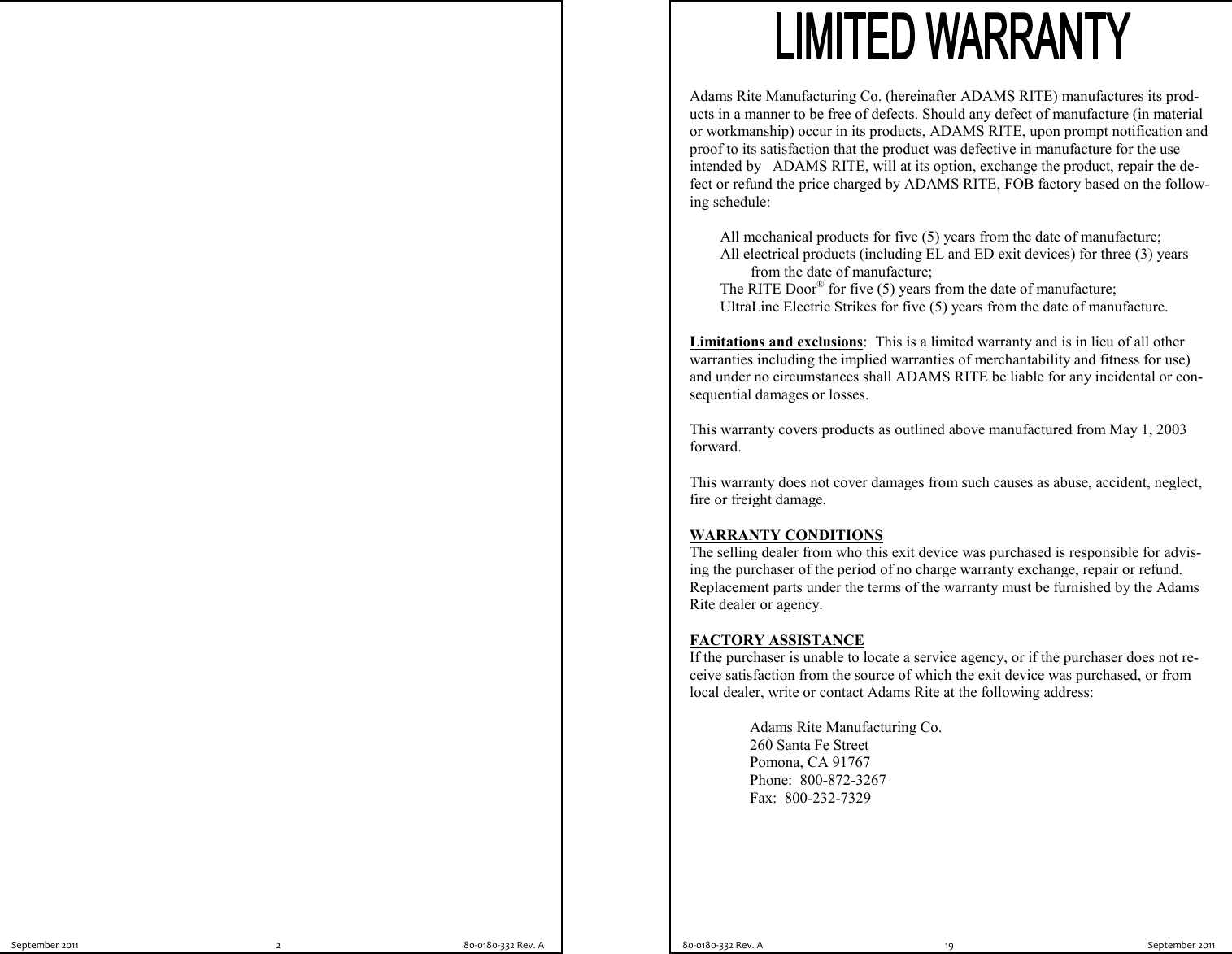

September 2011 2 80-0180-332 Rev. A 80-0180-332 Rev. A 19 September 2011 Adams Rite Manufacturing Co. (hereinafter ADAMS RITE) manufactures its prod-ucts in a manner to be free of defects. Should any defect of manufacture (in material or workmanship) occur in its products, ADAMS RITE, upon prompt notification and proof to its satisfaction that the product was defective in manufacture for the use intended by ADAMS RITE, will at its option, exchange the product, repair the de-fect or refund the price charged by ADAMS RITE, FOB factory based on the follow-ing schedule: All mechanical products for five (5) years from the date of manufacture; All electrical products (including EL and ED exit devices) for three (3) years from the date of manufacture; The RITE Door® for five (5) years from the date of manufacture; UltraLine Electric Strikes for five (5) years from the date of manufacture. Limitations and exclusions: This is a limited warranty and is in lieu of all other warranties including the implied warranties of merchantability and fitness for use) and under no circumstances shall ADAMS RITE be liable for any incidental or con-sequential damages or losses. This warranty covers products as outlined above manufactured from May 1, 2003 forward. This warranty does not cover damages from such causes as abuse, accident, neglect, fire or freight damage. WARRANTY CONDITIONS The selling dealer from who this exit device was purchased is responsible for advis-ing the purchaser of the period of no charge warranty exchange, repair or refund. Replacement parts under the terms of the warranty must be furnished by the Adams Rite dealer or agency. FACTORY ASSISTANCE If the purchaser is unable to locate a service agency, or if the purchaser does not re-ceive satisfaction from the source of which the exit device was purchased, or from local dealer, write or contact Adams Rite at the following address: Adams Rite Manufacturing Co. 260 Santa Fe Street Pomona, CA 91767 Phone: 800-872-3267 Fax: 800-232-7329

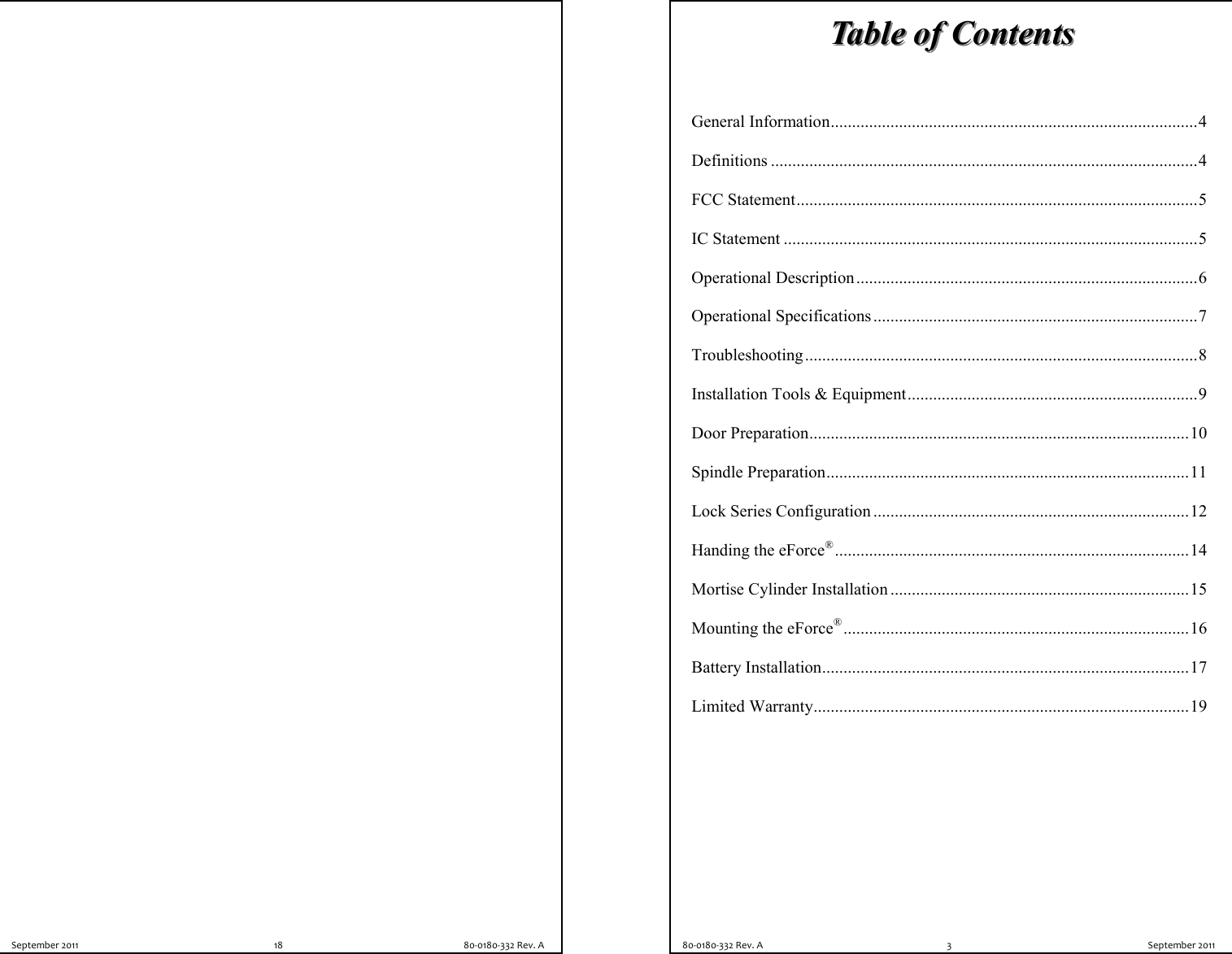

September 2011 18 80-0180-332 Rev. A 80-0180-332 Rev. A 3 September 2011 Table of ContentsTable of Contents General Information ...................................................................................... 4 Definitions .................................................................................................... 4 FCC Statement .............................................................................................. 5 IC Statement ................................................................................................. 5 Operational Description ................................................................................ 6 Operational Specifications ............................................................................ 7 Troubleshooting ............................................................................................ 8 Installation Tools & Equipment .................................................................... 9 Door Preparation ......................................................................................... 10 Spindle Preparation ..................................................................................... 11 Lock Series Configuration .......................................................................... 12 Handing the eForce® ................................................................................... 14 Mortise Cylinder Installation ...................................................................... 15 Mounting the eForce® ................................................................................. 16 Battery Installation ...................................................................................... 17 Limited Warranty ........................................................................................ 19

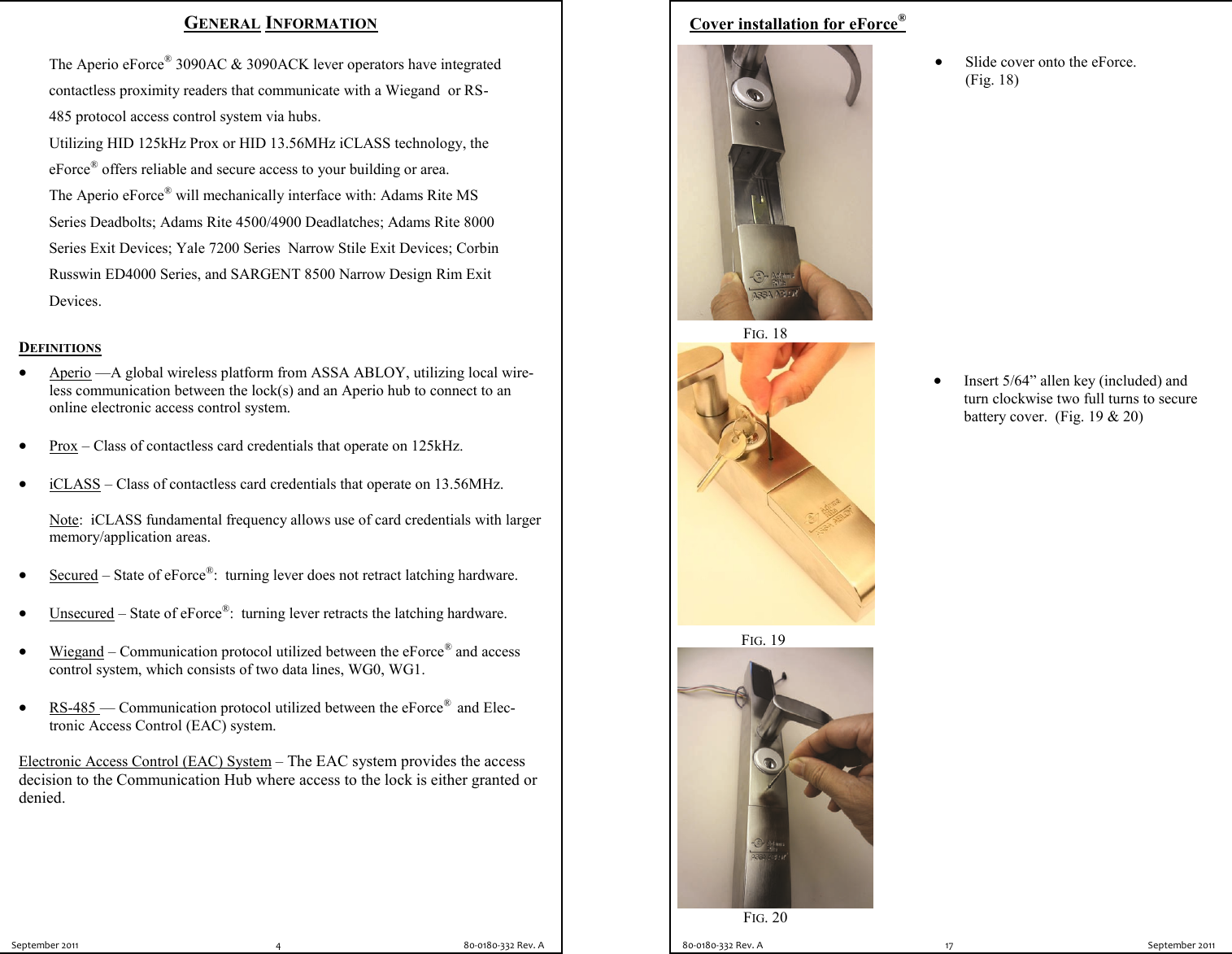

September 2011 4 80-0180-332 Rev. A GENERAL INFORMATION The Aperio eForce® 3090AC & 3090ACK lever operators have integrated contactless proximity readers that communicate with a Wiegand or RS-485 protocol access control system via hubs. Utilizing HID 125kHz Prox or HID 13.56MHz iCLASS technology, the eForce® offers reliable and secure access to your building or area. The Aperio eForce® will mechanically interface with: Adams Rite MS Series Deadbolts; Adams Rite 4500/4900 Deadlatches; Adams Rite 8000 Series Exit Devices; Yale 7200 Series Narrow Stile Exit Devices; Corbin Russwin ED4000 Series, and SARGENT 8500 Narrow Design Rim Exit Devices. DEFINITIONS  Aperio —A global wireless platform from ASSA ABLOY, utilizing local wire-less communication between the lock(s) and an Aperio hub to connect to an online electronic access control system.  Prox – Class of contactless card credentials that operate on 125kHz.  iCLASS – Class of contactless card credentials that operate on 13.56MHz. Note: iCLASS fundamental frequency allows use of card credentials with larger memory/application areas.  Secured – State of eForce®: turning lever does not retract latching hardware.  Unsecured – State of eForce®: turning lever retracts the latching hardware.  Wiegand – Communication protocol utilized between the eForce® and access control system, which consists of two data lines, WG0, WG1.  RS-485 — Communication protocol utilized between the eForce® and Elec-tronic Access Control (EAC) system. Electronic Access Control (EAC) System – The EAC system provides the access decision to the Communication Hub where access to the lock is either granted or denied. 80-0180-332 Rev. A 17 September 2011 Cover installation for eForce®  Slide cover onto the eForce. (Fig. 18)  Insert 5/64” allen key (included) and turn clockwise two full turns to secure battery cover. (Fig. 19 & 20) FIG. 19 FIG. 18 FIG. 20

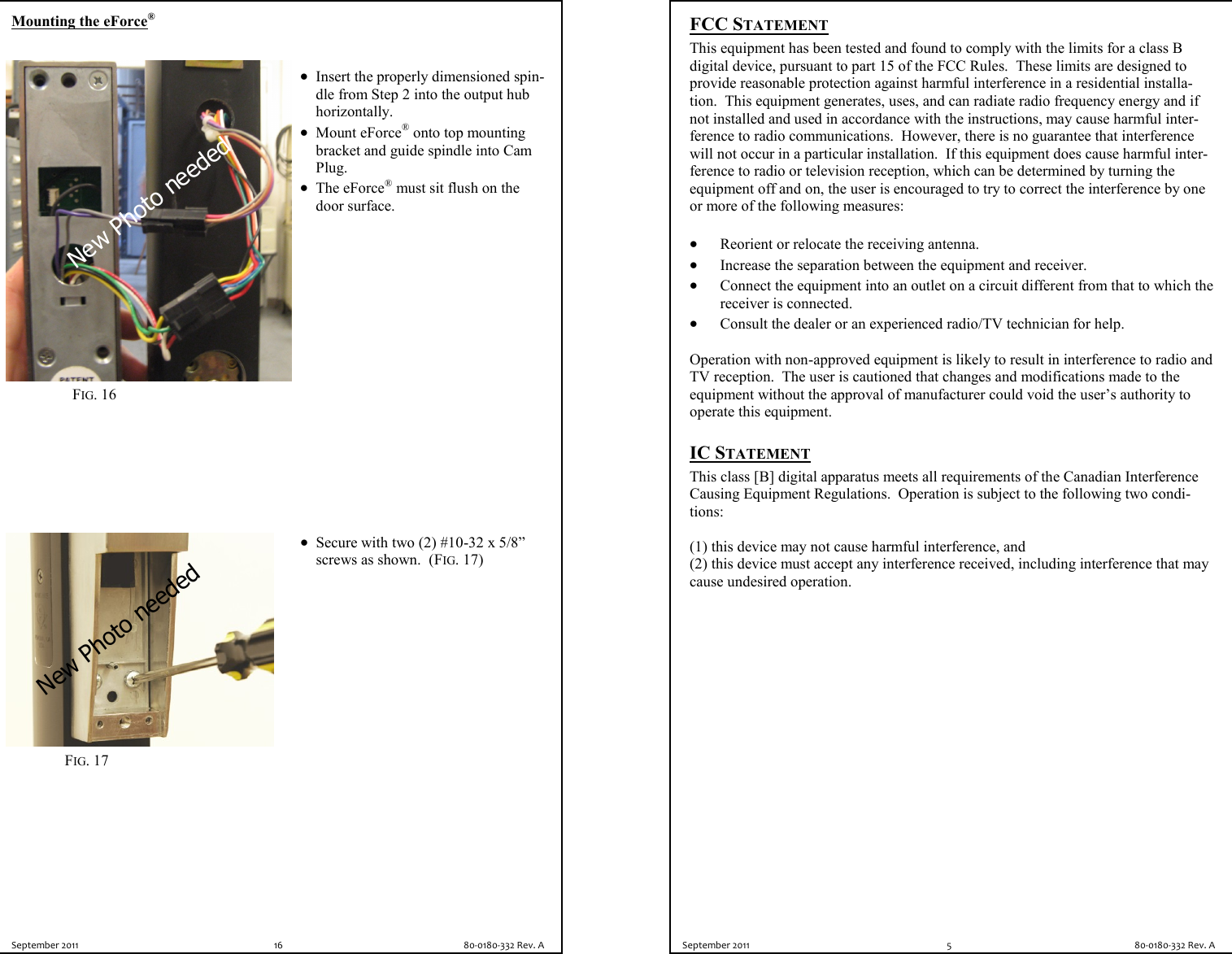

September 2011 16 80-0180-332 Rev. A Mounting the eForce®  Insert the properly dimensioned spin-dle from Step 2 into the output hub horizontally.  Mount eForce® onto top mounting bracket and guide spindle into Cam Plug.  The eForce® must sit flush on the door surface.  Secure with two (2) #10-32 x 5/8” screws as shown. (FIG. 17) FIG. 16 FIG. 17 New Photo needed New Photo needed September 2011 5 80-0180-332 Rev. A FCC STATEMENT This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa-tion. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful inter-ference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful inter-ference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Operation with non-approved equipment is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user’s authority to operate this equipment. IC STATEMENT This class [B] digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the following two condi-tions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

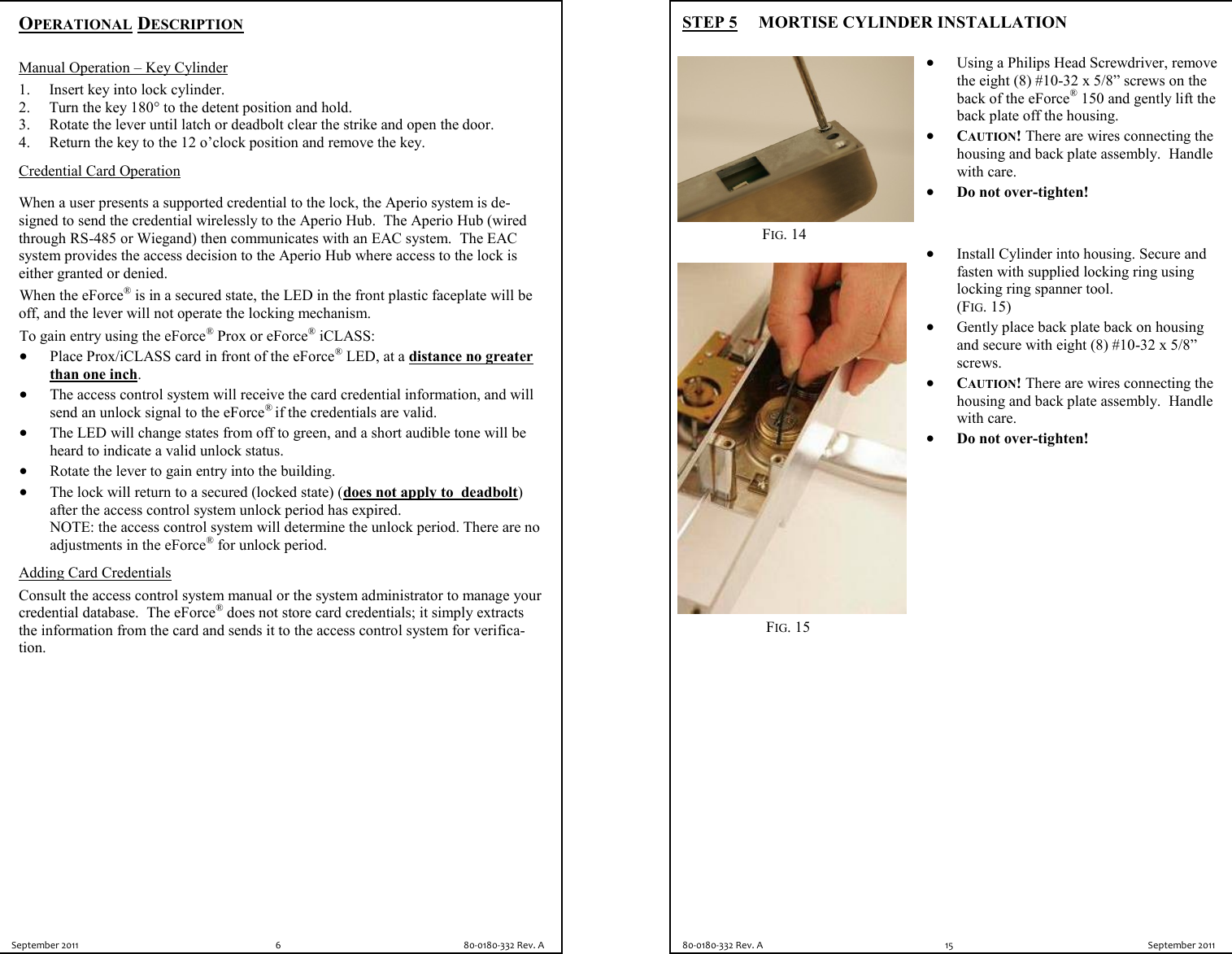

September 2011 6 80-0180-332 Rev. A OPERATIONAL DESCRIPTION Manual Operation – Key Cylinder 1. Insert key into lock cylinder. 2. Turn the key 180° to the detent position and hold. 3. Rotate the lever until latch or deadbolt clear the strike and open the door. 4. Return the key to the 12 o’clock position and remove the key. Credential Card Operation When a user presents a supported credential to the lock, the Aperio system is de-signed to send the credential wirelessly to the Aperio Hub. The Aperio Hub (wired through RS-485 or Wiegand) then communicates with an EAC system. The EAC system provides the access decision to the Aperio Hub where access to the lock is either granted or denied. When the eForce® is in a secured state, the LED in the front plastic faceplate will be off, and the lever will not operate the locking mechanism. To gain entry using the eForce® Prox or eForce® iCLASS:  Place Prox/iCLASS card in front of the eForce® LED, at a distance no greater than one inch.  The access control system will receive the card credential information, and will send an unlock signal to the eForce® if the credentials are valid.  The LED will change states from off to green, and a short audible tone will be heard to indicate a valid unlock status.  Rotate the lever to gain entry into the building.  The lock will return to a secured (locked state) (does not apply to deadbolt) after the access control system unlock period has expired. NOTE: the access control system will determine the unlock period. There are no adjustments in the eForce® for unlock period. Adding Card Credentials Consult the access control system manual or the system administrator to manage your credential database. The eForce® does not store card credentials; it simply extracts the information from the card and sends it to the access control system for verifica-tion. 80-0180-332 Rev. A 15 September 2011 FIG. 14 FIG. 15 STEP 5 MORTISE CYLINDER INSTALLATION  Using a Philips Head Screwdriver, remove the eight (8) #10-32 x 5/8” screws on the back of the eForce® 150 and gently lift the back plate off the housing.  CAUTION! There are wires connecting the housing and back plate assembly. Handle with care.  Do not over-tighten!  Install Cylinder into housing. Secure and fasten with supplied locking ring using locking ring spanner tool. (FIG. 15)  Gently place back plate back on housing and secure with eight (8) #10-32 x 5/8” screws.  CAUTION! There are wires connecting the housing and back plate assembly. Handle with care.  Do not over-tighten!

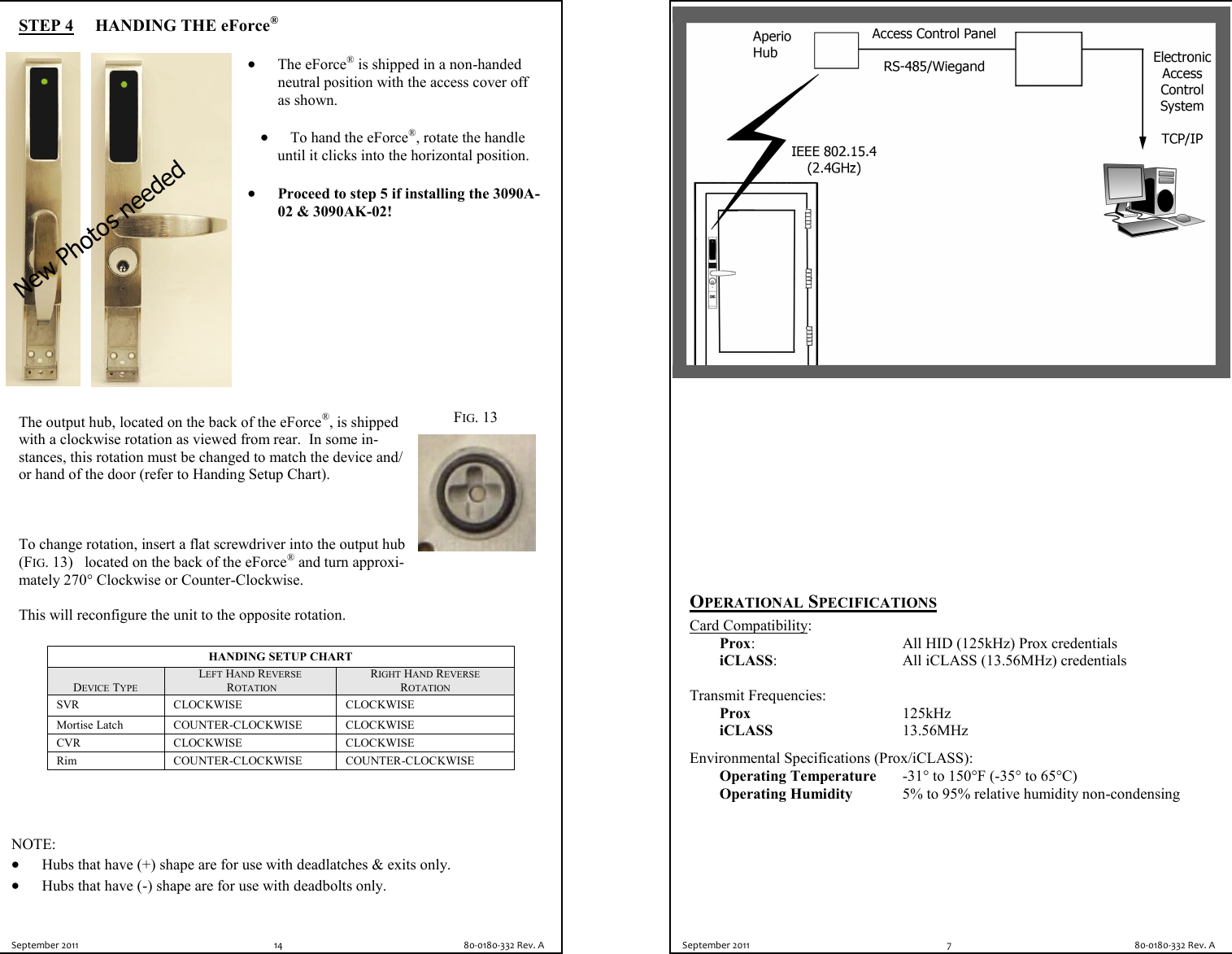

September 2011 14 80-0180-332 Rev. A STEP 4 HANDING THE eForce®  The eForce® is shipped in a non-handed neutral position with the access cover off as shown.  To hand the eForce®, rotate the handle until it clicks into the horizontal position.  Proceed to step 5 if installing the 3090A-02 & 3090AK-02! The output hub, located on the back of the eForce®, is shipped with a clockwise rotation as viewed from rear. In some in-stances, this rotation must be changed to match the device and/or hand of the door (refer to Handing Setup Chart). To change rotation, insert a flat screwdriver into the output hub (FIG. 13) located on the back of the eForce® and turn approxi-mately 270° Clockwise or Counter-Clockwise. This will reconfigure the unit to the opposite rotation. HANDING SETUP CHART DEVICE TYPE LEFT HAND REVERSE ROTATION RIGHT HAND REVERSE ROTATION SVR CLOCKWISE CLOCKWISE Mortise Latch COUNTER-CLOCKWISE CLOCKWISE CVR CLOCKWISE CLOCKWISE Rim COUNTER-CLOCKWISE COUNTER-CLOCKWISE FIG. 13 NOTE:  Hubs that have (+) shape are for use with deadlatches & exits only.  Hubs that have (-) shape are for use with deadbolts only. New Photos needed September 2011 7 80-0180-332 Rev. A OPERATIONAL SPECIFICATIONS Card Compatibility: Prox: All HID (125kHz) Prox credentials iCLASS: All iCLASS (13.56MHz) credentials Transmit Frequencies: Prox 125kHz iCLASS 13.56MHz Environmental Specifications (Prox/iCLASS): Operating Temperature -31° to 150°F (-35° to 65°C) Operating Humidity 5% to 95% relative humidity non-condensing

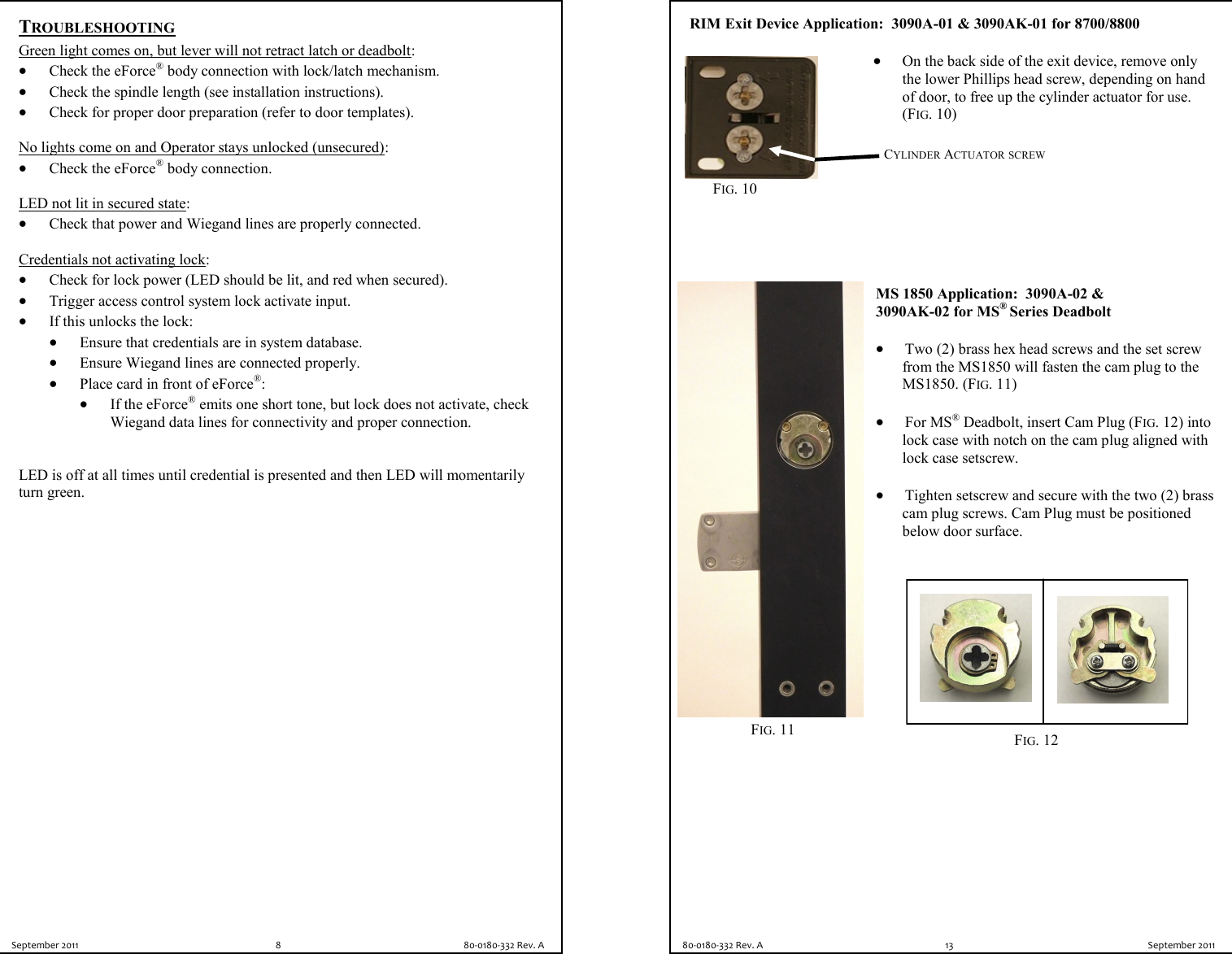

September 2011 8 80-0180-332 Rev. A TROUBLESHOOTING Green light comes on, but lever will not retract latch or deadbolt:  Check the eForce® body connection with lock/latch mechanism.  Check the spindle length (see installation instructions).  Check for proper door preparation (refer to door templates). No lights come on and Operator stays unlocked (unsecured):  Check the eForce® body connection. LED not lit in secured state:  Check that power and Wiegand lines are properly connected. Credentials not activating lock:  Check for lock power (LED should be lit, and red when secured).  Trigger access control system lock activate input.  If this unlocks the lock:  Ensure that credentials are in system database.  Ensure Wiegand lines are connected properly.  Place card in front of eForce®:  If the eForce® emits one short tone, but lock does not activate, check Wiegand data lines for connectivity and proper connection. LED is off at all times until credential is presented and then LED will momentarily turn green. 80-0180-332 Rev. A 13 September 2011 RIM Exit Device Application: 3090A-01 & 3090AK-01 for 8700/8800  On the back side of the exit device, remove only the lower Phillips head screw, depending on hand of door, to free up the cylinder actuator for use. (FIG. 10) MS 1850 Application: 3090A-02 & 3090AK-02 for MS® Series Deadbolt  Two (2) brass hex head screws and the set screw from the MS1850 will fasten the cam plug to the MS1850. (FIG. 11)  For MS® Deadbolt, insert Cam Plug (FIG. 12) into lock case with notch on the cam plug aligned with lock case setscrew.  Tighten setscrew and secure with the two (2) brass cam plug screws. Cam Plug must be positioned below door surface. CYLINDER ACTUATOR SCREW FIG. 11 FIG. 10 FIG. 12

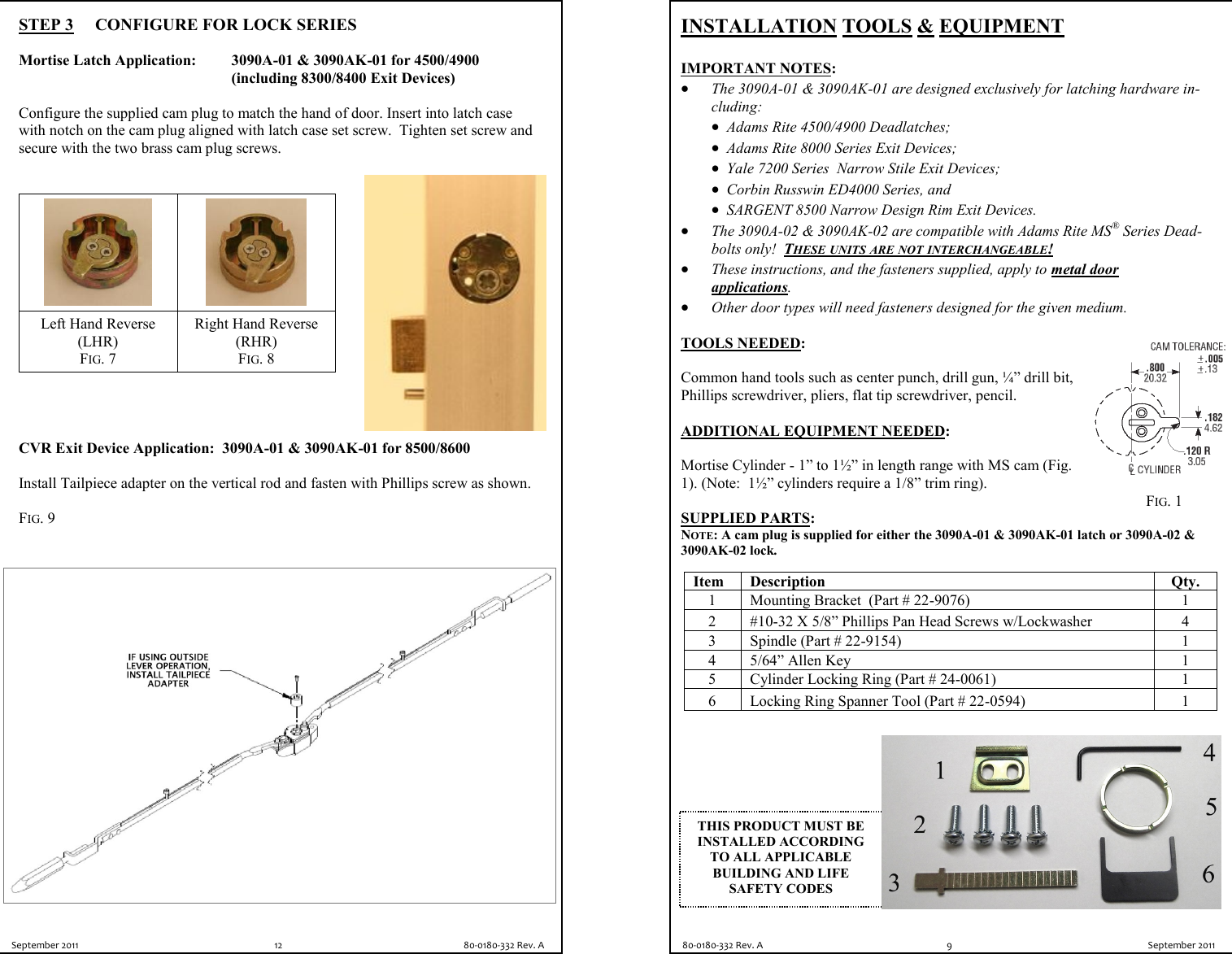

September 2011 12 80-0180-332 Rev. A STEP 3 CONFIGURE FOR LOCK SERIES Mortise Latch Application: 3090A-01 & 3090AK-01 for 4500/4900 (including 8300/8400 Exit Devices) Configure the supplied cam plug to match the hand of door. Insert into latch case with notch on the cam plug aligned with latch case set screw. Tighten set screw and secure with the two brass cam plug screws. CVR Exit Device Application: 3090A-01 & 3090AK-01 for 8500/8600 Install Tailpiece adapter on the vertical rod and fasten with Phillips screw as shown. FIG. 9 Left Hand Reverse (LHR) FIG. 7 Right Hand Reverse (RHR) FIG. 8 80-0180-332 Rev. A 9 September 2011 INSTALLATION TOOLS & EQUIPMENT IMPORTANT NOTES:  The 3090A-01 & 3090AK-01 are designed exclusively for latching hardware in-cluding:  Adams Rite 4500/4900 Deadlatches;  Adams Rite 8000 Series Exit Devices;  Yale 7200 Series Narrow Stile Exit Devices;  Corbin Russwin ED4000 Series, and  SARGENT 8500 Narrow Design Rim Exit Devices.  The 3090A-02 & 3090AK-02 are compatible with Adams Rite MS® Series Dead-bolts only! THESE UNITS ARE NOT INTERCHANGEABLE!  These instructions, and the fasteners supplied, apply to metal door applications.  Other door types will need fasteners designed for the given medium. TOOLS NEEDED: Common hand tools such as center punch, drill gun, ¼” drill bit, Phillips screwdriver, pliers, flat tip screwdriver, pencil. ADDITIONAL EQUIPMENT NEEDED: Mortise Cylinder - 1” to 1½” in length range with MS cam (Fig. 1). (Note: 1½” cylinders require a 1/8” trim ring). SUPPLIED PARTS: NOTE: A cam plug is supplied for either the 3090A-01 & 3090AK-01 latch or 3090A-02 & 3090AK-02 lock. THIS PRODUCT MUST BE INSTALLED ACCORDING TO ALL APPLICABLE BUILDING AND LIFE SAFETY CODES Item Description Qty. 1 Mounting Bracket (Part # 22-9076) 1 2 #10-32 X 5/8” Phillips Pan Head Screws w/Lockwasher 4 3 Spindle (Part # 22-9154) 1 4 5/64” Allen Key 1 5 Cylinder Locking Ring (Part # 24-0061) 1 6 Locking Ring Spanner Tool (Part # 22-0594) 1 FIG. 1

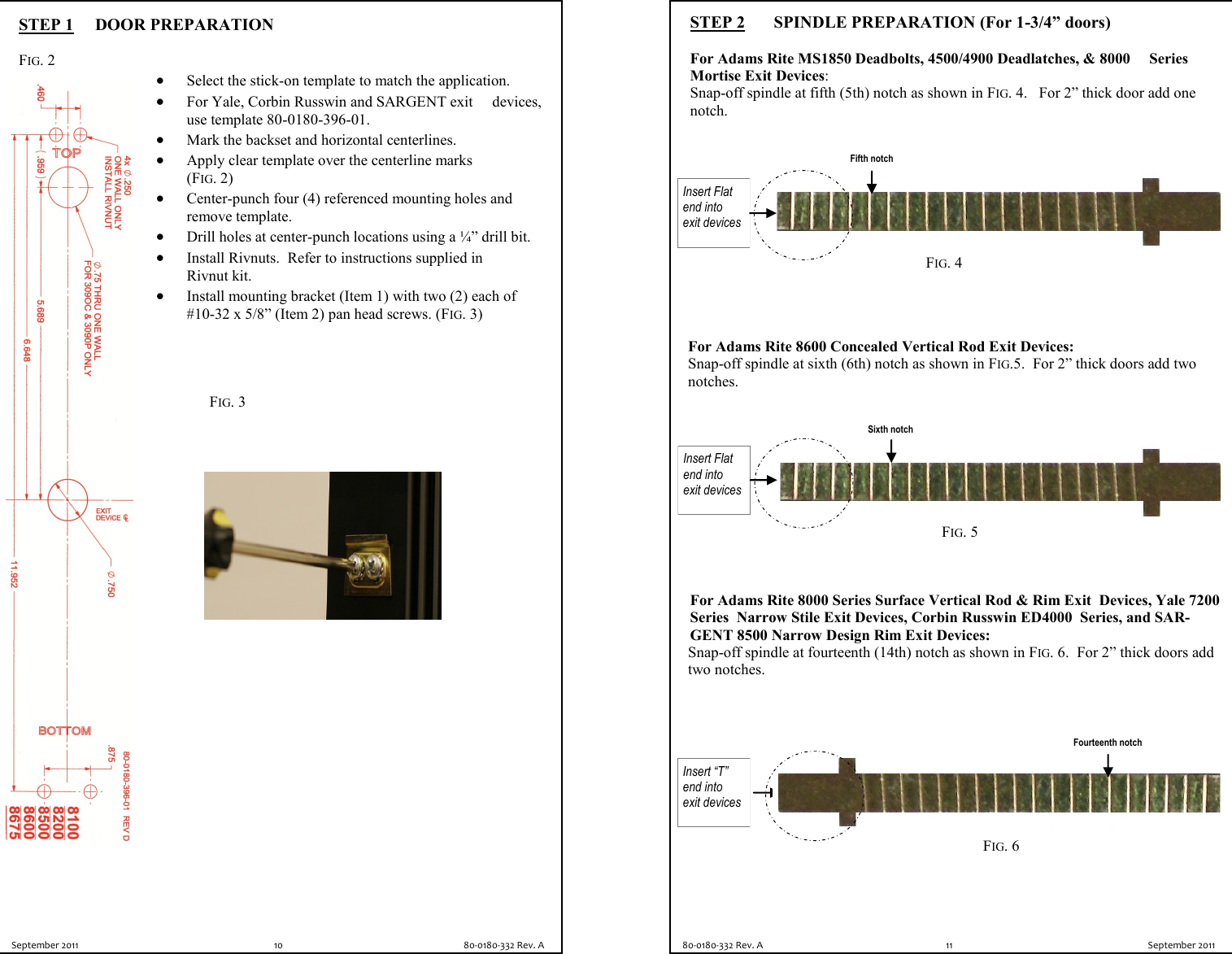

September 2011 10 80-0180-332 Rev. A STEP 1 DOOR PREPARATION FIG. 2  Select the stick-on template to match the application.  For Yale, Corbin Russwin and SARGENT exit devices, use template 80-0180-396-01.  Mark the backset and horizontal centerlines.  Apply clear template over the centerline marks (FIG. 2)  Center-punch four (4) referenced mounting holes and remove template.  Drill holes at center-punch locations using a ¼” drill bit.  Install Rivnuts. Refer to instructions supplied in Rivnut kit.  Install mounting bracket (Item 1) with two (2) each of #10-32 x 5/8” (Item 2) pan head screws. (FIG. 3) FIG. 3 80-0180-332 Rev. A 11 September 2011 STEP 2 SPINDLE PREPARATION (For 1-3/4” doors) For Adams Rite MS1850 Deadbolts, 4500/4900 Deadlatches, & 8000 Series Mortise Exit Devices: Snap-off spindle at fifth (5th) notch as shown in FIG. 4. For 2” thick door add one notch. For Adams Rite 8600 Concealed Vertical Rod Exit Devices: Snap-off spindle at sixth (6th) notch as shown in FIG.5. For 2” thick doors add two notches. For Adams Rite 8000 Series Surface Vertical Rod & Rim Exit Devices, Yale 7200 Series Narrow Stile Exit Devices, Corbin Russwin ED4000 Series, and SAR-GENT 8500 Narrow Design Rim Exit Devices: Snap-off spindle at fourteenth (14th) notch as shown in FIG. 6. For 2” thick doors add two notches. FIG. 6 Insert “T” end into exit devices Fourteenth notch FIG. 5 Sixth notch Insert Flat end into exit devices FIG. 4 Fifth notch Insert Flat end into exit devices
