80-0180-429, Revision A

07/2015

4510 Series and 4530 Series

Deadlatch Installation Instructions

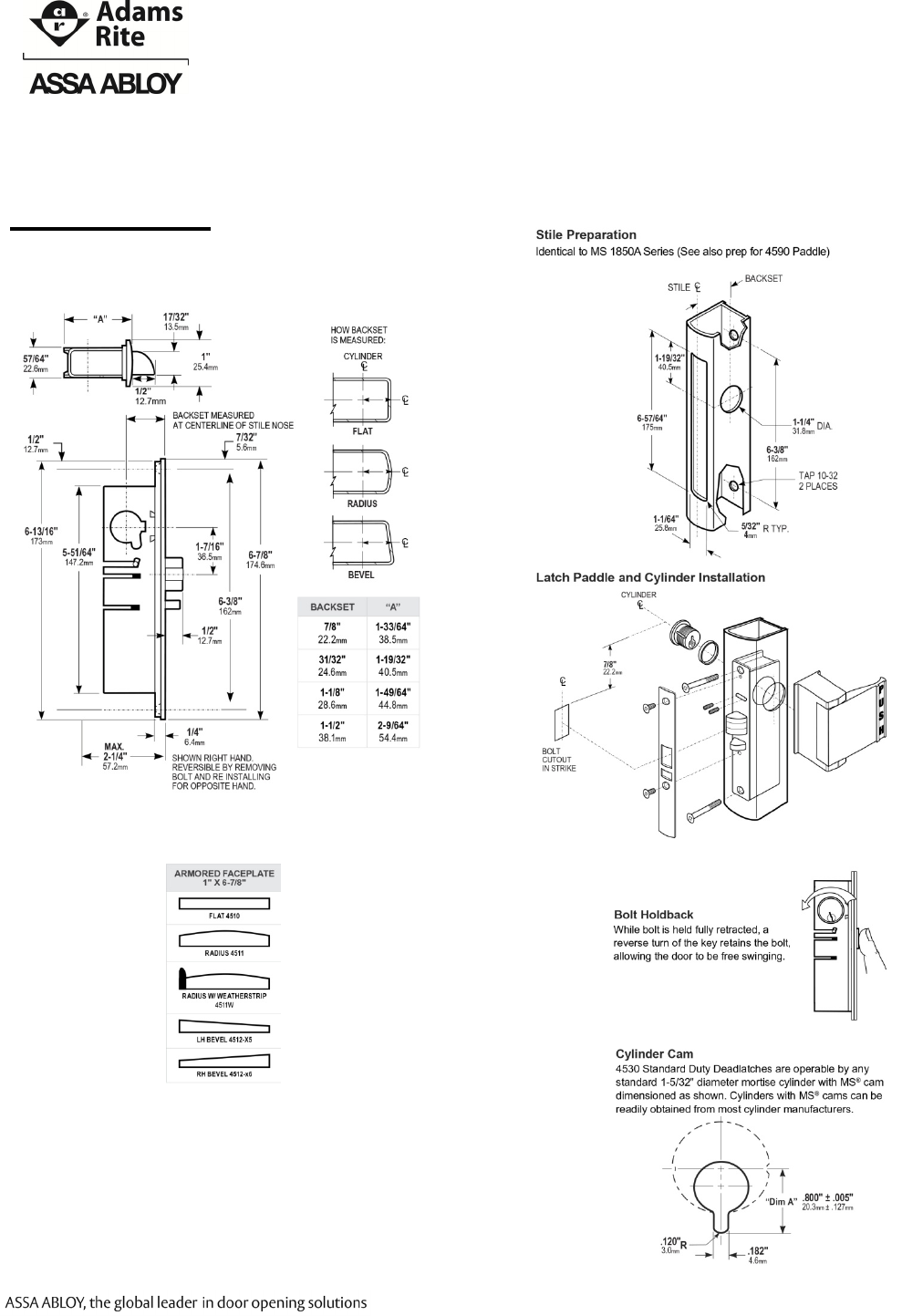

4510 Series

Dimensions



Available Faceplates

Related Hardware and Accessories

1. Handle Operators – Specify 4560, 4561, 4565, 4568, or 4590

2. Cylinders are available from Adams Rite keyed different or keyed alike

in pairs.

3. Cylinder Guard – Specify MS 4043

4. Optional Strikes

See Catalog for additional details.

Installation

Phoenix, AZ 85044

Tel: 1-800-872-3267

Mon-Fri: 6:00am - 4:00pm PDT

Fax: 1-800-232-7329

www.adamsrite.com

80-0180-429, Revision A

07/2015

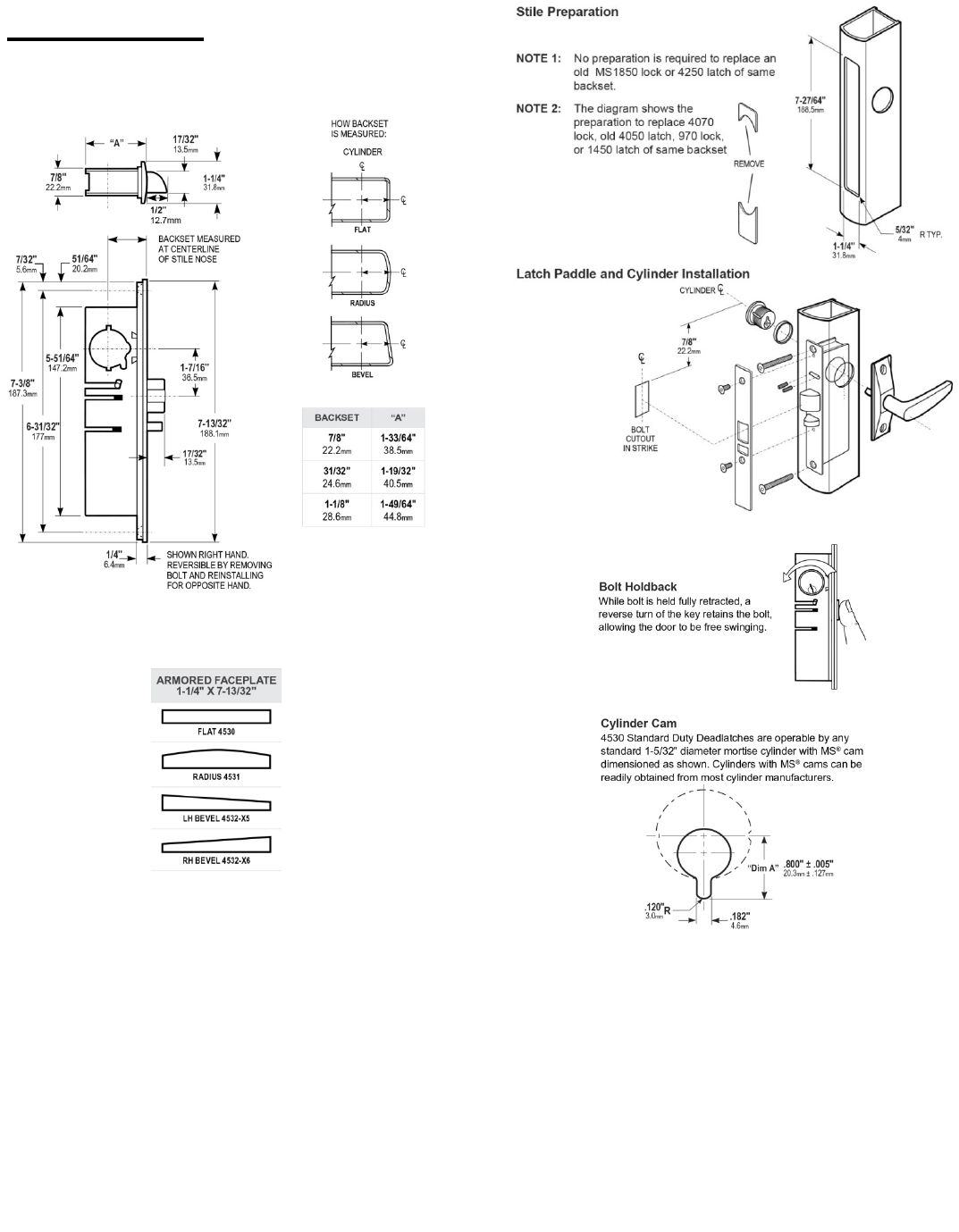

4530 Series

Dimensions



Available Faceplates

Related Hardware and Accessories

1. Handle Operators – Specify 4560, 4561, 4565, 4568, or 4569

2. Cylinders are available from Adams Rite keyed different or keyed alike

in pairs.

3. Optional Strikes

See Catalog for additional details.

Installation

© 2015, Hanchett Entry Systems, Inc., an ASSA ABLOY Group Company.
