Adams Rite Parts Manual ARM Single Pg Rev

User Manual: Adams Rite Parts Manual Parts Manual

Open the PDF directly: View PDF PDF.
Page Count: 72

Parts
Manual
adamsrite.com
Prices effective April 1, 2015
Deadlocks
MS1850S Series MS® Deadlock 4
MS1850 Series MS® Accessories 6
2331 Heavy Duty Deadlock 8
4189/419 0 Flush Locksets 10
4430/4431 Flush Locksets 12
Deadlatches
4781 Two-Point Deadlatch with Paddle 14
4900 Heavy Duty Deadlatch 16
Exit Devices
3100 Series Surface Vertical Rod Exit Device 18
3300 Series Mortise Exit Device 20
3600 Series Concealed Vertical Rod 22
3700 Series Rim Exit Device 24
3889 Mullion 26
3890 Mullion 28
3900/8900 Series Concealed Vertical Rod 30
8099/8099M Dummy Pushbar 32
8100 Series Surface Vertical Rod 34
8200 Series Surface Vertical Rod 36
8300 Series Mortise Exit Device 38
8400 Series Mortise Exit Device 40
8475 Midpanel Mortise Exit Device 42
8500 Series Concealed Vertical Rod 44
8600 Series Concealed Vertical Rod 46
8675 Concealed Vertical Rod 48
8700 Series Rim Exit Device 50
8800 Series Rim Exit Device 52
Accessories for Exit Devices 54
Electric Strikes
7100 Electric Strike 56
Trim
3080 Series Entry Trim 58
eForce®-150 3090 Keyless Entry 60
4550 MS® Deadlock Lever 62
4590 Deadlatch Paddle 64
4591 Deadlatch Paddle 66
Cylinders
4024/4025/4026 Cylinder Pulls 68
General Info
Adams Rite Limited Warranty 70
Architectural Finishes 71
Handing of Doors 71
Table of Contents
adamsrite.com

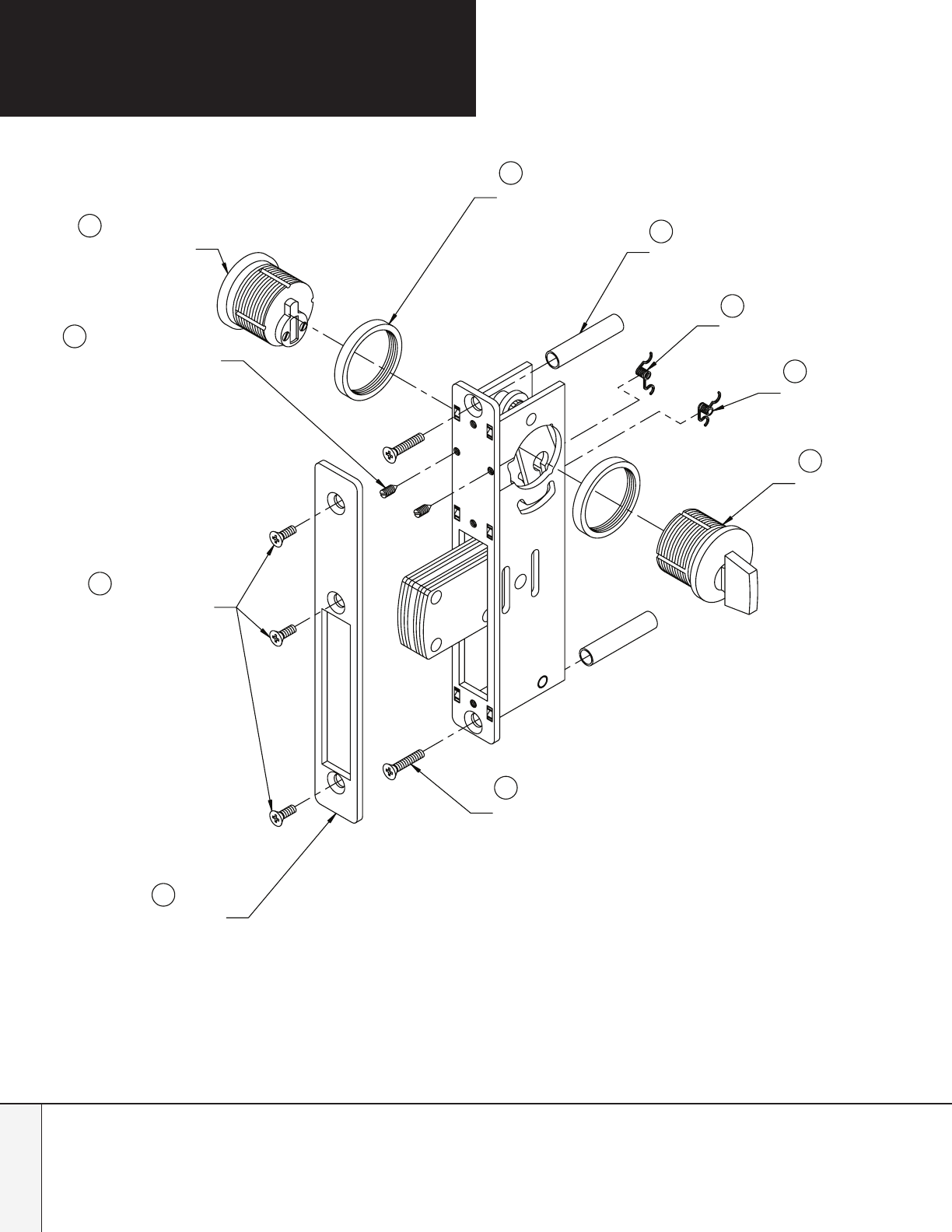

4DEADLOCKS

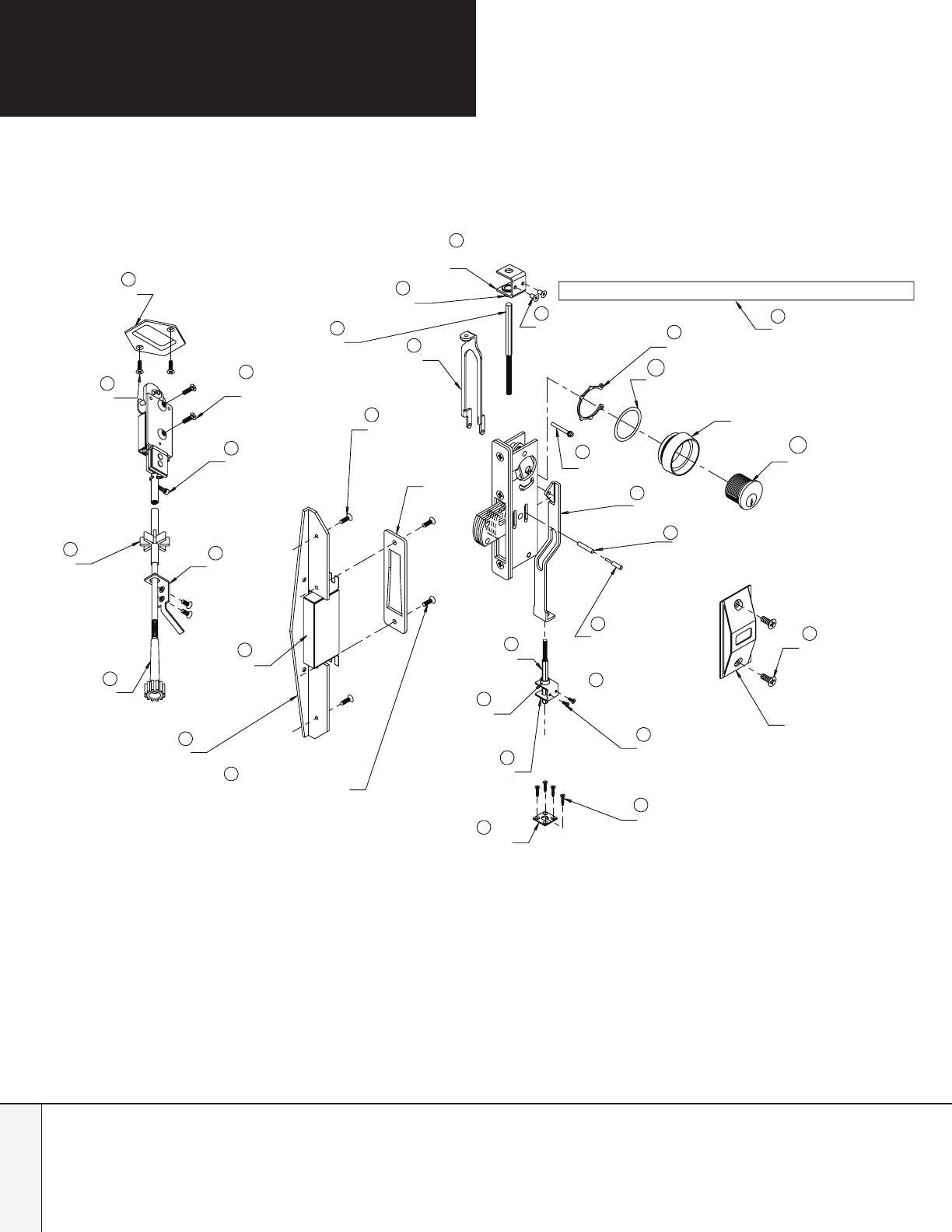

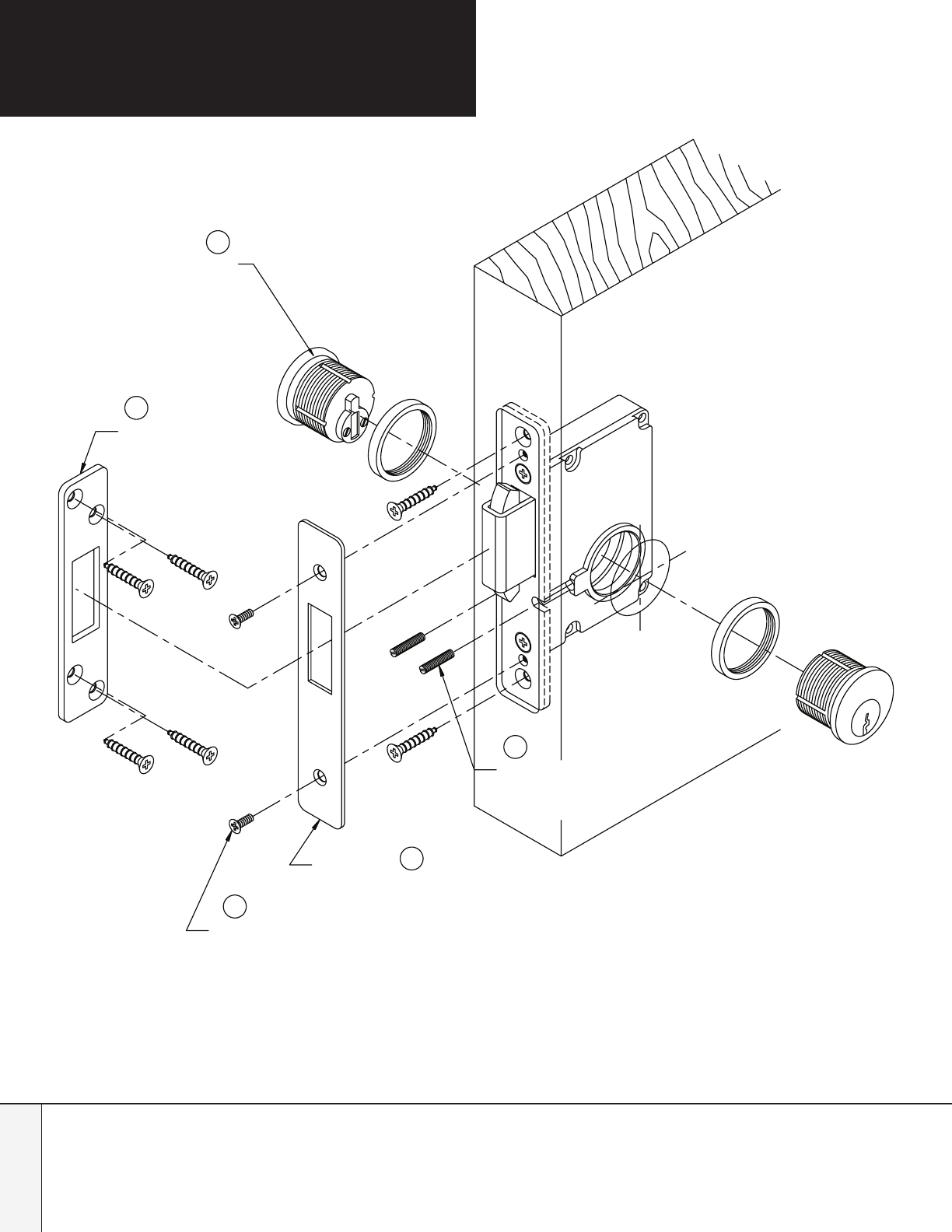

MS1850S
SERIES MS® DEADLOCK
MORTISE CYLINDER
P/N 4036-01-XX-XXX
TRIM RING
P/N 24-0007-XX-XXX
2 REQ'D
SPRING
P/N 28-0064-03
TUBE SPACER
P/N 26-0009-XX
2 REQ'D
SPRING
P/N 28-0064-02
MORTISE
THUMBTURN
P/N 4066-XX-XXX
FACEPLATE
#10-32 X 1 3/4 FLAT HEAD SCREW
FOR MS IN 7/8 & 31/32 BACKSETS
P/N S262-10R28-603-MP
OR
#10-32 X 1 7/8 FLAT HEAD SCREW
FOR MS IN 1 1/8 BACKSET
P/N S262-10R30-603-MP
OR
2 EA. - #12-24 X 3/4 FLAT HEAD COMBO SCREW
FOR ANSI MS IN HOLLOW METAL / WOOD DOORS
2 EA. S262-10R36-603-MP
P/N 91-0967
SLOTTED HEAD SET SCREW
7/8 BACKSET
P/N S232B-9/32N-631-MP
OR
31/32 BACKSET
P/N S232C08-05-631-MP
OR
1 1/8, 1 1/2 BACKSETS
P/N S232C8-15/32-631-MP
2 REQ'
D
#8-32 X 1/4 FLAT HEAD
SCREW
P/N 91-0244-22-XXX
3 REQ'D
8
9
7
6
5
4
10
3
2
1
P/N 24-0384-XXX-XXX
MS1850S 1 X 6 7/8
OR
P/N 24-0226-XXX-XXX
MS1850SN 1 1/4 X 8
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
MS1850S
SERIES MS® DEADLOCK
MS1850S Series MS® Deadlock
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
124-0007-04-XXX Trim Ring, 1/4", select 313 or 628 finish Each $8.00
24-0007-09-XXX Trim Ring, 3/8", select 313 or 628 finish Each $8.00
2
26-0009-44 Tube Spacer 1-3/8" Each $12.00
26-0009-46 Tube Spacer 1-7/16" Each $12.00
26-0009-50 Tube Spacer 1-9/16" Each $12.00
26-0009-52 Tube Spacer 1-5/8" Each $12.00
26-0009-57 Tube Spacer 1-25/32" Each $12.00
26-0009-62 Tube Spacer 1-15/16" Each $12.00
26-0009-64 Tube Spacer 2" Each $12.00
328-0064-03-MP Spring Pkg. of 10 $4.00
428-0064-02-MP Spring Pkg. of 10 $4.00
5
S262-10R28-603-MP #10-32 × 1-3/4 Flat Head Screw (7/8,31/32 Backset) Pkg. of 10 $5.00
S262-10R30-603-MP #10-32 × 1-7/8 Flat Head Screw (1-1/8 Backset) Pkg. of 10 $5.00
91-0967 #12-24 × 3/4 Flat Head Combo Screw (ANSI Metal/Wood Doors) Each $7.00
6
24-0384-X10- XX MS1850S Faceplate with Screws 1" × 6-7/8" for Straightbolt Each LIST
24-0384-X20-XXX MS1850S Faceplate with Screws 1" × 6-7/8" for Hookbolt/Short Bolt Each LIST
24-0226-X10-XXX MS1850SN Faceplate with Screws 1-1/4" × 8" for Straighbolt Each LIST
24-0226-X20-XXX MS1850SN Faceplate with Screws 1-1/4" × 8" for Hookbolt/Short Bolt Each LIST
791-0244-22-XXX #8-32 × 1/4 Flat Head Screws, select 313, 335, 628 finish Pkg. of 3 $5.00
8
S232B8-9/32N-631-MP #8-32 × 9/32 Slotted Set Screw (7/8 Backset) Pkg. of 10 $18.00
S232C08-05-631-MP #8-32 × 5/16 Slotted Set Screw (31/32 Backset) Pkg. of 10 $8.00
S232C8-15/32-631-MP #8-32 × 15/32 Slotted Set Screw (1-1/8, 1-1/2 Backset) Pkg. of 10 $8.00
94036-01-XX-XXX Mortise Cylinder Each LIST
10 4066-01-XX-XXX Mortise Thumbturn Each LIST
NS 80-0180-5 Installation Instructions, MS1850S/MS1850A Each Email only
NS 80-0180-4 Installation Instructions, MS1850SN Each Email only
LIST = Refer to current pricelist
NS = Not shown
6
MS1850
SERIES MS® ACCESSORIES
DEADLOCKS
#10-32 X 1/2
FLAT HEAD SCREW
P/N S26210R08-603-MP
2 REQ'D
DOOR HEADER SIGN (AS SHOWN)
P/N 20-0255-IP
OR
DOOR HEADER SIGN
(....BUIDLING IS OCCUPIED)
P/N 20-0256-IP
ADAPTOR ARM
P/N 22-0282
STRIKE
SNAP BUSHING
P/N 25-0036-MP
BOLT GUIDE ASS'Y
P/N 41-0827-02
ROD AND BOLT ASS'Y
P/N 31-0278-18
#8 X 3/4
FLAT HEAD WOOD SCREW
P/N S226-08-12-603-MP
4 REQ'D
4089 EXIT INDICATOR
#8-32 X 3/8
FLAT HEAD SCREW
P/N S227-08R06-603-MP
2 REQ'D
PIN
FOR PLAIN MS LOCK
P/N 26-0138-01
FOR 2-POINT MS LOCK
P/N 26-0137-02
ROLL PIN
P/N P170-05-14-MP
#10-32 X 5/16
FLAT HEAD SCREW
P/N S266-10R05N603-MP
2 REQ'D
CYLINDER
P/N 4036-01-XX-XXX
MS4043 CYLINDER GUARD
CYLINDER GUARD SPACER
P/N 22-0387-MP
RETAINER RING
P/N 22-0947
4000 TRIM
STRIKE
REINFORCEMENT ANGLE FOR
MS STANDARD BOLT
P/N 22-0049
OR
FOR MS HOOKBOLT
P/N 22-0049-01
GUIDE BRACKET
P/N 22-0157
ADJUSTABLE STUD
P/N 25-0318
SPIDER
#6-32 X 5/8
CAP SCREW
P/N S242A06-10-MP
#10-32 X 5/16
FLAT HEAD SCREW
P/N S266-10R05-603-MP
4 REQ'D
HEADER STRIKE
P/N 25-0071
DUST BOX
#10-32 X 1/2 FLAT HEAD SCREW
P/N S26210R08-603-MP
OR
#10 X 3/4 FLAT HEAD
WOOD SCREW
P/N S22610R12-603-MP
2 REQ'D
BOLT GUIDE ASSY
P/N 41-0827-02
SNAP BUSHING
P/N 25-0036-MP
UPPER ARM
P/N 22-0757
22-0758
22-0759
#10-32 X 5/16
FLAT HEAD SCREW
P/N S266-10R05N603-MP
2 REQ'D
#6 X 3/8 SELF TAP
FLAT HEAD SCREW
P/N S230-06R06-603-MP
ROD AND BOLT ASS'Y
P/N 31-0278-18
UPPER ARM PIN
P/N 31-0363N
11
23
THIS DOOR TO REMAIN UNLOCKED DURING BUSINESS HOURS
19
15
P/N 4005
14
13
12
16
20
22
18
17
25
24
10
8
6
7
P/N 25-0062-01-MP
5
4
3
1
P/N 22-0061-01
9
17
2
14
13
12
27
28
21
26
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
MS1850
SERIES MS® ACCESSORIES
MS1850 Series MS® Accessories
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
4085 Header Bolt
125-0071 Header Strike Each $4.00
2S230-06R06-603-MP #6-32 × 3/8 Self Tapping Flat Head Screw Pkg. of 10 $4.00
3S266-10R05-603-MP #10-32 × 5/16 Flat Head Screw Pkg. of 10 $4.00
4S242A06-10-MP #6-32 × 5/8 Cap Screw Pkg. of 10 $4.00
525-0062-01-MP Spider Pkg. of 10 $17.00
622-0157 Guide Bracket Each $4.00
725-0318 Adjustable Stud Each $4.00
4000 Series Strikes
822-0049 Reinforcement Angle, Standard Bolt Each $43.00
22-0049-01 Reinforcement Angle, Hook Bolt Each $43.00
9S262-10R08-603-MP #10-32 × 1/2 Flat Head Screw Pkg. of 10 $6.00
S226-10R12-603-MP #10 × 3/4 Flat Head Wood Screw Pkg. of 10 $4.00
10 22-0061-01 Dust Box (4001) Each $8.00
11 S262-10R08-603-MP #10-32 × 1/2 Flat Head Screw Pkg. of 10 $6.00
4015 Threshold Bolt
12 31-0278-18 Rod and Bolt Ass'y (Cyl. Ht. 53-7/16 Max)(4016) Each $21.00
13 25-0036-MP Snap Bushing (4016) Pkg. of 10 $16.00
14 41-0827-02 Bolt Guide Ass'y Each $7.00
15 4005 Strike with Screws Each LIST
16 S226-08-12-603-MP #8 × 3/4 Flat Head Wood Screw Pkg. of 10 $4.00
17 S266-10R05N-603-MP #10-32 × 5/16 Flat Head Screw (4016) Pkg. of 10 $8.00
18 P170-05-14-MP Roll Pin Pkg. of 10 $4.00
19 22-0282 Adaptor Arm (4015, 1870, 1870HM, MS1837, 1877) Each $25.00
4089 Exit Indicator
20 26-0138-01 Pin, for Standard MS Deadlock Each $4.00
21 26-0137-02 Pin, for MS Two-Point (MS × 4015) Each $4.00
22 S227-08R06-603-MP #8-32 × 3/8 Flat Head Screw Pk. of 10 $4.00
23 20-2055-IP Header Sign (…DURING BUSINESS HOURS) Each LIST
20-2056-IP Header Sign (…BUILDING IS OCCUPIED) Each LIST
MS4043 Cylinder Guard
24 22-0947 Retainer Ring Each $5.00
25 22-0387-MP Cylinder Guard Spacer Pkg. of 10 $13.00
26 4036-01-XX-XXX Cylinder Each LIST
4016 Header Bolt
27
22-0757 Upper Arm 1-1/8" Backset Each $26.00
22-0758 Upper Arm 1-1/2" Backset Each $26.00
22-0759 Upper Arm 31/32" Backset Each $26.00
28 31-0363N Upper Arm Pin Ass'y Each $4.00
LIST = Refer to current pricelist
8DEADLOCKS
2331
HEAVY DUTY DEADLOCK
STRIKE
P/N 22-0032-XXX
#8-32 X 5/8 SET SCREW
P/N S232C08-10-MP
2 REQ'D
#6-32 X 3/16 FLAT HEAD
UNDERCUT SCREW
P/N S235B06R03-XXX
2 REQ'D
FACEPLATE
P/N 22-0170-XXX
CYLINDER
P/N 4036-03-XX-XXX
5
4
3
1
2
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
2331
HEAVY DUTY DEADLOCK
2331 Heavy Duty Deadlock
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
1
22-0032-605 Strike - Bright Brass Each $42.00
22-0032-625 Strike - Bright Chrome Each $38.00
22-0032-626 Strike - Satin Chrome Each $35.00
24036-03-XX-XXX Mortise Cylinder Each LIST
3S232C08-10-MP #8 × 5/8 Set Screw Pkg. of 10 $5.00
4
22-0170-605 Faceplate with Screws - Bright Brass Each $42.00
22-0170-625 Faceplate with Screws - Bright Chrome Each $38.00
22-0170-626 Faceplate with Screws - Satin Chrome Each $35.00
5S235B06R03-XXX #6-32 × 3/16 Flat Head Undercut Screw, select 119 or 121 finish Each $5.00
LIST = Refer to current pricelist
10 DEADLOCKS
4189/4190
FLUSH LOCKSETS
INSERT CYLINDER
P/N 29-0442-02
MS 1848-09
INTERIOR
INTERIOR ESCUTCHEON
OPERATOR
P/N 41-0942-XX-XXX-IB
#8-32 FLAT HEAD SCREW
P/N S227-08R12-XXX-MP
OR
P/N S227-08R16-XXX-MP
OR
P/N S227-08R22-603-MP
2 REQ'D
KNOB
P/N 25-0094
EXTERIOR ESCUTCHEON ASSY
4189
P/N 23-0065-01-XXX-IB
OR
4190
P/N 41-0943-1-XXX-01-IB
#6-32 X 3/8 TRUSS
HEAD SCREW
P/N S234-06R06N-603-MP
#6-32 X 1/4 FLAT HEAD SCREW
P/N S235-06R04N-603-MP
MS 1848
OR
P/N S235C06R04-630-MP
MS 1847
2 REQ'D
BARBED STUD
P/N P191-10-06-MP
7
1
2
4
3
6
8
5
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
4189/4190
FLUSH LOCKSETS
4189/4190 Flush Locksets
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
1S235-06R04N-603-MP #6-32 × 1/4" Flat Head Screw (MS1848) Pkg. of 10 $4.00
S235C06R04-630-MP #6-32 × 1/4" Flat Head Screw (MS1847) Pkg. of 10 $5.00
2
41-0942-01-XXX-IB Int. Escut. Operator (HE 0066) - 4189 1" - 1-5/8" Door, select
119, 120, or 130 finish Each $35.00
41-0942-02-119-IB Int. Escut. Operator (HE 0066) - 4189 1-11/16" - 2" Door Each $40.00
41-0942-09-119-IB Int. Escut. Operator (HE 0066) - 4190 1" - 1-3/8" Door Each $50.00
41-0942-10-119-IB Int. Escut. Operator (HE 0066) - 4190 1-7/16" - 1-5/8" Door Each $55.00
41-0942-11-119-IB Int. Escut. Operator (HE 0066) - 4190 1-11/16" - 2" Door Each $60.00
325-0094 Knob Each $4.00
4
S227-08R12-603-MP #8 × 3/4 Flat Head Self Tapping Screw Pkg. of 10 $4.00
S227-08R16-603-MP #8 × 1 Flat Head Self Tapping Screw Pkg. of 10 $4.00
S227-08R22-603-MP #8 × 1-3/8 Flat Head Self Tapping Screw Pkg. of 10 $4.00
5P191-10-06-MP Barbed Stud Pkg. of 10 $10.00
6 23-0065-01-119-IB Exterior Excutcheon - 4189 (HE 0065) Each $26.00
41-0943-1-119-01-IB Exterior Excutcheon - 4190 (HE 0065) Schlage “C” Each $50.00
729-0442-02 Insert Cylinder with 2 Keys (Schlage “C” Keyway) Each $25.00
8S234-06R06N-603-MP #6-32 × 3/8 Truss Head Screw Pkg. of 10 $6.00
12 DEADLOCKS

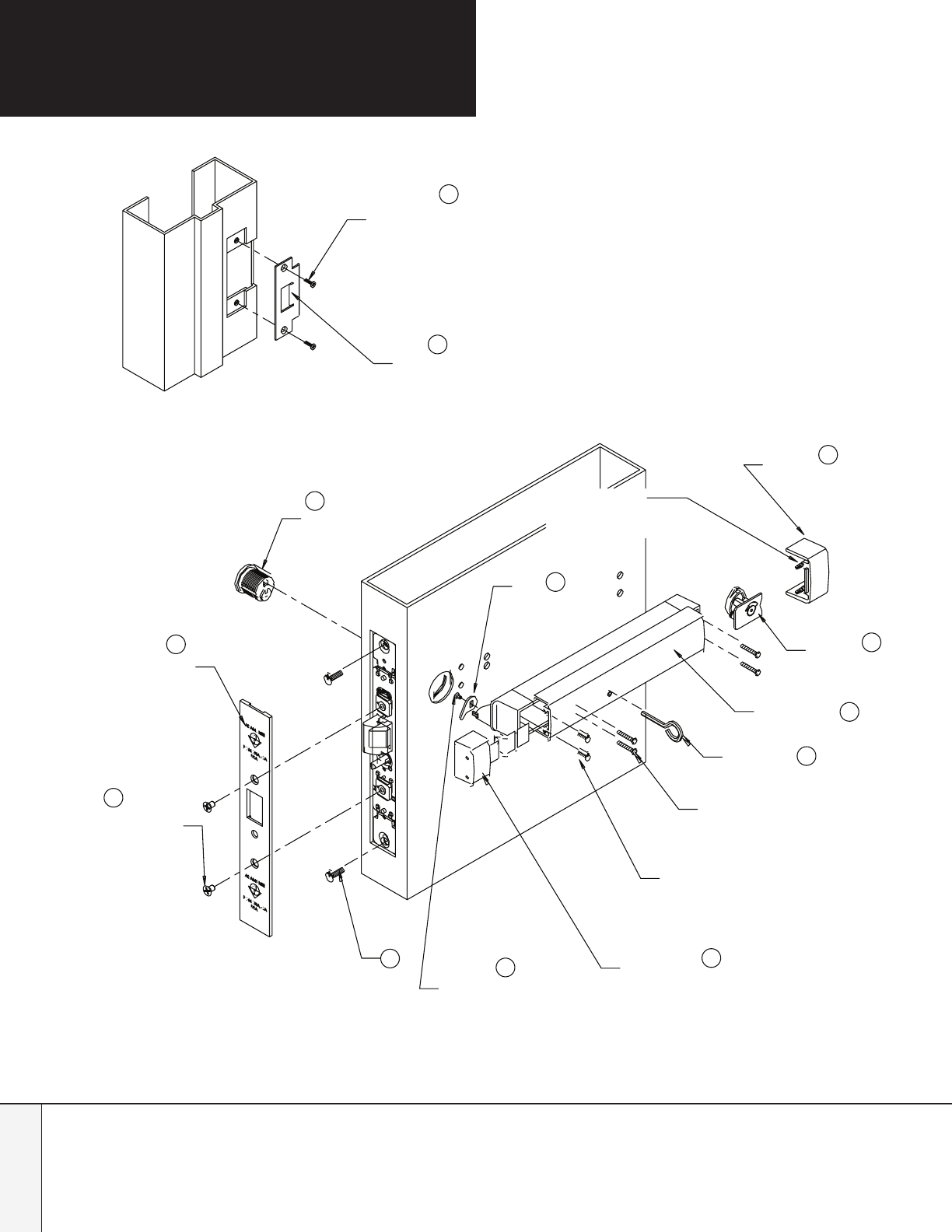

4430/4431
FLUSH LOCKSETS
INTERIOR ESCUTCHEO
N
OPERATOR
P/N 41-0397-XX-IB
#6-32 X 1/4 FLAT HEAD SCREW
P/N S235-06R04N-603-MP
MS 1848
OR
P/N S235C06R04-630-MP
MS 1847
2 REQ'D
MS 1848-09
KNOB
P/N 25-0077
#8 FLAT HEAD SELF TAPPING SCREW
P/N S254C08R16-MP
OR
P/N S254-08R22-603-MP
2 REQ'D
#6 X 3/8 PAN HEAD
SELF TAPPING SCREW
P/N S280C06R06-MP
INSERT CYLINDER
P/N 29-0461-01
-01
#8 X 3/8 SELF TAPPING
SCREW
P/N S256C08R06-MP
CYLINDER RETAINER
P/N 22-0212
EXTERIOR ESCUTCHEON
4430
P/N 25-0087-IB
OR
4431
P/N 41-0405-00-01-IB
INTERIOR
2
1
3
4
5
6
7
8
9
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
4430/4431
FLUSH LOCKSETS
4430/4431 Flush Locksets
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
1S235-06R04N-603-MP #6-32 × 1/4 Flat Head Screw (MS1848) Pkg. of 10 $4.00
S235C06R04-630-MP #6-32 × 1/4 Flat Head Screw (MS1847) Pkg. of 10 $5.00
2
41-0397-01-IB Interior Escutcheon Operator (HE 86) 1" - 1-5/16" Door Each $39.00
41-0397-02-IB Interior Escutcheon Operator (HE 86) 1-3/8" - 1-5/8" Door Each $39.00
41-0397-06-IB Interior Escutcheon Operator (HE 86) 1-3/4" - 2" Door Each $39.00
325-0077 Knob Each $4.00
4S254-08R22-603-MP #8 × 1-3/8 Flat Head Self Tapping Screw Pkg. of 10 $6.00
S254C08R16-MP #8 × 1 Flat Head Self Tapping Screw Pkg. of 10 $9.00
5S280C06R06-MP #6 × 3/8 Pan Head Self Tapping Screw Pkg. of 10 $4.00
629-0461-01-01 Insert Cylinder w/ 2 Keys - Schlage “C” Keyway Each $25.00
7S256C08R06-MP #8 × 3/8 Self Tapping Screw Pkg. of 10 $4.00
822-0212 Cylinder Retainer Each $4.00
925-0087-IB Exterior Excutcheon - 4430 (HE 87) Each $12.00
41-0405-00-01-IB Exterior Excutcheon - 4431 (HE 87) Schlage “C” Keyway Each $39.00
14

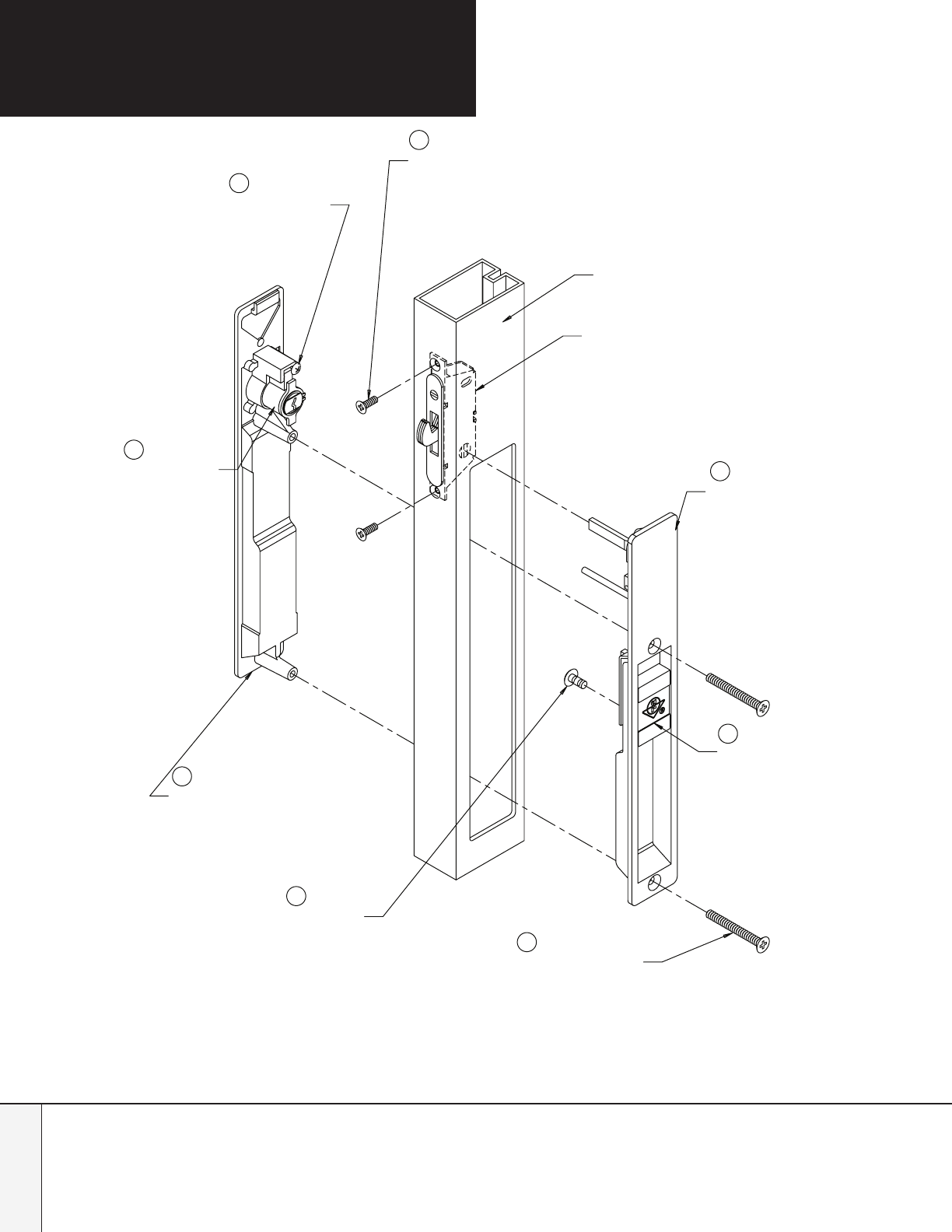

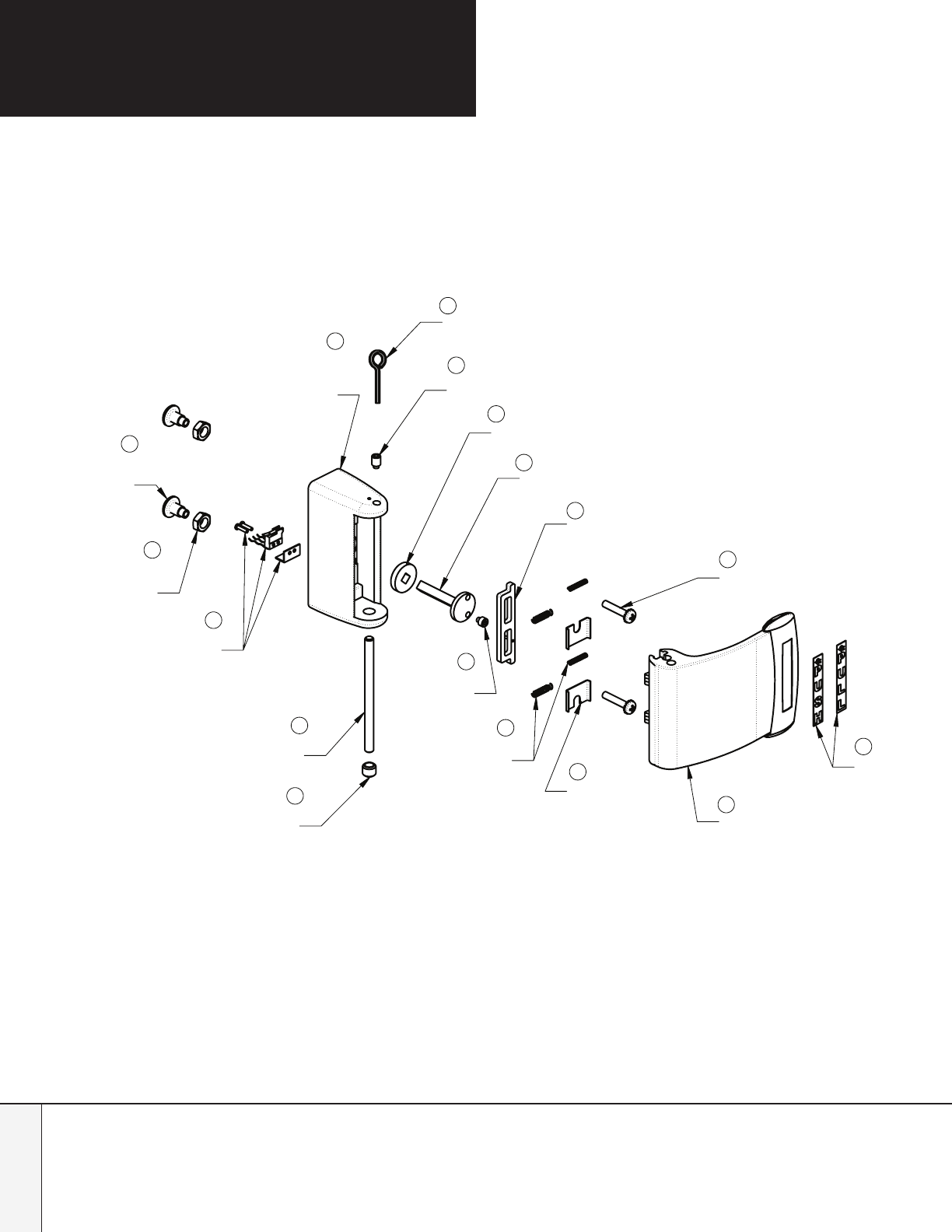

4781
TWO-POINT DEADLATCH
WITH PADDLE
DEADLATCHES
LOWER BOLT GUIDE ASS'Y
P/N 31-0964-IP
BOLT GUIDE BUSHING
P/N 25-0506-MP
SPIDER
CVR FINAL ASS'Y
P/N 41-0935
#10-32X5/16 FLAT HEAD
SCREW
P/N S266-10R05N-XXX
5 REQ'D
#6-32 X 1/2
CAP SCREW
STRIKE PLATE ASS'Y
P/N 31-0945
ACTUATOR ASS'Y
P/N 31-0944-IP
RIVNUT / TOOL ASS'Y
P/N 41-0975-02
LOWER BOLT ASSY
P/N 31-0295
DOGGING KEY
P/N 29-0481-MP
ESCUTCHEON ASSY
P/N 41-0123
* PARTS INCLUDED
10
2 REQ'D
P/N S242A06-08-MP
1
2
3
5
4
P/N 25-0062-01-MP
6
7
8
9
PAN HEAD SCREW
#10-24 x 1 1/2
*P/N S277-10R24-603
2 REQ'D
SPRING CLIP
*P/N 28-0070
2 REQ'D
DRIVE PLATE
*P/N 22-0402
SHAFT
P/N 26-0055
3/8-24 SET SCREW
*P/N 26-0398N
RETURN SPRING KIT
*P/N 91-0060
PADDLE ASSY
P/N 41-0119-XX-XXX
DRIVER SCREW
*P/N 26-0383N
LABEL
20-0099
DOGGING SCREW
*P/N 31-0079
DRIVE SHAFT
*P/N 26-0413
11
13
14
15
16
17
18
19
22
23
20
21
12
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
4781
TWO-POINT DEADLATCH
WITH PADDLE
4781 Two-Point Deadlatch with Paddle
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
131-0945 Strike Plate Ass'y Each $17.00
231-0944-IP Actuator Ass'y (Top) Each $27.00
3S242A06-08-MP #6-32 × 1/2 Cap Screw, (Rod Piercing) Pkg. of 10 $9.00
425-0062-01-MP Spider Pkg. of 10 $17.0 0
541-0935 CVR Final Ass'y (complete with bolts) Each $140.00
631-0964-IP Lower Bolt Guide Ass'y Each $6.00
725-0506-MP Bolt Guide Bushing Pkg. of 10 $6.00
831-0295 Lower Bolt Ass'y Each $13.00
9S266-10R05N-603-MP #10-32 × 5/16 Flat Head Screw Pkg. of 10 $8.00
S266-10R05N-121-MP #10-32 × 5/16 Flat Head Screw Pkg. of 10 $8.00
10 41-0975-02 Rivnut Tool Ass'y Each $10.00
11 41-0123-XX Escutcheon Ass'y, specify “PUSH” to left, or “PUSH” to right
(comes with items 13-16, 19-21, 23) Each $100.00
12 29-0481-MP Dogging Key Pkg. of 10 $26.00
13 31-0079-MP Dogging Screw Pkg. of 10 $23.00
14 26-0413 Drive Shaft Each $10.00
15 22-0402 Driver Plate Each $12.00
16 S277-10R24-603-MP #10-24 × 1-1/2 Pan Head Screw Pkg. of 10 $5.00
17 20-0099 “PUSH” “PULL” Indicator Label Each $4.00
18 41-0119-XXX Paddle Ass'y, select 313, 335, or 628 finish Each $50.00
19 28-0070-MP Spring Clip Pkg. of 10 $4.00
20 26-0383-MP Driver Screw Pkg. of 10 $60.00
21 91-0060 Return Spring Kit (includes all four springs) Each $6.00
22 26-0055 Shaft Each $4.00
23 26-0398N 3/8-24 Set Screw Each $4.00
NS 80-0180-128 Instruction Sheet, 4781 Each Email only
NS 80-0180-133 Dogging Instruction Sheet, 4781 Each Email only
NS = Not shown
16

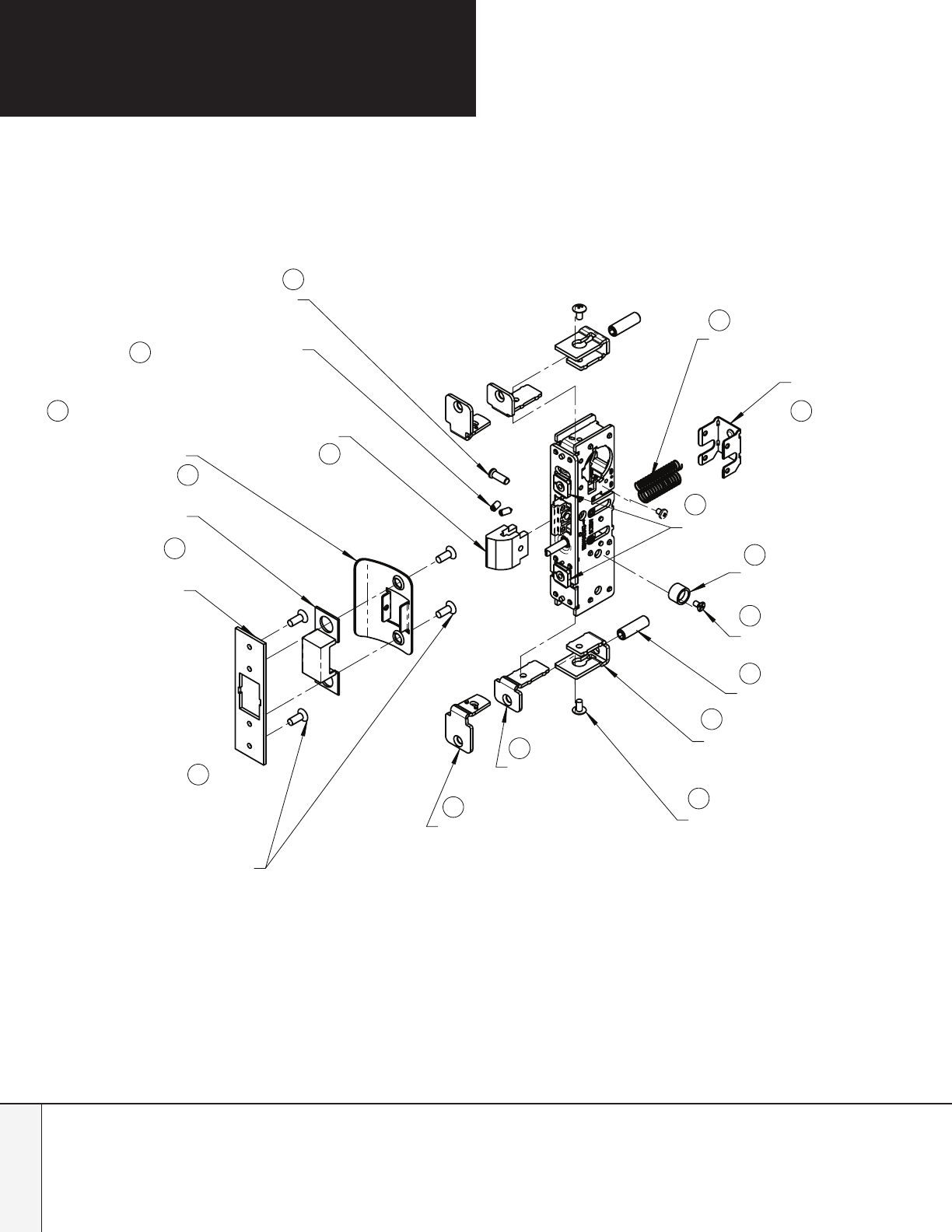

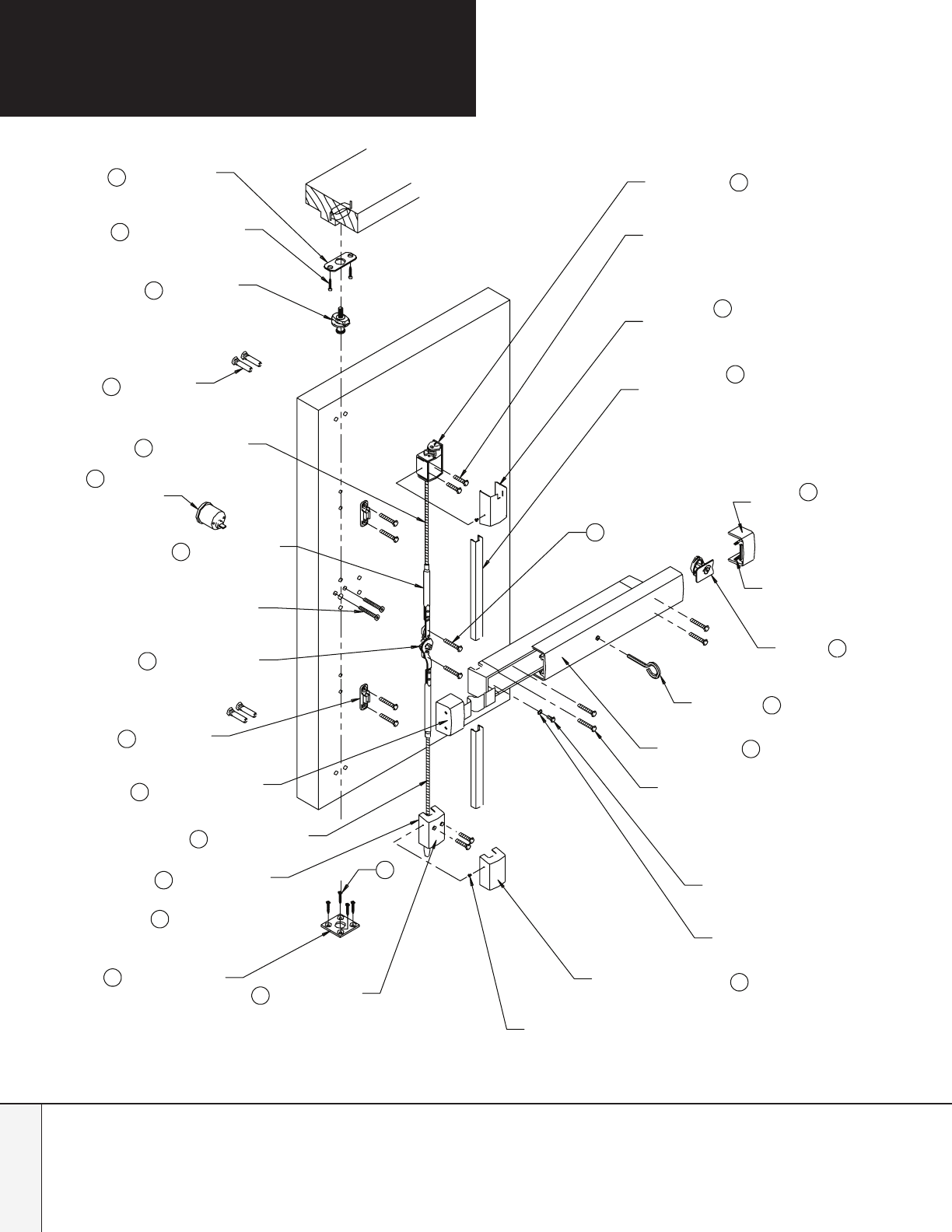

4900
HEAVY DUTY DEADLATCH
DEADLATCHES
RETAINER
P/N 22-1014
SPRING
P/N 28-0157-MP
BOLT SCREW
P/N 26-0666
STAND-OFF (4920AN)
P/N 26-0538
FLAT HD. SCREW (4920AN)
P/N S281-06R05-603-MP
TUBE ADJUSTER
P/N 26-0665
YOKE
P/N 22-1020
TRUSS HD SCREW
P/N S234-08R05-MP
ADJUSTABLE TAB
P/N 22-1016
ADJUSTABLE TAB (4920AN)
P/N 22-1018
ANGLE SPACER
P/N 23-0729
LATCH BOLT
P/N 31-0096-0X
STRIKE PLATE
P/N 31-0654-01 OR
P/N 31-0654-02 OR
P/N 31-0655-01 OR
P/N 31-0655-02
STRIKE TRIM BOX
P/N 25-0156 (4902)
P/N 25-0154 (4901)
BACK UP PLATE
P/N 22-1092 (4902)
P/N 22-1091 (4901)
#10-32 X 1/2 FH SCREW
P/N 91-0244-09-104 (4901, 4902)
(4 REQ'D)
OR
#12-24 X 3/4 FH COMBO SCREW
P/N 91-0967 (4506)
(2 REQ'D)
1
2
5
6
7
8
9
10
11
12
13
14
15
16
#8-32 X 5/16 SLOTTED
HEAD SET SCREWS
P/N S232C08-05-631-MP
17
4
18
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
4900
HEAVY DUTY DEADLATCH
4900 Heavy Duty Deadlatch
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
128-0157-MP Spring Pkg. of 10 $7.0 0
222-1014 Retainer Each $4.00
423-0729 Angle Spacer Each $4.00
526-0538 Stand-off (4920AN) Each $4.00
6S281-06R05-603-MP Flat Head Screw (4920AN) Pkg. of 10 $7.00
726-0665 Tube Adjuster Each $4.00
822-1020 Yoke Each $4.00
9S234-08R05-MP Truss Head Screw Pkg. of 10 $4.00
10 22-1016 Adjustable Tab Each $4.00
11 22-1018 Adjustable Tab (4920AN) Each $4.00
12 91-0244-09-104 #10-32 × 1/2" Flathead Screw (4901, 4902) Each $6.00
91-0967 #12-24 × 3/4" Flathead Screw (4506) Each $7.00
13 22-1091 Back up plate (4901) Each $4.00
22-1092 Back up plate (4902) Each $4.00
14 25-0154 Strike Trim Box (4901) Each $4.00
25-0156 Strike Trim Box (4902) Each $4.00
15
31-0654-01-630 Strike Plate Flat (4902 Short face 2-5/8") Each $10.00
31-0654-02-630 Strike Plate Radius (4902 Short face 2-5/8") Each $10.00
31-0655-01-630 Strike Plate Flat (4901 Long face 4-5/8") Each $12.00
31-0655-02-630 Strike Plate Radius (4901 Long face 4-5/8") Each $12.00
16 S232C08-05-631-MP #8-32 × 5/16" Slotted Head Screws Pkg. of 10 $8.00
17 26-0666 Bolt Screw Each $6.00
18
31-0096-03 Latch Bolt 1-1/8" Backset Each $8.00
31-0096-04 Latch Bolt 1-1/2" Backset Each $11.00
31-0096-05 Latch Bolt 2-3/4" Backset Each $17.0 0
18

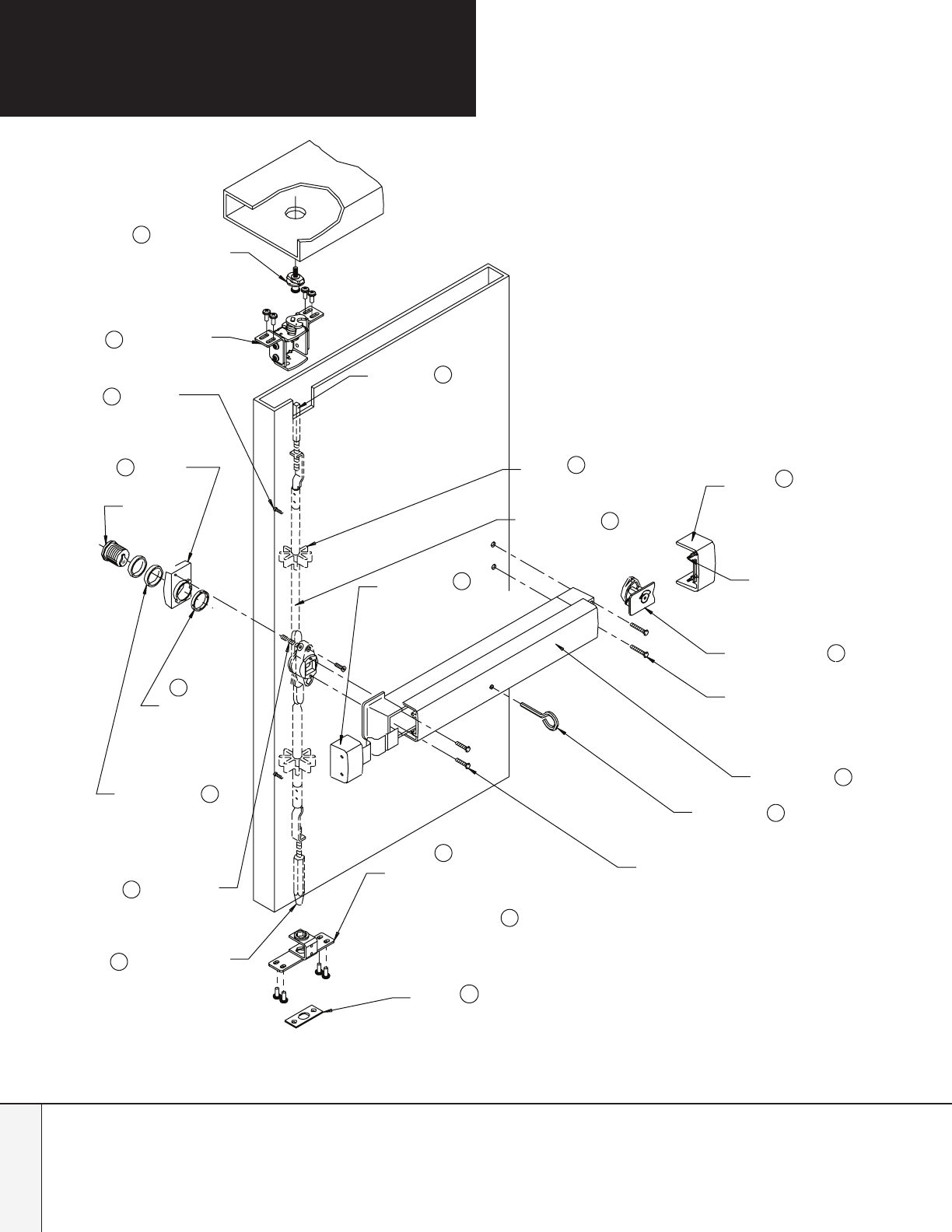

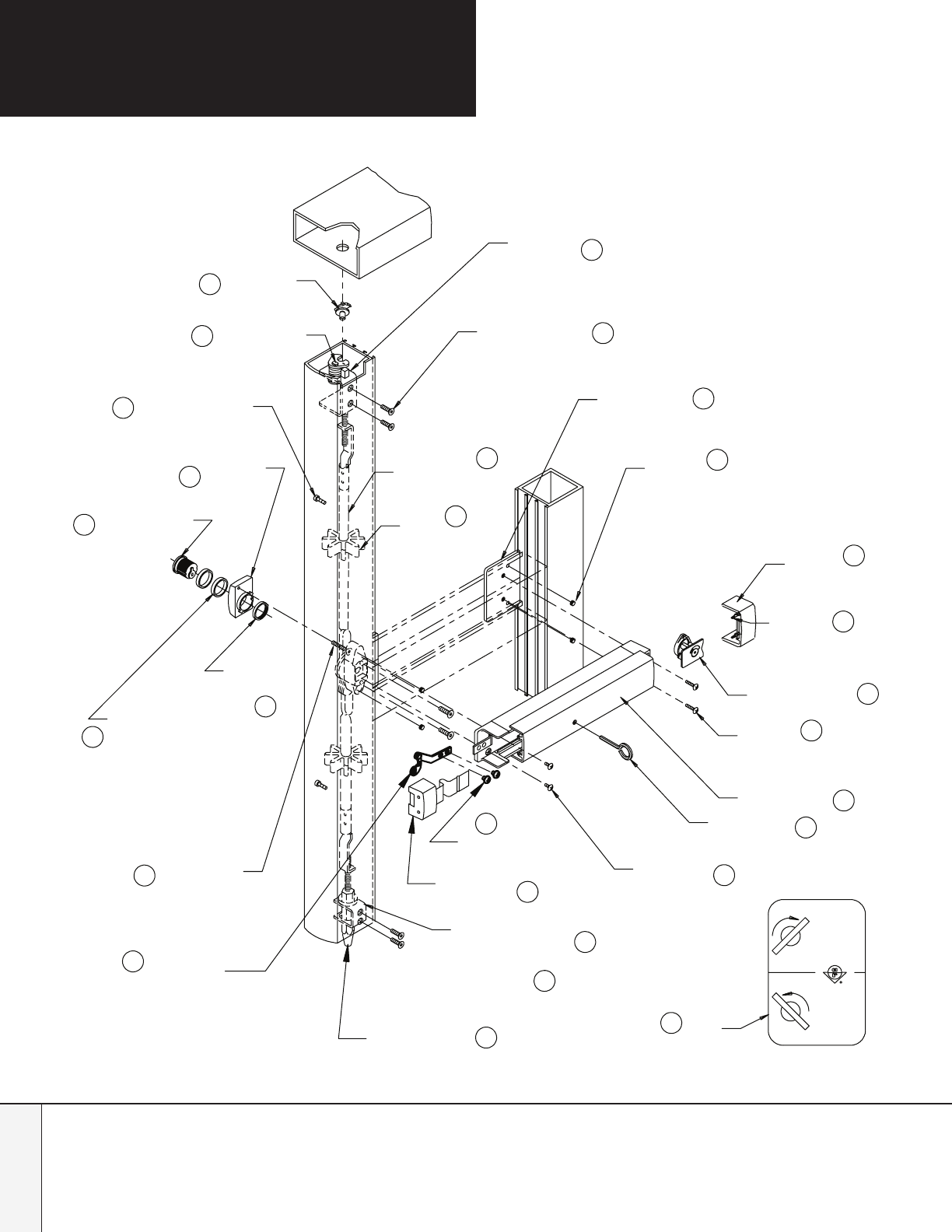

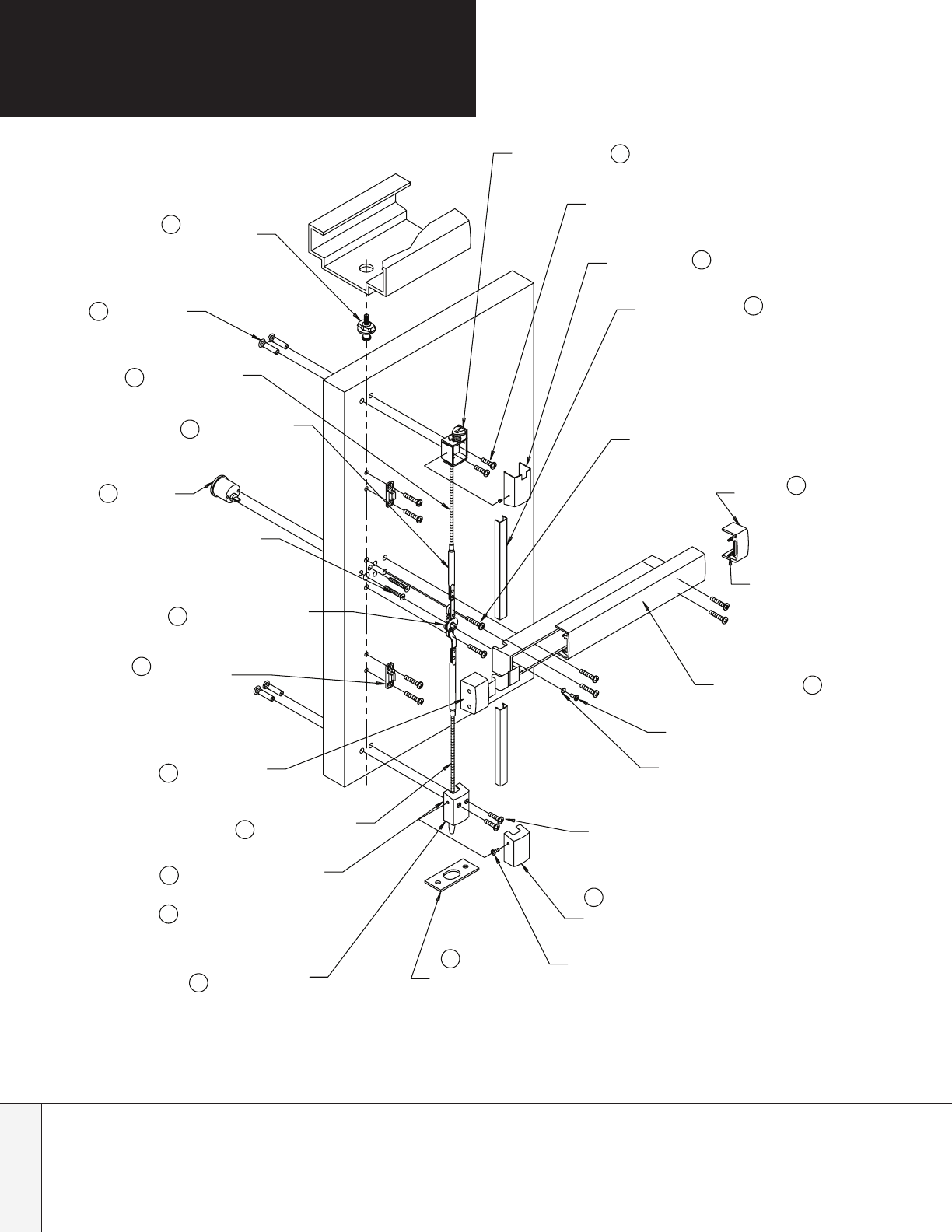

3100 Series
SURFACE VERTICAL ROD
EXIT DEVICE
EXIT DEVICES
STRIKE PLATE
ASS'Y
#6-32 X 1/4 PAN HEAD
SCREW
P/N S222-06R04-XXX
2 REQ'D
LOCK WASHER,
SPRING
BINDER POST
4 REQ'D
CYLINDER
P/N 8736-01-XX-XXX
CYLINDER
SCREW
(SUPPLIED
WITH
CYLINDER)
#10-24 X 1" PAN HEAD
MACHINE SCREW
4 REQ'D
CLIP, MOLDING
P/N 25-0008
2 REQ'D
#10 X 1 1/4 PAN HEAD
SELF-TAPPING SCREW
HOUSING, LOWER
P/N 23-0059
LOWER ROD ASS'Y
P/N 31-0192-02
BOLT GUIDE ASS'Y, LOWER
P/N 31-0175
NOT SHOWN
BUSHING, BOLT GUIDE
P/N 25-0284-MP
ACTUATOR ASS'Y
P/N 31-0331
COVER, UPPER
P/N 22-0332-0X-XXX
COVER, ROD GUIDE
P/N 24-0003-01-XXX OR
P/N 24-0031-XXX OR
P/N 24-0033-XXX
2 REQ'D
END CAP
P/N 41-0903-IP (METAL)
#10-32 X 5/8
SELF TAPPING SCREW
4 REQ'D
COVER, LOWER
P/N 22-0333-0X-XXX
#6-32 X 1/4 SCREW, PAN HEAD
PUSH BAR ASS'Y
CENTER BLOCK ASS'Y
P/N 31-0191
31-0191-01 (FOR 3100T)
SVR FINAL ASS'Y
P/N 41-0235-01 OR
P/N 41-0333-01 (3100T)
UPPER ROD ASS'Y
P/N 31-0333-01
#10 X 1 1/4 PAN HEAD
SELF-TAPPING SCREW
13 REQ'D
STRIKE
P/N 22-0125
END CAP ASS'Y
P/N 41-0902-04-IP (METAL)
#10-24 X 1 PAN HEAD
MACHINE SCREW
NOTE: (ALSO COVERS PARTS USED IN 3100T)
18
P/N 26-0584-XXX
1
P/N 31-0202
14
11
10
12
9
3
4
2
7
15
16
19
17
6
8
13
5
INCLUDED IN 91-0831-01-XXX SCREW PACK
*
*
*
*
*
*
*
*
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
3100 Series
SURFACE VERTICAL ROD
EXIT DEVICE
3100 Series Surface Vertical Rod Exit Device (Including 3100T)
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
131-0202 Strike Plate Ass'y Each $26.00
231-0331 Actuator Ass'y Each $40.00
3
22-0332-01-XXX Upper Cover, select 313 or 335 or 628 finish Each $25.00
22-0332-02-XXX Upper Cover, select US3 or US4 finish (605 or 606) Each $55.00
22-0332-04-XXX Upper Cover, select US32 or US32D finish (629 or 630) Each $45.00
4
24-0003-01-XXX Rod Guide Cover, select 313 or 335 or 628 finish Each $55.00
24-0031-XXX Rod Guide Cover, select US3 or US4 finish (605 or 606) Each $150.00
24-0033-XXX Rod Guide Cover, select US32 or US32D finish (629 or 630) Each $90.00
541-0903-IP End Cap (Hinge)- Metal Each $18.00
6
Push Bar -
313, 335, 628 finish
Push Bar Ass'y: Order by Exit Device Series (3100), door opening width
and 313, 335, or 628 finish Each $115.00
Push Bar -
630 finish
Push Bar Ass'y: Order by Exit Device Series (3100), door opening width
and US32D (630) finish Each $310.00
Push Bar -
605, 606, 629 finish
Push Bar Ass'y: Order by Exit Device Series (3100), door opening width
and 605, 606, or 629 finish (US3, US4, US32) Each $350.00
7
22-0333-01-XXX Lower Cover, select 313 or 335 or 628 finish Each $25.00
22-0333-02-XXX Lower Cover, select US3 or US4 finish (605 or 606) Each $55.00
22-0333-04-XXX Lower Cover, select US32 or US32D finish (629 or 630) Each $45.00
822-0125 Strike Each $17.00
923-0059 Lower Housing Each $162.00
10 25-0284-MP Bolt Guide Bushing Pkg. of 10 $6.00
11 31-0175 Lower Bolt Guide Ass'y Each $15.00
12 31-0192-02 Lower Rod Ass'y Each $30.00
13 41-0902-04-IP End Cap Ass'y (Nose) - Metal Each $22.00
14 25-0008 Molding Clip Each $6.00
15 31-0191 Center Block Ass'y - Top and Bottom Rods Each $116.00
31-0191-01 Center Block Ass'y - Top Rod Only Each $116.00
16 41-0235-01 SVR Final Ass'y (complete w/ rods) Each $200.00
41-0333-01 SVR Final Ass'y (for Top Rod devices w/ rods ) Each $160.00
17 31-0333-01 Upper Rod Ass'y Each $50.00
18 26-0584-652-MP Binder Post with Screws 2-Pack $20.00
19 8736-01-XX-XXX Rim Cylinder Each LIST
NS 80-0180-86-01 Template, 3100 Each $10.00
NS 80-0180-81 Installation Sheet, 3100 Each Email only
NS 80-0180-481 Installation Sheet, 3100T (Top Rod - Metal Door) Each Email only
NS 80-0180-483 Installation Sheet, 3100W (Top Rod - Wood Door) Each Email only
*91-0831-01-335 Screw Pack (313 / 335 finish) Each $7.00
*91-0831-01-605 Screw Pack (605 / 606 finish) Each $8.00
*91-0831-01-630 Screw Pack (628 / 629 / 630 finish) Each $7.0 0
LIST = Refer to current pricelist
NS = Not shown
Note: Consult Factory For Doors Over 54 Inches Above Push Bar Centerline
20

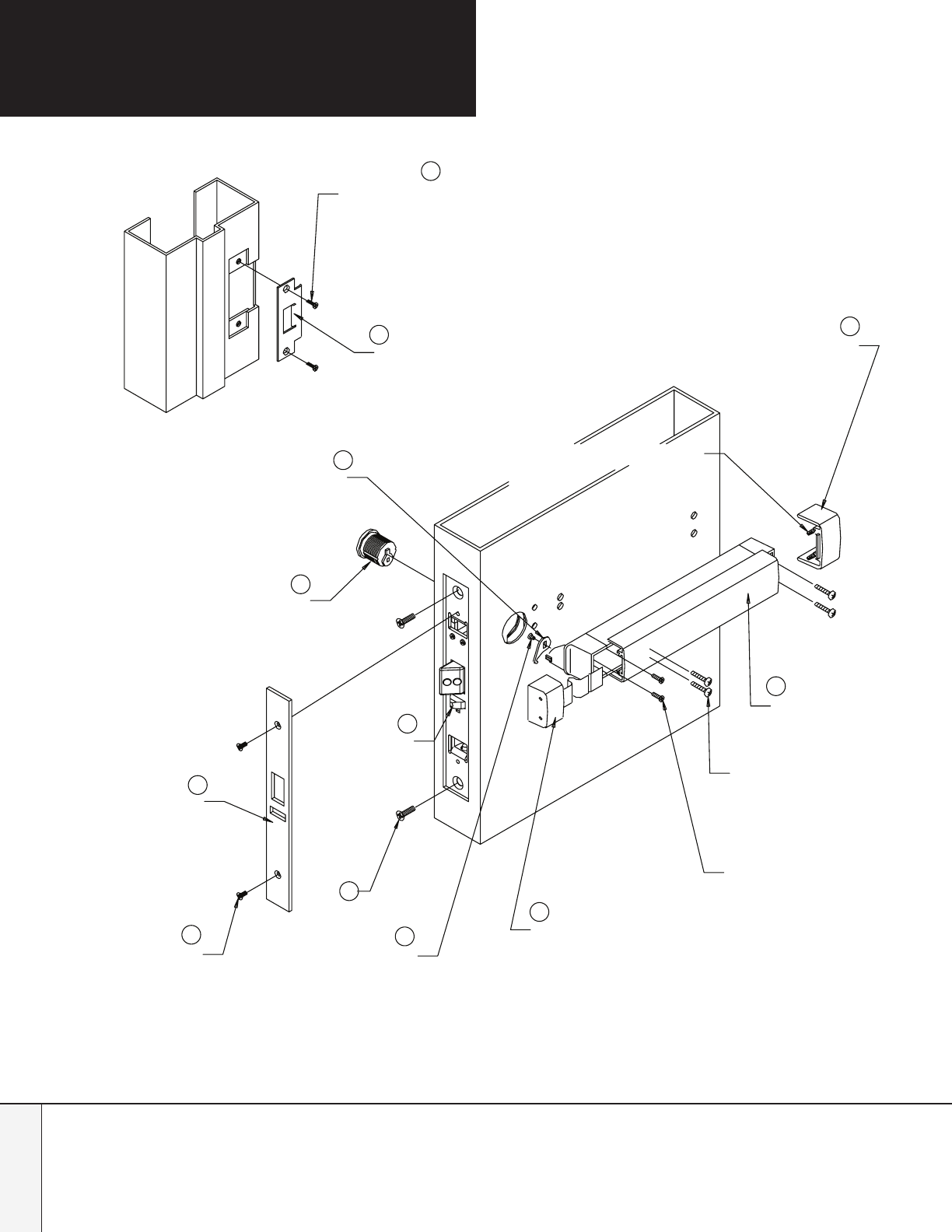

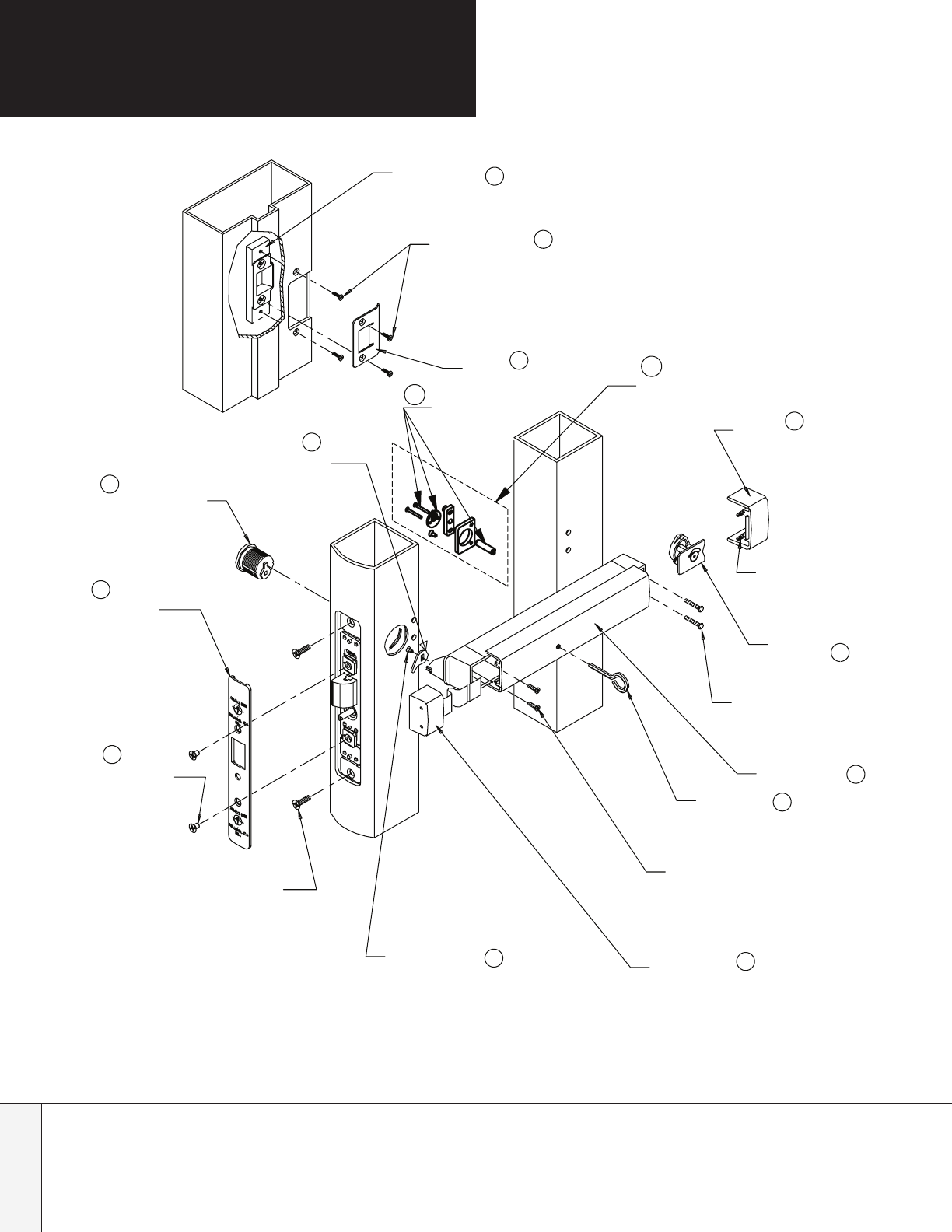

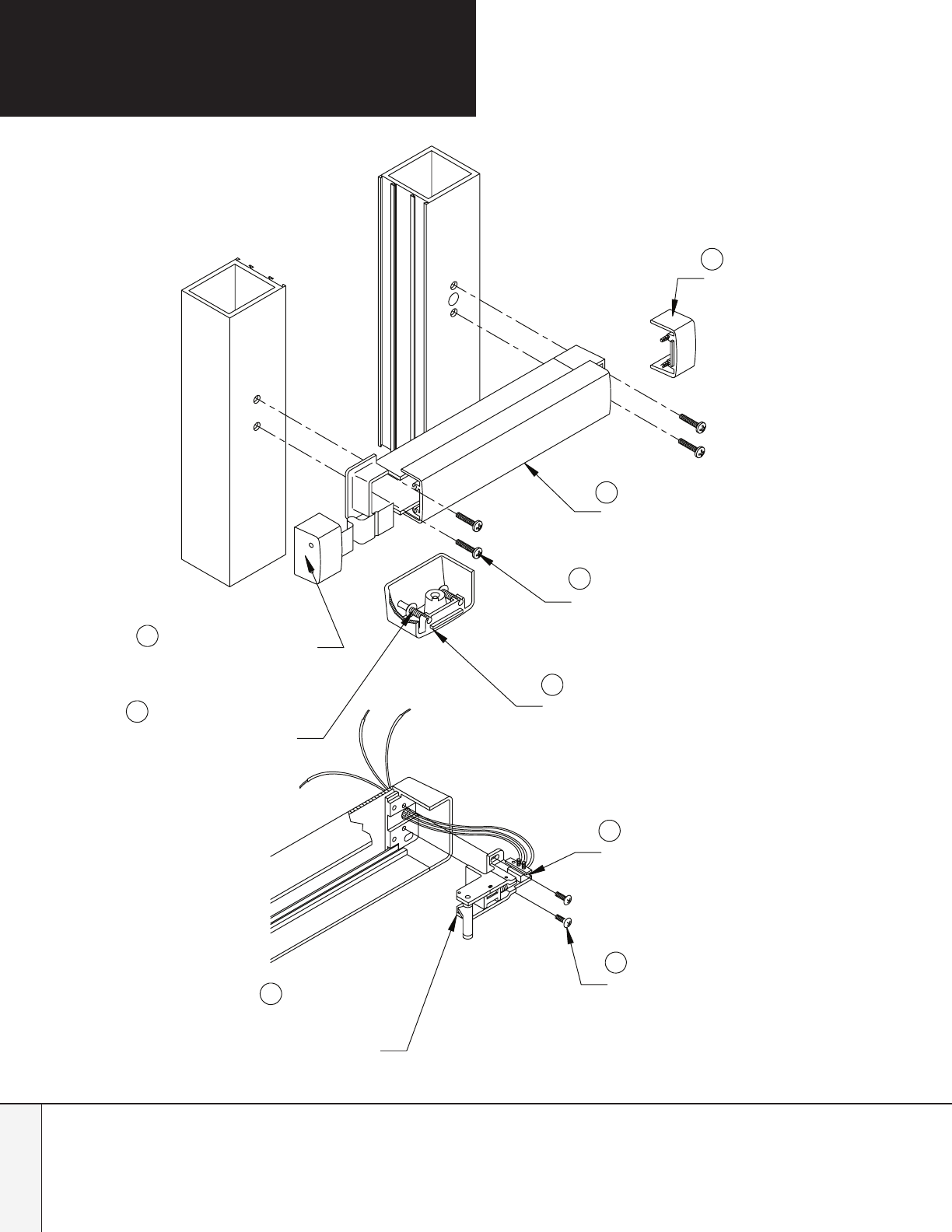

3300 Series
MORTISE EXIT DEVICE
EXIT DEVICES
FACEPLATE
2 EA - #12-24 X 3/4 SCREW, FLAT COMBO HEAD
P/N 91-0833-02 SCREW PACK
#8-32 X 1/4 SCREW,
FLAT HEAD-2 PACK
P/N 91-0244-XXX
MORTISE CYLINDER
P/N 4036-01-XX-XXX
#10 X 1/2 SELF-TAPPING
FLAT HEAD SCREW
2 REQ'D
#10-32 X 5/8 SELF TAPPING
SCREW
4 REQ'D
#10 X 1 1/4 PAN HEAD
SELF-TAPPING SCREW
4 REQ'D
END CAP
END CAP ASS'Y
P/N 41-0902-05-IP (METAL)
STRIKE
P/N 22-0398-01-630
CAM
LATCH ASS'Y
P/N 41-0296-XX
PUSH BAR ASS'Y
HEX HD SCREW (CAM)
P/N 26-0217N-MP OR
RETAINER RING
P/N R603-31-MP
*
*
*
P/N 41-0903-IP (METAL)
1
P/N 22-0669
P/N 22-0672 OR
5
P/N 24-0027-020-XXX)
P/N 24-0019-020-XXX OR
P/N 24-0018-020-XXX OR
P/N 24-0015-020-XXX OR
6
4
9
8
7
1
3
10
2
*
INCLUDED IN 91-0833-01 SCREW PACK
11
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
3300 Series
MORTISE EXIT DEVICE
3300 Series Mortise Exit Device
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
191-0833-02 #12-24 × 3/4 Flat Head Combo Screw Each $4.00
222-0398-01-630 Strike Each $22.00
341-0903-IP End Cap (Hinge) - Metal Each $18.00
4
Push Bar -
313, 335, 628 finish
Push Bar Ass'y: Order by Exit Device Series (3300), door opening width
and 313, 335, or 628 finish Each $115.00
Push Bar -
630 finish
Push Bar Ass'y: Order by Exit Device Series (3300), door opening width
and US32D (630) finish Each $310.00
Push Bar -
605, 606, 629 finish
Push Bar Ass'y: Order by Exit Device Series (3300), door opening width
and 605, 606, or 629 finish (US3, US4, US32) Each $350.00
541-0902-05-IP End Cap Ass'y (Nose) - Metal Each $22.00
626-0217N-MP Hex Head Screw (Cam) Pkg. of 10 $12.00
R603-31-MP Retainer Ring (Cam - Past Production) Pkg. of 10 $12.00
791-0244-XXX 2 - #8-32 × 1/4 Flat Head Screws, select 313 or 335 or 628 finish Pkg. of 2 $4.00
824-0015-020-XXX Faceplate with screws, aluminum, select 313 or 335 or 628 finish Each LIST
941-0296-01 Latch Ass'y (LHR) Each $370.00
41-0296-02 Latch Ass'y (RHR) Each $370.00
10 22-0672 Cam (Latchbolt Retract), Screw Attachment Each $4.00
22-0669 Cam (Latchbolt Retract), Retainer Clip Attachment Each $4.00
11 4036-01-XX-XXX Mortise Cylinder Each LIST
NS 80-0180-122-01 Template, 3300 (Device) Each $10.00
NS 80-0180-122-02 Template, 3300 (Strike) Each $10.00
NS 80-0180-83 Installation Sheet, 3300 Each Email only
*91-0831-01-335 Screw Pack Each $7.00
LIST = Refer to current pricelist
NS = Not shown
22

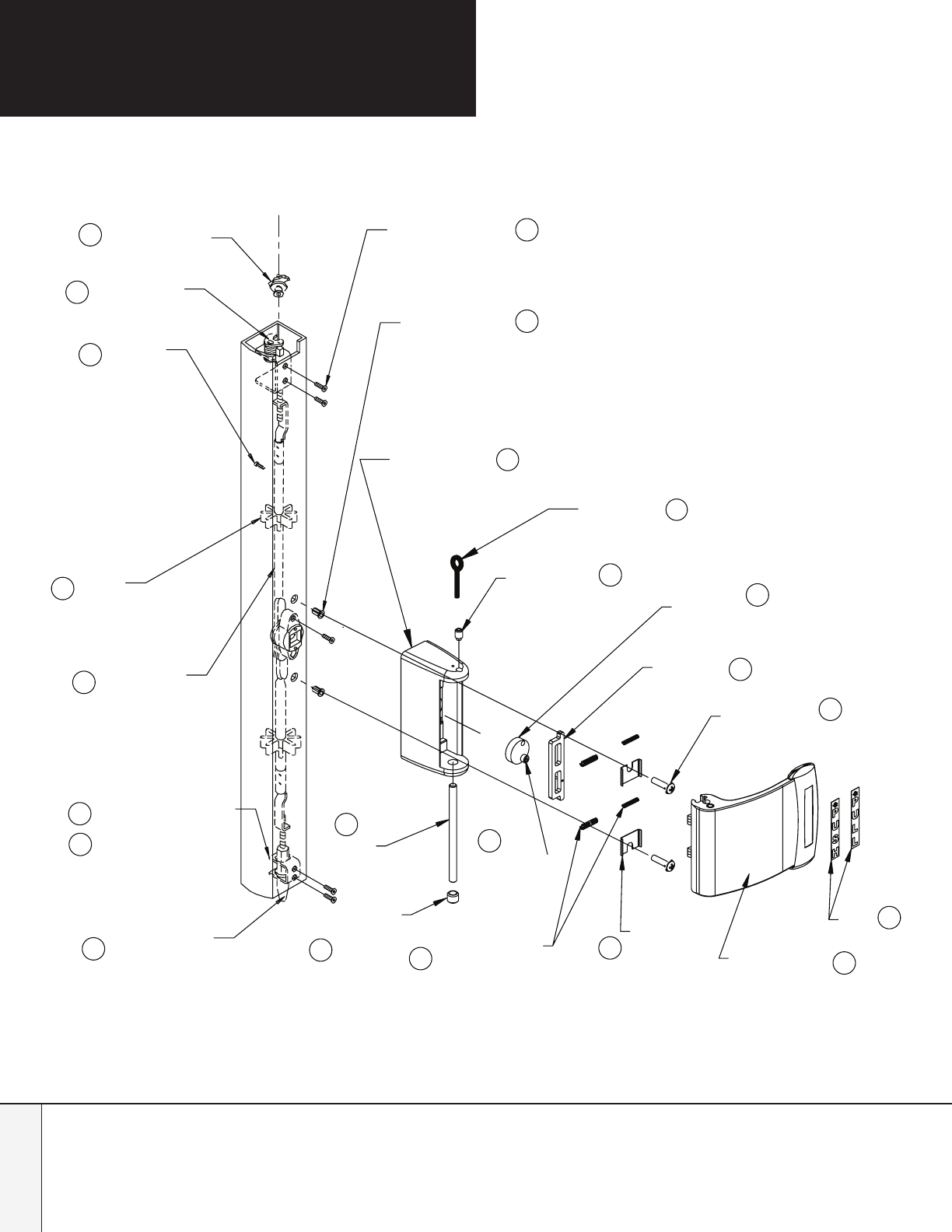

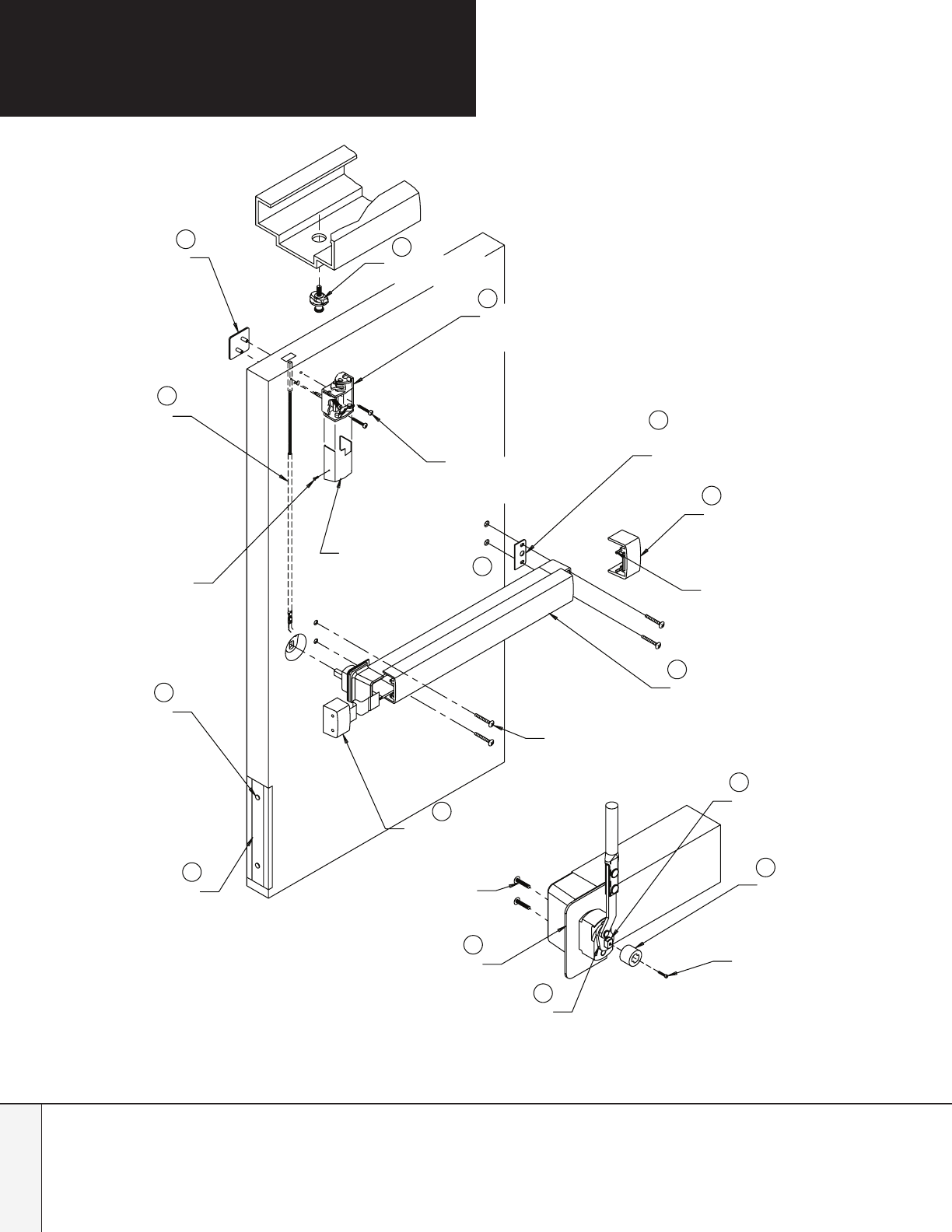

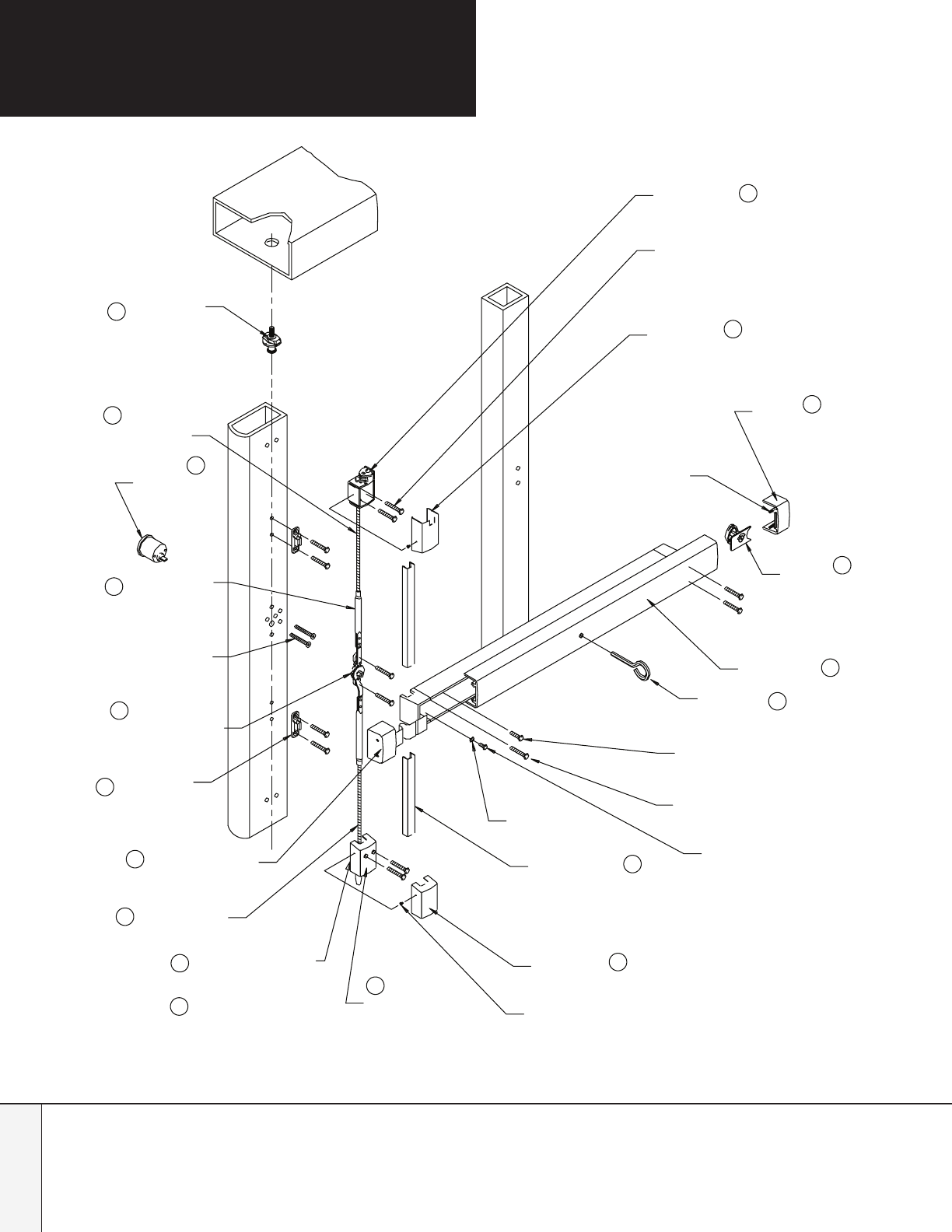

3600 Series
CONCEALED VERTICAL ROD
EXIT DEVICES

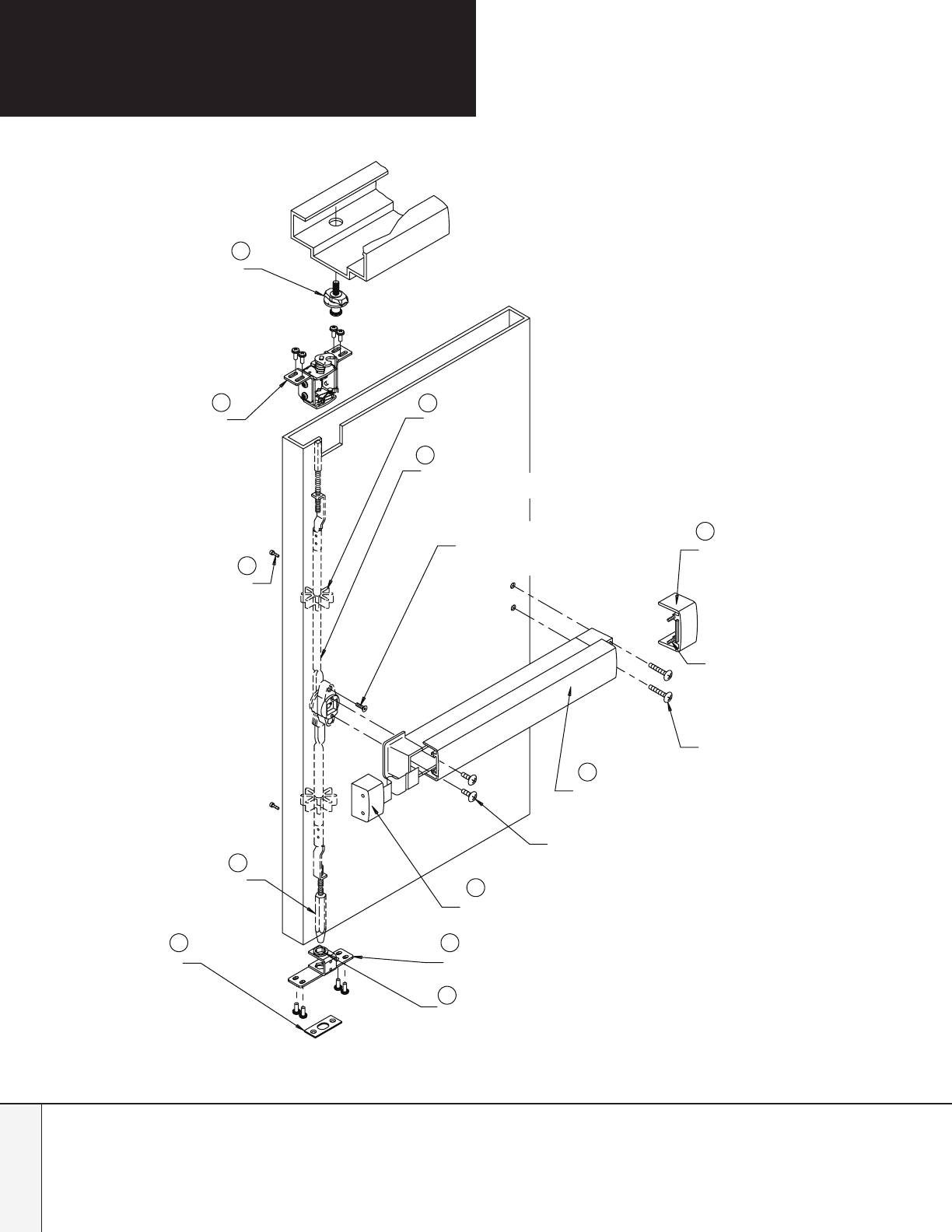

CVR FINAL ASS'Y
P/N 41-0224 OR
P/N 41-0339
#10-32 X 5/16 FLAT HEAD
UNDERCUT
5 REQ'D
STRIKE PLATE ASS'Y
P/N 31-0202
W
#10-32 X 1/2 PAN HEAD
MACHINE SCREW
2 REQ'D
#10 X 1 1/4 PAN HEAD
SELF-TAPPING SCREW
2 REQ'D
END CAP
P/N 41-0903 (METAL)
LOWER BOLT ASSY
P/N 31-0295
END CAP ASS'Y
P/N 41-0902-05 (METAL)
#10-32 X 5/8 SCREW,
SELF TAPPING
4 REQ'D
PUSH BAR ASS'Y
Y
STRIKE
P/N 22-0125
LOWER BOLT GUIDE ASS'Y
P/N 31-0034
BOLT GUIDE BUSHING
P/N 25-0506
SPIDER
P/N 25-0062-01-MP
*
*
*
*
10
11
12
9
8
7
5
4
1
3
6
2
*
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
3600 Series
CONCEALED VERTICAL ROD
3600 Series Metal Door Concealed Vertical Rod (Including 3600T)
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
125-0062-01-MP Spider Pkg. of 10 $17.00
241-0224 CVR Final Ass'y (complete with bolts) Each $130.00
41-0339 CVR Final Ass'y (Top Rod Device with bolt) Each $150.00
341-0903-IP End Cap (Hinge)- Metal Each $18.00
4
Push Bar -
313, 335, 628 finish
Push Bar Ass'y: Order by Exit Device Series (3600), door opening width
and 313, 335, or 628 finish Each $115.0 0
Push Bar -
630 finish
Push Bar Ass'y: Order by Exit Device Series (3600), door opening width
and US32D (630) finish Each $310.00
Push Bar -
605, 606, 629 finish
Push Bar Ass'y: Order by Exit Device Series (3600), door opening width
and 605, 606, or 629 finish (US3, US4, US32) Each $350.00
541-0902-05-IP End Cap Ass'y (Nose) - Metal Each $22.00
631-0034 Lower Bolt Guide Ass'y Each $7.0 0
725-0506-MP Bolt Guide Bushing Pkg. of 10 $6.00
822-0125 Strike Each $17.00
931-0295 Lower Bolt Ass'y Each $13.00
10 S242A06-08-MP #6-32 × 1/2 Cap Screw (Rod Piercing) Pkg. of 10 $9.00
11 31-0579-02 Actuator Ass'y (Top) Each $90.00
12 31-0202 Strike Plate Ass'y Each $26.00
NS 80-0180-87-01 Template, 3600 (Device) Each $10.00
NS 80-0180-87-02 Template, 3600 (Strike) Each $10.00
NS 80-0180-487-01 Template, 3600T (Device) Each $10.00
NS 80-0180-487-02 Template, 3600T (Strike) Each $10.00
NS 80-0180-84 Installation Sheet, 3600 Each Email only
NS 80-0180-486 Installation Sheet, 3600T Each Email only
*91-0836-01-603 Screw Pack Each $11.00
NS = Not shown
24

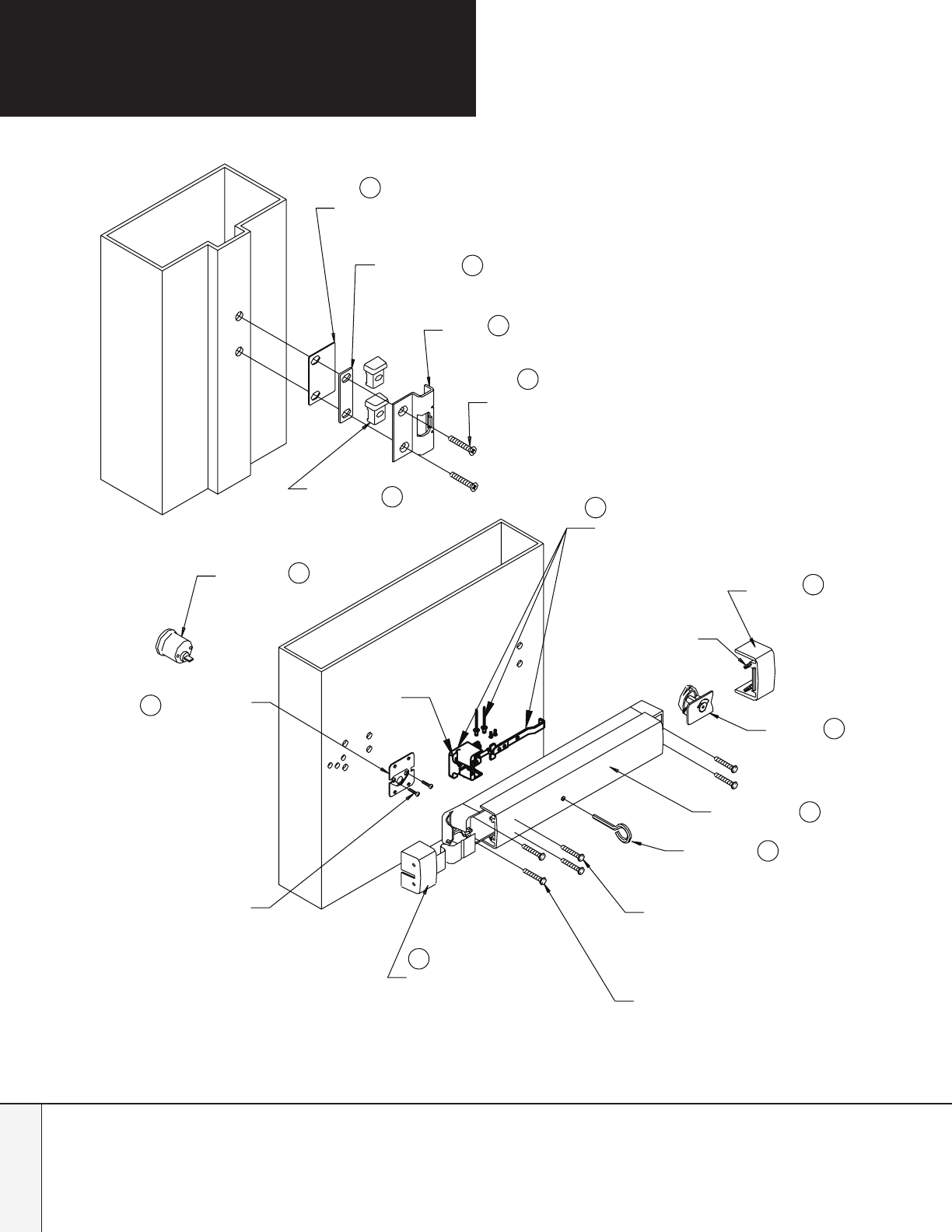

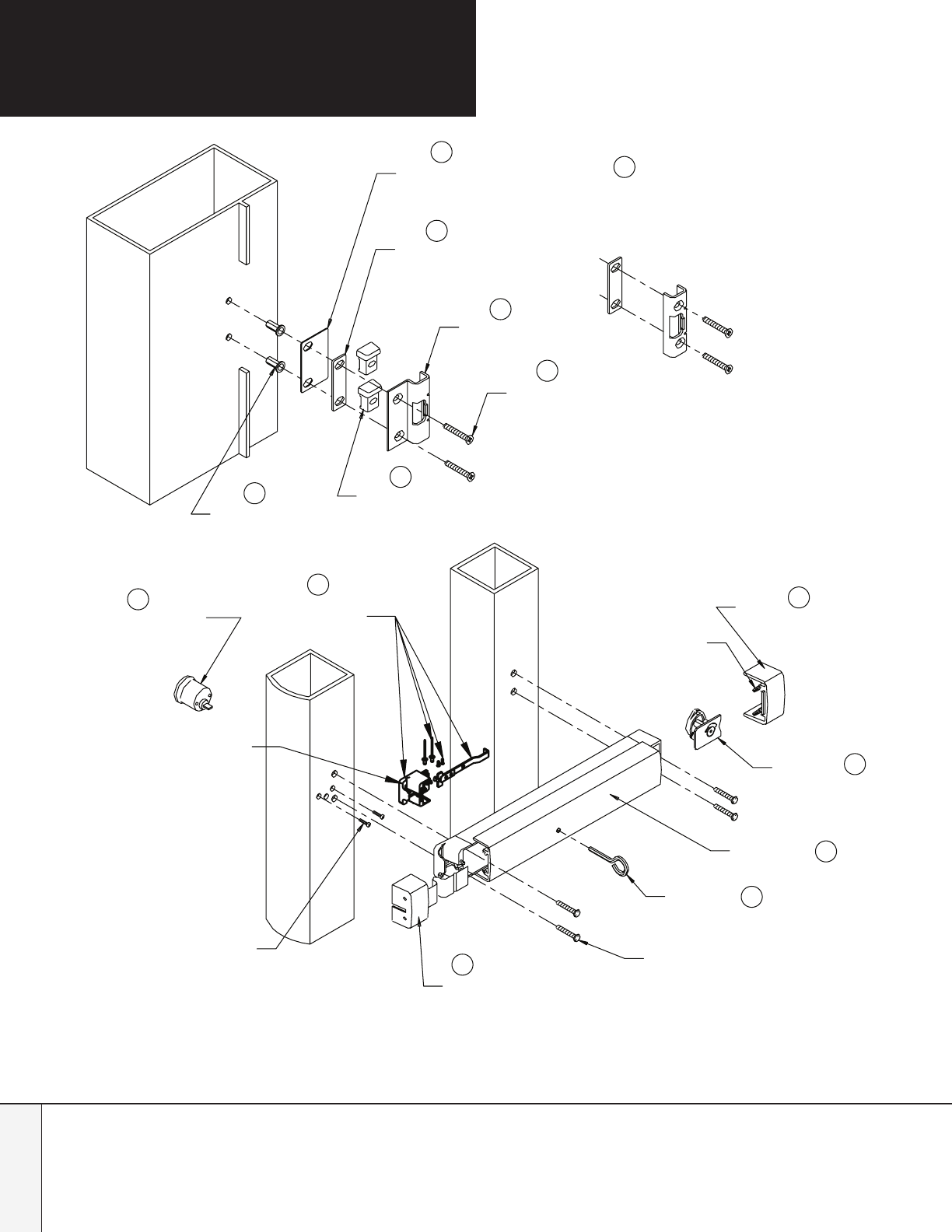

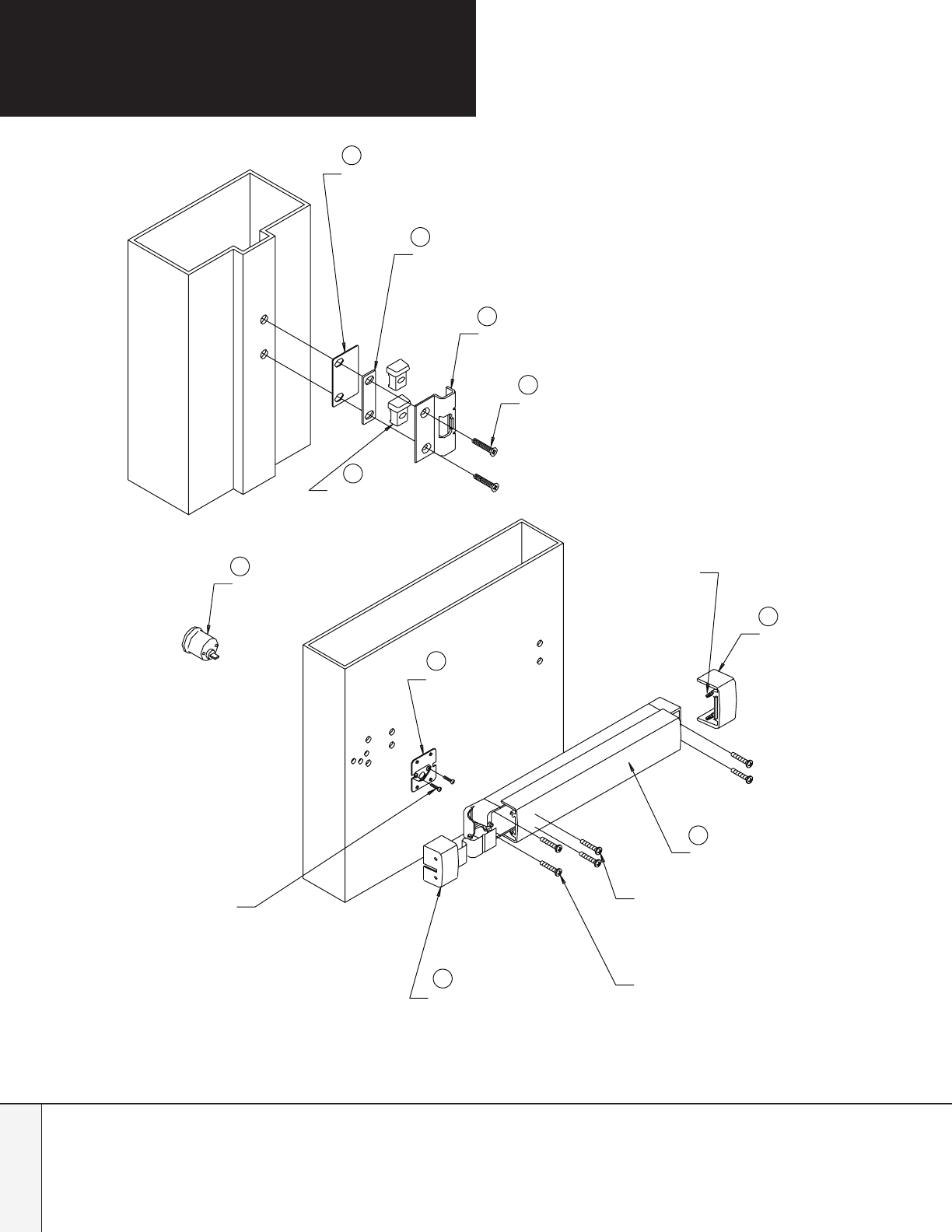

3700 Series
RIM EXIT DEVICE
EXIT DEVICES
CYLINDER SCREW
RIM CYLINDER
P/N 8736-01-XX-XXX
PUSH BAR ASS'Y
STRIKE
P/N 22-0430-MP
STRIKE SPACER
P/N 22-0481-03-MP
1 REQ'D
STRIKE PLUG
P/N 25-0625-MP
2 REQ'D
2 #10-32 X 3/4"
FLATHEAD SCREWS
P/N 91-0837-02
END CAP ASS'Y
P/N 41-0902-03-IP (METAL)
CYLINDER PLATE
P/N 22-0480
REQ'D FOR WOOD
DOOR ONLY
END CAP
#10-32 X 5/8 SCREW,
SELF TAPPING
#10 X 1 1/4 PAN HEAD
SELF-TAPPING SCREW
4 REQ'D
STRIKE SPACER
P/N 22-0481-04-MP
4 REQ'D
#10 X 1/2 ROUND HEAD
SELF-TAPPING SCREW
2 REQ'D.
(SUPPLIED WITH CYLINDER)
4 REQ'D
P/N 41-0903-IP (METAL)
INCLUDED IN SCREW PACK 91-0837-01.
*
*
*
*
1
2
3
4
5
6
8
9
7
10
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
3700 Series
RIM EXIT DEVICE
3700 Series Rim Exit Device
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
122-0481-04-MP Strike Spacer Pkg. of 10 $18.00
222-0481-03-MP Strike Spacer Pkg. of 10 $18.00
322-0430-IP Strike Each $8.00
491-0837-02 2 - #10-32 × 3/4 Flat Head Screws Each $4.00
525-0625-MP Strike Plug Pkg. Of 2 $7.00
641-0903-IP End Cap (Hinge) - Metal Each $18.00
722-0480 Cylinder Plate (Wood Doors) Each $9.00
8
Push Bar -
313, 335, 628 finish
Push Bar Ass'y: Order by Exit Device Series (3700), door opening width
and 313, 335, or 628 finish Each $115.00
Push Bar -
630 finish
Push Bar Ass'y: Order by Exit Device Series (3700), door opening width
and US32D (630) finish Each $310.00
Push Bar -
605, 606, 629 finish
Push Bar Ass'y: Order by Exit Device Series (3700), door opening width
and 605, 606, or 629 finish (US3, US4, US32) Each $350.00
941-0902-03-IP End Cap Ass'y (Nose) - Metal Each $22.00
10 8736-01-XX-XXX Rim Cylinder Each LIST
NS 80-0180-124-01 Template, 3700 (Device) Each $10.00
NS 80-0180-124-02 Template, 3700 (Strike) Each $10.00
NS 80-0180-85 Installation Sheet, 3700 Each Email only
*91-0837-01 Screw pack Each $4.00
LIST = Refer to current pricelist
NS = Not shown
26

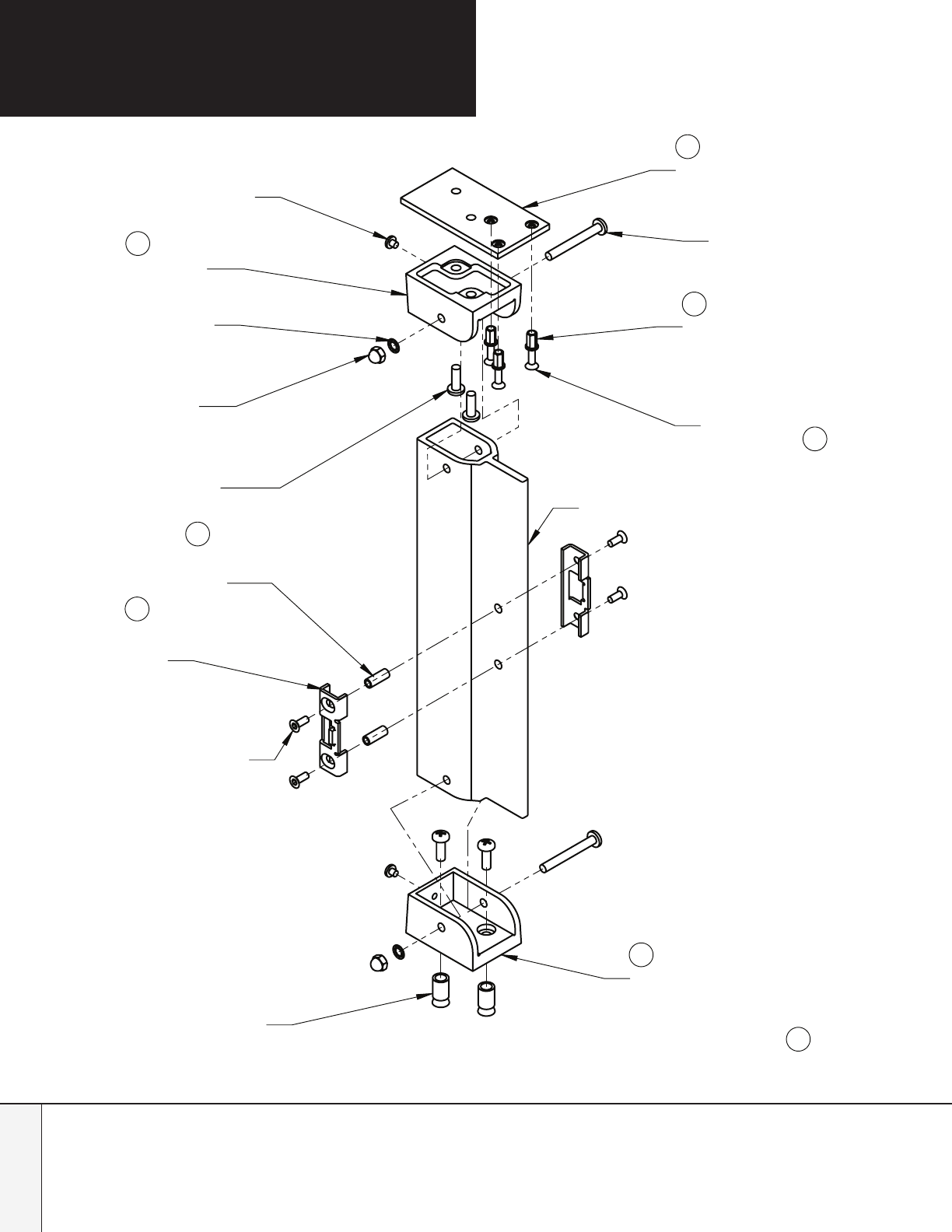

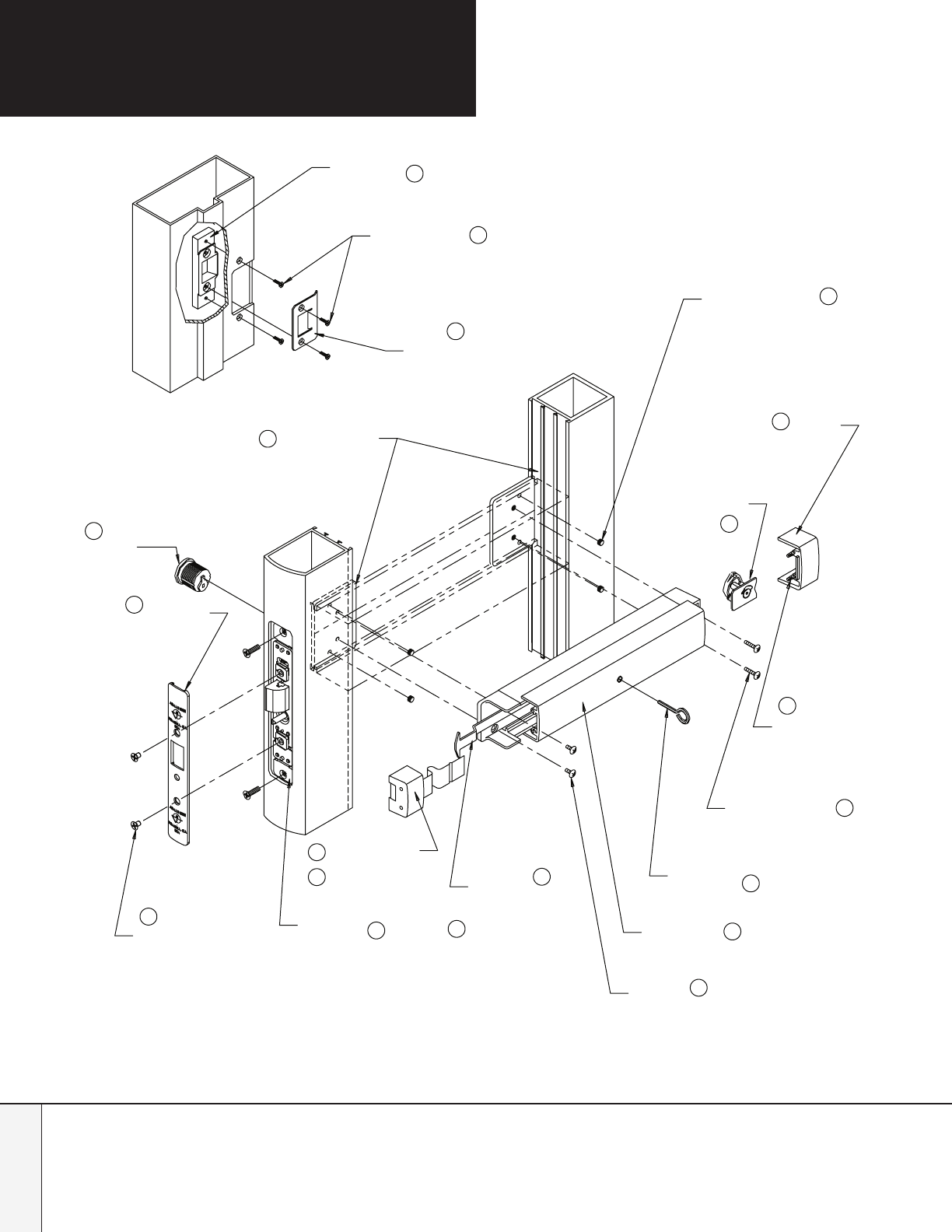

3889
MULLION
EXIT DEVICES
MULLION
SPACER
(ONLY IF NEEDED)
STRIKE ASS'Y.
10-32 X 3/16"
PAN HD. SCREW
1/4-20 X 3/8"
ACORN NUT
WASHER- 1/4
1/4-20 X 2 1/4"
PAN HD SCREW
1/4-20
ANCHOR
2 PLS
TOP FITTING
23-0511
1/4-20 x 3/4
PAN HEAD SCREW
4 PLS
1
2
BOTTOM FITTING
23-0512
3
SUPPLIED WITH
EXIT DEVICE
(SEE 8700 OR 3700
RIM DEVICE)
*
*
*
*
*
*
INCLUDED IN 91-0961 SCREW PACK
*
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
3889
MULLION
3889 Removable Mullion for Hollow Metal or Wood Doors
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
123-0511 Top Fitting Each $53.00
291-0961 Screw Pack Each $9.00
323-0512 Bottom Fitting Each $7 7.00
28

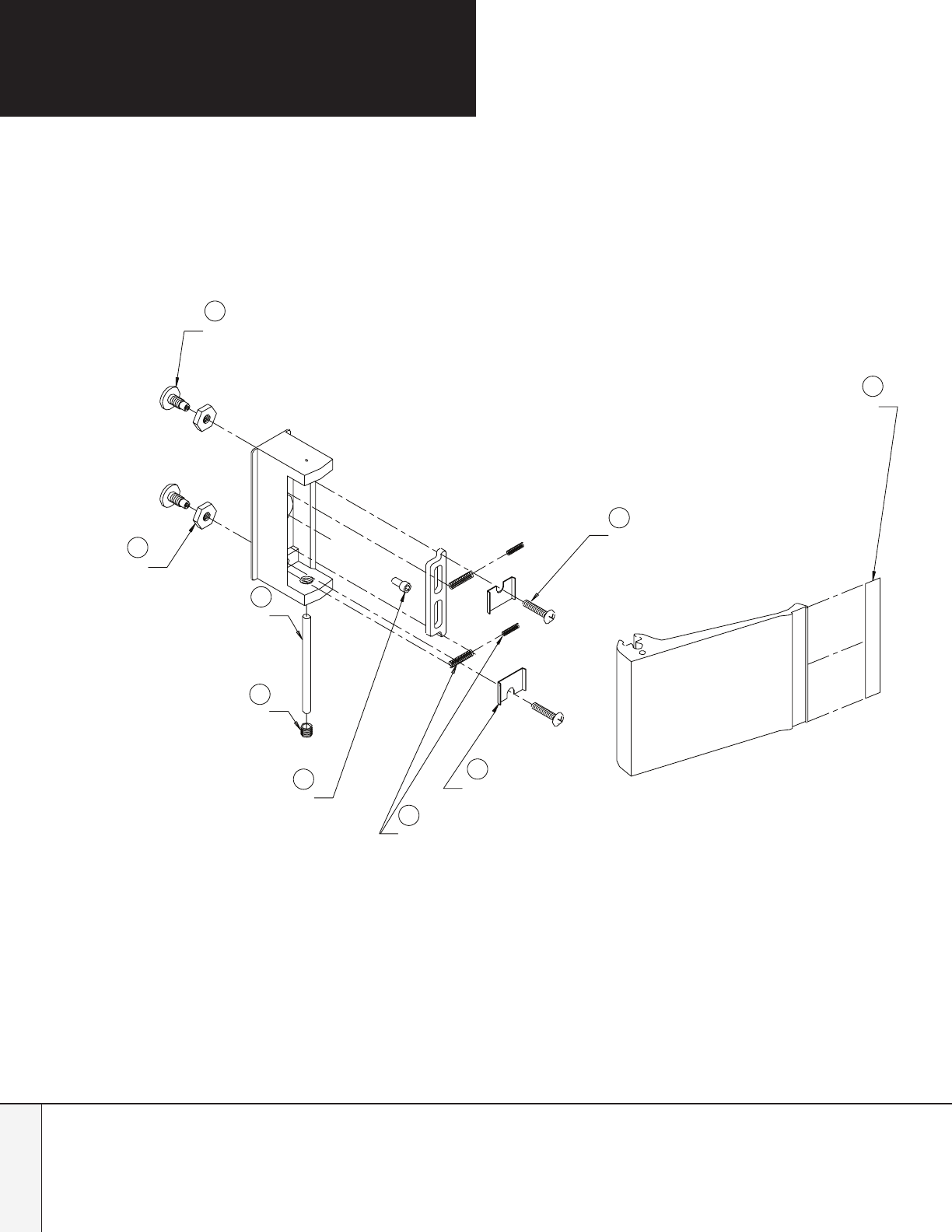

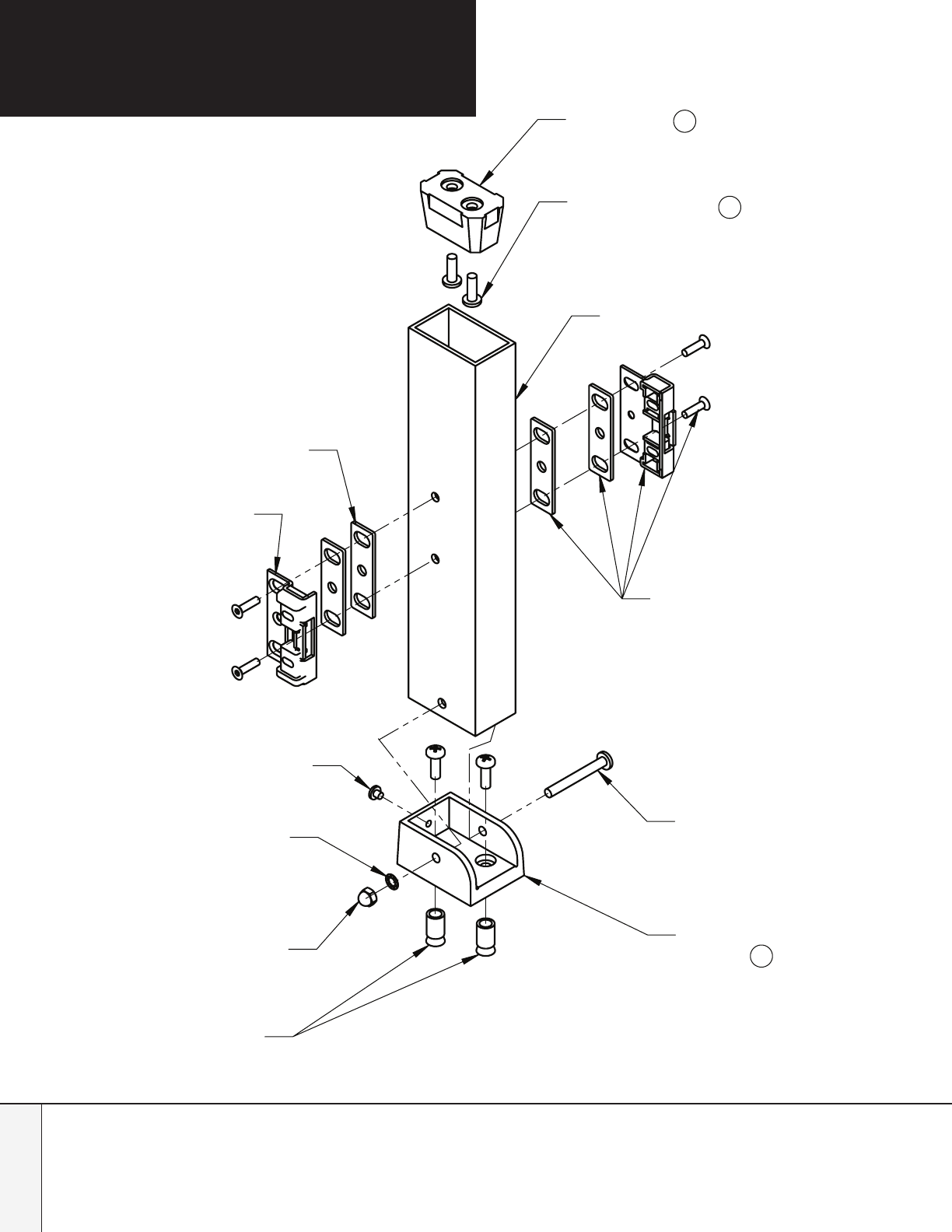

3890
MULLION
EXIT DEVICES
1/4-20 X 3/8"
ACORN NUT
2 PLCS
1/4-20 x 2 1/4"
PAN HEAD SCREW
2 PLCS
WASHER- 1/4
2 PLCS
MULLION
KNURLED SPACER
29-0063
2 PLCS
STRIKE
22-0329
2 PLCS
10-32 x 3/16"
PAN HEAD SCREW
2 PLCS
1/4-20 ANCHOR
2 PLS
1/4-20 x 3/4"
PAN HEAD SCREW
4 PLCS
TOP/BOTTOM
FITTING
23-0512
10-32 x 3/4"
FLAT HEAD SCREW
S272-10-12-119-MP
3 PLCS
10-32 RIVNUT
(SUPPLIED W/ RIVNUT
INSTALLATION KIT)
41-0975-04
3 PLCS
TOP/BOTTOM
FITTING
23-0512
MOUNTING PLATE
22-0690
10-32 X 1/2"
FLAT HEAD SCREW
4 PLCS
5
7
5
3
2
1
4
6
*
*
*
*
*
*
*
INCLUDED IN 91-0961 SCREW PACK
*
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
3890
MULLION
3890 Removable Mullion for Aluminum Doors
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
122-0690 Mounting Plate Each $55.00
291-0961 Screw Pack Each $9.00
341-0975-04 Rivnut Kit Each $11.00
4S272-10-12-119-MP #10-32 × 3/4" Flat Head Screw Pkg. Of 10 $6.00
523-0512 Top / Bottom Fitting Each $7 7.00
622-0329 Strike Each $13.00
729-0063 Knurled Spacer Each $20.00
30

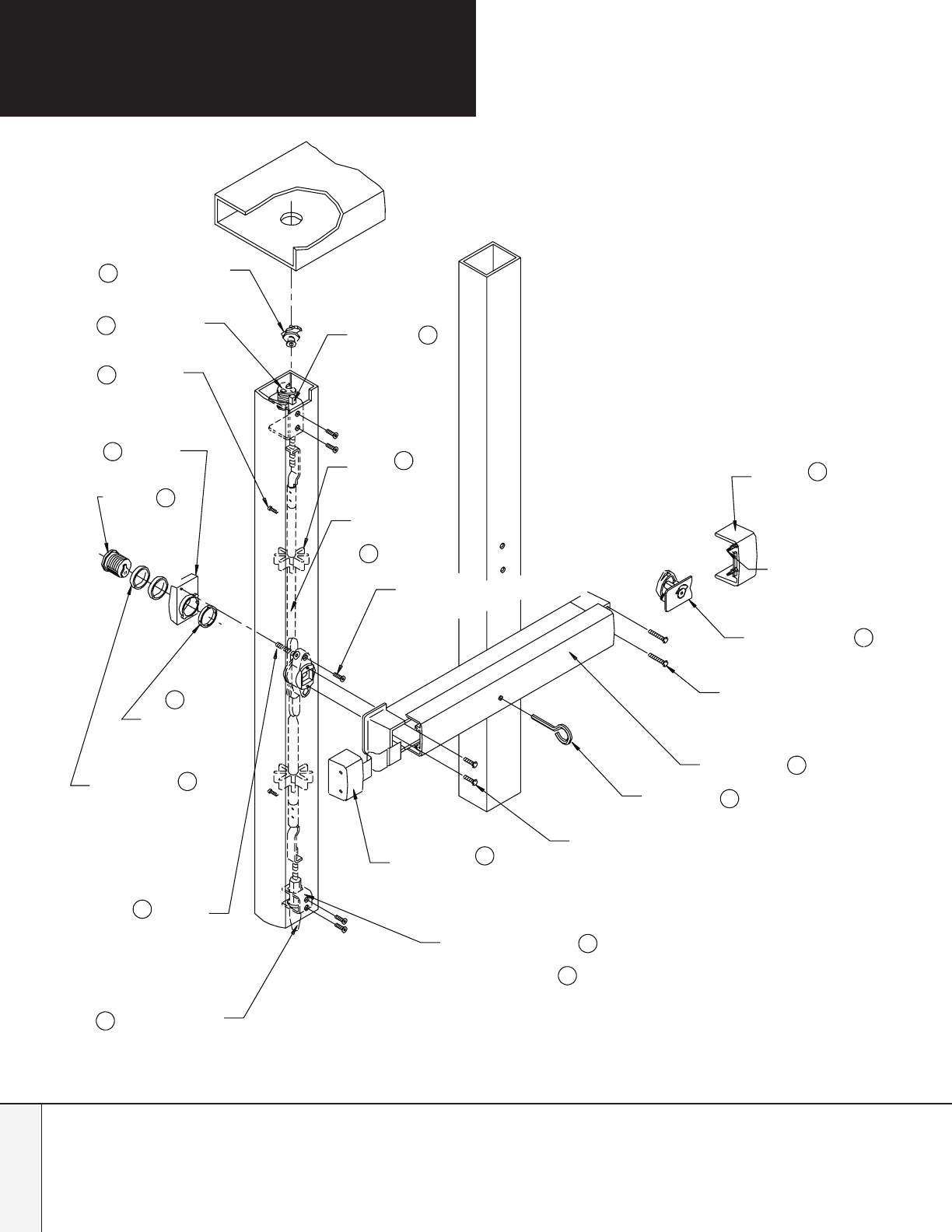

3900/8900 Series
CONCEALED VERTICAL ROD
EXIT DEVICES
#3-48 X 1/4
FLAT HD. SCREW
#10-32 X 1/2
PAN HEAD SCREW
2 REQ'D
ROD ASSEMBLY
P/N 41-0337
FIRE BOLT PLATE
P/N 22-0814-119
#10-24 x 1
PAN HEAD SCREW
2 REQ'D
TOP ACTUATOR ASSY.
P/N 31-0579-06 (3900)
31-0579-05 (8900)
#6-32 X 1/4
PAN HEAD SCREW
MOUNTING CAP
SPACER
P/N 22-0585
COVER PLATE
P/N 22-0847
TAILPIECE ADAPTOR
P/N 23-0335
UPPER COVER
P/N 22-0332-1X-XXX
DRIVE SHAFT
P/N 26-0355 (NO TRIM)
OR 26-0359 (TRIM)
CENTER BLOCK
P/N 23-0571
SUPPORT PLATE
P/N 29-0630-XXX
CROSS PIN
BOLT ASSEMBLY
P/N 29-0206
2 REQ'D.
PUSH BAR
ASS'Y
#10-32 X 5/8 SCREW,
SELF TAPPING
4 REQ'D
END CAP
P/N 41-0903-IP (METAL)
#10 X 1 1/4 PAN HEAD
SELF-TAPPING SCREW
2 REQ'D
END CAP ASS'Y
P/N 41-0902-05-IP (METAL)
STRIKE PLATE ASS'Y
P/N 31-0202
10
5
7
2
4
1
3
6
9
8
12
11
14
13
*
*
*
*
*
*
15
INCLUDED IN 91-0839-01-XXX SCREW PACK
*
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
3900/8900 Series
CONCEALED VERTICAL ROD
3900/8900 Series Wood Door Concealed Vertical Rod
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
129-0630-121 Support Plate Each $65.00
231-0202 Strike Plate Ass'y Each $26.00
331-0579-06 Top Actuator Ass'y (3900) Each $115.00
31-0579-05 Top Actuator Ass'y (8900) Each $105.00
422-0585 Mounting Cap Spacer Each $4.00
541-0903-IP End Cap (Hinge) - Metal Each $18.00
6
22-0332-11-XXX Upper Cover, select 313 or 335 or 628 finish Each $40.00
22-0332-12-XXX Upper Cover, select US3 or US4 finish (605 or 606) Each $60.00
22-0332-14-XXX Upper Cover, select US32 or US32D finish (629 or 630) Each $65.00
7
Push Bar -
313, 335, 628 finish
Push Bar Ass'y: Order by Exit Device Series (3900/8900), door opening
width and 313, 335, or 628 finish Each $115.00
Push Bar -
630 finish
Push Bar Ass'y: Order by Exit Device Series (3900/8900), door opening
width and US32D (630) finish Each $310.00
Push Bar -
605, 606, 629 finish
Push Bar Ass'y: Order by Exit Device Series (3900/8900), door opening
width and 605, 606, or 629 finish (US3, US4, US32) Each $350.00
826-0355 Drive Shaft (No Trim) Each $36.00
26-0359 Drive Shaft (Trim) Each $36.00
923-0335 Tailpiece Adapter Each $5.00
10 41-0902-05-IP End Cap Ass'y (Nose) - Metal Each $22.00
11 22-0847 Cover Plate Each $4.00
12 23-0571 Center Block Each $20.00
13 22-0814-119 Fire Bolt Plate Each $40.00
14 29-0206 Cross Pin Bolt Ass'y Each $61.00
15 41-0337 Rod Assembly Each $77.0 0
NS 80-0180-392 Template, 3900/8900 - Door Each $10.00
NS 80-0180-390 Installation Sheet, 3900/8900 Each Email only
NS 80-0180-86-02 Template, 3900/8900 - Frame Each $10.00
*91-0839-01-630 Screw Pack Each $9.00
NS = Not shown
Note: Consult Factory For Doors Over 54 Inches Above Push Bar Centerline.
32

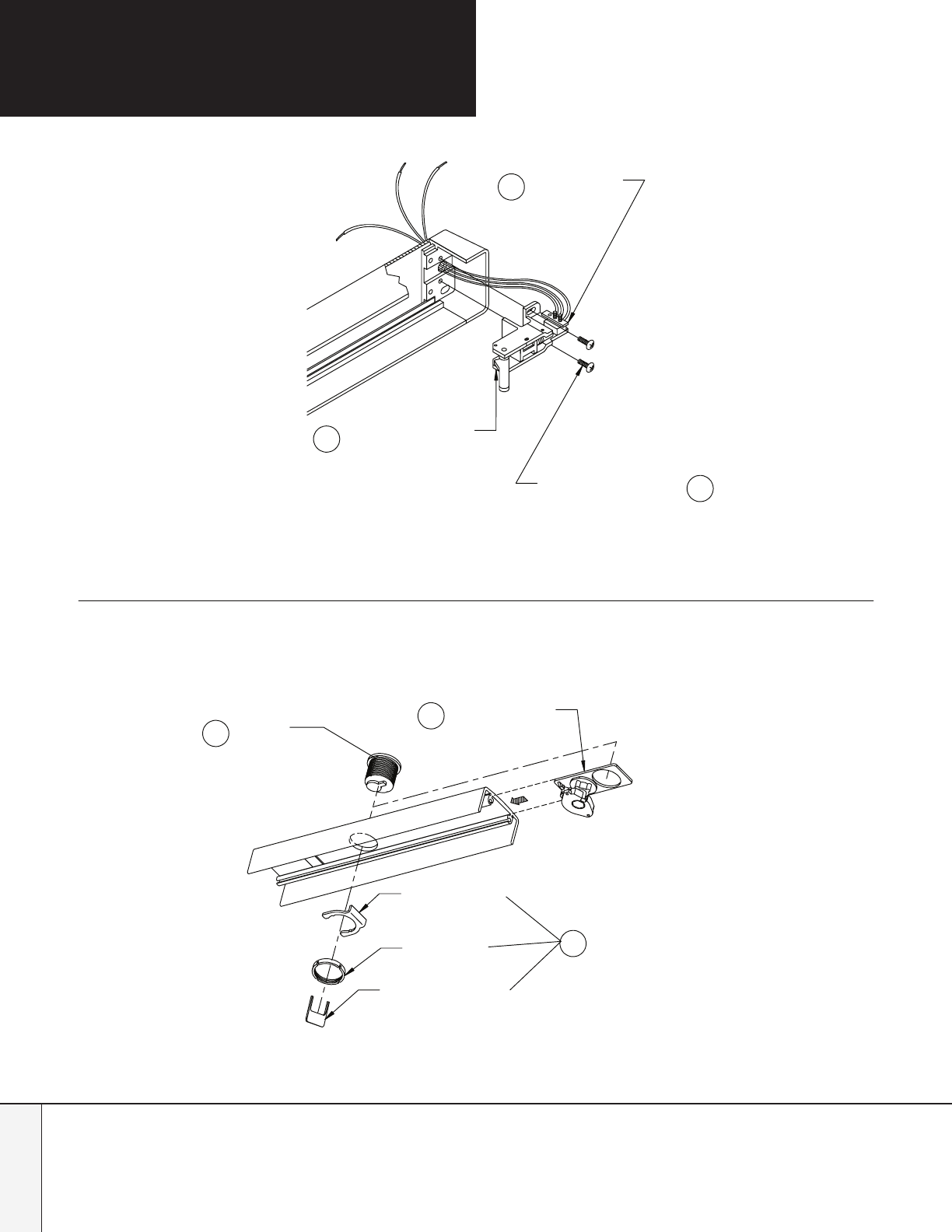

8099/8099M
DUMMY PUSHBAR
EXIT DEVICES
END CAP
P/N
41-0903-IP (METAL)
PUSH BAR ASSY.
#10 x 1 1/4 PAN HEAD
SELF-TAPPING SCREW
P/N S253-10R20-603-MP
4 REQ'D
END CAP ASSY.
P/N 41-0912 (METAL)
FOR 8099 DUMMY PUSH BAR
NO SWITCH
MICRO SWITCH ASSY.
P/N 31-0186
#6-32 x 3/8" ROUND HEAD
SELF-TAPPING SCREW
P/N S282-06R06-603
MONITOR SWITCH KIT
SINGLE SWITCH
P/N 91-0897-01
DUAL SWITCH
P/N 91-0897-02
#10-32 x 5/8
SELF-TAPPING SCREW
P/N S292-10R10-603-MP
4 REQ'D
END CAP ASSY.
P/N
41-0902-05-IP (METAL)
1
2
3
4
7
8
6
5
9
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
8099/8099M
DUMMY PUSHBAR
8099/8099M Dummy Pushbar
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
141-0903-IP End Cap (Hinge) - Metal Each $18.00
2
Push Bar -
313, 335, 628 finish
Push Bar Ass'y: Order by Exit Device Series (8099M ONLY), door
opening width and 313, 335, or 628 finish Each $115.00
Push Bar -
630 finish
Push Bar Ass'y: Order by Exit Device Series (8099M ONLY) door
opening width and US32D (630) finish Each $310.00
Push Bar -
605, 606, 629 finish
Push Bar Ass'y: Order by Exit Device Series (8099M ONLY) door
opening width and 605, 606, or 629 finish (US3, US4, US32) Each $350.00
3S253-10R20-603-MP #10 × 1-1/4 Pan Head Self Tapping Screw Pkg. of 10 $6.00
441-0912 End Cap Ass'y (Nose) - for 8099 Dummy Bar without Switch Each $18.00
5S292-10R10-603-MP #10-32 × 5/8 Self Tapping Screw Pkg. of 10 $7.00
641-0902-05-IP End Cap Ass'y (Nose) - Metal Each $22.00
731-0186 Microswitch Ass'y with Wires Each $58.00
8S282-06R06-603-MP #6-32 × 3/8 Round Head Self Tapping Screw Pkg. of 10 $6.00
9
91-0897-01
"Monitor Switch Kit (Standard Single Switch).
Kit includes: Monitor Switch Assembly, Screws, Wire Nuts and
Installation Instructions."
Each LIST
91-0897-02
"Monitor Switch Kit (Optional Dual Switches).
Kit includes: Monitor Switch Assembly, Screws, Wire Nuts and
Installation Instructions."
Each LIST
NS 80-0180-050 Installation Sheet 8099 Each Email only
NS 80-0180-250 Installation Sheet 8099M Each Email only
NS 80-0180-148 Wiring Instruction Sheet, 8099M Each Email only
LIST = Refer to current pricelist
NS = Not shown
Note: The Push Bar Assembly is Replaceable on 8099M Only.
34
8100 Series
SURFACE VERTICAL ROD
EXIT DEVICES
PUSH BAR ASS'Y
STRIKE ASS'Y
P/N 31-0202
#8 X 3/4" WOOD SCREW
P/N 91-0831-02-630
6 REQ'D
CYLINDER SCREW
(SUPPLIED WITH
CYLINDER)
STRIKE, HEADER
P/N 22-0214
CLIP, MOLDING
P/N 25-0008
2 REQ'D
ACTUATOR ASS'Y
P/N 31-0201
#10-24 X 1 PAN HEAD
MACHINE SCREW
4 REQ'D
STRIKE, THRESHOLD
4005
14
COVER, GUIDE ROD
P/N 24-0003-01-XXX OR
24-0031-XXX OR
24-0033-XXX
2 REQ'D
#6-32 X 1/4 PAN HEAD SCREW
#10 X 1 1/4 PAN HEAD
SELF-TAPPING SCREW
13 REQ'D
LOCK WASHER, SPRING
HOUSING, LOWER
P/N 23-0024
END CAP ASS'Y
P/N
41-0902-04-IP (METAL)
LOWER BOLT GUIDE
P/N 31-0175
NOT SHOWN
BUSHING
P/N 25-0284-MP
COVER, UPPER
P/N 22-0332-0X-XXX
#10-32 X 5/8
SCREW, SELF TAPPING
4 REQ'D
END CAP
P/N
41-0903-IP (METAL)
CENTER BLOCK ASS'Y
P/N 31-0191
P/N 31-0191-01 (8100T)
BINDER POST
4 REQ'D
LOWER ROD ASS'Y.
P/N 31-0192-02
SVR FINAL ASS'Y
P/N 41-0282-01
(8100T) 41-0333-11
UPPER ROD ASS'Y
P/N 31-0235-01
DOGGING
ASSEMBLY
P/N 31-0265-IP
#6-32 X 1/4 PAN HEAD SCREW
2 REQ'D
DOGGING KEY
P/N 29-0481-MP
COVER, PROTECTIVE, LOWER
P/N 22-0275-0X-XXX
RIM CYLINDER
P/N 8736-01-XX-XXX
2
*
*
*
*
*
*
7
P/N 26-0584-XXX-MP
8
9
6
20
19
21
22
23
17
13
18
16
15
14
12
2
1
3
11
10
5
4
*
INCLUDED IN 91-0831-01-XXX SCREW PACK
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
8100 Series
SURFACE VERTICAL ROD
8100 Series Surface Vertical Rod Exit Device
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
122-0214 Header Strike (Wood Frame) Each $20.00
291-0831-02-630 Strike Screw Pack (Wood Frame) Pkg. of 6 $6.00
331-0202 Strike Plate Ass'y Each $26.00
431-0201 Actuator Ass'y Each $33.00
5
22-0332-01-XXX Upper Cover, select 313 or 335 or 628 finish Each $25.00
22-0332-02-XXX Upper Cover, select US3 or US4 finish (605 or 606) Each $55.00
22-0332-04-XXX Upper Cover, select US32 or US32D finish (629 or 630) Each $45.00
6
24-0003-01-XXX Rod Guide Cover, select 313 or 335 or 628 finish Each $55.00
24-0031-XXX Rod Guide Cover, select US3 or US4 finish (605 or 606) Each $150.00
24-0033-XXX Rod Guide Cover, select US32 or US32D finish (629 or 630) Each $90.00
741-0903-IP End Cap (Hinge) - Metal Each $18.00
831-0265-IP Dogging Ass'y (Complete) Each $16.00
929-0481-MP Dogging Key Pkg. of 10 $26.00
10
Push Bar -
313, 335, 628 finish
Push Bar Ass'y: Order by Exit Device Series (8100), door opening width and
313, 335, or 628 finish Each $115.00
Push Bar -
630 finish
Push Bar Ass'y: Order by Exit Device Series (8100), door opening width and
US32D (630) finish Each $310.00
Push Bar -
605, 606, 629 finish
Push Bar Ass'y: Order by Exit Device Series (8100), door opening width and
605, 606, or 629 finish (US3, US4, US32) Each $350.00
11
22-0275-01-XXX Lower Cover, select 313 or 335 or 628 finish Each $25.00
22-0275-02-XXX Lower Cover, select US3 or US4 finish (605 or 606) Each $55.00
22-0275-04-XXX Lower Cover, select US32 or US32D finish (629 or 630) Each $45.00
12 23-0024 Lower Housing Each $25.00
13 4005 Threshold Strike (Wood) Each LIST
14 25-0284-MP Bolt Guide Bushing Pkg. of 10 $6.00
15 31-0175 Lower Bolt Guide Ass'y Each $15.00
16 31-0192-02 Lower Rod Ass'y Each $30.00
17 41-0902-04-IP End Cap Ass'y (Nose) - Metal Each $22.00
18 25-0008 Molding Clip Each $6.00
19 31-0191 Center Block Ass'y Each $116.00
31-0191-01 Center Block Ass'y - Top Rod Only Each $116.00
20 41-0282-01 SVR Final Ass'y (Complete W/Rods) Each $185.00
41-0333-11 SVR Final Ass'y Top Rod Each $126.00
21 31-0235-01 Upper Rod Ass'y Each $37.0 0
22 26-0584-652-MP Binder Post with Screws 2 Pack $20.00
23 8736-01-XX-XXX Rim Cylinder Each LIST
NS 80-0180-198-01 Template, 8100 (Device) Each $10.00
NS 80-0180-198-02 Template, 8100 (Strike) Each $10.00
NS 80-0180-194 Installation Sheet, 8100 (Metal Frame) Each Email only
NS 80-0180-195 Installation Sheet, 8100 (Wood Frame) Each Email only
*91-0831-01-335 Screw Pack (313 / 335) Each $7.00
*91-0831-01-605 Screw Pack (605 / 606) Each $8.00
*91-0831-01-630 Screw Pack (628 / 629 / 630) Each $7.00
LIST = Refer to current pricelist
NS = Not shown
36
8200 Series
SURFACE VERTICAL ROD
EXIT DEVICES
#10 X 1 1/4 PAN HEAD
SELF-TAPPING SCREW
HOUSING, LOWER
P/N 23-0024
DOGGING KEY
P/N 29-0481-MP
DOGGING
ASSEMBLY
P/N 31-0265-IP
END CAP
P/N
41-0903-IP (METAL)
UPPER ROD ASS'Y
P/N 31-0235-01
CENTER BLOCK ASS'Y
P/N 31-0191
31-0191-01 (8200T)
LOWER ROD ASS'Y
P/N 31-0192-02
PUSH BAR ASS'Y
#10 X 1/2 ROUND HEAD
SELF-TAPPING SCREW
#10 X 1 1/4 PAN HEAD
SELF-TAPPING SCREW
13 REQ'D
END CAP ASS'Y
P/N
41-0902-04 (METAL)
LOWER BOLT GUIDE ASS'Y
P/N 31-0175
NOT SHOWN
BOLT GUIDE BUSHING
P/N 25-0284-MP
COVER, GUIDE ROD
P/N 24-0003-01-XXX OR
P/N 24-0031-XXX OR
P/N 24-0033-XXX
2 REQ'D
COVER, UPPER
P/N 22-0332-0X-XXX
COVER, LOWER
P/N 22-0275-0X-XXX
LOCK WASHER,
SPRING
#6-32 X 1/4
PAN HEAD SCREW
ACTUATOR ASS'Y
P/N 31-0201
CLIP, MOLDING
P/N 25-0008
2 REQ'D
CYLINDER SCREW
(SUPPLIED WITH
CYLINDER)
SVR FINAL ASS'Y
P/N 41-0282-01
(8100T) 41-0333-11
#10-32 X 5/8 SCREW
SELF TAPPING
4 REQ'D
#6-32 X 1/4 PAN HEAD SCREW
2 REQ'D
RIM CYLINDER
P/N 8736-01-XX-XXX
STRIKE ASS'Y
P/N 31-0202
9
8
10
11
12
13
14
16
15
17
1
2
18
3
5
4
6
7
*
*
*
*
*
**
INCLUDED IN 91-0831-01-XXX SCREW PACK
*
19
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
8200 Series
SURFACE VERTICAL ROD
8200 Series Narrow Stile Surface Vertical Rod
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
131-0202 Strike Plate Ass'y Each $26.00
231-0201 Actuator Ass'y Each $33.00
322-0332-01-XXX Upper Cover, select 313 or 335 or 628 finish Each $25.00
22-0332-02-XXX Upper Cover, select US3 or US4 finish (605 or 606) Each $55.00
22-0332-04-XXX Upper Cover, select US32 or US32D finish (629 or 630) Each $45.00
441-0903-IP End Cap (Hinge) - Metal Each $18.00
531-0265-IP Dogging Ass'y (Complete) Each $16.00
6Push Bar -
313, 335, 628 finish
Push Bar Ass'y: Order by Exit Device Series (8200), door opening width and
313, 335, or 628 finish Each $115.00
Push Bar -
630 finish
Push Bar Ass'y: Order by Exit Device Series (8200), door opening width and
US32D (630) finish Each $310.00
Push Bar -
605, 606, 629 finish
Push Bar Ass'y: Order by Exit Device Series (8200), door opening width and
605, 606, or 629 finish (US3, US4, US32) Each $350.00
729-0481-MP Dogging Key Pkg. of 10 $26.00
824-0003-01-XXX Rod Guide Cover, select 313 or 335 or 628 finish Each $55.00
24-0031-XXX Rod Guide Cover, select US3 or US4 finish (605 or 606) Each $150.00
24-0033-XXX Rod Guide Cover, select US32 or US32D finish (629 or 630) Each $90.00
922-0275-01-XXX Lower Cover, select 313 or 335 or 628 finish Each $25.00
22-0275-02-XXX Lower Cover, select US3 or US4 finish (605 or 606) Each $55.00
22-0275-04-XXX Lower Cover, select US32 or US32D finish (629 or 630) Each $45.00
10 23-0024 Lower Housing Each $25.00
11 25-0284-MP Bolt Guide Bushing Pkg. of 10 $6.00
12 31-0175 Lower Bolt Guide Ass'y Each $15.00
13 31-0192-02 Lower Rod Ass'y Each $30.00
14 41-0902-04-IP End Cap Ass'y (Nose) - Metal Each $22.00
15 25-0008 Molding Clip Each $6.00
16 31-0191 Center Block Ass'y Each $116.00
31-0191-01 Center Block Ass'y - Top Rod Only Each $116.00
17 41-0282-01 SVR Final Ass'y (complete with rods) Each $185.00
41-0333-11 SVR Final Ass'y (Top rod only) Each $126.00
18 31-0235-01 Upper Rod Ass'y Each $37.0 0
19 8736-01-XX-XXX Rim Cylinder Each LIST
NS 80-0180-199-01 Template, 8200 (Device) Each $10.00
NS 80-0180-199-02 Template, 8200 (Strike) Each $10.00
NS 80-0180-196 Installation Sheet, 8200 Each Email only
*91-0831-01-335 Screw Pack (313 / 335) Each $7.00
*91-0831-01-605 Screw Pack (605 / 606) Each $8.00
*91-0831-01-630 Screw Pack (628 / 629 / 630) Each $7.00
LIST = Refer to current pricelist
NS = Not shown
Note: Consult Factory For Doors Over 54 Inches Above Push Bar.
38
8300 Series
MORTISE EXIT DEVICE
EXIT DEVICES
#8-32 X 1/4 FLAT HEAD
SCREW 2 PACK
P/N 91-0244-XXX
MORTISE CYLINDER
P/N 4036-01-XX-XXX
CAM
P/N 22-0066 OR
P/N 22-0662
#10-32 X 5/8 SELF
TAPPING SCREW
4 REQ'D
DOGGING
ASSEMBLY
P/N 31-0265-IP
END CAP
P/N
41-0903-IP (METAL)
DOGGING KEY
P/N 29-0481-MP
2 EA - #12 X 24 3/4 FLAT HEAD COMBO SCREW
P/N 91-0833-02 FRAME KIT
FACEPLATE
P/N 24-0138-01
1
#10 X 1/2 FLAT HEAD
SELF TAPPING
2 REQ'D
#10 X 1 1/4 PAN HEAD
SELF-TAPPING SCREW
4 REQ'D
END CAP ASS'Y
P/N
41-0902-05-IP (METAL)
STRIKE
P/N 22-0398-01-630
HEX HEAD SCREW (CAM)
P/N 26-0217N-MP OR
RETAINER RING
P/N R603-31-MP
PUSH BAR ASS'Y
*
*
*
INCLUDED IN 91-0833-01 SCREW PACK
*
7
98
6
5
3
2
4
1
11
12
10
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
8300 Series
MORTISE EXIT DEVICE
8300 Series Mortise Exit Device
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
191-0833-02 #12 × 24 3/4 Flat Head Combo Screw Each $4.00
222-0398-01-630 Strike Each $22.00
341-0903-IP End Cap (Hinge) - Metal Each $18.00
422-0066 Cam (Latchbolt Retract) Screw Attachment Each $8.00
22-0662 Cam (Latchbolt Retract) Retainer Clip Attachment Each $8.00
531-0265-IP Dogging Ass'y (Complete) Each $16.00
6
Push Bar -
313, 335, 628 finish
Push Bar Ass'y: Order by Exit Device Series (8300), door opening width and
313, 335, or 628 finish Each $115.00
Push Bar -
630 finish
Push Bar Ass'y: Order by Exit Device Series (8300), door opening width and
US32D (630) finish Each $310.00
Push Bar -
605, 606, 629 finish
Push Bar Ass'y: Order by Exit Device Series (8300), door opening width and
605, 606, or 629 finish (US3, US4, US32) Each $350.00
729-0481-MP Dogging Key Pkg. of 10 $26.00
841-0902-05-IP End Cap Ass'y (Nose) - Metal Each $22.00
926-0217-MP #6 Hex Head Screw (Cam) Pkg. of 10 $13.00
R603-31-MP Retainer Ring (Past Production) Pkg. of 10 $12.00
10 4036-01-XX-XXX Mortise Cylinder Each LIST
11 91-0244-XXX 2 - #8-32 × 1/4 Flat Head Screws, select 313, 335, or 628 finish Pkg. of 2 $4.00
12 24-0138-01-XXX Faceplate with Screws, select 313, 335, or 628 finish Each LIST
NS 80-0180-122-01 Template, 8300 (Device) Each $10.00
NS 80-0180-122-02 Template, 8300 (Strike) Each $10.00
NS 80-0180-36 Installation Sheet, 8300 Each Email only
*91-0833-01 Screw Pack Each $7.00
LIST = Refer to current pricelist
NS = Not shown
40
8400 Series
MORTISE EXIT DEVICE
EXIT DEVICES
CAM
P/N 22-0066 OR
P/N 22-0662
#10-32 X 5/8 SCREW,
FLAT HEAD
P/N 91-0833-04 SCREW PACK
4 REQ'D
#10 X 1 1/4 PAN HEAD
SELF-TAPPING SCREW
2 REQ'D
DOGGING
ASSEMBLY
P/N 31-0265-IP
DOGGING KEY
P/N 29-0481-MP
END CAP
P/N
41-0903-IP (METAL)
#10-32 X 5/8
SCREW, SELF TAPPING
4 REQ'D
PUSH BAR ASS'Y
FACEPLAT
E
P/N 24-0137-01
P/N 24-0137-02
P/N 24-0137-03
STRIKE
P/N 31-0561-01
MORTISE CYLINDER
P/N 4036-01-XX-XXX
#10 X 5/8 SCREW,
FLAT HEAD SELF-TAPPING
2 REQ'D
#8-32X1/4 SCREW,
FLAT HEAD-2 PACK
P/N 91-0244-XXX
BACK-UP PLATE
P/N 23-0110
END CAP ASS'Y
P/N
41-0902-05-IP (METAL)
HEX HEAD SCREW
P/N 26-0217N-MP OR
RETAINER RING
P/N R603-31-MP
#10-32 X 1 3/4 FLAT HEAD SCREW
FOR 31/32 BACKSETS
OR
#10-32 X 1 7/8 FLAT HEAD SCREW
FOR 1 1/8, 1 1/2 BACKSETS
2 REQ'D
THICK DOOR KIT
91-0995-XX
INSULCLAD KIT
91-0325-XX
15
2
9
7
5
4
1
3
12
11
6
8
**
*
*
*
**
*
*
INCLUDED IN INSULCLAD 91-0325-XX.
13
14
INCLUDED IN SCREW PACK 91-0833-03.
*
15
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
8400 Series
MORTISE EXIT DEVICE
8400 Series Narrow Stile Mortise Exit Device
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
123-0110 Back-up Plate Each $10.00
291-0833-04 10-32 × 5/8 Screw, Flat Head Pkg. of 10 $6.00
331-0561-01 Strike Ass'y Each $13.00
441-0903-IP End Cap (Hinge) - Metal Each $18.00
531-0265-IP Dogging Ass'y (Complete) Each $16.00
6
Push Bar -
313, 335, 628 finish
Push Bar Ass'y: Order by Exit Device Series (8400), door opening width and
313, 335, or 628 finish Each $115.00
Push Bar -
630 finish
Push Bar Ass'y: Order by Exit Device Series (8400), door opening width and
US32D (630) finish Each $310.00
Push Bar -
605, 606, 629 finish
Push Bar Ass'y: Order by Exit Device Series (8400), door opening width and
605, 606, or 629 finish (US3, US4, US32) Each $350.00
729-0481-MP Dogging Key Pkg. of 10 $26.00
841-0902-05-IP End Cap Ass'y (Nose) - Metal Each $22.00
926-0217-MP #6 Hex Head Screw (Cam) Pkg. of 10 $13.00
R603-31-MP Retainer Ring (Past Production) Pkg. of 10 $12.00
10 See 4900 Series Latch Ass'y (1-1/8, 1-1/2" RHR/LHR) Each See 4900
Series
11 91-0244-XXX 2 - #8-32 × 1/4 Flat Head Screws, select 313, 335, or 628 finish Pkg. of 2 $4.00
12
24-0017-0220-XXX Faceplate with Screws, (Flat) Each LIST
24-0017-1220-XXX Faceplate with Screws, (Radius) Each LIST
24-0017-2220-XXX Faceplate with Screws, (Bevel, RHR) Each LIST
24-0017-3220-XXX Faceplate with Screws, (Bevel, LHR) Each LIST
24-0017-4220-XXX Faceplate with Screws, (Radius - Weatherseal) Each LIST
24-0137-01-XXX Faceplate with Screws, Flat 1-1/8", 1-1/2" Backset Each LIST
24-0137-01-XXX Faceplate with Screws, Radius 1-1/8", 1-1/2" Backset Each LIST
24-0137-01-XXX Faceplate with Screws, Radius w/Weatherseal 1-1/8", 1-1/2" Backset Each LIST
13 22-0066 Cam (Latchbolt Retract) Screw Attachment Each $8.00
22-0662 Cam (Latchbolt Retract) Retainer Ring Attachment Each $8.00
14
91-0995-02 Thick Door kit for 2" door Each LIST
91-0995-03 Thick Door kit for 2-1/4" door Each LIST
91-0995-04 Thick Door kit for 2-1/2" door Each LIST
91-0995-05 Thick Door kit for 2-3/4" door Each LIST
91-0325-01 Thermal Clad Kit for 1-3/4" Door with 1/4" cladding Each LIST
91-0325-02 Thermal Clad Kit for 1-3/4" Door with 1/2" cladding Each LIST
15 4036-01-XX-XXX Mortise Cylinder Each LIST
NS 80-0180-123-01 Template, 8400 (Device) Each $10.00
NS 80-0180-123-02 Template, 8400 (Strike) Each $10.00
NS 80-0180-38 Installation Sheet, 8400 Each Email only
*91-0833-03 Screw Pack Each $5.00
LIST = Refer to current pricelist
NS = Not shown
42
8475
MORTISE EXIT DEVICE
EXIT DEVICES
END CAP ASS'Y
P/N 31-0572-IP
COVER DOOR
P/N 25-0473
UPPER LINK
P/N 22-0551 OR
P/N 22-0551-01
#10-32 X 1/4 PAN
HEAD SEM SCREWS
P/N S277-10R04-603-MP
2 REQ'D
#10-32 X 1/4
PAN HEAD SCREW
P/N S261-10R04N-603-MP
2 REQ'D
DOGGING KEY
P/N 29-0481-MP
PUSH BAR ASS'Y
#10-32 X 1/2 PAN HEAD
SEM SCREW
P/N S277-10R08-603-MP
2 REQ'D
DOGGING ASSEMBLY
P/N 31-0265-IP
#10-32 X 5/8 SELF
TAPPING SCREW
P/N S292-10R10-603-MP
4 REQ'D
END CAP
P/N 25-0471-IP
MOUNTING PLATES
P/N 22-0552
2 REQ'D
#8-32 X 1/8 SET SCREWS
CUP POINT, HEX
P/N S232C08H02P
4 REQ'D
#8-32 X 1/4
FLAT HEAD 2-PACK
P/N 91-0244-XXX
LATCH ASS'Y
P/N 4913-XX
CYLINDER
P/N 4036-01-XX-XXX
#10-32 X 5/8 SCREW,
FLAT HEAD
P/N S262-10R10-603-MP
4 REQ'D
STRIKE
P/N 31-0561-01
BACK-UP PLATE
P/N 23-0110
FACEPLATE
P/N 24-0137-01
P/N 24-0137-02
P/N 24-0137-03
16
15
14
13
11
12
10
9
8
7
6
5
4
LEAD STILE
HINGE STILE
1
2
3
20
18
19
17
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
8475
MORTISE EXIT DEVICE
8475 Midpanel Mortise Exit Device
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
123-0110 Back-up Plate Each $10.00
2S262-10R10N-603-MP #10-32 × 5/8 Flat Head Screw Pkg. of 10 $6.00
331-0561-01 Strike Ass'y Each $13.00
422-0552 Mounting Plate Each $5.00
5S232C08H02P #8-32 × 1/8 Cup Point Set Screw Pkg. of 10 $9.00
625-0471-IP End Cap (Hinge) Each $8.00
731-0265-IP Dogging Ass'y (Complete) Each $16.00
8S292-10R10-603-MP #10-32 × 5/8 Self Tapping Screw Pkg. of 10 $7.0 0
9S277-10R08-603-MP #10-32 × 1/2 Pan Head SEM Screw Pkg. of 10 $6.00
10 29-0481-MP Dogging Key Pkg. of 10 $26.00
11
Push Bar - 313, 335,
628 finish
Push Bar Ass'y: Order by Exit Device Series (8475), door opening width
and 313, 335, or 628 finish Each $115.00
Push Bar - 630 finish Push Bar Ass'y: Order by Exit Device Series (8475), door opening width
and US32D (630) finish Each $310.00
Push Bar - 605, 606,
629 finish
Push Bar Ass'y: Order by Exit Device Series (8475), door opening width
and 605, 606, or 629 finish (US3, US4, US32) Each $350.00
12 S261-10R04N603-MP #10-32 × 1/4 Pan Head Screw Pkg. of 10 $6.00
13
22-0551 Upper Link (Narrow Stile) Each $9.00
22-0551-01 Upper Link (Medium/Wide Stile) Each $10.00
14 S277-10R04-603-MP #10-32 × 1/4 Pan Head SEM Screw (Link) Pkg. of 10 $8.00
15 31-0572-IP End Cap Ass'y (Nose Complete) Each $15.00
16 25-0473 Cover Door Each $6.00
17 See 4900 Series Latch Ass'y (1-1/8", 1-1/2" Backset ) Each See 4900
Series
18 4036-01-XX-XXX Mortise Cylinder Each LIST
19 91-0244-XXX 2 - #8-32 × 1/4 Flat Head Screws, select 313, 335, or 628 finish Pkg. of 2 $4.00
20
24-0137-01-XXX Faceplate with Screws, Flat, RHR/LHR Bevel Each LIST
24-0137-02-XXX Faceplate with Screws, Radius Each LIST
24-0137-03-XXX Faceplate with Screws, Radius - Weatherseal Each LIST
NS 80-0180-138 Installation Sheet, 8475 Each Email only
LIST = Refer to current pricelist
NS = Not shown
44
8500 Series
CONCEALED VERTICAL ROD
EXIT DEVICES
LOWER BOLT GUIDE ASS'Y
P/N 31-0034
BOLT GUIDE BUSHING
P/N 25-0506-MP
SPIDER
P/N 25-0062-01-MP
STRIKE PLATE ASS'Y
P/N 31-0202
LOWER BOLT ASSY
P/N 31-0295
CVR FINAL ASS'Y
P/N 41-0935
ACTUATOR ASS'Y
P/N 31-0579-01
END CAP ASS'Y
P/N
41-0902-05-IP (METAL)
PUSH BAR ASS'Y
#6-32 X 1/2
CAP SCREW
#10-32 x 2 FLAT
HEAD SCREW
P/N S262-10R32-MP
1 REQ'D
LOCKING NUT
P/N 24-0061
CYLINDER
ESCUTCHEON
P/N 8650-XXX
UPPER BOLT
P/N 26-0094
1/16" TRIM RING
FOR USE WITH 1"
CYLINDER ONLY
P/N 24-0007-01
2 REQ'D
CYLINDER
STRIKE
P/N 22-0125
#10-32 X 5/8
SCREW, SELF TAPPING
4 REQ'D
#10-32 X 1/2 PAN HEAD SCREW
2 REQ'D
END CAP
P/N
41-0903-IP (METAL)
DOGGING KEY
P/N 29-0481-MP
DOGGING ASSEMBLY
P/N 31-0265-IP
#10 X 1 1/4 PAN HEAD
SELF-TAPPING SCREW
2 REQ'D
*
*
*
16
19
17
18
15
14
13
7
4
6
5
8
11
1
2 REQ'D
P/N S242A06-08-MP
12
10
9
3
2
*
INCLUDED IN 91-0836-01-603
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
8500 Series
CONCEALED VERTICAL ROD
8500 Series Metal Door Concealed Vertical Rod
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
126-0094 Upper Bolt Each $7.0 0
225-0062-01-MP Spider Pkg. of 10 $17.00
341-0935 CVR Final Ass'y (Complete with Bolts) Each $140.00
441-0902-05-IP End Cap Ass'y (Nose) - Metal Each $22.00
541-0903-IP End Cap (Hinge) - Metal Each $18.00
631-0265-IP Dogging Ass'y (Complete) Each $16.00
7
Push Bar -
313, 335, 628 finish
Push Bar Ass'y: Order by Exit Device Series (8500), door opening width
and 313, 335, or 628 finish Each $115.00
Push Bar -
630 finish
Push Bar Ass'y: Order by Exit Device Series (8500), door opening width
and US32D (630) finish Each $310.00
Push Bar -
605, 606, 629 finish
Push Bar Ass'y: Order by Exit Device Series (8500), door opening width
and 605, 606, or 629 finish (US3, US4, US32) Each $350.00
829-0481-MP Dogging Key Pkg. of 10 $26.00
925-0506-MP Bolt Guide Bushing Pkg. of 10 $6.00
10 31-0034 Lower Bolt Guide Ass'y Each $7.00
11 22-0125 Strike Each $17.00
12 31-0295 Lower Bolt Ass'y Each $13.00
13 S262-10R32-603-MP #10-32 × 2 Flat Head Screw Pkg. of 10 $5.00
14 24-0007-01 1/16" Trim Ring (For 1" Cylinder - 2 Req'd) Each $11.00
15 24-0061 Locking Nut Each $6.00
16 S242A06-08-MP #6-32 × 1/2 Cap Screw (Rod Piercing) Pkg. of 10 $9.00
17 31-0579-01 Actuator Ass'y (Top) Each $79.00
18 31-0202 Strike Plate Ass'y Each $26.00
19 8650-XXX Cylinder Escutcheon Kit Each LIST
NS 80-0180-39-01 Template, 8500 (Device) Each $10.00
NS 80-0180-39-02 Template, 8500 (Strike) Each $10.00
NS 80-0180-51 Installation Sheet, 8500 Each Email only
*91-0836-01-603 Screw Pack Each $11.00
LIST = Refer to current pricelist
NS = Not shown
Note: Consult Factory For Doors Over 66 Inches Above Pushbar.
46
8600 Series
CONCEALED VERTICAL ROD
EXIT DEVICES
#6-32 X 1/2
CAP SCREW
#10-32 x 2
FLAT HEAD SCREW
P/N S262-10R32-MP
1 REQ'D
1/16" TRIM RING
FOR USE WITH 1"
CYLINDER ONLY
P/N 24-0007-01
2 REQ'D
CYLINDER
ESCUTCHEON
P/N 8650-XXX
LOCKING NUT
P/N 24-0061
MORTISE
CYLINDER
P/N 4036-01-XX-XXX
UPPER BOLT
P/N 26-0094
DOGGING KEY
P/N 29-0481-MP
END CAP
P/N
41-0903-IP (METAL)
DOGGING ASSEMBLY
P/N 31-0265-IP
#10-32 X 5/8
SCREW, SELF TAPPIN
G
4 REQ'D
#10 X 1 1/4 PAN HEAD
SELF-TAPPING SCREW
2 REQ'D
#10-32 X 1/2 PAN HEAD SCREW
2 REQ'D
PUSH BAR ASS'Y
LOWER BOLT ASSY
P/N 31-0295
SPIDER
P/N 25-0062-01-MP
#10-32 X 5/16 SCREW,
FLAT HEAD
5 REQ'D
END CAP ASS'Y
P/N
41-0902-05-IP (METAL)
STRIKE PLATE ASS'Y
P/N 31-0945
LOWER BOLT GUIDE ASS'Y
P/N 31-0964-IP
BOLT GUIDE BUSHING
P/N 25-0506-MP
ACTUATOR ASS'Y
P/N 31-0944-IP
CVR FINAL ASS'Y
P/N 41-0935
*
*
*
*
17
16
15
19
18
14
13
6
5
4
7
12
1
2 REQ'D
P/N S242A06-08-MP
8
11
9
10
3
2
*
INCLUDED IN 91-0835-01-XXX
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
8600 Series
CONCEALED VERTICAL ROD
8600 Series Narrow Stile Concealed Vertical Rod
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
126-0094 Upper Bolt Each $7.0 0
225-0062-01-MP Spider Pkg. of 10 $17.00
341-0935 CVR Final Ass'y (complete with bolts) Each $140.00
441-0903-IP End Cap (Hinge) - Metal Each $18.00
531-0265-IP Dogging Ass'y (Complete) Each $16.00
6
Push Bar -
313, 335, 628 finish
Push Bar Ass'y: Order by Exit Device Series (8600), door opening width
and 313, 335, or 628 finish Each $115.00
Push Bar -
630 finish
Push Bar Ass'y: Order by Exit Device Series (8600), door opening width
and US32D (630) finish Each $310.00
Push Bar -
605, 606, 629 finish
Push Bar Ass'y: Order by Exit Device Series (8600), door opening width
and 605, 606, or 629 finish (US3, US4, US32) Each $350.00
729-0481-MP Dogging Key Pkg. of 10 $26.00
841-0902-05-IP End Cap Ass'y (Nose) - Metal Each $22.00
931-0964-IP Lower Bolt Guide Ass'y Each $6.00
10 25-0506-MP Bolt Guide Bushing Pkg. of 10 $6.00
11 31-0295 Lower Bolt Ass'y Each $13.00
12 S262-10R32-603-MP #10-32 × 2 Flat Head Screw Pkg. of 10 $5.00
13 24-0007-01 1/16" Trim Ring (For 1" Cylinder - 2 req'd) Each $11.00
14 24-0061 Locking Nut Each $6.00
15 S242A06-08-MP #6-32 × 1/2 Cap Screw (Rod Piercing) Pkg. of 10 $9.00
16 31-0944-IP Actuator Ass'y (Top) Each $27.0 0
17 31-0945 Strike Plate Ass'y Each $17.0 0
18 4036-01-XX-XXX Mortise Cylinder Each LIST
19 8650-XXX Cylinder Escutcheon Kit Each LIST
NS 80-0180-39-01 Template, 8600 (Device) Each $10.00
NS 80-0180-39-02 Template, 8600 (Strike) Each $10.00
NS 80-0180-51 Installation Sheet, 8600 Each Email only
*91-0835-01-603 Screw Pack Each $4.00
LIST = Refer to current pricelist
NS = Not shown
48
8675
CONCEALED VERTICAL ROD
EXIT DEVICES
#10-32 X 1/4
PAN HEAD SCREW
P/N S261-10R04N-603-MP
2 REQ'D
#10-32 X 5/16 SCREW,
FLAT HEAD UNDERCUT
P/N S266-10R05N-XXX-MP
6 REQ'D
#10-32 x 2 FLAT
HEAD SCREW
P/N S262-10R32-603-MP
1 REQ'D
MORTISE CYLINDER
P/N 4036-01-XX-XXX
CYLINDER
ESCUTCHEON
P/N 8650-XXX
LOCKING NUT
P/N 24-0061
1/16" TRIM RING
FOR USE WITH 1"
CYLINDER ONLY
P/N 24-0007-01
2 REQ'D
#8-32 x 1/8
SET SCREWS, CUP PT.
P/N S232C08H02N-MP
4 REQ'D
STRIKE ASS'Y
P/N 31-0945
ACTUATOR ASS'Y
P/N 31-0944-IP
UPPER BOLT
P/N 26-0094
#6-32 x 1/2 CAP SCREW
P/N S242A06-08-MP
2 REQ'D
CVR FINAL ASS'Y
P/N 41-0675
#10-32 x 5/8,
SELF TAPPING
P/N S292-10R10-603-MP
4 REQ'D
END CAP
P/N 25-0471-IP
LOWER BOLT GUIDE ASS'Y
P/N 31-0964-IP
BOLT GUIDE BUSHING
P/N 25-0506-MP
SPIDER
P/N 25-0062-01-MP
PUSH BAR ASS'Y
DECAL
P/N 20-0035
DOGGING KEY
P/N 29-0481-MP
MOUNTING PLATE
P/N 22-0552
2 REQ'D
#10-32 X 1/2
PAN HEAD SCREW
P/N S277-10R08-603-MP
2 REQ'D
DOGGING ASSEMBLY
P/N 31-0265-IP
LINK-CRANK ASSY
P/N 31-0675
#10-32x1/4 PAN HD SCR
P/N S277-10R04-603-MP
DEPRESS BAR
AND TURN KEY
1/4 TURN
CLOCKWISE
TURN KEY
1/4 TURN
COUNTER-
CLOCKWISE
TO DOG BAR:
TO RELEASE:
R
5
21
23
24
2
1
3
6
10
25
26
11
13
12
14
15
16
20
19
17
18
7
END CAP ASSY
P/N 31-0572-IP
LOWER BOLT ASSY.
P/N 31-0295
22
8
4
9
28
27
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
8675
CONCEALED VERTICAL ROD
8675 Concealed Vertical Rod Midpanel Exit Device
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
126-0094 Upper Bolt Each $7.0 0
2S266-10R05N-603-MP #10-32 × 5/16 Flat Head Screw Pkg. of 10 $8.00
322-0552 Mounting Plate Each $5.00
441-0675 CVR Final Ass'y (Complete with Bolts) Each $128.00
525-0062-01-MP Spider Pkg. of 10 $17.0 0
6S232C08H02N-MP #8-32 × 1/8 Cup Point Set Screw Pkg. of 10 $15.00
725-0471-IP End Cap (Hinge) Each $8.00
8S292-10R10-603-MP #10-32 × 5/8 Self Tapping Screw Pkg. of 10 $7.0 0
931-0265-IP Dogging Ass'y (Complete) Each $16.00
10 S277-10R08-603-MP #10-32 × 1/2 Pan Head SEM Screw Pkg. of 10 $6.00
11
Push Bar - 313, 335,
628 finish
Push Bar Ass'y: Order by Exit Device Series (8475), door opening width
and 313, 335, or 628 finish Each $115.00
Push Bar - 630 finish Push Bar Ass'y: Order by Exit Device Series (8475), door opening width
and US32D (630) finish Each $310.00
Push Bar - 605, 606,
629 finish
Push Bar Ass'y: Order by Exit Device Series (8475), door opening width
and 605, 606, or 629 finish (US3, US4, US32) Each $350.00
12 29-0481-MP Dogging Key Pkg. of 10 $26.00
13 S261-10R04N-603-MP #10-32 × 1/4 Pan Head Screw Pkg. of 10 $6.00
14 20-0035 Decal (Dogging Instructions) Each $12.00
15 31-0964-IP Lower Bolt Guide Ass'y Each $6.00
16 25-0506-MP Bolt Guide Bushing Pkg. of 10 $6.00
17 31-0295 Lower Bolt Ass'y Each $13.00
18 31-0572-IP End Cap Ass'y (Nose Complete) Each $15.00
19 S277-10R04-603-MP #10-32 × 1/4 Pan Head SEM Screw (Link) Pkg. of 10 $8.00
20 31-0675 Link-Crank Ass'y Each $7.0 0
21 S262-10R32-603-MP #10-32 × 2 Flat Head Screw Pkg. of 10 $5.00
22 24-0007-01 1/16" Trim Ring (For 1" Cylinder - 2 req'd) Each $11.00
23 24-0061 Locking Nut Each $6.00
24 S242A06-08-MP #6-32 × 1/2 Cap Screw (Rod Piercing) Pkg. of 10 $9.00
25 31-0944-IP Actuator Ass'y (Top) Each $27.0 0
26 31-0945 Strike Plate Ass'y Each $17.00
27 4036-01-XX-XXX Mortise Cylinder Each LIST
28 8650-XXX Cylinder Escutcheon Kit Each LIST
NS 80-0180-137 Installation Sheet, 8675 (Device) Each Email only
NS 80-0180-134 Installation Sheet, 8675 (Strike) Each Email only
LIST = Refer to current pricelist
NS = Not shown
Note: Consult Factory For Doors Over 66 Inches Above Pushbar.
50
8700 Series
RIM EXIT DEVICE
EXIT DEVICES
CYLINDER SCREW
SUPPLIED WITH
CYLINDER
RIM CYLINDER
P/N 8736-01-XX-XXX
PUSH BAR ASS'Y
**
STRIKE
P/N 22-0430
**
STRIKE SPACER
P/N 22-0481-03-MP
1 REQ'D
**
STRIKE PLUG
P/N 25-0625-MP
2 REQ'D
**
2 REQ'D - #10-32 X 3/4 FLAT HD. SCREW
#10 X 1 1/4 FLAT HD. SCREW
P/N 91-0837-02
END CAP ASS'Y
P/N
41-0902-03-IP (METAL)
*
#10 X 1 1/2 SCREW,
ROUND HEAD SELF-TAPPING
2 REQ'D
**
STRIKE SPACER
P/N 22-0481-04-MP
4 REQ'D
DOGGING KEY
P/N 29-0481-MP
END CAP
P/N
41-0903-IP (METAL)
DOGGING
ASSEMBLY
P/N 31-0265-IP
*
#10-32 X 5/8 SCREW
SELF-TAPPING
4 REQ'D
CYLINDER PLATE
P/N 22-0480
REQ'D FOR WOOD
DOOR ONLY
*
#10 X 1 1/4 SCREW,
PAN HEAD SELF-TAPPING
6 REQ'D
MOUNTING BASE KIT
INCLUDES
STARWHEEL
8
10
9
6
7
11
15
* INCLUDED IN SCREW PACK 91-0837-01.
** INCLUDED IN FRAME KIT 91-0991-02
MOUNTING BASE KIT
P/N 91-8800
1
2
3
4
5
12
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
8700 Series
RIM EXIT DEVICE
8700 Series Rim Exit Device
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
122-0481-04-MP Strike Spacer Pkg. of 10 $18.00
222-0481-03-MP Strike Spacer (Narrow) Pkg. of 10 $18.00
322-0430 Strike Each $8.00
491-0837-02 2 - #10-32 × 3/4 Flat Head Screws Each $4.00
525-0625-MP Strike Plug Pkg. of 2 $7.0 0
641-0903-IP End Cap (Hinge) - Metal Each $18.00
731-0265-IP Dogging Ass'y (Complete) Each $16.00
8
Push Bar -
313, 335, 628 finish
Push Bar Ass'y: Order by Exit Device Series (8700), door opening width
and 313, 335, or 628 finish Each $115.00
Push Bar -
630 finish
Push Bar Ass'y: Order by Exit Device Series (8700), door opening width
and US32D (630) finish Each $310.00
Push Bar -
605, 606, 629 finish
Push Bar Ass'y: Order by Exit Device Series (8700), door opening width
and 605, 606, or 629 finish (US3, US4, US32) Each $350.00
929-0481-MP Dogging Key Pkg. of 10 $26.00
10 41-0902-03-IP End Cap Ass'y (Nose) - Metal Each $22.00
11 22-0480 Cylinder Plate (Wood Doors) Each $9.00
12 91-8800 Mounting Base Kit Each $115.00
15 8736-01-XX-XXX Rim Cylinder Each LIST
NS 80-0180-124-01 Template, 8700 (Device) Each $10.00
NS 80-0180-124-02 Template, 8700 (Strike) Each $10.00
NS 80-0180-40 Installation Sheet, 8700 Each Email only
*91-0837-01 Screw Pack Each $4.00
** 91-0991-02 Frame Kit Each $35.00
LIST = Refer to current pricelist
NS = Not shown
52
8800 Series
RIM EXIT DEVICE
EXIT DEVICES
RIVNUT/TOOLS KIT
P/N 41-0975-02
DOGGING KEY
P/N 29-0481-MP
DOGGING
ASSEMBLY
P/N 31-0265-IP
CYLINDER SCREW
PUSH BAR ASS'Y
STRIKE SPACER
P/N 22-0481-04-MP
4 REQ'D
#10-32 X 5/8 SCREW,
SELF TAPPING
4 REQ'D
END CAP
P/N
41-0903-IP (METAL)
END CAP ASS'Y
P/N
41-0902-03-IP (METAL)
STRIKE PLUG
P/N 25-0625
2 REQ'D
STRIKE SPACER
P/N 22-0481-03-MP
1 REQ'D
STRIKE
P/N 22-0430
2-#10-32 X 3/4
FLAT HEAD SCREW
P/N 91-0837-02
RIM CYLINDER
P/N 8736-01-XX-XXX
#10 X 1 1/4 SCREW,
PAN HEAD SELF-TAPPING
4 REQ'D
MOUNTING BASE KIT
INCLUDES
STARWHEEL
STRIKE KIT
(FOR CENTER HUNG
DOORS WITH 4" JAM)
(P/N 91-0993)
*
*
12
9
11
SUPPLIED WITH CYLINDER
8
10
**
**
**
**
**
INCLUDED IN FRAME KIT 91-0992-02
INCLUDED IN SCREW PACK 91-0837-01
**
**
*
**
MOUNTING BASE KIT
P/N 91-8800
1
2
3
4
5
13
14
6
7
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
8800 Series
RIM EXIT DEVICE
8800 Series Narrow Stile Rim Exit Device
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
122-0481-04-MP Strike Spacer Pkg. of 10 $18.00
222-0481-03-MP Strike Spacer (Narrow) Pkg. of 10 $18.00
322-0430 Strike Each $8.00
491-0837-02 2 - #10-32 × 3/4 Flat Head Screw Each $4.00
525-0625-MP Strike Plug Pkg. of 2 $7.0 0
641-0975-02 Rivnut / Tool Kit Each $10.00
791-0993 Strike Kit (For Center Hung Door with 4" Jamb) Each $20.00
841-0903-IP End Cap (Hinge) - Metal Each $18.00
931-0265-IP Dogging Ass'y (Complete) Each $16.00
10
Push Bar -
313, 335, 628 finish
Push Bar Ass'y: Order by Exit Device Series (8800), door opening width
and 313, 335, or 628 finish Each $115.00
Push Bar -
630 finish
Push Bar Ass'y: Order by Exit Device Series (8800), door opening width
and US32D (630) finish Each $310.00
Push Bar -
605, 606, 629 finish
Push Bar Ass'y: Order by Exit Device Series (8800), door opening width
and 605, 606, or 629 finish (US3, US4, US32) Each $350.00
11 29-0481-MP Dogging Key Pkg. of 10 $26.00
12 41-0902-03-IP End Cap Ass'y (Nose) - Metal Each $22.00
13 91-8800 Mounting Base Kit Each $115.00
14 8736-01-XX-XXX Rim Cylinder Each LIST
15 80-0180-125-01 Template, 8800 (Device) Each $10.00
16 80-0180-125-02 Template, 8800 (Strike) Each $10.00
NS 80-0180-41 Installation Sheet, 8800 Each Email only
*91-0837-01 Screw Pack Each $4.00
** 91-0992-02 Frame Kit Each $58.00
LIST = Refer to current pricelist
NS = Not shown
54
Accessories
FOR EXIT DEVICES
EXIT DEVICES
LOCKING NUT TOOL
LOCKING NUT
DOGGING ASS'Y
P/N 31-0265-01-IP
MONITOR SWITCH KIT
SINGLE SWITCH
P/N 91-0897-01
DUAL SWITCH
P/N 91-0987-02
#6-32 X 3/8 ROUND HEAD
SELF TAPING SCREW
P/N S282-06R06-603
MICRO SWITCH
P/N 31-0186-01
ANTI-ROTATION
RING
CYLINDER
P/N 4036-01-XX-XXX
MONITORING KITS "M"
CYLINDER DOGGING “C”
1
3
2
5
4
6
P/N 91-0099
CYLINDER KIT
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
Accessories
FOR EXIT DEVICES
Exit Device, Accessories
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
Monitoring Kits "M"
131-0186-01 Micro Switch with Wires (SPDT) Each $58.00
291-0897-01 Single Signal Switch Kit, M1 Each LIST
91-0897-02 Double Signal Switch Kit, M2 Each LIST
3S282-06R06-603-MP Self-tapping Screw Each $6.00
Cylinder Dogging "C"
431-0265-01-IP Dogging Assembly Each $16.00
591-0099 Cylinder Kit Each $13.00
64036-01-XX-XXX Mortise Cylinder Each LIST
LIST = Refer to current pricelist
56

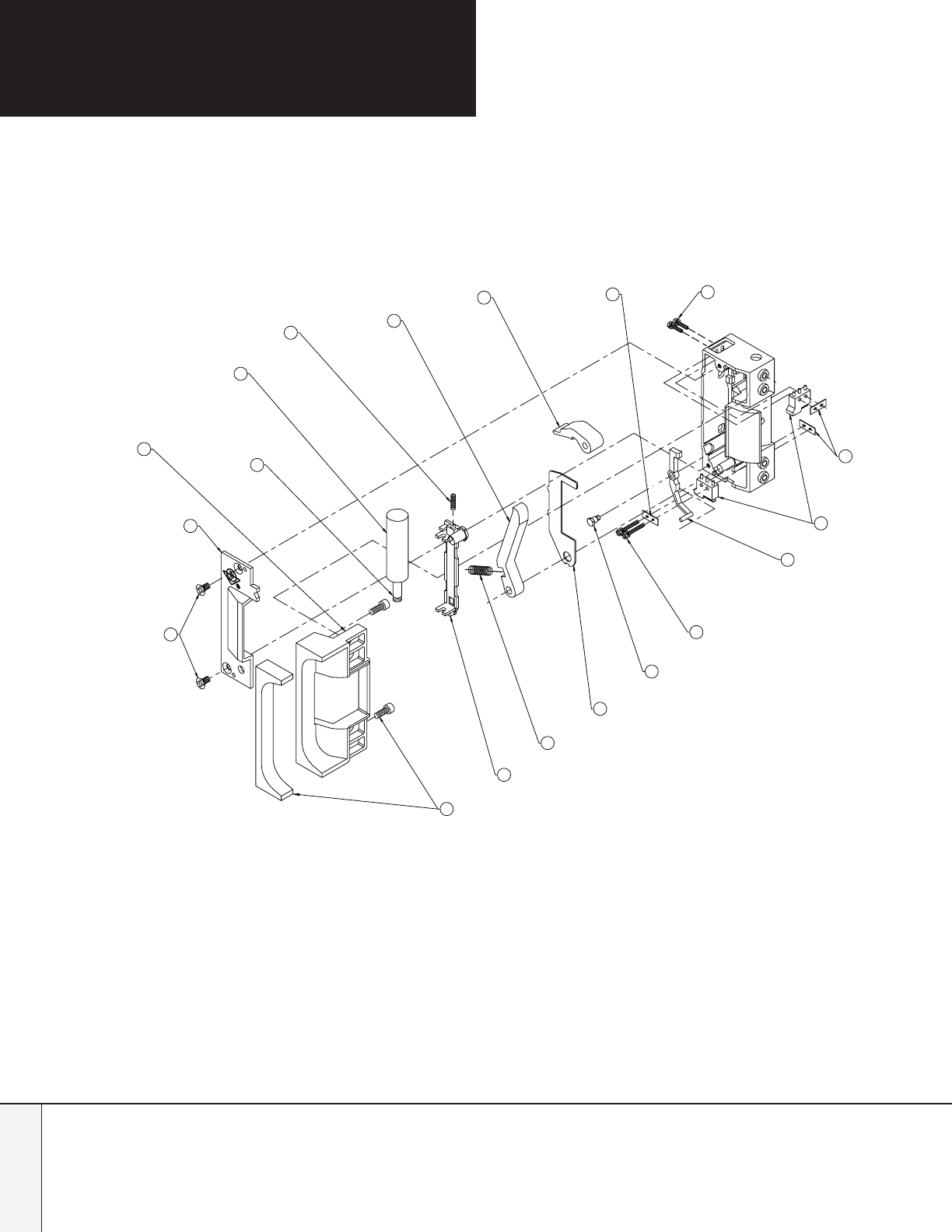

7100
ELECTRIC STRIKE
ELECTRIC STRIKES
3
10
12
14
16
19
1
COVER
P/N 23-0350 OR
P/N 23-0351 OR
SUBCOVER
P/N 23-0443 OR
P/N 23-0444 OR
P/N 23-0445
P/N 23-0179-02
2
SOLENOID
P/N 29-0250-12ACI-IP
P/N 29-0250-12DCC-IP
P/N 29-0250-16ACI-IP
P/N 29-0250-16DCC-IP
P/N 29-0250-24DCC-IP
SHUTTLE RETURN SPRING
P/N 28-0150-MP
5
BLOCKING ARM
P/N 27-0086
6
LATCH
P/N 27-0085
7
SWITCH PLATE
P/N 22-0713
8
#2 X 3/8 HEX HD. PHILLIPS
P/N 29-0342-MP
2 REQ'D
NUTPLATE
P/N 22-0698-MP
MICRO SWITCH
P/N 31-0092
11
BOLT SWITCH ACTUATOR
P/N 23-0349
#2 X 5/8 HEX HD. PHILLIPS
P/N 29-0341-MP
2 REQ'D.
13
SHOULDER SCREW
P/N 26-0214-MP
BLOCKING ARM RETURN SPRING
P/N 28-0151-MP
17
SHUTTLE
P/N 23-0356
#6-32 X 1/4 PHILLIPS
FLAT HD W/ NYLOCK PATC
H
P/N S235-06R04N-603-M
P
2 REQ'
D
4
PLUNGER
P/N 26-0170
SUBCOVER EXTENSION KIT
P/N 91-0171-XX OR
P/N 91-0172-XX OR
P/N 91-0173-XX
18
15
SOLENOID RETAINER PLATE
P/N 22-0657
9
P/N 23-0551
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
7100
ELECTRIC STRIKE
7100 Electric Strike
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
1
23-0350 Cover (7100, 7101, 7110, 7111, 7130, 7131, 7140) Each $9.00
23-0351 Cover (7160, 7170) Each $9.00
23-0551 Cover (7108, 7128) Each $7.0 0
2
23-0443 Subcover (7100, 7110, 7111, 7130, 7140) Each $14.00
23-0444 Subcover (7101, 7131) Each $14.00
23-0445 Subcover (7160, 7170) Each $16.00
23-0179-02 Subcover (7108, 7128) Each $20.00
3
29-0250-12ACI-IP Solenoid (12 VAC Int.) Each $38.00
29-0250-12DCC-IP Solenoid (12 VDC Cont./24 VAC Int.) Each $38.00
29-0250-16ACI-IP Solenoid (16 VAC Int.) Each $38.00
29-0250-16DCC-IP Solenoid (16 VDC Cont.) Each $38.00
29-0250-24DCC-IP Solenoid (24 VDC Cont.) Each $38.00
426-0170 Plunger Each $5.00
528-0150-MP Shuttle Return Spring Pkg. of 10 $5.00
627-0086 Blocking Arm Each $8.00
727-0085 Latch Each $5.00
822-0713 Switch Plate Each $4.00
929-0342-MP #2 × 3/8 Phillips Hex Head Pkg. of 10 $4.00
10 22-0698-MP Nutplate Pkg. of 10 $9.00
11 31-0092 Microswitch Each $67.00
12 23-0349 Bolt Switch Actuator Each $5.00
13 29-0341-MP #2 × 5/8 Phillips Hex Head Pkg. of 10 $7.0 0
14 26-0214-MP Shoulder Screw Pkg. of 10 $37.00
15 22-0657 Solenoid Retainer Plate Each $8.00
16 28-0151-MP Block Arm Return Spring Pkg. of 10 $8.00
17 23-0356 Shuttle Each $5.00
18
91-0171-XX* Subcover Lip Extension Kit (7100, 7110, 7111, 7130, 7140) Each LIST
91-0172-XX* Subcover Lip Extension Kit (7160, 7170) Each LIST
91-0173-XX* Subcover Lip Extension Kit (7108, 7128) Each LIST
19 S235-06R04N-603-MP #6-32 × 1/4 Phillips Flat Head (Under Cut) Pkg. of 10 $4.00
NS 91-0077-01-XXX Mounting Kit (2-Mounting Tabs, 2-Mounting Screws, 2-Press Nuts,
Adhesive Shims, 2-Wire Nuts) Specify 313, 335, or 628 finish Each $12.00
LIST = Refer to current pricelist
NS = Not shown
*Specify lip extension requirements, refer to catalog for "A" dimension. Extensions provided in 1/8" increments beginning with -01 for a 3/8" extension.
58

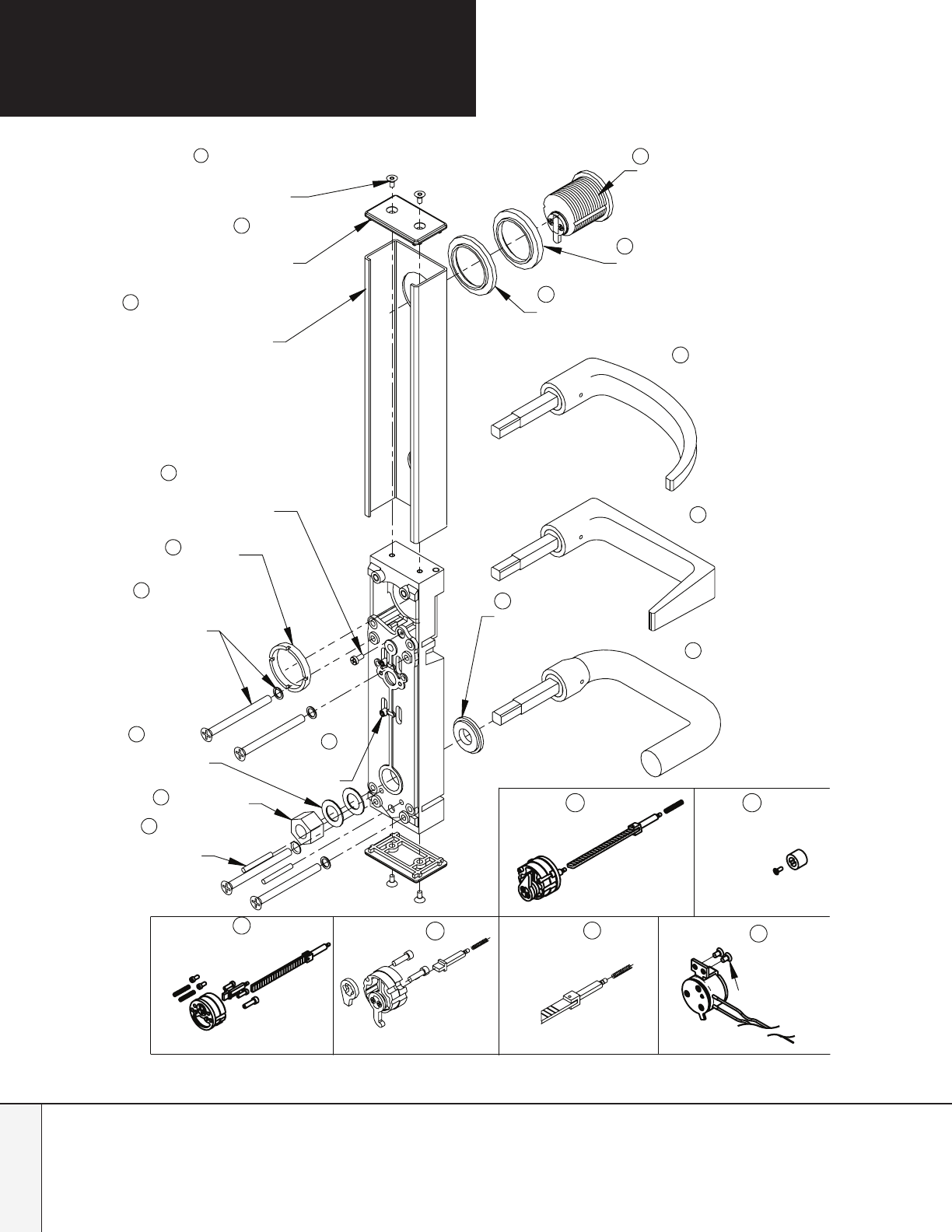

3080 Series
ENTRY TRIM
TRIM
CYLINDER
P/N 4036-01-XX-XXX
1
2
3
5
6
7
9
11
10
8
DOWEL PIN
P/N 26-0435-MP
2 REQD.
HEX NUT
P/N N315-07-603-MP
WASHER
P/N W414B23-MP
2 REQD.
HANDING SCR
P/N 26-0249-MP
2 REQD.
MOUNTING SCREW
BAG KIT
P/N 91-0302-XXX
CYLINDER RETAINER
P/N 24-0061
#4-40 x 1/4
PAN HD SELF TAPPING SCREW
P/N S256-04R04-603-MP
TRIM HOUSING
P/N 22-0763-01-XXX (W/ CYL.HOLE)
P/N 22-0763-02-XXX (NO. CYL. HOLE)
TRIM COVER
P/N 23-0202-01
2 REQ'D.
#6-32 x 3/8
FLAT HEAD SCREW, LOCKTITE
P/N S227-06R06N-119
17
16
15
14
13
12
HANDLE BUSHING
P/N 26-0381-01-XXX
ROUND HANDLE ASSY.
P/N 31-0991-02
SQUARE HANDLE ASSY.
P/N 31-0991-03
CURVED HANDLE ASSY.
P/N 31-0991-01
CYLINDER SPACER
P/N 26-0452-119
CYLINDER ESCUTCHEON
P/N 26-0453-119
P/N 31-0993-X
S235-0604N-603
21
(FOR CVR DEVICES
MFG PRIOR 2/1997)
P/N 91-0160
SOLENOID ASSY.
20
18
P/N 91-0301-03
P/N 91-0301-01
P/N 91-0686
CVR BAG KIT
G86 TRIM KIT
SVR /RIM /INSET
CVR KIT
22
23
MORTISE BAG KIT
19
P/N 91-0301-02
24
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
3080 Series
ENTRY TRIM
3080 Series Entry Trim
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
1S227-06R06N-119-MP #6-32 × 3/8" Flat Head Screw Pkg. of 10 $5.00
223-0202-01 Trim Cover Each $10.00
3
22-0763-01-XXX Trim Housing with Cylinder Hole, select US3, US4, or US32 Each $40.00
22-0763-01-XXX Trim Housing with Cylinder Hole, select 10B or US32D Each $30.00
22-0763-02-XXX Trim Housing without Cylinder Hole, select US3, US4, or US32 Each $40.00
22-0763-02-XXX Trim Housing without Cylinder Hole, select 10B or US32D Each $30.00
5S256-04R04-603-MP #4-40 × 1/4 Pan Head Self-Tapping Screw Pkg. of 10 $5.00
624-0061 Cylinder Retainer Each $6.00
791-0302-121 Mounting Screw Kit for US3, US4, and US26 finishes Each $30.00
91-0302-603 Mounting Screw Kit for 10B and US26D finishes Each $24.00
8W414B23-MP Washer Pkg. of 10 $7.0 0
926-0249-MP Handing Screw Pkg. of 10 $38.00
10 N315-07-603-MP Hex Nut with Nylon Insert Pkg. of 10 $5.00
11 26-0435-MP Dowel Pin Pkg. of 10 $12.00
12 26-0381-01-XXX Handle Bushing Pkg. of 10 $7.00
13 31-0991-02-XXX Round Handle Ass'y, select US3, US4, or US32 Each $85.00
31-0991-02-XXX Round Handle Ass'y, select 10B or US32D Each $75.00
14 31-0991-03-XXX Square Handle Ass'y, select US3, US4, or US32 Each $85.00
31-0991-03-XXX Square Handle Ass'y, select 10B or US32D Each $75.00
15 31-0991-01-XXX Curved Handle Ass'y, select US3, US4, or US32 Each $85.00
31-0991-01-XXX Curved Handle Ass'y, select 10B or US32D Each $75.00
16 26 -0452-119 Cylinder Spacer Each $11.00
17 26 -0453 -119 Cylinder Escutcheon Each $11.00
18 91-0301-01 CVR Spindle Kit for devices manufactured prior to 2/97 Each $28.00
19 91-0301-02 Mortise Spindle Kit Each $20.00
20 91-0301-03 SVR / Rim / Inset Spindle Kit Each $8.00
21
31-0993-1 Solenoid Assembly 24VDC Fail-Safe Each $400.00
31-0993-2 Solenoid Assembly 12VDC Fail-Safe Each $400.00
31-0993-3 Solenoid Assembly 24VDC Fail-Secure Each $400.00
31-0993-4 Solenoid Assembly 12VDC Fail-Secure Each $400.00
22 91-0686 G86 Trim Kit Each $25.00
23 91-0160 CVR Tailpiece Adaptor Kit Each $7.0 0
24 4036-01-XX-XXX Mortise Cylinder Each LIST
NS 80-0180-301-01 Template, Stick-On (SVR) Each $10.00
NS 80-0180-301-02 Template, Stick-On (Mortise / Mortise Inset) Each $10.00
NS 80-0180-301-03 Template, Stick-On (CVR) Each $10.00
NS 80-0180-301-04 Template, Stick-On (Rim) Each $10.00
NS 80-0180-301-05 Template, Stick-On (Inset CVR) Each $10.00
NS 80-0180-301-08 Template, Stick-On (Wood Door CVR) Each $10.00
NS 80-0180-3080 Installation Instructions Each Email only
LIST = Refer to current pricelist
NS = Not shown
Note that solenoid assemblies can only be used in electrified 3080 Entry Trim
60

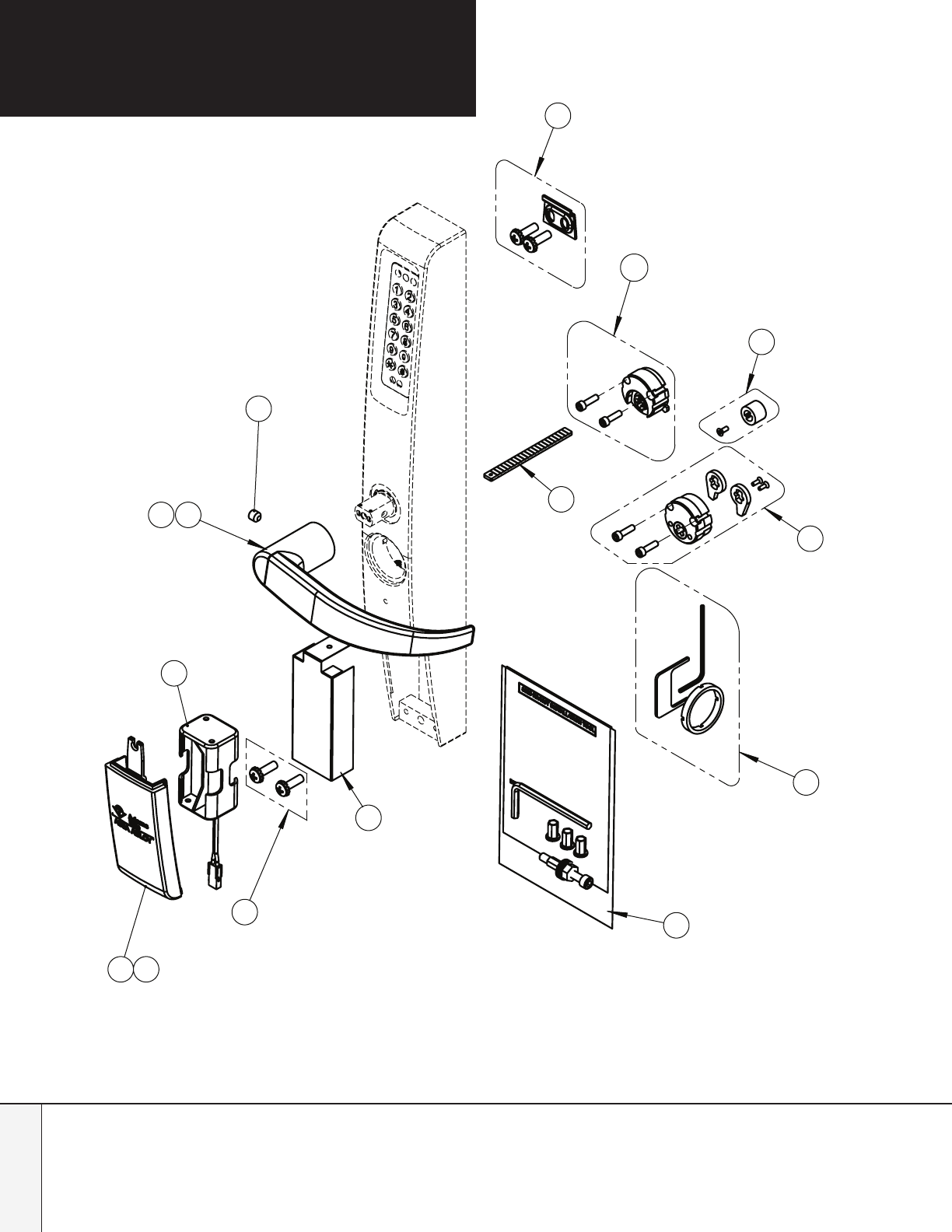

eForce®-150
3090 KEYLESS ENTRY
TRIM
7
7
7
7
8
10
9
6
12
5
34
12
11
BATTERY LID ASSEMBLY
31-0329-XXX
BATTERY
COVER SHIELD
25-0179
CURVED HANDLE
23-0743-XXX
MOUNTING KIT
91-0079
MORTISE KIT
DEADBOLT
91-0459-01
CVR KIT
91-0160
RIVNUT TOOL ASSEMBLY
41-0975-04
TORX SET SCREW
1/4-28 x 1/4"
26-0658
BATTERY PACK
A
SSEMBLY
31-035
5
MORTISE KIT
DEADLATCH
91-0459-02
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
eForce®-150
3090 KEYLESS ENTRY
eForce®-150 3090 Keyless Entry
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
123-0743-626 Curved Handle (Satin Chrome) Each $35.00
223-0743-121PC Curved Handle (Dark Bronze) Each $35.00
331-0329-626 Battery Lid Assembly (Satin Chrome) Each $24.00
431-0329-121PC Battery Lid Assembly (Dark Bronze) Each $24.00
531-0355 Battery Pack Assembly Each $18.00
626-0658 Torx Set Screw 1/4-28 x 1/4" Each $4.00
791-0079 Mounting Kit Each $12.00
841-0975-04 Rivnut Tool Assembly Each $11.00
991-0459-02 Mortise Kit Deadlatch Each $21.00
10 91-0459-01 Mortise Kit Deadbolt Each $21.00
11 25-0179 Battery Cover (Plastic Shield) Each $4.00
12 91-0160 CVR Kit Each $7.00
62 TRIM

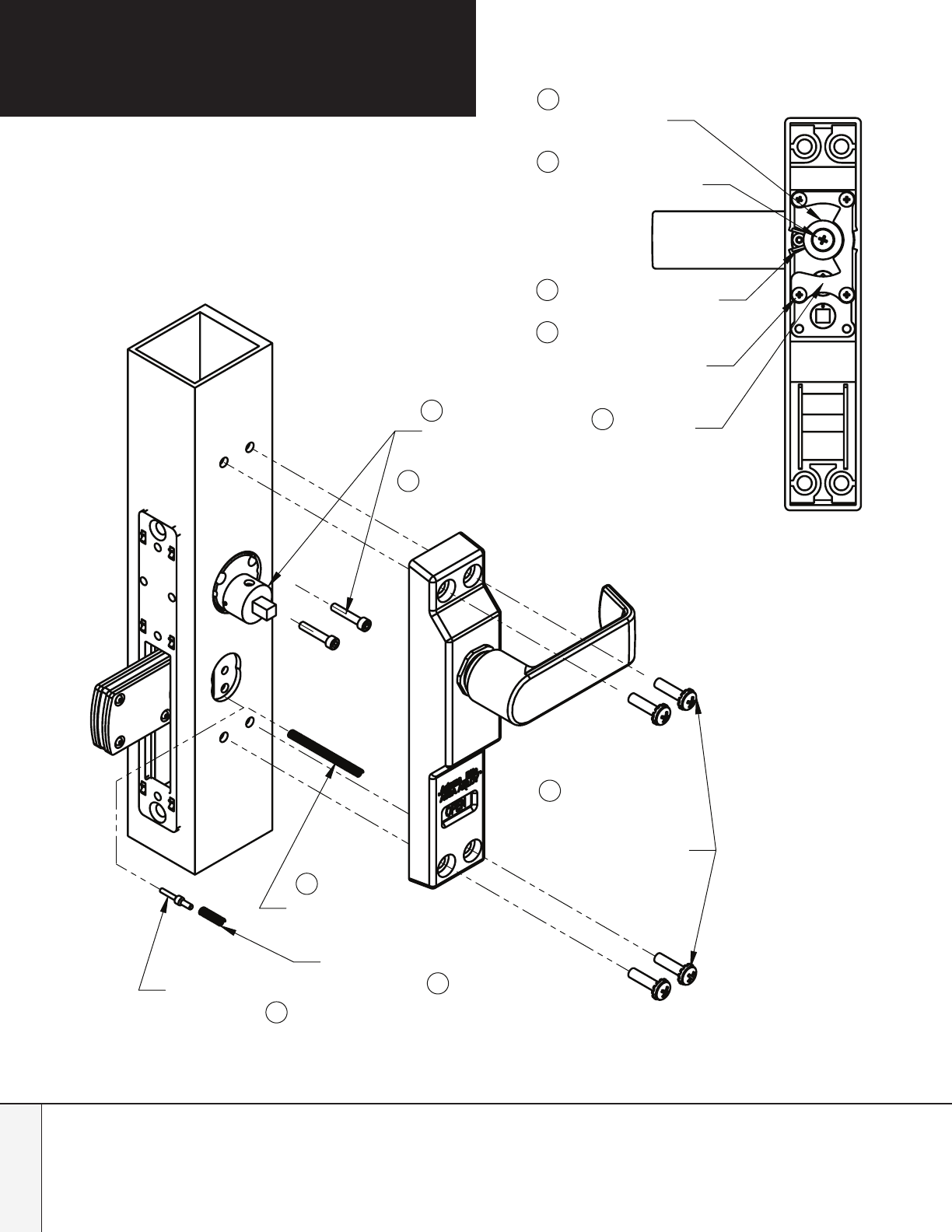

4550
MS® DEADLOCK LEVER
RETURN SPRING
BUSHING
P/N 26-0157-MP
HANDLE RETURN SPRING
P/N 28-0019-MP
#10-32x3/8"
FLAT HEAD SCREW
P/N S262C10R06N-MP
STOP PLATE
P/N 22-0656
#6-32x5/16
PAN HEAD SCREW
P/N S222-06R05N603-MP
4 REQ'D
#10-32 x3/4"
PAN HEAD SEMS SCREW
P/N S277-10R12-603-MP
4 REQ'D
EXIT INDICATOR PIN
P/N 26-0455-MP
EXIT INDICATOR SPRING
P/N 28-0008-1-MP
EXIT INDICATOR SPRING
P/N 28-0008-MP
CAM PLUG ASSEMBLY
P/N 91-0752
INCLUDES:
(2) #6-32 x1/2",
BRASS SOCKET HD SCREWS
S242BA06-08
1
4
5
6
3
7
8
11
9
10
2
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
4550
MS® DEADLOCK LEVER
4550 Deadlock Lever
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
191-0752 Cam Plug Assembly Kit Clutched MS Lever Each $68.00
2S242BA06-08 #6-32 × 1/2 Socket Head Cap Screw Each $4.00
3S277-10R12-603-MP #10-32 × 3/4 Pan Head SEMS Screw Pkg. of 10 $5.00
428-0008-MP Exit Indicator Spring Pkg. of 10 $12.00
528-0008-01-MP Exit Indicator Spring (for 2 or 3 point locks) Pkg. of 10 $12.00
626-0455-MP Exit Indicator Pin (for 2 or 3 point locks) Pkg. of 10 $68.00
726-0157-MP Return Spring Bushing Pkg. of 10 $28.00
8S262C10R06N-MP #10-32 × 3/8 Flat Head Screw Pkg.of 10 $4.00
9S222-06R05N-603-MP #6-32 × 5/16 Pan Head Screw Pkg.of 10 $4.00
10 22-0656 Stop Plate Each $4.00
11 28-0019-MP Handle Return Spring Pkg. of 10 $30.00
NS 80-0180-455 Stick on Template Each $10.00
NS 80-0180-460 Installation Instructions Each Email only
NS = Not shown
64 TRIM

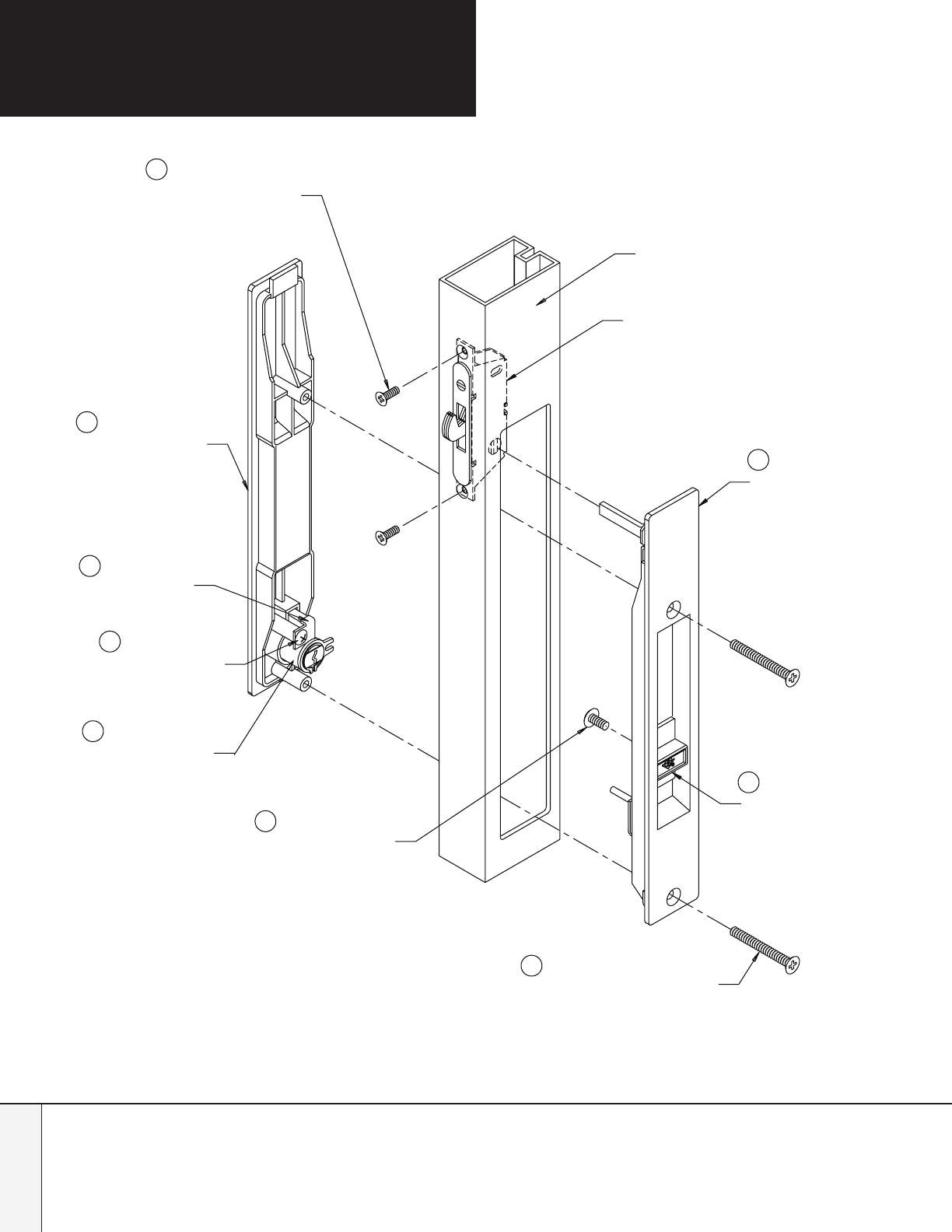

4590
DEADLATCH PADDLE
#8-32 X 1/2
TRUSS HEAD SCREW
P/N S236-08R08-603-MP
SHAFT
"PUSH" INDICATOR
P/N 20-0399-02
"PULL" INDICATOR
P/N 20-0399-01
RETURN SPRING KIT
P/N 91-0060
BINDER POST
P/N 26-0188-09-MP
3/8-24 SET SCREW
P/N 26-0398N
DRIVER SCREW
P/N 26-0383N-MP
SPRING CLIP
P/N 28-0070-MP
1/4-28 LOCKNUT
P/N 29-0546-MP
9
64
7
3
2
1
5
P/N 26-0055
8
H
S
U
P
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
4590
DEADLATCH PADDLE
4590 Deadlatch Paddle
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
126-0188-09-MP Binder Post Pkg. of 10 $15.00
2S236-08R08-603-MP #8-32 × 1/2 Truss Head Screw with Lockwasher Pkg. of 10 $4.00
320-0399-01 "PULL" Indicator Each $4.00
20-0399-02 "PUSH" Indicator Each $4.00
428-0070-MP Spring Clip Pkg. of 10 $4.00
591-0060 Return Spring Kit (includes all four springs) Each $6.00
626-0383-MP Driver Screw Pkg. of 10 $60.00
726-0398N 3/8-24 Set Screw Each $4.00
826-0055 Shaft Each $4.00
9NJ-14-28-MP 1/4-28 Locknut Pkg. of 10 $4.00
NS 80-0180-200 Instruction Sheet, 4590 Each Email only
NS 80-0180-201 Instruction Sheet, 4590M Each Email only
NS 80-0180-202 Instruction Sheet, 4590MA Each Email only
NS = Not shown
66
4591
DEADLATCH PADDLE
TRIM
PADDLE ASSY
P/N 41-0119-XXX
LABEL
20-0099
#10-24 x 1 PAN HEAD SCREW
* P/N S277-10R16-603-MP
2 REQ'D
SPRING CLIP
* P/N 28-0070-MP
2 REQ'D
RETURN SPRING KIT
* P/N 91-0060
3/8-24 SET SCREW
P/N 26-0398N
SHAFT
P/N 26-0055
MONITORING KIT
91-0914
5/16-24 JAM NUT
P/N NJ-516-24
2 REQ'D
BINDER POST
*P/N 26-0488-MP
2 REQ'D
* INCLUDING IN ESCUTCHEON ASSY
P/N 41-0120-XX STANDARD
41-0121-XX MA
41-0122-XX M
SET SCREW
* 31-0079-MP
DRIVE SHAFT
* P/N 26-0366-XX
BUSHING
* P/N 27-0065
DRIVE PLATE
* P/N 22-0402-STANDARD
31-0020-02 M & MA
1
2
5
6
4
7
8
9
10
11
12
15
14
16
17
DRIVER SCREW
*P/N 26-0383-MP
13
3
DOGGING KEY
P/N 29-0481
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
4591
DEADLATCH PADDLE
4591 Deadlatch Paddle
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
126-0488-MP Binder Post Pkg. of 10 $24.00
2
41-0120-XX* Escutcheon Ass'y (Standard - Complete) Each $100.00
41-0121-XX* Escutcheon Ass'y (MA - Complete) Each $185.00
41-0122-XX* Escutcheon Ass'y (M - Complete) Each $160.00
329-0481-MP Dogging Key Pkg. of 10 $26.00
431-0079-MP Set Screw / Dogging Screw Pkg. of 10 $23.00
527-0065 Bushing Each $4.00
626-0366-01 Drive Shaft (1-3/4" Doors) Each $10.00
26-0366-XX Drive Shaft (Doors Over 1-3/4"), specify door thickness Each $20.00
722-0402 Drive Plate Each $12.00
31-0020-02 Drive Plate for M or MA Options (with Roll Pin) Each $18.00
8S277-10R16-603-MP #10-24 × 1 Truss Head Screw with Lockwasher Pkg. of 10 $5.00
920-0099 “PUSH & PULL” Indicator Label Each $4.00
10 41-0119-XXX Paddle Ass'y, select 313, 335, or 628 finish Each $50.00
11 28-0070-MP Spring Clip Pkg. of 10 $4.00
12 91-0060 Return Spring Kit (includes all four springs) Each $6.00
13 26-0383-MP Driver Screw Pkg. of 10 $60.00
14 26-0398N 3/8-24 Set Screw Each $4.00
15 26-0055 Shaft Each $4.00
16 91-0914 Monitoring Kit Each LIST
17 NJ-516-24 5/16-24 Jam Nut Pkg. of 10 $4.00
NS
80-0180-4591 Instruction Sheet, 4591 Each Email only
80-0180-4591M Instruction Sheet, 4591M Each Email only
80-0180-4591MA Instruction Sheet, 4591MA Each Email only
LIST = Refer to current pricelist
NS = Not shown
*Specify "PUSH" to left, "PUSH" to right, "PULL" to left, "PULL" to right and door thickness
68

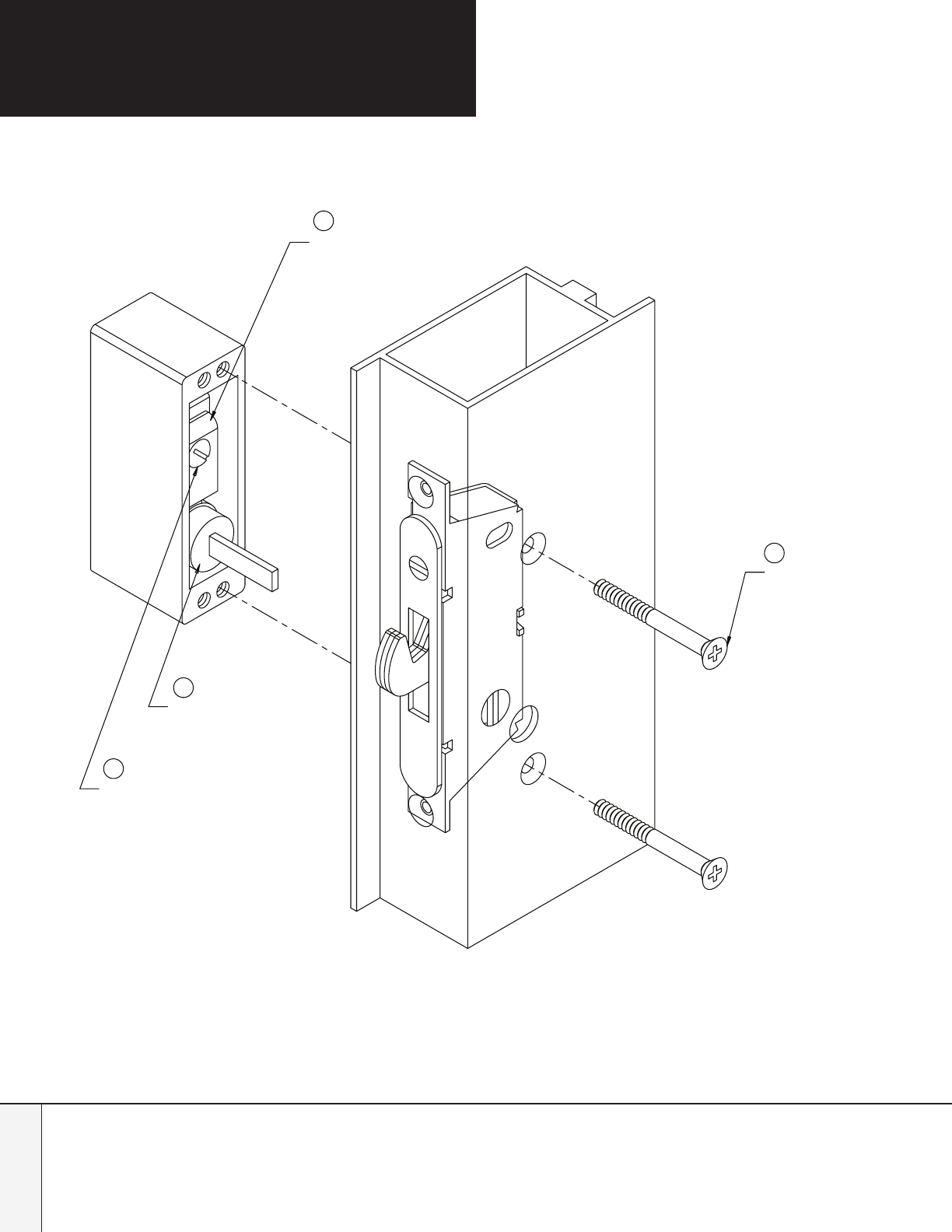

4024/4025/4026
CYLINDER PULLS
CYLINDERS
#10-32 x 1 3/4
FLAT HEAD SCREW
P/N S262-10R28-603-MP
2 REQ'D
RETAINER CLIP
P/N 22-0062
INSERT CYLINDER
P/N 29-0400-00
-01
#10-32 X 1/2 ROUND HEAD SCREW
P/N S263-10R08-603-MP
4
3
2
1
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com
4024/4025/4026
CYLINDER PULLS
4024/4025/4026 Cylinder Pulls
ITEM PART NUMBER DESCRIPTION UNITS PKGD 2015 PRICE
122-0062 Retainer Clip Each $4.00
2S263-10R08-603-MP #10-32 × 1/2 Round Head Screw Pkg. of 10 $4.00
329-0400-00-01 Insert Cylinder Each $25.00
4S262-10R28-603-MP #10-32 × 1-3/4 Flat Head Screw (4025/4026) Sat. Alum. Pkg. of 10 $5.00
S235-06R06-603-MP #6-32 × 3/8 Flat Head Undercut Screw (4024) Pkg. of 10 $4.00
NS 26-0252-50 Mounting Screws - 4025 Cyl. × Cyl. (2-req'd.) Each $5.00
NS = Not shown
70 GENERAL INFO
Adams Rite
LIMITED WARRANTY
Products sold under the Adams Rite brand in the United States
of America are warranted free from defects in workmanship and
materials under normal use and service.
This warranty does not cover defects or damage arising from
improper installation, lack of or improper maintenance, improper
storage, shipping and handling, corrosion, erosion, ordinary wear
and tear, misuse, abuse, accident, unauthorized service, or use with
unauthorized non-Adams Rite products or parts.
This warranty is void if any modification is made to the product,
regardless of whether the modification causes or contributes to the
alleged defect. All modifications are made at the risk of the party
making the modification.
Should any defect of manufacture (in material or workmanship) occur
in its products, Adams Rite, upon prompt notification and proof to
its satisfaction that the product was defective in manufacture for the
use intended by Adams Rite, will at its option, exchange the product,
repair the product, or refund the price charged by Adams Rite, FOB
factory within the stated time frame listed below.
• All mechanical products for five (5) years from date of manufacture
• Ultraline 7400 Electric Strikes for five (5) years from date of
manufacture
• All electrical products for three (3) years from date of manufacture,
with the exception of the exit devices with the SE option
• Exit devices with the SE option for one (1) year from date
of manufacture. Adams Rite recommends that for optimal
performance all exit devices with the SE option are installed and
powered using PS-SE power supplies. Installing SE exit devices
with PS-SE power supplies extends the warranty to five (5) years
from date of manufacture.
General RMA Procedure
Product repair or replacement, or associated charges, will not be
accepted under this warranty unless prior authorization from Adams
Rite has been given. Upon receipt of products returned for repair or
replacement, Adams Rite will determine whether products qualify for
repair or replacement under this warranty. Adams Rite has no liability
to pay any costs of repair performed by anyone other than qualified
personnel authorized by Adams Rite prior to the work being done.
Written notice of a product or component part believed to be defective
as covered by this warranty should be sent to Adams Rite, 10027 S.
51st Street, Suite 102, Phoenix, Arizona 85044 or CustomerCare@
AssaAbloyEMS.com and should include your name and address, an
identification of the product or component part and a brief description
of the defect. Notice of a product or component part believed to be
defective as covered by this warranty may also be accepted over the
telephone by Adams Rite, 800.872.3267.
Upon receipt of such notice, if the customer has an account with
Adams Rite or a valid credit card, an advance replacement product
may be ordered whereby Adams Rite will ship a replacement product
to the customer free of charge. If Adams Rite does not receive the
original defective product from the customer within 60 days, Adams
Rite will charge the customer’s account or credit card for the price of
the advanced replacement product plus freight costs. Upon inspection
of the returned product by Adams Rite, a decision will be made whether
or not to charge the customer for the advanced replacement Adams
Rite product. This decision will be made solely by Adams Rite in
accordance with the provisions of these Terms. Obsolete products will
not be accepted for return. Return Material Authorizations (RMAs) will be
closed if the goods are not received within 60 days of issuance.
If Adams Rite receives original defective product from the customer
within 60 days of RMA issuance, and if the customer is requesting credit
for the defective material, the customer must reference the valid Adams
Rite Purchase Order number upon which the product was originally
ordered. If the original Purchase Order number is not available, at
Adams Rite’s option a credit may be issued at the customer’s current
cost. This decision will be made solely by Adams Rite in accordance
with the provisions of these Terms.
Transportation charges and insurance on all returned materials must
be prepaid by the purchaser when merchandise is ordered in error. On
goods returned for customer convenience, when the purchaser returns
materials in compliance with these Terms which are accepted by Adams
Rite, the purchaser may be issued a credit for 65% of the purchase
price, with 35% charged by Adams Rite for handling and reprocessing.
All refunds will be in the form of a credit.
Cancellation
As an industry leader, Adams Rite is committed to maintaining
the highest standard of quality and ensuring strict compliance to
industry codes. Adams Rite’s proud history of customer service and
manufacturing agility allow quick response times to customer’s changing
needs, which may include special orders or product modifications.
Please be advised that all product modifications require special
authorization to ensure the order fully meets customer’s expectations.
Customers are asked to allow for an extended lead time on all special
orders. Please note that at Adams Rite’s option, product modifications
and other special orders cannot be changed, cancelled, or returned
once a ship date has been provided on an order acknowledgement by
Adams Rite.
Adams Rite prides itself on introducing new, industry-relevant, feature-
rich products. Since new solutions will surpass the capabilities of older
product lines, historical products may be subsequently discontinued.
Every effort will be made to announce new product introductions as
well as product discontinuations in a manner that allows customers
advanced notice of these events. Once a product line is discontinued
orders will be fulfilled in order of receipt, although Adams Rite cannot
guarantee all orders can be filled. Repair services and spare parts for
discontinued product lines will be available for some reasonable time
period. Adams Rite reserves the right to replace discontinued product
with an equivalent product as deemed by Adams Rite.
THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS
WARRANTIES. TO THE EXTENT PERMITTED BY LAW, ALL
IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THIS
WARRANTY. ADAMS RITE IS A DIVISION OF HANCHETT ENTRY
SYSTEMS, INC. HANCHETT ENTRY SYSTEMS, INC. SHALL NOT BE
LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATION OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY
ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
800.872.3267 • Fax 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
www.adamsrite.com

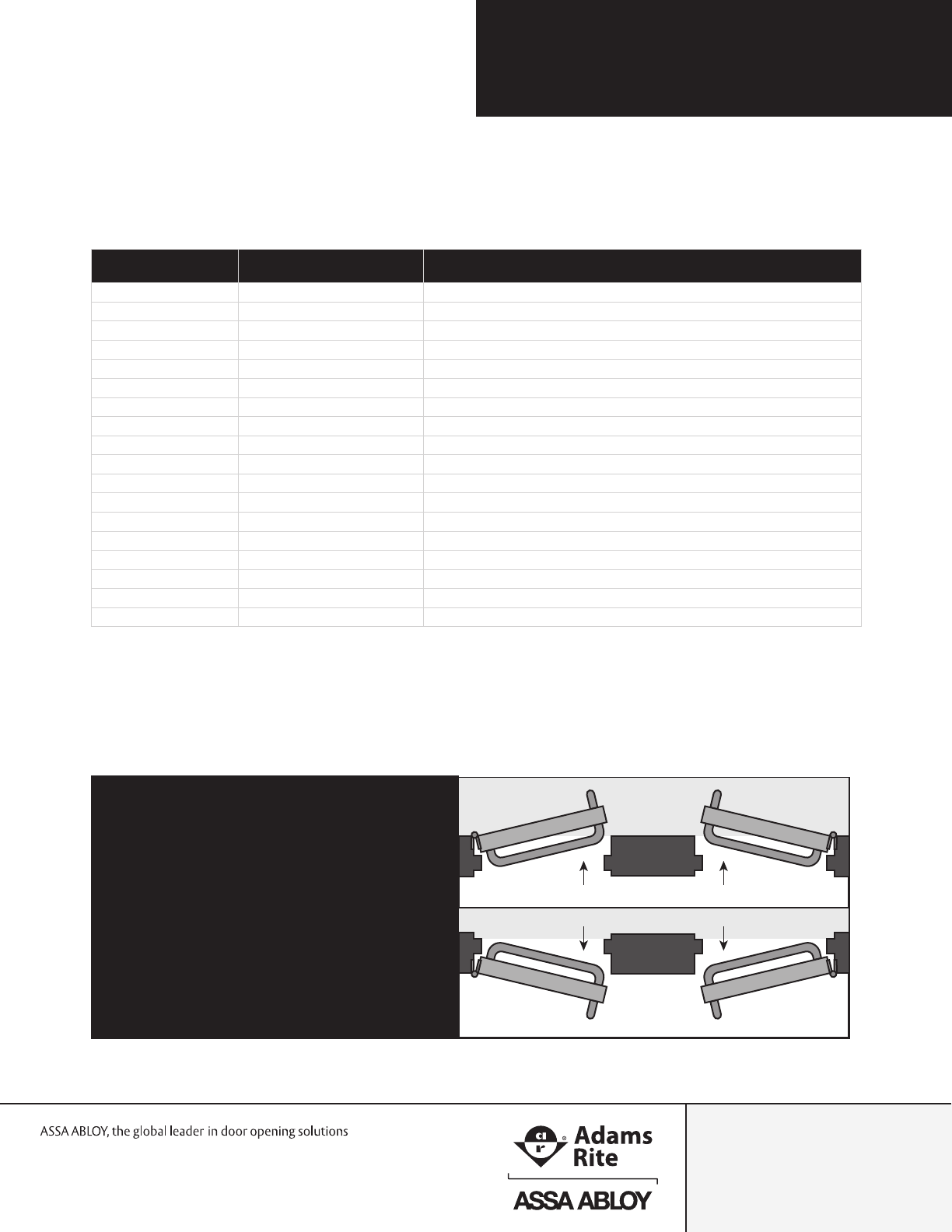

Architectural
FINISHES
Not all finishes available on all products. For more detailed information on applicable finishes,
please refer to the How to Order for each product.
Finish Chart
BHMA FINISH CODE ADAMS RITE FINISH CODE MATERIAL
603 603 Steel, Zinc Plated
605 US3 Bright Brass, Clear Coated
606 US4 Satin Brass, Clear Coated
626 626 Brass or Bronze, Satin Chromium Plated
628 628 Anodized Satin Aluminum
629 US32 Bright Stainless Steel
630 US32D Satin Stainless Steel
652 652 Steel, Satin Chromium Plated
682 682 Zinc, Satin Chromium Plated
689 130 Any Material, Aluminum Painted
690 121 Any Material, Dark Bronze Painted
693 119 Any Material, Black Painted
313 Anodized Dark Bronze Aluminum
335 Anodized Black Aluminum
CHP Anodized Light Bronze Aluminum
10B Any Material, Dark Bronze Powder Coated
672 US26 Bright Chromium Plated Aluminum
702 US26D Satin Chromium Aluminum
Handing of Doors
The handing of a door is determined from
the outside of the opening.
STANDING OUTSIDE THE DOOR:
• If the hinges are on the left, it is a left hand door.
• If the hinges are on the right, it is a right hand door.
• If the door opens away from you, it is a regular bevel door.
• If the door opens toward you, it is a reverse bevel door.
INSIDE
LEFT HAND RIGHT HAND
LEFT HAND
REVERSE BEVEL
RIGHT HAND
REVERSE BEVEL
OUTSIDE
INSIDE
OUTSIDE
adamsrite.com
P 800.872.3267 • F 800.232.7329
10027 S. 51st Street, Ste 102
Phoenix, Arizona 85044
© 2015 Hanchett Entry Systems, Inc., an ASSA ABLOY Group company
ARM-023-04/15

Navigation menu
