Architectural Hardware

2020-21 Product Catalog

Adams Rite 2020-21 Product Catalog

Architectural Hardware

2020-21 Product Catalog

adamsrite.com

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Updated: December 21, 2020

TABLE OF

CONTENTS

DEADLOCKS

RITE Touch® 1050 Digital Glass Door Lock _______________ 4

G100 Digital Glass Door Lock with Aperio Hub ___________ 6

1830 Series Swing Bolt Bottom Rail Deadlock _____________8

MS1837 Series MS® Two-Point Deadlock _______________ 10

MS1847 Series MS® Deadlock/Deadlatch ________________12

MS1850S, MS1850S-X5X Series MS® Deadlocks _________ 14

MS1850SN, MS1850SN-45X Series MS® Deadlocks _______ 18

MS1861 Series MS® Bottom Rail Deadbolt ______________ 22

1875 Two-Point Deadlock ____________________________ 24

MS+1890 Series MS® Deadlock/Deadlatch _____________ 26

MS1950, MS1950-X5X Series MS® Deadlocks ___________ 28

Dual Force® 2190, 2290 Series Interconnected

Deadbolt/Deadlatch __________________________________ 32

2331 Heavy Duty Deadbolt ___________________________ 38

4070 Series Short Throw Deadbolt (Projection Style)_____ 40

5017 Deadlock/Deadlatch ____________________________ 42

5500 Deadlock _____________________________________ 44

Options & Accessories _______________________________ 46

4189, 4190 Flush Locksets (Including Deadlock)

_____________________________ moved to Flushlock section

4430, 4431 Flush Locksets (Including Deadlock)

_____________________________ moved to Flushlock section

DEADLATCHES

Steel Hawk® 4300 Electriﬁed Deadlatch _______________ 50

4510 Standard Duty Deadlatch ________________________ 52

4530 Standard Duty Deadlatch _______________________ 54

4781 Two-Point Deadlatch with Paddle _________________ 56

4900 Heavy Duty Deadlatch __________________________ 58

4920AN Heavy Duty Deadlatch (ANSI Size) _____________ 60

Options & Accessories _______________________________ 62

FLUSHLOCKS

1870 Series Cylinder-Operated Flushbolt _______________ 66

1870HM Cylinder-Operated Flushbolt __________________ 68

1877 Cylinder-Operated Flushbolt _____________________ 70

MS1880 Two-Point Flushbolt _________________________ 72

MS2180 Auto-Release Two-Point Flushbolt ______________74

4189, 4190 Flush Locksets (Including Deadlock) _________ 76

4430, 4431 Flush Locksets (Including Deadlock) _________ 78

Options & Accessories _______________________________ 80

B1921 | B1923 Reinforcing Pivots _________________________

moved to Cylinders & Accessories section

EXIT DEVICES

3100 Series Fire-Rated, 8100 Series Life-Safety

Surface Vertical Rod Exit Device ______________________ 84

8200 Series Narrow Stile Surface Vertical Rod Exit Device _ 86

3300 Series Fire-Rated, 8300 Series Life-Safety

Mortise Exit Device _____________________________________ 88

8400 Series Life-Safety Narrow Stile Mortise Exit Device __ 90

3600 Series Fire-Rated, 8500 Series Life-Safety

Concealed Vertical Rod Exit Device_____________________ 92

8600 Series Narrow Stile Concealed

Vertical Rod Exit Device______________________________ 94

3700 Series Fire-Rated, 8700 Series Life-Safety

Rim Exit Device _____________________________________ 96

8800 Series Narrow Stile Rim Exit Device ______________ 98

P8800 Series Narrow Stile Pullman Exit Device ________ 100

3900 Series Fire-Rated, 8900 Series Life-Safety

Surface Concealed Vertical Rod Exit Device ___________ 102

8099 Dummy Push Bar _____________________________ 104

Options for 3000/8000 Series Exit Devices ___________ 105

ELECTRIC STRIKES

7100 Series Electric Strikes ___________________________108

7160, 7170 Electric Strikes _____________________________ 114

7200 Series Electric Strike ____________________________ 118

Ultraline® 7400 Series Electric Strikes _________________122

Ultraline® 74R1, 74R2 Electric Strikes __________________128

7800 Electric Strike _________________________________ 132

Options & Accessories _______________________________ 134

TRIM

1000 Series Turns ___________________________________138

3080 Series Entry Trim ______________________________140

eForce® 3090-150 Keyless Entry _____________________144

A100-3090H Keyless Entry Control & Aperio® Hub ______146

4550 MS® Deadlock Lever ___________________________148

4560 Series Deadlatch Handles_______________________150

4570 ICU Latch Operator _____________________________ 154

4576 ICU Flushbolt with ICU Lever _____________________156

4590 Deadlatch Paddle ______________________________158

4591 Deadlatch Paddle ______________________________160

4600 Heavy Duty Designer Deadlatch Handles _________162

NOTE: Adams Rite eForce 3090P & 3090C have been

discontinued as of November 16, 2018. Customers can continue

to order eForce 3090-150 and the A100-3090H (Aperio).

CYLINDERS & ACCESSORIES

4000 Series MS® Deadlock Strikes ___________________165

4015 Threshold Bolt ________________________________168

4016 Header Bolt ___________________________________170

4085 Header Bolt __________________________________172

4089 Exit Indicator _________________________________ 174

4800 Series Strikes _________________________________176

4901, 4902 Deadlatch Strikes ________________________178

4024, 4025, 4026 Cylinder Pulls ______________________180

4036 Mortise Cylinder, 4066 Thumbturn _______________182

MS4043 Cylinder Guard _____________________________184

B1921 | B1923 Reinforcing Pivots ______________________186

POWER

PS-1 Power Supply _________________________________ 190

PS-EXIT Power Supply _______________________________192

4612 Power Transfer Device __________________________194

Accessories for Power Supplies _______________________196

NOTE: Adams Rite PS-SE and PS-LR have been discontinued as of

November 1, 2020. The PS-EXIT is designed to replace the PS-SE and PS-LR.

GENERAL INFORMATION

Icons Gallary ________________________________________ 199

Comprehensive Training Opportunities _________________ 199

Limited Warranty, General RMA Procedure, Cancellation __ 200

Adams Rite Product Catalog 2021

Table of Contents

Deadlocks

DEADLOCKS

Updated: December 21, 2020

RT1050L

RT1050D

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Features

Strike

Surface-mounted strike for ﬁxed leaf

of double glass doors included.

Door Thickness

7/16" to 1/2" [11.1 mm to 12.7 mm]

thick glass doors.

Lock Body

Satin Chrome ﬁnish

Front Body

9/16" x 2-7/8" x 7-5/16"

[14.3 mm x 73.0 mm x 185.7 mm]

Back Body

1-15/16" x 3-1/16" x 7-1/2"

[49.2 mm x 77.8 mm x 190.5 mm]

Bolt

Twin bolts measuring 13/32" [10.3 mm]

diameter with 1-1/8" [28.6 mm]

throw. Bolt Extensions included

separately in standard package

for larger door gap, including twin

bolts with 2-1/8" [54.0 mm] throw.

Operating Temperatures

5° to 130°F [-15° to 55°C]

Standard Package

Individually boxed with mounting

plate, AA batteries (x4), credential

cards (x4), single door magnet,

bolt extensions, thin door plate,

and mounting screws.

Shipping weight

6 lbs [2.72 kg]

Electrical

• Powered by (4) x AA Alkaline

batteries; 40,000 cycle battery life

• Programming via touch-screen

• Unit may be programmed for one

Master code and one user code

• Supports up to 40 credential cards.

Options

• RT1050D with thumbturn;

RT1050L with ADA compliant

accessibility lever

• Additional credential cards

available separately,

RT-5C-1050 pack of ﬁve (5) cards

Product Notes

• Indoor applications only

• For use with single doors or

double doors with ﬁxed leaf

Digital Glass Door Lock

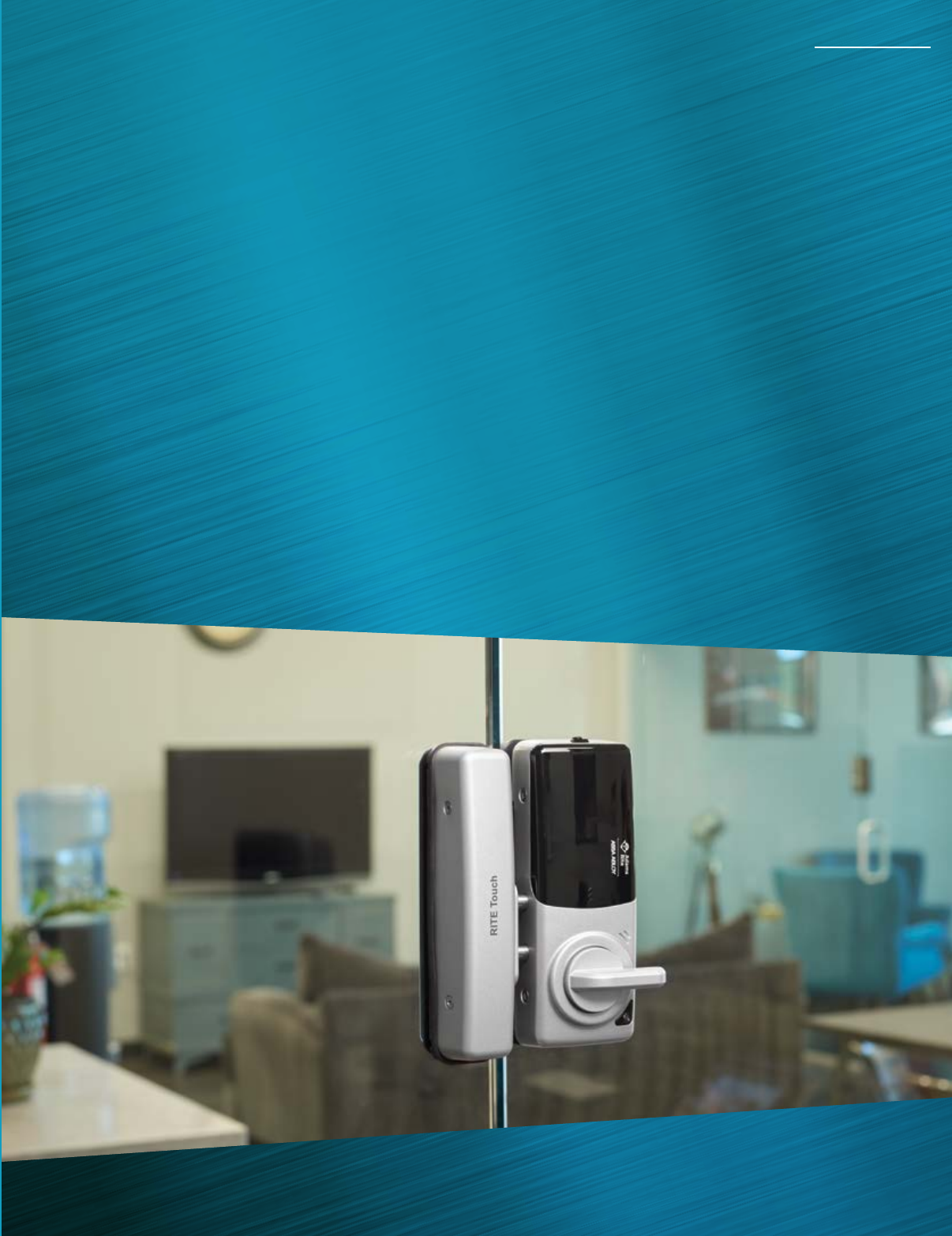

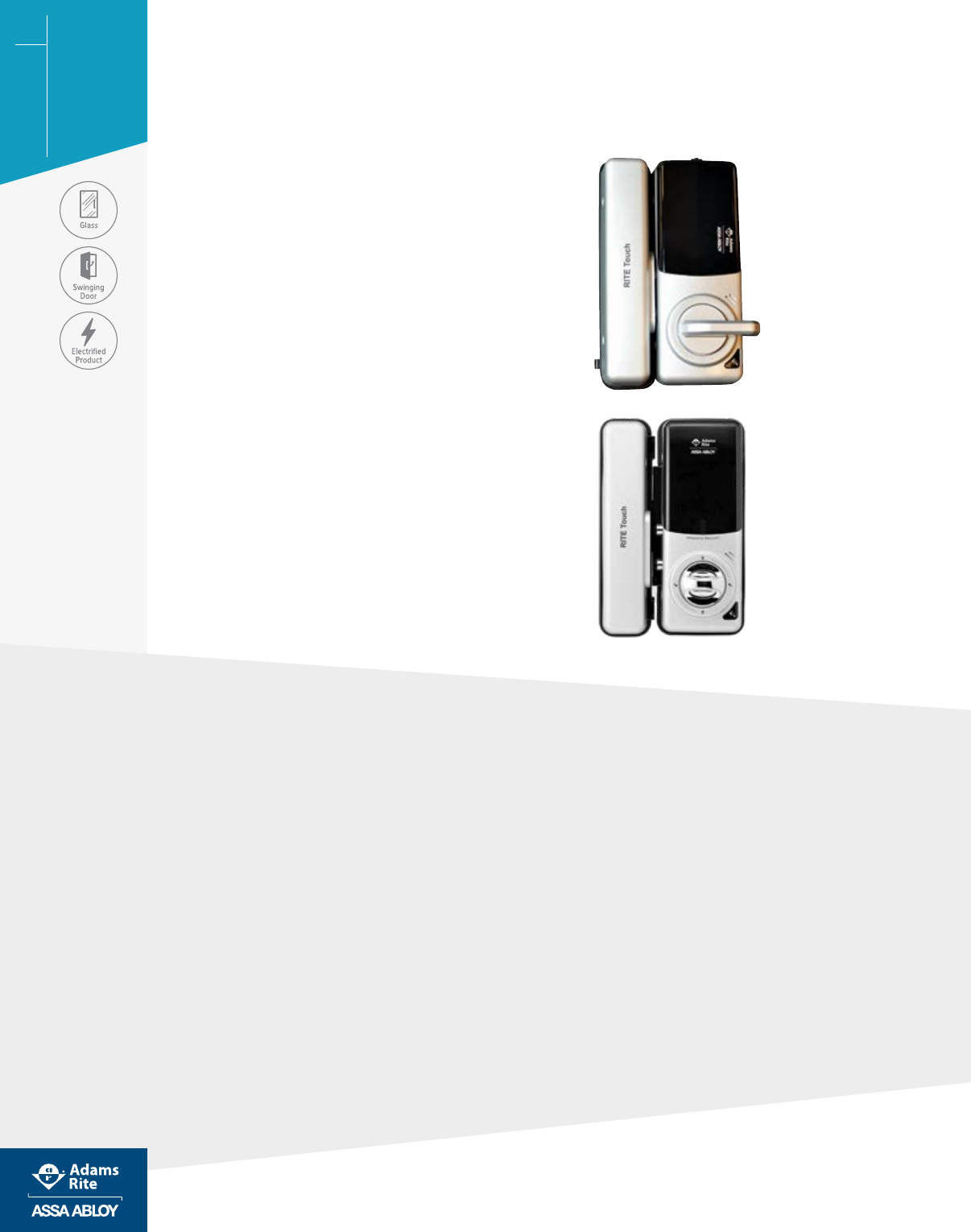

The surface-mounted RITE Touch RT1050

digital glass door lock provides ﬂexible,

keyless access control for all glass doors.

Function

The RITE Touch RT1050 is a digital door lock that provides

keyless access control for all-glass openings. The RITE Touch

makes extending access control to all-glass single doors

or double doors with ﬁxed leaf convenient and aordable

while maintaining aesthetics. This surface mounted solution

requires no modiﬁcation to the glass and provides greater

ﬂexibility and access control for interior applications.

Operation

The surface-mounted lock features two options for credential

actuation on the secure side of the door: either by entering a user

code using the touch-screen or by using provided MIFARE® credential

cards. The lock features two modes of unlock from the inside of

the door: either with the thumbturn or accessibility lever of the

RT1050D or RT1050L respectively, or by using the override button.

RITE Touch® 1050

RITE Touch®

1050 Digital

Glass Door

Lock

DEADLOCKS

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

RITE Touch®

1050 Digital

Glass Door

Lock

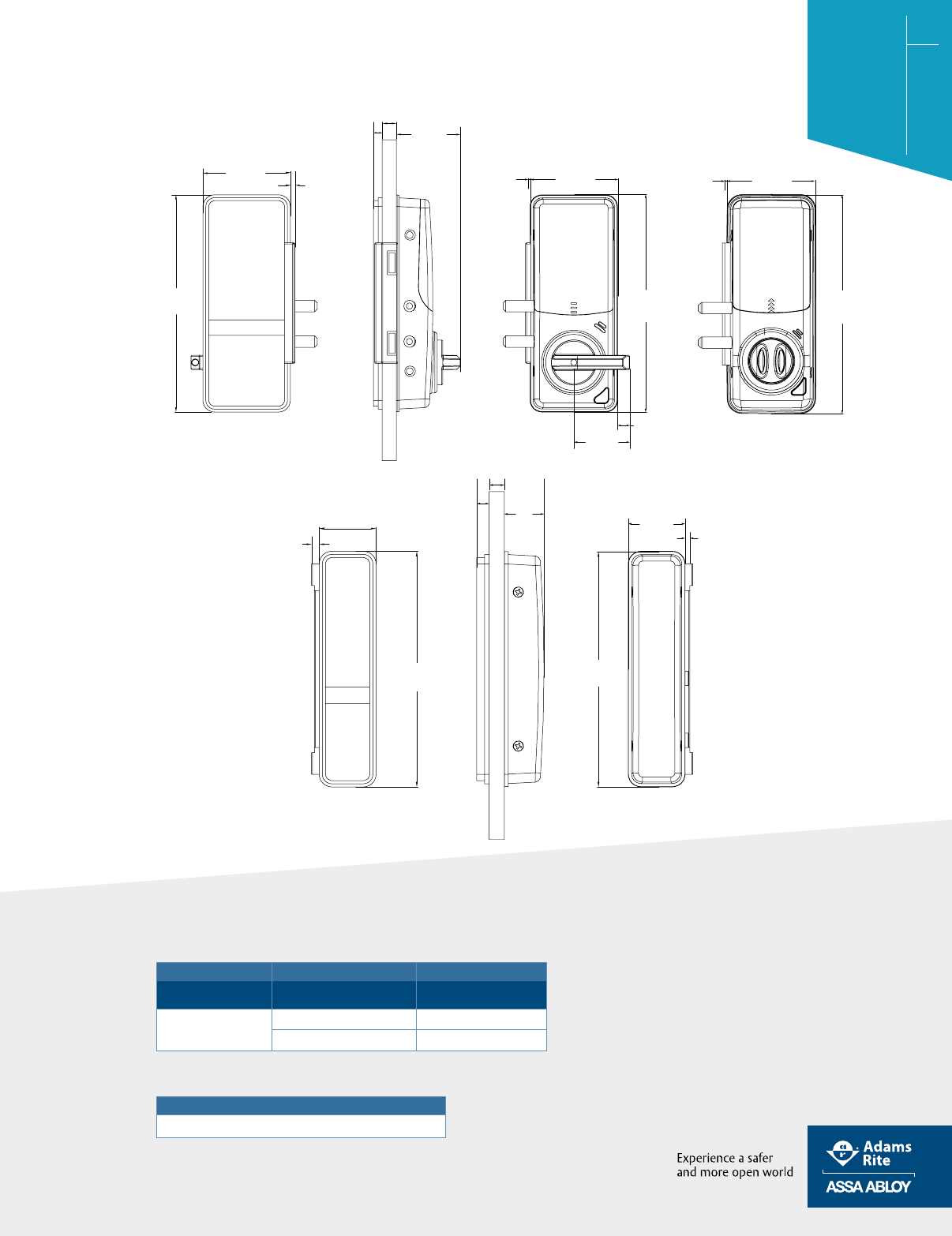

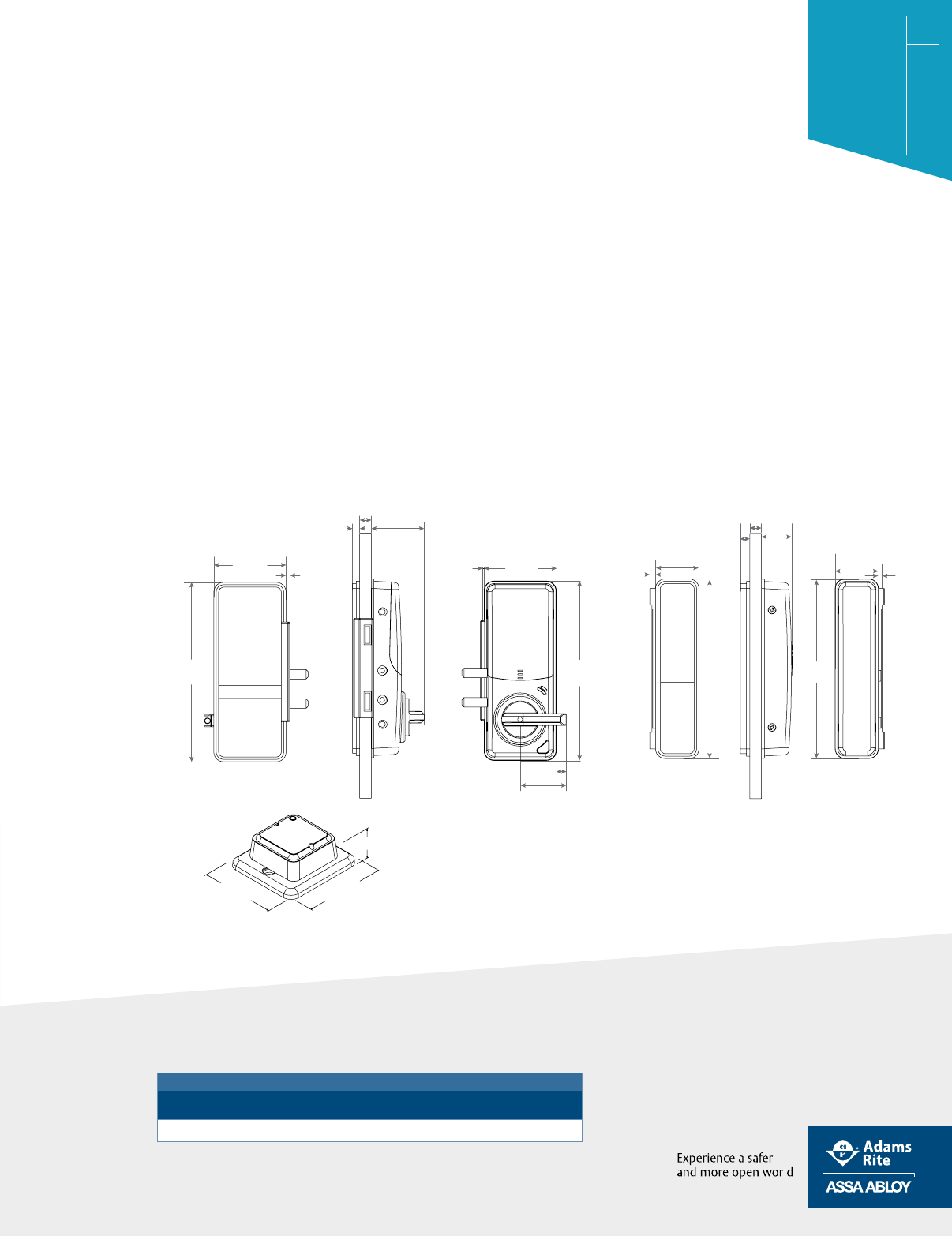

Dimensions

How to Order & Related Products

RITE Touch RT1050 Digital Glass Door Lock: Specify quantity and the following information. Order related products separately.

PRODUCT NO. MODEL TRIM

RT 1050 D

1050 For glass doors D Thumbturn

L Accessibility Lever

When purchasing this product, please consider the following related products, available separately:

ACCESSORIES

Extra credential card 5 pack (RT-5C-1050)

7-1/2"

190.5mm

1-15/16"

23.8mm

7/16"

11mm

3-1/16"

77.8mm

1/16"

1.6mm

7-1/2"

190.5m

3-1/16"

77.8mm

1/16"

1.6mm

1-59/64"

48.8mm

31/64"

12.3mm

9/16"

14.3mm

2-55/64"

72.6mm 5/32"

4mm

21/64"

186.

1mm

3/16"

4.8mm

1-39/64"

40.9mm 1-51/64"

45.6mm

1-1/2"

38.1mm

31/64"

12.3mm

9/16"

14.3mm

3/32"

2.4mm

7-21/64"

186.1mm

7-1/2"

190.5mm

DEADLOCKS

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

G100HL

Features

Strike

Surface-mounted strike for ﬁxed leaf

of double glass doors included

Backset

2-3/8" [60 mm]

Door Thickness

3/8" to 1/2" [9 mm to 12.7

mm] thick glass doors.

Lock Body

Satin chrome ﬁnish

Front Body

9/16" x 2-7/8" x 7-5/16"

[14.3 mm x 73.0 mm x 185.7 mm]

Back Body

1-15/16" x 3-1/16" x 7-1/2"

[49.2 mm x 77.8 mm x 190.5 mm]

Bolt

Twin bolts measuring 13/32" [10.3 mm]

diameter with 1-1/8" [28.6 mm] throw.

Lever

Lever option sold standard to

meet accessibility requirements

Product Notes

• Indoor applications only

• For single doors or double

doors with ﬁxed leaf

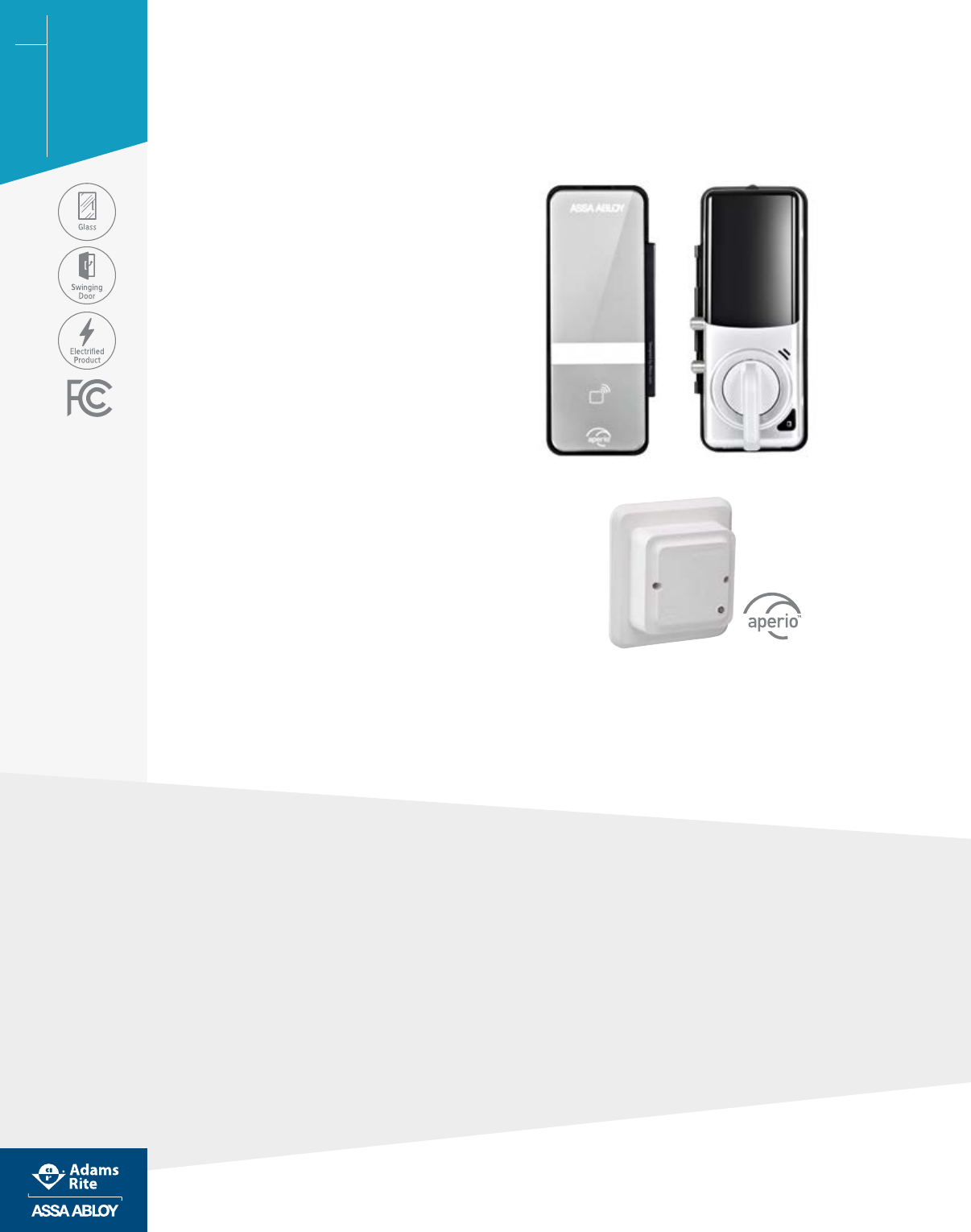

Digital Glass Door Lock

with Aperio® Hub

Seamless integration for extending

access control to all-glass openings.

Function

The Adams Rite G100HL wireless digital lock, with pre-paired

1-to-1 AH20 Aperio Hub, makes extending access control

to all-glass doors easy and aordable while maintaining

aesthetics. This surface-mounted digital glass door locking

solution provides greater ﬂexibility and control for interior oce

space areas without the need to make costly modiﬁcations.

Operation

The surface-mounted glass door lock works with compatible high

frequency credential which provides fully encrypted wireless

communication to the host access control system. The lock

features two modes of unlock from the inside of the door, either

with the accessibility lever or by using the override button.

NOTE: The G100 Digital Glass Door Lock is available as either a pre-paired

1-to-1 lock and hub kit (no certiﬁcation required) or as a ﬁeld conﬁgurable

component (requires Aperio® Certiﬁed Integrator certiﬁcation).

Certiﬁcations

FCC Compliant

G100HL

Digital Glass

Door Lock

with Aperio

Hub

DEADLOCKS

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

Speciﬁcations

Wireless Access Control

Minimal ﬁeld conﬁguration for quick, easy

wireless deployments that eliminate the

cost and inconvenience of hardwiring the

door. Fully-encrypted AES 128 bit wireless

communication between the G100 lock

and Aperio hub ensures data security.

The Aperio wireless hub connects to an

access control system with typical Wiegand

wiring and additional REX and low battery

signaling. The Aperio hub should be

mounted within 82' of the desired lock

location and through two walls or less.

Operating Temperatures

5° to 130° F [-15° to 55° C]

Designed for indoor applications only.

Standard Package

Boxed with mounting plate, AA batteries (x4),

credential cards, single door magnet, bolt

extensions, thin door plate, mounting screws;

wireless hub and mounting hardware.

Shipping Weight

8 lbs [3.63 kg]

Electrical

• Powered by (4) x AA Alkaline batteries;

40,000 cycle battery life

• Programming via touch screen

• Lockdown capability allows for response

to lock/unlock commands from host

EAC system in less than 10 seconds

• Integrated reader, monitoring and

short range wireless radio

• Real-time door

status monitoring

with REX, DPS,

tamper and low

battery signals

• Patent pending

credential cache ensures access when

the lock is functioning in an oine mode

independent of the software head end

Credential Support

HID iCLASS®, iCLASS SE® (SIO-enabled),

iCLASS® Seos™, SIO® on MIFARE®

Classic, SIO® on MIFARE DESFire® EV1,

MIFARE® Classic, MIFARE DESFire®

EV1, NFC-enabled mobile phones

How to Order

G100HL: Specify quantity and the following information. Order related products separately.

PRODUCT NO.

G100HL

Glass Door Lock with pre-paired 1-to-1 Aperio® Hub (AH20 Wiegand Hub)

G100HL

Digital Glass

Door Lock

with Aperio

Hub

7-1/2"

190.5mm

3-1/16"

77.8mm

1/16"

1.6mm

1-59/64"

48.8mm

31/64"

12.3mm

9/16"

14.3mm

3/16"

4.8mm

1-39/64"

40.9mm 1-51/64"

45.6mm

1-1/2"

38.1mm

31/64"

12.3mm

9/16"

14.3mm

3/32"

2.4m

7-21/64"

186.1mm7-1/2"

190.5mm

7-1/2"

190.5mm

1-15/16"

23.8mm

7/16"

11mm

3-1/16"

77.8mm

1/16"

1.6mm

2-55/64"

72.6mm 5/32"

4mm

7-21/64"

186.1mm

1-23/32"

43.7mm

4-9/16"

115.9mm

4-1/4"

10.8mm

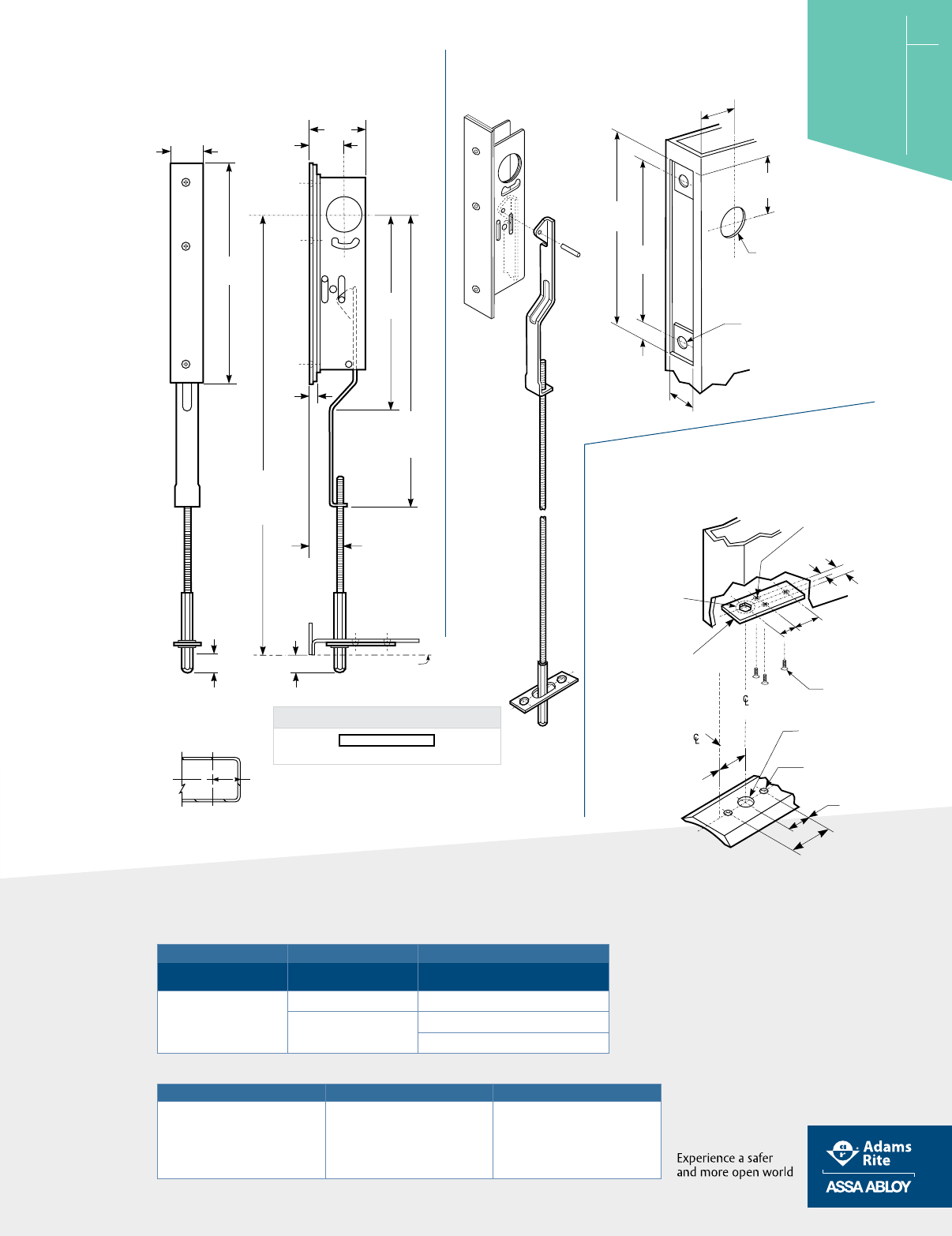

Dimensions

DEADLOCKS

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Features

Cylinder Height

31/32" [24.6 mm] and

1-1/8" [28.6 mm] only.

Case

Measures 1" x 6" x depth [25.4 mm

x 152.4 mm x depth] where depth

varies with cylinder height. Steel

with corrosion-resistant plating.

Bolt

15/32" x 5/8" x 2-1/8" [ 11.9 mm

x 15.9 mm x 54.0 mm] with 5/8"

[15.9 mm] throw. Six-ply laminated

steel with eight plies within case.

Center ply has alumina-ceramic

core to deter hacksaw attack.

Strike

See back page for dimensions of

strike slot which can be cut in metal

thresholds. 4006 Strike, shown,

available separately with stainless

steel trim plate and plastic box.

Standard Package

Individually boxed with mounting

screws. Cylinder and/or thumbturn

available separately.

Shipping weight

1-1/2 lbs [0.68 kg]

Options

• 4006 Strike, cylinder, thumbturn

available separately

• Available in choice of 313

Dark bronze anodized,

628 Clear anodized

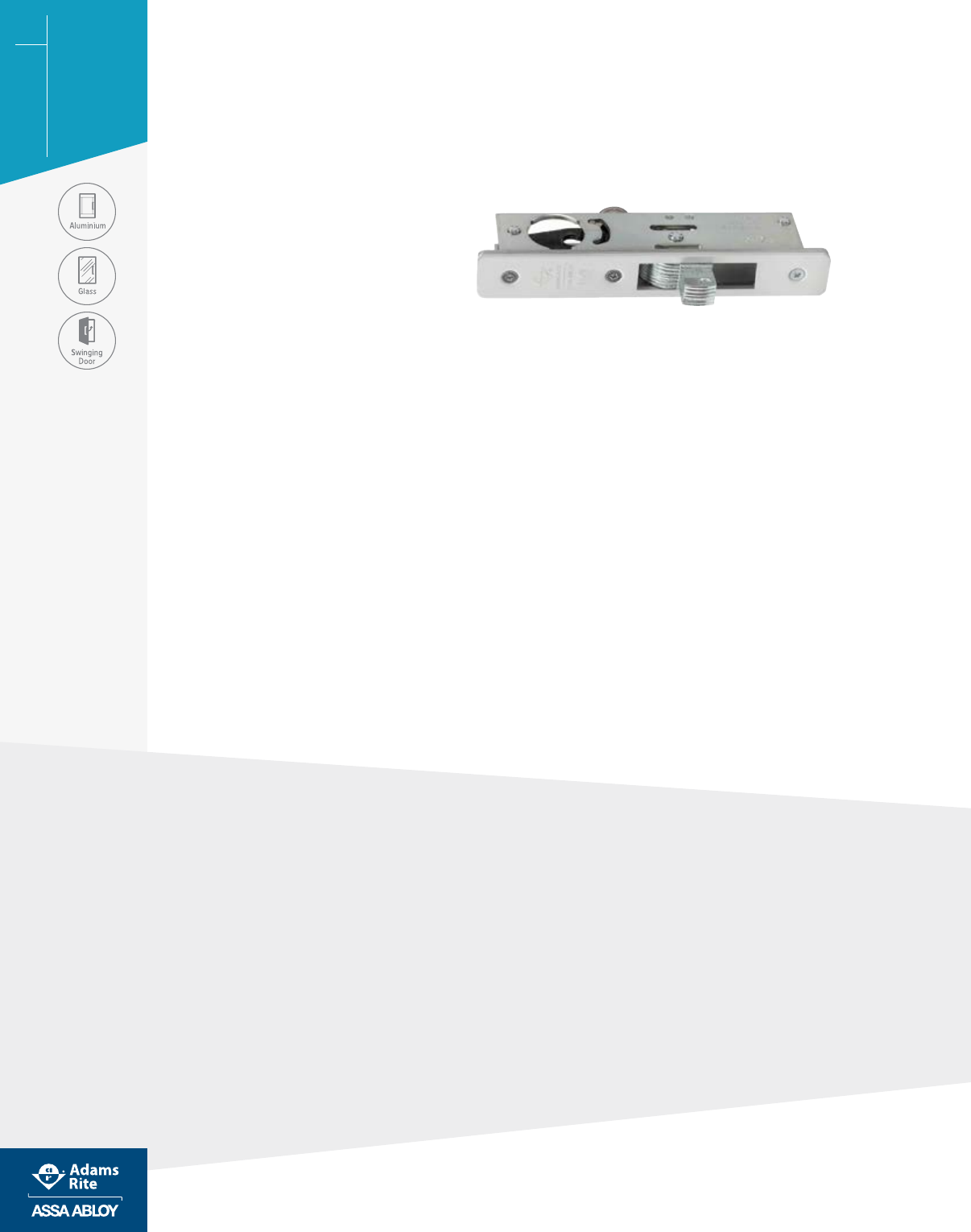

Swing Bolt Bottom Rail Deadlock

1830 Bottom Rail Deadlock provides bottom rail

locking in ultra-narrow stile aluminum or

tempered glass doors. Tamper resistant

with an armored faceplate, it protects with

a minimum threshold strike opening.

Function

For bottom rail locking of ultra-narrow stile or tempered glass

doors whose bottom rail (shoe) is too shallow for the MS1861

Bottom Rail Deadbolt. Mechanism is similar to the MS1850S

Deadlock, but with the bolt size reduced. This keeps the threshold

strike opening to a practical minimum, avoiding collection of

debris or snagging on high-heeled shoes. Armored faceplate

protects cylinder setscrews from tampering and keeps them

from loosening. Not designed for wood door applications.

Operation

360° turn of key or thumbturn projects or retracts the

counterbalanced bolt. Key can be removed only when bolt

is in a positively locked or unlocked position. Lock accepts

any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter

mortise cylinder with MS® cam such as the 4036 Mortise

Cylinder or thumbturn such as the 4066 Thumbturn, available

separately. Lock accepts cylinder from either or both sides.

1830 Series

Swing Bolt

Bottom Rail

Deadlock

DEADLOCKS

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

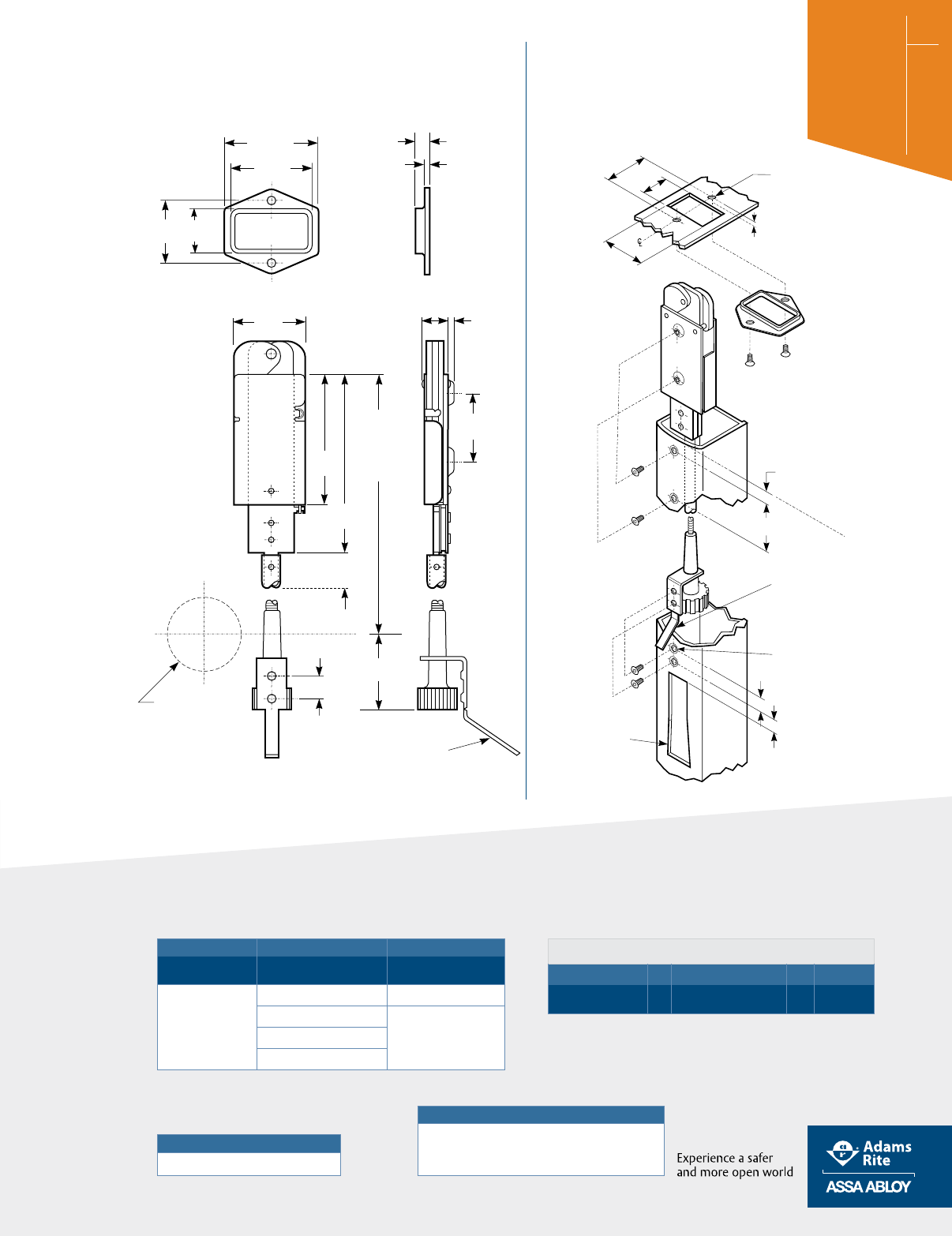

1830 Series

Swing Bolt

Bottom Rail

Deadlock

How to Order & Related Products

1830 Bottom Rail Deadlock (Swingbolt): Specify quantity and the following information. Order related products separately.

PRODUCT NO. DASH NO. SPECIFY FOR CYLINDER

HEIGHT AND LOCK DEPTH FINISH

1830 -02 -628

-02 Cylinder Height 31/32" Dim. "A" 1-5/8" 313 Dark Bronze Anodized

-03 Cylinder Height 1-1/8" Dim. "A" 1-25/32" 628 Clear Anodized

When purchasing this product, please consider the following related products, available separately:

CYLINDERS ACCESSORIES

Standard 1" length, 1-5/32” diameter mortise cylinder with MS® cam such as 4036 Mortise Cylinder, 4066 Thumbturn; MS4043 Cylinder Guard 4006 strike

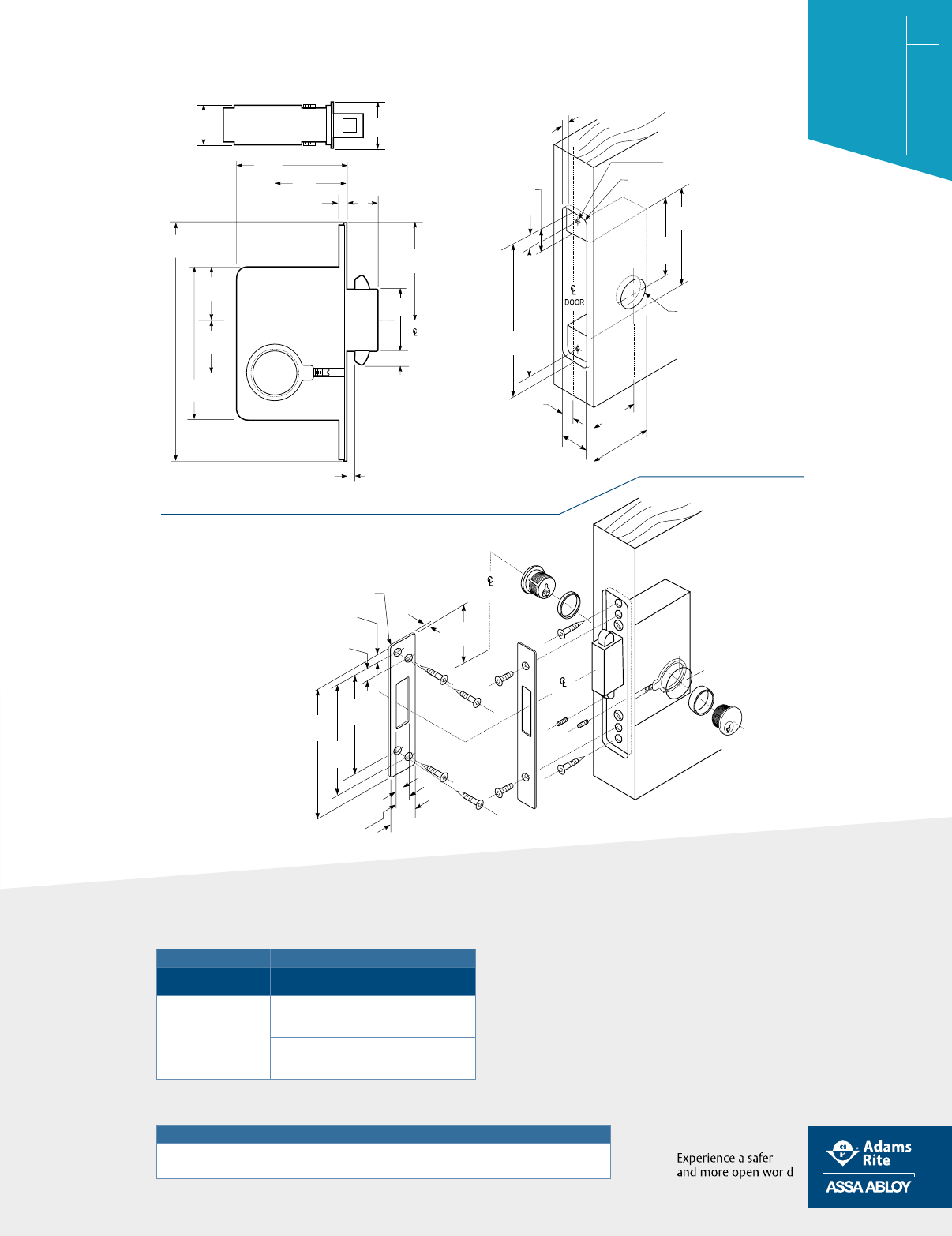

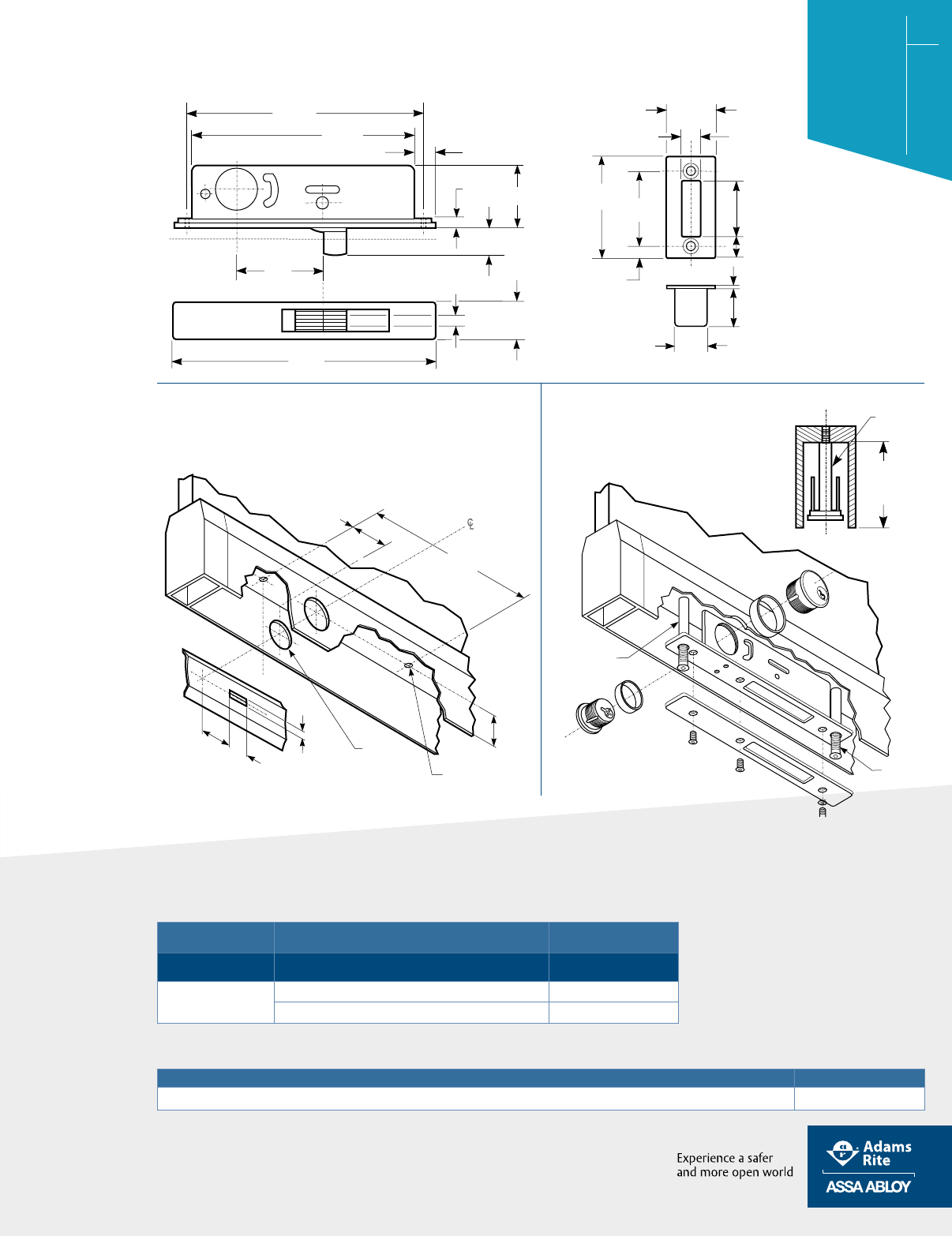

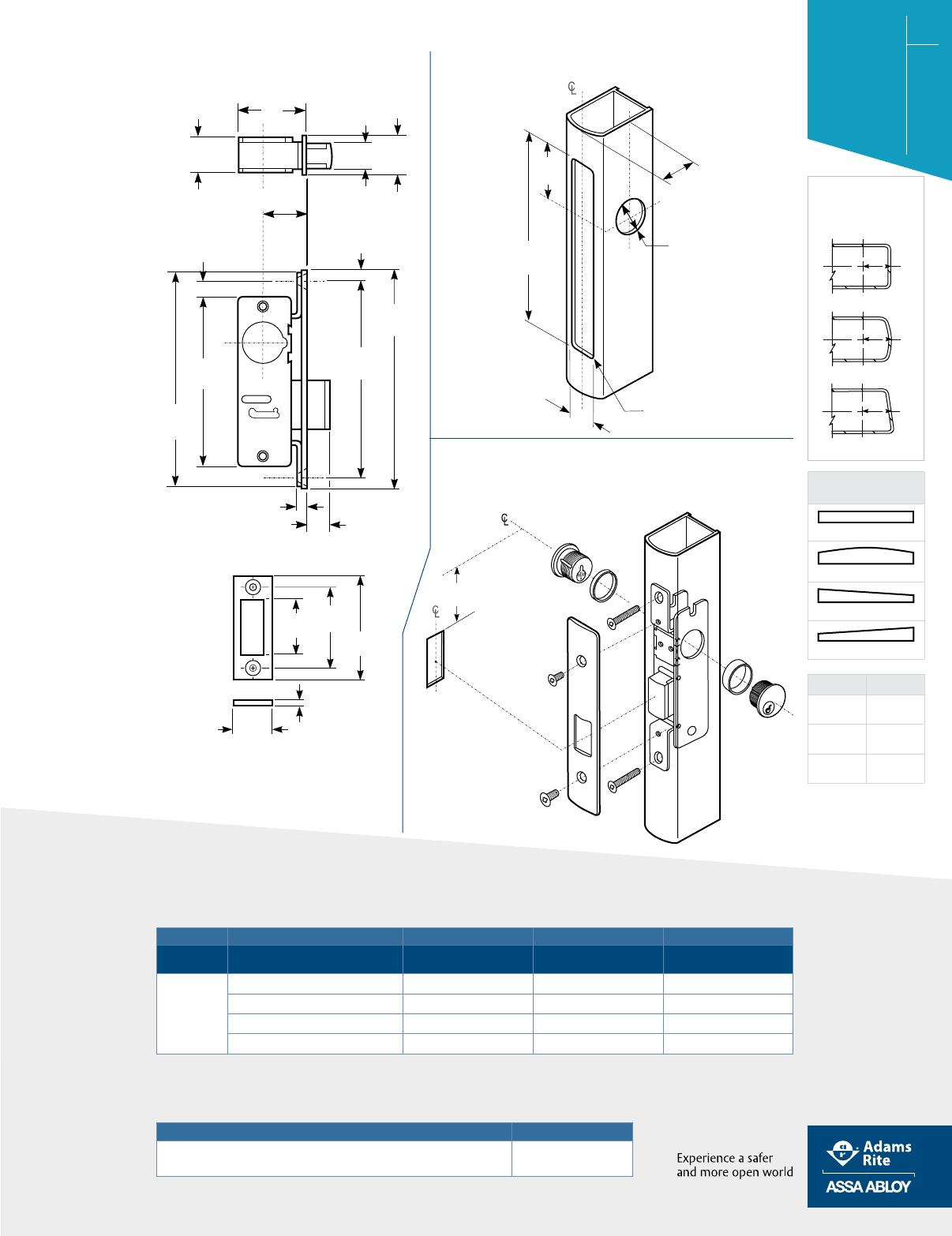

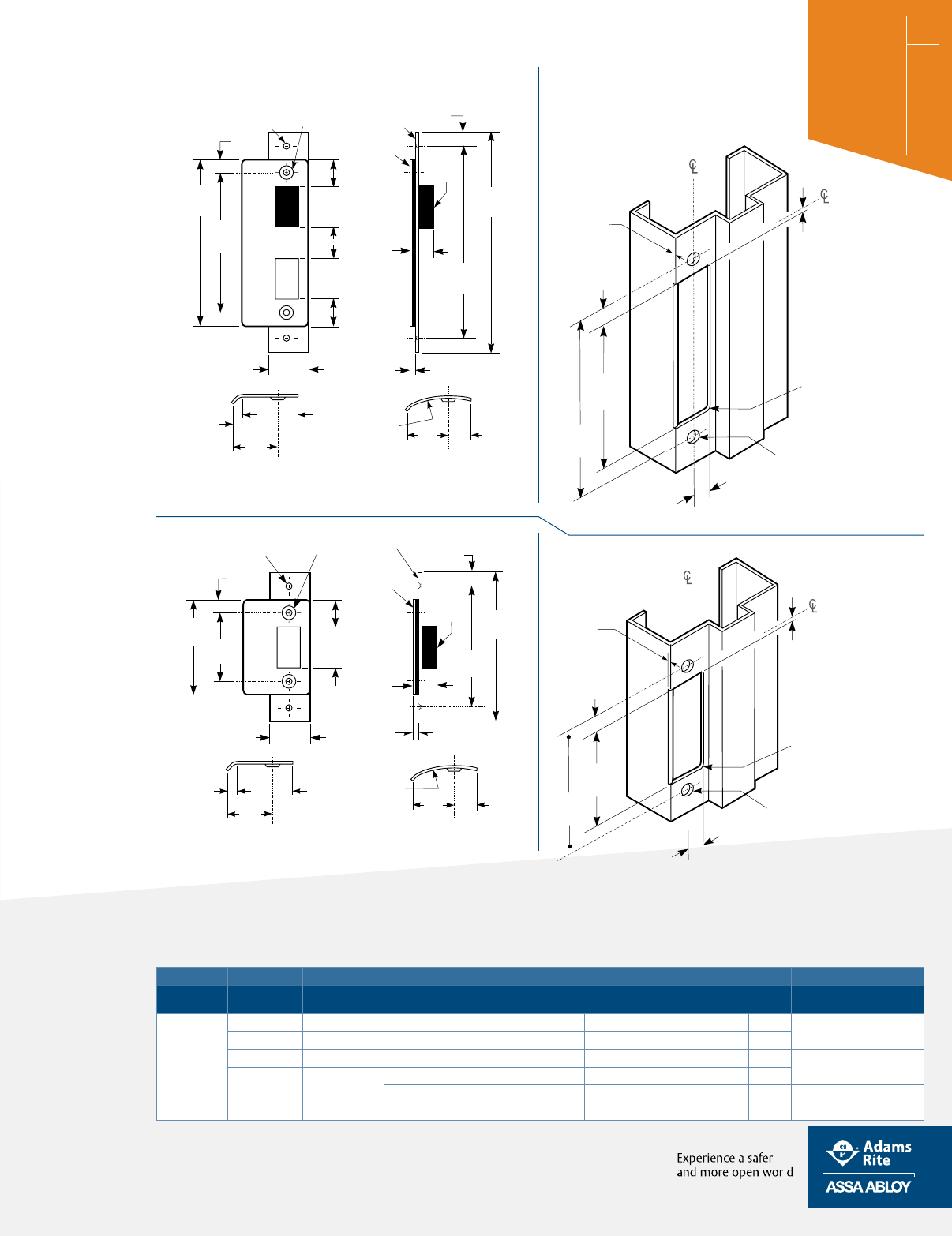

Dimensions 4006 Strike Dimensions

6-3/8"

161.9mm

2-5/16"

58.7mm

3/8"

9.5mm

1/4"

6.4mm

21/32"

16.7mm

25.4mm

1-3/8"

34.9mm

1/2"

12.7mm

1-1/2"

38.1mm

5/8"

15.9mm

5/64"

2mm

9/16"

14.3mm

1/2"

12.7mm

3/8"

9.5mm

50.8mm

2-3/4"

69.9mm

29/64"

11.5mm

2-3/16"

55.6mm 1-3/4"

44.5mm

1/2"

12.7mm

1-11/32"

34.1mm

6-3/8"

161.9mm

1-1/4"

31.8mm

(2 PLCS)

CYLINDER

HEIGHT

TUBE

SPACER

TUBE SPACERS

MAY BE REQ’D

TO POSITION

LOCK

10-32

DRILL & TAP

(2 PLCS)

10-32

MACHINE

SCREWS

DIA.

6-7/8"

174.6mm

5-31/32"

151.6mm

“A”

THRESHOLD

MIN.

CHANNEL

DEPTH:

“A” + 1/32"

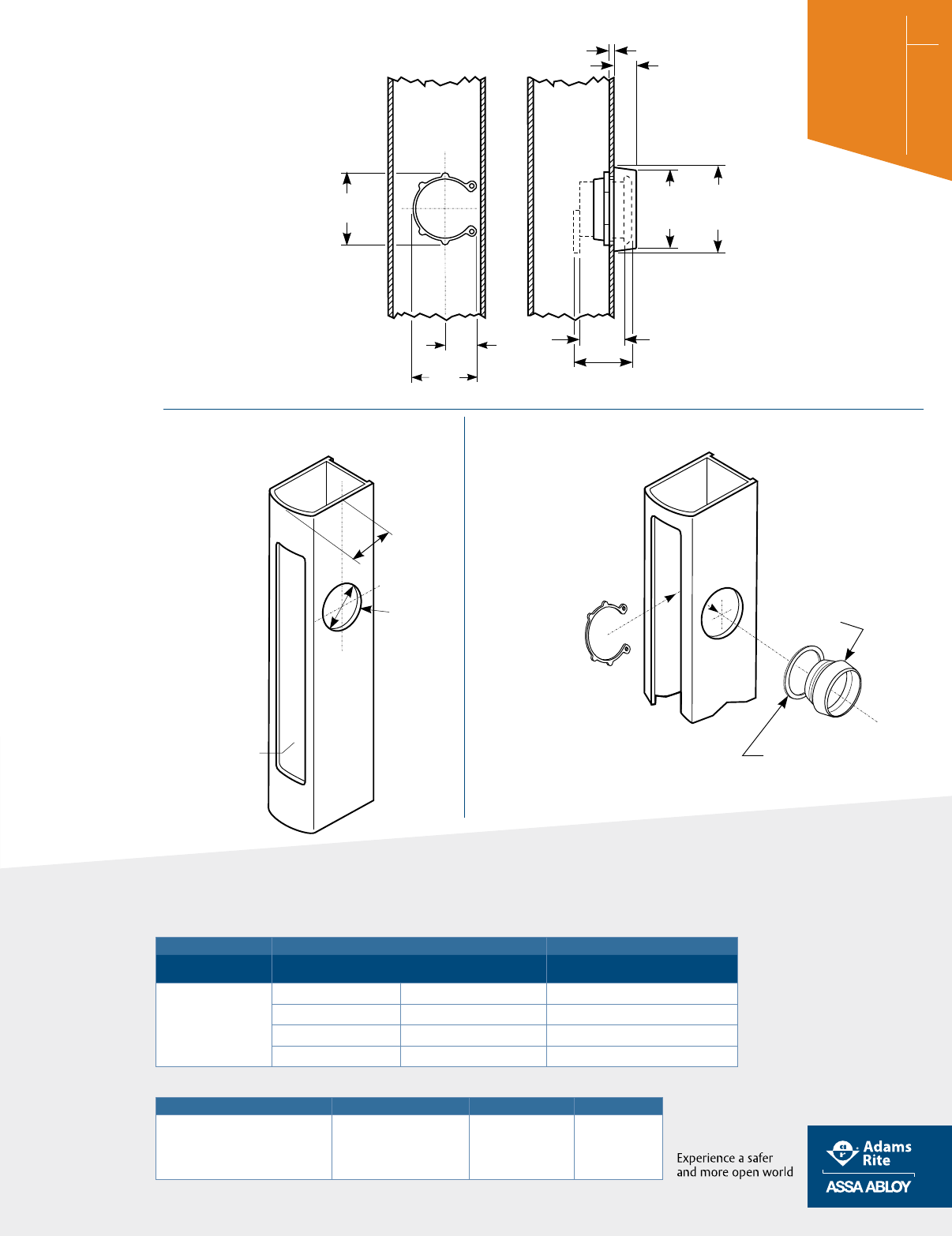

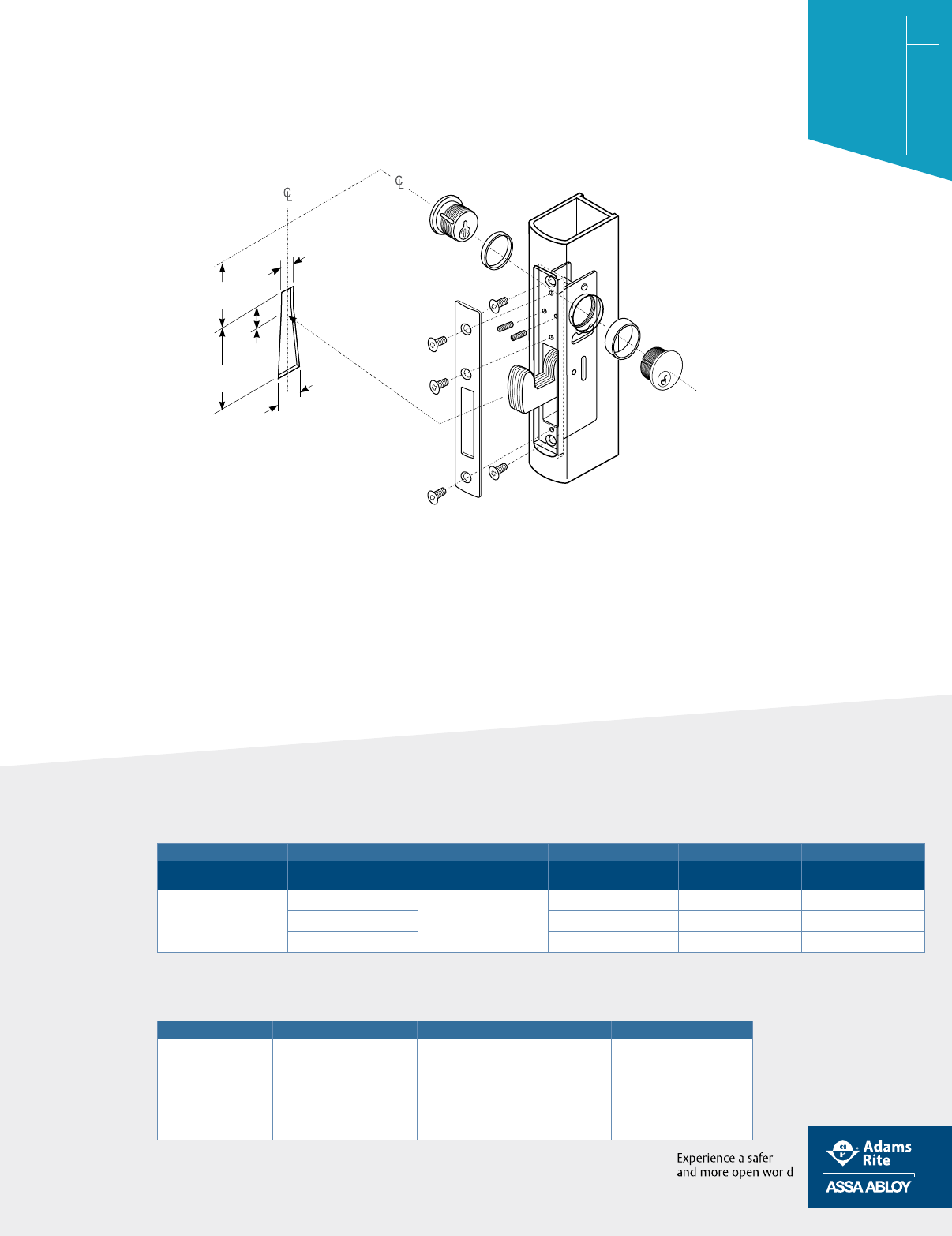

Stile & Threshold

Preparation

Lock & Cylinder

Installation

DEADLOCKS

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Features

Cylinder Backset

1-1/2" [38.1 mm] only.

Cylinder Height

36" [914.4 mm] standard. Other

cylinder heights available on

special order, specify exact

height from bottom of door

to cylinder center. Maximum

cylinder height 65" [1651 mm].

Case

Measures 1" x 6" x 2-3/16"

[25.4 mm x 152.4 mm x 55.6 mm].

Steel with corrosion-resistant plate.

Pivoted Bolt

5/8" x 1-3/4" x 2-7/8" [15.9 mm x 44.5

mm x 73.0 mm] with 1-3/8" [34.9

mm] throw. Eight-ply laminated

steel with alumina-ceramic core

to deter hacksaw attack.

Threshold Bolt

Hexagonal 3/8" [9.5 mm], ﬂat

to ﬂat. Stainless steel.

Armored Faceplate

Flat, two-piece plate extends

to bottom of door.

Strike

For MS bolt, a 4001-011 Strike

Plate with dust box is furnished.

Threshold bolt strike can be 1/2"

[12.7 mm] diameter hole in metal

threshold or, if threshold is wood,

4005 Strike is available separately.

Standard Package

MS lock individually boxed with

mounting screws. Hexbolt and rod

packed separately with face extension

plate, screws, bottom bolt guide,

and attachment pin. Cylinder and/

or thumbturn available separately.

Shipping weight

3 lbs [1.36 kg]

Options

• Available in choice of 313 Dark

bronze anodized, 335 Black

anodized, 628 Clear anodized,

US3 (605) Bright brass,

US26D (626) Satin chrome

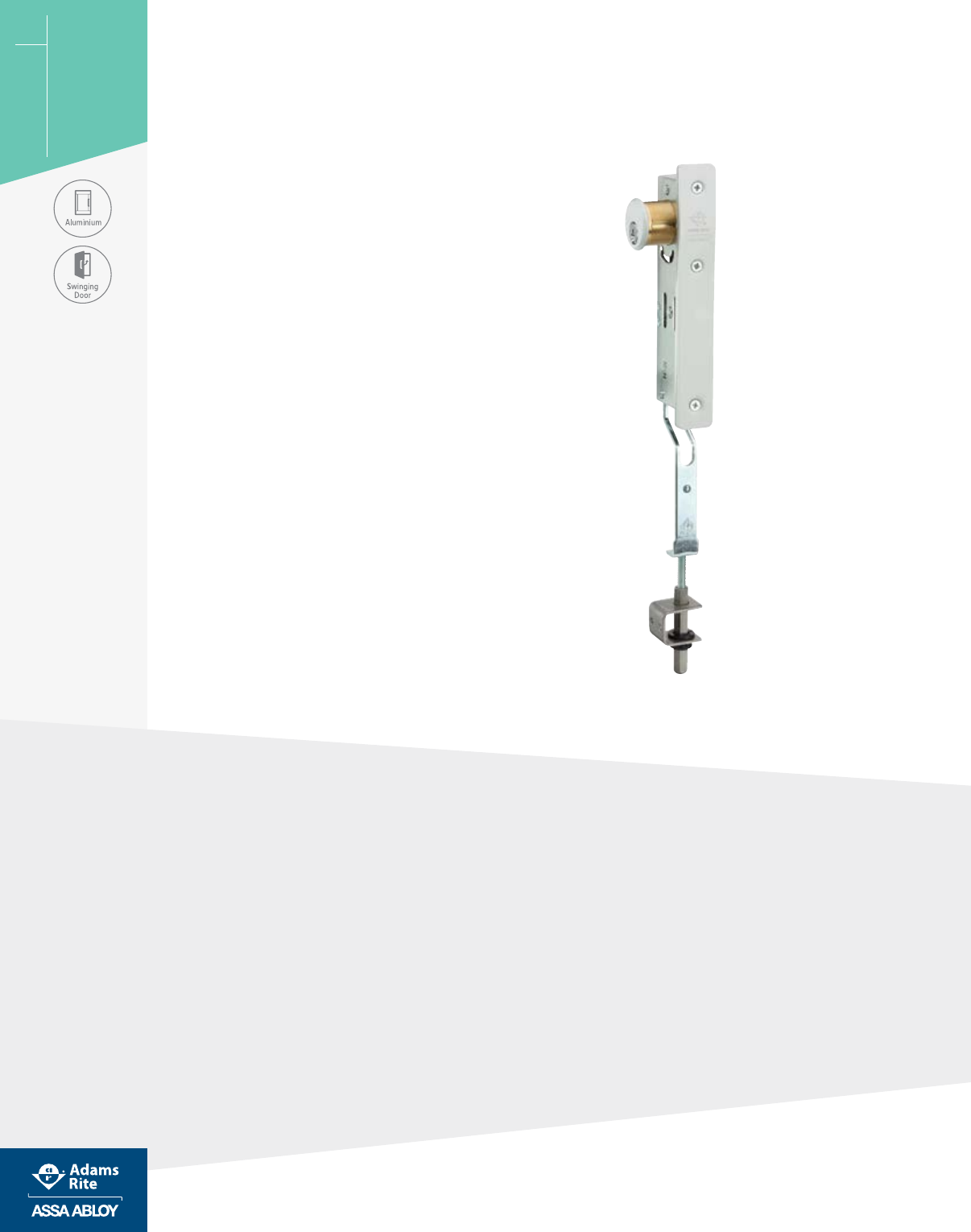

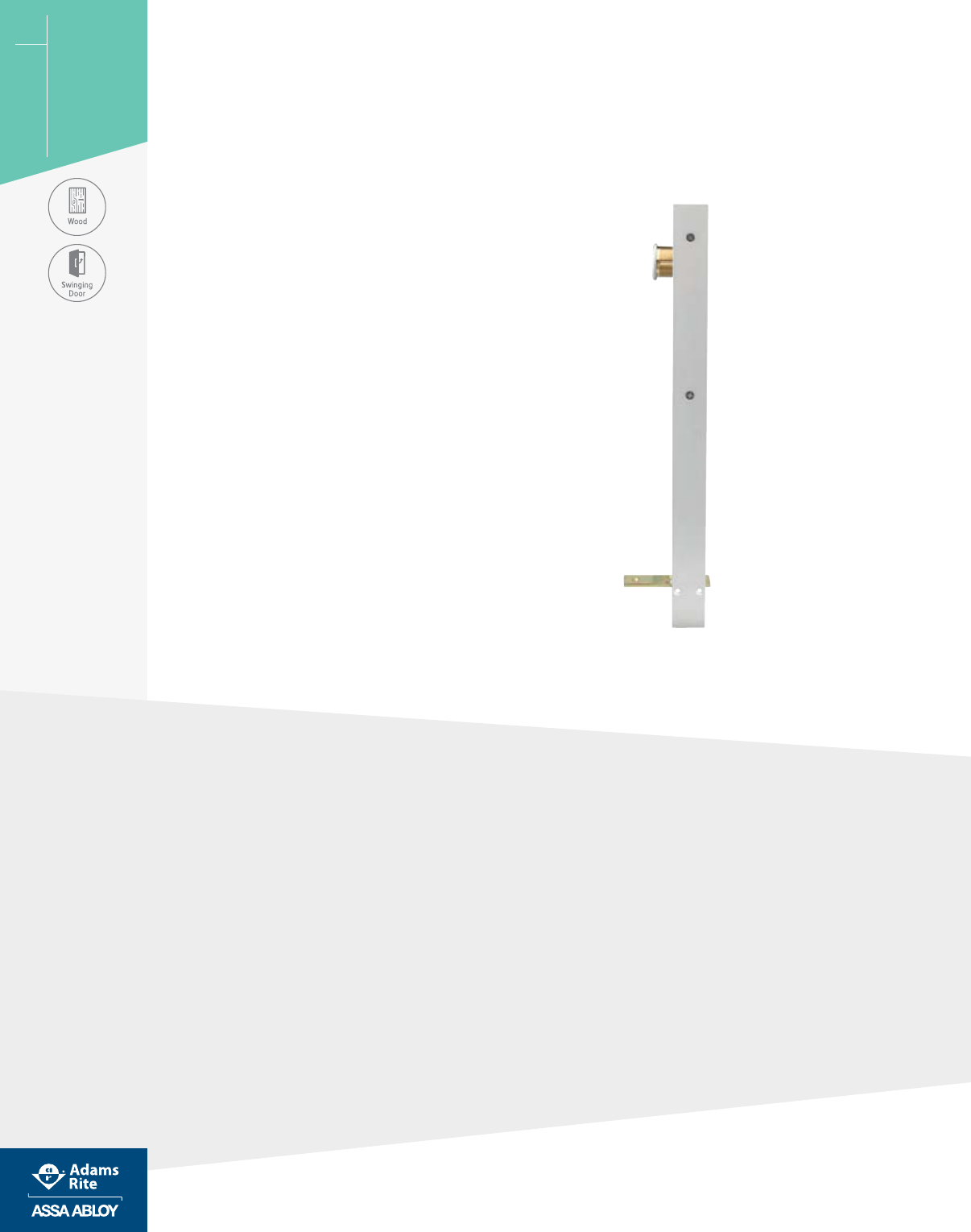

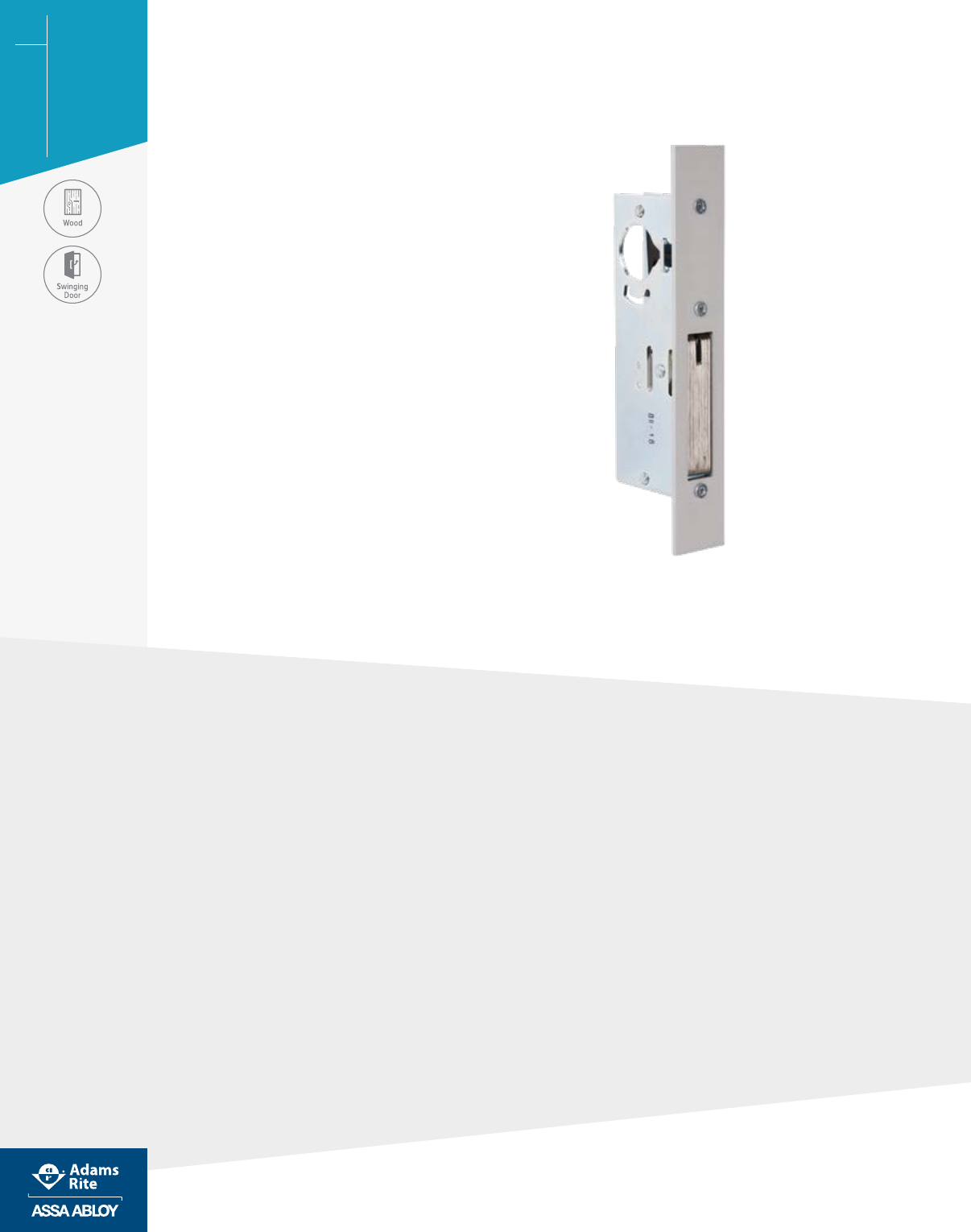

MS® Two-Point Deadlock

Maximum security for wood door pairs is provided

with the MS1837 Two-Point Deadlock. A single turn

drops a bolt into the threshold and pivots the MS bolt.

Function

Maximum security for wood door pairs is provided by the MS1837

deadlock with a single turn of a key. Simultaneously dropping a

stainless steel hexbolt into the threshold and pivoting the massive

MS bolt into the opposite leaf, the MS1837 eliminates inconvenient

and sometimes forgotten ﬂushbolts in the inactive leaf.

Operation

360° turn of key or thumbturn projects counterbalanced bolt into

opposite door and drops bolt into threshold. Key can be removed

only when bolts are in a positively locked or unlocked position.

Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm]

diameter mortise cylinder with MS® cam such as the 4036 Mortise

Cylinder or thumbturn such as the 4066 Thumbturn, available

separately. Lock accepts cylinder from either or both sides.

MS1837 Series

Concealed vertical

rod not shown

MS1837

Series MS®

Two-Point

Deadlock

DEADLOCKS

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

MS1837

Series MS®

Two-Point

Deadlock

How to Order & Related Products

MS1837 Two Point Deadlock Specify quantity and the following information. Order related products separately.

PRODUCT NO. FACEPLATE

MS1837 -313

313 Dark Bronze Anodized

335 Black Anodized

605 Bright Brass

626 Satin Chrome

628 Clear Anodized

If cylinder height other than 36" is required, specify exact height from bottom of door to cylinder center.

When purchasing this product, please consider the following related products, available separately:

CYLINDERS ACCESSORIES

Standard 1" length, 1-5/32” diameter mortise cylinder with

MS® cam such as 4036 Mortise Cylinder, 4066 Thumbturn

MS4043 cylinder guard

4005 Strike for wooden threshold

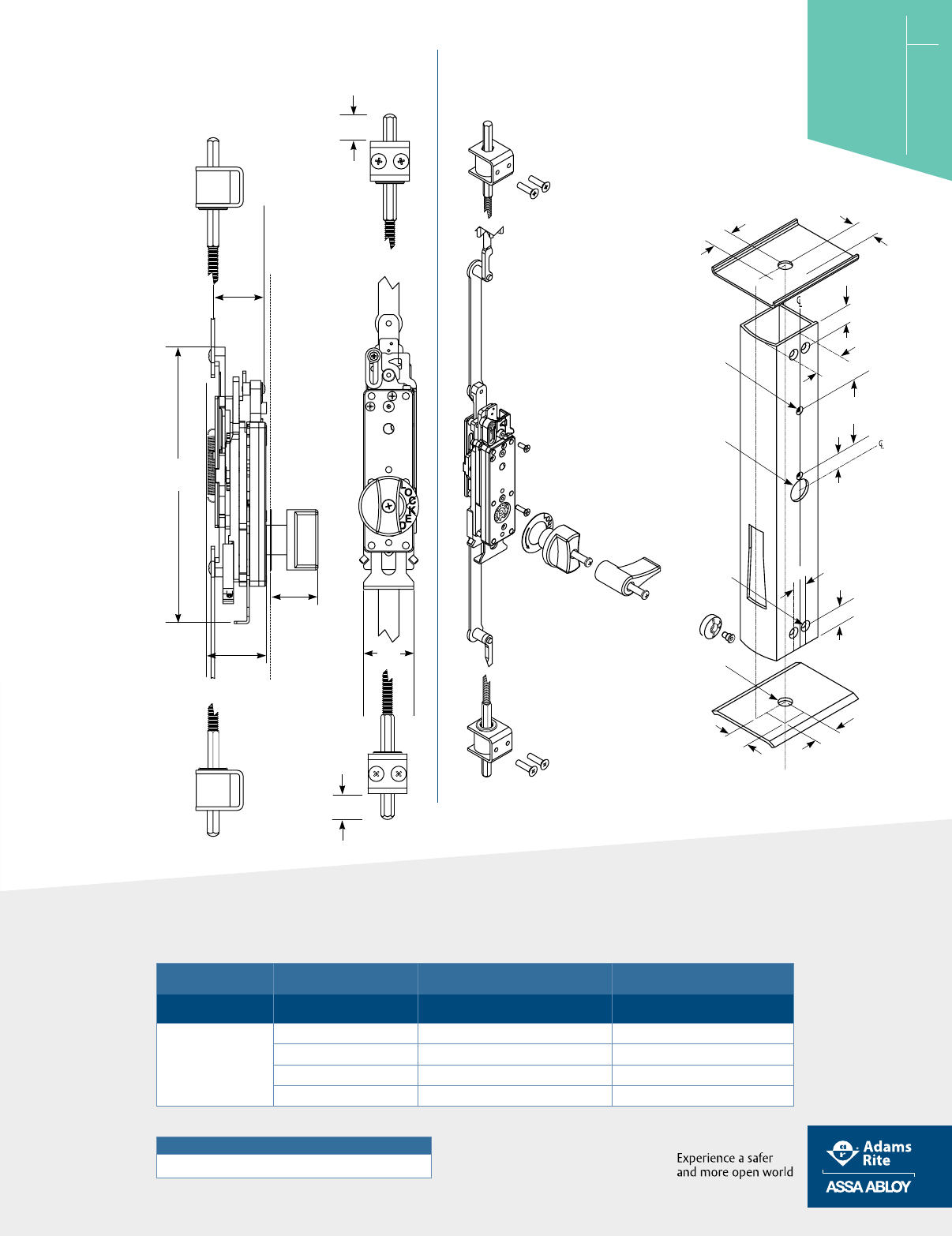

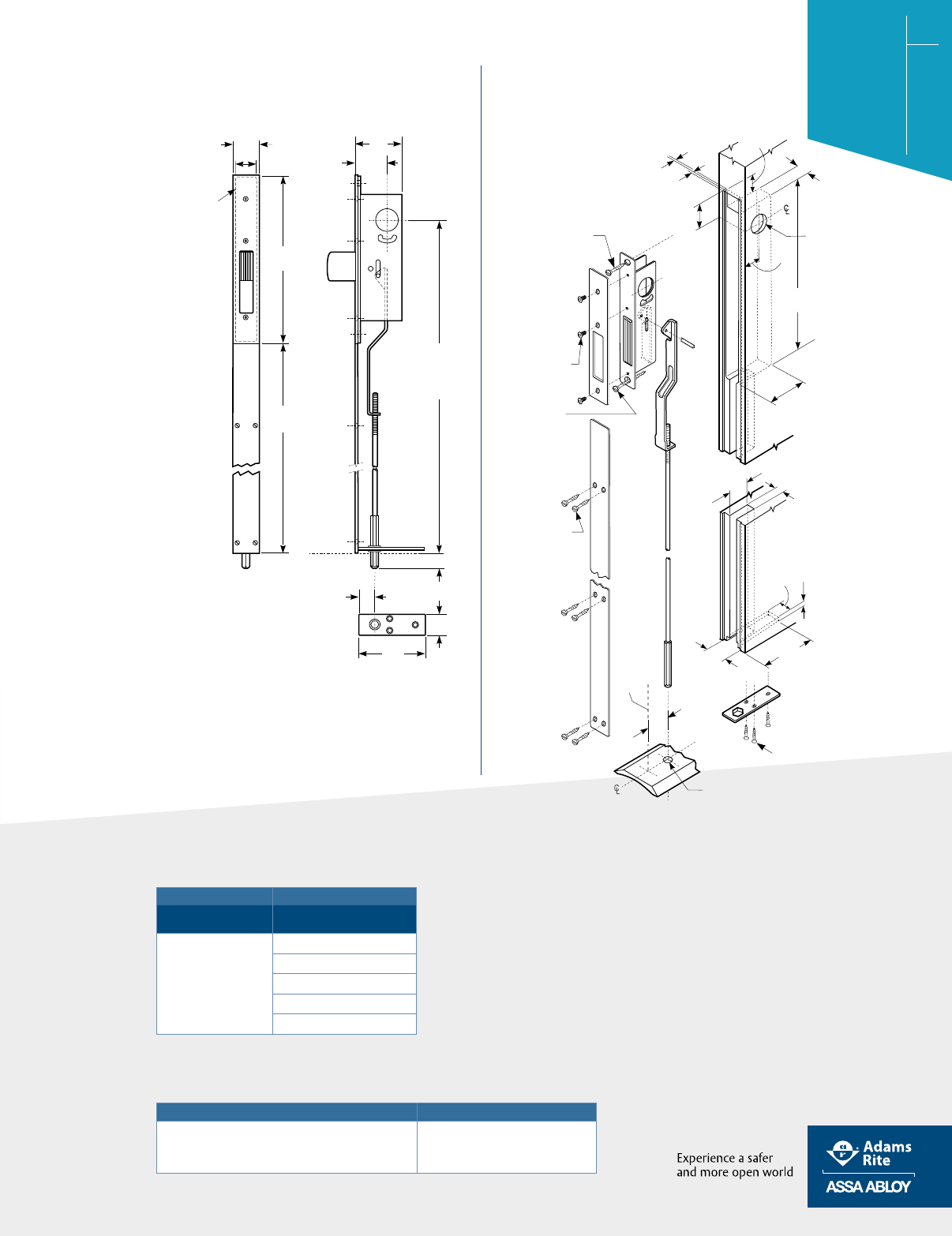

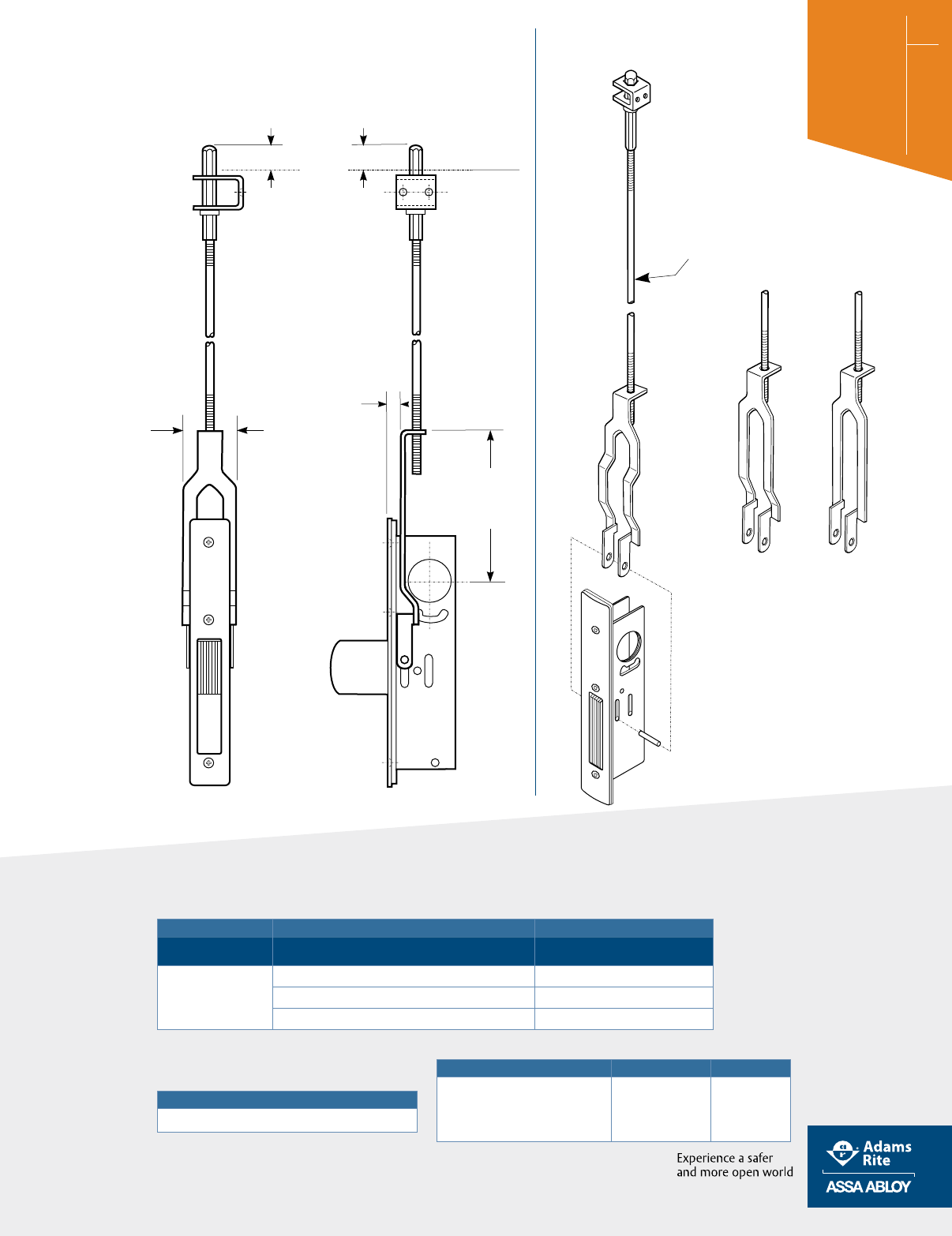

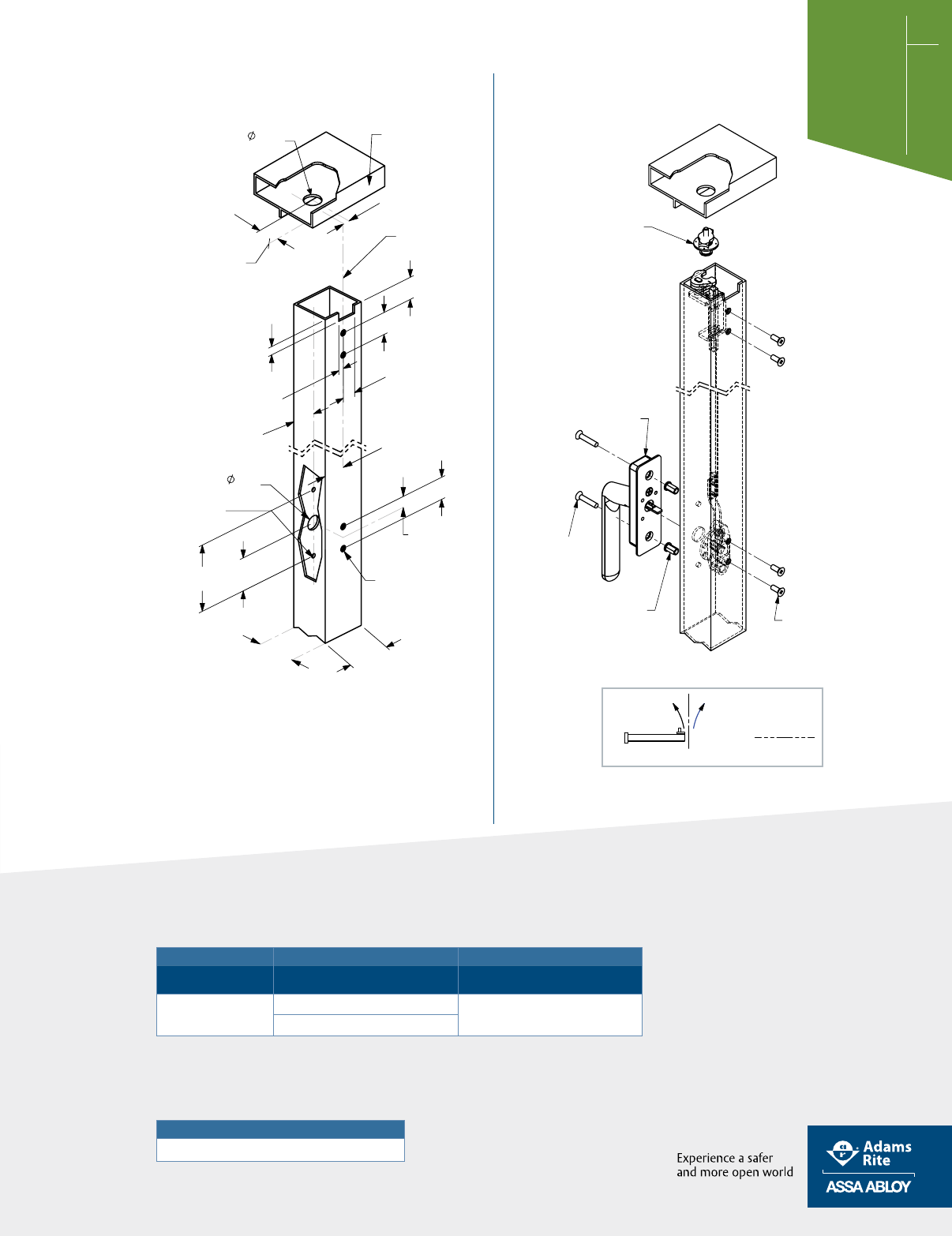

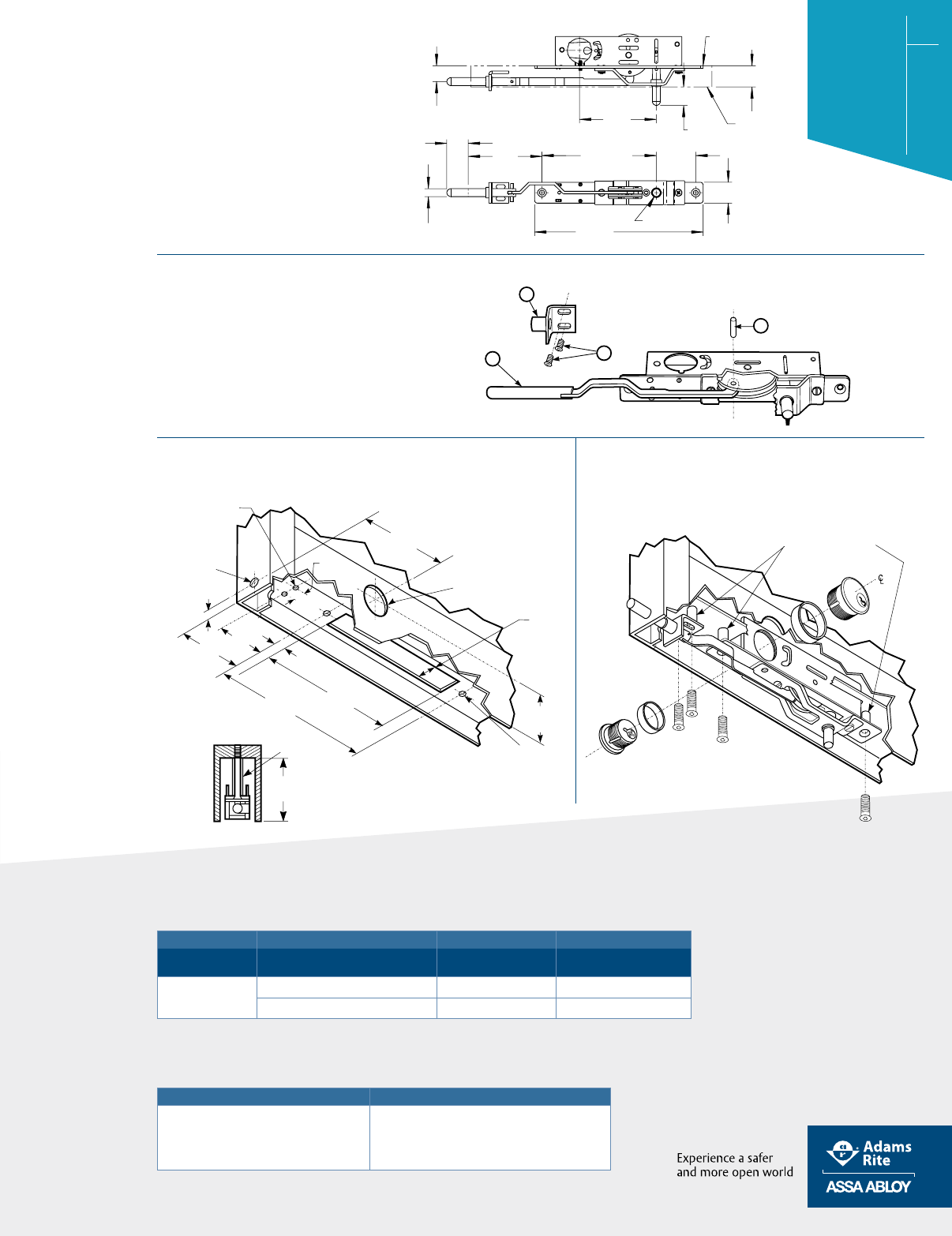

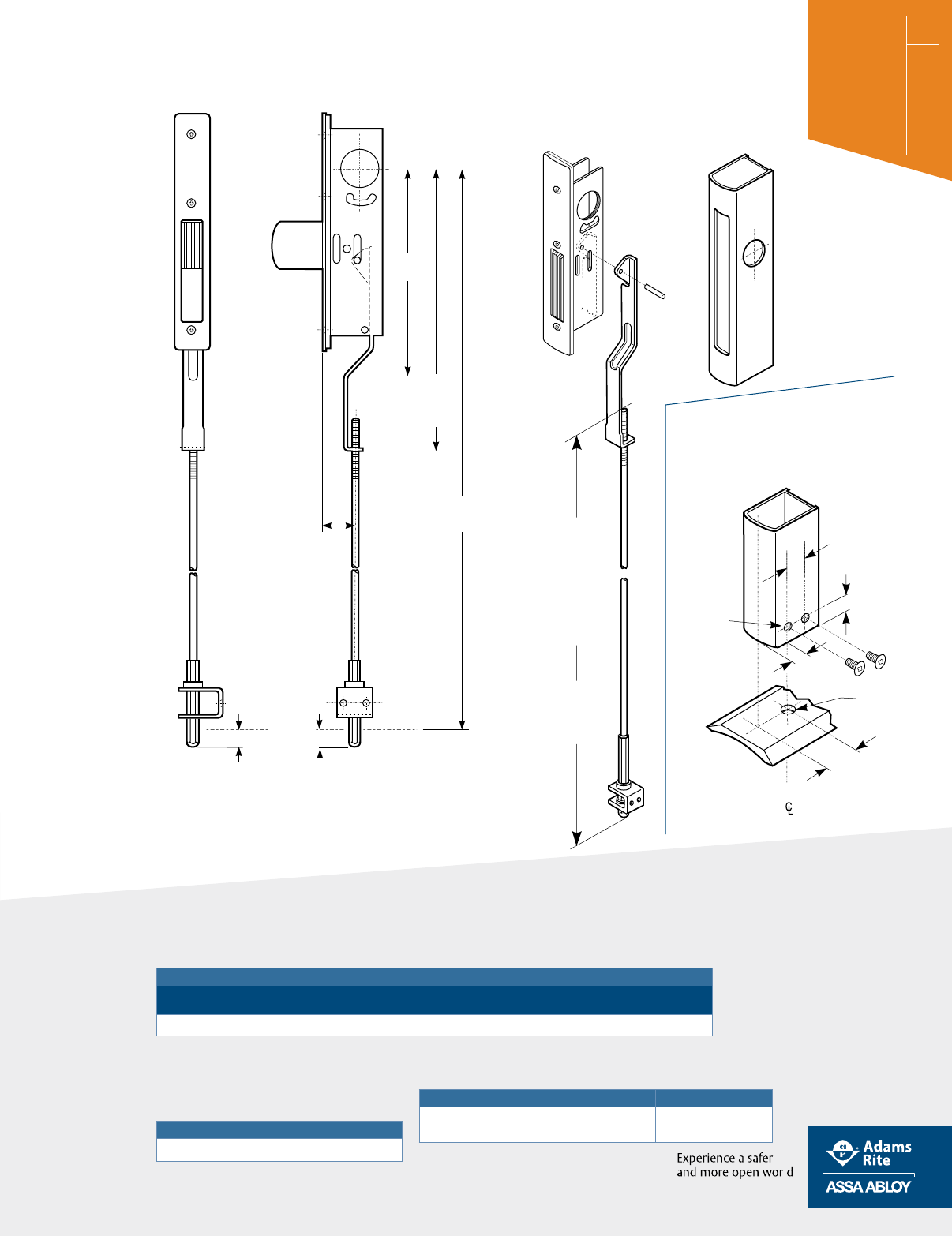

Dimensions

1-1/4"

31.8mm 2-1/4"

57.2mm

1-1/2"

38.1mm

36"

914.4mm

63/64"

25mm

203.2mm

30-5/32"

766mm

3/4"

19.1mm

3-1/4"

82.6mm

5/8"

15.9mm

63/64"

25mm

BACKSET

STANDARD

CYLINDER

HEIGHT

DOOR

BOTTOM

BOLT

GUIDEBOLT

PROJECTION

#6 X 3/4"

FLAT HEAD

WOOD

SCREWS (6)

#12 X 3"

FLAT HEAD

WOOD

SCREW

#8-32 X 1/4"

FLAT HEAD

MACHINES

SCREWS (3)

#12 X 1-1/4"

FLAT HEAD

WOOD SCREW

CEPLATE

LOCK

MOUNTING

PLATE

Install adaptor arm in lock

from rear with bolt

retracted as shown.

Drive pin through slots

in lock side plates,

passing through hole in

the adaptor arm.

1/8"

3.2mm

1/8"

3.2mm

2-1/8"

54mm

7/8"

22.2mm 1"

25.4mm

1-1/4"

.8mm

1-1/4"

31.8mm

7/8"

22.2mm

3-3/8"

85.7mm

1/4"

6.4m

1/2"

12.7mm

1-1/4"

31.8mm

1/2"

12.7mm

1-1/2"

38.1mm

10-1/2"

266.7mm

2-5/16"

58.7mm

DIA.

BOLT

GUIDE

NOSE

DOOR

#8 X 1"

FLAT HEAD

WOOD

SCREWS (3)

DOOR

Installation

DEADLOCKS

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Features

Case

Measures 1/2" x 3-3/16" x 1-1/8"

[12.7 mm x 80.97 mm x 28.6 mm].

Stainless steel.

Bolt

Three-ply laminated stainless steel.

Designed to withstand approximately

one-half ton of either horizontal or

vertical force. Anti-lift bolt stops both

door-from-jamb pry bar attacks and

attempts to lift the door from its track.

Faceplate

Rectangular face or full radiused

ends (see how-to-order table on

back of page for dash numbers).

Latch Version

The MS1847-11 and MS1847-13 feature

the same stainless steel hookbolt, but

the bolt is spring-loaded for automatic

latching. All dimensions and available

accessories for the MS1847 Deadlocks

also apply to MS1847 Deadlatches.

Standard Package

Case-packed with mounting

screws. Turn and cylinder

pull available separately.

Shipping weight

1/2 lb [0.23 kg].

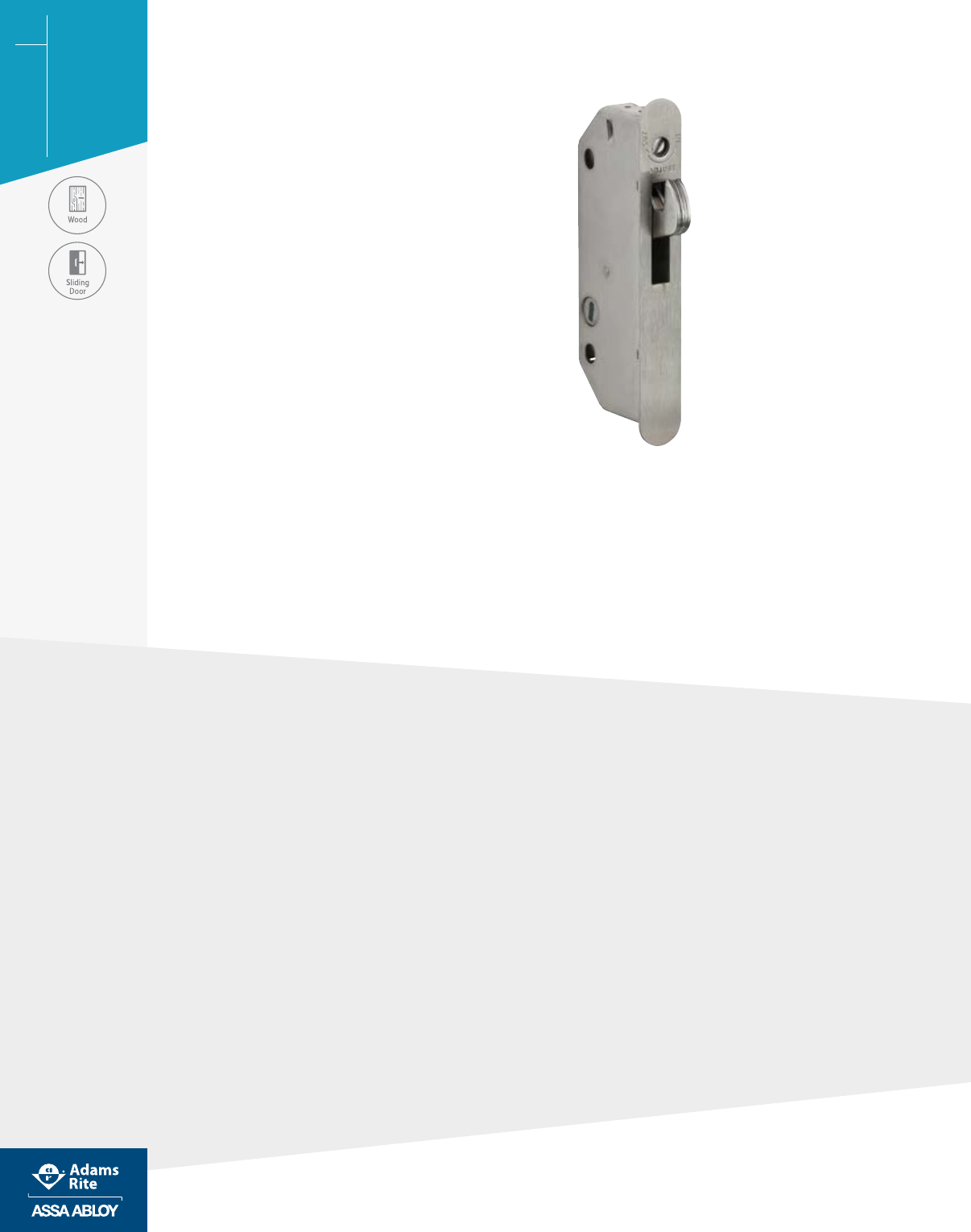

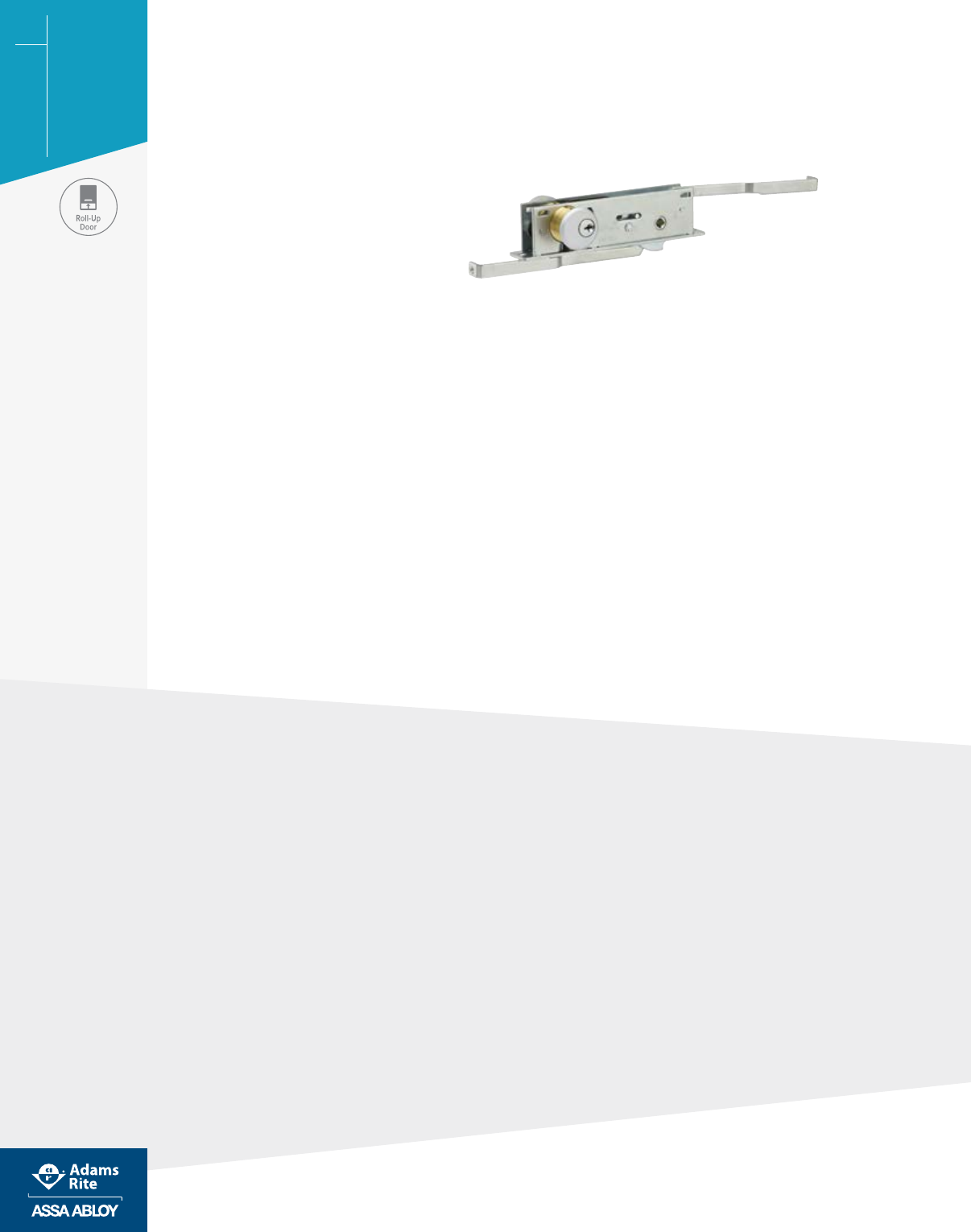

MS® Deadlock/Deadlatch

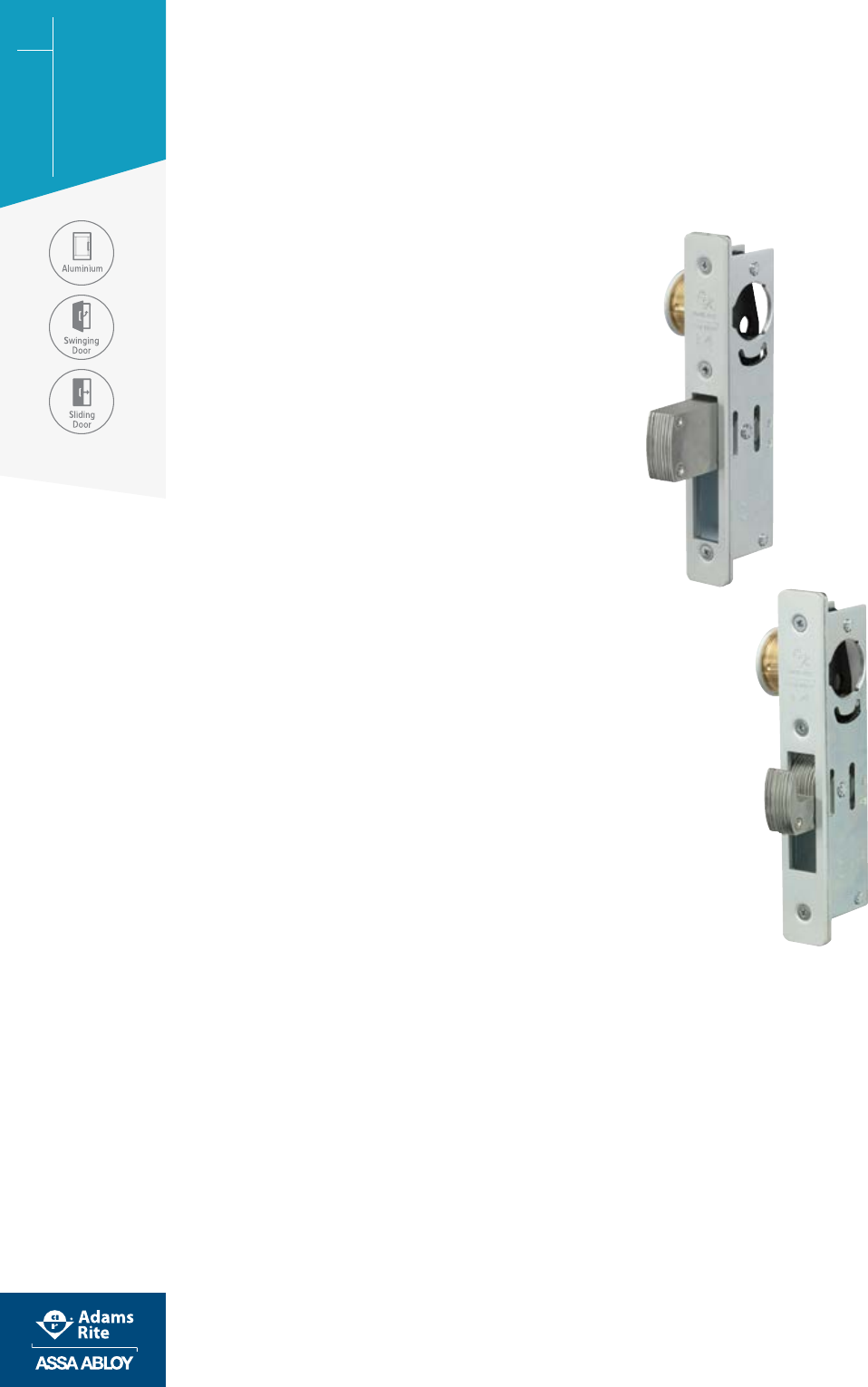

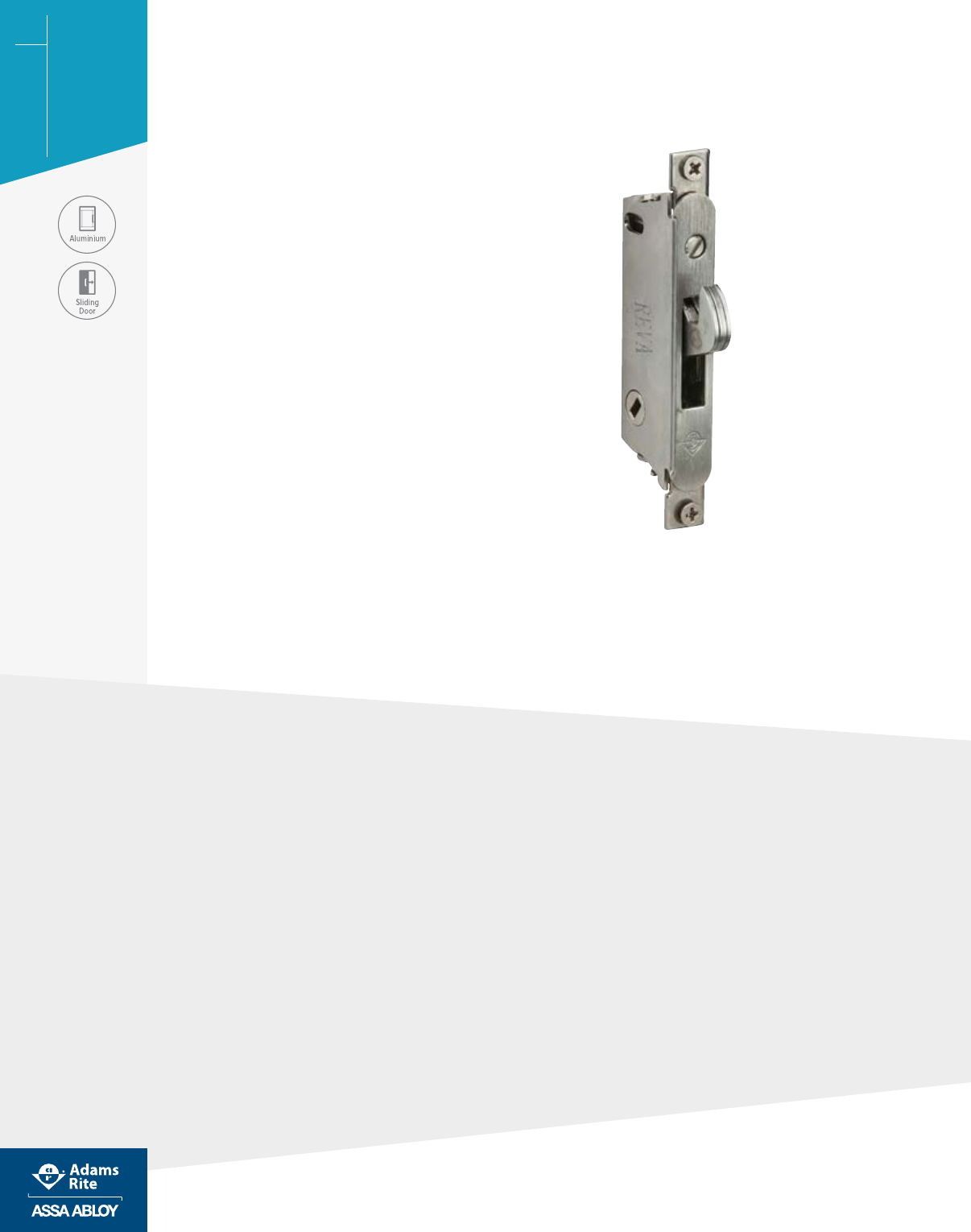

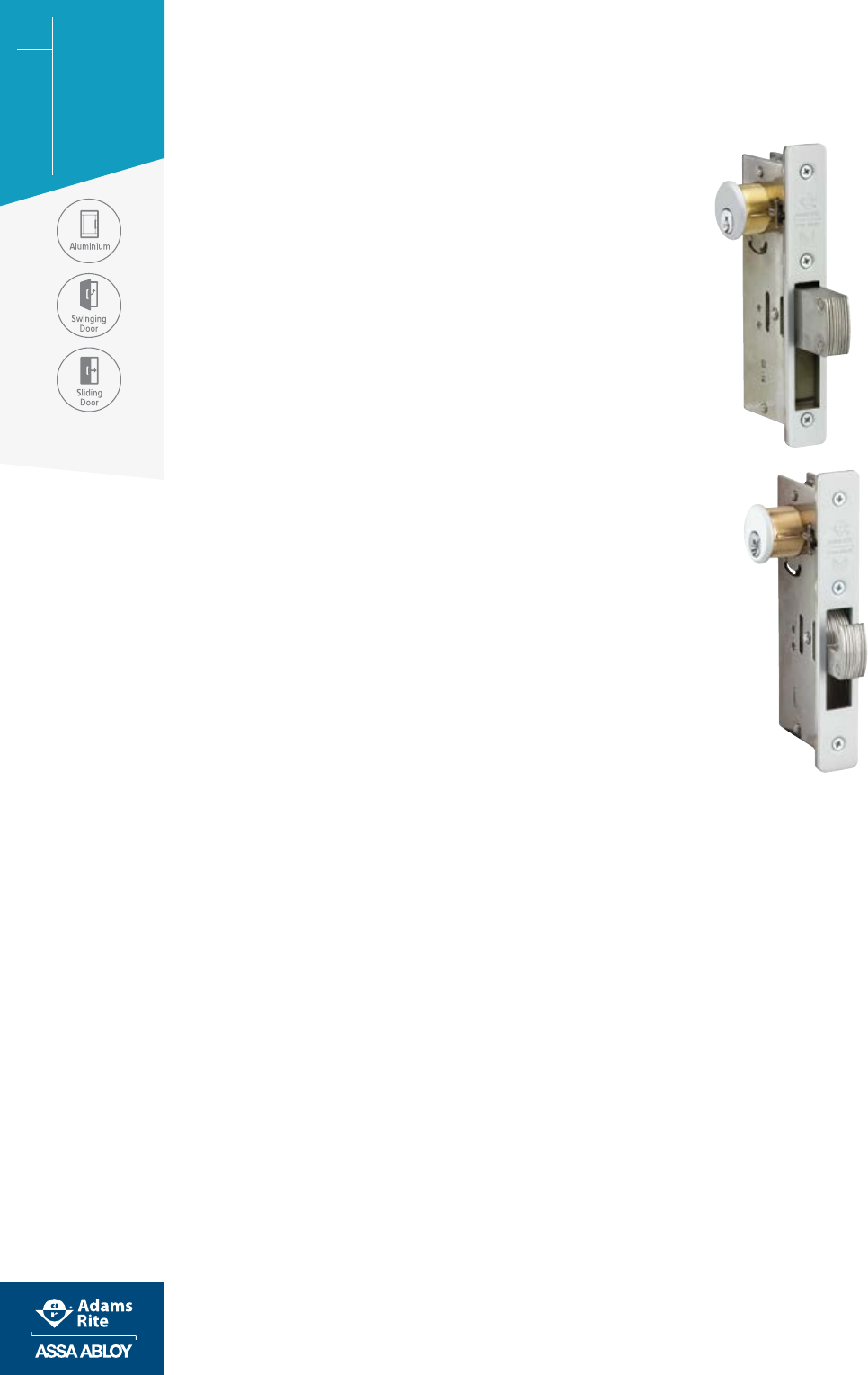

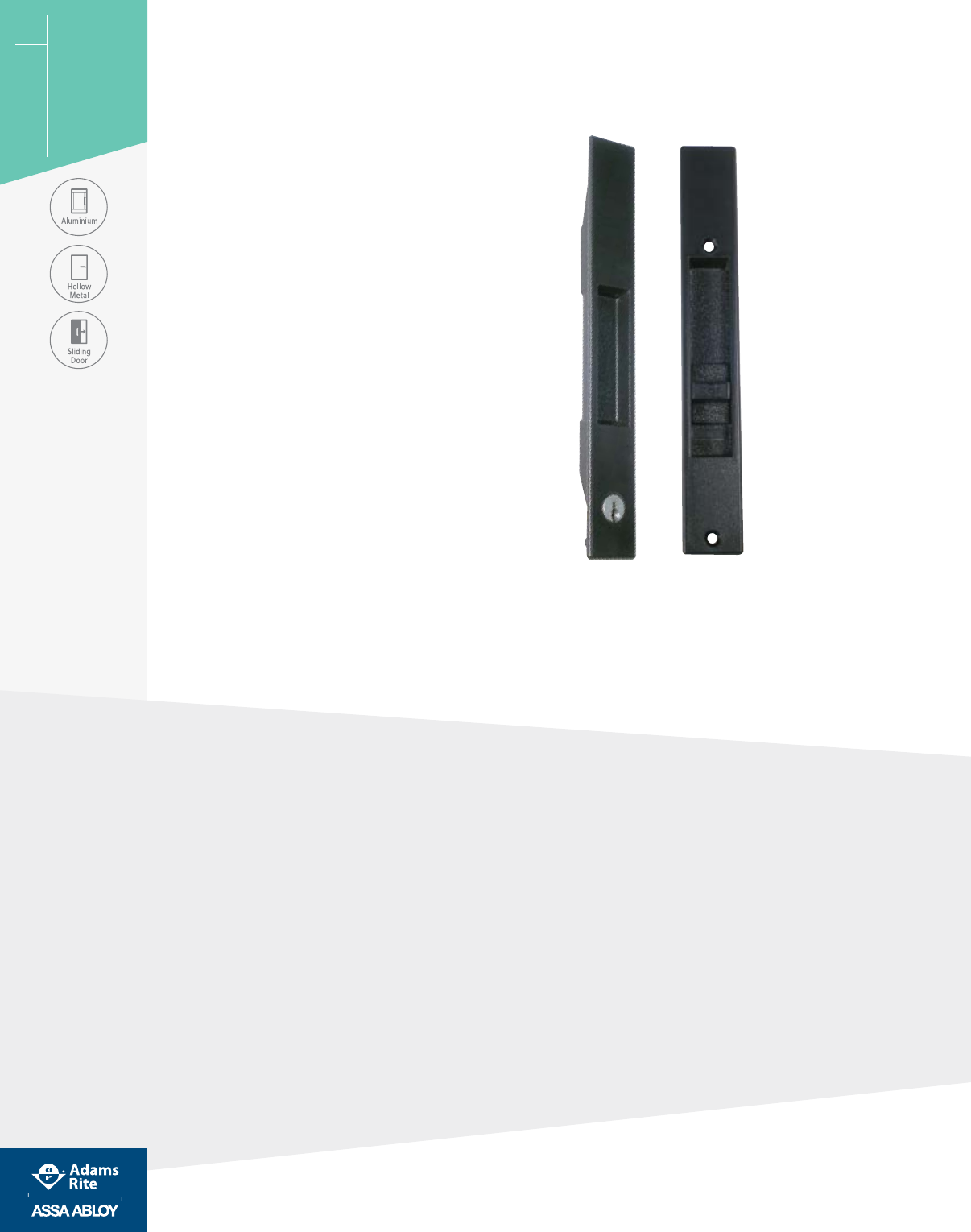

The MS1847 Deadlock/Latch for ultra-narrow

stile aluminum sliding doors features a self-

protecting bolt with adjustable bolt projection.

Function

A compact lock designed to ﬁt within very narrow sliding door

stiles without compromising the high degree of security that these

doors need. The sturdy stainless steel bolt has two important

features not usually found in sliding door hardware. First, it

is adjustable: a full 3/16" [4.8 mm] lengthening or shortening

of bolt projection is possible by turning an exposed screw in

the face of the lock. This can compensate for considerable

misalignment between door and jamb. Second, the bolt is

self-protecting: if the door is closed with the bolt in the locked

position, the bolt will retract immediately upon contact with

the jamb, thus preventing damage or accidental lockout.

Operation

Cylinder pulls are available separately for keyed operation.

Three hub slot positions allow installation even where jamb

and stile design provides severely limited turn clearance.

MS1847 Series

MS1847

Series MS®

Deadlock/

Deadlatch

DEADLOCKS

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

MS1847

Series MS®

Deadlock/

Deadlatch

How to Order & Related Products

MS1847 Deadlock: Specify quantity and the following information. Order related products separately.

MODEL FACE SHAPE, HUB ANGLE, LOCK OR LATCH BACKSET

MS1847 -02 -630

(Blank) Lock -02 Lock -06 Lock

-09 Lock -10 Lock -11 Latch

-13 Latch

SELF-

LATCHING

SELF-

LATCHING

VERT.

22.5°22.5°

45°45°

45°

630 Satin Stainless

When purchasing this product, please consider the following related products, available separately:

TRIM CYLINDERS ACCESSORIES

1000 Series Turn 4024, 4025, 4026 Cylinder Pulls 4800 Strike

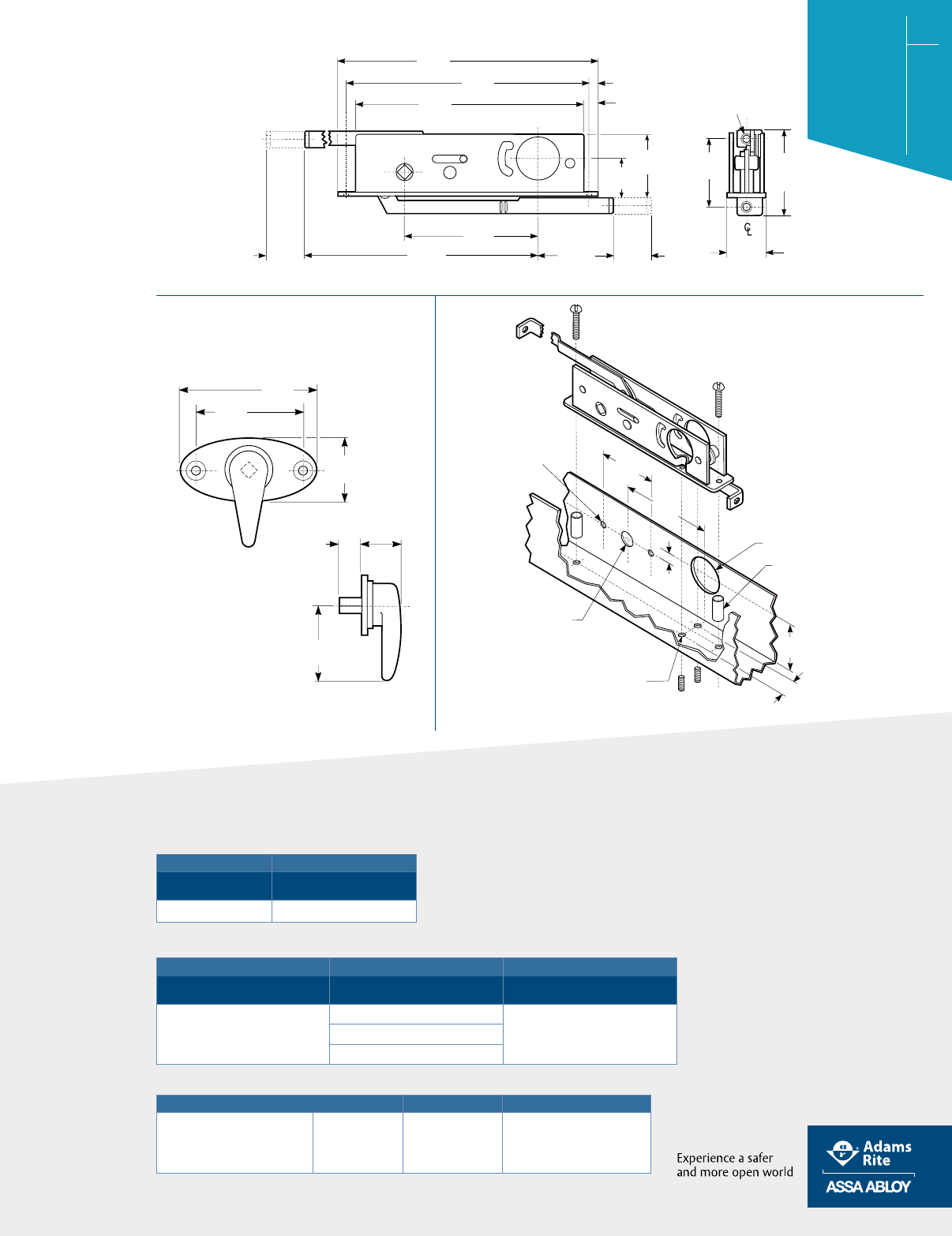

1-1/8"

28.6mm

3/32"

2.4mm

3/8"

9.5mm

5/32"

4mm

13/64"

5.2mm

31/32"

50mm

45˚

3/4"

19.1mm

27/64"

10.7mm

3-3/16"

81mm

17/32"

13.5mm

3-11/16"

93.7mm

3-7/32"

81.8mm

3-11/16"

93.7mm

15/64"

6mm

17/32"

13.5mm 25/32"

19.8mm

3/8"

9.5mm

25.4mm

4-1/32"

102.4mm

11/64"

4.4mm

3/16"

4.8mm

7/64"

2.8mm

11/16"

17.5mm

17/64"

6.7mm

1/4"

6.4mm

ADJUSTMENT

MAX.

MIN.

FULL

RADIUS

TYP.

SEE DASH

NUMBERS

FOR VARIOUS

HUB ANGLES

DRILL AND

CSK FOR

#6 SCREW

(2 PLCS)SEE DASH NUMBER

FOR SQUARE OR

RADIUS ENDS

3/8"

9.5mm

3/16"

4.8mm

1-1/16"

27mm

LOCK & STILE

STRIKE

CUTOUT

HUB

DIA.

TAP #6-32

THREAD TYP.

NOTE: DIMENSIONS

SHOWN

ARE RECOMMENDED

MINIMUM

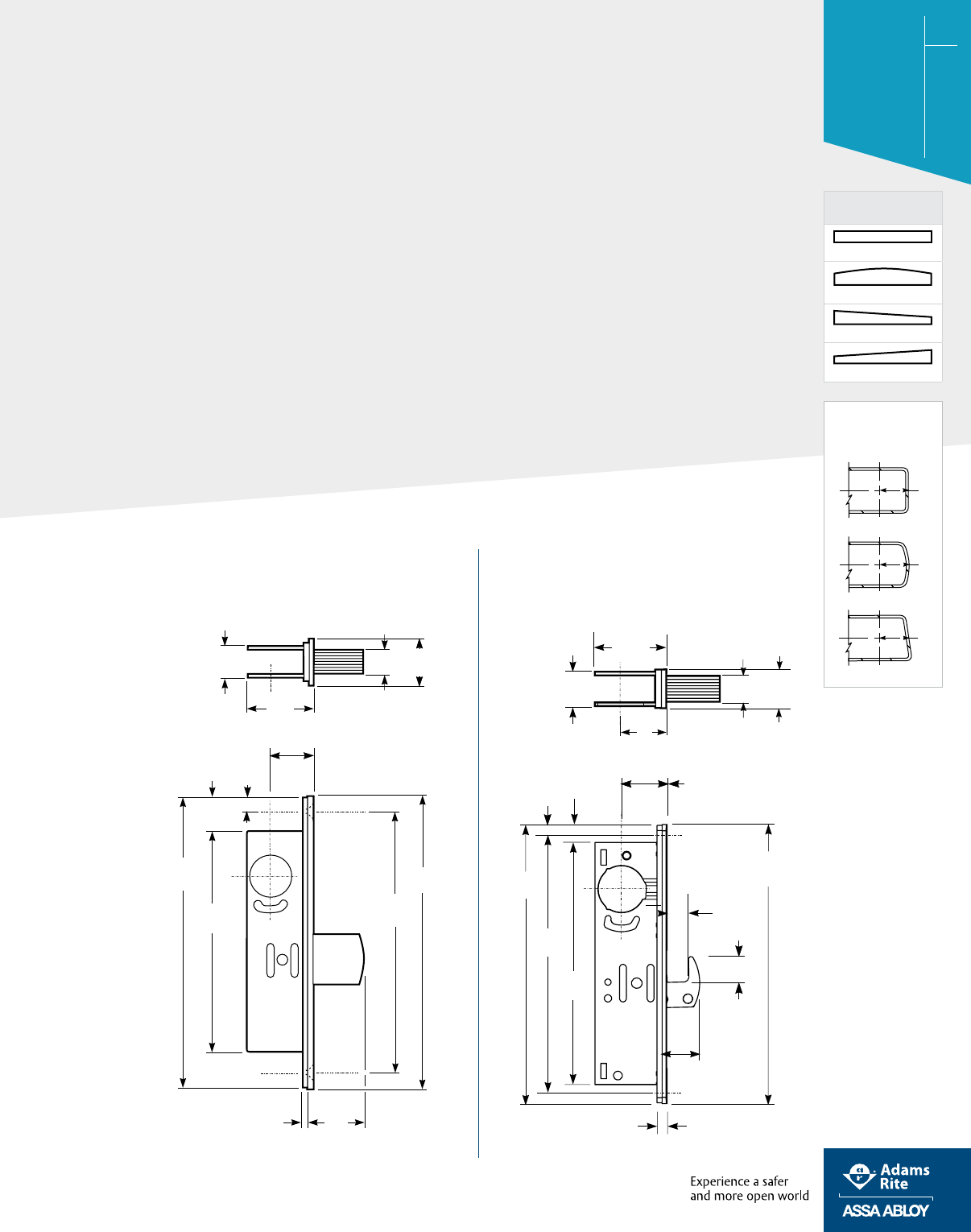

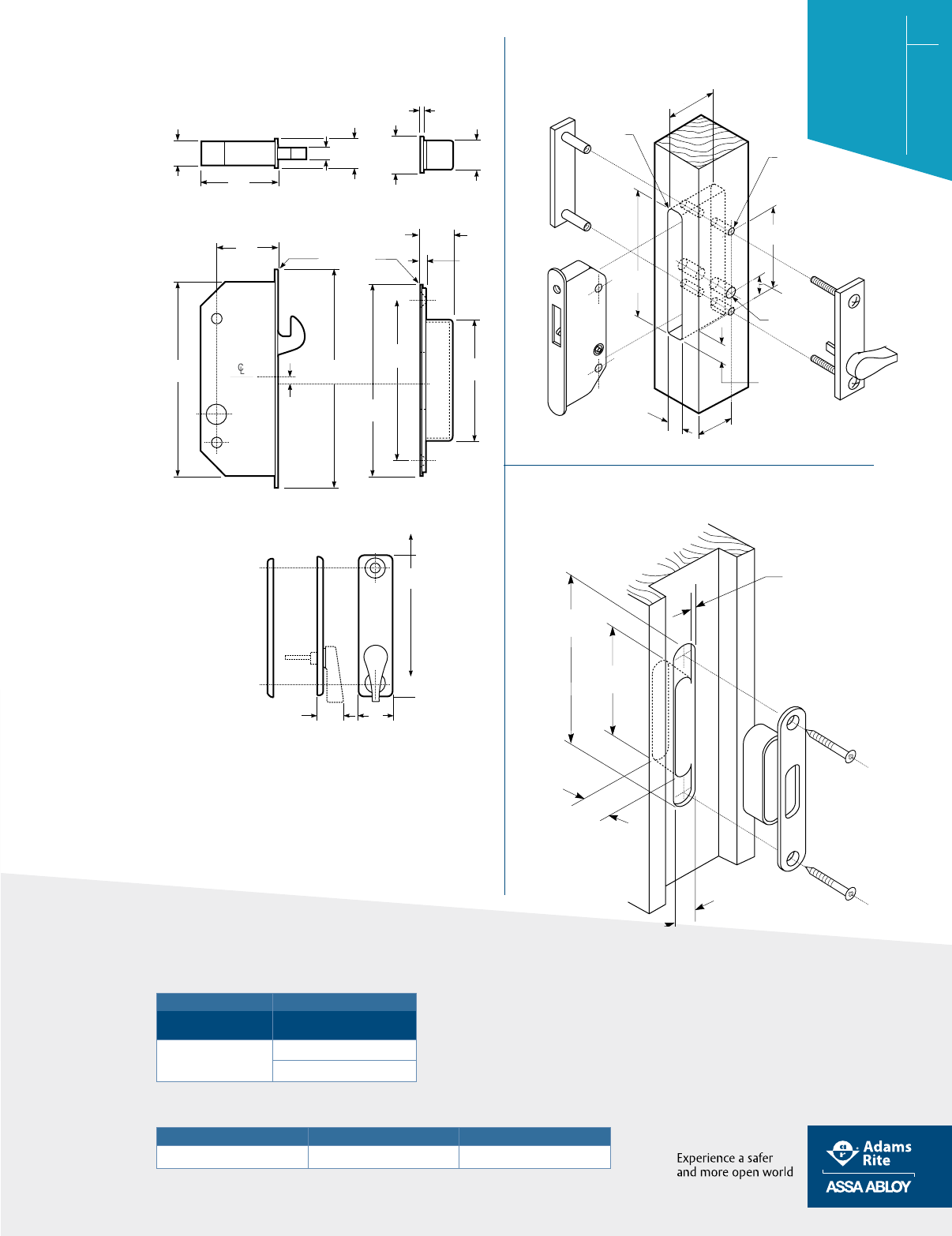

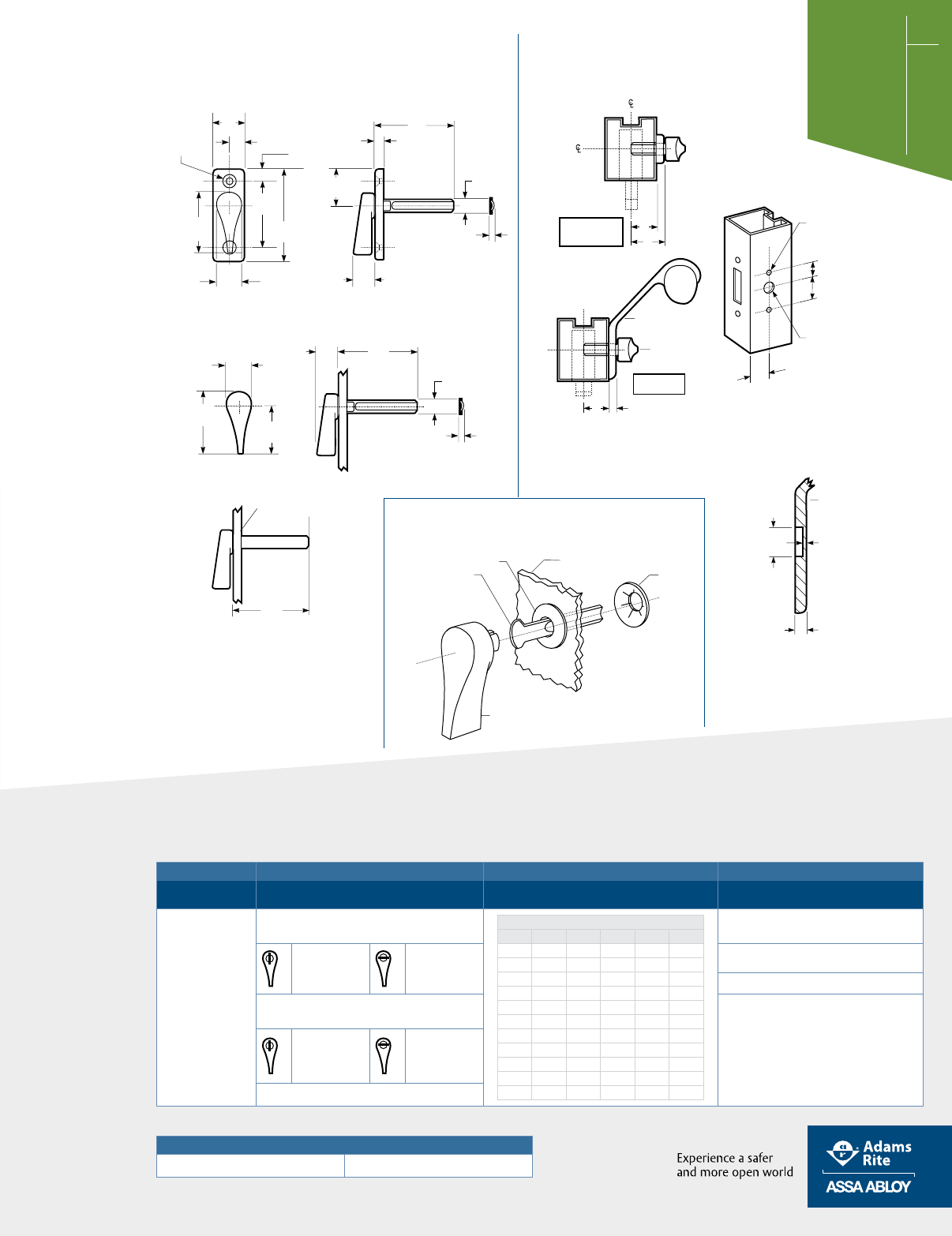

Stile Preparation

Installation

Dimensions

DEADLOCKS

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

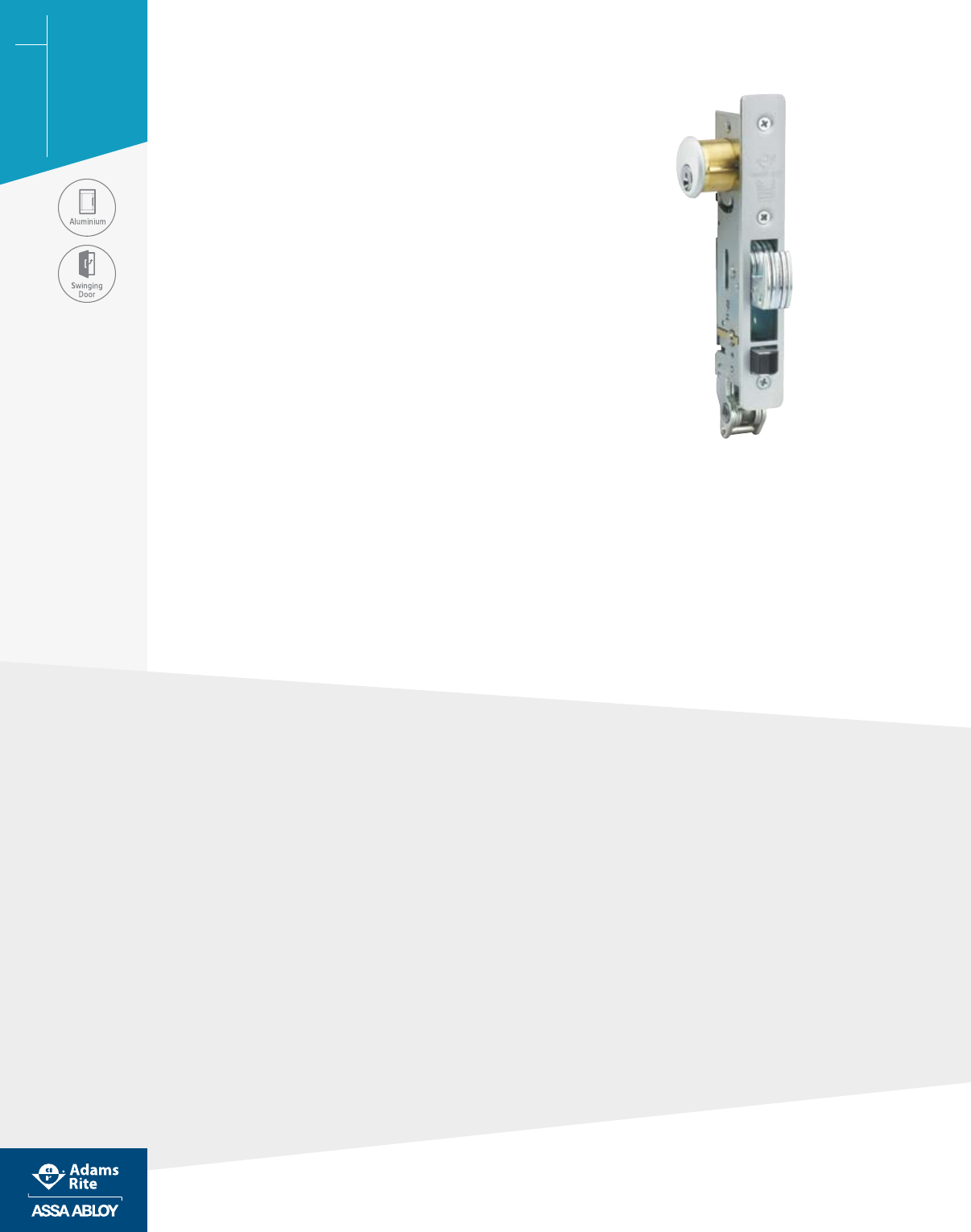

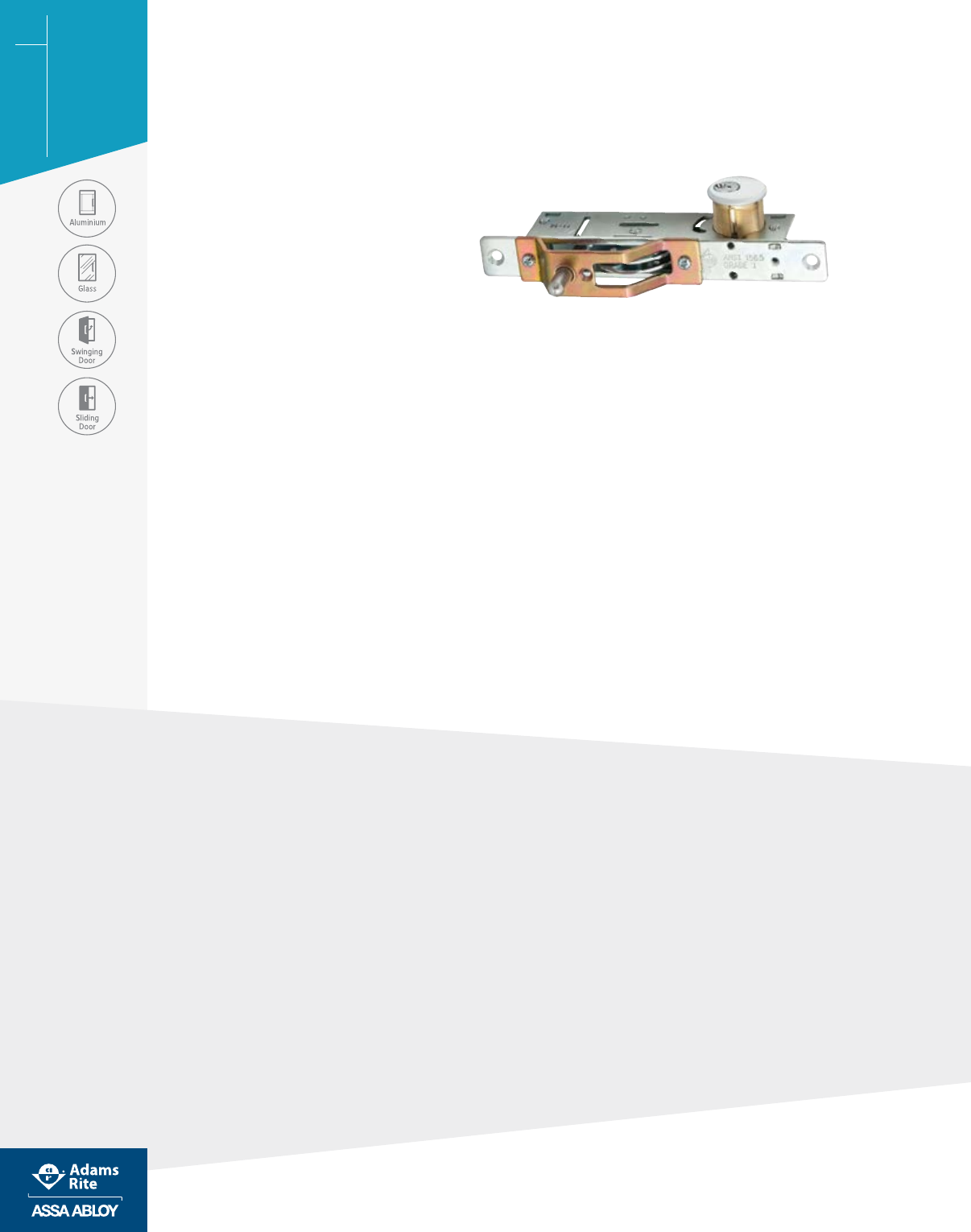

The MS1850S Series MS® Deadlock utilizes a

laminated stainless steel bolt to provide maximum

security for a single leaf narrow stile aluminum door.

The MS1850S-X5X Series MS® Deadlock utilizes

a laminated stainless steel hookbolt to provide

maximum security for a sliding narrow stile aluminum

door. Both are activated by a pivot mechanism.

Function

A huge bolt of laminated stainless steel, nearly 3" long, activated by

an uncomplicated pivot mechanism, has made the basic MS1850S

Series MS® Deadlock the standard of the narrow stile aluminum door

industry. The length of this bolt provides maximum security for a single

leaf door, even a very tall and ﬂexible one or an installation where

the gap between the door and jamb is greater than it should be.

The MS1850S-X5X Series MS® Deadlock answers the security need

of sliding narrow stile aluminum doors in commercial, industrial,

and institutional buildings. The locking mechanism is identical

to the MS1850S Series MS Deadlock, except that the massive

laminated bolt is provided in a hook shape to resist the parting

motion of sliding door and jamb. The over-center maximum security

(MS) locking action assures that forced entry attempts to pry the

door in any direction, up, down, or sideways will be defeated.

Special conﬁguration: The 1850S-X2X Series Short Throw

Deadlock utilizes a laminated stainless steel short bolt, activated by a

pivot mechanism to secure a single leaf narrow stile aluminum door.

Operation

360° turn of key or thumbturn projects or retracts the counterbalanced

bolt. Key can be removed only when bolt is in a positively locked or

unlocked position. Lock accepts any standard 1" [25.4 mm] length,

1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as

the 4036 Mortise Cylinder or thumbturn such as the 4066 Thumbturn,

available separately. Lock accepts cylinder from either or both sides.

Series MS® Deadlocks

MS1850S,

MS1850S-X5X

MS1850S

MS1850S-X5X

MS1850S-

X5X only

MS1850S,

MS1850S-X5X

Series MS®

Deadlocks

SHOWN WITH

FLAT FACEPLATE

“A”

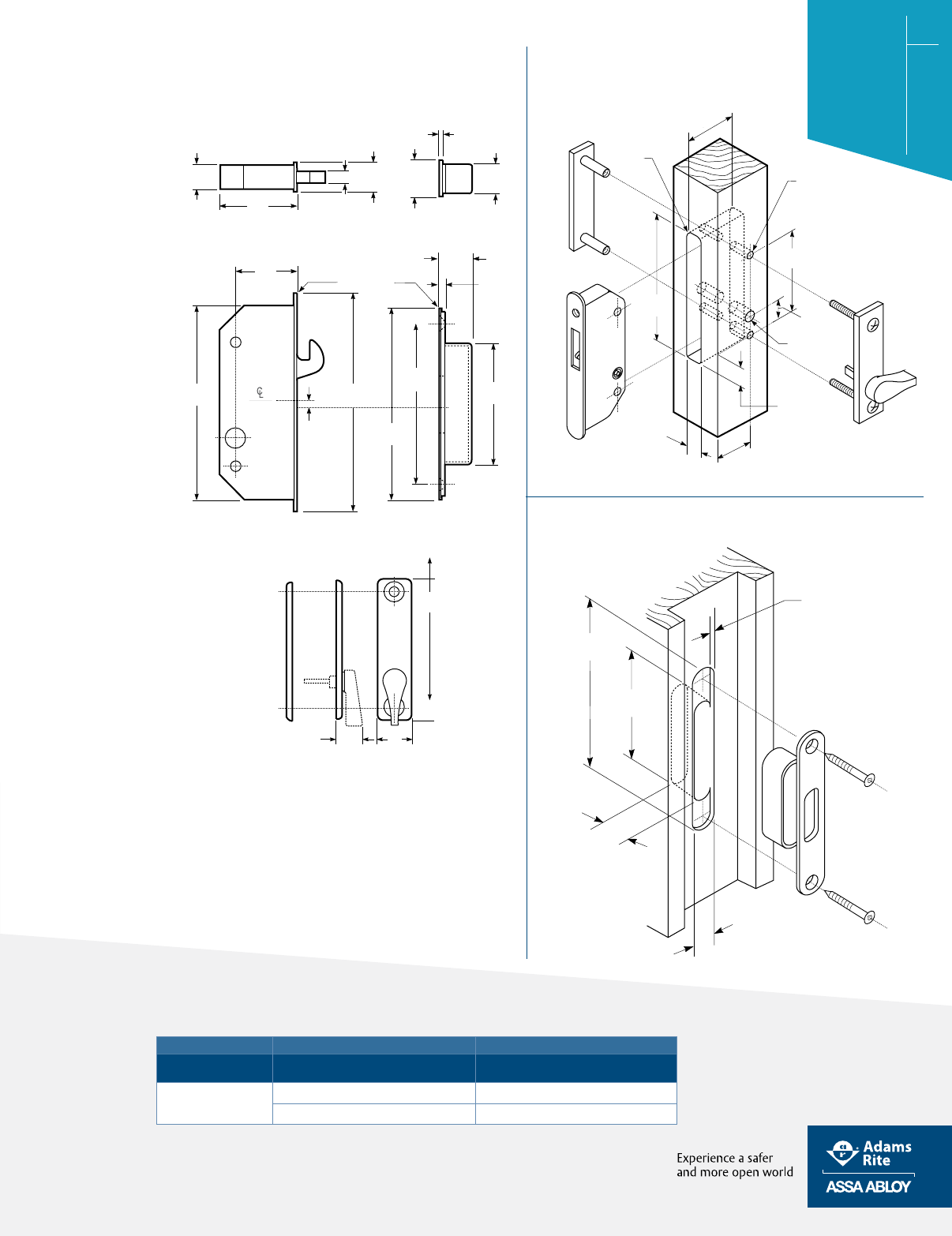

BACKSET MEASURED

AT CENTERLINE OF

STILE NOSE

152.4mm

6-13/16"

173mm

6-3/8"

161.9mm

6-7/8"

174.6mm

13/32"

10.3mm

5/8"

15.9mm

13/16"

20.6mm

1/4"

6.4mm

1/4"

6.4mm

1-15/16"

49.2mm

2-3/16"

55.6mm

11/16"

17.5mm

LOCK & STILECYLINDER

STRIKE

CUTOUT

59/64"

23.4mm

BACKSET

LOCKFACE

STILE

1-1/4"

31.8mm

DIA. HOLE

6-57/64"

175mm

1-27/32"

46.8mm

1-19/32"

40.5mm

5/32"

4mm

(4 PLCS.)

1-1/64"

25.8mm

25.4mm

5/8"

15.9mm

7/8"

22.2mm

7/32"

5.6mm

11/32"

8.7mm

SHOWN WITH

FLAT FACEPLATE

BACKSET MEASURED

AT CENTERLINE OF

STILE NOSE

25.4mm

5/8"

15.9mm

7/8"

22.2mm

11/32"

8.7mm

1/4"

6.4mm

6-3/8"

161.9mm

6-7/8"

174.6mm

152.4mm

13/16"

173mm

1-13/32"

35.7mm

1/4"

6.4mm

“A”

1-3/8"

34.9mm

11/16"

17.5mm

5/32"

4mm

6-57/64"

175mm

1-1/4"

31.8mm

1-19/32"

40.5mm

1-1/64"

25.8mm

(4 PLCS.)

BACKSET

STILE

DIA. HOLE

3-3/8"

85.7mm

59/64"

23.4mm

25.4mm

LOCK & STILECYLINDER

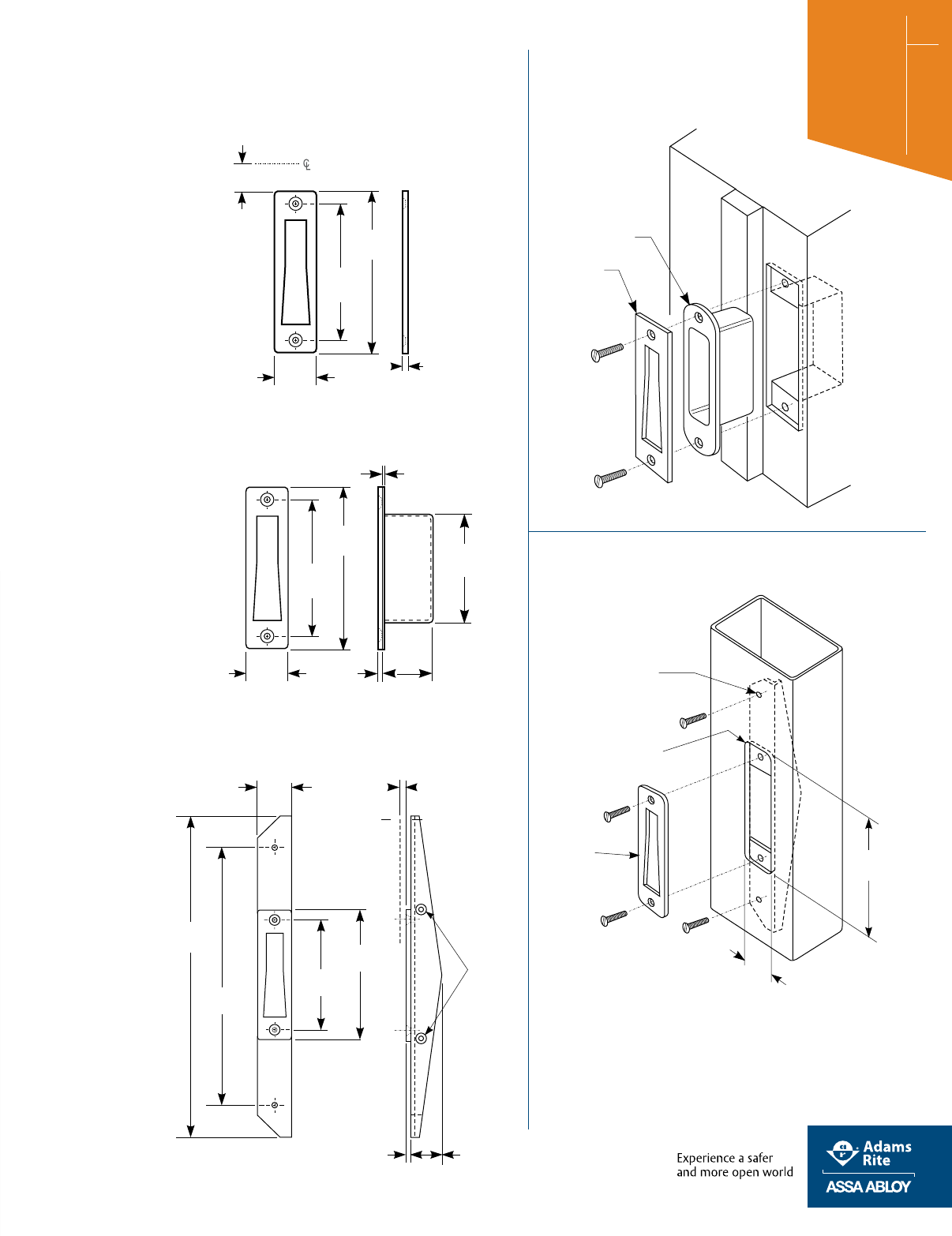

Strike

Cutout

DEADLOCKS

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

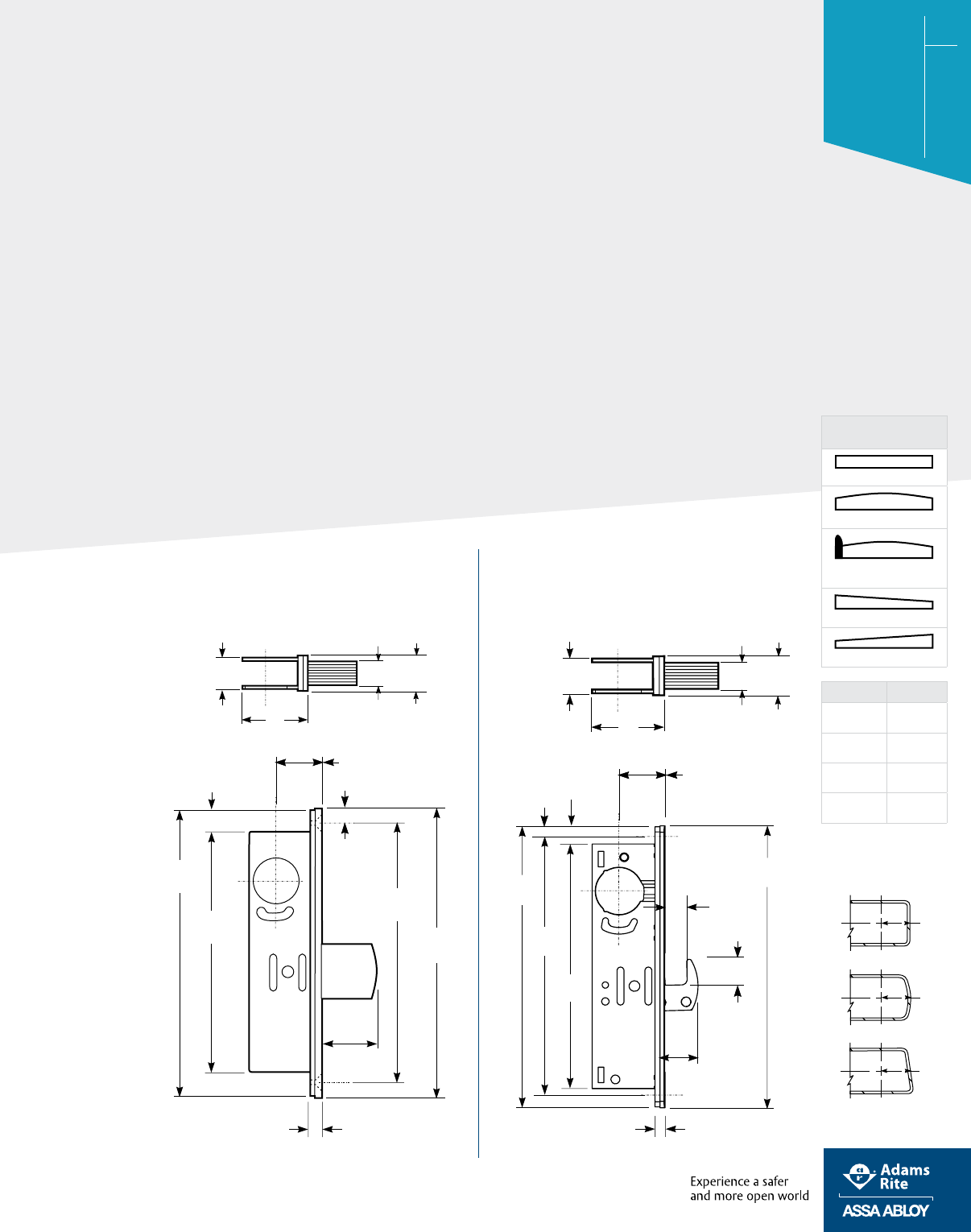

MS1850S,

MS1850S-X5X

Series MS®

Deadlocks

MS1850S-X5X

Dimensions

MS1850S

Dimensions

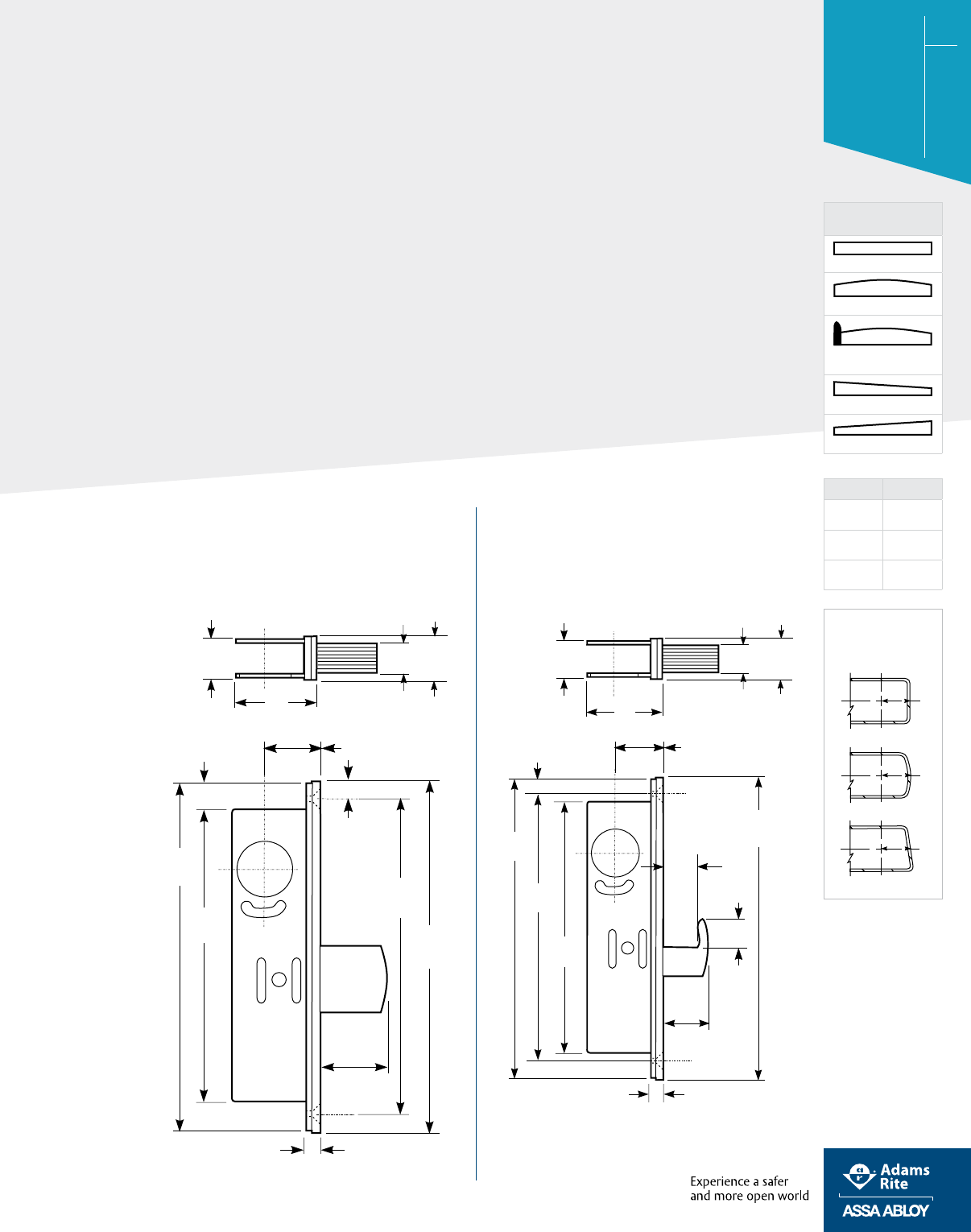

Features

Backset

7/8" [22.2 mm], 31/32" [24.6 mm], 1-1/8" [28.6 mm], and

1-1/2" [38.1 mm]. 1850S-X2X not available with 7/8" backset.

Case

Measures 1" x 6" x depth [25.4 mm x 152.4 mm

x depth], depth varies by backset (see table on

left). Steel with corrosion-resistant plating.

Faceplate

Measures 1" x 6-7/8" [25.4 mm x 174.6 mm].

Strike

See below for dimensions of strike slot which

can be cut in metal jamb. Trim plate, box strike,

and armored strike are available separately.

Bolt

Eight-ply laminated stainless steel. Center ply

has alumina-ceramic core to defeat any hacksaw

attack, including rod-type “super” hacksaws.

MS1850S: Standard straight bolt measures

5/8" x 1-3/8" x 2-7/8" [15.9 mm x 34.9 mm x

73.0 mm] with 1-3/8" [34.9 mm] throw.

MS1850S-X5X: Hookbolt measures 5/8" x 1-3/8" [15.9

mm x 34.9 mm] with 13/16" [20.6 mm] throw. Hook

shaped bolt repels pry bar attempts to “spread”

the door from its jamb or lift it o its track.

1850S-X2X: Short bolt measures 5/8" x 1-3/8" x 2-3/8" [15.9

mm x 34.9 mm x 60.3 mm] with 13/16" [20.6 mm] throw.

Standard Package

Individually boxed with faceplate and

mounting screws. Strike plates, cylinders and/

or thumbturns available separately.

Shipping Weight

1-1/2 lbs [0.68 kg].

Options

• “SCHOOLHOUSE” version, also available, is modiﬁed

so that operation from inside is “unlock only”. This lock

is handed and must be speciﬁed LH or RH. Specify

SCH1850S or SCH1850S-X5X Series. Same faceplate and

backset options as MS1850S and MS1850S-X5X Series.

FLAT

CYLINDER C

RADIUS

BEVEL

HOW BACKSET

IS MEASURED:

BACKSET “A”

7/8"

22mm

1-9/16"

34.7mm

31/32"

24.6mm

1-5/8"

41.3mm

1-1/8"

28.6mm

1-25/32"

45.2mm

1-1/2"

38.1mm

2-1/4"

57.2mm

ARMORED FACEPLATE

1" X 67/8"

FLAT MS1850S

RADIUS MS1851S

RADIUS W/ WEATHERSTRIP

MS1851SW

LH BEVEL MS1852S-X15

RH BEVEL MS1852S-X16

SHOWN WITH

FLAT FACEPLATE

“A”

BACKSET MEASURED

AT CENTERLINE OF

STILE NOSE

152.4mm

6-13/16"

173mm

6-3/8"

161.9mm

6-7/8"

174.6mm

13/32"

10.3mm

5/8"

15.9mm

13/16"

20.6mm

1/4"

6.4mm

1/4"

6.4mm

1-15/16"

49.2mm

2-3/16"

55.6mm

11/16"

17.5mm

LOCK & STILECYLINDER

STRIKE

CUTOUT

59/64"

23.4mm

BACKSET

LOCKFACE

STILE

1-1/4"

31.8mm

DIA. HOLE

6-57/64"

175mm

1-27/32"

46.8mm

1-19/32"

40.5mm

5/32"

4mm

(4 PLCS.)

1-1/64"

25.8mm

25.4mm

5/8"

15.9mm

7/8"

22.2mm

7/32"

5.6mm

11/32"

8.7mm

SHOWN WITH

FLAT FACEPLATE

“A”

BACKSET MEASURED

AT CENTERLINE OF

STILE NOSE

152.4mm

6-13/16"

173mm

6-3/8"

161.9mm

6-7/8"

174.6mm

13/32"

10.3mm

5/8"

15.9mm

13/16"

20.6mm

1/4"

6.4mm

1/4"

6.4mm

1-15/16"

49.2mm

2-3/16"

55.6mm

11/16"

17.5mm

LOCK & STILECYLINDER

STRIKE

CUTOUT

59/64"

23.4mm

BACKSET

LOCKFACE

STILE

1-1/4"

31.8mm

DIA. HOLE

6-57/64"

175mm

1-27/32"

46.8mm

1-19/32"

40.5mm

5/32"

4mm

(4 PLCS.)

1-1/64"

25.8mm

25.4mm

5/8"

15.9mm

7/8"

22.2mm

7/32"

5.6mm

11/32"

8.7mm

SHOWN WITH

FLAT FACEPLATE

BACKSET MEASURED

AT CENTERLINE OF

STILE NOSE

25.4mm

5/8"

15.9mm

7/8"

22.2mm

11/32"

8.7mm

1/4"

6.4mm

6-3/8"

161.9mm

6-7/8"

174.6mm

152.4mm

6-13/16"

173mm

1-13/32"

35.7mm

1/4"

6.4mm

“A”

1-3/8"

34.9mm

11/16"

17.5mm

5/32"

4mm

6-57/64"

175mm

1-1/4"

31.8mm

1-19/32"

40.5mm

1-1/64"

25.8mm

(4 PLCS.)

BACKSET

STILE

DIA. HOLE

3-3/8"

85.7mm

59/64"

23.4mm

25.4mm

LOCK & STILECYLINDER

Strike

Cutout

SHOWN WITH

FLAT FACEPLATE

BACKSET MEASURED

AT CENTERLINE OF

STILE NOSE

25.4mm

5/8"

15.9mm

7/8"

22.2mm

11/32"

8.7mm

1/4"

6.4mm

6-3/8"

161.9mm

6-7/8"

174.6mm

152.4mm

6-13/16"

173mm

1-13/32"

35.7mm

1/4"

6.4mm

“A”

1-3/8"

34.9mm

11/16"

17.5mm

5/32"

4mm

6-57/64"

175mm

1-1/4"

31.8mm

1-19/32"

40.5mm

1-1/64"

25.8mm

(4 PLCS.)

BACKSET

STILE

DIA. HOLE

3-3/8"

85.7mm

59/64"

23.4mm

25.4mm

LOCK & STILECYLINDER

Strike

Cutout

DEADLOCKS

Updated: December 21, 2020

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

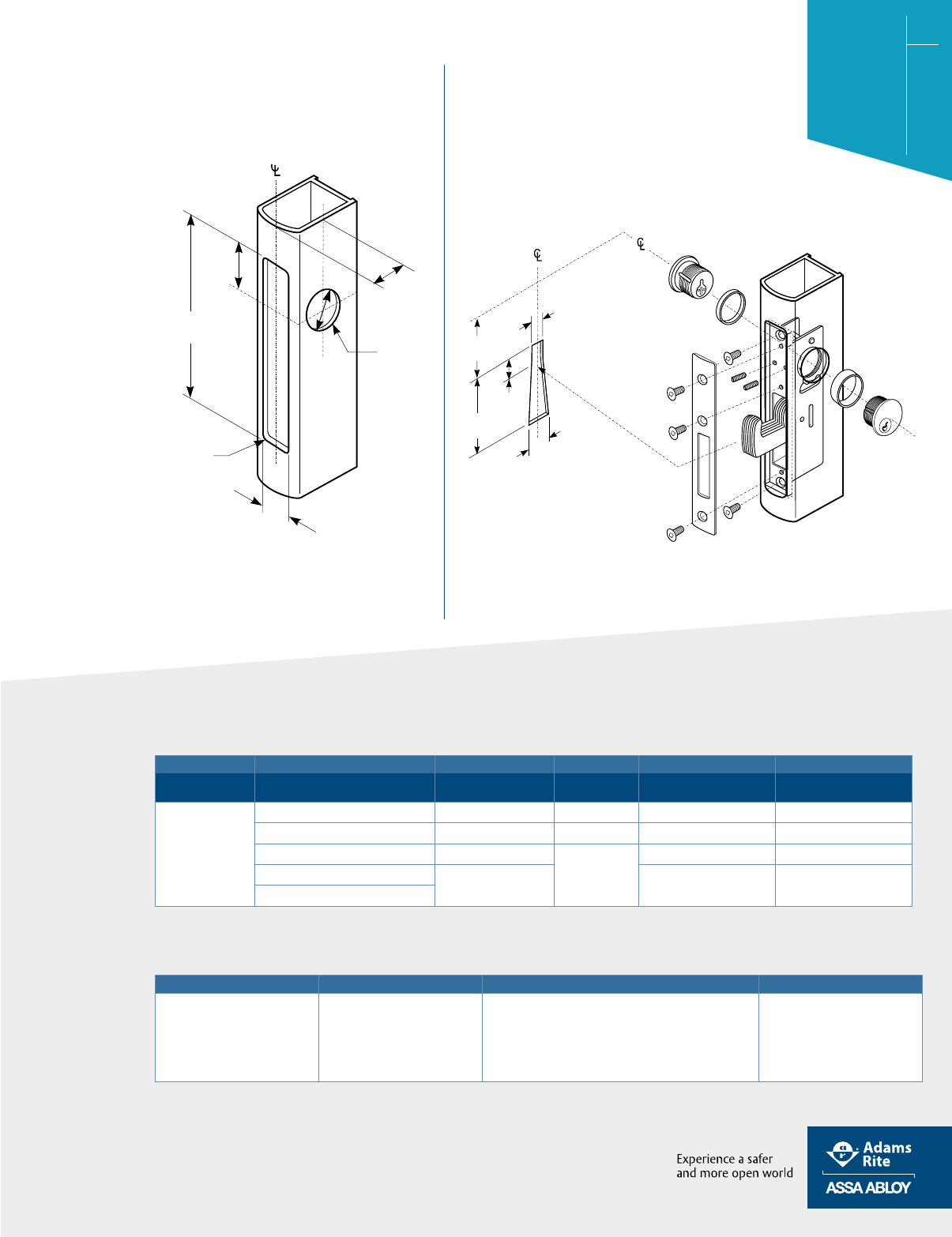

MS1850S

MS1850S-X5X

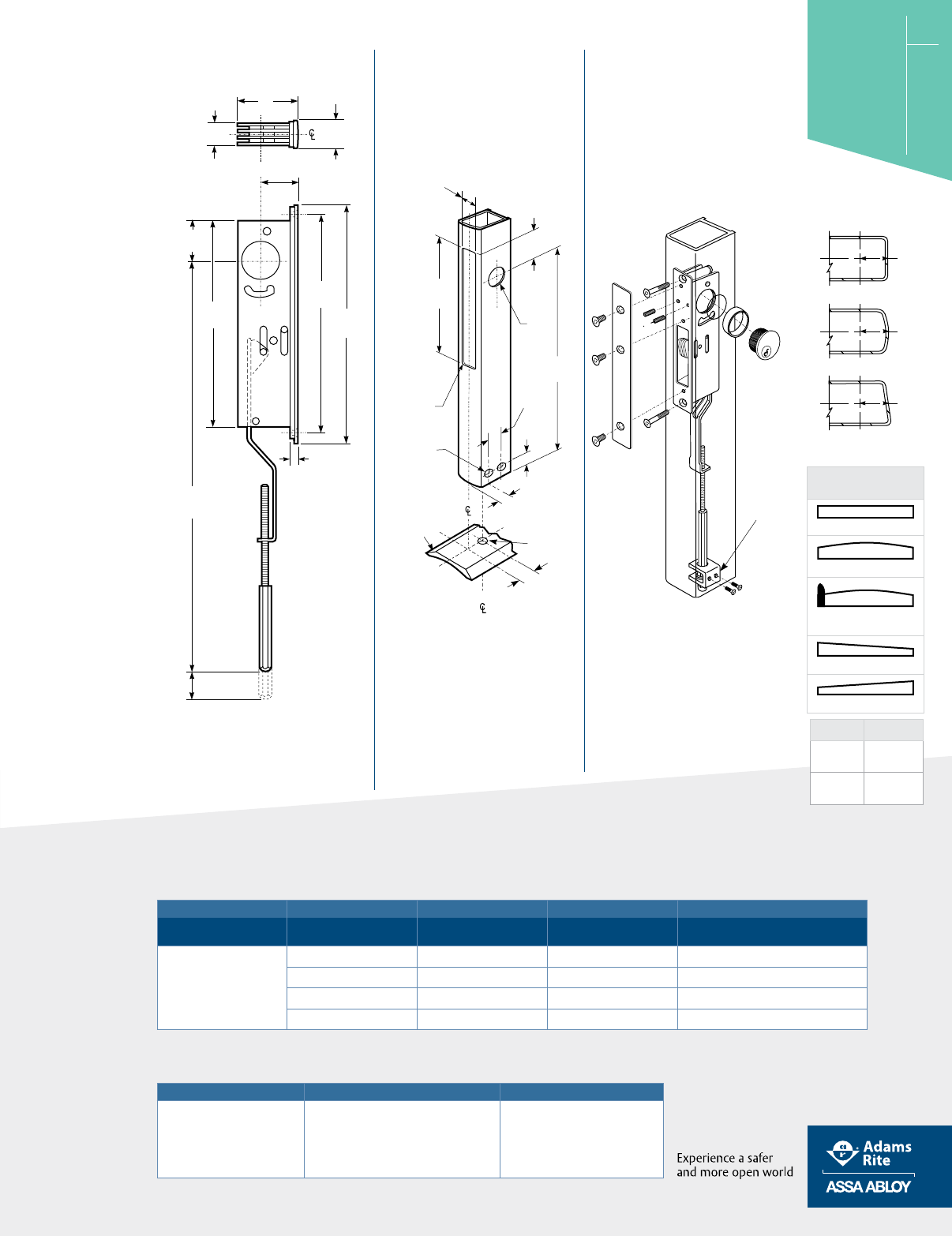

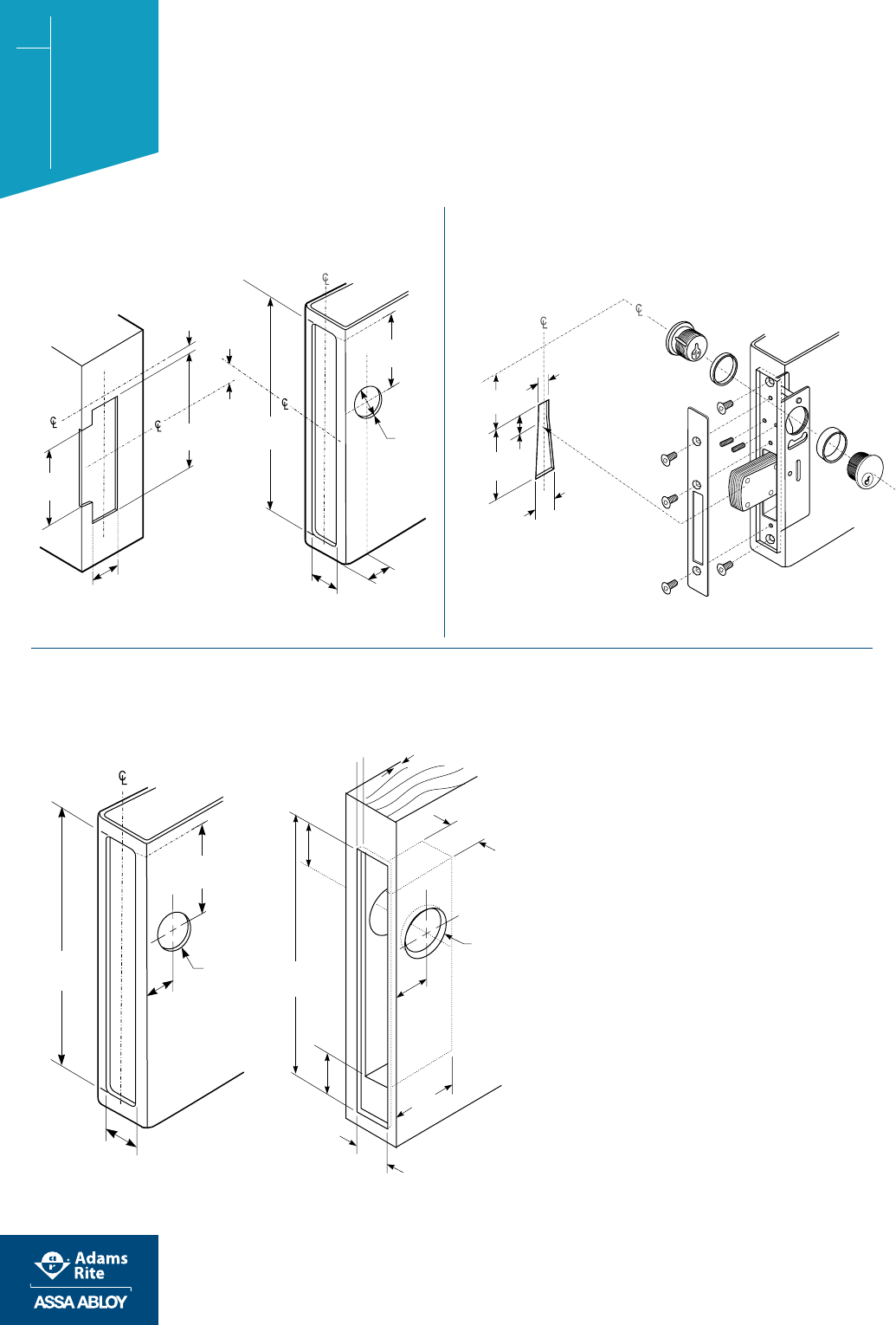

Stile Preparation

Lock & Cylinder

Installation

Lock & Cylinder

Installation

MS1850S,

MS1850S-X5X

Series MS®

Deadlocks

DEADLOCKS

MS1850S,

MS1850S-X5X

Series MS®

Deadlocks

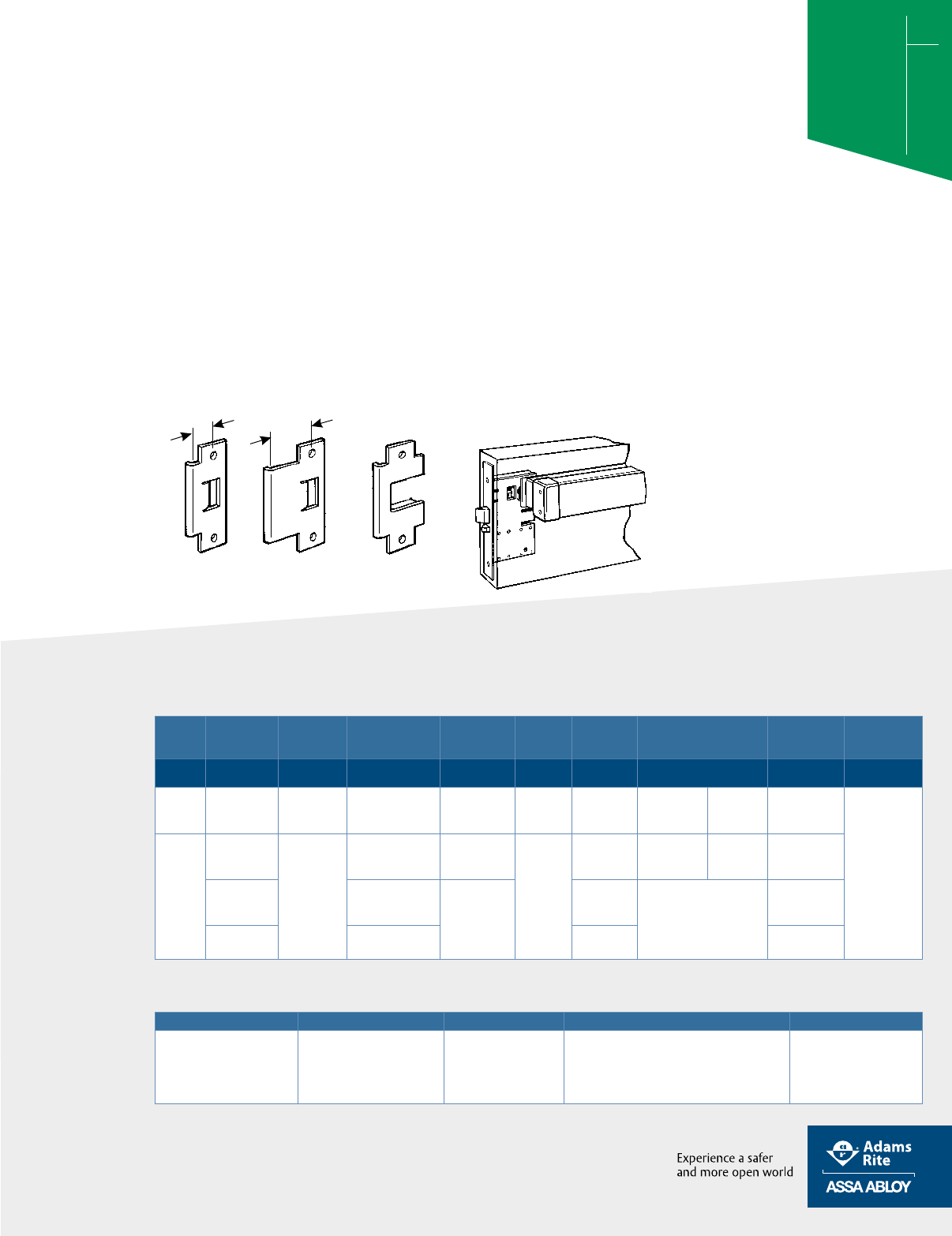

How to Order & Related Products

MS1850S, MS1850S-X5X Series MS® Deadlock: Specify quantity and the following information. Order related products separately.

PRODUCT NO. FACEPLATE BACKSET BOLT SHAPE HANDING FINISH

MS185 0S -2 1 0 -628

0S Flat 1 7/8" 1 Straight bolt 0 Non-Handed* 313 Dark Bronze Anodized

1S Radius 2 31/32" 5 Hookbolt 5 LH or RHR 335 Black Anodized

1SW Radius with

weatherstrip 3 1-1/8" 6 RH or LHR 628 Clear Anodized

2S Bevel 4 1-1/2"

3S Without faceplate,

without strike plate

*Any ﬂat or radius faceplate, except Schoolhouse. Select handing for bevel faceplate only.

1850S-X2X Series Short Throw Deadlock: Specify quantity and the following information. Order related products separately.

MODEL FACEPLATE BACKSET BOLT SHAPE HANDING FINISH

185 0S -2 2 0 -628

0S Flat 2 31/32" 2 Short Throw 0 Non-Handed* 313 Dark Bronze Anodized

1S Radius 3 1-1/8" 5 LH or RHR 335 Black Anodized

2S Bevel 4 1-1/2" 6 RH or LHR 628 Clear Anodized

3S Without faceplate,

without strike plate

*Any ﬂat or radius faceplate, except Schoolhouse. Select handing for bevel faceplate only.

RELATED — MS1850S & MS1850S-X5X

When purchasing this product, please consider the following related products, available separately:

TRIM CYLINDERS ACCESSORIES SPECIAL ORDER OPTIONS

3090-150, A100 Series

Keyless Entry, 4550

Deadlock Lever

Standard 1" length, 1-5/32” diameter

mortise cylinder with MS® cam such

as 4036 Mortise Cylinder, 4066

Thumbturn; MS4043 Cylinder Guard

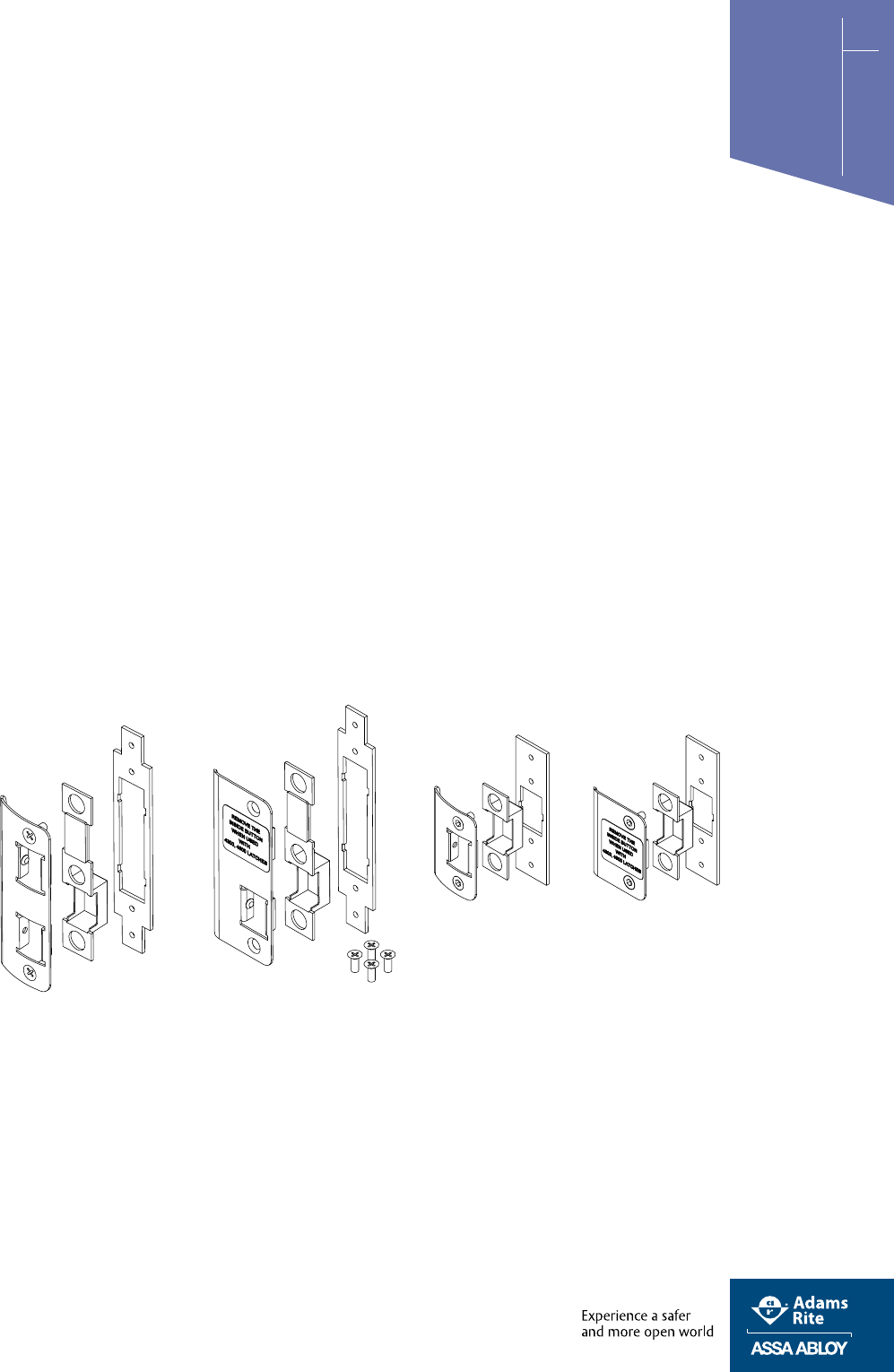

4000, 4001, MS4002 Deadlock Strikes

4015 Threshold Bolt, 4016 Header

Bolt for multi-point locking.

4085 Header Bolt for pairs of doors

Lock mounting accessories and options

4089 Exit Indicator

Schoolhouse function available

as special order.

DEADLOCKS

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

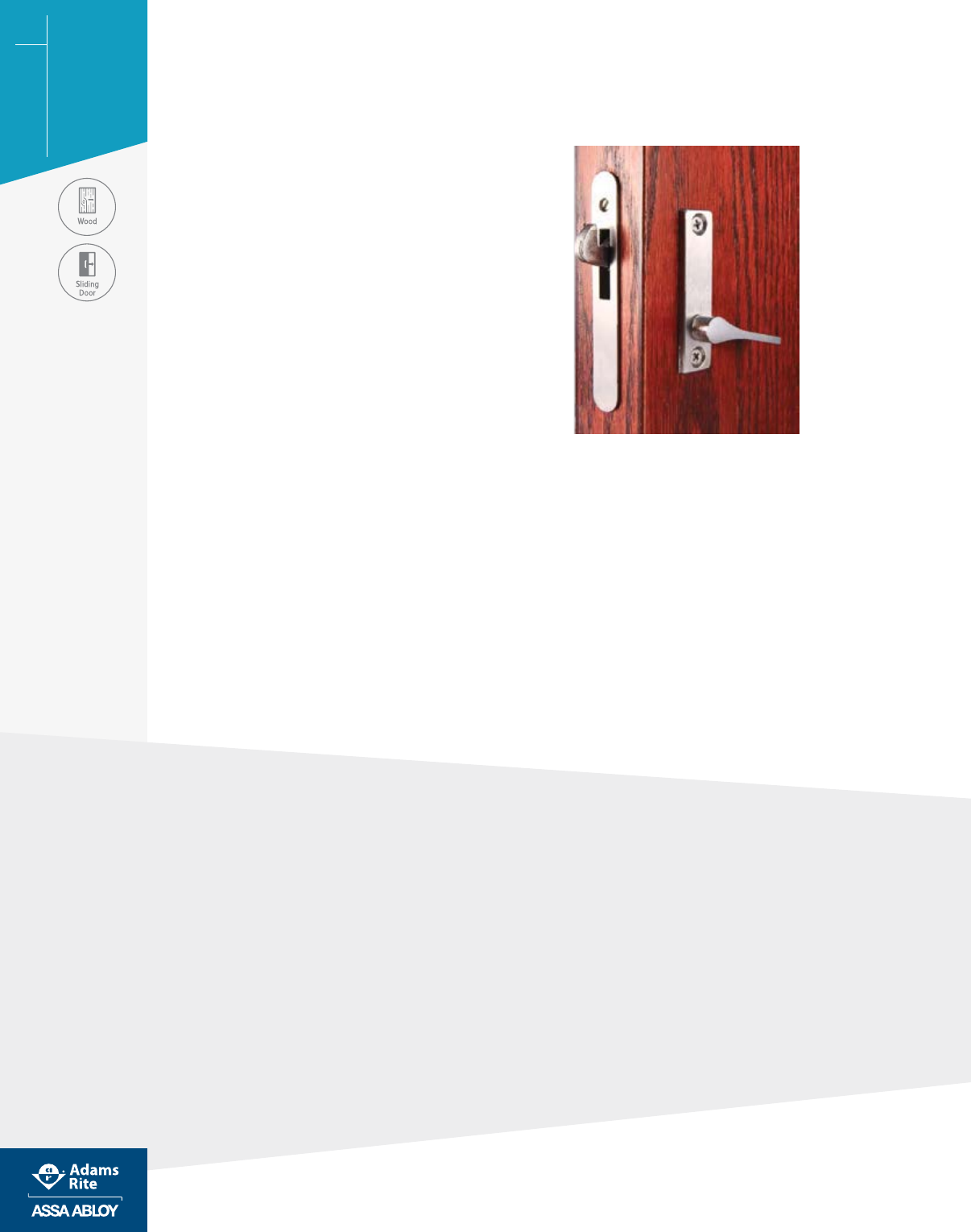

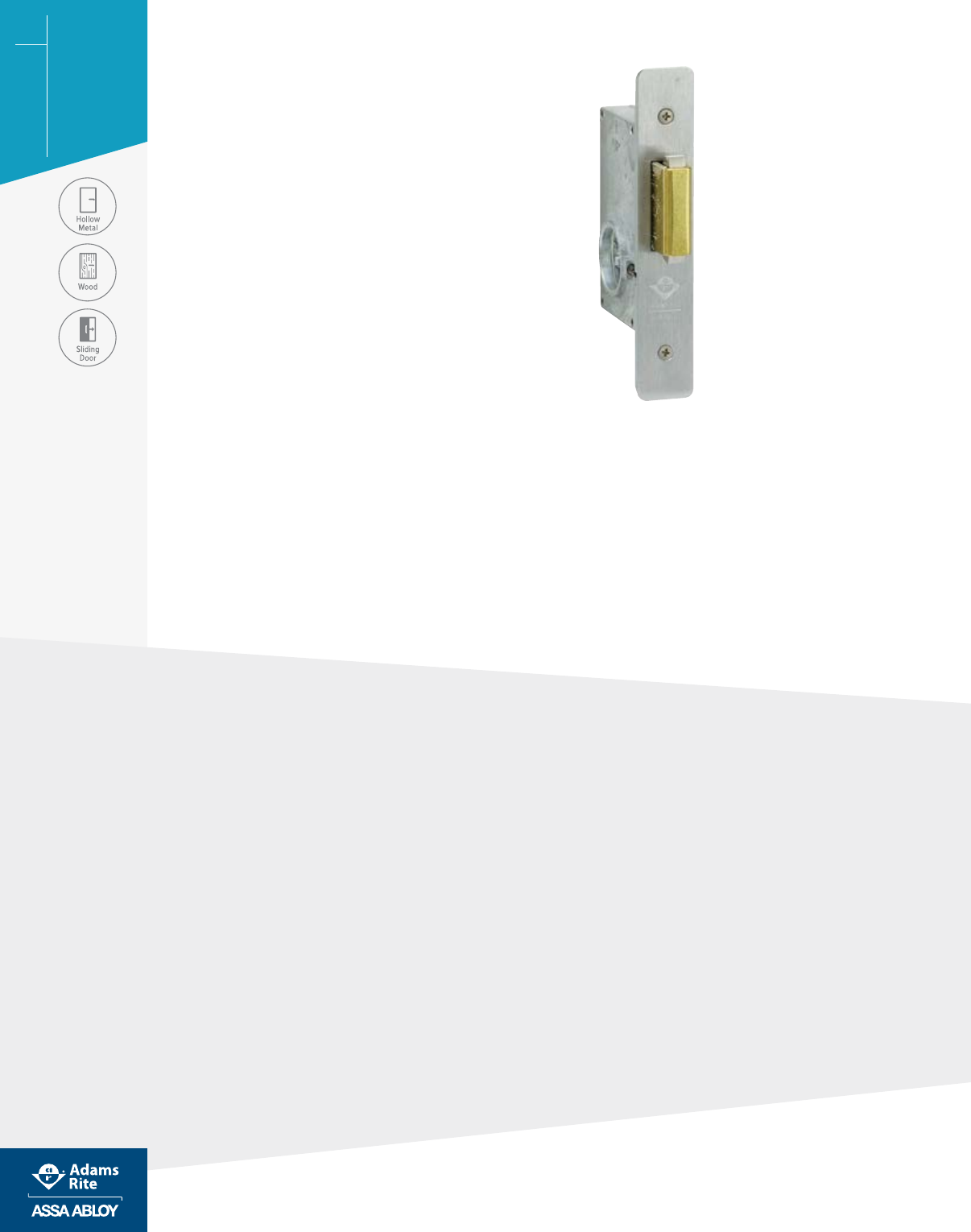

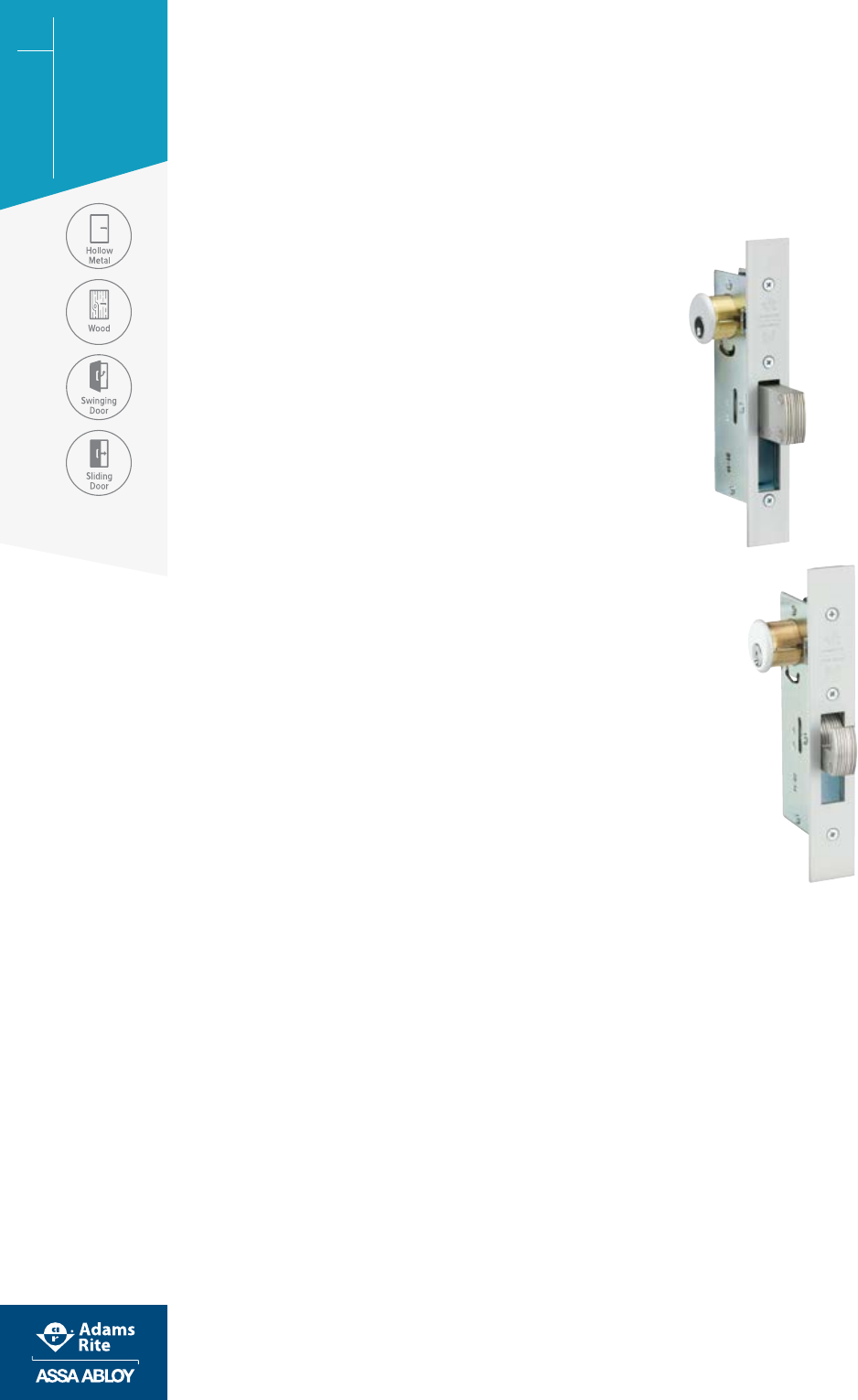

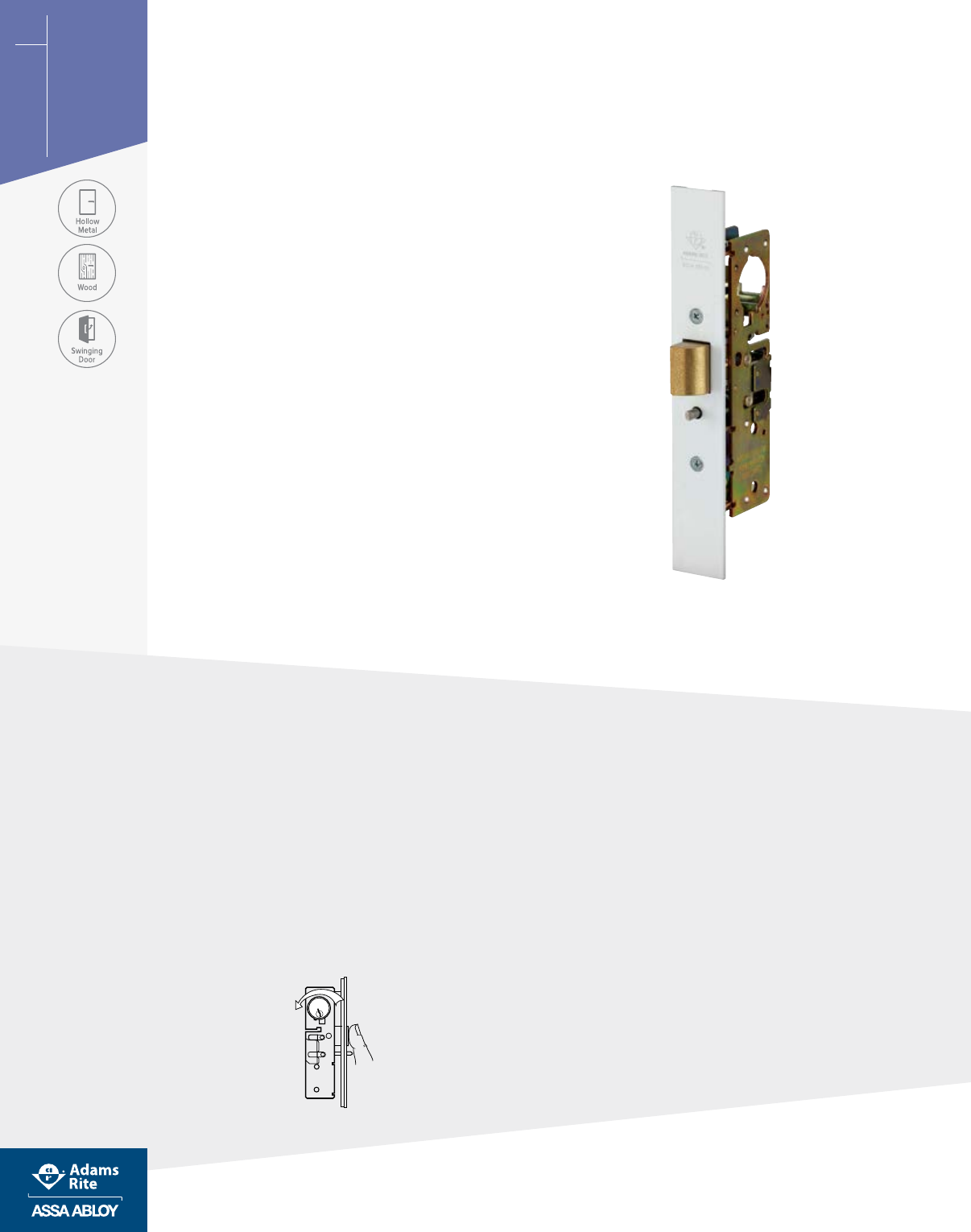

The ANSI size MS1850SN Series MS® Deadlock

utilizes a laminated stainless steel bolt and the

ANSI size MS1850SN-45X Series MS Deadlock

utilizes a stainless steel hookbolt, both activated

by a pivot mechanism to provide maximum

security for hollow metal or wood doors.

Function

For hollow metal or wood doors prepared for hardware according

to the speciﬁcations of the American National Standards

Institute (ANSI), the MS1850SN Series MS® Deadlock provides

maximum security and ease of installation. Its standard 1-1/2”

[38.1 mm] backset dimension provides adequate clearance for

the deep stop on the door jamb of hollow metal entrances.

The ANSI size MS1850SN-45X Series MS® Deadlock provides

maximum security and ease of installation for hollow metal

or wood sliding doors. Its standard 1-1/2” [38.1 mm] backset

dimension provides adequate clearance for the deep jamb

“pocket” of many commercial and industrial entrances. The

locking mechanism is identical to the widely used MS1850S

Series MS Deadlock, except that the massive laminated bolt is

provided in a hook shape to resist the parting motion of sliding

door and jamb. The over-center maximum security (MS) locking

action assures that forced entry attempts to pry the door in any

direction, up, down, or sideways will be defeated. Also useful

for swinging doors closing against jambs too shallow for the

1-3/8” [34.9 mm] throw of the MS1850SN Series MS® Deadlock.

Operation

360° turn of key or thumbturn projects or retracts the

counterbalanced bolt. Key can be removed only when bolt is

in a positively locked or unlocked position. Lock accepts any

standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise

cylinder with MS® cam such as the 4036 Mortise Cylinder, available

separately or thumbturn such as the 4066 Thumbturn, available

separately. Lock accepts cylinder from either or both sides.

Series MS® Deadlocks

MS1850SN,

MS1850SN-45X

MS1850SN

MS1850SN-45X

MS1850SN

-450 only

MS1850SN,

MS1850SN-

45X

Series MS®

Deadlocks

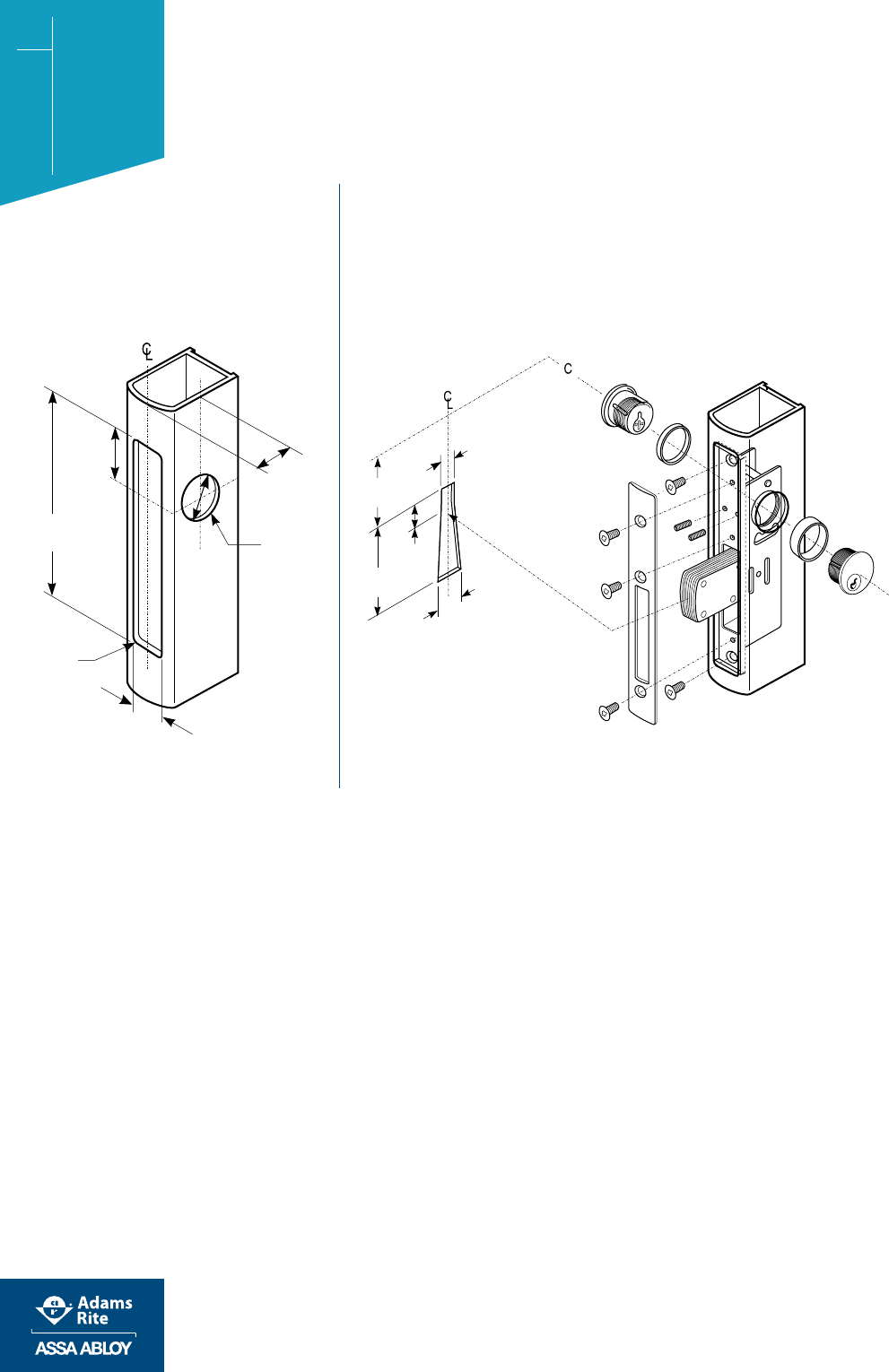

STILE

1/4"

6.4mm

2-9/64"

54.4mm

1-1/4"

31.8mm

DIA.

8-1/64"

203.6mm

203.2mm

1-1/4"

31.8mm

1-17/64"

32.1mm

3-3/8"

85.7mm

4-7/8"

123.8mm

53/64"

21mm

1-1/2"

38.1mm

BACKSET

1-1/4"

31.8mm

19/32"

15.1mm

2-7/32"

56.4mm

53/64"

21mm

1-17/32"

38.9mm

7-15/16"

201.6mm

152.4mm

59/64"

23.4mm

11/32"

8.7mm

7-1/4"

184.2mm

1/4"

6.4mm

1-25/64"

35.3mm

11/16"

17.5mm

59/64"

22.6mm

3-3/8"

85.7mm

1-3/8"

34.9mm STRIKE

CUTOUT

25.4mm

LOCK & STILE

CYLINDER

Shown with

Flat faceplate

Backset measured

at centerline of

stile nose

DEADLOCKS

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

MS1850SN,

MS1850SN-

45X

Series MS®

Deadlocks

MS1850SN

Dimensions

MS1850S-45X

Dimensions

Features

Backset

1-1/2” [38.1 mm] available only

Case

Measures 1” x 6” x 2-1/4”

[25.4 mm x 152.4 mm x 57.2 mm]. Steel

with corrosion-resistant plating.

Bolt

Eight-ply laminated stainless steel. Center ply

has alumina-ceramic core to defeat any hacksaw

attack, including rod-type “super” hacksaws.

MS1850SN: Standard straight bolt measures

5/8" x 1-3/8" x 2-7/8" [15.9 mm x 34.9 mm x

73.0 mm] with 1-3/8" [34.9 mm] throw.

MS1850SN-45X: Hookbolt measures 5/8" x 1-3/8"

[15.9 mm x 34.9 mm] with 13/16" [20.6 mm] throw.

Hook shape repels pry bar attempts to “spread”

the door from its jamb or lift it o its track.

Faceplate

Measures 1-1/4” x 8” [31.8 mm x 203.2 mm].

Strike

See below for dimensions of strike slot which

can be cut in metal jamb. Lipped, ANSI-spec,

and other strike plates available separately.

Standard Package

Individually boxed with faceplate and

mounting screws. Strike plates, cylinders and/

or thumbturns available separately.

Shipping Weight

1-1/2 lbs [0.68 kg].

Options

• “SCHOOLHOUSE” version, also available, is

modiﬁed so that operation from inside is “unlock

only”. This lock is handed and must be speciﬁed

LH or RH. Specify SCH1850SN or SCH1850SN-450

Series. Same faceplate and backset options

as MS1850SN or MS1850SN-450 Series.

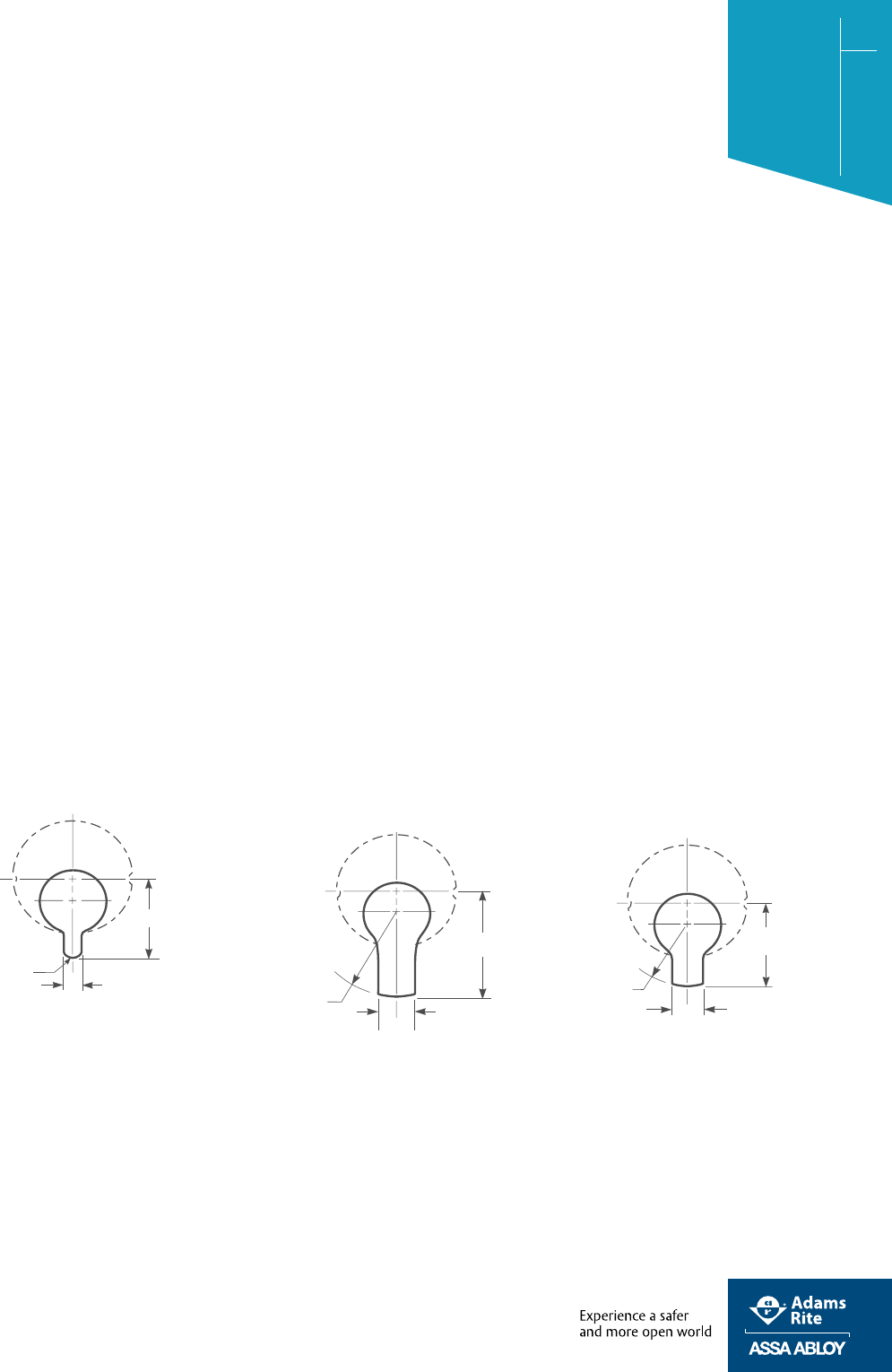

FLAT

CYLINDER C

RADIUS

BEVEL

HOW BACKSET

IS MEASURED:

ARMORED FACEPLATE

11/4" X 8"

FLAT MS1850SN

RADIUS MS1851SN

LH BEVEL MS1852SN-X15

RH BEVEL MS1852SN-X16

2-3/16"

55.6mm

1-15/16"

49.2mm

1/4"

6.4mm

11/16"

17.5mm

1-17/64"

32.1mm 1-17/64"

32.1mm

1-1/4"

31.8mm

25.4mm

1/4"

6.4mm

2-3/8"

60.3mm

7/8"

22.2mm

1-1/2"

38.1mm

1-1/4"

31.8mm

2-9/32"

57.9mm 2-9/64"

54.4mm

8-1/64"

203.6mm

8-1/64"

203.6mm

59/64"

23.4mm

LOCK & STILE

Backset

1-1/2"

38.1mm

Backset

DIA.

STILE

Dia.

TYP.

STRIKE

CUTOUT

CYLINDER

SHOWN WITH

FLAT FACEPLATE

BACKSET MEASURED

AT CENTERLINE OF STILE

NOSE

152.4mm

13/32"

10.3mm

5/8"

15.9mm

51/64"

20.2mm

1/4"

6.4mm

1-1/4"

31.8mm

19/32"

15.1mm

2-7/32"

56.4mm

53/64"

21mm

1-15/32"

37.3mm

1-15/32"

37.3mm

11/32"

8.7mm

31/32"

24.6mm

203.2mm

7-15/16"

201.6mm

7-1/4"

184.2mm

DEADLOCKS

Updated: December 21, 2020

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

2-3/16"

55.6mm

1-15/16"

49.2mm

1/4"

6.4mm

11/16"

17.5mm

1-17/64"

32.1mm 1-17/64"

32.1mm

1-1/4"

31.8mm

25.4mm

1/4"

6.4mm

2-3/8"

60.3mm

7/8"

22.2mm

1-1/2"

38.1mm

1-1/4"

31.8mm

2-9/32"

57.9mm 2-9/64"

54.4mm

8-1/64"

203.6mm

8-1/64"

203.6mm

59/64"

23.4mm

LOCK & STILE

Backset

1-1/2"

38.1mm

Backset

DIA.

STILE

Dia.

TYP.

STRIKE

CUTOUT

CYLINDER

SHOWN WITH

FLAT FACEPLATE

BACKSET MEASURED

AT CENTERLINE OF STILE

NOSE

152.4mm

13/32"

10.3mm

5/8"

15.9mm

51/64"

20.2mm

1/4"

6.4mm

1-1/4"

31.8mm

19/32"

15.1mm

2-7/32"

56.4mm

53/64"

21mm

1-15/32"

37.3mm

1-15/32"

37.3mm

11/32"

8.7mm

31/32"

24.6mm

203.2mm

7-15/16"

201.6mm

7-1/4"

184.2mm

MS1850S-45X

Stile & Wood Preparation

MS1850SN,

MS1850SN-

45X

Series MS®

Deadlocks

STILE

1/4"

6.4mm

2-9/64"

54.4mm

1-1/4"

31.8mm

DIA.

8-1/64"

203.6mm

203.2mm

1-1/4"

31.8mm

1-17/64"

32.1mm

3-3/8"

85.7mm

4-7/8"

123.8mm

53/64"

21mm

1-1/2"

38.1mm

BACKSET

1-1/4"

31.8mm

19/32"

15.1mm

2-7/32"

56.4mm

53/64"

21mm

1-17/32"

38.9mm

7-15/16"

201.6mm

152.4mm

59/64"

23.4mm

11/32"

8.7mm

7-1/4"

184.2mm

1/4"

6.4mm

1-25/64"

35.3mm

11/16"

17.5mm

59/64"

22.6mm

3-3/8"

85.7mm

1-3/8"

34.9mm STRIKE

CUTOUT

25.4mm

LOCK & STILE

CYLINDER

Shown with

Flat faceplate

Backset measured

at centerline of

stile nose

STILE

1/4"

6.4mm

2-9/64"

54.4mm

1-1/4"

31.8mm

DIA.

8-1/64"

203.6mm

203.2mm

1-1/4"

31.8mm

1-17/64"

32.1mm

3-3/8"

85.7mm

4-7/8"

123.8mm

53/64"

21mm

1-1/2"

38.1mm

BACKSET

1-1/4"

31.8mm

19/32"

15.1mm

2-7/32"

56.4mm

53/64"

21mm

1-17/32"

38.9mm

7-15/16"

201.6mm

152.4mm

59/64"

23.4mm

11/32"

8.7mm

7-1/4"

184.2mm

1/4"

6.4mm

1-25/64"

35.3mm

11/16"

17.5mm

59/64"

22.6mm

3-3/8"

85.7mm

1-3/8"

34.9mm STRIKE

CUTOUT

25.4mm

LOCK & STILE

CYLINDER

Shown with

Flat faceplate

Backset measured

at centerline of

stile nose

Stile Preparation Lock & Cylinder Installation

MS1850SN

DEADLOCKS

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

2-3/16"

55.6mm

1-15/16"

49.2mm

1/4"

6.4mm

11/16"

17.5mm

1-17/64"

32.1mm 1-17/64"

32.1mm

1-1/4"

31.8mm

25.4mm

1/4"

6.4mm

2-3/8"

60.3mm

7/8"

22.2mm

1-1/2"

38.1mm

1-1/4"

31.8mm

2-9/32"

57.9mm 2-9/64"

54.4mm

8-1/64"

203.6mm

8-1/64"

203.6mm

59/64"

23.4mm

LOCK & STILE

Backset

1-1/2"

38.1mm

Backset

DIA.

STILE

Dia.

TYP.

STRIKE

CUTOUT

CYLINDER

SHOWN WITH

FLAT FACEPLATE

BACKSET MEASURED

AT CENTERLINE OF STILE

NOSE

152.4mm

13/32"

10.3mm

5/8"

15.9mm

51/64"

20.2mm

1/4"

6.4mm

1-1/4"

31.8mm

19/32"

15.1mm

2-7/32"

56.4mm

53/64"

21mm

1-15/32"

37.3mm

1-15/32"

37.3mm

11/32"

8.7mm

31/32"

24.6mm

203.2mm

7-15/16"

201.6mm

7-1/4"

184.2mm

MS1850SN,

MS1850SN-

45X

Series MS®

Deadlocks

MS1850S-45X

Lock & Cylinder Installation

How to Order & Related Products

MS1850SN, MS1850SN-45X Deadlock: Specify quantity and the following information. Order related products separately.

MODEL FACEPLATE ANSI SIZE BOLT SHAPE HANDING FINISH

MS185 0 SN -41 0628

0 Flat 41 Straight bolt 0 Non-Handed* 313 Dark Bronze Anodized

1 Radius 45 Hookbolt 5 LH or RHR 335 Black Anodized

2 Bevel 6 RH or LHR 628 Clear Anodized

*Any ﬂat or radius faceplate, except Schoolhouse. Select handing for bevel faceplate only.

RELATED – MS1850SN & MS1850SN-45X

When purchasing this product, please consider the following related products, available separately:

TRIM CYLINDERS ACCESSORIES SPECIAL ORDER OPTIONS

3090-150, A100 Series

Keyless Entry, 4550

Deadlock Lever

Standard 1" length, 1-5/32”

diameter mortise cylinder with

MS® cam such as 4036 Mortise

Cylinder, 4066 Thumbturn;

MS4043 Cylinder Guard

4000, 4001, MS4002 Deadlock Strikes

4015 Threshold Bolt, 4016 Header

Bolt for multi-point locking.

4085 Header Bolt for pairs of doors

Lock mounting accessories and options

4089 Exit Indicator

Schoolhouse function

available as special order.

DEADLOCKS

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Features

Cylinder Backset

Minimum backset is approximately

2-1/4" [57.2 mm] for the MS1861- 01

conﬁguration with vertical bolt only.

The MS1861-02 conﬁguration with

both vertical and horizontal bolts

requires placement of cylinder center

line 5-3/4" [146.1 mm] from nose of

door. Both have cylinder center 1-7/8"

[47.6 mm] above bottom edge of door.

Case

Measures 1" x 6" x 1-13/16" [25.4

mm x 152.4 mm x 46.0 mm]. Steel

with corrosion-resistant plating.

Bolt

3/8" [9.5 mm] diameter. Stainless steel

vertical threshold bolt has 13/16" [20.6

mm] throw. Hardened steel horizontal

bolt has 1-1/8" [28.6 mm] throw.

Strike

In metal installation, 7/16" [11.1 mm]

drilled holes in threshold are required.

For MS1861-02 conﬁguration with

both vertical and horizontal bolts,

drilled holes are also required

in jamb or opposite door.

Standard Package

Individually boxed with mounting

screws. Cylinder and/or thumbturn

available separately. If required, tube

spacers are available separately.

Shipping weight

MS1861-01: 1-3/4 lbs [0.79 kg],

MS1861-02: 2 lbs [0.91 kg]

Options

• Vertical bolt only (-01)

• Vertical and horizontal bolts (-02)

MS® Bottom Rail Deadbolt

MS1861 Bottom Rail Deadbolt

provides maximum security with MS

deadbolt locking mechanism. It utilizes

hardened steel bolts for the limited

space of ultra-narrow stile doors.

Function

The MS1861 lies horizontally in the bottom rail of ultra-narrow stile doors

which have insucient vertical space for a lock, or tempered glass

doors which have no stile at all. The hardened steel cylindrical bolts

allow simple drilled strike holes of a relatively small size to minimize the

nuisance and danger presented by some threshold strikes in collecting

debris or snagging on high-heeled shoes. MS1861-02 locks either

single-leaf or pairs of doors. Not recommended for wood doors.

Operation

360° turn of key or thumbturn projects or retracts bolt(s). Key can

be removed only when bolts are in a positively locked or unlocked

position. Lock accepts any standard 1" [25.4 mm] length, 1-5/32"

[29.4 mm] diameter mortise cylinder with MS® cam such as the 4036

Mortise Cylinder or thumbturn such as the 4066 Thumbturn, available

separately. Lock accepts cylinder from either or both sides.

MS1861 Series

MS® Bottom

Rail Deadbolt

DEADLOCKS

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

3/4"

19.1mm 1"

25.4mm

63/64"

25mm

25.4mm

1-1/4"

31.8mm

3/8"

9.5mm

2-1/2"

63.5mm

1-7/8"

47.6mm

1-55/64"

47.2mm

3-5/8"

92.1mm

5-25/64"

136.9mm

7-15/16"

201.6mm

3/8"

9.5mm

1-1/8"

21.6mm

101.6mm

9/16"

14.3mm

BOTTOM RAIL

MTG. WEB

TUBE

SPACER #10-32

DRILL & TAP

TYP.

DIA.

7/16"

11.1mm

1/4"

6.4mm

1/2"

12.7mm

9/16"

14.3mm

7-1/4"

184.2mm

6-1/8"

155.6mm

101.6mm

50.8mm

DIA.

5-49/64"

146.4mm

BACKSET

#8-32

DRILL & TAP

TYP.

CYLINDER

MIN.

CHANNEL

DEPTH

THROW

DIA.

BOTTOM

OF DOOR

RAIL

WITHOU

WEB

Tube spacers may be required to

position lock mechanism.

Bottom door rails with web will

require machining as shown.

Position of web will determine

tube spacer requirement and

tube spacer length.

MS1861 Series

MS® Bottom

Rail Deadbolt

How to Order & Related Products

MS1861 Series MS® Bottom Rail Deadlock: Specify quantity and the following information. Order related products separately.

MODEL BOLT OPERATION FINISH PACKAGING

MS1861 -01 -603 -IB

01 Vertical Bolt Only 603 Zinc plated steel IB Individually Boxed

02 Vertical and Horizontal Bolts

If tube spacers are required, specify QUANTITY and LENGTH..

When purchasing this product, please consider the following related products, available separately:

CYLINDERS ACCESSORIES

Standard 1" length, 1-5/32" diameter

mortise cylinder with MS® cam such as

4036 Mortise Cylinder, 4066 Thumbturn

MS4043 Cylinder guard

4014 Conversion Kit for multi-point locking.

MS1861 may be ordered with vertical and

horizontal bolts (Bolt Operation option 2).

Tube spacers (26-00090XX)"

4014 Conversion Kit

To convert MS1861-01 to MS1861-02, 4014

Conversion Kit provides horizontal bolt

assembly with guide and attachment ﬁttings.

To assemble, press pin through disc and arm.

Lock & Cylinder

Installation

Rail Preparation

Dimensions

The 4014 Conversion Kit consists of:

Arm & Bolt

Assembly

Bolt Guide

Bracket

Assembly Pin

Mounting Screws

Unit illustrated is MS1861-02. (Both

horizontal & vertical bolts included.)

Part number for vertical bolt operation

only is MS1861-01. Conversion Kit no.

4014 available to convert

MS1861-01 to MS1861-02.

DEADLOCKS

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Features

Cylinder Backset

Bolt arms require inside stile

clearance of 1-11/16" [42.9 mm]

on one side of cylinder center,

1" [25.4 mm] on the other.

Case

Measures 1" x 6" x 2-5/8"

[25.4 mm x 152.4 mm x 66.7 mm].

Steel with corrosion-resistant plating.

Bolt Arms

1-1/32" [26.2 mm] throw. Threaded

for 1/4" – 20 rods. Because of design

variations in this type of door, no

standard bolt can be oered to ﬁt

all makes of doors. Please contact

factory for more information on

bolts, rods, bolt guides, and strikes

to ﬁt individual door designs.

Turn

4060 Turn: Available separately.

Zinc alloy escutcheon and handle.

Available in 130 to match 628 Clear

Anodized ﬁnish. Steel spindle is

also available to accommodate

various door thicknesses.

Standard Package

Individually boxed. Cylinder and/

or thumbturn available separately.

Shipping weight

1-1/2 lbs [0.68 kg]

Options

• 4060 Turn available separately

with choice of spindle lengths

• Bolt, connecting rod, bolt

guide, strike available

separately by special order

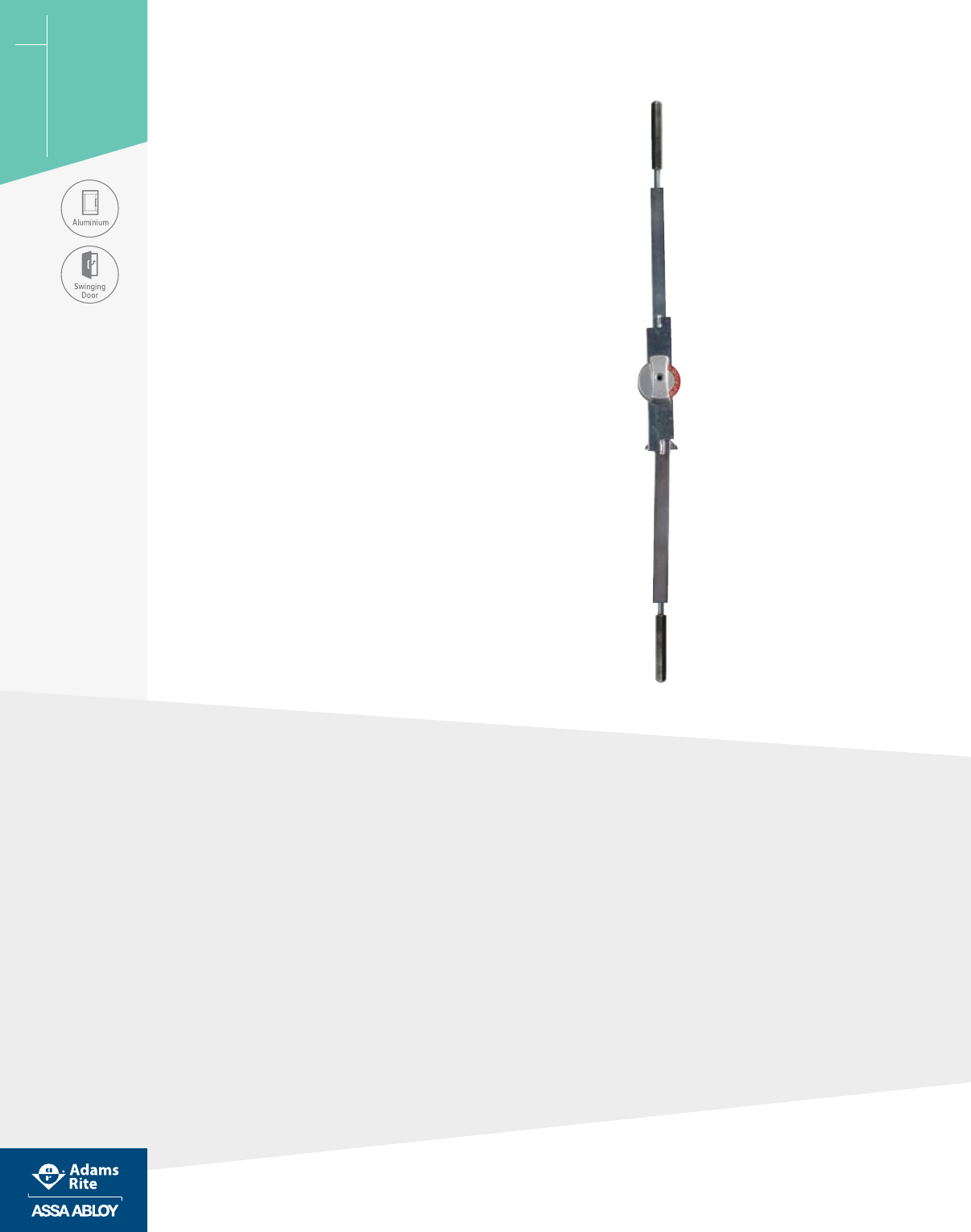

Two-Point Deadlock

1875 Two-Point Deadlock provides

security for roll-up doors, security

screens, or similar doors. Two-

point locking is achieved using

two bolts, which are operational

from either or both sides of the deadlock.

Function

For overhead doors, roll-up security screens, or similar doors.

Provides turn operation of two bolts from either or both sides.

Accepts standard mortise cylinders for key control of bolts

to secure them in either projected or retracted position.

Operation

90° rotation of turn projects or retracts bolts. 360° turn of

key deadlocks mechanism, preventing operation of the

turn in either locked or unlocked position. Lock accepts any

standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter

mortise cylinder with MS® cam such as the 4036 Mortise

Cylinder or thumbturn such as the 4066 Thumbturn, available

separately. Lock accepts cylinder from either or both sides.

1875

Two-Point

Deadlock

DEADLOCKS

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

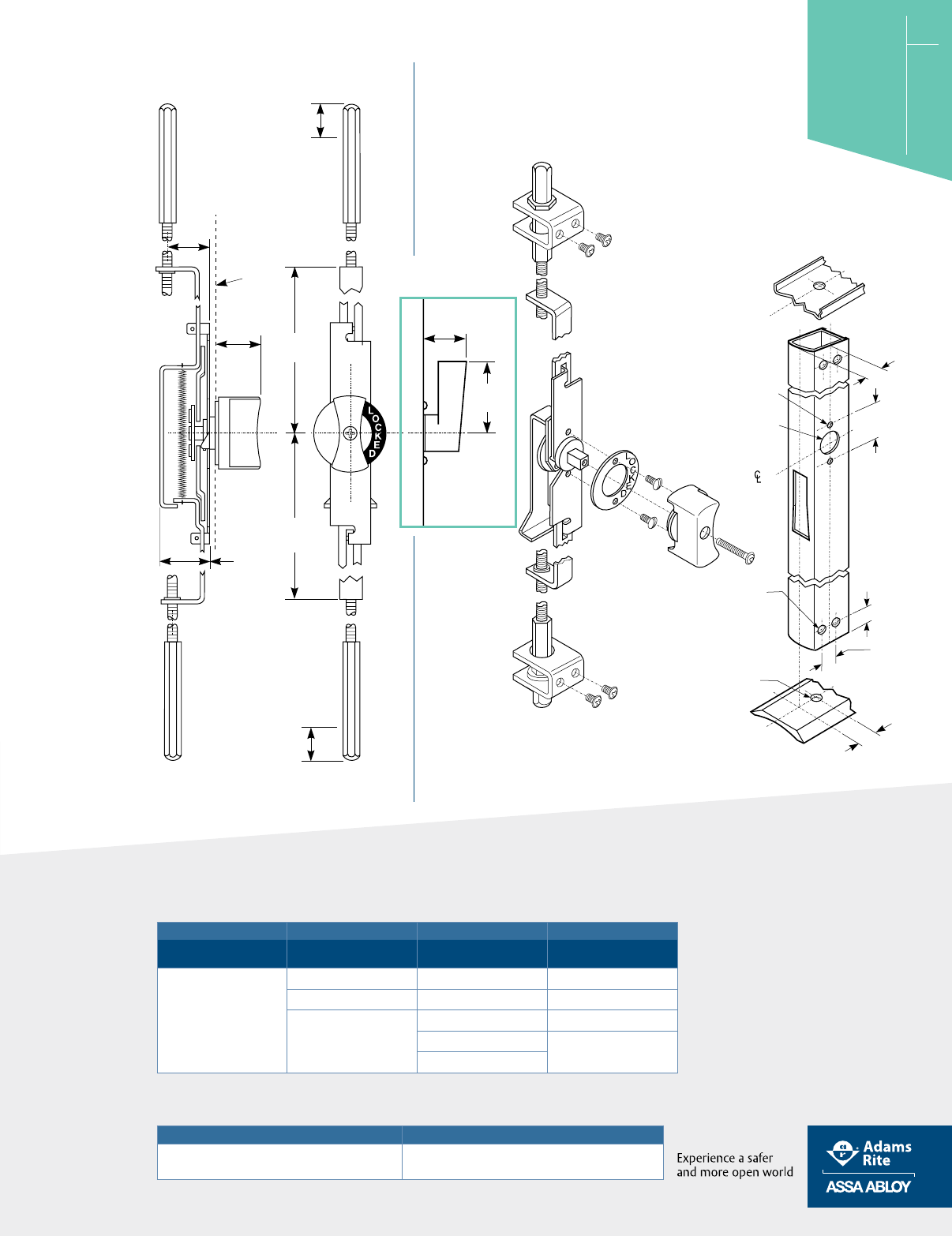

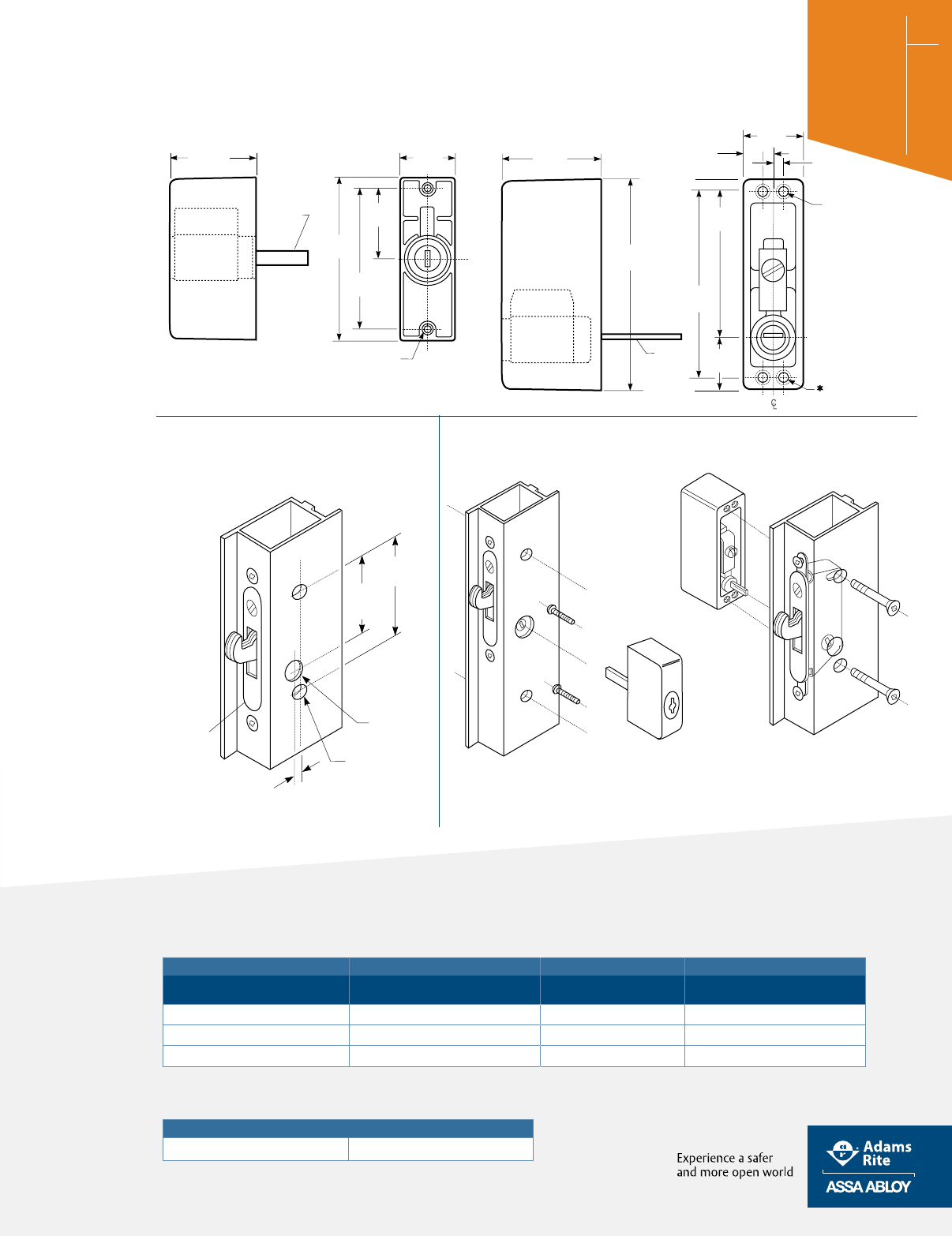

7-15/16"

201.6mm

7-1/4"

184.2mm

152.4mm

1-1/32"

26.2mm

3-1/2"

88.9mm

8-63/64"

228.2mm1-63/64"

50.4mm

TRAVEL

1-1/32"

26.2mm

25.4mm

1-21/32"

42.1mm

11/32"

8.7mm

1-1/64"

25.8mm

TRAVEL

1-1/4"

31.8mm

2-7/8"

73mm

2-1/8"

54mm

1-23/32"

43.7mm 2-5/8"

66.8mm

25.4mm

7/8"*

22.2mm

51/64"

20.2mm

1-1/2"

38.1mm

2-1/8"

54mm

3-15/32"

88.1mm

1-1/4"

31.8mm

10-32 NF, 2 PLCS

(HOLE LOCATION

FOR 4060 HANDLE

ASSY)

NOTE: Installation requirements

vary according to rail design

DIA.

3/16"

4.8mm

1/2"

12.7mm

3/8"

9.5mm

DIA.

(2 plcs)

11/16"

17.5mm

MIN.

1-11/16"

42.9mm MIN.

23/32"

18.3mm

*FOR 1-3/4" THICK DOOR

1/4-20 NC

(2 plcs)

MAX.

1875

Two-Point

Deadlock

How to Order & Related Products

1875 Two Point Deadlock: Specify quantity and the following information. Order related products separately.

MODEL PACKAGING

1875 -IB

IB Individually Boxed

4060 Turn: Specify quantity and the following information. Order related products separately.

MODEL DOOR THICKNESS FINISH

4060 -05 -130

05 1-1/2"

130 To match 628 Clear Anodized06 1-3/4"

07 2"

RELATED When purchasing this product, please consider the following related products, available separately:

CYLINDERS ACCESSORIES SPECIAL ORDER OPTIONS

Standard 1" length, 1-5/32”

diameter mortise cylinder with

MS® cam such as 4036 Mortise

Cylinder, 4066 Thumbturn

MS4043

Cylinder guard

4060 Turn 31-0278-XX Bolt and

Connecting Rod Assembly

by special order only.

Dimensions

4060 Turn Installation

DEADLOCKS

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Features

Cylinder Backset

31/32" [24.6 mm], 1-1/8"

[28.6 mm], or 1-1/2" [38.1 mm].

Case

Measures 1" x 7-3/8" x depth [25.4 mm

x 187.3 mm x depth], depth varies by

backset (see table on back of page).

Steel with corrosion-resistant plating.

Bolt

Deadlock bolt: 5/8" x 1-3/8" [15.9

mm x 34.9 mm] with 13/16" [20.6 mm]

throw. Eight-ply laminated stainless

steel. Center ply has alumina-

ceramic core to defeat any hacksaw

attack, including rod-type “super”

hacksaws, while hook shape repels

pry bar attempts to “spread” the door

from its jamb or lift it o its track.

Latchbolt: Measures 5/8" x 5/8"

[15.9 mm x 15.9 mm] with 7/16" [11.1

mm] throw. Zinc alloy with Delrin

face for smooth, quiet action.

Handing easily reversible. Bolt can

be held fully retracted to allow

door to be free swinging (see

illustration on back of page).

Strike

Armored strike with satin stainless

steel trimplate with steel mounting

plate and dust box. Flat strike

furnished. Also available for pairs

of doors in radius shape, or ﬂat

with square corners for ANSI

hollow metal jambs. Flat strikes

also available with longer lip.

MS+1890 Deadlock/Latch cannot

be used with electric strikes.

Standard Package

Individually boxed with strike and

machine screws for mounting. Cylinder

and/or thumbturn available separately.

Shipping weight

2 lbs [.91 kg]

Options

• Handle, paddle available

separately for one side only or

both sides. Handles, paddles on

both sides solve, with minimum

trac impediment, the problem of

doors that stand ajar due to wind

or air-conditioning pressures.

• Available in right hand or

left hand conﬁgurations

• Available in choice of 313 Dark

bronze anodized, 335 Black

anodized, 628 Clear anodized

MS® Deadlock/Deadlatch

MS+1890 Series MS Deadlock/Deadlatch provides a

maximum security deadlock for after hour and trac control

with deadlatch convenience during business hours.

Function

Maximum security MS+ deadlock after hours, plus the convenience of

trac control management during the business day. Typical installation

is a bank or store requiring three modes of door control:

1. Both lock and latchbolts retracted for unrestricted entry and exit during business hours

2. Handle-operated latch for exit-only trac just after closing

3. Maximum security MS hookbolt for overnight lockup. When using trim (available

separately) to activate, handle or paddle operates latchbolt only.

Operation

360° turn of key or thumbturn projects or retracts the hookbolt. 120° further turn retracts

latchbolt as well. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm]

diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder, or thumbturn

such as the 4066 Thumbturn, available separately. Lock accepts cylinder from either or

both sides. When using trim (available separately) to activate, handle retracts spring-

loaded latchbolt only. For door thickness other than 1-3/4”, please contact factory.

MS+1890 Series

MS+1890

Series MS®

Deadlock/

Deadlatch

DEADLOCKS

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

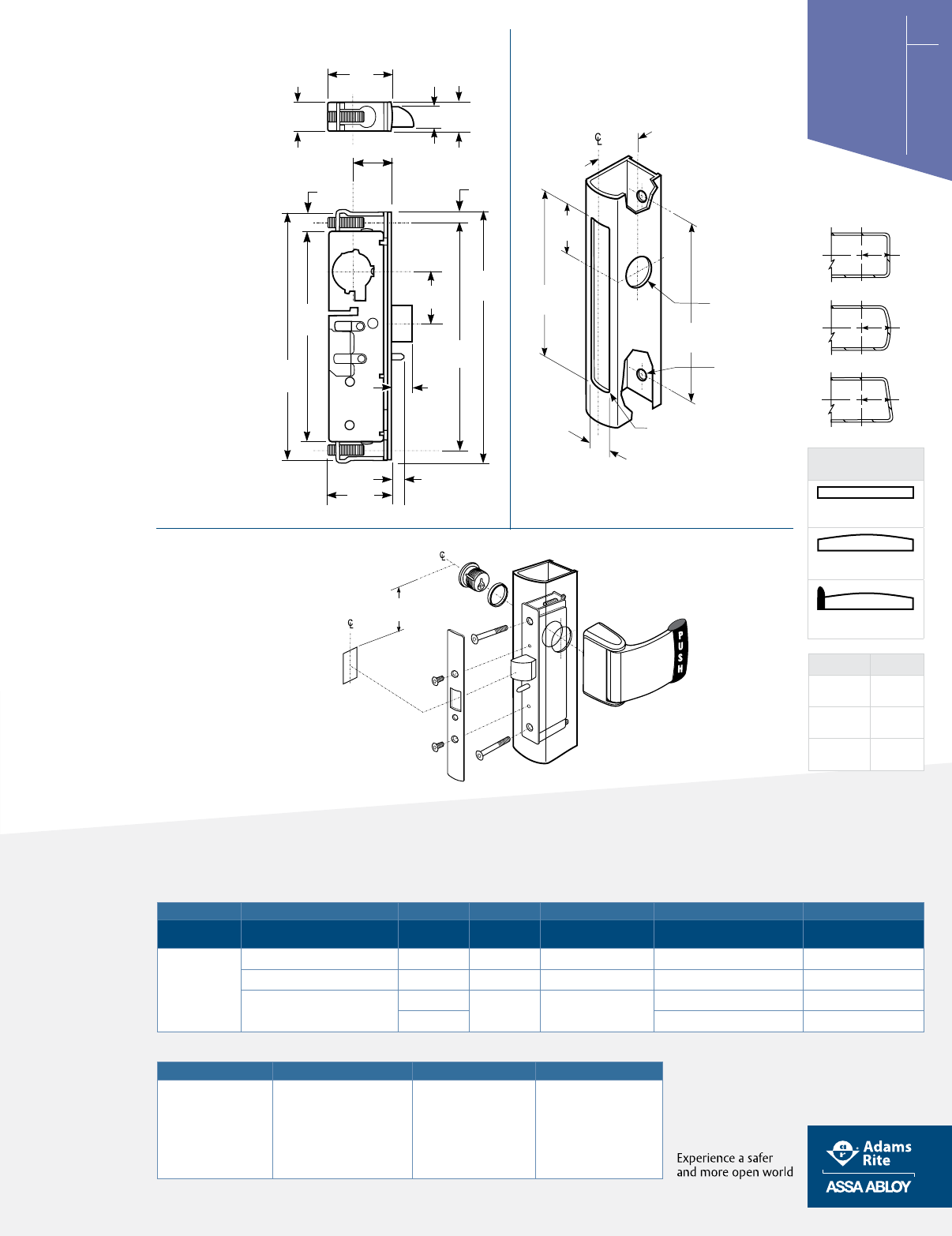

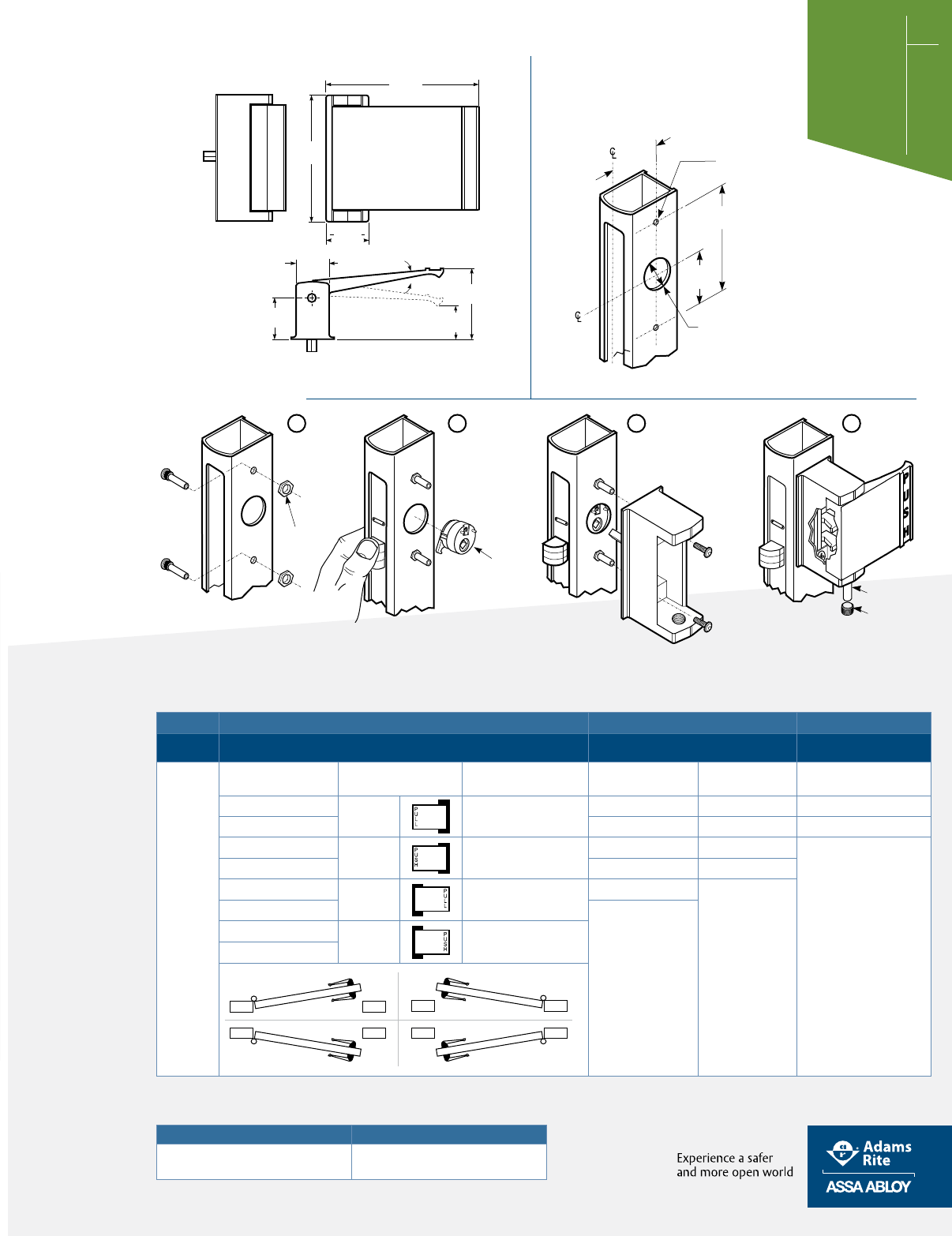

MS+1890

Series MS®

Deadlock/

Deadlatch

How to Order & Related Products

MS+1890 Series MS® Deadlock/Deadlatch: Specify quantity and the following information. Order related products separately.

MODEL FACEPLATE BACKSET STRIKE SHAPE/LIP LENGTH HANDING FINISH

MS+189 1-3 02 6-628

0 Flat 2 31/32" 01 Flat/Standard Jamb 5 LH or RHR 313 Dark Bronze Anodized

1 Radius 3 1-1/8" 02 Radius/Standard Stile 6 RH or LHR 335 Black Anodized

1W Radius with weatherstrip 4 1-1/2" 17 Flat/Center Hung 4" Jamb 628 Clear Anodized

2 Bevel 21 Flat/Center Hung 4-1/2" Jamb

3 Without faceplate, without strike plate

For door thickness other than 1-3/4", contact factory.

When purchasing this product, please consider the following related products, available separately:

TRIM CYLINDERS ACCESSORIES

4560, 4565 Deadlatch Handles, 4568,

4569 Eurostyle Deadlatch Handles,

4590, 4591 Deadlatch Paddles.

Standard 1" length, 1-5/32” diameter

mortise cylinder with MS® cam such

as 4036 Mortise Cylinder, 4066

Thumbturn; MS4043 Cylinder Guard

Trim strikes, including

4505 armored strike.

4089 Exit Indicator

Dimensions

Jamb Preparation

Stile Preparation

Latch Holdback

Instructions

FLAT

CYLINDER C

RADIUS

BEVEL

HOW BACKSET

IS MEASURED:

BACKSET “A”

31/32"

24.6mm

1-5/8"

41.3mm

1-1/8"

28.6mm

1-25/32"

45.2mm

1-1/2"

38.1mm

2-1/4"

57.2mm

ARMORED FACEPLATE

1" X 67/8"

FLAT MS+1890

RADIUS MS+1891

RADIUS W/ WEATHERSTRIP

MS+1891W

LH BEVEL MS+1892 (LH)

RH BEVEL MS+1892 (RH)

Latch/Lock, Cylinder

& Paddle Installation

“A”

63/64"

25mm

39/64"

15.5mm

53/64"

21mm

3/16"

4.8mm1/4"

6.4mm

9/16"

14.3mm

31/64"

12.3mm

51/64"

20.2mm

17/32"

13.5mm7/32"

5.6mm

6-3/8"

162mm

6-27/32"

173.8mm

7-25/64"

187.7mm

.260 SQ. BROACH

(ON DIAMOND)

UP TO

HOLD BACK

THROW

LOCKBOLT

PUSH BACK

LATCHBOLT

DOWN TO

RELEASE

Operate bolt holdback

Lever with key, nail ﬁle

Or similar tool

1/8"

3.2mm

5/32"

4mm

11/16"

17.5mm

1/4"

6.4mm

5-3/8"

136.5mm

4-57/64"

124.2mm

3-3/8"

85.7mm

4-7/8"

123.8mm

1/16"

1.6mm

3/4"

19.1mm

1-17/64"

32.1mm

5/8"

15.9mm

(COVERS ANY PREVIOUS CUTOUT FOR MS® DEADBOLT)

CYLINDER

MAXIMUM GAP

DOOR TO JAMB

(4 PLCS)

6-57/64"

175mm

5-9/16"

141.3mm

1/16"

1.6mm

1-19/32"

40.5mm

1-1/4"

31.8mm

7/16"

11.1mm

1-1/2"

38.1mm 3"

76.2mm

17/64"

6.7mm

1-1/64"

25.8mm

5/32"

4mm

(4 PLCS)

DIA.

2 PLACES:

PADDLE:

LEVER: TAP 10-32

DIA.

BACKSET

DEADLOCKS

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

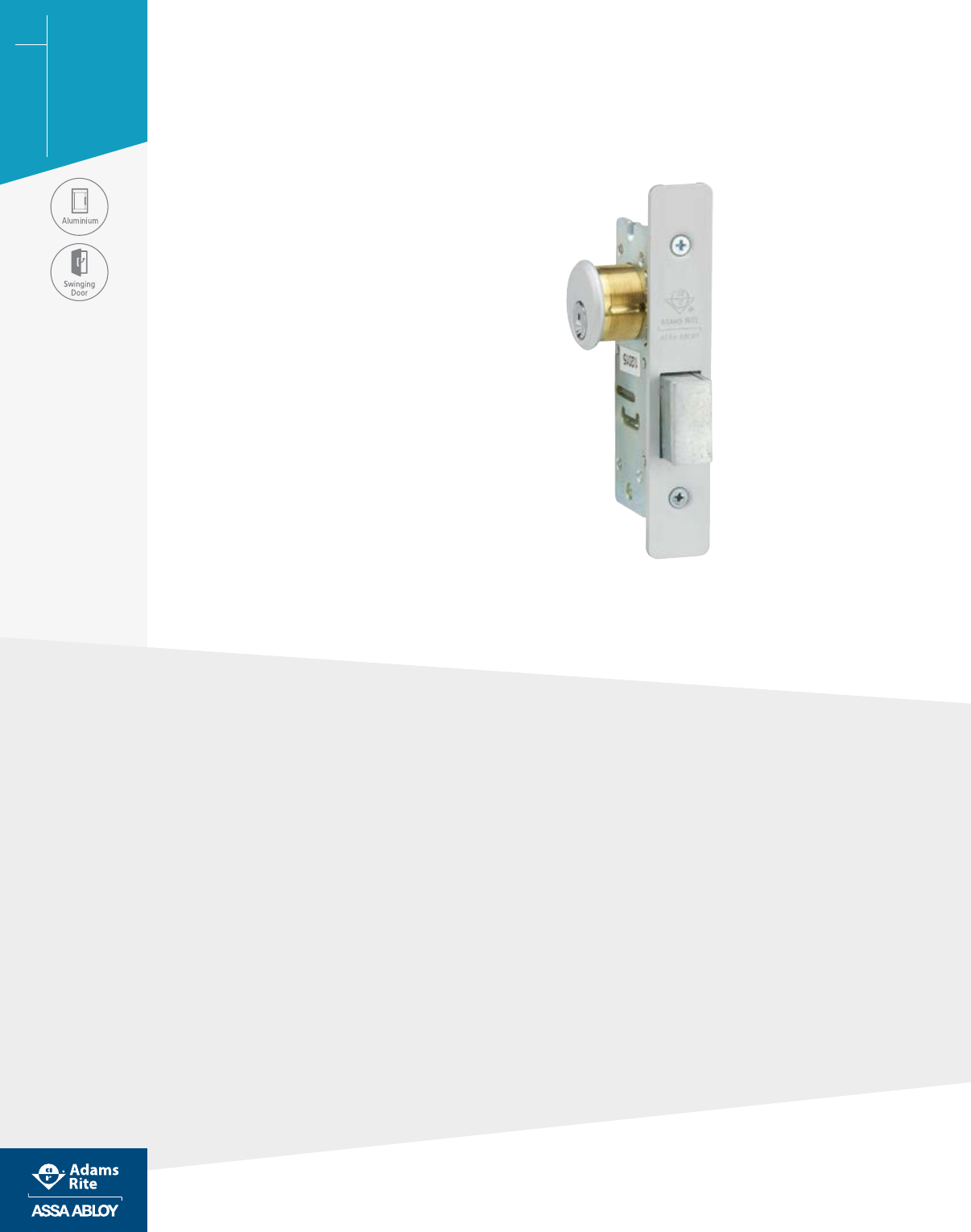

MS® Deadlocks

The stainless steel MS1950 Series MS® Deadlock utilizes

a laminated stainless steel bolt, to provide maximum

security for a single leaf narrow stile aluminum door.

The stainless steel MS1950-X5X Series MS® Deadlock

utilizes a laminated stainless steel hookbolt, to provide

maximum security for a sliding narrow stile aluminum door.

Both are activated by a pivot mechanism.

Function

A huge bolt of laminated stainless steel, nearly 3" long, activated by

an uncomplicated pivot mechanism, has made the basic MS1950 MS®

Deadlock the standard of the narrow stile aluminum door industry.

The length of this bolt provides maximum security for a single leaf

door, even a very tall and ﬂexible one or an installation where the

gap between the door and jamb is greater than it should be.

The stainless steel MS1950-X5X Series MS® Deadlock answers the

security need of sliding doors in commercial, industrial, and institutional

buildings. The mechanism is identical to the widely used Maximum Security

swinging door lock, except that the massive laminated bolt is provided in

a hook shape to resist the parting motion of sliding door and jamb. The

over-center MS locking action assures that forced entry attempts to pry

the door in any direction, up, down, or sideways, will be defeated.

Operation

360° turn of key or thumbturn projects or retracts the counterbalanced

bolt. Key can be removed only when bolt is in a positively locked or

unlocked position. Lock accepts any standard 1" [25.4 mm] length,

1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as

the 4036 Mortise Cylinder or thumbturn such as the 4066 Thumbturn,

available separately. Lock accepts cylinder on either or both sides.

MS1950, MS1950-X5X

Series

MS1950-X5X

only

MS1950

MS1950-X5X

MS1950,

MS1950-X5X

Series MS®

Deadlocks

DEADLOCKS

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

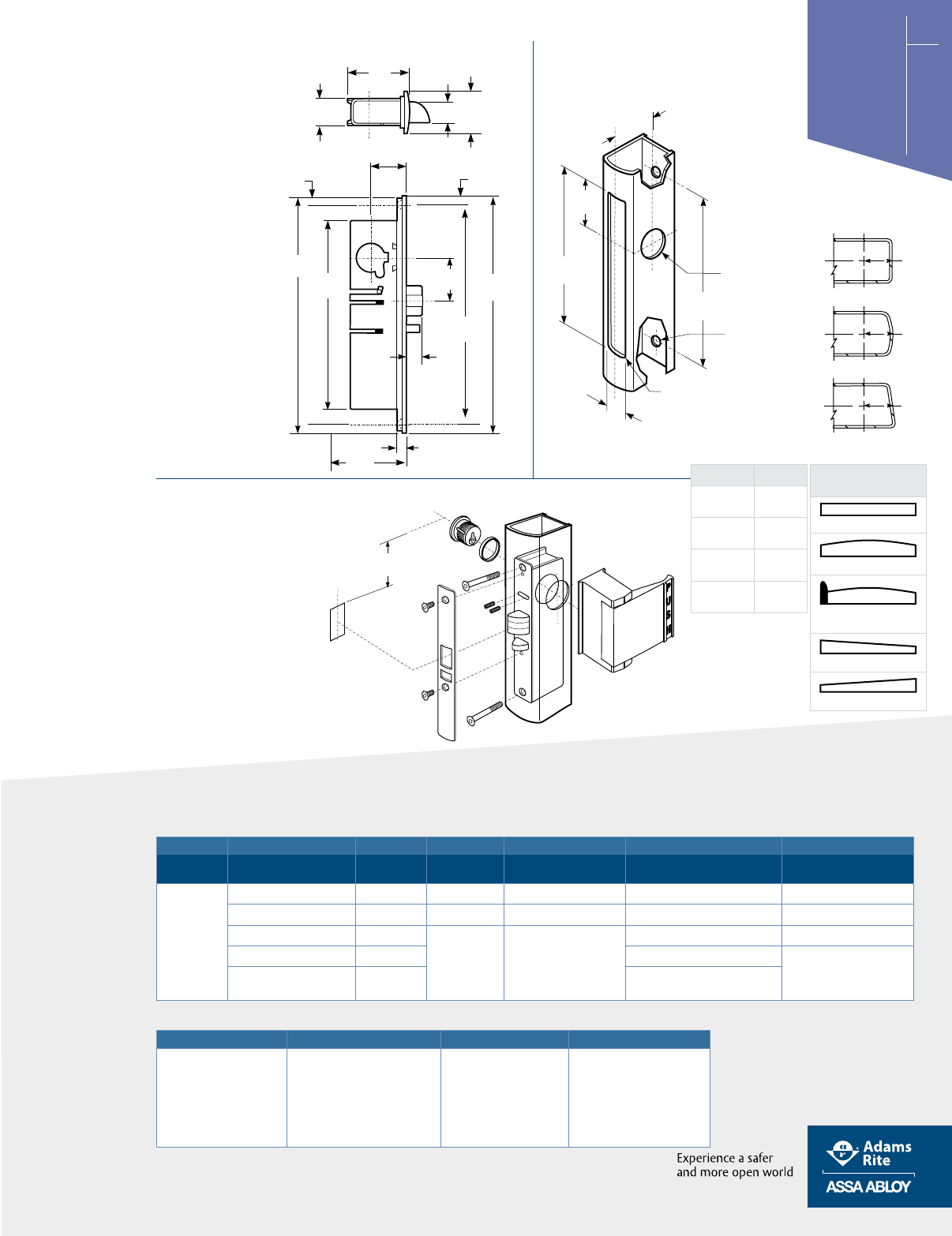

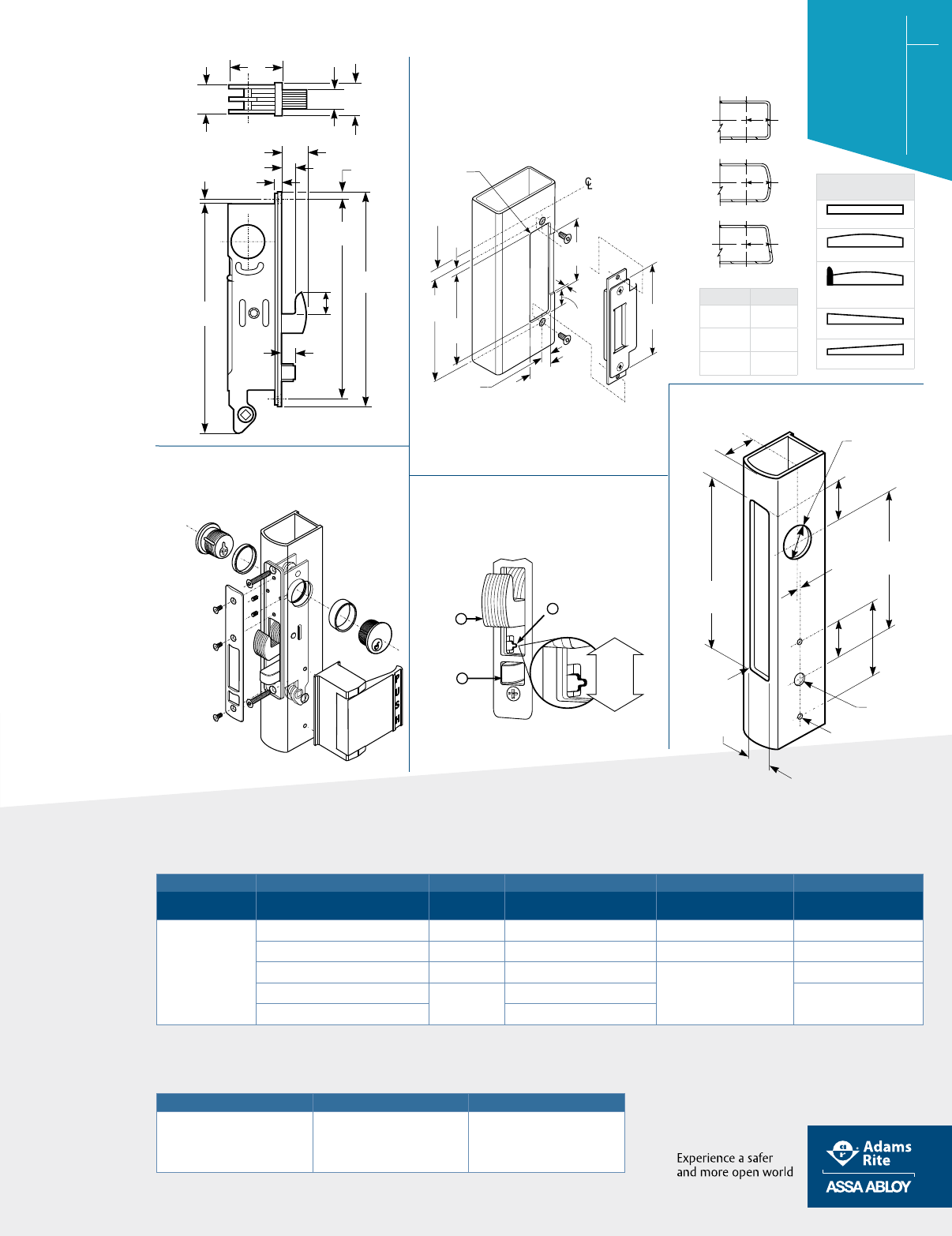

MS1950,

MS1950-X5X

Series MS®

Deadlocks

STILE

BACKSET

“A”

25.4mm

5/8"

15.9mm

7/8"

22.2mm

11/32"

8.7mm

6-13/16"

173mm

6-7/8"

174.6mm

6-3/8"

162mm

1-13/32"

35.7mm

1/4"

6.4mm

1/4"

6.4mm

152.4mm

Shown with

ﬂat faceplate

Backset measured

at centerline of stile

nose

1-1/4"

31.8mm

DIA. HOLE

6-57/64"

175mm

1-19/32"

40.5mm

5/32"

4mm

(4 PLCS.)

1-1/64"

25.8mm

25.4mm

11/16"

17.5mm

LOCK & STILE

CYLINDER

STRIKE

CUTOUT

59/64"

23.4mm

3-3/8"

85.7mm

1-3/8"

34.9mm

Dimensions Dimensions

FLAT

CYLINDER C

RADIUS

BEVEL

HOW BACKSET

IS MEASURED:

BACKSET “A”

31/32"

24.6mm

1-5/8"

41.3mm

1-1/8"

28.6mm

1-25/32"

45.2mm

1-1/2"

38.1mm

2-1/4"

57.2mm

ARMORED FACEPLATE

1" X 67/8"

FLAT MS1950

RADIUS MS1951

RADIUS W/ WEATHERSTRIP

MS1951W

LH BEVEL MS1952-X15

RH BEVEL MS1952-X16

Features

Cylinder Backset

31/32" [24.6 mm], 1-1/8" [28.6 mm], or 1-1/2" [38.1 mm] only.

Case

Measures 1" x 6" x depth [25.4 mm x 152.4 mm x

depth], depth varies by backset (see table left). Fully

stainless steel case and internal components.

Bolt

Eight-ply laminated stainless steel. Center ply

has alumina-ceramic core to defeat any hacksaw

attack, including rod-type “super” hacksaws.

MS1950 Bolt: Standard straight bolt measures

5/8" x 1-3/8" x 2-7/8" [15.9 mm x 34.9 mm x

73.0 mm] with 1-3/8" [34.9 mm] throw.

MS1950-X5X Bolt: 5/8" x 1-3/8” [15.9 mm x

349.9 mm] with 13/16” [20.3 mm] throw. Hook

shape repels pry bar attempts to “spread” the

door from its jamb or lift it o its track.

Faceplate

Measures 1" x 6-7/8" [25.4 mm x 174.6 mm].

Strike

See next page for dimensions of strike slot which

can be cut in metal jamb. Trim plate, box strike,

and armored strike are available separately.

Standard Package

Individually boxed with machine screws for mounting.

Cylinders and/or thumbturns available separately.

Shipping weight

1-1/2 lbs. [0.68 kg]

Options

• “SCHOOLHOUSE” version, also available, is modiﬁed

so that operation from inside is “unlock only”. This

lock is handed and must be speciﬁed LH or RH.

Specify Series SCH1950, (-X5X). Same faceplate

and backset options as Series MS1950, (-X5X).

STILE

BACKSET

1-1/4"

31.8mm

DIA. HOLE

6-57/64"

175mm

1-19/32"

40.5mm

5/32"

4mm

(4 PLCS.)

1-1/64"

25.8mm

11/16"

17.5mm

LOCK & STILECYLINDER

STRIKE

CUTOUT

59/64"

23.4mm

2-3/16"

55.6mm

1-15/16"

49.2mm

1/4"

6.4mm

“A”

25.4mm

5/8"

15.9mm

7/8"

22.2mm

Shown with

ﬂat faceplate

Backset measured

at centerline of stile

nose

6-13/16"

173mm

6-7/8"

174.6mm

1/4"

6.4mm

7/32"

5.6mm

6-3/8"

161.9mm

152mm

5/8"

15.9mm

13/32"

10.3mm

13/16"

20.6mm

MS1950 MS1950-X5X

DEADLOCKS

Updated: December 21, 2020

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

STILE

BACKSET

“A”

25.4mm

5/8"

15.9mm

7/8"

22.2mm

11/32"

8.7mm

6-13/16"

173mm

6-7/8"

174.6mm

6-3/8"

162mm

1-13/32"

35.7mm

1/4"

6.4mm

1/4"

6.4mm

152.4mm

Shown with

ﬂat faceplate

Backset measured

at centerline of stile

nose

1-1/4"

31.8mm

DIA. HOLE

6-57/64"

175mm

1-19/32"

40.5mm

5/32"

4mm

(4 PLCS.)

1-1/64"

25.8mm

25.4mm

11/16"

17.5mm

LOCK & STILE

CYLINDER

STRIKE

CUTOUT

59/64"

23.4mm

3-3/8"

85.7mm

1-3/8"

34.9mm

MS1950

Stile Preparation Lock & Cylinder

Installation

MS1950,

MS1950-X5X

Series MS®

Deadlocks

DEADLOCKS

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

MS1950,

MS1950-X5X

Series MS®

Deadlocks

STILE

BACKSET

1-1/4"

31.8mm

DIA. HOLE

6-57/64"

175mm

1-19/32"

40.5mm

5/32"

4mm

(4 PLCS.)

1-1/64"

25.8mm

11/16"

17.5mm

LOCK & STILECYLINDER

STRIKE

CUTOUT

59/64"

23.4mm

2-3/16"

55.6mm

1-15/16"

49.2mm

1/4"

6.4mm

“A”

25.4mm

5/8"

15.9mm

7/8"

22.2mm

Shown with

ﬂat faceplate

Backset measured

at centerline of stile

nose

6-13/16"

173mm

6-7/8"

174.6mm

1/4"

6.4mm

7/32"

5.6mm

6-3/8"

161.9mm

152mm

5/8"

15.9mm

13/32"

10.3mm

13/16"

20.6mm

MS1950-X5X

Stile Preparation Lock & Cylinder

Installation

How to Order & Related Products

MS1950, MS1950-X5X Series MS® Deadlock: Specify quantity and the following information. Order related products separately.

MODEL FACEPLATE BACKSET BOLT SHAPE HANDING FINISH

MS195 0-2 1 0 -628

0 Flat 2 31/32" 1 Straight bolt 0 Non-Handed* 313 Dark Bronze Anodized

1 Radius 3 1-1/8" 5 Hookbolt 5 LH or RHR 335 Black Anodized

1W Radius with weatherstrip 4 1-1/2" 6 RH or LHR 628 Clear Anodized

2 Bevel

3 Without faceplate, without strike plate

*Any ﬂat or radius faceplate, except Schoolhouse. Select handing for bevel faceplate only.

When purchasing this product, please consider the following related products, available separately:

TRIM CYLINDERS ACCESSORIES SPECIAL ORDER OPTIONS

3090-150, A100 Series Keyless

Entry, 4550 Deadlock Lever

Standard 1" length, 1-5/32”

diameter mortise cylinder with

MS® cam such as 4036 Mortise

Cylinder, 4066 Thumbturn;

MS4043 Cylinder Guard

4000, 4001, MS4002 Deadlock Strikes

4015 Threshold Bolt, 4016 Header Bolt for multi-point locking.

4085 Header Bolt for pairs of doors

Lock mounting accessories and options

4089 Exit Indicator

Schoolhouse function

available as special order.

DEADLOCKS

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

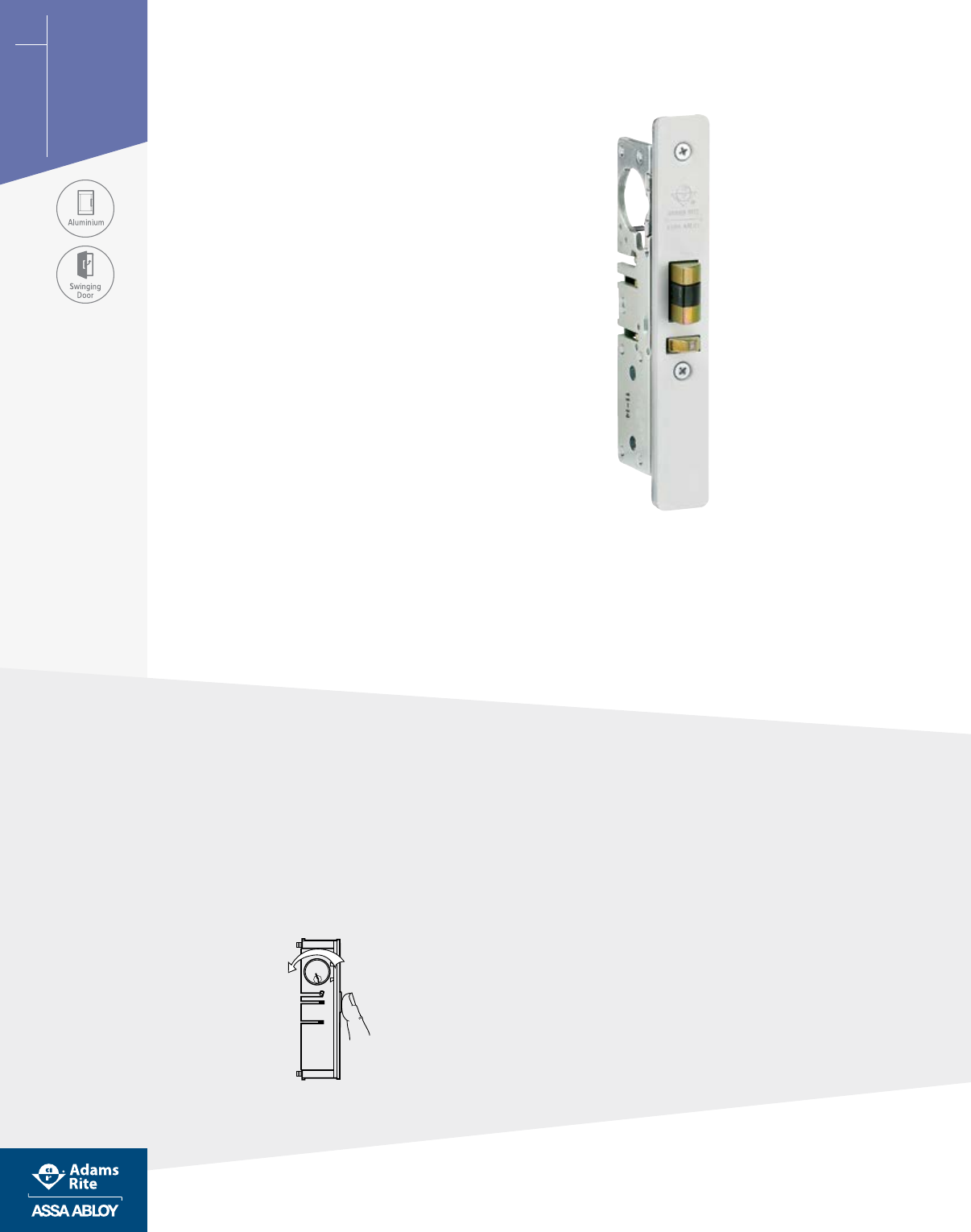

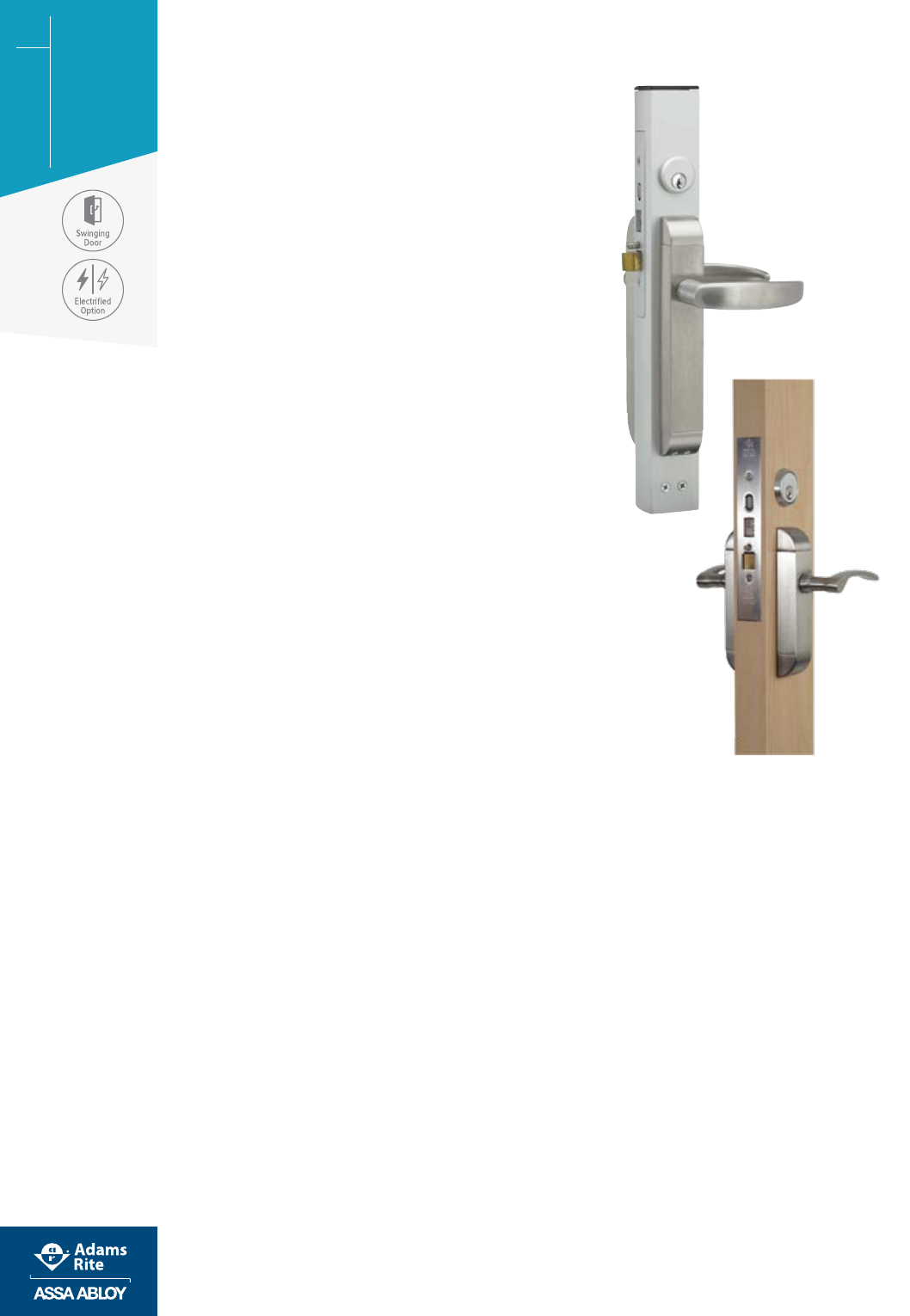

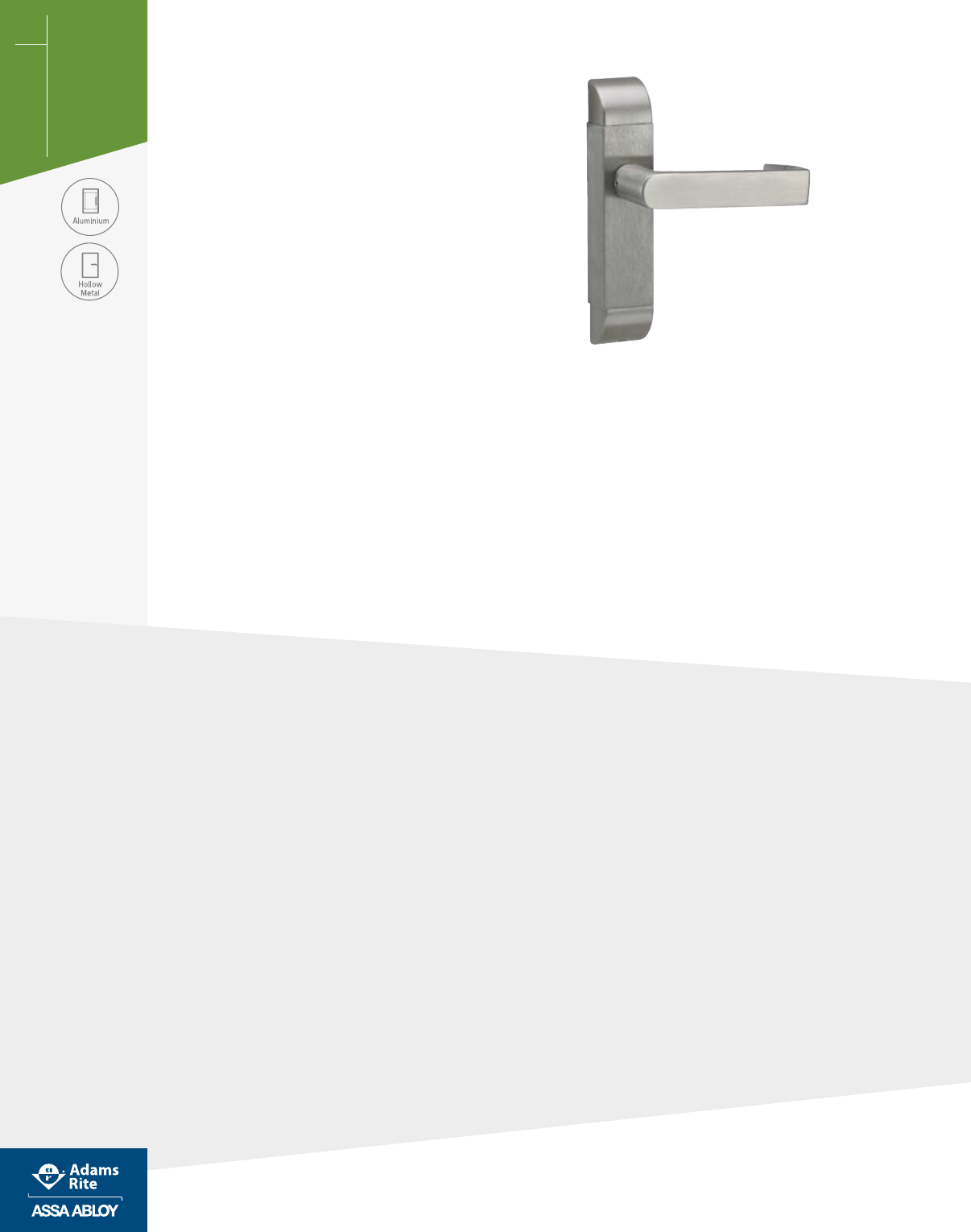

Series Interconnected

Deadbolt/Deadlatch

The 2190 Series Interconnected Deadbolt/Deadlatch

provides access control and security for narrow stile

aluminum (2190), hollow metal and wood doors

(2290). Deadlatch and deadbolt capabilities are

combined for fast, easy, and panic-proof exiting.

Function

The Dual Force combines the access control capabilities of a latch

with the security of a deadbolt. The key retracts and extends the

deadbolt and deadlatch from either side. The exterior lever retracts

the latch only. With the deadbolt projected, a simple turn of the

inside lever retracts both the latch and deadbolt simultaneously,

providing single-motion, panic-proof exiting. The Dual Force is

available with electriﬁed trim set for easy integration into an

existing access control system. Standard trim set, electriﬁed trim

set, low proﬁle trim set designed for out-swinging doors only.

Operation

Key or thumbturn projects or retracts deadbolt or deadlatch.

Lock accepts any standard 1" [25.4 mm] length, 1-5/32"

[29.4 mm] diameter mortise cylinder with MS® cam such

as the 4036 Mortise Cylinder, available separately.

Lock accepts cylinder from either or both sides.

Inside lever retracts both deadbolt and deadlatch when

conﬁgured with interconnect feature. Outside lever retracts

latch only. Latch holdback feature activated or deactivated

by turning key to retract latch. Sliding holdback button on

faceplate down will holdback latch and sliding up will release.

The 2190 Series Interconnected Deadbolt/Deadlatch are

designed to operate with the uniquely designed strike plate

that comes standard in the package from the factory.

Dual Force®

2190, 2290

2190

2290

Dual Force®

2190, 2290

Series

Features

Cylinder Backset

1-1/8" [28.6 mm] or 1-1/2" [38.1 mm] only.

Bolt

Latchbolt: 5/8" [15.9 mm] throw of solid brass.

Easily reversible using only a screwdriver.

Deadbolt: 1" [25.4mm] throw of stainless steel.

Auxiliary Deadlatch Pin

Stainless steel. Deadlocks latchbolt to

prevent “loiding” or case-knife entry.

Faceplate

Includes faceplate system that adapts

to ﬂat, radius, or beveled door edge.

2190: Measures 1" x 6-7/8"

[25.4 mm x 174.6 mm]. Radius with

weatherseal faceplate available separately.

2290: Measures 1-1/4" x 8"

[31.8 mm x 203.2 mm].

Strike

The Dual Force 2190, 2290 Interconnected

Deadbolt/Deadlatch will not operate

without its specially designed strike,

included standard in package.

2190: Standard strike furnished is the 2101-01

Strike for ﬂat jamb where door closes ﬂush

or nearly ﬂush. The 2101 Strike covers MS®

Deadlock strike preparation with modiﬁcation,

and the 4901 Deadlatch Strike directly. Also

available in radius version for opposite

stile pairs of doors and with extended

lip strikes for special jamb conditions.

2290: Standard strike furnished is the

2206 (ASA) Strike for ﬂat jamb where

door closes ﬂush or nearly ﬂush.

Inter Connection

Field-selectable inter-connection feature

allows interior trim to retract deadbolt

and deadlatch. Consult local authority

having jurisdiction (AHJ) for guidance

in code compliance. 1-3/4" [44.5 mm]

minimum door thickness required.

• 2190 retroﬁts to existing MS1850S

Deadlock or 4500 and 4900

Deadlatch of the same backset.

Standard Package

Individually boxed with trim as speciﬁed,

strike and machine screws for mounting.

Cylinder available separately.

Shipping Weight

9 lbs [4.08 kg].

Electrical

Electriﬁed Trim Options

Electriﬁed trim set is designed for easy

integration into an existing access control

system. Dual-voltage 12/24 VDC rated for

continuous duty operation. Energizing

the trim set allows the exterior lever to

be turned to retract the latch only.

The electriﬁed option is not available for

low proﬁle trim (trim option 3). Dual Force

2190/2290 Electriﬁcation Kit EK-2190

available separately for ﬁeld-installation

into the exterior standard trim set.

Options

• Specify trim option, lever

style, ﬁnish, and strike.

• Thick Door Kits (2190-TDKXX) available

separately. Specify door thickness.

• Request to Exit REX-4600 switch

available separately for small

format low proﬁle trim set.

• Available in choice of US3 (605)

Bright brass, US4 (606) Satin brass,

10B powder coat to match dark

bronze, US32 (629) Bright stainless,

or US32D (630) Satin stainless.

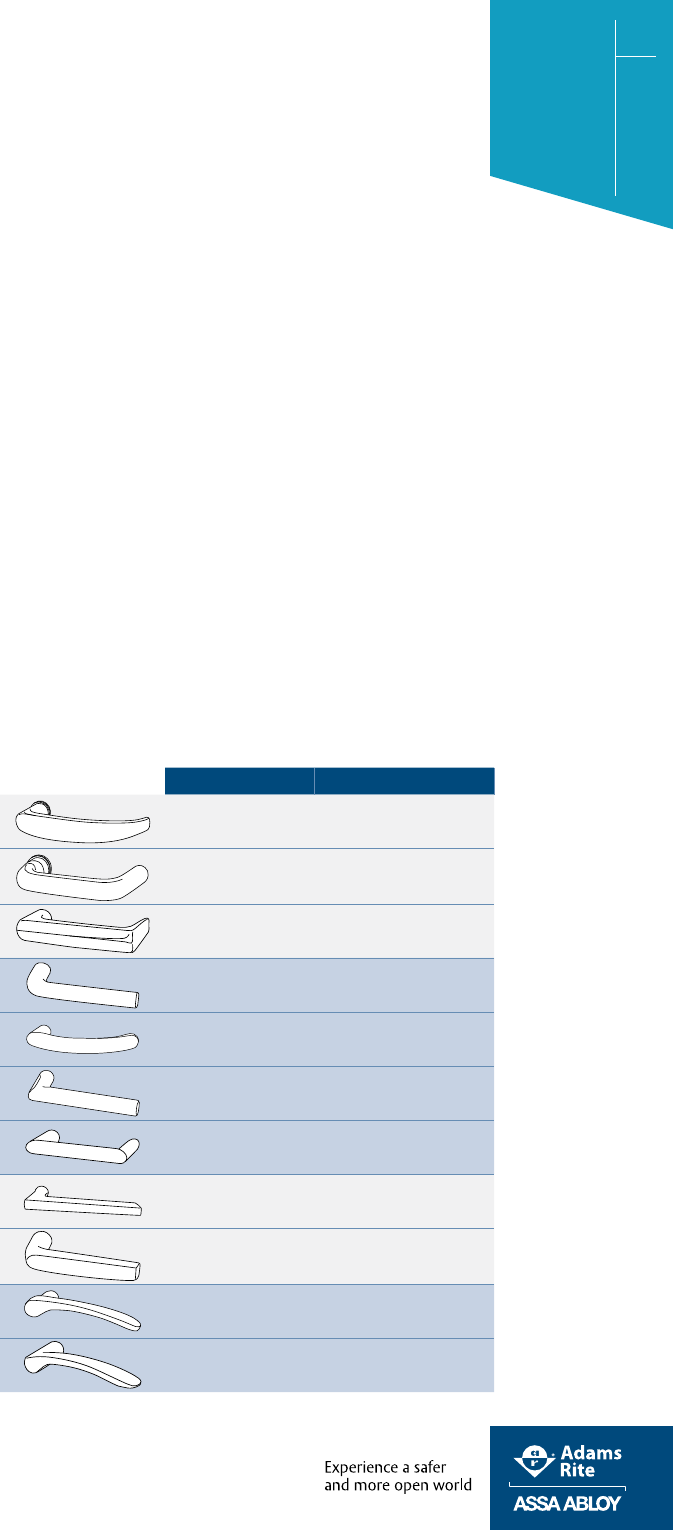

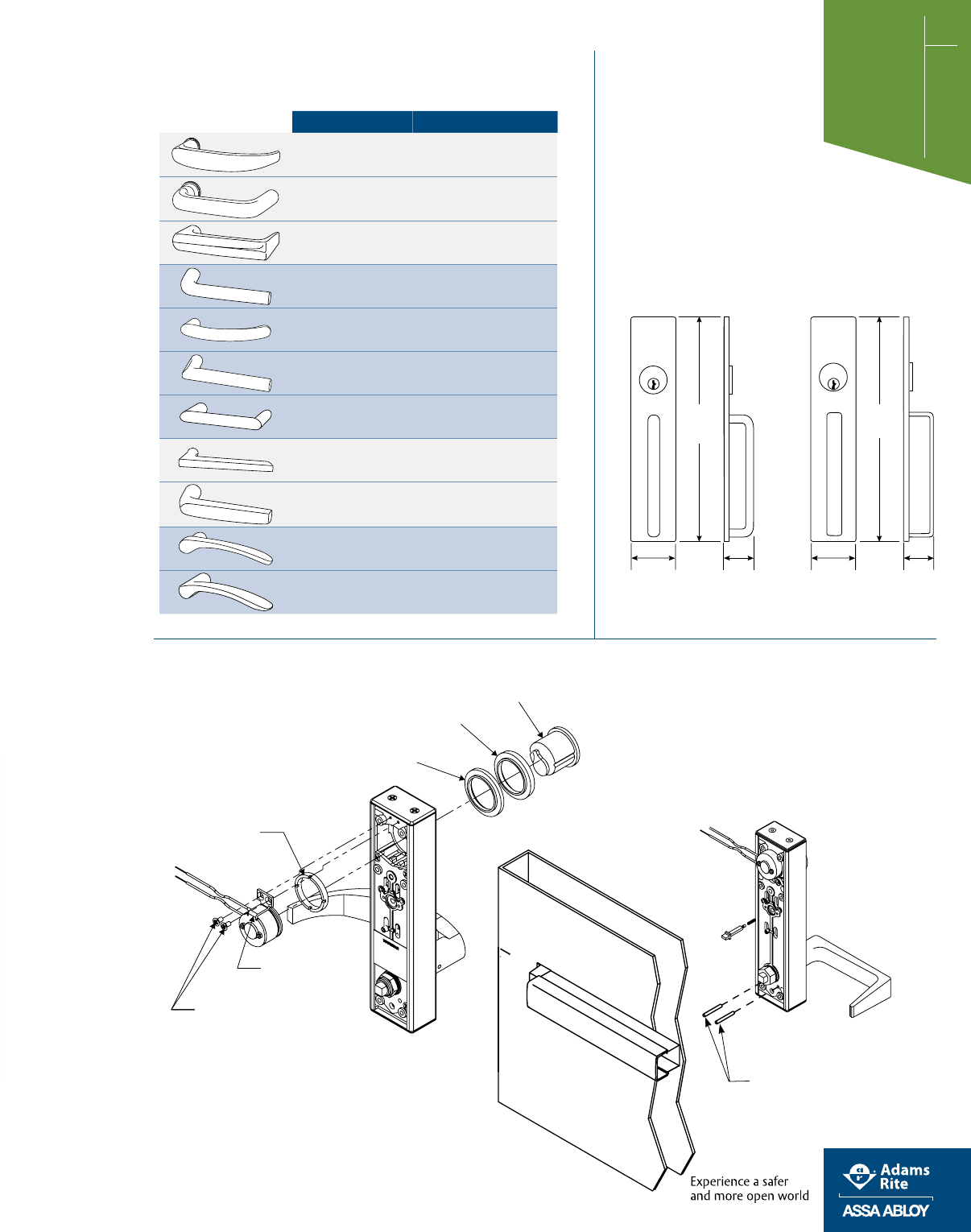

Options & Accessories

OPTION DESCRIPTION | SHORT

Standard Series 01 Standard lever, curved

Standard Series 02 Standard lever, round

Standard Series 03 Standard lever, square

Aventura Series ME Studio Collection designer lever

Aventura Series MG Studio Collection designer lever

Aventura Series MI Studio Collection designer lever

Aventura Series MW Studio Collection designer lever

Centro Series MD Studio Collection designer lever

Centro Series MJ Studio Collection designer lever

Odeon Series MN Studio Collection designer lever

Odeon Series MV Studio Collection designer lever

DEADLOCKS

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

Dual Force®

2190, 2290

Series

DEADLOCKS

Updated: December 21, 2020

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

BACKSET

DIA.

Cutout same as

MS1850S Deadbolt

plus holes for

handle Mounting

LCYLINDER

2101 Strike (covers and previous cutout for MS® Deadbolt)

— Retroﬁts 4901 and 4501 strike preparations.

15/64"

6mm

5-3/8"

136.5mm

4-41/64"

117.9mm

37/64"

14.7mm

1-9/64"

29mm

25.4mm

9/64"

3.6mm

2-1/8"

54mm

1-23/64"

34.5mm

1-1/2"

38.1mm

2-55/64"

72.6mm

6-7/8"

174.6mm

3/4"

19.1mm

11/16"

17.5mm

5/8"

15.9mm

6-13/16"

173mm

5-51/64"

147.2mm

1-1/4"

31.8mm

1-19/32"

40.5mm

4-13/64"

106.8mm

6-57/64"

175mm

1-1/64"

25.8mm

63/64"

25mm

MAXIMUM GAP

DOOR TO JAMB:

1/8"

3.2mm

2190 Dimensions

Jamb Preparations Latch/Lock, Cylinder

& Level Installation

Stile Preparation

For clutched exterior Trim Set

FLAT

CYLINDER C

RADIUS

BEVEL

HOW BACKSET

IS MEASURED:

BACKSET “A”

1-1/8"

28.6mm

1-25/32"

45.2mm

1-1/2"

38.1mm

2-1/4"

57.2mm

ARMORED FACEPLATE

1" X 67/8"

FLAT 24-0066-01 (included)

RADIUS 24-0066-

02 (included)

RADIUS W/ WEATHERSTRIP

24-0066-03

Dual Force®

2190 Series

DEADLOCKS

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

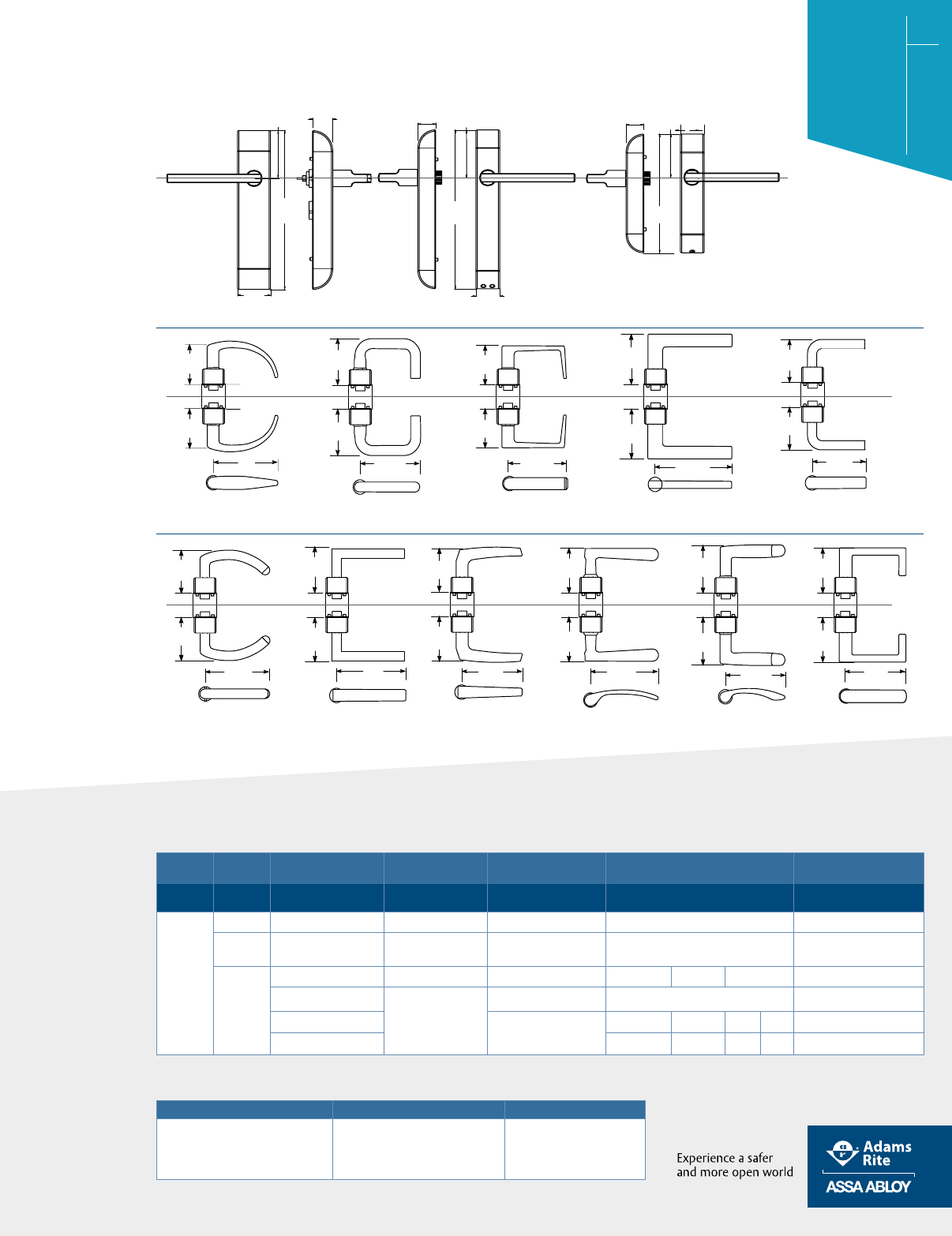

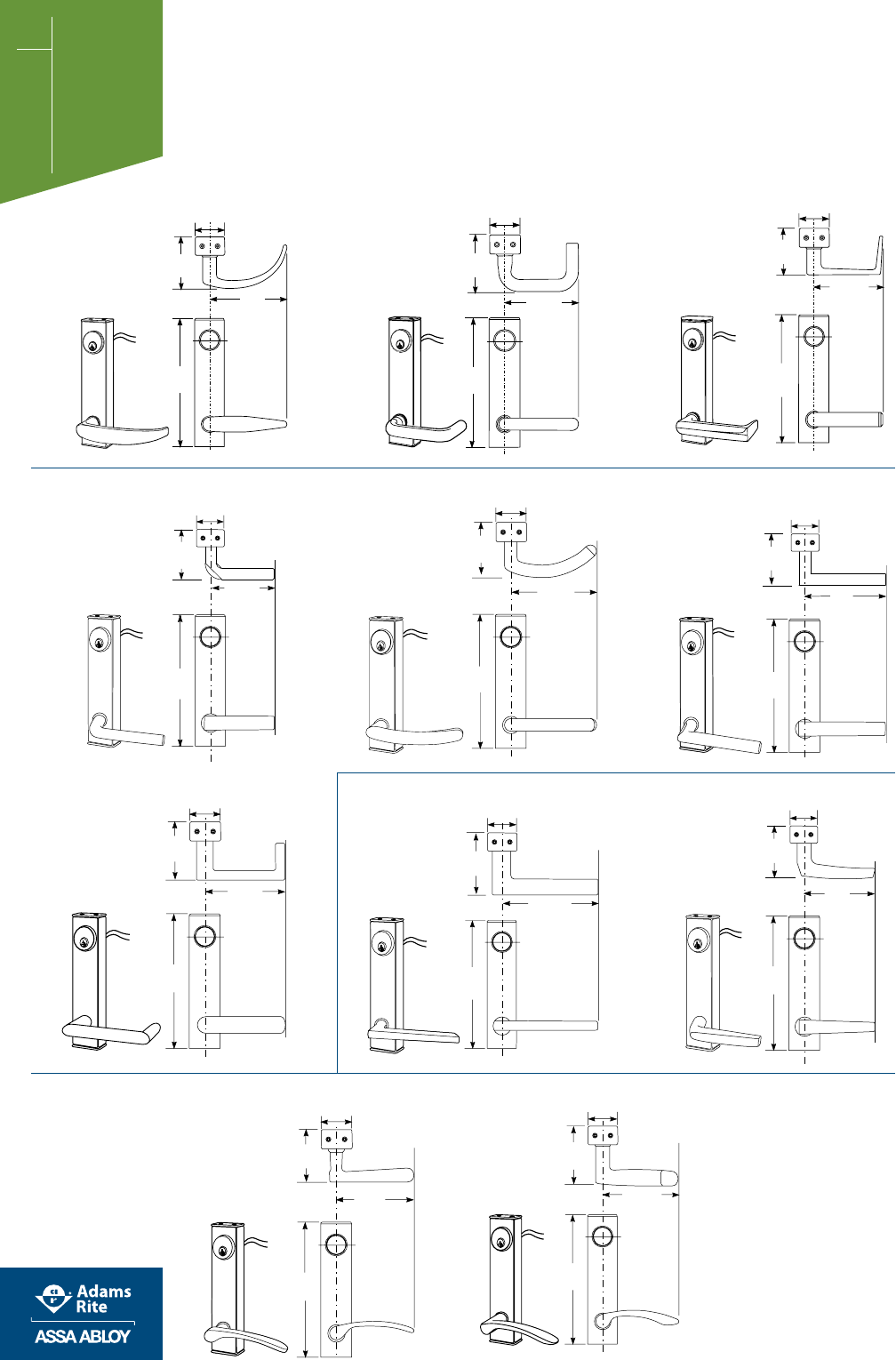

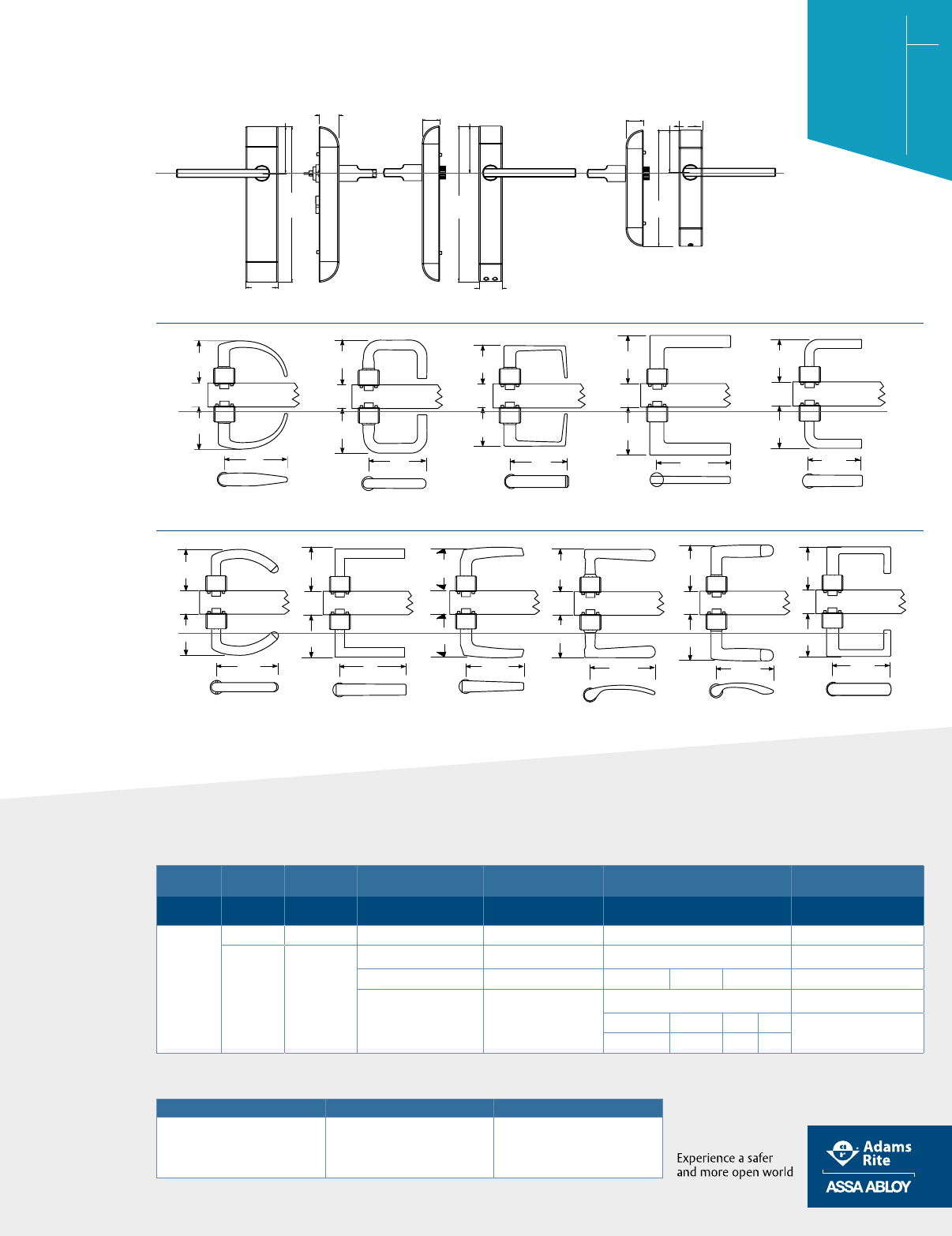

Dual Force®

2190 Series

OUTSIDEINSIDE LOW PROFILE

TRIM

8-59/64"

226.6mm8-59/64"

226.6mm6-21/32"

169.1mm

1-55/64"

47.2mm

2-11/16"

68.3mm

2-11/16"

68.3mm

1-23/64"

34.5mm

1-23/64"

34.5mm

2-15/32"

62.7mm

1-9/64"

29mm

63/64"

25mm

63/64"

25mm

INT.

EXT.

2190 WITH

03 LEVER*

2-45/64"

68.7mm

2-51/64"

71mm

4-11/32"

110.3mm

INT.

EXT.

2190 WITH

02 LEVER*

3-3/16"

81mm

3-19/64"

83.7mm

4-35/64"

115.5mm

INT.

EXT.

2190 WITH

MD LEVER

3-1/4"

82.6mm

3-3/8"

85.7mm

4-29/32"

124.6mm

INT.

EXT.

2190 WITH

ME LEVER

3-7/32"

81.8mm

3-11/32"

84.9mm

4-5/16"

109.5mm

INT.

EXT.

2190 WITH

01 LEVER*

127mm

76.2mm

EXT.

INT.

2190 WITH

MI LEVER

2190 WITH

MN LEVER**

2190 WITH

MV LEVER**

3-1/4"

82.6mm

INT.

EXT.

2190 WITH

MG LEVER

3-1/8"

79.4mm

3-9/32"

83.3mm

5-1/8"

130.2mm

INT.

EXT.

3-17/32"

89.7mm

3-11/16"

93.7mm

4-11/16"

119.1mm

INT.

EXT.

2-25/32"

70.6mm

2-15/16"

74.6mm

4-3/16"

106.4mm

3-13/32"

86.5mm

127mm

INT.

EXT.

2190 WITH

MJ LEVER

3-5/32"

80.2mm

4-3/8"

111.1mm

3-5/16"

84.1mm

INT.

EXT.

2190 WITH

MW LEVER

3-3/16"

81mm

3-11/32"

84.9mm

4-1/2"

114.3mm

* The 2190-01, -02, and -03 lever handles are designed

to return within 1/2" of the door face.

Handles in the Designer Series do not have this same feature. Please

verify with local code requirements to ensure compliance.

** Handed

2190 Dimensions

How to Order & Related Products

2190 Interconnected Deadbolt/Deadlatch: Specify quantity and the following information. Order related products separately.

MODEL BACKSET STRIKE FACEPLATE FINISH TRIM HANDLE DESIGNATION TRIM AND HANDLE

FINISH

2190 -3 1 1 -1 01 32D

3 1-1/8" 0 None 1 Clear Anodized 628 0 None 00 No Handle 03 Bright Brass (US3)

4 1-1/2" 1 Standard Flat 2 Dark Bronze

Anodized 313 1 With Trim Set STANDARD SERIES: 04 Satin Brass (US4)

2 Radius Strike 3 Black Anodized 335 2 With Electriﬁed Trim Set 01 Curve 02 Round 03 Square 10B to match Dark Bronze

3 Flat/Center Hung 4" 3 Low Proﬁle Trim DESIGNER SERIES: 32 Bright Stainless (US32)

4 Flat/Center Hung 4-1/2" MD MG MJ MV 32D Satin Stainless (US32D)

ME (Handed) MI MN MW

When purchasing this product, please consider the following related products, available separately:

CYLINDERS ACCESSORIES ELECTRIFICATION

Standard 1" length, 1-5/32” diameter

mortise cylinder with MS® cam such

as 4036 Mortise Cylinder, 4066

Thumbturn; MS4043 Cylinder Guard

2190-TDK Thick Door Kit for standard

exterior trim set, TDK-4600 Thick

Door Kit for low proﬁle trim set.

EK-2190 Electriﬁcation Kit.

2190 may be ordered with

electriﬁed trim (trim option 2).

DEADLOCKS

Updated: December 21, 2020

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

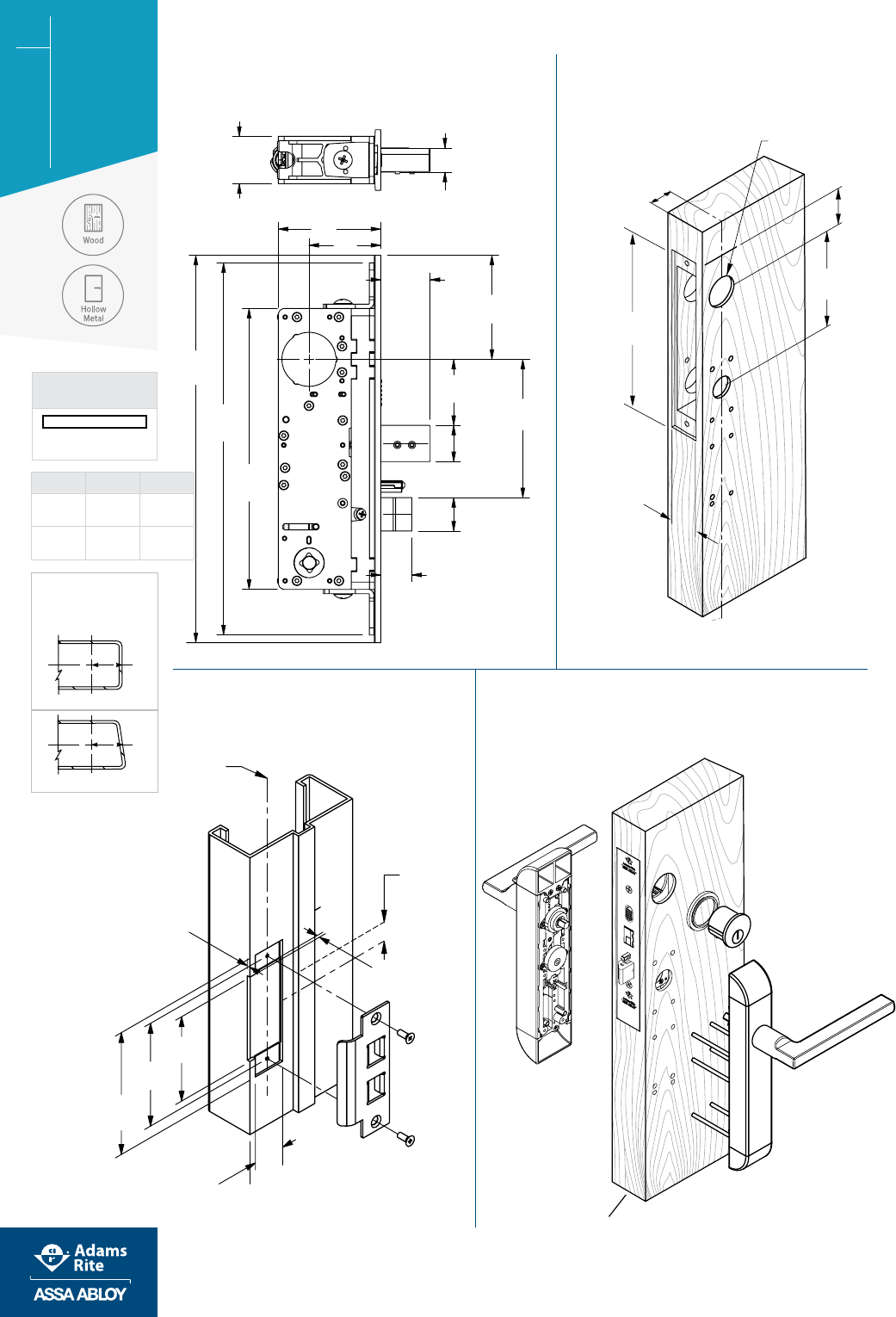

BACKSET

BEVELED OR FLAT EDGE

203.2mm

1-1/4"

31.8mm

L OF LOCK

LOF STRIKE

PLATE

LOCK &

OF STRIKE

PLATE

4-7/8"

123.8mm

4-1/8"

104.8mm

3-3/8"

85.7mm

5/8"

15.9mm

1-1/4"

31.8mm

1/8"

3.2mm

1/8"

3.2mm

1-1/4"

31.8mm

2-5/32"

54.8mm

4-13/64"

106.8mm

25.4mm

63/64"

25mm

203.2mm

7-11/16"

195.3mm

5-51/64"

147.2mm

5/8"

15.9mm

11/16"

17.5mm

45/64"

17.9mm

1-23/64"

34.5mm

2-55/64"

72.6mm

2-5/32"

54.8mm

1/2"

12.7mm

“B”

“A”

MAXIMUM GAP

DOOR TO JAMB:

1/8"

3.8mm

2290 Dimensions

Jamb Preparations Latch/Lock, Cylinder

& Level Installation

Stile Preparation

For clutched exterior Trim Set

BACKSET “A” “B”

1-1/8"

28.6mm

1-1/8"

28.6mm

1-3/4"

45.2mm

1-1/2"

38.1mm

1-1/2"

38.1mm

2-1/8"

54mm

ARMORED FACEPLATE

11/4" X 8"

FLAT (included)

FPK-0066-OX-XXX

FLAT

CYLINDER C

RADIUS

BEVEL

HOW BACKSET

IS MEASURED:

FLAT

CYLINDER C

RADIUS

BEVEL

HOW BACKSET

IS MEASURED:

Dual Force®

2290 Series

DEADLOCKS

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

Dual Force®

2290 Series

INT.

EXT.

INT.

EXT.

INT.

EXT.

INT.

EXT.

INT.

EXT.

INT.

EXT.

3-1/8"

79.4mm

3-9/32"

83.3mm

3-1/4"

82.6mm

5-1/8"

130.2mm

3-13/32"

86.5mm

127mm

2-25/32"

70.6mm

3-17/32"

89.7mm 3-3/16"

81mm

3-11/16"

93.7mm

3-5/32"

80.2mm

4-11/16"

119mm

4-3/16"

106.4mm

4-3/8"

111.1mm

2-15/16"

74.6mm

3-5/16"

84.1mm 3-11/32"

84.9mm

4-1/2"

114.3mm

OUTSIDE INSIDE LOW PROFILE

TRIM

2290 WITH

MI LEVER

2290 WITH

MN LEVER**

2290 WITH

MV LEVER**

8-59/64"

226.6mm8-59/64"

226.6mm6-21/32"

169.1mm

1-55/64"

47.2mm

2290 WITH

MG LEVER

2-11/16"

68.3mm

2-11/16"

68.3mm

1-23/64"

34.5mm

1-23/64"

34.5mm

2-15/32"

62.7mm

1-9/64"

29mm

63/64"

25mm

63/64"

25mm

INT.

EXT.

INT.

EXT.

INT.

EXT.

INT.

EXT.

INT.

EXT.

2-45/64"

68.7mm

2-51/64"

71.1mm

4-3/8"

111.1mm

127mm

3-3/16"

81mm

3-5/16"

84.1mm

4-1/2"

114.3mm

2-7/8"

73mm

76.2mm 3-11/32"

84.9mm

3-7/32"

81.8mm

3-3/8"

85.7mm

3-1/4"

82.6mm

4-29/32"

124.6mm

4-5/16"

109.5mm

2290 WITH

03 LEVER*

2290 WITH

02 LEVER*

2290 WITH

MD LEVER

2290 WITH

ME LEVER

2290 WITH

01 LEVER*

2290 WITH

MJ LEVER

2290 WITH

MW LEVER

* The 2290-01, -02, and -03 lever handles are

designed to return within 1/2" of the door face.

Handles in the Designer Series do not have this same feature.

Please verify with local code requirements to ensure compliance.

How to Order & Related Products

2290 Interconnected Deadbolt/Deadlatch: Specify quantity and the following information. Order related products separately.

MODEL BACKSET STRIKE FACEPLATE FINISH TRIM HANDLE DESIGNATION TRIM AND HANDLE

FINISH

2290 -3 1 1 -1 01 32D

3 1-1/8" 0 None 0 US to match trim ﬁnish 0 None 00 No Handle 03 Bright Brass (US3)

4 1-1/2" 1 Standard Flat 1 Clear Anodized 628 1 With Trim Set STANDARD SERIES: 04 Satin Brass (US4)

2 Dark Bronze Anodized 313 2 With Electriﬁed Trim Set 01 Curve 02 Round 03 Square 10B to match Dark Bronze

3 Black Anodized 335 3 Low Proﬁle Trim DESIGNER SERIES: 32 Bright Stainless (US32)

MD MG MJ MV 32D Satin Stainless (US32D)

ME (Handed) MI MN MW

When purchasing this product, please consider the following related products, available separately:

CYLINDERS ACCESSORIES ELECTRIFICATION

Standard 1" length, 1-5/32” diameter

mortise cylinder with MS® cam such

as 4036 Mortise Cylinder, 4066

Thumbturn; MS4043 Cylinder Guard

2190-TDK Thick Door Kit for standard

exterior trim set, TDK-4600 Thick

Door Kit for low proﬁle trim set.

EK-2190 Electriﬁcation Kit.

2190 may be ordered with

electriﬁed trim (trim option 2).

2290 Dimensions

** Handed

DEADLOCKS

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Features

Cylinder Backset

1-3/4" [44.5 mm] only.

Case

Measures 7/8" x 3-5/8" x 2-5/8" deep

[22.2 mm x 92.1 mm x

66.7 mm]. Zinc alloy.

Bolt

Brass with stainless steel dogs,

1/2" x 1-1/2" [12.7 mm x 38.1 mm]

with 3/4" [19.1 mm] horizontal throw

and 11/32" [8.7 mm] expansion

above and below main bolt.

Strike

1/8" x 1" x 4-11/16" [3.2 mm x

25.4mm x 119.1 mm] with 5/8" x

1-5/8" [15.9 mm x 41.3 mm] opening.

Brass, with four-screw mounting.

Trim ﬁnish same as faceplate.

Armored Faceplate

Measures 1" x 5-3/4" [25.4 mm x

146.1 mm]; Flat faceplate of brass.

Available in a variety of ﬁnishes.

Special Cylinder Cam

Operable by any standard

mortise cylinder with special cam

dimensions. Cylinders with such

cams can be readily obtained

from most cylinder manufacturers.

See CYLINDERS & ACCESSORIES

section for cylinder make, thumbturn

and trim ring information.

Standard Package

Individually boxed with strike

and wood screws for mounting

lock and strike. Cylinder and/or

thumbturn available separately.

Shipping weight

2 lbs [.91 kg].

Options

• Available in choice of US3

Polished Brass (605), US26

Bright Chrome (625), US26D

Satin Chrome (626), 121 to match

313 Dark bronze anodized.

Heavy Duty Deadbolt

2331 Heavy Duty Deadbolt provides a heavy duty

deadbolt lock that expands into the strike for

heavy duty hollow metal or wood applications.

Function

A heavy duty deadbolt for hollow metal or wood sliding

doors, the 2331 Heavy Duty Deadbolt throws a massive

brass bolt into its strike, then expands two stainless

steel dogs to secure the door. A single turn of the key

expands or retracts the bolt. There is no latch action.

Operation

360° turn of key or thumbturn extends and projects or

retracts and withdraws the bolt. Key cannot be removed

unless bolt is positively locked or totally retracted. Lock

accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm]

diameter mortise cylinder or thumbturn with special cam

dimensions. Lock accepts cylinder from either or both sides.

2331

Heavy Duty

Deadbolt

DEADLOCKS

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

1-3/64"

26.6mm

4-13/16"

122.2mm

5-25/32"

146.8mm

1-1/32"

26.2mm

2-11/16"

68.3mm

1-3/4"

44.5mm

2-9/16"

65.1mm

5/32"

4mm

3-11/16"

93.7mm

33/64"

13.1mm

3/16"

4.8mm

BACKSET

1-1/4"

31.8mmDIA.

(THRU HOLE)

*TAP FOR

8-32 MACHINE

SCREWS

FOR METAL

PILOT FOR

#8 WOOD

SCREW

(6 PLCS)*

R TYP.

NOTE: DIM’S SHOWN

ARE RECOMMENDED

MINIMUM.

5/32"

4mm1/8"

3.1mm

1/4"

6.4mm

5/16"

7.9mm

9/16"

14.3mm

3-39/64"

91.7mm

4-11/16"

119.1mm

4-1/16"

103.2mm

1/2"

12.7mm

25.4mm

3-1/2"

88.9mm

STRIKE

BOLT

CYLINDER

25.4mm

2-21/32"

67.5mm 1-3/4"

44.5mm

5-3/4"

6mm

1-9/32"

32.5mm

1-17/64"

32.1mm

3-5/8"

92.1mm

15/64"

6mm

3/4"

19.1mm

3/16"

4.8mm

2-11/32"

59.5mm

1-1/2"

38.1mm

11/32"

8.7mm

BOLT

7/8"

22.2mm

2331

Heavy Duty

Deadbolt

How to Order & Related Products

2331 Heavy Duty Deadbolt: Specify quantity and the following information. Order related products separately.

MODEL FINISH

2331 -626

121 To match 313 Dark Bronze Anodized

605 Bright Brass

625 Bright Chrome

626 Satin Chrome

When purchasing this product, please consider the following related products, available separately:

CYLINDERS

Standard 1" length, 1-5/32” diameter mortise cylinder with special 2331 cam, such

as 4036 Mortise Cylinder, 4066 Thumbturn; MS4043 Cylinder Guard.

Dimensions Wood Door Preparation

Lock & Cylinder

Installation

DEADLOCKS

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Features

Cylinder Backset

7/8" [22.2 mm], 31/32" [24.6 mm],

or 1-1/8" [28.6 mm] only.

Case

Measures 1" x 6" x depth [25.4

mm x 152.4 mm x depth], depth

varies by backset. Steel with

corrosion-resistant plating.

Bolt

5/8" x 1-1/4" x 5/8" [15.9 mm x

31.8 mm x 15.9 mm] throw.

Strike

In metal installations, a slot in

door jamb serves as strike. 4170

Trim Strike is available separately

for wood installations.

Faceplate

Measures 1" x 5-9/16"

[25.4 mm x 141.3 mm].

Special Cylinder Cam

Operable by any standard

mortise cylinder with special cam

dimensions. Cylinders with such

cams can be readily obtained

from most cylinder manufacturers.

See CYLINDERS & ACCESSORIES

section for cylinder make, thumbturn

and trim ring information.

Standard Package

Individually boxed with machine

screws for mounting. Cylinder and/

or thumbturn available separately.

Shipping weight

1 lb [0.45 kg].

Short Throw Deadbolt (Projection Style)

4070 Short Throw Deadbolt provides security for

a conventionally projected bolt in installations

where the longthrow MS® Deadlock cannot

be used. The smaller 4070 deadbolt oers the

longest practical throw from a narrow stile.

Function

For installation where the long-throw MS® Deadlock cannot

be accommodated, the smaller 4070 deadbolt oers the

longest practical throw for a conventionally projected bolt

from a narrow stile. Operates with one-half key turn of any

standard mortise type cylinder or cylinder type thumbturn.

This product is not designed for use in bottom rail.

Operation

180° turn of key or thumbturn projects or retracts the bolt.

Lock accepts any standard 1" [25.4 mm] length, 1-5/32"

[29.4 mm] diameter mortise cylinder or thumbturn with special cam

dimensions. Lock accepts cylinder from either or both sides.

4070 Series

Short Throw

Deadbolt

DEADLOCKS

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

4070 Series

Short Throw

Deadbolt

Backset measured

at centerline of

stile nose

1/4"

6.4mm

5/8"

15.9mm

5/8"

15.9mm

27/32"

21.4mm

5/8"

15.9mm

1-7/8"

47.6mm

1-1/4"

31.8mm

5/32"

4mm

1-1/64"

25.8mm

5-41/64"

143.3mm

2-1/8"

54mm

2-3/4"

69.8mm

1-1/2"

38.1mm

1/8"

3.2mm

25.4mm

7/32"

5.6mm

5-9/16"

141.3m

5-5/8"

142.9mm

5-1/8"

130.2mm

4-3/8"

111.1mm

CYLINDER

13/16"

20.6mm

BOLT CUTOUT

IN STRIKE

DIA.

R TYP.

BACKSET

STILE

“A”

How to Order & Related Products

4070 Short Throw Deadbolt (Projection Style): Specify quantity and the following information. Order related products separately.

MODEL FACEPLATE BACKSET HANDING FINISH

407 2-2 6-628

0 Flat 1 7/8" 0 Non-Handed* 313 Dark Bronze Anodized

1 Radius 2 31/32" 5 LH or RHR 335 Black Anodized

2 Bevel 3 1-1/8" 6 RH or LHR 628 Clear Anodized

3 Without faceplate, without strike plate

*Select handing for bevel faceplate only.

When purchasing this product, please consider the following related products, available separately:

CYLINDERS ACCESSORIES

Standard 1" length, 1-5/32” diameter mortise cylinder with special 4070 cam,

such as 4036 Mortise Cylinder, 4066 Thumbturn; MS4043 Cylinder Guard.

4170 trim strike for

wood installations

Dimensions Door Preparation

Lock & Cylinder

Installation

FLAT

CYLINDER C

RADIUS

BEVEL

HOW BACKSET

IS MEASURED:

BACKSET “A”

7/8"

22.2mm

1-37/64"

40.1mm

31/32"

24.6mm

1-5/8"

41.3mm

1-1/8"

28.6mm

1-25/32"

45.2mm

ARMORED FACEPLATE

1" X 55/8"

FLAT 4070

RADIUS 4071

LH BEVEL 4072-X5

RH BEVEL 4072-X6

DEADLOCKS

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Features

Cylinder Backset

1-3/16" [30.2 mm]; 1-1/4" [31.8

mm] including faceplate.

Case

Measures 1/2" x 4" x 1-19/32"

deep [12.7 mm x 101.6 mm x 40.5

mm deep]. Stainless steel.

Bolt

Three-ply laminated stainless steel.

Cylinder Pull

(4026 Pull) Five pin tumbler cylinder

in zinc alloy housing. Standard

ﬁnish 130 Satin Aluminum.

Lock

Stainless steel, 5/8" x 4-1/2" [15.9

mm x 114.3 mm] with radiused ends.

Turn

1015 Turn available with 1016 blank

plate shown for doors from 5/6" [21.2

mm] to 2-1/4" [57.2 mm] thickness.

Without blank plate turn available

(for use with cylinder pull) on doors

from 1-7/16" [36.5 mm] to 2" [50.8

mm] thickness. Standard ﬁnish

130, Satin Aluminum enamel.

Standard Package

Cylinder pull available separately.

Shipping weight

1/2 lb [0.23 kg].

Options

• 1015 Turn for inside operation

is available alone (for use with

4026 cylinder pull on outside)

or with a blank 1016 outside trim

plate and binder posts (when

cylinder is not required).

• 4810 Box Strike with wood

screws available separately.

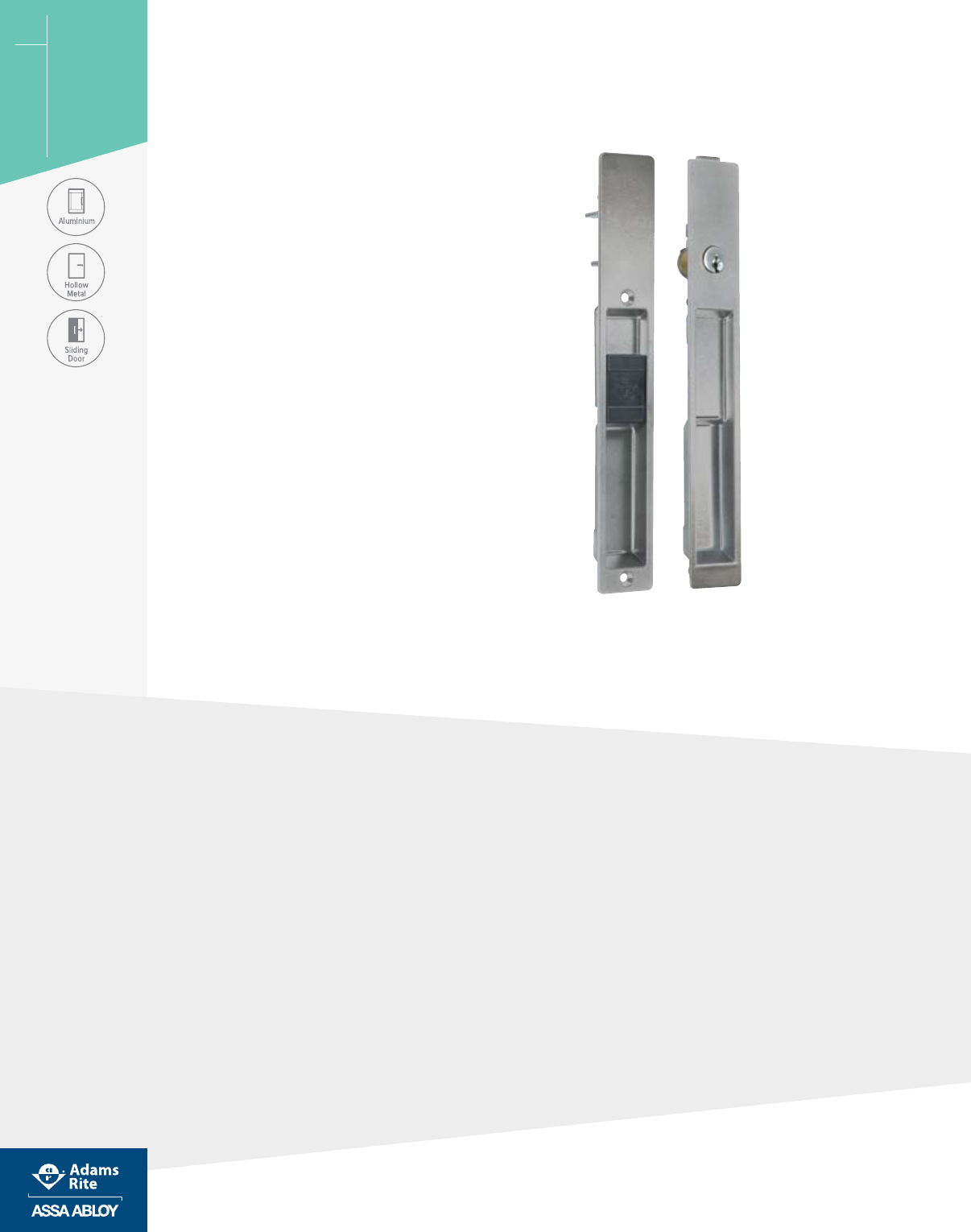

Deadlock/Deadlatch

5017 Deadlock/Latch provides the

strength and deeper backset required

to secure sliding wood doors.

Function

For wood framed sliding doors, the 5017 Wood Door

Deadlock/Latch provides the same 1000 lbs strength that the

MS1847 Deadlock/Latch provides for metal stiles. A deeper

backset clears the recessed jamb used with wood doors.

The bolt throw is easily adjusted by means of a screw in the

faceplate. Mounting is by through-bolts, which also secure

the inside turn and outside cylinder when installed.

Operation

45° rotation of turn or key projects or retracts bolt. Bolt

is self- protecting: if door is shut while bolt is extended,

it will retract, preventing damage or accidental lock-out.

Cylinder pulls available separately for keyed operation.

5017

Deadlock/

Deadlatch

DEADLOCKS

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

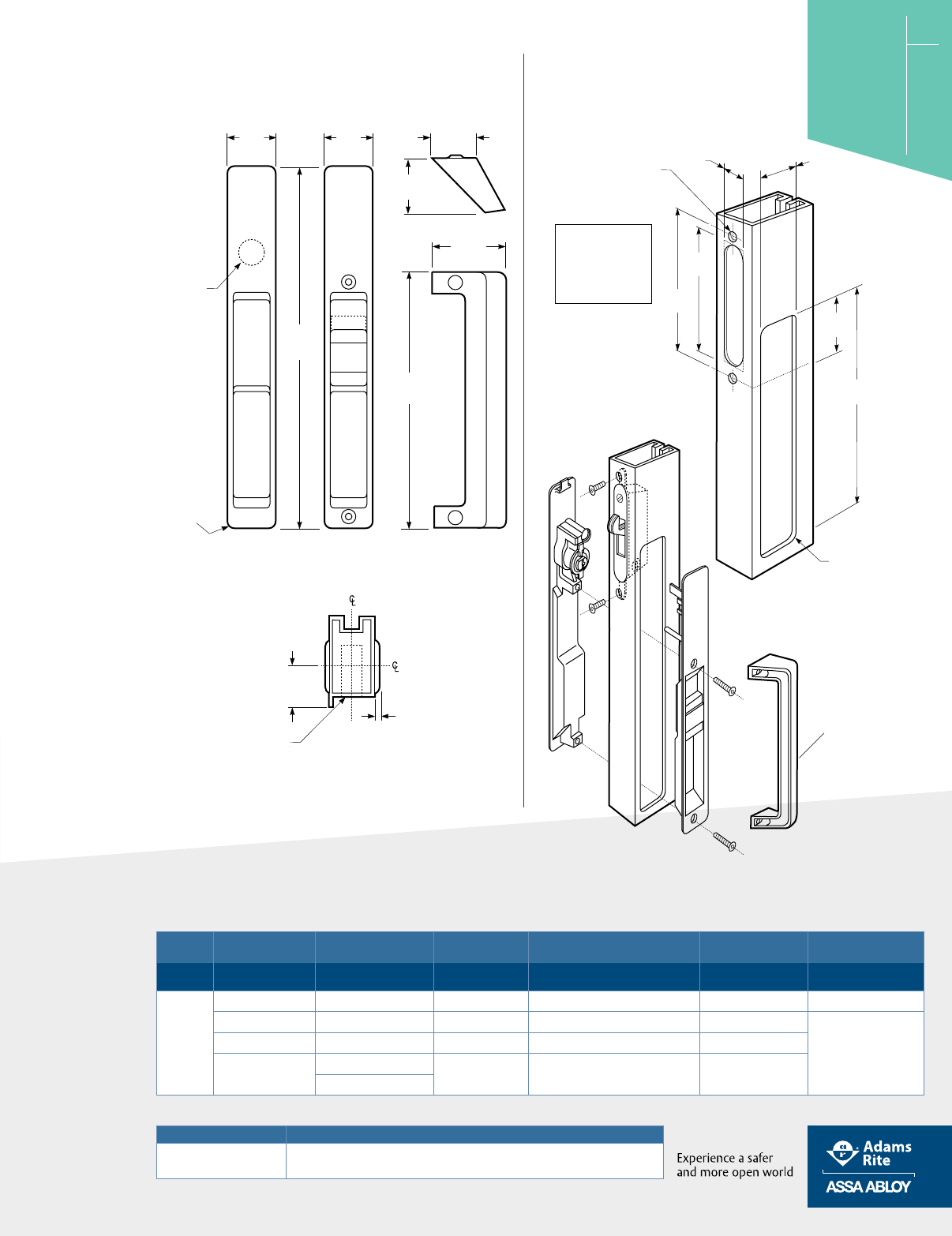

5017

Deadlock/

Deadlatch

1/2"

12.7mm 5/8"

15.9mm

1/8"

3.18mm

7/32"

5.6mm

1-1/4"

31.8mm

101.6mm

4-1/2"

114.3mm

2-9/16"

65.1mm

3-1/8"

79.4mm

3-7/8"

98.4mm

1/8"

3.2mm

2-9/16"

65.1mm

7/8"

22.2mm

5/8"

15.9mm

3/4"

19mm

1-3/16"

30.2mm

17/32"

13.5mm

4-1/16"

103.2mm

3/8"

9.5mm

1/8"

3.2mm

1-9/16"

39.7mm

9/16"

14.3mm

2-9/16"

65.1mm

3-3/8"

85.7mm

1/16"

1.6mm

11/16"

17.45mm

1-19/32

40.5mm

19/64"

7.5mm

1-1/32

26.2mm

51/64

20.2mm

FULL RADIUS

BOTH ENDS

(5017)

5017

1016 1015

4810

19/32"

15.1mm

3/4"

19.1mm

MOUNTING SCREWS

AND POSTS FURNISHED

DIA.

7/32"

5.6mmDIA.

min

(2 plcs)

(4 plcs)

How to Order & Related Products

5017 Deadlock/Deadlatch: Specify quantity and the following information. Order related products separately.

MODEL LATCH CONFIGURATION

5017 -00

00 Standard

02 Self Latching

When purchasing this product, please consider the following related products, available separately:

TRIM CYLINDERS ACCESSORIES

1004, 1015, 1016 Series Turn 4024, 4025, 4026 Cylinder Pulls 4810 Strike for wood installations

Dimensions

Stile Preparation

For lock, turn & cylinder pull

For strike

Jamb Preparation

DEADLOCKS

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Features

Cylinder Backset

1-3/16" [30.2 mm]; 1-1/4" [31.8

mm] including faceplate.

Case

Measures 1/2" x 4" x 1-19/32"

deep [12.7 mm x 101.6 mm x 40.5

mm deep]. Stainless steel.

Bolt

Three-ply laminated stainless steel.

Door Thickness

1" to 1-1/4" [25.4 mm to

31.8 mm] thick doors.

Faceplate

Measures 5/8" x 4-1/2" [15.9

mm x 114.3 mm] with radiused

ends. Stainless steel.

Strike

4810 Box Strike for wood.

Operators

Inside: 1004 Turn lever is zinc alloy

with stainless steel escutcheon

for interior activation of lock.

Spindle is hardened steel, plated

for corrosion resistance.

Outside: 1016 Blank plate escutcheon

with emergency override access

location on exterior of door.

Options

• Available in choice of ﬁnish

US26D (626) Satin chrome,

or powder coat 119 Black to

match 335 Black anodized.

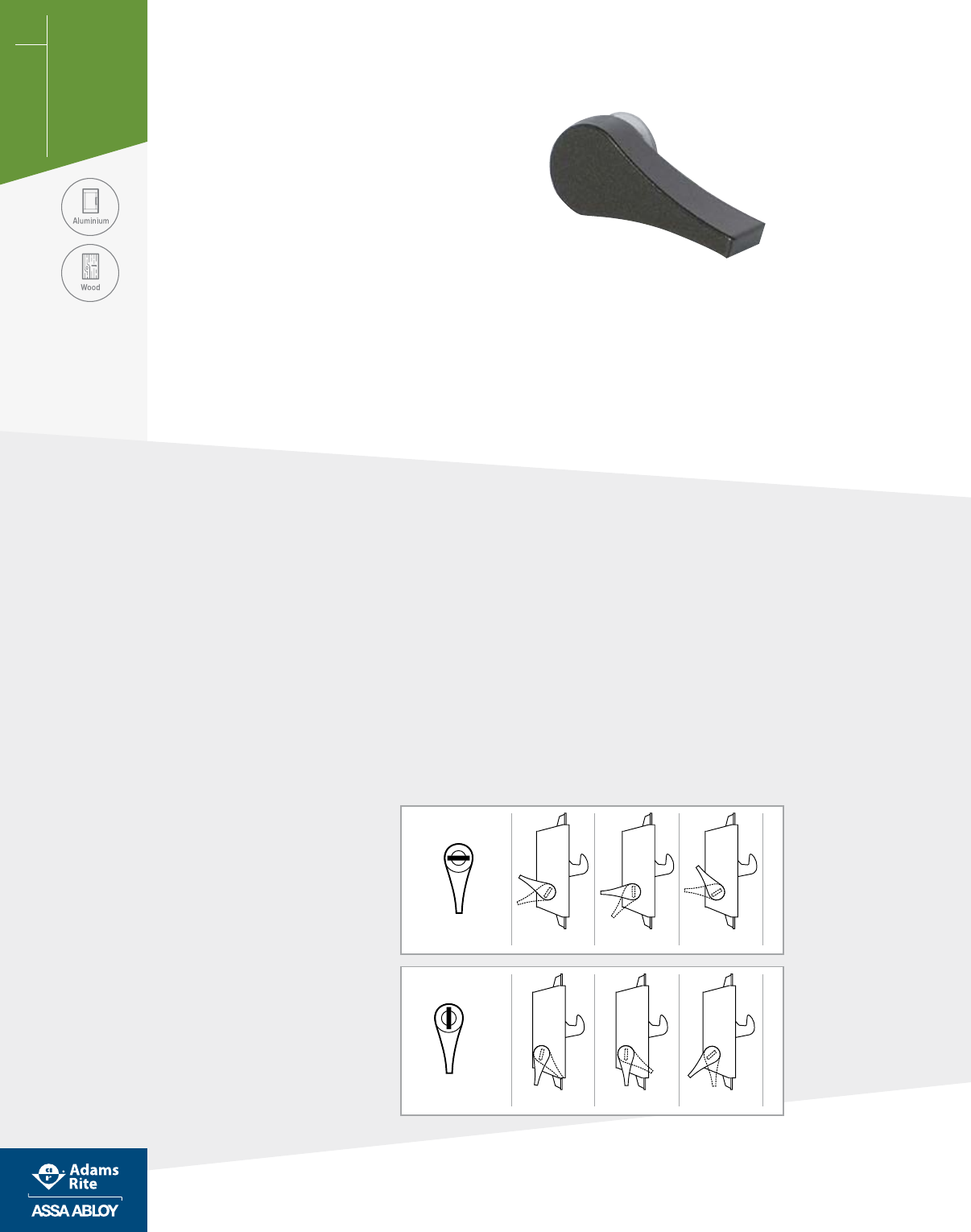

Deadlock

5500 Deadlock for sliding wood doors is a

hardware set that includes the lockset, strike,

and operators. The package features the 5017

Deadlock/Deadlatch with adjustable hookbolt

and uses an over-sized thumbturn operator on

the interior, coupled with an emergency override

access location on the exterior escutcheon.

Function

For wood framed sliding doors, the 5500 Deadlock features the

5017 Deadlock/Latch which provides the same 1000 lbs strength

that the MS1847 Deadlock/Latch provides for metal stiles. The

bolt throw is easily adjusted by means of a screw in the faceplate.

Mounting is by through-bolts, which also secure the inside 1004

Turn Lever and outside 1016 Blank Plate escutcheon. The package

incorporates the 1004 Turn Lever, an oversized thumbturn operator

on the interior, coupled with the 1016 Blank plate escutcheon

with an emergency override access location on the exterior.

Operation

45° rotation of 1004 Turn Lever projects or retracts bolt. Bolt

is self-protecting: if door is shut while bolt is extended, it

will retract, preventing damage or accidental lock-out.

5500

Deadlock

DEADLOCKS

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

5500

Deadlock

How to Order

5500 Deadlock: Specify quantity and the following information. Order related products separately.

MODEL DOOR THICKNESS FINISH

5500 -20 -626

20 1-1/4" thick 626 Satin Chrome

119 To match 335 Black Anodized

1/2"

12.7mm 5/8"

15.9mm

1/8"

3.18mm

7/32"

5.6mm

1-1/4"

31.8mm

101.6mm

4-1/2"

114.3mm

2-9/16"

65.1mm

3-1/8"

79.4mm

3-7/8"

98.4mm

1/8"

3.2mm

2-9/16"

65.1mm

7/8"

22.2mm

5/8"

15.9mm

3/4"

19mm

1-3/16"

30.2mm

17/32"

13.5mm

4-1/16"

103.2mm

3/8"

9.5mm

1/8"

3.2mm

1-9/16"

39.7mm

9/16"

14.3mm

2-9/16"

65.1mm

3-3/8"

85.7mm

1/16"

1.6mm

11/16"

17.45mm

1-19/32

40.5mm

19/64"

7.5mm

1-1/32

26.2mm

51/64

20.2mm

FULL RADIUS

BOTH ENDS

(5017)

5017

1016 1015

4810

19/32"

15.1mm

3/4"

19.1mm

MOUNTING SCREWS

AND POSTS FURNISHED

DIA.

7/32"

5.6mmDIA.

min

(2 plcs)

(4 plcs)

Dimensions

5017

1004

Stile Preparation

For lock, turn & cylinder pull

For strike

Jamb Preparation

DEADLOCKS

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Adams Rite Deadlocks including the MS® Maximum Security Deadlocks can be ordered with a variety

of related products including strike plates, cylinder accessories and trim. Dierent deadlocks have

dierent installation and cylinder requirements. Please refer to product pages for more information on all

available deadlock types, functions, installation requirements and complete How-to-Order guides.

For more detailed information on any of the products listed below please refer to the corresponding section of this catalog.

Accessories

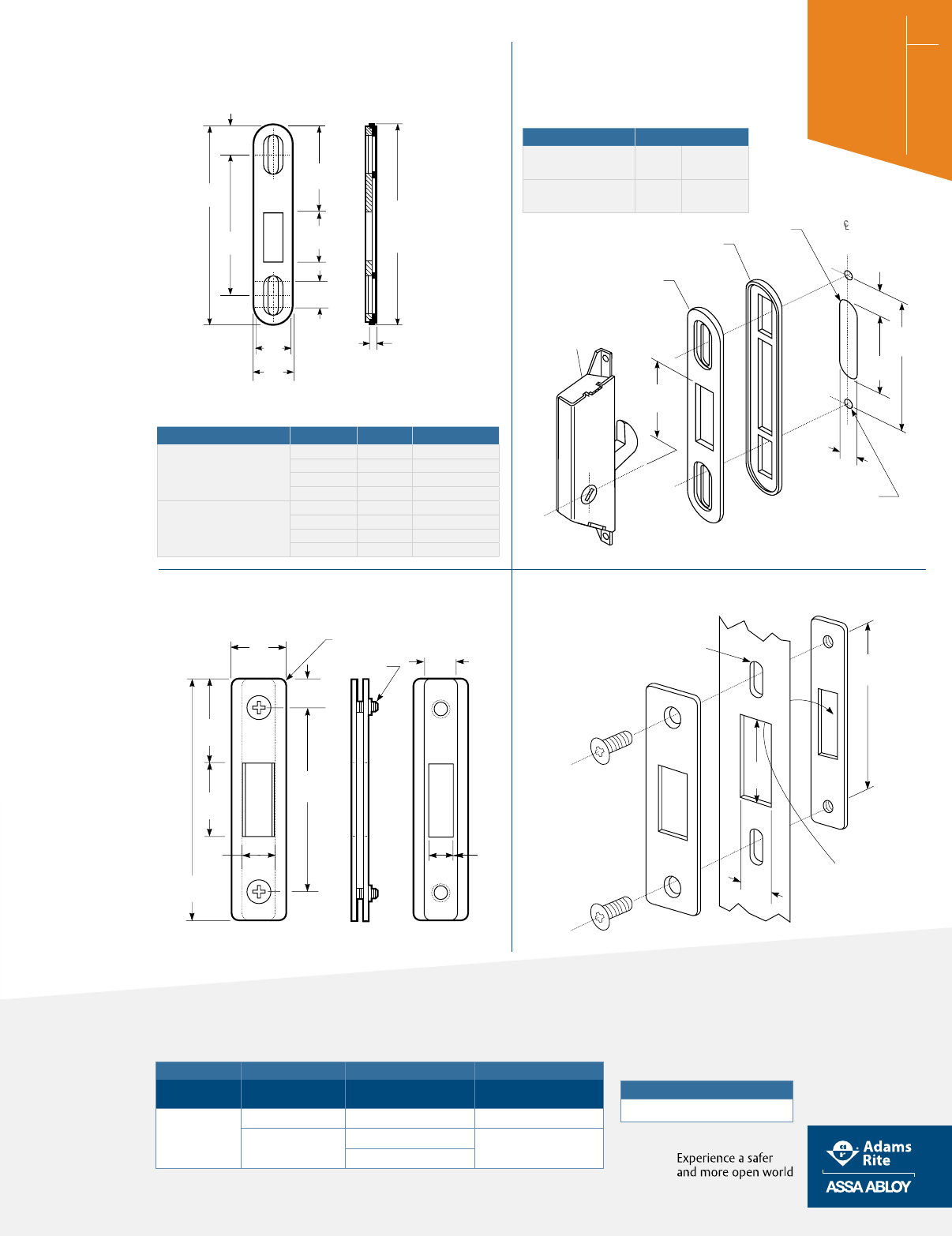

4000 Series MS Deadlock Strikes

4000 surface mounted strike plate, 4001 strike plate

with dust box, 4005 threshold strike, 4006 ﬂoor

strike, 4505 armored strike, or 4003 ANSI strike add

aesthetics and ﬁnish to strike cutouts in jambs.

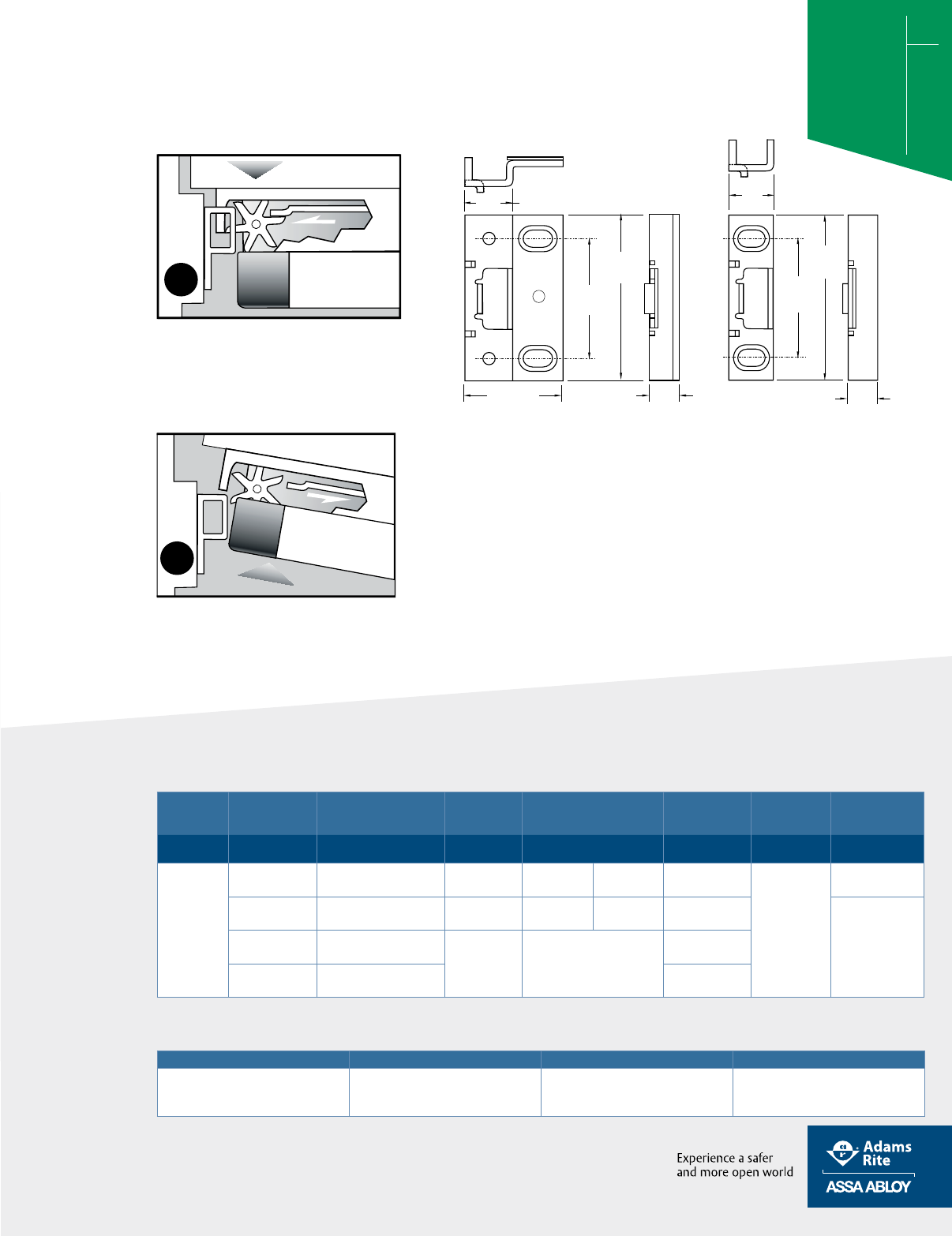

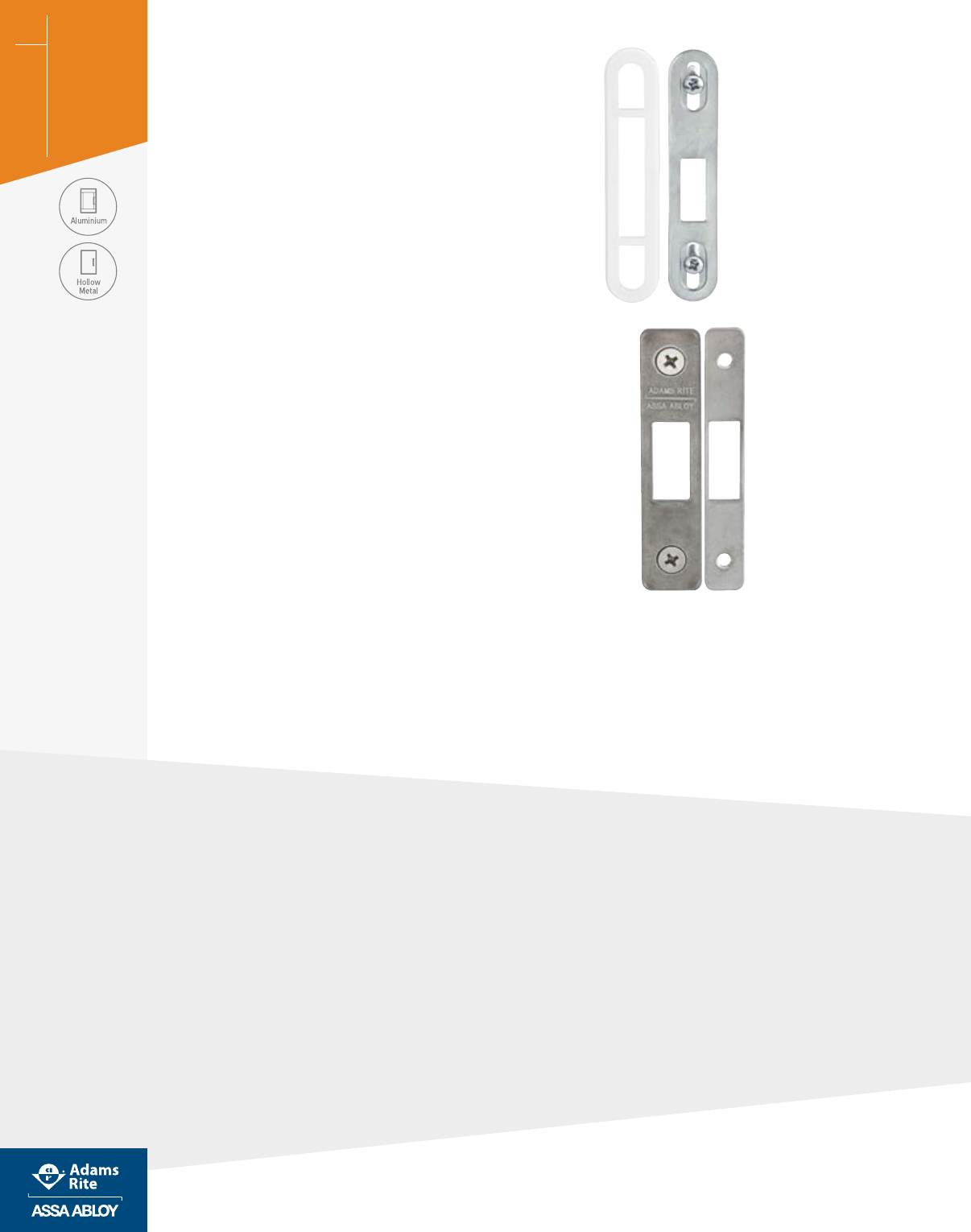

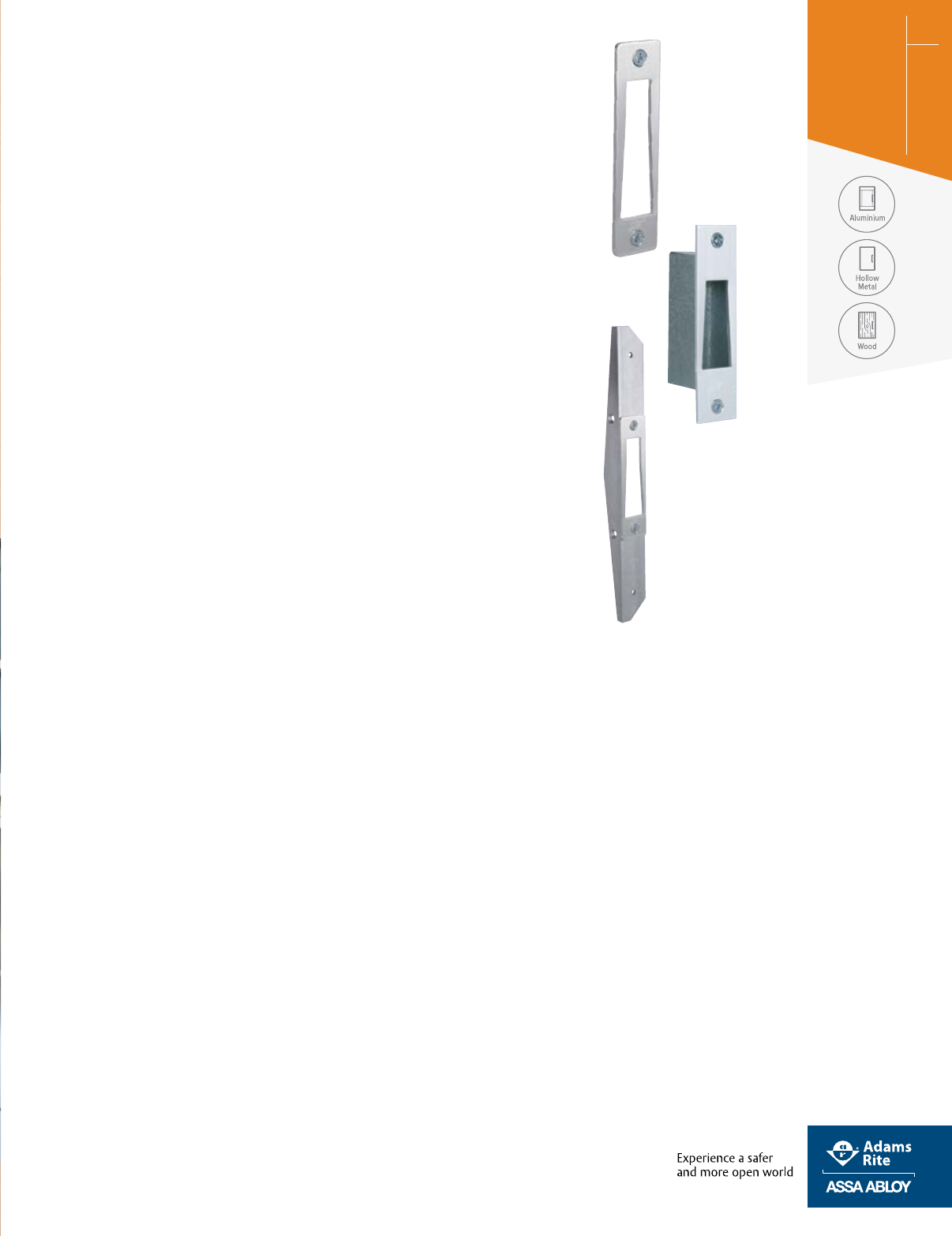

4800 Series Strikes

4801 for hollow metal, 4802 for wood, or MS4804 reinforcing

strike, the 4800 Series Strikes boast vertical adjustment and

include a shim system for horizontal positioning for nearly

any sliding door using a mortised MS1847 Deadlock or latch.

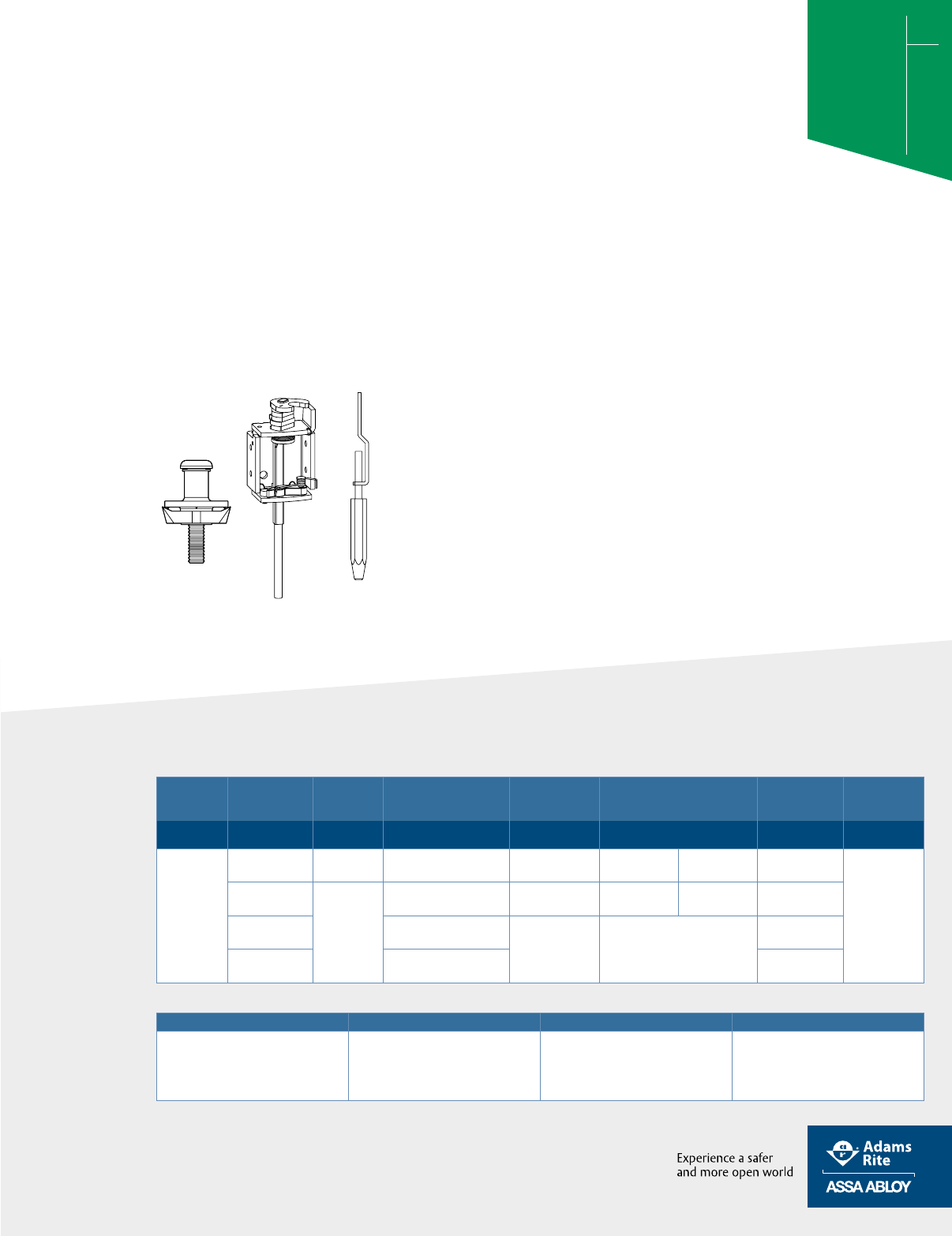

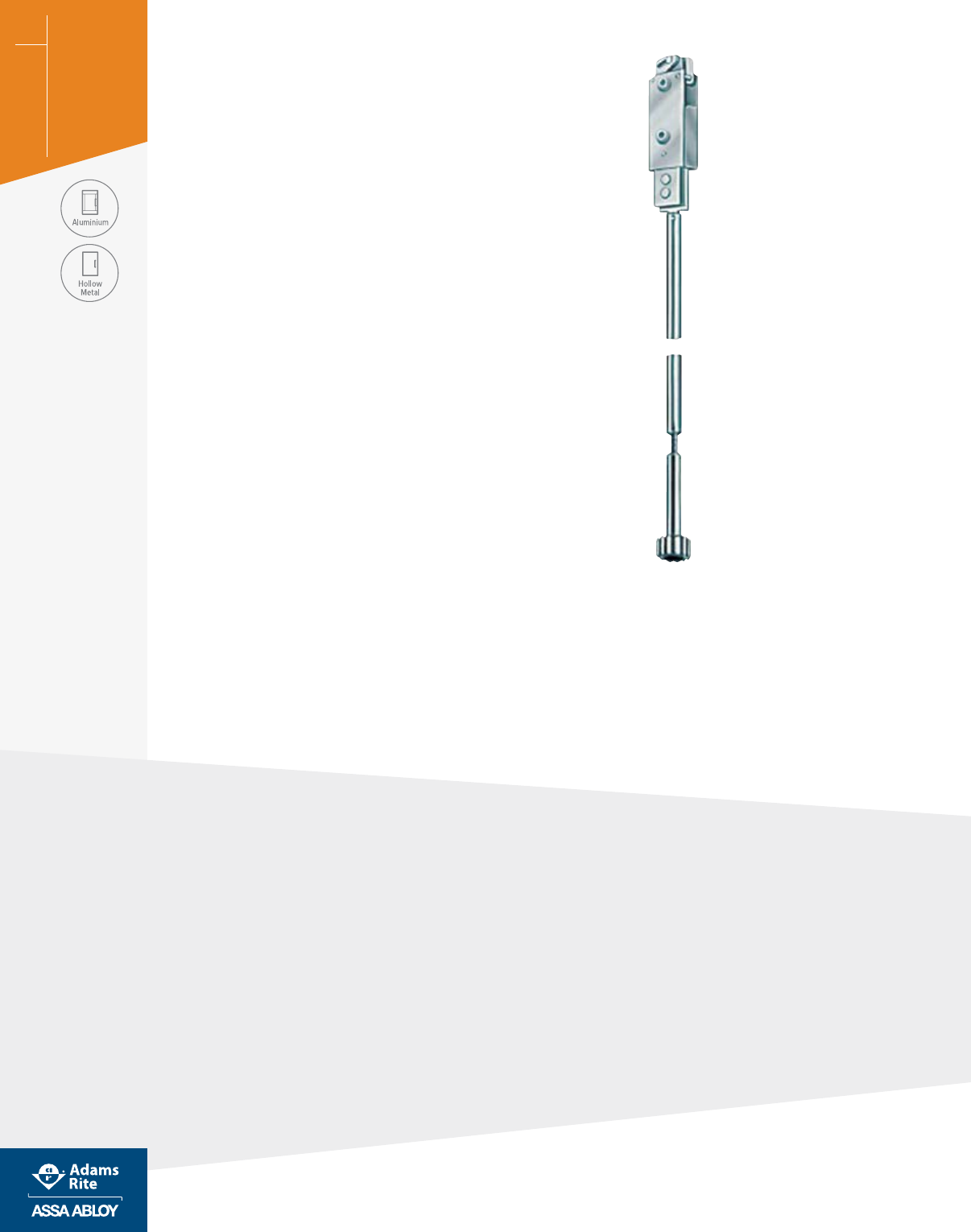

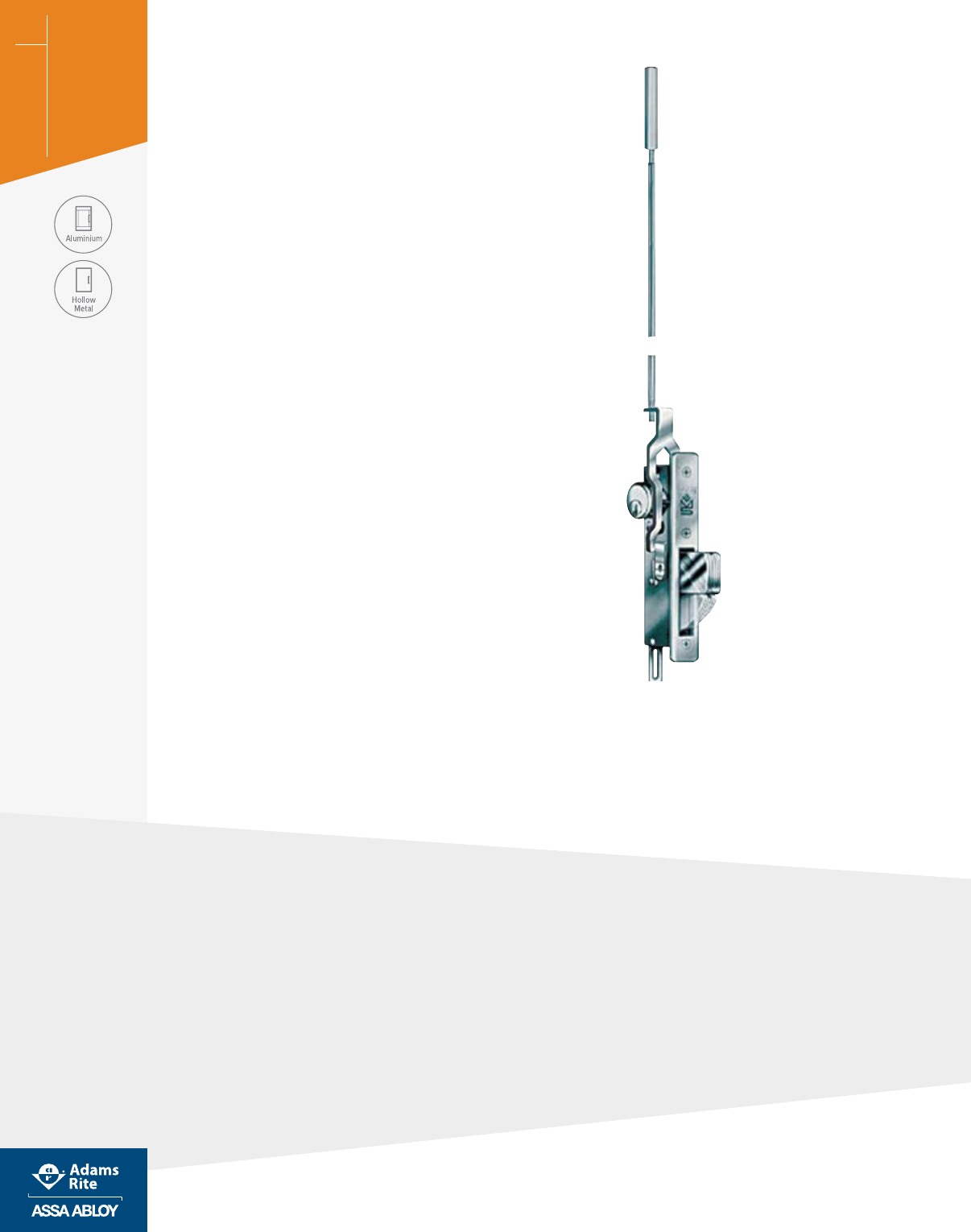

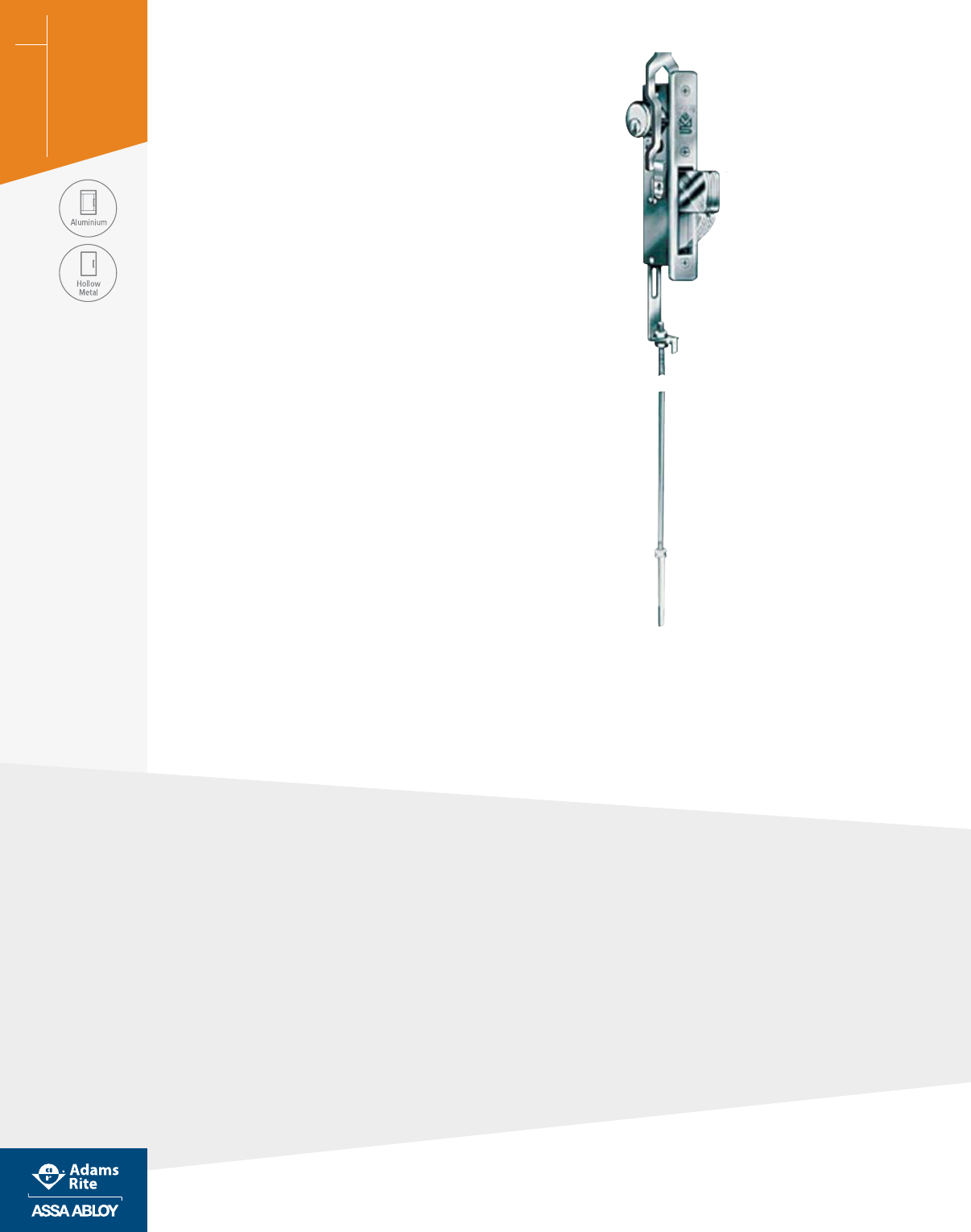

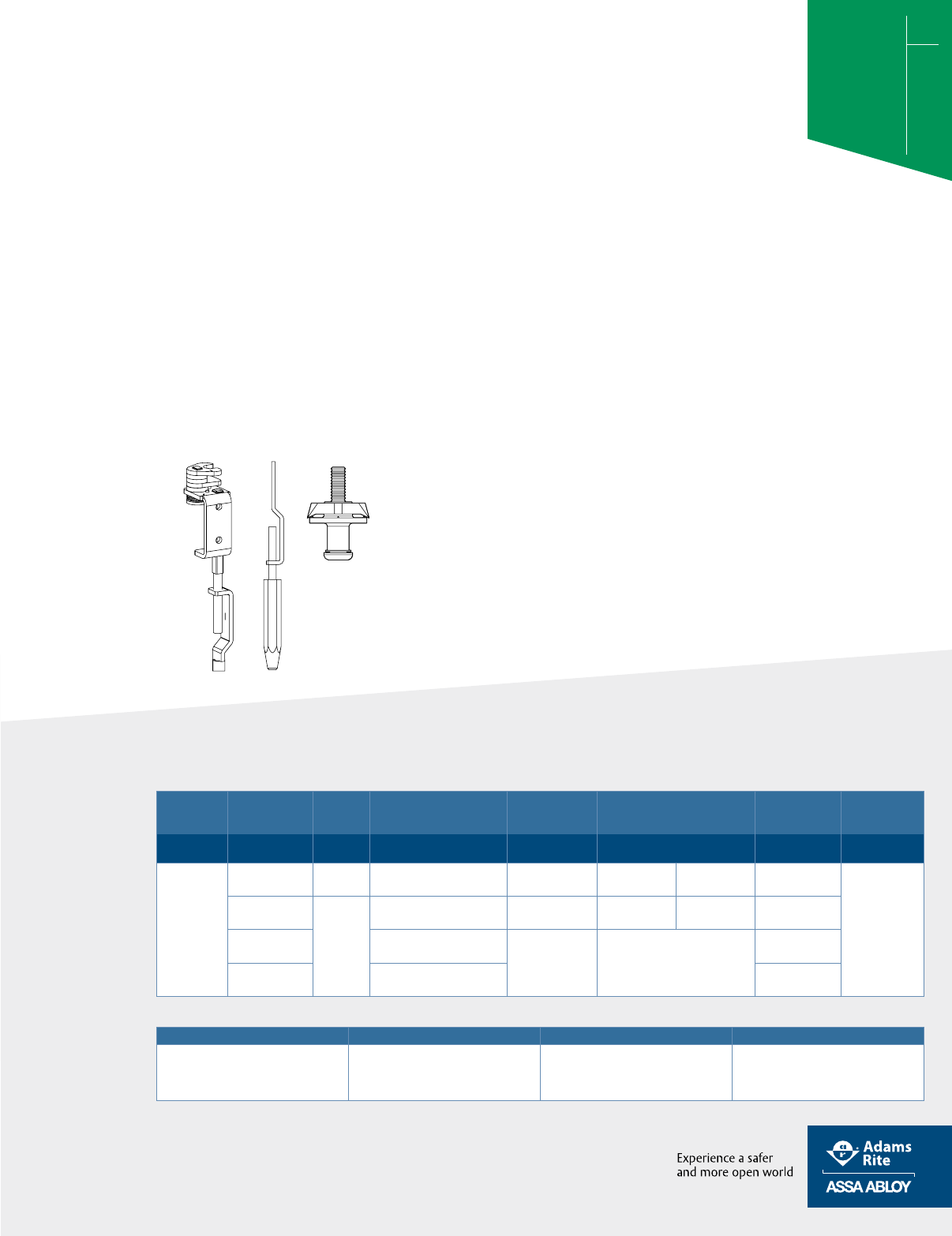

Header Bolts

4015 Threshold Bolt is a two-point lock that easily

secures a single door entrance. Security for pairs

of doors with single key turning is possible with the

4016 Header Bolt. The three-point lock easily secures

the entire double door entrance when working in

conjunction with an MS Deadlock. 4085 Header Bolt

facilitate top-ofdoor third locking point for pairs of doors

when working in conjunction with an MS pivoted bolt

deadlock and 4015 Threshold Bolt in the active leaf.

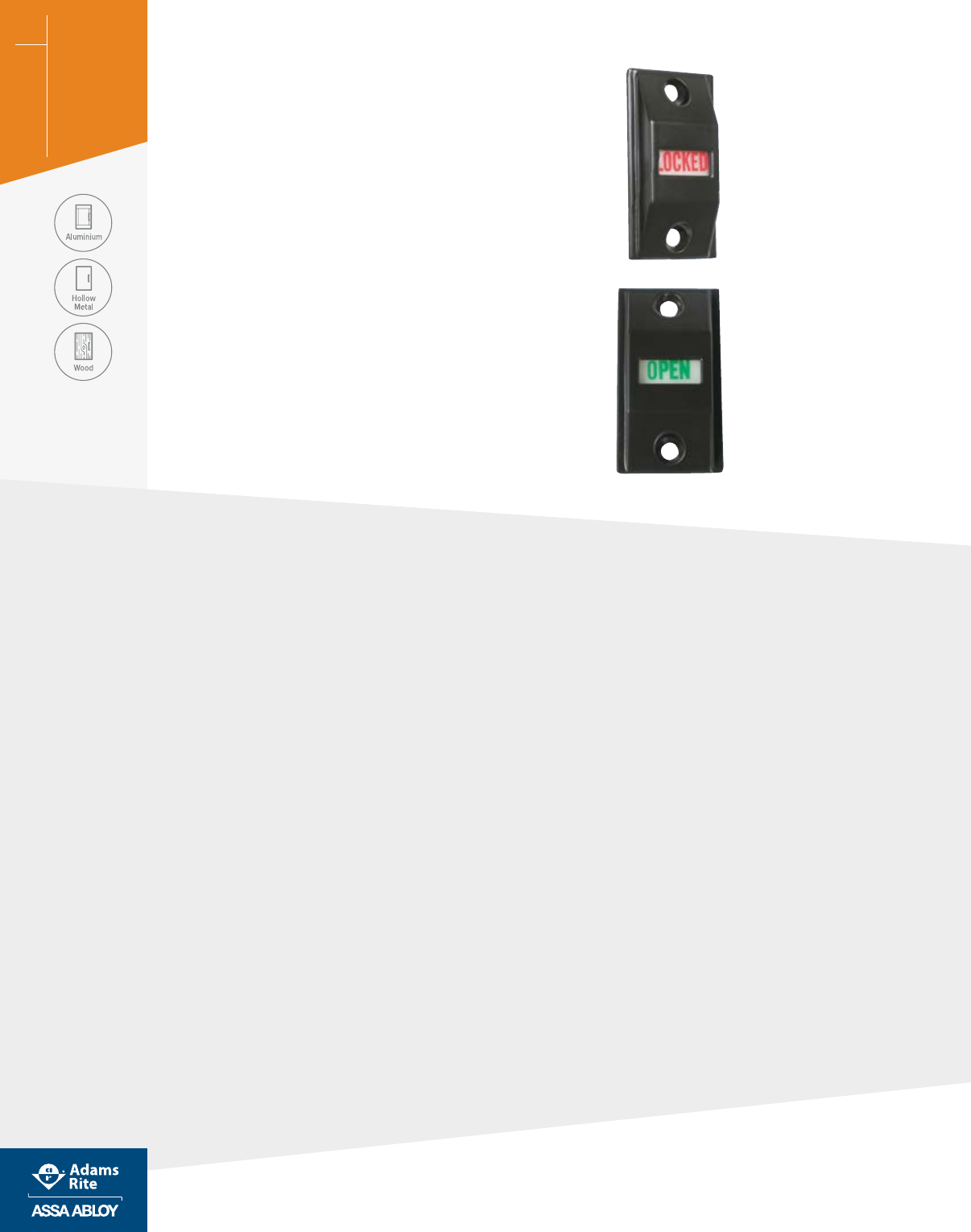

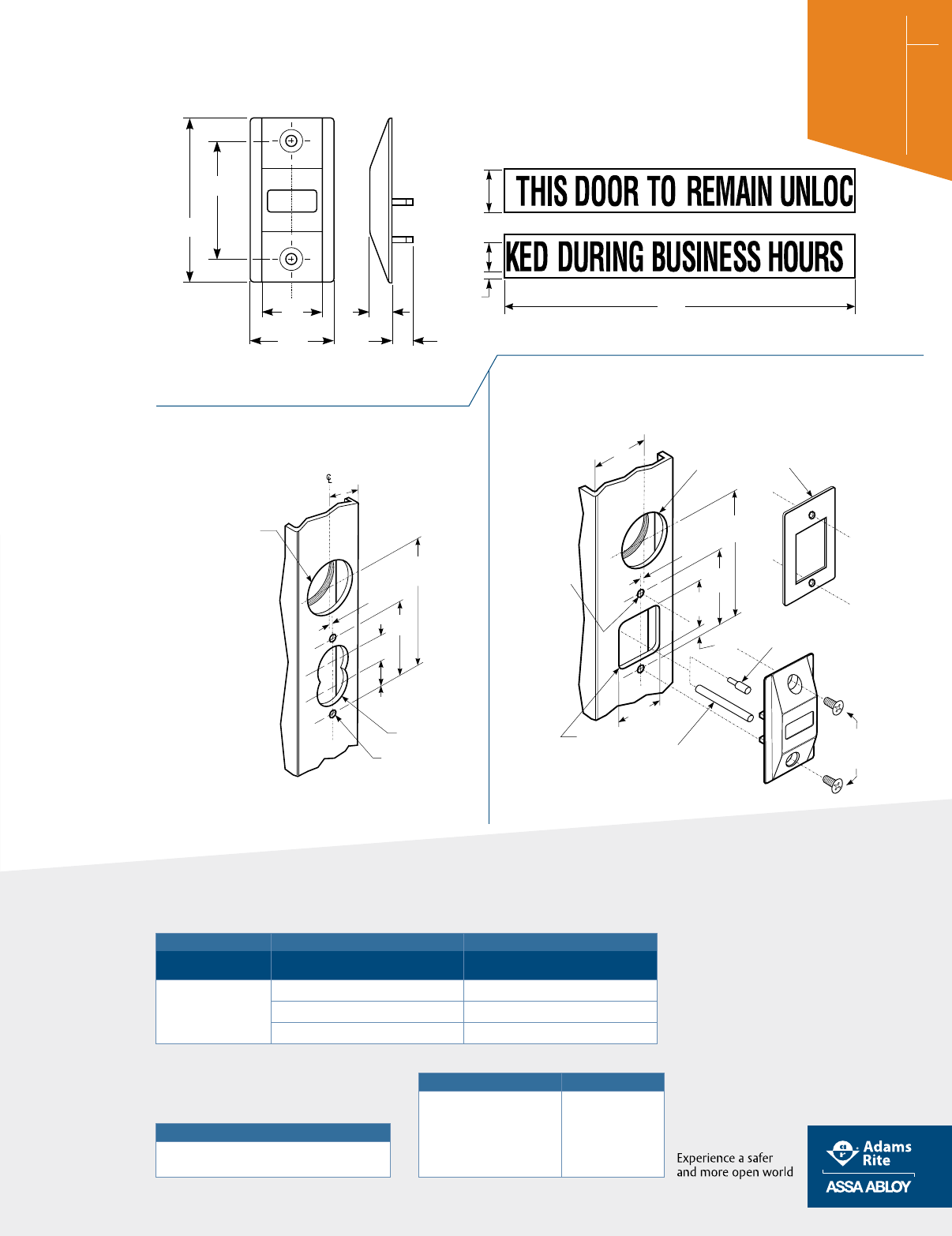

Exit Indicator

The 4089 Exit Indicator provides exit door

notiﬁcation for various Adams Rite deadlocks.

Trim

1000 Series Turns

The 1000 Series Turns with or without escutcheon are

designed to operate Adams Rite MS1847 Deadlocks and

5017 Wood Door Deadlock. These turns mount easily to

door pull or other trim plate using push-nut mounting.

The 1004 Turn has a longer, more ergonomically-friendly

turn lever, the 1015 Turn is available for wood door

applications with the 5017 Wood Door Deadlock.

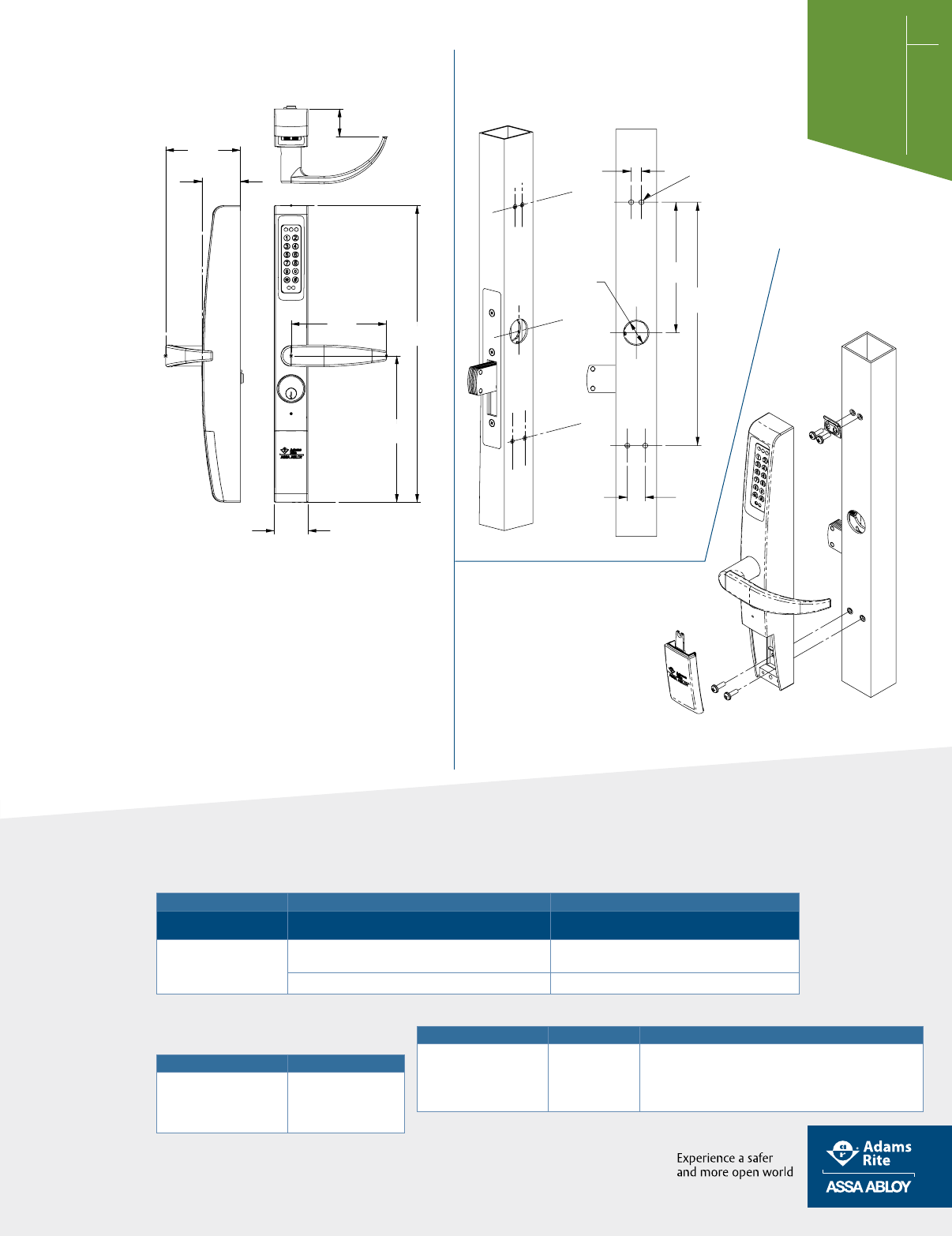

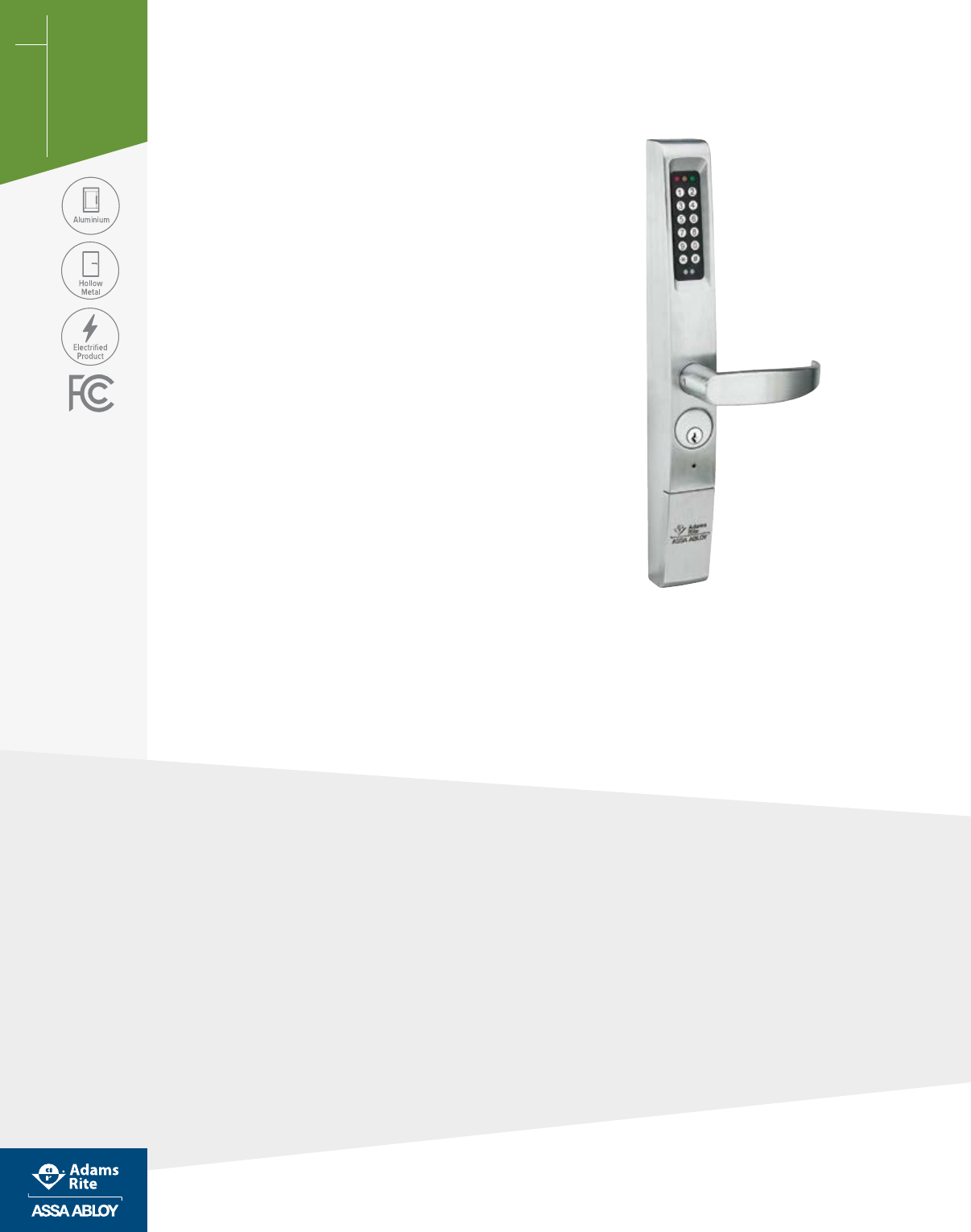

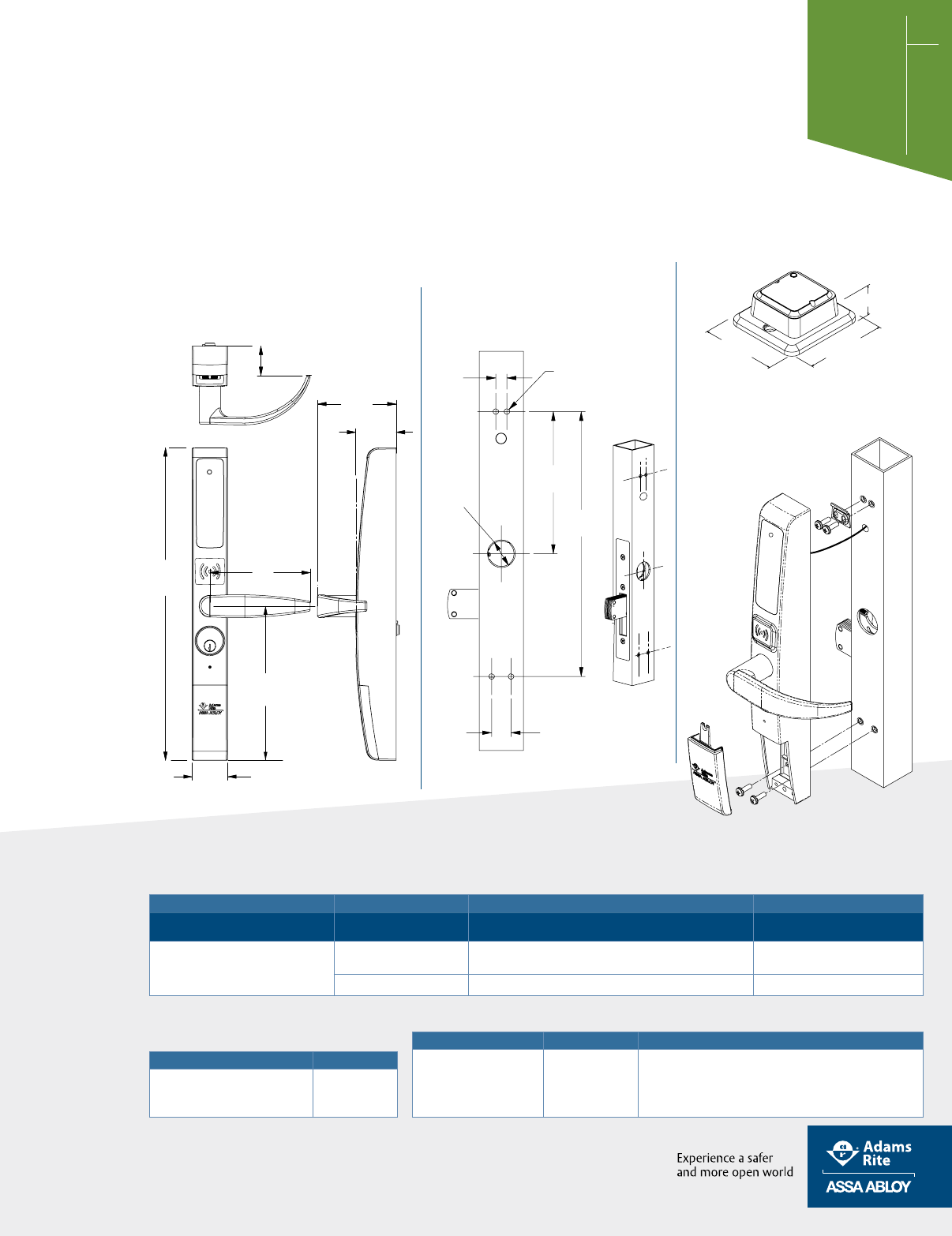

3090 Keyless Entry

A battery-operated keyless entry control device, the

eForce-150 3090

Keyless Entry

provides access control

for Adams Rite deadlocks, deadlatches, and exit devices

for aluminum stile, steel, and wood door applications.

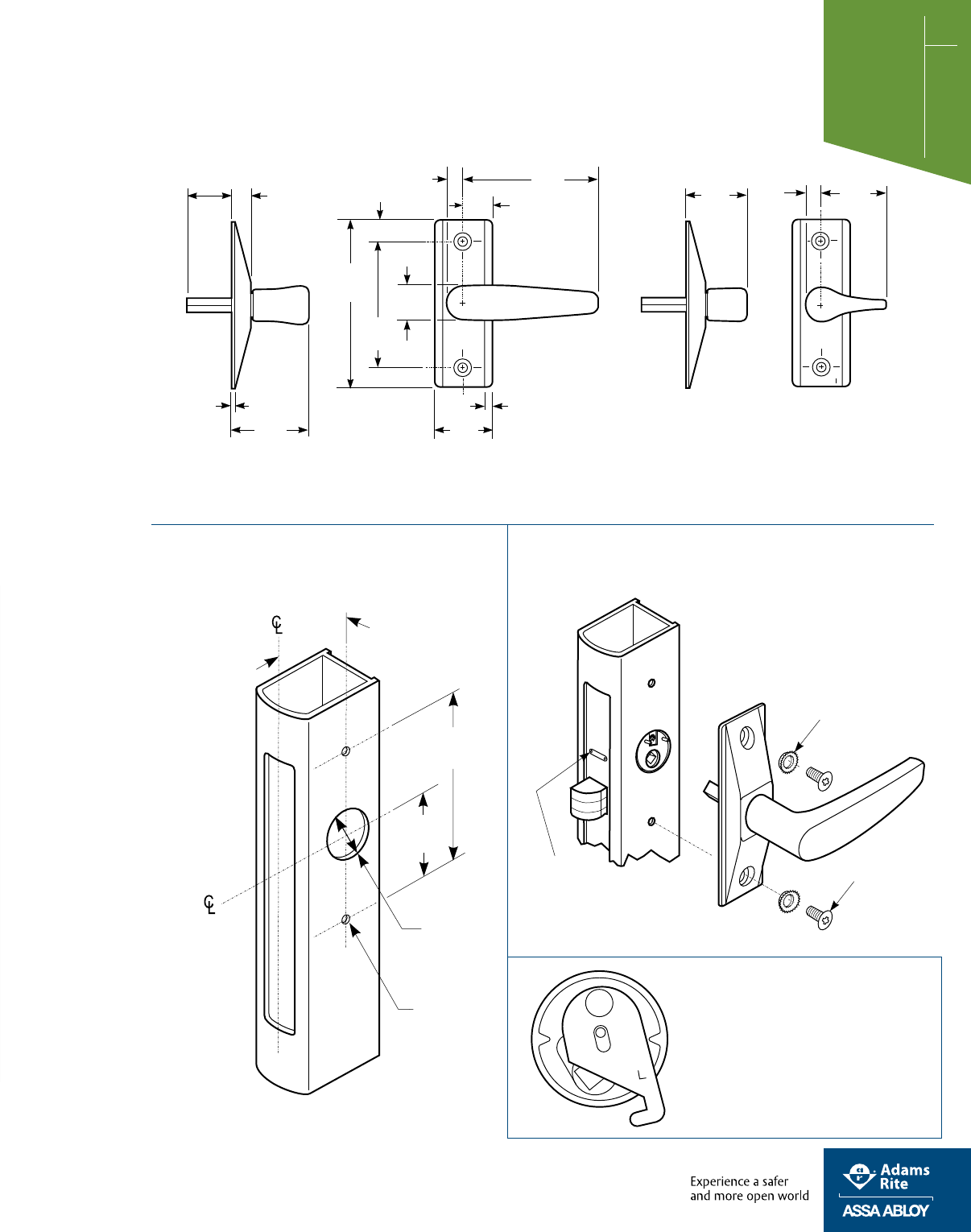

4550 Deadlock Lever

The 4550 MS Deadlock Lever easily unlocks an MS

Deadlock with approximately 3 pounds of downward

force. The spring-loaded lever relocks with an upward

motion. Can be installed in place of existing key cylinder

or cylinder type thumbturn on inside of door.

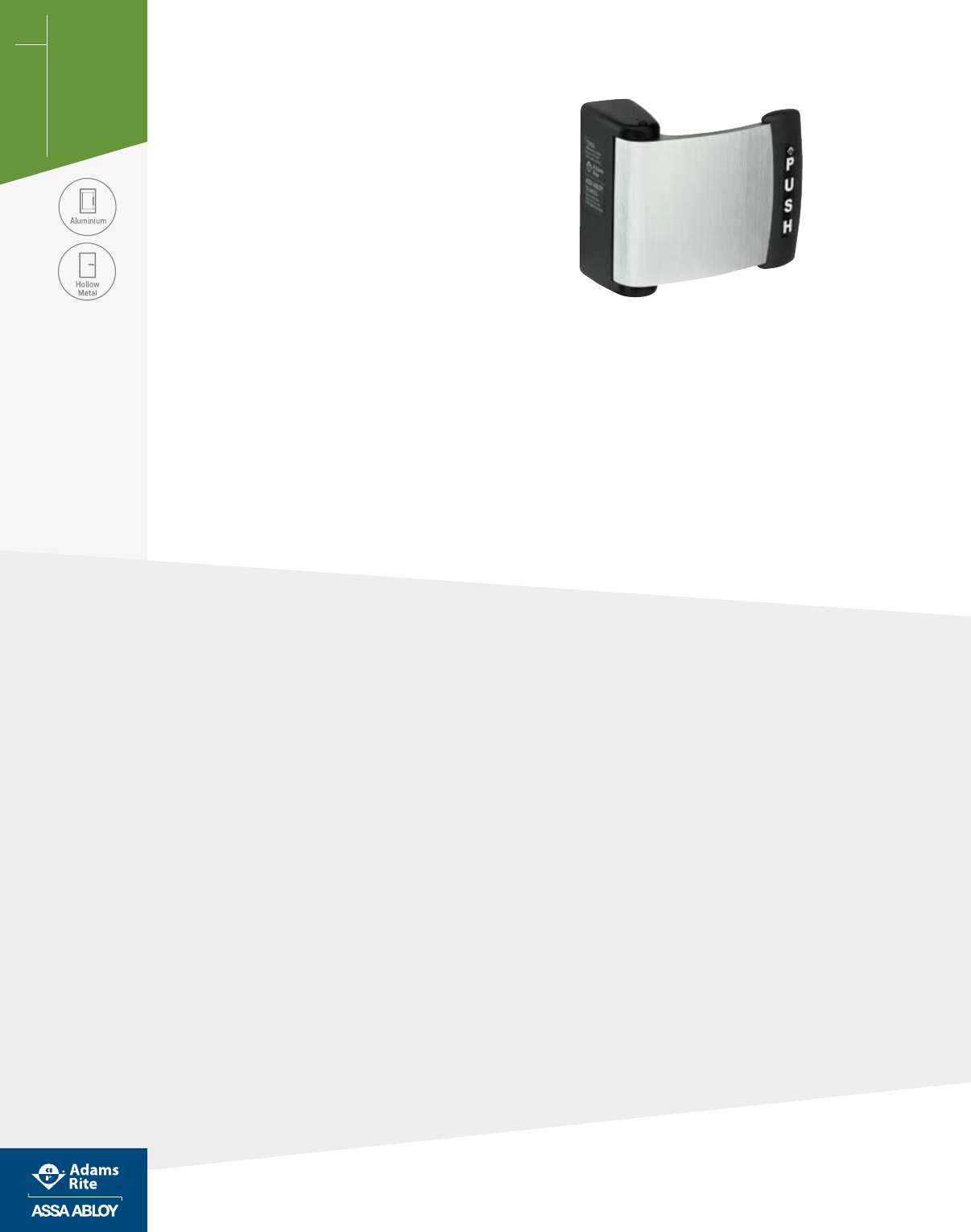

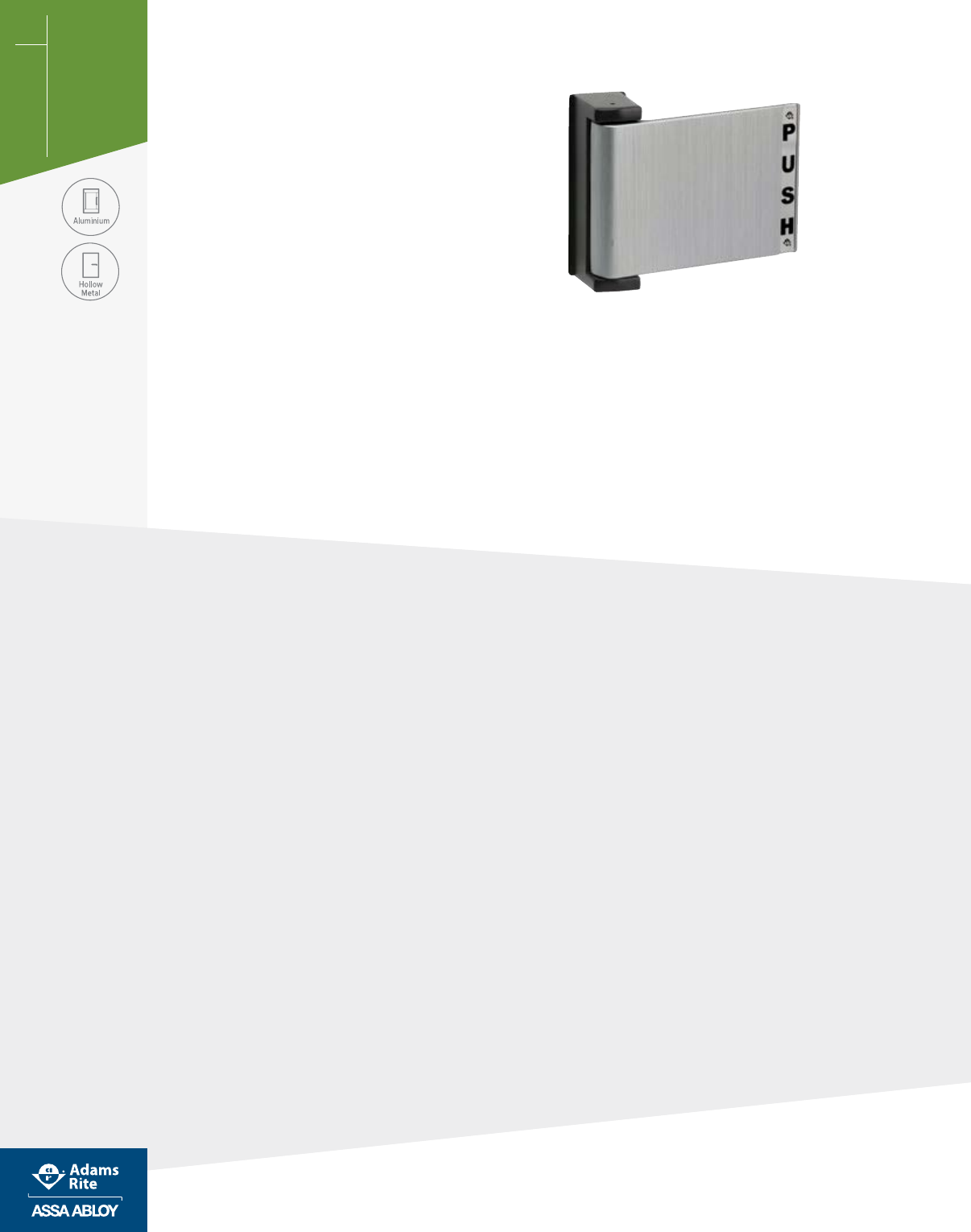

Deadlatch Paddles

The 4590 and 4591 Deadlatch Paddles are an

ergonomically-friendly alternative to a knob or

lever handle. Operate the MS+1890 Deadlock/

Latch or 2190, 2290 Interconnected Deadbolt/

Deadlatch with a simple push or pull.

Options & Accessories

Options &

Accessories

DEADLOCKS

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

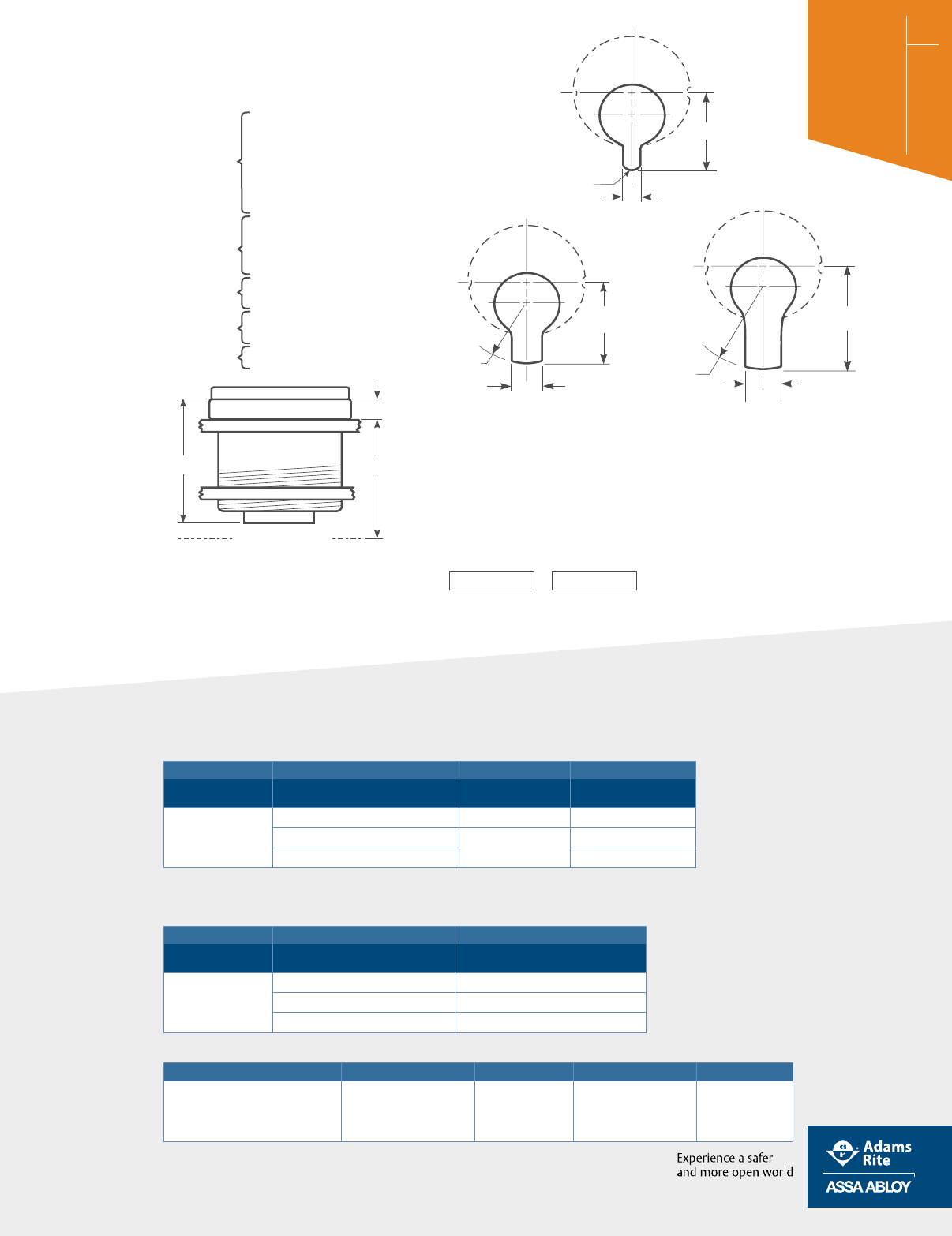

Options &

Accessories

DIM “A”

1830

2190

2290

MS1837

MS1850S

MS1850SN

MS1861

MS1950

1875

MS +1890

4300

4510

4530

4900

4781

4920AN

8300

8400

8650

DEADLOCK

DEADLATCH

SERIES

EXIT

DEVICES

1870

1870HM

1877

3080

3090

FLUSHLOCKS

TRIM

THIS CAM

AVAILABLE FROM:

Adams Rite

Arrow

ASSA

Best

Corbin Russwin

Dorma

Falcon

KABA-Ilco

Medeco

Sargent

Schlage

Weiser

Yale

.120"

3.0mm.182"

4.6mm

.334"

8.5mm

.620"

15.7mm

.800" ± .005"

20.3mm ± .127mm

.850" ± .005"

21.6mm ± .127mm

.721"

18.3mm

.950"

24.1mm

.334"

8.5mm

DIMENSIONS OF CAM TO OPERATE:

*TOLERANCE: ± .060

FOR 2190 TR* = A - B

LOCK CASE

CAM

DOOR CENTERLINE

DOOR STILE

TRIM RING

CYLINDER

TR* = A + .125 – BTR* = A + .132 – B

FOR MS® LOCKS:

FOR 4500 SERIES

LATCHES

CYLINDER TRIM RING FOR NARROW STILES

Narrow stile doors require a trim ring to ﬁll the gap remaining between the cylinder shoulder

and stile when a standard mortise cylinder is used. If the security of the hardened steel

Adams Rite MS4043 Cylinder Guard is not required, this ring may be simply a length of 1.171

I.D. tubing. Its length varies depending on door thickness or cylinder make and number of

pins. The speciﬁc length required can be quickly determined by the following formula:

“TR” is trim ring length.

“A” is cylinder height

(less shoulder but including cam).

“B” is one-half of door thickness.

DIMENSIONS OF CAM TO OPERATE:

4070 SERIES DEADBOLT

This cam available from above cylinder

manufacturers on special order

DIMENSIONS OF CAM TO OPERATE:

2331 DEADBOLT

This cam available from all cylinder

manufacturers (standard cam)

DIM “A”

1830

2190

2290

MS1837

MS1850S

MS1850SN

MS1861

MS1950

1875

MS +1890

4300

4510

4530

4900

4781

4920AN

8300

8400

8650

DEADLOCK

DEADLATCH

SERIES

EXIT

DEVICES

1870

1870HM

1877

3080

3090

FLUSHLOCKS

TRIM

THIS CAM

AVAILABLE FROM:

Adams Rite

Arrow

ASSA

Best

Corbin Russwin

Dorma

Falcon

KABA-Ilco

Medeco

Sargent

Schlage

Weiser

Yale

.120"

3.0mm.182"

4.6mm

.334"

8.5mm

.620"

15.7mm

.800" ± .005"

20.3mm ± .127mm

.850" ± .005"

21.6mm ± .127mm

.721"

18.3mm

.950"

24.1mm

.334"

8.5mm

DIMENSIONS OF CAM TO OPERATE:

*TOLERANCE: ± .060

FOR 2190 TR* = A - B

LOCK CASE

CAM

DOOR CENTERLINE

DOOR STILE

TRIM RING

CYLINDER

TR* = A + .125 – BTR* = A + .132 – B

FOR MS® LOCKS:

FOR 4500 SERIES

LATCHES

CYLINDER TRIM RING FOR NARROW STILES

Narrow stile doors require a trim ring to ﬁll the gap remaining between the cylinder shoulder

and stile when a standard mortise cylinder is used. If the security of the hardened steel

Adams Rite MS4043 Cylinder Guard is not required, this ring may be simply a length of 1.171

I.D. tubing. Its length varies depending on door thickness or cylinder make and number of

pins. The speciﬁc length required can be quickly determined by the following formula:

“TR” is trim ring length.

“A” is cylinder height

(less shoulder but including cam).

“B” is one-half of door thickness.

DIMENSIONS OF CAM TO OPERATE:

4070 SERIES DEADBOLT

This cam available from above cylinder

manufacturers on special order

DIMENSIONS OF CAM TO OPERATE:

2331 DEADBOLT

This cam available from all cylinder

manufacturers (standard cam)

DIM “A”

1830

2190

2290

MS1837

MS1850S

MS1850SN

MS1861

MS1950

1875

MS +1890

4300

4510

4530

4900

4781

4920AN

8300

8400

8650

DEADLOCK

DEADLATCH

SERIES

EXIT

DEVICES

1870

1870HM

1877

3080

3090

FLUSHLOCKS

TRIM

THIS CAM

AVAILABLE FROM:

Adams Rite

Arrow

ASSA

Best

Corbin Russwin

Dorma

Falcon

KABA-Ilco

Medeco

Sargent

Schlage

Weiser

Yale

.120"

3.0mm.182"

4.6mm

.334"

8.5mm

.620"

15.7mm

.800" ± .005"

20.3mm ± .127mm

.850" ± .005"

21.6mm ± .127mm

.721"

18.3mm

.950"

24.1mm

.334"

8.5mm

DIMENSIONS OF CAM TO OPERATE:

*TOLERANCE: ± .060

FOR 2190 TR* = A - B

LOCK CASE

CAM

DOOR CENTERLINE

DOOR STILE

TRIM RING

CYLINDER

TR* = A + .125 – BTR* = A + .132 – B

FOR MS® LOCKS:

FOR 4500 SERIES

LATCHES

CYLINDER TRIM RING FOR NARROW STILES

Narrow stile doors require a trim ring to ﬁll the gap remaining between the cylinder shoulder

and stile when a standard mortise cylinder is used. If the security of the hardened steel

Adams Rite MS4043 Cylinder Guard is not required, this ring may be simply a length of 1.171

I.D. tubing. Its length varies depending on door thickness or cylinder make and number of

pins. The speciﬁc length required can be quickly determined by the following formula:

“TR” is trim ring length.

“A” is cylinder height

(less shoulder but including cam).

“B” is one-half of door thickness.

DIMENSIONS OF CAM TO OPERATE:

4070 SERIES DEADBOLT

This cam available from above cylinder

manufacturers on special order

DIMENSIONS OF CAM TO OPERATE:

2331 DEADBOLT

This cam available from all cylinder

manufacturers (standard cam)

Dimensions of cam to operate

Adams Rite 4070 Deadlock

Dimensions of MS® Cam Dimensions of cam to operate

Adams Rite 2331 Deadlock

Cylinders

Cylinder Pulls

The 4024, 4025, 4026 Cylinder Pulls are

designed to operate Adams Rite MS1847

Deadlocks and 5017 Wood Door Deadlock.

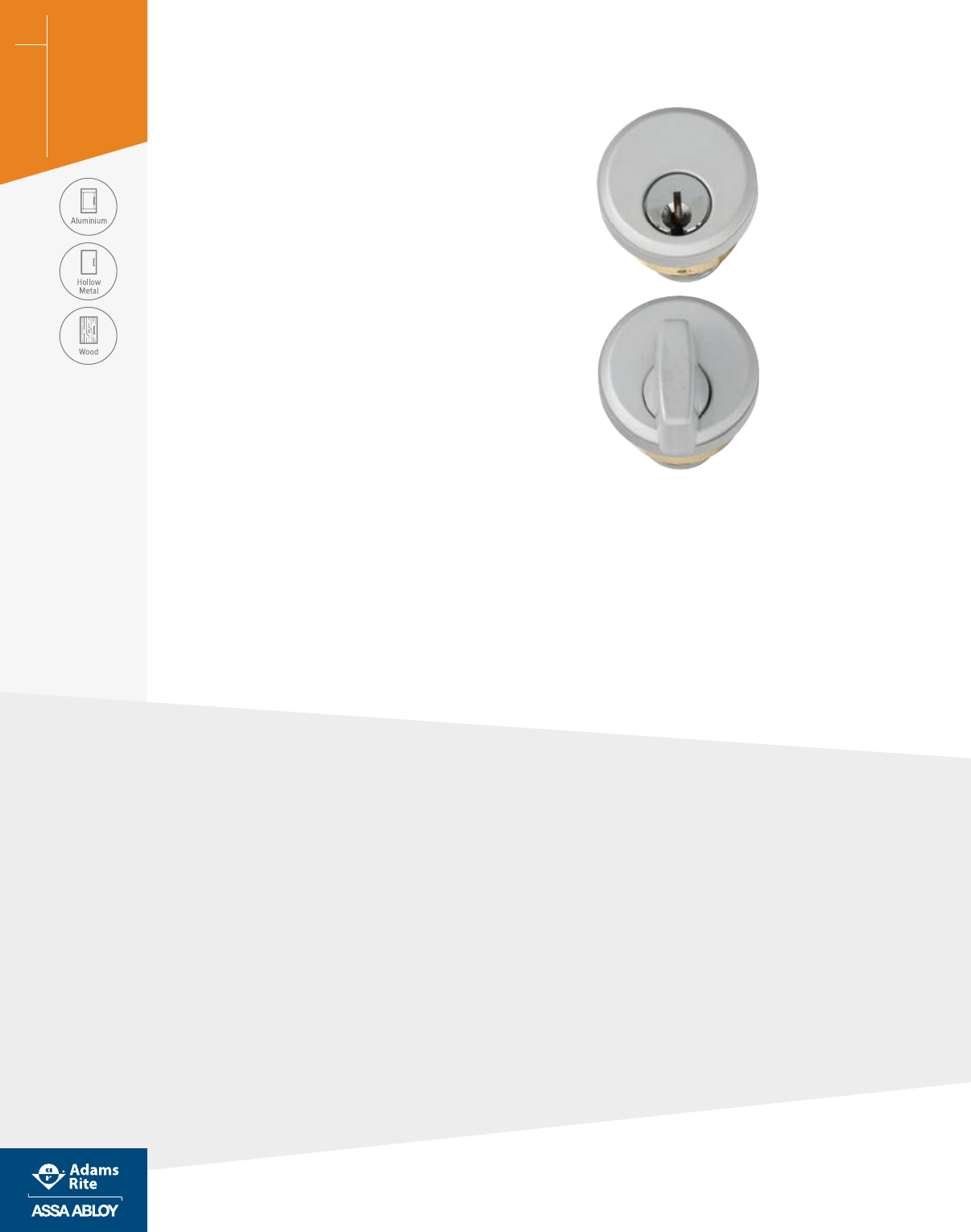

4036 Mortise Cylinder

The 4036 Mortise Cylinder is a standard 1" long,

1-5/32" diameter cylinder that provides ﬁve-pin

security with most Adams Rite locks or latches.

4066 Thumbturn

The 4066 Thumbturn interchanges with

standard 1-5/32" diameter mortise cylinder and

operates locks or latches without a key.

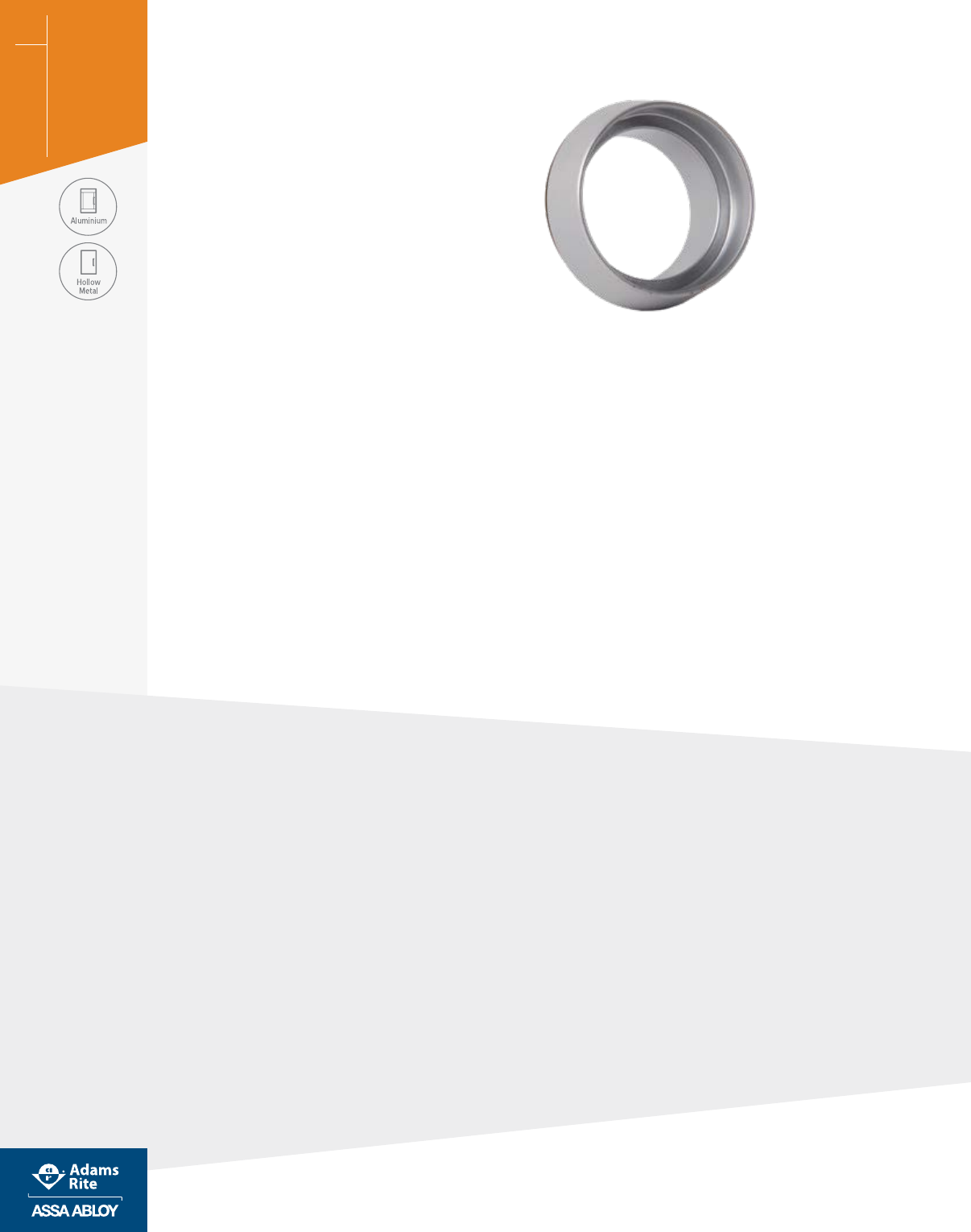

MS4043 Cylinder Guard

The MS4043 Cylinder Guard is a hardened-

steel, free swiveling ring to protect cylinder from

vandalism such as prying or twisting. Dimensions

of MS cam to operate Adams Rite deadlocks,

excluding 4070 Deadlock and 2331 Deadlock.

Deadlatches

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

DEADLATCHES

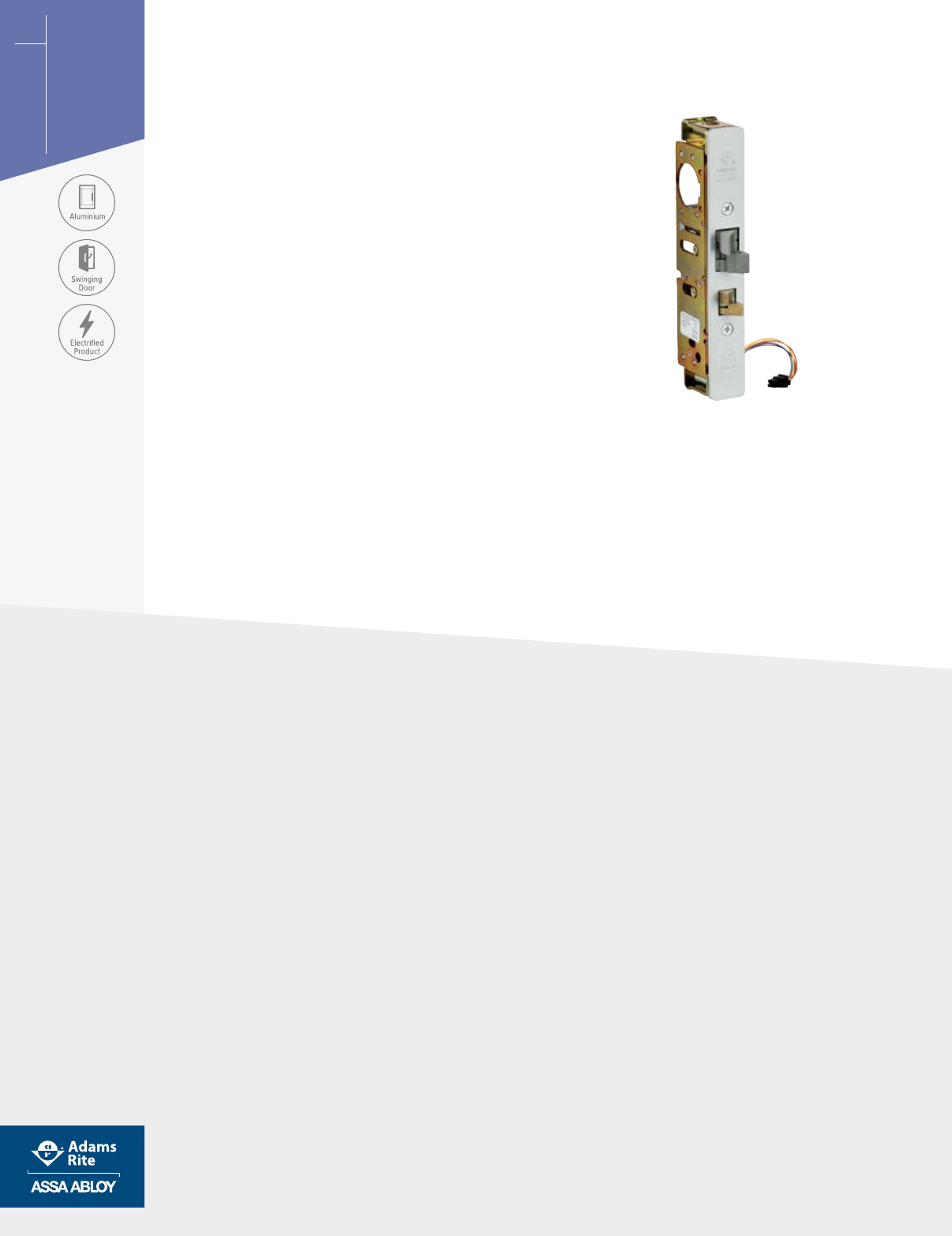

Steel Hawk®

4300

Electriﬁed

Deadlatch

Features

Cylinder Backset

31/32" [24.6 mm], 1-1/8"

[28.6 mm], and 1-1/2" [38.1 mm].

Case

Steel with corrosion-resistant plating.

Measures 15/16" x 5-13/16" x depth

[23.8 mm x 147.6 mm x depth].

Depth varies by backset (see

table on back of page).

Latchbolt

Stainless steel. Measures 5/8" x 1" x 5/8"

[15.9 mm x 25.4 mm x 15.9 mm] throw.

Auxiliary Bolt

All metal. Deadlocks latchbolt to

prevent “loiding” or case-knife entry.

Faceplate

Measures 1" x 6-7/8" [25.4 mm x 174.6

mm]. Both ﬂat and radius faceplates

are supplied. Flat faceplates can

also be adjusted in the ﬁeld for

right or left beveled edge doors.

Strike

Pick from optional strikes. 4304 no-

cut surface mounted strike for easy

retroﬁts. Specify 4901-01 mortised-

ﬂush version when covering existing

MS® deadlock preparation or for

new applications. 4901-02 strike is

available with radius proﬁles for pairs

of doors and with extended lips of

center-hung or thick door applications.

Standard Package

Individually boxed with strike plate, ﬂat

and radius faceplates, and mounting

screws. Supplied with 4581 Universal

Cam Plug to work with speciﬁed

handles or paddle operators. Cylinder,

paddle, handle available separately.

Shipping Weight

1-1/4 lbs [0.57 kg].

Product Note

The 4600M with monitoring switch

option cannot be used in conjunction

with the 4300 Electriﬁed Deadlatch.

Electrical

Voltage

Field-selectable to match power

source of 12, 16, or 24 VDC.

Current Draw/Amps

0.44A at 12VDC

0.458A at 16VDC*

0.23A at 24VDC

*Required 16 VDC adapter

(P/N VA 7400-16VDC)

Options

• Backset, strike, and ﬁnish must

be speciﬁed when ordering.

• Optional form “C” latch status

monitoring available.

RITE Pack®

Pairs the non-handed, narrow backset,

electriﬁed deadlatch with multiple

faceplates in a single package. Includes

one electriﬁed deadlatch and four

faceplates: 2 ﬂat faceplates, 2 radius

faceplates: one each of 628 Clear and

one 313 Dark bronze anodized ﬁnish.

The Steel Hawk® 4300 Electriﬁed Deadlatch is a non-

handed, narrow backset, electriﬁed deadlatch designed

for easy integration with access control systems.

Function

The 4300 Electriﬁed Deadlatch seamlessly combines electriﬁed locking hardware with

access control while working within standard narrow stile aluminum entrance door

preparations. Always operable from the inside via handle or paddle device. Entry via

keyed mortise cylinder or access control device such as keypad or card reader. Fail secure

lock with optional form “C” latch status monitor. The standard fail secure 4300 Electriﬁed

Deadlatch operates on 12, 16, or 24 VDC power and is rated for continuous duty. Units

are equipped with a quick connect plug-in type connector. Interchangeable without stile modiﬁcation for MS®

Deadlocks or Adams Rite 4500 and 4900 Deadlatches. 1-3/4" [44.5 mm] minimum door thickness required.

Operation

Turn key, apply voltage, or operate handle or paddle to release the spring-loaded latchbolt. Electrically-

rated for continuous duty for timed applications. Easily interfaces with other access control system

elements. Available in fail secure conﬁguration only. Lock accepts any standard 1" [25.4 mm] length,

1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder or thumbturn

such as the 4066 Thumbturn, available separately. Lock accepts cylinder from either or both sides.

Steel Hawk® 4300

Electriﬁed Deadlatch

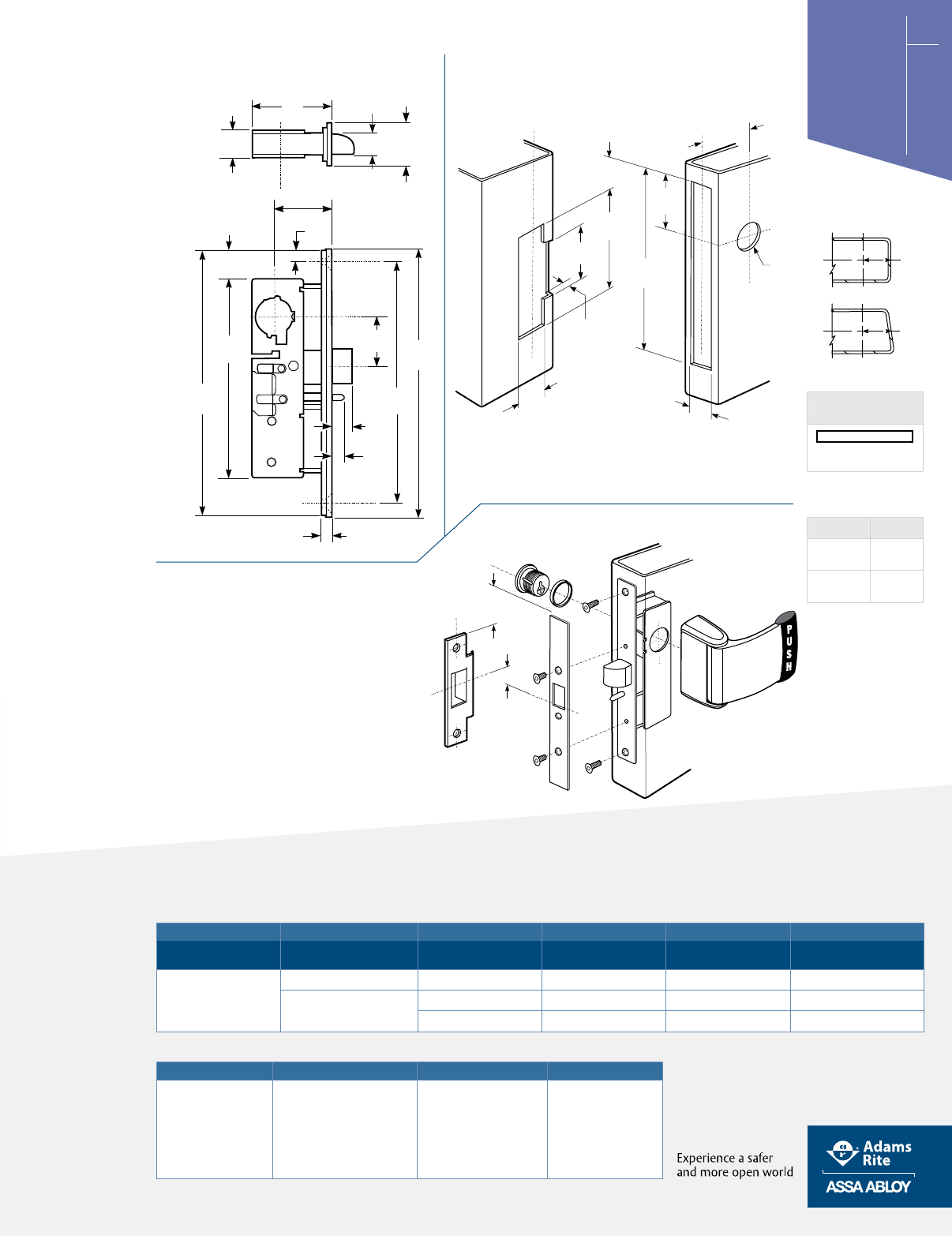

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

DEADLATCHES

Dimensions

ARMORED FACEPLATE

1" X 67/8"

FLAT (INCLUDED)

P/N 91-4300-01-XXX*

RADIUS (INCLUDED)

P/N 91-4300-01-XXX*

RADIUS W/ WEATHERSTRIP

P/N 91-4300-02-XXX*

BACKSET A DIM. B

31/32"

24.6mm

1-19/32

40.5mm

1-1/8"

28.6mm

1-49/64"

44.8mm

1-1/2"

38.1mm

2-9/64"

54.4mm

*Flat faceplate can be

adjusted for right or left

beveled edge doors. Radius

weatherstrip is optional.

91-4300-01-XXX Faceplate

kit includes both ﬂat and

radius faceplates.

27/64"

10.7mm

13/16"

173mm

5/8"

15.9mm

5/8"

15.9mm

25.4mm

63/64"

25mm

“A”

1-7/16"

36.5mm

2-49/64"

70.2mm

5-51/64"

147.2mm

6-3/8"

161.9mm

“B”

Adjustable mounting tube bracket may be removed

for mounting on bridges, tabs, or other methods.

“A”

1-19/32"

40.5mm

6-57/64"

175mm

25.4mm

5/32"

4mm

TYP.

FLAT

CYLINDER C

RADIUS

BEVEL

HOW BACKSET

IS MEASURED:

Stile Preparation

Steel Hawk®

4300

Electriﬁed

Deadlatch

Adjustable Mounting Tube

Bracket may be removed for

mounting on bridges, tabs, or

other methods.

4581

Cam Plug Assy.

4901

Strike

Cylinder C

1-7/16"

36.5mm

2-49/64"

70.2mm

Latch Paddle

& Cylinder

Installation

How to Order

Steel Hawk® 4300 Electriﬁed Deadlatch: Specify quantity and the following information. Order related products separately.

MODEL BACKSET MONITORING STRIKE STRIKE SHAPE/LIP LENGTH FACEPLATE FINISH

4300 -3 M-2 01 -628

2 31/32" 0 None 1 Surface Mount (4304) 01 Flat/Standard Jamb 313 Dark Bronze Anodized

3 1-1/8" M Monitored 2 Mortised (4901) 4-5/8" 02 Radius/Standard Stiles* 335 Black Anodized

4 1-1/2" 17 Flat/Center Hung 4" Jamb* 628 Clear Anodized

21 Flat/Center Hung 4-1/2" Jamb*

* See ACCESSORIES for available 4901 strike options.

4300 RITE Pack®: Specify quantity and the following information. Order related products separately.

MODEL BACKSET MONITORING STRIKE RITE PACK

4300 -3 0-1 RP

2 31/32" 0 None 1 Surface Mount (4304)

3 1-1/8" 2 Mortised (4901) 4-5/8"

RELATED PRODUCTS When purchasing this product, please consider the following related products, available separately:

TRIM CYLINDERS ACCESSORIES POWER

4560, 4565 Deadlatch Handles,

4568, 4569 Eurostyle Deadlatch

Handles, 4590, 4591 Paddles,

4600 Deadlatch Handles

Standard 1" length, 1-5/32”

diameter mortise cylinder with

MS® cam such as 4036 Mortise

Cylinder, 4066 Thumbturn

MS 4043 Cylinder guard

4104 Mounting Bridge, 91-0965 Mounting Kit for

radiused door, 91-0966 Mounting Kit for beveled door,

26-00090XX Tube Spacer, 4901, 4902 Deadlatch Strikes

PS-1 Power Supply, 4605 Transformer, 4603

Rectiﬁer, and 4612 Power Transfer Device

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

DEADLATCHES

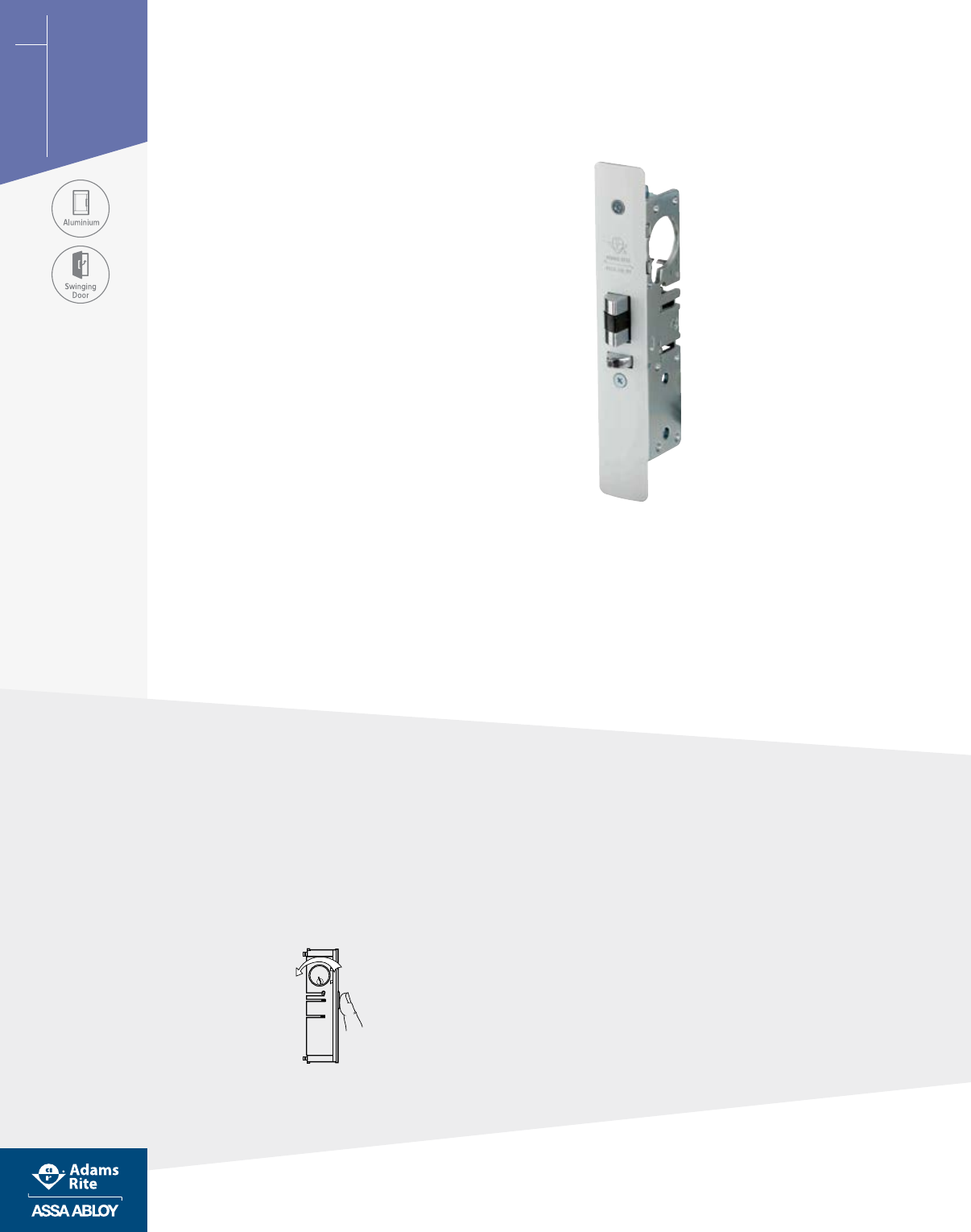

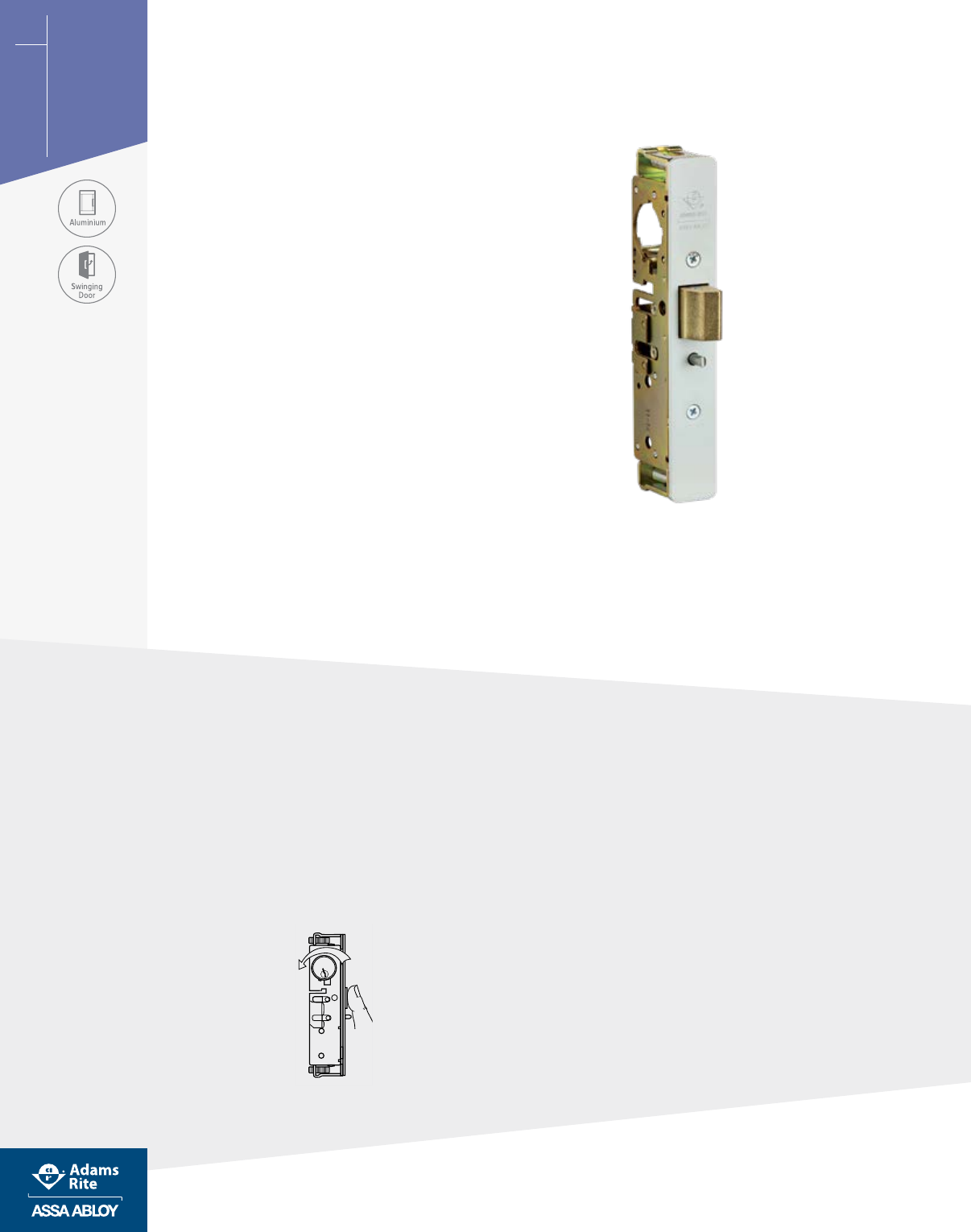

4510 Standard Duty Deadlatches provide ﬂexible

trac control during and after business hours.

Function

The 4510 Series Standard Duty Deadlatch oers ﬂexibility of trac

control during and after business hours. A reverse turn of the key

while the bolt is held retracted retains the bolt to allow two-way trac

for healthcare, ﬁnancial institutions, retail, and other applications

that require free entrance at certain times and exit-only at other

times. Interchangeable, without stile modiﬁcation, with any MS1850S

Deadlock of same backset and faceplate shape. They do not, however,

provide the same maximum security level as the MS®Deadlock.

Operation

Turn key or operate handle or paddle to retract spring-loaded

latchbolt. To hold bolt retracted, push it in and secure by reverse turn

of key. Lock accepts any standard mortise cylinder with MS® cam,

available separately. Lock accepts any standard 1" [25.4 mm] length,

1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as

the 4036 Mortise Cylinder or thumbturn such as the 4066 Thumbturn,

available separately. Lock accepts cylinder from either or both sides.

Features

Cylinder Backset

7/8" [22.2 mm], 31/32" [24.6 mm],

1-1/8" [28.6 mm] or 1-1/2" [38.1 mm].

Case

Steel with corrosion-resistant plating.

Measures 1" x 5-13/16" x depth [25.4

mm x 147.6 mm x depth]. Depth varies

by backset (see table on back of page).

Bolt Holdback

While bolt is held fully retracted, a

reverse turn of the

key retains the bolt,

allowing the door to

be free swinging.

Latchbolt

All metal with

hardened steel

internal pins. Handing

is reversible without special tools.

Measures 1/2" x 1" x 1/2" [12.7 mm

x 25.4 mm x 12.7 mm] throw.

Auxiliary Bolt

All metal. Deadlocks latchbolt to

prevent “loiding” or case-knife entry.

Faceplate

Measures 1" x 6-7/8" [25.4

mm x 174.6 mm].

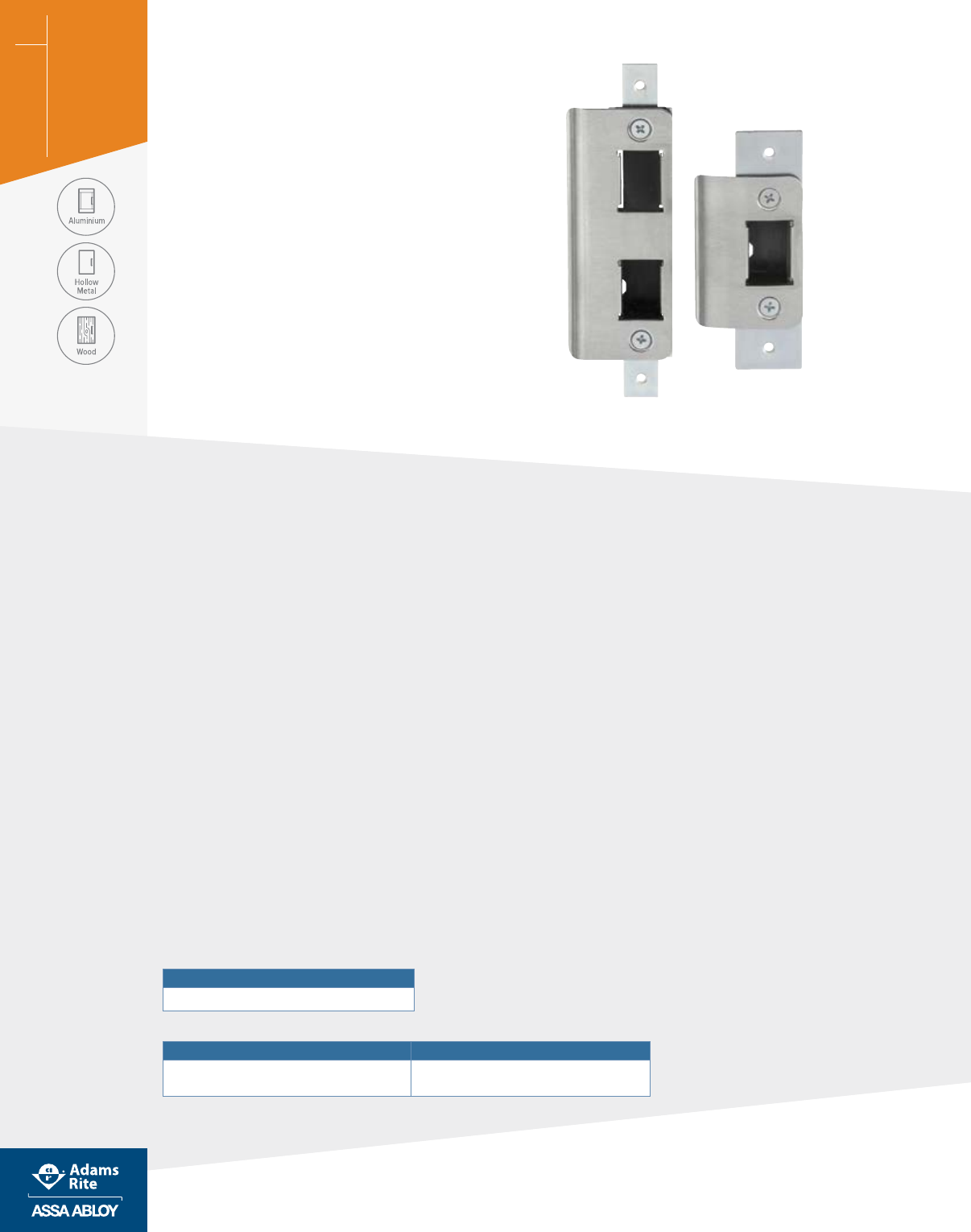

Strike

Standard strike furnished is 4902-01

for ﬂat jamb where door closes ﬂush

or nearly ﬂush. Available separately:

radius strike for opposite stile in

paired doors; longer strike (4901)

to cover slot strike of MS lock; long

lip strikes for center hung doors.

Standard Package

Individually boxed with strike and

mounting screws. Cylinder, paddle,

handle available separately.

Shipping Weight

1-1/4 lbs [.57 kg]. Also available

in a 25-unit pack for volume

customers. Please contact

factory for more information.

Options

• Backset, faceplate shape, strike,

handing, and ﬁnish must be

speciﬁed when ordering.

• Available without faceplate

or strike plate, select 4513.

• Available in choice of 313 Dark

bronze anodized, 335 Black

anodized, 628 Clear anodized.

4510

Standard Duty Deadlatch

4510

Standard

Duty

Deadlatch

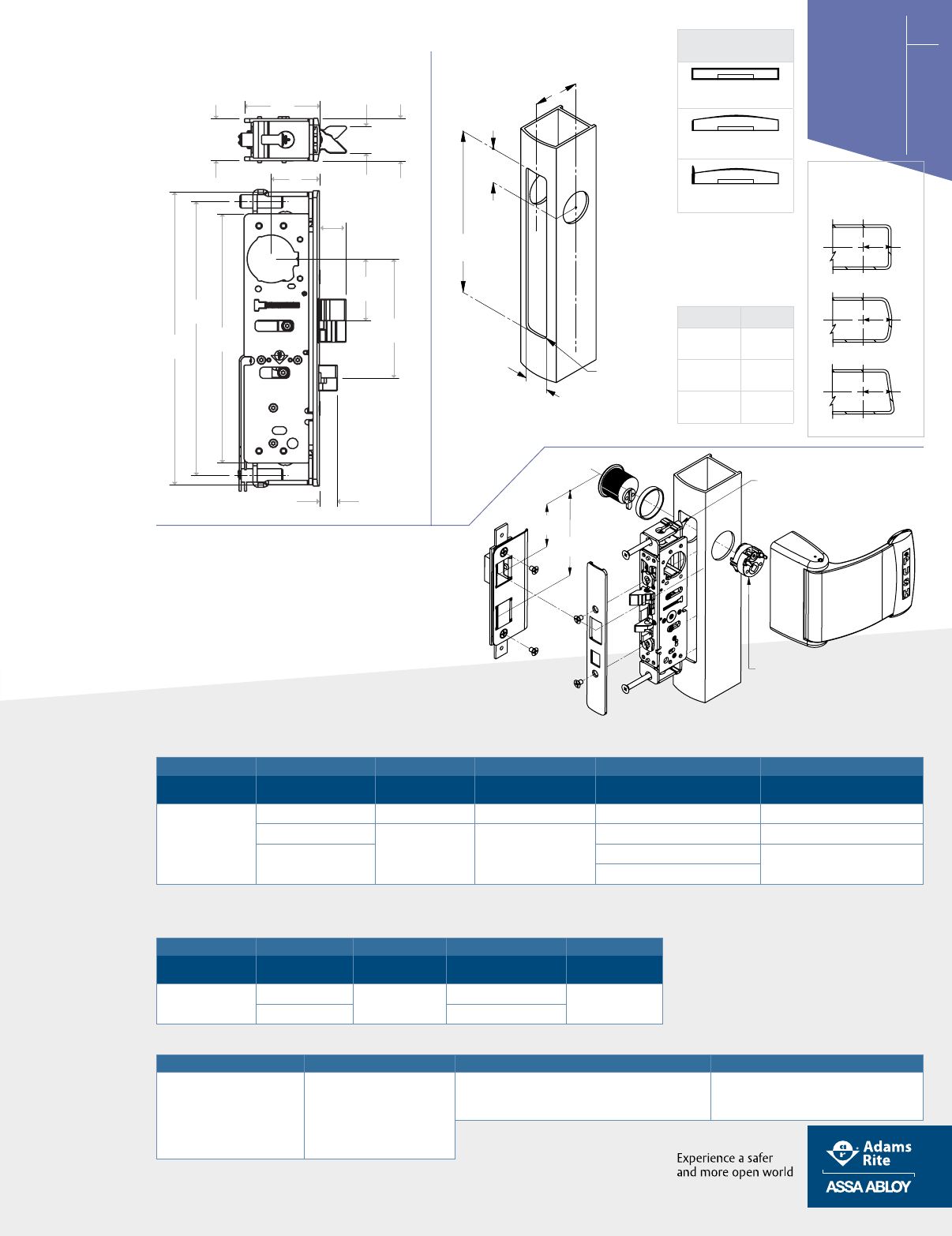

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

DEADLATCHES

Stile Preparation

Dimensions

How to Order & Related Products

4510 Standard Duty Deadlatch: Specify quantity and the following information. Order related products separately.

MODEL FACEPLATE BACKSET HANDING STRIKE SIZE STRIKE SHAPE/LIP LENGTH FACEPLATE FINISH

451 1-3 6-2 01 -628

0 Flat 1 7/8" 5 LH or RHR 1 Mortised (4901) 4-5/8" 01 Flat/Standard Jamb 313 Dark Bronze Anodized

1 Radius 2 31/32" 6 RH or LHR 2 Mortised (4902) 2-5/8" 02 Radius/Standard Stiles 335 Black Anodized

1W Radius w/ Weatherstrip 3 1-1/8" 17 Flat/Center Hung 4" Jamb 628 Clear Anodized

2 Bevel 4 1-1/2" 21 Flat/Center Hung 4-1/2" Jamb

3 Without faceplate,

without strike plate

RELATED When purchasing this product, please consider the following related products, available separately:

ELECTRIC STRIKES TRIM CYLINDERS ACCESSORIES

7100/7101, 7110/7111,

7130/7131, 7140 Electric

Strikes, 7400/7401,

7410/7411, 7430/7431,

7440 Electric Strikes

3080, 3080E Series Entry Trim,

3090-150,

A100 Series Keyless Entry,

4560, 4565 Deadlatch Handles,

4568, 4569 Eurostyle Deadlatch

Handles, 4590, 4591 Paddles,

4600 Deadlatch Handle

Standard 1" length, 1-5/32”

diameter mortise cylinder

with MS® cam such as

4036 Mortise Cylinder,

4066 Thumbturn

MS4043 Cylinder guard

4104 Mounting Bridge,

91-0965 Mounting Kit for

radiused door, 91-0966

Mounting Kit for beveled door,

26-00090XX Tube Spacer,

4901, 4902 Deadlatch Strikes

BACKSET

TAP 10-32

2 PLACES

STILE

DIA.

R TYP.

MAX.

BACKSET MEASURED

AT CENTERLINE OF

STILE NOSE

57/64"

22.6mm

1/2"

12.7mm

25.4mm

1-19/32"

40.5mm

6-57/64"

175mm

1-1/64"

25.8mm

5/32"

4mm

6-3/8"

162mm

1-1/4"

31.8mm

17/32"

13.5mm

6-13/16"

173mm

5-51/64"

147.2mm

7/32"

5.6mm

1-7/16"

36.5mm 6-7/8"

174.6mm

6-3/8"

162mm

1/2"

12.7mm

1/4"

6.4mm

BOLT

CUTOUT

IN STRIKE

CYLINDER

7/8"

22.2mm

2-1/4"

57.2mm

“A”

SHOWN

RIGHT HAND.

Reversible by

removing

bolt and

re-installing

for opposite

hand.

BACKSET “A”

7/8"

22.2mm

1-33/64"

38.5mm

31/32"

24.6mm

1-19/32"

40.5mm

1-1/8"

28.6mm

1-49/64"

44.8mm

1-1/2"

38.1mm

2-9/64"

54.4mm

ARMORED FACEPLATE

1" X 67/8"

FLAT 4510

RADIUS 4511

RADIUS W/ WEATHERSTRIP

4511W

LH BEVEL 4512-X5

RH BEVEL 4512-x6

FLAT

CYLINDER C

RADIUS

BEVEL

HOW BACKSET

IS MEASURED:

Latch Paddle

& Cylinder

Installation

Identical to MS1850S Series

(Also see prep for 4590 Paddle)

4510

Standard

Duty

Deadlatch

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

DEADLATCHES

Features

Cylinder Backset

7/8" [22.2 mm], 31/32" [24.6

mm], or 1-1/8" [28.6 mm] only.

Case

Steel with corrosion-resistant

plating. Measures 1" x 5-13/16"

x depth [25.4 mm x 147.6 mm x

depth]. Depth varies by backset

(see table on back of page).

Bolt Holdback

While bolt is held fully

retracted, a reverse turn

of the key retains the

bolt, allowing the door

to be free swinging.

Latchbolt

All metal with hardened steel internal

pins. Handing is reversible without

special tools. Measures 1/2" x 1" x 1/2"

[12.7 mm x 25.4 mm x 12.7 mm] throw.

Auxiliary Bolt

All metal. Deadlocks latchbolt to

prevent “loiding” or case-knife entry.

Faceplate

Measures 1-1/4" x 7-13/32"

[31.8 mm x 188.1 mm].

Strike

Standard strike furnished is

4901-01 for ﬂat jamb.

Standard Package

Individually boxed with strike plate

and mounting screws. Cylinder,

paddle, handle available separately.

Shipping Weight

1-1/4 lbs [0.57 kg]

Options

• Backset, faceplate shape, strike,

handing, and ﬁnish must be

speciﬁed when ordering.

• Available without faceplate or

strike plate, select 4533.

• Available in choice of 313 Dark

bronze anodized, 335 Black

anodized, 628 Clear anodized.

4530 Standard Duty Deadlatches provide ﬂexible

trac control during and after business hours.

Designed to retroﬁt into the prep of older MS1850

Deadlocks and discontinued 4250 Deadlatches.

Function

The 4530 Standard Duty Deadlatch oers ﬂexibility of trac

control during and after business hours. A reverse turn of the

key while the bolt is held retracted retains the bolt to allow

two-way trac for healthcare, ﬁnancial institutions, retail, and

other applications that require free entrance at certain times

and exit-only at other times. 4530 Deadlatches are designed

to ﬁt without alteration, the stile cutout for older MS1850 Series

Deadlocks and discontinued 4250 Deadlatches of same backset.

Operation

Turn key or operate handle to retract spring-loaded Latchbolt. To

hold bolt retracted, push it in and secure by reverse turn of key.

Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm]

diameter mortise cylinder with MS® cam such as the 4036 Mortise

Cylinder or thumbturn such as the 4066 Thumbturn, available

separately. Lock accepts cylinder from either or both sides.

4530

Standard Duty Deadlatch

4530

Standard Duty

Deadlatch

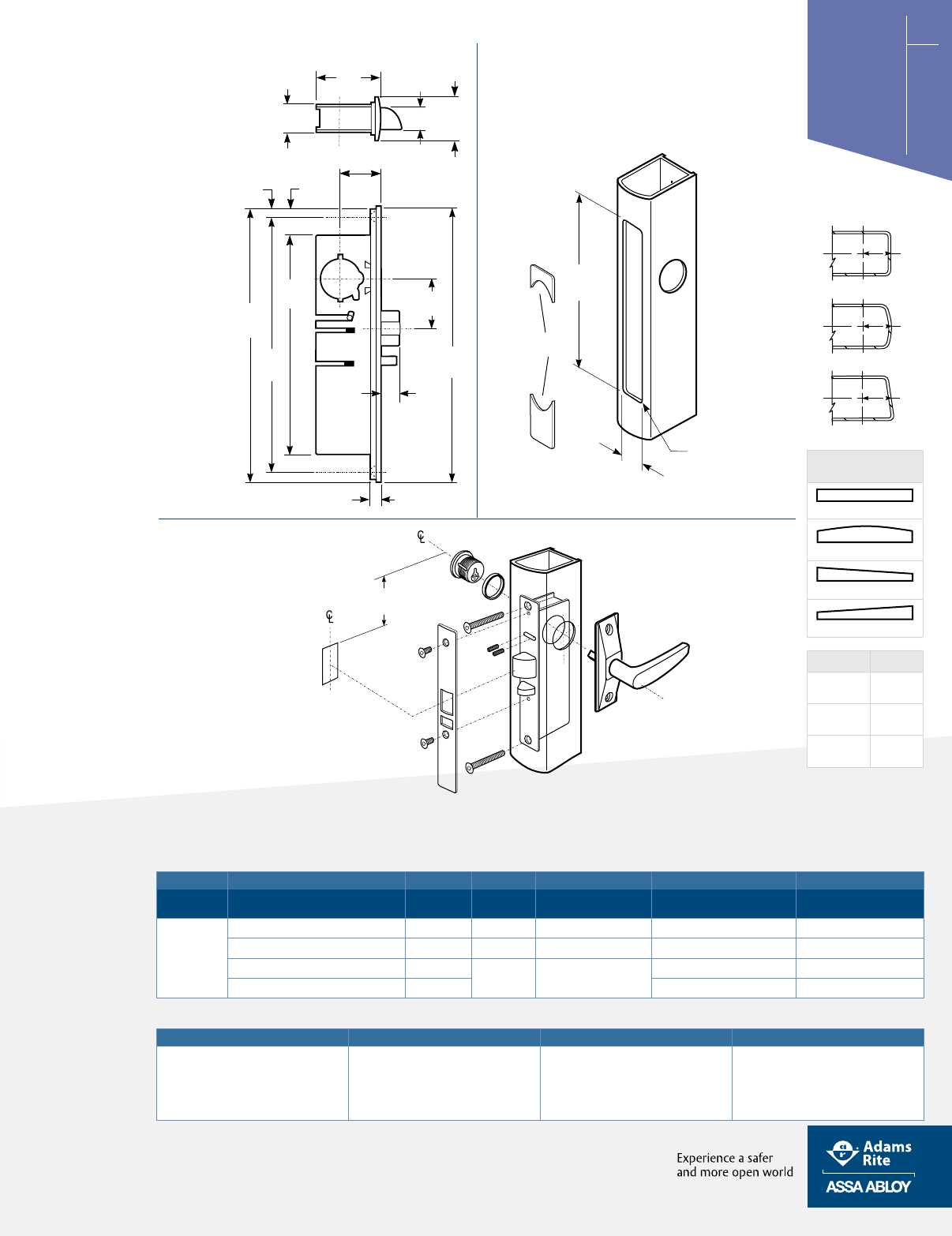

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

DEADLATCHES

SHOWN

RIGHT HAND.

Reversible by

removing bolt

and re-installing

for opposite

hand.

BACKSET MEASURED

AT CENTERLINE

OF STILE NOSE

17/32"

13.5mm

1-1/4"

31.8mm

7/8"

22.2mm

51/64"

20.2mm

7/32"

5.6mm

7-3/8"

187.3mm

5-51/64"

147.2mm1-7/16"

36.5mm

17/32"

13.5mm

7-13/32"

188.1mm

6-31/32"

177mm

“A”

1/4"

6.4mm

7/8"

22.2mm

BOLT

CUTOUT

IN STRIKE

CYLINDER

7-27/64"

188.5mm

1-1/4"

31.8mm

5/32"

4mm

REMOVE

R TYP.

Dimensions Stile & Jamb

Preparation

How to Order & Related Products

4530 Standard Duty Deadlatch: Specify quantity and the following information. Order related products separately.

MODEL FACEPLATE BACKSET HANDING STRIKE SIZE STRIKE SHAPE/LIP LENGTH FACEPLATE FINISH

453 1- 3 6- 1 01 - 628

0 Flat 1 7/8" 5 LH or RHR 1 Mortised (4901) 4-5/8" 01 Flat/Standard Jamb 313 Dark Bronze Anodized

1 Radius 2 31/32" 6 RH or LHR 2 Mortised (4902) 2-5/8" 02 Radius/Standard Stiles 335 Black Anodized

2 Bevel 3 1-1/8" 17 Flat/Center Hung 4" Jamb 628 Clear Anodized

3 Without faceplate, without strike plate 21 Flat/Center Hung 4-1/2" Jamb

RELATED When purchasing this product, please consider the following related products, available separately:

ELECTRIC STRIKES TRIM CYLINDERS ACCESSORIES

7100/7101, 7110/7111, 7130/7131, 7140

Electric Strikes, 7400/7401, 7410/7411,

7430/7431, 7440 Electric Strikes

3080, 3080E Series Entry Trim, 3090-150,

A100 Series Keyless Entry, 4560,

4565 Deadlatch Handles, 4568, 4569

Eurostyle Deadlatch Handles, 4590,

4591 Paddles, 4600 Deadlatch Handle

Standard 1" length, 1-5/32” diameter

mortise cylinder with MS® cam such as

4036 Mortise Cylinder, 4066 Thumbturn

MS4043 Cylinder guard

4104 Mounting Bridge, 91-0965 Mounting

Kit for radiused door, 91-0966 Mounting

Kit for beveled door, 26-00090XX Tube

Spacer, 4901, 4902 Deadlatch Strikes

BACKSET “A”

7/8"

22.2mm

1-33/64"

38.5mm

31/32"

24.6mm

1-19/32"

40.5mm

1-1/8"

28.6mm

1-49/64"

44.8mm

ARMORED FACEPLATE

1-1/4" x 7-13/32"

FLAT 4530

RADIUS 4531

LH BEVEL 4532-X5

RH BEVEL 4532-X6

FLAT

CYLINDER C

RADIUS

BEVEL

HOW BACKSET

IS MEASURED:

Latch Paddle

& Cylinder

Installation

To replace 4070 lock,

old 4050 latch, 970

lock or 1450 latch

of same backset:

To replace old MS1850 lock or 4250 latch of

same backset: No Preparation Required

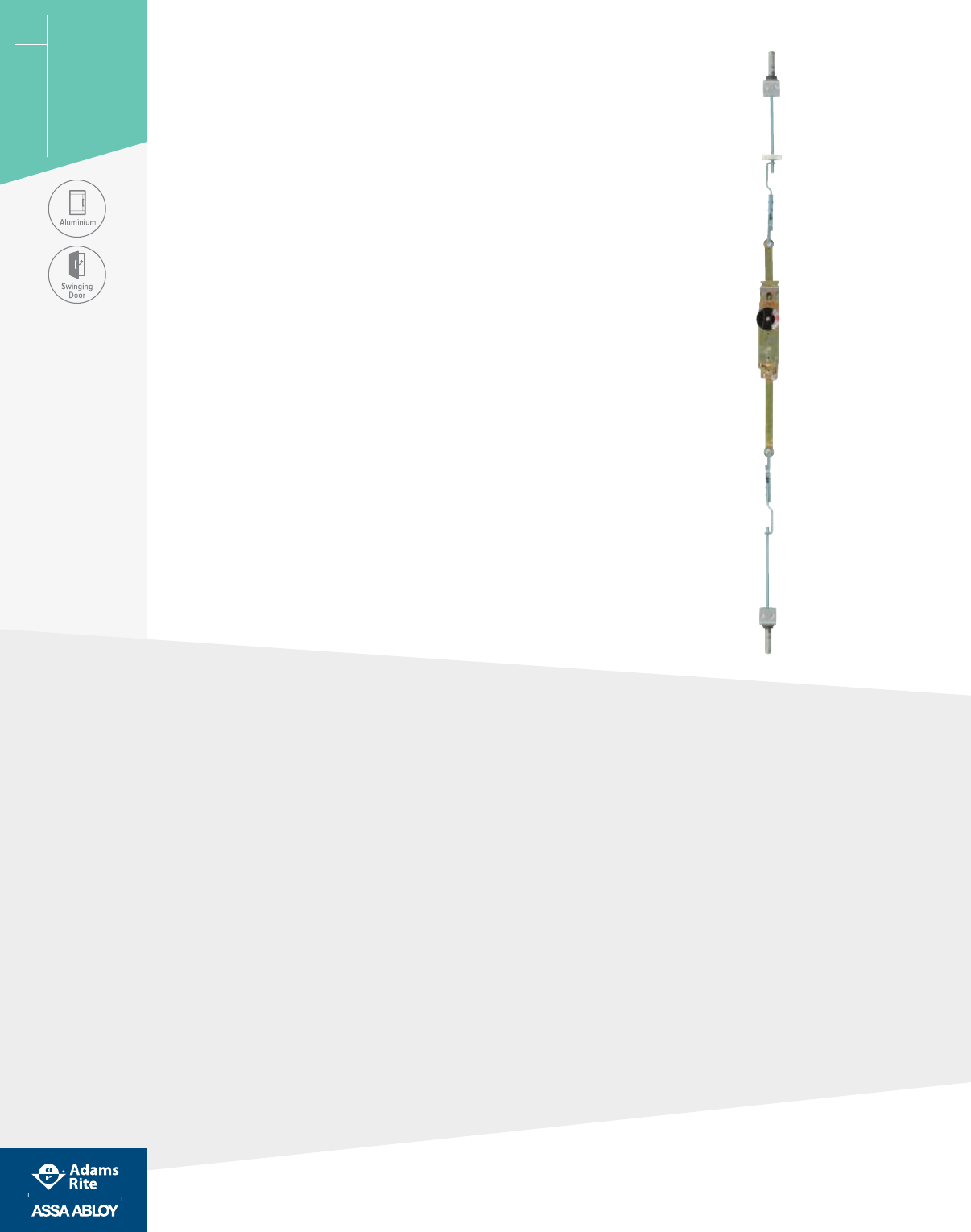

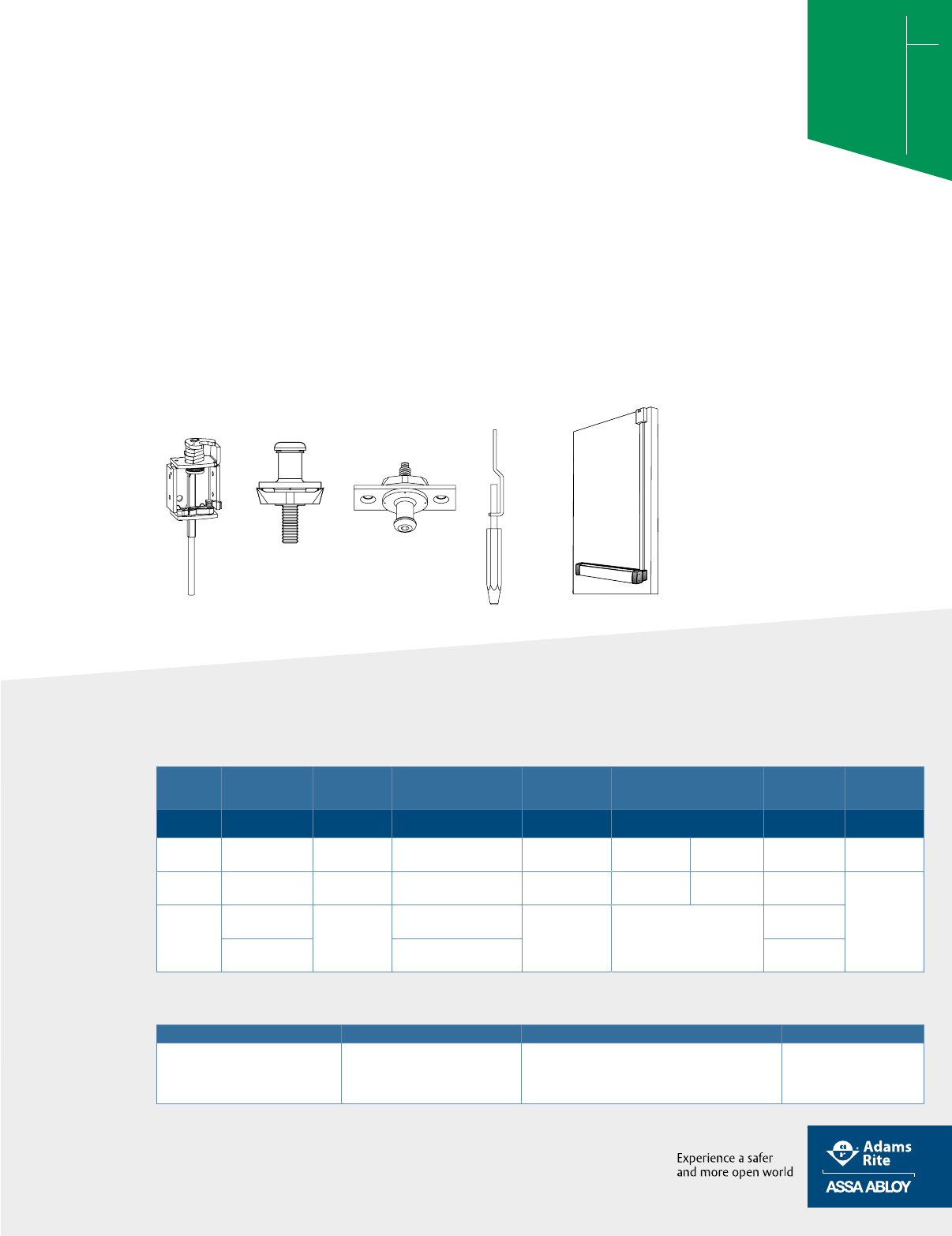

Features

Paddle Dogging

Turning hex screw in paddle

escutcheon holds paddle down,

leaving door free-swinging.

Strike

A ﬂanged post installed on the header

has generous location adjustment

to allow for door misalignment, sag,

bumpers, etc. Designed to prevent

forced entry by bowing the door.

Threshold Bolt

Stainless hexagonal steel bolt

requires only a 1/2" [12.7 mm] diameter

hole in threshold for a strike.

Top Bolt

Similar to door latches on some

automobiles and aircraft, the

U-shaped bolt wraps around the

strike post to deadlock position,

which also deadlocks the bottom

bolt through a gear train at the

center of the rod assembly.

Door Size

Standard unit will ﬁt doors up to

66" [1676.4 mm] above the paddle

height. 110" [2794 mm] door if paddle

is at max 44" [1117.6 mm] height.

Standard Package

Individually boxed with mounting

screws and installation instructions.

Shipping weight

3 lbs [1.36 kg].

Options

• Can be exit only or allow key

access from outside with use of

8650 Cylinder Escutcheon. 3080

Entry Trim can also be speciﬁed in

the version used for CVR devices.

• For taller doors, order 8655

Tall Door Kit, which allows

up to 97" above paddle.

• Available in choice of 313 Dark

bronze anodized, 335 Black

anodized, 628 Clear anodized,

US26D (626) Satin chrome.

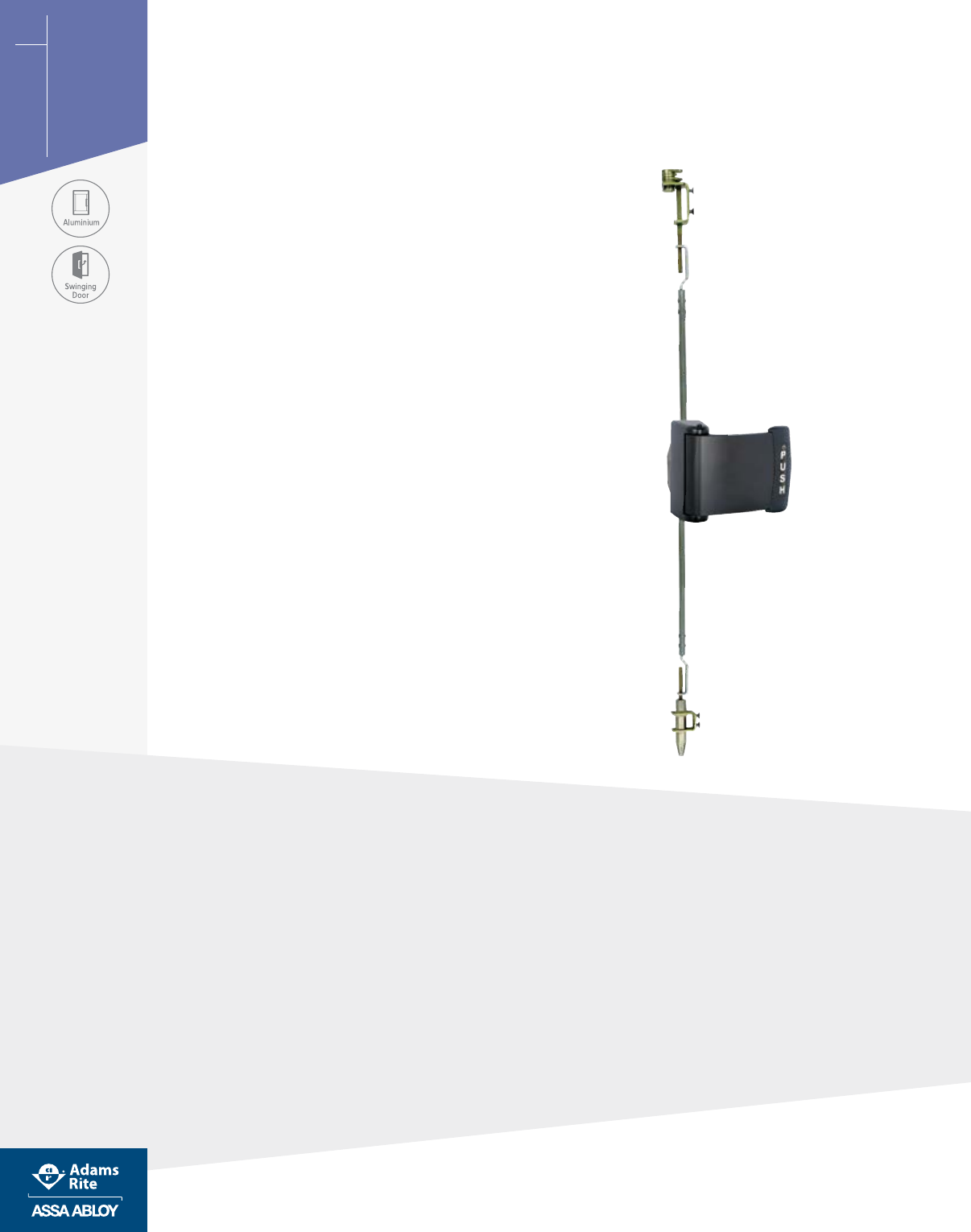

The 4781 Two-Point Deadlatch latches to header

and threshold allowing both door leaves to remain

active. It is designed for paired out-swinging narrow

stile doors, but is also suitable for single doors.

Function

Designed for paired out-swinging narrow stile doors, but also suitable for single

doors. Instead of operating a conventional horizontal-throw latchbolt, the 4781

Two-Point Deadlatch latches to header and threshold. This allows both door

leaves to be “active”. There is no need to pin one door with ﬂush bolts or other

devices. The paddle is a modiﬁed version of the 4591 Deadlatch Paddle and the

concealed vertical rod mechanism is the same as used in Adams Rite’s 8600

Series Exit Devices. Note however, that the 4781 Two-Point Deadlatch is not

intended to substitute for an exit device, which must have a door-spanning bar.

Operation

Inside: Push paddle to unblock top bolt and withdraw bottom bolt. Continuing to push

will open the door in a very natural, ergonomically-friendly motion. Paddle stroke

is approximately 1-1/2" [38.1 mm] at extreme end. Rod adjustment allows paddle

(centerline) to be mounted at any height from 30 to 44 inches above the ﬁnished ﬂoor.

Outside: If key entry operation is required, any standard mortise

cylinder with MS® cam can be installed through an 8650 Cylinder

Escutcheon. 3080 Entry Trim compatible with Adams Rite exit

devices can be speciﬁed in the version used for CVR devices.

4781

Two-Point Deadlatch with Paddle

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

DEADLATCHES

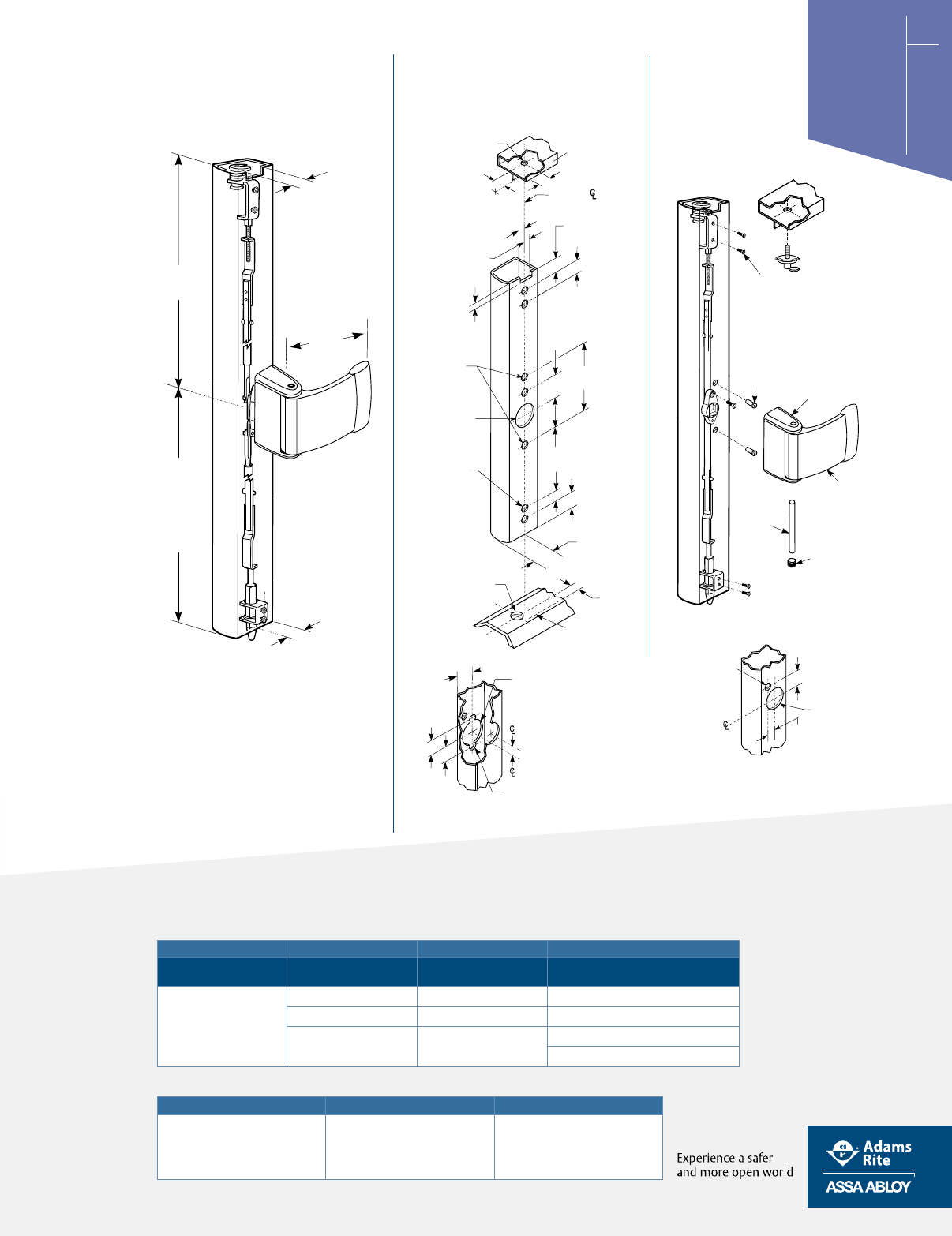

4781

Two-Point

Deadlatch

with

Paddle

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

DEADLATCHES

1/2"

12.7mm

CVR

INSTALLATION

HOLE

10-32 X 5/16

SCREW

FLAT HEAD

UNDERCUT

(5 PLCS)

STRIKE

PLATE

ASSEMBLY

RIVNUT

(2 PLCS)

ESCUTCHEON

PADDLE

FOR 4781

PIVOT

SET

SCREW

3/4"

19.1mm

3/4"

19.1mm

3/4"

19.1mm

1-3/8"

34.9mm

1-5/8"

41.3mm

3/8"

9.5mm

BACKSET(OUTSIDE ONLY)

OF PADDLE

OF CYLINDER

(2 PLCS)

DRILL BEFORE

1-3/8" DIA. HOLE

DIA.

IMPORTANT

1-1/4"

31.8mm

5-1/8"

130.2mm

30"

762mm

1-3/64"

26.6mm

44"

1117.6mm

66"

1676.4mm

1-1/4"

31.8mm

MIN I.D.

UP TO

PADDLE

HEIGHT

*OTHER CYLINDER ESCUTCHEONS for use with 17mm proﬁle

cylinders (in 44 or 55mm thick doors only) are also available

and require dierent door prep than shown.

DRILL BOTH

SIDES

(For #10-32

screw & CSK

interior only)

NOTE: these

dimensions and

templates assume a

door 1-3/4" thick with

1/8" stile wall.

Doors with other

Thickness or

wall will require

modiﬁcation

To the device.

SEE TRIM SECTION

for complete

dimensions

Of 4591 paddle.

BACKSET FOR

NARROW STILE.

Can be increased

For medium or wide.

1/4"

6.4mm

1-3/64"

26.6mm

3/4"

19.1mm

DIA.

INTERIOR

FACE OF

DOOR

INTERIOR

SIDE OF

HEADER

1-1/4"

31.8mm

25.4mm

1-1/2"

38.1mm

1-3/64"

26.6mm

BACKSET

76.2mm

5/8"

15.9mm

1/4"

6.4mm

3/8"

9.5mm

1/2"

12.7mm

1/2"

12.7mm

7/8"

22.2mm

DIA.

INSIDE ONLY

INTERIOR

FACE OF DOOR

1/4"

6.4mm

DIA.

BACKSET

DIA.

(2 PLCS)

INSIDE ONLY

FOR #10-32

SCREWS

(5 PLCS)

Door Preparation

Dimensions

How to Order & Related Products

4781 Two-Point Deadlatch with Paddle: Specify quantity and the following information. Order related products separately.

MODEL ROD TYPE OPERATION PADDLE FINISH

4781 T- 021 - 628

T Top Rod Only 021 Push to Left 313 Dark Bronze Anodized

— Standard Rod 041 Push to Right 335 Black Anodized

628 Clear Anodized

US26D Satin Chrome

RELATED When purchasing this product, please consider the following related products, available separately:

TRIM CYLINDERS ACCESSORIES

3080 Series Entry Trim Standard 1" length, 1-5/32” diameter

mortise cylinder with MS® cam

such as 4036 Mortise Cylinder

MS4043 Cylinder guard

8650 Cylinder Escutcheon,

8655 Tall Door Kit

with 8650 Cylinder Escutcheon*

Installation

4781

Two-Point

Deadlatch

with

Paddle

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

DEADLATCHES

Features

Cylinder Backset

31/32" [24.6 mm], 1-1/8" [28.6

mm], or 1-1/2" 38.1 mm].

Case

Steel with corrosion-resistant plating.

Measures 7/8" x 5-13/16" x depth

[22.2 mm x 147.6 mm x depth]. Depth

varies by backset (see table on

back of page). Screw-fastened tube

spacer brackets allow for cleaner

removal when tab mounting.

Bolt Holdback

While bolt is held fully

retracted, a reverse turn

of the key retains the

bolt, allowing the door

to be free swinging.

Latchbolt

Solid brass. Handing is

easily reversible without

special tools. Measures 5/8" x 1" x 5/8"

[15.9 mm x 25.4 mm x 15.9 mm] throw.

Auxiliary Linchpin

Stainless steel. Deadlocks latch bolt to

prevent “loiding” or case-knife entry.

Faceplate

Measures 1" x 6-7/8" [25.4 mm x 174.6

mm]. Both ﬂat and radius faceplates

are supplied. Flat faceplates can

also be adjusted in the ﬁeld for

right or left beveled edge doors.

Strike

Standard strike furnished is 4902

for ﬂat jamb where door closes

ﬂush or nearly ﬂush. Specify 4901

for retroﬁt installations. Also

available: radius strike for opposite

stile in paired doors and long lip

strikes for center-hung doors.

Standard Package

Individually boxed with strike plate,

ﬂat and radius faceplates, and

mounting screws. Cylinder, paddle,

handle available separately.

Shipping Weight

1-1/4 lbs [0.57 kg].

Options

• Backset, faceplate shape, strike,

handing, and ﬁnish must be

speciﬁed when ordering. See

4920AN Heavy Duty Deadlatch

(ANSI Size) for wood and hollow

metal door applications.

• Available without faceplate or

strike plate, select 4913.

• Available in choice of 313 Dark

bronze anodized, 335 Black

anodized, 628 Clear anodized.

4900 Heavy Duty Deadlatch provides ﬂexible

trac control and easy installation.

Function

Flexibility of trac control and easy installation is oered by 4900 Series

Heavy Duty Deadlatches. A key-controlled bolt hold-back feature allows

for two-way trac for applications which require free entrance at certain

times and exit-only at other times. This allows a "locked" entrance to be

used as an exit by visitors already in the building. 1-3/4" [44.5 mm] minimum

door thickness required. Interchangeable, without stile modiﬁcation,

with any MS1850S deadbolt of same backset and faceplate shape. Also

retroﬁts to existing 4510 and discontinued 4700 Deadlatch preparations.

Operation

Turn key or operate handle or paddle to retract spring-loaded

latchbolt. To hold bolt retracted, push it in and secure by reverse

turn of key. Lock accepts any standard 1" [25.4 mm] length, 1-5/32"

[29.4 mm] diameter mortise cylinder with MS® cam such as the 4036

Mortise Cylinder or thumbturn such as the 4066 Thumbturn, available

separately. Lock accepts cylinder from either or both sides.

4900

Heavy Duty Deadlatch

4900

Heavy Duty

Deadlatch

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

DEADLATCHES

BACKSET

STILE

TAP 10-32

2 PLACES

DIA.

R TYP.

BACKSET MEASURED

AT CENTERLINE

OF STILE NOSE

29/32"

23mm

5/8"

15.9mm

1/4"

6.4mm

1-1/4"

31.8mm

6-3/8"

161.9mm

5/32"

4mm

1-19/32"

40.5mm

25.4mm

1-1/64"

25.8mm

“A”

1/2"

12.7mm

6-7/8"

174.6mm6-57/64"

175mm

6-51/64"

172.6mm

5-51/64"

147.2mm

MAX.

2-15/32"

62.7mm

6-3/8"

161.9mm

19/32"

15.1mm

3/8"

9.5mm

1-7/16"

36.5mm

7/8"

22.2mm

CYLINDER

BOLT

CUTOUT

IN STRIKE

SHOWN RH/LHR.

Bolt is reversible

for opposite hand.

Dimensions Stile Preparation

How to Order & Related Products

4900 Heavy Duty Deadlatch: Specify quantity and the following information. Order related products separately.

MODEL FACEPLATE BACKSET HANDING STRIKE SIZE STRIKE SHAPE/LIP LENGTH FACEPLATE FINISH

49 00 - 3 5- 2 01 - 628

00 Standard 2 31/32" 5 LH or RHR 1 Mortised (4901) 4-5/8" 01 Flat/Standard Jamb 313 Dark Bronze Anodized

11W Radius with Weatherstrip 3 1-1/8" 6 RH or LHR 2 Mortised (4902) 2-5/8" 02 Radius/Standard Stile 335 Black Anodized

13 Without faceplate,

without strike plate

4 1-1/2" 17 Flat/Center Hung 4" Jamb 628 Clear Anodized

21 Flat/Center Hung 4-1/2" Jamb

RELATED When purchasing this product, please consider the following related products, available separately:

ELECTRIC STRIKES TRIM CYLINDERS ACCESSORIES

7100/7101, 7110/7111,

7130/7131, 7140 Electric

Strikes, 7400/7401,

7410/7411, 7430/7431,

7440 Electric Strikes

3080, 3080E Series Entry

Trim, 3090-150, A100 Series

Keyless Entry, 4560, 4565

Deadlatch Handles, 4568,

4569 Eurostyle Deadlatch

Handles, 4590, 4591 Paddles,

4600 Deadlatch Handle

Standard 1" length,

1-5/32” diameter mortise

cylinder with MS® cam

such as 4036 Mortise

Cylinder, 4066 Thumbturn

4043 Cylinder guard

4104 Mounting Bridge,

91-0965 Mounting Kit for

radiused door, 91-0966

Mounting Kit for beveled

door, 26-00090XX Tube

Spacer, 4901, 4902

Deadlatch Strikes

FLAT

CYLINDER C

RADIUS

BEVEL

HOW BACKSET

IS MEASURED:

BACKSET “A”

31/32"

24.6mm

1-5/8"

41.3mm

1-1/8"

28.6mm

1-49/64"

44.8mm

1-1/2"

38.1mm

2-9/64"

54.4mm

ARMORED FACEPLATE

1" X 67/8"

FLAT

P/N 24-0137-01-XXX

RADIUS

P/N 24-0137-02-XXX

RADIUS W/ WEATHERSTRIP

P/N 24-0137-03-XXX

Flat faceplate can be

adjusted for right or left

beveled edge doors.

Latch Paddle

& Cylinder

Installation

Identical to MS1850A or MS1850S Series

(See also prep for 4591 paddle).

4900

Heavy Duty

Deadlatch

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

DEADLATCHES

Features

Cylinder Backset

1-1/2" [38.1 mm] or

2-3/4"[69.9 mm] only.

Case

Steel with corrosion-resistant

plating. Measures 7/8" x 5-13/16"

x depth [22.2 mm x 147.6 mm x

depth]. Depth varies by backset

(see table on back of page).

Bolt Holdback

While bolt is held fully retracted, a

reverse turn of the key retains the bolt,

allowing the door to be free swinging.

Latchbolt

Solid brass. Handing

is easily reversible

without special tools.

Measures 5/8" x 1" x

5/8" [15.9 mm x 25.4

mm x 15.9 mm] throw.

Auxiliary Linchpin

Stainless steel. Deadlocks Latchbolt to

prevent “loiding” or case-knife entry.

Faceplate

Measures 1-1/4" x 8" [31.8 mm x

203.2 mm] armored ﬂat faceplate

can also be adjusted in the ﬁeld for

right or left beveled edge doors.

Strike

4506-02 Strike furnished to ANSI

preparation speciﬁcations for

ﬂat jamb. Stainless steel, US32D

Satin ﬁnish (630). Available

without strike (-000).

Standard Package

Individually boxed with strike

plate, faceplate, and mounting

screws. Cylinder, paddle,

handle available separately.

Shipping Weight

1-1/4 lbs [0.57 kg].

Options

• Backset, faceplate shape, strike,

handing, and ﬁnish must be

speciﬁed when ordering. See

4900 Heavy Duty Deadlatch for

aluminum stile door applications.

• Available without faceplate

and strike, select 4923AN.

• Available in choice of 313 Dark

bronze anodized, 335 Black

anodized, 628 Clear anodized.

4920AN Heavy Duty Deadlatch provides ﬂexible trac control

and easy installation for wood or hollow metal doors.

Function

Flexibility of trac control and installation is oered by 4920AN Heavy Duty

Deadlatches. A key-controlled bolt hold-back feature allows for two-way trac

for applications which require free entrance at certain times and exit-only at

other times. This allows a "locked" entrance to be used as an exit by visitors

already in the building. 1-3/4" [44.5 mm] minimum door thickness required.

Interchangeable, without stile modiﬁcation, with any MS1850SN Deadlock of

same backset and faceplate shape. Replaces 4520 and discontinued 4720 ANSI

Deadlatches. For hollow metal or wood doors prepared for hardware according

to the speciﬁcations of the American National Standards Institute (ANSI).

Operation

Turn key or operate handle or paddle to retract spring-loaded latchbolt. To

hold bolt retracted, push it in and secure by reverse turn of key. Lock accepts

any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder

with MS® cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066

Thumbturn, available separately. Lock accepts cylinder from either or both sides.

4920AN

Heavy Duty Deadlatch (ANSI Size)

4920AN

Heavy Duty

Deadlatch

(ANSI Size)

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

DEADLATCHES

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

Stile Preparation

How to Order & Related Products

4920AN Heavy Duty Deadlatch (ANSI Size) Specify quantity and the following information. Order related products separately.

MODEL FACEPLATE BACKSET HANDING STRIKE FACEPLATE FINISH

492 0AN 4 6 - 602 - 313

0AN Flat 4 1-1/2" 5 LH or RHR 000 Less Strike 313 Dark Bronze Anodized

3AN Without faceplate,

without strike plate

5 2-3/4" 6 RH or LHR 602 4506 Strike 335 Black Anodized

628 Clear Anodized

RELATED When purchasing this product, please consider the following related products, available separately:

ELECTRIC STRIKES TRIM CYLINDERS ACCESSORIES

7100/7101, 7110/7111,

7130/7131, 7140 Electric

Strikes, 7400/7401,

7410/7411, 7430/7431,

7440 Electric Strikes

3080, 3080E Series Entry

Trim, 3090-150, A100 Series

Keyless Entry, 4560, 4565

Deadlatch Handles, 4568,

4569 Eurostyle Deadlatch

Handles, 4590, 4591 Paddles,

4600 Deadlatch Handle

Standard 1" length, 1-5/32”

diameter mortise cylinder

with MS® cam such as

4036 Mortise Cylinder,

4066 Thumbturn

4043 Cylinder guard

4506-02 Deadlatch

Strikes

DIA.

CYLINDER

STRIKE

PLATE

LATCH

FACE

29/32"

23mm

5/8"

15.9mm

1-17/64"

32.1mm

1-1/4"

31.8mm

1-3/16"

30.2mm

3/8"*

9.5mm

7/64"

2.8mm

8-1/64"

203.6mm

1-1/4"

31.8mm

1-3/16"

30.2mm

4-7/8"

123.8mm

3-3/8"

85.7mm

2-1/8"

54mm

1-1/4"

31.8mm

15/16"

23.8mm

1/4"

6.4mm

1-7/16"

36.5mm 8"

203.2mm

7-1/4"

184.2mm

19/32"

15.1mm

3/8"

9.5mm

1/4"

6.4mm

7-11/16"

195mm

5-13/16"

147.6mm

“A”

STRIKE LATCHBACKSET

BACKSET MEASURED

AT CENTERLINE

OF DOOR EDGE

SHOWN

RH/LHR.

Bolt is

reversible

for opposite

hand.

*STRIKE and Faceplate of ANSI

dimensions must be positioned

according to ANSI Spec.

BACKSET “A”

1-1/2"

38.1mm

2-9/64"

54.4mm

2-3/4"

69.9mm

3-25/64"

86.1mm

ARMORED FACEPLATE

11/4" X 8"

FLAT

24-0138-01-XXX

Flat faceplate can be

adjusted for right or left

beveled edge doors.

FLAT

CYLINDER C

RADIUS

BEVEL

HOW BACKSET

IS MEASURED:

FLAT

CYLINDER C

RADIUS

BEVEL

HOW BACKSET

IS MEASURED:

Identical to MS1850SN Series (See also prep for 4591 paddle).

Dimensions

Latch Paddle

& Cylinder

Installation

4920AN

Heavy Duty

Deadlatch

(ANSI Size)

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

DEADLATCHES

Adams Rite Deadlatches can be ordered with a variety of related products including strike plates, cylinder

accessories, electric strikes and trim. Dierent deadlatches have dierent installation and cylinder

requirements. Please refer to product pages for more information on all available deadlatch types,

functions, installation requirements and complete How-to-Order guides. For more detailed information

on any of the products listed below please refer to the corresponding section of this catalog.

Accessories

4901, 4902 Deadlatch Strikes

4901, 4902 Deadlatch Strikes add aesthetics and ﬁnish

to strike cutouts in jambs. These strikes oer a choice of

mounting methods: a backup mounting plate included

with the 4901 and 4902 allows installation ﬂush in a

hollow section jamb. 4506-02 ANSI strike available

for wood or steel jambs. See images on next page.

Cylinders

4036 Mortise Cylinder

The 4036 Mortise Cylinder is a standard 1" long,

1-5/32" diameter cylinder that provides ﬁve-pin

security with most Adams Rite locks or latches.

4066 Thumbturn

The 4066 Thumbturn interchanges with

standard 1-5/32" diameter mortise cylinder and

operates locks or latches without a key.

MS 4043 Cylinder Guard

The MS4043 Cylinder Guard is a hardened-

steel, free-swiveling ring to protect cylinder

from vandalism such as prying or twisting.

Electric Strikes

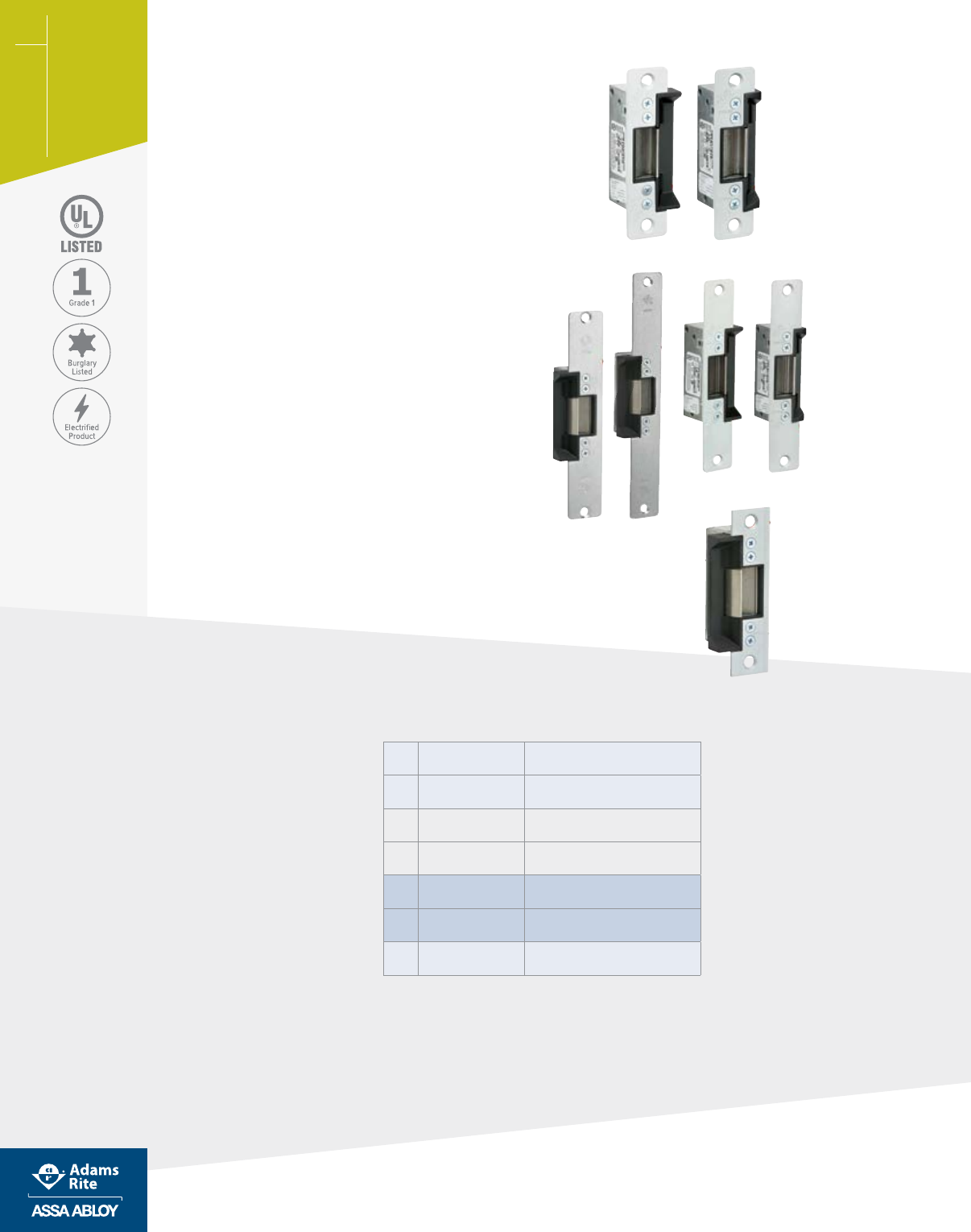

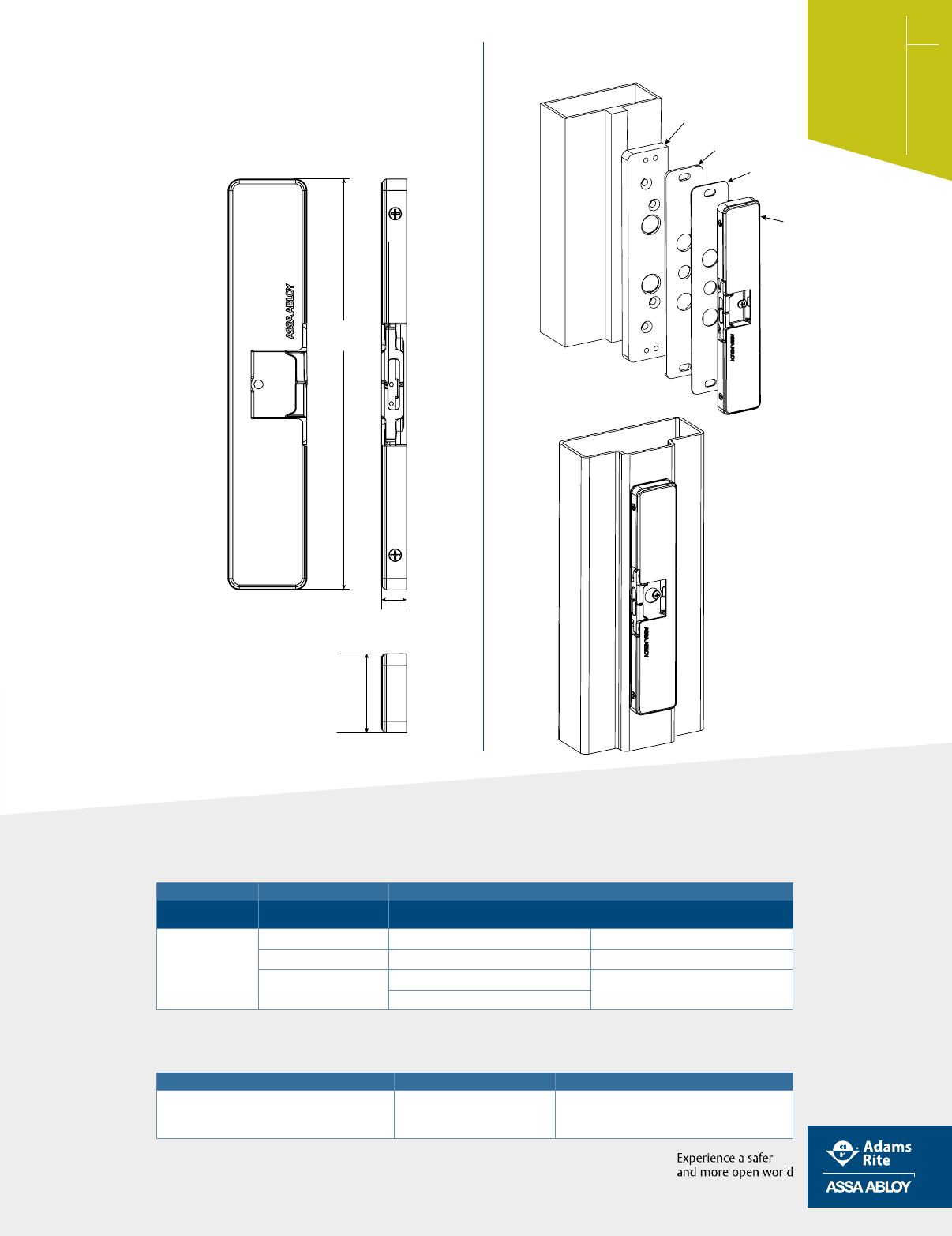

7100, 7400 Series Electric Strikes

The 7100 Series Electric Strikes and Ultraline 7400

Series Electric Strikes are designed for use with

Adams Rite deadlatches or cylindrical locksets with

a variety of latchbolt projections. An assortment

of faceplate dimensions is available for use in

hollow metal, wood or aluminum applications.

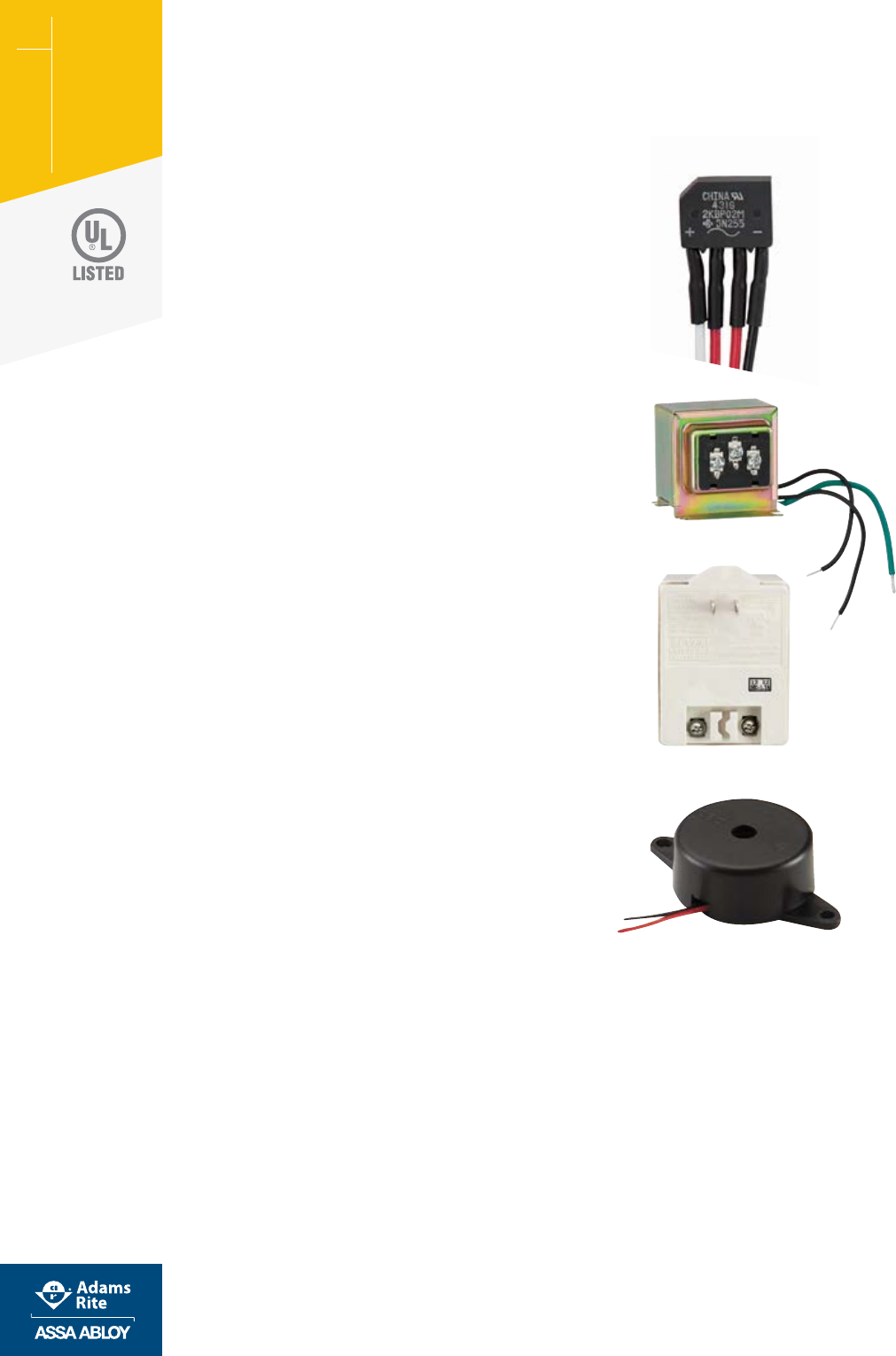

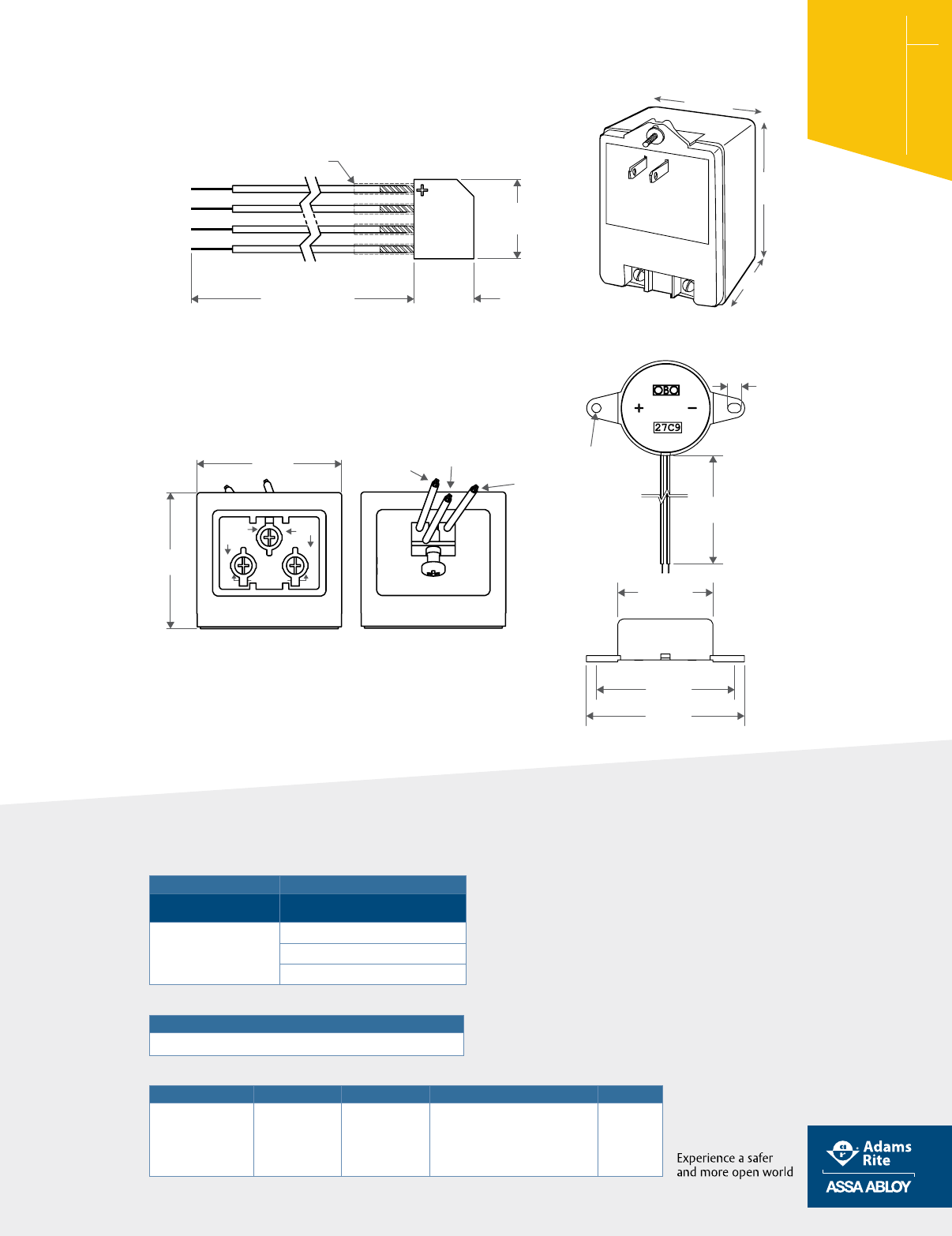

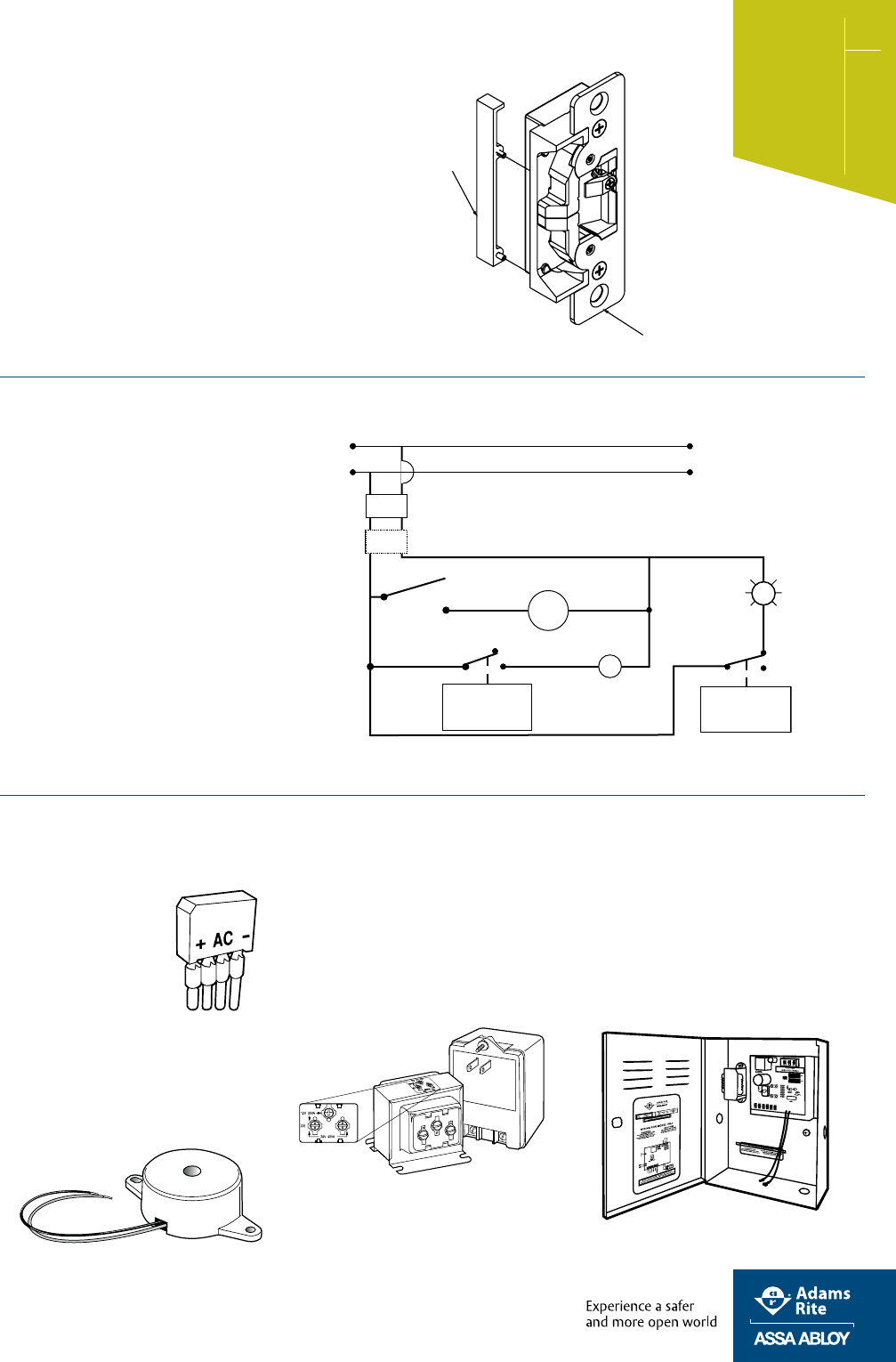

Power

4603 Rectiﬁer

Converts low voltage AC current to DC of same voltage.

Installs in low voltage line between transformer and

strike. Full wave bridge type. Rated 2 Amps. (200 PIV).

4605 Transformer

Converts 120 VAC to 12 VAC/24VAC. Rated 40 Volt-amp

output assures plenty of power for strike release.

4606 Transformer

Converts 120 VAC current to 24 VAC.

Plugs into standard wall outlet.

29-0218 Piezo Horn

Provides for audible indication of when a DC strike is

energized. Operates with 12 VDC, 16 VDC, or 24 VDC strikes.

4612 Power Transfer Device

The 4612 Power Transfer Device channels electrical

wiring from the door frame into the door itself.

This powers electric strikes, locks, exit bars, and

more on door hung with butt-type hinges.

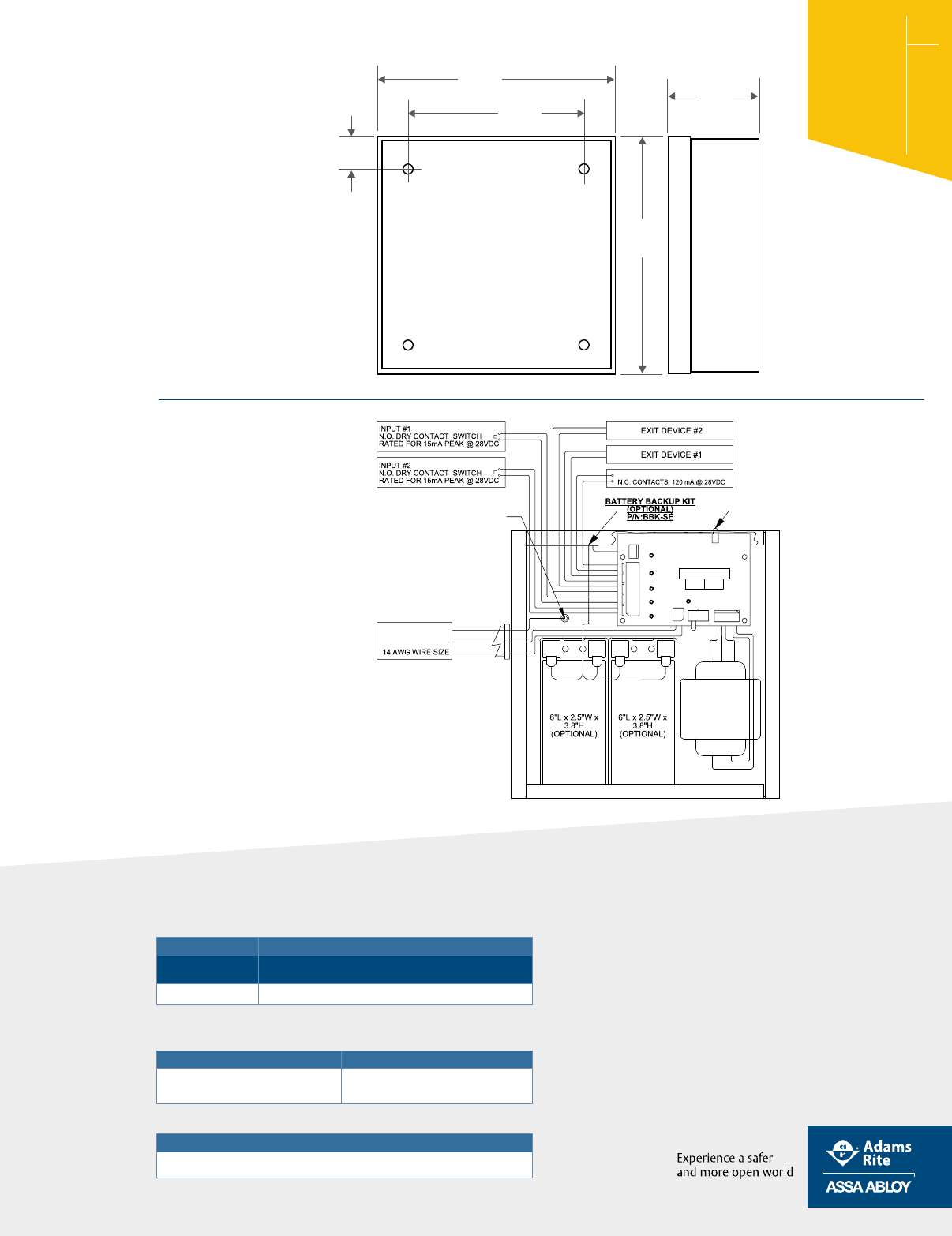

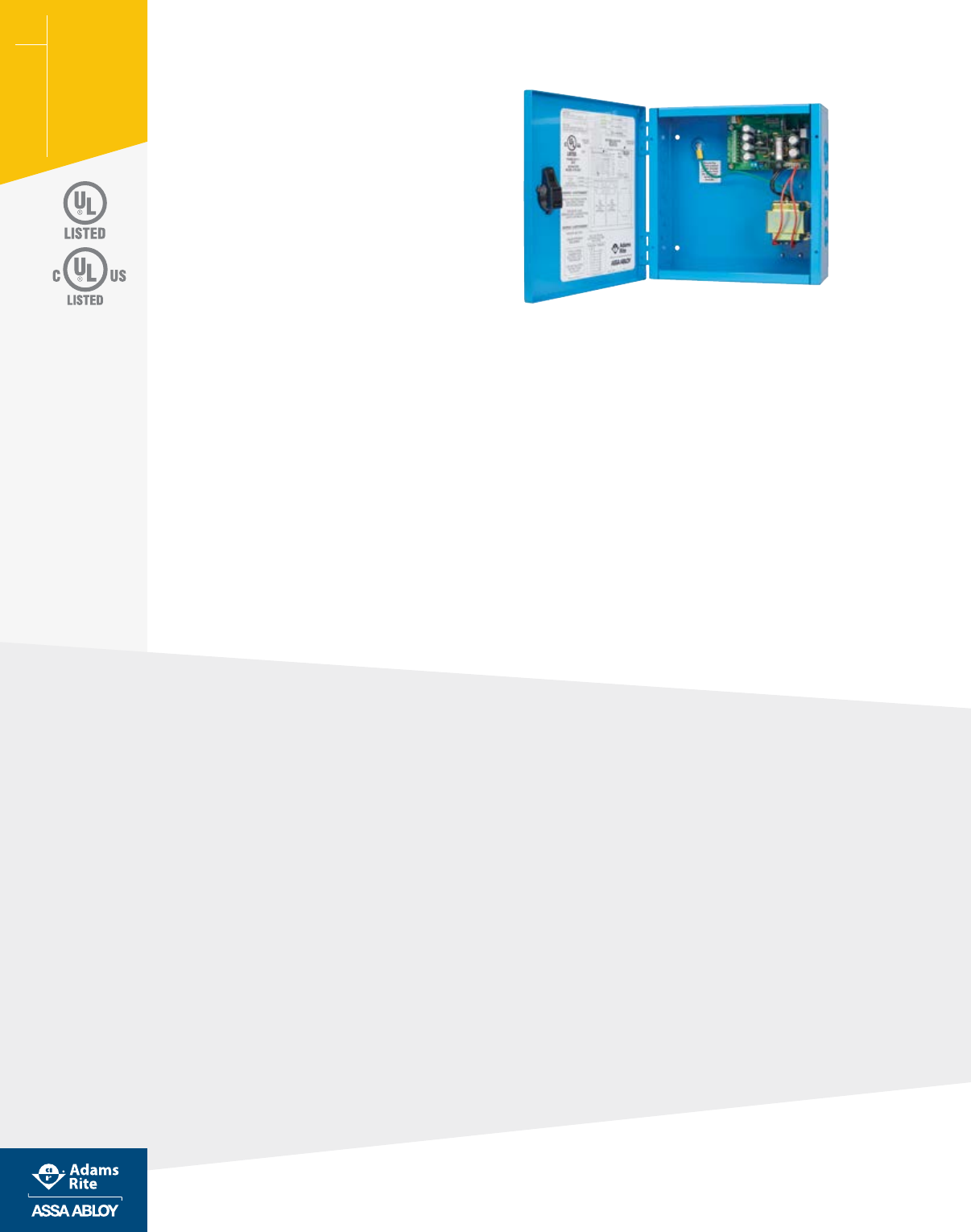

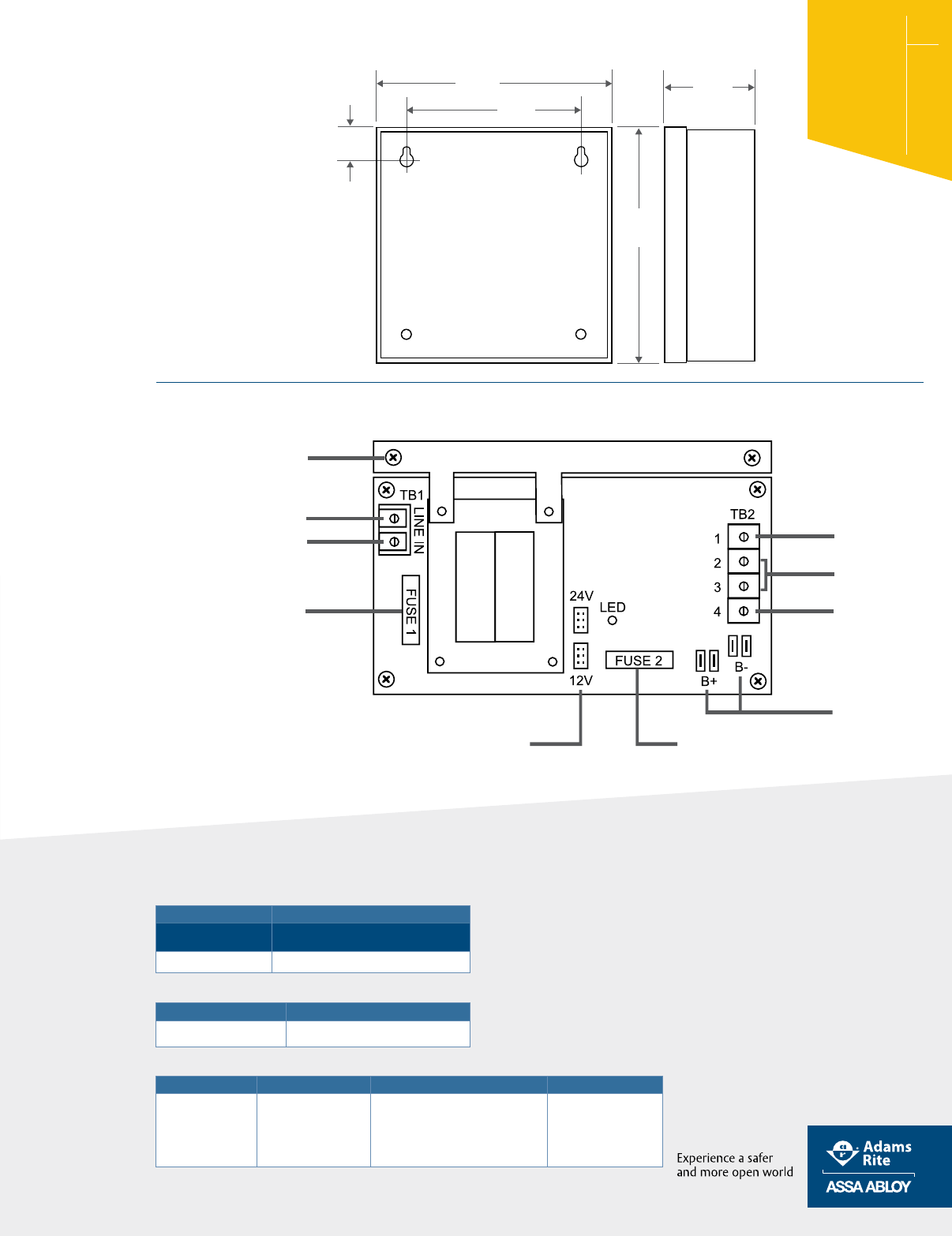

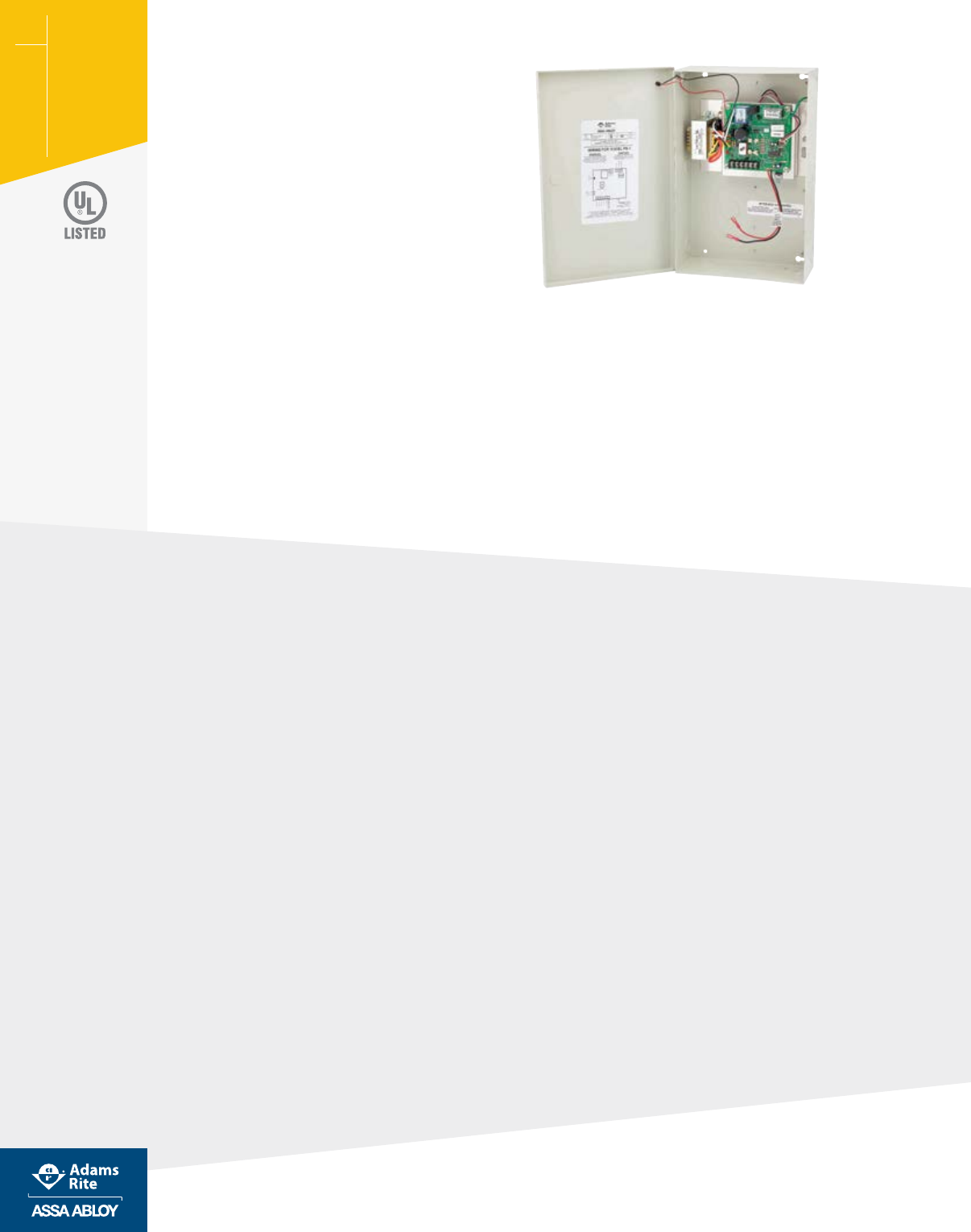

PS -1 Power Supply

One amp linear power supply with integrated battery

backup circuitry for access control devices.

Options & Accessories

Options &

Accessories

DEADLATCHES

Options &

Accessories

4902-01

ﬂat strike

4902-02

Radius strike

4901-02

radius

strike

4901-01

ﬂat strike

Deadlatch Strikes

4901, 4902

Trim

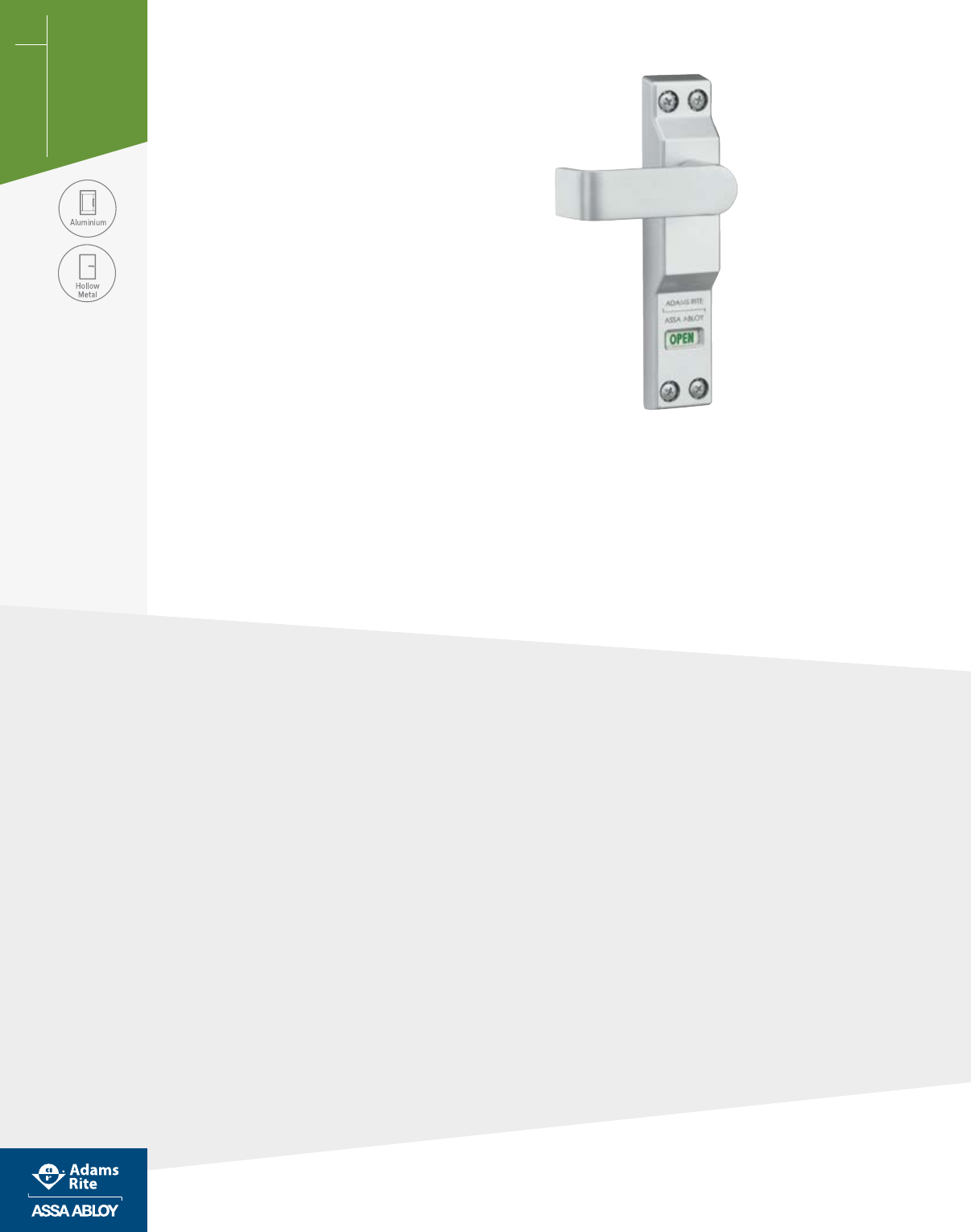

3080 Series Entry Trim

The 3080 Series Entry Trim provides outside activation

for doors with any type of Adams Rite deadlatch or exit

device. The locked handle is protected from vandalism

and forced entry with a breakaway clutching mechanism.

3090 Keyless Entry

A battery-operated keyless entry control device, the

eForce-150 3090 Keyless Entry provides access control

for Adams Rite deadlocks, deadlatches, and exit devices

for aluminum stile, steel, and wood door applications.

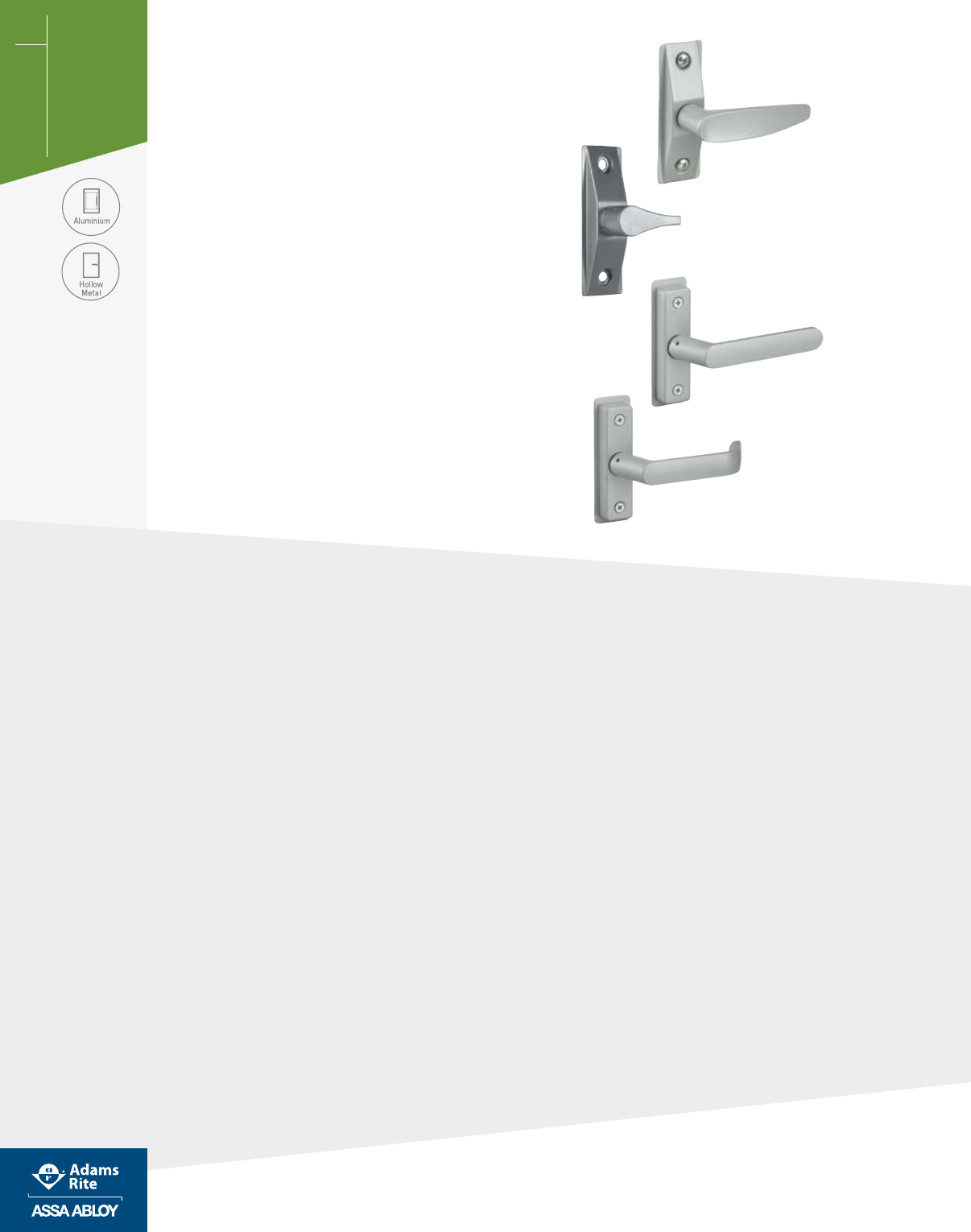

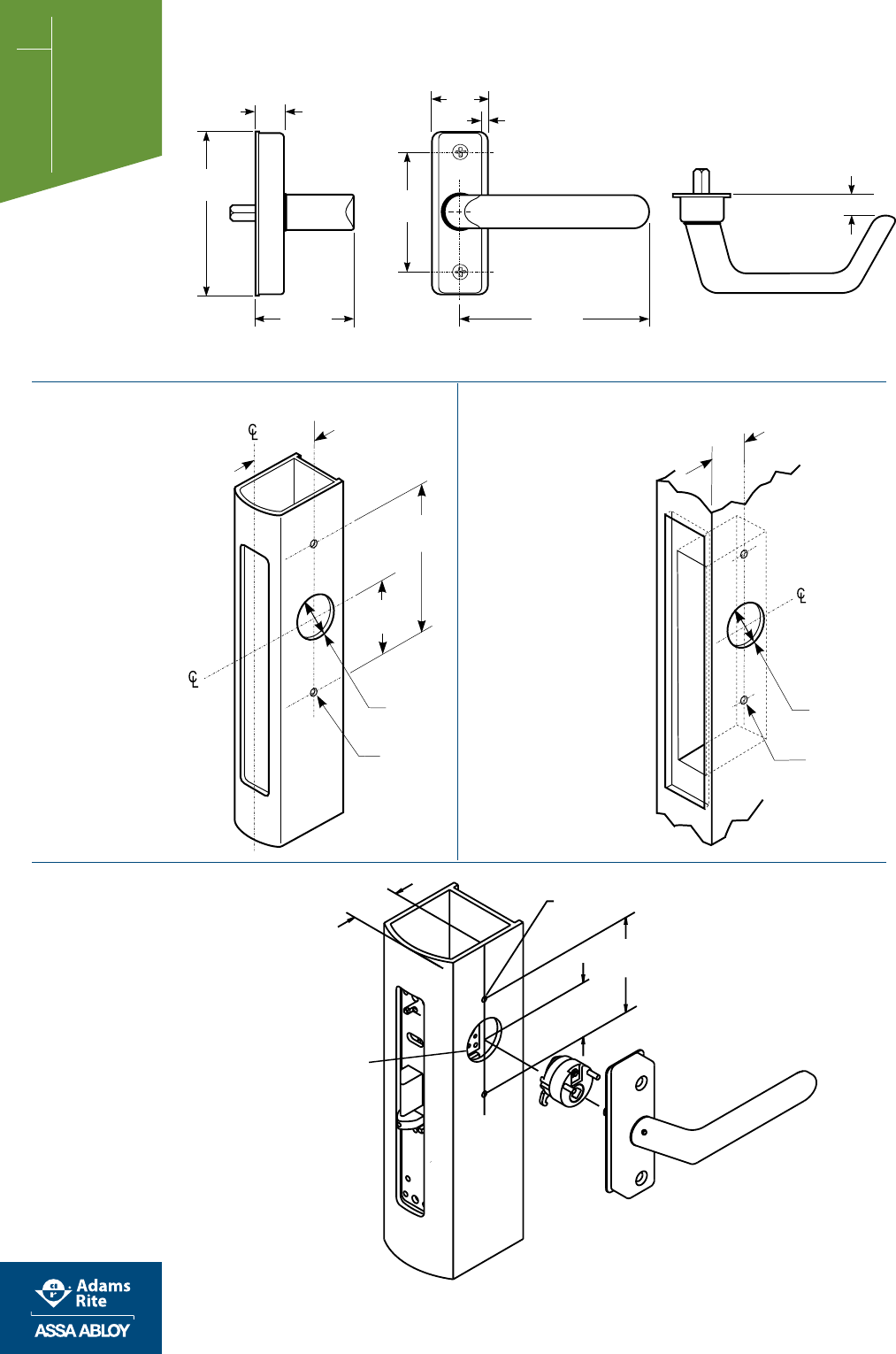

Deadlatch Handles

The 4560 and 4565 Deadlatch Handles and 4568

and 4569 Euro Deadlatch Handles easily unlock the

4300, 4500 and 4900 Series Deadlatches. These

handles ﬁt solidly into the cylinder hole of the latch.

Deadlatch Paddles

The 4590, 4591 Deadlatch Paddle is an

ergonomically-friendly alternative to a knob or

lever handle. Operate the 4300, 4500 and 4900

Series Deadlatches with a simple push or pull.

4600 Heavy Duty Deadlatch Handle

The 4600 Heavy Duty Designer Deadlatch Handles are

designed with a patented adjustable drive mechanism to

operate the 4300, 4500, and 4900 Series Deadlatches.

Flushlocks

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

FLUSHLOCKS

Features

Cylinder Backset

31/32" [24.6 mm] or 1-1/8"

[28.6 mm] only.

Cylinder Height

Standard length (cylinder center to

retracted bolt tip) is 12" [304.8 mm]

with ± 1-1/4" [31.8 mm] adjustment.

Please contact factory for other

lengths available by special order.

Case

Steel with corrosion-resistant plating.

Measures 1" x 6" x depth [25.4 mm x

152.4 mm x depth]. Depth varies by

backset (see table on back of page).

Bolt

Stainless steel. Hexagonal

3/8" [9.5 mm] ﬂat to ﬂat, with

11/16" [17.5 mm] throw.

Strike

1/2" [12.7 mm] diameter hole in

metal threshold or header is

suitable. For wood thresholds, 4005

Strike is available separately.

Faceplate

Measures 1" x 6-7/8" [25.4 mm x

174.6 mm]. Available in choice of 313

Dark bronze anodized, 335 Black

anodized, 628 Clear anodized.

Standard Package

Flushlock mechanism boxed with

actuator arm attached, rod/bolt

assembly unattached. Stainless steel

bolt guide, mounting screws, and

installation instructions included.

Cylinder available separately.

Shipping Weight

1-1/4 lbs [.57 kg].

Designed for greater key control, the 1870 Cylinder-

Operated Flushbolt prevents accidental locking of the

inactive leaf of narrow stile aluminum paired doors.

May be installed to lock at threshold or at header.

Function

Designed for use instead of conventional ﬂip-lever operated

ﬂushbolts, 1870 Cylinder-Operated Flushbolts give building

management key control of the inactive leaf of paired narrow

stile aluminum doors. Prevents casual locking of the inactive leaf

by unauthorized persons. Uses same basic over-center action

mechanism as MS® pivoted bolt deadlocks. Recommended

for installation at both top and bottom of inactive door with

MS1850S MS Deadlock in active door for greatest security.

May be installed to lock at threshold or at header.

Operation

360° turn of key throws or retracts the hex-section bolt. Key can

be removed only when bolt is in a positively locked or unlocked

position. Lock accepts any standard 1" [25.4 mm] length, 1-5/32"

[29.4 mm] diameter mortise cylinder with MS® cam such as the

4036 Mortise Cylinder, or thumbturn such as the 4066 Thumbturn,

available separately. Lock accepts cylinder from either or both sides.

1870 Series

Cylinder-Operated Flushbolt

1870 Series

Cylinder-

Operated

Flushbolt

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

FLUSHLOCKS

1870 Series

Cylinder-

Operated

Flushbolt

1-1/64"

25.8mm

6-57/64"

175mm

12"

304.8mm

9/16"

14.3mm

11/16"

17.5mm

37/64"

14.7mm

7/8"

22.2mm

1/2"

12.7mm

DIA.

1-1/4"

31.8mm

DIA.

1-19/32"

40.5mm

5/32"

4mmR

DRILL & CSK

FOR #10-32

FLAT HEAD

SCREWS

STILE

BOLT

THRESHOLD

(4 PLCS)

7/8"

22.2mm

1-11/32"

34.1mm

152.4mm

6-3/8"

161.9mm

6-7/8"

174.6mm

1/4"

6.4mm

12" *

304.8mm

11/16"

17.5mm

25.4mm

“A”

BACKSET MEASURED

AT CENTERLINE OF

STILE NOSE

THROW

*STANDARD

LENGTH,

Other lengths

available on

special order

FOR

SECURITY,

Install bolt

guide from

interior

of door

NOTE:

Machine

Screws are

furnished

Stile

Preparation

Dimensions

Lock &

Cylinder

Installation

How to Order & Related Products

1870 Cylinder-Operated Flushbolt Specify quantity and the following information. Order related products separately.

MODEL FACEPLATE SHAPE BACKSET HANDING FINISH

1870 0- 2 0- 628

0 Flat 2 31/32" 1 Non-Handed* 313 Dark Bronze Anodized

1 Radius 3 1-1/8" 5 LH or RHR 335 Black Anodized

1W Radius with weatherstrip 6 RH or LHR 628 Clear Anodized

2 Bevel

*Any ﬂat or radius faceplate.

RELATED When purchasing this product, please consider the following related products, available separately:

CYLINDERS ACCESSORIES SPECIAL ORDER OPTIONS

Standard 1" length, 1-5/32”

diameter mortise cylinder with

MS® cam such as 4036 Mortise

Cylinder, 4066 Thumbturn

MS4043 Cylinder guard

4005 strike for wood threshold

4104 Mounting Bridge, 91-0965 Mounting

Kit for radiused door, 91-0966 Mounting Kit

for beveled door, 26-00090XX Tube Spacer

Other cylinder height / length

available by special order.

Please contact factory.

BACKSET “A”

31/32"

24.6mm

1-5/8"

41.3mm

1-1/8"

28.6mm

1-25/32"

45.2mm

ARMORED FACEPLATE

1" X 67/8"

FLAT 1870

RADIUS 1871

RADIUS W/ WEATHERSTRIP

1871W

LH BEVEL 1872-X5

RH BEVEL 1872-X6

FLAT

CYLINDER C

RADIUS

BEVEL

HOW BACKSET

IS MEASURED:

For installation locking threshold.

Invert for header locking.

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

FLUSHLOCKS

Features

Cylinder Backset

1-1/4" [31.8 mm] only.

Cylinder Height

Standard length (cylinder center

to door end) is 13-1/2" [342.9 mm].

Please contact factory for other

lengths available by special order.

Case

Steel with corrosion-resistant plating.

Measures 7/8" x 6" x 1-21/32"

[22.2 mm x 152.4 mm x 42.1 mm].

Bolt

Stainless steel. Hexagonal

3/8" [9.5 mm] ﬂat to ﬂat, with

11/16" [17.5 mm] throw.

Strike

2-1/4" x 15/16" [57.2 mm x 23.8 mm]

strike is supplied.

Faceplate

Measures 1" x 8" [25.4 mm x 203.2

mm].

Available in choice of 313 Dark

bronze anodized, 335 Black

anodized, 628 Clear anodized.

Standard Package

Flushlock mechanism boxed with

actuator arm attached, rod/bolt

assembly unattached. Stainless steel

bolt guide, mounting screws, and

installation instructions included.

Cylinder available separately.

Shipping Weight

1-1/4 lbs [.57 kg].

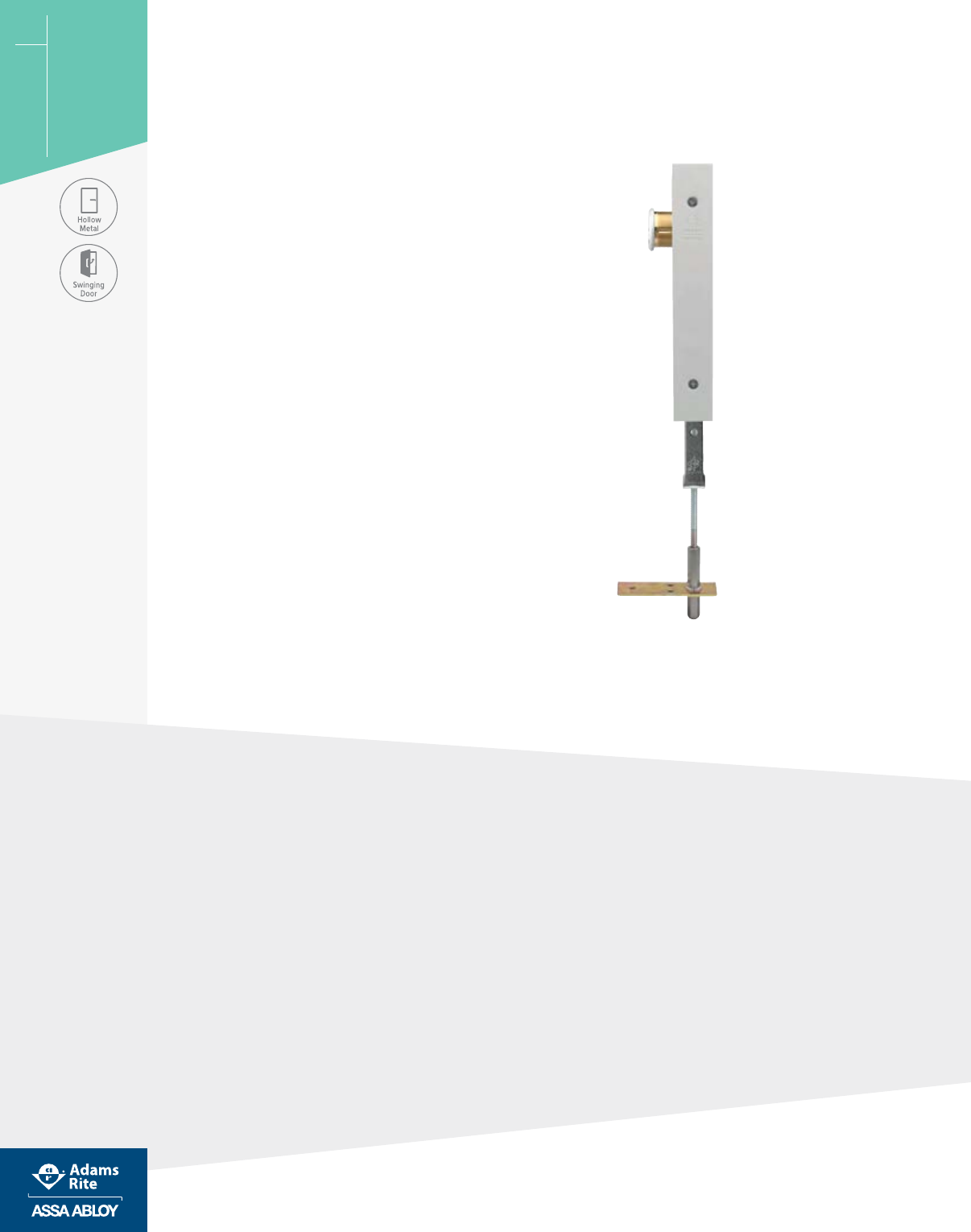

Designed for greater key control, the 1870HM

Cylinder-Operated Flushbolt prevents

accidental locking of the inactive leaf of

paired hollow metal doors. May be installed

to lock at threshold or at header.

Function

Designed for use instead of conventional ﬂip-lever operated

ﬂushbolts, 1870HM Cylinder-Operated Flushbolts give building

management key control of the inactive leaf of paired hollow metal

doors. Prevents casual locking of the inactive leaf by unauthorized

persons. Uses same basic over-center action mechanism as MS®

pivoted bolt deadlocks. Recommended for installation at both top and

bottom of inactive door with MS1850SN MS Deadlock in active door

for greatest security. May be installed to lock at threshold or at header.

Operation

360° turn of key throws or retracts the hex-section bolt. Key can

be removed only when bolt is in a positively locked or unlocked

position. Lock accepts any standard 1" [25.4 mm] length, 1-5/32"

[29.4 mm] diameter mortise cylinder with MS® cam such as the

4036 Mortise Cylinder, or thumbturn such as the 4066 Thumbturn,

available separately. Lock accepts cylinder from either or both sides.

1870HM

Cylinder-Operated Flushbolt

1870HM

Cylinder-

Operated

Flushbolt

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

FLUSHLOCKS

1-1/4"

31.8mm

1-1/4"

31.8mm

6-1/16"

154mm

1/4"

6.4mm

13-1/2" *

342.9mm

11/16"

17.5mm

5/8"

15.9mm

228.6mm

25.4mm

203.2mm

1-29/32"

48.4mm

CYLINDER

HEIGHT

THROWBOLT PROJECTION

BOTTOM EDGE

OF DOOR

EXTENDED

*Other

lengths

available

on special

order

1/4"

6.4mm

1-1/4"

31.8mm

5/8"

15.9mm

13/16"

20.6mm

1-5/8"

41.3mm

3/4"

19.1mm

1/2"

12.7mm

BACKSET

12-24 TAP

(2 PLCS)

1-1/4"

31.8mm

2-1/8"

54mm

1-1/4"

31.8mm

DIA.

8-1/64"

203.6mm

7-1/4"

184.2mm

3/8"

9.5mm

1-17/64"

32.1mm

DRILL & TAP PLATE

8-32 THREAD

(3 PLCS)

DRILL & TAP

8-32 THREAD

(2 PLCS)

DRILL 3/4" DIA.

CLEARANCE

HOLE IN

DOOR PLATE

BOLT GUIDE

BOLT

NOSE OF

DOOR DIA

8-32

FLAT HEAD

MACHINE

SCREWS (3)

25.4mm

1870HM

Cylinder-

Operated

Flushbolt

Door Preparation

How to Order & Related Products

1870HM Cylinder-Operated Flushbolt: Specify quantity and the following information. Order related products separately.

MODEL FACEPLATE SHAPE FINISH

187 0HM - 628

OHM Flat 313 Dark Bronze Anodized

335 Black Anodized

628 Clear Anodized

RELATED When purchasing this product, please consider the following related products, available separately:

CYLINDERS ACCESSORIES SPECIAL ORDER OPTIONS

Standard 1" length, 1-5/32”

diameter mortise cylinder with

MS® cam such as 4036 Mortise

Cylinder, 4066 Thumbturn

MS4043 Xylinder Guard

4104 Mounting Bridge, 91-0965

Mounting Kit for radiused door,

91-0966 Mounting Kit for beveled

door, 26-00090XX Tube Spacer

Other cylinder height / length

available by special order.

Please contact factory.

ARMORED FACEPLATE 1" x 8"

FLAT 1870HM

Dimensions

FLAT

CYLINDER C

RADIUS

BEVEL

HOW BACKSET

IS MEASURED:

Lock & Cylinder

Installation

For installation locking threshold. Invert for header locking.

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

FLUSHLOCKS

Features

Cylinder Backset

1-1/4" [31.8 mm] only.

Cylinder Height

Standard length (cylinder center

to door end) is 13-1/2" [342.9 mm].

Please contact factory for other

lengths available by special order.

Case

Steel with corrosion-resistant plating.

Measures 1" x 6" x 1-29/32"

[25.4 mm x 152.4 mm x 48.4 mm].

Bolt

Stainless steel. Hexagonal

3/8" [9.5 mm] ﬂat to ﬂat, with

11/16" [17.5 mm] throw.

Strike

2-1/4" x 15/16" [57.2 mm x 23.8 mm]

strike is supplied.

Armored Faceplate

Measures 1-1/4" x 15-5/8" [31.8 mm x

396.9 mm].

Available in choice of 313 Dark

bronze anodized, 628 Clear

anodized, US3 (605) Bright brass,

US26D (626) Satin chrome.

Standard Package

Flushlock mechanism boxed with

actuator arm attached, rod/bolt

assembly unattached. Stainless steel

bolt guide, mounting screws, and

installation instructions included.

Cylinder available separately.

Shipping Weight

2 lbs [0.91 kg]

Designed for greater key control, the 1877 Cylinder-

Operated Flushbolt prevents accidental locking

of the inactive leaf of paired wood doors. May

be installed to lock at threshold or at header.

Function

Designed for use instead of conventional ﬂip-lever operated

ﬂushbolts, 1877 Cylinder-Operated Flushbolts give building

management key control of the inactive leaf of paired wood doors.

Prevents casual locking of the inactive leaf by unauthorized persons.

Uses same basic over-center action mechanism as MS® pivoted bolt

deadlocks. Recommended for installation at both top and bottom of

inactive door with MS1837 MS Two-Point Deadlock in active door for

greatest security. May be installed to lock at threshold or at header.

Operation

360° turn of key throws or retracts the hex-section bolt. Key can

be removed only when bolt is in a positively locked or unlocked

position. Lock accepts any standard 1" [25.4 mm] length, 1-5/32"

[29.4 mm] diameter mortise cylinder with MS® cam such as the

4036 Mortise Cylinder, or thumbturn such as the 4066 Thumbturn,

available separately. Lock accepts cylinder from either or both sides.

1877

Cylinder-Operated Flushbolt

1877

Cylinder-

Operated

Flushbolt

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

FLUSHLOCKS

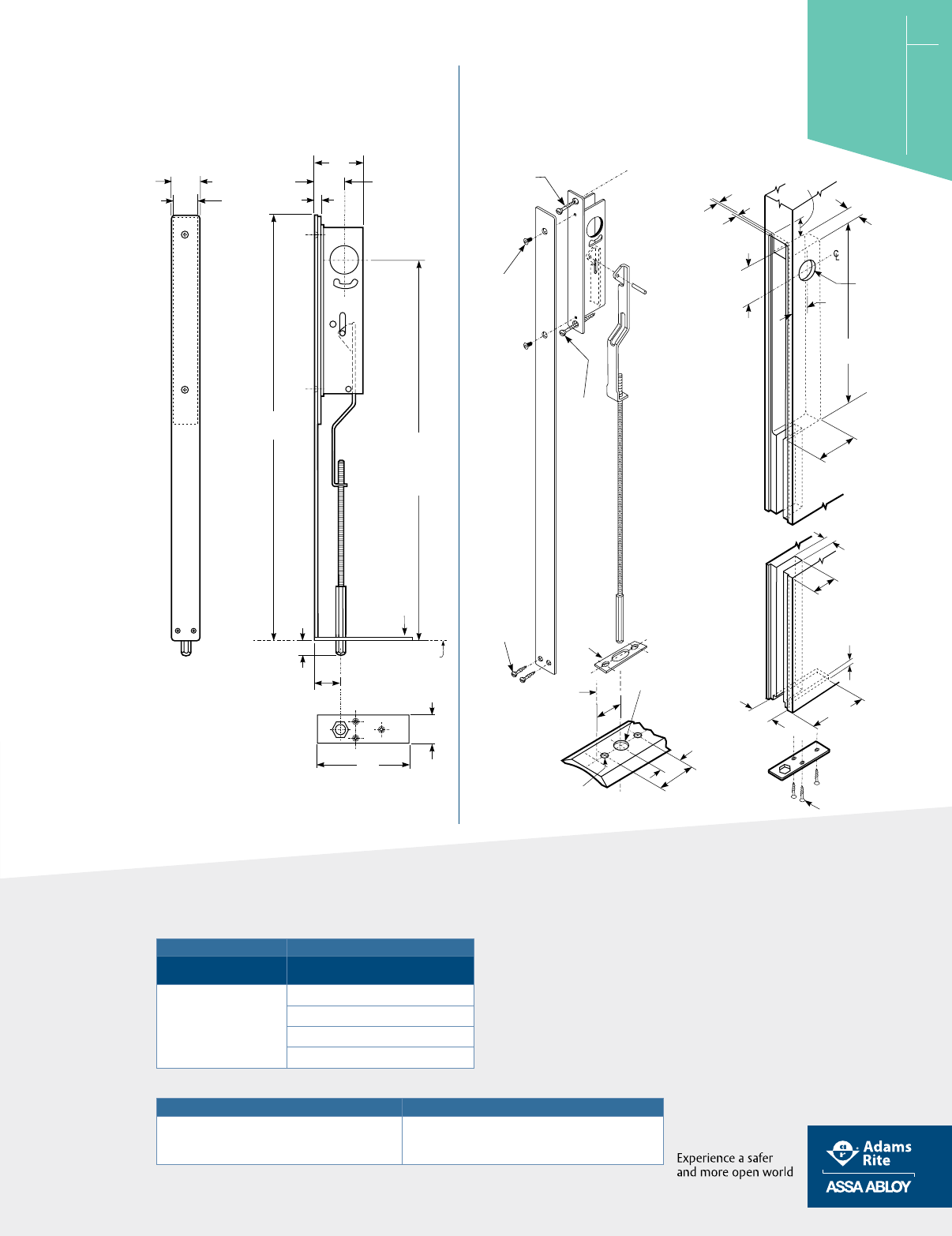

1877

Cylinder-

Operated

Flushbolt

#8-32 X 1/4˝

FLAT HEAD

MACHINE

SCREW (2)

(M4-0.8 X 6.0)

#12 X 1-1/4˝

FLAT HARD WOOD

SCREW

#12 X 3˝

FLAT HEAD

WOOD

SCREW

#6 X 3/4"

FLAT HEAD

WOOD

SCREWS (3)

(M3.5 X 19.0)

DIA.

DRILL & TAP

8-32 THREAD

(2 PLCS)

STRIKE

NOSE OF

DOOR

FACEPLATE

LOCK MTG

PLATE

1-1/4"

31.8mm

25.4mm

3/4"

19.1mm

STANDARD

CYLINDER

HEIGHT

BOLT GUIDE

BOLT

PROJECTION

BOTTOM EDGE

OF DOOR

BACKSET

1/4"

6.4mm

1-29/32"

48.4mm 1-1/4"

31.8mm

13-1/2"

342.9mm

15-5/8"

396.9mm

5/8"

15.9mm

3/4"

19.1mm

25.4mm

3-1/4"

82.6mm

1-5/8"

41.3mm

13/16"

20.6mm

5/8"

15.9mm

#8 X 1"

FLAT HEAD

WOOD

SCREWS (3)

(M4.0 X 25.0)

BOLT

GUIDE

DIA.

1-1/4"

31.8mm

3-3/8"

85.7mm

1/4"

6.4mm

1-1/4"

31.8mm

1/2"

12.7mm

50.8mm

10-1/2"

266.7mm

1-1/4"

31.8mm

2-1/8"

54mm

1/8"

3.2mm

1/8"

3.2mm

7/8"

22.2mm

25.4mm

1-1/4"

31.8mm

How to Order & Related Products

1877 Cylinder-Operated Flushbolt: Specify quantity and the following information. Order related products separately.

MODEL FINISH

1877 - 628

313 Dark Bronze Anodized

605 Bright Brass

626 Satin Chrome

628 Clear Anodized

RELATED When purchasing this product, please consider the following related products, available separately:

CYLINDERS SPECIAL ORDER OPTIONS

Standard 1" length, 1-5/32” diameter mortise

cylinder with MS® cam such as 4036

Mortise Cylinder, 4066 Thumbturn

Other cylinder height / length available by

special order. Please contact factory.

InstallationDimensions

For installation locking threshold. Invert for header locking.

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

FLUSHLOCKS

Features

Header | Threshold Bolt

Hexagonal 3/8" [9.5 mm] ﬂat

to ﬂat. Stainless steel. Guides

furnished. Bolt throw is 23/32"

[18.3 mm]. Strike required in metal

headers and thresholds is 1/2"

[12.7 mm] diameter hole. For wood

installation, two 4005 Strikes are

required, available separately.

Interlock

All steel mechanism includes

device to prevent entry of

pivoted bolt until vertical bolts

are locked and conversely, to

prevent unlocking of vertical bolts

when pivoted bolt is locked.

Turn Lever | Indicator

MS1880 has an hourglass-shaped turn

for ﬁrmer ﬁnger grip. Red background

indicator has aluminum letters

reading “LOCKED” when secure. No

message shown when unlocked.

MS1881 has a teardrop-shaped

turn with red letters on clear decal

indicating unlock direction only.

Turn Height

Matches cylinder height of

MS® lock in active door.

Standard Package

Individually boxed with bolt

guides and screws.

Shipping weight

2 lbs [.91 kg].

Options

• For wood header or threshold,

4005 Strike available separately.

• For doors over 84" [2,133.6

mm] up to 120" [3,048 mm].

• Tall Door Kit TDK-1880

available separately.

• Available in choice of powder coat

119 to match 335 Black

anodized, 121 to match 313

Dark bronze anodized, and

US26D (682) Satin chrome.

MS1880 Two-Point Flushbolts oer greater

convenience than ﬂip-lever ﬂushbolts.

With one operation, they provide

security and reduce human error.

Function

Used instead of ﬂip-lever ﬂushbolts in the inactive leaf of

paired doors, the MS1880 Two-Point Flushbolts oer greater

convenience: one operation instead of two. They also promote

security by removing an element of human error. A positive

blocking device makes it impossible to turn the key in the

active door unless the inactive leaf has ﬁrst been secured. The

MS1880 must be installed in conjunction with a pivoted bolt MS®

deadlock. Cannot be unlocked when pivoted bolt is in locked

position. Not to be used as a standalone locking mechanism.

Operation

Turn knob or lever 180° clockwise to throw hardened steel

bolts into header and threshold and clear strike opening so

pivoted MS® bolt can enter from active door. Counterclockwise

turn retracts vertical bolts and blocks entry of pivoted bolt.

Operates in conjunction with any MS® pivoting deadlock.

MS1880

Two-Point Flushbolt

MS1880

Two-Point

Flushbolt

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

FLUSHLOCKS

MS1880

Two-Point

Flushbolt

THROW

FACE OF

STILE

23/32"

18.3mm

23/32"

18.3mm

3/4"

19.1mm

15/16"

23.8mm

8-1/8"

206.4mm

8-1/8"

206.4mm

1-1/16"

27mm

7/8"

22.2mm

Drill & CSK

for #10-32

Flathead screw

(4 plcs)

CYLINDER

(2 PLCS)

ON ACTIVE

DOOR LEAF

DIA.

9/64"

3.6mm

3/4"

19.1mm

1/2"

12.7mm

11/16"

17.5mm

(2 PLCS)

9/16"

14.3mm

15/16"

23.8mm

1-1/16"

27mm

15/16"

23.8mm

1-1/2"

38.1mm

THROW

TOP GUIDE

BRACKET

BOTTOM

GUIDE

BRACKET

Dimensions

MS1880

MS1881

Stile Preparation

How to Order & Related Products

MS1880 Two-Point FlushboltsSpecify quantity and the following information. Order related products separately.

MODEL TURN SHAPE CYLINDER HEIGHT* FINISH

MS188 0- 01 - 628

0 Hourglass 1 31" to 35" 119 Black

1 Teardrop 2 35-1/16" to 39" 121 Dark Bronze

3 39-1/16" to 43" 682 Satin Chrome

4 43-1/16" to 47"

5 47-1/16" to 51"

* Distance from ﬂoor to cylinder centerline.

RELATED When purchasing this product, please consider the following related products, available separately:

DEADLOCKS ACCESSORIES

1850S-020, MS1850S, MS1850S-050,

MS1950, MS1950-050 Series Deadlocks

TDK-1880 Tall Door Kit, 4005 Wood Strikes

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

FLUSHLOCKS

Features

Header | Threshold Bolt

Hexagonal 3/8" [9.5 mm] ﬂat

to ﬂat. Stainless steel. Guides

furnished. Bolt throw is 23/32"

[18.3 mm]. Strike required in metal

headers and thresholds is 1/2"

[12.7 mm] diameter hole. For wood

installation, two 4005 Strikes are

required, available separately.

Smart Lock

Mechanism includes device to prevent

entry of pivoted bolt until vertical

bolts are locked and conversely, to

prevent unlocking of vertical bolts

when pivoted bolt is locked.

Monitoring

Monitoring Kit available as add-on

switch kit that signals when the top

and bottom bolts are fully projected

and the MS® deadlock is in the

extended and locked position. More

than an easily defeated door position

switch, the MK-2180 Monitoring Kit

uses a form “C” switch to provide a

tamper-proof indication of the door

position and locked condition.

Turn Lever | Indicator

MS2180 has an hourglass-

shaped turn for a ﬁrm ﬁnger grip.

Red lettered indicator shows

“LOCKED” when secure.

MS2181 has a teardrop-shaped

turn with red letters on clear decal

indicating unlock direction only.

MS2182 is a limited-access ﬂush turn

to comply with IBC requirements for

“no doorknob” actuation. MS2182

is supplied with an activation

tool. Red lettered indicator shows

“LOCKED” when secure.

Turn Height

Matches cylinder height of

MS® deadlock in active door,

adjustable from 34" [863.6

mm] to 48" [1,219.2 mm].

Standard Package

Individually boxed with bolt

guides and screws.

Shipping weight

2 lbs [.91 kg].

Options

• For wood header or threshold,

4005 Strike available separately.

• Available in choice of powder

coat 119 Black to match 335 Black

anodized, 121 Dark bronze to match

313 Dark bronze anodized, and 130

Clear to match 628 Clear anodized.

The MS2180 Auto-Release Two-Point Flushbolts work in

conjunction with any MS® pivoting deadlock to provide

maximum security for paired narrow stile aluminum doors.

Function

Used instead of ﬂip-lever ﬂushbolts in the inactive leaf of paired doors.

One turn pins the inactive leaf in position. The pivoting MS® deadlock in

the active leaf secures the entire opening. The action of securing the MS®

deadlock trips an internal mechanism in the MS2180 so that when the MS®

deadlock is retracted, the entire opening releases with only one operation.

This auto-release two-point ﬂushbolt must be installed with a pivoted bolt

MS® deadlock. Not to be used as a standalone locking mechanism.

Operation

Turn knob or lever 120° counterclockwise to throw stainless steel bolts into

header and threshold and clear strike opening so pivoted MS® bolt can enter

from active door. Clockwise turn retracts vertical bolts and blocks entry of

pivoted bolt. Operates in conjunction with any MS® pivoting deadlock.

MS2180

Auto-Release Two-Point Flushbolt

MS2180

Auto-Release

Two-Point

Flushbolt

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

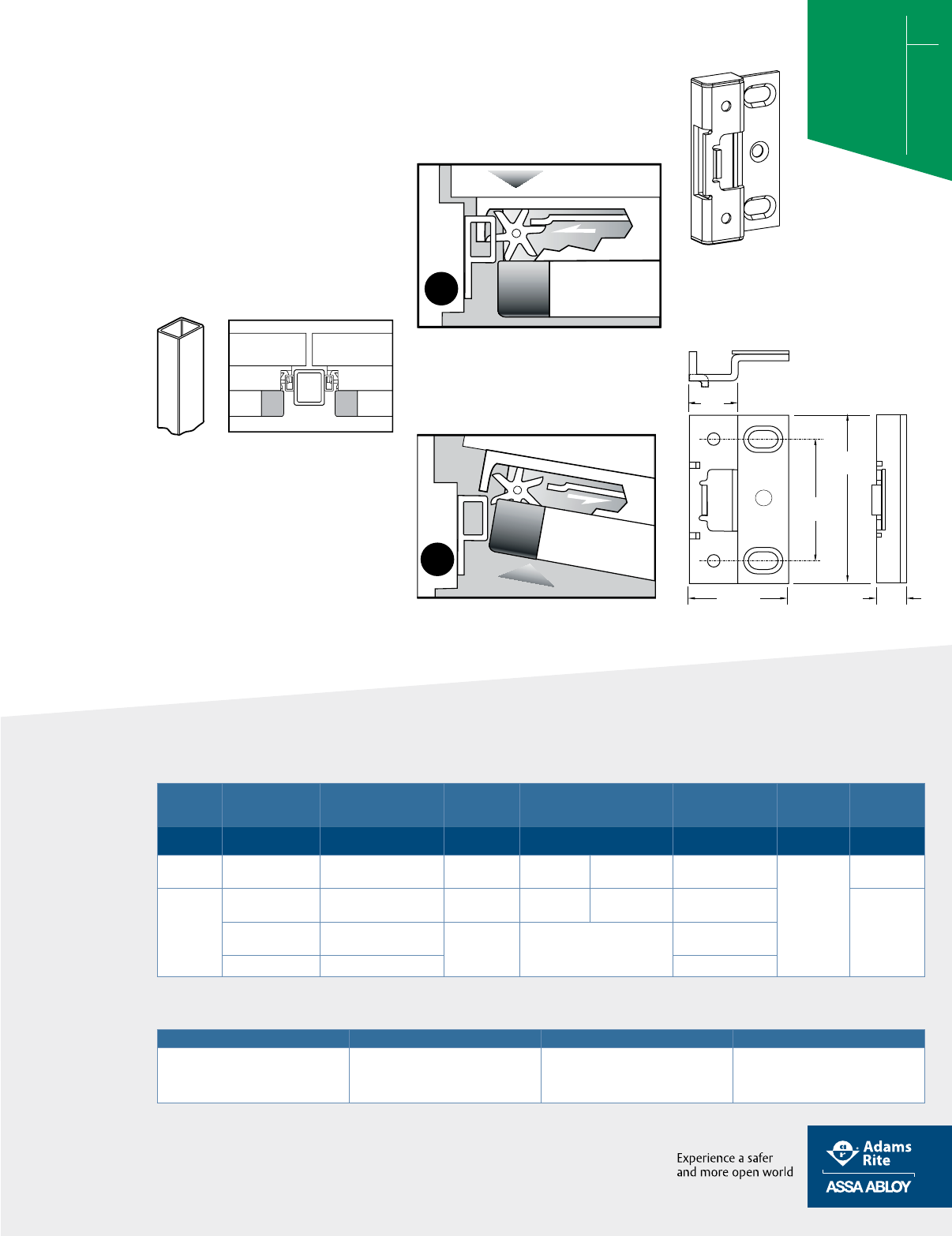

FLUSHLOCKS

MS2180

Auto-Release

Two-Point

Flushbolt

Dimensions Stile Preparation

How to Order & Related Products

MS2180 Auto-Release Two-Point FlushboltSpecify quantity and the following information. Order related products separately.

MODEL TURN SHAPE DOOR HEIGHT

FROM FLOOR TO TOP OF DOOR FINISH TO MATCH

MS218 0- 07 - 130

0 Hourglass 07 Up to 7' Door 119 Black Anodized

1 Teardrop 08 Up to 8' Door 121 Dark Bronze Anodized

2 Flush Operator 09 Up to 9' Door 130 Clear Anodized

10 Up to 10' Door

RELATED When purchasing this product, please consider the following related products, available separately:

DEADLOCKS

MS1850S, MS1950 Series Deadlocks

BOTTOM GUIDE

BRACKET

TOP GUIDE

BRACKET

THROW

23/32"

18.3mm

3/4"

19.1mm

6-7/8"

174.6mm

25.4mm

1-1/2"

38.1mm

1-1/4"

31.8mm

23/32"

18.3mm

FACE OF

STILE

DRILL &

CSK FOR

#6-32

FLAT HEAD

SCREW

(3 PLCS)

DRILL &

CSK FOR

#10-32

FLAT HEAD

SCREW

(4 PLCS)

(2 PLCS)

7/8"

22.2mm

57/64"

22.6mm

1/2"

12.7mm

3/4"

19.1mm

3/4"

19.1mm

57/64"

22.6mm

57/64"

22.6mm

7/8"

22.2mm

9/16"

14.3mm

39/64"

15.5mm

2-11/16"

68.3mm

27/32"

21.4mm

CYLINDER

ON ACTIVE

DOOR

LEAF

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

FLUSHLOCKS

Features

Backset

Variable, minimum 5/8" [15.9

mm], maximum 1-9/32" [32.5 mm]

from face of lock to escutcheon

and cylinder centerline.

Stile Depth

Minimum clear depth:

Backset plus 9/16" [14.3 mm].

Escutcheons

Zinc alloy, satin silver epoxy.

Anti Lift Lock Mechanism

Basic MS1848-09 (radius ends)

or MS1848-10 (square ends) is

supplied. Stainless steel bolt is self-

protecting, adjustable for reach.

Operation

Inside: Vertical slide button projects

or retracts deadlock bolt.

Outside: 4190 features a key in,

ﬁve-pin cylinder with Schlage “C”

keyway that projects or retracts bolt.

Standard Package

4190, with cylinder, and 4189,

without cylinder, are each complete

packages. Shipped individually

boxed with mounting screws. 4190

includes two keys. Standard 4190

units are keyed dierent (KD).

Contact factory for special keying.

Shipping Weight

1-1/4 lbs [0.57 kg].

Options

• Specify 4190 if outside key-cylinder

operation required; 4189 if not.

Dummy set 4195 also available.

• Lock face is available as -09 for

radius-ended lock face or -10

for square-ended lock face.

• 4413 Interior Pull

available separately.

The 4189, 4190 Flush Locksets for sliding doors

combine the time-tested and ﬁeld-proven Adams

Rite MS1847 Deadlock with a slide button.

Function

Projecting only 1/10" [2.5 mm] from the door stile on either side,

the all-metal 4189, 4190 Flush Locksets allow doors to slide

freely past other sliding units or stationary panels. There are

no projecting handles to prevent doors from being stacked

in a wall pocket. Not recommended for wood doors.

Operation

Locksets operated from inside by a simple up or down

movement of a slide button, set ﬂush in the deeply recessed

ﬁnger pull. The lock mechanism (latching action unavailable)

is the time-tested and ﬁeld-proven Adams Rite MS1847

Deadlock and features the adjustable, self-protecting bolt.

• 4189 without cylinder

• 4190 has a ﬂush mounted cylinder outside

• 4195 matching 'dummy set' is also available

4189, 4190

Flush Locksets

(Including Deadlock)

4189,

4190 Flush

Locksets

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

FLUSHLOCKS

4189,

4190 Flush

Locksets

Stile PreparationDimensions

How to Order & Related Products

4189, 4190, 4195 Flush Locksets: Specify quantity and the following information. Order related products separately.

MODEL LOCKSET

EXTERIOR LOCK FACE STILE

THICKNESS FINISH KEYING OPTIONS PACKAGING

41 90 - 09 - 01 - 130 - 01 - IB

89 Without Cylinder 00 Without Lock 01 1" to 1-3/8" 130 To match Clear Anodized 628 00 Without Cylinder IB Individually Boxed

90 With Cylinder 09 Radius 02 1-7/16" to 1-5/8" 121 To match Dark Bronze Anodized 313 01 Keyed Dierent

95 Dummy 09S Radius Stainless Steel 03 1-11/16" to 2" 119 To match Black Anodized 335 02 Keyed Alike in Pairs

10 Square

10S Square Stainless Steel

RELATED When purchasing this product, please consider the following related products, available separately:

ACCESSORIES SPECIAL ORDER OPTIONS

4413 Interior Pull Keyed alike 50 are available by special order in quantity of 50 locksets

only. Please contact factory for ordering information.

1-1/4"

31.8mm

1-1/4"

31.8mm

1/8"

3.2mm

8-25/32"

223mm

6-11/64"

156.8mm

1-5/16"

33.3mm

1-7/64"

28.2mm

1-49/64"

44.8mm

3-11/16"

93.7mm

3-7/32"

81.8mm

1-29/64"

36.9mm

8-21/32"

219.9mm

5/32"

4mm

1-5/64"

27.4mm

17/32"

13.5mm

3/32"

2.5mm

R typ.

Backset

5/8"

15.9mm

MIN1-9/32"

32.5mm

MAX

Drill and

csk for

#6 screw

(2 plcs)

EXTERIOR INTERIOR 4413 PULL

4413 Pull

ESCUTCHEONS

Lock Face

Stile

Escutcheon

R. TYP

4189-09

4190-09

4189-10

4190-10

Round

Cutout

Square

Cutout

Location of

Cylinder

on 4190

Lockset Only

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

FLUSHLOCKS

Features

Backset

Variable, minimum 5/8" [15.9

mm], maximum 1-9/32" [32.5 mm]

from face of lock to escutcheon

and cylinder centerline.

Stile Depth

Minimum clear depth:

Backset plus 9/16" [14.3 mm].

Escutcheons

Molded ABS resin plastic. Black Satin

ﬁnish. Deeply recessed ﬁnger pull

on both sides. Fits same cutout as

metal 4189, 4190 Flush Locksets.

Anti Lift Lock Mechanism

Basic MS1848-09 (radius ends)

or MS1848-10 (square ends) is

supplied. Stainless steel bolt is self-

protecting, adjustable for reach.

Operation

Inside: Vertical slide button projects

or retracts deadlock bolt.

Outside: 4431 features a key in,

ﬁve-pin cylinder with Schlage “C”

keyway, projects or retracts bolt.

Other cylinder makes not available.

Standard Package

4431, with cylinder, and 4430,

without cylinder, are each complete

packages. Shipped individually

boxed with mounting screws. 4431

includes two keys. Standard 4431

units are keyed dierent (KD).

Contact factory for special keying.

Shipping Weight

1-1/4 lbs [.57 kg].

Options

• Specify 4431 if outside key-cylinder

operation required; 4430 if not.

Dummy set 4432 also available.

• Lock face is available as -09 for

radius-ended lock face or -10

for square-ended lock face.

• 4413 Interior Pull available

separately.

The 4430, 4431 Flush Locksets for sliding doors

combine the time-tested and ﬁeld-proven Adams

Rite MS1847 Deadlock with a slide button.

Function

Similar in function and nearly identical in size to the all-metal

4189, 4190 Flush Locksets, these economical units feature

escutcheons molded of sturdy ABS resin. The black satin

ﬁnish of the 4430, 4431 Flush Locksets lends elegance to

aluminum doors. Not recommended for wood doors.

Operation

Locksets operated from inside by a simple up or down

movement of a slide button, set ﬂush in the deeply recessed

ﬁnger pull. The lock mechanism (latching action unavailable)

is the time-tested and ﬁeld-proven Adams Rite MS1847

Deadlock and features the adjustable, self-protecting bolt.

• 4430 without cylinder

• 4431 has a ﬂush mounted cylinder outside

• 4432 matching 'dummy set' is also available.

4430, 4431

Flush Locksets

(Including Deadlock)

4430, 4431

Flush

Locksets

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

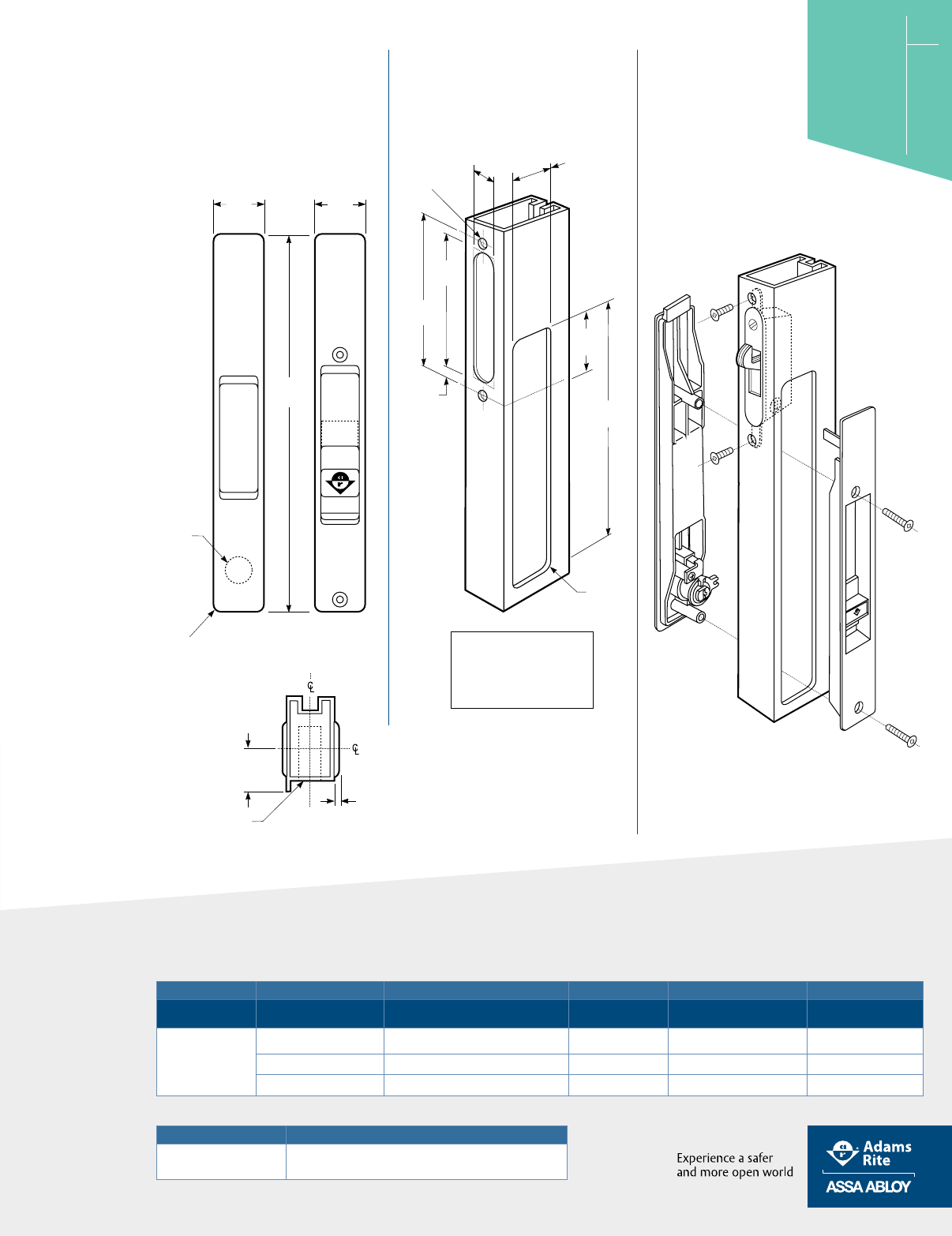

FLUSHLOCKS

4430, 4431

Flush

Locksets

3-11/16"

93.7mm

3-7/32"

81.8mm

1-5/64"

27.4mm

17/32"

13.5mm

1-29/64"

36.9mm

8-21/32"

219.9mm

15/64"

6mm

11/64"

4.4mm

4430-09

4431-09

4430-10

4431-10

ROUND CUTOUT

SQUARE CUTOUT

DRILL AND

CSK FOR #6

SCREW

2 PLCS

1-1/4"

31.8mm

1-1/4"

31.8mm

1/8"

3.2mm

8-29/32"

226.2mm

REXTERIOR INTERIOR

(4 plcs)

3/32"

2.4mm

BACKSET

5/8"

15.9mm

MIN1-9/32"

32.5mm

MAX

ESCUTCHEONS

LOCK FACE

PROJECTION

ABOVE STILE

SURFACE

STILE

ESCUTCHEON

LOCATION

CYLINDER

ON 4431

LOCKSET

ONLY

Installation

Stile

Preparation

How to Order & Related Products

4430, 4431 Flush Locksets: Specify quantity and the following information. Order related products separately.

MODEL LOCKSET EXTERIOR LOCK FACE STILE THICKNESS KEYING OPTIONS PACKAGING

44 31 - 09 -05 -01 -IB

30 Without Cylinder 00 Without Lock 00 1" to 1-5/16" 00 Without Cylinder IB Individually Boxed

31 With Cylinder 09 Radius 09S Radius Stainless Steel 05 1-3/8" to 1-5/8" 01 Keyed Dierent

32 Dummy 10 Square 10S Square Stainless Steel 08 1-3/4" to 2" 02 Keyed Alike in Pairs

RELATED When purchasing this product, please consider the following related products, available separately:

ACCESSORIES SPECIAL ORDER OPTIONS

4453 Interior Pull Keyed alike 50 are available by special order in quantity of 50

locksets only. Please contact factory for ordering information.

Dimensions

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

FLUSHLOCKS

Options &

Accessories

4000 Series

MS Deadlock Strikes

4000 surface mounted strike plate, 4001 strike

plate with dust box, 4005 threshold strike,

4006 ﬂoor strike, or 4505 armored strike add

aesthetics and ﬁnish to strike cutouts in jambs.

Deadlocks

MS1880, MS1881 Two-Point Flushbolts and MS2180

Auto-Release Two-Point Flushbolt MUST be installed

in conjunction with a pivoted bolt MS deadlock. See

DEADLOCKS section of this catalog for information on

all available types and functions including complete

How-to-Order guides for Adams Rite Deadlocks

including the MS® Maximum Security Deadlocks.

Cylinders

4036 Mortise Cylinder

The 4036 Mortise Cylinder is a standard 1" long,

1-5/32" diameter cylinder that provides ﬁve-pin

security with most Adams Rite locks or latches.

4066 Thumbturn

The 4066 Thumbturn interchanges with

standard 1-5/32" diameter mortise cylinder and

operates locks or latches without a key.

MS 4043 Cylinder Guard

The MS4043 Cylinder Guard is a hardened-

steel, free-swiveling ring to protect cylinder

from vandalism such as prying or twisting.

Adams Rite Flushlocks can be ordered with a variety of related products including strike plates,

trim and cylinder accessories and compatible products such as Adams Rite deadlocks. Please

see product pages for more information on all available ﬂushlock types, functions, installation

requirements and complete How-to-Order guides. For more detailed information on any of

the products listed below please refer to the corresponding section of this catalog.

Options & Accessories

Notes

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

EXIT DEVICES

Exit Devices

3100 Only

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

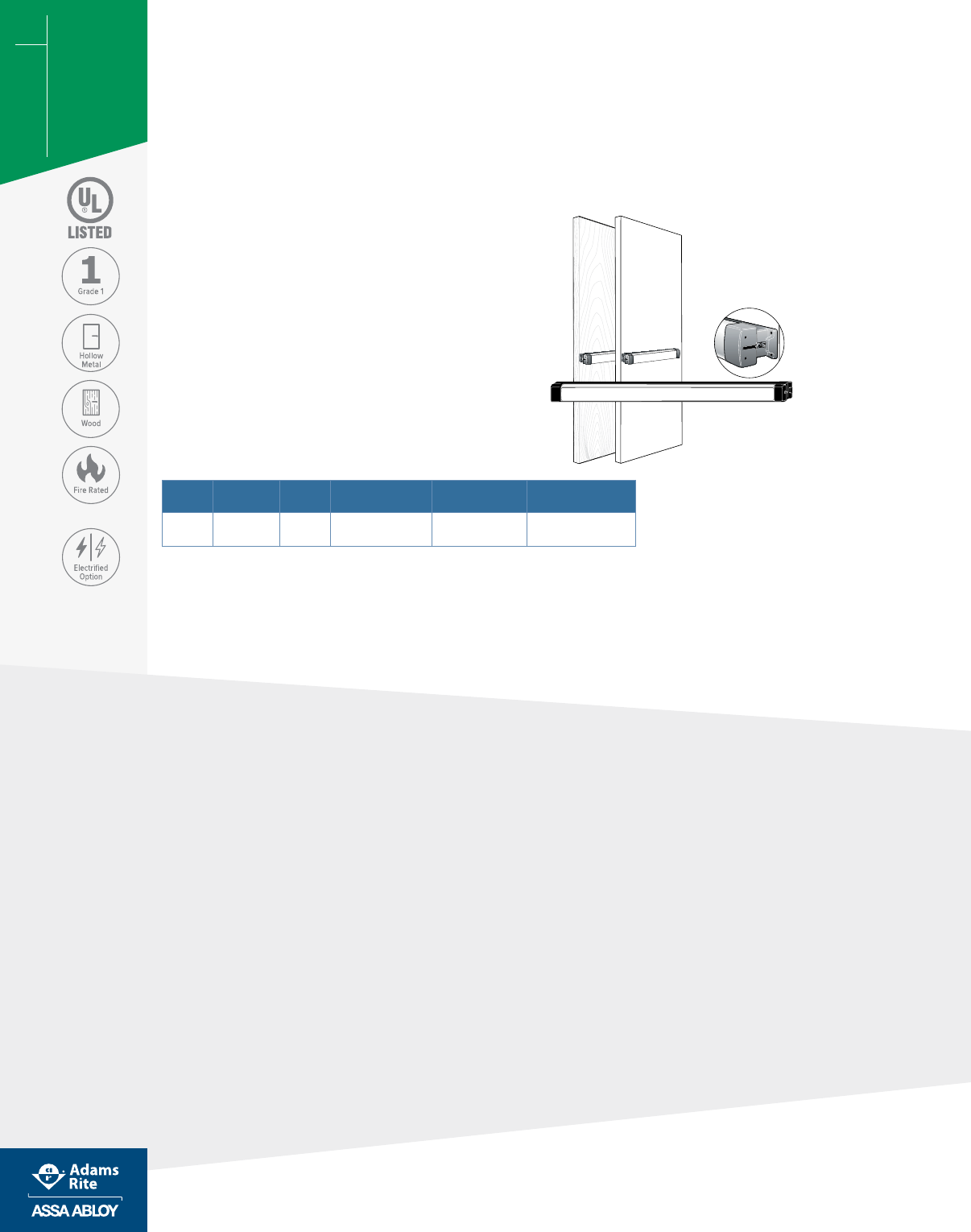

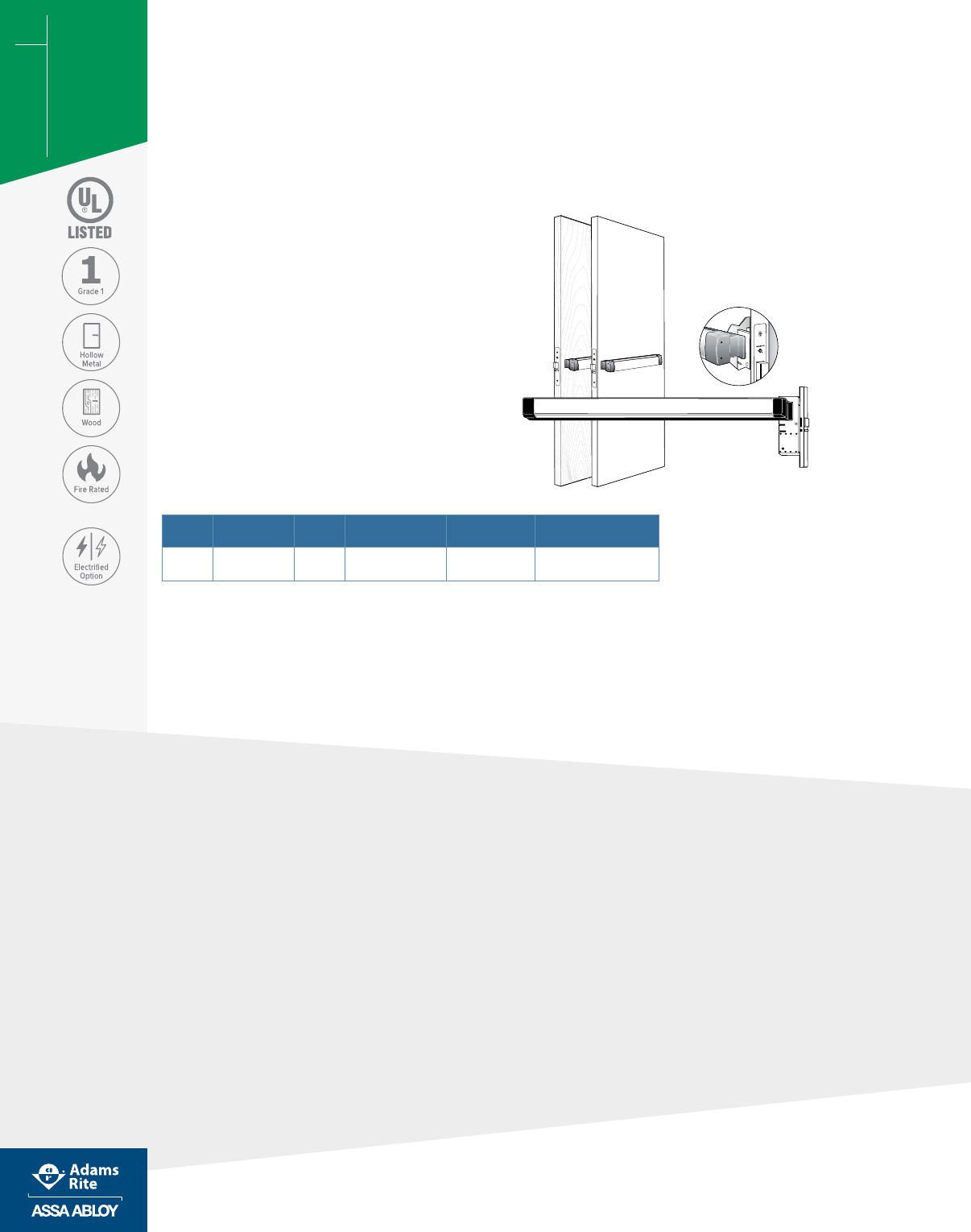

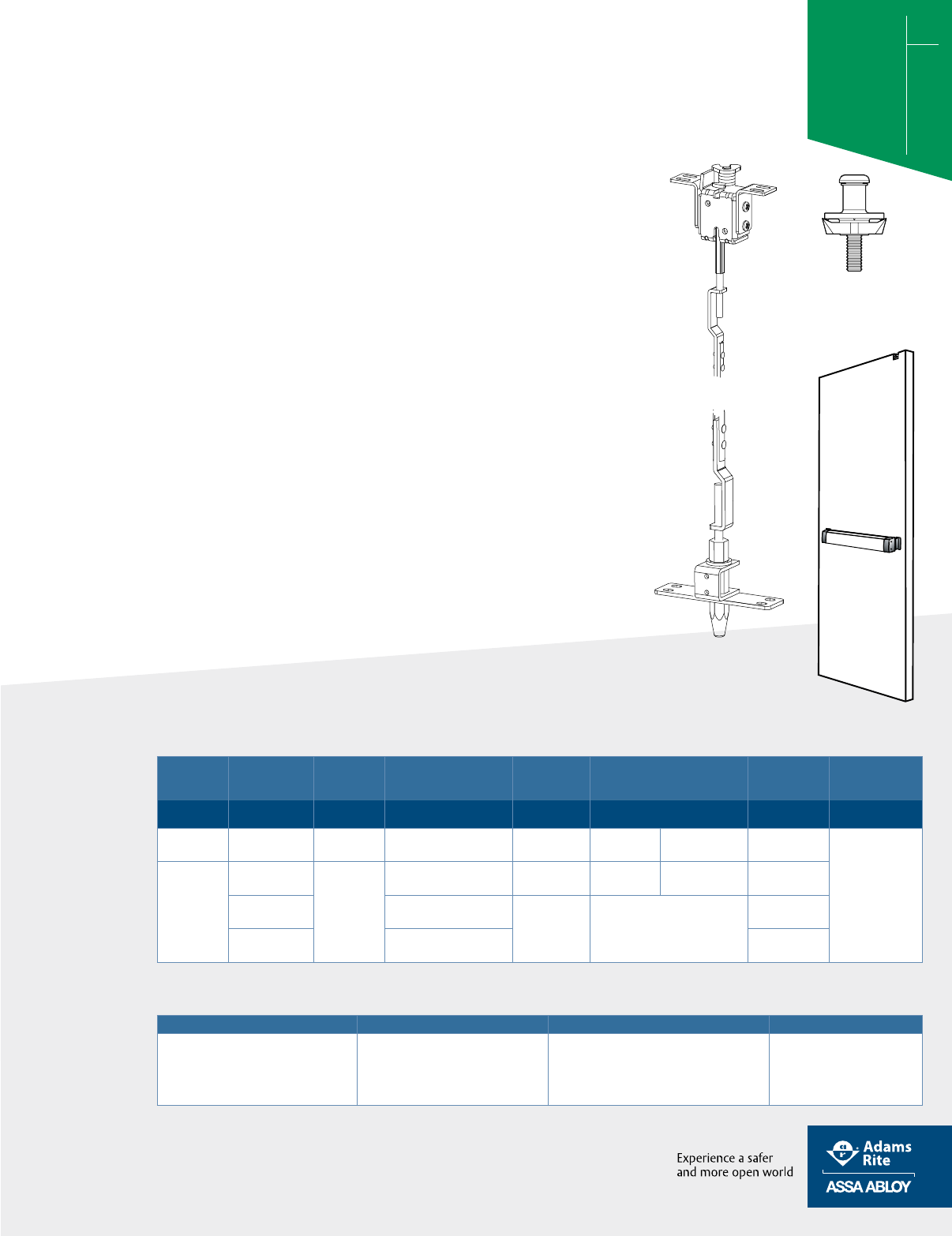

EXIT DEVICES

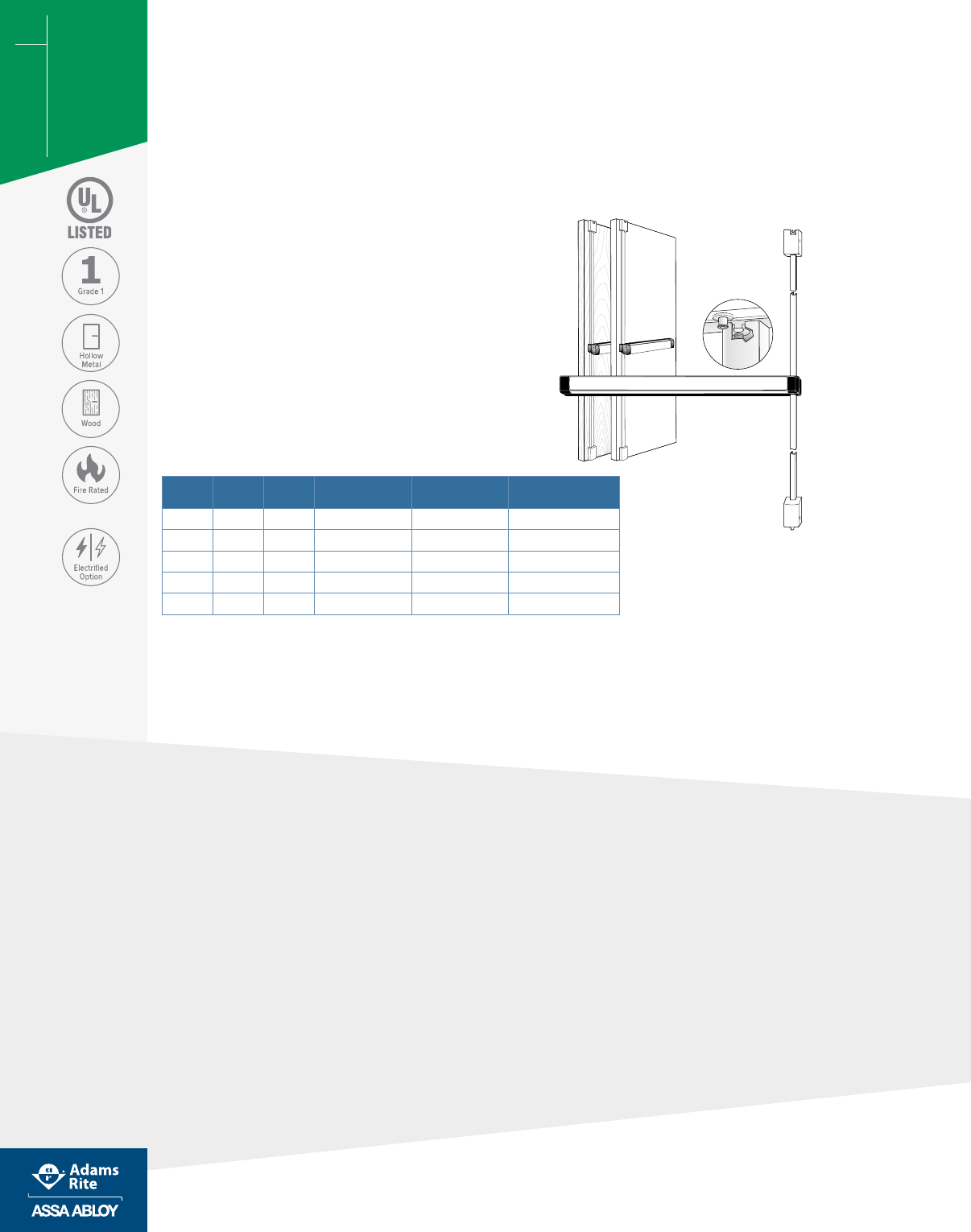

3100

Series

8100

Series

Series Fire-Rated Surface

Vertical Rod Exit Device

Series Life-Safety Surface

Vertical Rod Exit Device

The 3100 Series Fire-Rated Surface Vertical

Rod Exit Device is designed for hollow metal and

wood applications that require a ﬁre-rated exit

device with surface vertical rods for two-point

locking. The 8100 Series Surface Vertical Rod

Exit Device is designed for hollow metal and wood

applications that require a life-safety exit device

with surface vertical rods for two-point locking.

Designed for use in applications with

single doors or pairs of doors.

MODEL TYPE RATING DOOR

CONSTRUCTION

MAX SIZE

SINGLE DOORS

MAX SIZE PAIR &

DOUBLE EGRESS

3100 SVR 3 hr Hollow Metal Door 4'-0" x 10'-0" 8'-0" x 10'-0"

3100 SVR 90 min Wood Door 4'-0" x 10'-0" 8'-0" x 9'-0"

3100T SVR-TRO 3 hr Hollow Metal Door 4'-0" x 8'-0" 8'-0" x 10'-0"

3100W SVR-TRO 1-1/2 hr Wood Door 4'-0" x 8'-0" 8'-0" x 8'-0"

3100W SVR-TRO 20 min Wood Door 4'-0" x 9'-0" 8'-0" x 9'-0" (std. pairs)

Certiﬁcations

UL 305 Panic Hardware

UL10C ﬁre rated, up to 3 hours

for non-wood door applications

CAN/ULC S104 ﬁre door conformant

NFPA 252 ﬁre door conformant

ANSI/BHMA A156.3, Grade 1

3100

8100

Features

Materials

Push bar made of extruded aluminum,

available in a variety of ﬁnishes.

Handing

Device is non-handed.

Push bar Length

Standard sizes: dimensioned for

30" [762 mm],

36" [914.4 mm],

42" [1066.8 mm], and

48" [1219.2 mm] openings.

Standard width bars can be ﬁeld cut

to the next smallest opening width.

Bar Height

Standard model adjusts from

30" [762 mm] to 44" [1117.6 mm].

Door Height

Standard conﬁguration suitable

for doors up to 8' [2.44 m] door,

with bar height at 40" [1016

mm] – 44" [1117.6 mm]. For doors

up to 10' [3.05 m] use 3055 Tall

Door Kit available separately.

Door Thickness

Suits 1-3/4" [44.5 mm] standard,

up to 2-1/4" [57.2 mm].

Stile Width

Minimum 3-3/4". Door construction

may require additional stile

width to meet ﬁre ratings and

provide adequate strength.

Projection

2-15/16" [74.6 mm] when

fully projected, 1-15/16" [49.2

mm] when dogged.

Dogging

Standard dogging with hex key or

with cylinder not available on ﬁre-

rated exit devices. Electric Dogging

option has been discontinued.

Motorized and Electric Latch

Retraction options can replace

Electric Dogging requirement,

see Options & Accessories.

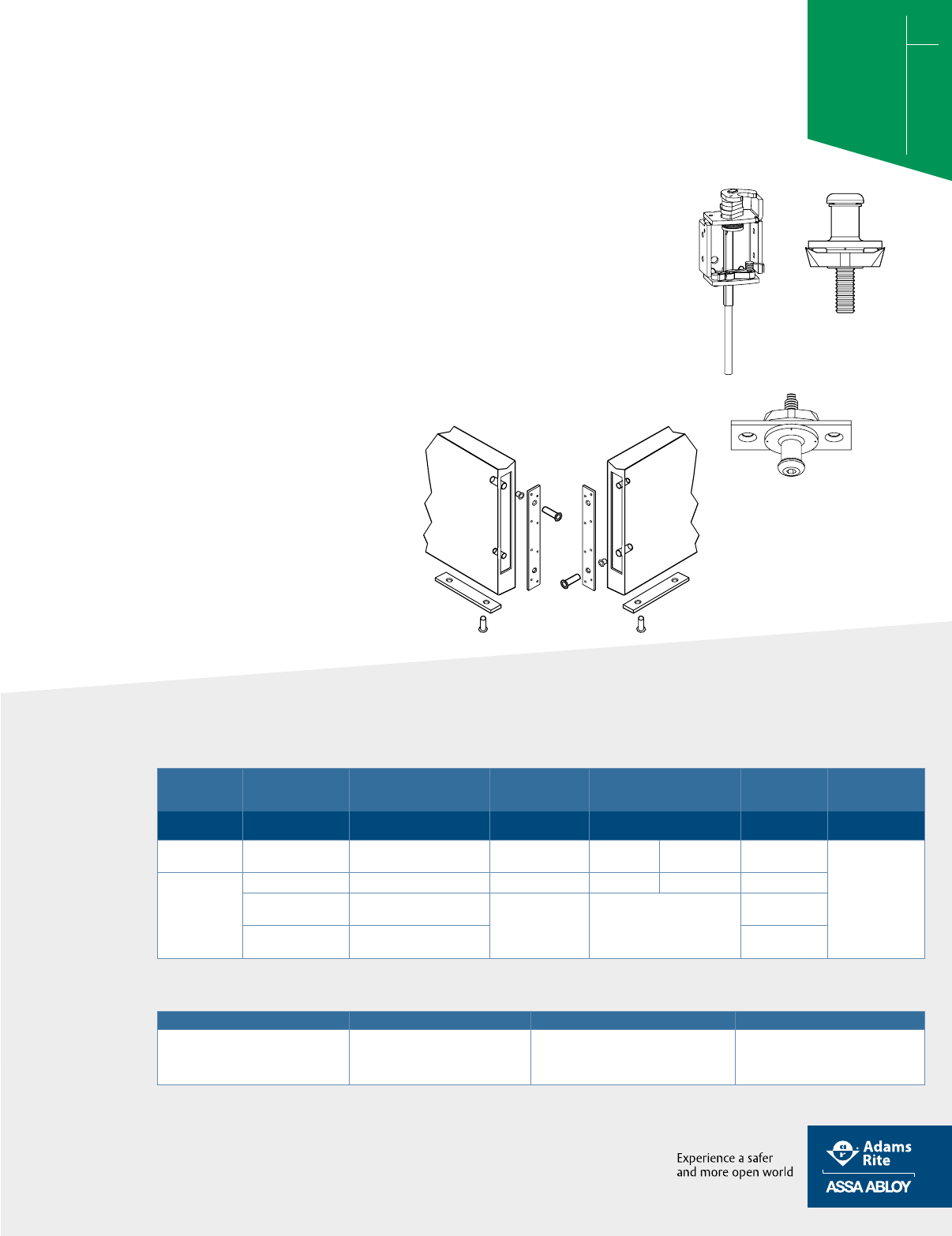

EXIT DEVICES

TOP

BOLT

BOTTOM

BOLT

TOP

STRIKE

TOP ROD ONLY

PLATE FOR WOOD

FRAMES IS FURNISHED

WITH 8100

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

Fasteners

Standard self-tapping screws and machine

screws. Optional Sex Bolt Kits 26-0584

(two required per device). Specify ﬁnish.

Cylinders

Select any standard 1-5/32" [29.4 mm]

diameter rim cylinder such as the 8736

Rim Cylinder. Available separately.

Cylinder x Fixed Pull Functions

For entry trim function 03 (Night latch - key

releases latch) select any standard 1-5/32"

[29.4 mm] diameter rim cylinder such as the

8736 Rim Cylinder. Available separately.

Entry Trim Functions

For entry trim function 08 (key locks/unlocks

lever) or function 09 (key releases lever) select

any standard 1" [25.4 mm] length, 1-5/32"

[29.4 mm] diameter mortise cylinder with

MS® cam such as the 4036 Mortise Cylinder.

Accommodates cylinder lengths from 1" [25.4

mm] to 1-1/4" [31.8 mm]. Available separately.

Bolts and Strikes

The patented top latching mechanism utilizes

a rotating top bolt which latches around

the header strike, interlocking the door to

the frame. Adjustable steel rods protected

in contoured covers. The hexagonal,

hardened steel bottom bolt is shielded in

a cast housing for strength and stability.

For wood frames, an additional plate is

supplied for securing the header strike.

Standard Package

Individually boxed.

Shipping Weight

12 lbs [5.44 kg]

Options

• Available in top rod only version, less

bottom rod. Specify by adding “T”

after exit device model number.

• Electriﬁcation Options

Motorized Latch Retraction, Electric

Latch Retraction (LR), Alarm, Monitoring,

Cylinder Dogging, Matching End Caps

For more detailed information on any of the

options listed above please see the Exit

Devices Options on page 97 of this catalog.

How to Order & Related Products

8100, 3100 Surface Vertical Rod Exit Device: Specify quantity and the following information. Order related products separately.

MODEL PUSH BAR

FINISH ROD TYPE DEVICE OPTIONS MONITORING

OPTION

DOOR OPENING WIDTH

On pair of doors, specify

HALF of the total exit opening

US FINISH

END CAPS

OPTION FOR

US FINISH

81 00 –MLR M2 -30

31 Fire Rated 00 US Finish T Top Rod only LR Electric Latch

Retraction (solenoid)

M Single Switch 30 30 inches* 42 42 inches US3 Bright Brass MEC Matching

End Caps

81 Life-

Safety

11 Clear Anodized

628

W Top Rod only

– Wood doors

MLR Motorized Latch

Retraction

M2 Dual Switch 36 36 inches 48 48 inches US4 Satin Brass

22 Dark Bronze

Anodized 313

– Standard rods C Cylinder Dogging

(non-ﬁre rated devices ONLY)

(Blank) No Monitor AXXB Alarmed Exit Device where

XX is door opening width

US32 Bright

Stainless

33 Black Anodized

335

(Blank) No Option US32D Satin

Stainless

* Please note that 30" exit devices cannot accommodate montitoring options, except when ordered in conjunction with the MLR option.

RELATED When purchasing this product, please consider the following related products, available separately:

TRIM CYLINDER ACCESSORIES POWER

3080, 3080E Series Entry Trim, 3090-150,

A100 Series Keyless Entry, 3001 Fixed

Pull (for hollow metal or wood)

Operable by either 4036 Mortise Cylinder

or 8736 Rim Cylinder depending upon the

ANSI/BHMA functions of the exit device.

26-0584 Sex Bolt Kit (two required per device)

Tall Door Kit available separately: 8055 for 8100 or 3055 for 3100

REX-Monitor/Signal Kits

PS-EXIT Power Supply (replaces

PS-SE and PS-LR models) , 4612

Power Transfer Device , 4605

Transformer, 4603 Rectiﬁer

3100

Series

8100

Series

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

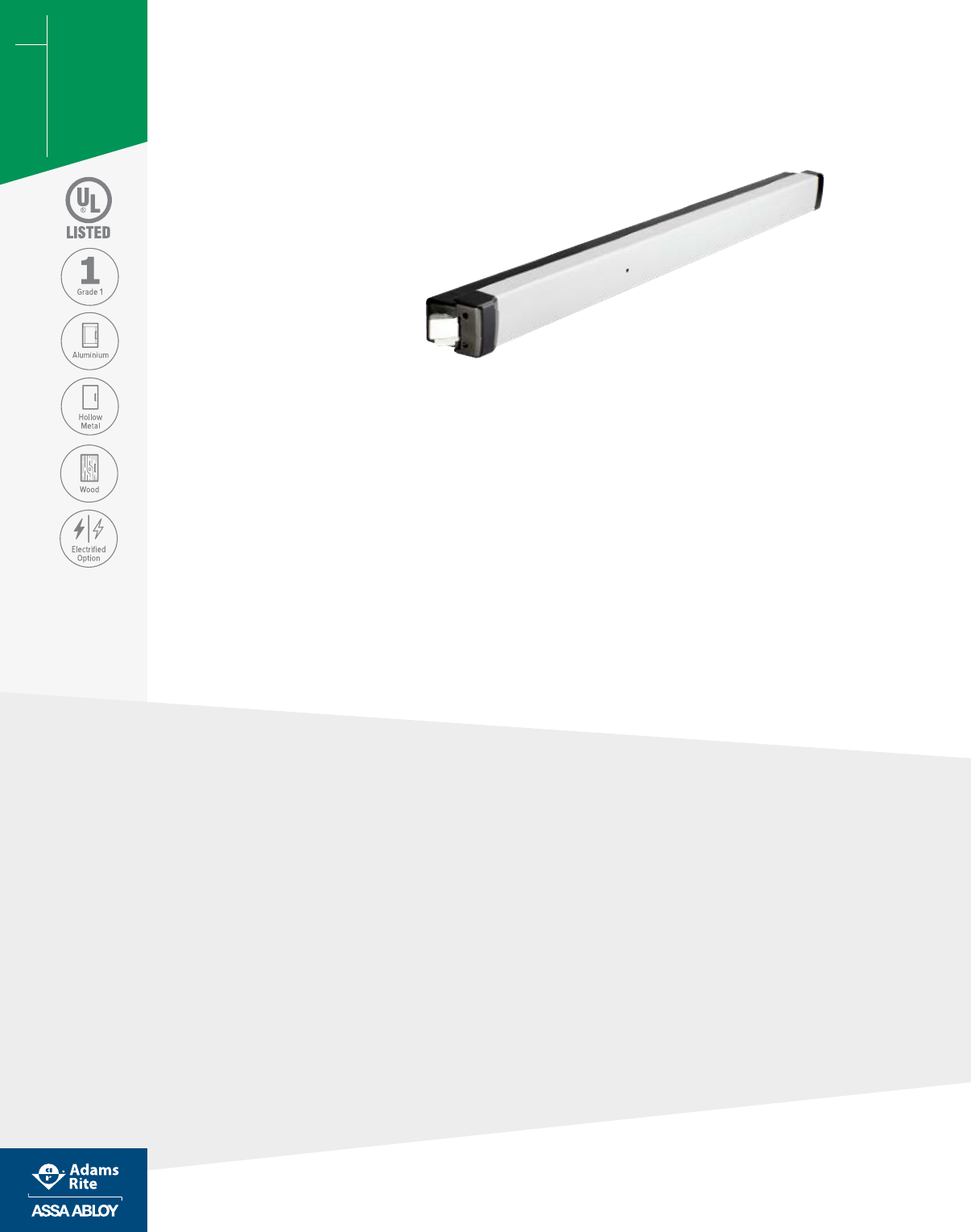

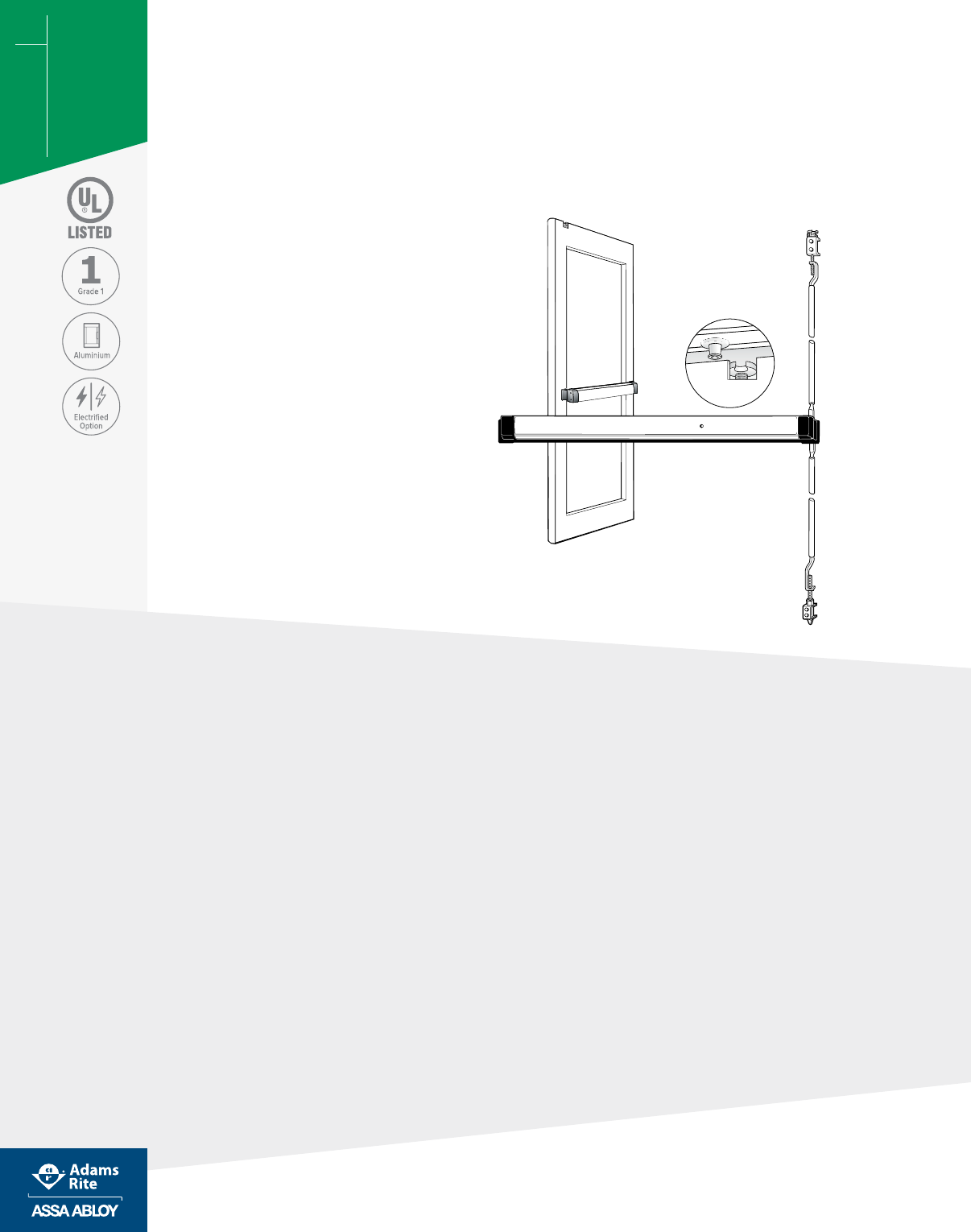

EXIT DEVICES

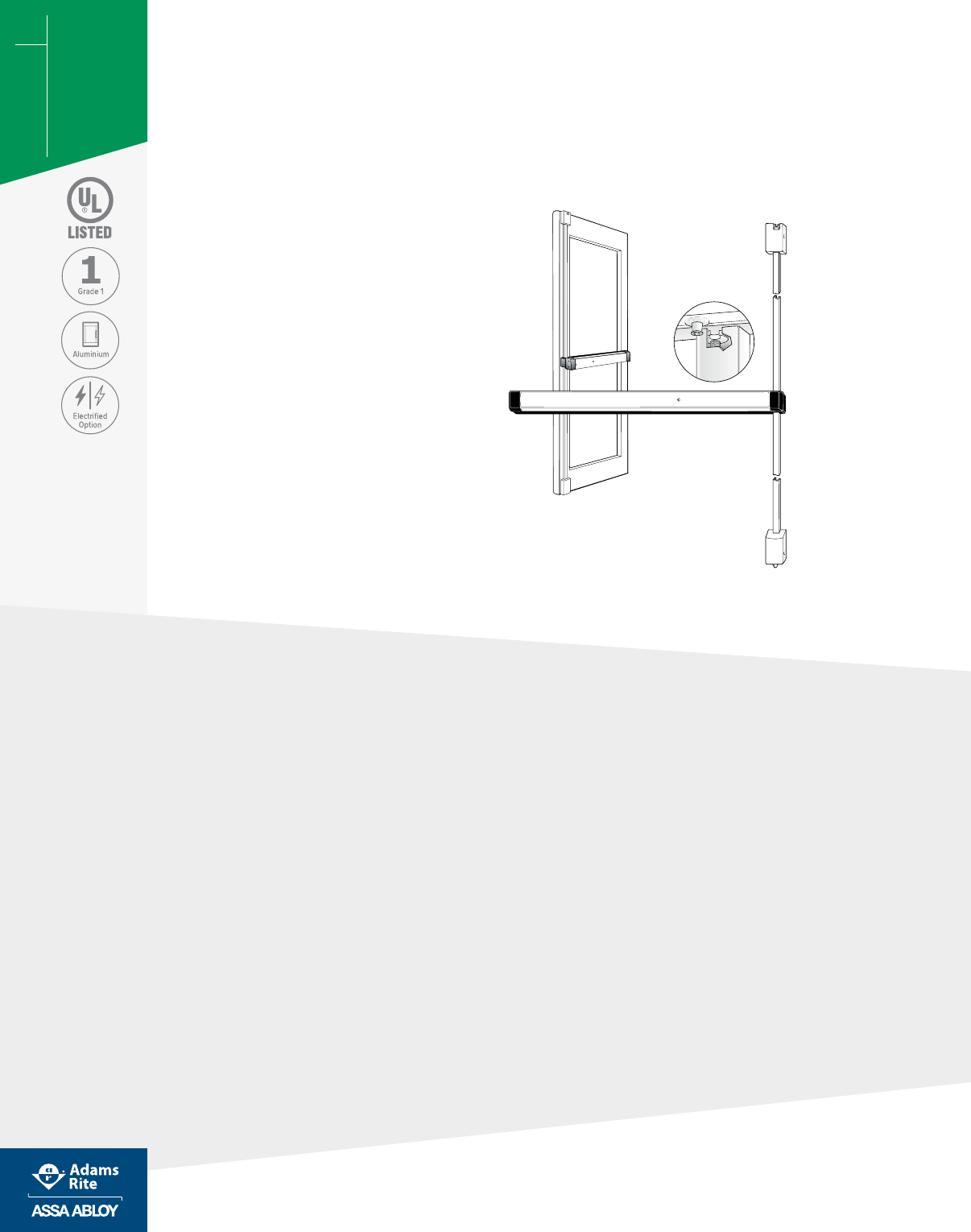

8200

Series

The 8200 Series Narrow Stile Surface Vertical

Rod Exit Device is designed for narrow stile

aluminum applications that require a life-safety

exit device with surface vertical rods for two-

point locking. Designed for use in applications

with single doors or pairs of doors

Certiﬁcations

UL 305 Panic hardware

ANSI/BHMA A156.3, Grade 1

Narrow Stile Surface

Vertical Rod Exit Device

8200 Series

Features

Materials

Push bar made of extruded aluminum,

available in a variety of ﬁnishes.

Handing

Device is non-handed.

Push bar Length

Standard sizes: dimensioned for 30"

[762 mm], 36" [914.4 mm], 42" [1066.8

mm], and 48" [1219.2 mm] openings.

Standard width bars can be ﬁeld cut

to the next smallest opening width.

Bar Height

Standard model adjusts from 30"

[762 mm] to 44" [1117.6 mm].

Fasteners

Standard machine screws.

Projection

2-15/16" [74.6 mm] when

fully projected, 1-15/16" [49.2

mm] when dogged.

Door Height

Standard conﬁguration suitable

for doors up to 8' [2.44 m] door,

with bar height at 40" [1016

mm] – 44" [1117.6 mm]. For doors

up to 10' [3.05 m] use 8055 Tall

Door Kit available separately.

Door Thickness

Suits 1-3/4" [44.5 mm] standard,

up to 2-1/4" [57.2 mm].

Stile Width

Minimum 2" stile. Fits narrow, medium,

and wide stile aluminum doors.

Dogging

Standard dogging with hex key

or optional cylinder dogging.

Electric Dogging option has been

discontinued. Motorized and Electric

Latch Retraction options can replace

Electric Dogging requirement,

see Options & Accessories.

Cylinders

Select any standard 1-5/32" [29.4 mm]

diameter rim cylinder such as the 8736

Rim Cylinder. Available separately.

Cylinder x Fixed

Pull Functions

For entry trim function 03 (Night

latch - key releases latch) select any

standard 1-5/32" [29.4 mm] diameter

rim cylinder such as the 8736 Rim

Cylinder. Available separately.

Entry Trim Functions

For entry trim function 08 (key locks/

unlocks lever) or function 09 (key

releases lever) select any standard

1" [25.4 mm] length, 1-5/32" [29.4

mm] diameter mortise cylinder with

MS® cam such as the 4036 Mortise

Cylinder. Accommodates cylinder

lengths from 1" [25.4 mm] to 1-1/4"

[31.8 mm]. Available separately.

EXIT DEVICES

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

BOTTOM BOLT

TOP

STRIKE

TOP

BOLT

How to Order & Related Products

8200 Narrow Stile Surface Vertical Rod Exit Device: Specify quantity and the following information. Order related products separately.

MODEL PUSH BAR

FINISH ROD TYPE DEVICE OPTIONS MONITORING

OPTION

DOOR OPENING WIDTH

On pair of doors, specify HALF

of the total exit opening

US FINISH

END CAPS

OPTION FOR

US FINISH

82 00 –MLR M2 -36

82 Life-Safety 00 US Finish T Top Rod only LR Electric Latch

Retraction (solenoid)

M Single Switch 30 30 inches* 42 42 inches US3 Bright Brass MEC Matching

End Caps

11 Clear Anodized

628

– Standard rod MLR Motorized Latch

Retraction

M2 Dual Switch 36 36 inches 48 48 inches US4 Satin Brass

22 Dark Bronze

Anodized 313

C Cylinder Dogging

(non-fire rated devices ONLY)

(Blank) No Monitor AXXB Alarmed Exit Device where

XX is door opening width

US32 Bright

Stainless

33 Black

Anodized 335

(Blank) No Option US32D Satin

Stainless

RELATED When purchasing this product, please consider the following related products, available separately:

TRIM CYLINDER ACCESSORIES POWER

3080, 3080E Series Entry Trim, 3090-150,

A100 Series Keyless Entry

Operable by either 4036 Mortise Cylinder

or 8736 Rim Cylinder depending upon the

ANSI/BHMA functions of the exit device.

8055 Tall Door Kit

REX-Monitor/Signal Kits

PS-EXIT Power Supply (replaces PS-SE

and PS-LR models) , 4612 Power Transfer

Device, 4605 Transformer, 4603 Rectiﬁer

Bolts and Strikes

The patented top latching mechanism utilizes

a rotating top bolt which latches around

the header strike, interlocking the door to

the frame. Adjustable steel rods protected

in contoured covers. The hexagonal,

hardened steel bottom bolt is shielded in

a cast housing for strength and stability.

Supplied with standard header strike.

Standard Package

Individually boxed.

Shipping Weight

12 lbs [5.44 kg]

Options

• Available in top rod only version, less

bottom rod. Specify by adding “T”

after exit device model number.

• Electriﬁcation Options

Motorized Latch Retraction, Electric

Latch Retraction (LR), Alarm, Monitoring,

Cylinder Dogging, Matching End Caps

For more detailed information on any of the

options listed above please see the Exit

Devices Options on page 97 of this catalog.

8200

Series

3300 Only

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

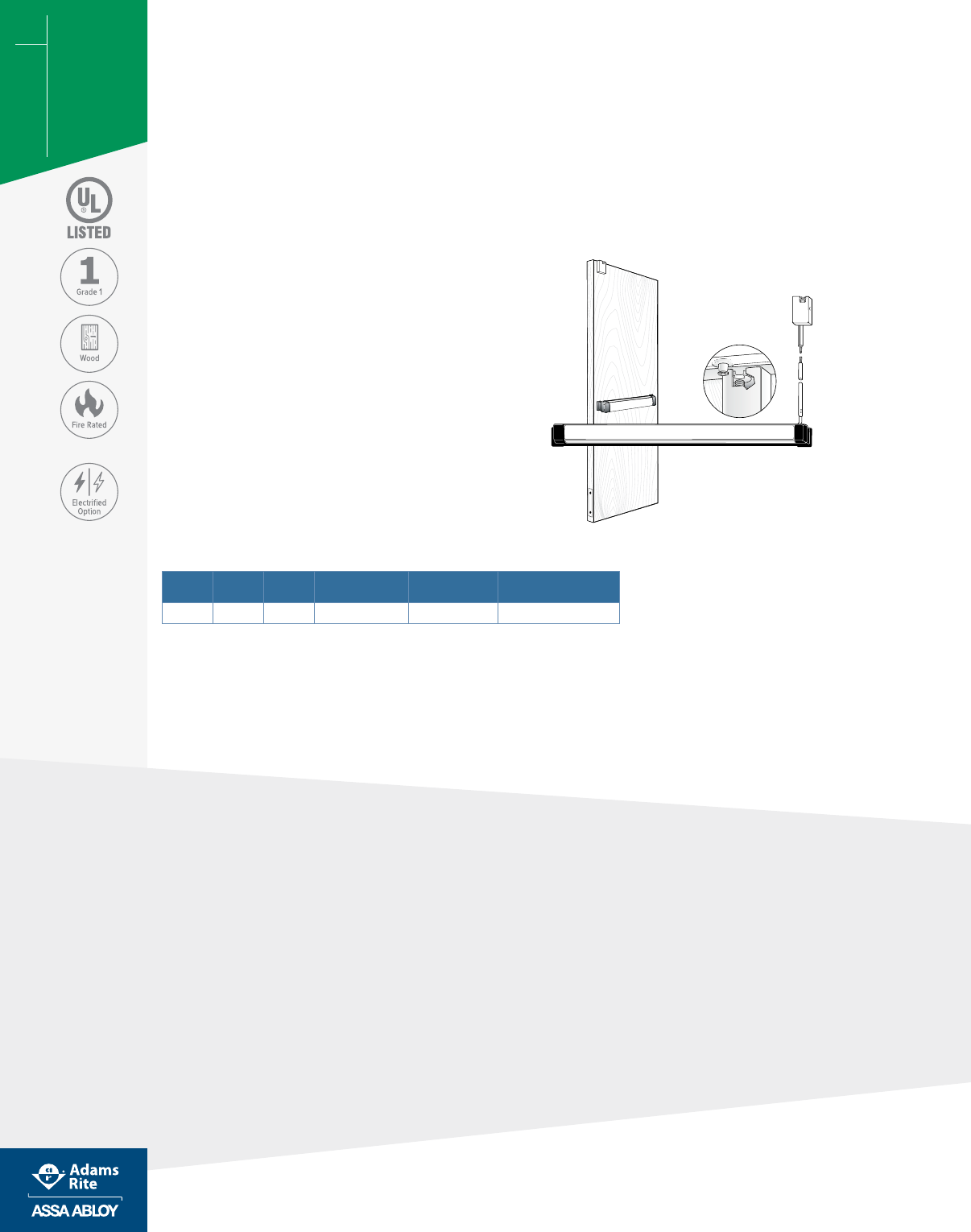

EXIT DEVICES

3300

Series

8300

Series

Series Fire-Rated

Mortise Exit Device

Series Life-Safety

Mortise Exit Device

The 3300 Series Fire-Rated Mortise Exit

Device is designed for hollow metal and wood

applications that require a ﬁre-rated exit device

with mortise locking solution. The 8300 Series

Mortise Exit Device is designed for hollow metal

and wood applications that require a life-safety

exit device with mortise locking solution.

Designed for use in applications with

single doors or pairs of doors.

MODEL TYPE RATING DOOR

CONSTRUCTION

MAX SIZE

SINGLE DOORS

MAX SIZE PAIR &

DOUBLE EGRESS

3300 (SPM) Single

Point Mortise 3 hr Hollow Metal Door 4'-0" x 10'-0" 8'-0" x 10'-0" *(active leaf)

*May be used with 3100 or 3600 Series with an open back strike.

3300

8300

Certiﬁcations

UL 305 Panic Hardware

3300 Only: UL10C ﬁre-rated,

up to 3 hours

CAN/ULC S104 ﬁre door conformant

NFPA 252 ﬁre door conformant

ANSI/BHMA A156.3, Grade 1

Features

Materials

Push bar made of extruded

aluminum, clad or anodized

in a variety of ﬁnishes.

Handing

Specify handing and

bevel if applicable.

Push bar Length

Standard sizes: dimensioned for

30" [762.0 mm], 36" [914.4 mm], 42"

[1,066.8 mm], and 48" [1,219.2

mm] openings. Standard width

bars can be ﬁeld cut to the next

smallest opening width.

Backset

2-3/4" [69.9 mm] only

Door Thickness

Suits 1-3/4" [44.5 mm] standard. Can

be modiﬁed for thicker doors.

Stile Width

Minimum 5" [127.0 mm]. Door

construction may require additional

stile width to meet ﬁre ratings and

provide adequate strength.

Projection

2-5/8" [66.7 mm] when fully projected,

1-5/8" [41.3 mm] when dogged.

Dogging

Standard dogging with hex key or with

cylinder not available on ﬁre-rated

exit devices. Electric Dogging option

has been discontinued. Motorized and

Electric Latch Retraction options can

replace Electric Dogging requirement,

see Options & Accessories.

Fasteners

Standard self-tapping screws and

machine screws. Optional Sex Bolt

Kits 26-0584 (two required per

device) available separately.

EXIT DEVICES

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

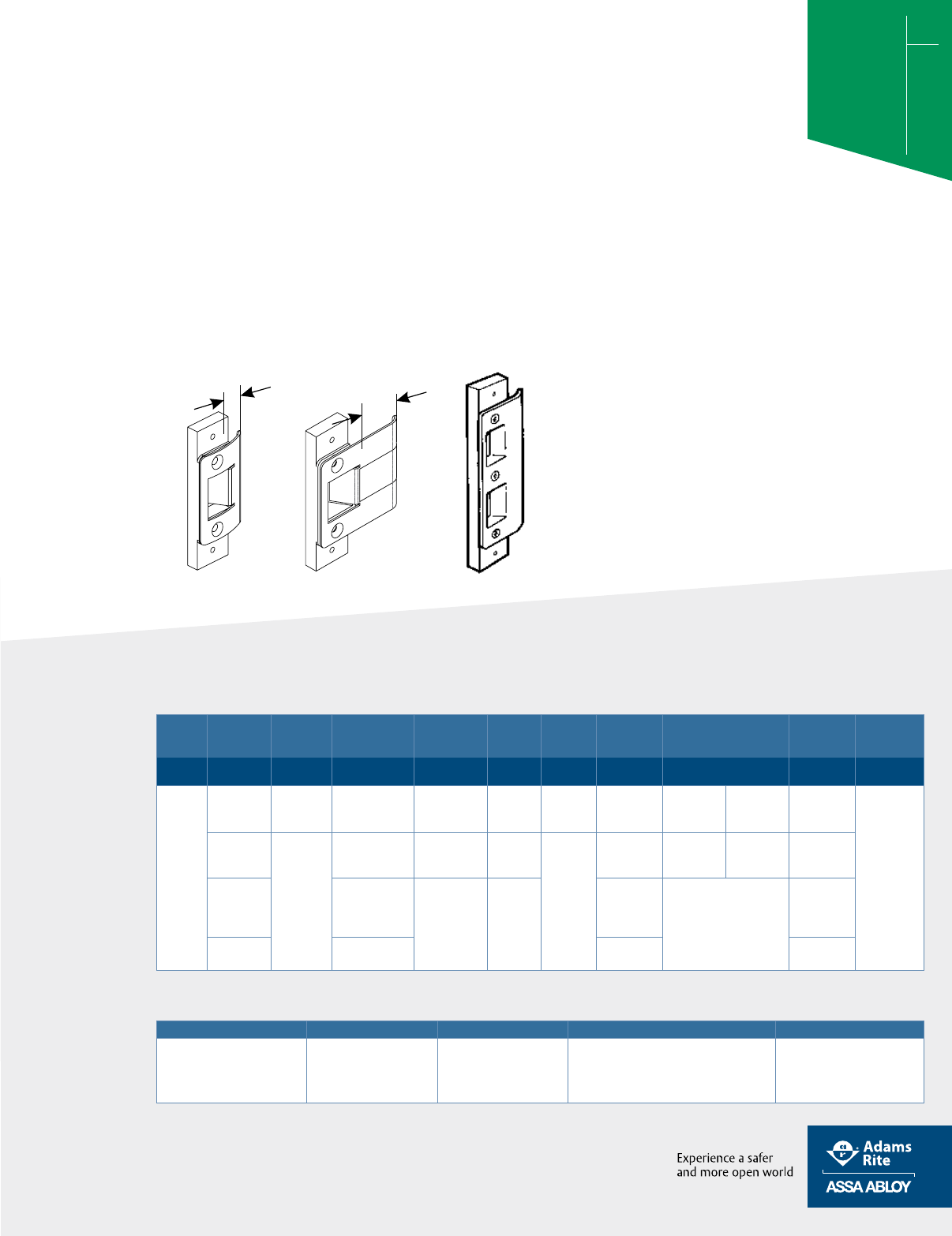

STANDARD

STRIKE

8360-01

OPEN

BACK

4009-01

EXTENDED LIP

8360-XX

“A” SPECIFIC

DIM. “A”

STANDARD

STRIKE

8360-01

OPEN

BACK

4009-01

EXTENDED LIP

8360-XX

“A” SPECIFIC

DIM. “A”

Cylinders

Accepts any standard 1" [25.4 mm] length,

1-5/32" [29.4 mm] diameter mortise

cylinder with MS® cam such as the

4036 Mortise Cylinder. Accommodates

cylinder lengths from 1" [25.4 mm] to

1-1/4" [31.8 mm]. Available separately.

Cylinder x Fixed Pull Functions

For function 03 (Night latch – key releases latch)

select any standard 1" [25.4 mm] length, 1-5/32"

[29.4 mm] diameter mortise cylinder with MS®

cam such as the 4036 Mortise Cylinder.

Entry Trim Functions

For entry trim function 08 (key locks/unlocks

lever) or function 09 (key releases lever) select

any standard 1" [25.4 mm] length, 1-5/32"

[29.4 mm] diameter mortise cylinder with

MS® cam such as the 4036 Mortise Cylinder.

Accommodates cylinder lengths from 1" [25.4 mm]

to 1-1/4" [31.8 mm]. Available separately.

Bolts and Strikes

Mortise deadlatch with bolt measuring

5/8" x 1" x 5/8" [15.9 mm x 25.4 mm x

15.9 mm] throw. Solid brass bolt.

A variety of strikes are available

for dierent applications:

• Standard strike of stainless steel

included, Open Back Strike 4009-

01 available separately.

Standard Package

Individually boxed.

Shipping Weight

11 lbs [4.99 kg]

Options

• Electriﬁcation Options

Motorized Latch Retraction, Electric

Latch Retraction (LR), Alarm, Monitoring,

Cylinder Dogging, Matching End Caps

For more detailed information on any of the

options listed above please see the Exit

Devices Options on page 97 of this catalog.

How to Order & Related Products

8300, 3300 Surface Vertical Rod Exit Device Specify quantity and the following information. Order related products separately.

MODEL FACEPLATE

FINISH

FACE

SHAPE DEVICE OPTIONS MONITORING

OPTION

DOOR

HANDING

PUSH BAR

FINISH

DOOR OPENING WIDTH

On pair of doors, specify HALF

of the total exit opening

US FINISH

END CAPS

OPTION FOR

US FINISH

83 3 0 MLR M -7 3A36B

33 Fire

Rated

0 US Finish 0 Flat

(3300 Only)

LR Electric Latch

Retraction

(solenoid)

M Single Switch 7 RHR 0 US Finish 30 30 inches* 42 42

inches

US3 Bright Brass MEC Matching

End Caps

83 Life-

Safety

1 Clear

Anodized 628

2 Bevel

(8300 Only)

MLR Motorized

Latch

Retraction

M2 Dual Switch 8 LHR 1 Clear

Anodized 628

36 36 inches 48 48

inches

US4 Satin Brass

2 Dark Bronze

Anodized 313

C Cylinder Dogging

(non-ﬁre rated

devices ONLY)

(Blank) No

Monitor

2 Dark Bronze

Anodized 313

AXXB Alarmed Exit Device

where XX is door opening width

US32 Bright

Stainless

3 Black

Anodized 335

- No Option 3 Black

Anodized 335

US32D Satin

Stainless

* Please note that 30" exit devices cannot accommodate montitoring options, except when ordered in conjunction with the MLR option.

RELATED When purchasing this product, please consider the following related products, available separately:

ELECTRIC STRIKE TRIM CYLINDER ACCESSORIES POWER

7100/7101, 7110/7111,

7130/7131, 7140 Electric

Strikes, 7400/7401, 7410/7411,

7430/7431, 7440 Electric Strikes

3080, 3080E Series Entry

Trim, 3090-150, A100 Series

Keyless Entry, 3001 Fixed Pull

(for hollow metal or wood)

Operable by 4036 Mortise

Cylinder depending upon

the ANSI/BHMA functions

of the exit device.

26-0584 Sex Bolt Kit (two required per device)

Thick Door Kits, 8360-XX Extended Lip Strike, 4009-

01 Open Back Strike, 4506-02 Deadlatch Strike

REX-Monitor/Signal Kits

PS-EXIT Power Supply

(replaces PS-SE and PS-LR

models) , 4612 Power

Transfer Device, 4605

Transformer, 4603 Rectiﬁer

3300

Series

8300

Series

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

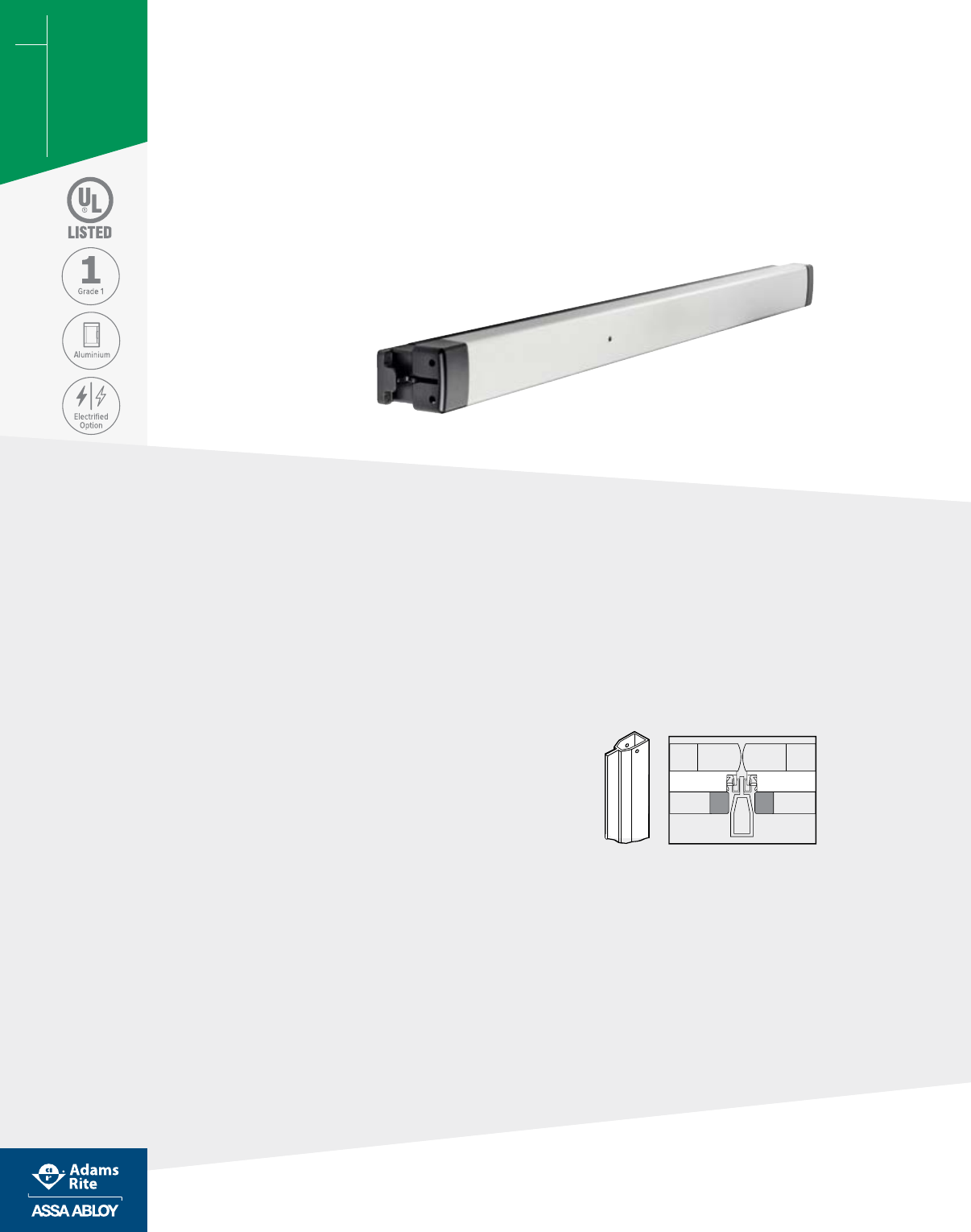

EXIT DEVICES

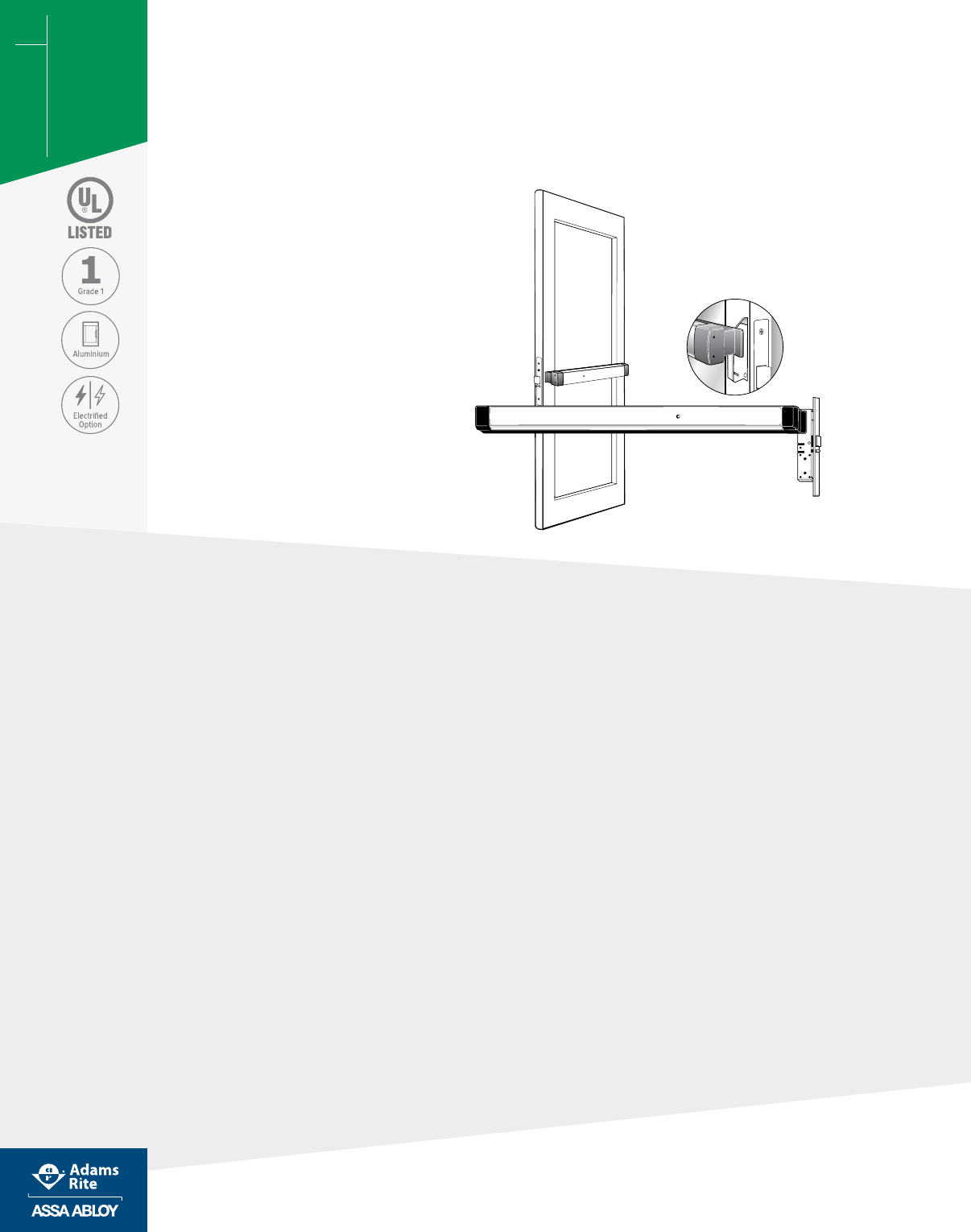

8400

Series

The 8400 Series Narrow Stile Mortise Exit

Device is designed for narrow stile aluminum

applications that require a life-safety exit

device with mortise locking solution.

Designed for use in single door applications.

Life-Safety Narrow Stile

Mortise Exit Device

8400 Series

Features

Materials

Push bar made of extruded

aluminum, clad or anodized

in a variety of ﬁnishes.

Handing

Specify handing and

bevel if applicable.

Push bar Length

Standard sizes dimensioned

for 30" [762.0 mm], 36" [914.4

mm], 42" [1,066.8 mm], and 48"

[1,219.2 mm] openings. Standard

width bars can be ﬁeld cut to the

next smallest opening width.

Backset

31/32" [24.6 mm], 1-1/8" [28.6 mm],

or 1-1/2" [38.1 mm]. Fits standard

cutout used for the Adams Rite

4900 Heavy Duty Deadlatch on

narrow stile aluminum doors.

Door Thickness

Suits 1-3/4" [44.5 mm] standard.

Device can be modiﬁed for thicker

doors using Thick Door Kit available

separately, or for thermal doors using

Thermal Door Kit available separately.

Stile Width

Minimum 2" [50.8 mm] stile.

Fits narrow, medium, and wide

stile aluminum doors.

Projection

2-5/8" [66.7 mm] when fully projected,

1-5/8" [41.3 mm] when dogged.

Dogging

Standard dogging with hex key

or optional cylinder dogging.

Electric Dogging option has been

discontinued. Motorized and Electric

Latch Retraction options can replace

Electric Dogging requirement,

see Options & Accessories.

Fasteners

Standard machine screws.

Cylinders

Accepts any standard 1" [25.4 mm]

length, 1-5/32" [29.4 mm] diameter

mortise cylinder with MS® cam

such as the 4036 Mortise Cylinder.

Accommodates cylinder lengths

from 1" [25.4 mm] to 1-1/4" [31.8

mm]. Available separately.

Cylinder x Fixed

Pull Functions

For function 03 (Night latch - key

releases latch) select any standard

1" [25.4 mm] length, 1-5/32" [29.4

mm] diameter mortise cylinder with

MS® cam such as the 4036 Mortise

Cylinder. Function 03 is not applicable

to 8475 Mortise Mid-Panel Exit Device.

Entry Trim Functions

For entry trim function 08 (key locks/

unlocks lever) or function 09 (key

releases lever) select any standard

1" [25.4 mm] length, 1-5/32" [29.4

mm] diameter mortise cylinder with

MS® cam such as the 4036 Mortise

Cylinder. Accommodates cylinder

lengths from 1" [25.4 mm] to 1-1/4"

[31.8 mm]. Available separately.

Certiﬁcations

UL 305 Panic Hardware

ANSI/BHMA A156.3, Grade 1

EXIT DEVICES

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

STANDARD

STRIKE

(INCLUDED)

EXTENDED LIP

8460-17

(OPTIONAL)

LONGFACE

8455-01

(OPTIONAL)

WHEN

REPLACING

DEADBOLT

STRIKE PREP

SPECIFY

DIM. “A”

“A”

How to Order & Related Products

8400 Narrow Stile Mortise Exit Device Specify quantity and the following information. Order related products separately.

MODEL FACEPLATE

FINISH

FACE

SHAPE

DEVICE

OPTIONS

MONITORING

OPTION BACKSET DOOR

HANDING

PUSH BAR

FINISH

DOOR OPENING WIDTH

On pair of doors, specify HALF

of the total exit opening

US FINISH

END CAPS

OPTION FOR

US FINISH

84 1 4 MLR M2 -4 7 1 42

84 Life-

Safety

0 US Finish 0 Flat, bevel,

radius

LR Electric Latch

Retraction

(solenoid)

M Single Switch 2 31/32" 7 RHR 0 US Finish 30 30 inches 42 42 inches US3

Bright Brass

MEC

Matching

End Caps

1 Clear

Anodized 628

2 Radius w/

Weatherstrip*

MLR Motorized

Latch

Retraction

M2 Dual Switch 3 1-1/8" 8 LHR 1 Clear

Anodized 628

36 36 inches 48 48 inches US4

Satin Brass

2 Dark

Bronze

Anodized 313

C Cylinder

Dogging

(non-fire rated

devices ONLY)

(Blank)

No Monitor

4 1-1/2" 2 Dark Bronze

Anodized 313

AXXB Alarmed Exit

Device where XX is

door opening width

US32

Bright

Stainless

3 Black

Anodized 335

- Without Options 3 Black

Anodized 335

US32D

Satin Stainless

* Radius with weatherstrip faceplate is not available in US ﬁnishes.

RELATED When purchasing this product, please consider the following related products, available separately:

ELECTRIC STRIKE TRIM CYLINDER ACCESSORIES POWER

7100/7101, 7110/7111, 7130/7131,

7140 Electric Strikes, 7400/7401,

7410/7411, 7430/7431,

7440 Electric Strikes

3080, 3080E Series Entry

Trim, 3090-150, A100

Series Keyless Entry

Operable by either 4036

Mortise Cylinder depending

upon the ANSI/BHMA

functions of the exit device.

Thick or Cladded Door Kits, 8360-17 Extended

Lip Strike, 8455-01 Longface, 8460-XX Long

Lip Strike, 4901, 4902 Deadlatch Strike

REX-Monitor/Signal Kits

PS-EXIT Power Supply (replaces

PS-SE and PS-LR models) , 4612

Power Transfer Device, 4605

Transformer, 4603 Rectiﬁer

Bolts and Strikes

Mortise deadlatch with bolt measuring

5/8" x 1" x 5/8" [15.9 mm x 25.4 mm x 15.9 mm]

throw. Solid brass bolt.

A variety of strikes are available

for dierent applications:

• Standard strike of stainless steel

included, Extended Lip Strike 8460

available separately, Long Face Strike

8455-01 available separately.

Standard Package

Individually boxed.

Shipping Weight

11 lbs [4.99 kg]

Options

• Electriﬁcation Options

• Motorized Latch Retraction, Electric

Latch Retraction (LR), Alarm, Monitoring,

Cylinder Dogging, Matching End Caps

For more detailed information on any of the

options listed above please see the Exit

Devices Options on page 97 of this catalog.

8400

Series

3600 Only

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

EXIT DEVICES

3600

Series

8500

Series

Series Fire-Rated Concealed

Vertical Rod Exit Device

Series Life-Safety Concealed

Vertical Rod Exit Device

The 3600 Series Fire-Rated Concealed Vertical

Rod Exit Device is designed for hollow metal

applications that require a ﬁre-rated exit device with

concealed vertical rods for two-point locking.

The 8500 Series Concealed Vertical Rod Exit

Device is designed for hollow metal applications

that require a life-safety exit device with

concealed vertical rods for two-point locking.

Designed for use in applications with

single doors or pairs of doors.

MODEL TYPE RATING DOOR

CONSTRUCTION

MAX SIZE SINGLE

DOORS

MAX SIZE PAIR &

DOUBLE EGRESS

3600 CVR 3 hr Hollow Metal Door N/A 8'-0" x 10'-0"

3600T CVR-TRO 3 hr Hollow Metal Door N/A 8'-0" x 10'-0" (std. pairs)

3600T CVR-TRO 3 hr Hollow Metal Door N/A 8'-0" x 8'-0" (double egress)

3600T CVR-TRO 1-1/2 hr Hollow Metal Door N/A 8'-0" x 10'-0" (double egress)

3600

8500

Certiﬁcations

UL 305 Panic Hardware

3600 only: UL10C ﬁre-rated,

up to 3 hours

CAN/ULC S104 ﬁre door conformant

NFPA 252 ﬁre door conformant

ANSI/BHMA A156.3, Grade 1

Features

Materials

Push bar made of extruded

aluminum, cladded or anodized

in a variety of ﬁnishes.

Push bar Length

Standard sizes: dimensioned

for 30" [762.0 mm], 36" [914.4

mm], 42" [1,066.8 mm], and 48"

[1,219.2 mm] openings. Standard

width bars can be ﬁeld cut to the

next smallest opening width.

Bar Height

Standard model adjusts from 30"

[762 mm] to 44" [1117.6 mm].

Handing

Device is non-handed.

Door Thickness

Suits 1-3/4" [44.5 mm] standard,

up to 2-1/4" [57.2 mm].

Door Height

Standard conﬁguration suitable for

doors up to 66" [1,676.4 mm] above

the selected bar height. For doors

over 66" [1,676.4 mm] above bar

height, up to 10' [3.05 m] use 3655

Tall Door Kit available separately.

Stile Width

Minimum 3-1/2" [88.9 mm]. Door

construction may require additional

stile width to meet ﬁre ratings

and provide adequate strength.

Stile Wall

Doors with stile walls other than

1/8" [3.2 mm] require modiﬁcation.

Projection

2-5/8" [66.7 mm] when fully projected,

1-5/8" [41.3 mm] when dogged.

Dogging

Standard dogging with hex key or

with cylinder not available on ﬁre-

rated exit devices. Electric Dogging

option has been discontinued.

Motorized and Electric Latch

Retraction options can replace

Electric Dogging requirement,

see Options & Accessories.

EXIT DEVICES

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

TOP

BOLT

BOTTOM

BOLT

TOP

STRIKE

TOP ROD

ONLY

TOP

BOLT

BOTTOM

BOLT

TOP

STRIKE

TOP ROD

ONLY

Fasteners

Standard self-tapping screws and machine

screws. Optional Sex Bolt Kits 26-0584 (two

required per device) available separately.

Cylinders

Accepts any standard 1" [25.4 mm] length,

1-5/32" [29.4 mm] diameter mortise

cylinder with MS® cam such as the

4036 Mortise Cylinder. Accommodates

cylinder lengths from 1" [25.4 mm] to

1-1/4" [31.8 mm]. Available separately.

Cylinder x Fixed Pull Functions

For entry trim function 03 (Night latch -

key releases latch) select any standard

1" [25.4 mm] length, 1-5/32" [29.4 mm]

diameter mortise cylinder with MS® cam

such as the 4036 Mortise Cylinder.

If key entry operation is required, any standard

mortise cylinder with MS® cam can be installed

through an 8650 Cylinder Escutcheon. 8650

Cylinder Escutcheon Kit available separately.

Entry Trim Functions

For entry trim function 08 (key locks/unlocks

lever) or function 09 (key releases lever) select

any standard 1" [25.4 mm] length, 1-5/32"

[29.4 mm] diameter mortise cylinder with

MS® cam such as the 4036 Mortise Cylinder.

Accommodates cylinder lengths from 1" [25.4

mm] to 1-1/4" [31.8 mm]. Available separately.

Bolts and Strikes

The patented top latching mechanism

utilizes a rotating top bolt which deadlatches

around the header strike, interlocking the

door to the frame. Supplied with standard

header strike. Adjustable protected

steel rods. The hexagonal, hardened

steel bottom bolt is shielded in a cast

housing for strength and stability.

Standard Package

Individually boxed.

Shipping Weight

12 lbs [5.44 kg]

Options

• Available in top rod only version, less

bottom rod. Specify by adding “T”

after exit device model number.

• Electriﬁcation Options

• Motorized Latch Retraction, Electric

Latch Retraction (LR), Alarm, Monitoring,

Cylinder Dogging, Matching End Caps

For more detailed information on any of the

options listed above please see the Exit

Devices Options on page 97 of this catalog.

How to Order & Related Products

8500, 3600 Metal Door Concealed Vertical Rod Exit Device: Specify quantity and the following information. Order related products separately.

MODEL PUSH BAR

FINISH ROD TYPE DEVICE OPTIONS MONITORING

OPTION

DOOR OPENING WIDTH

On pair of doors, specify HALF of

the total exit opening

US FINISH

END CAPS

OPTION FOR US

FINISH

85 00 TED M -36

36 Fire Rated 00 US Finish T Top Rod only LR Electric Latch

Retraction (solenoid)

M Single Switch 30 30 inches* 42 42 inches US3 Bright Brass MEC Matching

End Caps

85 Life-Safety 11 Clear Anodized

628

- Standard rod MLR Motorized Latch

Retraction

M2 Dual Switch 36 36 inches 48 48 inches US4 Satin Brass

22 Dark Bronze

Anodized 313

C Cylinder Dogging (non-ﬁre

rated devices ONLY)

(Blank) No

Monitor

AXXB Alarmed Exit Device where

XX is door opening width

US32 Bright

Stainless

33 Black

Anodized 335

- No Option US32D Satin

Stainless

* Please note that 30" exit devices cannot accommodate montitoring options, except when ordered in conjunction with the MLR option.

RELATED When purchasing this product, please consider the following related products, available separately:

TRIM CYLINDER ACCESSORIES POWER

3080, 3080E Series Entry Trim, 3090-150,

A100 Series Keyless Entry, 3001 Fixed

Pull (for hollow metal or wood)

Operable by 4036 Mortise Cylinder

depending upon the ANSI/BHMA

functions of the exit device.

26-0584 Sex Bolt Kit (two required per device)

3655 Tall Door Kit

REX-Monitor/Signal Kits

8650 Cylinder Escutcheon Kit

PS-EXIT Power Supply (replaces

PS-SE and PS-LR models), 4612

Power Transfer Device, 4605

Transformer, 4603 Rectiﬁer

3600

Series

8500

Series

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

EXIT DEVICES

8600 Series

Narrow Stile

Concealed

Vertical Rod

Exit Device

The 8600 Series Narrow Stile Concealed

Vertical Rod Exit Device is designed for narrow

stile aluminum applications that require a life-

safety exit device with concealed vertical rods

for two-point locking. Designed for use in

applications with single doors or pairs of doors.

Certiﬁcations

UL 305 Panic hardware

ANSI/BHMA A156.3, Grade 1

Narrow Stile Concealed

Vertical Rod Exit Device

8600 Series

Features

Materials

Push bar made of extruded

aluminum, cladded or anodized

in a variety of ﬁnishes.

Handing

Device is non-handed.

Push bar Length

Standard sizes: dimensioned

for 30" [762.0 mm], 36" [914.4

mm], 42" [1,066.8 mm], and 48"

[1,219.2 mm] openings. Standard

width bars can be ﬁeld cut to the

next smallest opening width.

Bar Height

Standard model adjusts from 30"

[762 mm] to 44" [1117.6 mm].

Door Thickness

Suits 1-3/4" [44.5 mm] standard, up

to 2-1/4" [57.2 mm]. Device requires

modiﬁcation when used with cylinder

in doors over 1-3/4" [44.5 mm]. Please

contact factory for more details.

Door Height

Standard conﬁguration suitable for

doors up to 66" [1,676.4 mm] above

the selected bar height. For doors

over 66" [1,676.4 mm] above bar

height, up to 10' [3.05 m] use 8655

Tall Door Kit available separately.

Stile Width

Minimum 2" [50.8 mm] stile.

Fits narrow, medium, and wide

stile aluminum doors.

Stile Wall

Doors with stile walls other than

1/8" [3.2 mm] require modiﬁcation.

Projection

2-5/8" [66.7 mm] when fully projected,

1-5/8" [41.3 mm] when dogged.

Dogging

Standard dogging with hex key

or optional cylinder dogging.

Electric Dogging option has been

discontinued. Motorized and Electric

Latch Retraction options can replace

Electric Dogging requirement,

see Options & Accessories.

Fasteners

Standard machine screws.

Cylinders

Accepts any standard 1" [25.4 mm]

length, 1-5/32" [29.4 mm] diameter

mortise cylinder with MS® cam

such as the 4036 Mortise Cylinder.

Accommodates cylinder lengths

from 1" [25.4 mm] to 1-1/4" [31.8

mm]. Available separately.

EXIT DEVICES

BOTTOM

BOLT

TOP

BOLT

STANDARD

STRIKE

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

Cylinder x Fixed Pull Functions

For entry trim function 03 (Night latch - key

releases latch) select any standard 1" [25.4

mm] length, 1-5/32" [29.4 mm] diameter

mortise cylinder with MS® cam such as

the 4036 Mortise Cylinder. Accepts any

standard mortise cylinder with MS® cam.

If key entry operation is required, any standard

mortise cylinder with MS® cam can be installed

through an 8650 Cylinder Escutcheon. 8650

Cylinder Escutcheon Kit available separately.

Entry Trim Functions

For entry trim function 08 (key locks/unlocks

lever) or function 09 (key releases lever) select

any standard 1" [25.4 mm] length, 1-5/32"

[29.4 mm] diameter mortise cylinder with

MS® cam such as the 4036 Mortise Cylinder.

Accommodates cylinder lengths from 1" [25.4

mm] to 1-1/4" [31.8 mm]. Available separately.

Bolts and Strikes

The patented top latching mechanism

utilizes a rotating top bolt which deadlatches

around the header strike, interlocking the

door to the frame. Supplied with standard

header strike. Adjustable protected

steel rods. The hexagonal, hardened

steel bottom bolt is shielded in a cast

housing for strength and stability.

Standard Package

Individually boxed.

Shipping Weight

12 lbs [5.44 kg]

Options

• Available in top rod only version, less

bottom rod. Specify by adding “T”

after exit device model number.

• Electriﬁcation Options

• Motorized Latch Retraction, Electric

Latch Retraction (LR), Alarm, Monitoring,

Cylinder Dogging, Matching End Caps

For more detailed information on any of the

options listed above please see the Exit

Devices Options on page 97 of this catalog.

How to Order & Related Products

8200 Narrow Stile Surface Vertical Rod Exit Device Specify quantity and the following information. Order related products separately.

MODEL PUSH BAR

FINISH

ROD

TYPE DEVICE OPTIONS MONITORING

OPTION

DOOR OPENING WIDTH

On pair of doors, specify HALF

of the total exit opening

US FINISH

END CAPS

OPTION FOR

US FINISH

86 22 TMLR M2 -36

86 Life-Safety 00 US Finish T Top Rod

only

LR Electric Latch Retraction

(solenoid)

M Single Switch 30 30 inches* 42 42 inches US3 Bright Brass MEC Matching

End Caps

11 Clear Anodized

628

– Standard

rod

MLR Motorized Latch

Retraction

M2 Dual Switch 36 36 inches 48 48 inches US4 Satin Brass

22 Dark Bronze

Anodized 313

C Cylinder Dogging (non-ﬁre

rated devices ONLY)

(Blank) No Monitor AXXB Alarmed Exit Device where

XX is door opening width

US32 Bright

Stainless

33 Black

Anodized 335

(Blank) No Option US32D Satin

Stainless

RELATED When purchasing this product, please consider the following related products, available separately:

TRIM CYLINDER ACCESSORIES POWER

3080, 3080E Series Entry Trim, 3090-150,

A100 Series Keyless Entry

Operable by 4036 Mortise Cylinder

depending upon the ANSI/BHMA

functions of the exit device.

8655 Tall Door Kit

8650 Cylinder Escutcheon kit

REX-Monitor/Signal Kits

PS-EXIT Power Supply (replaces PS-SE

and PS-LR models) , 4612 Power Transfer

Device, 4605 Transformer, 4603 Rectiﬁer

8600 Series

Narrow Stile

Concealed

Vertical Rod

Exit Device

3700 Only

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

EXIT DEVICES

3700

Series

8700

Series

Series Fire-Rated

Rim Exit Device

Series Life-Safety

Rim Exit Device

The 3700 Series Fire-Rated Rim Exit Device

is designed for hollow metal and wood

applications that require a ﬁre-rated exit

device with Starwheel interlocking solution.

The 8700 Series Rim Exit Device is designed

for hollow metal and wood applications

that require a life-safety exit device with

Starwheel interlocking solution.

Designed for use in applications with single

doors or pairs of doors with a mullion.

MODEL TYPE RATING DOOR

CONSTRUCTION

MAX SIZE

SINGLE DOORS

MAX SIZE PAIR &

DOUBLE EGRESS

3700 (RE) Rim Exit 3 hr Hollow Metal

DoorWood Door 4'-0" x 10'-0" 8'-0" x 10'-0"

3700

8 700

Certiﬁcations

UL 305 Panic Hardware

3700 Only: UL10C ﬁre-rated,

up to 3 hours

CAN/ULC S104 ﬁre door conformant

NFPA 252 ﬁre door conformant

ANSI/BHMA A156.3, Grade 1

Features

Materials

Push bar made of extruded

aluminum, clad or anodized

in a variety of ﬁnishes.

Handing

Device is non-handed

Push bar Length

Standard sizes: dimensioned

for 30" [762.0 mm], 36" [914.4

mm], 42" [1,066.8 mm], and 48"

[1,219.2 mm] openings. Standard

width bars can be ﬁeld cut to the

next smallest opening width.

Door Thickness

Suits 1-3/4" [44.5 mm] standard,

up to 2-1/4" [57.2 mm]

Stile Width

Minimum 3-3/4" [95.3 mm]. Door

construction may require additional

stile width to meet ﬁre ratings and

provide adequate strength.

Projection

2-5/8" [66.7 mm] when fully projected,

1-5/8" [41.3 mm] when dogged.

Dogging

Standard dogging with hex key or

cylinder dogging for 8700 Series

only. Electric Dogging option has

been discontinued. Motorized and

Electric Latch Retraction options can

replace Electric Dogging requirement,

see Options & Accessories.

Fasteners

Standard self-tapping screws and

machine screws. Optional Sex Bolt

Kits 26-0584 (two required per

device) available separately.

Cylinders

Select any standard 1-5/32" [29.4 mm]

diameter rim cylinder such as the 8736

Rim Cylinder. Available separately.

Cylinder x Fixed

Pull Functions

For function 03 (Night latch - key

releases latch) select any standard

1-5/32" [29.4 mm] diameter rim

cylinder such as the 8736 Rim Cylinder.

Entry Trim Functions

For entry trim function 08 (key locks/

unlocks lever) or function 09 (key

releases lever) select any standard

1" [25.4 mm] length, 1-5/32" [29.4

mm] diameter mortise cylinder with

MS® cam such as the 4036 Mortise

Cylinder. Accommodates cylinder

lengths from 1" [25.4 mm] to 1-1/4"

[31.8 mm]. Available separately.

EXIT DEVICES

All measurements are approximate and are

provided for informational purposes only. Refer

to the product Installation Instructions.

How to Order & Related Products

8700, 3700 Rim Exit Device: Specify quantity and the following information. Order related products separately.

MODEL PUSH BAR FINISH DEVICE OPTIONS MONITORING

OPTION

DOOR OPENING WIDTH

On pair of doors, specify HALF of

the total exit opening

US FINISH

END CAPS

OPTION FOR

US FINISH

VOLTAGE

87 00 EL M2 -36 -12

37 Fire

Rated

00 US Finish EL Electric Latch

Retraction (solenoid)

M Single Switch 30 30 inches* 42 42 inches US3 Bright Brass MEC Matching

End Caps

12 Volts

87 Life-

Safety

01 Clear Anodized 628 MLR Motorized Latch

Retraction

M2 Dual Switch 36 36 inches 48 48 inches US4 Satin Brass 24 Volts

(For EL

Option Only)

02 Dark Bronze

Anodized 313

C Cylinder Dogging (non-ﬁre

rated devices ONLY)

(Blank)

No Monitor

AXXB Alarmed Exit Device where

XX is door opening width

US32 Bright Stainless

03 Black Anodized 335 - No Option US32D Satin Stainless

* Please note that 30" exit devices cannot accommodate montitoring options, except when ordered in conjunction with the MLR option.

RELATED When purchasing this product, please consider the following related products, available separately:

TRIM CYLINDER ACCESSORIES POWER

3080, 3080E Series Entry Trim, 3090-150,

A100 Series Keyless Entry, 3001 Fixed

Pull (for hollow metal or wood)

Operable by either 4036 Mortise Cylinder

or 8736 Rim Cylinder depending upon the

ANSI/BHMA functions of the exit device.

26-0584 Sex Bolt Kit (two

required per device)

REX-Monitor/Signal Kits

PS-1, PS-EXIT Power Supply (replaces

PS-SE model), 4612 Power Transfer

Device, 4605 Transformer, 4603 Rectiﬁer

Strike

Standard hardened steel strike (included).

Standard Package

Individually boxed.

Shipping Weight

10 lbs [4.54 kg]

Removable Mullion

Allows the use of rim exit devices on paired

doors without narrowing the doors. Provides

higher security and better trac ﬂow than

paired doors with vertical rod exit devices.

3889 Steel Mullion available separately.

Select for use with doors up to 8' [2.44 m].

Options

• Electriﬁcation Options

Motorized Latch Retraction, Electric

Latch Retraction (EL), Alarm, Monitoring,

Cylinder Dogging, Matching End Caps

For more detailed information on any of the

options listed above please see the Exit Devices

Options on page 97 of this catalog.

Starwheel Bolt

1. When door closes, the interlocking

noseguard and Starwheel bolt close around

the strike. The deadlocking slide spring over,

locking the Starwheel bolt to the strike.

2. When push bar is depressed, the

deadlocking slide moves back, allowing

the door to unlock from the strike. This

unique interlock provides solid security

and prevents jamb spreading.

13/16"

20.6mm

50.8mm

2-3/4"

69.9mm

1/2"

12.7mm

1-21/32"

42.1mm

13/16"

20.6mm

50.8mm

2-3/4"

69.9mm

1/2"

12.7mm

1-21/32"

42.1mm

Strike Dimensions

3700

Series

8700

Series

Features

Materials

Push bar made of extruded

aluminum, clad or anodized

in a variety of ﬁnishes.

Handing

Device is non-handed.

Push bar Length

Standard sizes: dimensioned

for 30" [762.0 mm], 36" [914.4

mm], 42" [1,066.8 mm], and 48"

[1,219.2 mm] openings. Standard

width bars can be ﬁeld cut to the

next smallest opening width.

Door Thickness

Suits 1-3/4" [44.5 mm] standard,

up to 2-1/4" [57.2 mm].

Stile Width

Minimum 2" [50.8 mm] stile.

Fits narrow, medium, and wide

stile aluminum doors.

Projection

2-5/8" [66.7 mm] when fully projected,

1-5/8" [41.3 mm] when dogged.

Dogging

Standard dogging with hex key

or optional cylinder dogging.

Electric Dogging option has been

discontinued. Motorized and Electric

Latch Retraction options can replace

Electric Dogging requirement,

see Options & Accessories.

Fasteners

Standard machine screws.

Cylinders

Select any standard 1-5/32" [29.4 mm]

diameter rim cylinder such as the 8736

Rim Cylinder. Available separately.

Cylinder x Fixed

Pull Functions

For function 03 (Night latch -

key releases latch) select any

standard 1-5/32" [29.4 mm]

diameter rim cylinder such as

the 8736 Rim Cylinder.

Entry Trim Functions

For entry trim function 08 (key locks/

unlocks lever) or function 09 (key

releases lever) select any standard

1" [25.4 mm] length, 1-5/32" [29.4

mm] diameter mortise cylinder with

MS® cam such as the 4036 Mortise

Cylinder. Accommodates cylinder

lengths from 1" [25.4 mm] to 1-1/4"

[31.8 mm]. Available separately.

Strike

Standard strike and narrow

versions for centering doors in 4"

jamb (both strikes included).

Standard Package

Individually boxed.

Shipping Weight

10 lbs [4.54 kg]

Removable Mullion

Allows the use of rim exit devices

on paired doors without narrowing

the doors. Provides higher security

and better trac ﬂow than paired

doors with vertical rod exit devices.

3890 Aluminum Mullion available

separately. Select for use with doors

up to 8' [2.44 m] or 10' [3.05 m].

Available in 313 Dark bronze anodized

or 628 Clear anodized ﬁnish.

Options

• Electriﬁcation Options

Motorized Latch Retraction,

Electric Latch Retraction (EL),

Alarm, Monitoring, Cylinder

Dogging, Matching End Caps

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

EXIT DEVICES

8800 Series

Narrow

Stile Rim

Exit Device

The 8800 Series Narrow Stile Rim Exit Device is

designed for narrow stile aluminum applications

that require a life-safety exit device with Starwheel

interlocking solution. Designed for use in applications

with single doors or pairs of doors with a mullion.

Certiﬁcations

UL 305 Panic Hardware

ANSI/BHMA A156.3, Grade 1

Narrow Stile Rim Exit Device

8800 Series

13/16"

20.6mm

13/16"

20.6mm

50.8mm

2-3/4"

69.9mm

1/2"

12.7mm

50.8mm

2-3/4"

69.9mm

1/2"

12.7mm

1-21/32"

42.1mm

13/16"

20.6mm

13/16"

20.6mm

50.8mm

2-3/4"

69.9mm

1/2"

12.7mm

50.8mm

2-3/4"

69.9mm

1/2"

12.7mm

1-21/32"

42.1mm

For more detailed information on any of the

options listed above please see the Exit

Devices Options on page 97 of this catalog.

Starwheel Bolt

1. When door closes, the interlocking

noseguard and Starwheel bolt close around

the strike. The deadlocking slide spring over,

locking the Starwheel bolt to the strike.

2. When push bar is depressed, the

deadlocking slide moves back, allowing

the door to unlock from the strike. This

unique interlock provides solid security

and prevents jamb spreading.

EXIT DEVICES

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

How to Order & Related Products

8800 Rim Exit Device: Specify quantity and the following information. Order related products separately.

MODEL PUSH BAR

FINISH DEVICE OPTIONS MONITORING

OPTION

DOOR OPENING WIDTH

On pair of doors, specify HALF

of the total exit opening

US FINISH

END CAPS

OPTION FOR

US FINISH

VOLTAGE

88 01 CM2 -36 -12

88 Life-Safety 00 US Finish EL Electric Latch

Retraction (solenoid)

M Single Switch 30 30 inches* 42 42 inches US3 Bright Brass MEC Matching

End Caps

12 Volts

01 Clear Anodized

628

MLR Motorized Latch

Retraction

M2 Dual Switch 36 36 inches 48 48 inches US4 Satin Brass 24 Volts

(For EL Option Only)

02 Dark Bronze

Anodized 313

C Cylinder Dogging

(non-ﬁre rated devices ONLY)

(Blank)

No Monitor

AXXB Alarmed Exit Device

where XX is door

opening width

US32 Bright

Stainless

03 Black Anodized

335

– No Option US32D Satin

Stainless

* Please note that 30" exit devices cannot accommodate montitoring options, except when ordered in conjunction with the MLR option.

RELATED When purchasing this product, please consider the following related products, available separately:

TRIM CYLINDER ACCESSORIES POWER

3080, 3080E Series Entry Trim,

3090-150, A100 Series Keyless Entry

Operable by either 4036 Mortise Cylinder

or 8736 Rim Cylinder depending upon the

ANSI/BHMA functions of the exit device.

REX-Monitor/Signal Kits PS-1, PS-EXIT Power Supply (replaces

PS-SE model), 4612 Power Transfer

Device, 4605 Transformer, 4603 Rectiﬁer

Strike Dimensions

8800 Series

Narrow

Stile Rim

Exit Device

100

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

EXIT DEVICES

P8800

| P8700

Pullman Rim

Exit Device

Pullman Rim Exit Devices are

designed for narrow stile aluminum

(P8800), hollow metal and wood

(P8700) applications that require

a life-safety exit device with

Pullman latching solution. The

P8800 and P8700 features a 3/4"

stainless steel Pullman latchbolt.

Function

When the door closes, the 3/4" throw deadlocking stainless steel Pullman

latchbolt nests inside the strike assembly and the smaller deadlatch

rests on the strike assembly activating the deadlatching feature.

When the active pushbar is depressed, both the Pullman latchbolt and

the smaller deadlatch are retracted, allowing the door to open.

Suitable for use on single doors, or with mullion on pairs of doors.

Designed for optimal performance in high-use areas.

Certiﬁcations

UL 305 Panic Hardware

ANSI/BHMA A156.3, Grade 1

Pullman Rim Exit Device

P8800 | P8700

Features

Materials

Active pushbar and back bar

made of extruded aluminum,

available in choice of ﬁnishes.

Handing

Device is non-handed.

Push bar Length

Standard sizes: dimensioned for

30" [762.0 mm],

36" [914.4 mm],

42" [1,066.8 mm], and

48" [1,219.2 mm] openings.

Standard width bars can be ﬁeld cut

to the next smallest opening width.

Door Thickness

• Suitable for use with all

door thickness.

• Can be used with trim on

1-3/4" thick doors, up to

2-1/4" door thickness.

• When cylinders are required,

select rim cylinder length

based upon door thickness

Stile Width

Minimum 2" stile. Fits ultra-

narrow, narrow, medium and

wide stile aluminum doors.

Projection

2-1/2" when fully projected,

1-3/4" when dogged.

Dogging

Standard dogging with 3/16” hex key.

Fasteners

Device mounted using standard

type ‘F’ self-tapping screws. Rivnuts

are provided for the P8700 only.

Strike

Horizontally adjustable strike

assembly body made of Zamak 5

with hardened steel roller. Standard

strike assembly suitable for

centering doors in 4" jamb. Strike

plate adjusts 1/4" horizontally.

101

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

EXIT DEVICES

Cylinders

Select any standard 1-5/32" [29.4 mm]

diameter rim cylinder such as the 8736

Rim Cylinder. Available separately.

Cylinder x Fixed Pull Functions

For function 03 (Night latch - key

releases latch) select any standard

1-5/32" [29.4 mm] diameter rim cylinder

such as the 8736 Rim Cylinder.

Entry Trim Functions

For entry trim function 08 (key locks/unlocks

lever) or function 09 (key releases lever) select

any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm]

diameter mortise cylinder with MS® cam such

as the 4036 Mortise Cylinder. Accommodates

cylinder lengths from 1" [25.4 mm]

to 1-1/4" [31.8 mm]. Available separately.

Standard Package

Individually boxed.

Shipping weight

10 lbs [4.54 kg]

Options

• Electriﬁcation Options

Motorized Latch Retraction (MLR),

Alarm, Monitoring

• Cylinder Dogging, Matching End

Caps (optional metallic end caps

ﬁnished to US options)

• Finishes

See How to Order for all options (see current

8800 page for reference on treatment)

For more detailed information on any of

the options listed above please see the

Exit Devices Options page of this catalog.

How to Order & Related Products

P8800 | P8700 Pullman Rim Exit Device: Specify quantity and the following information. Order related products separately.

MODEL PUSH BAR FINISH DEVICE OPTIONS MONITORING

OPTION

DOOR OPENING WIDTH

On pair of doors, specify

HALF of the total exit opening

US FINISH

END CAPS

OPTION FOR US

FINISH

P88 01 CM2 -36

P88 | P87 00 US Finish MLR Motorized Latch Retraction M Single Switch 30 30 inches* 42 42 inches US3 Bright Brass MEC Matching

End Caps

01 Clear Anodized 628 C Cylinder Dogging **

(non-fire rated devices ONLY)

M2 Dual Switch 36 36 inches 48 48 inches US4 Satin Brass

02 Dark Bronze

Anodized 313

(Blank) No Monitor AXXB Alarmed Exit Device where

XX is door opening width

US32 Bright Stainless

(Blank) No Option US32D Satin Stainless

03 Black Anodized 335

*Please note that 30" exit devices cannot accommodate monitoring options, except when ordered in conjunction with MLR option.

** Cylinder dogging cannot be combined with any other exit device option.

Related When purchasing this product, please consider the following related products, available separately:

ELECTRIC STRIKES TRIM CYLINDER ACCESSORIES POWER

74R1Electric Strike 3080, 3080E Series Entry

Trim, 3090-150, A100 Series

Keyless Entry, 3001 Fixed Pull

(for hollow metal or wood)

Operable by either 4036 Mortise

Cylinder or 8736 Rim Cylinder

depending upon the ANSI/BHMA

functions of the exit device

26-0584 Sex Bolt Kit (two

required per device)

REX-Monitor/Signal Kits

PS-EXIT (replaces PS-SE & PS-LR

models), 4612 Power Transfer,

4603 Rectiﬁer, 4605 Transformer

Exit Device Conﬁgurator

The Adams Rite Exit Device Conﬁgurator is available to help you ﬁnd the right exit device, select your product options and get the part

number you need to order. The Exit Device Conﬁgurator is conveniently accessible through the Adams Rite website at adamsrite.com.

P8800

| P8700

Pullman Rim

Exit Device

3900 Only

102

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

EXIT DEVICES

3900

Series

8900

Series

Series Fire-Rated Surface

Concealed Vertical Rod

Exit Device

Series Life-Safety Surface

Concealed Vertical Rod

Exit Device

The 3900 Series Fire-Rated Surface Concealed

Vertical Rod Exit Device is designed for wood

applications that require a ﬁre-rated exit device

with concealed vertical top rod and surface

concealed actuator single-point latching in header.

The 8900 Series Surface Concealed Vertical Rod

Exit Device is designed for wood applications

that require a life-safety exit device with

concealed vertical top rod and surface concealed

actuator single-point latching in header.

Designed for use in applications with single doors or pairs of doors.

MODEL TYPE RATING DOOR

CONSTRUCTION

MAX SIZE

SINGLE DOORS

MAX SIZE PAIR &

DOUBLE EGRESS

3900 CVR-TRO 1-1/2 hr Wood Door 4'-0" x 9'-0" 8'-0" x 9'-0"

3900

8900

Certiﬁcations

UL 305 Panic Hardware

3900 Only: UL10C ﬁre-rated,

up to 1-1/2 hours

CAN/ULC S104 ﬁre door conformant

NFPA 252 ﬁre door conformant

ANSI/BHMA A156.3, Grade 1

Features

Materials

Push bar made of extruded

aluminum, cladded or anodized

in a variety of ﬁnishes.

Handing

Device is non-handed.

Push bar Length

Standard sizes: dimensioned for

30" [762.0 mm],

36" [914.4 mm],

42" [1,066.8 mm], and

48" [1,219.2 mm] openings.

Standard width bars can be ﬁeld cut

to the next smallest opening width.

Bar Height

Standard model adjusts from

30" [762 mm] to 44" [1117.6 mm].

Door Height

Standard conﬁguration suitable for

doors up to 66" [1,676.4 mm] above

the selected bar height. For doors

over 66" [1,676.4 mm] above bar

height, up to 10' [3.05 m] use 3955-01

Tall Door Kit available separately.

Door Thickness

Suits 1-3/4" [44.5 mm] standard.

Projection

2-5/8" [66.7 mm] when fully projected,

1-5/8" [41.3 mm] when dogged.

Dogging

Standard dogging with hex key or with

cylinder not available on ﬁre-rated

exit devices. Electric Dogging option

has been discontinued. Motorized and

Electric Latch Retraction options can

replace Electric Dogging requirement,

see Options & Accessories.

Fasteners

Standard self-tapping screws and

machine screws. Optional Sex Bolt

Kits 26-0584 (two required per

device) available separately.

103

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

EXIT DEVICES

How to Order & Related Products

8900, 3900 Rim Exit Device: Specify quantity and the following information. Order related products separately.

MODEL PUSH BAR FINISH DEVICE OPTIONS MONITORING

OPTION

DOOR OPENING WIDTH

On pair of doors, specify HALF of

the total exit opening

US FINISH

END CAPS

OPTION FOR US

FINISH

89 00 LR M2 -36

39 Fire Rated 00 US Finish LR Electric Latch Retraction

(solenoid)

M Single Switch 30 30 inches* 42 42 inches US3 Bright Brass MEC Matching

End Caps

89 Life-Safety 11 Clear Anodized 628 MLR Motorized Latch Retraction M2 Dual Switch 36 36 inches 48 48 inches US4 Satin Brass

22 Dark Bronze

Anodized 313

C Cylinder Dogging

(non-ﬁre rated devices ONLY)

(Blank) No Monitor AXXB Alarmed Exit Device where

XX is door opening width

US32 Bright

Stainless

33 Black Anodized 335 – No Option US32D Satin

Stainless

* * Please note that 30" exit devices cannot accommodate montitoring options, except when ordered in conjunction with the MLR option. .

RELATED When purchasing this product, please consider the following related products, available separately:

TRIM CYLINDER ACCESSORIES POWER

3080, 3080E Series Entry Trim, 3090-150,

A100 Series Keyless Entry, 3001 Fixed

Pull (for hollow metal or wood)

Operable by 4036 Mortise Cylinder

depending upon the ANSI/BHMA

functions of the exit device.

26-0584 Sex Bolt Kit (two required per device)

REX-Monitor/Signal Kits

PS-EXIT Power Supply (replaces PS-SE

and PS-LR models) , 4612 Power Transfer

Device, 4605 Transformer, 4603 Rectiﬁer

Cylinders

Accepts any standard 1" [25.4 mm] length,

1-5/32" [29.4 mm] diameter mortise

cylinder with MS® cam such as the

4036 Mortise Cylinder. Accommodates

cylinder lengths from 1" [25.4 mm] to

1-1/4" [31.8 mm]. Available separately.

Cylinder x Fixed Pull Functions

For entry trim function 03 (Night latch -

key releases latch) select any standard

1" [25.4 mm] length, 1-5/32" [29.4 mm]

diameter mortise cylinder with MS® cam

such as the 4036 Mortise Cylinder.

Entry Trim Functions

For entry trim function 08 (key locks/unlocks

lever) or function 09 (key releases lever) select

any standard 1" [25.4 mm] length, 1-5/32"

[29.4 mm] diameter mortise cylinder with

MS® cam such as the 4036 Mortise Cylinder.

Accommodates cylinder lengths from 1" [25.4

mm] to 1-1/4" [31.8 mm]. Available separately.

Bolts and Strikes

The patented top latching mechanism utilizes

a rotating top bolt which deadlatches around

the header strike, interlocking the door to

the frame. Supplied with standard header

strike. Adjustable protected steel rods. The

hexagonal, hardened steel bottom bolt is

shielded in a cast housing for strength and

stability. For wood frames, an additional plate

is supplied for securing the header strike.

Standard Package

Individually boxed.

Shipping Weight

12 lbs [5.44 kg]

Options

• Available in top rod only version, less

bottom rod. Specify by adding “T”

after exit device model number.

• Electriﬁcation Options

• Motorized Latch Retraction, Electric

Latch Retraction (LR), Alarm, Monitoring,

Cylinder Dogging, Matching End Caps

For more detailed information on any of the

options listed above please see the Exit

Devices Options on page 97 of this catalog.

TOP BOLT TOP

STRIKE

PLATE FOR USE WITH

WOOD FRAMES IS

FURNISHED WITH 8900

TOP

BOLT

BOTTOM

BOLT

TOP

STRIKE

TOP ROD ONLY

PLATE FOR WOOD

FRAMES IS FURNISHED

WITH 8100

TOP

BOLT

BOTTOM

BOLT

TOP

STRIKE

TOP ROD ONLY

PLATE FOR WOOD

FRAMES IS FURNISHED

WITH 8100

Plate for wood frames

are furnished with 8900

3900

Series

8900

Series

104

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

EXIT DEVICES

Features

Materials

Push bar made of extruded

aluminum, available variety

of architectural ﬁnishes.

Stile Width

• For hollow metal and wood

applications: minimum

3-3/4" [95.3 mm]

• For aluminum applications:

minimum 2" [50.8 mm] stile.

Fasteners

• For hollow metal and wood

applications:

standard self-tapping screws

and machine screws.

• For aluminum applications:

standard machine screws.

Push Bar Length

Standard sizes: dimensioned

for 30" [762.0 mm], 36" [914.4

mm], 42" [1,066.8 mm], and

48" [1,219.2 mm] openings.

Standard Package

Individually boxed.

Shipping Weight

6 lbs [2.72 kg].

Options

• 8099M0: Active dummy push

bar, no monitoring switches

• 8099M1: Active dummy push

bar, single monitoring switch

• 8099M2: Active dummy push

bar, dual monitoring switches

• Available for aluminum, hollow

metal and wood applications.

Specify door type and

width when ordering.

• Optional Sex Bolt Kits 26-0584

(two required per device)

available separately.

Dummy Push Bar

The 8099 Dummy Push

Bar is designed for narrow

stile aluminum, hollow

metal, and wood applications that do not require

a latching/locking life-safety exit device.

Function

Dummy Push Bar with no latch mechanism but with either single

or dual monitor/signal switches. May be used in conjunction with

a maglock, where the push bar turns o the magnet and allows

exit from the building. Dual switch version allows redundancy

where required by code or the operation of a signal device.

Designed for applications with single or pairs of doors.

8099

How to Order

8099 Dummy Push bar Specify quantity and the following information. Order related products separately.

MODEL MONITOR DOOR TYPE PUSH BAR FINISH WIDTH US FINISH

8099 -M1 -3 036

M0 Active Dummy Bar, no monitoring switch 3 Aluminum 0 US Finish 30 30 inches US3 Bright Brass

M1 Active Dummy Bar, one monitoring switch 4 Wood or

Hollow Metal

1 Clear Anodized 628 36 36 inches US4 Satin Brass

M2 Active Dummy Bar, two monitoring switch 2 Dark Bronze Anodized 313 42 42 inches US32 Bright Stainless

3 Black Anodized 335 48 48 inches US32D Satin Stainless

8099

Dummy

Push Bar

105

EXIT DEVICES

Motorized Latch Retraction

The Motorized Latch Retraction (MLR)

option incorporates a powerful and

ecient motor to unlatch the exit device.

Motor-powered latch retraction provides a

quieter operation than solenoid options.

• No calibration required for installation

• Robust linkage mechanism

for extended operation

• Motor-driven latch retraction

• Available for 30” – 48” doors

• 850mA during retraction and 370mA

maintained in dogged hold position

• Requires 2A at 24 VDC regulated/

ﬁltered power supply

• Continuous or intermittent use

• Conﬁgured for fail-secure. In the event

of a power failure, the exit device

defaults to latched condition

• Available for panic and ﬁre exit hardware

• Compatible with REX monitoring

• Order PS-EXIT Power Supply separately;

power and control up to two MLR or

LR exit devices in single or dual input

operations, see POWER for additional

details (Product note: PS-EXIT replaces

legacy PS-SE model). Adams Rite

recommends that for optimal performance

all exit devices with the MLR option be

paired with PS-EXIT power supplies.

• 4612 Power Transfer is available separately

for secure and unobtrusive means of

channeling electrical wiring from the

door frame into the door itself.

Electric Latch Retraction (solenoid)

The EL option for rim exit devices and LR

option for all other exit devices (non-rim exit

devices) use a solenoid mounted under the

pushbar for instantaneous unlocking and

locking of the exit device from a remote

location or access control device. Because

electrical operation of device is fail-secure,

this option can be used on ﬁre-rated as well

as life-safety applications. In the event of a

power failure, device automatically relocks.

LR Option

• Solenoids are rated for both intermittent

and continuous operation. Solenoid

Speciﬁcations for CVR, SVR, and

Mortise type devices (LR option):

• 16 Amps inrush/ 0.5 Amps hold

• Order PS-LR Power Supply separately

for LR option (PS-LR powers two exit

devices). Rated for continuous duty (see

POWER). Adams Rite recommends

that for optimal performance all CVR,

SVR, and mortise type exit devices

with the LR option are installed and

powered using PS-LR power supplies.

• 4612 Power Transfer is available separately

for secure and unobtrusive means of

channeling electrical wiring from the

door frame into the door itself.

EL Option

Rim devices with the EL option are

available in 12 or 24 VDC, and can be

powered with a simple transformer and

rectiﬁer or other DC power supply.

• EL-12 VDC – 1.5 Amps inrush/hold

• EL-24 VDC – 0.6 Amps inrush/hold

• Solenoids are rated for both intermittent and

continuous operation. Only rim exit devices

with the “EL” application are available

with mechanical dogging, specify “ELD”

• Order PS-EXIT Power Supply separately;

power and control up to two MLR or LR exit

devices in single or dual input operations,

see POWER for additional details (Product

note: PS-EXIT replaces legacy PS-LR

model). Adams Rite recommends that

for optimal performance, all CVR, SVR,

and Mortise type exit devices with the

LR option are installed and powered

using PS-EXIT power supplies.

• 4612 Power Transfer is available separately

for secure and unobtrusive means of

channeling electrical wiring from the

door frame into the door itself.

Adams Rite Exit Devices can be ordered with electriﬁcation options for standalone access

control or integration with maglocks, card readers, keypads, ﬁre alarms, power door

operators, and other control systems. Dierent exit device types have dierent installation

and power requirements. Please refer to product pages for detailed information.

Options

for 3000/8000 Series Exit Devices

Options

3000/8000

Series

106

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

EXIT DEVICES

Options

3000/8000

Series

Alarm

Suitable for all Adams Rite exit devices

36" wide or greater. This battery-operated

alarm option emits a loud 95 decibel alarm

to notify management of unauthorized exit.

Alarm is controlled by a key in standard

1" [25.4 mm] length, 1-5/32" [29.4 mm]

diameter mortise cylinder with MS® cam

such as the 4036 Mortise Cylinder. The

cylinder is used to arm, disarm, delay, or

reset the alarm. Will not alter the life-safety

characteristics of the exit device in any

way. Red letters printed on the bar give

a “hands o” warning to deter accidental

activation. Four AA alkaline batteries

power twin horns for two minutes (or until

disarmed) when pushbar is depressed.

Beeps to signal need for new batteries.

Monitor

Mounted under the exit device pushbar

on the hinge end, switches may be used

to activate signal light, horn, monitor, or

other devices. Switches can be wired for

normally open or normally closed. Can

be retroﬁt in ﬁeld to existing exit devices.

Dual switch version oers redundancy

as required by some building codes or it

can operate a second signaling device.

Suitable for all Adams Rite exit devices.

• Order Monitor/Signal Kits for upgrading any

3000 or 8000 Series device: 91-0897-01

for Single Monitoring Switch Kit or

91-0897-02 for Dual Monitoring Switch Kit.

• M1: Single

monitoring switch

• M2: Dual monitoring

switches

Cylinder Dogging

Suitable for all non-ﬁre rated Adams Rite

exit devices that require management

control of exit device dogging. Any

standard 15/16” [23.8 mm] to 1-1/8” [28.6

mm] length, 1-5/32" [29.4 mm] diameter

mortise cylinder with MS® cam such as

the 4036 Mortise Cylinder can be used

in a pushbar prepared at factory with

Cylinder Dogging kit. Cannot be ordered

with any other exit device options.

Electric Dogging

Motorized and Electric Latch Retraction

options can replace Electric Dogging

requirement, see the start of this

section for more information.

Matching

End Caps

Standard Adams Rite exit devices come

with black metal end caps. Matching end

caps are available for applications where

it is preferable that the end caps match

the ﬁnish of the exit device. Available

for US ﬁnishes only. Specify by adding

“MEC” after the regular ordering matrix.

Trim

3080 Series Entry Trim

3080 Series Entry Trim provides outside

activation for doors with any type of

Adams Rite exit device or deadlatch.

The locked handle is protected from

vandalism and forced entry with a

breakaway clutching mechanism.

3090 eForce® Keyless Entry

3090 eForce Keyless Entry provides

access control for Adams Rite

deadlocks, deadlatches, and exit

devices for aluminium, hollow metal

and wood door applications.

The battery-operated eForce 3090-

150 provides basic access control for

openings not requiring audit trail.

Please see the TRIM section of the

catalog for additional information.

Options Continued

Electric

Strikes

108

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

ELECTRIC

STRIKES

7100

Series

Electric

Strikes

Designed for use with Adams Rite deadlatches

or cylindrical locksets with 1/2" [12.7 mm] to

5/8" [15.9 mm] latchbolt projection. For use in

aluminum, hollow metal, or wood applications.

Function

Remote electrical control of any door equipped with an Adams

Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical

lockset with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection.

Electrical actuation unlocks the keeper, releasing the latchbolt

so the door may be opened without operating the latch itself.

Certiﬁcations

UL 1034 burglary-resistant listed

UL 294 (6th Edition) listed

Electric Strikes for

Adams Rite Deadlatches

& Cylindrical Locks

7100 Series

7110

71017100

7111

7130

7140

7131

Features

Case

1" x 3-3/8" x 1-5/8" deep

[25.4 mm x 85.7 mm x 41.3 mm deep].

Strike Opening

5/8" x 1-7/16" x 1/2" deep

[15.9 mm x 36.5 mm x 12.7 mm deep].

Bolt retaining keeper is stainless steel.

Strike accepts bolt of any Adams Rite

4500, 4700 (discontinued), or 4900

Deadlatch or cylindrical latches.

Strike Lip

Basic strike has lip of proper length

for 1-3/4" [44.5 mm] thick door that

closes ﬂush with jamb edge. Where

door thickness or jamb shape diers

from this standard relationship,

lip extension kits are available,

speciﬁed by last dash number.

• Lip extension kits not

available on 7101 or 7131.

Latchbolt Projection

1/2" to 5/8" [12.7 mm to 15.9 mm]

Faceplate

Available in a variety of

architectural ﬁnishes.

7100 1-1/4" x 4-7/8"

[31.8 mm x 123.8 mm] Flat with radius corners

7101 1-1/4" x 4-7/8"

[31.8 mm x 123.8 mm]

Radiused to match nose on inactive

leaf in a pair of narrow stile doors.

7110 1-7/16" x 7-15/16"

[36.5 mm x 201.6 mm] Flat with radius corners

7111 1-7/16" x 10-1/4"

[36.5 mm x 260.4 mm] Flat with radius corners

7130 1-1/4" x 6-7/8"

[31.8 mm x 174.6 mm] Flat with radius corners

7131 1-1/4" x 6-7/8"

[31.8 mm x 174.6 mm]

Radiused to match nose on inactive

leaf in a pair of narrow stile doors

7140 1-1/4" x 4-7/8"

[31.8 mm x 123.8 mm] Flat with square corners

7130/7131: Large 6-7/8" faceplate

is designed to cover strike opening

when converting from an MS® pivoted-

bolt deadlock to deadlatch.

109

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

ELECTRIC

STRIKES

Related Products

7100/7101, 7110/7111, 7130/7131, 7140

When purchasing this product, please consider the following related products, available separately:

DEADLATCHES EXIT DEVICES ACCESSORIES POWER

4510, 4530, 4900, 4920AN

Series Deadlatches

8300, 8400 Mortise Exit Device Lip Extension Kits, Modular Kits, Monitor Kits PS-1 Power Supply, 4603 Rectiﬁer,

4605/4606 Transformer, Piezo Horn

audible indicator, ElectroLynx connector

Standard Package

Individually boxed with mounting screws,

mounting clips, adhesive shims to

accommodate jamb or stile extrusion thickness

greater or less than nominal 1/8" [3.2 mm].

7140 Includes mounting clips and adhesive

shims for use where welded tabs are omitted.

Shipping Weight

2 lbs [0.91 kg].

Electrical

Voltage

Available in 12, 16, or 24 Volt AC and

DC. DC continuous units are silent, AC

intermittent units “buzz” on operation.

Current Draw

0.33 A at 12 VDC 1.42 A at 12 VAC

0.22 A at 16 VDC 0.63 A at 16 VAC

0.1 7A at 24 VDC 0.74 A at 24 VAC

Fail Safe | Fail Secure

Field selectable at time of installation.

However, AC intermittent solenoid must

not be used continuously in either.

Options

• Available with two Form ‘C’ monitoring

switches to indicate when the latchbolt

is engaged in the strike and whether the

strike jaw is blocked.

Not available on 7130/7131, 7140.

• Lip extension kits for various

dimensions of door centerline to

jamb edge; for ﬂat faceplates only.

Not available on 7101 or 7131.

• Modular Packaging

Match one strike body kit with one

faceplate kit to make a complete electric

strike. Faceplate kits contain all hardware

to mount electric strike. Please contact

factory or sales representative for details.

7100

Series

Electric

Strikes

110

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

ELECTRIC

STRIKES

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

7100/7101

Electric

Strikes

VERTICAL OF ELECTRIC

STRIKE FACEPLATE DIRECTLY

OPPOSITE OF DEADLATCH

RADIUS FACE

OF 7101

PRESSED

METAL NUT

MOUNTING

CLIP PRESSURE

SENSITIVE

SPACER

JAMB

(4 PLACES)

DRILL & CsK

FOR 8-32 SCREW

(2 PLACES)

JAMB

EDGE “A”

1-15/32"

37.3mm 1/4"

6.4mm

25.4mm

1-1/8"

28.6mm

1-1/4"

31.8mm

1-1/4"

31.8mm

3/32"

2.4mm

1-5/8"

41.3mm

4-1/8"

104.8mm

4-7/8"

123.8mm

4-7/8"

123.8mm

6-1/8"

155.8mm

5/32"

4mm

3-3/8"

85.7mm

3-3/8"

85.7mm

3-3/8"

85.7mm

21/32"

16.7mm

1-7/16"

36.5mm

1-1/16"

27mm

2-5/8"

66.7mm

21/32"

16.7mm

CYLINDER OF

ADAMS RITE LATCH

“A”

STANDARD UNIT FITS DIM.

“A” UP TO 1-1/16"

(see how to order)

MOUNTING BRACKETS

FURNISHED

TURN STRIKE

UPSIDE DOWN

FOR OPPOSITE

HAND

HORIZONTAL

ELECTRIC

STRIKE

AND

LATCHBOLT

How to Order

7100/7101 Electric Strikes: Specify quantity and the following information. Order related products separately.

MODEL FACEPLATE

SHAPE VOLTAGE CURRENT AND DUTY FEATURES* FINISH** LIP EXTENSIONS (DIM. A)***

(DOOR CENTERLINE TO JAMB EDGE)

710 0-3 1 0 -628 -00

0 Flat 3 12 Volt 1 DC Continuous or Intermittent 0 Standard/Fail-Secure 313 Dark Bronze Anodized 00 1-1/16" or less 05 2"

1 Radius 4 16 Volt 4 AC Intermittent 5 Fail-Safe 335 Black Anodized 01 1-1/2" 07 2-1/4"

5 24 Volt 7 Monitored/ Fail-Safe 626 Satin Chrome 02 1-5/8" 09 2-1/2"

9 Monitored/ Fail-Secure 628 Clear Anodized 03 1-3/4" 12 2-7/8"

*Fail-secure can be ﬁeld converted to fail-safe or vice-versa. **7101 available in 313, 335, 628 only. ***Lip Extensions not available on 7101.

7100/7101 Dimensions

Jamb Preparation Installation

111

ELECTRIC

STRIKES

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

7110/7111

Electric

Strikes

(4 PLACES)

DRILL & CsK

FOR 8-32 SCREW

(2 PLACES)

VERTICAL OF ELECTRIC

STRIKE FACEPLATE DIRECTLY

OPPOSITE OF DEADLATCH

SERIES 4500/4900

1-7/16"

36.5mm

1-7/16"

36.5mm

5/32"

4mm

3-3/8"

85.7mm

3-3/8"

85.7mm

1-3/16"

30.23mm

21/32"

16.7mm

23/32"

18.6mm

17/64"

6.7mm

1-7/16"

36.5mm

1-7/16"

36.5mm

21/32"

16.7mm

“A”

HORIZONTAL

ELECTRIC

STRIKE

AND

LATCHBOLT

HORIZONTAL

ELECTRIC STRIKE

HORIZONTAL OF

CYLINDER

(A-R 4500/4900

SERIES DEADLATCH)

HORIZONTAL

CYLINDER

(A-R 4500/4900

SERIES

DEADLATCH)

3/32"

2.4mm

1-5/64"

27.4mm

1-3/64"

26.6mm

1-41/64"

41.7mm

1-15/32"

37.3mm 1/4"

6.4mm

25.4mm

1-1/8"

28.6mm

1-5/8"

41.3mm

1-1/16"

27mm

21/32"

16.7mm

JAMB

EDGE “A”

1-7/16"

36.5mm

3/32"

2.4mm

7110:

7-15/16"

201.6mm

7111:

10-1/4"

260.4mm

7110:

7-7/16"

188.9mm

7111:

9-29/64"

240.1mm

3-3/8"

85.7mm

3-3/8"

85.7mm

STANDARD UNIT FITS

DIM. “A” UP TO 1-1/16"

(see how to order)

MOUNTING BRACKETS

FURNISHED

7110:

7-15/16"

201.6mm

7111:

10-1/4"

260.4mm

7110:

9-3/16"

233.4mm

7111:

11-1/2"

292.1mm

7101:

7-15/16"

201.6mm

7111:

10-1/4"

260.4mm

7110:

7-7/16"

188.9mm

7111:

9-29/64"

240.1mm

VERTICAL OF

ELECTRIC

STRIKE

FACEPLATE

DIRECTLY

OPPOSITE OF

DEADLATCH

TURN STRIKE UPSIDE

DOWN FOR

OPPOSITE HAND

How to Order

7110/7111 Electric Strikes: Specify quantity and the following information. Order related products separately.

MODEL FACEPLATE LENGTH VOLTAGE CURRENT AND DUTY FEATURES* FINISH LIP EXTENSIONS (DIM. A)

(DOOR CENTERLINE TO JAMB EDGE)

711 0-3 1 0 -652 -00

0 7-15/16" 3 12 Volt 1 DC Continuous or Intermittent 0 Standard/Fail-Secure 652 Satin Chrome 00 1-1/16" or less 05 2"

1 10-1/4" 4 16 Volt 4 AC Intermittent 5 Fail-Safe 01 1-1/2" 07 2-1/4"

5 24 Volt 7 Monitored/ Fail-Safe 02 1-5/8" 09 2-1/2"

9 Monitored/ Fail-Secure 03 1-3/4" 12 2-7/8"

*Fail-secure can be ﬁeld converted to fail-safe or vice-versa

7110/7111 Dimensions

Jamb Preparation

in Aluminium Installation in Wood

112

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

ELECTRIC

STRIKES

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

RADIUS FACE

OF 7131

1-15/32"

37.3mm 1/4"

6.4mm

25.4mm

1-1/8"

28.6mm

1-5/8"

41.3mm

1-1/16"

27mm

2-9/16"

65.1mm

21/32"

16.7mm

JAMB

EDGE “A”

1-1/4"

31.8mm 3/32"

2.4mm

3-3/8"

85.7mm

3-3/8"

85.7mm

6-7/8"

174.6mm

STANDARD UNIT FITS DIM.

“A” UP TO 1-1/16"

(see how to order)

MOUNTING BRACKETS

FURNISHED

3-3/8"

85.7mm

1-7/16"

36.5mm

6-7/8"

174.6mm

8-1/4"

209.6mm

HORIZONTAL

ELECTRIC

STRIKE

DRILL & CsK

FOR 8-32 SCREW

(2 PLACES)

VERTICAL OF

ELECTRIC STRIKE

FACE PLATE

DIRECTLY

OPPOSITE OF

DEADLATCH

HORIZONTAL

OF CYLINDER

(A-R 4500/4900

SERIES DEADLATCH)

1-1/4"

31.8mm

21/32"

16.7mm

(4 PLACES)

5/32"

4mm

PRESSED

METAL NUT

MOUNTING

CLIP PRESSURE

SENSITIVE

SPACER JAMB

TURN STRIKE

UPSIDE DOWN

FOR OPPOSITE HAND.

How to Order

7130/7131 Electric Strikes: Specify quantity and the following information. Order related products separately.

MODEL FACEPLATE

SHAPE VOLTAGE CURRENT AND DUTY FEATURES* FINISH LIP EXTENSIONS (DIM. A)**

(DOOR CENTERLINE TO JAMB EDGE)

713 0-3 1 0 -313 -00

0 Flat 3 12 Volt 1 DC Continuous or Intermittent 0 Standard/Fail-Secure 313 Dark Bronze Anodized 00 1-1/16" or less 05 2"

1 Radius 4 16 Volt 4 AC Intermittent 5 Fail-Safe 335 Black Anodized 01 1-1/2" 07 2-1/4"

5 24 Volt 628 Clear Anodized 02 1-5/8" 09 2-1/2"

03 1-3/4" 12 2-7/8"

*Fail-secure can be ﬁeld converted to fail-safe or vice-versa. **Lip Extensions not available on 7131.

7130/7131

Dimensions

Jamb Preparation Installation

7130/7131

Electric

Strikes

113

ELECTRIC

STRIKES

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

1-15/32"

37.3mm 1/4"

6.4mm

25.4mm

1-1/8"

28.6mm

1-5/8"

41.3mm

1-1/16"

27mm

21/32"

16.7mm

JAMB

EDGE “A”

1-1/4"

31.8mm 3/32"

2.4mm

3-3/8"

85.7mm

4-1/8"

104.8mm

4-7/8"

123.8mm

3-3/8"

85.7mm

STANDARD UNIT FITS DIM.

“A” UP TO 1-1/16"

(see how to order)

MOUNTING BRACKETS

FURNISHED

HORIZONTAL

OF STRIKE

SAME AS

HORIZONTAL

OF LATCH BOLT

“A”

VERTICAL OF DEADLATCH

MOUNTING SCREWS IN SAME

PLANE AS ELECTRIC STRIKE

MOUNTING SCREWS

1-3/64"

26.6mm

4-1/8"

104.8mm

4-7/8"

123.8mm

3-3/8"

85.7mm

3/16"

4.8mm

1-5/32"

29.4mm

5/8"

15.9mm

1-11/64"

29.8mm

HORIZONTAL

CYLINDER

(A-R 4500/

4900

SERIES

DEADLATCH)

1-7/16"

36.5mm

1-41/64"

41.7mm

21/32"

16.7mm

3/32"

2.4mm

1-5/64"

27.4mm

4-7/8"

23.8mm

4-1/8"

104.8mm

3-5/8"

92.1mm

21/32"

16.7mm

1-7/16"

36.5mm

3-3/8"

85.7mm

1-1/4"

31.8mm

HORIZONTAL

OF CYLINDER

(A-R 4500/4900

SERIES DEADLATCH)

HORIZONTAL

ELECTRIC

STRIKE

"A"

PRESSURE

SENSITIVE

SPACER

MOUNTING BRACKET

(MOUNTING CLIP)

WELDED TO JAMB

(OR PROVIDED)

12-24

(2 plcs)VERTICAL CENTERLINE

OF ELECTRIC STRIKE

FACEPLATE DIRECTLY

OPPOSITE CENTERLINE

OF DEADLATCH

How to Order

7140 Electric Strike: Specify quantity and the following information. Order related products separately.

MODEL VOLTAGE CURRENT AND DUTY FEATURES* FINISH LIP EXTENSIONS (DIM. A)

(DOOR CENTERLINE TO JAMB EDGE)

7140 -3 1 0 -628 -00

3 12 Volt 1 DC Continuous or Intermittent 0 Standard/Fail-Secure 313 Dark Bronze Anodized 00 1-1/16" or less 05 2"

4 16 Volt 4 AC Intermittent 5 Fail-Safe 335 Black Anodized 01 1-1/2" 07 2-1/4"

5 24 Volt 626 Satin Chrome 02 1-5/8" 09 2-1/2"

628 Clear Anodized 03 1-3/4" 12 2-7/8"

*Fail-secure can be ﬁeld converted to fail-safe or vice-versa

7140 Dimensions

Jamb Preparation

in Wood

Jamb Preparation &

Installation in Steel

7140

Electric

Strike

114

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

ELECTRIC

STRIKES

Features

Case

1" x 3-3/8" x 1-7/8" deep

[25.4 mm x 85.7 mm x 47.6 mm].

Strike Opening

Bolt retaining keeper is stainless steel.

Strike location must be

centered on latchbolt.

7160: 3/4" x 1-7/16" x 5/8" deep

[19.1 mm x 36.5 mm x

15.9 mm deep].

7170: 5/8" x 1-7/16" x 5/8" deep

[15.9 mm x 36.5 mm x

15.9 mm deep].

Strike Lip

Basic strike has lip of proper length

for 1-3/4" [44.5 mm] thick door that

closes ﬂush with jamb edge. Where

door thickness or jamb shape diers

from this standard relationship,

lip extension kits are available,

speciﬁed by last dash number.

Latchbolt Projection

3/4" [19.1 mm]

Faceplate

1-1/4" x 4-7/8" [31.8 mm x 123.8 mm].

Available in a variety of

architectural ﬁnishes.

7160: Flat with radius corners

7170: Flat with square corners

Standard Package

Individually boxed with

mounting screws.

7160 includes mounting clips, adhesive

shims to accommodate jamb or

stile extrusion thickness greater or

less than nominal 1/8" [3.2 mm].

7170 includes mounting clips and

adhesive shims for use when

welded tabs are omitted.

Shipping weight

2 lbs [0.91 kg].

7160, 170

Electric

Strikes

7160, 7170 Electric Strikes with 4-7/8" [123.8 mm]

faceplates are designed for use with mortise or

cylindrical type locksets with up to 3/4" [19.1 mm]

latchbolt projection without deadbolt.

7160 Electric Strikes are for use in aluminum

applications. 7170 Electric Strikes are for use

in hollow metal or wood applications.

Function

Remote electrical control of narrow stile aluminum doors (7160)

or hollow metal/wood doors (7170) equipped with a mortise or

cylindrical lockset with up to 3/4" [19.1 mm] latchbolt projection

without deadbolt. Electrical actuation unlocks the keeper, releasing

the latchbolt so the door may be opened without operating the

latch itself. The electric strike must be positioned to accommodate

oset mortise latches during installation. Please refer to

installation instructions or contact factory for more information.

Certiﬁcations

UL 1034 burglary-resistant listed UL 294 (6th Edition) listed

Electric Strikes

for Mortise or

Cylindrical Locks

7160, 7170

7160

7170

115

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

ELECTRIC

STRIKES

How to Order

7160, 7170 Electric Strikes: Specify quantity and the following information. Order related products separately.

MODEL APPLICATION VOLTAGE CURRENT AND DUTY FEATURES* FINISH LIP EXTENSIONS (DIM. A)

(DOOR CENTERLINE TO JAMB EDGE)

71 60 -3 1 0 -628 -00

60 Aluminum Jambs 3 12 Volt 1 DC Continuous or Intermittent 0 Standard/Fail-Secure 313 Dark Bronze Anodized 00 1-1/16" or less 05 2"

70 Hollow Metal, Wood 4 16 Volt 4 AC Intermittent 5 Fail-Safe 335 Black Anodized 01 1-1/2" 07 2-1/4"

5 24 Volt 7 Monitored/ Fail-Safe 626 Satin Chrome 02 1-5/8" 09 2-1/2"

9 Monitored/ Fail-Secure 628 Clear Anodized 03 1-3/4" 12 2-7/8"

*Fail-secure can be ﬁeld converted to fail-safe or vice-versa

Related Products

When purchasing this product, please consider the following related products, available separately:

ACCESSORIES POWER

Lip Extension Kits, Modular Kits, Monitor Kits PS-1 Power Supply, 4603 Rectiﬁer, 4605/4606 Transformer,

Piezo Horn audible indicator, ElectroLynx connector

7160, 170

Electric

Strikes

Electrical

Voltage

Available in 12, 16, or 24 Volt AC and

DC. DC continuous units are silent, AC

intermittent units “buzz" on operation.

Current Draw

0.33 A at 12 VDC 1.42 A at 12 VAC

0.22 A at 16 VDC 0.63 A at 16 VAC

0.17 A at 24 VDC 0.74 A at 24 VAC

Fail Safe | Fail Secure

Field selectable at time of

installation. However, AC

intermittent solenoid must not be

used continuously in either.

Options

• Available with two Form ‘C’

monitoring switches to indicate

when the latchbolt is engaged

in the strike and whether

the strike jaw is blocked.

• Lip extension kits for

various dimensions of door

centerline to jamb edge.

• Modular Packaging

Match one strike body kit with

one faceplate kit to make

a complete electric strike.

Faceplate kits contain all

hardware to mount electric strike.

Please contact factory or sales

representative for details.

Product Note

All 3/4" throw latches require 1/8"

minimum door gap. Horizontal

center line of strike must match

line of mortise latchbolt.

116

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

ELECTRIC

STRIKES

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

VERTICAL OF ELECTRIC

STRIKE FACE PLATE

DIRECTLY OPPOSITE

OF DEADLATCH

TURN STRIKE

UPSIDE DOWN

FOR OPPOSITE HAND.

1-1/4"

31.8mm 3/32"

2.4mm

3-3/8"

85.7mm

4-1/8"

104.8mm

4-7/8"

123.8mm

3-3/8"

85.7mm

JAMB

EDGE “A”

20°

1/4"

6.4mm

1-9/16"

39.7mm

25.4mm

1-1/8"

28.6mm

1-1/2"

38.1mm

1-13/16"

46mm 1"

25.4mm27/32"

21.4mm

HORIZONTAL

OF ELECTRIC STRIKE

AND LATCHBOLT

(NOT PER STANDARD

ANSI PREP LOCATION)

DRILL & CsK

FOR 8-32 FLAT

HEAD SCREW

(2 PLACES)

(4 PLACES)

5/32"

4mm

3-3/8"

85.7mm

6-1/8"

155.6mm

4-7/8"

123.8mm

1-1/4"

31.8mm

27/32"

21.4mm

PRESSED

METAL NUT

MOUNTING

CLIP PRESSURE

SENSITIVE

SPACER

JAMB

7160

Electric

Strike

7160 Dimensions

Jamb Preparation Installation

117

ELECTRIC

STRIKES

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

JAMB

EDGE “A”

1-1/4"

31.8mm 3/32"

2.4mm

3-3/8"

85.7mm

4-1/8"

104.8mm

4-7/8"

123.8mm

3-3/8"

85.7mm

STANDARD UNIT FITS DIM. “A”

UP TO 1-1/16"

(see how to order)

MOUNTING BRACKETS

FURNISHED

4-7/8"

123.8mm

4-1/8"

104.8mm

3-5/8"

92.1mm

27/32"

21.4mm

3-3/8"

85.7mm

1-1/4"

31.5mm

PRESSURE

SENSITIVE

SPACER

MOUNTING BRACKET

(MOUNTING CLIP) WELDED TO

JAMB (OR PROVIDED)

“A”

12-24

(2 plcs)VERTICAL CENTERLINE OF

ELECTRIC STRIKE

FACEPLATE DIRECTLY

OPPOSITE CENTERLINE OF

DEADLATCH

HORIZONTAL

ELECTRIC

STRIKE

20°

1/4"

6.4mm

1-9/16"

39.7mm

25.4mm

1-1/8"

28.6mm

1-1/2"

38.1mm

13/16"

46mm 1"

25.4mm27/32"

21.4mm

VERTICAL OF DEADLATCH

MOUNTING SCREWS IN

SAME PLANE AS ELECTRIC

STRIKE MOUNTING SCREWS

HORIZONTAL

STRIKE SAME

HORIZONTAL

OF LATCHBOLT

“A”

4-1/8"

104.8mm

4-7/8"

123.8mm

3-3/8"

85.7mm

1-1/4"

31.8mm

5/8"

15.9mm

1/8"

3.2mm

1-3/8"

34.9mm 1-1/8"

28.6mm

1-53/64"

46.4mm

27/32"

21.4mm

3/32"

2.4mm

1-1/2"

38.1mm

7170 Dimensions

Jamb Preparation

in Wood

Jamb Preparation

& Installation in

Steel

7170

Electric

Strike

118

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

ELECTRIC

STRIKES

7200

Series

Electric

Strikes

Features

Case

7240: 1" x 3-3/8" x 1-5/8" deep

[25.4 mm x 85.7 mm

x 41.3 mm deep]

7270: 1" x 3-3/8" x 1-7/8" deep

[25.4 mm x 85.7 mm

x 47.6 mm deep]

Strike Opening

Bolt retaining keeper and strike lip

are stainless steel. Strike accepts

bolts from a variety of locksets.

7240: 5/8" x 1-7/16" x 9/16" deep

[15.9 mm x 36.5 mm

x 14.3 mm deep]

7270: 3/4" x 1-7/16" x 5/8" deep

[19.1 mm x 36.5 mm x

15.9 mm deep]

Strike Lip

Basic strike has lip of proper length

for 1-3/4" [44.5 mm] thick door that

closes ﬂush with jamb edge.

Faceplate

Measures 1-1/4" x 4-7/8"

[31.8 mm x 123.8 mm]; ﬂat

with square corners

Latchbolt Projection

7240: 5/8" [15.9 mm]

7270: 3/4" [19.1 mm]

Standard Package

Individually boxed with mounting

screws. Includes mounting clips

and adhesive shims for use where

welded tabs are omitted.

Shipping Weight

2 lbs [0.91 kg].

7240 Fire-Rated Electric Strikes with 4-7/8" [123.8 mm]

faceplates are designed for cylindrical locksets

with up to 5/8" [15.9 mm] latchbolt projection.

7270 Fire-Rated Electric Strikes with 4-7/8" [123.8 mm]

faceplates are designed for mortise or

cylindrical locksets with up to 3/4" [19.1 mm]

latchbolt projection without a deadbolt.

Both models are for use in hollow metal door jambs.

Function

Remote electrical control of hollow metal doors equipped with

cylindrical locksets with up to 5/8" [15.9 mm] latchbolt projection

(7240) or mortise or cylindrical lockset with up to 3/4" [19.1 mm]

latchbolt projection (7270). Electrical actuation unlocks the

keeper, releasing the latchbolt so the door may be opened without

operating the latch itself. Fire-rated in fail secure mode only.

Certiﬁcations

UL 10C ﬁre rated, 3 hour single door (fail secure only)

CAN/ULC-S104 ﬁre door conformant

Fire-Rated Electric Strikes

7200 Series

7240

7270

119

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

ELECTRIC

STRIKES

How to Order

7240, 7270 Electric Strikes: Specify quantity and the following information. Order related products separately.

MODEL APPLICATION VOLTAGE CURRENT AND DUTY FEATURES* FINISH

LIP EXTENSIONS (DIM. A)

(DOOR CENTERLINE TO JAMB EDGE

FOR INTERIOR FRAMES)

72 40 -3 1 0 -630 -50

40 Cylindrical Latches 3 12 Volt 1 DC Continuous or Intermittent 0 Fail-Secure 630 Satin Stainless 00 1-1/16" or less

70 Mortise Latches 5 24 Volt 4 AC Intermittent 9 Monitored/ Fail-Secure 50 1-3/8"

*Not available Fail-Safe

Electrical

Voltage

Available in 12 or 24 Volt AC and DC.

DC continuous units are silent, AC

intermittent units “buzz" on operation.

Current Draw

0.33 A at 12 VDC 1.42 A at 12 VAC

0.17 A at 24 VDC 0.74 A at 24 VAC

Fail Safe | Fail Secure

Assembled for fail-secure (locked

when unpowered) operation.

Options

• Available with two Form ‘C’

monitoring switches to indicate

when the latchbolt is engaged

in the strike and whether

the strike jaw is blocked.

• Available with lip extension kit.

Specify when ordering if required.

Product Note

All 3/4" throw latches require 1/8"

minimum door gap. Horizontal

center line of strike must match

line of mortise latchbolt.

Related Products

When purchasing this product, please consider the following related products, available separately:

ACCESSORIES POWER

Lip Extension Kits PS-1 Power Supply, 4603 Rectiﬁer, 4605/4606 Transformer,

Piezo Horn audible indicator, ElectroLynx connector

120

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

ELECTRIC

STRIKES

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

7240

Electric Strike

“A”

JAMB

EDGE

1-1/4"

31.8mm

3/32"

2.4mm

4-1/8"

104.8mm

4-7/8"

123.8mm

3-3/8"

85.7mm

3-3/8"

85.7mm

1/4"

6.4mm

25.4mm

1-1/8"

28.6mm

1-15/32"

37.3mm

1-5/8"

41.3mm

21/32"

16.7mm

1-1/16"

27mm

STANDARD UNIT FITS DIM. “A”

UP TO 1-1/16"

(see how to order)

MOUNTING BRACKETS

FURNISHED

HORIZONTAL OF

ELECTRIC STRIKE SAME

AS HORIZONTAL

OF LATCHBOLT

VERTICAL OF ELECTRIC STRIKE

FACEPLATE DIRECTLY OPPOSITE

OF DEADLATCH

MOUNTING

BRACKET

WELDED TO

JAMB

12-24

(2 PLCS.)

“A”

4-1/8"

104.8mm

4-7/8"

123.8mm

3-3/8"

85.7mm

21/32"

16.7mm

1-1/4"

31.8mm

3-5/8"

92mm

TURN STRIKE

UPSIDE DOWN

FOR OPPOSITE HAND

7240 Dimensions

Installation in

Steel Jamb

121

ELECTRIC

STRIKES

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

7270

Electric

Strike

Installation in

Steel Jamb

7270 Dimensions

20°

1/4"

6.4mm

25.4mm

1-1/8"

28.6mm

1-9/16"

39.7mm

1-1/2"

38.1mm

27/32"

21.4mm

1-13/16"

46mm 1"

25.4mm

“A”

JAMB

EDGE

1-1/4"

31.8mm 3/32"

2.4mm

4-1/8"

104.8mm

4-7/8"

123.8mm

3-3/8"

85.7mm

3-3/8"

85.7mm

STANDARD UNIT FITS DIM. “A” UP TO 1-1/16"

(see how to order)

MOUNTING BRACKETS FURNISHED

“A”

PRESSURE

SENSITIVE

SPACER

TURN STRIKE

UPSIDE DOWN

FOR OPPOSITE HAND

12-24

(2 PLCS.)

VERTICAL OF DEADLATCH

MOUNTING SCREWS IN SAME

PLANE AS ELECTRIC STRIKE

MOUNTING SCREWS

HORIZONTAL OF

STRIKE SAME AS

HORIZONTAL

OF LATCHBOLT

4-1/8"

104.8mm

4-7/8"

123.8mm

3-3/8"

85.7mm

1/8"

3.2mm

MOUNTING BRACKET

(MOUNTING CLIP) WELDED

TO JAMB

(OR PROVIDED)

1-1/4"

31.8mm

27/32"

21.4mm

122

Updated: December 21, 2020

US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

ELECTRIC

STRIKES

Ultraline®

7400

Series

Electric

Strikes

Designed for use with Adams Rite deadlatches

or cylindrical locksets with 1/2" [12.7 mm] to

5/8" [15.9 mm] latchbolt projection. For use in

aluminum, hollow metal, or wood applications.

Open electrically under 25 lbs [11.3 kg] of preload.

Preload is pressure exerted on doors by air

conditioning systems, warping or misaligned

hardware which can disable common electric strikes.

Function

This non-handed strike features an ultra-compact design

and adjustable stainless steel keepers with over 1,500 lbs

[680.4 kg] of holding force in fail secure mode. The strike

releases electrically with up to 25 lbs of door preload.

Single solenoid operates on 12/16/24 VDC power.

Remote electrical control of narrow stile aluminum doors equipped

with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch

or cylindrical lockset with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt

projection. Electrical actuation unlocks the keeper, releasing the

latchbolt so the door may be opened without operating the latch itself.

Certiﬁcations

UL 1034

UL 294

ULC-S319

ANSI/BHMA A156.18

ANSI/BHMA A156.31

Electric Strikes and

Frame Mounted

Actuators, Grade 1

Electric Strikes for

Adams Rite Deadlatches,

Cylindrical Locks

UltraLine® 7400 Series

7410

74017400

7411

7430

7440

7431

Features

Case

1-13/32" x 3-3/8" x 1-1/16" deep

[35.7 mm x 85.7 mm x 27 mm deep]

Strike Lip

Basic 7400 strike has lip of proper

length for 1-3/4" [44.5 mm] thick door

that closes ﬂush with jamb edge.

Where door thickness or jamb shape

diers from this standard relationship,

lip extension kits are available.

Lip extension kits not

available on 7401, 7431

Strike Opening

5/8" adjustable x 1-7/16" x 1/2" deep

[15.9 mm adjustable x 36.5 mm

x 12.7 mm deep]. Bolt retaining

keeper is stainless steel. Strike

accepts bolt of Adams Rite 4500,

4700 (discontinued), or 4900

Deadlatch or cylindrical locksets.

Latchbolt Projection

1/2" to 5/8” [12.7 mm to 15.9 mm]

123

All measurements are approximate and are provided for informational purposes only.

Refer to the product Installation Instructions.

ELECTRIC

STRIKES

Related Products

7400/7401, 7410/7411, 7430/7431, 7440

When purchasing this product, please consider the following related products, available separately:

DEADLATCHES EXIT DEVICES ACCESSORIES POWER

4510, 4530, 4900, 4920AN

Series Deadlatches

8300, 8400 Mortise Exit Device Modular Kits, Lip Extension Kits,

WDC7400-Wood Door Cover

PS-1 Power Supply, 4603 Rectiﬁer,

4605/4606 Transformer, Piezo

Horn audible indicator, ElectroLynx

connector, VA7400 Voltage Adapter

Ultraline®

7400

Series

Electric

Strikes

Preload

7400 Series Electric Strikes open electrically

under 25 lbs [11.3 kg] of preload. Preload is

pressure exerted on doors by air conditioning

systems, warping or misaligned hardware

which can disable common electric strikes.

Using jaw inserts of various sizes, the

Ultraline 7400 Series electric strikes are

adjustable to compensate for door and frame

Adams Rite 2020 2021 Catalog Product

Navigation menu

Versions of this User Manual:

Views

Navigation
