Addvalue Communications SBRANGER SABRE RANGER User Manual

Addvalue Communications Pte Ltd SABRE RANGER

user manual

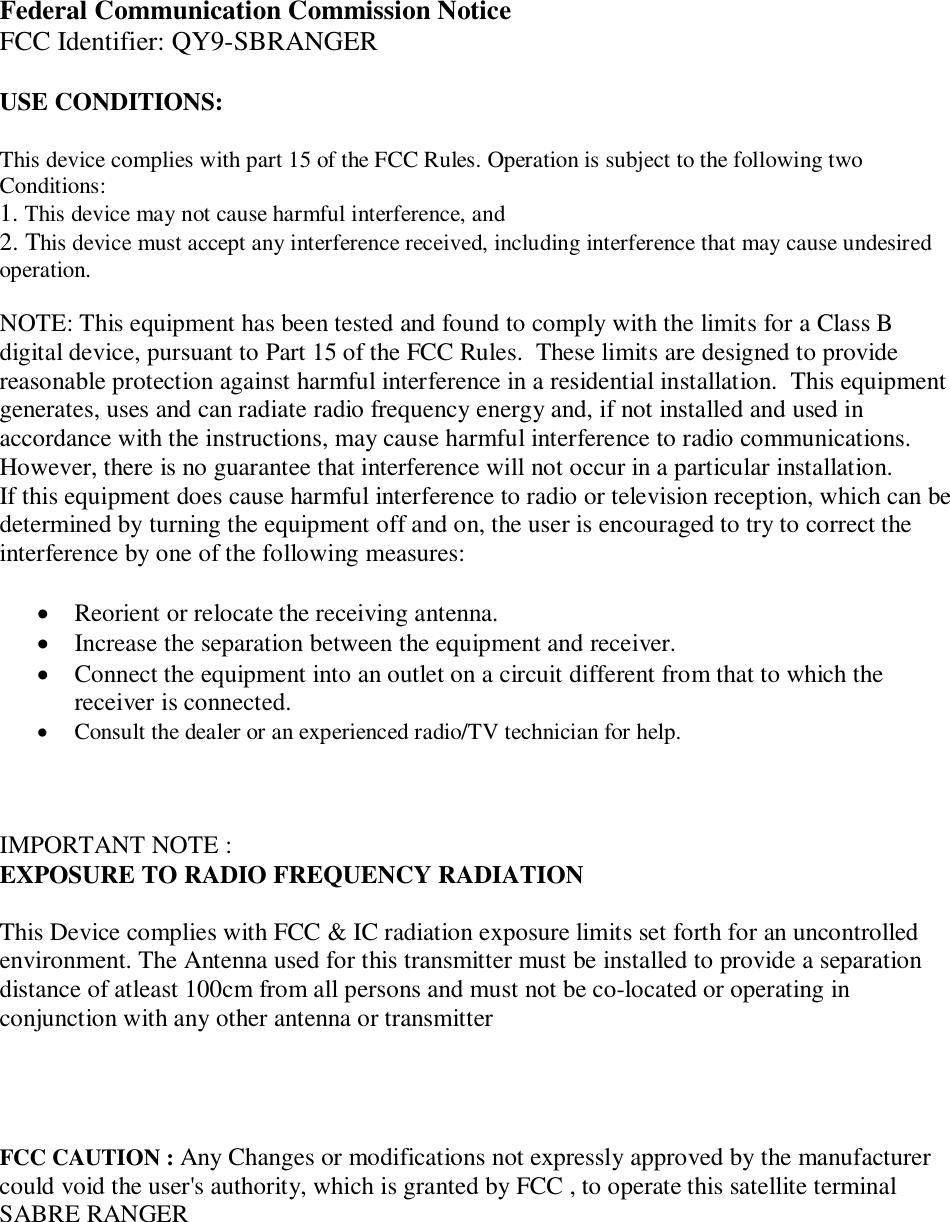

Federal Communication Commission NoticeFCC Identifier: QY9-SBRANGERUSE CONDITIONS:This device complies with part 15 of the FCC Rules. Operation is subject to the following twoConditions:1. This device may not cause harmful interference, and2. This device must accept any interference received, including interference that may cause undesiredoperation.NOTE: This equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to Part 15 of the FCC Rules.  These limits are designed to providereasonable protection against harmful interference in a residential installation.  This equipmentgenerates, uses and can radiate radio frequency energy and, if not installed and used inaccordance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can bedetermined by turning the equipment off and on, the user is encouraged to try to correct theinterference by one of the following measures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.Consult the dealer or an experienced radio/TV technician for help.IMPORTANT NOTE :EXPOSURE TO RADIO FREQUENCY RADIATIONThis Device complies with FCC & IC radiation exposure limits set forth for an uncontrolledenvironment. The Antenna used for this transmitter must be installed to provide a separationdistance of atleast 100cm from all persons and must not be co-located or operating inconjunction with any other antenna or transmitterFCC CAUTION : Any Changes or modifications not expressly approved by the manufacturercould void the user's authority, which is granted by FCC , to operate this satellite terminalSABRE RANGER

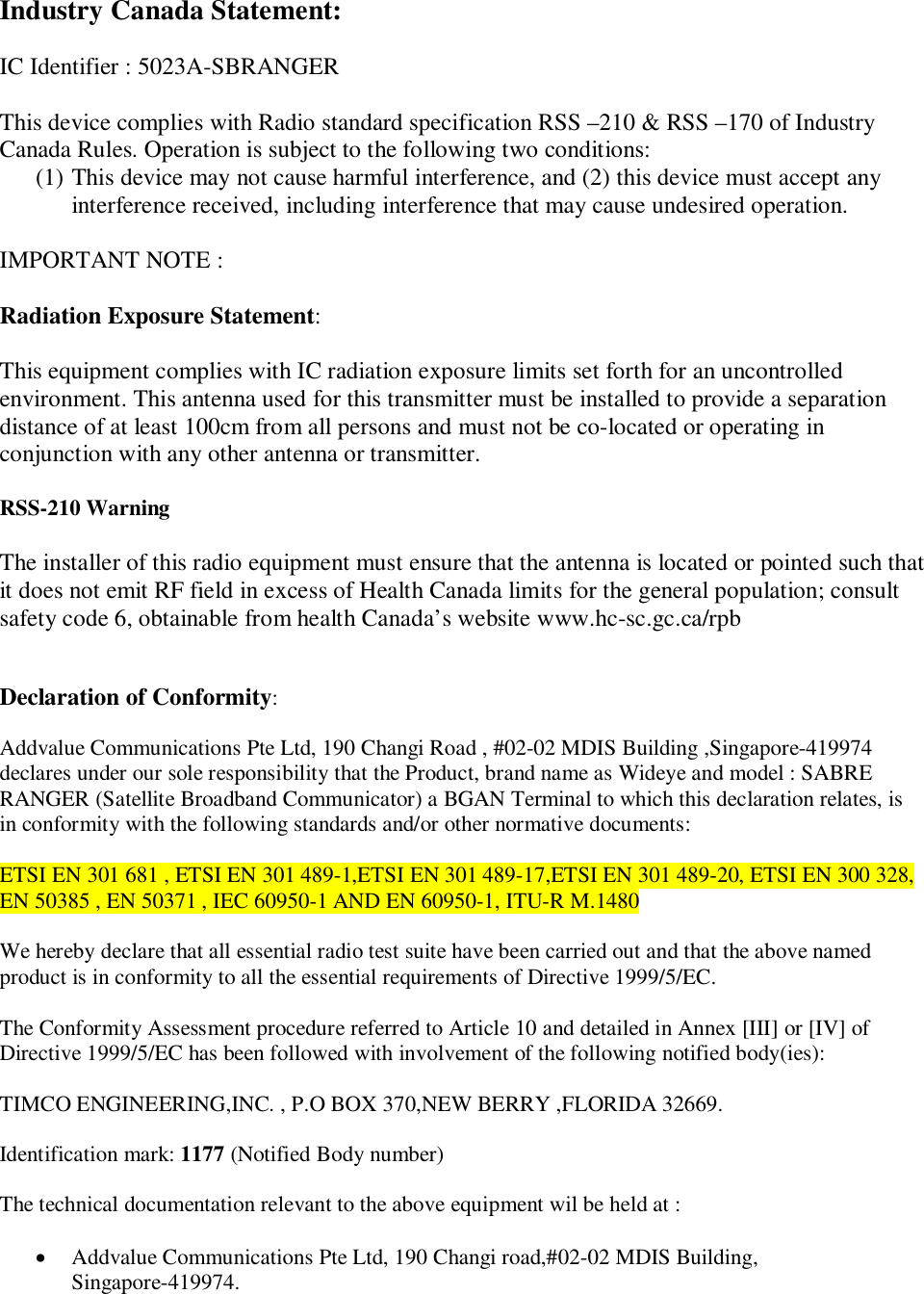

Industry Canada Statement:IC Identifier : 5023A-SBRANGERThis device complies with Radio standard specification RSS –210 & RSS –170 of IndustryCanada Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept anyinterference received, including interference that may cause undesired operation.IMPORTANT NOTE :Radiation Exposure Statement:This equipment complies with IC radiation exposure limits set forth for an uncontrolledenvironment. This antenna used for this transmitter must be installed to provide a separationdistance of at least 100cm from all persons and must not be co-located or operating inconjunction with any other antenna or transmitter.RSS-210 WarningThe installer of this radio equipment must ensure that the antenna is located or pointed such thatit does not emit RF field in excess of Health Canada limits for the general population; consultsafety code 6, obtainable from health Canada’s website www.hc-sc.gc.ca/rpbDeclaration of Conformity:Addvalue Communications Pte Ltd, 190 Changi Road , #02-02 MDIS Building ,Singapore-419974declares under our sole responsibility that the Product, brand name as Wideye and model : SABRERANGER (Satellite Broadband Communicator) a BGAN Terminal to which this declaration relates, isin conformity with the following standards and/or other normative documents:ETSI EN 301 681 , ETSI EN 301 489-1,ETSI EN 301 489-17,ETSI EN 301 489-20, ETSI EN 300 328,EN 50385 , EN 50371 , IEC 60950-1 AND EN 60950-1, ITU-R M.1480We hereby declare that all essential radio test suite have been carried out and that the above namedproduct is in conformity to all the essential requirements of Directive 1999/5/EC.The Conformity Assessment procedure referred to Article 10 and detailed in Annex [III] or [IV] ofDirective 1999/5/EC has been followed with involvement of the following notified body(ies):TIMCO ENGINEERING,INC. , P.O BOX 370,NEW BERRY ,FLORIDA 32669.Identification mark: 1177 (Notified Body number)The technical documentation relevant to the above equipment wil be held at :Addvalue Communications Pte Ltd, 190 Changi road,#02-02 MDIS Building,Singapore-419974.

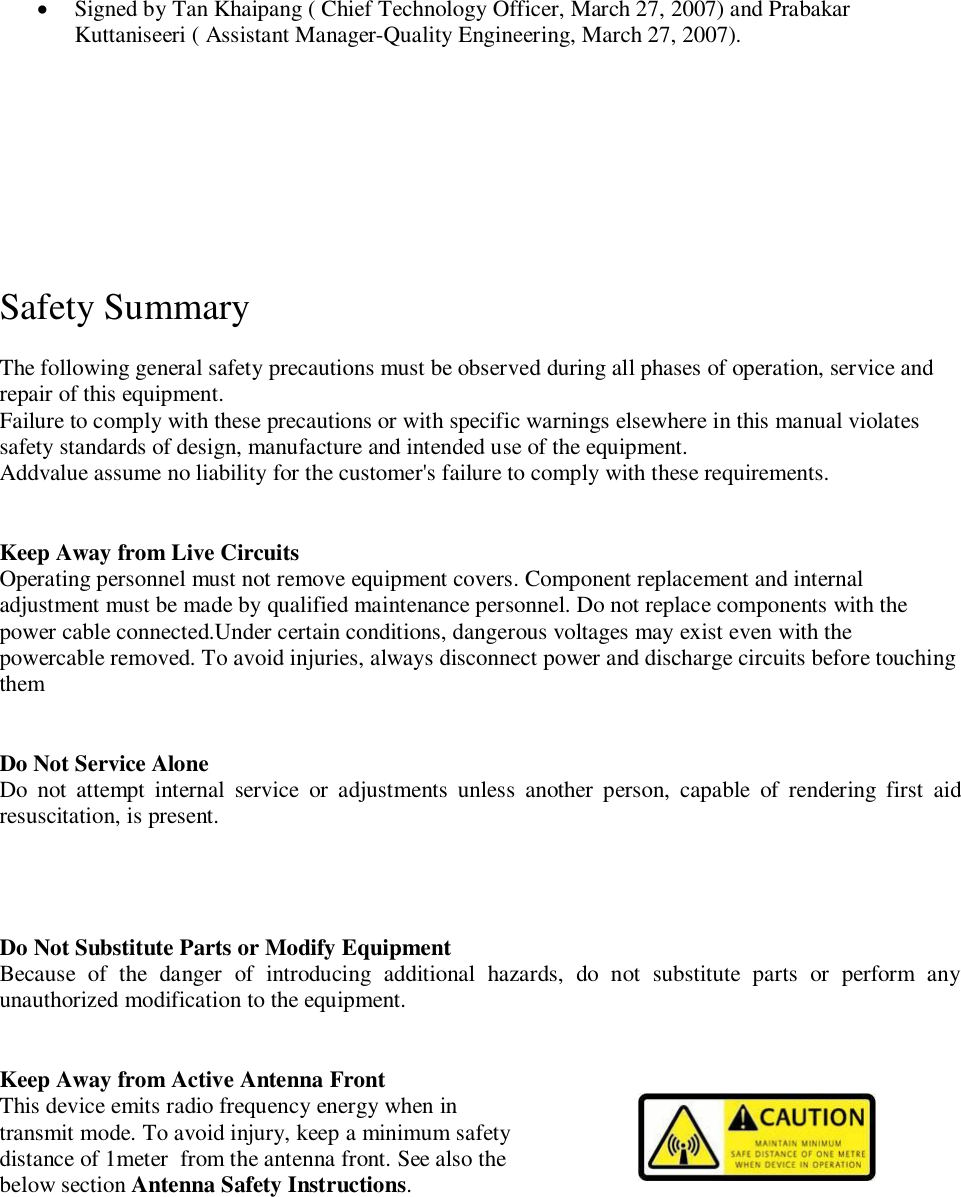

Signed by Tan Khaipang ( Chief Technology Officer, March 27, 2007) and PrabakarKuttaniseeri ( Assistant Manager-Quality Engineering, March 27, 2007).Safety Summary 1The following general safety precautions must be observed during all phases of operation, service andrepair of this equipment.Failure to comply with these precautions or with specific warnings elsewhere in this manual violatessafety standards of design, manufacture and intended use of the equipment.Addvalue assume no liability for the customer's failure to comply with these requirements.Keep Away from Live CircuitsOperating personnel must not remove equipment covers. Component replacement and internaladjustment must be made by qualified maintenance personnel. Do not replace components with thepower cable connected.Under certain conditions, dangerous voltages may exist even with thepowercable removed. To avoid injuries, always disconnect power and discharge circuits before touchingthemDo Not Service AloneDo not attempt internal service or adjustments unless another person, capable of rendering first aidresuscitation, is present.Do Not Substitute Parts or Modify EquipmentBecause of the danger of introducing additional hazards, do not substitute parts or perform anyunauthorized modification to the equipment.Keep Away from Active Antenna FrontThis device emits radio frequency energy when intransmit mode. To avoid injury, keep a minimum safetydistance of 1meter  from the antenna front. See also thebelow section Antenna Safety Instructions.

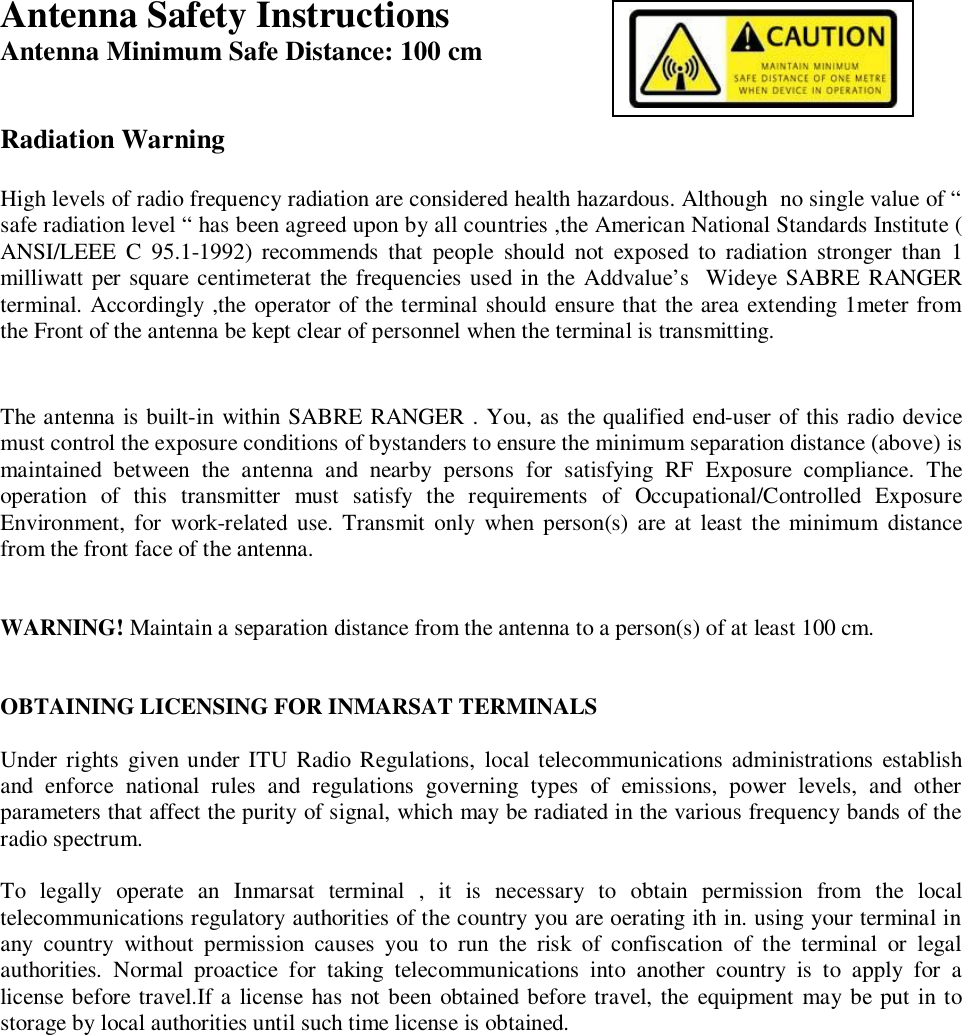

Antenna Safety Instructions 2Antenna Minimum Safe Distance: 100 cmRadiation WarningHigh levels of radio frequency radiation are considered health hazardous. Although  no single value of “safe radiation level “ has been agreed upon by all countries ,the American National Standards Institute (ANSI/LEEE C 95.1-1992) recommends that people should not exposed to radiation stronger than 1milliwatt per square centimeterat the frequencies used in the Addvalue’s  Wideye SABRE RANGERterminal. Accordingly ,the operator of the terminal should ensure that the area extending 1meter fromthe Front of the antenna be kept clear of personnel when the terminal is transmitting.The antenna is built-in within SABRE RANGER . You, as the qualified end-user of this radio devicemust control the exposure conditions of bystanders to ensure the minimum separation distance (above) ismaintained between the antenna and nearby persons for satisfying RF Exposure compliance. Theoperation of this transmitter must satisfy the requirements of Occupational/Controlled ExposureEnvironment, for work-related use. Transmit only when person(s) are at least the minimum distancefrom the front face of the antenna.WARNING! Maintain a separation distance from the antenna to a person(s) of at least 100 cm.OBTAINING LICENSING FOR INMARSAT TERMINALSUnder rights given under ITU Radio Regulations, local telecommunications administrations establishand enforce national rules and regulations governing types of emissions, power levels, and otherparameters that affect the purity of signal, which may be radiated in the various frequency bands of theradio spectrum.To legally operate an Inmarsat terminal , it is necessary to obtain permission from the localtelecommunications regulatory authorities of the country you are oerating ith in. using your terminal inany country without permission causes you to run the risk of confiscation of the terminal or legalauthorities. Normal proactice for taking telecommunications into another country is to apply for alicense before travel.If a license has not been obtained before travel, the equipment may be put in tostorage by local authorities until such time license is obtained.

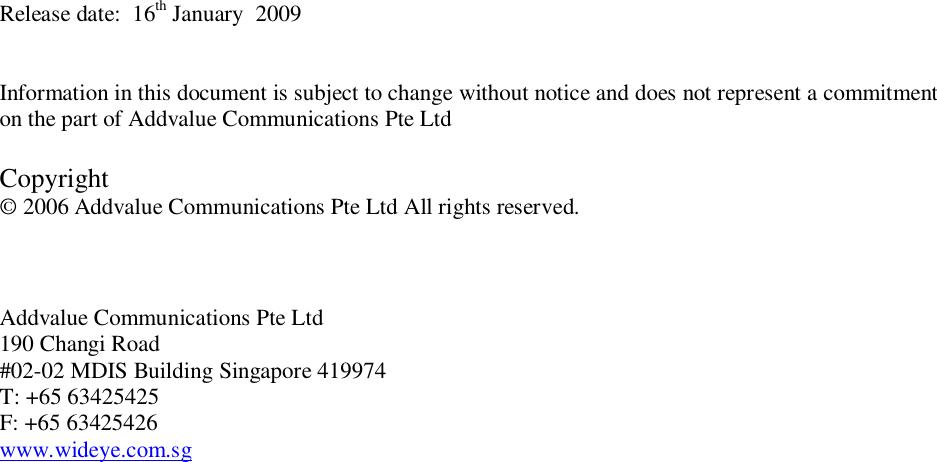

Release date:  16th January  2009Information in this document is subject to change without notice and does not represent a commitmenton the part of Addvalue Communications Pte LtdCopyright© 2006 Addvalue Communications Pte Ltd All rights reserved.Addvalue Communications Pte Ltd190 Changi Road#02-02 MDIS Building Singapore 419974T: +65 63425425F: +65 63425426www.wideye.com.sg
