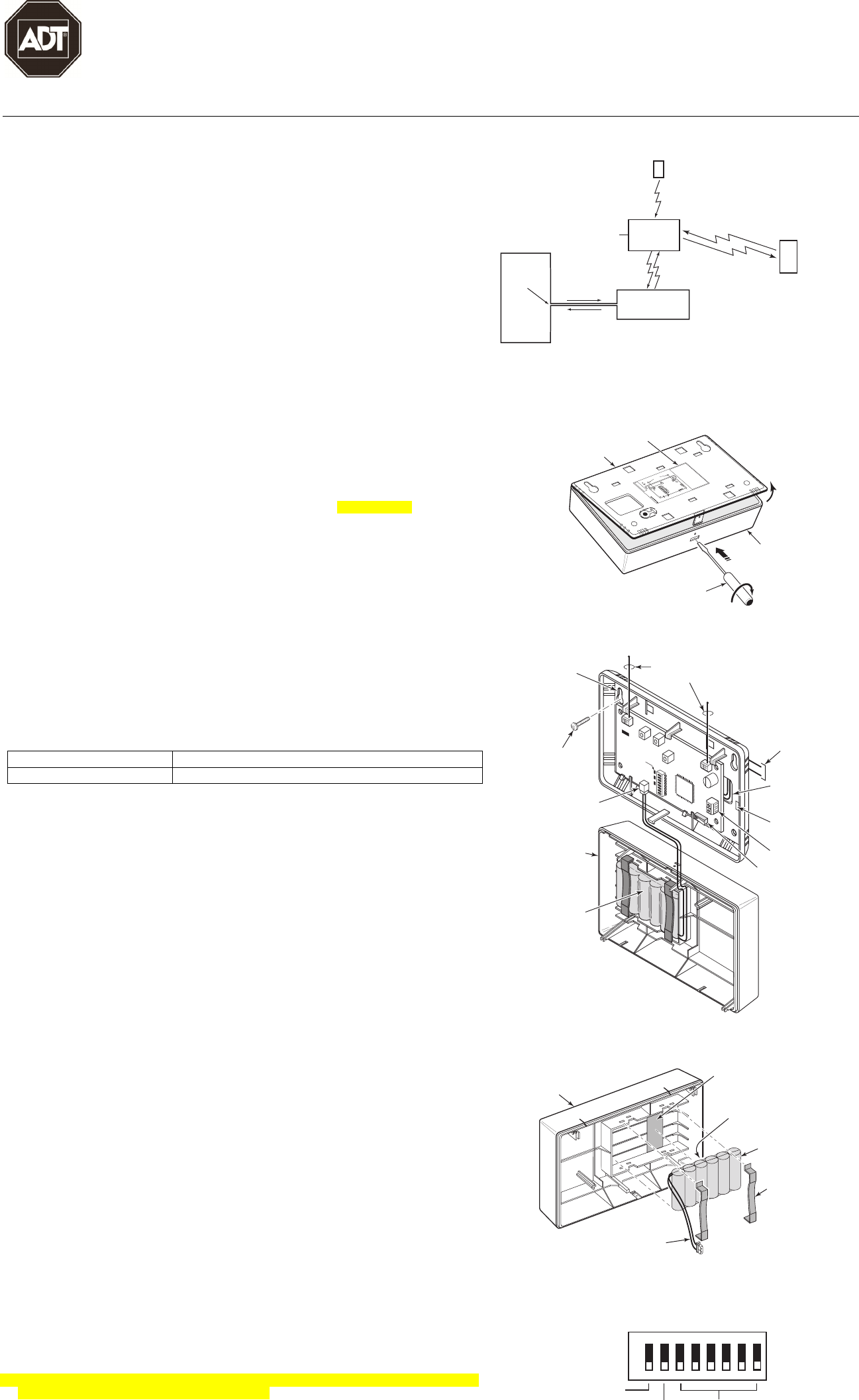

5800RP-ADT RF Repeater Module
Installation Instructions
INTRODUCTION
The 5800RP-ADT RF Repeater Module, with RF receiver and transmitter extends the range of 5800 series RF devices by 200 feet (nominal).
•The 5800RP-ADT receives alarm, status, and control messages from 5800 series
devices, and forwards these messages to control panel connected receivers such
as the 5881EN, 6160RF, 6150RF, and LYNX controls. The control then responds
accordingly (arm/disarm the system, initiate an alarm, etc.).
•The 5800RP-ADT also transmits its own status including tamper, AC loss and RF
jam detect via a built-in serial number assigned to a control panel zone(s). Status
is sent whenever a change occurs or as part of a supervisory check-in message
sent approximately once an hour.
•The 5800RP-ADT contains a rechargeable battery that provides up to 6 hours of
standby operation after primary power is lost.
•The 5800RP-ADT features a Spatial Diversity system that virtually eliminates the
possibility of "Nulls" and "Dead Spots" within the coverage area.
RECEIVER/
TRANSCEIVER
KEYPAD
TERMINALS
ON CONTROL
BOARD
CONTROL
PANEL*
DATA OUT
DATA IN TO
CONTROL
*CONTROL MUST SUPPORT A 5800 SERIES RF SYSTEM
5800RP-ADT
REPEATER
MODULE
POWER IN
5800 SERIES
WIRELESS TRANSMITTER
2-WAY
WIRELESS KEYPAD
(e.g. 5828)
OR
5800RL 2-WAY RELAY
MODULE
2-WAY
TRANSMISSION
5800RP-ADT_block-00-001-V0
Figure 1.
Wireless System Overview using
5800RP-ADT Repeater Module
INSTALLING THE 5800RP-ADT MODULE
Mount the 5800RP-ADT remotely in its own housing following the steps below, and avoid mounting the module with its antennas touching a metal surface.
Check for RF Interference: Before mounting permanently, use the red RF Interference
LED to check for strong local radio frequency interference at the intended mounting
location. If this LED is continuously lit, the 5800RP-ADT module should be relocated.
Removing the Cover: Remove the 5800RP-ADT's cover by inserting and twisting a
screwdriver blade. See Figure 2.
Note: Removing the cover places the 5800RP-ADT in the Go/No Go Test mode. This
decreases its range during installation to insure an adequate margin during normal
operation.
Mounting the Module
1. For concealed wiring, route power wires through the rectangular opening at the rear of
the base before mounting. See Figure 3.
For surface wiring entry, a thin breakaway area is provided along the base's right edge.
2. Mount the module in the selected location. For greatest security, use all four mounting
holes (two key slot holes and two round holes) in the plastic base.
3. Install each antenna in the respective right-hand terminal of the two terminal blocks at
the upper edge of the 5800RP’s circuit board, and tighten the screws to secure them.
4. Affix the Summary of Connections label to the outside back cover. See Figure 2.
5. If applicable, set the Site ID by referring to the Setting the Site ID section below.
Connecting the Power Supply
The 5800RP-ADT is powered from an AC external power source connected to terminals 1
and 2. See Figure 2.
Power source ratings are as follows:
Type Rating
Class 2 AC Transformer 9VAC, 15VA (Honeywell PN 300-07753)
6. Connect the transformer to the 5800RP-ADT’s terminals. Refer to Figure 3. These
terminals are not polarized. The leads from AC transformer may be connected to either
terminal. Do not connect to a receptacle controlled by a switch.
NOTE: Use of power sources with higher or lower voltages may result in damage or failure
to operate properly. Non-Honeywell power supplies may have connectors installed. Remove
the connectors prior to attempting to connect power supply to 5800RP-ADT.
Connecting the Battery
7. Plug the battery cable into the battery connector on the 5800RP-ADT PCB. See Figure 3.
CHARGING NOTE: The battery must be allowed to charge for at least 48 hours to reach
full capacity.
8. Replace the cover on the 5800RP-ADT, being careful not to pinch the battery wires
between the cover and case or any PCB components.
Replacing the Battery
1. See removing the cover above.
2. Unplug the battery cable from the 5800RP-ADT PCB.
3. Remove the retaining clips and pull up old battery.
4. Affix one side of the fastener strip in the battery compartment, if required and affix the
other side of the fastener strip to the battery so they are aligned.
5. Firmly press the battery’s fastener strip to the fastener strip in the compartment and
secure using the two retaining clips.
6. Connect the battery. See Step 7 above.
SETTING THE SITE ID
Some wireless devices (e.g., 5828) use a programmed house ID to help avoid
communication conflicts with nearby installations. The 5800RP-ADT automatically passes all
house ID information to the appropriate receiver.
Certain wireless devices use a “Site ID” instead of a House ID. The Site ID is a factory-
assigned, unique serial number built into each TS BASE console, and must be entered into
each device that uses it. The Site ID provides many more combinations than a House ID,
and therefore is less likely to have conflicts with nearby installations.
When using the 5800RP-ADT with wireless devices that use a Site ID, follow the steps
below to enter the Site ID in the 5800RP-ADT. This procedure assumes that all such
devices have been successfully set-up and tested with the TS BASE, although they may not
yet be mounted in their final locations.
1. Put the TS (Total Security) control in test mode by pressing “123451” on the keypad.
Keypad displays “test in progress”.
2. Remove the 5800RP-ADT's cover. See “Removing the Cover” section above.
3. Temporarily disconnect the power supply and battery from the 5800RP-ADT.
4. Place DIP switch 1 in the ON position.
5. Reconnect the power supply to the 5800RP-ADT. Observe that the red LED on the
5800RP turns on and remains on. This indicates that the 5800RP-ADT is ready to set the
Site ID.
6. Continue pushing the * button on the keypad for intervals of approximately 2 seconds
until the red LED on the 5800RP-ADT turns off.
7. When the red LED turns off, this indicates the Site ID has been saved in the 5800RP-ADT
and will no longer accept the Site ID. If the LED does not turn off, repeat the previous
step until it does.
8. Place DIP switch 1 in the OFF position.
9. Replace the cover on the 5800RP-ADT.
10. If needed locate the other wireless devices in their final locations.
11. Test all wireless devices.
REMOVE
BACK
COVER
BACK COVER
FRONT COVER
INSERT SCREWDRIVER
5800RP-013-V0
SOC LABEL
ON OFF
2 3 4 5 6 7 81
TROUBLE REPORTING OPTION
OFF = COMBINED (1 ZONE)
ON = INDIVIDUAL (4 ZONES)
POWER
3 - 8 NOT USED
MUST BE OFF
SW-1 USED WHEN ENROLLING
SITE ID; OTHERWISE
MUST BE OFF
THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES AND
RSS 210 OF INDUSTRY CANADA. OPERATION IS SUBJECT TO
THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY
NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE
MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
CET APPAREIL EST CONFORME À LA PARTIE 15 DES
RÈGLES DE LA FCC & DE RSS 210 DES INDUSTRIES CANADA.
SON FONCTIONNEMENT EST SOUMIS AUX CONDITIONS
SUIVANTES: (1) CET APPAREIL NE DOIT PAS CAUSER
D'INTERFERENCES NUISIBLES. (2) CET APPAREIL DOIT
ACCEPTER TOUTE INTERFERENCE REÇUE Y COMPRIS LES
INTERFERENCES CAUSANT UNE RECEPTION INDÉSIRABLE.
800-15869 8/13 Rev. A
FCC ID CFS 8DL5800RP2
IC:573F-5800RP2
IC MODEL: 5800RP2
RF
INDICATOR
RED LED
DIP SWITCH
2 Corporate Center Drive, Suite 100
P
.O. Box 9040, Melville, NY 11747
Copyright © 2013 Honeywell International Inc.
5800RP RF REPEATER MODULE
ANTENNAS
(INSERT IN
RIGHT-HAND
TERMINALS)
BA
TTERY
5800RP
CIRCUIT BOARD
Figure 2: Removing the Cover
+
+
+
+
TO POWER
SUPPLY
TAMPER
SWITCH
MOUNTING
SCREWS
(4)
BATTERY
CONNECTOR
ANTENNAS
(INSERT IN RIGHT-HAND
TERMINALS)
WIRING
OPENING
KNOCKOUT
AREA FOR
SURFACE
WIRING
POWER
TERMINALS
MOUNTING
HOLES
(4)
FRONT
COVER
BATTERY
PACK
RF INTERFERENCE
RED INDICATOR
LIGHTS RED
WHEN
SETTING
SITE ID
DIP SWITCH
2 3 4 567 8
1
RED
GRN
ON OFF
YEL
5800RP-014-V0
Figure 3: Mounting the Module
5800RP-012-V0
RETAINING
CLIPS (2)
FRONT
COVER
BATTERY
PACK
BATTERY
CABLE
FASTENER STRIP
(ON BATTERY)
FASTENER STRIP
Figure 4: Replacing the battery
ON
2 3 4 5 6 7 81
TROUBLE
REPORTING
OPTION
OFF = COMBINED
ON = INDIVIDUAL
3 - 8
NOT USED
MUST BE OFF
SW-1
USED WHEN
ENROLLING
SITE ID;
OTHERWISE
MUST BE OFF
5800RP_dip-00-002-V1
Figure 5: 5800RP-ADT DIP Switch
PRELIMINARY
AGENCY STATEMENTS ARE
ON PAGE 2
LED FUNCTIONS
PROGRAMMING NOTES
Programming for Combined Trouble Reporting
(Check-in, low battery†, AC loss, and RF jam messages all report on one zone.)
1. Set DIP switch 2 to OFF (keep switch 2 in the OFF position when enrolling is complete).
2. Assign the 5800RP-ADT to a zone for sending check-in, low battery†, AC loss, and RF jam messages, and enroll its serial number. When prompted, toggle
the tamper switch to enroll the serial number. The yellow LED should blink on when messages are sent.
Program the zone as follows:
Zone Type Input Type Loop
8 (24-hour aux) 3 (supervised RF) 1
•AC loss and RF jam conditions report as “low battery” status, which is also displayed on the control’s keypads. This prevents either condition from causing
an alarm when the control is armed.
•Tamper conditions report according to the zone type response for which the trouble zone is programmed (ex. ZT 8, 24-hr Aux).
•The 5800RP-ADT will not repeat a message that has already been repeated.
Programming for Individual Trouble Reporting
(Check-in/low battery†, AC loss, tamper, and RF jam messages report on 4 individual zones.)
1. Assign 4 zones and enroll the module’s two serial numbers as follows:
– Assign the first serial number to a zone for sending low battery† and supervision check-in messages.
– Assign the second serial number to 3 zones for sending tamper, AC loss, and RF jam messages.
When prompted, toggle the tamper switch to enroll the serial numbers.
Program the zones as follows:
First Serial Number: located on PCB label.
Set DIP switch 2 to OFF, then enroll as follows:
Zone Zone Type Input Type Loop
Low Battery/
Check-in Zone
8
(24-hour aux)
3 - RF
(supervised RF)
1
Second Serial Number: equals first serial number plus 1. (example: if the last 2 digits of Serial #1 are 39, Serial #2 will end with 40.)
Set DIP switch 2 to ON, then enroll as follows:
(keep switch 2 in the ON position when enrolling is complete)
Zone Zone Type Input Type Loop
Tamper Zone 5
(trouble by day / alarm by night)
4 - UR
(unsupervised RF)
1
AC Loss Zone 8 (24-hour aux) 4 - UR 2
RF Jam Zone 8 (24-hour aux) 4 - UR 3
For easy identification of these messages, program alpha descriptors at the control for each zone, using words such as “REPEATER LOW BATTERY,
REPEATER AC LOSS, etc.
† If an actual low battery condition is reported, it takes up to 24 hours after AC power is restored for the low battery restore message to be sent.
Note for Control Panel’s Current Drain Calculation: When choosing the backup battery capacity for systems using a 5800RP-ADT, use the connected
keypad’s maximum alarm (sounder on) current rating, not the keypad’s standby current rating, when calculating the control panel’s total current drain. This is
necessary because AC loss at the 5800RP-ADT causes the keypad to beep.
SPECIFICATIONS
Dimensions: 7-3/8" W x 4-3/8" (10-7/8” w/antennas) H x 2-1/8" D
188mm W x 112mm H (277mm w/antennas) x 54mm D
Input Voltage:12VDC or 9VAC, 15VA (from separate power supply such as Honeywell 300-07753).
Current: 80mA
Battery Pack: rechargeable, part number 300-03865
Range: 200ft (60m) nominal indoors from wireless devices (the actual range to be determined with the security system in the TEST mode).
TO THE INSTALLER
Regular maintenance and inspection (at least annually) by the installer and frequent testing by the user are vital to continuous satisfactory operation of any alarm system.
The installer should assume the responsibility of developing and offering a regular maintenance program to the user, as well as acquainting the user with the proper operation and
limitations of the alarm system and its component parts. Recommendations must be included for a specific program of frequent testing (at least weekly) to insure the system's
operation at all times.
FEDERAL COMMUNICATIONS COMMISSION & INDUSTRY CANADA STATEMENTS
The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or User's Manual. Unauthorized changes or modifications
could void the user's authority to operate the equipment.
CLASS B DIGITAL DEVICE STATEMENT
This equipment has been tested to FCC requirements and has been found acceptable for use. The FCC requires the following statement for your information:
This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause
interference to radio and television reception. It has been type tested and found to comply with the limits for a Class B computing device in accordance with the specifications in Part
15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• If using an indoor antenna, have a quality outdoor antenna installed.
• Reorient the receiving antenna until interference is reduced or eliminated.
• Move the radio or television receiver away from the receiver/control.
• Move the antenna leads away from any wire runs to the receiver/control.
• Plug the receiver/control into a different outlet so that it and the radio or television receiver are on different branch circuits.
• Consult the dealer or an experienced radio/TV technician for help.
Federal Communications Commission (FCC) Part 15
This device complies with Part 15 of the FCC Rules and RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Cet appareil est conforme à la partie 15 des règles de la FCC & de RSS-210 des Industries Canada. Son fonctionnement est soumis aux conditions suivantes: (1) Cet appareil ne doit
pas causer d’interférences nuisibles. (2) Cet appareil doit accepter toute interférence reçue y compris les interférences causant une réception indésirable.
INDUSTRY CANADA CLASS B STATEMENT
This Class B digital apparatus complies with Canadian ICES-003.
Cet Appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Ê800-20965[Š
800-20965-1 9/15 Rev. B
LED Activates Upon
Green Normally on (lighted) when power (AC or battery) is present. Flickering indicates RF is being processed.
Yellow Normally off. Blinks to indicate that an RF message is being sent by the 5800RP.
Red Normally off. Turns on (lighted) when setting Site ID. See the Setting the Site ID section for details.
Red RF Interference Lights when RF activity is present.
SUPPORT & WARRANTY
For the latest documentation and online support information, please go to:
https://mywebtech.honeywell.com/
For the latest warranty information, please go to:
www.honeywell.com/security/hsc/resources/wa. MyWebTech Warranty
PRELIMINARY

Navigation menu
