ADEMCO 5805-6
WIRELESS KEY TRANSMITTER
USER GUIDE
GENERAL INFORMATION
The 5805-6 is a compact, 6-button portable
wireless transmitter that permits an alarm
system to be controlled remotely. The
transmitter is typically used for arming,
disarming, panic and output relay operation.
Check with your installer for operation of the
buttons on your unit.
OPERATING THE BUTTONS
Activating a Button
To activate a programmed function on the
button, press and hold the button(s) down
until the LED flashes, and then release it.
The LED will emit a green flash to indicate it
has transmitted in Standard mode or a red
flash to indicate it has transmitted in High-
Security mode. The LED will not flash during
transmission if the battery is low.
Note: In order to minimize the possibility of accidental
transmissions, the buttons on the 5805-6 must be
pressed and held for at least 1/2 second to activate the
transmitter.
5805-007-V0
SERIAL #1
LOOP 4
SERIAL #2
LOOP 3
SERIAL #1
LOOP 3
SERIAL #1
LOOP 1
SERIAL #2
LOOP 2
SERIAL #1
LOOP 2
43
21
OFFON
*SERIAL #2 - LOOP 1 = ON + 4
5805-6 TRANSMITTER*
LOOP 4 = 3 + 4

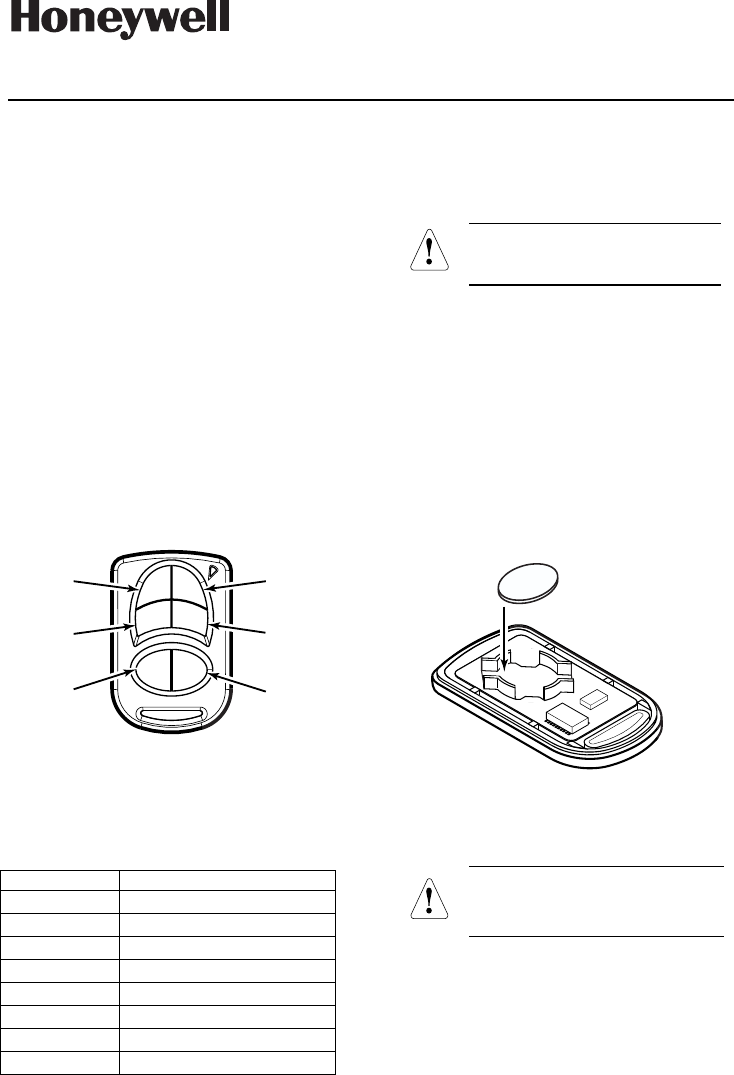

Figure 1 - 5805-6 Button Designations
Table 1 - Transmitter Functions
(Complete this table with your installer)
Button Function
ON
OFF
1
2
3
4
ON + 4
3 + 4
LOW BATTERY INDICATION
When a Button is pressed and a Low Battery
condition exists, a message is transmitted to
the control panel and LOW BAT will be
displayed on the keypad.
Improper installation will
result in damage to the
battery.
Replacing The Battery
1. Remove the case back by using the blade
of a small screwdriver to pry it open.
2. Carefully remove the battery.
3. Insert a new battery in case back location
as shown in Figure 2. Negative (-) end
must face down. Use Maxell CR2032,
Duracell DL 20325, or Varta CR2032
lithium battery only.
4. Close the case by snapping case front and
back together.
5805-008-V0
NOTE
NEGATIVE (-) SIDE
MUST FACE DOWN
INSERT THIS
END FIRST
BATTERY
(+)
Figure 2 - Replacing the Battery
Do not remove the Printed
Circuit Board.
LIMITATIONS STATEMENT
Signals sent by wireless transmitters may be blocked or reflected by metal objects before they reach
the alarm receiver. Even if the signal path has been recently checked during a weekly test, blockage
can occur if a metal object somehow blocks the signal path.
Wireless button type transmitters that have visual and audible indications of status must be used to
confirm that the desired action (such as arming) has occurred after pressing a function button on any
of these transmitters. Be sure to listen for appropriate audible and visual indications that such action
has occurred. Otherwise, you could inadvertently leave yourself or your premises unprotected.
External factors such as humidity, high or low temperatures, or constant activation of a programmed
button may reduce battery life in a given installation. If the button unit is used infrequently, activate
it regularly (once per week) to confirm operation. A button type transmitter will report a low battery
condition to the alarm control when a low battery status is detected.
FOR WARRANTY INFORMATION AND FOR DETAILS REGARDING THE LIMITATIONS OF THE ENTIRE
ALARM SYSTEM, REFER TO THE INSTALLATION INSTRUCTIONS FOR THE RECEIVER/CONTROL
WITH WHICH THIS DEVICE IS USED.
FCC ID: CFS8DL5805-6
THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST
ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
CANADA: 573F-58056
