Ademco 8DL5815 remote alarm control transmitter User Manual K5503V1

Honeywell International Inc. remote alarm control transmitter K5503V1

Contents

users manual with FCC Part 15 Statments

K5503V1 11/03 Rev B
5815
INSTALLATION
INSTRUCTIONS
5815-01-V0
LOCKING
TA B
RELEASE
WINDOW
COVER PRY-OFF SLOT
MOUNTING
PLATE
HOLES (2)
OBSERVE POLARITY
LOCKING
TAB
WIRES
MOUNTING PLATE CASE
COVER
RETAINING
HOOKS
(3)
POST (2)
WIRE
BREAKOUT
(2)

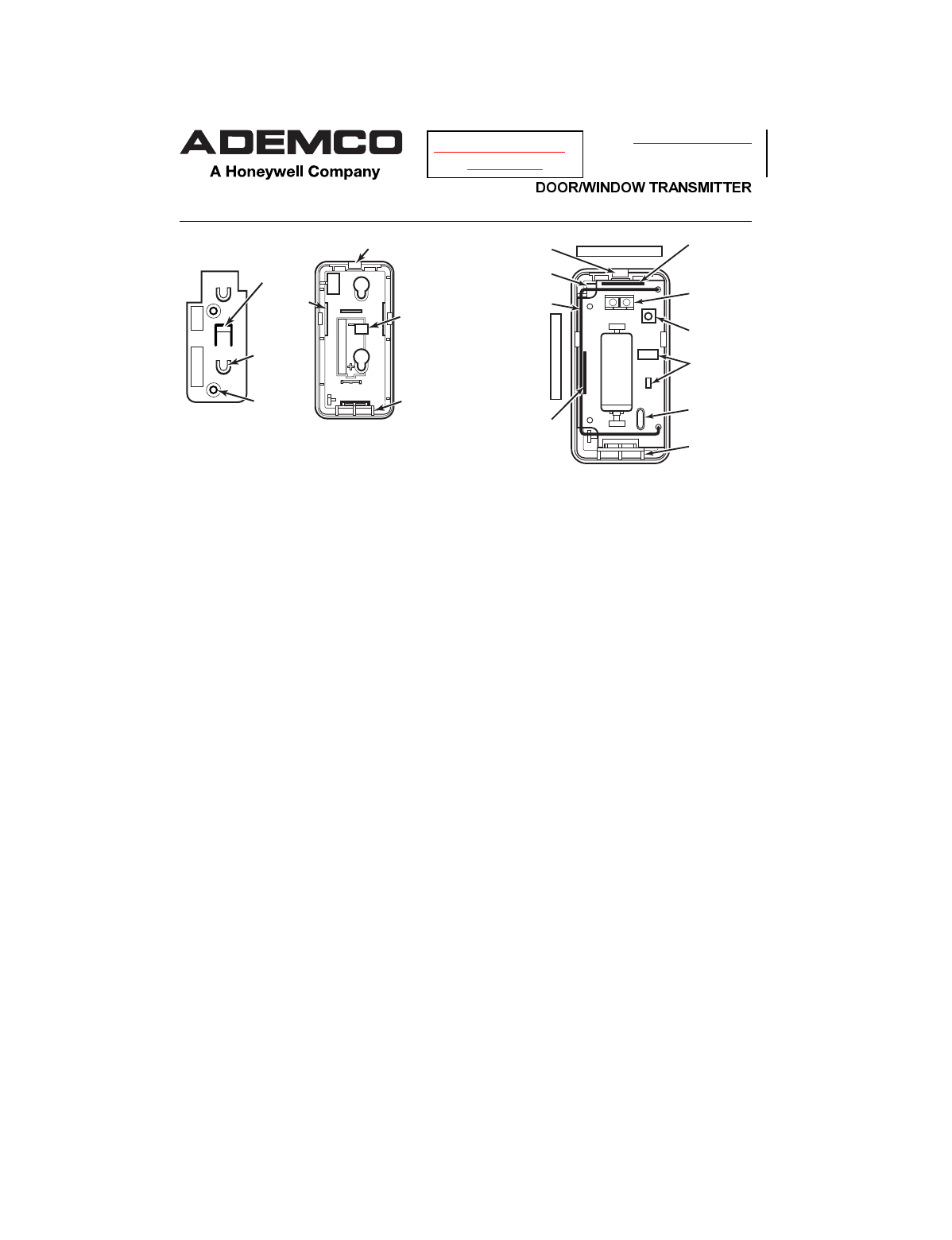

Figure 1. Mounting Plate and Case
GENERAL INFORMATION
The 5815 is a two-zone Door/Window Transmitter that
has its own unique serial number. The control unit is
required to "enroll" the serial number prior to its usage in
the alarm system. Refer to the control unit's installation
instructions for further details.
Note:
During
programming of the control unit, 5815 transmitters
should be treated as "RF" (i.e., supervised RF) Type
(
mandatory for UL installations
).
The 5815 provides two input loops (zones): the
first
for a
wired closed-circuit contact loop, and the
second
for its
built-in reed switch (used in conjunction with a magnet,
as described below). One or both inputs may be used.
For UL installations, a contact may not be more than 3
feet from the transmitter.
The 5815 includes a built-in cover tamper, which is
activated when the cover is removed.
MOUNTING
For proper orientation of the unit in relation to the
mounting plate, loop wiring, and/or magnet, read all of
this section before installing the unit.
The description that follows assumes that the unit will be
mounted as shown in the diagrams, with the magnet (if
used) located in one of the positions shown in Figure 2.
The unit may, however, be installed in
any
direction, as
long as the relationship of the unit to its mounting plate
and (if used) magnet is maintained.
Although the unit can be mounted directly to a surface,
we recommend that the mounting plate be used, for
ease in removing the unit for servicing should it become
necessary.
Before mounting the transmitter permanently, conduct
Go/No Go tests (see control's instructions) to verify
adequate signal strength and reorient or relocate the
transmitter if necessary.
1. Remove the transmitter's top cover by inserting
the flat blade of a small screwdriver into the pry-off
slot at one end of the unit (see Fig. 1 for location),
and slightly twisting the blade until the cover
disengages.
5815-002-V0
LOOP
TERMINALS
(LOOP 1)
LITHIUM BATTERY
CR1-335 (3V)
COVER
RETAINING
HOOKS (3)
ANNTENNA
+
+
COVER
PRY-OFF
SLOT
WIRE ENTRY
HOLE
TAMPER
SWITCH
IC
CRYSTAL
REED
SWITCH
(LOOP 2)
REED
SWITCH
(LOOP 2)
(ALTERNATE POSITION
FOR MAGNET)*
*MAGNET
(OBTAIN
SEPARATELY)
+
_
* MAGNET MUST BE WITHIN
1/2" OF REED SWITCH
Figure 2. 5815 (shown without cover)
2. Disengage the attached mounting plate from the
case by inserting the blade of a small screwdriver
into the locking tab release window (see Figure 1)
and pressing it against the locking tab (also shown in
Figure 1), while sliding the mounting plate upward
along the case back until free.
3. Install the mounting plate, with its two case-
holding posts pointing up (in this example), in the
location selected as described in the control panel's
installation instructions. Use the flat-head screws
supplied.
Note:
If a wired contact loop is to be used, with
concealed
wiring, the wire exit hole in the wall must
be located under the wire entry hole in the case as
shown in Figure 2, and no more than 1/4" in
diameter.
4. If a wired contact loop is to be used, feed
concealed
wiring through the slot in the case back,
but do not connect to the terminal block yet. For
surface
wiring entry, two thin "breakout" areas are
provided in the case wall (see Figure 1).
5. Attach the case back to the mounting plate by
sliding the keyhole slots in the case back down onto
the mounting plate's case holding posts. The locking
tab will click as the case back locks in place.
6. If a reed switch is to be used, mount a No. 5899
Magnet (obtained separately) adjacent to the reed
switch, or adjacent to the top of the case (see Figure
2). In either case, the magnet must be mounted
within one-half inch of the reed switch.
LOOP WIRING CONNECTIONS (If used)
With the battery still not inserted, connect the contact
loop wires to the unit's loop terminals (see Figure 2).
Caution: Make sure that the bared sections of the
loop wires do not short to the reed switch or
antenna.
The contact loop must use closed-circuit devices.
The
loop response time is a nominal 100mSec.
NOTE: If the contact loop is not to be used, no
connection is needed across the loop terminals.
PRELIMINARY
11/14/03 tp
BATTERY INSTALLATION/REPLACEMENT
1. Remove the transmitter's cover (if it is not already
off) as described in
MOUNTING
Step 1.
2. Observe correct polarity and insert the battery
provided into the battery holder (see Fig. 2).
Take
care not to bend the antenna.
NOTE: Replace battery
only
with :
Panasonic CR123A, Duracell DL123A,
Sanyo CR123A, Varta CR123A, or
ADEMCO 466.
3. To replace the cover, engage the hooks along one
edge and snap shut.
SPECIFICATIONS
Dimensions: 1-1/2"W x 3"H x 7/8"D
(38mm x 76mm x 22mm)
Battery: 3V Lithium (see
Note
in step 2 of
BATTERY
INSTALLATION
/
REPLACEMENT
)
BATTERY CAUTION
:
Risk of fire,
explosion, and burns. Do not recharge, disas-
semble, heat above 212°F (100°C), or in-
cinerate. Dispose of used batteries promptly.
Keep away from children.
TO THE INSTALLER
Regular maintenance and inspection (at least annually) by the installer and frequent testing by the user are vital to
continuous satisfactory operation of any alarm system.
The installer should assume the responsibility of developing and offering a regular maintenance program to the user,
as well as acquainting the user with the proper operation and limitations of the alarm system and its component parts.
Recommendations must be included for a specific program of frequent testing (at least weekly) to insure the system's
operation at all times.
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE RECEIVER/CONTROL WITH WHICH THIS
DEVICE IS USED, FOR DETAILS REGARDING LIMITATIONS OF THE ENTIRE ALARM SYSTEM.
LIMITED WARRANTY
Honeywell International Inc., acting through its ADEMCO business ("Seller"), 165 Eileen Way, Syosset, New York
11791, warrants its product(s) to be in conformance with its own plans and specifications and to be free from defects
in materials and workmanship under normal use and service for 24 months from the date stamp control on the
product(s) or, for product(s) not having an ADEMCO date stamp, for 12 months from date of original purchase unless
the installation instructions or catalog sets forth a shorter period, in which case the shorter period shall apply. Seller's
obligation shall be limited to repairing or replacing, at its option, free of charge for materials or labor, any product(s)
which is proved not in compliance with Seller's specifications or proves defective in materials or workmanship under
normal use and service. Seller shall have no obligation under this Limited Warranty or otherwise if the product(s) is
altered or improperly repaired or serviced by anyone other than ADEMCO factory service. For warranty service,
return product(s) transportation prepaid, to ADEMCO Factory Service, 165 Eileen Way, Syosset, New York 11791.
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, OF MERCHANTABILITY, OR FITNESS FOR A
PARTICULAR PURPOSE OR OTHERWISE, WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE
HEREOF. IN NO CASE SHALL SELLER BE LIABLE TO ANYONE FOR ANY CONSEQUENTIAL OR INCIDENTAL
DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, OR UPON ANY
OTHER BASIS OF LIABILITY WHATSOEVER, EVEN IF THE LOSS OR DAMAGE IS CAUSED BY THE SELLER'S
OWN NEGLIGENCE OR FAULT.
Seller does not represent that the product(s) it sells may not be compromised or circumvented; that the product(s) will
prevent any personal injury or property loss by burglary, robbery, fire or otherwise; or that the product(s) will in all
cases provide adequate warning or protection. Customer understands that a properly installed and maintained alarm
system may only reduce the risk of a burglary, robbery, fire, or other events occurring without providing an alarm, but
it is not insurance or a guarantee that such will not occur or that there will be no personal injury or property loss as a
result. CONSEQUENTLY, SELLER SHALL HAVE NO LIABILITY FOR ANY PERSONAL INJURY, PROPERTY
DAMAGE OR OTHER LOSS BASED ON A CLAIM THAT THE PRODUCT(S) FAILED TO GIVE WARNING.
HOWEVER, IF SELLER IS HELD LIABLE, WHETHER DIRECTLY OR INDIRECTLY, FOR ANY LOSS OR
DAMAGE ARISING UNDER THIS LIMITED WARRANTY OR OTHERWISE, REGARDLESS OF CAUSE OR
ORIGIN, SELLER'S MAXIMUM LIABILITY SHALL NOT IN ANY CASE EXCEED THE PURCHASE PRICE OF THE
PRODUCT(S), WHICH SHALL BE THE COMPLETE AND EXCLUSIVE REMEDY AGAINST SELLER.
This warranty replaces any previous warranties and is the only warranty made by Seller on this product(s). No
increase or alteration, written or verbal, of the obligations of this Limited Warranty is authorized.
FCC STATEMENT
FCC ID: CFS8DL5815 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2), this device must accept any interference
received, including interference that may cause undesired operation.
CANADA: 1748A5815
¬.9!l
K5503V1 11/03 Rev B
165 Eileen Way, Syosset, New York 11791
Copyright © 2003 Honeywell International Inc.
www.ademco.com
