Ademco >
Users Manual Revised
5834-4 Series
Wireless Key Transmitter
INSTALLATION AND SETUP GUIDE
GENERAL INFORMATION
The 5834-4/5834-4EN key transmitters are portable wireless transmitters for use only with wireless alarm systems that support 5800 Series
receivers (ex. VISTA series, LYNX PLUS, LYNX Touch). The 5834-4EN is identical to the 5834-4 except the 5834-4EN has a plated bezel
and key ring. References to the 5834-4 throughout this document refer to both models.
• Buttons are typically used for arming and disarming, but can be
programmed for any appropriate zone response.
• A button must be pressed and held until the LED begins to flash
to activate a button function. This press and hold feature
minimizes the possibility of accidental transmissions.
• The factory-installed replaceable lithium battery provides power
for up to five (5) years.
• The 5834-4 transmitter provides up to eight (8) functions and has
an optional high security (encrypted) mode that sends rolling-
code encrypted messaging to the RF receiver.
High Security Mode Note: If used in high security mode, must
be used with a receiver or control that supports high security
mode. i.e., 5881EN, 5883, 6150RF, or 6160RF receiver or
LYNXR Series control panel (Rev 13.1 or higher).
PROGRAMMING
For complete details on how to program the transmitter at the control panel, see the control unit's Installation Instructions. When
programming, note the following:
• Each 5834-4 transmitter has two unique serial numbers assigned during
manufacture.
• Each button on the unit also has a distinct "loop" number (refer to the
Loop Number diagram at right) that you must program into the control
panel during installation.
• Assign each button to an individual zone and designate the Input Type
as "BR" (Button Type).
• When prompted for the serial number, press and release the
appropriate button(s) twice, or, manually enter the serial number at the
keypad.
NOTE: Serial #2 is one (1) digit higher than serial #1, which is printed
on the rear of the transmitter.
USING HIGH SECURITY MODE IN COMPATIBLE RECEIVERS
AND LOCALLY IN AN RF KEYPAD (eg., 6150RF)
If used with LYNXR Series controls earlier than Revision
13.1, Standard Mode must be selected.
First select High Security mode, then activate it. Activation syncs the key
fob with the security system.
1. Select High Security mode:
Mode Simultaneously hold down for 5 secs…
High-Security A - C - D (LED flashes Red when transmitting)
Standard B - C - D (LED flashes Green when transmitting)
2. Activate High Security mode:
• if the key fob is enrolled into the panel, put the security system into
Go/No Go Mode
• if the key fob is enrolled locally into a 6150RF, go to Step 3 of
6150RF “
Programming WITH Local Wireless Keys
”,
then press the appropriate set of buttons as follows:
Serial Number Simultaneously hold down until beeps sound…
1 A - B - C buttons (system beeps twice to confirm)
2 A - B - D buttons (system beeps twice to confirm)

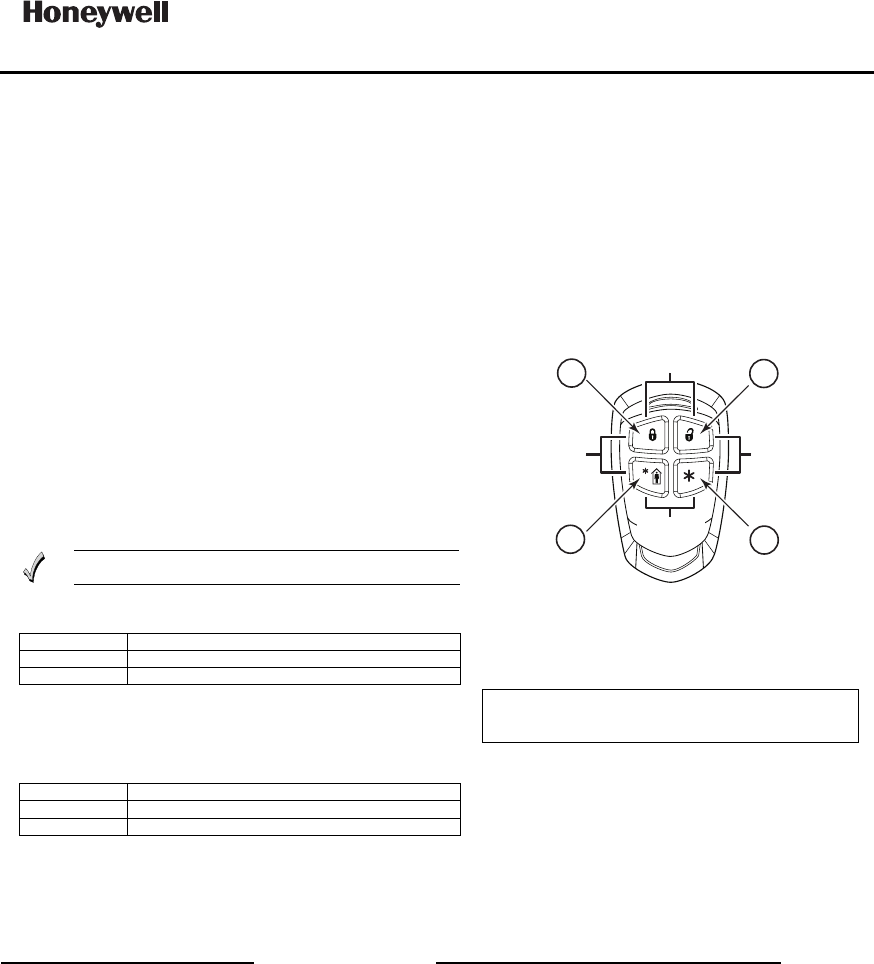

Loop Numbers for the 5834-4 Buttons
5834-008-V2
SERIAL #1
LOOP 4
SERIAL #1
LOOP 1
SERIAL #2
LOOP 1
SERIAL #2
LOOP 3
SERIAL #1
LOOP 3
SERIAL #2
LOOP 4
SERIAL #1
LOOP 2
SERIAL #1 FUNCTIONS ACTIVATE WHEN THE RESPECTIVE
BUTTON IS HELD DOWN UNTIL THE LED FLASHES.
SERIAL #2 FUNCTIONS ACTIVATE WHEN THE TWO RESPECTIVE
SERIAL #2 BUTTONS ARE PRESSED AT THE SAME TIME AND
HELD DOWN UNTIL THE LED FLASHES.
NOTE
1.
2.
SERIAL #2
LOOP 2
A
C
B
D
Using a Button: To activate a programmed function,
press and hold the appropriate key(s) until the LED
begins to flash (about ½ second).
SIA INSTALLATIONS: Use only serial #2/loop 2 (C & D
keys) for the panic function. Do not use serial #1/loop 1 (D)
key.
ASSIGNING A WIRELESS KEY TO A USER
• On most control panels, if the wireless key is assigned to arm and disarm the system, you must assign it to a user in order for it to
operate. This is accomplished through User Code programming at the control panel. See the control panel’s Installation and Setup
Guide for specific instructions on programming User Codes.
The table below summarizes the procedures.
• If programming arming and disarming functions on both serial numbers, each serial number must be assigned to a separate user.
On Vista 32/40/50/50P/100 and up
You must assign a user to the button in order for it to operate.
To assign a user number to the Arm/Disarm button:
1. Enter [4-digit User Code] + [8] + [User No.] + [new User Code].
2. Answer Yes or No to the “Open/Close Report ?” question.
3. Answer Yes to the “RF Button ?” question.
4. Enter the zone number assigned to the button.
5. Keypad display shows summary of user information.
6. Test all functions for proper operation.
On Vista-20P/15P/10P/Vista-21iP and variants
You must assign a user to the button in order for it to operate, and
must enter a sequence of keystrokes as described below.
NOTE: There is a two-second timeout for keystroke commands on
Vista P series panels, therefore you must enter the keystrokes as
quickly as possible.
1. Enter [4-digit Master Code] + [8] + [User Number] +
[# 4] + [two digit zone number] assigned to the fob.
2. Test all functions for proper operation.
PLEASE SEE AGENCY
INFO ON PAGE 2
REPLACING THE BATTERY
The LED will not flash during transmission if the battery is low. Replace the
battery as follows.
1. Remove the screw from the case back, then remove the case back.
2. Insert the blade of a small screwdriver under the battery as shown.
3. Twist the screwdriver to release the battery.
4. With the Positive (+) end of a new battery facing UP, insert the battery as
shown, sliding it under the gold tab, then pressing down to snap into
place.
IMPORTANT: Positive (+) end must face up.
Use Maxell CR2032 or Duracell DL2032 lithium battery only.
5. Replace the case back and replace the screw to secure the case.
• Improper installation will result in damage to the battery.
• Do not remove the printed circuit board.
Failure of Replaceable Batteries
This wireless key has been designed to provide several years of battery life
under normal conditions. The expected battery life is a function of the device
environment, usage and type. Ambient conditions such as high humidity,
high or low temperatures, or large temperature fluctuations may reduce the
expected battery life.
If the batteries need to be replaced, this device reports a low battery
condition to the control panel as a trouble condition when a button is
pressed. In addition the LED will not flash when a button is pressed.
However, if the device is unused for a long period of time, it may fail to
operate as expected. Regular testing and maintenance will keep the system
in good operating condition for the lifetime of the product.
IMPORTANT! This wireless key is intended as a convenience to the user
and should not be considered as a life safety device. If life safety is
important, please select a supervised wireless key (e.g. type 5802MN).
SPECIFICATIONS
Unit Dimensions: 2.25" x 1.25" x 0.5"
(57mm x 31.75mm x 12.7mm)
Battery: 3V, 210mAh, Maxell CR2032, Duracell DL2032
IC MODEL No. 58341
WARRANTY INFORMATION
For the latest warranty information, please go to:
http://www.security.honeywell.com/hsc/resources/wa/index.html
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE
CONTROL WITH WHICH THIS DEVICE IS USED FOR
LIMITATIONS OF THE ENTIRE ALARM SYSTEM.
IMPORTANT SECURITY NOTICE
Please inform the User about the security importance of their key
fob, and what to do if it is lost.
Explain that the key fob is similar to their keys or access card. If
lost or stolen, another person can compromise their security
system. They should immediately notify the Dealer/Installer of a
lost or stolen key fob. The Dealer/Installer will then remove the key
fob programming from the security system.

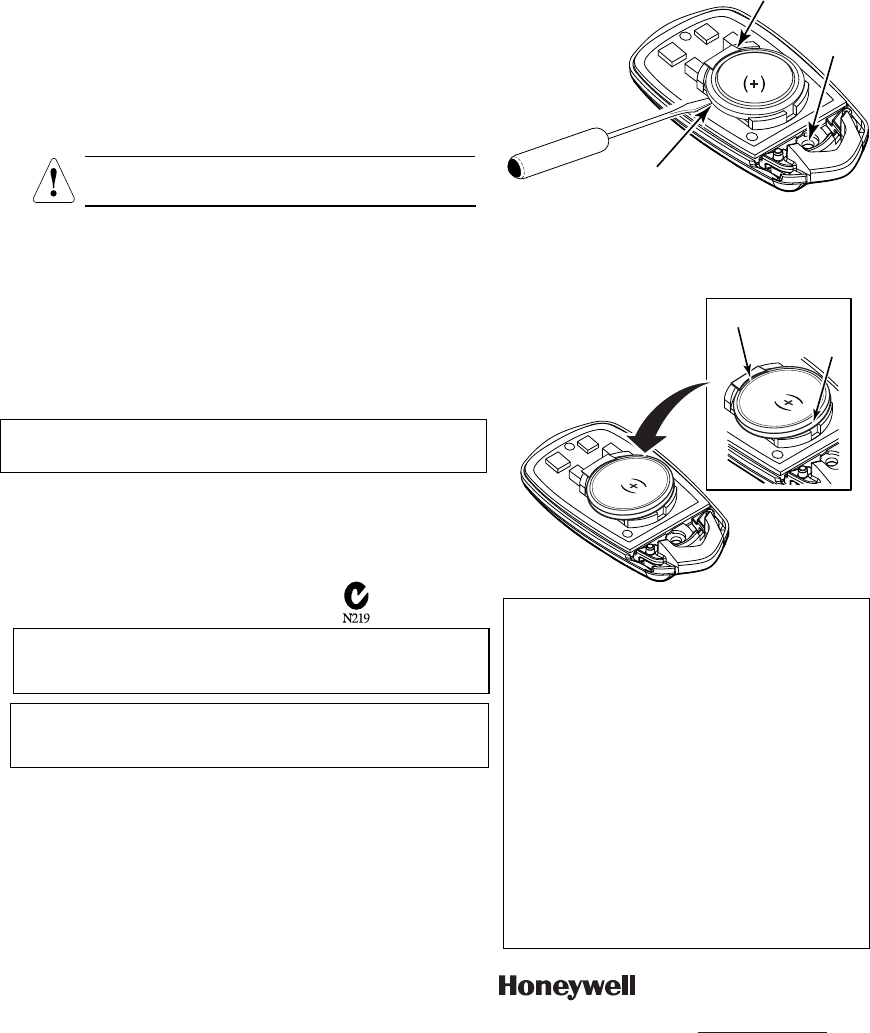

Removing the Battery
5834-004-V0
REMOVE
SCREW
TO OPEN
CASE
BATTERY
GOLD
TAB
TO REMOVE BATTERY,
GENTLY SLIDE SCREWDRIVER
BLADE UNDER BATTERY HERE
Installing the Battery
5834-005-V0
INSTALL WITH POSITIVE (+)
SIDE UP. SLIP BATTERY
UNDER GOLD TAB THEN
PRESS DOWN
IMPORTANT
POSITIVE (+)
SIDE MUST
FACE UP
BATTERY
INSTALL UNDER
GOLD TAB
BATTERY
THEN PRESS
DOWN
FEDERAL COMMUNICATIONS COMMISSION
STATEMENTS:
The user shall not make any changes or modifications
to the equipment unless authorized by the installation
Instructions or User's Manual. Unauthorized changes
or modifications could void the user's authority to
operate the equipment.
FCC/IC STATEMENT
This device complies with Part 15 of FCC Rules, and
RSS 210 of IC. Operation is subject to the following
two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any
interference received, including interference that may
cause undesired operation.
Cet appareil est conforme à la partie 15 des règles de
la FCC & de RSS 210 des industries Canada. Son
fonctionnement est soumis aux conditions suivantes:
(1) Cet appareil ne doit pas causer d'interferences
nuisibles. (2) Cet appareil doit accepter toute
interference reçue y compris les interferences causant
une reception indesirable.
