ADEMCO 5802WXT
SUPERVISED MINIATURE
TRANSMITTER
INSTALLATION AND SETUP GUIDE
The ADEMCO 5802WXT is a wireless transmitter that may be worn
around the neck, on a wrist band or as an apparel clip that may
also may be mounted to a desk, dresser, etc. (necklace, band, and
clip supplied). Pressing the button on the transmitter sends a signal
to the control receiver. The 5802WXT is intended for use only with
wireless alarm systems that support 5800 Series devices.
The transmitter is supervised, i.e., it automatically sends a
message to the control receiver that includes battery status
information every 70-90 minutes.
This transmitter can be programmed as any zone type response
(e.g., Emergency Panics, Relay Action, etc.).
Battery Replacement
The 5802WXT is powered by a long-life Lithium battery that may be
replaced when a low battery is eventually indicated by the control
unit.
NOTE: Although water-resistant, please do not immerse in water
at a depth below 10cm for more than 1 hour.
Programming the Serial Number
The 5802WXT has a unique identification code (serial number)
permanently assigned during manufacture.
You must “enroll” the transmitter’s serial number and loop number
during system programming. The 5802WXT may be defined as
Input Type “RF” (supervised RF, for an hourly check-in; do not take
out of range) or “UR” (Unsupervised RF). Its loop number is “1.”
See the control unit’s Installation Instructions for further details
regarding programming. When installation is complete, verify
operation from desired location(s).
Specifications
Unit Dimensions: 1.5” (3.9mm) Diameter
LED: Lights when unit transmits.
Battery: 3-Volt 2032 Lithium
In UL installations: 3V Panasonic CR2032 only

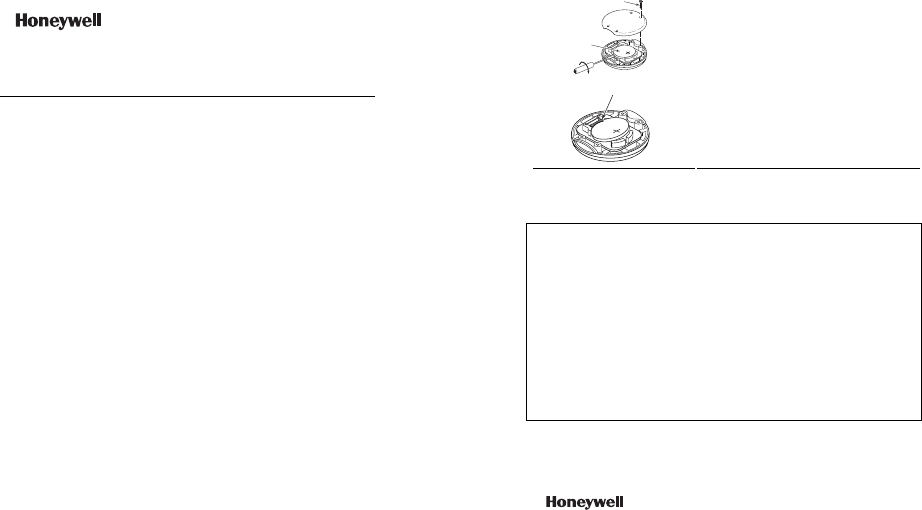

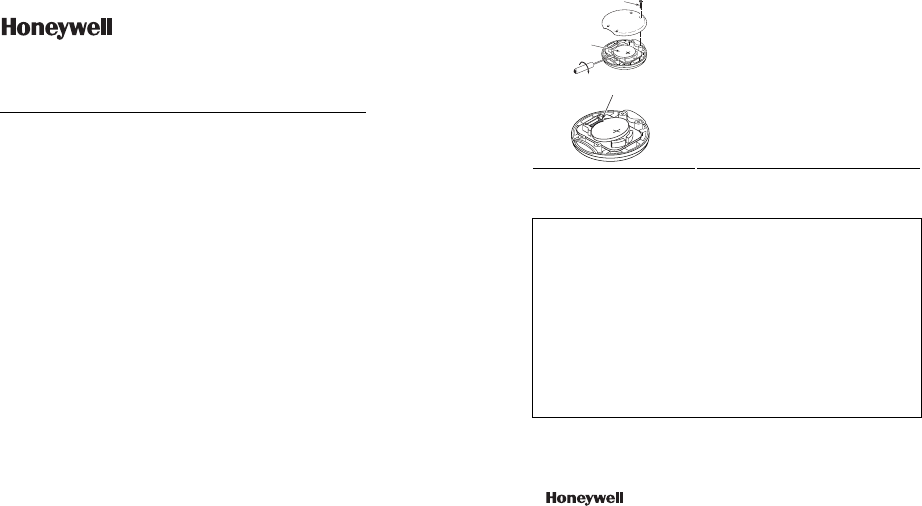

5802WXT-001-V0
BATTERY
SCREWS (4) TYP.
5802WXT-002-V0
INSERT BATTERY
UNDER GOLD TAB
AND PRESS DOWN
1. Remove 4 screws and lift off cover.
2. Using a small flat-blade screwdriver
remove old battery.
3. Insert new battery by placing new
battery under the gold tab and then
pressing down. Ensure the POS +
side of battery is face up after
installation.
4. Align cover and attach with 4
screws.
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE RECEIVER/CONTROL
WITH WHICH THIS DEVICE IS USED FOR WARRANTY INFORMATION AND FOR
DETAILS REGARDING THE LIMITATIONS OF THE ENTIRE ALARM SYSTEM.
FEDERAL COMMUNICATIONS COMMISSION STATEMENTS
The user shall not make any changes or modifications to the equipment unless
authorized by the Installation Instructions or User's Manual. Unauthorized changes
or modifications could void the user's authority to operate the equipment.
FCC/IC STATEMENT
This device complies with Part 15 of the FCC Rules, and RSS 210 of IC. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Cet appareil est conforme à la partie 15 des règles de la FCC & de RSS 210 des
Industries Canada. Son fonctionnement est soumis aux conditions suivantes: (1)
Cet appareil ne doit pas causer d' interferences nuisibles. (2) Cet appareil doit
accepter toute interference reçue y compris les interferences causant une
reception indésirable.
IC MODEL: 5802WXT
UL US Listings: HOUSEHOLD BURGLARY WARNING SYSTEM CONTROL
UNIT ACCESSORY UL Canadian Listings: HOUSEHOLD BURGLARY
WARNING SYSTEM CONTROL UNIT ACCESSORY ALSO LISTED FOR USE AS
A SIGNAL APPLIANCE, MISCELLANEOUS CERTIFIED FOR CANADA.
2 Corporate Center Drive, Suite 100
P.O. Box 9040, Melville, NY 11747
Copyright © 2011 Honeywell International Inc.
Ê800-090083
800-09008 5/11 Rev. A
800-09009 5/11 Rev. A
ADEMCO 5802WXT-2
SUPERVISED MINIATURE TRANSMITTER
INSTALLATION AND SETUP GUIDE
The ADEMCO 5802WXT-2 is a wireless transmitter that may be
worn around the neck, on a wrist band or as an apparel clip that
may also may be mounted to a desk, dresser, etc. (necklace, band,
and clip supplied). Pressing both buttons on the transmitter at the
same time sends a signal to the control receiver. The 5802WXT-2
is intended for use only with wireless alarm systems that support
5800 Series devices.
The transmitter is supervised, i.e., it automatically sends a
message to the control receiver that includes battery status
information every 70-90 minutes.
This transmitter can be programmed as any zone type response
(e.g., Emergency Panic, Relay Action, etc.).
BATTERY REPLACEMENT
The 5802WXT-2 is powered by a long-life Lithium battery that may
be replaced when a low battery is eventually indicated by the
control unit.
NOTE: Although water-resistant, please do not immerse in water at
a depth below 10cm for more than 1 hour.
PROGRAMMING THE SERIAL NUMBER
The 5802WXT-2 has a unique identification code (serial number)
permanently assigned during manufacture.
You must “enroll” the transmitter’s serial number and loop number
during system programming. The 5802WXT-2 may be defined as
Input Type “RF” (supervised RF, do not take out of range) or “UR”
(Unsupervised RF). Its loop number is “1.” See the control unit’s
Installation Instructions for further details regarding programming.
When installation is complete, verify operation from desired
location(s).
Specifications
Unit Dimensions: 1.5” (3.9mm) Diameter
LED: Lights when unit transmits.
Battery: 3-Volt 2032 Lithium
In UL installations: 3V Panasonic CR2032 only
5802WXT-001-V0
BATTERY
SCREWS (4) TYP.
5802WXT-002-V0
INSERT BATTERY
UNDER GOLD TAB
AND PRESS DOWN
1. Remove 4 screws and lift off cover.
2. Using a small flat-blade screwdriver
remove old battery.
3. Insert new battery by placing new
battery under the gold tab and then
pressing down. Ensure the POS +
side of battery is face up after
installation.
4. Align cover and attach with 4
screws.
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE RECEIVER/CONTROL
WITH WHICH THIS DEVICE IS USED FOR WARRANTY INFORMATION AND FOR
DETAILS REGARDING THE LIMITATIONS OF THE ENTIRE ALARM SYSTEM.
FEDERAL COMMUNICATIONS COMMISSION STATEMENTS
The user shall not make any changes or modifications to the equipment unless
authorized by the Installation Instructions or User's Manual. Unauthorized changes
or modifications could void the user's authority to operate the equipment.
FCC/IC STATEMENT
This device complies with Part 15 of the FCC Rules, and RSS 210 of IC. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Cet appareil est conforme à la partie 15 des règles de la FCC & de RSS 210 des
Industries Canada. Son fonctionnement est soumis aux conditions suivantes: (1)
Cet appareil ne doit pas causer d' interferences nuisibles. (2) Cet appareil doit
accepter toute interference reçue y compris les interferences causant une reception
indésirable.
IC MODEL: 5802WXT-2
UL US Listings: HOUSEHOLD BURGLARY WARNING SYSTEM CONTROL UNIT
ACCESSORY UL Canadian Listings: HOUSEHOLD BURGLARY WARNING SYSTEM
CONTROL UNIT ACCESSORY ALSO LISTED FOR USE AS A SIGNAL APPLIANCE,
MISCELLANEOUS CERTIFIED FOR CANADA.
2 Corporate Center Drive, Suite 100
P.O. Box 9040, Melville, NY 11747
Copyright © 2011 Honeywell International Inc.
Ê800-09009<Š
800-09009 5/11 Rev. A
