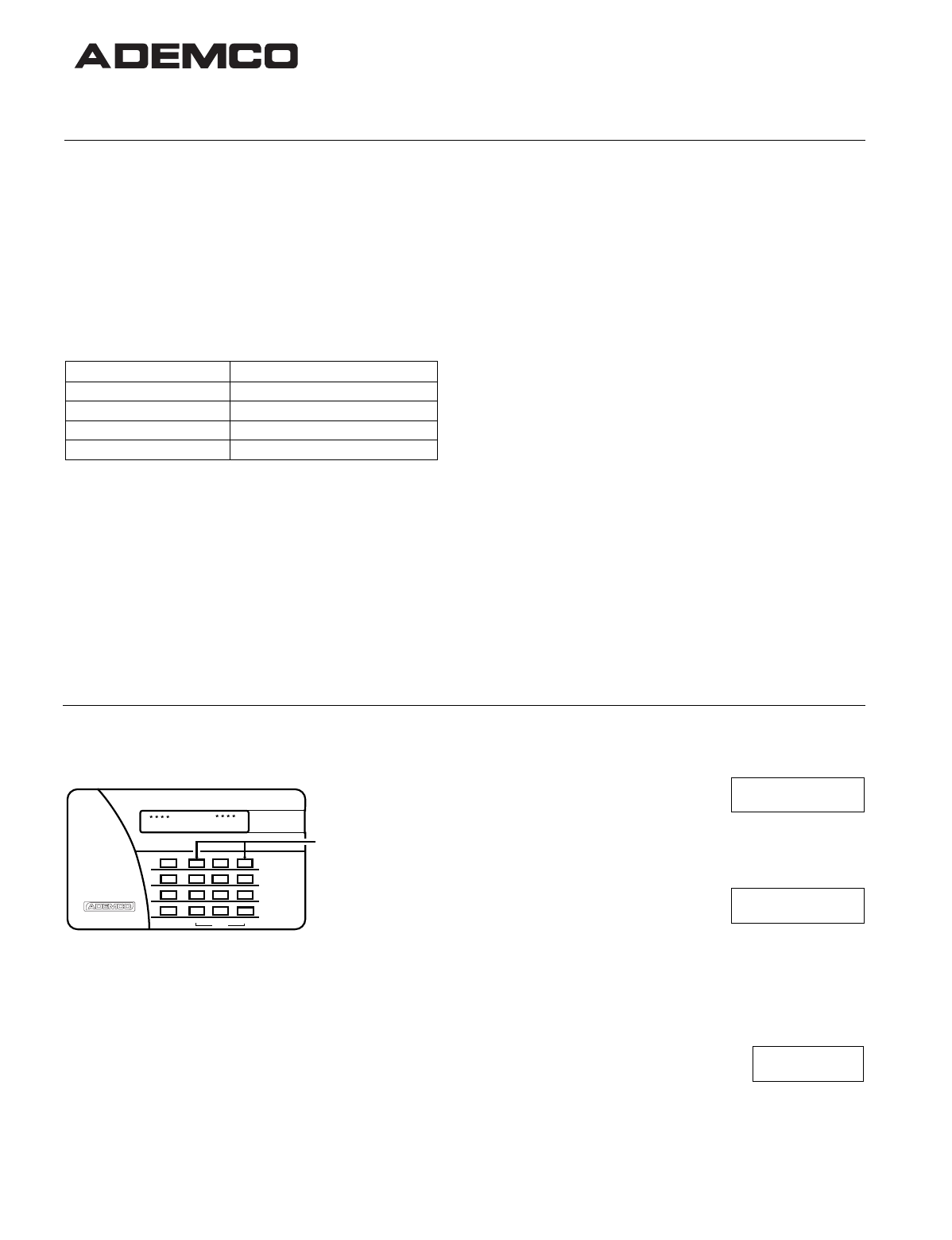

5839
Wireless Bidirectional Alpha Keypad
INSTALLATION AND SETUP GUIDE
GENERAL INFORMATION
The 5839 is a wireless bidirectional alpha keypad that is
used in conjunction with a 5883 transceiver. The 5839 should
be used as an auxiliary keypad in addition to one or more
wired keypads. It should not be used as the only or primary
keypad.
In non-addressable systems, the number of wireless keypads
that can be used is unlimited. In addressable systems, refer
to the table on the next page for limitations on the number
of keypads that may be addressed for each family of security
systems. For the following controls, the 5839 is compatible
only with the revisions indicated:
Control Panel Compatible Revisions
Vista-15P WA15P-1.3 and higher
Vista-20P WA20P-1.4 and higher
FA148C WA15P-1.3 and higher
FA168C WA20P-1.4 and higher
NOTES:
• Up to eight (8) 5839s can be used on any one partition.
• Up to two (2) can be used on each of two partitions.
• The 5839 is not recommended for use on more than two
(2) partitions of a multi-partition system
The keypad is compatible with most controls and performs
the same user functions as a wired alpha keypad.
Activate the 5839 by pressing any key on its keypad, (unless
powered by an external power-pack referred to in the
POWER CONNECTIONS paragraph).
The keypad returns to its inactive state if no keys are
pressed for 30 seconds. After activation, pressing the [✱] key
displays the current status whenever desired. The 5839
cannot be used to program a control panel (an alpha
keypad hard-wired to the control is required).
MOUNTING
The 5839 is designed to be wall mounted, mated to its
mounting plate. The mounting plate secures the keypad to
the wall and holds the battery in place. It is necessary to
keep the mounting plate attached to the keypad at all times.
Before mounting the 5839 permanently, determine a good
RF location by first conducting a Go/No GO test from the
panel. Refer to the Go/No GO test mode in the Installation
and Setup Guide for the panel.
Avoid mounting locations on or near large metal objects,
since these can decrease the transmission range or block
transmissions.
BATTERY INSTALLATION OR REPLACEMENT
Separate the keypad from its mounting plate by sliding the
keypad up and away from the mounting plate.
Install or replace the 9 Volt Ultralife Lithium battery (No.
465) in the battery compartment provided at the rear of the
keypad. Ensure that battery female (-) and male (+)
terminals are properly oriented with the battery spring clip
connections.
Reattach the keypad to its mounting plate by aligning the
four mounting holes in the keypad case back with the four
mounting clips on the mounting plate. Lower the keypad
onto the clips.
Anticipated battery life is 1.5 years.
PROGRAMMING
Before enrolling the 5839, you must first be sure that a
wireless transmitter is already enrolled in a zone OR that a
House ID has been programmed into the panel.
5839-002-V0
PANIC
READY
INSTANT CODE CHIME
MAX TEST BYPASS
OFF AWAY STAY
456
78
*
0#
123
SHOWN WITH FLIP-DOWN
KEY COVER REMOVED
9
DISARMED
READY TO ARM FIRST PRESS ANY KEY,
THEN PRESS AND HOLD
TO ENTER PROG. MODE
To enroll the 5839, program special keys, and enable sounds,
perform the following steps:
1. Place the control panel in Go/No-Go test mode. Wait at
least 30 seconds before enrolling and programming the
5839 keypad and its associated 5883 transceiver.
NOTE: It is recommended that you enroll the 5839 only
from its final mounting position to ensure proper signal
strength. Performing step 1 is only necessary when first
enrolling the 5839. To modify only the Keys or Sounds
options, it is not necessary.
2. a. Enter 5839 program mode by first pressing any key to
activate the keypad, if necessary.
b. The prompt at right is displayed: Waiting for mesg
c. Press and hold down keys [1] and [3] at the same time
for several seconds until all 2 x 16 character locations
on the LCD indicate solid black rectangles. This tests
all the elements of the LCD display.
3
. After all display elements are
tested, the Options? prompt at
right appears:
5839 Rev.n.n.US
Options? ✱=Y #=N
Where: 5839 Rev.n.n. = Keypad software revision level
US = Indicates this keypad is intended for use in the US
✱ = Press to advance to next prompt.
# = Press to exit from program mode.
4
. a. The Setup? prompt at right
appears after selecting “Y” from
the previous prompt.
Setup?
✱ = Y # = N
- 2 -
Use this option to enroll the keypad in a 5883
transceiver.
NOTE: If using more than one 5883 transceiver, make
sure you enroll all 5839 keypads in the same transceiver
(disconnect others from the system when enrolling). If
using the transmitter function for 5800TM compatible
devices, you must enroll the 5839 keypads in the
transceiver for which the transmitter (TM) function is
enabled.
✱ = Press to advance to next prompt.
# = Advance to “Keys?” prompt (Step 5).
b. The prompt at right appears after
selecting “Y” from the previous
prompt.
ECP Addr?
✱ = Y # = N
✱ = Display keypad address prompt
# = Return to the “Setup?” prompt above.
When using… Set 5839 for… Set Panel for…
Vista
10SE/20SE
Family
00 Panel converts to
address 31
automatically.
00 16
01 17
02 18
03 19
04 20
05 21
06 22
Vista-15P/20P
Family†
(Check for
compatible
revisions that
appear on first
page.)
07 23
Vista-40 and
higher† 00-15 00-15 (Program the
panel for the keypad
at the same
address.)
† The 5839 keypad must be programmed in the control as
an alpha keypad with no sounder suppression. Be sure
not to assign the same address to more than one device.
c. The prompt at right appears
after selecting “Y” from the
previous prompt.
nn (00-15)
✱ =Done # =End
Enter the 5839 keypad address (see table above).
✱ = Accept entry and enroll keypad in 5883.
# = Return to previous display.
d. The prompt at right appears
after pressing [✱] from the
previous prompt.
Waiting for mesg
Setup? # = end
This display remains for several seconds while the
5839 sends a setup request to the 5883 and receives
a reply. In some cases it may be necessary to send
additional setup requests by pressing the ✱ key.
To abort the enrollment, press [#], which returns the
system to the “ECP Addr?” prompt.
Otherwise, wait until the
prompt at right is displayed. ID: nnnnnn
✱ =Done #=N
This display indicates the keypad has received the
site ID (nnnnnn) from the transceiver (5883).
✱ = Accept site ID and return to the “Setup?”
prompt
# = Reject site ID and return to setup menu.
5. a. The prompt at right appears
after selecting “N” from the
“Setup?” prompt (step 4.a.).
Keys
✱ =Y #=N
✱ = Display next prompt.
# = Advance to “Sounds?” prompt.
b. The following prompt appears
after selecting “Y” from the
previous prompt.
Send ABCD?
✱ = Y # = N
✱ = Enables ABCD keys to transmit and returns to
“Keys?” prompt.
# = Disables ABCD keys and returns to “Keys?”
prompt.
6. a. The prompt at right appears
after selecting “N” from the
“Keys?” prompt.
Sounds?
✱ = Y # = N
✱ = Display “Stat/Warn/Chime” prompt.
# = Return to the initial “Options?” prompt.
b. The prompt at right appears
after selecting “Y” from the
previous prompt.
Stat/Warn/Chime
✱ = Y # = N
✱ = Enables the keypad to audibly annunciate
mode/status changes, warning sounds and
chime activation and return to “Sounds?”
prompt.
# = Disables audible annunciations and returns to
“Sounds?” prompt
EXITING FROM PROGRAMMING MODE
After all programming of the 5839 keypad is complete, it is
important to exit the programming mode. To do this, press
and hold down keys [1] and [3] at the same time for several
seconds until all 2 x 16 character locations on the LCD
indicate solid black rectangles, then release.
When the following display comes up,
5839 Rev.n.n.US
Options? ✱ =Y # =N press the # key. You have exited
the programming mode.
The display will now show:
Waiting for mesg
DELETING ALL ENROLLED WIRELESS KEYPADS
1. Remove power from the 5883 in the controls cabinet by
removing the 4-wire connector.
2. Set DIP switch 1 to OFF and DIP switch 8 to ON.
3. Reapply power and observe that the RED LED turns ON
immediately and remains ON.
4. Record the positions of DIP switches 1 through 8.
5. Set the 8 DIP switches to the opposite position recorded
in step 4.
6. Set the 8 DIP switches back to the same position
recorded in step 4. (All enrolled 5839s have been deleted
from the 5883 transceiver.)
7. Place DIP switch 8 back to the OFF position to return to
normal 5883 operation.
NOTES:
1. If you determine that the proper ECP address has not
been enrolled in the receiver, perform the above deleting
procedure and re-enroll all the 5839s in order to avoid
erroneous “CHECK” messages.
2. When in active mode, and a change of status of the
security system occurs (arming state or fault for instance),
the 5839 may take up to 20 seconds to display the change.
To obtain a real-time display of system status, press the [✱]
key.
- 3 -
POWER CONNECTIONS
In a typical wireless configuration, the 5839 is powered by a
9V battery and remains in the inactive state until activated
by the press of any key.
If you want the keypad to remain active at all times,
providing audible and visual indications (without having to
be activated by a key press), the 5839 can be powered from
an external 110VAC input/9VDC output power pack. The
power pack must provide 100mA and have a female output
connector with a positive 9V center pin and a 0V shell.
These devices are generally available from consumer
electronics shops for powering various electronic appliances.
It is recommended that a 9V lithium battery be installed as
a backup power source when using the 110VAC/9VDC
power-pack.
5839 SPECIFICATIONS:
Physical:
7.4” W x 4.8” H x 1.46” D (188mm x
122mm x 37mm)
Frequency of
Operation: 345 MHz
Battery: 9-Volt Lithium, ADEMCO 465
Ultralife, with expected life of 1.5
years.
Power Pack
(optional): 110VAC input/9 Volt DC output,
100mA, ADEMCO P/N N7703
LCD Display: Supertwist 2 lines x 16 characters
each, backlit.
Sounder: Piezoelectric
SUPERVISION:
1. Battery – With a low battery condition, a “CONSOLE LOW BATTERY” message is displayed on the 5839 display whenever
the keypad is “awakened” from its inactive state.
2. The battery-powered keypad will not go into the inactive state until the case is closed and/or mounting plate is reattached.
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE CONTROL PANEL WITH WHICH THIS DEVICE
IS USED, FOR DETAILS ON LIMITATIONS OF THE ENTIRE ALARM SYSTEM.
FCC ID; CFS8DL5839US-1
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Industry Canada: 1748A5839US1
FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT
This equipment has been tested to FCC requirements and has been found acceptable for use. The FCC requires the following
statement for your information:
This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance
with the manufacturer's instructions, may cause interference to radio and television reception. It has been type tested and
found to comply with the limits for a Class B computing device in accordance with the specifications in Part 15 of FCC Rules,
which are designed to provide reasonable protection against such interference in a residential installation. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• If using an indoor antenna, have a quality outdoor antenna installed.
• Reorient the receiving antenna until interference is reduced or eliminated.
• Move the radio or television receiver away from the receiver/control.
• Move the antenna leads away from any wire runs to the receiver/control.
• Plug the receiver/control into a different outlet so that it and the radio or television receiver are on different branch
circuits.
If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The
user or installer may find the following booklet prepared by the Federal Communications Commission helpful:
"Interference Handbook"
This booklet is available under Stock No. 004-000-00450-7 from the U.S. Government Printing Office, Washington, DC 20402.
The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or
User's Manual. Unauthorized changes or modifications could void the user's authority to operate the equipment.
LIMITED WARRANTY
Honeywell International Inc., acting through its ADEMCO business ("Seller"), 165 Eileen Way, Syosset, New York 11791,
warrants its product(s) to be in conformance with its own plans and specifications and to be free from defects in materials and
workmanship under normal use and service for 24 months from the date stamp control on the product(s) or, for product(s) not
having an ADEMCO date stamp, for 12 months from date of original purchase unless the installation instructions or catalog
sets forth a shorter period, in which case the shorter period shall apply. Seller's obligation shall be limited to repairing or
replacing, at its option, free of charge for materials or labor, any product(s) which is proved not in compliance with Seller's
specifications or proves defective in materials or workmanship under normal use and service. Seller shall have no obligation
under this Limited Warranty or otherwise if the product(s) is altered or improperly repaired or serviced by anyone other than
ADEMCO factory service. For warranty service, return product(s) transportation prepaid, to ADEMCO Factory Service, 165
Eileen Way, Syosset, New York 11791.
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, OF MERCHANTABILITY, OR FITNESS FOR A PARTICULAR
PURPOSE OR OTHERWISE, WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO CASE
SHALL SELLER BE LIABLE TO ANYONE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF
THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, OR UPON ANY OTHER BASIS OF LIABILITY
WHATSOEVER, EVEN IF THE LOSS OR DAMAGE IS CAUSED BY THE SELLER'S OWN NEGLIGENCE OR FAULT.
Seller does not represent that the product(s) it sells may not be compromised or circumvented; that the product(s) will prevent
any personal injury or property loss by burglary, robbery, fire or otherwise; or that the product(s) will in all cases provide
adequate warning or protection. Customer understands that a properly installed and maintained alarm system may only
reduce the risk of a burglary, robbery, fire, or other events occurring without providing an alarm, but it is not insurance or a
guarantee that such will not occur or that there will be no personal injury or property loss as a result. CONSEQUENTLY,
SELLER SHALL HAVE NO LIABILITY FOR ANY PERSONAL INJURY, PROPERTY DAMAGE OR OTHER LOSS BASED ON
A CLAIM THAT THE PRODUCT(S) FAILED TO GIVE WARNING. HOWEVER, IF SELLER IS HELD LIABLE, WHETHER
DIRECTLY OR INDIRECTLY, FOR ANY LOSS OR DAMAGE ARISING UNDER THIS LIMITED WARRANTY OR
OTHERWISE, REGARDLESS OF CAUSE OR ORIGIN, SELLER'S MAXIMUM LIABILITY SHALL NOT IN ANY CASE
EXCEED THE PURCHASE PRICE OF THE PRODUCT(S), WHICH SHALL BE THE COMPLETE AND EXCLUSIVE REMEDY
AGAINST SELLER.
This warranty replaces any previous warranties and is the only warranty made by Seller on this product(s). No increase or
alteration, written or verbal, of the obligations of this Limited Warranty is authorized.
165 Eileen Way, Syosset, New York 11791
Copyright © 2003 Honeywell International, Inc.
www.ademco.com
¬19@l
N8610-1V1 7/03
