N7635-3V3 1/01 Rev. D
ADEMCO 5881EN Series
RF Receiver
INSTALLATION AND SETUP GUIDE
INTRODUCTION
The 5881EN series of RF receivers is designed for use with control
panels that support an RF receiver connection via the keypad
terminals. The receiver recognizes alarm, status, and keypad
control messages from wireless transmitters operating at 345MHz.
One or two individually identified receivers can be employed,
depending on the control used. Connection of multiple receivers to a
control can provide redundant coverage or extend coverage in large
areas.
These receivers feature a Spatial Diversity System that virtually
eliminates the possibility of "nulls" and "dead spots" within the
coverage area. The 5881EN series of receivers use ADEMCO’s High
Security technology, and can be used in commercial fire
installations. Additionally, the 5881ENHC receiver contains front
and back tamper that permits its use in commercial burglary
installations.
UL
• In commercial fire applications, the receiver can only be
used with control panels that are approved for use in
Commercial Fire Installations. When the 5881EN is used
in commercial fire applications, DIP switch 5 must be in
the ON position.
• In commercial burglary applications, the 5881ENHC can
only be used with control panels that are approved for
use in Commercial Burglary Installations.
• In commercial fire applications, a keypad must be
connected to Keypad Port 2 in the control. The keypad
must be mounted on the control or within 3 feet of the
control with the wiring encased in conduit.
Each receiver supports the number of zones shown below.
5881ENL Up to 8 zones
5881ENM Up to 16 zones
5881ENH *See below
5881ENHC *See below
* The number of zones that the 5881ENH
receiver can support depends on the control
with which it is used. See the control panel’s
instructions for specific details.
If a receiver is connected to a system in which more than the
permitted number of wireless zones have been programmed, a "SET
UP ERROR" message (on alpha keypads) or an "E4 or “E8”"
message (on fixed-word keypads) will be displayed on the system's
keypad, and none of the zones will be protected.
The instruction manual that accompanies the control includes
recommendations regarding receiver and transmitter locations, the
types of wireless zones that can be programmed (e.g.,
ENTRY/EXIT, PERIMETER, INTERIOR, etc.) and the procedure
for programming the receivers.
These receivers should not be installed in an area subject to
environmental extremes of below freezing (such as an unheated
warehouse) or extremely high temperatures (such as an attic).
INSTALLATION
With some controls, a receiver may be mounted directly inside the
control's cabinet (receiver circuit board only, without its plastic
housing) instead of remotely (in its own housing). In both cases,
avoid mounting the receiver antennas against a metal surface.
NOTE: You may only mount the 5881ENHC its own plastic
housing. If you attempt to mount the 5881ENHC in the control’s
cabinet, the receiver constantly reports a tamper condition.
1. Remove the receiver's cover by inserting and twisting a
screwdriver blade in the slot at the center of the cover's lower
edge.
2. If the receiver is to be mounted within the control's
cabinet (refer to Figure 1):
a. Remove the receiver's circuit board from its base by bending
back the two flexible plastic tabs that hold the board's lower
edge.
b. In the control's cabinet, unfasten and move the control
circuit board downward (if already installed).
c. Hang two mounting clips (provided with the receiver) on the
raised cabinet tabs, as shown in Detail B of Figure 1.
d. Insert the top of the receiver board between the rows of slots
at the top of the cabinet, as shown in Detail A.
e. Position the base of the receiver board onto the mounting
clips and secure to the cabinet with the supplied screws. See
Detail B.
f. Hang two mounting clips (supplied with the control board),
on the raised cabinet tabs as shown in Detail C in Figure 1.
g. Insert the top of the control board into the slots of the
mounting clips secured in step e above.
h. Position the lower end of the control board into place on the
mounting clips and secure both to the cabinet with the two
supplied screws.
i. Insert both grounding lugs (supplied with the receiver)
through the top of the cabinet into the left-hand terminals of
the antenna blocks (located on the upper edge of the receiver
board), and secure them to the cabinet with the screws
provided, as shown in Detail D.
j. Insert the receiver’s antennas through the top of the cabinet,
into the blocks’ right-hand terminals, and tighten the
screws.
k. Affix the receiver's Summary of Connections label to the
inside of the control's cabinet door.
l. Discard the receiver's unused plastic cover and base.
3. If the receiver is to be located remotely from the control
in its own plastic enclosure (not in a cabinet):
You will not need the circuit board mounting clips, grounding
lugs and screws included with the receiver.
a. If concealed wiring is to be used, route it through the
rectangular opening at the rear of the base before mounting.
For surface wiring entry, a thin breakaway area is provided
along the base's right edge.
b. Mount the receiver in the selected location. For greatest
security, use all four mounting holes (two key slot holes and
two round holes) provided in the plastic base.
c. If installing a 5881ENHC, install a flat-head screw
(supplied) in the case tamper tab as shown in Figure 2.
When the receiver is pried from the wall, the tamper tab will
break off and remain on the wall. This will activate a tamper
switch in the receiver and cause generation of a tamper
signal. Note that this signal will also be generated when the
receiver’s front cover is removed.
d. Affix the receiver's Summary of Connections label to the
inside of the housing cover.
2
MOUNTING
CLIP
CABINET
DETAIL D
ANTENNA AND GROUNDING LUG INSTALLATION
ANTENNA
MOUNT
(2 PLACES)
ANTENNA
(2)
SCREW
(2)
MOUNTING
CLIP
CONTROL
CIRCUIT
BOARD
BOARD
SUPPORTING
SLOTS
HOLES FOR ANTENNAS
AND GROUNDING LUGS
RECEIVER CIRCUIT BOARD
(See Detail D)
++
++
RCVR BRD
DETAIL A
SIDE VIEW
OF BOARD
SUPPORTING SLOTS
DETAIL B
SIDE VIEW
OF MOUNTING
CLIP
DETAIL C
SIDE VIEW
OF MOUNTING
CLIP
GROUNDING
LUG
(2)
pcb_RF_mount-V0
CIRCUIT BOARD
CABINET
5881ENHC-001-V0
SCREW

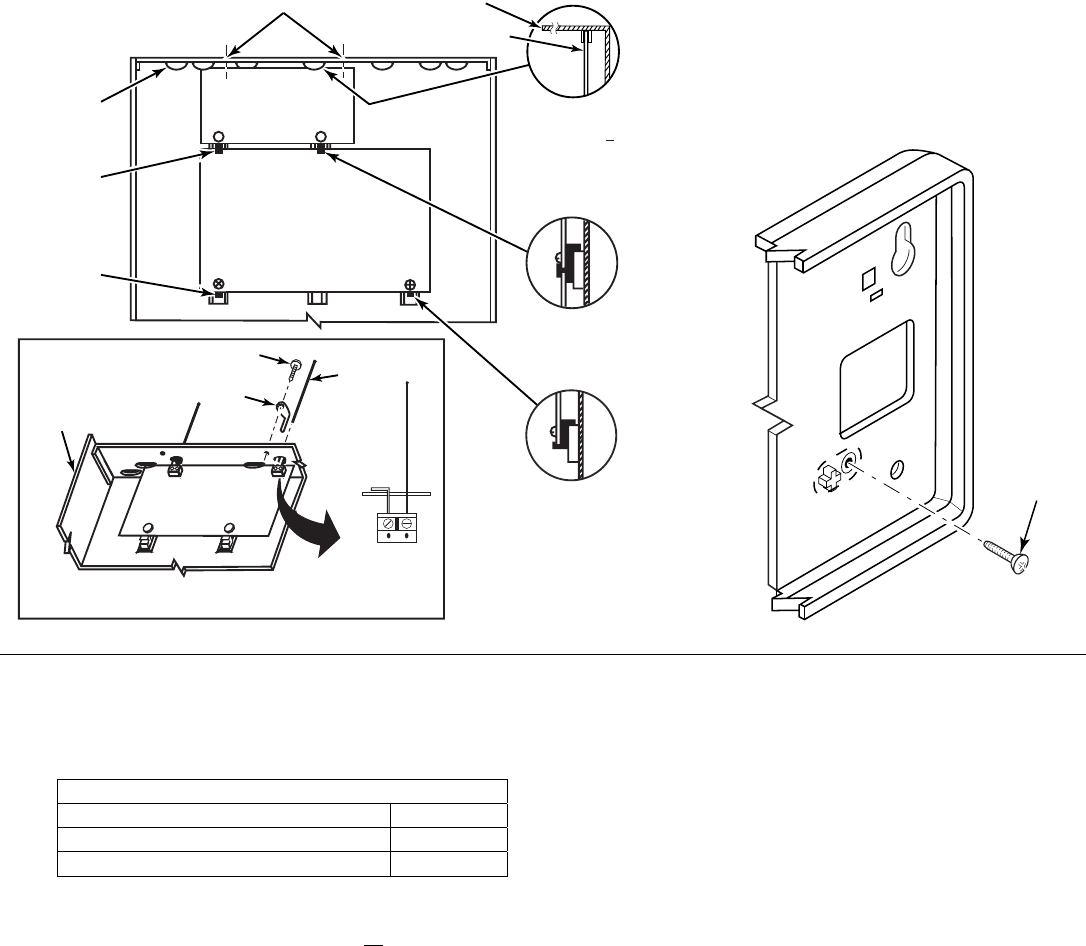

Figure 1: Installing the Receiver Board in the Control’s Cabinet Figure 2: Tamper Protection

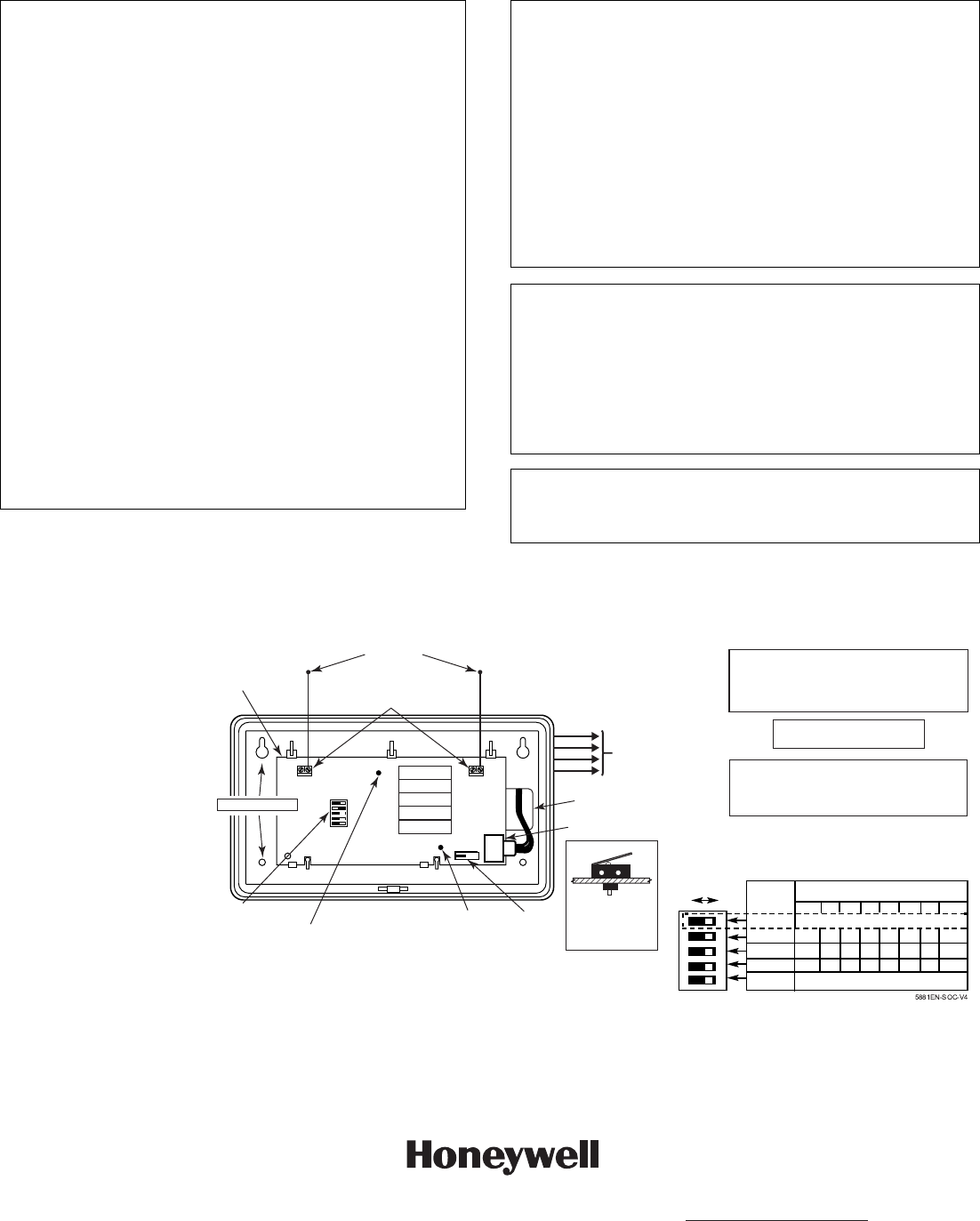

4. Setting the DIP switches (All Receivers):
a. Set the receiver's DIP switch (#2 through #4) to identify the
receiver's address (refer to the DIP switch chart in Figure 3).
b. Verify that DIP switch #1 is in the OFF position.
c. Set DIP switch #5 according to the following chart.
DIP SWITCH #5
For . . . Set to . . .
Commercial Fire Applications ON
Non-commercial Fire Applications OFF
NOTES:
• If multiple receivers are used on one control, DIP switch
#5 must be set to the same position on all receivers.
• DIP switch #5 reduces sensitivity during supervision
message reception. For commercial fire applications, DIP
switch #5 must be in the ON position.
5. Insert the wiring plug (with 4 flying leads) into the
mating socket on the receiver (see Figure 3 for socket
location). Connect the 4 wires to the control's corresponding
keypad terminals (see “Interface Wiring” in the
SPECIFICATIONS section).
6. Install the antennas in the right-hand terminals of the two
terminal blocks at the upper edge of the circuit board, one into
each block’s right-hand terminal, and tighten the screws to
secure them.
Caution: Avoid mounting the receiver antennas against a
metal surface.
7. Proceed with any programming of the control that may
be necessary for RF operation, and the installation of the
system's wireless transmitters, as described in the control's
installation and setup guide and the transmitter's installation
instructions.
NOTES:
• The receiver can support up to 16 high security (encrypted)
wireless transmitters (keys). The total quantity of wireless
keys (encrypted and unencrypted) that can be used is
determined by the control panel.
• Wireless key buttons must be enrolled to zones in the control
panel via zone programming first. If the wireless key is to be
used for arming and disarming the VISTA-40 and up, a user
number must then be assigned to the wireless key via user
programming. If it is not done in this order, you will be
unable to respond successfully to the RF button zone number
prompt in user programming.
• If more than one receiver is being used and you are using
encrypted wireless keys, we recommend that you (a) enter
the GO/NO GO mode, (b) disconnect one receiver, (c) enroll
all encrypted keys into the connected receiver, (d) reconnect
the disconnected receiver, (e) exit the GO/NO GO mode, and
then (f) repeat (a) through (e) for the receiver that was
disconnected.
• The RED LED located on the receiver's circuit board should
be used as an indicator of strong local radio frequency
interference. If this LED is continuously illuminated, the
receiver should be relocated.
• After a successful enrollment of an encrypted key, the
GREEN LED blinks the number of spaces that are free for
additional encrypted key enrollment.
8. Replace the receiver's cover.
3
ENCRYPTED KEYS
The receiver can support up to 16 encrypted wireless transmitters
(keys) at one time. If the number on the receiver microprocessor is
WAK 4406-4 or higher, the receiver provides you with the capability
to check space available and/or delete encrypted keys using the
procedures below.
The GREEN LED located on the receiver's circuit board may be
used to determine how many more encrypted keys may be enrolled
into the receiver. This LED is also used to indicate when encrypted
keys may be deleted. To determine how many more encrypted keys
may be enrolled and/or to delete enrolled encrypted keys:
1. Remove power from the receiver and set DIP switch 1 to
the ON position.
2. Apply power to the receiver and watch the GREEN LED.
You will see one of the following indications:
a. The GREEN LED blinks the number of spaces that are free
for additional encrypted key enrollment and then goes to
constantly ON.
b. The GREEN LED is constantly ON, indicating the receiver
is full.
c. The GREEN LED is OFF, indicating no encrypted keys are
enrolled.
3. If you do not want to delete any enrolled encrypted keys,
advance to step 4. If you want to delete enrolled
encrypted keys, wait until the GREEN LED is constantly
ON in step 2 a. or 2 b. above and then:
a. Record the positions of DIP switches 1 through 5.
b. Set DIP switches 1 through 5 to the opposite positions
of their current settings and wait a few moments.
c. Set DIP switches 1 through 5 back to their original
positions as recorded in step a. All enrolled encrypted
keys will be deleted.
4. Place DIP switch 1 back into the OFF position to return
to normal receiver operation.
WARNING! LIMITATIONS OF THIS WIRELESS ALARM SYSTEM
While this System is an advanced wireless security system, it does not offer
guaranteed protection against burglary, fire or other emergency. Any alarm
system, whether commercial or residential, is subject to compromise or
failure to warn for a variety of reasons. For example:
• Intruders may gain access through unprotected openings or have the
technical sophistication to bypass an alarm sensor or disconnect an
alarm warning device.
• Intrusion detectors (e.g., passive infrared detectors), smoke detectors,
and many other sensing devices will not work without power. Battery-
operated devices will not work without batteries, with dead batteries, or if
the batteries are not put in properly. Devices powered solely by AC will
not work if their AC power supply is cut off for any reason, however
briefly.
• Signals sent by wireless transmitters may be blocked or reflected by
metal before they reach the alarm receiver. Even if the signal path has
been recently checked during a weekly test, blockage can occur if a
metal object is moved into the path.
• A user may not be able to reach a panic or emergency button quickly
enough.
Limitations of this Wireless Alarm System, Continued
• While smoke detectors have played a key role in reducing residential fire
deaths in the United States, they may not activate or provide early
warning for a variety of reasons in as many as 35% of all fires, according
to data published by the Federal Emergency Management Agency.
Some of the reasons smoke detectors used in conjunction with this
System may not work are as follows. Smoke detectors may have been
improperly installed and positioned. Smoke detectors may not sense
fires that start where smoke cannot reach the detectors, such as in
chimneys, in walls, or roofs, or on the other side of closed doors. Smoke
detectors also may not sense a fire on another level of a residence or
building. A second floor detector, for example, may not sense a first floor
or basement fire. Finally, smoke detectors have sensing limitations. No
smoke detector can sense every kind of fire every time. In general,
detectors may not always warn about fires caused by carelessness and
safety hazards like smoking in bed, violent explosions, escaping gas,
improper storage of flammable materials, overloaded electrical circuits,
children playing with matches, or arson. Depending on the nature of the
fire and/or location of the smoke detectors, the detector, even if it
operates as anticipated, may not provide sufficient warning to allow all
occupants to escape in time to prevent injury or death.
• Passive Infrared Motion Detectors can only detect intrusion within the
designed ranges as diagrammed in their installation manual. Passive
Infrared Detectors do not provide volumetric area protection. They do
create multiple beams of protection, and intrusion can only be detected
in unobstructed areas covered by those beams. They cannot detect
motion or intrusion that takes place behind walls, ceilings, floors, closed
doors, glass partitions, glass doors, or windows. Mechanical tampering,
masking, painting or spraying of any material on the mirrors, windows or
any part of the optical system can reduce their detection ability. Passive
Infrared Detectors sense changes in temperature; however, as the
ambient temperature of the protected area approaches the temperature
range of 90° to 105°F (32° to 40°C), the detection performance can
decrease.
• Alarm warning devices such as sirens, bells or horns may not alert
people or wake up sleepers if they are located on the other side of
closed or partly open doors. If warning devices are located on a different
level of the residence from the bedrooms, then they are less likely to
waken or alert people inside the bedrooms. Even persons who are
awake may not hear the warning if the alarm is muffled by noise from a
stereo, radio, air conditioner or other appliance, or by passing traffic.
Finally, alarm warning devices, however loud, may not warn hearing-
impaired people.
• Telephone lines needed to transmit alarm signals from a premises to a
central monitoring station may be out of service or temporarily out of
service. Telephone lines are also subject to compromise by sophisticated
intruders.
• Even if the system responds to the emergency as intended, however,
occupants may have insufficient time to protect themselves from the
emergency situation. In the case of a monitored alarm system,
authorities may not respond appropriately.
• This equipment, like other electrical devices, is subject to component
failure. Even though this equipment is designed to last as long as 20
years, the electronic components could fail at any time.
• The most common cause of an alarm system not functioning when an
intrusion or fire occurs is inadequate maintenance. This alarm system
should be tested weekly to make sure all sensors and transmitters are
working properly. The security console (and remote keypad) should be
tested as well.
This system's wireless transmitters are designed to provide long battery life
under normal operating conditions. Longevity of batteries may be as much
as 7 years, depending on the environment, usage, and the specific wireless
device being used. External factors such as humidity, high or low
temperatures, as well as large swings in temperature, may all reduce the
actual battery life in a given installation. This wireless system, however, can
identify a true low battery situation, thus allowing time to arrange a change
of battery to maintain protection for that given point within the system.
Installing an alarm system may make the owner eligible for a lower
insurance rate, but an alarm system is not a substitute for insurance.
Homeowners, property owners and renters should continue to act prudently
in protecting themselves and continue to insure their lives and property.
We continue to develop new and improved protection devices. Users
of alarm systems owe it to themselves and their loved ones to learn
about these developments
2 Corporate Center Drive, Suite 100
P.O. Box 9040, Melville, NY 11747
Copyright © 2009 Honeywell International Inc.
www.honeywell.com/security
ÊN7635-3V35Š
N7635-3V3 1/01 Rev. D
FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENTS
The user shall not make any changes or modifications to the equipment unless
authorized by the Installation Instructions or User's Manual. Unauthorized
changes or modifications could void the user's authority to operate the
equipment.
Class B Digital Device Statement
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
INDUSTRY CANADA (IC) STATEMENTS
This device complies with RSS210 of Industry Canada. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference,
and (2) This device must accept any interference received, including interference
that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
SPECIFICATIONS
Dimensions: 7-3/8" W x 4-3/8" (10-7/8” w/antennas) H x 1-7/16" D
188mm W x 112mm H (277mm w/antennas) x 37mm D
Input Voltage: 12VDC (from control’s keypad terminals)
Current: 60mA (typical)
Operating Temperature: 0-50°C
Interface Wiring:
RED 12VDC input (+) Aux. Power
GREEN: Data Out to Control
YELLOW: Data In from Control
BLACK: Ground (–)
Range: 200ft (60m) nominal indoors from wireless transmitters
(the actual range to be determined with the security
system in the Test mode).
TO THE INSTALLER
Regular maintenance and inspection (at least annually) by the installer
and frequent testing by the user are vital to continuous satisfactory
operation of any alarm system.
The installer should assume the responsibility of developing and
offering a regular maintenance program to the user, as well as
acquainting the user with the proper operation and limitations of the
alarm system and its component parts. Recommendations must be
included for a specific program of frequent testing (at least weekly) to
insure the system's operation at all times.
WARRANTY INFORMATION
For the latest warranty information, please go to:
http://www.security.honeywell.com/hsc/resources/wa/index.html
ANTENNAS
INSERT IN
RIGHT-HAND
TERMINALS
CIRCUIT
BOARD
DIP SWITCH INTERFERENCE
INDICATOR LED
PLUG & SOCKET
WIRING
OPENING
YELLOW
RED
BLACK
GREEN
USE MAX. OF 220 ft. (67m) OF #22 (0.64mm) WIRE
OR 550 ft. (168m) OF #18 (1mm) WIRE FOR EACH RUN.
20 ft. MAX. IN COMMERCIAL FIRE INSTALLATIONS.
(SEE RECEIVER'S INSTRUCTIONS).
TO CONTROL'S KEYPAD
TERMINALS. EACH RECEIVER
MUST BE ON INDIVIDUAL
HOME RUN.
THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES AND
RSS210 OF INDUSTRY CANADA. OPERATION IS SUBJECT TO
THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT
CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST
ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
DIP SWITCH #5
ON: FOR USE IN COMMERCIAL FIRE APPLICATIONS.
(SEE THE RECEIVER'S INSTRUCTIONS).
OFF: USE IN NON-COMMERCIAL FIRE INSTALLATIONS.
SWITCH RECEIVER ADDRESS SETTINGS
POSITION (“—” means “OFF”)
01234567
5 (SEE TEXT ABOVE)
4—ON —ON —ON —ON
3——ON ON ——ON ON
2————ON ON ON ON
1
5
4
3
2
1
ON OFF
MUST BE IN OFF POSITION
DETAIL A
FRONT AND
REAR TAMPER
5881ENHC ONLY
SEE
DETAIL A
5881EN SERIES
5881ENL
5881ENM
5881ENHC
5881ENH
GREEN LED: NORMALLY OFF
ONE SHORT FLASH
- RF MESSAGE DECODED
ONE LONGER FLASH
- COMMAND RECEIVED FROM CONTROL
FOUR FLASHES
- ENCRYPTED TRANSMITTER SUCCESSFULLY ENROLLED
DIP SWITCH: WHITE AREAS = SWITCH HANDLES
POSITION 2-4: DETERMINE RECEIVER'S ADDRESS
CONSULT CONTROL'S INSTRUCTIONS FOR ADDRESS TO USE.
DIP SWITCH BELOW SHOWN SET FOR ADDRESS "0".
BACK OF PC BOARD
FRONT OF PC BOARD
NOTE: WHEN CIRCUIT BOARD IS
MOUNTED IN CONTROL'S CABINET,
GROUNDING LUGS (2) PROVIDED
MUST BE INSERTED IN LEFT-HAND
TERMINALS OF ANTENNA BLOCKS
AND SECURED TO CABINET (SEE
RECEIVER'S AND CONTROL'S IN-
STRUCTIONS). WHEN BOARD IS
MOUNTED IN A SEPARATE CABI-
NET (COMMERCIAL FIRE APPLICA-
TION), DO NOT USE THE GROUND-
ING LUGS.
TO RELEASE CIRCUIT BOARD,
BEND BACK BOTTOM TABS (2). FOR
COMMERCIAL FIRE APPLICATION.
USE TWO SCREWS (NOT
SUPPLIED) WITH INSULATING
WASHERS BENEATH THE HEADS.
TO MOUNT BOARD IN SEPARATE
CABINET. (SEE RECEIVER'S
INSTRUCTIONS).
MOUNTING HOLES
FCC ID CFS8DL5882A
CANADA:17481021751A
