N5987-2V1 10/99 Rev. B
$'(0&23,
3$66,9(,1)5$5('027,21'(7(&72575$160,77(5
INSTALLATION INSTRUCTIONS
GENERAL INFORMATION
The 5890PI Passive Infrared Motion
Detector/Transmitter is a battery-operated
wireless device intended for use as part of a
5800 series wireless alarm system.
Designed for use in commercial and residential
installations, the 5890PI is a wall-mounted unit
with a standard lens that provides wide-angle
protection up to a range of 35 ft (10.6m). For
best coverage, mount the detector so that the
likely direction of intruder motion is across the
pattern.
When installed per the guidelines, the Split-
Zone Optics technology in the 5890PI provides
reasonable false alarm protection against pets
and other animals up to 40 lbs.
This document provides installation instructions
for the 5890PI, but the installer must be familiar
with the installation instructions for the 5800
Wireless Alarm System with which the 5890PI
is intended to be used.
FEATURES
• Split-Zone Optics provides pet immunity
against animals up to 40 lbs.
• Wireless operation for fast installation.
• Dual-element pyroelectric sensor provides
positive protection while minimizing false
alarms.
• Alternate-polarity pulse count option offers
greater stability in adverse environments.
• Provision to turn LED on while Walk Testing
(LED is turned off after testing).
• Tamper-protected cover; unit transmits
message if cover is removed.
• Wall or corner mounting options.
SYSTEM DESCRIPTION
Optical System
Uses efficiently designed Fresnel lenses with
Split-Zone Optics.
Radio Transmitter
The built-in transmitter serves only as the
communication link to the alarm system's
Receiver/Control, and can send alarm, tamper,
supervisory, and battery status messages to
the system's receiver/control. The transmitter is
not used for detection purposes. Each detector
has a unique ID code permanently assigned at
the factory. You must enroll this ID into the
control system at the time of installation. This
allows each detector used in the system to be
uniquely identified. You must program the
control to enroll the 5890PI as an "RF" type unit
(i.e., supervised RF).
To conserve battery life during normal
operation, no more than one transmission
sequence will occur within a 3-minute period.
There is no such time restriction in Test mode.
Alternate-Polarity Pulse Count
Two jumper-selectable detection response
modes are provided:
Instant response
(Pulse
Count OFF) and
Alternate-Polarity Pulse Count
(Pulse Count ON). With Pulse Count OFF, any
detected change in infrared energy triggers an
immediate alarm signal. This mode is
recommended when the detector is used to
monitor a narrow hallway where coverage is
provided by only a single zone. Use the Pulse
Count ON mode when the detector is installed
in areas where periodic changes in infrared
energy levels are normal (for example, where
forced-air heating ducts are present). In this
mode, at least two changes in infrared energy
must be detected within a short period before
an alarm is triggered.
Important Note:
For pet immune
applications, Pulse Count ON is
recommended.
SPECIFICATIONS
Pet Immune
Lens: 35 ft x 45 ft (10.6m x 13.7m).
30 zones (8 long, 7 over 7 inter-
mediate, 4 over 4 short-range).
Pulse Count: Installer-selectable On/Off link.
Detectable
Walk Rate: 0.5–10 ft/Sec (0.15–1.5m/Sec).
Mtg. Height: 7.0 ft recommended (2.1m),
but may be mounted at other
heights (see Table 1).
Walk Test
Indicator: Red LED with Test/Normal
(disable) link.
Batteries: Two 3-volt Lithium batteries.
Use only ADEMCO No. 466,
Duracell DL123A, Panasonic
CR123A, Sanyo CR123A, or
Varta CR123A.
0perating
Temperature: 32°F – 122°F (0°C - 50°C).
Operating
Humidity: Up to 95% RH (max.), non-
condensing.
Dimensions: 2-11/16"W x 5"H x 1-7/8"D
68mm x 127mm x 48mm.

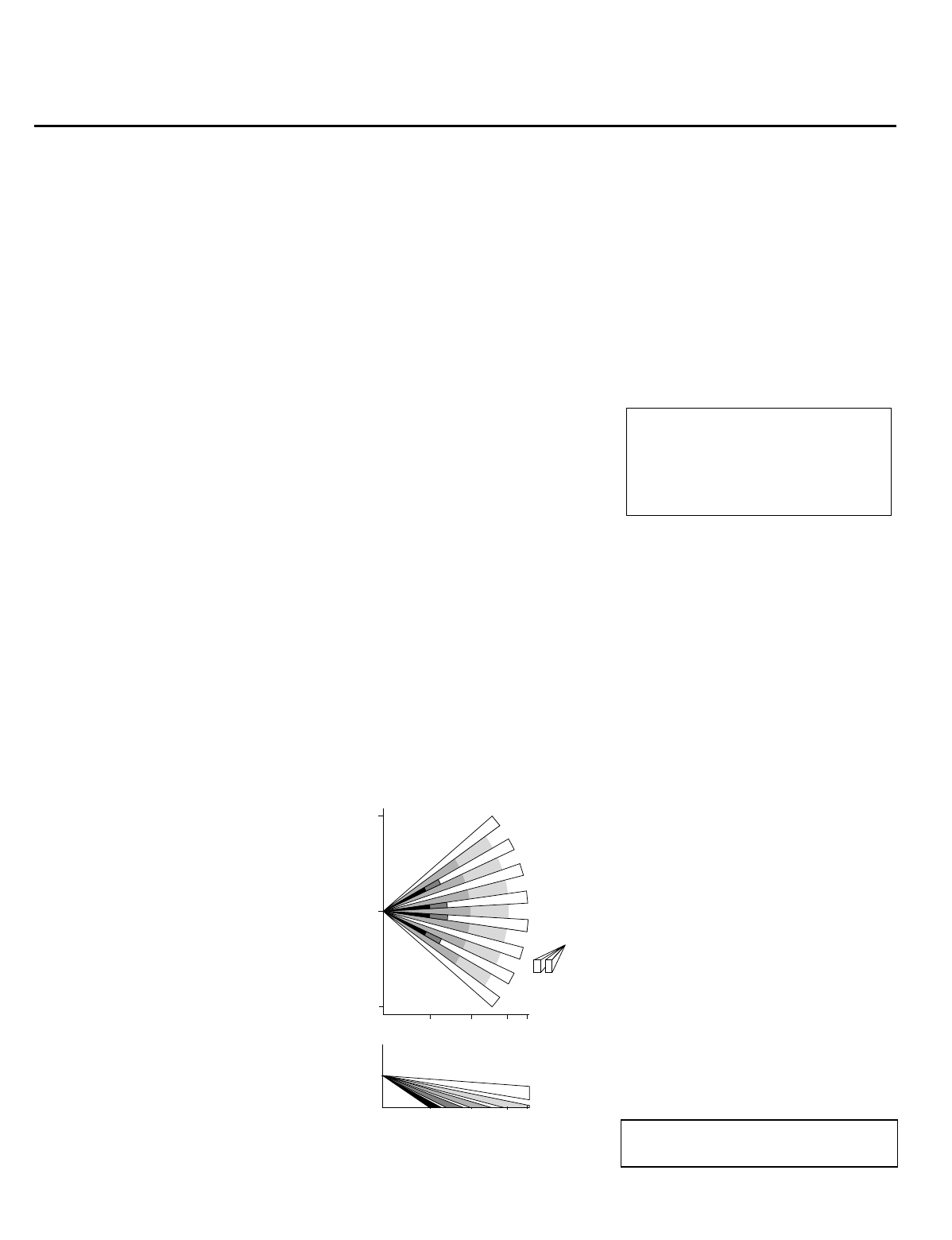

ALTERNATE
COUNT POLARITY
EACH ZONE CONSISTS
OF 2 FIELDS
0
25'
(7.6m)
25'
(7.6m)
10'
(3m)
20'
(6m)
30'
(9m)
35'
(10.6m)
0
7.5'
(2.3m)
0
10'
(3m)
20'
(6m)
30'
(9m)
35'
(10.6m)
Figure 1. Protection Pattern
BATTERY INSTALLATION
1. Remove front cover by inserting a large
screwdriver blade (or small coin) in groove
between cover and base at the location
shown in Figure 2; rotate blade to override
snap fit, then lift cover off.
2. Observing correct polarity, install the two
Lithium batteries (supplied) into the battery
holders, as shown in Figure 5. Make sure
the batteries are firmly seated.
3. Replace the cover (snap fit).
Battery Caution
Risk of fire, explosion, and burns. Do not
recharge, disassemble, heat above 100°C, or
incinerate. Dispose of used batteries promptly.
Keep away from children.
Programming Note: If you have not
programmed the detector’s ID into the
system (i.e., this is an initial detector
installation), refer to the
PROGRAMMING
section below and perform the ID enrolling
procedure before mounting or testing the
detector.
PROGRAMMING
You must enroll the detector’s ID during
installation of the system. You should
program the 5890PI as an “RF” type unit
(i.e., supervised RF), and the "Loop"
number as "1."
To program the detector, place the LED jumper
in the TEST position (see Figure 5), the Pulse
Count jumper in the OFF position, batteries
installed and cover on. Temporarily cover the
lens (a cloth will do) to prevent any activation
by the detector.
When prompted for the device’s serial number,
you may either manually enter it or transmit
from the unit (remove the cloth cover and
motion your hand over the lens to activate the
detector, press the tamper switch, etc.).
Refer
to the control panel installation instructions for
programming details.
Return LED jumper to the NORMAL position
after it is enrolled in the control.
INSTALLATION
Installation Hints
•
Do not install where the detector is exposed
to direct sunlight or directly above strong
sources of heat.
•
Make sure the detection area does not have
obstructions (curtains, screens, large pieces
of furniture, plants, etc.) that may block the
pattern of coverage.
•
Avoid locating a unit in areas that contain
objects likely to produce a rapid change in
temperature, such as central heating,
radiators, or ducts (or heaters of any kind),
air conditioners, open flame, etc.
•
Do not mount on an unstable surface.
IMPORTANT: For installation with pets, be
sure to follow the guidelines described in
Table 2.

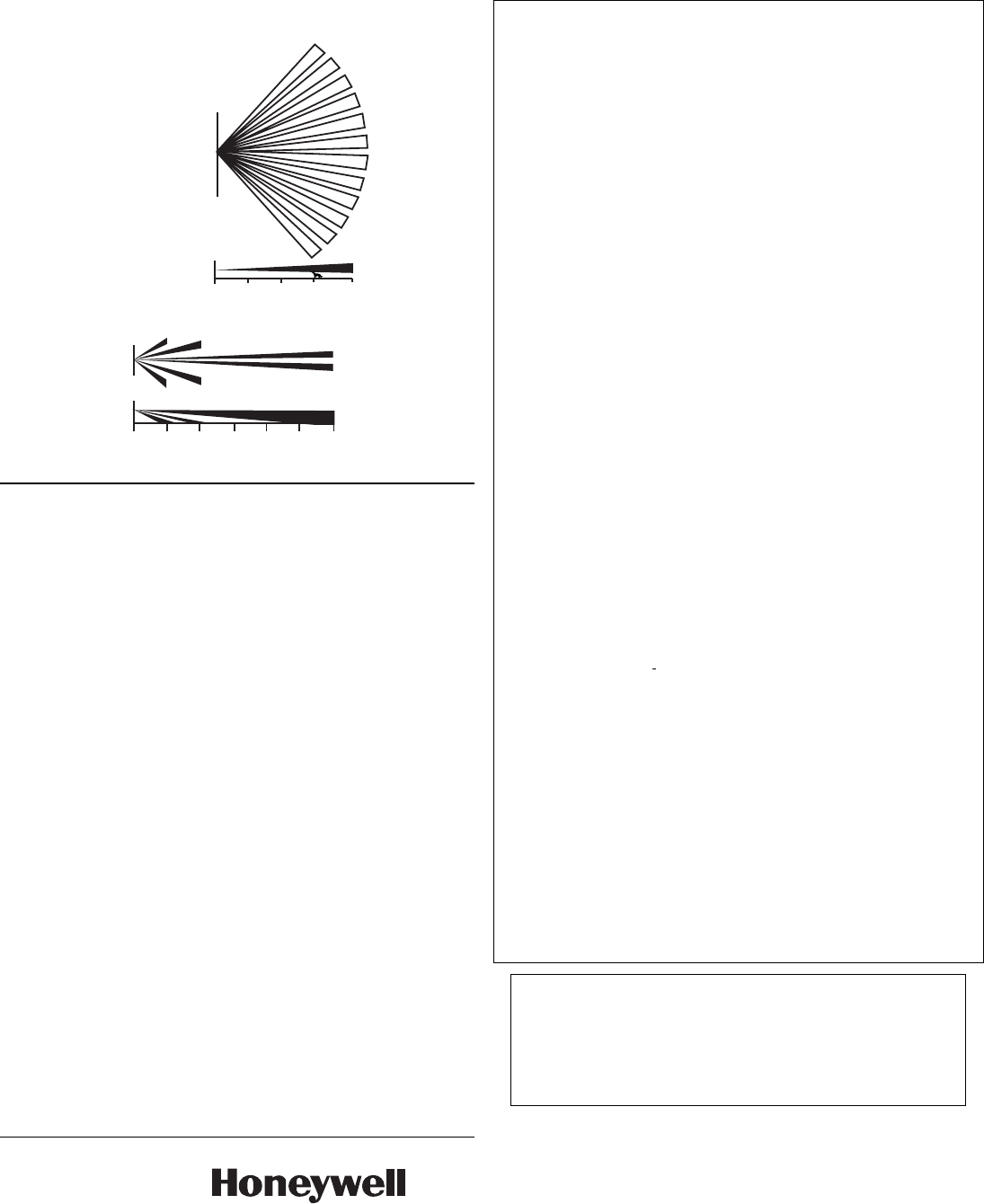

PROTECTION PATTERNS FOR OPTIONAL LENSES
No. 199PA, Pet Alley Lens
TOP VIEW 100˚
100˚
SIDE VIEW
0 10 ft 20 ft 30 ft 40 ft
(3m) (6m) (9m) (12m)
3 ft
(1m)
No. 199LR, Long Range Lens
SIDE VIEW
0 10 ft 20 ft 30 ft 40 ft 50 ft 60 ft
(3m) (6m) (9m) (12m) (15m) (18m)
7 ft
(2.1m)
TOP VIEW
6 ft
(1.8m)
LIMITATIONS OF THE PIR MOTION DETECTOR
While the Intrusion Detector is a highly reliable intrusion detection device, it
does not offer guaranteed protection against burglary. Any Intrusion
Detection device is subject to compromise or failure to warn for a variety of
reasons:
• Passive Infrared Motion Detectors can only detect intrusion within the
designed ranges as diagrammed in this installation manual.
• Passive Infrared Motion Detectors do not provide volumetric area
protection. They do create multiple beams of protection, and intrusion can
only be detected in unobstructed areas covered by those beams.
• Passive Infrared Detectors cannot detect motion or intrusion that takes
place behind walls, ceilings, floors, closed doors, glass partitions, glass
doors, or windows.
• Mechanical tampering, masking, painting, or spraying of any material on
the lenses, windows, or any part of the optical system can reduce the
detection ability of the Passive Infrared Motion Detector.
• Passive Infrared Detectors sense changes in temperature; however, as
the ambient temperature of the protected area approaches the
temperature range of 90° to 105°F (32° to 40°C), the detection
performance can decrease.
• This Passive Infrared Detector will not operate without the appropriate
battery installed, or if the battery is weak or improperly connected (i.e.,
reversed polarity).
• Passive Infrared Detectors, like other electrical devices, are subject to
component failure. Even though this equipment is designed to last as long
as 10 years, the electronic components in it could fail at any time.
We have cited some of the most common reasons that a Passive Infrared
Motion Detector can fail to catch intrusion. However, this does not imply that
these are the only reasons, and therefore it is recommended that weekly
testing of this type of unit, in conjunction with weekly testing of the entire
alarm system, be performed to ensure that the detectors are working
properly.
Installing an alarm system may make the owner eligible for a lower insurance
rate, but an alarm system is not a substitute for insurance. Homeowners,
property owners, and renters should continue to act prudently in protecting
themselves and continue to insure their lives and property.
We continue to develop new and improved protection devices. Users of alarm
systems owe it to themselves and their loved ones to learn about these
developments.
LIMITED WARRANTY
Honeywell International Inc., acting through its Security & Custom
Electronics business ("Seller") 165 Eileen Way, Syosset, New York
11791, warrants its product(s) to be in conformance with its own plans
and specifications and to be free from defects in materials and
workmanship under normal use and service for 24 months from the
date stamp control on the product(s) or, for product(s) not having a
manufacturer’s date stamp, for 12 months from date of original
purchase unless the installation instructions or catalog sets forth a
shorter period, in which case the shorter period shall apply. Seller's
obligation shall be limited to repairing or replacing, at its option, free
of charge for materials or labor, any product(s) which is proved not in
compliance with Seller's specifications or proves defective in materials
or workmanship under normal use and service. Seller shall have no
obligation under this Limited Warranty or otherwise if the product(s)
is altered or improperly repaired or serviced by anyone other than
Honeywell factory service. For warranty service, return product(s)
transportation prepaid, to Honeywell Factory Service, 165 Eileen
Way, Syosset, New York 11791.
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, OF
MERCHANTABILITY, OR FITNESS FOR A PARTICULAR
PURPOSE OR OTHERWISE, WHICH EXTEND BEYOND THE
DESCRIPTION ON THE FACE HEREOF. IN NO CASE SHALL
SELLER BE LIABLE TO ANYONE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY
OTHER WARRANTY, EXPRESS OR IMPLIED, OR UPON ANY
OTHER BASIS OF LIABILITY WHATSOEVER, EVEN IF THE
LOSS OR DAMAGE IS CAUSED BY THE SELLER'S OWN
NEGLIGENCE OR FAULT.
Seller does not represent that the product(s) it sells may not be
compromised or circumvented; that the product(s) will prevent any
personal injury or property loss by burglary, robbery, fire or
otherwise; or that the product(s) will in all cases provide adequate
warning or protection. Customer understands that a properly
installed and maintained alarm system may only reduce the risk of a
burglary, robbery, fire, or other events occurring without providing an
alarm, but it is not insurance or a guarantee that such will not occur
or that there will be no personal injury or property loss as a result.
CONSEQUENTLY, SELLER SHALL HAVE NO LIABILITY FOR
ANY PERSONAL INJURY, PROPERTY DAMAGE OR OTHER LOSS
BASED ON A CLAIM THAT THE PRODUCT(S) FAILED TO GIVE
WARNING. HOWEVER, IF SELLER IS HELD LIABLE, WHETHER
DIRECTLY OR INDIRECTLY, FOR ANY LOSS OR DAMAGE
ARISING UNDER THIS LIMITED WARRANTY OR OTHERWISE,
REGARDLESS OF CAUSE OR ORIGIN, SELLER'S MAXIMUM
LIABILITY SHALL NOT IN ANY CASE EXCEED THE PURCHASE
PRICE OF THE PRODUCT(S), WHICH SHALL BE THE
COMPLETE AND EXCLUSIVE REMEDY AGAINST SELLER.
This warranty replaces any previous warranties and is the only
warranty made by Seller on this product(s). No increase or alteration,
written or verbal, of the obligations of this Limited Warranty is
authorized.
FCC STATEMENT
FCC ID: CFS8DL5890PI-1
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference. (2) This device must accept any nterf-
ierence received, including nterference that may cause undesired
operation IC: 573F-5890PI1
165 Eileen Way, Syosset, New York 11791
Copyright © 2004 Honeywell International Inc.
www.honeywell.com/security
ÊN5987V3(Š
N5987V3 5/04 Rev. A
