User Manual_20180228_v1 - SiXCO EXHIBIT 9-1 Install Guide

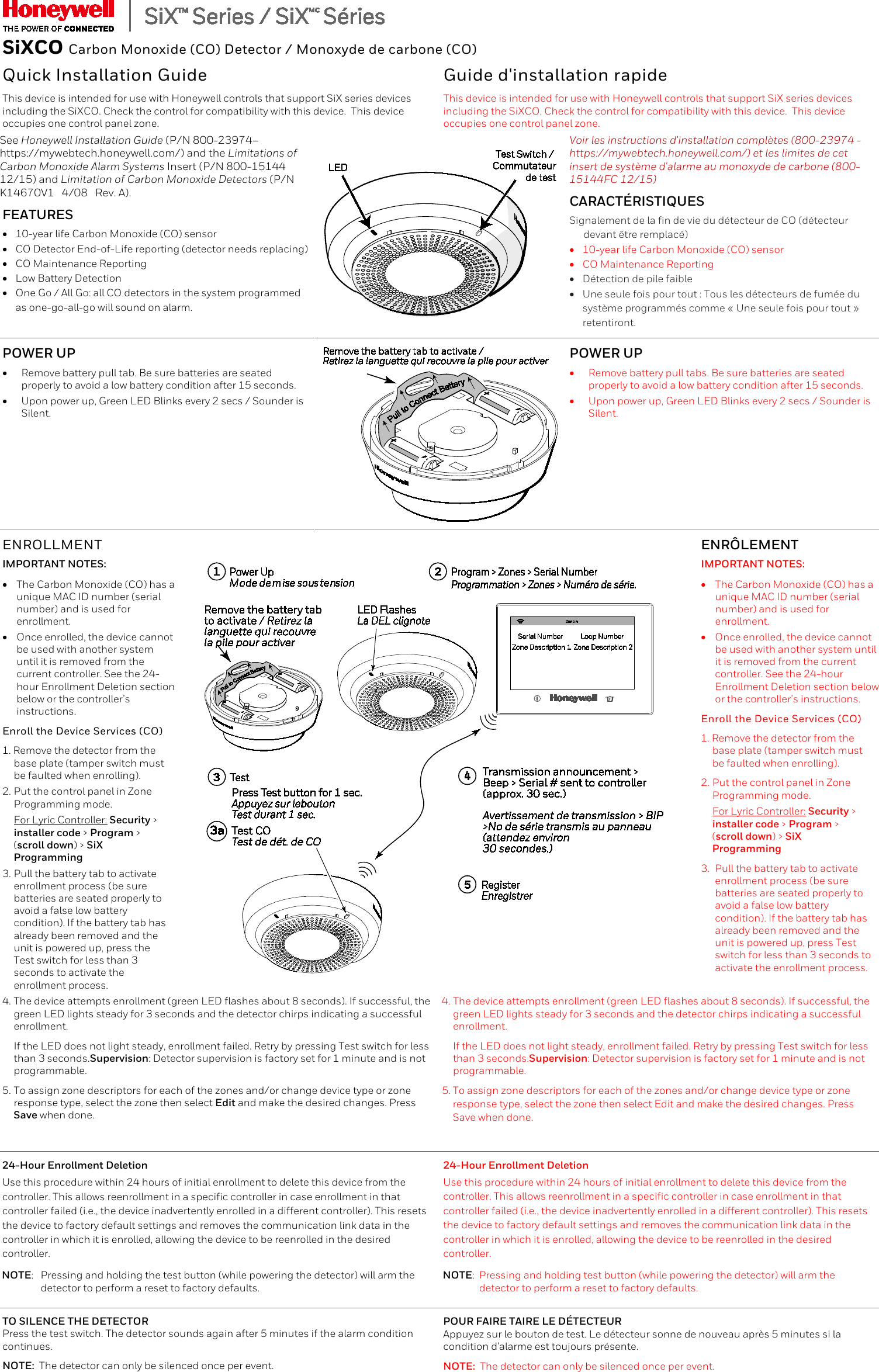

  SiXCO Carbon Monoxide (CO) Detector / Monoxyde de carbone (CO)  Quick Installation Guide Guide d'installation rapide This device is intended for use with Honeywell controls that support SiX series devices including the SiXCO. Check the control for compatibility with this device.  This device occupies one control panel zone. This device is intended for use with Honeywell controls that support SiX series devices including the SiXCO. Check the control for compatibility with this device.  This device occupies one control panel zone. See Honeywell Installation Guide (P/N 800-23974– https://mywebtech.honeywell.com/) and the Limitations of Carbon Monoxide Alarm Systems Insert (P/N 800-15144 12/15) and Limitation of Carbon Monoxide Detectors (P/N K14670V1   4/08   Rev. A). FEATURES • 10-year life Carbon Monoxide (CO) sensor • CO Detector End-of-Life reporting (detector needs replacing) • CO Maintenance Reporting • Low Battery Detection • One Go / All Go: all CO detectors in the system programmed as one-go-all-go will sound on alarm.  Voir les instructions d'installation complètes (800-23974 - https://mywebtech.honeywell.com/) et les limites de cet insert de système d'alarme au monoxyde de carbone (800-15144FC 12/15) CARACTÉRISTIQUES Signalement de la fin de vie du détecteur de CO (détecteur devant être remplacé) • 10-year life Carbon Monoxide (CO) sensor • CO Maintenance Reporting • Détection de pile faible • Une seule fois pour tout : Tous les détecteurs de fumée du système programmés comme « Une seule fois pour tout » retentiront. POWER UP • Remove battery pull tab. Be sure batteries are seated properly to avoid a low battery condition after 15 seconds. • Upon power up, Green LED Blinks every 2 secs / Sounder is Silent.  POWER UP • Remove battery pull tabs. Be sure batteries are seated properly to avoid a low battery condition after 15 seconds. • Upon power up, Green LED Blinks every 2 secs / Sounder is Silent. ENROLLMENT    ENRÔLEMENT IMPORTANT NOTES:  • The Carbon Monoxide (CO) has a unique MAC ID number (serial number) and is used for enrollment. • Once enrolled, the device cannot be used with another system until it is removed from the current controller. See the 24-hour Enrollment Deletion section below or the controller’s instructions. Enroll the Device Services (CO) 1. Remove the detector from the base plate (tamper switch must be faulted when enrolling). 2. Put the control panel in Zone Programming mode.  For Lyric Controller: Security > installer code > Program > (scroll down) > SiX Programming 3. Pull the battery tab to activate enrollment process (be sure batteries are seated properly to avoid a false low battery condition). If the battery tab has already been removed and the unit is powered up, press the Test switch for less than 3 seconds to activate the enrollment process.  IMPORTANT NOTES:  • The Carbon Monoxide (CO) has a unique MAC ID number (serial number) and is used for enrollment. • Once enrolled, the device cannot be used with another system until it is removed from the current controller. See the 24-hour Enrollment Deletion section below or the controller’s instructions. Enroll the Device Services (CO) 1. Remove the detector from the base plate (tamper switch must be faulted when enrolling). 2. Put the control panel in Zone Programming mode.  For Lyric Controller: Security > installer code > Program > (scroll down) > SiX Programming 3. Pull the battery tab to activate enrollment process (be sure batteries are seated properly to avoid a false low battery condition). If the battery tab has already been removed and the unit is powered up, press Test switch for less than 3 seconds to activate the enrollment process. 4. The device attempts enrollment (green LED flashes about 8 seconds). If successful, the green LED lights steady for 3 seconds and the detector chirps indicating a successful enrollment.  If the LED does not light steady, enrollment failed. Retry by pressing Test switch for less than 3 seconds.Supervision: Detector supervision is factory set for 1 minute and is not programmable. 5. To assign zone descriptors for each of the zones and/or change device type or zone response type, select the zone then select Edit and make the desired changes. Press Save when done. 4. The device attempts enrollment (green LED flashes about 8 seconds). If successful, the green LED lights steady for 3 seconds and the detector chirps indicating a successful enrollment.  If the LED does not light steady, enrollment failed. Retry by pressing Test switch for less than 3 seconds.Supervision: Detector supervision is factory set for 1 minute and is not programmable. 5. To assign zone descriptors for each of the zones and/or change device type or zone  response type, select the zone then select Edit and make the desired changes. Press  Save when done. 24-Hour Enrollment Deletion Use this procedure within 24 hours of initial enrollment to delete this device from the controller. This allows reenrollment in a specific controller in case enrollment in that controller failed (i.e., the device inadvertently enrolled in a different controller). This resets the device to factory default settings and removes the communication link data in the controller in which it is enrolled, allowing the device to be reenrolled in the desired controller. NOTE:  Pressing and holding the test button (while powering the detector) will arm the  detector to perform a reset to factory defaults. 24-Hour Enrollment Deletion Use this procedure within 24 hours of initial enrollment to delete this device from the controller. This allows reenrollment in a specific controller in case enrollment in that controller failed (i.e., the device inadvertently enrolled in a different controller). This resets the device to factory default settings and removes the communication link data in the controller in which it is enrolled, allowing the device to be reenrolled in the desired controller. NOTE:  Pressing and holding test button (while powering the detector) will arm the  detector to perform a reset to factory defaults. TO SILENCE THE DETECTOR Press the test switch. The detector sounds again after 5 minutes if the alarm condition continues. NOTE:  The detector can only be silenced once per event. POUR FAIRE TAIRE LE DÉTECTEUR  Appuyez sur le bouton de test. Le détecteur sonne de nouveau après 5 minutes si la condition d'alarme est toujours présente. NOTE:  The detector can only be silenced once per event.
