SiXGB
Installation Instructions
The SiXGB is a wireless glassbreak detector intended for use with Honeywell controls that support SiX™ Series
devices.

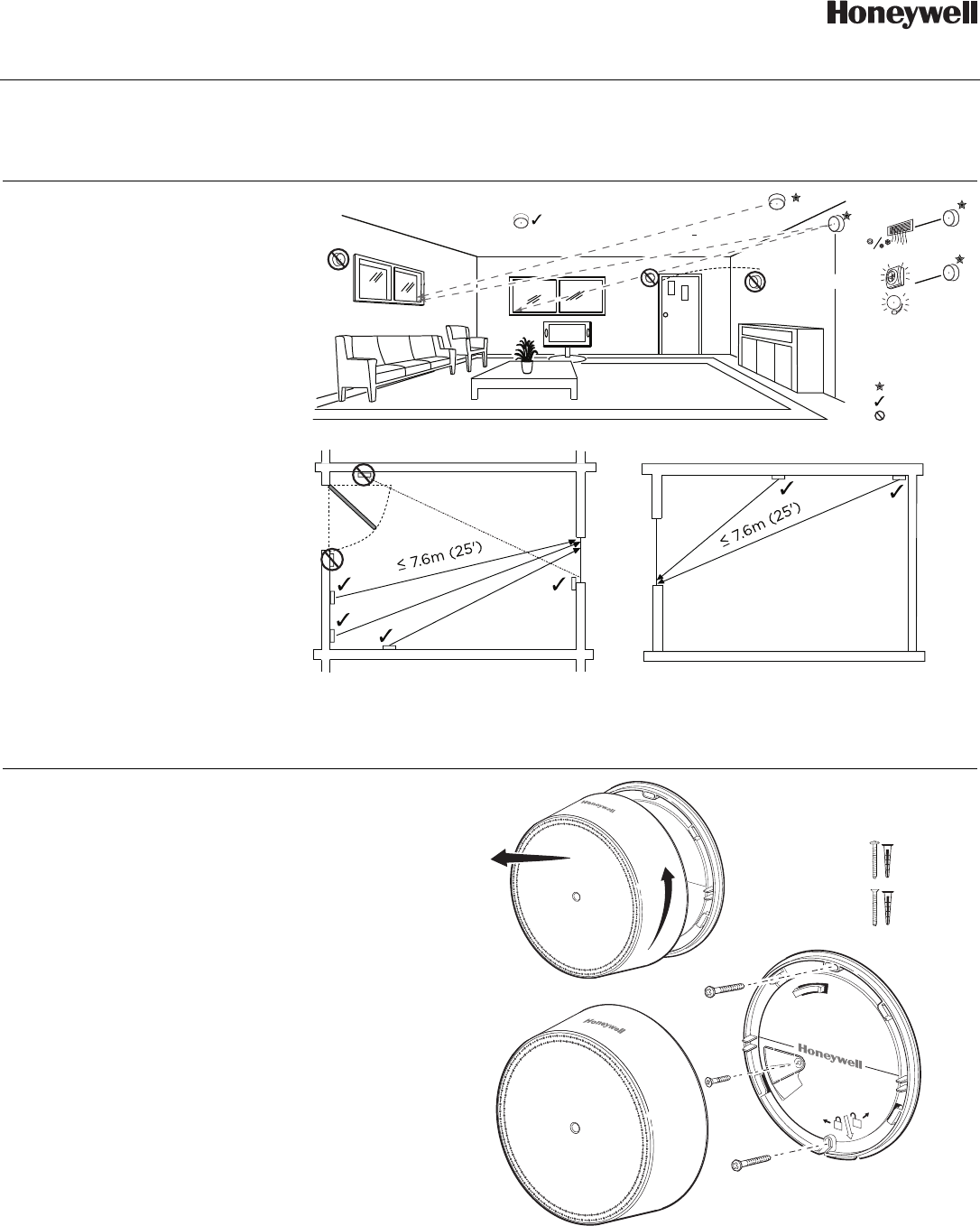

Mounting Guidelines
The SiXGB can be mounted on the
wall or on the ceiling:
• within 7.6 m (25 feet) of the
protected glass
• within clear view of the protected
glass
• at least 2 m (6.5 feet) from the floor
• at least 1 m (3.3 feet) from forced
air ducts
• at least 1 m (3.3 feet) from sirens or
bells greater than 5 cm (2 inches) in
diameter
• between the protected glass and
any heavy window coverings
• when heavy window coverings are
present, the detector can be
mounted on the window frame
• Avoid mounting the detector on the
same wall as the protected glass,
on free-standing posts or pillars, or
in rooms with noisy equipment (air
compressors, bells, power tools,
etc.), if this equipment is operated
when the detector is armed.
> 2.0m (6.5')
Optimal
Satisfactory
No
> 1m
(3.3')
< 7.6m (25')
> 1m
(3.3')
> 5 cm
(2”) Diameter
RF6 GB-WallMo unt
Wall Mount ( To pView)
Do NOT mo unt o n
co lumns, p o sts o r po les.
Glass
Ceiling Mount (Side View)
RF6G B-Ce iling Mo unt
Ceiling
Glass
Flo o r
To remove the mounting bracket:
Turn the top of the detector 15 degrees counter-
clockwise and separate the mounting bracket.
NOTE: Before mounting the device permanently,
conduct Go/No Go tests (see controller’s
instructions) to verify adequate signal strength and
adjust the device location and orientation as
necessary.
The rear tamper plate MUST be mounted to a stud,
solid wood, or with a robust wall anchor.
3.5 mm x 25 mm
(#6 x 1") [2]
3.5 mm x 25 mm
(#6 x 1") [1]
A
L
I
G
N
t
o
D
I
M
P
L
E
PLEASE GO TO THE LAST PAGE FOR FCC/IC AGENCY STATEMENTS
2
Enroll

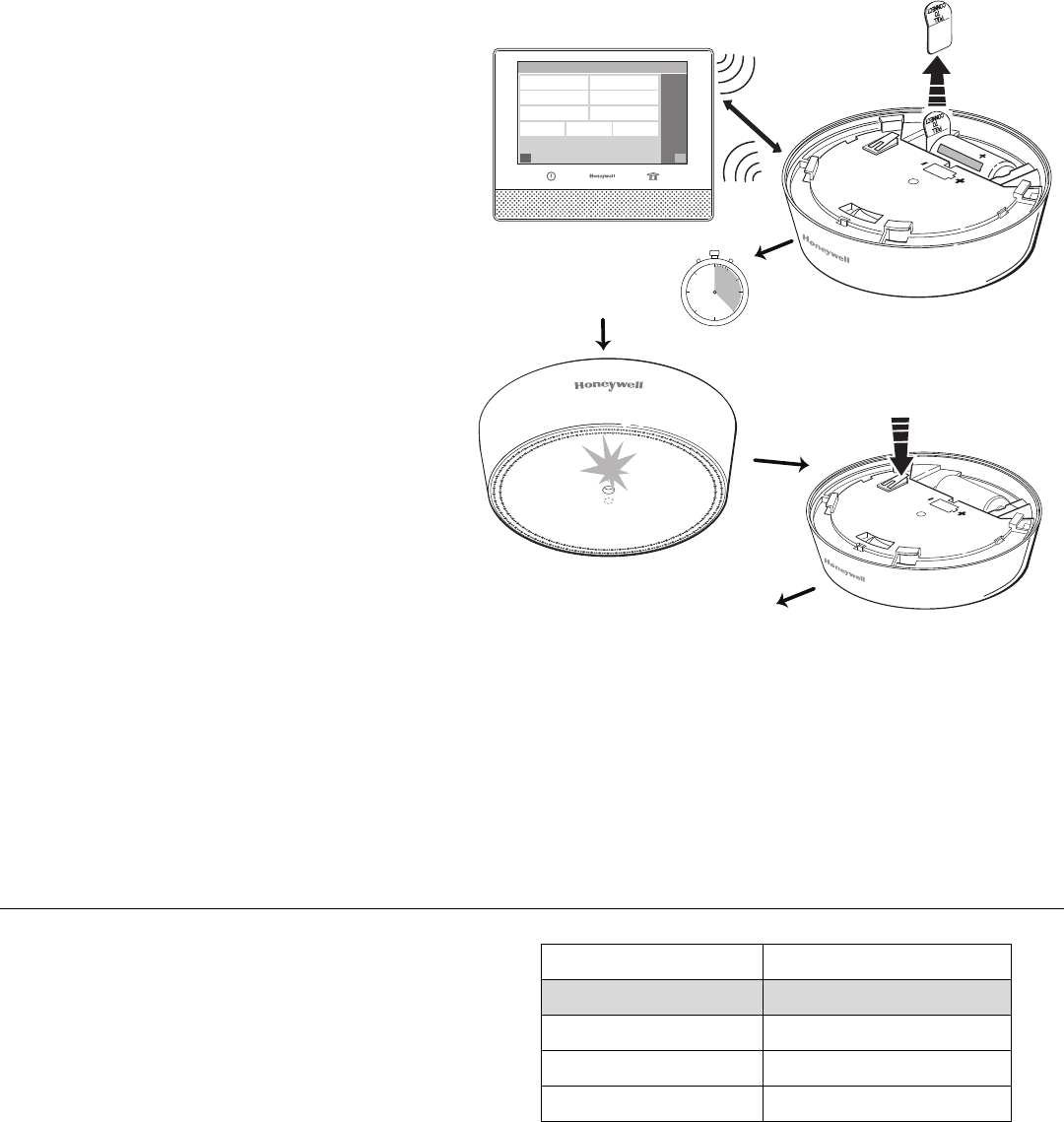

This device can be enrolled and programmed
either before or after installation.
1. Set the Lyric Controller in Programming
Mode and go to Zone Programming. Select
Add New, then Serial Number. Follow the
controller’s instructions to begin enrollment.
2. Remove the battery tab to activate the device
and begin the enrollment process.
3. The Green [G1]
1
LED flashes during
enrollment (up to about 20 seconds*)
*NOTE: Enrollment time varies depending on the
signal strength between the device and the
controller.
• The device sends its unique MAC ID
(Serial Number) and Services information
to the controller.
• The controller registers the device and
displays the transmitter data on screen.
4. The Green [G1] LED is ON for 3 seconds
and the controller beeps to confirm
enrollment.
5. Trigger the detector as shown to complete
enrollment.
6. Press SAVE.
If the sensor is not successfully enrolled during
the enrollment period, the LED turns off and the
device powers down. Activate the tamper, power
down and up again, or use the FG-701
Glassbreak Simulator to restart the enrollment
process.
The device can also be manually enrolled. See
the Controller’s Programming Guide for details.
1
Refer to the SiXGB LEDs section.
PULL
TO
CONNECT
Serial Number Loop Number
Zone Description 1 Zone Description 2
Device Type Response Type
Alarm Report Chime Supervision
Panic Home
The Green LED
is ON for
3 seconds
12
4
Trigger the
device again
3
The Green LED
flashes. Wait up to
about 20 seconds 30
0
45
20
10
PULL
TO
CONNECT
Programming Mode > Zones >
Add New > Serial Number /
5
Press SAVE
6
After enrolling, update the SiXGB firmware (via the Controller)
to ensure the latest version is used. See the Controller’s
instructions.
NOTE: Once enrolled in a system, the detector cannot be used with
another controller until it is removed from the current controller. See the
Controller’s instructions for details.
Program the SiXGB
Consult the Controller’s instructions for programming
the device in the system.
Adjust the detector sensitivity setting in the controller
programming mode. Refer to the table on the right for
sensitivity options.
Sensitivity Setting Approximate Range
High* 4.6-7.6m / 15-25 ft.
Medium 3-4.6m / 10-15 ft.
Low 1.5-3m / 5-10 ft.
Lowest 0-1.5m / 0-5 ft.
*Factory default. Change the sensitivity setting at
the Controller.
3
SiXGB LEDs
The detector has three LEDs which are visible when
the unit is mounted.
Green 1 [G1] LED indicates device enrollment and
tamper status.
The Red [R] and Green 2 [G2] LEDs provide
information on detector status during Test Mode. The
Green 2 LED indicates events and the Red LED
indicates Alarms.
LED Indications Table
[Red] Alarms
[Green 2] Events
[Green 1] Enrollment
Microphone
[G2]
[G1]
[R]
Slow Flash Rapid Flash
ON
G1 Red G2 Status
1
10 minute Test Mode
Event detected during Test Mode
Alarm detected during Test Mode
2
2
Low Battery detected during Test Mode
Device not enrolled; Enrollment activated
Device enrolled and tamper detected
NOTE: Before using the Test Mode, the detector must first be enrolled in the controller.
1
If the SiXGB Test Mode is activated by the FG701, the [G2] LED will flicker, then be off for 3 seconds, then flash once per second.
2
This feature is used for field diagnosis. To save power, the LEDs are not visible during Normal Mode.
Test the SiXGB
The detector should be tested after installation and at least once a
year.
Test Mode can be activated remotely from the Controller (see
Controller’s manual), or on-site with an FG-701 Glassbreak
Simulator, only when the system is disarmed.
Follow directions in the FG-701 Glassbreak Simulator Operating
Instructions to activate and test the SiXGB detector.
Detector
Farthest point of glass to be protected by detector
RED
Button
FLEX MAN
ACTIVATE TEST
Battery Replacement
1. Twist the front cover counterclockwise 15 degrees
and separate it from the mounting bracket.
2. Remove the old battery.
3. Wait 10 seconds.
4. Insert a new battery. Replacement batteries:
Panasonic CR123A Honeywell 466
Duracell D123 Duracell D123A
5. Carefully realign the front cover as shown;
reattach and twist the front cover 15 degrees
clockwise to lock it in place.
BATTERY CAUTION: Risk of fire, explosion and burns.
Do not recharge, disassemble, heat above 100° C (212° F) or
incinerate. Dispose of used batteries properly. Keep away from
children.
Panasonic CR123A
Duracell DL123, DL123A
Honeywell 466
1
3
Wait about
10 sec
2
30
0
45
10
4
5
4
Specifications
Range: 0’- 25’/ 0 – 7.6m; Selectable
Battery: 1 x 3V, Lithium; Panasonic CR123A, Duracell DL 123, Duracell DL 123A, Honeywell 466
Tamper: Cover and Wall
RF Frequency: 2.4GHz
Operating Temperature: 0° to 50° C / 32° to 122° F (Agency compliance 0° to 49° C
/ 32° to 120° F)
Relative Humidity: 95% max. (Agency compliance – 93% max.), non-condensing
Dimensions: 96 mm Diameter x 29mm Thick / 3.78” Diameter x 1.14” Thick
Approval Listings
FCC / IC
cETLus Listed
Conforms to UL 639
Certified to ULC-S306
Other Standards:
RoHS
Protected Glass Types Chart
NOTE: The SiXGB is NOT recommended for protection of glass areas smaller than 27.6 cm x 27.6 cm (10-7/8 inches x 10-7/8 inches).
Glass Type* Nominal Thickness
Minimum Maximum
Plate
3
a
2mm (3/32 in.) 10mm (3/8 in.)
Tempered 3mm (1/8 in.) 10mm (3/8 in.)
Laminated
1
4mm (5/32 in.) 14mm (9/16 in.)
Wired 6mm (1/4 in.) 6mm (1/4 in.)
Coated
2
3mm (1/8 in.) 6mm (1/4 in.)
Sealed Insulating
3b
3mm (1/8 in.) [13mm (1/2 in.) overall] 6mm (1/4 in.) [19mm (3/4 in.) overall]
* Minimum size for all types is 28cm (11 in.) square; glass must be framed in the wall or mounted in a barrier at least 0.9m (36 in.) wide.
1 Protected only if both plates in the unit are broken
2 Coated glass with security films up to 0.35mm (14 mils) thick (including films for solar protection) may be used. Evaluated with the these products: 3M® SCOTCHSHIELD®
SH14CLARL – 0.35mm (14 mils), 4 ply film; Film Technologies International, Inc.’s GLASS-GARD GGLL 1200 has been evaluated with this product by Underwriters
Laboratories, Inc.
3 In compliance with Underwriters Laboratories of Canada’s Standard for Intrusion Detection Units (CAN/ULC-S306-M89):
a. Plate glass 2.5mm (3/32 in.) to 10mm (3/8-in.) can be used.
b. Seal Insulating glass 4mm (5/32 in.) [15mm (19/32 in.) overall] to 6mm (1/4 in.) [(19mm) 3/4 in. overall] can be used. Sensitivity should be set to High when protection
range is greater than 3.8m (12.5 ft).
FEDERAL COMMUNICATIONS COMMISSION & INDUSTRY CANADA STATEMENTS
The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or User's Manual. Unauthorized changes or
modifications could void the user's authority to operate the equipment.
FCC / IC STATEMENT
This device complies with Part 15 of the FCC Rules, and RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Cet appareil est conforme à la partie 15 des règles de la FCC & de RSS-210 des Industries Canada. Son fonctionnement est soumis aux conditions suivantes: (1) Cet
appareil ne doit pas causer d’interférences nuisibles. (2) Cet appareil doit accepter toute interférence reçue y compris les interférences causant une reception indésirable.
RF EXPOSURE
Warning –
The antenna(s) used for this device must be installed to provide a separation distance of at least 7.8 inches (20 cm) from all persons and must not be co-
located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures.
Mise en Garde
Exposition aux Frequences Radio:
L'antenne (s) utilisée pour cet émetteur doit être installée à une distance de séparation d'au moins
7,8 pouces (20 cm) de toutes les personnes
.
Support and Warranty
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE CONTROL WITH WHICH THIS DEVICE IS USED, FOR DETAILS REGARDING LIMITATIONS OF THE ENTIRE
ALARM SYSTEM.
For the latest documentation and online support information, please go to:
https://mywebtech.honeywell.com/
For the latest warranty information, please go to:
www.honeywell.com/security/hsc/resources/wa.
For patent information, see www.honeywell.com/patents
MyWebTech
Warranty
Patents
2014 Honeywell International Inc. Honeywell and is a registered trademark of Honeywell International Inc.
All other trademarks are the properties of their respective owners. All rights reserved.
DOC CODE 128B BAR CODE HERE
800-21340 11/15 Rev A
2 Corporate Center Drive, Suite 100
P.O. Box 9040, Melville, NY 11747
www.honeywell.com/security
