Ademco 8DLRF6FOB Lyric Smart Peripheral - Keyfob User Manual 1 Rev A

Honeywell International Inc. Lyric Smart Peripheral - Keyfob Users Manual 1 Rev A

Users Manual 1 - Rev A

This bi-directional wireless keyfob is intended for
use with Honeywell controls that support SiX™ series
devices.

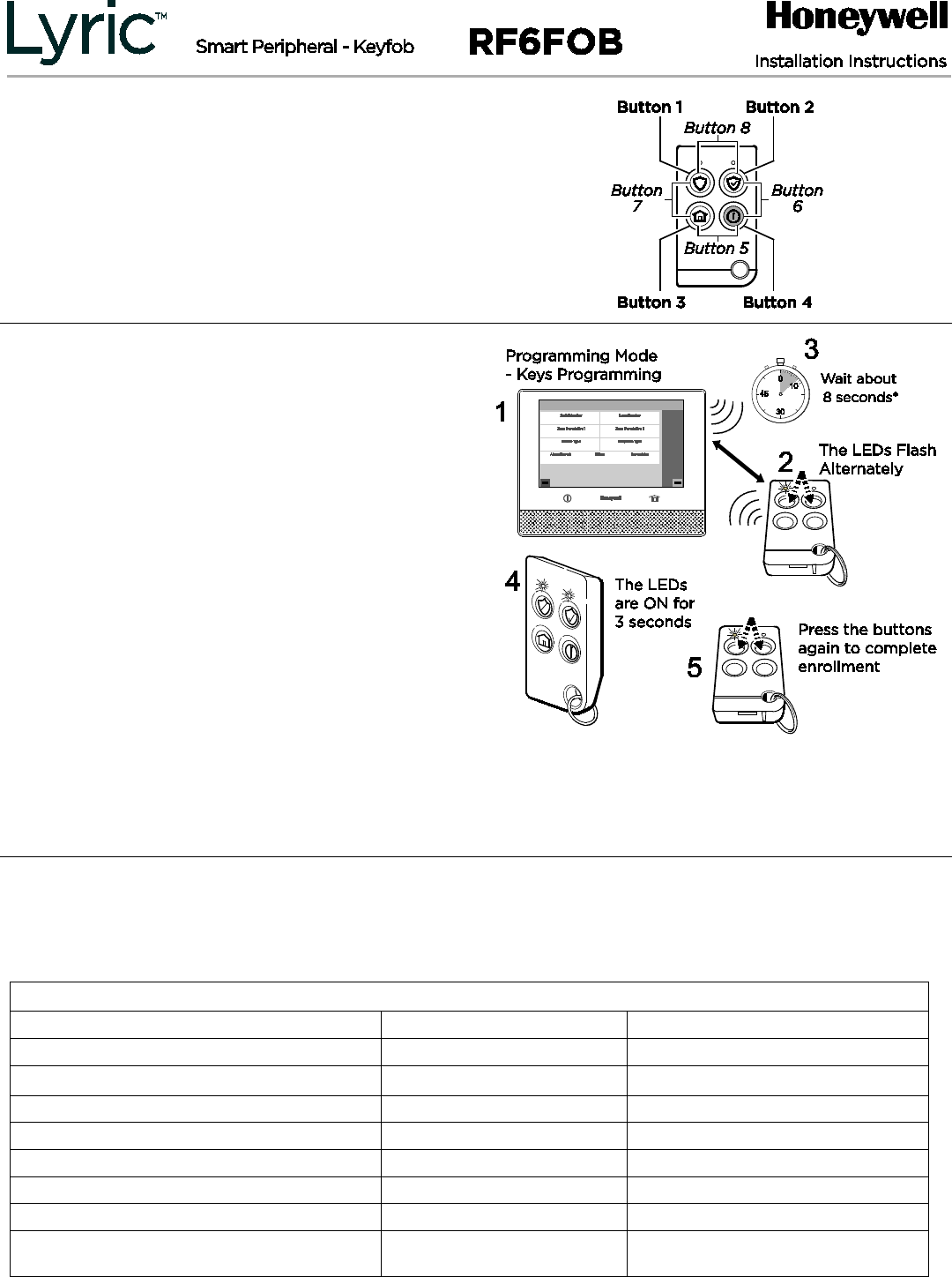

Enroll and Program the RF6FOB
1. Set Lyric Smart Controller in Programming mode
and go to the Keys enrollment screen.
2. Select the appropriate Key Type for the
application (i.e., 4 Button or 8 Button).
3. Press and release the top 2 buttons on RF6FOB to
activate the enrollment process.
4. The LEDs alternately flash green during
enrollment (typically, about 8 seconds, but may
take longer, depending on signal strength
between the RF6FOB and the control).
5. When the LEDs light solid green for 3 seconds
and the RF6FOB emits a chirp, press the buttons
again to complete enrollment.
Note
: If enrollment is not confirmed, press and release the
top two buttons again to restart the enrollment process.
Follow instructions in the Control’s programming
guide to program the RF6FOB services.
Note
: once enrolled in a system, the RF6FOB cannot be
used with another control panel until it is removed from
the control panel. When removed from a system, the
keyfob will revert to factory default settings.
System Status and Sounder Indications
The RF6FOB can be used to control the Lyric Smart Controller system (e.g., arm, disarm the system); and
receive system status information (armed status, not ready to arm, in alarm, in RF transmission mode, and
more). Refer to the System Status Indications table for details.
System Status Indications Table
LEDs
Sounder
System Status
RED ON steady for 2-3 seconds 2 beeps System Armed (any mode)
RED Flashing slowly for 2-3 seconds 4 beeps Alarm in progress
RED Flashing rapidly for 2-3 seconds 4 beeps System in Panic Mode
GREEN ON steady for 2-3 seconds 1 beep Disarmed, Ready to Arm
GREEN Flashing slowly for 2-3 seconds silent Disarmed, Not Ready to Arm
Single, quick GREEN flash silent RF Transmission
OFF 1 second beep Not Hearing From Panel
GREEN LEDs Flash alternately for 8
seconds, then ON for 3 seconds chirp for confirmation RF6FOB Enrollment
BETA DRAFT IIs – 02/10/15
*Note: Depending on the signal strength between
the device and the control, the enrollment period
may take longer than 8 seconds.

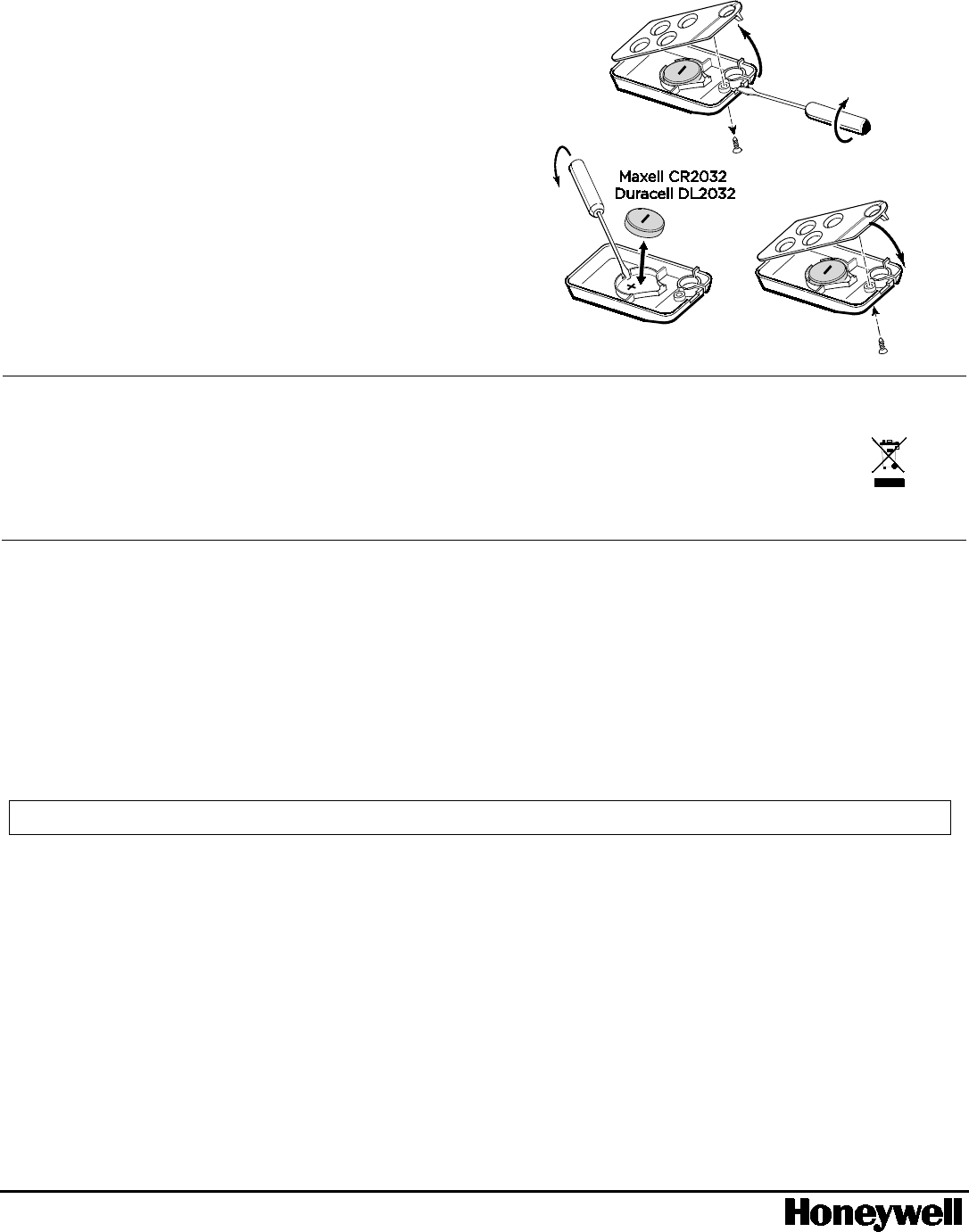

Battery Replacement
When the battery is low, the LEDs do not flash
during transmission. To replace the battery:
1. Remove the screw from the back housing.
2. Use a screwdriver to gently separate the front
and back housings.
3. Use a screwdriver to gently remove the battery.
4. Replace with new Lithium, 3V, 210mAh battery as
shown. Recommended replacement batteries:
Maxell CR2032 or Duracell DL2032
5. Replace front housing.
6. Secure with the cover screw.
BATTERY CAUTION: Risk of fire, explosion and burns. Do not
recharge, disassemble, heat above 212° F (100° C) or incinerate.
Dispose of used batteries promptly. Keep away from children.
Specifications:
Battery
: CR2032, DL2032
RF Frequency
: 2.4GHz
Operating Temperature
: 32° to 122° F / 0° – 50° C
Relative Humidity
: 5 – 95%, non-condensing
Dimensions
: 11 mm H x 65.5 mm L x 36 mm W / 0.43” H x
2.58” L x 1.42” W
Approval Listings:
RoHS
FCC / IC
ANSI/UL1023; ANSI/UL985
ULC ORD C1023; ULC S545
SIA CP-01
C-Tick
FEDERAL COMMUNICATIONS COMMISSION & INDUSTRY CANADA STATEMENTS
The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or User's Manual. Unauthorized changes or modifications
could void the user's authority to operate the equipment.
FCC / IC STATEMENT
This device complies with Part 15 of the FCC Rules, and RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Cet appareil est conforme à la partie 15 des règles de la FCC & de RSS-210 des Industries Canada. Son fonctionnement est soumis aux conditions suivantes: (1) Cet appareil ne doit
pas causer d’interférences nuisibles. (2) Cet appareil doit accepter toute interférence reçue y compris les interférences causant une reception indésirable.
RF Exposure Warning – The antenna(s) used for this device must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with
FCC multi-transmitter product procedures.
Attention - L'antenne (s) utilisé pour cet appareil ne doit pas être co-localisées ou opérant conjointement avec une autre antenne ou émetteur non conformant avec les procédures FCC pour
les produits à multi-transmetteurs.
Support and Warranty
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE CONTROL WITH WHICH THIS DEVICE IS USED, FOR DETAILS REGARDING LIMITATIONS OF
THE ENTIRE ALARM SYSTEM.
IMPORTANT! This wireless key is intended as a convenience to the user and should not be considered as a life safety device.
For the latest U.S. warranty information, please go to www.honeywell.com/security/hsc/resources/wa or
Please contact your local authorized Honeywell representative for product warranty information.
2014 Honeywell International Inc. Honeywell and is a registered trademark of Honeywell International Inc.
All other trademarks are the properties of their respective owners. All rights reserved.
DOC CODE 128B BAR CODE HERE
P/N 800-19202FOB 01/15 Rev BETA
2 Corporate Center Drive, Suite 100
P.O. Box 9040, Melville, NY 11747
www.honeywell.com/security
