Ademco 8DLWIFI WiFi Module User Manual 800 10225 L5000 Wi Fi ii
Honeywell International Inc. WiFi Module 800 10225 L5000 Wi Fi ii
Ademco >
Users Manual Info
800-10225 Rev. A 10/11
L5000-Wi-Fi
Communications Module
INSTALLATION GUIDE
About the Communications Module
The L5000-W-Fi communications module is intended to provide compatible Honeywell LYNX Touch control
panels with a Wi-Fi connection.
Compatible Controls
Control Firmware Level Field Update Rev Installation Guide
LYNX Touch TBD 800-10614
QuickConnect Touch TBD TBD TBD
The module connects directly to the control panel and is powered via the control panel’s connection.
Mounting the Module
Mount the module component side up in the control panel as shown in Figure 1. Ensure that module’s receptacle
is securely seated on the control’s edge connector.
5000-100-205-V0
LYNX TOUCH
RECEPTACLE
EDGE CONNECTOR
L5000-WiFi

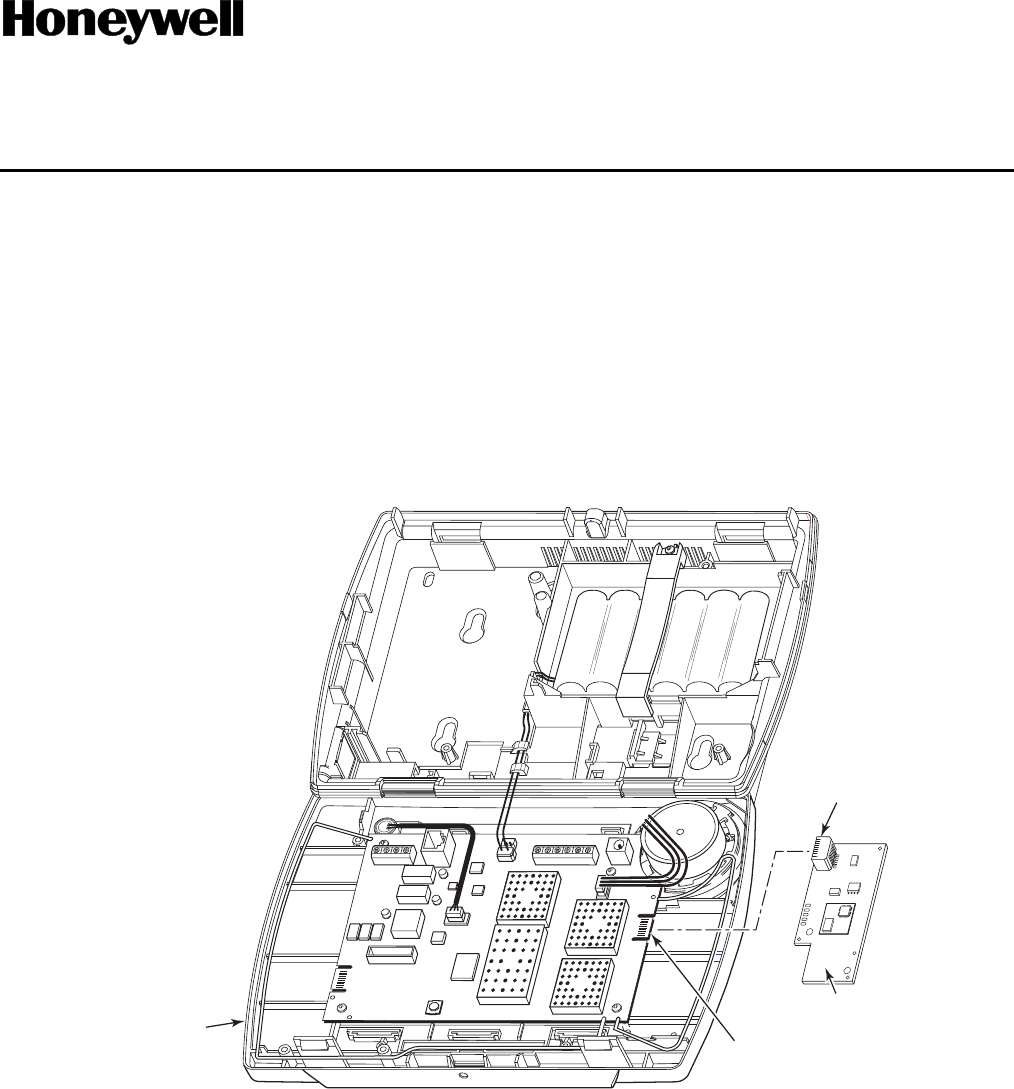

Figure 1. Installing the L5000-Wi-Fi Communications Module
Programming Notes
Programming associated with the L5000-Wi-Fi module is accomplished as part of the Control Panel
Programming. Refer to the Control Panel Installation and Setup Guide for additional information.
1. The Remote Access Serial option must be set to “Enabled”.
2. The Multi Mode Serial option must be set to “Enhanced Reports”.
Specifications
Board Dimensions: 1.25” W x 2.875” L x 0.3125” D
Current Drain: TBDmA nominal; TBDmA max
Input Voltage: TBDVDC
Wire Run Length: TBD ft max with TBD AWG unshielded wire
Temperature: 32°F (0°C) to 140°F (60°C)
REFER TO THE INSTALLATION AND SETUP GUIDE FOR THE CONTROL WITH WHICH THIS DEVICE IS
USED FOR WARRANTY INFORMATION AND LIMITATIONS OF THE ENTIRE SYSTEM.
FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENTS
The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or
User's Manual. Unauthorized changes or modifications could void the user's authority to operate the equipment.
FCC CLASS B STATEMENT
This equipment has been tested to FCC requirements and has been found acceptable for use. The FCC requires the following
statement for your information:
This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance
with the manufacturer's instructions, may cause interference to radio and television reception. It has been type tested and
found to comply with the limits for a Class B computing device in accordance with the specifications in Part 15 of FCC Rules,
which are designed to provide reasonable protection against such interference in a residential installation. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• If using an indoor antenna, have a quality outdoor antenna installed.
• Reorient the receiving antenna until interference is reduced or eliminated.
• Move the radio or television receiver away from the receiver/control.
• Move the antenna leads away from any wire runs to the receiver/control.
• Plug the receiver/control into a different outlet so that it and the radio or television receiver are on different branch circuits.
• Consult the dealer or an experienced radio/TV technician for help.
INDUSTRY CANADA CLASS B STATEMENT
ICES-003 Class B Notice - Avis NMB-003, Classe B
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
FCC / IC STATEMENT
This device complies with Part 15 of the FCC Rules, and RSS 210 of IC. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference (2) This device must accept any interference received, including
interference that may cause undesired operation.
Cet appareil est conforme à la partie 15 des règles de la FCC & de RSS 210 des Industries Canada. Son fonctionnement est
soumis aux conditions suivantes: (1) Cet appareil ne doit pas causer d' interferences nuisibles. (2) Cet appareil doit accepter
toute interference reçue y compris les interferences causant une reception indésirable.
RF Exposure
WARNING: The L5000-Wi-Fi must be installed to provide a separation distance of at least 20 cm from all persons.
2 Corporate Center Drive, Suite 100
P.O. Box 9040, Melville, NY 11747
Copyright © 2011 Honeywell International Inc.
www.honeywell.com/security
Ê800-10225lŠ
800-10225 10/11 Rev. A
