Tema-Voyager™ Compact

User Guide

Release 1.0

ii https://extranet.honeywell.com

Notice

This document contains Honeywell proprietary information. Information

contained herein is to be used solely for the purpose submitted, and no part of this

document or its contents shall be reproduced, published, or disclosed to a third

party without the express permission of Honeywell Europe.

While this information is presented in good faith and believed to be accurate,

Honeywell disclaims the implied warranties of merchantability and fitness for a

purpose and makes no express warranties except as may be stated in its written

agreement with and for its customer.

In no event is Honeywell liable to anyone for any direct, special, or consequential

damages. The information and specifications in this document are subject to

change without notice.

Honeywell trademarks

Tema-VoyagerTM is a trademark of Honeywell International Inc.

Honeywell Enterprise Buildings Integrator™ is a trademark of Honeywell

International Inc, and SafeBrowse® is a U.S. registered trademark of Honeywell

International Inc.

Other trademarks

Microsoft, Windows, Windows NT and XP, SQL Server, Office, Word, Excel and

PowerPoint are either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries.

SAP R/3 and HR-PDC are registered trademarks of SAP AG in Germany.

Trademarks that appear in this document are used only to the benefit of the

trademark owner, with no intention of trademark infringement.

Document Release Issue Date

800-07036 1.0 A June 2011

iii

Compliance

To obtain applicable EU compliance Declaration of Conformities for this product,

please refer to our website, https://extranet.honeywell.com. For any additional

information regarding the compliance of this product to any EU-specific

requirements, please send email to temaline.orders@honeywell.com.

Support and other contacts

For technical assistance, call your nearest Honeywell office.

Training classes

Honeywell holds technical training classes on Temaline. These classes are taught

by experts in the field of building control systems. For more information about

these classes, contact your Honeywell representative.

Related documentation

For further information on the EBI Tema system, consult the EBI Temaline

Interface Temaline Access Control Configuration Guide, which is provided with the

Temaline Interface kit. This document is in Acrobat™ and compiled HTML Help

format.

Getting started

This chapter describes basic mechanical and design features of the Voyager

Device:

To learn about Go to

The layout of the device page 6

The layout of the display page 7

2 – GETTING STARTED

6https://extranet.honeywell.com

Layout of the device

The Voyager device is an interactive terminal with a graphic display and a reader.

You can use the device for T&A, SAP, canteen management, and access control.

To perform these functions, the device comprises the following features:

• A color graphic display

• A 10-digit keypad with backlighting

• Backlit navigational arrows and Enter and Cancel buttons

• A speaker

Figure 1 Voyager Compact Device

GENERAL LAYOUT OF THE DISPLAY

General layout of the display

Figure 2 illustrates the general layout of the Voyager Compact Device display in

idle mode.

Device displays all follow this basic design. Depending on the context, the device

may also display device status information or interactive features.

Figure 2 Voyager Compact Device display

Field Description

Transit direction Specifies the direction assigned to the transit

performed. Transit direction is present only for T&A

devices if the Change Transit Direction feature is

configured for the device.

Date/Time Current date/time

Logo Customer logo

Message Configurable text

Information The meaning of the current icon selected, or other

informational messages

Icon bar Icons representing configurable functions available on

the device. You can configure the functions needed

from the available features.

2 – GETTING STARTED

8https://extranet.honeywell.com

Interactive function icons

Table 1 lists the standard interactive function icons you may see on the icon bar of

your Voyager device. Icons on the display represent the features enabled for the

device.

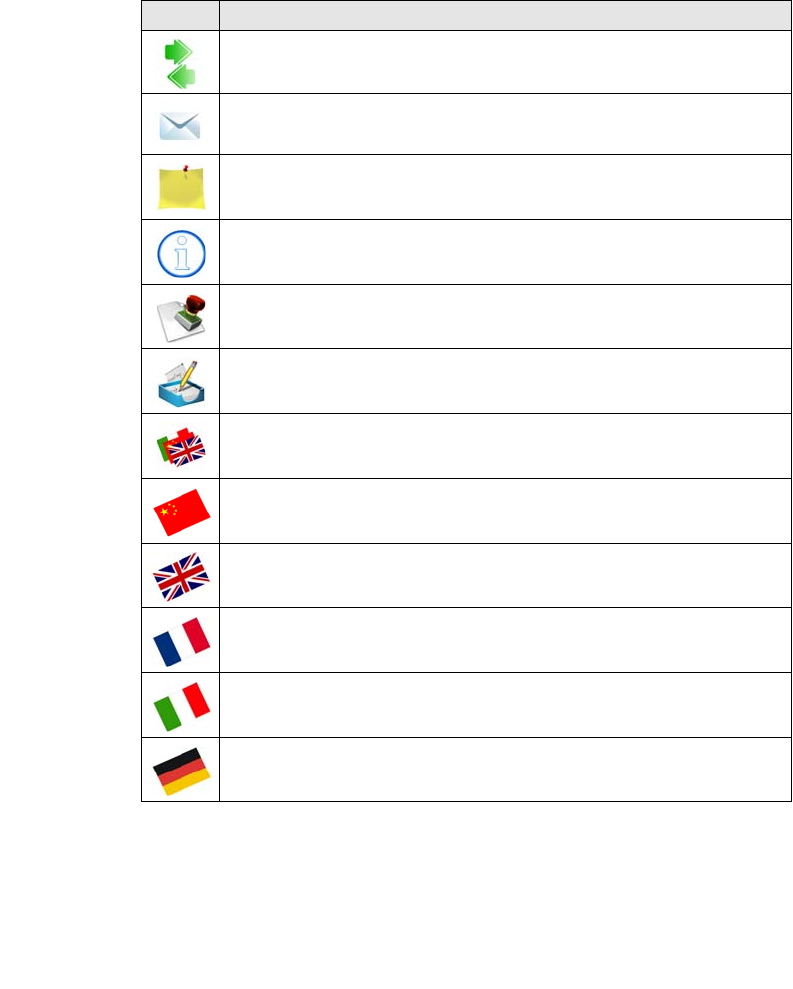

Table 1 Voyager system icons

Icon Description

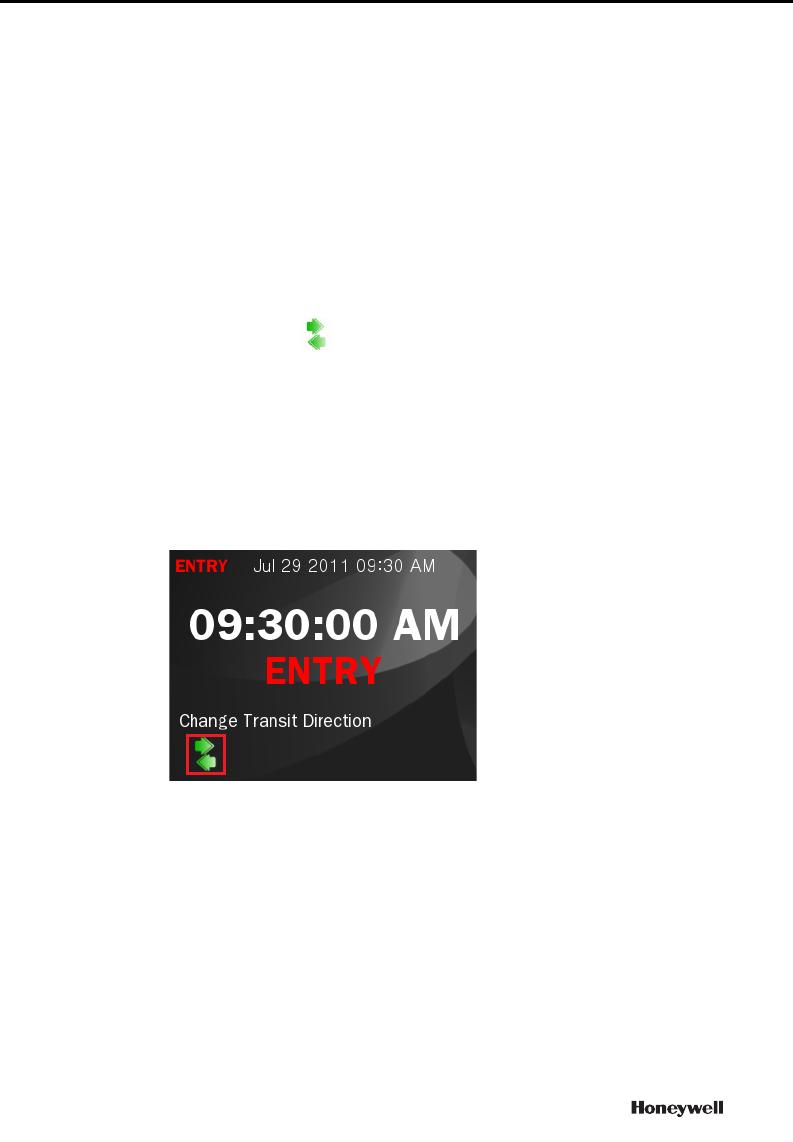

Change Direction—Default icon for the device change direction function

Message—Provides access to the spontaneous message template

Reason—Provides access to the reason template

Enquiry—Provides access to the enquiry template

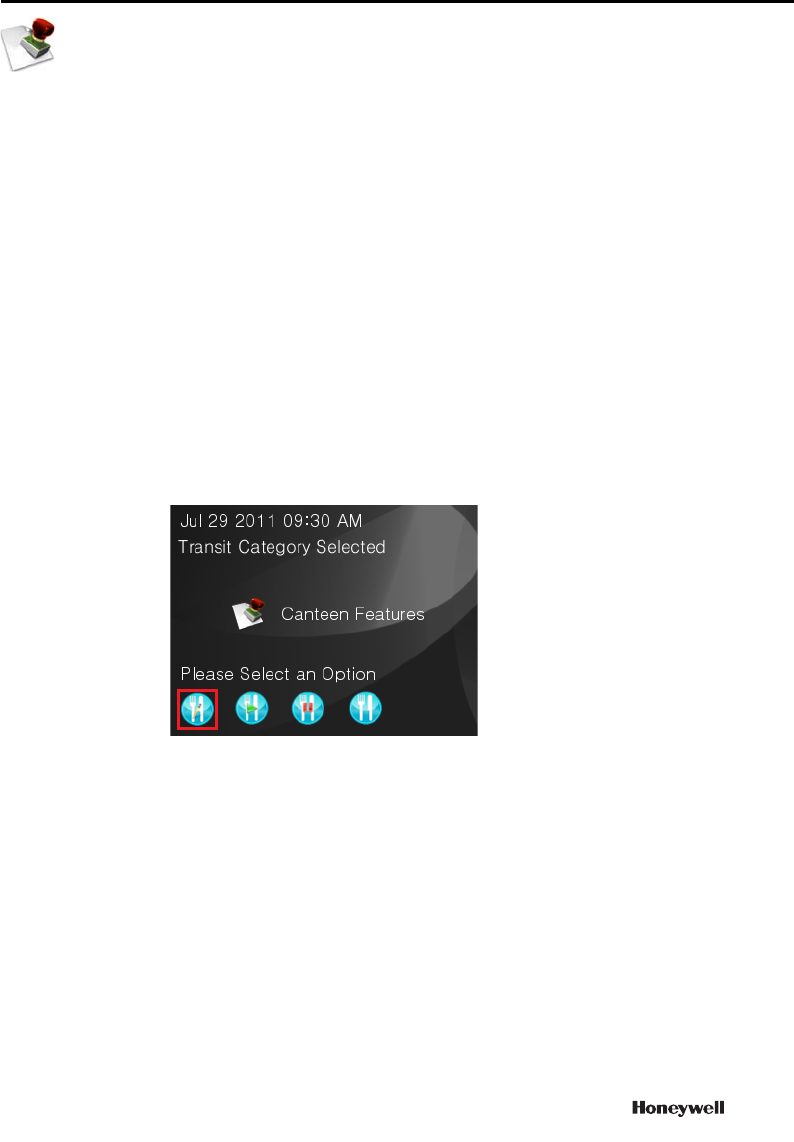

Transit Category—Provides access to the transit category template

ADL—Default icon to access the ADL template

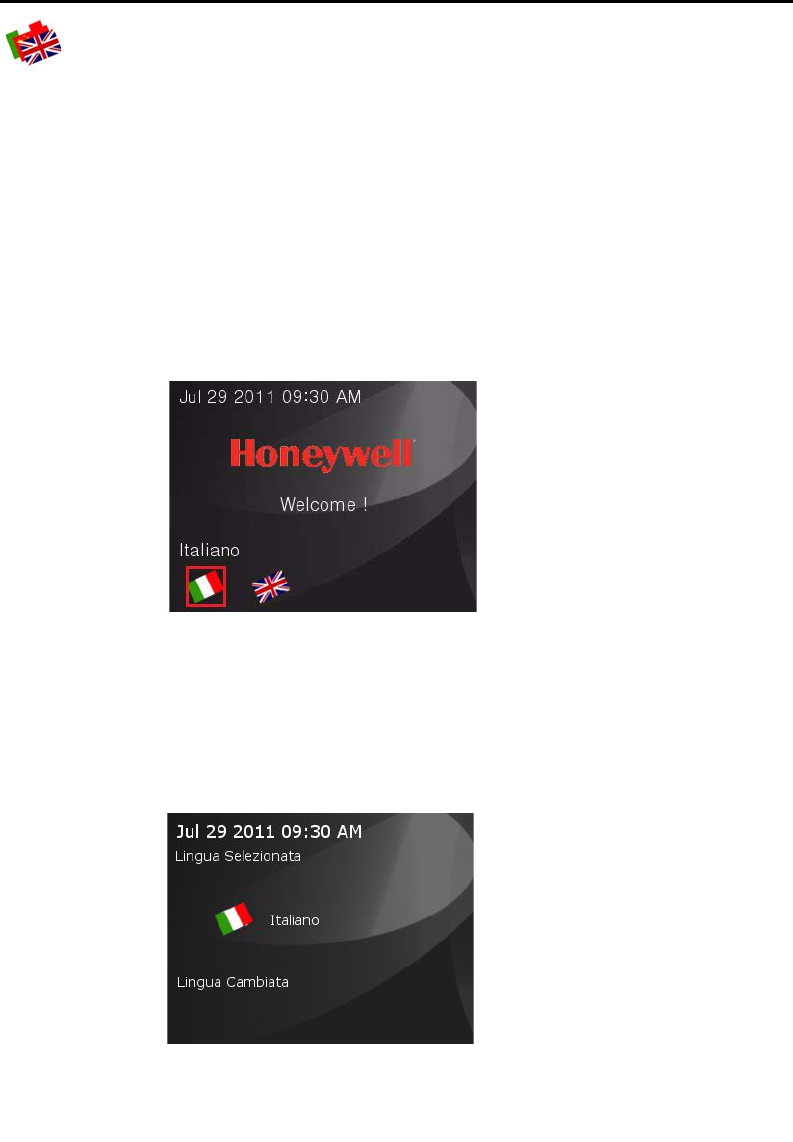

Set language—Default icon for the device set language function

Chinese flag—Indicates Chinese language setting

British flag—Indicates English language setting

French flag—Indicates French language setting

Italian flag—Indicates Italian language setting

German flag—Indicates German language setting

GENERAL LAYOUT OF THE DISPLAY

The currently selected function icon is highlighted with a red square. To

implement a function, use the arrow keys to select an icon and then press Enter.

The new selected icon is then highlighted in a red square.

To enter a value, such as a PIN, use the numeric keypad.

For further information on these features, see “Interactive features” on page 19.

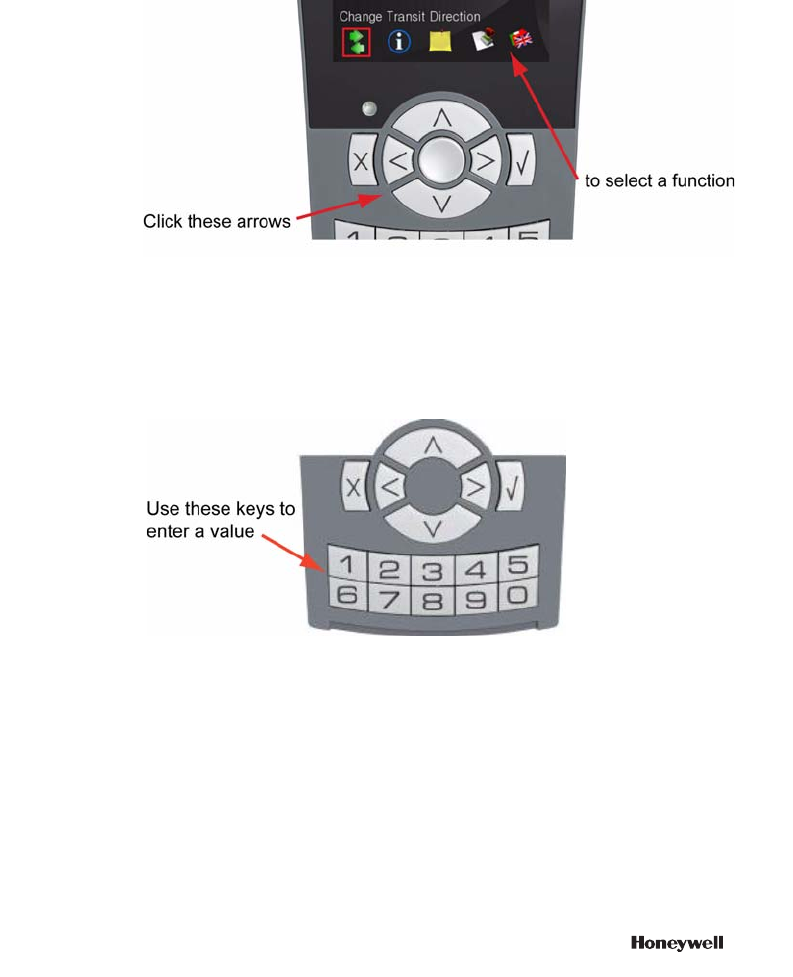

Figure 3 Voyager Device navigational arrows

Figure 4 Voyager Device keypad

2 – GETTING STARTED

10 https://extranet.honeywell.com

Understanding device statuses

The Voyager device can generate several device status messages. Status messages

report system modes and unusual occurrences relating to:

• The device

• The door controlled by the device

• Transits

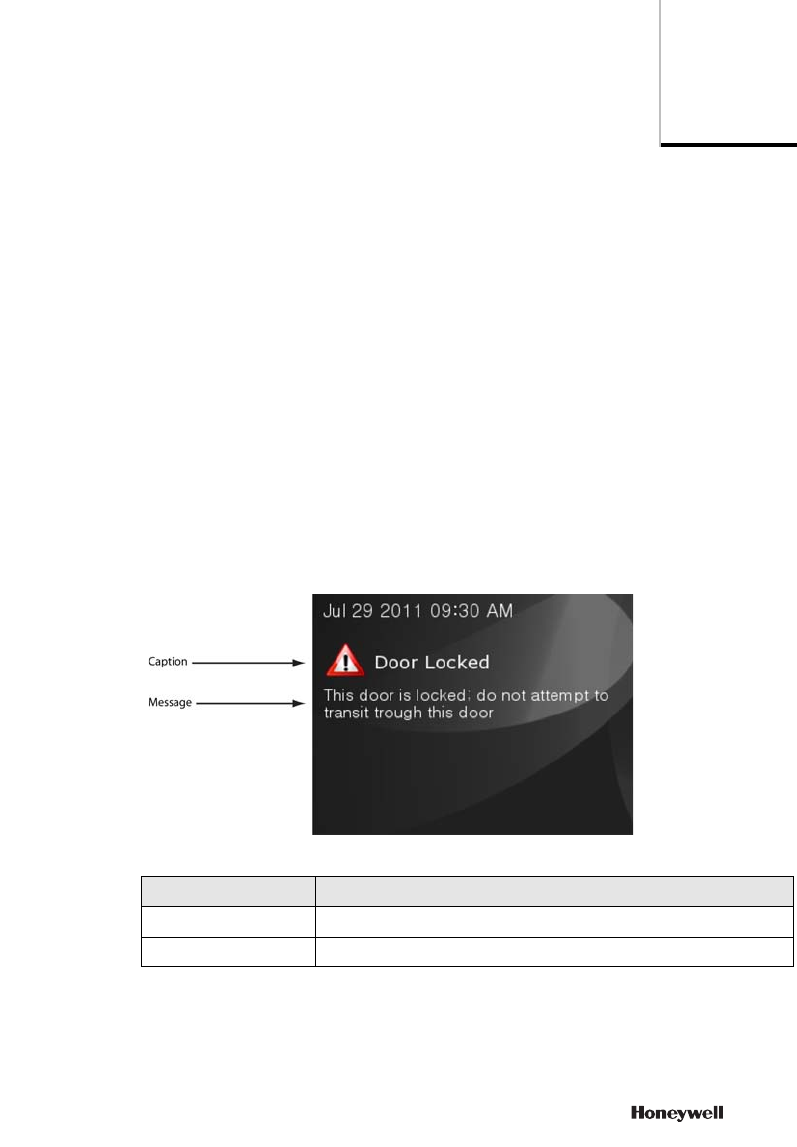

Figure 5 illustrates a generic status display on the device.

Figure 5 Status display

Field Description

Caption Name of status

Message Text associated with caption

3 – UNDERSTANDING DEVICE STATUSES

12 https://extranet.honeywell.com

For information on transit error messages, see “Error messages” on page 45.

Table 2 Device status messages

Event Symbol Caption Description

Terminal statuses

Terminal not

configured OUT OF ORDER The reader has not yet been configured. You may not

use the device at this time.

Terminal/Door

out of order OUT OF ORDER The reader or the door controlled is experiencing

technical difficulties. You may not use the device at

this time.

Terminal in

overdrive mode DEVICE IN

OVERDRIVEN

MODALITY

This device is set in overdrive mode. You do not need

this device to authorize the transit.

DB Download in

progress DB DOWNLOAD IN

PROGRESS The DB download is in progress. You may use the

device but you may experience some delay in response

time.

Transit Buffer

full TRANSIT BUFFER

FULL There is no more space available on the device to store

transits. To prevent further loss of transits, this device

has been blocked.

Door statuses

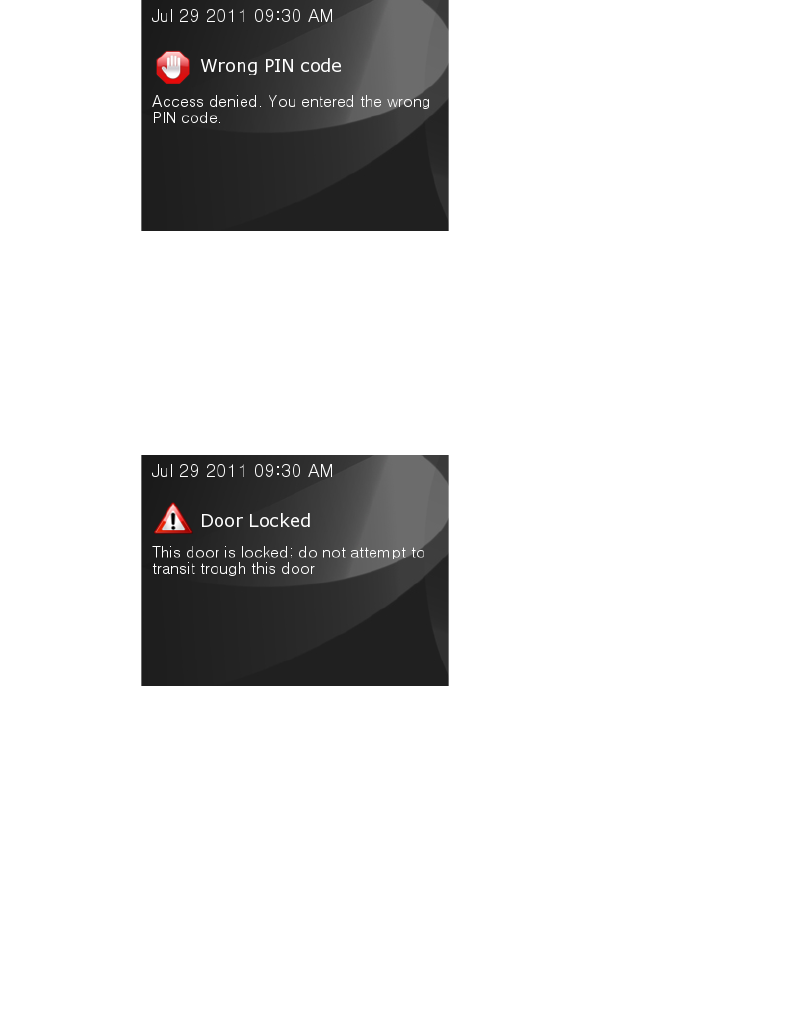

Door locked DOOR LOCKED This door is locked; do not attempt to transit through

this door.

Door unlocked PLEASE ENTER The door is unlocked; proceed with the transit.

Door busy PLEASE WAIT THE

DOOR IS BUSY A transit is in progress through this door. You may be

unable to transit at this time.

Door forced DOOR FORCED The door managed by this reader has been forced.

Please notify security, then close the door to reset it.

Door not shut

after crossing DOOR NOT SHUT

AFTER CROSSING The door should be closed. Close the door to reset it

and notify security.

Transit not

happened TRANSIT NOT

HAPPENED The door has not opened for the transit requested.

Managing transit operations

You can configure your device to perform four types of authentication:

• Card number

• Card number and PIN

•PIN only

• Airport boarding procedure

This chapter describes typical transit operations that use these authentication

methods.

For information about PIN only transits and airport boarding, see “Other types of

transit operations” on page 39.

To learn about Go to

Performing a basic transit operation page 14

Performing a transit with a card number and PIN page 17

Clocking in and clocking out page 19

4 – MANAGING TRANSIT OPERATIONS

14 https://extranet.honeywell.com

Performing a transit operation with a card

When you present your card to a device for a transit, the device checks the

information stored on your card and then searches in the cardholder archive to

determine your access rights.

To complete a transit using only a card:

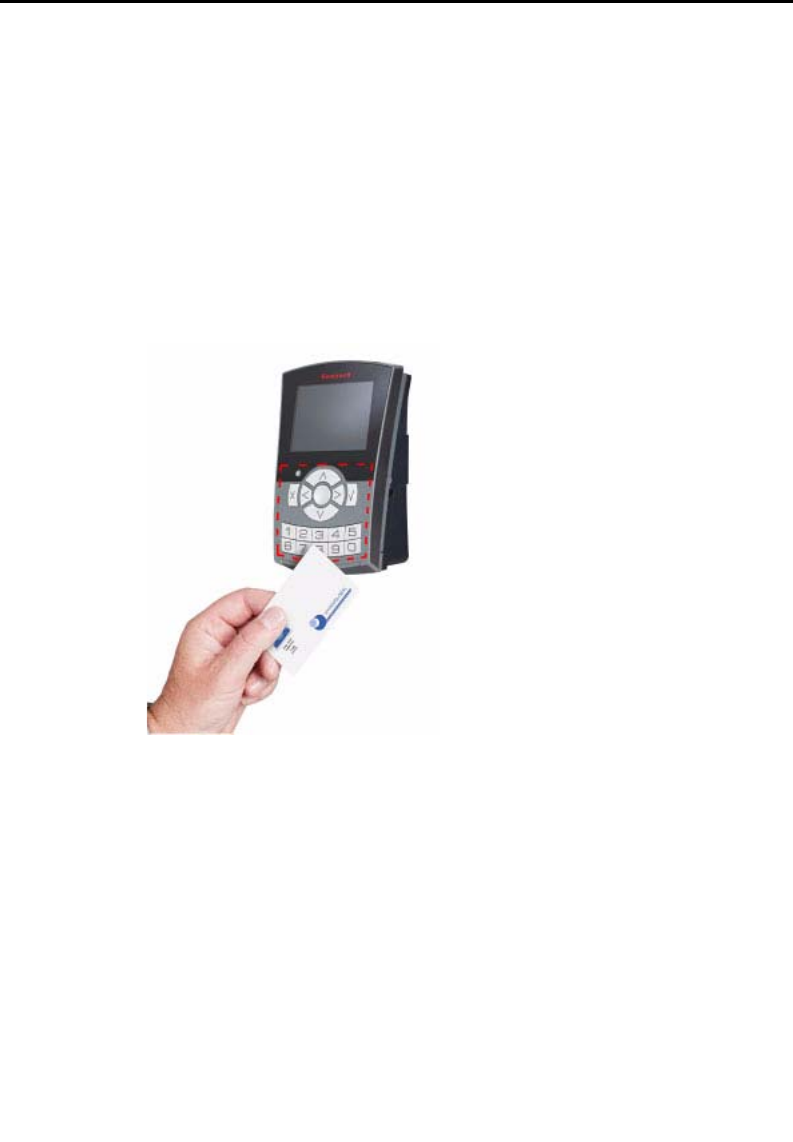

Hold the card a few centimeters from the reader in the highlighted area in

Figure 6. The reader verifies the permissions configured for the card.

Figure 6 Voyager Compact Device

PERFORMING A TRANSIT OPERATION WITH A CARD

When access is granted, the device emits an Access Granted sound (a gentle

chime), displays the Access Granted message, and unlocks the door.

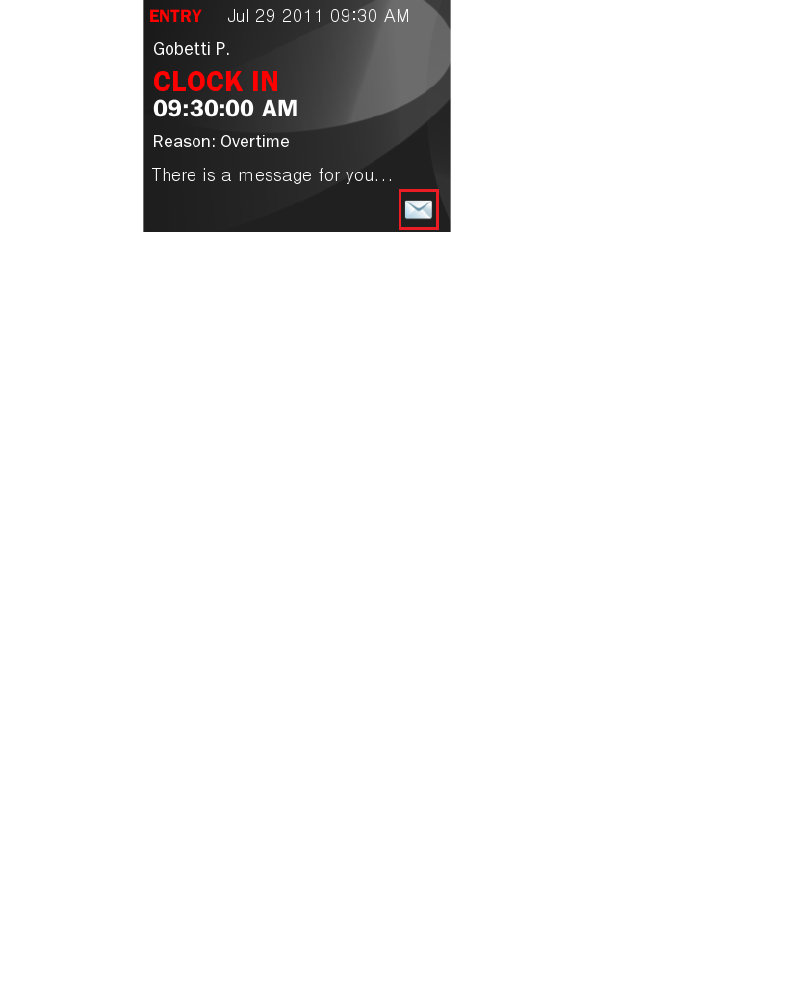

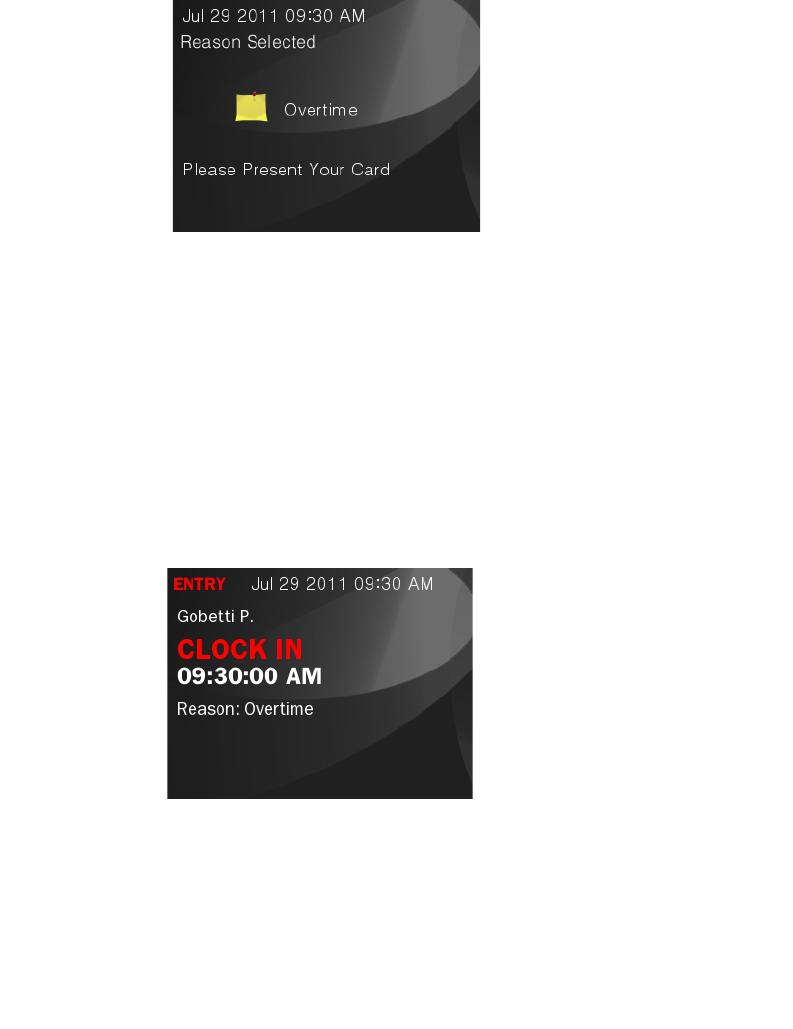

Figure 7 Sample Access Granted display

Field Description

Date Current date

Time Current time

Cardholder info Cardholder peripheral description. cardholder information is

shown only if the device is configured to show it.

Photo Cardholder photo; this option is available only when multimedia

option is installed.

Transit information Transit direction For AC and CA terminals:

ACCESS GRANTED

For T&A or SAP terminal:

CLOCK IN for a transit in Entry direction;

CLOCK OUT for a transit in Exit direction.

For devices that are configured

simultaneously as T&A and AC, the T&A

behavior shall apply.

Time Time of the transit

Reason Reason used for the transit (if any)

Information Indicates the presence of spontaneous messages for the

cardholder. Spontaneous messages are then accessed using the

related function icon/menu and shown using the related template.

Fore more information, see “Reading spontaneous messages” on

page 36.

4 – MANAGING TRANSIT OPERATIONS

16 https://extranet.honeywell.com

Once you receive this message, open the controlled door, pass through it, and

close it.

If the transit is denied, the device emits an Access Denied sound and displays an

Access Denied message; the door remains locked.

For more information on error messages, see “Error messages” on page 45.

Toolbar Displays icons representing functions configured for the

cardholder who performed the transit.

Field Description

PERFORMING A TRANSIT WITH CARD AND PIN CODE

Performing a transit with card and PIN code

A card provides identification for the cardholder; a PIN provides authentication.

When a device is configured for both card and PIN verification, it can identify

and authenticate a cardholder.

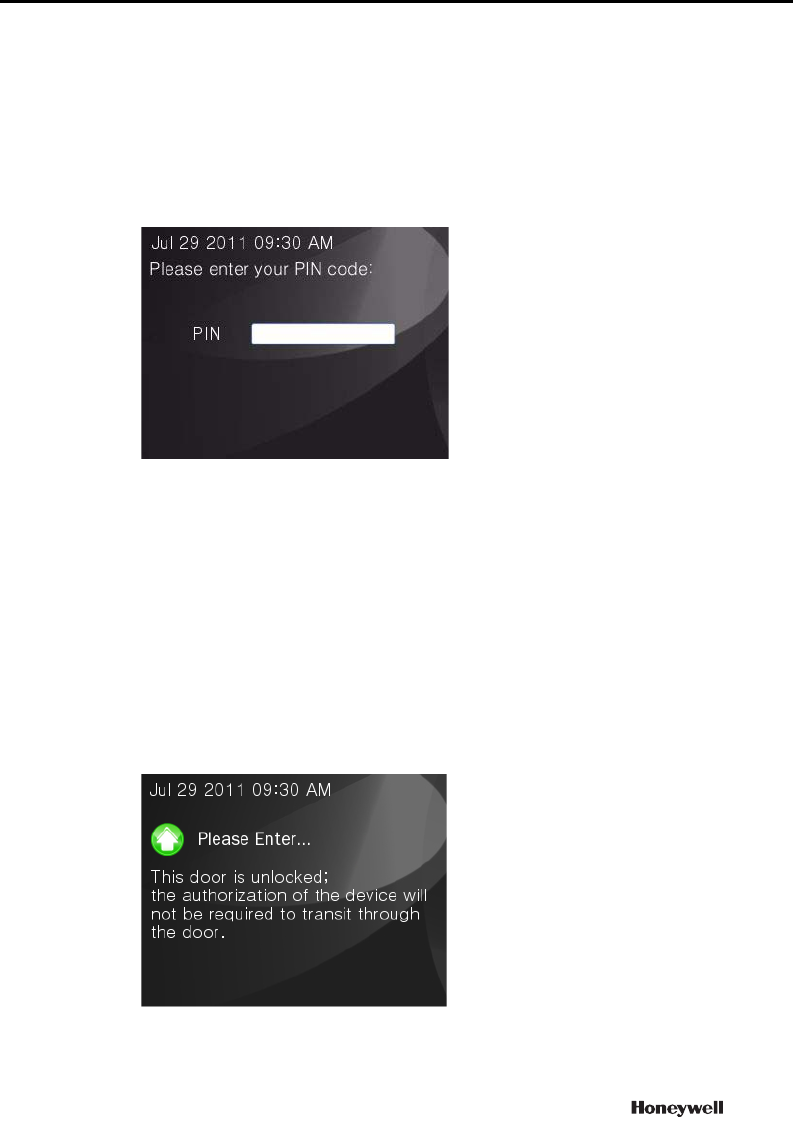

To perform a transit with card and PIN code:

1Present your card to the reader. The device identifies your card and performs

the controls on the cardholder archive; if the controls are passed, the device

displays a request for a PIN.

2Enter the PIN. The device checks the PIN entered against the value stored for

you for the number of retries configured.

Note: You do not need to press Enter to confirm the PIN entered; once the

configured number of digits configured for the PIN is reached, the device

automatically processes it.

When the device verifies that the PIN is correct, access is granted. The device

emits the access granted sound (a gentle chime) and displays the Access Granted

message.

Once you receive this message, open the controlled door, pass through it, and

close it.

If the device doesn’t recognize the PIN value:

• The transit is denied.

• The device emits an access denied sound.

• The device displays an Access Denied message.

• The door remains locked.

Figure 8 PIN Code request

4 – MANAGING TRANSIT OPERATIONS

18 https://extranet.honeywell.com

If the device is configured for a specific number of retries and that number is

exceeded, the device may also block further use by the cardholder for a specific

length of time.

Signalling a transit under duress

To protect against improper entry, the system includes a way to modify a PIN to

signal a transit under duress.

To signal a transit under duress:

1Present your card to the reader. The device authenticates your card and then

displays a request for a PIN.

2FOR ODD NUMBERS: Enter your designated PIN but modify the final digit

to be one LESS than the actual PIN. For example, if the PIN is 5437, enter

5436.

FOR EVEN NUMBERS: Enter your designated PIN but modify the final digit

to be one MORE than the actual PIN. For example, if the PIN is 7938, enter

7939.

3Wait for confirmation and when you receive it, proceed with the transit.

When the system detects such a signal, the device:

• Grants the transit at the terminal level

• Generates a “Transit under duress” alarm to the Supervision Center

The device does NOT display “Access denied”.

CLOCKING IN AND CLOCKING OUT

Clocking in and clocking out

In the T&A application, “Clock in” and “clock out” are terms that refer to the

direction of a transit.

Clock in indicates the time you enter the office (the clock starts counting the time

the cardholder is in the office).

Clock out indicates the time you leave the office (the clock stops counting the

time).

A Voyager device can be configured for one direction (clock-in OR clock-out), or

for both directions (clock-in AND clock-out).

In this case, to set a specific direction for the device you must use the “Change

direction” function.

To change the transit direction and perform the transit:

1Check the current direction set for the terminal that is shown on the right side

of the header of the display.

2Select the Change direction icon on the toolbar and click Enter. The direction

of the terminal in the header line of the display will change.

3Present your card to the device.

Figure 9 Change Transit Direction display

4 – MANAGING TRANSIT OPERATIONS

20 https://extranet.honeywell.com

If the transit is valid, the device emits the access granted sound (a gentle chime),

displays the clock-in/clock-out page, and (if so configured) unlocks the door.

Figure 10 Clock In display

Interactive features

Interactive features are system functions that you can request and display on your

Voyager Device.

By default you may configure a Voyager door to manage automatically a

predefined type of function without the need for a cardholder to select the relative

key(s). You may specify:

• a transit category

• a reason (simple or enhanced)

• a enquiry request

In these cases, the device shows, instead of the idle page, the related feature

pages.

To learn about Go to

Changing the display language of the device page 22

Associating a reason to a transit page 25

Associating an Additional Data List (ADL) to a transit page 28

Performing enquiries page 32

Reading spontaneous messages page 35

Working with transit categories page 37

5 – INTERACTIVE FEATURES

22 https://extranet.honeywell.com

Changing the language of the device

At startup, the device displays information in the language that has been set for

it—that is, the default language. The "Set language" function enables you to

change the current language to another of the available languages.

To change the language of the device from the language function key:

1On the device display, select the set language function flag you need from the

toolbar.

2Press Enter. The device displays the Change Language display for a few

seconds and then returns to the idle page with the new language set.

Figure 11 Change language display

Figure 12 Selected language display

CHANGING THE LANGUAGE OF THE DEVICE

To change the language of the device from a language menu:

1On the device display, select the language menu icon.

2Press Enter to display the language menu.

Figure 13 Change Language Menu icon

Figure 14 Language menu

5 – INTERACTIVE FEATURES

24 https://extranet.honeywell.com

3Select the language you need and press Enter to view the Language selection

display.

After a few seconds, the device returns to the idle page display showing the

new language that you have set.

Figure 15 Language selection display

ASSOCIATING A REASON WITH A TRANSIT

Associating a reason with a transit

A reason provides an explanation of a transit that is beyond normal operations.

There are two types of reasons:

• Simple - Characterized by a reason code added to the transit

• Enhanced - Characterized by required parameters and entered using an

Additional Data List

To associate a simple reason with a transit:

1Use the arrow keys to select the desired reason icon from the toolbar or

description in the menu.

Figure 16 Reason selection display

5 – INTERACTIVE FEATURES

26 https://extranet.honeywell.com

2Click Enter to confirm the selection and display the Reason template.

If you select the wrong reason, click Cancel to cancel the operation.

3Present your card to authenticate the transit.

The device checks your rights to use the reason; if the reason is not usable the

device displays “Feature not available". If the function is usable, the device

checks the validity of the reason; if the reason is not usable, the device

displays “Feature expired”. The device then checks your rights for the transit

and displays the Transit page, including the reason you selected. The device

also inserts the reason code into the transit record.

Figure 17 Reason display

Figure 18 Transit display

ASSOCIATING A REASON WITH A TRANSIT

To associate an enhanced reason with a transit:

1Use the arrow keys to select the desired enhanced reason icon from the toolbar

or description from the menu and click Enter to confirm the selection and

display the Reason template.

The device then displays the Additional Data List template associated with the

reason.

If you select the wrong reason, click Cancel to cancel the operation.

2Fill in the ADL fields and present your card to authenticate the transit. (See

“Associating Additional Data Lists with a transit” on page 28 for further

information.)

The device checks your rights to use the reason; if the reason is not usable the

device displays “Feature not available". If the function is usable, the device

checks the validity of the reason; if the reason is not usable, the device displays

“Feature expired”. The device then checks your rights for the transit and inserts

the reason code and the ADL parameters into the transit record.

5 – INTERACTIVE FEATURES

28 https://extranet.honeywell.com

Associating Additional Data Lists with a transit

Additional Data Lists (ADLs) are groups of parameters you can enter that will be

associated to your transit.

To associate an ADL with a transit:

1Use the arrow keys to select the desired ADL icon in the toolbar.

2Click Enter to confirm the selection and display the Additional Data List

template.

If you select the wrong ADL, press Cancel to cancel the operation.

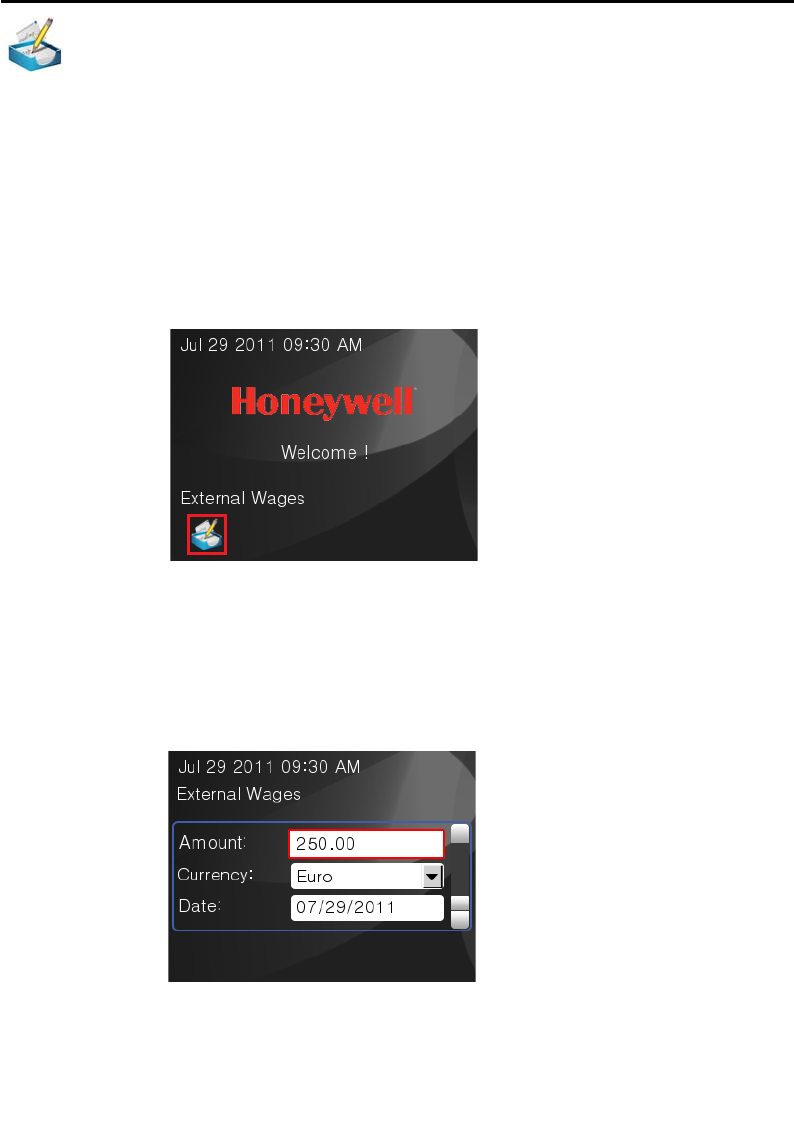

Figure 19 Additional Data List template

Figure 20 Example: ADL for External Wages

ASSOCIATING ADDITIONAL DATA LISTS WITH A TRANSIT

3The template presents a list of fields to be filled out. (Mandatory fields are

identified with an asterisk and must be filled in so that the data can be

entered.) Once an ADL is displayed, the cursor is positioned on its first field.

Use the up and down arrows to move across fields; the selected field is

highlighted with a red border.

Table 3 lists each type of field and describes how to use it.

Table 3 ADL configuration fields

Field type Field name display Procedure

Alphanumeric When you select an alphanumeric

field, the device displays a virtual

alphanumeric keyboard. Press

Enter to open the virtual keyboard

on the screen.

Use the arrows to select a key, then

press Enter to confirm the

selection. Proceed in this way for

every character you need to enter.

When you have finished composing

the entry, press on the

virtual alphanumeric keyboard,

then press Enter to insert the value

into the ADL.

Press Cancel to exit from the

virtual keyboard without saving the

input.

To delete a character to the left of

the cursor, press and then

press Enter.

Numeric For numeric fields, use the keys of

the device numeric keypad on the

device (see Figure 1) to fill the

field, then press Enter to confirm.

5 – INTERACTIVE FEATURES

30 https://extranet.honeywell.com

4When you have completed the required fields, present your card to submit the

data and to authenticate the transit.

In case of errors in the data entered (validation or mandatory field missed), the

device displays a specific message and highlights the error field with a red

border.

Date Press Enter to open the calendar

display.

Use the arrows to select a day and

press Enter to confirm the

selection.

Time There are two options for entering a

time:

• Type the desired time (hours and

minutes) and press Enter to

confirm, OR

•a) Press Enter to select the hour

subfield and use the up/down

arrows to increase/decrease the

value, or directly type the

desired hour.

b) Use the right arrow to select

the minute subfield and use the

up/down arrows to increase/

decrease the value, or directly

type the desired minutes.

c) Press Enter to confirm the

value.

List Press Enter to open the list:

Use the up/down arrows to select

the item you need and press Enter

to confirm.

Table 3 ADL configuration fields

Field type Field name display Procedure

ASSOCIATING ADDITIONAL DATA LISTS WITH A TRANSIT

The device checks your rights to use the ADL; if the function is not usable it

displays “Feature not available". If the function is usable, the device checks your

rights for the transit and inserts the ADL data into the transit record.

5 – INTERACTIVE FEATURES

32 https://extranet.honeywell.com

Performing enquiries

Enquiries are requests for cardholder information stored in the system that can be

shown on the device display.

The following types of enquiries are available:

• Local and remote transit enquiries

• Local and remote generic enquiries

The procedure for making an enquiry is basically the same for both local and

remote enquiries.

To make an enquiry:

1Use the arrow keys of the navigator to select the desired Enquiry icon and

click Enter to confirm the selection.

2Submit your card to the reader to authenticate the request.

The device checks your permission to make the enquiry. If the function is not

usable, the device displays "Feature not available".

When the request is authenticated, the device displays the information requested.

Scroll between the enquiry lines using the up and down arrows; for Enquiries

with multiple pages, navigate across pages using the left and right arrows. Click

Cancel to exit from the enquiry.

Figure 21 Enquiry display

PERFORMING ENQUIRIES

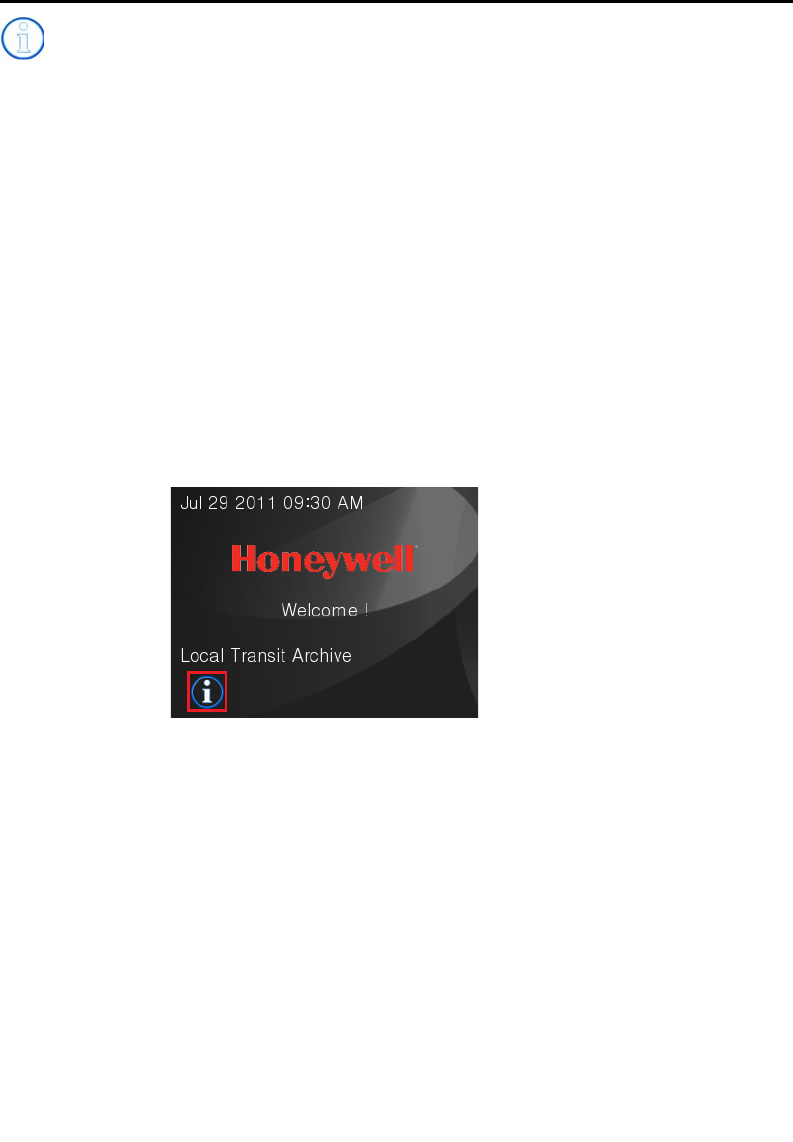

Local transit enquiries

Local transit information is stored on the device itself. You cannot specify the

number of transits that will be shown in the history; that number depends on the

transit activity performed by cardholders who use the device.

Remote transit enquiries

Remote transit enquiries generate a list of all the transits performed by the

cardholder on all the Temaline devices in the system (History of transits). The

information is stored at the Supervision Center.

When you generate a remote transit enquiry, the device submits the request to the

Supervision Center and displays "Waiting for supervision reply" until a reply is

received.

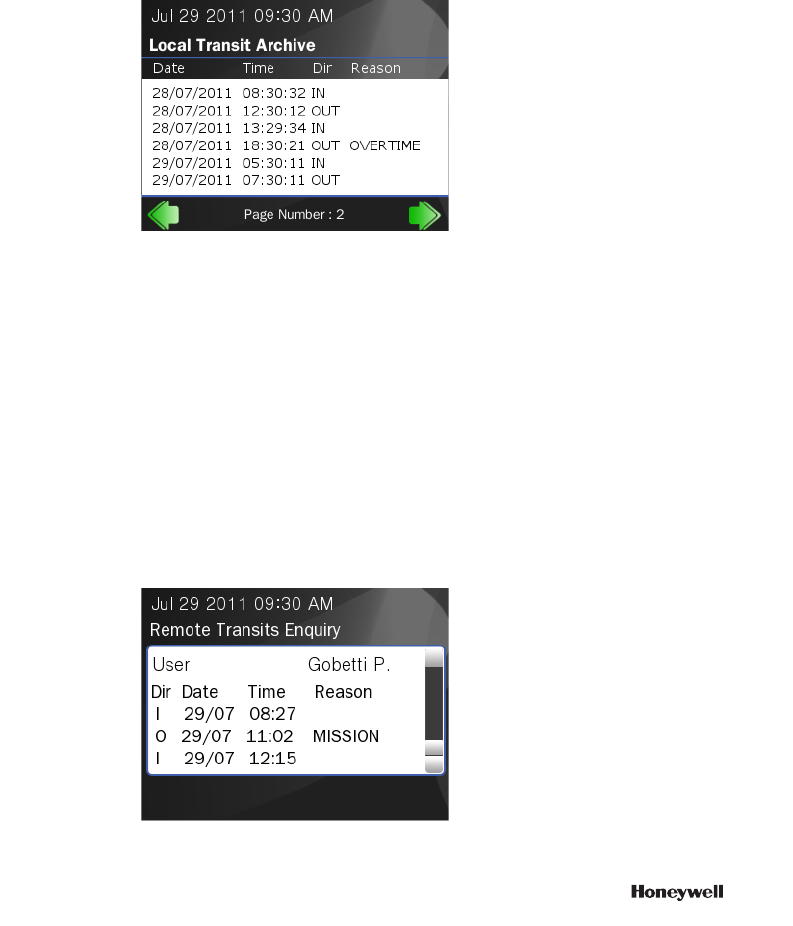

Figure 22 Local transit information

Figure 23 Remote transit information

5 – INTERACTIVE FEATURES

34 https://extranet.honeywell.com

If your request times out before the device receives the information, the device

displays "Supervision reply not received" and terminates the operation.

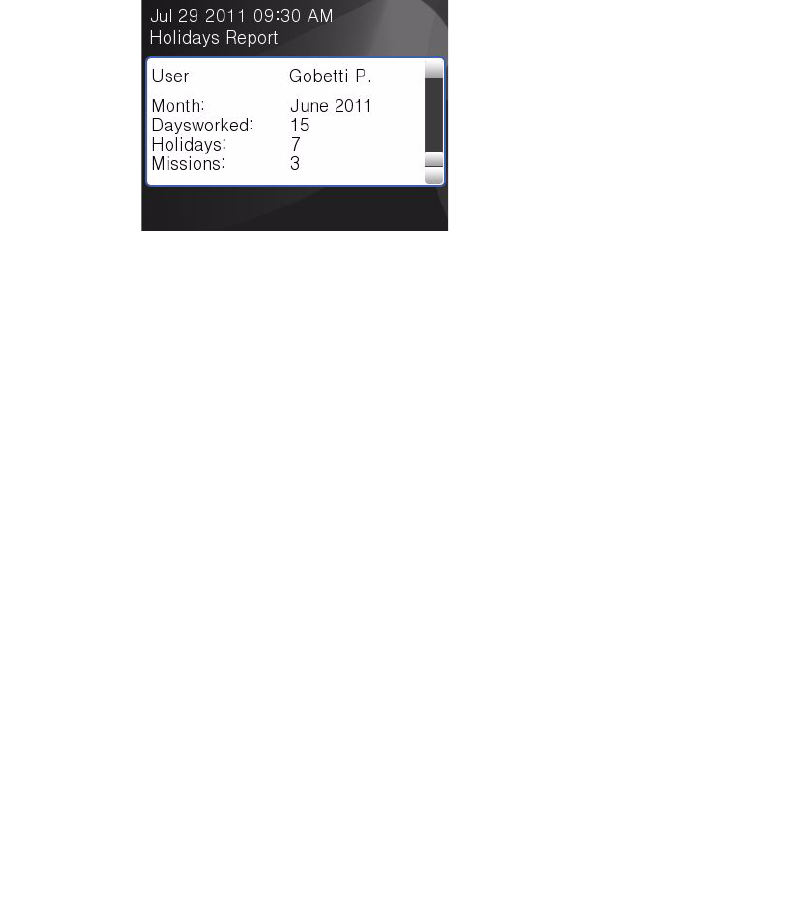

Local generic enquiries

Local generic information is imported from the Supervision Center and sent to the

peripheral device that stores it.

Remote generic enquiries

Remote generic information is imported from external data sources and is stored

at the Supervision Center. See Figure 24.

When you generate a remote generic enquiry, the device submits the request to

the Supervision Center and displays "Waiting for supervision reply" until a reply

is received. Upon authentication, the Supervision Center sends the data to the

device and the device displays it.If your request times out before the device

receives the information, the device displays "Supervision reply not received" and

terminates the operation.

Figure 24 Generic enquiry display

READING SPONTANEOUS MESSAGES

Reading spontaneous messages

A spontaneous message is a short message that is personalized and displayed

whenever a transit occurs—for example, “Please get in touch with Human

Resources office.” When you present your card, the device authenticates you and

if your card is configured for a spontaneous message or if the terminal is

configured to show a spontaneous message, it appears on your device transit

display.

To read a spontaneous message, click on the related icon shown on the transit

page when a transit is performed.

Spontaneous messages can be associated with:

• A specific employee (or to a set of employees) and so addressed exclusively to

the person in question (or the set of people)

• A primary object and so they can be viewed by all authorized users who

transit at the device.

Each Spontaneous Message may include some parameters that put some

condition on the presentation of the spontaneous message, for example:

• A commencement date and an expiry date (message is shown only between

these two dates)

• A direction of the transit (message is shown only for the transit directions

specified)

• A type of transit (message shown only during specific transits, for example

only when a transit is granted)

Figure 25 Spontaneous message display

5 – INTERACTIVE FEATURES

36 https://extranet.honeywell.com

Spontaneous messages may also be displayed in different languages. If the device

language is set to Italian, the message is in Italian; if the device language is set to

French, the message is in French.

WORKING WITH TRANSIT CATEGORIES

Working with transit categories

Transit categories are groupings of functions for specific purposes. For example,

a "canteen management" category might group together reasons and ADLs that

relate to canteen management, or an "intrusion" category, allowing the use of

transit reasons with specific feedback, and so forth.

A Transit Category can be associated directly to an icon of the toolbar or to a

menu item.

A Transit Category can be segregated using Authorized Functions.

To use the Transit Category feature:

1Use the arrow keys to select the desired Transit Category icon and click Enter

to confirm the selection and display the Transit Category template with the

related features.

If you select the wrong Transit Category, click Cancel or use a specific icon or

menu item to cancel the operation.

2Use the features available on the transit category display and then present your

card to authenticate the request.

The device checks your right to use the Transit Category; if the function is not

usable, the device refuses the transit and displays "Feature not available". If the

function is usable, the device checks the validity of the category. If the category is

not usable, the device displays “Feature expired”. The device then checks your

rights to the transit and inserts the generic category label into the transit record.

Finally, the device displays appropriate feedback.

Figure 26 Transit Category display

5 – INTERACTIVE FEATURES

38 https://extranet.honeywell.com

Other types of transit

operations

This chapter describes some specific transit operations.

To learn about Go to

Performing a transit in semiautomatic mode page 40

Performing a transit with PIN code only page 41

Performing a boarding operation page 43

6 – OTHER TYPES OF TRANSIT OPERATIONS

40 https://extranet.honeywell.com

Performing a transit in semiautomatic mode

The terminal may be configured to perform a transit in semiautomatic mode.

When you present your card with this configuration prior to the transit, the device

performs all configured controls and sends a transit request to the Supervision

Center. The Supervision Center can grant or deny the transit request.

No range control is performed when the device is in semiautomatic control mode.

To perform a transit in semiautomatic mode:

Present your card to the device. The device checks all the controls; when all the

controls are passed, the device sends a request to the Supervision Center, then

displays the message “Waiting for supervision reply” until you get an answer

from the Supervision Center.

The Supervision Center can accept or deny the transit. If the transit is denied, the

device:

• Refuses the card.

• Displays "Access denied".

If after a certain time there is no reply from the Supervision Center, the device:

• Refuses the card.

• Displays "Supervision reply not received".

PERFORMING A TRANSIT WITH PIN CODE ONLY

Performing a transit with PIN code only

If the device is set to work in Personal Identification Number (PIN) code only

transit, it authenticates the cardholders using only the PIN code entered on the

display. To use this transit type, every cardholder must be assigned a unique PIN

number.

In this transit mode, the device shows the following display:

To perform a transit with PIN code only:

1Type your PIN code using the keyboard (PIN is always a numeric value).

When you have entered the PIN code, the device use this number to identify the

cardholder and to verify the cardholder’s authorization to transit from the door.

Note: You do not need to press Enter to confirm the PIN entered; once the

configured number of digits configured for the PIN is reached, the device

automatically processes it.

If access is granted, the device emits the Access Granted sound (a gentle chime),

displays the Access Granted page, and unlocks the door controlled by the device.

If the transit is denied, the device emits an access denied sound, displays a wrong

access event, and doesn't unlock the door.

Figure 27 PIN code prompt

6 – OTHER TYPES OF TRANSIT OPERATIONS

42 https://extranet.honeywell.com

If you enter a wrong PIN code the device shows the following alert message:

Note that if the device has been configured for a specific number of retries and a

block time-out, and you exceed the number of attempts, the device will be

blocked and shows the following display:

Figure 28 Wrong PIN code display

Figure 29 Door Locked display

PERFORMING A BOARDING OPERATION

Performing a boarding operation

A device in Airport Boarding mode maintains the door open for a configured

period of time once a cardholder executes the specific boarding procedure.

To initiate a boarding operation:

1On the keyboard, enter the device keyboard code (keyboard code is a numeric

code).

2Once the code is entered, the device prompts you to present your card.

If the card is authorized, the device unlocks the door for the configured period of

time and shows the following display.

Figure 30 PIN code prompt

Figure 31 Autorized Boarding display

6 – OTHER TYPES OF TRANSIT OPERATIONS

44 https://extranet.honeywell.com

To terminate a boarding operation:

1The same cardholder who initiated the procedure must present his/her card

again or (if this option has been configured) another cardholder may present

his/ her card to the device.

The device returns to its Idle display.

Note: When the airport boarding procedure is not in progress, the device accepts

normal transit operations. (See “Performing a transit in semiautomatic mode” on

page 40 for more details.)

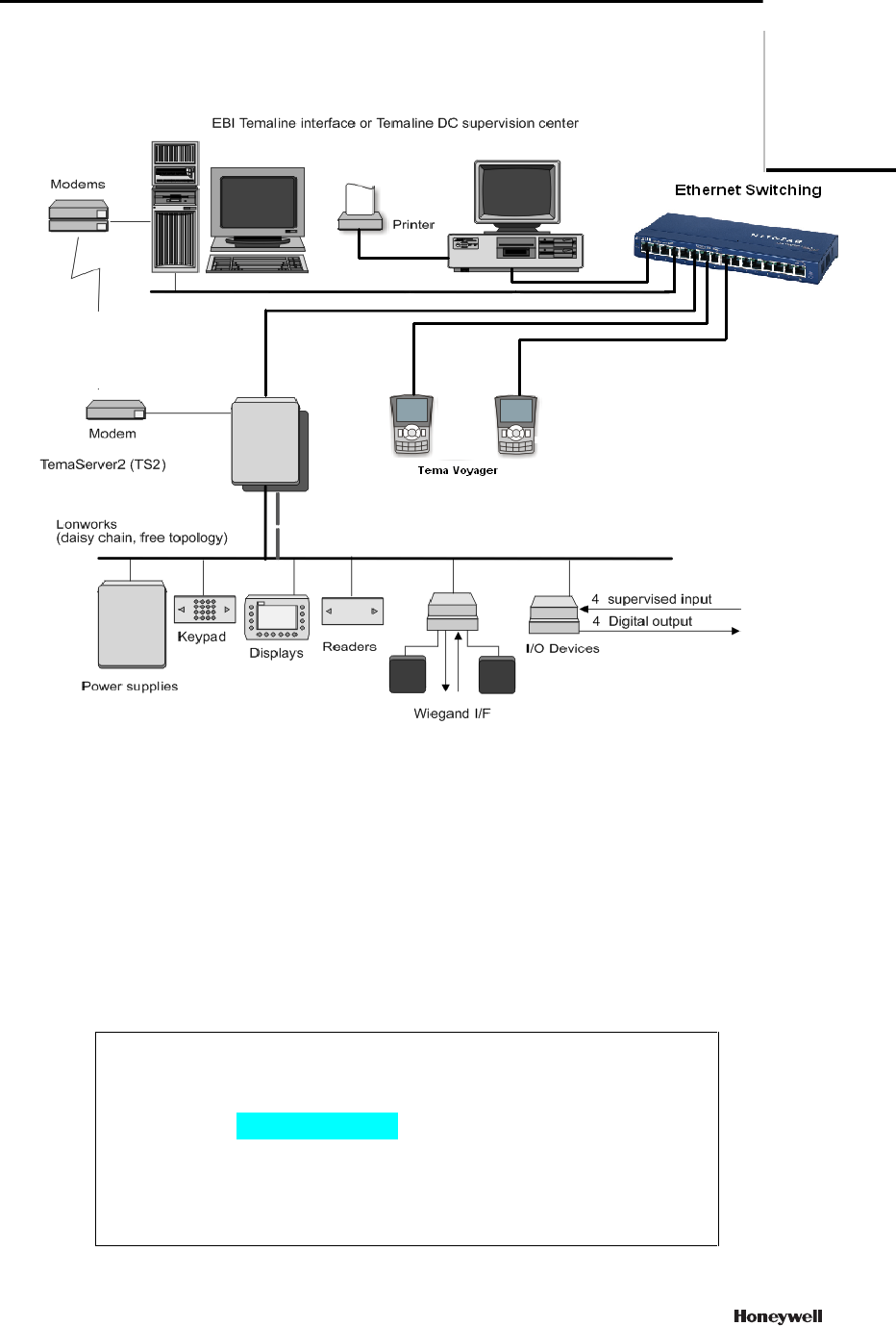

7. Ethernet connecting and how to configure into EBI system

1. Connect EBI system using Ethernet port.

2. Steps to configure Team Voyager

Pre-requsite:

 Conform is the MAC address of the devices are unique.

Configure Tema Voyager:

 Using EBI server Telnet tools to telnet Team Voyager device.

C:/telent IP

 Provide below command to set the device IP and host IP

 Vts setip – to configure the Sesamo device IP

 Vts sethost – to configure EBI PC IP in the device.

Hon-SH-iMX27 login: root

root@i.MX27# telnet 127.0.0.1

Entering character mode

Escape character is '^]'.

TEMA Virtual Monitor, V2.0 ready (127.0.0.1)

Ethernet Connecting and how to configure into EBI system

127.0.0.1>> user Super Visor

Welcome Super (supervisor)

127.0.0.1>> vts setip 159.99.252.199

VTS - Done

127.0.0.1>> vts sethost 159.99.252.240

VTS - Done

127.0.0.1>> vts reboot

VTS Request sent

127.0.0.1>> Calling System reboot

 Before providing “>> vts reboot”, set the Jumper #3 to OFF position to avoid

system restore to factory defaults again.

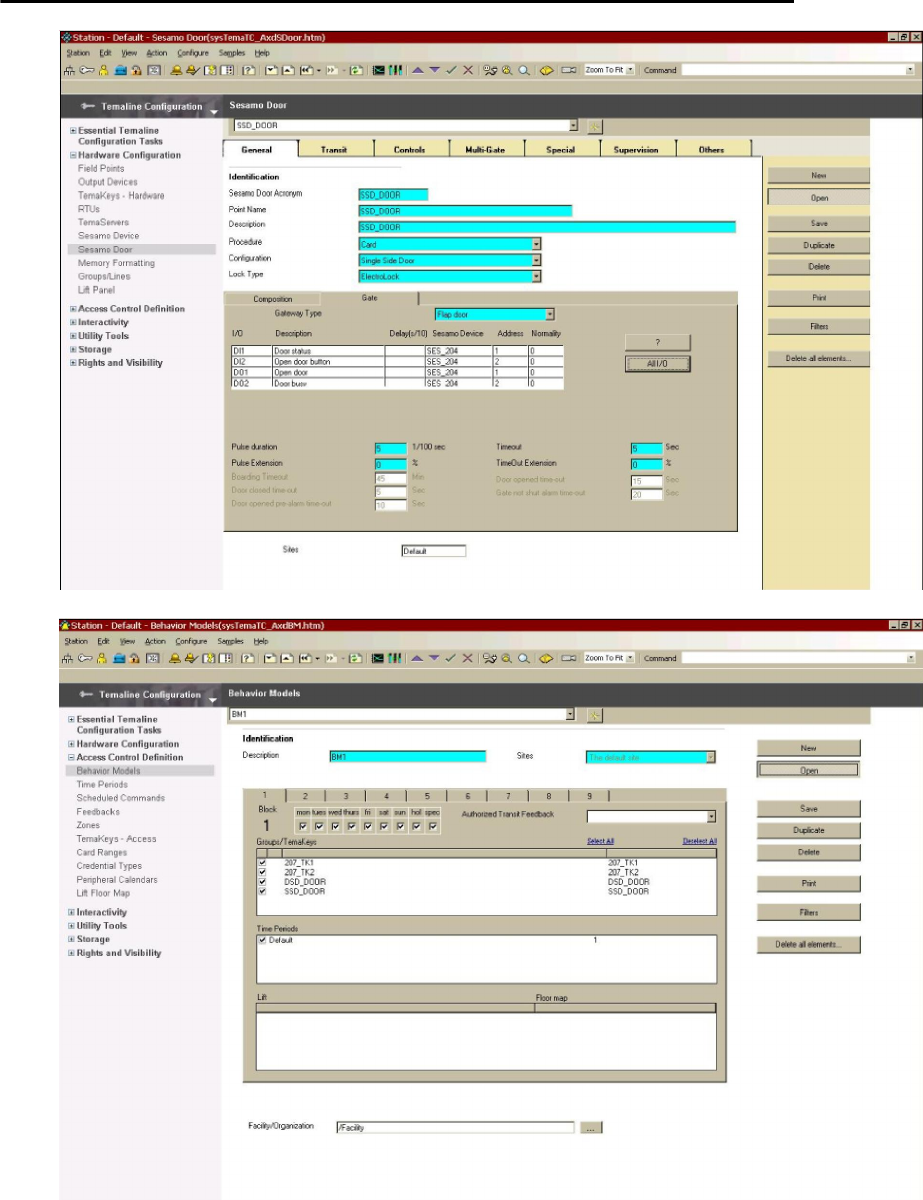

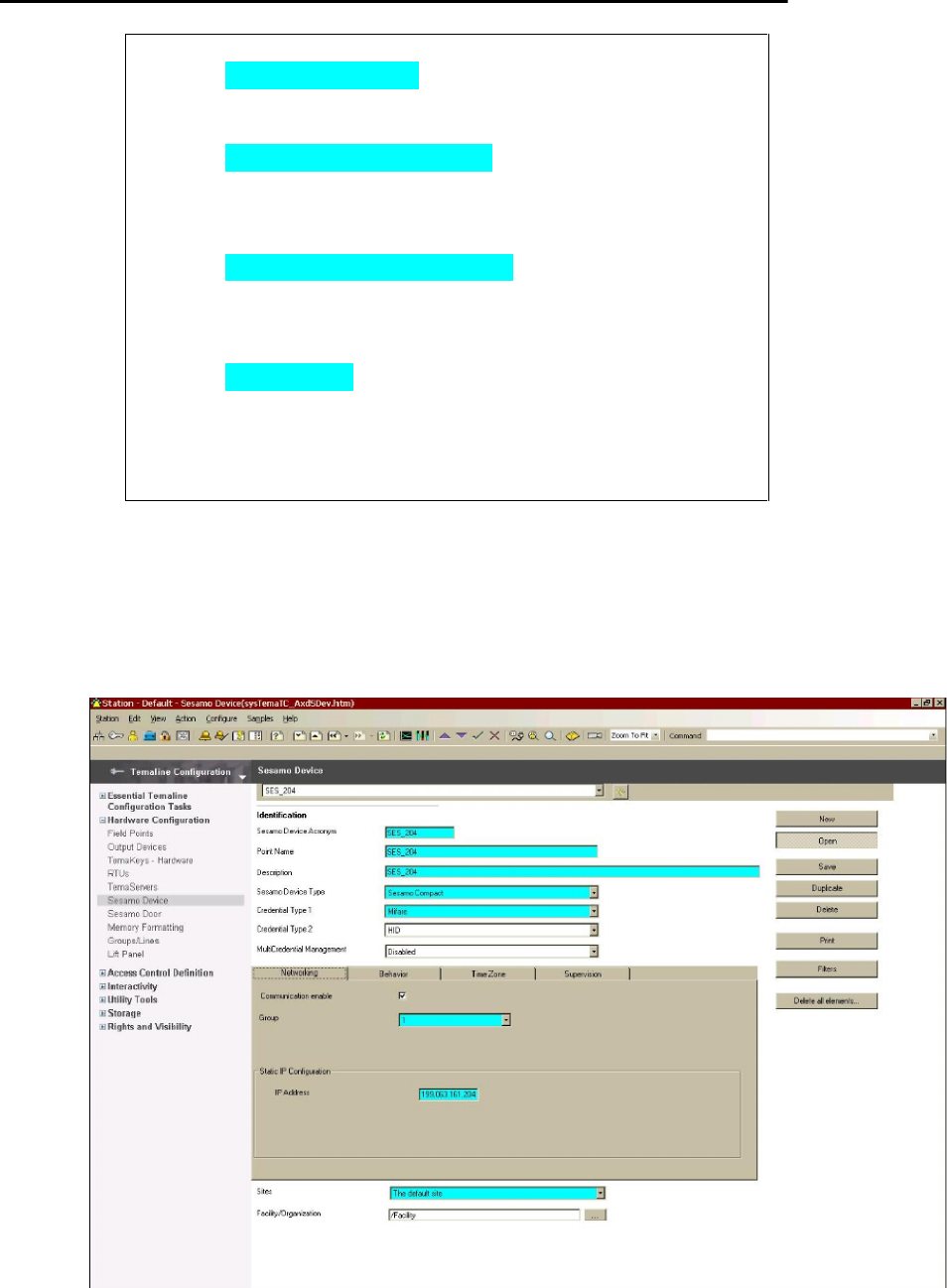

3. Configure Tema Voyager in EBI server:

 Connect the Tema Voyager and EBI PC in the network.

 Create a new Tema Voyager and configure the device IP in EBI page.

Ethernet Connecting and how to configure into EBI system

46 https://extranet.honeywell.com

 Create a new Sesamo door and assign the device. Configure the Gate as

displayed in the attachment.

Ethernet Connecting and how to configure into EBI system

 Go to Behavior model page and check the newly created door and save.

 Once details are downloaded to device verify by showing cards.

Note: Detail information please reference EBI Configure Manual.

Ethernet Connecting and how to configure into EBI system

48 https://extranet.honeywell.com

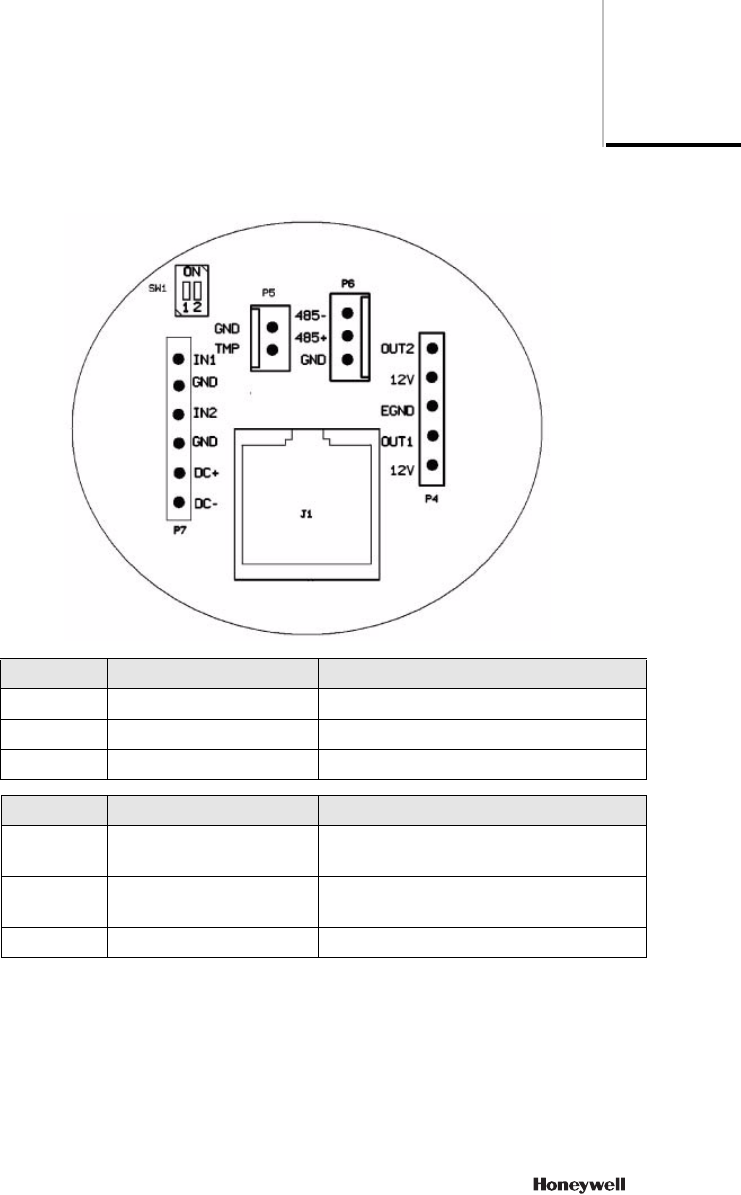

8 Device connectors

All the connections are on the back of the reader inside the round area.

Figure 1 Connectors layout

Connector Function Specification

J1 Ethernet interface RJ45 Female Connector

P4 Output interface 5Pin,--3.5MM pitch, Header connector

P5 TAMPER Switch interface 2Pin,--2.5MM Pitch, Header connector

P6 RS-485 communication

interface

3Pin,--2.5MM Pitch, Header connector

P7 Inputs and DC power

interface

6Pin,--3.5MM Pitch, Header connector

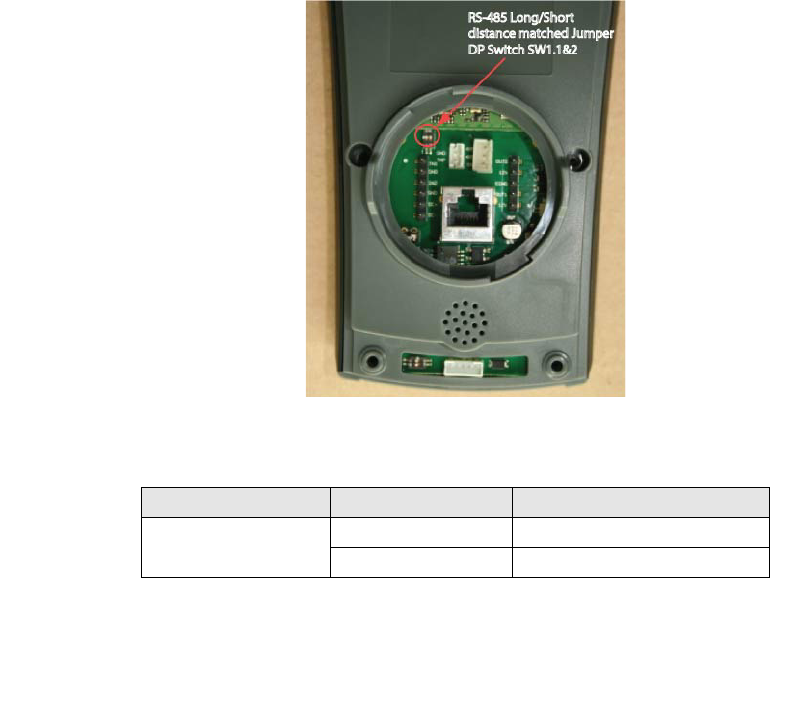

SW1 RS-485 length settings 2Pin,--1.27MM DIP switches

Connector Function Specification

50 https://extranet.honeywell.com

9 Setting inputs, outputs, and jumpers

Digital inputs

The device has 2 inputs and 2 outputs. The 2 inputs can be used either as

digital dry contacts or supervised contacts.

Usually the IN1 is dedicated to the door contact.

Usually the IN2 is dedicated to the push button (request to exit).

However, the inputs can also be used as general purpose inputs.

The typical connection for digital dry contacts is shown in Figure 22.

Temaline recommends that you establish an electrical environment where

the cables are well separated, even at short runs, especially to the power

cables or external cables which can be essentially subjected to interference

or lightning.

Use a twisted-pair cable for the contact cables. Make sure that the cables

correspond in size to the norms indicated in “Wire characteristics” on

page 7.

Max contact resistance = 25 Ohm

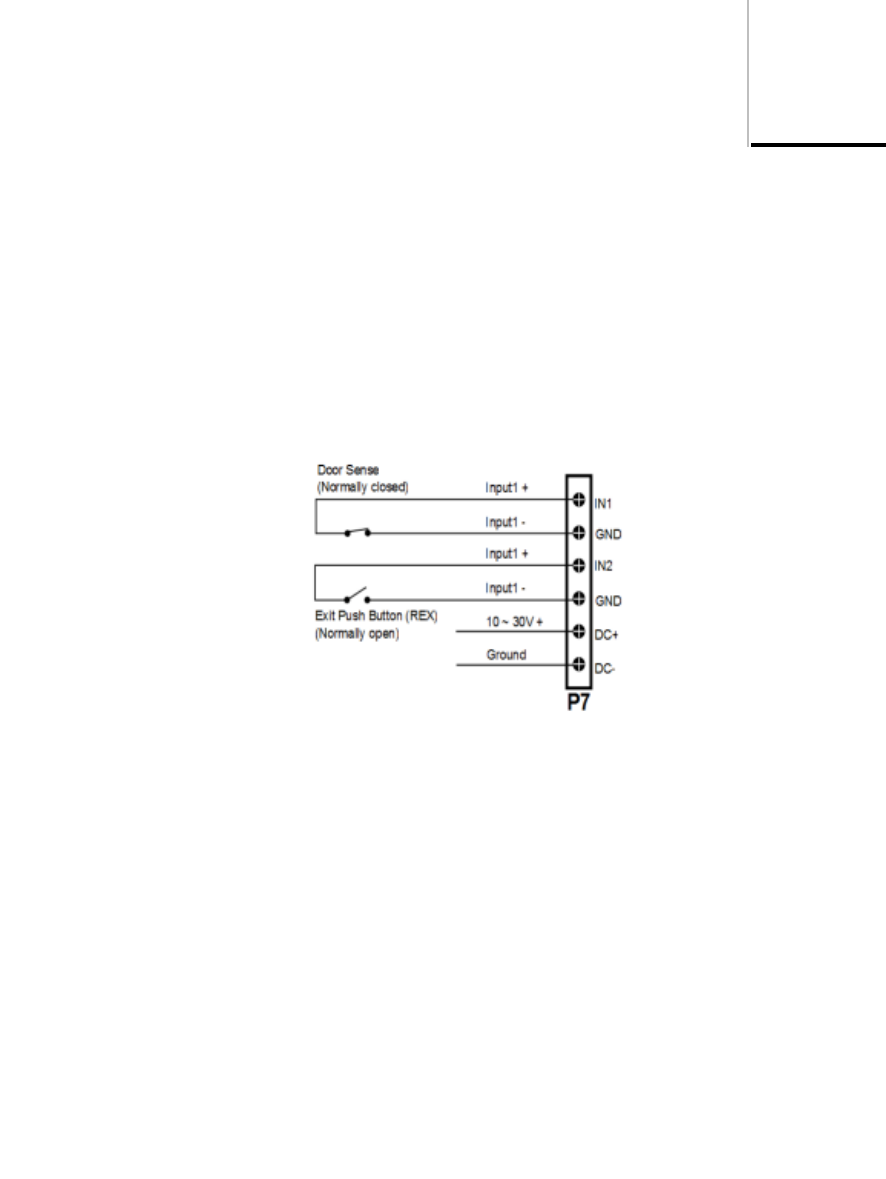

Figure 22 Dry contacts connections

Supervised inputs

The typical connection for supervised inputs is shown in Figure 23. Put

the resistors close to the contact.

Yellow resistor: 1210 Ohm 1%

White resistor: 392 Ohm 1%

Close contact resistance: 296 Ohm

Open contact resistance: 1210 Ohm

Temaline recommends that you establish an electrical environment where

the cables are well separated, even at short runs, especially to the power

cables or external cables which can be essentially subjected to interference

or lightning.

Use a twisted-pair cable for the contact cables. Make sure that the cables

correspond in size to the norms indicated in section INPUT WIRES...

Max contact resistance = 25 Ohm

Figure 23 Supervised input connection

52 https://extranet.honeywell.com

Outputs

Internally, the output lines are provided with Power Mosfet. Using an

external power supply, the output current must not exceed 1.2A/30V

continuous or 5A/30V (0.5 sec) peak current for inductive loads. Using

the internal power supply, the output current must not exceed 30mA.

Usually the OUT1 is dedicated to the Door Electro lock.

Usually the OUT2 is dedicated to the busy lamp.

Outputs can be also used as general purpose outputs.

Temaline recommends that you establish an electrical environment where

the cables are well separated, even at short runs, especially to the power

cables or external cables which can be essentially subjected to interference

or lightning.

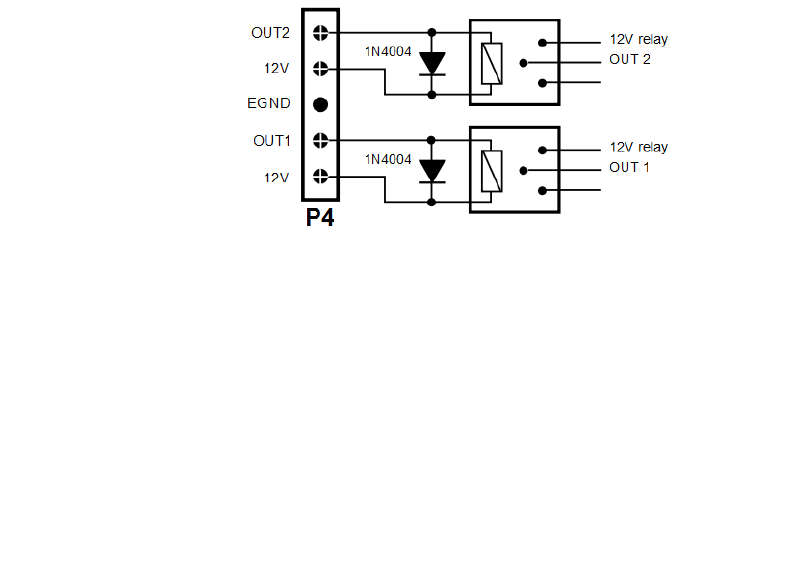

External relays powered by the reader

When the load exceeds the max internal current of 30 mA you must use an

external relay.

Figure 24 Relays OUT

Note: Use 12VDC relay - max coil current = 30mA each. In this case you

must use the 1N4004 diodes shown in Figure 24.

Connecting the door lock directly using an

external power supply

You can connect the door lock directly to the reader using an external

power supply. The current shall not exceed 1,2A or a peak of 5A for a

period of 0,5 sec max.

Notes: For not-resistive loads:

• You must use the 1N4004 diodes as shown in Figure 25. Two

diodes are included in the package.

• The external power supply must be isolated.

Figure 25 Connecting loads using an external isolated power supply

54 https://extranet.honeywell.com

Jumpers

There is a DIP switch (include two bits) in the circle. It is used for

selecting RS-485 matched distance mode.

The Voyager equipment supports biasing and end-of-line termination for

the RS-485 network.

a. RS-485 allows the wiring of a multidrop communication

network of up to 1200 m in length. SW1 DIP switches Pin1,

Pin2 set in ON position.

b. RS-485 Port communication network should not exceed 15

m in length. SW1 DIP switches PIN1, PIN2 set in OFF

position.

Figure 26 Jumpers

Jumper ON/OFF Function

SW1.1&2 ON Long distance - up to 1200m

OFF Short distance - up to 15m

Error messages

This chapter presents tables of possible maintenance, mode, door, and transit

error messages.

Table 4 Maintenance error messages

Status Icon Caption Meaning and Action

Database

download in

progress

DB DOWNLOAD IN

PROGRESS The DB download is in progress. You may use the

device but you may experience some delay in

response time.

Terminal/door

out of order OUT OF ORDER The reader or the door controlled is experiencing

technical difficulties. You may not use the device

at this time.

Terminal not

configured OUT OF ORDER The reader has not yet been configured. You may

not use the device at this time.

Transit buffer

full TRANSIT BUFFER

FULL There is no more space available on the device to

store transits. To prevent further loss of transits,

this device has been blocked.

10 – ERROR MESSAGES

56 https://extranet.honeywell.com

Table 5 Mode error messages

Status Icon Caption Meaning and Action

Overdriven

modality DEVICE IN

OVERDRIVEN

MODALITY

This device is set in overdrive mode. You do not

need this device to authorize the transit.

Reply not

received REPLY NOT

RECEIVED Due to lack of response from the Supervision

Center, the desired operation is cancelled. Retry

the operation, and if the problem persists contact

your system administrator.

Waiting for

reply WAITING FOR REPLY The desired operation requires data from the

Supervision Center. Please wait for approval

before you continue.

For more information on your site operations,

contact your system administrator.

Table 6 Door error messages

Status Icon Caption Meaning and Action

Door forced DOOR FORCED The door managed by this reader has been forced.

Please notify security, then close the door to reset

it.

Door locked DOOR LOCKED This door is locked; do not attempt to transit

through this door.

Door not shut

after crossing DOOR NOT SHUT

AFTER CROSSING This door should be closed. Close the door to

reset it and notify security.

Table 7 Transit error messages

Status Icon Caption Meaning and Action

Access Denied ACCESS DENIED Access denied. You have violated the access rules

for your site. Contact your system administrator

for further information and assistance.

Card Disabled CARD DISABLED Access denied. Your card is disabled. Contact

your system administrator for further assistance.

Card outside

validity limits CARD OUTSIDE

VALIDITY LIMITS Access denied. Your card is not yet valid or has

expired. Contact your system administrator for

further assistance.

Door busy PLEASE WAIT WHILE

THE DOOR IS BUSY A transit is in progress through this door. You

may be unable to transit at this time.

Double transit

request PLEASE ENTER

ASSOCIATED CARD This transit requires an additional card reading to

authorize the access. Enter an associated card

with appropriate rights. Contact your system

administrator for further information and

assistance.

Feature expired FEATURE EXPIRED The feature you selected is not yet valid or has

already expired. Contact your system

administrator for further information and

assistance.

Feature not

available FEATURE NOT

AVAILABLE You are not authorized to use the feature you

selected. Contact your system administrator for

further information and assistance.

Guard Tour GUARD TOUR POINT

ACTIVATION This guard tour point has been activated. You can

now proceed to the next step of the guard tour.

Incorrect Card

Reading INCORRECT CARD

READING The device has detected errors while reading your

card. Retry, and if the problem persists contact

your system administrator.

Invalid

additional data INVALID ADDITIONAL

DATA The additional data you have entered is invalid.

Contact your system administrator for further

information and assistance.

Invalid card INVALID CARD Access denied. Your card is not configured for

this facility; contact your system administrator for

further assistance.

Maximum

number of

cardholders

MAX NUMBER OF

CARDHOLDER IN THE

ZONE

Access denied. The maximum number of

cardholders has been reached in the zone you

have requested access to. Contact your system

administrator for further assistance.

10 – ERROR MESSAGES

58 https://extranet.honeywell.com

Out of time

period INCOMPATIBLE TIME

PERIOD Access denied. You are not authorized to transit

through this door on this day at this time. Contact

your system administrator for further assistance.

Passback

violation PASSBACK

VIOLATION Access Contact. You have violated the passback

rules. Contact your system administrator for

further information and assistance.

Path control

violation PATH VIOLATION Access denied. You have violated the path rules.

Contact your system administrator for further

information and assistance.

Security block SECURITY BLOCK Access denied. Contact your system

administrator for further assistance

Selected for

Security

Inspection

SELECTED FOR

SECURITY

INSPECTION

Access denied. You have been selected for

security inspection. Follow instructions from

security personnel.

Threat level RESTRICTED ACCESS Access denied. Access to this zone is temporarily

restricted due to an increase in security threat

level.

Transit not

happened TRANSIT NOT

HAPPENED The door has not opened for the transit requested.

Wrong Access

level WRONG ACCESS

LEVEL Access denied. You are not authorized to transit

through this door. Contact your system

administrator for further assistance.

Wrong Facility

Code DOOR LOCKED Access denied. Your card is not configured for

this facility; contact your system administrator for

further assistance.

Wrong PIN

Code WRONG PIN CODE Access denied. You entered the wrong PIN code.

Contact your system administrator for further

assistance.

Table 7 Transit error messages

Status Icon Caption Meaning and Action

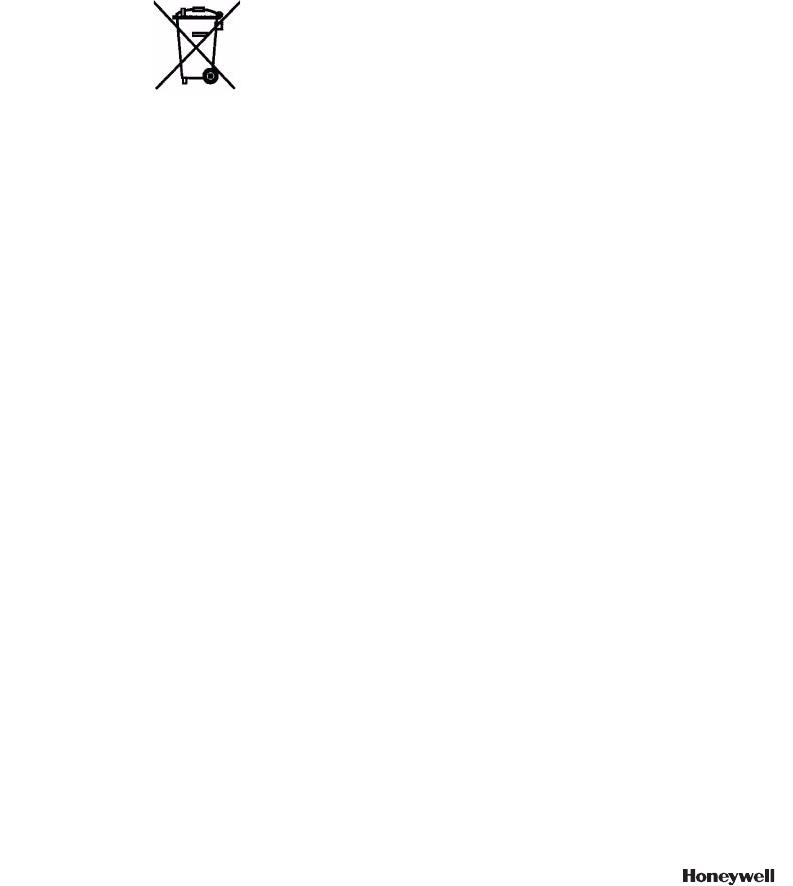

Recycling

In accordance with directive 2002/96/EC regarding waste electrical and

electronic apparatus, effective August 13 2005, Honeywell commits,

when requested by the customer, to the collection, treatment, recovery,

and disposal of the apparatus produced.

Customers in the European Union are advised to dispose of this product at

the end of its useful life in accordance with the applicable local laws,

regulations, and procedures.

Ademco VCU-03 Tema-Voyager Compact User Manual Rev3

Honeywell International Inc Tema-Voyager Compact Rev3

User Manual_Rev3

Navigation menu

Namespaces

Views

Navigation
