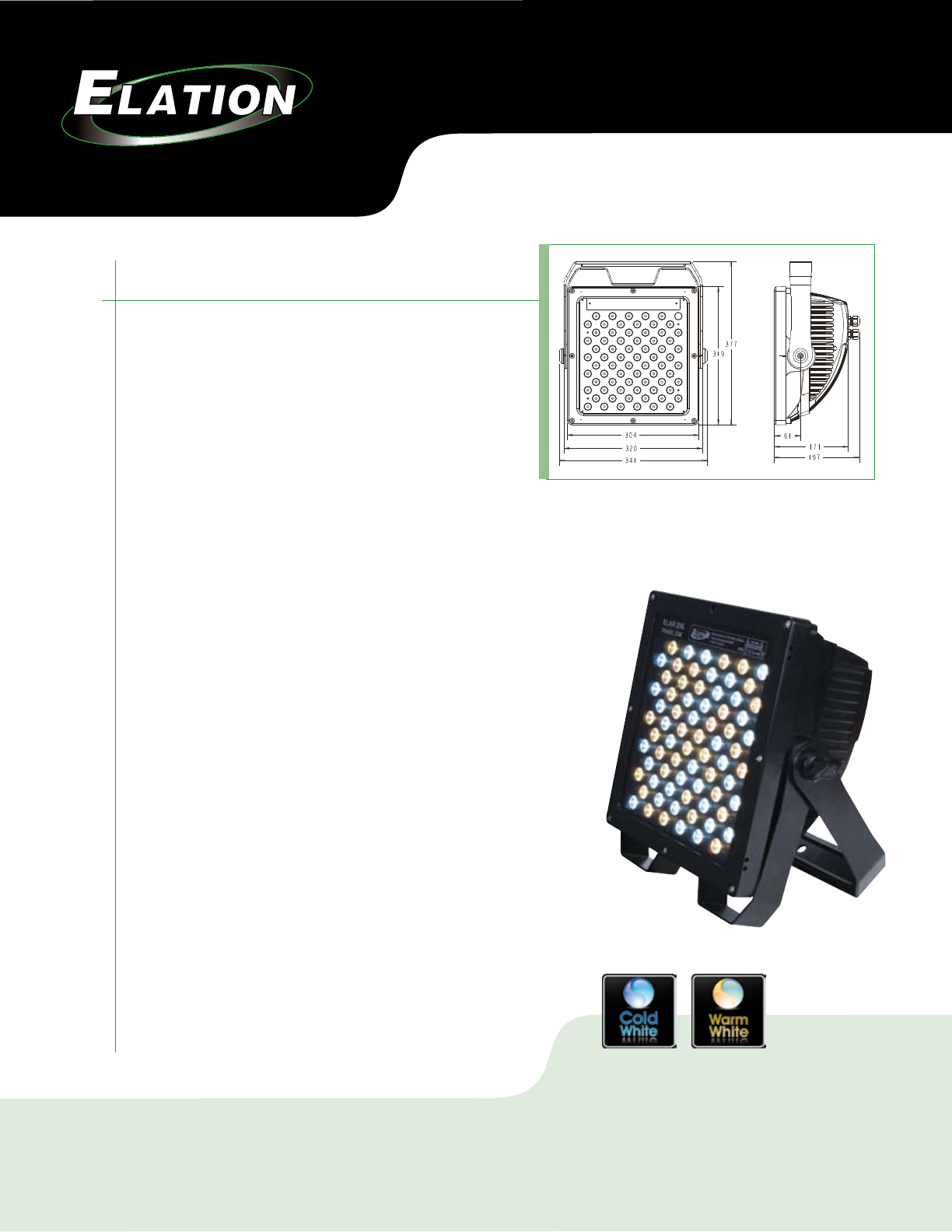

ELAR 216 Panel DW Data Sheet
1
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040 • Specications subject to change without notice
www.ElationLighting.com • Toll Free (866) 245-6726
DW MODEL
. Dynamic White Outdoor IP65 Design Panel
. 3,000°K - 6,000°K
. 72W x 3 Watt WW and CW LEDs
PRODUCT FEATURES
. IP 65 Rugged Die Cast Aluminum Case Design
. 32° beam angle, 25° lens
. Built in color macros, auto & manual control
TECHNICAL SPECIFICATIONS
. DMX Channels: 4 DMX modes – 4/5/7/9 Channels
. Control: USITT DMX-512, 3 pin DMX
. Color: Warm white / cool white
. Strobe: 25 flashes per second
. Dimmer: 0-100% continuous dimming
. Cooling: Silent Operation, convection cooled, no fans
. LED’s Source: 72 x 3W LEDs
48 Warm White, 24 Cool White
. Lux: 7,857 lux / 731 fc @ 2.5m / 8’ @ full
. LED Life: 100,000 hours rated life
. Approvals: (cETLus pending)
ENVIRONMENTAL SPECIFICATIONS
. Maximum Ambient Temperature: 113°F / 45°C
. IP Level: IP 65
ELECTRICAL SPECIFICATIONS
. Ballast: Electronic Switching Power supply
. Power Supply: 100-240V 50/60Hz
. Power Consumption: 250W
. Dimensions: (LxWxH) 13” x 7.75” x 15” / 341 x 197 x 377mm
. Weight: 26.5 lbs. (12 Kgs)
ELAR 216 Panel RGBW
Dimensional Specications
ARCHITECTURAL
LED Lighting Solutions
ELAR 216 Panel DW Data Sheet
2
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040 • Specications subject to change without notice
www.ElationLighting.com • Toll Free (866) 245-6726

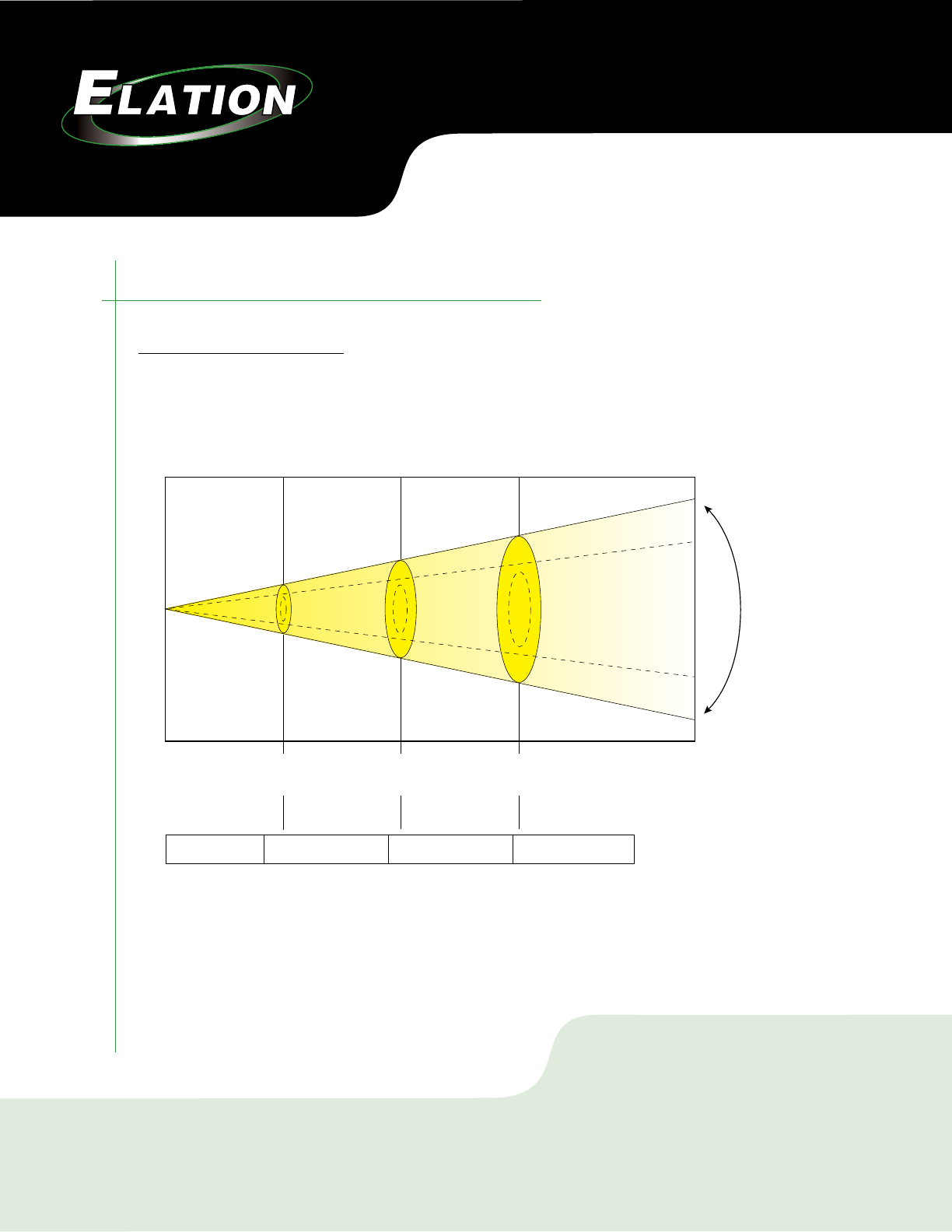

Photometrics
ELAR 216 Panel DW
Photometric Beam Angle Data
32° Beam Angle / 25° Lens
LUX x 0.0929 = FC
32° Beam Angle
0 m
0 ft 2.5 m
8.2 ft
7.5 m
25 ft
5 m
16.4 ft
WW (48)
CW (24)
Full (72)
308 FC / 3,313 LUX
415 FC / 4,469 LUX
730 FC / 7,857 LUX
85 FC / 910 LUX
113 FC / 1,218 LUX
198 FC / 2,126 LUX
45 FC / 483 LUX
61 FC / 653 LUX
106 FC / 1,140 LUX
Ø 1.46 m / Ø 4.80 ft Ø 2.90 m / Ø 9.51 ft Ø 4.30 m / Ø 14.12 ft
Beam Diameter
32° Beam Angle
