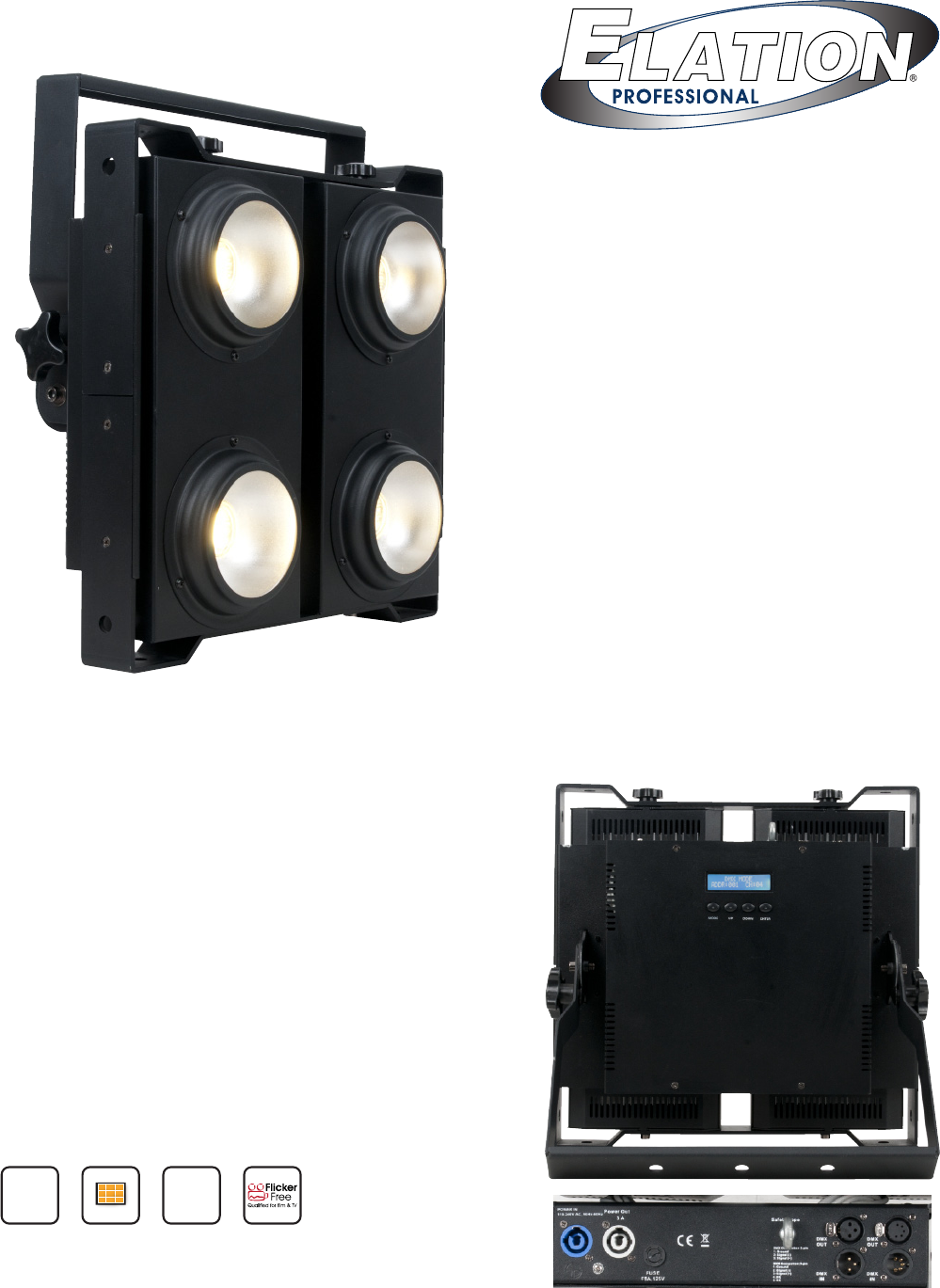

CUEPIX BLINDER WW4™
SKU# CUE242
The new CUEPIX Blinder WW4™ features (4) long life
100W Warm White 3,200K COB LEDs, a 62° beam
angle, RDM (Remote Device Management), individual
control of each COB module, manual pan focus,
variable and selectable dimming curves, strobe
effects, flicker free operation for TV and Film, 3pin and
5pin DMX and powerCon in/out connections, LCD
menu display with 4 button control panel, integrated
yoke and side mounting brackets, and a multi-voltage
universal auto switching power supply (100-250v).
FEATURES
4 x 100W Warm White 3,200K COB LEDs
100,000 Hour Rated Life LEDs
62° Beam Angle - 100° Field Angle
RDM (Remote Device Management)
Individual COB Module Control, Manual Pan Focus
Variable Dimming Curve Modes
Strobe Effects
Flicker Free Operation for TV and FILM
Specifications are preliminary and subject to change without notice ©Elation Professional
ELATION I CUEPIX BLINDER WW4™ I Product Specification Sheet
RDM
Remote Device Management
IP20
COB
CHIP ON BOARD
WARM WHITE
Elation Professional USA - Corporate Headquarters | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
FEATURES
High Power Long Life Warm White COB LEDs
62° Beam Angle - 100° Field Angle
Individual Control of Each COB Module
5 Variable Dimming Curve Modes
RDM (Remote Device Management)
Flicker FREE Operation for TV and FILM
SOURCE
(4) 100W Warm White 3,200K COB LEDs
100,000 Hour Average Life
PHOTOMETRIC DATA
12,300 LUX 1,143 FC @3.3’ (1m) (62°Full ON)
3,130 LUX 291 FC @6.6’ (2m) (62°Full ON)
1,581 LUX 147 FC @9.8’ (3m) (62°Full ON)
714 LUX 66 FC @13.1’ (4m) (62°Full ON)
626 LUX 58 FC @16.4’ (5m) (62°Full ON)
EFFECTS
Strobe
Dimming : 0% - 100% of Each COB Module
Variable Dimming Curves
CONTROL / CONNECTIONS
6 DMX Channel Modes (1 / 2 / 4 / 5 / 7 / 9)
4 Button Control Panel and LCD Menu Display
3pin and 5pin DMX In/Out
RDM (Remote Device Management)
powerCON Power In/Out
SIZE / WEIGHT
Length: 15.7” (400 mm)
Width: 6.9” (174 mm)
Horizontal Height: 17.4” (441 mm)
Weight: 21.0 lbs. (9.5 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
427W Max Power Consumption
Power Linking: pending
-14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
IP20
INSTALLATION
Rigging: Integrated Yoke and Side Mounting Brackets
Working Position: Any (360°)
INCLUDED ACCESSORIES
(1) powerCON Cable
specifications I CUEPIX BLINDER WW4™ I www.elationlighting.com
Specifications are preliminary subject to change without notice ©Elation Professional

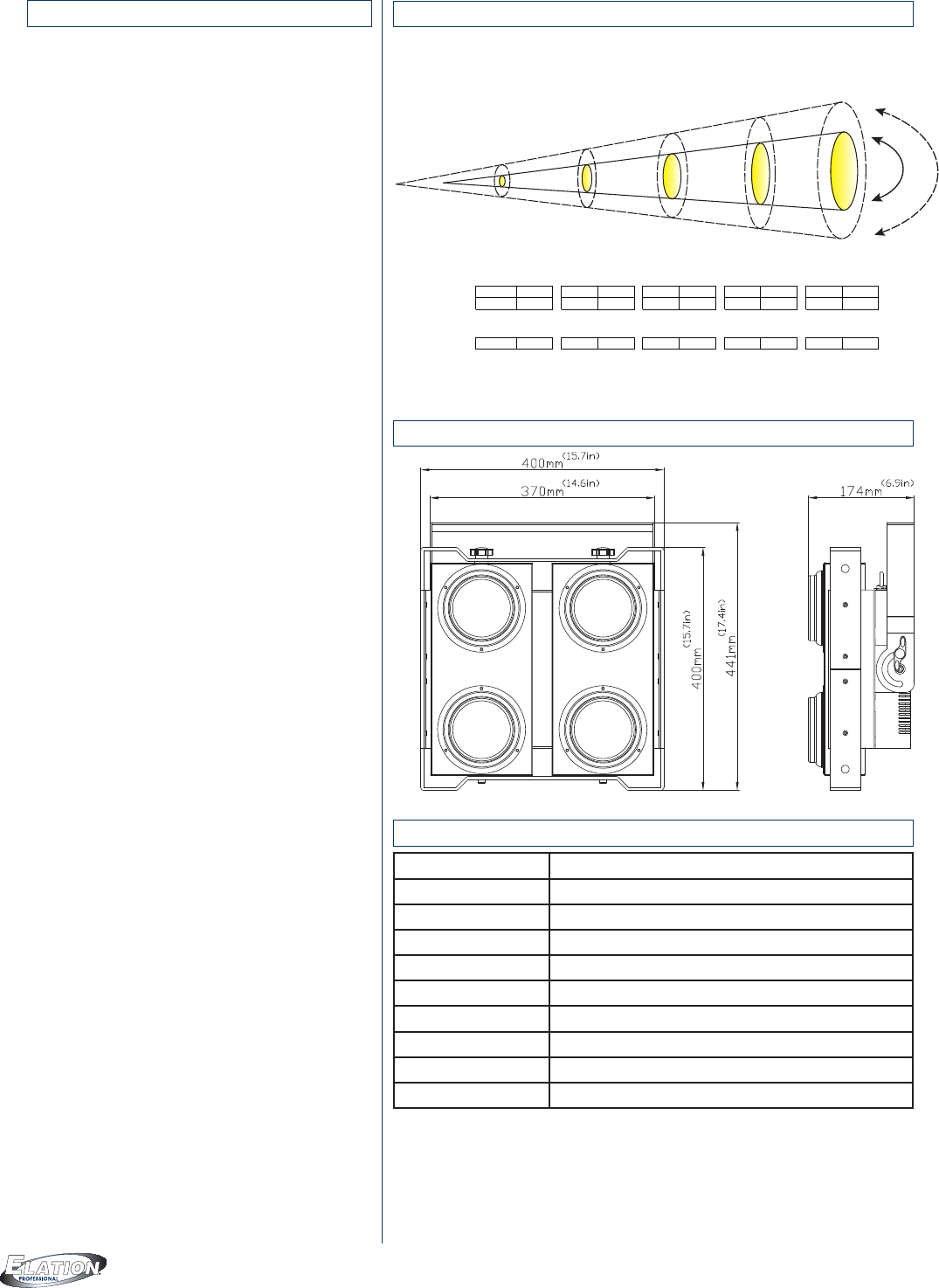

DIMENSIONAL DIAGRAM
OPTIONAL ACCESSORIES
PRODUCT SPECIFICATIONS PHOTOMETRIC DATA
Elation Professional USA - Corporate Headquarters | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
62°
Beam
100°
Field
1m
2m
3m
4m 5m
m ft m ft m ft m ft m ft
Distance 1 3.3 2 6.6 3 9.8 4 13.1 5 16.4
62° Beam Diameter 1.2 3.9 2.4 7.9 3.61 11.8 4.81 15.8 6.01 19.7
100° Field Diameter
2.38 7.8 4.77 15.6 7.15 23.5 9.53 31.3 11.8 38.7
Photometrics lux fc lux fc lux fc lux fc lux fc
ALL FULL ON 12,300 1,143 3,130 291 1,581 147 714 66 626 58
ORDER CODE ITEM
TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp
EWDMXSYSTEM Wireless DMX System (1 Transmitter, 1 Receiver)
EWDMXT Wireless DMX Transmitter
EWDMXR Wireless DMX Receiver
PLC3 3’ (1m) PowerCON PRO Link Cable
PLC6 6’ (1.8m) PowerCON PRO Link Cable
AC3PDMX5PRO 5 ft. (1.5m) 3pin PRO DMX Cable
AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable
Additional Cable Lengths Available
