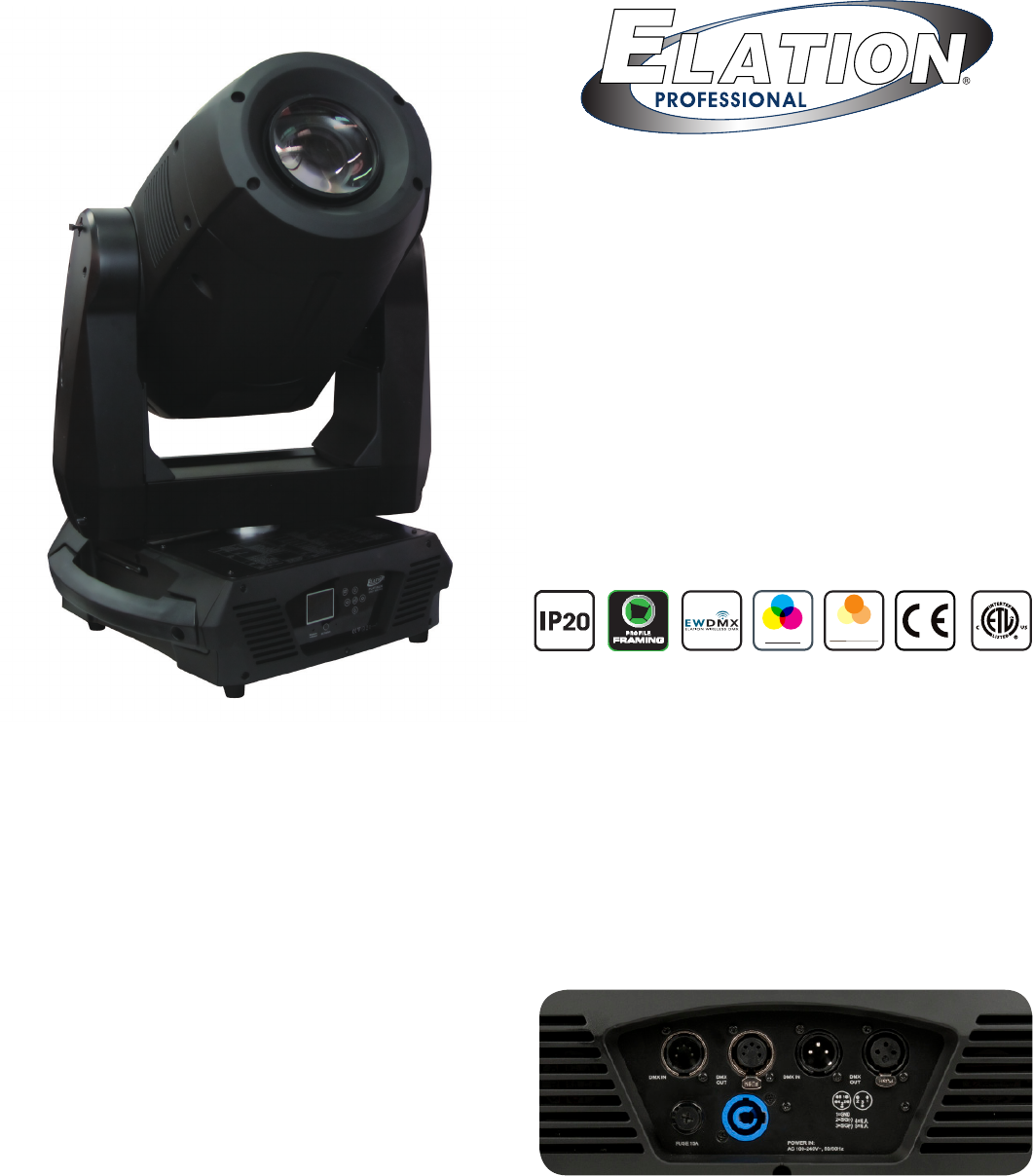

PLATINUM PROFILE 35 PRO
SKU# EPP409
The new Platinum Prole 35 PRO features the MSR Platinum 35,
800-watt lamp from Phillips™, 16-bit resolution on all motor
functions, 2 gobo wheels with a total of 6 interchangeable,
rotating, and indexing glass gobos, 3 fixed indexing
gobos and a 160° animation effect, variable CMY color
mixing and CTO, a static color wheel with 8 dichroic colors
including UV and CTB, 3 facet rotating / indexing prism, frost
lter, motorized focus / zoom system with an 8° to 50° beam
angle, motorized 4 blade framing, pan/tilt lock, built-in
EWDMX wireless DMX receiver, 3 and 5pin DMX connections,
full color 180° reversible menu display with 6 button touch
control panel, battery backup for display power, and a multi-
voltage universal auto switching power supply (100-240v).
FEATURES
1200-Watt Comparable Lumens Output
8° - 50° Zoom and Motorized 4 Blade Framing
Rotating Gobo Wheel with 6 Glass Gobos
Fixed Gobo Wheel with 3 Gobos +160° Animation
3-Facet Rotating Prism with 16 Prism Macros
Motorized Focus and 5% - 100% Iris
Built-In EWDMX Wireless DMX Receiver
Rechargeable Backup Battery for Menu Display
Specications are subject to change without notice ©Elation Professional
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
ELATION I PLATINUM PROFILE 35 PRO I Product Specification Sheet
CTO
COLOR CORRECTION
CMY
COLOR MIXING
CMY
COLOR MIXING
PENDING
PRELIMINARY
PENDING
FEATURES
1200-Watt Comparable Lumens Output
Motorized 8° - 50° Zoom + 4 Blade Framing
Built-In EWDMX Wireless DMX Receiver
SOURCE
Phillips™ 800-Watt MSR Platinum 35
750 Hour Average Life
PHOTOMETRIC DATA
20,101 Total Lumens, 7,400K, >60CRI
18,750 LUX @10M 8° Min Zoom
812 LUX @10M 50° Max Zoom
EFFECTS
4 Blade Framing
160° Animation Effect
Frost Filter
3-Facet Prism and 16 Prism Macros
Strobe and 5% - 100% Iris
Mechanical Dimming: 0% - 100%
COLOR
Variable CMY Color Mixing & CTO
8 Interchangeable Dichroic Colors Including UV + CTB
GOBOS
2 Gobo Wheels
6 Interchangeable / Rotating / Indexing Glass Gobos
3 Fixed / Indexing Gobos + 160° Animation
Size: OD 29mm / ID 24mm
CONTROL / CONNECTIONS
3 DMX Channel Modes (37/39/60)
3pin & 5pin DMX In/Out
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
powerCON Power In
SIZE / WEIGHT
Length: 19.9” (506.5mm)
Width: 17.6” (447.3mm)
Vertical Height: 28.6” (726.5mm)
Weight: 88.2 lbs. (40kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
1044W Max Power Consumption
-13°F to 113°F (-25°C to 45°C)
APPROVALS / RATINGS
CE Pending
cETLus Pending
IP20 Rated
specifications I ELATION PLATINUM PROFILE 35 PRO I www.elationlighting.com
