USING FIREWORKS
© 2007 Adobe Systems Incorporated. All rights reserved.
Adobe® Fireworks® Using Fireworks®
If this guide is distributed with software that includes an end user agreement, this guide, as well as the software described in it, is furnished under license and may be used or
copied only in accordance with the terms of such license. Except as permitted by any such license, no part of this guide may be reproduced, stored in a retrieval system, or trans-
mitted, in any form or by any means, electronic, mechanical, recording, or otherwise, without the prior written permission of Adobe Systems Incorporated. Please note that the
content in this guide is protected under copyright law even if it is not distributed with software that includes an end user license agreement.
The content of this guide is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by Adobe Systems Incorpo-
rated. Adobe Systems Incorporated assumes no responsibility or liability for any errors or inaccuracies that may appear in the informational content contained in this guide.
Please remember that existing artwork or images that you may want to include in your project may be protected under copyright law. The unauthorized incorporation of such
material into your new work could be a violation of the rights of the copyright owner. Please be sure to obtain any permission required from the copyright owner.
Any references to company names in sample templates are for demonstration purposes only and are not intended to refer to any actual organization.
Adobe, the Adobe logo, Adobe Bridge, Director, Dreamweaver, Flash, Flex Builder, FreeHand, GoLive, HomeSite, Illustrator, Photoshop, and XMP are either registered trade-
marks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
Apple and Macintosh are trademarks of Apple Inc., registered in the United States and other countries. Microsoft and Windows are either registered trademarks or trademarks
of Microsoft Corporation in the United States and/or other countries. All other trademarks are the property of their respective owners.
Adobe Systems Incorporated, 345 Park Avenue, San Jose, California 95110, USA.
Notice to U.S. Government End Users. The Software and Documentation are "Commercial Items," as that term is defined at 48 C.F.R. §2.101, consisting of "Commercial Computer
Software" and "Commercial Computer Software Documentation," as such terms are used in 48 C.F.R. §12.212 or 48 C.F.R. §227.7202, as applicable. Consistent with 48 C.F.R.
§12.212 or 48 C.F.R. §§227.7202-1 through 227.7202-4, as applicable, the Commercial Computer Software and Commercial Computer Software Documentation are being
licensed to U.S. Government end users (a) only as Commercial Items and (b) with only those rights as are granted to all other end users pursuant to the terms and conditions
herein. Unpublished-rights reserved under the copyright laws of the United States. Adobe Systems Incorporated, 345 Park Avenue, San Jose, CA 95110-2704, USA. For U.S.
Government End Users, Adobe agrees to comply with all applicable equal opportunity laws including, if appropriate, the provisions of Executive Order 11246, as amended,
Section 402 of the Vietnam Era Veterans Readjustment Assistance Act of 1974 (38 USC 4212), and Section 503 of the Rehabilitation Act of 1973, as amended, and the regulations
at 41 CFR Parts 60-1 through 60-60, 60-250, and 60-741. The affirmative action clause and regulations contained in the preceding sentence shall be incorporated by reference.
90079063 (09/06)
iii
Contents
Chapter 1: Getting Started
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Adobe Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
What’s new in Fireworks CS3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Chapter 2: Fireworks Basics
About working in Fireworks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
About vector and bitmap graphics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Creating a new document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Opening and importing files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Saving Fireworks files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
The Fireworks work environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Chapter 3: Selecting and Transforming Objects
Selecting objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Selecting pixels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Editing selected objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Transforming and distorting selected objects and selections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Organizing objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Chapter 4: Working with Bitmaps
Working with bitmaps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Creating bitmap objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Accessing photo editing tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Drawing, painting, and editing bitmap objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Retouching bitmaps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Adjusting bitmap color and tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Blurring and sharpening bitmaps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Adding noise to an image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Chapter 5: Working with Vector Objects
Drawing vector objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Editing paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Chapter 6: Working with Text
Entering text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Formatting text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Applying strokes, fills, and filters to text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Attaching text to a path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Transforming text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Converting text to paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Importing text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
iv
Checking spelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Using the Text Editor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Chapter 7: Applying Color, Strokes, and Fills
Using the Colors section of the Tools panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Organizing swatch groups and color models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Using color boxes and color pop-up windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135
Working with strokes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Working with fills . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Applying gradient and pattern fills . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Adding texture to strokes and fills . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Chapter 8: Using Live Filters
Applying Live Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Editing Live Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Chapter 9: Pages, Layers, Masking, and Blending
Working with pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Working with layers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Masking images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Blending and transparency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Chapter 10: Using Styles, Symbols, and URLs
Using styles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Using symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Working with URLs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Chapter 11: Slices, Rollovers, and Hotspots
Creating and editing slices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Making slices interactive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Preparing slices for export . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Working with hotspots and image maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Chapter 12: Creating Buttons and Pop-up Menus
Creating button symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Creating navigation bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Creating pop-up menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Chapter 13: Creating Animations
Building animation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Working with animation symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Working with frames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Tweening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Previewing an animation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Exporting your animation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Working with existing animations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Using multiple files as one animation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
v
Chapter 14: Creating Slideshows
The Create Slideshow command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
Building or editing a slideshow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
Slideshow properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Creating a custom Fireworks album player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Chapter 15: Optimizing and Exporting
About optimizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Using the Export Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Optimizing in the workspace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Exporting from Fireworks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276
Sending a Fireworks document as an e-mail attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
Using the File Management button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
Chapter 16: Using Fireworks with Other Applications
Working with Dreamweaver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Working with Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305
Working with FreeHand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 312
Working with Director . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317
Working with HomeSite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320
Working with Photoshop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
About working with Illustrator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 326
About working with GoLive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 327
About working with HTML editors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 327
About extending Fireworks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 328
About Adobe XMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 328
About Adobe Bridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 328
Flex integration for rich Internet application layouts (MXML export) . . . . . . . . . . . . . . . . . . . . . . 329
Chapter 17: Automating Repetitive Tasks
Finding and replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
Batch processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334
Extending Fireworks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 341
Flash SWF movies used as Fireworks panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345
Chapter 18: Preferences and Keyboard Shortcuts
Setting preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Changing keyboard shortcut sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349
Working with configuration files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350
About reinstalling Fireworks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 351
Viewing package contents (Macintosh only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 352
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
1
Chapter 1: Getting Started
Adobe® Fireworks® CS3, a unique hybrid vector and bitmap tool, delivers the most efficient design environment for
rapidly prototyping websites and user interfaces, and creating and optimizing images for the web. Fireworks CS3
offers the flexibility to edit both vector and bitmap images, a common library of prebuilt assets, and time-saving
integration with Adobe Photoshop® CS3, Adobe Illustrator® CS3, Adobe Dreamweaver® CS3, and Adobe Flash® CS3
Professional software. Rapidly prototype your web project and then leverage your work directly into Dreamweaver
CS3.
Fireworks CS3 is an integral part of Adobe Creative Suite 3 Web Premium and Web Standard, which empower
creative professionals and developers to experience an uninterrupted flow of energy and ideas from initial concept
to polished final execution across print, video, web, and mobile devices. The end-to-end integration is the core of
what makes Creative Suite uniquely powerful—creative professionals and developers remain focused on their vision
and achieve the highest quality results in less time.
This chapter covers the following topics:
•“Installation” on page 1
•“A d o b e H e l p” o n p a g e 2
•“Resources” on page 4
•“What’s new in Fireworks CS3” on page 8
Installation
Requirements
To review complete system requirements and recommendations for your Adobe software, see the Read Me.html file
on your installation DVD.
Install the software
1Close any other Adobe programs open on your computer.
2Insert the installation disc into your DVD drive, and follow the on-screen instructions.
Note: For more information, see the Read Me.html file on the installation DVD.
Activate the software
If you have a single-user retail license for your Adobe software, you will be asked to activate your software; this is a
simple, anonymous process that you must complete within 30 days of starting the software.
For more information on product activation, see the Read Me file on your installation DVD, or visit the Adobe
website at www.adobe.com/go/activation.
1If the Activation dialog box isn’t already open, choose Help > Activate.
2Follow the on-screen instructions.
ADOBE FIREWORKS CS3
User Guide
2
Note: If you want to install the software on a different computer, you must first deactivate it on your computer. Choose
Help > Deactivate.
Register
Register your product to receive complimentary installation support, notifications of updates, and other services.
❖To register, follow the on-screen instructions in the Registration dialog box, which appears after you install and
activate the software.
If you postpone registration, you can register at any time by choosing Help > Online Registration.
Read me
The Read Me.html file for your product can be found on the installation DVD (and is also copied to the application
folder during product installation). This file provides valuable information about the following:
•System requirements
•Installing and uninstalling
•Activation and registration
•Font installation
•Troubleshooting
•Customer support
•Legal notices
Viewing the files installed with Fireworks
At some point you may need to view or access the files installed with Fireworks. During installation, Fireworks places
files in various locations on your system. It’s important to understand why these files reside where they do. For more
information, see “Working with configuration files” on page 350.
Macintosh users should pay special attention to the format Fireworks uses to store the program and its default
configuration files. For more information, see “Viewing package contents (Macintosh only)” on page 352.
Adobe Help
Adobe Help resources
Documentation for your Adobe software is available in a variety of formats.
In-product and LiveDocs Help
In-product Help provides access to all documentation and instructional content available at the time the product
ships. It is available through the Help menu in your Adobe product.
LiveDocs Help includes all the content from in-product Help, plus updates and links to additional instructional
content available on the web. For some products, LiveDocs also lets you add comments. Find LiveDocs Help for your
product in the Adobe Help Resource Center, at www.adobe.com/go/documentation.
ADOBE FIREWORKS CS3
User Guide
3
Most versions of in-product and LiveDocs Help let you search across the Help of multiple products. Topics also
contain links to relevant content on the web or to topics in the Help of another product.
Think of Help, both in the product and on the web, as a hub for accessing additional content and communities of
users. The most complete and up-to-date version of Help is always on the web.
Adobe PDF documentation
The in-product Help is also available as a Portable Document Format (PDF) file that is optimized for printing. Other
documents, such as white papers, may also be provided as PDFs.
All PDF documentation is available through the Adobe Help Resource Center, at www.adobe.com/go/documen-
tation. PDF documentation included with your product can be found in the Documents folder on the installation or
content DVD.
Printed documentation
Printed editions of the complete in-product Help are available for purchase in the Adobe Store, at
www.adobe.com/go/store. You can also find books published by Adobe publishing partners in the Adobe Store.
A printed workflow guide is included with all Adobe Creative Suite 3 products, and individual Adobe products may
include a printed getting started guide.
Using Help in the product
In-product Help is available through the Help menu. After you start the Adobe Help Viewer, click Browse to see Help
for additional Adobe products installed on your computer.
To help you learn about multiple Adobe products, these features are available:
•You can search across Help for multiple products.
•Topics may contain links to topics in Help for other Adobe products or to additional content on the web.
•Some topics are shared across multiple products. If you see a Help topic with a Fireworks icon and a Dreamweaver
icon, you know that the topic either describes functionality that is similar in the two products or documents cross-
product workflows.
Note: If you search for a phrase, such as “shape tool,” enclose it in quotation marks to see only those topics that include
all the words in the phrase.
Accessibility features
Adobe Help content is accessible to people with disabilities—such as mobility impairments, blindness, and low
vision. In-product Help provides keyboard shortcuts for toolbar controls and navigation, and it supports standard
accessibility features, including the following:
•Text size can be changed with standard context menu commands.
•Links are underlined for easy recognition.
•If link text doesn’t match the title of the destination, the title is referenced in the Title attribute of the Anchor tag.
For example, the Previous and Next links include the titles of the previous and next topics.
•Content supports high-contrast mode.
•Graphics without captions include alternate text.
•Each frame has a title to indicate its purpose.
ADOBE FIREWORKS CS3
User Guide
4
•Standard HTML tags define content structure, for screen reading or text-to-speech tools.
•Style sheets control formatting, so there are no embedded fonts.
Windows keyboard shortcuts for toolbar controls
Each control in the toolbar for in-product Help has a keyboard equivalent:
Back button Alt+left arrow
Forward button Alt+right arrow
Print Ctrl+P
About button Ctrl+I
Browse menu Alt+down arrow or Alt+up arrow to view Help for another program
Search box (Windows) Ctrl+S to place cursor in Search box
Windows keyboard shortcuts for navigation
To navigate in Adobe Help Viewer and view topics, use the following keyboard combinations:
•To move between the navigation pane and the reading pane, press Ctrl+Tab and Shift+Ctrl+Tab.
•To move through links within a pane, press Tab or Shift+Tab.
•To activate a selected link, press Enter.
•To make text bigger, press Ctrl+equal.
•To make text smaller, press Ctrl+hyphen.
How to choose the right Help documents
A variety of resources are available for learning Fireworks, including Fireworks Help, PDF versions of the Fireworks
documentation components, and several web-based information sources.
•Fireworks Help (called Using Fireworks), intended for all users, gives comprehensive information about all
Fireworks features. You can access it at any time in Fireworks help (Help > Using Fireworks). The manual is also
available in PDF format on the Adobe website at www.adobe.com/go/fireworks_documentation.
•Extending Fireworks, which describes the Fireworks framework and the application programming interface (API),
is intended for advanced users who want to build extensions or customize the Fireworks interface. You can control
every Fireworks command or setting using special JavaScript commands that Fireworks can interpret. The manual
is available both in help and on the Adobe website as a downloadable PDF.
Resources
Adobe Video Workshop
Adobe Creative Suite 3 Video Workshop enables you to learn about your product. There are over 200 training videos
for Adobe Creative Suite 3, covering a wide range of subjects for print, web, and video professionals.
You can use the Video Workshop to learn about any Creative Suite 3 product you’re interested in. Many videos show
you how to use products together.
ADOBE FIREWORKS CS3
User Guide
5
When you start the Video Workshop, you choose exactly the products and topics you want to learn. You can see
details about each video to help focus your learning path.
Community of presenters
With this release, we invited the Adobe community to share their expertise and insights. Adobe and Lynda.com
present tutorials, tips, and tricks from leading designers and developers such as Michael Ninness, Katrin Eismann,
and Chris Georgenes. You can see and hear Adobe experts such as Lynn Grillo, Greg Rewis, and Russell Brown. In
all, over 30 product experts share their knowledge.
Tutorials and source files
The Video Workshop includes training for novices and experienced users. You’ll also find videos on new features
and key techniques. Each video covers a single subject and typically runs about 3-5 minutes. Most videos come with
an illustrated tutorial and source files, so you can print out detailed steps and try the tutorial on your own.
Using Adobe Video Workshop
You can access Adobe Video Workshop using the DVD included with your Creative Suite 3 product. It’s also available
online at www.adobe.com/go/learn_videotutorials. Adobe will regularly add new videos to the online Video
Workshop, so check in to see what’s new.
Fireworks CS3 videos
Adobe Video Workshop covers a wide range of subjects for Adobe Fireworks CS3, including:
•Using the Pages panel
•Rapid prototyping with rich symbols
•Understanding layers and layout
•Generating symbol property scripts
Videos also show you how to use Fireworks CS3 with other Adobe products, for example:
•Importing Photoshop files
•Understanding the Fireworks and Flash workflow
•Understanding the Photoshop, Illustrator, and Fireworks workflow
Extras
You have access to a wide variety of resources that will help you make the most of your Adobe software. Some of
these resources are installed on your computer during the setup process; additional helpful samples and documents
are included on the installation or content DVD. Unique extras are also offered online by the Adobe Exchange
community, at www.adobe.com/go/exchange.
Installed resources
During software installation, a number of resources are placed in your application folder. To view those files, navigate
to the specific application folder on your computer.
•Windows: [startup drive]/Program files/Adobe/Adobe Fireworks CS3
•Mac OS: [startup drive]/Applications/Adobe Fireworks CS3
Depending on your Adobe product, the application folder may contain the following:
ADOBE FIREWORKS CS3
User Guide
6
Plug-ins Plug-in modules are small software programs that extend or add features to your software. Once installed,
plug-in modules appear as options in the Import or Export menu; as file formats in the Open, Save As, and Export
Original dialog boxes; or as filters in the Filter submenus.
Presets Presets comprise a wide variety of useful tools, preferences, effects, and images. Product presets include
brushes, swatches, color groups, symbols, custom shapes, graphic and layer styles, patterns, textures, actions,
workspaces, and more. Preset content can be found throughout the interface. Some presets become available only
when you select the corresponding tool. If you don’t want to create an effect or image from scratch, just peruse the
preset libraries for inspiration.
Templates Template files can be opened and viewed from Adobe Bridge, opened from the Welcome Screen, or
opened directly from the File menu. Depending on the product, template files range from letterhead, newsletters and
websites, to DVD menus and video buttons. Each template file is professionally constructed and represents a best-
use example of product features. Templates can be a valuable resource when you need to jump start a project.
Samples Sample files include more complicated designs and are a great way to see new features in action. These files
demonstrate the range of creative possibilities offered by your program.
Fonts Several OpenType® fonts and font families are included with your Creative Suite product. Fonts are copied to
your computer during installation:
•Windows: [startup drive]/Program Files/Common Files/Adobe/Fonts
•Mac OS X: [startup drive]/Library/Application Support/Adobe/Fonts
For information about installing fonts, see the Read Me.html file on the installation DVD.
DVD content
The installation or content DVD included with your product contains additional resources for use with your
software. The Goodies folder contains product-specific files such as templates, images, presets, actions, plug-ins, and
effects, along with subfolders for Fonts and Stock Photography. The Documentation folder contains a PDF version
of the Help, technical information, and other documents such as specimen sheets, reference guides, and specialized
feature information.
Adobe Exchange
For more free content, visit www.adobe.com/go/exchange, an online community where users download and share
thousands of free actions, extensions, plug-ins, and other content for use with Adobe products.
Bridge Home
Bridge Home, a new destination in Adobe Bridge CS3, provides up-to-date information on all your Adobe Creative
Suite 3 software in one convenient location. Start Adobe Bridge, then click the Bridge Home icon at the top of the
favorites panel to access the latest tips, news, and resources for your Creative Suite tools.
Note: Bridge Home may not be available in all languages.
Adobe Design Center
Adobe Design Center offers articles, inspiration, and instruction from industry experts, top designers and Adobe
publishing partners. New content is added monthly.
You can find hundreds of tutorials for design products and learn tips and techniques through videos, HTML
tutorials, and sample book chapters.
New ideas are the heart of Think Tank, Dialog Box, and Gallery:
ADOBE FIREWORKS CS3
User Guide
7
•Think Tank articles describe how designers engage with technology and what their experiences mean for design,
design tools, and society.
•In Dialog Box, experts share new ideas in motion graphics and digital design.
•The Gallery showcases how artists communicate design in motion.
Visit Adobe Design Center at www.adobe.com/designcenter.
Adobe Developer Center
Adobe Developer Center provides samples, tutorials, articles, and community resources for developers who build
rich Internet applications, websites, mobile content, and other projects using Adobe products. The Developer Center
also contains resources for developers who develop plug-ins for Adobe products.
In addition to sample code and tutorials, you'll find RSS feeds, online seminars, SDKs, scripting guides, and other
technical resources.
Visit Adobe Developer Center at www.adobe.com/go/developer.
Customer support
Visit the Adobe Support website, at www.adobe.com/support, to find troubleshooting information for your product
and to learn about free and paid technical support options. Follow the Training link for access to Adobe Press books,
a variety of training resources, Adobe software certification programs, and more.
Downloads
Visit www.adobe.com/go/downloads to find free updates, tryouts, and other useful software. In addition, the Adobe
Store (at www.adobe.com/go/store) provides access to thousands of plug-ins from third-party developers, helping
you to automate tasks, customize workflows, create specialized professional effects, and more.
Adobe Labs
Adobe Labs provides you with the opportunity to experience and evaluate new and emerging innovations, technol-
ogies, and products from Adobe.
At Adobe Labs, you have access to resources such as these:
•Prerelease software and technologies
•Code samples and best practices to help accelerate your learning curve
•Early versions of product and technical documentation
•Forums, wiki-based content, and other collaborative resources to help you interact with like-minded developers
Adobe Labs fosters a collaborative software development process. This environment allows customers to become
productive with new products and technologies faster and the Adobe development teams to respond and react to
early feedback in order to shape the software in a way that meets the needs and expectations of the community.
Visit Adobe Labs at www.adobe.com/go/labs.
ADOBE FIREWORKS CS3
User Guide
8
User communities
Features forums, blogs, and other avenues for users to share technologies, tools, and information; ask questions; and
find out how others are getting the most out of their software. User-to-user forums are available in English, French,
German, and Japanese; blogs are posted in a wide range of languages.
To participate in forums or blogs, visit www.adobe.com/communities.
What’s new in Fireworks CS3
Create rich symbols
This version of Fireworks introduces new and enhanced symbol features. Create graphic symbols that can be intel-
ligently scaled and given specific attributes using a JavaScript (JSF) file. Quickly mock up a user interface by dragging
these symbols on to the document and editing the parameters associated with them using the new Symbol Properties
panel.
For more information, see “Creating and using rich graphic symbols” on page 190.
Intelligent scaling for symbols
Traditionally, when you apply scale transformations to symbols, the entire object is transformed as a single unit.
With certain kinds of objects, especially geometric shapes with styled corners, the result is a symbol that appears
somewhat distorted.
Fireworks CS3 introduces a dynamic new feature called 9-slice scaling, which allows you to intelligently scale vector
or bitmap symbols. By positioning a set of guides over your artwork, you can define exactly how each part of a
symbol is scaled. Any of nine different regions can be specified to scale only horizontally, scale only vertically, scale
both horizontally and vertically, or to not scale at all. The feature, which is on by default, can also be set to scale just
three regions. When combined with the new Auto Shape library, 9-slice scaling makes it faster than ever before to
prototype websites and applications.
For more information, see “Using 9-slice scaling” on page 188.
Rich symbols
Symbol Properties panel This new panel is a central location where you can control the properties for
intelligent graphic symbols.
Enhanced graphic symbol An enhancement to the graphic symbol allows the creation of customizable
symbol properties using JavaScript.
Symbol library A pre-designed library of graphic symbols that utilize the new functionality has
been included in this software release. These can be customized to accommo-
date the look and feel of a particular website or user interface.
Swap symbols A new “swap symbol” feature allows you to easily swap symbols as you are
designing your document.
Scaling without distortion
New 9-slice scaling tool Enable the 9-slice scaling feature to scale vector and bitmap symbols up or
down without distorting their geometry. The symbol can be scaled using 3 or
9 regions, based on the shape of the symbol.
ADOBE FIREWORKS CS3
User Guide
9
Add multiple pages to a single document
In a never-ending effort to improve web-design workflows, Fireworks CS3 makes it easy to build complex multi-
page web prototypes using a single PNG file. Each page contains its own settings for canvas document, size, color,
image resolution, and guides. These settings can be set on a per-page basis, or globally across all pages in the
document.
Taking the multi-page concept one step further, Fireworks layers can apply to a single page or be shared across
pages. Once shared, the layers are shaded yellow to differentiate them from unshared layers. For rapid prototyping,
you can create workflows with hyperlinks and hotspot behaviors on multiple pages. You can also preview all of your
pages in a browser or export them all at once as multiple HTML pages.
For more information, see “Working with pages” on page 155.
Create Flash-based slideshows
Automatically create an image slideshow. The Create Slideshow command allows you to create a Flash slideshow
without knowing how to use Flash. You simply select a folder with images, add slideshow options (such as slide
transitions), select a Fireworks album player (a Flash template) for the final output, and automatically batch-process
the required thumbnail and full-size images that are optimized for the web.
For more information, see “Creating Slideshows” on page 250.
Hierarchical layers
In Fireworks CS3 the structure of layers in a document can be as simple or as complex as required and all hierar-
chical layers are preserved. When creating a new file, all items are organized at the same level, in a non-hierarchical
manner. You can create new sub layers as needed and move items into them, or move elements from one layer to
another at any time. You can also create multiple sub layers and group them.
For more information, see “Working with layers” on page 159.
Prototype without complexity
New Pages panel A new Pages panel gives easy access to all of the pages in your PNG file.
Apply layers across pages Layers can apply to a single page, or can be shared across multiple pages. Once
shared, the layers are displayed in yellow to differentiate from unshared Layers.
Use a master page for common
elements
An optional master page can be used to hold elements that are common to all
pages.
Create a Flash slideshow without learning Flash
Create Slideshow feature Choose Create Slideshow from the Commands menu to launch the new tool.
Use layers for greater design flexibility
Hierarchical layers Use the Layers panel to create and organize layers as you need them.
ADOBE FIREWORKS CS3
User Guide
10
Work with Photoshop files
With Fireworks CS3, you can directly import native files from Photoshop. Achieving a whole new level of function-
ality, Adobe is redefining the concept of what integration should be. Fireworks design comps and images can now
be saved as native Photoshop files and opened in either Photoshop or Fireworks CS3 with layer information
preserved.
For more information, see “Working with Photoshop” on page 322.
Import Fireworks files into Adobe Flash
Now you can move content from Fireworks CS3 to Flash CS3 Professional quickly by copying and pasting or by
directly importing a Fireworks PNG file. Important structure is maintained, including multiple pages, shared layers,
hierarchical layers, frames, 9-slice scaling settings, and many effects. Prototyping in Fireworks and developing in
Flash has never been easier.
For more information, see “Working with Flash” on page 305.
Flex integration for RIA layouts
As designers continue to push the technology envelope, better tools and integration become more important than
ever. Fireworks CS3 can help in the development of next-generation rich internet applications—referred to as
RIAs—by making it possible to export common library assets as known components for use in Adobe Flex™
Builder.™ Styling and absolute positioning are also maintained.
The best part is there’s no work necessary on your part, because Fireworks exports the necessary Flex code (MXML)
for you. Now you can easily create a Flex application layout in Fireworks, leveraging Flex common library assets as
MXML for loading into Flex Builder.
Work with Illustrator files
Open Illustrator files in Fireworks while preserving hierarchical layers, patterns, linked images, text attributes,
transparency, and more. Fireworks also contains export options for exporting to Adobe Illustrator 8.0.
For more information, see “About working with Illustrator” on page 326.
For more information on the new features, see the Fireworks page on the Adobe website at
www.adobe.com/products/fireworks/.
Improved Photoshop compatibility
Photoshop layer effects Photoshop provides a variety of effects such as shadows, glows, bevels, over-
lays, and strokes that let the user change the appearance of a layer’s contents.
Fireworks CS3 now preserves these editable Photoshop layer effects when
importing or opening a PSD file. You can also now apply Photoshop layer
effects directly to any object within Fireworks by selecting Photoshop Live
Effects from the Live Filters tool in the Property inspector.
Photoshop blend modes Fireworks CS3 includes seven commonly used Photoshop blending modes
(dissolve, linear burn, linear dodge, vivid light, linear light, pin light, and hard
mix).
Retain hierarchical layers when
opening PSD files
Fireworks CS3 now supports a hierarchical layer structure, allowing you to
preserve layer and sublayer information when importing files from Photoshop.
ADOBE FIREWORKS CS3
User Guide
11
Adobe Bridge
Simplify file handling in Fireworks and within Adobe Creative Suite with Adobe Bridge, the next-generation file
browser. Efficiently browse, tag, search, and process your images. Using Bridge and Fireworks together means you
can take advantage of XMP metadata in your files. Adobe XMP (Extensible Metadata Platform) is a technology that
assists the user in adding file information to files saved in PNG, GIF, JPEG, Photoshop, and TIFF formats, and facil-
itates the exchange of metadata between Adobe software and other systems that support the XMP metadata
standard.
For more information, see “About Adobe Bridge” on page 328.
12
Chapter 2: Fireworks Basics
Fireworks CS3 is a software program for designing professional on-screen graphics. Its innovative solutions tackle
the major problems facing graphic designers and webmasters. Using the wide range of tools in Fireworks, you can
create and edit both vector and bitmap graphics within a single file.
The advent of Fireworks freed web designers from having to jump back and forth among as many as a dozen task-
specific applications. Its nondestructive Live Filters eliminate the frustration of having to re-create web graphics
from scratch after any simple edit. Fireworks generates JavaScript, making rollovers easy to create. Efficient optimi-
zation features shrink the size of web graphic files without sacrificing quality.
If you are new to Fireworks, it would be helpful for you to understand general Fireworks concepts such as opening,
importing, and saving files; finding your way around the Fireworks environment; and working within a file. After
you create a new file or open an existing file, the Fireworks work environment is available to you.
This chapter contains the following topics:
•“About working in Fireworks” on page 12
•“About vector and bitmap graphics” on page 13

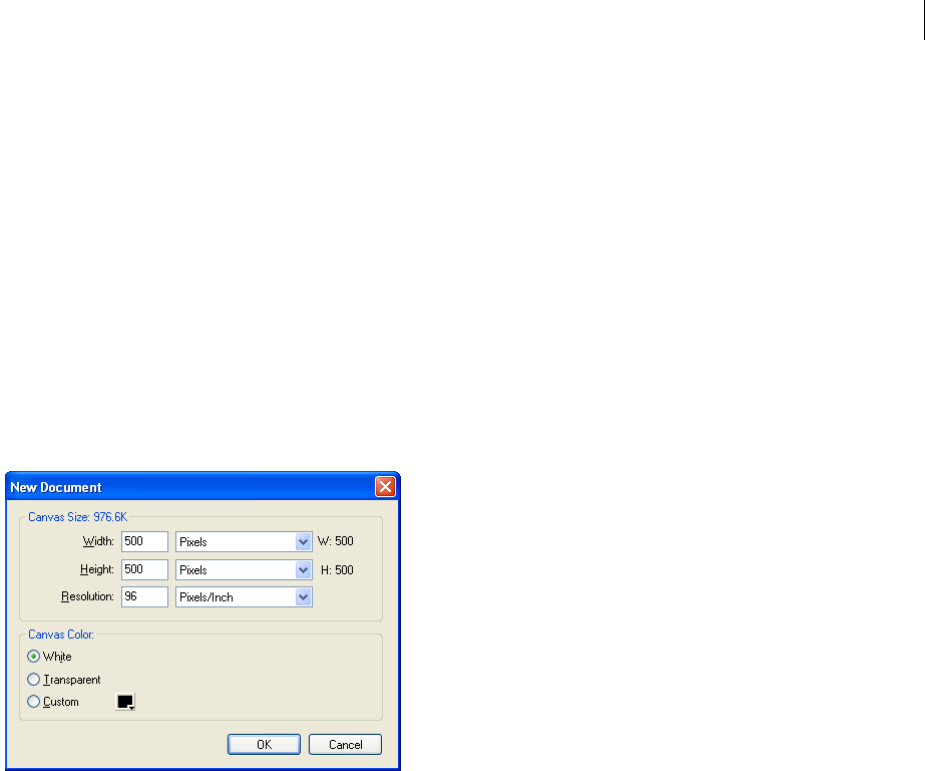

•“Creating a new document” on page 15
•“Opening and importing files” on page 16
•“Saving Fireworks files” on page 22

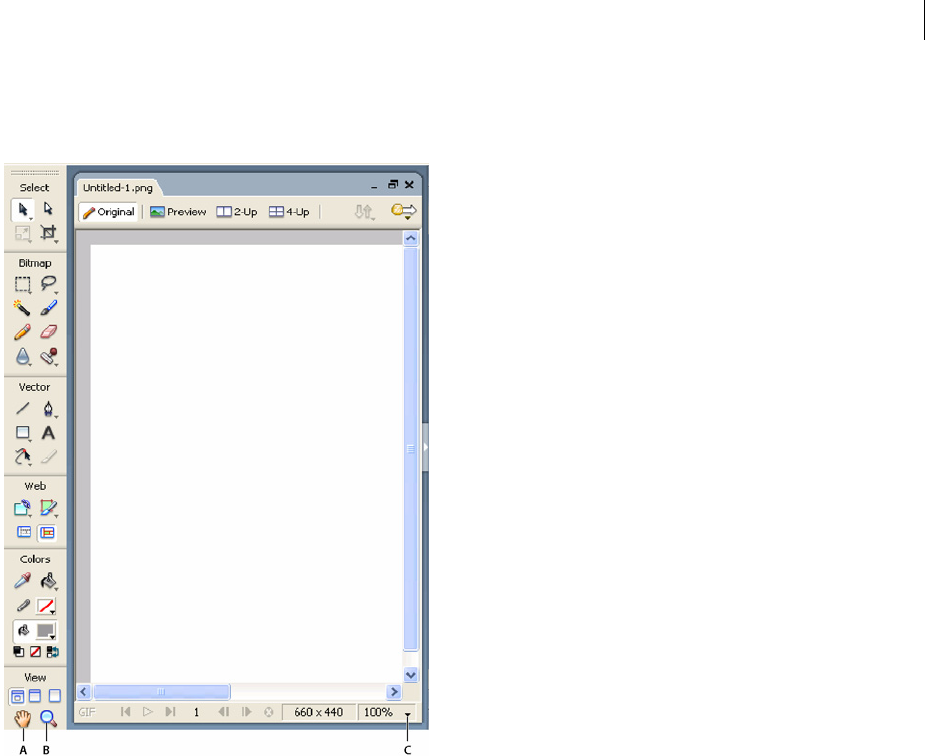

•“The Fireworks work environment” on page 24
About working in Fireworks
Fireworks is a versatile program for creating, editing, and optimizing web graphics. You can create and edit both
bitmap and vector images, design web effects such as rollovers and pop-up menus, crop and optimize graphics to
reduce their file size, and save time by automating repetitive tasks. When a document is complete, you can export or
save it as a JPEG file, GIF file, or file of another format—along with HTML files containing HTML tables and JavaS-
cript code—for use on the web. You also can export or save a type of file specific to another program, such as Adobe
Photoshop or Adobe Flash, if you want to continue working in the other program.
Vector and bitmap objects
In the Fireworks Tools panel, you will find distinct sections containing tools for drawing and editing vectors and
bitmaps. For more information on these two basic formats, see “About vector and bitmap graphics” on page 13
In Fireworks, the tool you select determines whether the object you create is a vector or a bitmap. For example, select
the Pen tool from the Vector section of the Tools panel, and you can begin drawing vector paths by plotting points.
Select the Brush tool, and you can drag to paint a bitmap object. Select the Text tool, and you can begin typing.
After drawing vector objects, bitmap objects, or text, you can use a wide array of tools, effects, commands, and
techniques to enhance and complete your graphics. You can use the Fireworks tools in the Button Editor to create
interactive navigation buttons.
ADOBE FIREWORKS CS3
User Guide
13
You can also use the Fireworks tools to edit imported graphics. You can import and edit files in JPEG, GIF, PNG,
PSD, and many other file formats. After you import a graphic image, you can adjust its color and tone, as well as crop,
retouch, and mask it.
Interactive graphics
Slices and hotspots are web objects that specify interactive areas in a web graphic. Slices cut an image into different
sections to which you can apply rollover behaviors, animation, and Uniform Resource Locator (URL) links. In
addition, you can export the sections using different settings. On a web page, each slice appears in a table cell.
Hotspots let you assign URL links and behaviors to all or part of a graphic. For more information, see “Slices,
Rollovers, and Hotspots” on page 200.
Slices and hotspots have drag-and-drop rollover handles that let you quickly assign swap image and rollover
behaviors to graphics directly in the workspace. The Button Editor and Pop-up Menu Editor are convenient
Fireworks features that help you build special interactive graphics for navigating websites.
About optimizing and exporting graphics
Fireworks has powerful optimization features to help you find the balance between file size and acceptable visual
quality as you prepare to export graphics. You can optimize web graphics in Fireworks to minimize their file size so
that they load quickly into websites, while comparing the quality of the graphics in the Preview, 2-Up, or 4-Up views
in the workspace.
You can slice an image into smaller parts and then optimize each part in the format that best suits the content. For
added optimization flexibility, you can use selective JPEG compression to focus the most important part of a JPEG
while reducing the quality of the background.
After you optimize your graphics, the next step is to export them for use on the web. From your Fireworks source
PNG document, you can export files of a number of types, including JPEG, GIF, animated GIF, and HTML tables
containing sliced images in multiple file types. For more information, see “Optimizing and Exporting” on page 257.
About vector and bitmap graphics
Computers display graphics in either vector or bitmap format. Understanding the difference between the two
formats helps you understand Fireworks, which contains both vector and bitmap tools and is capable of opening or
importing both formats.
ADOBE FIREWORKS CS3
User Guide
14
About vector graphics
Vector graphics render images using lines and curves, called vectors, that include color and position information.
For example, the image of a leaf may be defined by a series of points that describe the outline of the leaf. The color
of the leaf is determined by the color of its outline (the stroke) and the color of the area enclosed by the outline (the
fill)
When you edit a vector graphic, you modify the properties of the lines and curves that describe its shape. Vector
graphics are resolution-independent, which means you can move, resize, reshape, or change the color of a vector
graphic, as well as display it on output devices of varying resolutions, without changing the quality of its appearance.
About bitmap graphics
Bitmap graphics are composed of dots, called pixels, arranged in a grid. Your computer screen is a large grid of
pixels. In a bitmap version of the leaf, the image is determined by the location and color value of each pixel in the
grid. Each pixel is assigned a color. When viewed at the correct resolution, the dots fit together like tiles in a mosaic
to form the image.
When you edit a bitmap graphic, you modify pixels rather than lines and curves. These bitmap graphics are
resolution-dependent, which means that the data describing the image is fixed to a grid of a particular size. Enlarging
a bitmap graphic redistributes the pixels in the grid, often making the edges of the image appear ragged. Displaying
a bitmap graphic on an output device with a lower resolution than the image itself can also degrade the image’s
quality.
ADOBE FIREWORKS CS3
User Guide
15
Creating a new document
When you select File > New to create a new document in Fireworks, you create a Portable Network Graphic, or PNG
document. PNG is the native file format for Fireworks. After you create graphics in Fireworks, you can export or save
them in other familiar web graphic formats, such as JPEG, GIF, and animated GIF. You can also export or save
graphics in many of the popular formats used off the web, such as TIFF, PSD, and BMP. Whatever optimization and
export settings you choose, the original Fireworks PNG file is preserved to allow easy editing later.
To create a web graphic in Fireworks, you must first set up a new document or open an existing one. You can adjust
the setup options later in the Property inspector.
To create a new document:
1Select File > New.
The New Document dialog box opens.
2Enter the canvas width and height measurements in pixels, inches, or centimeters.
3Enter a resolution in pixels per inch or pixels per centimeter.
4Select white, transparent, or a custom color for the canvas.
Note: Use the Custom color box pop-up window to select a custom canvas color.
5Click OK to create the new document.
To create a new document the same size as an object on the Clipboard:
1Copy an object to the Clipboard from any of the following:
•Another Fireworks document
•A web browser
•Any of the applications listed in “Pasting into Fireworks” on page 19
2Select File > New.
The New Document dialog box opens with the width and height dimensions of the object on the Clipboard.
3Set the resolution and canvas color, and click OK.
4Select Edit > Paste to paste the object from the Clipboard into the new document.
ADOBE FIREWORKS CS3
User Guide
16
Opening and importing files
In Fireworks, you can easily open, import, and edit both vector and bitmap images created in other graphics
programs. In addition, you can import images from a digital camera or scanner.
Note: Fireworks preserves many, but not all JavaScript behaviors when you import a file from Adobe Dreamweaver. If
Fireworks supports a particular behavior, it recognizes that behavior and maintains it when you move a file back to
Dreamweaver.
To open a Fireworks document:
1Select File > Open.
The Open dialog box appears.
2Select the file and click Open.
To open a file without overwriting the previous version, select Open as Untitled, and then save the file using a
different name.
This section covers the following topics:
•“Opening recently closed documents” on page 16
•“Opening graphics created in other applications” on page 16
•“Creating Fireworks PNG files from HTML files” on page 17
•“Inserting objects into a Fireworks document” on page 18
Opening recently closed documents
The File menu lists up to 10 recently closed documents in the Open Recent submenu. The Start Page also lists
recently closed documents.
To open a recently closed file:
1Select File > Open Recent.
2Select a file from the submenu.
To open a recently closed file when no files are open:
❖Click the file name on the Start page.
Opening graphics created in other applications
With Fireworks, you can open files created in other applications or file formats, including Photoshop, Adobe
FreeHand, Adobe Illustrator, uncompressed CorelDRAW, WBMP, EPS, JPEG, GIF, and animated GIF files.
When you open a file format other than PNG using File > Open, you create a new Fireworks PNG document based
on the file you open. You can use all of the features of Fireworks to edit the image. You can then either select Save As
to save your work as a new Fireworks PNG file or as another file format; or with some image types, you can select
Save to save the document in its original format. Saving in the document’s original format flattens the image to a
single layer and eliminates your ability to edit the Fireworks-specific features you added to the image.
Using Fireworks, you can save the following file formats directly: Fireworks PNG, GIF, animated GIF, JPEG, BMP,
WBMP, TIFF, SWF, AI, PSD, and PICT (Mac only).
ADOBE FIREWORKS CS3
User Guide
17
Note: Fireworks saves 16-bit TIFF images at 24-bit color depth.
Animated GIFs
You can bring animated GIF files into Fireworks in two ways:
•You can import an animated GIF as an animation symbol. You can edit and move all the elements of the animation
as a single unit and use the Library panel to create new instances of the symbol.
Note: When you import an animated GIF, the frame delay setting defaults to 0.07 seconds. If necessary, use the Frames
panel to restore the original timing.
•You can open an animated GIF as you would open a normal GIF file. Each element of the GIF is placed as a
separate image in its own Fireworks frame. You can convert the graphic to an animation symbol in Fireworks.
EPS files
Fireworks opens most EPS files, such as Photoshop EPS files, as flattened bitmap images, in which all objects are
combined on a single layer. Some EPS files exported from Illustrator, however, retain their vector information.
When you open or import most EPS files, the EPS File Options dialog box opens.
Image Size determines the image dimensions and the units in which the image is rendered. You can select from
pixels, percent, inches, and centimeters.
Resolution indicates the pixels per unit for the resolution.
Constrain Proportions opens the file in the same proportions as the original.
Anti-aliased smoothes jagged edges in the opened EPS file.

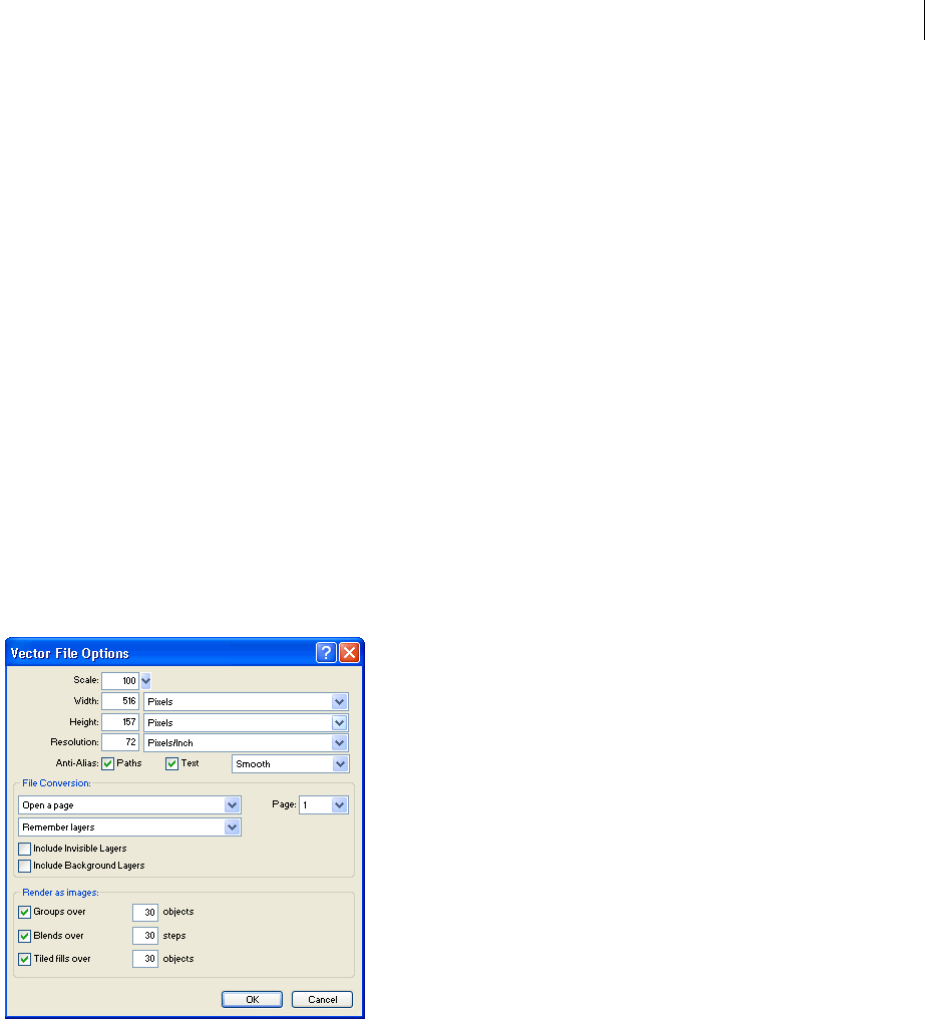

When you open or import Illustrator EPS files that contain vector information, the Vector File Options dialog box
opens. This is the same dialog box that appears when you open or import FreeHand files.
PSD files
Fireworks CS3 can open PSD files created in Photoshop and preserve all or most of the PSD features, including
hierarchical layers, layer effects, and commonly used blend modes.
WBMP files
Fireworks can open WBMP files, which are 1-bit (monochrome) files optimized for mobile computing devices. This
format is for use on Wireless Application Protocol (WAP) pages. You can open a WBMP file directly using File >
Open or import a WBMP file using File > Import.
Creating Fireworks PNG files from HTML files
Fireworks can open and import HTML content created in other applications. When you open or import an HTML
file, Fireworks reconstructs the layout and behaviors defined by the HTML code, allowing you to re-create web pages
that contain sliced graphics, JavaScript buttons, and other types of interactivity. This allows you to salvage inherited
websites even if you don’t have the source PNG files. With this feature, you can quickly open or import a web page
to update graphics, change document layout, or alter navigational links, buttons, and other interactive elements, all
without having to rebuild the page from scratch or modify its scripting.
Because Fireworks exports HTML content in the form of an HTML table, it also determines the document layout for
imported HTML based on HTML tables. An HTML file must contain at least one table for Fireworks to be able to
reconstruct it. For more about HTML, see “Exporting HTML” on page 280.
ADOBE FIREWORKS CS3
User Guide
18
You can get HTML content into Fireworks in several ways:
•You can open all the HTML tables in an HTML file.
•You can open the first HTML table that Fireworks encounters in an HTML file.
•You can import the first HTML table that Fireworks encounters into an existing Fireworks document.
Note: Fireworks can also import documents that use UTF-8 encoding and those that are written in XHTML. For more
information on these file types, see “Exporting files with and without UTF-8 encoding” on page 286 and “Exporting
XHTML” on page 286.
To open all tables of an HTML file:
1Select File > Reconstitute Table.
2Select the HTML file that contains the tables you want to open, and click Open.
Each of the tables opens in its own document window.
To open only the first table of an HTML file:
1Select File > Open.
2Select the HTML file that contains the table you want to open, and click Open.
The first table in the HTML file opens in a new document window.
To import the first table of an HTML file into an open Fireworks document:
1Select File > Import.
2Select the HTML file you want to import from, and click Open.
3Click to place the insertion point where you’d like the imported table to appear.
Inserting objects into a Fireworks document
You can import, drag, or copy and paste vector objects, bitmap images, or text created in other applications into a
Fireworks document. You can also import images from a digital camera or scanner.
Dragging images into Fireworks
You can drag vector objects, bitmap images, or text into Fireworks from any application that supports dragging.
These applications include the following:
•FreeHand 7 or later
•Flash 3 or later
•Photoshop 4 or later
•Illustrator 7 or later
•Microsoft Office 97 or later
•Microsoft Internet Explorer 3 or later
•Netscape Navigator 3 or later
•CorelDRAW 7 or later
To drag an image or text into Fireworks:
❖From the other application, drag the object or text into Fireworks.
ADOBE FIREWORKS CS3
User Guide
19
Pasting into Fireworks
Pasting an object copied from another application into Fireworks places the object in the center of the active
document. You can copy and paste an object or text in any of these formats from the Clipboard:
•FreeHand 7 or later
•Illustrator
•PNG
•PICT (Macintosh)
•DIB (Windows)
•BMP (Windows)
•ASCII text
•EPS
•WBMP
•TXT
•RTF
To paste into Fireworks:
1In the other application, copy the object or text that you wish to paste.
2In Fireworks, paste the object or text into your document.
Location of pasted objects
When you paste an object into Fireworks, the placement of the pasted object depends on what is selected:
•If at least one object on a single layer is selected, the pasted object is placed in front of—or stacked directly above—
the selected object on the same layer.
•If the layer itself is selected and either no objects or all objects are selected, the pasted object is placed in front of—
or stacked directly above—the topmost object on the same layer.
•If two or more objects on more than one layer are selected, the pasted object is placed in front of—or stacked
directly above—the topmost object in the topmost layer.
•If the Web Layer or an object on the Web Layer is selected, the pasted object is placed in front of—or stacked
above—all other objects on the bottommost layer.
Note: The Web Layer is a special layer that contains all web objects. It always remains at the top of the Layers panel. For
more information about layers, see “Pages, Layers, Masking, and Blending” on page 155.
Resampling pasted objects
When you paste a bitmap with a resolution that differs from that of the destination Fireworks document, Fireworks
asks whether you want the bitmap to be resampled.
Resampling adds pixels to or subtracts pixels from a resized bitmap to match the appearance of the original bitmap
as closely as possible. Resampling a bitmap to a higher resolution typically causes little loss of quality. Resampling to
a lower resolution, however, always causes data loss and usually a drop in quality.
To resample a bitmap object by pasting:
1Copy the bitmap to the Clipboard in Fireworks or another program.
ADOBE FIREWORKS CS3
User Guide
20
2Select Edit > Paste in Fireworks.
If the bitmap image on the Clipboard has a different resolution than the current document does, you see a dialog box
asking whether or not to resample.
3Select one of the following:
Resample •maintains the original width and height of the pasted bitmap, adding or subtracting pixels as necessary.
Don’t Resample •maintains all the original pixels, which may make the relative size of the pasted image larger or
smaller than expected.
Importing PNG files
You can import Fireworks PNG files into the current layer of the active Fireworks document. Any hotspot objects
and slice objects are placed on the document’s Web Layer. For more information about slices and web objects, see
“Viewing and displaying slices and slice guides” on page 203. For more information about layers, see “Working with
layers” on page 159.
To import a PNG file into a Fireworks document layer:
1In the Layers panel, select the layer into which you want to import the file.
2Select File > Import to open the Import dialog box.
3Navigate to the file to be imported and click Open.
4On the canvas, position the import pointer where you want to place the upper left corner of the image.
5Import the file:
•Click to import the full-size image.
•Drag the import pointer to resize the image as you import.
Fireworks retains the proportions of the image.
Importing from a digital camera or scanner
You can import images from a digital camera or scanner only if it is TWAIN compliant (Windows) or uses built-in
OS X Image Capture capability (Macintosh). Images imported into Fireworks from a digital camera or scanner open
as new documents.
Note: Fireworks cannot import from digital cameras or image scanners unless the appropriate software drivers, modules,
and plug-ins have been installed. For specific instructions about installation, settings, and options, consult your camera
or scanner documentation for the TWAIN module or Photoshop Acquire plug-in.
On the Macintosh, Fireworks automatically looks for the Photoshop Acquire plug-ins in the Plug-ins folder within
the Fireworks application folder. If you do not want to put the plug-ins there, you must point Fireworks to an alter-
native location.
Note: The exact location of the Plug-ins folder varies depending on your operating system. For more information, see
“Working with configuration files” on page 350.
To direct Fireworks to Photoshop Acquire plug-ins:
1In Fireworks, select Edit > Preferences.
Note: On Mac OS X, select Fireworks > Preferences.
2Click the Folders tab.
ADOBE FIREWORKS CS3
User Guide
21
3Select Photoshop Plug-Ins.
4Click Browse if the Select the Photoshop Plug-ins Folder (Windows) or Choose a Folder (Macintosh) dialog box
doesn’t automatically open.
5Navigate to the folder containing the Photoshop plug-ins.
To import an image from a digital camera (Windows):
1Connect the camera to your computer.
2Install the software that accompanies the camera if you have not already done so.
3In Fireworks, select File > Scan, and then select either Twain Acquire or Twain Select.
4In the Select Source dialog box, select a source, and then click OK.
5In the Select Images dialog box, select the images you want to import, and then click OK.
The user interface for your camera software appears.
6Follow the instructions to apply the desired settings.
The imported image is opened as a new Fireworks document.
To import an image from a digital camera (Macintosh):
1Connect the camera to your computer.
2Install the software that accompanies the camera if you have not already done so.
3In Fireworks, select File > Acquire, and then select either Camera Acquire or Camera Select.
4In the Select Camera dialog box, select a camera, and then click OK.
5In the Select Images dialog box, select the images you want to import, and then click OK.
Note: The Select Images dialog box only displays file types that are supported by Fireworks.
6Follow the instructions to apply the desired settings.
The imported image is opened as a new Fireworks document.
To import an image from a scanner (Windows):
1Connect the scanner to your computer.
2Install the software that accompanies the scanner if you have not already done so.
3In Fireworks, select File > Scan, and then select either Twain Acquire or Twain Select.
Note: For most TWAIN modules or Photoshop Acquire plug-ins, additional dialog boxes prompt you to set other options.
4Follow the instructions to apply the desired settings.
The imported image is opened as a new Fireworks document.
To import an image from a scanner (Macintosh):
1Connect the scanner to your computer.
2Install the software that accompanies the scanner if you have not already done so.
3In Fireworks, select File > Acquire, and then select either Twain Acquire or Twain Select.
Note: For most T WAIN modules or Photoshop Acquire plug-ins, additional dialog boxes prompt you to set
other options.
ADOBE FIREWORKS CS3
User Guide
22
4Follow the instructions to apply the desired settings.
The imported image is opened as a new Fireworks document.
Saving Fireworks files
When you create a new document or open an existing Fireworks PNG file, the document’s filename has the extension
.png. Files of other types, such as PSD and HTML, also open as PNG files, allowing you to use the Fireworks PNG
document as your source file, or working file.
However, many files retain their original filename extensions and optimization settings when opened in Fireworks.
For more information, see “Saving documents in other formats” on page 23.
The location to which Fireworks defaults when you save a document is determined by the following, in this order:
•The current file location
•The current export/save location, which is defined anytime you browse from the default location in a Save, Save
As, Save a Copy, or Export dialog box
•The default location where new documents or images are saved on your operating system
Saving Fireworks PNG files
When you create a new document or open an existing Fireworks PNG file, the document’s filename has the extension
.png. The file displayed in the Fireworks document window is your source file, or working file.
Using a Fireworks PNG file as your source file has the following advantages:
•The source PNG file is always editable. You can go back and make additional changes even after you export the
file for use on the web.
•You can slice complex graphics into pieces in the PNG file and export them as multiple files with different file
formats and various optimization settings.
To save a new Fireworks document:
1Select File > Save As.
The Save As dialog box opens.
2Browse to the desired location and type the filename.
You do not need to enter an extension; Fireworks does that for you.
3Click Save.
To save an existing document:
❖Select File > Save.
To save a Fireworks CS3 PNG file for use in a previous version of Fireworks
1Select File > Export.
2Browse to the location where you want to save the file.
3If the Fireworks CS3 file has more than one page, select Pages to Files in the Export pop-up menu.
ADOBE FIREWORKS CS3
User Guide
23
4Select either Images or Fireworks PNG in the Export As pop-up menu. If you select Images, each page will be
saved in the default file format. This file format can be set using the Optimize panel.
All objects on the top-level layers will be saved in the export, but any items on sub-layers will not be exported.
Saving documents in other formats
When you use File > Open to open a file of a format other than PNG, you can use all of the features of Fireworks to
edit the image. You can then select Save As to save your work as a new Fireworks PNG file, or you can select a
different format in which to save your file. For most file types, you can select Save to save the document in its original
format.
Note: If you save a PNG file as a bitmap file such as a GIF or JPEG, the graphic objects you manipulated in the PNG
will no longer be available in the bitmap file (see “About vector and bitmap graphics” on page 13). If you need to revise
the image, edit the source PNG file and then export it again.tt
You can save to the following file formats directly: Fireworks PNG, GIF, animated GIF, JPEG, BMP, WBMP, TIFF,
SWF, AI, PSD, and PICT (Macintosh only). Fireworks saves 16-bit TIFF images at 24-bit color depth.
Files of other types, such as PSD and HTML, open as PNG files, allowing you to use the Fireworks PNG document
as your source file. Any edits you perform are applied to the PNG file and not the original.
To save in an existing GIF, JPEG, TIFF, BMP, or other file format listed above:
1Select File > Save.
2If you made modifications to the document that aren’t editable in the file’s original format, a notification appears
in the Save dialog box. Non-editable modifications include adding new objects, masks, and Live Filters, as well as
adjusting opacity, applying blend modes, and saving pixel selections.
Note: If you don’t select the Save as a Copy option, the file format of the document you are working on will be changed
to the format in which you save it.
To export a document to another format:
1Select a file format in the Optimize panel.
2Select File > Export to export the document.
For more information about exporting files, see “Optimizing and Exporting” on page 257.
ADOBE FIREWORKS CS3
User Guide
24
The Fireworks work environment
When you open a document in Fireworks for the first time, Fireworks activates the work environment, including the
Tools panel, Property inspector, menus, and other panels. The Tools panel, on the left of the screen, contains labeled
categories, including bitmap, vector, and web tool groups. The Property inspector appears along the bottom of the
document by default and initially displays document properties. It then changes to display properties for a newly
selected tool or currently selected object as you work in the document. The panels are initially docked in groups
along the right side of the screen. The document window appears in the center of the program.
Using the Start page
When you start Fireworks without opening a document, the Fireworks Start page appears in the work environment.
The Start page gives you quick access to Fireworks tutorials, recent files, and Fireworks Exchange, where you can add
new capabilities to some Fireworks features. Use the Start page much like a web page. Click any of the features you
see to use them.
To disable the Start page:
1Run Fireworks without opening a document.
The Start page is displayed.
2Click Don’t Show Again.
ADOBE FIREWORKS CS3
User Guide
25
Using the Tools panel
The Tools panel is organized into six categories: Select, Bitmap, Vector, Web, Colors, and View.
Changing tool options
When you select a tool, the Property inspector displays tool options. Some tool options remain displayed as you work
with the tool. For other tools, such as the basic shape, Pen, and Line tools, the Property inspector displays the
properties of selected objects. For more information about the Property inspector, see “Using the Property inspector”
on page 26.
To display tool options in the Property inspector for a tool that you are already using:
❖Choose Select > Deselect to deselect all objects.
For information about specific tool options, see the sections that introduce the various tools throughout Using
Fireworks or Fireworks Help.
ADOBE FIREWORKS CS3
User Guide
26
Selecting a tool from a tool group
A small triangle in the lower right corner of a tool in the Tools panel indicates that it is part of a tool group. For
example, the Rectangle tool is part of the basic shape tool group, which also includes the Rounded Rectangle, Ellipse,
and Polygon basic tools, as well as all of the Auto Shape tools, which appear below the divider line.
To select an alternative tool from a tool group:
1Click the tool icon and hold down the mouse button.
A pop-up menu appears with tool icons, tool names, and shortcut keys. The currently selected tool has a check mark
to the left of the tool name.
2Drag the pointer to highlight the tool you want, and release the mouse button.
The tool appears in the Tools panel, and the tool options appear in the Property inspector.
Using the Property inspector
The Property inspector is a context-sensitive panel that displays current selection properties, current tool options,
or document properties. By default, the Property inspector is docked at the bottom of the workspace.
The Property inspector can be open at half height, displaying two rows of properties, or at full height, displaying four
rows. You can also fully collapse the Property inspector while leaving it in the workspace.
Note: Most procedures in Using Fireworks assume that the Property inspector is displayed at full height.
To undock the Property inspector:
❖Drag the gripper at the upper left corner to another part of the workspace.
To dock the Property inspector at the bottom of the workspace (Windows only):
❖Drag the side bar on the Property inspector to the bottom of the screen.
To expand a half-height Property inspector to full height, revealing additional options, do one of the following:
•Click the expander arrow in the lower right corner of the Property inspector.
•Click the icon in the upper right of the Property inspector and select Full Height from the Property inspector
Options menu.
Note: In Windows, the Options menu is available only when the Property inspector is docked.
To reduce the Property inspector to half height, do one of the following:
•Click the expander arrow in the lower right corner of the Property inspector.
•Select Half Height from the Property inspector Options menu.
Note: In Windows, the Options menu is available only when the Property inspector is docked.
ADOBE FIREWORKS CS3
User Guide
27
To collapse the Property inspector when it is docked, do one of the following:
•Click the expander arrow or the title of the Property inspector.
•Select Collapse Panel Group from the docked Property inspector Options menu.
For more information about specific Property inspector options, see the appropriate sections throughout Using
Fireworks or Fireworks Help.
Using panels
Panels are floating controls that help you edit aspects of a selected object or elements of the document. Panels let you
work on frames, layers, symbols, color swatches, and more. Each panel is draggable, so you can group panels together
in custom arrangements.
Some panels may be grouped together by default, while others are not. The following panels may contain other
panels:
•Assets
•Colors
•Page, Layers, Frames and History
•Optimize and Align
Most of the panels are not typically grouped with other panels by default, but you can group them if you want. When
you group panels together, all panel group names appear in the panel group title bar. You can, however, assign any
name you like to panel groups.
The Optimize panel lets you manage the settings that control a file’s size and file type and work with the color palette
of the file or slice to be exported.
The Layers panel organizes a document’s structure and contains options for creating, deleting, and manipulating
layers.
The Common Library panel displays the contents of the Common Library folder, which contains symbols.
The Pages panel displays the pages in the current file and contains options for manipulating pages.
The Frames panel displays the frames in the current file and includes options for creating animations.
The History panel lists commands you have recently used so that you can quickly undo and redo them. In addition,
you can select multiple actions, and then save and reuse them as commands. For more information, see “Using the
History panel to undo and repeat multiple actions” on page 40.
The Auto Shapes panel contains Auto Shapes that are not displayed in the Tools panel.
The Styles panel lets you store and reuse combinations of object characteristics or select a stock style.
The Library panel contains graphic symbols, button symbols, and animation symbols. You can easily drag instances
of these symbols from the Library panel to your document. You can make global changes to all instances by
modifying only the symbol. For more information, see “Using Styles, Symbols, and URLs” on page 183.
The URL panel lets you create libraries containing frequently used URLs.
ADOBE FIREWORKS CS3
User Guide
28
The Color Mixer panel lets you create new colors to add to the current document’s color palette or to apply to selected
objects.
The Swatches panel manages the current document’s color palette.
The Info panel provides information about the dimensions of selected objects and the exact coordinates of the
pointer as you move it across the canvas.
The Behaviors panel manages behaviors, which determine what hotspots and slices do in response to mouse
movement.
The Find panel lets you search for and replace elements such as text, URLs, fonts, and colors in a document or
multiple documents.
The Create Symbol Script panel automates the creation of JavaScript files for customizable graphic symbols.
The Align panel contains controls for aligning and distributing objects on the canvas.
The Auto Shape Properties panel lets you make changes to the properties of an Auto Shape after you insert one into
your document.
Color Palette panel (under Others)gives you the ability to create and swap color palettes, export custom ACT color
swatches, explore various color schemes and access commonly-used controls for choosing colors
Image Editing (under Others)organizes common tools and options used for bitmap editing into one panel
Path panel (under Others)provides quick access to many path related commands
Special Characters (under Others)displays the special characters that can be used in text blocks
Symbol Properties manages the customizable properties of graphic symbols
Organizing panel groups and panels
By default, Fireworks panels are docked in groups in the docking area on the right side of the workspace. You can
undock panel groups, add panels to a group, undock individual panels, rearrange the order of docked panel groups,
and collapse and close panel groups. You can also open and close individual panels.
To undock or move a panel group:
❖Drag the panel gripper on the upper left corner away from the panel docking area on the right side of the screen.
To dock a panel group:
❖Drag the panel gripper onto the panel docking area.
As you drag a panel or panel group over the panel docking area, a placement preview line or rectangle shows where
it would be placed among the groups.
To collapse or expand a panel group or panel, do one of the following:
•Click the title of the panel group or panel.
Note: The title bar is still visible when the panel group or panel is collapsed.
•Click the expander arrow in the upper left corner of the panel group or panel.
To undock a panel from a panel group, do one of the following:
•Click on the panel and drag the panel out of the panel group. Drop the panel in the desired new location.
ADOBE FIREWORKS CS3
User Guide
29
•Select Group With > New Panel Group from the Options menu in the panel group’s title bar. (The Group With
command’s name changes depending on the name of the active panel.) The panel appears in a new panel group
of its own.
To dock a panel in a panel group, do one of the following:
•Make sure both the panel and the panel group are open. Click on the panel and drag it to the panel group.
•Select the name of a panel group from the Group With submenu of the panel group’s Options menu. (The Group
With command’s name changes depending on the name of the active panel.)
To rename a panel group:
1Click the icon in the upper right of the panel group and select Rename Panel Group from the Options menu.
2Enter the new name.
To return panels to their default positions for your screen resolution, do one of the following:
•Select Window > Workspace Layouts > 1024 x 768.
•Select Window > Workspace Layouts > 1280 x 1024.
To open a panel:
❖Select the panel name from the Window menu.
A check mark next to a panel name in the Window menu indicates that the panel is open.
To close a panel, do one of the following:
•Select the panel name from the Window menu.
•Click the Close button in the panel title bar when the panel is undocked.
To hide all panels and the Property inspector:
❖Select Window > Hide Panels. To view hidden panels, select Window > Hide Panels again.
Note: Panels that are hidden when you select Hide Panels remain hidden when you deselect this command.
To show or hide panels docked to the application window (Windows only), do one of the following:
•Drag the vertical bar to the left of the docked panel area to resize the panel area.
•Click the small arrow that separates the docked panel area from the rest of the application window.
A. Click to show or hide docked panel area
ADOBE FIREWORKS CS3
User Guide
30
Using the panel group or panel Options menu
Each panel group and panel has an Options menu listing a range of choices specific to the active panel or panel
group. An Options menu also appears in the Property inspector (except in Windows when the Property inspector is
undocked).
To select an option from a panel group or panel Options menu:
1Click the Options menu icon in the upper right corner of the panel group or panel to open the menu.
2Select a menu item.
Saving panel layouts
You can save the layout of panels by using the Commands menu. Then the next time you open Fireworks, the panels
are arranged in the same position in the workspace.
To save a workspace layout:
1Select Window > Workspace Layouts > Save Current.
2Name the workspace layout and click OK.
To open a saved workspace layout:
❖Select Window > Workspace Layouts and select a workspace layout from the submenu.
ADOBE FIREWORKS CS3
User Guide
31
About the Quick Export button
The Quick Export button lets you export your Fireworks files to a number of programs, including Dreamweaver,
Flash, Photoshop, Illustrator, Adobe Director, Adobe GoLive®, and FreeHand. In addition, you can preview your files
in the browser of your choice. For more information, see “Using the Quick Export button” on page 288.
Opening and moving toolbars (Windows only)
Fireworks for Windows includes two toolbars containing common Fireworks commands.
To show or hide a toolbar:
❖Select Window > Toolbars and select a toolbar.
To undock a toolbar:
❖Drag the toolbar away from its docked location.
Note: If a toolbar is undocked, you can click the close button at the upper right of the title bar to close it.
To dock a toolbar:
❖Drag the toolbar onto a docking area at the top, bottom, left, or right of the application window until the placement
preview rectangle appears.
Navigating and viewing documents
You can control your document’s magnification, its number of views, and its display mode. In addition, you can
easily pan the view of a document, which is helpful if you zoom in and can no longer see the entire canvas.
Using document tabs (Windows)
When your document is maximized, you can easily choose among multiple open documents using the document
tabs that appear at the top of the document window. Each open document displays its filename on a tab that appears
above the view buttons.
To select a different document when the current document is maximized:
❖Click the document tab for the document you want to view.
ADOBE FIREWORKS CS3
User Guide
32
Zooming and panning
Fireworks lets you zoom in or out at a preset or user-defined magnification percentage.
A. Hand tool B. Zoom tool C. Zoom pop-up menu
To zoom in using preset increments, do one of the following:
•Select the Zoom tool and click to specify the new center point inside the document window. Each click magnifies
the image to the next preset magnification.
•Select a zoom setting from the Set Magnification pop-up menu at the bottom of the document window.
•Select Zoom In or a preset magnification from the View menu.
To zoom out using preset increments, do one of the following:
•Select the Zoom tool and Alt-click (Windows) or Option-click (Macintosh) inside the document window. Each
click reduces the view to the next preset percentage.
•Select a zoom setting from the Set Magnification pop-up menu at the bottom of the document window.
•Select Zoom Out or a preset magnification from the View menu.
To zoom in on a specific area without being constrained by preset zoom increments:
1Select the Zoom tool.
2Drag over the part of the image that you want to magnify.
The size of the zoom selection box determines the precise magnification percentage, which is displayed in the Set
Magnification text box.
ADOBE FIREWORKS CS3
User Guide
33
Note: You cannot enter a magnification percentage in the Set Magnification text box.
To zoom out based on a specific area:
❖Alt-drag (Windows) or Option-drag (Macintosh) a selection area with the Zoom tool.
To return to 100% magnification:
❖Double-click the Zoom tool in the Tools panel.
To pan around the document:
1Select the Hand tool.
2Drag the hand pointer.
As you pan beyond the canvas edge, the view continues to pan so that you can work with pixels along the canvas edge.
To fit the document in the current view:
❖Double-click the Hand tool.
Using view modes to manage the workspace
You use the view mode buttons in the View section of the Tools panel to control the layout of your workspace. You
can select one of three view modes:
Standard Screen mode is the default document window view.
Full Screen with Menus mode is a maximized document window view set against a gray background with
menus, toolbars, scroll bars, and panels visible.
Full Screen mode is a maximized document window view set against a black background with no menus,
toolbars, or title bars visible.
To change view modes, do one of the following:
•To change to Full Screen with Menus mode, click the Full Screen with Menus Mode button in the Tools panel.
•To change to Full Screen Mode, click the Full Screen Mode button in the Tools panel.
•To return to Standard Screen mode, right-click (Windows) or Control-click (Macintosh) in the document window
and select Exit Full Screen Mode, or click the Standard Screen Mode button in the Tools panel.
Displaying multiple document views
You can use multiple views to see one document at different magnifications simultaneously. Changes you make in
one view are automatically reflected in all other views of the same document. Generally, you’ll want to be sure that
your document is not maximized in the workspace before creating multiple views. This lets you see multiple views
of the document at one time.
To open an additional document view at a different zoom setting:
1Select Window > Duplicate Window.
2Select a zoom setting for the new window.
To tile document views:
❖Select Window > Tile Horizontal or Window > Tile Vertical.
ADOBE FIREWORKS CS3
User Guide
34
To close a document view window:
❖Click the window’s Close button.
Controlling document redraw
Display modes affect a document’s onscreen representation, but not its object data or output quality.
To control document redraw:
❖Select View > Full Display.
When Full Display is selected, Fireworks displays the document in all available colors with full detail. When Full
Display is deselected, Fireworks displays paths as 1 pixel wide with no fill and displays images with an X through
them.
Display and draft modes
To display a document as it would appear on a different platform, do one of the following:
•In Windows, select View > Macintosh Gamma.
•On the Macintosh, select View > Windows Gamma.
You can now preview how the document would appear on the other computer platform. For example, if you are
working on the Windows platform, you can use this command to preview how a document would appear on the
Macintosh platform.
Changing the canvas
When you first create a new Fireworks document, you must specify document characteristics. You can modify the
size and color of the canvas and change the image’s resolution anytime using the Modify menu or the Property
inspector. As you work with the document, you can also rotate the canvas and trim unwanted parts.
Changing canvas size, color, and resolution
Fireworks makes it easy to change to the canvas size, canvas color, and image resolution.
To change the canvas size:
1Do one of the following:
•Select Modify > Canvas > Canvas Size.
•Choose Select > Deselect, click the Pointer tool to display the document properties in the Property inspector, then
click the Canvas Size button.
2Enter the new dimensions in the Width and Height text boxes.
3Click an Anchor button to specify which sides of the canvas Fireworks will add to or delete from, and click OK.
Note: By default, the center anchor is selected, indicating that changes to the size of the canvas are made on all sides.
ADOBE FIREWORKS CS3
User Guide
35
To change the canvas color from the Modify menu:
1Select Modify > Canvas > Canvas Color.
2Select White, Transparent, or Custom. If you select Custom, click a color in the Swatches pop-up window.
To select the canvas color from the Property inspector:
1Choose Select > Deselect, click the Pointer tool to display the document properties in the Property inspector, then
click the Canvas color box.
2Pick a color from the Swatches pop-up window or click the eyedropper on a color anywhere onscreen. To select a
transparent canvas, click the None button in the Swatches pop-up window.
To resize a document and all of its contents:
1Do one of the following:
•Choose Select > Deselect, click the Pointer tool to display the document properties in the Property inspector, then
click the Image Size button in the Property inspector.
•Select Modify > Canvas > Image Size.
The Image Size dialog box opens.
2In the Pixel Dimensions text boxes, enter new horizontal and vertical dimensions.
You can change the units of measure. If Resample Image is deselected, you can change the resolution or print size but
not pixel dimensions.
3In the Print Size text boxes, enter horizontal and vertical dimensions for the printed image.
4In the Resolution text box, enter a new resolution for the image.
You can select between pixels/inch and pixels/cm as the units, or select Resample Image. Changing the resolution
also changes the pixel dimensions.
5Do one of the following:
•To maintain the same ratio between the document’s horizontal and vertical dimensions, select Constrain Propor-
tions.
•Deselect Constrain Proportions to resize width and height independently.
6Select Resample Image to add or remove pixels when resizing the image to approximate the same appearance at a
different size.
ADOBE FIREWORKS CS3
User Guide
36
7Select Current Page Only to apply the canvas size change to the current page. If this box is unchecked, the canvas
size change applies to all pages in the active document, as well as any new pages that are created.
8Click OK.
About resampling
Fireworks resamples images differently than most image-editing applications do. Fireworks contains pixel-based
bitmap image objects and path-based vector objects.
•When a bitmap object is resampled, pixels are added to or removed from the image to make it larger or smaller.
•When a vector object is resampled, little quality loss occurs because the path is redrawn mathematically at a larger
or smaller size.
Because the attributes of vector objects in Fireworks are visible as pixels, some strokes or fills may appear slightly
different after resampling because the pixels that compose the stroke or fill must be redrawn.
Note: Guides, hotspot objects, and slice objects are resized when the document’s image size is changed.
Resizing bitmap objects always presents a unique problem—do you add or remove pixels to resize the image, or do
you change the number of pixels per inch or centimeter?
You can alter the size of a bitmap image by adjusting the resolution or by resampling the image. When adjusting the
resolution, you change the size of the pixels in the image so that more or fewer pixels fit in a given space. Adjusting
the resolution without resampling does not result in data loss.
Resampling up, or adding pixels to make the image larger, may result in quality loss because the pixels being added
do not always correspond to the original image.
Downsampling, or removing pixels to make the image smaller, always causes quality loss because pixels are
discarded to resize the image. Data loss in the image is another side effect of downsampling.
Rotating the canvas
Rotating the canvas is helpful when an image is imported upside down or sideways. You can rotate the canvas 180°,
90° clockwise, or 90° counterclockwise.
When you rotate the canvas, all objects in the document rotate.
To rotate the canvas, do one of the following:
•Select Modify > Canvas > Rotate 180°.
•Select Modify > Canvas > Rotate 90° CW.
•Select Modify > Canvas > Rotate 90° CCW.
Trimming or fitting the canvas
If your document contains extra space around the contents of the canvas, you can trim the canvas. You can also
modify the canvas by expanding it to fit objects that extend beyond its boundary.
ADOBE FIREWORKS CS3
User Guide
37
Original; trimmed canvas
To trim or fit the canvas to the document contents:
1Choose Select > Deselect to view the document properties in the Property inspector.
2Click Fit Canvas in the Property inspector.
The canvas expands or contracts to the size of the contents of the canvas.
Cropping a document
By cropping, you can delete unwanted portions of a document. The canvas is resized to fit an area that you define.
By default, cropping deletes objects that extend beyond the canvas boundaries. You can retain objects outside the
canvas by changing a preference before cropping.
To crop a document:
1 Select the Crop tool from the Tools panel or select Edit > Crop Document.
2Drag a bounding box on the canvas. Adjust the crop handles until the bounding box surrounds the area of the
document that you want to keep.
3Double-click inside the bounding box or press Enter to crop the document.
Fireworks resizes the canvas to the area you define and deletes objects beyond the edges of the canvas.
You can retain objects outside the canvas by deselecting Delete Objects when Cropping on the Editing tab of the
Preferences dialog box before cropping. For more information about preferences, see “Setting preferences” on
page 346.
Using context menus
Context menus let you quickly access commands that are relevant to the current selection.
To display a context menu:
❖Right-click (Windows) or Control-click (Macintosh) a selected item in the document window.
ADOBE FIREWORKS CS3
User Guide
38
Using rulers, guides, and the grid
You can use rulers and guides to lay out objects as precisely as possible and to help you draw. You can place guides
in the document and snap objects to those guides or turn on the Fireworks grid and snap objects to the grid.
Using rulers
Rulers help you to measure, organize, and plan the layout of your work. Because Fireworks images are intended for
the web, where graphics are measured in pixels, the rulers in Fireworks always measure in pixels, regardless of the
unit of measurement you used when creating the document.
To show and hide rulers:
❖Select View > Rulers.
Vertical and horizontal rulers appear along the margins of the document window.
Using guides
Guides are lines that you drag onto the document canvas from the rulers. They serve as drawing aids to help you
place and align objects. You can use guides to mark important parts of your document, such as the margins, the
document center point, and areas where you want to work precisely.
To help you align objects, Fireworks lets you snap objects to guides. You can lock guides to prevent them from being
accidentally moved.
Note: Guides do not reside on a layer, nor are they exported with a document. They are merely design tools.
ADOBE FIREWORKS CS3
User Guide
39
Fireworks also has slice guides that allow you to slice a document for use on the web. Regular image guides are
different from slice guides, however. For information on slice guides, see “Moving slice guides to edit slices” on
page 204.
To create a horizontal or vertical guide:
1Click and then drag from the corresponding ruler.
2Position the guide on the canvas and release the mouse button.
Note: You can reposition the guide by dragging it again.
To move a guide to a specific position:
1Double-click the guide.
2Enter the new position in the Move Guide dialog box, and click OK.
To show or hide guides:
❖Select View > Guides > Show Guides.
To snap objects to guides:
❖Select View > Guides > Snap to Guides.
To change guide colors:
1Select View > Guides > Edit Guides.
2Select the new guide color from the color box pop-up window, and click OK.
To lock or unlock all guides:
❖Select View > Guides > Lock Guides.
To remove a guide:
❖Drag the guide off the canvas.
Note: In addition to these editing guides, the symbol editor also contains 9-slice scaling guides that are used for scaling
shapes without distortion. For more information, see “Using 9-slice scaling” on page 188.
Using the grid
The Fireworks grid displays a system of horizontal and vertical lines on the canvas. The grid is useful for placing
objects precisely. In addition, you can view, edit, resize, and change the color of the grid.
Note: The grid does not reside on a layer, nor is it exported with a document. It is merely a design tool.
To show and hide the grid:
❖Select View > Grid > Show Grid.
To snap objects to the grid:
❖Select View > Grid > Snap to Grid.
To change the grid color:
1Select View > Grid > Edit Grid.
ADOBE FIREWORKS CS3
User Guide
40
2Select the new grid color from the color box pop-up window, and click OK.
To change the size of the grid’s cells:
1Select View > Grid > Edit Grid.
2Enter the appropriate values in the horizontal and vertical spacing text boxes, and click OK.
Using the History panel to undo and repeat multiple actions
With the History panel, you can view, modify, and repeat the actions taken to create the document. The History
panel lists the most recent actions you have performed in Fireworks, up to the number specified in the Undo Steps
field in the Fireworks Preferences dialog box.
With the History panel, you can do any of the following:
•Quickly undo and redo recent actions.
•Select recently performed actions from the History panel and repeat them.
•Copy selected commands to the Clipboard as the JavaScript text equivalent.
•Save a group of recently performed actions as a custom command, and then select it from the Command menu to
reuse as a single command. For more information about creating commands using the History panel, see
“Scripting with the History panel” on page 342.
To undo and redo actions:
1Select Window > History to open the History panel.
2Drag the Undo marker up or down.
To repeat actions:
1Perform the actions.
2Do one of the following to highlight the actions to be repeated in the History panel:
•Click an action to highlight it.
•Control-click (Windows) or Command-click (Macintosh) to highlight multiple individual actions.
•Shift-click to highlight a continuous range of actions.
3Click the Replay button at the bottom of the History panel.
To save actions for reuse:
1Highlight the actions to be saved in the History panel.
2Click the Save button at the bottom of the panel.
3Enter a command name and click OK.
To use the saved custom command:
❖Select the command name from the Commands menu.
41
Chapter 3: Selecting and Transforming
Objects
As you work in Fireworks CS3, you manipulate vector and bitmap objects, text blocks, slices and hotspots, and areas
of pixels. Using the selection and transformation tools, you can move, copy, delete, rotate, scale, or skew objects. In
documents that have multiple objects, you can organize the objects by stacking, grouping, and aligning them.
This chapter contains the following topics:
•“Selecting objects” on page 41
•“Selecting pixels” on page 44
•“Editing selected objects” on page 53
•“Transforming and distorting selected objects and selections” on page 54
•“Organizing objects” on page 58
Selecting objects
Before you can do anything with any object on the canvas, you must select it. This applies to a vector object, path, or
points; a text block, word, or letter; a slice or hotspot; an instance; or a bitmap object.
You can use any of the following to select objects:
The Layers panel displays each object. You can click an object in the Layers panel to it select when the panel is open
and layers are expanded. For more information, see “Pages, Layers, Masking, and Blending” on page 155.
For information about selecting specific areas of pixels in a bitmap image, see “Selecting pixels” on page 44.
Using the Pointer tool
The Pointer tool selects objects when you click them or when you drag a selection area around all or part of the
objects.
To select an object by clicking, do one of the following:
•Move the Pointer tool over the object’s path or bounding box and click.
•Click the object’s stroke or fill.
The Pointer tool selects objects when you click the objects or drag a selection area around them.
The Subselection tool selects an individual object in a group or the points of a vector object.
The Select Behind tool selects an object that is behind another object.
The Export Area tool selects an area to be exported as a separate file.
ADOBE FIREWORKS CS3
User Guide
42
•Select the object in the Layers panel.
To preview what you would select if you were to click on an object beneath the pointer on the canvas, select the
Mouse Highlight option in the Editing tab of the Preferences dialog box. For more about preferences, see “Setting
preferences” on page 346.
To select objects by dragging:
1Drag the Pointer tool to include one or more objects in the selection area.
Using the Subselection tool
You use the Subselection tool to select, move, or modify points on a vector path or an object that is part of a group.
To move or modify objects with the Subselection tool:
1Select the Subselection tool.
2Make a selection.
Selection handles appear.
3Do one of the following:
•To modify an object, drag one of its points or selection handles.
•To move the entire object, drag anywhere in the object except a point or selection handle.
Using the Select Behind tool
When working with graphics that contain multiple objects, you can use the Select Behind tool to select an object that
is hidden or obscured by other objects.
To select an object that is behind other objects:
❖Click the Select Behind tool repeatedly over the stacked objects, progressing through the objects top to bottom in
stacking order until you select the object you want.
Note: You also can select a hard-to-reach object by clicking it in the Layers panel when the layers are expanded.
Selection information in the Property inspector
Whenever you select an object, the Property inspector identifies the selection. The upper left area of the Property
inspector contains the following information about the selection:
•A description of the item being inspected
•A text box to enter a name for that item
ADOBE FIREWORKS CS3
User Guide
43
Note: The name appears in the title bar of the document whenever you select this item. For slices and buttons, the name
is the filename when exported.
•The number of objects when more than one object is selected
Note: If the status bar is turned on (Windows only), selected objects are also identified in the status bar at the bottom of
the document window.
The Property inspector also displays information and settings for the object type selected. For example, when you
select a vector path, the Property inspector displays vector path properties, such as stroke width and color.
Modifying a selection
After you select a single object, you can add objects to the selection and deselect objects that are selected. Using a
single command, you can select or deselect everything on every layer in a document. You can also hide the selection
path so that you can edit a selected object while viewing it as it will appear on the web or in print.
To add to a selection:
❖Hold down Shift while clicking additional objects with the Pointer, Subselection, or Select Behind tool.
To deselect an object while leaving other objects selected:
❖Hold down Shift while clicking the selected object.
To select everything on every layer in the document:
❖Choose Select > Select All.
Note: Select All does not select hidden objects.
To deselect all selected objects:
❖Choose Select > Deselect.
Note: You must deselect the Single Layer Editing preference to select all visible objects on all layers in a document.
When you select the Single Layer Editing preference, only objects on the current layer are selected. For more infor-
mation, see “Organizing layers” on page 161.
To hide the path selection feedback of a selected object:
❖Select View > Hide Edges.
Note: You can use the Layers panel or the Property inspector to identify the selected object when the outline and points
are hidden.
To hide selected objects:
❖Select View > Hide Selection.
Note: Hidden objects are not exported. (This does not apply to slice and hotspot web objects on the Web Layer.)
ADOBE FIREWORKS CS3
User Guide
44
To show all objects:
❖Select View > Show All.
Note: To hide objects whether they are selected or not, you can click or drag along the Eye column in the Layers panel.
Selecting pixels
You can edit pixels over an entire canvas or select one of the selection tools to constrain your editing to a particular
area of an image:
The pixel selection tools draw selection marquees that define the area of selected pixels. After you draw the selection
marquee, you can manipulate it by moving it, adding to it, or basing another selection on it. You can edit the pixels
inside the selection, apply filters to the pixels, or erase pixels without affecting the pixels beyond the selection. You
can also create a floating selection of pixels that you can edit, move, cut, or copy.
Bitmap selection tool options
When you select the Marquee, Oval Marquee, Lasso, Polygon Lasso, or Magic Wand tool, the Property inspector
displays the options for that tool.
Selecting the Live marquee box allows you to change Edge settings and the amount of feather (if Feather is specified
as the Edge setting) for your bitmap selection while you’re using the Marquee, Oval Marquee, Lasso, Polygon Lasso,
and Magic Wand tool.
The Property inspector also displays three Edge options for these tools:
Hard creates a marquee selection with a defined edge.
Anti-alias prevents jagged edges in the marquee selection.
Feather lets you soften the edge of the pixel selection.
When using a selection tool, you can set the Feather option before creating a selection, or you can feather existing
selections by selecting the Live marquee box. You can also feather existing selections using the Feather command in
the Select menu. For more information, see “Feathering a pixel selection” on page 49.
When you select the Marquee or Oval Marquee, the Property inspector also displays three style options:
Normal lets you create a marquee in which the height and width are independent of each other.
Fixed Ratio constrains the height and width to defined ratios.
Fixed Size sets the height and width to a defined dimension.
The Marquee tool selects a rectangular area of pixels in an image.
The Oval Marquee tool selects an elliptical area of pixels in an image.
The Lasso tool selects a freeform area of pixels in an image.
The Polygon Lasso tool selects a straight-edged freeform area of pixels in an image.
The Magic Wand tool selects an area of similarly colored pixels in an image.
ADOBE FIREWORKS CS3
User Guide
45
Note: The Magic Wand tool also has a Tolerance setting. For more information, see “Selecting areas of similar color” on
page 46.
Creating pixel selection marquees
The Marquee, Oval Marquee, and Lasso tools in the Bitmap section of the Tools panel allow you to select specific
pixel areas of a bitmap image by drawing a marquee around them.
Note: If you want to be able to change the settings for your selection while using one of these tools, be sure that you
selected the Live marquee box before making your selection.
To select a rectangular or elliptical area of pixels:
1Select the Marquee or Oval Marquee tool.
2Set the Style and Edge options in the Property inspector. For more information, see “Bitmap selection tool
options” on page 44.
3Drag to draw a selection marquee, which defines the pixel selection.
To draw additional square or circular marquees, hold down Shift as you drag the Marquee or Oval Marquee tool. If
Live marquee is turned on while you make a series of selections, the Live marquee feature only affects the last
selection in the series.
To draw a marquee from a center point, deselect any other active marquees, and then hold down Alt (Windows) or
Option (Macintosh) as you draw.
To select a freeform area of pixels:
1Select the Lasso tool.
2Select an Edge option in the Property inspector. For more information, see “Bitmap selection tool options” on
page 44.
3Drag the pointer around the pixels you want to select.
Plotting points to create a marquee selection
The Polygon Lasso tool allows you to select specific pixels in a bitmap image by clicking repeatedly around the
perimeter of the pixel area you want to select.
To select a polygonal area of pixels:
1Select the Polygon Lasso tool.
2Select an Edge option in the Property inspector. For more information, see “Bitmap selection tool options” on
page 44.
3Click to plot points around the perimeter of the object or area to outline the selection.
Hold down Shift to constrain Polygon Lasso marquee segments to 45° increments.
4Do one of the following to close the polygon:
•Click the starting point.
•Double-click in the workspace.
ADOBE FIREWORKS CS3
User Guide
46
Selecting areas of similar color
The Magic Wand tool allows you to select areas of pixels that are similar in color. By adjusting the Magic Wand’s
Tolerance and Edge options in the Property inspector, you can control how the Magic Wand selects pixels.
To select an area of pixels of similar color range:
1Select the Magic Wand tool.
2Select an Edge option in the Property inspector. For more information, see “Bitmap selection tool options” on
page 44.
3Set the tolerance level by dragging the tolerance slider in the Property inspector.
Tolerance represents the tonal range of colors that are selected when you click a pixel with the Magic Wand. If you
enter 0 and click a pixel, only adjacent pixels of exactly the same tone are selected. If you enter 65, a wider range of
tones is selected.
4Click the area of color you want to select.
A marquee appears around the selected range of pixels.
Pixels selected with a lower tolerance (above), then a higher tolerance (below)
To select similar colors throughout the document:
1Select an area of color with a marquee or lasso tool, or with the Magic Wand tool.
2Choose Select > Select Similar.
One or more marquees show all areas containing the selected range of pixels, according to the current Tolerance
setting in the Property inspector for the Magic Wand tool.
Note: To adjust the tolerance for the Select Similar command, select the Magic Wand tool and then change the Tolerance
setting in the Property inspector before using the command. You can also select the Live marquee box so that you can
change the Tolerance setting while using the Magic Wand tool.
ADOBE FIREWORKS CS3
User Guide
47
Removing a selection marquee
You can remove a selection marquee without affecting the document.
To remove a marquee, do one of the following:
•Draw another marquee.
•Click outside the current selection with a marquee or lasso tool.
•Press Escape.
•Choose Select > Deselect.
Adjusting selection marquees
After selecting pixels with a marquee or lasso tool, you can edit or move the marquee border without affecting the
pixels beneath it. You can manually add pixels to or delete pixels from a marquee border using modifier keys.
In addition, you can expand or contract the marquee border by a specified amount, select an additional area of pixels
around the existing marquee, or smooth the border of the marquee.
Moving or adjusting a marquee
You can move a marquee to place it over a different area of pixels or reposition a marquee as you draw it by pressing
the Spacebar while drawing.
To move the marquee, do one of the following:
•Drag the marquee with a marquee or lasso tool or the Magic Wand tool.
•Use the arrow keys to nudge the marquee in 1-pixel increments.
•Press Shift and use the arrow keys to move the marquee in 10-pixel increments.
To reposition a selection with the Spacebar:
1Begin dragging to draw the selection.
2Without releasing the mouse button, hold down the Spacebar.
3Drag the marquee to another location on the canvas.
4While still holding down the mouse button, release the Spacebar.
5Continue dragging to draw the selection.
Adding or subtracting pixels
After drawing a selection marquee with any bitmap selection tool, you can add to the selection with the same tool
or another bitmap selection tool.
To add to an existing pixel selection:
1Select any bitmap selection tool.
2Hold down Shift and draw additional selection marquees.
3Repeat steps 1 and 2 with any bitmap selection tool to continue adding to the selection.
Overlapping marquees join to form a contiguous marquee.
ADOBE FIREWORKS CS3
User Guide
48
To subtract pixels from a selection:
❖Hold down Alt (Windows) or Option (Macintosh) and use a bitmap selection tool to select the pixel area to be
punched out.
Creating a marquee from intersecting marquees
You can select pixels in an existing marquee by drawing a marquee that overlaps the original.
To select a pixel area defined by the intersection of two marquees:
1Hold down Alt+Shift (Windows) or Option+Shift (Macintosh) while creating a new marquee selection that
overlaps the original marquee.
2Release the mouse button.
Only the pixels in the intersection area of the two marquees are selected.
Using thumbnails and modifier keys to modify pixel selections
With a bitmap selected, you can create a pixel selection on that bitmap using the opacity of any object or mask in
the Layers panel. For more information about the Layers panel, see “Working with layers” on page 159.
To create or replace a pixel selection on a selected bitmap using the opacity of an object:
1In the Layers panel, position the pointer over the thumbnail of the object you want to use to create the pixel
selection.
2Hold down Alt (Windows) or Command (Macintosh).
The pointer changes to indicate you are about to select the alpha channel, or the opaque area, of the object.
3Click the thumbnail.
A new pixel selection is created on the selected bitmap.
To add to the current pixel selection:
• Alt-Shift-click (Windows) or Command-Shift-click (Macintosh) the thumbnail of an object in the Layers
panel to add the shape of its opaque area to the current pixel selection.
When you position the pointer over the thumbnail and hold down the specified modifier keys, the pointer
indicates that you are about to add to the pixel selection.
To subtract from the current pixel selection:
• Control-Alt-click (Windows) or Command-Option-click (Macintosh) the thumbnail of an object in the
Layers panel to subtract the shape of its opaque area from the current pixel selection.
When you position the pointer over the thumbnail and hold down the specified modifier keys, the pointer
indicates that you are about to subtract from the pixel selection.
To create a pixel selection on a selected bitmap from the intersection of overlapping objects:
1Control-click (Windows) or Command-click (Macintosh) an object’s thumbnail to select its alpha channel, or
opaque area.
The pointer changes to indicate you are about to select the alpha channel, or the opaque area, of the object.
2Control-Shift-Alt-click (Windows) or Command-Shift-Option-click (Macintosh) another object.
ADOBE FIREWORKS CS3
User Guide
49
A pixel selection is created on the selected bitmap from the intersection of the opaque areas of the two overlapping
objects.
When you position the pointer over the thumbnail and hold down the specified modifier keys, the pointer
indicates that you are about to create a pixel selection from the intersection of the opaque areas of two overlapping
objects.
Creating an inverse pixel selection
Starting with a current pixel selection, you can create another pixel selection that selects all the pixels that are not
currently selected. You can use this method to select and then erase all pixels surrounding the original selection, for
example.
To create an inverse pixel selection:
1Make a pixel selection using any bitmap selection tool.
2Choose Select > Select Inverse.
All pixels that were not in the original selection are now selected.
Feathering a pixel selection
Feathering creates a see-through effect for the selected pixels. When using the Feather command, you can try out
various feather amounts and view the results before deselecting the pixels. You can also feather a selection by setting
a feather amount in the Property inspector before or during your use of a bitmap selection tool. For more infor-
mation, see “Bitmap selection tool options” on page 44.
To feather a pixel selection:
1Choose Select > Feather.
2Enter a Feather amount in the Feather dialog box.
The selection marquee changes size to reflect the feather amount.
3If necessary, change the number in the Feather dialog box to adjust the feather amount.
4Click OK.
To view the appearance of the feathered selection without the surrounding pixels, select Select > Select Inverse, and
then press Delete. You can then use the History panel or Edit > Undo to try again.
Expanding or contracting a marquee
After you draw a marquee to select pixels, you can expand or contract its border.
To expand the border of a marquee:
1After drawing the marquee, select Select > Expand Marquee.
2Enter the number of pixels by which you want to expand the border of the marquee, and click OK.
To contract the border of a marquee:
1After drawing the marquee, select Select > Contract Marquee.
2Enter the number of pixels by which you want to contract the border of the marquee, and click OK.
ADOBE FIREWORKS CS3
User Guide
50
Selecting an area around an existing marquee
You can create an additional marquee to frame an existing marquee at a specified width. This lets you create special
graphics effects, such as feathering the edges of a pixel selection.
To select an area around an existing marquee:
1After drawing a marquee, select Select > Border Marquee.
2Enter the width of the marquee that you want to place around the existing marquee, and click OK.
Smoothing the border of a marquee
You can eliminate excess pixels along the edges of a pixel selection. This is useful if excess pixels appear along the
border of a pixel selection or marquee after you use the Magic Wand tool.
A pixel selection before and after smoothing
To smooth the border of a marquee:
1Choose Select > Smooth Marquee.
2Enter a sample radius to specify the desired degree of smoothing, and click OK.
Converting a marquee to a path
Using Fireworks, you can convert a bitmap selection to a vector object by drawing a marquee around the part of the
bitmap that you want to convert. This process is useful if you want to start creating an animation by tracing a
selection from a bitmap, for example.
To convert a marquee to a path
❖After drawing a marquee, select Select > Convert Marquee to Path.
The document’s current stroke and fill attributes are applied to the new path.
Transferring a marquee selection
You can transfer a marquee selection from one bitmap to another bitmap object on the same layer or one on a
different layer. You can also transfer the marquee selection to a mask.
To transfer a marquee selection to another bitmap object:
1Make a selection by drawing the marquee.
2In the Layers panel, select a different bitmap object on the same layer or an object on a different layer.
The marquee is transferred to that object.
Note: Fireworks treats masks and masked objects as separate objects. For more information on masks, see “Masking
images” on page 164.
ADOBE FIREWORKS CS3
User Guide
51
Saving marquee selections
You can save the size, shape, and location of a selection to reapply later. You can also save multiple marquee selec-
tions.
To save a marquee selection:
1Choose Select > Save Bitmap Selection to open the Save Selection dialog box.
2The Document box displays the name of the active document in which your marquee selection will be saved. You
can either leave that name as is, or select another one from the pop-up menu if you would rather save your marquee
selection to another open document.
3The Selection box displays the name of the active selection in the active document. If this is a new selection, the
word New appears by default. You can leave that as is, or if you want to replace a previously saved selection with the
new selection, select another saved selection from the pop-up menu.
4The Name box, which displays the word Default, is only enabled if the Selection box displays the word New. If this
is the case, select the word Default and type a name for your new selection.
5If the Selection box displays the word New, the New selection will be enabled in the Operation section of the Save
Selection dialog box. If a previously saved selection is selected in the Selection box, then all of the following options
will be enabled in the Operation section.
•“Replace selection” replaces the active selection in the active document with the one specified in the Selection box.
•“Add to selection” adds the active selection to the one specified in the Document and Selection boxes.
•“Subtract from selection” subtracts the active selection from the one specified in the Document and Selection
boxes.
•“Intersect with selection” intersects the active selection with the one specified in the Document and Selection
boxes.
6Select an option in the Operation section, and then click OK.
Repeat this process for each of the marquee selections that you want to save.
Restoring marquee selections
You can restore a marquee selection that you have previously named and saved.
To restore a marquee selection:
1Choose Select > Restore Bitmap Selection to open the Restore Selection dialog box.
2The Document box displays the name of the active document in which a marquee selection has been saved. You
can either leave that name as is, or select another one from the pop-up menu if you would rather restore a marquee
selection from another open document.
3The Selection box displays the name of the selection that will be restored. If you want to restore a different
selection, select it from the pop-up menu.
4If you want to invert the restored selection, select the Invert box.
5If there is no active marquee selection in the current document, then New selection will be enabled in the
Operation section of the Restore Selection dialog box. If there is an active marquee selection in the current
document, then all of the following options will be enabled in the Operation section.
•“Replace selection” replaces the active selection in the active document with the one specified in the Selection box.
•“Add to selection” adds the active selection to the one specified in the Document and Selection boxes.
ADOBE FIREWORKS CS3
User Guide
52
•“Subtract from selection” subtracts the active selection from the one specified in the Document and Selection
boxes.
•“Intersect with selection” intersects the active selection with the one specified in the Document and Selection
boxes.
6Select an option in the Operation section, and then click OK
Repeat this process for each of the marquee selections that you want to restore.
Deleting marquee selections
You can delete a marquee selection that you have previously named and saved.
Note: This feature is enabled only if an open document contains at least one saved selection.
To delete a marquee selection:
1Choose Select > Delete Bitmap Selection to open the Delete Selection dialog box.
2The Document box displays the name of the active document containing a marquee selection. You can either leave
that name as is, or select another one from the pop-up menu if you want to delete a marquee selection from a
different document.
3The Selection box displays the name of the active selection in the active document. You can leave that as is, or if
you want to delete a different selection from the document that appears in the Document box, select another
selection from the pop-up menu.
4To delete the selection that appears in the Selection box, click OK. To close the dialog box without deleting any
selections, click Cancel.
Creating and moving a floating pixel selection
When you drag a marquee to a new location, the marquee itself moves. If you want to move, edit, cut, or copy a
selection of pixels, you must first make the pixels a floating selection.
To create a floating pixel selection:
1Make a pixel selection with a bitmap selection tool.
2Do one of the following:
•Hold down Control (Windows) or Command (Macintosh) and drag the selection using any tool from the Bitmap
section of the Tools panel.
•Select the Pointer tool and drag the selection.
To move a floating selection, do one of the following:
•Drag the floating selection with the Pointer tool or any bitmap selection tool.
•If a non-selection bitmap tool is active, hold down Control (Windows) or Command (Macintosh) and drag the
floating selection.
•Use the arrow keys or Shift+arrow keys.
When you deselect the floating pixel selection or select any vector or web tool, the floating selection becomes part
of the current bitmap object.
ADOBE FIREWORKS CS3
User Guide
53
Inserting a new bitmap by cutting or copying
You can insert a new bitmap based on a pixel selection into the current layer of a document by cutting or copying
the selected pixels.
To insert a new bitmap by cutting and pasting a pixel selection:
1Select an area of pixels using a pixel selection tool.
2Select Edit > Insert > Bitmap via Cut.
A new bitmap object based on the pixel selection is created in the current layer, and the selected pixels are removed
from the original bitmap object. In the Layers panel, a thumbnail of the new bitmap appears in the current layer,
above the object from which it was cut.
To insert a new bitmap by copying and pasting a pixel selection:
1Select an area of pixels using a pixel selection tool.
2Select Edit > Insert > Bitmap via Copy.
A new bitmap object based on the pixel selection is created in the current layer, and the selected pixels remain in the
original bitmap object. In the Layers panel, a thumbnail of the new bitmap appears in the current layer, above the
object from which it was copied.
Editing selected objects
Fireworks gives you a number of ways to edit selected objects: you can move objects on the canvas or from appli-
cation to application, you can replicate objects with the Clone and Duplicate commands, or you can remove objects
from the workspace altogether.
To move a selection, do one of the following:
•Drag it with the Pointer, Subselection, or Select Behind tool.
•Press any arrow key to move the selection in 1-pixel increments.
•Hold down Shift while pressing any arrow key to move the selection in 10-pixel increments.
•In the Property inspector, enter the X and Y coordinates for the location of the top left corner of the selection.
•Enter the object’s x and y coordinates in the Info panel. If the X and Y boxes aren’t visible, drag the bottom edge
of the panel.
To move or copy selected objects by pasting:
1Select an object or multiple objects.
2Select Edit > Cut or Edit > Copy.
3Select Edit > Paste.
To duplicate one or more selected objects:
❖Select Edit > Duplicate.
As you repeat the command, duplicates of the selected object appear in a cascading arrangement from the original,
10 pixels lower and 10 pixels to the right of the previous duplicate. The most recently duplicated object becomes the
selected object.
ADOBE FIREWORKS CS3
User Guide
54
Note: You cannot use the Duplicate or Clone commands with bitmap selections. Use the Subselection tool or Rubber
Stamp tool to duplicate parts of a bitmap image. For more information about using the Subselection tool, see the
following procedures. For more information about using the Rubber Stamp tool, see “Retouching bitmaps” on page 66.
To duplicate a pixel selection, do one of the following:
•Drag the pixel selection using the Subselection tool.
•Alt-drag (Windows) or Option-drag (Macintosh) the object using the Pointer tool.
To clone a selection:
❖Select Edit > Clone.
The clone of the selection is stacked precisely in front of the original and becomes the selected object.
Note: To move a selected clone away from the original with pixel-by-pixel precision, use the arrow keys or Shift+arrow
keys. This is a convenient way to maintain a specific distance between clones or maintain the vertical or horizontal
alignment of the clones.
To delete selected objects, do one of the following:
•Press Delete or Backspace.
•Select Edit > Clear.
•Select Edit > Cut.
•Right-click (Windows) or Control-click (Macintosh) the object and select Edit > Cut from the context menu.
To cancel or deselect a selection, do one of the following:
•Choose Select > Deselect.
•Click anywhere in the image outside of the selected area if you are using the Marquee, Oval Marquee, or Lasso tool.
•Press Escape.
Transforming and distorting selected objects and
selections
You can transform a selected object or group, or a pixel selection, using the Scale, Skew, and Distort tools and menu
commands:
When you select any transformation tool or Transform menu command, Fireworks displays transform handles
around selected objects.
Scale enlarges or reduces an object.
Skew slants an object along a specified axis.
Distort moves the sides or corners of an object in the direction you drag a selection handle while the tool
is active. This is helpful in creating a 3D look.
ADOBE FIREWORKS CS3
User Guide
55
A. Center point B. Transform handles
Object rotated, scaled, skewed, distorted, and flipped vertically and horizontally
To transform selected objects using the transform handles:
1Select a transformation tool.
As you move the pointer on or near the selection handles, the pointer changes to indicate the current transformation.
2Do one of the following to transform the objects:
•Place the pointer near a corner point and then drag to rotate.
•Drag a transform handle to transform according to the active transformation tool.
3Double-click inside the window or press Enter to apply your changes.
Resizing (scaling) objects
Scaling an object enlarges or reduces it horizontally, vertically, or in both directions.
To scale a selected object:
1Do one of the following to display the transform handles:
• Select the Scale tool.
•Select Modify > Transform > Scale.
2Drag the transform handles:
•To scale the object both horizontally and vertically, drag a corner handle. Proportions are constrained if you press
the Shift key as you scale.
•To scale the object horizontally or vertically, drag a side handle.
•To scale the object from the center, press Alt while dragging any handle.
Note: You can also resize selected objects by entering dimensions in the Property inspector. For more information, see
“Transforming objects numerically” on page 57.
Rotating objects
When rotated, an object pivots on its center point. You rotate an object by selecting a preset angle or by placing the
pointer outside an object’s transform handles to display the rotation pointer before you drag.
ADOBE FIREWORKS CS3
User Guide
56
Note: You can also rotate the document canvas. For more information, see “Rotating the canvas” on page 36.
To rotate a selected object 90° or 180°:
❖Select Modify > Transform and select a Rotate command from the submenu.
To rotate a selected object by dragging:
1 Select any transformation tool.
2Move the pointer outside the object until the rotation pointer appears.
3Drag to rotate the object.
To constrain rotation to 15° increments relative to the horizon, Shift-drag the pointer.
4Double-click inside the window or press Enter to apply your changes.
To relocate the axis of rotation:
❖Drag the center point away from the center.
To reset the axis of rotation to the center of the selection, do one of the following:
•Double-click the center point
•Press Escape to deselect the object, then select it again.
Flipping objects
You can flip an object across its vertical or horizontal axis without moving its relative position on the canvas.
To flip a selected object:
❖Select Modify > Transform > Flip Horizontal or Flip Vertical.
Skewing objects
Skewing an object transforms it by slanting it along the horizontal or vertical axis, or both axes.
To skew a selected object:
1Do one of the following to display the transform handles:
• Select the Skew tool.
•Select Modify > Transform > Skew.
2Drag a handle to skew the object.
3Double-click inside the window or press Enter to remove the transform handles.
ADOBE FIREWORKS CS3
User Guide
57
To achieve the illusion of perspective:
❖Drag a corner point.
Distorting objects
You change the size and proportions of an object by dragging a selection handle with the Distort tool.
To distort a selected object:
1Do one of the following to display the transform handles:
• Select the Distort tool.
•Select Modify > Transform > Distort.
2Drag a handle to distort the object.
3Double-click inside the window or press Enter to apply your changes.
Transforming objects numerically
Instead of dragging an object to scale, resize, or rotate it, you can transform it by entering specific values.
To resize selected objects using the Property inspector or Info panel:
❖Enter new width (W) or height (H) measurements.
Note: If the W and H boxes aren’t visible in the Property inspector, click the expander arrow to see all properties.
To scale or rotate selected objects using Numeric Transform:
1Select Modify > Transform > Numeric Transform.
The Numeric Transform dialog box opens.
2From the pop-up menu, select the type of transformation to perform on the current selection: Scale, Resize, or
Rotate.
3Select Constrain Proportions to maintain horizontal and vertical proportions when scaling or resizing a selection.
4Select Scale Attributes to transform the fill, stroke, and effects of the object along with the object itself.
5Deselect Scale Attributes to transform the path only.
6Type numeric values to transform the selection, then click OK.
Viewing transformation information in the Info panel
The Info panel lets you view numerical transformation information for the currently selected object. The infor-
mation updates as you edit the object.
•For scaling and free transformations, the Info panel shows the width (W) and height (H) of the original object
before transformation and the percentage of increase or decrease in width and height during the transformation.
•For skewing and distorting, the Info panel shows the skew angle in one-degree increments and the X and Y pointer
coordinates during the transformation.
To view transformation information as you transform a selection:
❖Select Window > Info.
ADOBE FIREWORKS CS3
User Guide
58
Organizing objects
When working with multiple objects in a single document, you can use several techniques to organize the document:
•You can group individual objects to treat them as one or protect each object’s relationship to the others in the
group.
•You can arrange objects behind or in front of other objects. The way objects are arranged is called the stacking
order.
•You can align selected objects to an area of the canvas or to a vertical or horizontal axis.
Grouping objects
You can group individual selected objects and then manipulate them as if they were a single object. For example, after
drawing the petals of a flower as individual objects, you can group them to select and move the entire flower as a
single object.
You can edit groups without ungrouping them. You can select an individual object in a group for editing without
ungrouping the objects. You can also ungroup the objects at any time.
To group two or more selected objects:
❖Select Modify > Group.
To ungroup selected objects:
❖Select Modify > Ungroup.
Selecting objects within groups
To work with individual objects within a group, you can either ungroup the objects or use the Subselection tool to
select individual objects while leaving the group intact.
Subselection tool
Modifying the attributes of a subselected object changes only the subselected object, not the entire group. Moving a
subselected object to another layer removes the object from the group.
Subselecting an object within a group
To select an object that is part of a group:
❖Select the Subselection tool and click the object or drag a selection area around it. To add objects to or remove
them from the selection, hold down Shift as you click or drag.
ADOBE FIREWORKS CS3
User Guide
59
To select the group that contains a subselected object, do one of the following:
•Right-click (Windows) or Control-click (Macintosh) anywhere in the group and choose Select > Superselect from
the context menu.
•Choose Select > Superselect.
To select all objects within a selected group, do one of the following:
•Right-click (Windows) or Control-click (Macintosh) anywhere on the group and choose Select > Subselect from
the context menu.
•Choose Select > Subselect.
Stacking objects
Within a layer, Fireworks stacks objects based on the order in which they were created, placing the most recently
created object on the top of the stack. The stacking order of objects determines how they appear when they overlap.
Layers also affect the stacking order. For example, suppose a document has two layers named Layer 1 and Layer 2. If
Layer 1 is listed below Layer 2 on the Layers panel, then everything on Layer 2 appears in front of everything on Layer
1. You can change the order of layers by dragging the layer in the Layers panel to a new position. For more infor-
mation, see “Organizing layers” on page 161.
To change the stacking order of a selected object or group within a layer:
•Select Modify > Arrange > Bring to Front or Send to Back to move the object or group to the top or bottom of the
stacking order.
•Select Modify > Arrange > Bring Forward or Send Backward to move the object or group up or down one position
in the stacking order.
If more than one object or group is selected, the objects move in front of or behind all unselected objects while
maintaining their order relative to one another.
Aligning objects
The Align commands in the Modify menu or the options on the Align panel give you a wide range of arrangement
options, allowing you to do any of the following:
•Align objects along a horizontal or vertical axis.
•Align selected objects vertically along their right edge, center, or left edge, or horizontally along their top edge,
center, or bottom edge.
Note: Edges are determined by the bounding boxes enclosing each selected object.
•Distribute selected objects so that their centers or edges are evenly spaced.
You can apply one or more Align commands to selected objects.
To align selected objects, do one of the following:
•Select Modify > Align > Left to align the objects to the leftmost selected object.
•Select Modify > Align > Center Vertical to align the center points of the objects along a vertical axis.
•Select Modify > Align > Right to align the objects to the rightmost selected object.
•Select Modify > Align > Top to align the objects to the topmost selected object.
ADOBE FIREWORKS CS3
User Guide
60
•Select Modify > Align > Center Horizontal to align the center points of the objects along a horizontal axis.
•Select Modify > Align > Bottom to align the objects to the bottommost selected object.
To evenly distribute the widths or heights of three or more selected objects:
❖Select Modify > Align > Distribute Widths or Modify > Align > Distribute Heights.
About arranging objects among layers
The Layers panel offers another dimension of organizational control. You can move selected objects from one layer
to another by dragging the object thumbnail or the blue selection indicator in the Layers panel to another layer. For
more information, see “Organizing layers” on page 161.
61
Chapter 4: Working with Bitmaps
Bitmaps are graphics composed of small colored squares called pixels, which combine like the tiles of a mosaic to
create an image. Examples of bitmap graphics include photographs, scanned images, and graphics created from paint
programs. They are sometimes referred to as raster images.
Fireworks CS3 combines the functionality of photo-editing, vector-drawing, and painting applications. You can
create bitmap images by drawing and painting with bitmap tools, by converting vector objects to bitmap images, or
by opening or importing images.
Fireworks has a powerful set of Live Filters for tone and color adjustment, as well as a number of ways to retouch
your bitmap images, including cropping, feathering, and duplicating or cloning images. In addition, Fireworks has
a set of image-retouching tools—Blur, Sharpen, Dodge, Burn, and Smudge.
For information on methods for selecting and transforming images and pixel areas, see “Selecting and Transforming
Objects” on page 41.
This chapter contains the following topics:
•“Working with bitmaps” on page 61
•“Creating bitmap objects” on page 61
•“Accessing photo editing tools” on page 63
•“Drawing, painting, and editing bitmap objects” on page 63
•“Retouching bitmaps” on page 66
•“Adjusting bitmap color and tone” on page 71
•“Blurring and sharpening bitmaps” on page 79
•“Adding noise to an image” on page 83
Working with bitmaps
The Bitmap section of the Tools panel contains bitmap selection and editing tools. To edit the pixels of a bitmap in
your document, you can select a tool from the Bitmap section. Unlike in previous versions of Fireworks, you do not
need to deliberately switch between bitmap mode and vector mode, but you can still work with bitmaps, vector
objects, and text. Switching to the appropriate mode is as simple as selecting a vector or bitmap tool from the Tools
panel.
Creating bitmap objects
You can create bitmap graphics by using the Fireworks bitmap drawing and painting tools, by cutting or copying and
pasting pixel selections, or by converting a vector image into a bitmap object. Another way to create a bitmap object
is to insert an empty bitmap image in your document and then draw, paint, or fill it.
ADOBE FIREWORKS CS3
User Guide
62
When you create a new bitmap object, it is added to the current layer. In the Layers panel with layers expanded, you
can see a thumbnail and name for each bitmap object under the layer on which it resides. Although some bitmap
applications consider each bitmap object a layer, Fireworks organizes bitmap objects, vector objects, and text as
separate objects that reside on layers. For more information, see “Working with layers” on page 159.
To create a new bitmap object:
1Select the Brush or Pencil tool from the Bitmap section of the Tools panel.
2Paint or draw with the Brush or Pencil tool to create bitmap objects on the canvas.
A new bitmap object is added to the current layer in the Layers panel. For more information on using the Pencil or
Brush tools, see “Drawing, painting, and editing bitmap objects” on page 63.
You can create a new empty bitmap, and then draw or paint pixels in the empty bitmap.
To create an empty bitmap object, do one of the following:
• Click the New Bitmap Image button in the Layers panel.
•Select Edit > Insert > Empty Bitmap.
•Draw a selection marquee, starting in a blank area of the canvas, and fill it. For more information, see “Creating
pixel selection marquees” on page 45.
An empty bitmap is added to the current layer in the Layers panel. If the empty bitmap is deselected before any pixels
have been drawn, imported, or otherwise placed on it, the empty bitmap object automatically disappears from the
Layers panel and the document.
To cut or copy pixels and paste them as a new bitmap object:
1Make a pixel selection using the Marquee tool, Lasso tool, or Magic Wand tool.
For more information, see “Selecting pixels” on page 44.
2Do one of the following:
•Select Edit > Cut, then Edit > Paste.
•Select Edit > Copy, then Edit > Paste.
•Select Edit > Insert > Bitmap via Copy to copy the current selection into a new bitmap.
•Select Edit > Insert > Bitmap via Cut to cut the current selection for placement into a new bitmap.
The selection appears in the Layers panel as an object on the current layer.
Note: You can also Right-click (Windows) or Control-click (Macintosh) a pixel marquee selection and select a cut or copy
option from the context menu. For more information about the Bitmap via Cut and Bitmap via Copy options, see
“Inserting a new bitmap by cutting or copying” on page 53.
To convert selected vector objects to a bitmap image, do one of the following:
•Select Modify > Flatten Selection.
•Select Flatten Selection from the Layers panel Options menu.
A vector-to-bitmap conversion is irreversible, except when Edit > Undo or undoing actions in the History panel is
still an option. Bitmap images cannot be converted to vector objects.
ADOBE FIREWORKS CS3
User Guide
63
Accessing photo editing tools
To make it easy for you to get started editing photos as quickly as possible, Fireworks has assembled the most
commonly used tools for photo editing all in one place. The Image Editing panel contains the following tools: Red-
eye Removal, Crop, Rotate, Blur, Sharpen, Dodge, and Burn.
The Image Editing panel also contains:
•Transform Tools: Scale, Skew, Distort, Free Rotate
•Transform Commands: Numeric Transform, Rotate options, Flip Horizontal, Flip Vertical, Remove Transforma-
tions
•Adjust Color: Auto Levels, Brightness/Contrast, Curves, Hue/Saturation, Invert, Levels, Convert to Grayscale,
Convert to Sepia Tone
•Filters: Blur, Blur More, Sharpen, Sharpen More, Unsharp Mask, Add Noise, Convert to Alpha, Find Edges
•View Options: Show/Hide Rulers, Show/Hide Grid, Snap/Don’t Snap to Grid, Edit Grid, Show/Hide Guides,
Snap/Don’t Snap to Guides, Lock/Unlock Guides, Edit Guides
The tools contained in the Image Editing panel are the same tools you’ll find in other places in Fireworks (such as in
the toolbox and on the Modify > Transform menu). The Image Editing panel, which you can open by selecting
Window > Image Editing, simply presents some of the most commonly used tools all in one panel for your conve-
nience.
For detailed information on how to use these tools and options, please see “Retouching bitmaps” on page 66,
“Adjusting bitmap color and tone” on page 71, “Blurring and sharpening bitmaps” on page 79, and “Adding noise to
an image” on page 83.
Drawing, painting, and editing bitmap objects
The Bitmap section of the Tools panel contains tools for selecting, drawing, painting, and editing pixels in a bitmap
image.
Drawing bitmap objects
You can use the Pencil tool to draw 1-pixel lines, either freehand lines or constrained, straight lines, much as you
use a real pencil, with or without a ruler, to draw hard-edged lines. You can also zoom in on a bitmap and use the
Pencil tool to edit individual pixels.
To draw an object with the Pencil tool:
1 Select the Pencil tool.
2Set tool options in the Property inspector:
Anti-aliased smoothes the edges of the lines you draw.
Auto Erase uses the fill color when the Pencil tool is clicked over the stroke color.
Preserve Transparency restricts the Pencil tool to drawing only in existing pixels, not in transparent areas of a
graphic.
3Drag to draw. Shift-drag to constrain the path to a horizontal, vertical, or diagonal line.
ADOBE FIREWORKS CS3
User Guide
64
Painting bitmap objects
You can use the Brush tool to paint a brush stroke using the color in the Stroke Color box, or you can use the Paint
Bucket tool to change the color of selected pixels to the color in the Fill Color box. With the Gradient tool, you can
fill bitmap or vector objects with a combination of colors in adjustable patterns.
To paint an object with the Brush tool:
1 Select the Brush tool.
2Set the stroke attributes in the Property inspector.
3Drag to paint.
For more information about setting Brush tool options, see “Working with strokes” on page 136.
To change the color of pixels to the color in the Fill Color box:
1 Select the Paint Bucket tool.
2Select a color in the Fill Color box.
3Set the tolerance value in the Property inspector.
Note: The tolerance determines how similar in color pixels must be to be filled. A low tolerance value fills pixels with
color values similar to the pixel you click. A high tolerance fills pixels with a broader range of color values.
4Click the image.
All pixels within the tolerance range change to the fill color.
To apply a gradient fill to a pixel selection:
1Make the selection.
2 Click the Paint Bucket tool in the Tools panel and select the Gradient tool from the pop-up menu.
3Set the fill attributes in the Property inspector.
4Click the pixel selection to apply the fill.
The Paint Bucket and Gradient tools can also fill selected vector objects. For more information about creating,
applying, and editing gradient fills, see “Working with fills” on page 140.
Sampling a color to use as a stroke or fill color
With the Eyedropper tool, you can sample color from an image to designate a new stroke or fill color. You can
sample the color of a single pixel, an average of color values within a 3-by-3-pixel area, or an average of color values
within a 5-by-5-pixel area.
To sample a stroke or fill color:
1If the correct attribute is not already active, do one of the following:
•Click the stroke icon next to the Stroke Color box in the Tools panel to make it the active attribute.
•Click the fill icon next to the Fill Color box in the Tools panel to make it the active attribute.
Note: Do not click the color box itself. If you do, the eyedropper pointer that appears is not the Eyedropper tool. For infor-
mation on the color box eyedropper pointer, see “Sampling colors from a color pop-up window” on page 136.
ADOBE FIREWORKS CS3
User Guide
65
2Open a Fireworks document or any file that Fireworks can open. For more information, see “Slices, Rollovers,
and Hotspots” on page 200.
3 Select the Eyedropper tool from the Colors section of the Tools panel. Set the Color Averaging Sample setting
in the Property inspector:
1-pixel creates a stroke or fill color from a single pixel.
3x3 pixels creates a stroke or fill color from the average of color values in a 3-by-3-pixel area.
5x5 pixels creates a stroke or fill color from the average of color values in a 5-by-5-pixel area.
4Click the Eyedropper tool anywhere in the document.
The sampled color appears in all Stroke Color or Fill Color boxes throughout Fireworks.
Erasing bitmap objects
You can use the Eraser tool to remove pixels. By default, the Eraser tool pointer represents the size of the current
eraser, but you can change the size and appearance of the pointer in the Preferences dialog box. For more infor-
mation, see “Editing preferences” on page 347.
Eraser tool
To erase pixels in a selected bitmap object or pixel selection:
1Select the Eraser tool.
2In the Property inspector, select the round or square eraser shape.
3Drag the Edge slider to set the softness of the eraser’s edge.
4Drag the Size slider to set the size of the eraser.
5Drag the Eraser Opacity slider to set the degree of opacity.
6Drag the Eraser tool over the pixels you want to erase.
Feathering pixel selections
Feathering blurs the edges of a pixel selection and helps the selected area blend with the surrounding pixels. Feath-
ering is useful when you copy a selection and paste it onto another background.
ADOBE FIREWORKS CS3
User Guide
66
To feather the edges of a pixel selection as you make a pixel selection:
1Select a bitmap selection tool from the Tools panel.
2Select Feather from the Edge pop-up menu in the Property inspector.
3Drag the slider to set the number of pixels you want to blur along the edge of the selection.
4Make a selection.
To feather the edges of a pixel selection from the menu bar:
1Choose Select > Feather.
2Type a value in the Feather Selection dialog box to set the feather radius, and click OK.
The radius value determines the number of pixels that are feathered on each side of the selection border.
Retouching bitmaps
Fireworks provides a wide range of tools to help you retouch your images. You can alter an image’s size, reduce or
sharpen its focus, or copy and “stamp” a part of it to another area.
Cloning pixels
The Rubber Stamp tool clones an area of a bitmap image so that you can stamp it elsewhere in the image. Cloning
pixels is useful when you want to fix a scratched photograph or remove dust from an image; you can copy a pixel
area of a photo and replace the scratch or dust spot with the cloned area.
To clone portions of a bitmap image:
1Select the Rubber Stamp tool.
2Click an area to designate it as the source, or the area you want to clone.
The sampling pointer becomes a cross-hair pointer.
Note: To designate a different area of pixels to clone, you can Alt-click (Windows) or Option-click (Macintosh) another
area of pixels to designate it as the source.
The Rubber Stamp tool lets you copy or clone one area of an image to another.
The Blur tool decreases the focus of selected areas in an image.
The Smudge tool picks up color and pushes it in the direction that you drag in an image.
The Sharpen tool sharpens areas in an image.
The Dodge tool lightens parts of an image.
The Burn tool darkens parts of an image.
The Red-eye Removal tool reduces the appearance of red-eye in photos
The Replace Color tool paints over one color with another color
ADOBE FIREWORKS CS3
User Guide
67
3Move to a different part of the image and drag the pointer.
You will see two pointers. The first one, the source of the cloning, is in the shape of a cross hair. For more infor-
mation, see “Editing preferences” on page 347.
Depending upon the brush preferences you’ve selected, the second pointer is a rubber stamp, a cross hair, or a blue
circle. As you drag the second pointer, pixels beneath the first pointer are copied and applied to the area beneath the
second.
To set Rubber Stamp tool options:
1Select the Rubber Stamp tool.
2Select from among the following options in the Property inspector:
Size determines the size of the stamp.
Edge determines the softness of the stroke (100% is hard; 0% is soft).
Source Aligned affects the sampling operation. When Source Aligned is selected, the sampling pointer moves verti-
cally and horizontally in alignment with the second. When Source Aligned is deselected, the sample area is fixed,
regardless of where you move and click the second pointer.
Use Entire Document samples from all objects on all layers. When this option is deselected, the Rubber Stamp tool
samples from the active object only.
Opacity determines how much of the background can be seen through the stroke.
Blend Mode affects how the cloned image affects the background.
To duplicate a pixel selection, do one of the following:
•Drag the pixel selection with the Subselection tool.
•Alt-drag (Windows) or Option-drag (Macintosh) the pixel selection using the Pointer tool.
Blurring, sharpening, and smudging pixels
The Blur and Sharpen tools affect the focus of pixels. The Blur tool lets you emphasize or de-emphasize parts of an
image by selectively blurring the focus of elements, much as a photographer controls depth of field. The Sharpen
tool can be useful for repairing scanning problems or out-of-focus photographs. The Smudge tool lets you gently
blend colors, as when creating a reflection of an image.
To blur or sharpen an image:
1Select the Blur or Sharpen tool.
2Set brush options in the Property inspector:
Size sets the size of the brush tip.
Edge specifies the softness of the brush tip.
Shape sets a round or square brush tip shape.
Intensity sets the amount of blurring or sharpening.
3Drag the tool over the pixels to be sharpened or blurred.
Hold down Alt (Windows) or Option (Macintosh) to change from one tool behavior to the other.
ADOBE FIREWORKS CS3
User Guide
68
To smudge colors in an image:
1Select the Smudge tool.
2Set the tool options in the Property inspector:
Size specifies the size of the brush tip.
Shape sets a round or square brush tip shape.
Edge specifies the softness of the brush tip.
Pressure sets the intensity of the stroke.
Smudge Color allows you to smudge using a specified color at the beginning of each stroke. If this option is
deselected, the tool uses the color under the tool pointer.
Use Entire Document smudges using color data from all objects on all layers. If this option is deselected, the Smudge
tool uses colors from the active object only.
3Drag the tool over the pixels to be smudged.
Lightening and darkening pixels
You use the Dodge or Burn tool to lighten or darken parts of an image, respectively. This is similar to the darkroom
technique of increasing or decreasing light exposure as the photograph is developed.
To lighten or darken parts of an image:
1Select the Dodge tool to lighten parts of an image or the Burn tool to darken parts of an image.
2Set the brush options in the Property inspector:
Size sets the size of the brush tip.
Shape sets a round or square brush tip shape.
Edge sets the softness of the brush tip.
3Set the exposure in the Property inspector.
The exposure ranges from 0% to 100%. For a lessened effect, specify a lower percentage value; for a stronger effect,
specify a higher value.
4Set the range in the Property inspector:
Shadows changes mainly the dark portions of the image.
Highlights changes mainly the light portions of the image.
Midtones changes mainly the middle range per channel in the image.
5Drag over the part of the image you want to lighten or darken.
Hold down Alt (Windows) or Option (Macintosh) as you drag the tool to temporarily switch from the Dodge tool
to the Burn tool or from the Burn tool to the Dodge tool.
Removing red-eye from photos
In some photographs, the subjects’ pupils are an unnatural shade of red. You can use the Red-eye Removal tool to
correct this red-eye effect. The Red-eye Removal tool quickly paints red areas of a photograph only, replacing
reddish colors with grays and blacks.
ADOBE FIREWORKS CS3
User Guide
69
Original photograph; after using the Red-eye Removal tool
To correct the red-eye effect in a photograph:
1 Select the Red-eye Removal tool from its pop-up menu.
2Set the attributes in the Property inspector:
Tolerance determines the range of hues to replace (0 replaces only red; 100 replaces all hues that contain red).
Strength sets the darkness of the grays used to replace reddish colors.
3Click and drag the cross-hair pointer over the red pupils in the photograph.
Replacing colors
The Replace Color tool lets you select a color and paint over that color with a different color.
Original photograph; after using the Replace Color tool
Fireworks provides two different ways to replace one color with another. You can replace a color that you’ve specified
in the color swatch, or you can replace a color by using the Replace Color tool directly on the image.
To replace one color with another using the color swatch:
1 Select the Replace Color tool from its pop-up menu.
2In the From box in the Property inspector, click Swatch.
ADOBE FIREWORKS CS3
User Guide
70
3Click the From color box to select the color probe, and select a color from the pop-up menu to specify the color
you want to replace.
4Click the To color box in the Property inspector and select a color from the pop-up menu.
5Set the other stroke attributes in the Property inspector:
Size sets the size of the brush tip.
Shape sets a round or square brush tip shape.
Tolerance determines the range of colors to replace (0 replaces only the To color; 255 replaces all colors similar to
the To color).
Strength determines how much of the Change color is replaced.
Colorize replaces the Change color with the To color. Deselect Colorize to tint the Change color with the To color,
leaving some of the Change color intact.
6Drag the tool over the color you want to replace.
To replace one color with another by selecting a color on the image:
1 Select the Replace Color tool from its pop-up menu.
2In the From box in the Property inspector, click Image.
3Click the To color box in the Property inspector to select the color probe, then select a color from the pop-up
menu.
4Set the other stroke attributes in the Property inspector:
Size sets the size of the brush tip.
Shape sets a round or square brush tip shape.
Tolerance determines the range of colors to replace (0 replaces only the To color; 255 replaces all colors similar to
the To color).
Strength determines how much of the Change color is replaced.
Colorize replaces the From color with the To color. Deselect Colorize to tint the From color with the To color, leaving
some of the From color intact.
5Using the tool, click down on a section of the bitmap image that contains the color you want to replace. Without
lifting the tool, continue to brush across the image with it. The color that you clicked down on when you initiated
the brushing action will be replaced by the color you’ve specified in the To color box.
Cropping a selected bitmap
You can isolate a single bitmap object in a Fireworks document and crop only that bitmap object, leaving other
objects on the canvas intact.
To crop a bitmap image without affecting other objects in the document:
1Select a bitmap object by clicking the object on the canvas or by clicking its thumbnail in the Layers panel, or draw
a selection marquee using a bitmap selection tool.
2Select Edit > Crop Selected Bitmap.
ADOBE FIREWORKS CS3
User Guide
71
The crop handles appear around the entire selected bitmap or around the selection marquee, if you drew one in step
1.
3Adjust the crop handles until the bounding box surrounds the area of the bitmap image that you want to keep.
Note: To cancel a crop selection, press Escape.
Bounding box
4Double-click inside the bounding box or press Enter to crop the selection.
Every pixel in the selected bitmap outside the bounding box is removed, but other objects in the document remain.
Adjusting bitmap color and tone
Fireworks has color- and tone-adjustment filters to help you improve and enhance the colors in your bitmap images.
You can adjust the contrast and brightness, the tonal range, and the hue and color saturation of your images.
Applying filters as Live Filters from the Property inspector is nondestructive. Live Filters do not permanently alter
the pixels; you can remove or edit them anytime.
If you prefer to apply filters in an irreversible, permanent way, you can select them from the Filters menu. However,
Adobe recommends that you use filters as Live Filters whenever possible.
You can apply filters from the Filters menu to pixel selections, but not Live Filters. You can, however, define an area
of a bitmap and create a separate bitmap from it, and then apply a Live Filter to it.
If you apply a filter to a selected vector object using the Filters menu, Fireworks converts the selection to a bitmap.
To apply a Live Filter to an area defined by a bitmap selection marquee:
1Select a bitmap selection tool and draw a selection marquee.
2Select Edit > Cut.
3Select Edit > Paste.
Fireworks pastes the selection exactly where the pixels were originally located, but the selection is now a separate
bitmap object.
4Click the thumbnail of the new bitmap object in the Layers panel to select the bitmap object.
5Apply a Live Filter from the Property inspector.
ADOBE FIREWORKS CS3
User Guide
72
Fireworks applies the Live Filter only to the new bitmap object, simulating the application of a filter to a pixel
selection.
Note: Although Live Filters are more flexible, large numbers of Live Filters in a document can slow down Fireworks
performance. For more information, see “Controlling document redraw” on page 34.
Adjusting tonal range
You can use the Levels and Curves features to adjust a bitmap’s tonal range. With Levels, you can correct bitmaps
that contain a high concentration of pixels in the highlights, midtones, or shadows. Or you can use Auto Levels and
let Fireworks adjust the tonal range for you. If you want more precise control over a bitmap’s tonal range, you can
use the Curves feature, which lets you adjust any color along the tonal range without affecting other colors.
Evening out highlights, midtones, and shadows
A bitmap with a full tonal range should have an even number of pixels in all areas. The Levels feature corrects
bitmaps with a high concentration of pixels in the highlights, midtones, or shadows.
Highlights corrects an excess of light pixels, which makes the image look washed out.
Midtones corrects an excess of pixels in the midtones, which makes the image bland.
Shadows corrects an excess of dark pixels, which hides much of the detail.
The Levels feature sets the darkest pixels as black and the lightest pixels as white, then redistributes the midtones
proportionally. This produces an image with the sharpest detail in all of its pixels.
Original with pixels concentrated in the highlights; after adjusting with Levels
You can use the Histogram in the Levels dialog box to view the pixel distribution of a bitmap. The Histogram is a
graphical representation of the distribution of pixels in the highlights, midtones, and shadows.
The Histogram helps you determine the best method of correcting an image’s tonal range. A high concentration of
pixels in the shadows or highlights indicates that you could improve the image by applying the Levels or Curves
feature.
The horizontal axis represents color values from darkest (0) to brightest (255). Read the horizontal axis from left to
right: the darker pixels are on the left, the midtone pixels are in the center, and the brighter pixels are on the right.
The vertical axis represents the number of pixels at each brightness level. Typically, you should adjust the highlights
and shadows first. Adjusting the midtones second lets you improve their brightness value without affecting the
highlights and shadows.
ADOBE FIREWORKS CS3
User Guide
73
To adjust highlights, midtones, and shadows:
1Select the bitmap image.
2Do one of the following to open the Levels dialog box:
•In the Property inspector, click the Add Live Filters button, and then select Adjust Color > Levels from the Filters
pop-up menu.
•Select Filters > Adjust Color > Levels.
Note: Applying a filter from the Filters menu is destructive; that is, it cannot be undone except when Edit > Undo is an
option. To maintain the ability to adjust, turn off, or remove this filter, apply it as a Live Filter, as described in the first
bulleted option in this step. For more information, see “Using Live Filters” on page 147.
Levels dialog box
To view your changes in the workspace, select Preview in the dialog box. As you make changes, the image updates
automatically.
3In the Channel pop-up menu, select whether you want to apply changes to individual color channels (Red, Blue,
or Green) or to all color channels (RGB).
4Drag the Input Levels sliders under the Histogram to adjust the highlights, midtones, and shadows:
•The right slider adjusts the highlights using values from 255 to 0.
•The center slider adjusts the midtones using values from 10 to 0.
•The left slider adjusts the shadows using values from 0 to 255.
As you move the sliders, the values are automatically entered in the Input Levels boxes.
Note: The shadow value cannot be higher than the highlight value; the highlight value cannot be lower than the shadow
value; and the midtones must fall between the shadow and highlight settings.
5Drag the Output Levels sliders to adjust the contrast values in the image:
•The right slider adjusts the highlights using values from 255 to 0.
•The left slider adjusts the shadows using values from 0 to 255.
As you move the sliders, the values are automatically entered in the Output Levels boxes.
Adjusting tonal ranges automatically
You can use Auto Levels to have Fireworks make tonal range adjustments for you.
ADOBE FIREWORKS CS3
User Guide
74
To adjust highlights, midtones, and shadows automatically:
1Select the image.
2Do one of the following to select Auto Levels:
•In the Property inspector, click the Add Live Filters button, and then select Adjust Color > Auto Levels from the
Filters pop-up menu.
•Select Filters > Adjust Color > Auto Levels.
Note: Applying a filter from the Filters menu is destructive; that is, it cannot be undone except when Edit > Undo is an
option. To maintain the ability to adjust, turn off, or remove this filter, apply it as a Live Filter, as described in the first
bulleted option in this step. For more information, see “Using Live Filters” on page 147.
You can also adjust highlights, midtones, and shadows automatically by clicking the Auto button in the Levels or
Curves dialog box.
Correcting colors using Curves
The Curves feature is similar to the Levels feature but it provides more precise control over the tonal range. Whereas
Levels uses highlights, shadows, and midtones to correct the tonal range, Curves lets you adjust any color along the
tonal range, instead of only three variables, without affecting other colors. For example, you can use Curves to correct
for a color cast caused by lighting conditions.
The grid in the Curves dialog box illustrates two brightness values:
The horizontal axis represents the original brightness of the pixels, shown in the Input box.
The vertical axis represents the new brightness values, shown in the Output box.
When you first open the Curves dialog box, the diagonal line indicates that no changes have been made, so the input
and output values are the same for all pixels.
To adjust a specific point in the tonal range:
1Select the image.
2Do one of the following to open the Curves dialog box:
•In the Property inspector, click the Plus (+) button beside the Filters label, and then select Adjust Color > Curves
from the Filters pop-up menu.
Note: If the Property inspector is partially minimized, click the Add Filters button instead of the Plus button.
•Select Filters > Adjust Color > Curves.
Note: Applying a filter from the Filters menu is destructive; that is, it cannot be undone except when Edit > Undo is an
option. To maintain the ability to adjust, turn off, or remove this filter, apply it as a Live Filter, as described in the first
bulleted option in this step. For more information, see “Using Live Filters” on page 147.
ADOBE FIREWORKS CS3
User Guide
75
Curves dialog box
3In the Channel pop-up menu, select whether you want to apply changes to individual color channels or to all
colors.
4Click a point on the grid’s diagonal line and drag it to a new position to adjust the curve.
•Each point on the curve has its own Input and Output values. When you drag a point, the Input and Output values
update automatically.
•The curve displays brightness values of 0 to 255, with 0 representing the shadows.
Curve after dragging a point to adjust
You can also adjust highlights, midtones, and shadows automatically by clicking the Auto button in the Curves
dialog box.
To delete a point along the curve:
❖Drag the point off the grid.
Note: You cannot delete the end points of the curve.
Correcting the tonal range using tonal eyedroppers
You can adjust the highlights, shadows, and midtones using the Shadow, Highlight, or Midtone eyedropper in the
Levels or Curves dialog box.
To adjust the tonal balance manually using the tonal eyedroppers:
1Open the Levels or Curves dialog box, and select a color channel from the Channel pop-up menu.
ADOBE FIREWORKS CS3
User Guide
76
2Select the appropriate eyedropper to reset the tonal values in the image:
• Click the lightest pixel in the image with the Highlight eyedropper to reset the highlight value.
• Click a pixel of neutral color in the image with the Midtone eyedropper to reset the midtone value.
• Click the darkest pixel in the image with the Shadow eyedropper to reset the shadow value.
3Click OK.
Adjusting brightness and contrast
The Brightness/Contrast feature modifies the contrast or brightness of pixels in an image. This affects the highlights,
shadows, and midtones of an image. You typically use Brightness/Contrast when correcting images that are too dark
or too light.
Original; after adjusting brightness
To adjust the brightness or contrast:
1Select the image.
2Do one of the following to open the Brightness/Contrast dialog box:
•In the Property inspector, click the Add Live Filters button, and then select Adjust Color > Brightness/Contrast
from the Filters pop-up menu.
•Select Filters > Adjust Color > Brightness/Contrast.
Note: Applying a filter from the Filters menu is destructive; that is, it cannot be undone except when Edit > Undo is an
option. To maintain the ability to adjust, turn off, or remove this filter, apply it as a Live Filter, as described in the first
bulleted option in this step. For more information, see “Using Live Filters” on page 147.
3Drag the Brightness and Contrast sliders to adjust the settings.
Values range from –100 to 100.
4Click OK.
Changing object colors
You can use the Color Fill Live Filter to change the color of objects quickly, either by replacing the pixels entirely
with a given color or by blending a color into an existing object. When you blend colors, the color is added on top
of the object. Blending a color into an existing object is much like using Hue/Saturation; however, blending lets you
apply a specific color from a color swatch panel quickly.
ADOBE FIREWORKS CS3
User Guide
77
To add a Color Fill Live Filter to a selected object:
1In the Property inspector, click the Add Live Filters button, and then select Adjust Color > Color Fill from the
Filters pop-up menu.
2Select a blending mode.
The default mode is Normal. For information about each blending mode, see “About blending modes” on page 179.
3Select a fill color from the color box pop-up menu.
4Select a percentage of opacity for the fill color and press Enter.
Adjusting hue and saturation
You can use the Hue/Saturation feature to adjust the shade of a color, its hue; the intensity of a color, its saturation;
or the lightness of a color in an image.
Original; after adjusting the saturation
To adjust the hue or saturation:
1Select the image.
2Do one of the following to open the Hue/Saturation dialog box:
•In the Property inspector, click the Add Live Filters button, and then select Adjust Color > Hue/Saturation from
the Filters pop-up menu.
•Select Filters > Adjust Color > Hue/Saturation.
Note: Applying a filter from the Filters menu is destructive; that is, it cannot be undone except when Edit > Undo is an
option. To maintain the ability to adjust, turn off, or remove this filter, apply it as a Live Filter, as described in the first
bulleted option in this step. For more information, see “Using Live Filters” on page 147.
3Drag the Hue slider to adjust the color of the image.
Values range from –180 to 180.
4Drag the Saturation slider to adjust the purity of the colors.
Values range from –100 to 100.
5Drag the Lightness slider to adjust the lightness of the colors.
Values range from –100 to 100.
6Click OK.
ADOBE FIREWORKS CS3
User Guide
78
To change an RGB image to a two-tone image or to add color to a grayscale image:
❖Select Colorize in the Hue/Saturation dialog box.
Note: When you select Colorize, the value range of the Hue and Saturation sliders changes. Hue changes to 0 to 360.
Saturation changes to 0 to 100.
Inverting an image’s color values
You can use Invert to change each color in an image to its inverse on the color wheel. For example, applying the filter
to a red object (R=255, G=0, B=0) changes the color to light blue (R=0, G=255, B=255).
A monochrome image; after inverting
A color image; after inverting
To invert colors:
1Select the image.
2Do one of the following:
•In the Property inspector, click the Add Live Filters button, and then select Adjust Color > Invert from the Filters
pop-up menu.
•Select Filters > Adjust Color > Invert.
Note: Applying a filter from the Filters menu is destructive; that is, it cannot be undone except when Edit > Undo is an
option. To maintain the ability to adjust, turn off, or remove this filter, apply it as a Live Filter, as described in the first
bulleted option in this step. For more information, see “Using Live Filters” on page 147.
ADOBE FIREWORKS CS3
User Guide
79
Blurring and sharpening bitmaps
Fireworks has a set of blurring and sharpening options that you can apply as Live Filters or as irreversible, permanent
filters.
Blurring an image
Blurring softens the look of a bitmap image. Fireworks has six blurring options:
Blur softens the focus of selected pixels.
Blur More blurs about three times as much as Blur.
Gaussian Blur applies a weighted average of blur to each pixel to produce a hazy effect.
Motion Blur creates the appearance that the image is moving.
Radial Blur creates the appearance that the image is spinning.
Zoom Blur creates the appearance that the image is moving toward or away from the viewer.
Note: Applying filters from the Filters menu is destructive; that is, it cannot be undone except when Edit > Undo is an
option. To maintain the ability to adjust, turn off, or remove a filter, apply it as a Live Filter, as described in the first
bulleted option in each of the following procedures. For more information, see “Using Live Filters” on page 147.
To blur an image:
1Select the image.
2Do one of the following:
•In the Property inspector, click the Add Live Filters button, and then select Blur > Blur or Blur More from the
Filters pop-up menu.
•Select Filters > Blur > Blur or Blur More.
To blur an image using Gaussian Blur:
1Select the image.
2Do one of the following to open the Gaussian Blur dialog box:
•In the Property inspector, click the Add Live Filters button, and then select Blur > Gaussian Blur from the Filters
pop-up menu.
•Select Filters > Blur > Gaussian Blur.
3Drag the Blur Radius slider to set the strength of the blur effect.
Values range from 0.1 to 250. An increase in radius results in a stronger blur effect.
4Click OK.
To blur an image using Motion Blur:
1Select the image.
2Do one of the following to open the Motion Blur dialog box:
•In the Property inspector, click the Add Live Filters button, and select Blur > Motion Blur from the Filters pop-up
menu.
•Select Filters > Blur > Motion Blur.
ADOBE FIREWORKS CS3
User Guide
80
3Drag the Angle dial to set the direction of the blur effect.
4Drag the Distance slider to set the strength of the blur effect.
Values range from 1 to 100. An increase in distance results in a stronger blur effect.
5Click OK.
To blur an image using Radial Blur:
1Select the image.
2Do one of the following to open the Radial Blur dialog box:
•In the Property inspector, click the Add Live Filters button, and select Blur > Radial Blur from the Filters pop-up
menu.
•Select Filters > Blur > Radial Blur.
3Drag the Amount slider to set the strength of the blur effect.
Values range from 1 to 100. An increase in amount results in a stronger blur effect.
4Drag the Quality slider to set the smoothness of the blur effect.
Values range from 1 to 100. An increase in quality results in a blur effect with fewer repetitions of the original image.
5Click OK.
To blur an image using Zoom Blur:
1Select the image.
2Do one of the following to open the Zoom Blur dialog box:
•In the Property inspector, click the Add Live Filters button, and select Blur > Zoom Blur from the Filters pop-up
menu.
•Select Filters > Blur > Zoom Blur.
3Drag the Amount slider to set the strength of the blur effect.
Values range from 1 to 100. An increase in amount results in a stronger blur effect.
4Drag the Quality slider to set the smoothness of the blur effect.
Values range from 1 to 100. An increase in quality results in a blur effect with fewer repetitions of the original image.
5Click OK.
Changing a bitmap into a line drawing
The Find Edges filter changes your bitmaps to look like line drawings by identifying the color transitions in the
images and changing them to lines.
ADOBE FIREWORKS CS3
User Guide
81
Original; after applying Find Edges
To apply the Find Edges filter to a selected area, do one of the following:
•In the Property inspector, click the Add Live Filters button, and then select Other > Find Edges from the Filters
pop-up menu.
•Select Filters > Other > Find Edges.
Note: Applying a filter from the Filters menu is destructive; that is, it cannot be undone except when Edit > Undo is an
option. To maintain the ability to adjust, turn off, or remove this filter, apply it as a Live Filter, as described in the first
bulleted option in this step. For more information, see “Using Live Filters” on page 147.
Converting an image to a transparency
You can use the Convert to Alpha filter to convert an object or text into a transparency based upon the transparency
of the image.
To apply the Convert to Alpha filter to a selected area, do one of the following:
•In the Property inspector, click the Add Live Filters button, and then select Other > Convert to Alpha from the
Filters pop-up menu.
•Select Filters > Other > Convert to Alpha.
Note: Applying a filter from the Filters menu is destructive; that is, it cannot be undone except when Edit > Undo is an
option. To maintain the ability to adjust, turn off, or remove this filter, apply it as a Live Filter, as described in the first
bulleted option in this step. For more information, see “Using Live Filters” on page 147.
Sharpening an image
You can use the Sharpen feature to correct images that are blurry. Fireworks has three Sharpen options:
Sharpen adjusts the focus of a blurred image by increasing the contrast of adjacent pixels.
Sharpen More increases the contrast of adjacent pixels about three times as much as Sharpen.
Unsharp Mask sharpens an image by adjusting the contrast of the pixel edges. This option offers the most control,
so it is usually the best option for sharpening an image.
ADOBE FIREWORKS CS3
User Guide
82
Original; after sharpening
To sharpen an image using a sharpen option:
1Select the image.
2Do one of the following to select a sharpen option:
•In the Property inspector, click the Add Live Filters button, and then select Sharpen > Sharpen or Sharpen More
from the Filters pop-up menu.
•Select Filters > Sharpen > Sharpen or Sharpen More.
Note: Applying a filter from the Filters menu is destructive; that is, it cannot be undone except when Edit > Undo is an
option. To maintain the ability to adjust, turn off, or remove this filter, apply it as a Live Filter, as described in the first
bulleted option in this step. For more information, see “Using Live Filters” on page 147.
To sharpen an image using Unsharp Mask:
1Select the image.
2Do one of the following to open the Unsharp Mask dialog box:
•In the Property inspector, click the Add Live Filters button, and then select Sharpen > Unsharp Mask from the
Filters pop-up menu.
•Select Filters > Sharpen > Unsharp Mask.
Note: Applying a filter from the Filters menu is destructive; that is, it cannot be undone except when Edit > Undo is an
option. To maintain the ability to adjust, turn off, or remove this filter, apply it as a Live Filter, as described in the first
bulleted option in this step. For more information, see “Using Live Filters” on page 147.
3Drag the Sharpen Amount slider to select the amount of sharpening effect from 1% to 500%.
4Drag the Pixel Radius slider to select a radius from 0.1 to 250.
An increase in radius results in a greater area of sharp contrast surrounding each pixel edge.
5Drag the Threshold slider to select a threshold of 0 to 255.
Values between 2 and 25 are most commonly used. An increase in threshold sharpens only those pixels of a higher
contrast in the image. A decrease in threshold includes pixels of lower contrast. A threshold of 0 sharpens all pixels
in the image.
6Click OK.
ADOBE FIREWORKS CS3
User Guide
83
Adding noise to an image
When viewed at high magnification levels, most images obtained from digital cameras and scanners do not have
perfectly uniform colors. Instead, the colors you see consist of pixels of many different colors. In image editing,
“noise” refers to these random color variations in the pixels that make up an image.
Sometimes, such as when you are pasting part of one image into another, the difference in the amount of random
color variation in the two images can stand out, preventing the images from blending together smoothly. In such a
case, you can add noise to one or both images to create the illusion that both images come from the same source.
You can also add noise to an image for artistic reasons, for instance, to simulate an old photograph or static on a
television screen.
Original photograph; after adding noise
To add noise to an image:
1Select the image.
2Do one of the following to open the Add Noise dialog box:
•In the Property inspector, click the Add Live Filters button, and select Noise > Add Noise from the Filters pop-
up menu.
•Select Filters > Noise > Add Noise.
Note: Applying a filter from the Filters menu is destructive; that is, it cannot be undone except when Edit > Undo is an
option. To maintain the ability to adjust, turn off, or remove this filter, apply it as a Live Filter, as described in the first
bulleted option in this step. For more information, see “Using Live Filters” on page 147.
3Drag the Amount slider to set the amount of noise.
Values range from 1 to 400. An increase in amount results in an image with more randomly placed pixels.
4Select the Color check box to apply color noise. Leave the check box unchecked to apply monochrome noise only.
5Click OK.
84
Chapter 5: Working with Vector Objects
A vector object is a computer graphic whose shape is defined by a path. The shape of a vector path is determined by
points that are plotted along the path. A vector object’s stroke color follows the path. Its fill occupies the area inside
the path. The stroke and fill typically determine how the graphic looks when published in print or on the web.
Fireworks CS3 has many tools for drawing and editing vector objects using a variety of techniques. With the basic
shape tools, you can quickly draw straight lines, circles and ellipses, squares and rectangles, stars, and any equilateral
polygon with 3 to 360 sides.
You can draw freeform vector paths with the Vector Path and Pen tools. Using the Pen tool, you can draw complex
shapes with smooth curves and straight lines by plotting points one by one.
Fireworks offers several methods for editing the vector objects you have drawn. You can change an object’s shape by
moving, adding, or deleting points. You can use point handles to change the shape of adjacent path segments.
Freeform tools let you alter the shape of objects by editing paths directly. You can also edit Auto Shapes using their
predefined editing methods.
Commands on the Modify menu give you more options for editing objects, including combining objects to create a
single object, creating an object from the intersection of several objects, and expanding the stroke of an object. You
can also import graphics and manipulate them using these commands.
This chapter contains the following topics:
•“Drawing vector objects” on page 84
•“Editing paths” on page 100
Drawing vector objects
Fireworks has many tools for drawing vector objects. With these you can draw basic shapes, freeform paths, and
complex shapes by plotting points one by one. You can also draw Auto Shapes, which are vector object groups that
have special controls for adjusting their attributes.
Drawing basic lines, rectangles, and ellipses
You can use the Line, Rectangle, or Ellipse tool to draw basic shapes quickly. The Rectangle tool draws rectangles as
grouped objects. To move a rectangle corner point independently, you must ungroup the rectangle or use the Subse-
lection tool. To draw a basic rectangle with beveled, chamfered, or rounded corners, see the following procedure.
To draw a Auto Shape rectangle with rounded corners, see “Adjusting beveled, chamfered, and rounded rectangle
Auto Shapes” on page 89.
To draw a line, rectangle, or ellipse:
1Select the Line, Rectangle, or Ellipse tool from the Tools panel.
2If desired, set the stroke and fill attributes in the Property inspector. See “Applying Color, Strokes, and Fills” on
page 126.
3Drag on the canvas to draw the shape.
For the Line tool, Shift-drag to constrain lines to 45° increments.
ADOBE FIREWORKS CS3
User Guide
85
For the Rectangle or Ellipse tool, Shift-drag to constrain shapes to squares or circles.
To constrain a shape and draw from the center point:
❖Position the pointer at the intended center point and Shift-Alt-drag (Windows) or Shift-Option-drag
(Macintosh) the drawing tool.
To adjust the position of a basic shape as you draw it:
❖While holding down the mouse button, press and hold the Spacebar, then drag the object to another location on
the canvas. Release the Spacebar to continue drawing the object.
Note: An exception is the Line tool. Pressing the Spacebar while using the Line tool does not change a line’s position on
the canvas.
To resize a selected line, rectangle, or ellipse, do one of the following:
•Enter new width (W) or height (H) values in the Property inspector or the Info panel.
•In the Select section of the Tools panel, select the Scale tool and drag a corner transform handle. This resizes the
object proportionally.
Note: You can also resize an object proportionally by selecting Modify > Transform > Scale and dragging a
corner transform handle, or by selecting Modify > Transform > Numeric Transform and entering new dimensions. For
more information on resizing and scaling objects, see “Transforming and distorting selected objects and selections” on
page 54.
•Drag a corner point on a rectangle.
Note: Scaling a vector object does not change its stroke width.
Drawing basic rounded rectangles
You can draw rectangles with rounded corners by using the Rounded Rectangle tool, or by using the Roundness
option in the Property inspector to adjust the roundness of the corners of a selected rectangle. The Rounded
Rectangle tool draws rectangles as grouped objects. To move rounded rectangle points independently, you must
ungroup the rectangle or use the Subselection tool.
To draw a rectangle with rounded corners:
1From the Rectangle tool pop-up menu, select the Rounded Rectangle tool.
2Drag the canvas to draw the rectangle.
You can adjust the roundness of the corners as you draw by pressing any of the arrow keys or the 1 or 2 number
keys repeatedly.
To round the corners of a selected rectangle:
❖In the Property inspector, enter a value from 0 to 100 in the Roundness box and press Enter, or drag the pop-up
slider.
Note: If the Property inspector is at half height, click the expander arrow in the lower right corner to expand it to full
height.
Drawing basic polygons and stars
With the Polygon tool, you can draw any equilateral polygon or star, from a triangle to a polygon or star with 360
sides.
ADOBE FIREWORKS CS3
User Guide
86
To draw a polygon:
1In the Vector section of the Tools panel, select the Polygon tool, which is one of the basic shape drawing tools.
2In the Property inspector, do one of the following to specify the number of sides for the polygon:
•Use the Sides pop-up slider to select 3 to 25 sides.
•Enter a number from 3 to 360 in the Sides text box.
3Drag to draw the polygon.
To constrain a polygon’s orientation to increments of 45°, hold down Shift as you draw. The Polygon tool always
draws from a center point.
To draw a star:
1Select the Polygon tool.
2In the Property inspector, select Star from the Shape pop-up menu.
3In the Sides text box, enter the number of points for the star.
4In the Angle text box, select Automatic or enter a value. Values closer to 0 result in long, thin points; values closer
to 100 result in short, stubby points.
5Drag the canvas to draw the star.
To constrain a star’s orientation to increments of 45°, hold down Shift as you drag. The Polygon tool always draws
from a center point.
Drawing Auto Shapes
Auto Shapes are intelligent vector object groups that adhere to specialized rules to simplify the creation and editing
of common visual elements. Auto Shape tools draw object groups. Unlike other object groups, selected Auto Shapes
have diamond-shaped control points in addition to the object group handles. Each control point is associated with
a particular visual property of the shape. Dragging a control point alters only the associated visual property. Most
Auto Shape control points have tool tips that describe how they affect the Auto Shape. Move the pointer over a
control point to see a tool tip that describes the property governed by that control point.
Auto Shape tools create shapes in preset orientations. For example, the Arrow tool draws arrows horizontally. You
can transform Auto Shapes to change their orientation. For more information, see “Transforming and distorting
selected objects and selections” on page 54.
Although each Auto Shape tool in the Tools panel uses the same easy drawing method, the editable attributes for
each Auto Shape are different.
Arrow draws object groups that appear as simple arrows of any proportions. Using control points, you can adjust the
arrowhead flare, the tail length and width, and the tip length.
Beveled Rectangle draws object groups that appear as rectangles with beveled corners. Using control points, you can
edit the amount of bevel for all corners together, or change the bevel of individual corners.
ADOBE FIREWORKS CS3
User Guide
87
Chamfer Rectangle draws object groups that appear as rectangles with chamfers, corners that are rounded to the
inside of the rectangle. You can edit the chamfer radius of all corners together, or change the chamfer radius of
individual corners.
Connector Line draws object groups that appear as three-segment connector lines, such as those used to connect the
elements of a flowchart or organizational chart. Using control points, you can edit the end points for the first and
third sections of the connector line, as well as the location of the second section, which connects the first and last
sections.
Doughnut draws object groups that appear as filled rings. Using control points, you can adjust the inner perimeter
or split the shape into pieces.
L-Shape draws object groups that appear as right-angled corner shapes. Using control points, you can edit the length
and width of the horizontal and vertical sections, as well as the curvature of the corner.
Pie draws object groups that appear as pie charts. Using control points, you can split the shape into pieces.
Rounded Rectangle draws object groups that appear as rectangles with rounded corners. Using control points, you
can edit the roundness of all corners together, or change the roundness of individual corners.
Smart Polygon draws object groups that appear as equilateral polygons with 3 to 25 sides. Using control points, you
can resize and rotate, add or remove segments, increase or decrease the number of sides, or add an inner polygon to
the shape.
Spiral draws object groups that appear as open spirals. Using control points, you can edit the number of spiral
rotations, and you can determine whether the spiral is open or closed.
Star draws object groups that appear as stars with any number of points from 3 to 25. Using control points, you can
add or remove points, and you can adjust the inner and outer angles of the points.
Add Shadow adds a shadow beneath the selected object based on the dimensions of that object. The shadow is
actually an Auto Shape and, like all Auto Shapes, contains control points that you can use to manipulate its
appearance. For example, you can Shift-drag the Direction control point to constrain its movement to a 45-degree
angle. Clicking the Direction control point resets the shadow to the original shape.
Note: The Add Shadow command will automatically send the new shadow shape back by one level. Unless you apply
this command to only one object at the top of the current layer, the shadow may appear above the selected object.
To draw an Auto Shape by using the Tools panel:
1In the Vector section of the Tools panel, select an Auto Shape tool from the pop-up menu.
2Do one of the following:
•Drag the canvas to draw the shape.
•Click on the canvas to place the shape at its default size.
To create the Add Shadow Auto Shape:
1Select an object on the canvas.
2Select Commands > Creative > Add Shadow.
A shadow is added to the selected object.
3If you want to make changes to the shadow, you can do any of the following:
•Drag the Direction control point to constrain its movement on a 45-degree angle.
•Click the Direction control point to reset the shadow (its size will be identical to the original shape).
ADOBE FIREWORKS CS3
User Guide
88
•Control+Command-click the Direction control point to reset the x-axis only.
•Double-click the Perspective control point to reset the width of the shadow only.
For information about how to change the properties of an Auto Shape, see “Changing the properties of Auto Shapes”
on page 88.
Changing the properties of Auto Shapes
The Auto Shape Properties panel gives you precise numeric control over your Auto Shapes. After inserting an Auto
Shape, you can use this panel to make changes to its properties.
The specific properties that you can change will vary with each Auto Shape you select. For example, if you’ve
inserted the Arrow shape, you can change its width, height, thickness, and more. If you’ve inserted the Star shape,
you can change its number of points, radius, and more.
You can also insert another Auto Shape into your document directly from the Auto Shape Properties panel.
Note: This panel only supports Auto Shapes that appear in the Tools panel. It does not support third-party Auto Shapes
or those in the Shapes panel (Window > Auto Shapes).
To change properties for your Auto Shape:
1Insert an Auto Shape into your document.
2Select Window > Auto Shape Properties.
The Auto Shape Properties panel appears, displaying the properties for the selected Auto Shape.
3Adjust the properties in the Auto Shape Properties panel.
For Rectangle shapes, you can choose to lock the shape corners so that changes to one corner will affect all four.
You can also change the properties for each corner individually.
4To apply the changes, press Tab or Enter.
The selected Auto Shape is updated with the changes you made to its properties. If you want to make further
changes, you can also adjust the Auto Shape on the canvas by using its control points, and the corresponding values
in the Auto Shape Properties panel will be updated dynamically.
5If you want to insert another Auto Shape, you can select one from the Insert New Auto Shape pop-up menu at
the bottom of the panel.
The new shape appears in the upper-left corner of the document.
Adjusting arrow Auto Shapes
Arrows have five control points. There are control points for adjusting the flare of the arrowhead, the length of the
arrow tail, the length of the arrowhead tip, and the width of the arrow tail.
To adjust the flare of an arrowhead:
❖Drag the flare control point of a selected arrow.
To increase or decrease the sharpness of an arrowhead:
❖Drag the tip control point of a selected arrow.
To lengthen or shorten an arrow tail:
❖Drag the body length control point of a selected arrow.
ADOBE FIREWORKS CS3
User Guide
89
To adjust the width of an arrow tail:
❖Drag the body width control point of a selected arrow.
Adjusting bent arrow Auto Shapes
Bent arrows have five control points. There are control points for adjusting the flare of the arrowhead, the length of
the arrowhead tip, the length of the arrow tail, the width of the arrow tail, and the roundness of the arrow’s bend.
To adjust the flare of the arrowhead of a bent arrow:
❖Drag the arrowhead control point of a selected bent arrow.
To increase or decrease the sharpness of the arrowhead of a bent arrow:
❖Drag the tip control point of a selected bent arrow.
To lengthen or shorten a bent arrow tail:
❖Drag the handle length control point of a selected bent arrow.
To adjust the width of a bent arrow tail:
❖Drag the handle width control point of a selected bent arrow.
To adjust the corner roundness of a bent arrow tail:
❖Drag the corner radius control point of a selected arrow.
Adjusting beveled, chamfered, and rounded rectangle Auto Shapes
Beveled, chamfered, and rounded rectangles have five control points. The control point on each corner adjusts all
corners together. You can also Alt-drag (Windows) or Option-drag (Macintosh) to edit a single corner. The
remaining control point resizes the rectangle without changing the roundness of the corner.
Note: To edit the corner radius of rectangles drawn with the Rectangle tool, use the Rectangle Roundness setting in the
Property inspector.
To adjust the corners of a beveled, chamfered, or rounded rectangle Auto Shape:
❖Drag a corner control point of a selected shape.
To adjust a single corner of a beveled, chamfered, or rounded rectangle Auto Shape:
❖Alt-drag (Windows) or Option-drag (Macintosh) a corner control point of a selected shape.
To resize a beveled, chamfered, or rounded rectangle Auto Shape without affecting the corners:
❖Drag the drag-to-resize control point.
To convert the corners of a rectangle to a different type:
❖Alt-click (Windows) or Option-click (Macintosh) any corner control point.
To convert a single corner to a different type:
❖Shift-Alt-click (Windows) or Shift-Option-click (Macintosh) any corner control point.
ADOBE FIREWORKS CS3
User Guide
90
Adjusting connector line Auto Shapes
Connector lines have five control points. There are control points for placing the start and end points, for adjusting
the position of the cross bar (the line that connects the start and end line segments), and for adjusting the roundness
of the corners.
To move the start or end point of a connector line:
❖Drag the control point at the start or end of the connector line.
To reposition the cross bar of a connector line:
❖Drag the horizontal position control point.
To adjust all corners of a selected connector line:
❖Drag a corner control point.
To adjust a single corner of a selected connector line:
❖Alt-drag (Windows) or Option-drag (Macintosh) a corner control point.
Adjusting doughnut Auto Shapes
Doughnut Auto Shapes initially have three control points. There are control points for adjusting the inner perimeter,
for setting the inner perimeter to zero, and for dividing the shape into slices to resemble a pie chart. You can add as
many sections as you want using control points. For each new section, Fireworks adds a control point for resizing or
splitting the new section.
To add sections to a selected doughnut:
❖Alt-drag (Windows) or Option-drag (Macintosh) an add/divide sector control point on the outer perimeter of the
shape.
To remove a section from a selected doughnut:
❖Drag the add/divide sector control point on the outer perimeter of the shape to define the portion of the shape
that you want to remain on the canvas.
To resize the inner radius of a selected doughnut:
❖Drag the inner radius control point.
To set the inner radius of a selected doughnut to zero:
❖Click the reset radius control point.
Adjusting pie Auto Shapes
Pie Auto Shapes initially have three control points. There are control points for dividing the shape into slices,
adjusting slice size, and for resetting the pie to one slice. You can add as many sections as you want using control
points. For each new section, Fireworks adds a control point for resizing or splitting the new section.
To add sections to a selected pie:
❖Alt-drag (Windows) or Option-drag (Macintosh) a drag-to-segment control point on the outer perimeter of the
shape.
ADOBE FIREWORKS CS3
User Guide
91
To resize a slice of a selected pie:
❖Drag a drag-to-segment control point on the outer perimeter of the shape.
To reset the a selected pie to one slice:
❖Click the Reset control point.
Adjusting L-shaped Auto Shapes
L-shapes have four control points. There are control points for adjusting the length and width of each section of the
L-shape, and for adjusting the roundness of the L-shape’s bend.
To change the length or width of a selected L-shape’s section:
❖Drag one of the two length/width control points.
To adjust the roundness of the corners of a selected L-shape:
❖Drag the corner radius control point.
Adjusting smart polygon Auto Shapes
Smart Polygons initially appear as pentagons with four control points. There are control points for resizing and
rotating, adding or removing polygon segments, increasing or decreasing the number of polygon sides, and adding
an inner polygon to the shape to create a ring.
To resize or rotate a selected smart polygon, do one of the following:
•Drag the scale/rotate control point.
•Alt-drag (Windows) or Option-drag (Macintosh) the scale/rotate control point to rotate only.
To add or remove sections from a selected smart polygon:
❖Drag the sections control point.
To change the number of sides on a selected smart polygon:
❖Drag the sides control point.
To split a selected smart polygon into segments.
❖Alt-drag (Windows) or Option-drag (Macintosh) the sides control point.
To resize the inner polygon of a smart polygon, do one of the following:
•If the polygon has an inner polygon, drag the inner polygon control point.
•If the polygon has no inner polygon, drag the reset inner polygon control point.
To reset the inner polygon of a selected smart polygon:
❖Click the reset inner polygon control point.
Adjusting spiral Auto Shapes
Spirals have two control points. There are control points for adjusting the number of turns in the spiral, and for
making the spiral open or closed.
ADOBE FIREWORKS CS3
User Guide
92
To adjust the number of turns in a selected spiral:
❖Drag the spirals control point.
To open or close a selected spiral:
❖Click the open/close spiral control point.
Adjusting star Auto Shapes
Stars initially have five control points. There are control points for adding or removing points, for adjusting the inner
and outer angles of the points, and for adjusting the roundness of the peaks and valleys.
To change the number of sides on a selected star:
❖Drag the Points control point.
To adjust the valleys of a selected star:
❖Drag the valley control point.
To adjust the points of a selected star:
❖Drag the peak control point.
To adjust the roundness of a selected star’s peaks or valleys:
❖Drag a Roundness control point.
Adding Auto Shapes to drawings
The Assets panel contains a Shapes tab where you can find additional Auto Shapes. These Auto Shapes are generally
more complex than those that appear in the Tools panel. Instead of drawing these Auto Shapes directly on the
canvas, you place these Auto Shapes into your drawing by dragging them from the Assets panel to the canvas.
To create an Auto Shape using the Assets panel:
1Select Window > Auto Shapes to display the Shapes tab, if it is not already visible.
2Drag a Auto Shape preview from the Assets panel to the canvas.
3If desired, edit the Auto Shape by dragging any of its control points.
Adding new Auto Shapes to Fireworks
You can add new Auto Shapes to Fireworks using the Fireworks Exchange website. Some new Auto Shapes will
appear in the Shapes tab in the Assets panel, and others will appear in the Tools menu, grouped with the other Auto
Shapes.
You can also add new Auto Shapes to Fireworks by writing the JavaScript code for the Auto Shapes yourself. For more
information, see Extending Fireworks.
To add new Auto Shapes to Fireworks:
1Select Window > Auto Shapes to display the Shapes panel, if it’s not already visible.
2From the Shapes panel’s Options menu, select Get More Auto Shapes.
Fireworks connects to the web and navigates to the Fireworks Exchange website.
3Follow the onscreen instructions to select new Auto Shapes and add them to Fireworks.
ADOBE FIREWORKS CS3
User Guide
93
Drawing freeform paths
You can draw freeform vector paths with the Vector Path tool, much as you draw using a felt-tip marker or crayon.
The Vector Path tool is located in the Pen tool pop-up menu.
You can change the stroke and fill attributes of paths drawn with the Vector Path tool. See “Applying Color, Strokes,
and Fills” on page 126.
Using the Vector Path tool
The Vector Path tool has a wide variety of brush stroke categories, including Air Brush, Calligraphy, Charcoal,
Crayon, and Unnatural. Each category typically has a choice of strokes, such as Light Marker and Dark Marker, Splat-
tered Oil, Bamboo, Ribbon, Confetti, 3D, Toothpaste, and Viscous Alien Paint.
Although the strokes may look like paint or ink, each has the points and paths of a vector object. That means that
you can change the shape of the stroke using any of several vector-editing techniques. After you reshape the path,
the stroke is redrawn.
For more precise path smoothing, you can change the number of points that appear on the path in the Precision box
in the Property inspector before you draw the path.
A painting edited by moving vector points
You can also modify existing brush strokes and add fills to selected objects you have drawn with the Vector Path tool.
The new stroke and fill settings are retained for subsequent use of the Vector Path tool in the current document.
To draw a freeform vector path:
1 From the Pen tool pop-up menu, select the Vector Path tool.
2If desired, set stroke attributes and Vector Path tool options in the Property inspector. See “Applying Color,
Strokes, and Fills” on page 126.
3If desired, change the precision level of the path by selecting a number from the Precision pop-up menu in the
Property inspector for the vector path tool. The higher the number you select, the greater the number of points that
appear on the path you draw.
4Drag to draw. To constrain the path to a horizontal or vertical line, hold down Shift while dragging.
5Release the mouse button to end the path. To close the path, release the mouse button when you return the pointer
to the point at the beginning of the path.
ADOBE FIREWORKS CS3
User Guide
94
Drawing paths by plotting points
One way to draw and edit vector objects in Fireworks is to plot points as if drawing a connect-the-dots picture.
When you click each point with the Pen tool, Fireworks automatically draws the path of the vector object from the
last point you clicked.
In addition to connecting the points with only straight segments, the Pen tool can draw smooth, mathematically
derived curve segments known as Bezier curves. Each point’s type—corner point or curve point—determines
whether the adjacent curves are straight lines or curves.
You can modify straight and curved path segments by dragging their points. You can further modify curved path
segments by dragging their point handles. You can also convert straight path segments to curved (and vice versa) by
converting their points.
Drawing straight path segments
Drawing straight line segments with the Pen tool is a simple matter of clicking to place the points. Each click with
the Pen tool plots a corner point.
To draw a path with straight line segments:
1 Select the Pen tool in the Tools panel.
2If desired, select Edit > Preferences and enable any of the following options on the Editing tab of the Preferences
dialog box, then click OK:
Show Pen Preview previews the line segment that would result from the next click.
Show Solid Points shows solid points while you draw.
Note: On Mac OS X, select Fireworks > Preferences to open the Preferences dialog box.
3Click on the canvas to place the first corner point.
4Move the pointer and click to place the next point. A straight line segment joins the two points.
5Continue plotting points. Straight segments bridge each gap between points.
6Do one of the following to end the path, either open or closed:
•Double-click the last point to end the path as an open path.
•Select another tool to end the path as an open path.
Note: When you select any selection tool or vector tool other than the Text tool and then return to the Pen tool,
Fireworks resumes drawing the object at your next click.
ADOBE FIREWORKS CS3
User Guide
95
•To close the path, click the first point you plotted. The beginning and end points of a closed path are the same.
Note: Loops formed by a path overlapping itself are not closed paths. Only paths that begin and end on the same point
are closed paths.
Drawing curved path segments
To draw curved path segments, you click and drag as you plot points. As you draw, the current point shows point
handles. Whether drawn with the Pen tool or with another Fireworks drawing tool, all points on all vector objects
have point handles. These handles are visible only on curve points, however.
To draw an object with curved segments:
1Select the Pen tool in the Tools panel.
2Click to place the first corner point.
3Move to the location of the next point, then click and drag to produce a curve point. Each time you click and drag,
Fireworks extends the line segment to the new point.
4Continue plotting points. If you click and drag a new point, you produce a curve point; if you just click, you
produce a corner point.
You can temporarily switch to the Subselection tool to change the location of points and the shape of curves as
you draw. Press Control (Windows) or Command (Macintosh) while dragging a point or point handle with the
Pen tool.
5Do one of the following to end the path, either open or closed:
•Double-click the last point to end the path as an open path.
•Select another tool to end the path as an open path. When you select certain tools and then return to the Pen tool,
Fireworks resumes drawing the object at your next click.
•To close a path, click the first point you plotted. The beginning and end points of a closed path are the same.
Adjusting the shape of a straight path segment
You can lengthen, shorten, or change the position of a straight path segment by moving its points.
To change a straight path segment:
1Select the path with the Pointer or Subselection tool.
ADOBE FIREWORKS CS3
User Guide
96
2Click a point with the Subselection tool to select it.
Selected corner points appear as solid blue squares.
3Drag the point or use the arrow keys to move the point to a new location.
Adjusting the shape of a curved path segment
You can change the shape of a vector object by dragging its point handles with the Subselection tool. The point
handles determine the degree of curvature between fixed points. These curves are known as Bezier curves.
To edit the Bezier curve of a path segment:
1Select the path with the Pointer or Subselection tool.
2Click a curve point with the Subselection tool to select it.
A selected curve point appears as a solid blue square. The point handles extend from the point.
3Drag the handles to a new location. To constrain handle movement to 45° angles, press Shift while dragging.
The blue path preview shows where the new path will be drawn if you release the mouse button.
A. Point handle B. Selected point C. Subselection pointer D. Path preview E. Path
For example, if you drag the left point handle downward, the right point handle goes up. Alt-drag a handle to move
it independently
ADOBE FIREWORKS CS3
User Guide
97
Converting path segments to straight or curved
Straight path segments are intersected by corner points. Curved path segments contain curve points.
You can convert a straight segment to a curved segment and vice versa by converting its point.
To convert a corner point to a curve point:
1Select the Pen tool in the Tools panel.
2Click a corner point on a selected path and drag away from it.
The handles extend, curving the adjacent segments.
Note: To edit the point’s handles, select the Subselection tool or press Control (Windows) or Command (Mac) while the
Pen tool is active.
To convert a curve point to a corner point:
1Select the Pen tool in the Tools panel.
2Click a curve point on a selected path.
ADOBE FIREWORKS CS3
User Guide
98
The handles retract, and the adjacent segments straighten.
Selecting points
The Subselection tool allows you to select multiple points. Before selecting a point with the Subselection tool, you
must select the path using the Pointer or Subselection tool or by clicking its thumbnail in the Layers panel.
To select specific points on a selected path:
1 Select the Subselection tool.
2Do one of the following:
•Click a point, or hold down Shift and click multiple points one by one.
•Drag around the points to be selected.
To display a curve point’s handles:
❖Click the point with the Subselection tool. If either point nearest the clicked point is a curve point, the near handle
is also displayed.
Moving points and point handles
You can change an object’s shape by dragging its points and point handles with the Subselection tool.
To move a point:
❖Drag it with the Subselection tool in the Tools panel.
Fireworks redraws the path to reflect the point’s new position.
ADOBE FIREWORKS CS3
User Guide
99
To change the shape of a path segment:
❖Drag a point handle with the Subselection tool. Alt-drag (Windows) or Option-drag (Macintosh) to drag one
handle at a time.
To adjust the handle of a corner point:
1 Select the Subselection tool in the Tools panel.
2Select a corner point.
3Alt-drag (Windows) or Option-drag (Macintosh) the point to display its handle and bend the adjacent segment.
Dragging a corner point handle with the Subselection tool to edit the adjacent path segment
Inserting and deleting points on a path
You can add points to a path and delete points from a path. Adding points to a path gives you control over a specific
segment within the path. Deleting points from the path reshapes it or simplifies editing.
To insert a point on a selected path:
❖Using the Pen tool, click anywhere on the path where there is not a point.
To delete a point from a selected path segment, do one of the following:
•Click a corner point on a selected object with the Pen tool.
•Double-click a curve point on a selected object with the Pen tool.
•Select a point with the Subselection tool and press Delete or Backspace.
Continuing an existing path
You can use the Pen tool to continue drawing an existing open path.
To resume drawing an existing open path:
1Select the Pen tool in the Tools panel.
2Click the end point and continue the path.
The Pen tool pointer changes to indicate that you are adding to a path.
Merging two open paths
You can connect two open paths to form one continuous path. When you connect two paths, the topmost path’s
stroke, fill, and filter attributes become the attributes of the newly merged path.
ADOBE FIREWORKS CS3
User Guide
100
To merge two open paths:
1Select the Pen tool in the Tools panel.
2Click the end point of one of the paths.
3Move the pointer to the end point of the other path and click.
Auto-joining similar open paths
You can easily join one open path with another that has similar stroke and fill characteristics.
To auto-join two open paths:
1Select an open path.
2Select the Subselection tool and drag an end point of the path within a few pixels of the end point of the similar
path.
The end point snaps to the other path, and the two become a single path.
Editing paths
Fireworks offers several methods for editing vector objects. You can change an object’s shape by moving, adding, or
deleting points, or you can move point handles to change the shape of adjacent path segments. Freeform tools let you
alter the shape of objects by editing paths directly. You can also use path operations to create new shapes by
combining or altering existing paths.
Editing with vector tools
In addition to dragging points and point handles, you can use several Fireworks tools to edit vector objects directly.
Bending and reshaping vector objects
The Freeform tool allows you to bend and reshape vector objects directly instead of manipulating points. You can
push or pull any part of a path, regardless of where the points are located. Fireworks automatically adds, moves, or
deletes points along the path as you change the vector object’s shape.
Freeform tool pulling a path segment A. Specified length
Freeform tool pushing a path segment
ADOBE FIREWORKS CS3
User Guide
101
As you move the pointer over a selected path, it changes to the push or pull pointer, depending on its location relative
to the selected path.
When the pointer is directly over the path, you can pull the path. When the pointer is not directly over the path, you
can push the path. You can change the size of the push or pull pointer.
Note: The Freeform tool also responds to pressure from a Wacom or other compatible tablet.
To pull a selected path:
1 Select the Freeform tool in the Tools panel.
2Move the pointer directly over the selected path.
The pointer changes to the pull pointer.
3Drag the path.
To push a selected path:
1Select the Freeform tool in the Tools panel.
The pointer changes to the push or pull pointer.
2Point slightly away from the path.
3Drag toward the path to push it. Nudge the selected path to reshape it.
To change the size of the push pointer, do one of the following:
•While holding down the mouse button, press the Right Arrow key or 2 to increase the width of the pointer.
•While holding down the mouse button, press the Left Arrow key or 1 to decrease the width of the pointer.
•To set the size of the pointer and set the length of the path segment that it affects, deselect all objects in the
document, and then enter a value from 1 to 500 in the Size text box of the Property inspector. The value indicates
the size of the pointer in pixels.
Pointer Meaning
The Freeform tool is in use.
The Freeform tool is in use, and the pull pointer is in position to pull the selected path.
The Freeform tool is in use, and the pull pointer is pulling the selected path.
The Freeform tool is in use, and the push pointer is active.
The Reshape Area tool is in use, and the reshape area pointer is active. The area from the inner circle
to the outer circle represents reduced strength.
ADOBE FIREWORKS CS3
User Guide
102
Distorting paths
You can use the Reshape Area tool to pull the area of all selected paths within the outer circle of the reshape area
pointer.
The pointer’s inner circle is the boundary of the tool at full strength. The area between the inner and outer circle
reshapes paths at less than full strength. The pointer’s outer circle determines the gravitational pull of the pointer.
You can set its strength.
Note: The Reshape Area tool also responds to pressure from a Wacom or other compatible tablet.
To distort selected paths:
1 From the Freeform tool pop-up menu, select the Reshape Area tool.
2Drag across the paths to redraw them.
To change the size of the reshape area pointer, do one of the following:
•While holding down the mouse button, press the Right Arrow key or 2 to increase the width of the pointer.
•While holding down the mouse button, press the Left Arrow key or 1 to decrease the width of the pointer.
•To set the size of the pointer and set the length of the path segment that it affects, deselect all objects in the
document, and then enter a value from 1 to 500 in the Size text box of the Property inspector. The value indicates
the size of the pointer in pixels.
To set the strength of the inner circle of the reshape area pointer:
❖Enter a value from 1 to 100 in the Strength text box of the Property inspector. The value indicates the percentage
of the pointer’s potential strength. The higher the percentage, the greater the strength.
Redrawing paths
You can use the Redraw Path tool to redraw or extend a segment of a selected path while retaining the path’s stroke,
fill, and effect characteristics.
To redraw or extend a segment of a selected path:
1 From the Pen tool pop-up menu, select the Redraw Path tool.
ADOBE FIREWORKS CS3
User Guide
103
2If desired, change the precision level of the Redraw Path tool by selecting a number from the pop-up menu in the
Precision box of the Property inspector. The higher the number you select, the greater the number of points that
appear on the path.
3Move the pointer directly over the path.
The pointer changes to the redraw path pointer.
4Drag to redraw or extend a path segment. The portion of the path to be redrawn is highlighted in red.
5Release the mouse button.
Changing a path’s appearance by varying pressure and speed
You can change the appearance of a path using the Path Scrubber tools. Using varying pressure or speed, you can
change a path’s stroke properties. These properties include stroke size, angle, ink amount, scatter, hue, lightness, and
saturation. You can specify which of these properties is affected by the Path Scrubber tools using the Sensitivity tab
of the Edit Stroke dialog box. You can also specify how much pressure and speed affects these properties. For details
on setting options in the Edit Stroke dialog box, see “Working with strokes” on page 136.
Cutting paths into multiple objects
The Knife tool allows you to slice a path into two or more paths.
To cut a selected path:
1Select the Knife tool in the Tools panel.
Note: Using the eraser on Wacom pens automatically selects the Knife tool.
2Do one of the following:
•Drag the pointer across the path.
•Click on the path.
3Deselect the path.
Editing with path operations
You can use path operations in the Modify menu to create new shapes by combining or altering existing paths. For
some path operations, the stacking order of selected path objects defines how the operation works. For information
on arranging the stacking order of selected objects, see “Stacking objects” on page 59.
Note: Using a path operation removes all pressure and speed information from the affected paths.
Combining path objects
You can combine path objects into a single path object. You can connect the end points of two open paths to create
a single closed path, or you can join multiple paths to create a composite path.
ADOBE FIREWORKS CS3
User Guide
104
To create one continuous path from two open paths:
1Select the Subselection tool in the Tools panel.
2Select two end points on two open paths.
3Select Modify > Combine Paths > Join.
To create a composite path:
1Select two or more open or closed paths.
2Select Modify > Combine Paths > Join.
To break apart a composite path:
1Select the composite path.
2Select Modify > Combine Paths > Split.
To combine selected closed paths as one path enclosing the entire area of the original paths:
❖Select Modify > Combine Paths > Union. The resulting path assumes the stroke and fill attributes of the object
that is placed farthest back.
Converting a path to a marquee selection
You can convert a vector shape to a bitmap selection, and then use the bitmap tools to edit the new bitmap.
To convert a path to a marquee selection:
1Select a path.
2Select Modify > Convert Path to Marquee.
3In the Convert Path to Marquee dialog box, select an Edge setting for the marquee selection that you are about to
create.
4If you chose Feather in the Edge setting, specify the value you want to use for the amount of feather.
5To convert the selected path to a marquee, click OK.
Note: Converting a path to a marquee deletes the selected path. If you would rather not delete paths when you convert
them to marquee selections, you can change the default setting. Select Edit > Preferences > Editing, and then clear the
setting for Delete paths when converting to marquee.
Creating an object from the intersection of other objects
Using the Intersect command, you can create an object from the intersection of two or more objects.
ADOBE FIREWORKS CS3
User Guide
105
To create a closed path that encloses the area common to all selected closed paths:
❖Select Modify > Combine Paths > Intersect. The resulting path assumes the stroke and fill attributes of the object
that is placed farthest back.
Removing portions of a path object
You can remove portions of a selected path object as defined by the overlapping portions of another selected path
object arranged in front of it.
To remove portions of a path object:
1Select the path object that defines the area to be removed.
2Select Modify > Arrange > Bring to Front.
3Hold down Shift and add to the selection the path object from which the portions are to be removed.
4Select Modify > Combine Paths > Punch.
Stroke and fill attributes remain unchanged.
Cropping a path
You can crop a path using the shape of another path. The front or topmost path defines the shape of the cropped area.
To crop a selected path:
1Select the path object that defines the area to be cropped.
2Select Modify > Arrange > Bring to Front.
3Hold down Shift and add to the selection the path object to be cropped.
4Select Modify > Combine Paths > Crop.
The resulting path object retains the stroke and fill attributes of the object that is placed farthest back.
Simplifying a path
You can remove points from a path while maintaining its overall shape. The Simplify command removes redundant
points on your path by an amount you specify.
ADOBE FIREWORKS CS3
User Guide
106
You might want to use Simplify if you have a straight line that contains more than two points, for example. (Only
two points are necessary to produce a straight line.) Or perhaps your path contains points that lie exactly on top of
one another. Simplify removes points that are unnecessary to reproduce the path you’ve drawn.
To simplify a selected path:
1Select Modify > Alter Path > Simplify.
The Simplify dialog box appears.
2Enter a simplification amount and click OK.
As you increase the amount of simplification, you increase the degree to which Fireworks can alter the path to
reduce the number of points on that path.
Expanding a stroke
You can convert the stroke of a selected path into a closed path. The resulting path creates the illusion of a path with
no fill and a stroke that takes on the same attributes as the original object’s fill.
Note: Expanding the stroke of a path that intersects itself can produce interesting results. If the original path contains a
fill, the intersecting portions of the path will not contain a fill after the stroke is expanded.
To expand a selected object’s stroke:
1Select Modify > Alter Path > Expand Stroke to open the Expand Stroke dialog box.
2Set the width of the resulting closed path.
3Specify a corner type: miter, round, or beveled.
4If you chose miter, set the miter limit, the point at which a miter corner automatically becomes a beveled corner.
The miter limit is the ratio of miter corner length to stroke width.
5Select an end cap option: butt, square, or round. Then click OK.
A closed path in the shape of the original and with the same stroke and fill attributes replaces the original path.
Contracting or expanding a path
You can contract or expand the path of a selected object by a specific number of pixels.
To expand or contract a selected path:
1Select Modify > Alter Path > Inset Path to open the Inset Path dialog box.
2Select a direction to contract or expand the path:
Inside contracts the path.
Outside expands the path.
3Set the width between the original path and the contracting or expanding path.
ADOBE FIREWORKS CS3
User Guide
107
4Specify a corner type: miter, round, or beveled.
5If you chose miter, set the miter limit, the point at which a miter corner automatically becomes a beveled corner.
The miter limit is the ratio of miter corner length to stroke width.
6Click OK.
A smaller or larger path object with the same stroke and fill attributes replaces the original path object.
Editing paths using the Path panel
The path panel provides quick access to a number of path related commands. You can use the tools on this panel to
speed up path editing tasks.
To open the Path panel:
❖Select Window > Others > Path.
The Path panel contains the tools shown below.
Icon Function
Path tools
Join paths
Split paths
Union paths
Intersect paths
Punch paths
Divide paths
Crop paths
Simplify paths
Expand paths
ADOBE FIREWORKS CS3
User Guide
108
Inset paths
Invert paths
Open/close paths
Extrude paths
Blend paths
Point tools
Straighten
Smooth
Round to whole positions
Round to half positions
Move points
Scale points
Rotate points
Mirror points
Fillet points
Select entire contour
Select all points
Deselect all points
Incrementally grow or shrink the selection
Icon Function
109
Chapter 6: Working with Text
Fireworks CS3 has many text features typically reserved for sophisticated desktop publishing applications. You can
create text in a variety of fonts and sizes and adjust kerning, spacing, color, leading, baseline shift, and more.
Combining Fireworks text-editing features with the wide range of strokes, fills, filters, and styles makes text a lively
element of your graphic designs. You can also use the Fireworks spell-checker to correct misspellings.
When you create a text object, Fireworks automatically saves the object under a name that matches the text content,
making it easier to locate later. If you prefer a different name for that text object, you can easily change the automat-
ically assigned name.
The capability to edit text anytime—even after you apply Live Filters such as drop shadows and bevels—means you
can easily make changes to text. You can also copy objects that include text and change the text for each copy. Vertical
text, transformed text, text attached to paths, and text converted to paths and images extend the design possibilities.
You can import text while retaining rich text format attributes. Also, when you import an Adobe Photoshop
document containing text, the text remains editable. Fireworks handles missing fonts upon import by asking you to
select a substitute font or allowing you to import text as a static image.
This chapter contains the following topics:
•“Entering text” on page 109
•“Formatting text” on page 112
•“Applying strokes, fills, and filters to text” on page 119
•“Attaching text to a path” on page 120
•“Transforming text” on page 121
•“Converting text to paths” on page 122
•“Importing text” on page 122
•“Checking spelling” on page 124
•“Using the Text Editor” on page 125
Entering text
You can enter, format, and edit text in your graphics using the Text tool and the options in the Property inspector.
Text tool
Note: If the Property inspector is minimized, click the expander arrow in the lower right corner to see all text properties.
ADOBE FIREWORKS CS3
User Guide
110
The Property inspector when the Text tool is selected
Naming a text object
As you add text to your Fireworks document, that text object is automatically saved under a name that matches the
text you’ve typed. You can change the assigned name to a different name, if you prefer.
To change the name of a text object
1Select the text object.
The existing name of that text object is displayed both in the Text box of the Properties inspector and in the Layers
panel object thumbnail.
2Do one of the following:
•Select the name in the Text box of the Properties inspector, and then type a new name.
•Double-click the name in the Layers panel object thumbnail, and then type a new name.
Creating text blocks
All text in a Fireworks document appears inside a rectangle with handles called a text block.
To enter text:
1Select the Text tool.
The Property inspector displays options for the Text tool.
2Select color, font, size, spacing, and other text characteristics.
3Do one of the following:
•Click in your document where you want the text block to begin. This creates an auto-sizing text block.
•Drag to draw a text block. This creates a fixed-width text block.
For information on the different types of text blocks, see “Using auto-sizing and fixed-width text blocks” on
page 111.
4Type your text. To enter a paragraph break, press Enter.
5If desired, highlight text within the text block after you type it and reformat it.
ADOBE FIREWORKS CS3
User Guide
111
6When you have finished entering text, do one of the following:
•Click outside the text block.
•Select another tool in the Tools panel.
•Press Escape.
Moving text blocks
You can select a text block and move it anywhere in your document, as you would any other object. You can also
move text blocks as you drag to create them.
To move a text block:
❖Drag it to the new location.
To move a text block while you drag to create it:
1While holding down the mouse button, press and hold down the Spacebar, then drag the text block to another
location on the canvas.
2Release the Spacebar to continue drawing the text block.
Using auto-sizing and fixed-width text blocks
Fireworks has both auto-sizing text blocks and fixed-width text blocks. An auto-sizing text block expands horizon-
tally as you type. If you remove text, the auto-sizing text block shrinks to accommodate only the remaining text.
Auto-sizing text blocks are created by default when you click on the canvas with the Text tool and start typing.
Fixed-width text blocks allow you to control the width of wrapped text. Fixed-width text blocks are created by default
when you drag to draw a text block using the Text tool.
When the text pointer is active within a text block, a hollow circle or hollow square appears in the upper right corner
of the text block. The circle indicates an auto-sizing text block; the square indicates a fixed-width text block. Double-
click the corner to change from one kind of text block to the other.
A fixed-width text block and an auto-sizing text block
A. Fixed-width indicator B. Auto-sizing indicator
To change a text block to fixed-width or auto-sizing:
1Double-click inside the text block.
2Double-click the circle or square in the upper right corner of the text block.
The text block changes to the other type.
To change a selected text block to fixed-width by resizing it:
❖Drag a resize handle.
This automatically changes the text block from auto-sizing to fixed-width.
ADOBE FIREWORKS CS3
User Guide
112
Formatting text
Within a text block, you can vary all aspects of text, including size, font, spacing, leading, and baseline shift. When
you edit text, Fireworks redraws its stroke, fill, and filter attributes accordingly.
You can change a text block’s attributes using the Property inspector. If the Property inspector is minimized, click
the expander arrow in the lower right corner to see all text properties.
Property inspector when a text block is selected
You can also use the Text Editor and the commands in the Text menu to edit text, but the Property inspector offers
the quickest way to change text attributes and provides more detailed editing control than the other two options. For
more information about the Text Editor, see “Using the Text Editor” on page 125.
Note: Changes you make during a text-editing session constitute only one Undo. Choosing Edit > Undo while editing
text will undo every text edit you’ve made from the time you double-clicked the text block to edit its contents.
To edit text:
1Select the text you want to change:
•Click a text block with the Pointer or Subselection tool to select the entire block. To select multiple blocks simul-
taneously, hold down Shift as you select each block.
•Double-click a text block with the Pointer or Subselection tool, and highlight a range of text.
•Click inside a text block with the Text tool, and highlight a range of text.
2Make your changes.
For information about changing text attributes, see “Choosing a font, size, and text style” on page 112, “Inserting
special characters” on page 113, “Setting kerning” on page 114, “Setting leading” on page 115, “Setting text orien-
tation” on page 116, “Setting text alignment” on page 116, and “Indenting text” on page 117.
3Do one of the following to apply your changes:
•Click outside the text block.
•Select another tool in the Tools panel.
•Press Escape.
Choosing a font, size, and text style
You use the Property inspector to change the font, size, and style attributes of the text in a text block.
To change the font, size, and style of selected text using the Property inspector:
1To change the font, select a font from the Font pop-up menu.
ADOBE FIREWORKS CS3
User Guide
113
Note: The fonts that were used most recently appear at the top of the Font pop-up menu.
2To change the font size, drag the Font Size pop-up slider or enter a value in the text box. Font size is measured in
points.
3To apply bold, italic, or underline formatting, click the corresponding button.
Inserting special characters
You can insert special characters into your text directly from within Fireworks, rather than having to copy and paste
those characters from another source.
To insert special characters:
1After creating a text block, click the location inside the text block where you want to insert a special character.
2Select Window > Special Characters.
3In the Special Characters panel, select the character you want to insert.
Applying text color
Text color is controlled by the Fill Color box. By default, text is black and has no stroke. You can change the color of
all text in a selected text block or of highlighted text in a text block. The Text tool retains the current text color from
text block to text block.
The Text tool retains the current text color independently of the fill color of other tools. When you use another tool
after using the Text tool, the fill and stroke settings revert to the most recent settings from before the Text tool was
used. Likewise, when you return to the Text tool, the fill color reverts to the most recent Text tool setting, and the
stroke is reset to None. Fireworks retains the current Text tool color as you switch from document to document or
close and reopen Fireworks.
You can add a stroke and Live Filters to all text in a selected text block, but not to highlighted text in a text block.
Fireworks updates stroke characteristics and Live Filters applied to a text block as you edit text in the text block, but
the Text tool does not retain stroke characteristics or Live Filters if you create a new text block. For more information,
see “Applying strokes, fills, and filters to text” on page 119.
Applying color to all text in selected text blocks
You can apply text color to all text in selected text blocks using the Property inspector, any Fill Color box, or the
Eyedropper tool. You can also use any of these methods to set the stroke color for the Text tool.
To set the color of all text in a selected text block, do one of the following:
•Click the Fill Color box in the Property inspector and select a color from the color pop-up window, or sample a
color from anywhere on the screen using the eyedropper pointer while either color pop-up window is open.
ADOBE FIREWORKS CS3
User Guide
114
A. Fill Color box
•In the Tools panel, click the Fill Color box and select a color from the color pop-up window, or sample a color
from anywhere on the screen using the eyedropper pointer while the Fill Color box pop-up window is open.
•In the Tools panel, click the icon next to the Fill Color box, select the Eyedropper tool, and then click to sample a
color anywhere in any open document.
The color of the Fill Color box in the Tools panel changes to reflect the color you sample with either the eyedropper
pointer or the Eyedropper tool, and the color of the selected text also changes.
Applying color to highlighted text in a text block
You can change the text color of highlighted text in a text block using the Property inspector or any Fill Color box.
You cannot use the Eyedropper tool to edit the color of highlighted text.
Note: If you attempt to apply a stroke to highlighted text in a text block, the entire text block is automatically selected.
To apply text color only to highlighted text in a text block, do one of the following:
•Click the Fill Color box in the Property inspector and select a color from the color pop-up window, or sample a
color from anywhere on the screen using the eyedropper pointer while the Fill Color box pop-up window is open.
•Click the Fill Color box in the Tools panel and select a color from the color pop-up window, or sample a color from
anywhere on the screen using the eyedropper pointer while the Fill Color box pop-up window is open.
Setting kerning
Kerning increases or decreases the spacing between certain pairs of letters to improve their appearance. Most fonts
include information that automatically reduces the amount of space between certain letter pairs, such as “TA” or
“Va.” Fireworks auto-kerning uses a font’s kerning information when displaying text, but you may want to turn it off
at smaller point sizes, or when the text has no anti-aliasing. Kerning is measured as a percentage.
You can use the Property inspector or the keyboard to set kerning.
To disable automatic kerning:
❖In the Property inspector, deselect Auto Kern. If the Property inspector is minimized, click the expander arrow in
the lower right corner to see all properties.
ADOBE FIREWORKS CS3
User Guide
115
To set kerning:
1Do one of the following to select the text you want to kern:
•Click between two characters with the Text tool.
•Use the Text tool to highlight the characters you want to change.
•Use the Pointer tool to select an entire text block. Shift-click to select multiple text blocks.
2Do one of the following:
•In the Property inspector, drag the Kerning pop-up slider or enter a percentage in the text box.
A. Kerning pop-up slider B. Kerning percentage
Zero represents normal kerning. Positive values move letters farther apart. Negative values move letters closer
together.
•Hold down Control (Windows) or Command (Macintosh) while pressing the Left Arrow or Right Arrow keys on
the keyboard.
The Left Arrow key decreases the space between letters by 1%, and the Right Arrow key moves letters farther apart
by 1%.
Hold down Shift and Control (Windows) or Shift and Command (Macintosh) while pressing the Left Arrow or
Right Arrow keys to adjust kerning by 10% increments.
Setting leading
Leading determines the distance between adjacent lines in a paragraph. Leading can be measured in pixels or as a
percentage of the distance, in points, separating the lines baseline to baseline.
You can use the Property inspector or the keyboard to set leading.
Leading options in the Property inspector
To set the leading of selected text in the Property inspector:
1In the Property inspector, drag the Leading pop-up slider or enter a value in the text box. The default is 100%.
2To change the leading unit type, select % or px (pixels) from the Leading Units pop-up menu.
To set the leading of selected text using the keyboard:
❖Hold down Control (Windows) or Command (Macintosh) while pressing the Up Arrow or Down Arrow keys.
The Up Arrow key increases the space between lines, and the Down Arrow key moves lines closer together.
Hold down Shift and Control (Windows) or Shift and Command (Macintosh) while pressing the Up Arrow or
Down Arrow keys to adjust leading by increments of 10.
ADOBE FIREWORKS CS3
User Guide
116
Setting text orientation
A text block can be oriented horizontally or vertically. By default, text is oriented horizontally.
Horizontal and vertical orientation
Text can also flow right to left or left to right.
Text flowing right to left and left to right
In Fireworks, you set horizontal and vertical orientation as well as the direction of text flow in the Property
inspector. These settings apply to entire text blocks only.
To set the orientation of a selected text block:
1 Click the Text Orientation button in the Property inspector.
2Select an orientation option from the pop-up menu:
Horizontal Left to Right is the default setting for text in Fireworks for most languages. It orients text horizontally
and displays characters from left to right.
Horizontal Right to Left orients text horizontally and displays characters from right to left. It is useful for displaying
text in languages where text flows from right to left, such as Hebrew or Arabic.
Vertical Left to Right orients text vertically. If you apply this to lines of text separated by hard or soft returns, each
line of text is displayed as a column. The columns flow from left to right.
Vertical Right to Left orients text vertically. Multiple lines of text separated by returns are displayed as columns that
flow from right to left. This option is useful for displaying text in languages such as Japanese in which text flows
from right to left in columns.
Note: Vertical text characters always flow from top to bottom. Choosing one of the Vertical orientation options affects
only the order of text columns, not the order of text characters.
Setting text alignment
Alignment determines the position of a paragraph of text relative to the edges of its text block. In horizontal
alignment, text is aligned relative to the left and right edges of a text block. In vertical alignment, text is aligned
relative to the top and bottom edges of a text block. For more information on setting horizontal or vertical text
orientation, see “Setting text orientation” on page 116.
You can align horizontal text to the left or right edges of the text block, center it, or fully justify it, so that text aligns
to both the left and right edges. By default, horizontal text is left-aligned.
ADOBE FIREWORKS CS3
User Guide
117
Vertical text can be aligned to the top or bottom of a text block, centered within the text block, or fully justified
between both the top and bottom edges.
To achieve a stretched filter, or to fit text into a specific space, you can set the alignment to stretch the text horizon-
tally (for horizontally oriented text) or vertically (for vertically oriented text).
Horizontal text stretched to fill a text block
The alignment controls appear in the Property inspector when text is highlighted or a text block is selected.
Text alignment options in the Property inspector
To set text alignment:
1Select the text.
2Click an alignment button in the Property inspector.
Indenting text
You can indent the first line of a paragraph using the Property inspector. Indention is measured in pixels.
Paragraph indent option in the Property inspector
If the Property inspector is minimized, click the expander arrow in the lower right corner to see all properties.
To indent the first line of selected paragraphs:
❖In the Property inspector, drag the Paragraph Indent pop-up slider or enter a value in the text box.
Setting paragraph spacing
You can specify the amount of spacing you want before and after paragraphs using the Property inspector. Paragraph
spacing is measured in pixels.
Paragraph spacing options in the Property inspector
If the Property inspector is minimized, click the expander arrow in the lower right corner to see all properties.
To set the space that precedes selected paragraphs:
❖In the Property inspector, drag the Space Preceding Paragraph pop-up slider or enter a value in the text box.
To set the space after selected paragraphs:
❖In the Property inspector, drag the Space After Paragraph pop-up slider or enter a value in the text box.
ADOBE FIREWORKS CS3
User Guide
118
Smoothing text edges
To smooth out a text edge, you “anti-alias” it. This makes the edges of the text blend into the background so that the
text is cleaner and more readable when it is large.
Original text; after smoothing
You use the Property inspector to set anti-aliasing. If the Property inspector is minimized, click the expander arrow
in the lower right corner to see all properties. Anti-aliasing applies to all characters in a given text block.
No Anti-Alias disables text smoothing.
Crisp Anti-Alias creates a sharp transition between the edges of the text and the background.
Strong Anti-Alias creates a very abrupt transition between the edges of the text and the background, preserving the
shapes of the text characters and enhancing detailed areas of the characters.
Smooth Anti-Alias creates a soft transition between the edges of the text and the background.
System Anti-Alias uses the text smoothing method provided by Windows XP or Mac OS X.
Custom Anti-Alias provides the following expert-level controls over anti-aliasing:
Oversampling determines the amount of detail used for creating the transition between the text edges and the
background.
Sharpness determines the smoothness of the transition between the text edges and the background.
Strength determines how much the text edges blend into the background.
To apply an anti-aliased edge to selected text:
❖In the Property inspector, select one of options from the Anti-Aliasing pop-up menu:
Note: When you open vector files, such as Adobe FreeHand files, in Fireworks, text is anti-aliased. You can edit this
attribute using the Property inspector. For more information, see “Opening graphics created in other applications” on
page 16.
Adjusting character width
You can expand or contract the character width of horizontal text using the Horizontal Scale option in the Property
inspector.
Horizontal scale is measured in percentage values. 100% is the default.
Horizontal Scale option in the Property inspector
If the Property inspector is minimized, click the expander arrow in the lower right corner to see all properties.
To expand or contract selected characters:
❖In the Property inspector, drag the Horizontal Scale pop-up slider or enter a value in the text box. Drag the slider
higher than 100% to expand the width or height of the characters, and drag it lower to reduce their width or height.
ADOBE FIREWORKS CS3
User Guide
119
Setting baseline shift
Baseline shift determines how closely text sits above or below its natural baseline. If there is no baseline shift, the text
sits on the baseline. You can use baseline shift to create subscript and superscript characters.
The baseline shift controls are in the Property inspector. Baseline shift is measured in pixels.
Baseline Shift option in the Property inspector
To set baseline shift for selected text:
❖In the Property inspector, drag the Baseline Shift pop-up slider or enter a value in the text box to specify how low
or high, respectively, Fireworks should place the subscript or superscript text. Enter positive values to create super-
script characters. Enter negative values to create subscript characters.
Applying strokes, fills, and filters to text
You can apply strokes, fills, and filters to text in a selected text block as you would to any other object. You can apply
any style in the Styles panel to text, even if it is not a text style. You can also create a new style by saving text attributes.
After you create text, it remains editable in Fireworks. Strokes, fills, filters, and styles are updated automatically as
you edit the text.
Text with stroke, fill, filter, and style applied
You can apply solid text color to highlighted text in a text block. However, stroke attributes and non-solid fill
attributes such as gradient fills are applied to all text in a selected text block, not just to the highlighted text.
For more information about strokes and fills, see “Applying Color, Strokes, and Fills” on page 126. For more infor-
mation about using styles, see “Using styles” on page 183. For information about Live Filters, see “Applying Live
Filters” on page 147.
The Text tool does not retain stroke or Live Filter settings when you create a new text block. However, you can save
stroke, fill, and Live Filters attributes that you apply to text for reuse as a style in the Styles panel. Saving text attributes
as a style saves only the attributes, not the text itself.
To save text attributes as a style:
1Create a text object and apply the attributes you want.
2Select the text object.
3Select New Style from the Styles panel Options menu.
4Select the properties for the new style and name it.
5Click OK.
ADOBE FIREWORKS CS3
User Guide
120
Attaching text to a path
To free text from the restrictions of rectangular text blocks, you can draw a path and attach text to it. The text flows
along the shape of the path and remains editable.
A path to which you attach text temporarily loses its stroke, fill, and filter attributes. Any stroke, fill, and filter
attributes you apply subsequently are applied to the text, not the path. If you then detach the text from the path, the
path regains its stroke, fill, and filter attributes.
Note: Attaching text that contains hard or soft returns to a path can produce unexpected results.
If text attached to an open path exceeds the length of the path, the remaining text returns and repeats the shape of
the path.
Text on a path that returns and repeats the path shape
To place text on a path:
1Shift-select a text block and a path.
2Select Text > Attach to Path.
To detach text from a selected path:
❖Select Text > Detach from Path.
Editing paths and text attached to paths
Text that you have attached to a path remains editable. In addition, you can edit the shape of the path.
To edit text attached to a path, do one of the following:
•Double-click the text-on-a-path object with the Pointer or the Subselection tool.
•Select the Text tool and select the text to edit.
To edit the shape of the path:
1Using the Subselection tool, select the text-on-a-path object. The path points are now subselected and ready to be
edited.
2Drag the points to reshape the path.
Note: You can also use the Bezier Pen tool to edit the path. The text will automatically flow correctly around the path as
points are edited.
ADOBE FIREWORKS CS3
User Guide
121
Changing text orientation and direction on a path
The order in which you draw a path establishes the direction of the text attached to it. For example, if you draw a
path from right to left, the attached text appears backward and upside down.
Text attached to a path drawn right to left
You can change the orientation or reverse the direction of the text attached to a path. You can also change the starting
point of text on a path.
To change the orientation of text on a selected path:
❖Select Text > Orientation and select an orientation.
Text rotated around a path
Text oriented vertically on a path
Text skewed vertically around a path
Text skewed horizontally around a path
To reverse the direction of text on a selected path:
❖Select Text > Reverse Direction.
To move the starting point of text attached to a path:
1Select the text-on-a-path object.
2In the Property inspector, enter a value in the Text Offset text box. Then press Enter.
Note: If the Property inspector is minimized, click the expander arrow in the lower right corner to see all properties.
Transforming text
You can transform text blocks in the same ways you can transform other objects. You can scale, rotate, skew, and flip
text to create unique text effects.
ADOBE FIREWORKS CS3
User Guide
122
You can still edit the transformed text, although severe transformations may make the text difficult to read. When a
text block transformation causes text to be resized or scaled, the resulting font size appears in the Property inspector
when the text is selected.
Converting text to paths
You can convert text to paths and then edit the shapes of the letters as you would any vector object. All vector-editing
tools are available after you convert text to paths. However, you can no longer edit it as text.
To convert selected text to paths:
❖Select Text > Convert to Paths.
Text converted to paths retains all of its visual attributes, but you can edit it only as paths. You can edit the converted
text as a group or edit the converted characters individually.
To edit converted text character paths individually, do one of the following:
•Select the converted text with the Subselection tool.
•Select the converted text and select Modify > Ungroup.
You can edit the individual converted character paths using the vector-editing tools. For more information on
editing paths, see “Editing paths” on page 100.
You can create a composite path from a text object that was created by converting text to paths.
To create a composite path from a path group that was created by converting text to paths:
1Select the path group.
2Select Modify > Ungroup.
3Select Modify > Combine Paths > Join.
Importing text
You can copy text from a source document and paste into the current Fireworks document, or you can drag it from
the source to the current document. You can also open or import an entire text file in Fireworks.
Fireworks can import RTF (rich text format) and ASCII (plain text) formats.
To open or import a text file:
1Select File > Open or File > Import.
2Navigate to the folder containing the file.
3Select the file and click OK.
ADOBE FIREWORKS CS3
User Guide
123
Photoshop text
You can open or import a Photoshop file containing text. You can also copy text from a Photoshop file and paste into
the current Fireworks document or drag it from the Photoshop file to the current document. For more information,
see “Opening graphics created in other applications” on page 16.
RTF files
When importing RTF text, Fireworks maintains these attributes:
•Font, size, and style (bold, italic, underline)
•Alignment (left, right, center, justified)
•Leading
•Baseline shift
•Range kerning
•Horizontal scale
•Color of the first character
All other RTF information is ignored.
In Fireworks, you cannot import RTF text by copying and pasting or dragging and dropping.
ASCII text
You can import ASCII text using any of the import methods. Imported ASCII text is set to the current default font,
12 pixels high, and to the current fill color.
Handling missing fonts
If you open a document in Fireworks that contains fonts not installed on your computer, Fireworks asks if you want
to replace the fonts or maintain their appearance. This is useful if you share files with users on other computers that
may not have the same fonts installed.
Choosing Maintain Appearance replaces the text with a bitmap image that represents the appearance of the text in
its original font. You can still edit the text, but when you do so, Fireworks replaces the bitmap image with a font that’s
installed on your system. This can cause the appearance of the text to change.
You can select fonts to replace the missing fonts. After you replace fonts, the document opens and you can edit and
save the text. When the document is reopened on a computer that contains the original fonts, Fireworks remembers
and uses the original fonts.
To select a replacement font:
1Open a document with missing fonts.
The Missing Fonts dialog box opens.
2Select a missing font from the Change Missing Font list.
3Do one of the following:
•Select a replacement font from the To list.
•Select to display the text in the default system font.
•To leave the missing font as is, click No Change.
ADOBE FIREWORKS CS3
User Guide
124
4Click OK.
The next time you open a document with the same missing fonts, the Missing Fonts dialog box includes the font you
chose.
Checking spelling
You can use the Check Spelling command in the Text menu to check spelling for specific text blocks or all text in a
document.
To spell-check text:
1Select one or more text blocks. If no text blocks are selected, Fireworks checks spelling in the entire document.
2Select Text > Check Spelling.
3If you have not checked spelling before in Fireworks, you see a dialog box asking you to select a dictionary. Click
OK to close the dialog box. Select a language from the Dictionary list, and click OK.
If you don’t select a language, Fireworks prompts you to select a language dictionary every time you spell-check a
document.
Note: The Adobe.tlx option is always selected at the top of the Dictionary list. For more information about this option,
see “Customizing spell checking” on page 124.
4The Check Spelling dialog box opens. For each word found, select the appropriate option:
Add to Personal adds the unrecognized word to your personal dictionary.
Ignore skips the current instance of the unrecognized word.
Ignore All skips all instances of the unrecognized word during the current spell-check session. The next time you
spell-check, Fireworks once again identifies the word as unrecognized.
Change replaces the current instance of the unrecognized word with text that you type in the Change To box or with
the selection in the Suggestions list.
Change All replaces all instances of the unrecognized word in the same manner.
Delete removes a duplicate word when one is found.
When it finishes checking the spelling in a document, Fireworks closes the Check Spelling dialog box and displays
a message indicating that the spell-check is complete.
Customizing spell checking
You can customize the way Fireworks spell-checks documents using the Spelling Setup dialog box.
From here you can specify one or more language dictionaries for Fireworks to use during spell checking, as well as
edit the words in your personal dictionary. You can also specify which items you want Fireworks to spell-check,
including Internet and file addresses.
To customize spell checking in Fireworks:
1Do one of the following:
•Select Text > Spelling Setup.
•Click the Setup button in the Check Spelling dialog box.
ADOBE FIREWORKS CS3
User Guide
125
2Select the desired options in the Spelling Setup dialog box:
•Select one or more language dictionaries.
Note: The Macromedia.tlx option is always selected at the top of the dictionary list. This is the file that contains your
custom spelling dictionary.
•Browse for a custom dictionary by clicking the folder icon beside the Personal Dictionary Path text box.
•Edit the custom dictionary by clicking the Edit Personal Dictionary button and adding, deleting, or modifying
words in the list.
•Select the types of words you want to include in the spell-check.
3Click OK.
Using the Text Editor
In Fireworks 4 and previous versions, the Text Editor was used to create and edit text. All text-editing and
formatting options found in the Text Editor are now located in the Property inspector. However, you still have
access to the Text Editor through the Text menu.
The Text Editor is useful for working with text that might be difficult to edit onscreen, such as large text blocks, text
attached to a path, or text with hard-to-read fonts and sizes. You can choose to display such text in the system font
and default size if necessary to make editing easier.
To display the Text Editor:
1Select a text block and select Text > Editor.
2Modify and format the text using the options available.
3Click OK to apply changes and close the Text Editor.
To view text in the system font:
•Deselect Show Font in the Text Editor.
To view text in the default size:
•Deselect Show Size & Color in the Text Editor.
126
Chapter 7: Applying Color, Strokes,
and Fills
Fireworks CS3 has a wide range of panels, tools, and options for organizing and selecting colors, and applying colors
to bitmap images and vector objects.
In the Swatches panel, you can select a preset swatch group such as Color Cubes, Continuous Tone, or Grayscale, or
you can create custom swatch groups that include your favorite colors or colors approved by your client. In the Color
Mixer, you can select a color model such as Hexadecimal, RGB, or Grayscale, and then select stroke and fill colors
directly from the color bar or by entering specific color values.
Throughout the Fireworks workspace you will find color boxes that show the current color choices for options and
object characteristics. When you click a color box, you see a color pop-up window from which you can select a color
for the color box. Move the pointer away from an open color pop-up window, and you can click any color on your
screen to apply it to the color box.
The Colors section of the Tools panel contains stroke and fill color controls and other color options. The Bitmap
section contains the Paint Bucket, Gradient Fill, and Eyedropper tools, which you can use to apply color to bitmap
selections, areas of similar color, and vector objects. For information on these bitmap tools, see “Working with
Bitmaps” on page 61.
Note: For information about color correction using Live Filters and filters, see “Adjusting bitmap color and tone” on
page 71.
This chapter contains the following topics:
•“Using the Colors section of the Tools panel” on page 126
•“Organizing swatch groups and color models” on page 127
•“Using color boxes and color pop-up windows” on page 135
•“Working with strokes” on page 136
•“Working with fills” on page 140
•“Applying gradient and pattern fills” on page 141
•“Adding texture to strokes and fills” on page 145
Using the Colors section of the Tools panel
The Colors section of the Tools panel contains controls for activating the Stroke Color and Fill Color boxes, which
in turn determine whether the strokes or fills of selected objects are affected by color choices. Also, the Colors section
has controls for quickly resetting colors to the default, setting the stroke and fill color settings to None, and swapping
fill and stroke colors.
To make the Stroke Color or Fill Color box active:
❖In the Tools panel, click the icon next to the Stroke Color or Fill Color box. The active color box area appears as a
depressed button in the Tools panel.
ADOBE FIREWORKS CS3
User Guide
127
Note: The Paint Bucket tool fills pixel selections and vector objects with the color shown in the Fill Color box in the Tools
panel.
Color boxes in the Tools panel and the color pop-up window
To reset colors to the default:
❖Click the Default Colors button in the Tools panel or in the Color Mixer.
To remove the stroke and fill from selected objects using the No Stroke or Fill button:
1Click the No Stroke or Fill button in the Colors section of the Tools panel.
The active characteristic changes to a stroke or fill of None.
2To set the inactive characteristic to None as well, click the No Stroke or Fill button again.
Note: You can also set the fill or stroke of selected objects to None by clicking the Transparent button in any Fill Color or
Stroke Color box pop-up window, or by selecting None from the Fill Options or Stroke Options pop-up menu in the
Property inspector.
To swap fill and stroke colors:
❖ Click the Swap Colors button in the Tools panel or in the Color Mixer.
Organizing swatch groups and color models
The Swatches panel and Color Mixer combine to form the Colors panel group. In the Swatches panel you can view,
change, create, and edit swatch groups, as well as select stroke and fill colors. You can use the Color Mixer to select
a color model, mix stroke and fill colors by dragging color value sliders or entering color values, and select stroke
and fill colors directly from the color bar. You can also use the Color Palette panel to create and swap color palettes,
and explore alternate color schemes.
Applying colors using the Swatches panel
The Swatches panel displays all the colors in the current swatch group. You can use the Swatches panel to apply
stroke and fill colors to selected vector objects or text.
To apply a color to the stroke or fill of a selected object using the Swatches panel:
1Click the icon next to the Stroke Color or Fill Color box in the Tools panel or Property inspector to make it active.
2If the Swatches panel is not already open, select Window > Swatches.
3Click a swatch to apply the color to the stroke or fill of the selected object. The color appears in the active Stroke
Color or Fill Color box.
ADOBE FIREWORKS CS3
User Guide
128
Changing swatch groups
You can easily switch to another swatch group or create your own. The Swatches panel Options menu contains the
following swatch groups: Color Cubes, Continuous Tone, Macintosh System, Windows System, and Grayscale. You
can import custom swatches from color palette files saved as ACT or GIF files.
To select a swatch group:
❖Select a swatch group from the Swatches panel Options menu.
Note: Selecting Color Cubes returns you to the default swatch group.
To select a custom swatch group:
1Select Replace Swatches from the Swatches panel Options menu.
2Navigate to the folder and select a swatch file.
3Click Open.
The color swatches in the swatch file replace the previous swatches.
Note: For information on creating a custom swatch group, see “Customizing the Swatches panel” on page 128 and
“Saving palettes” on page 270.
To add swatches from an external color palette to the current swatches:
1Select Add Swatches from the Swatches panel Options menu.
2Navigate to the desired folder and select a color palette file.
Note: Fireworks can add new swatches from palettes exported as ACT or GIF files.
3Click OK.
Fireworks adds the new swatches at the end of the current swatches.
Customizing the Swatches panel
You can add, delete, replace, and sort color swatches or entire swatch groups using the Swatches panel.
Note: Selecting Edit > Undo does not undo swatch additions or deletions.
Swatches panel
To add a color to the Swatches panel:
1Select the Eyedropper tool from the Tools panel.
2Select the number of pixels to sample from the Sample pop-up menu in the Property inspector: 1 pixel, 3x3
Average, or 5x5 Average.
3Click anywhere inside any open Fireworks Document window to sample a color.
ADOBE FIREWORKS CS3
User Guide
129
4Move the tip of the eyedropper pointer to the open space after the last swatch in the Swatches panel.
The eyedropper pointer becomes the paint bucket pointer.
5Click to add the swatch.
When you select Snap to Web Safe in the Options menu of the color pop-up window, any non-websafe color you
pick up with the eyedropper pointer is changed to the nearest websafe color.
To replace a swatch with another color:
1Select the Eyedropper tool from the Tools panel.
2Select the number of pixels to sample from the Sample pop-up menu in the Property inspector: 1 pixel, 3x3
Average, or 5x5 Average.
3Click anywhere inside any Fireworks Document window to sample a color.
4Hold down Shift and place the pointer over a swatch in the Swatches panel.
The pointer becomes the paint bucket pointer.
5Click the swatch to replace it with the new color.
To delete a swatch from the Swatches panel:
1Hold down Control (Windows) or Command (Macintosh) and place the pointer over a swatch.
The pointer becomes the scissors pointer.
2Click the swatch to delete it from the Swatches panel.
To save a selection of sampled colors:
1Add sampled colors to the Swatches panel.
2Select Save Swatches from the Swatches panel Options menu.
The Export Swatches dialog box opens.
3Select a filename and directory and click Save.
Clearing and sorting swatches
You can clear and sort swatches using the Swatches panel Options menu.
To clear or sort swatches:
❖Select one of the following from the Swatches panel Options menu:
Clear Swatches clears the entire Swatches panel.
Sort by Color sorts the swatches by color value.
Creating colors in the Color Mixer
In the Color Mixer, you can create colors by dragging sliders or entering values for each component of a color model
such as RGB, Hexadecimal, or CMY. The color you create is applied to the active Stroke Color or Fill Color box. The
Color Mixer also has a color bar displaying the range of colors in the current color model. You can click anywhere
in the color bar to apply a color. You can also click the system color picker button to select a Windows or Macintosh
system color.
ADOBE FIREWORKS CS3
User Guide
130
Although CMY is a color model option, graphics directly exported from Fireworks are not ideal for printing. To
repurpose exported Fireworks graphics for print, you can import them into Adobe Illustrator, Adobe Photoshop,
or Adobe FreeHand, which automatically perform CMYK conversion of RGB images when output to digital color
separations. For more information, see the documentation for those programs.
Mixing colors in the Color Mixer
You can use the Color Mixer to view the values of the active color and edit color values to create new colors.
By default, the Color Mixer identifies RGB colors as hexadecimal, displaying hexadecimal color values for red (R),
green (G), and blue (B) color components. Hexadecimal RGB values are calculated based on a range of values from
00 to FF.
You can select alternative color models from the Color Mixer Options menu. The current color’s component values
change with each new color model.
To display the Color Mixer:
❖Select Window > Color Mixer.
To apply a color from the color bar to a selected vector object:
1Click the icon next to the Stroke Color or Fill Color box in the Color Mixer.
2Move the pointer over the color bar.
The pointer becomes the eyedropper pointer.
3Click to pick a color.
The color is applied to the selected object and becomes the active stroke or fill color.
Color model Mode of color expression
RGB Values of Red, Green, and Blue, where each component has a value from 0 to 255. 0-0-0 is black
and 255-255-255 is white.
Hexadecimal RGB values of Red, Green, and Blue, where each component has a hexadecimal value from 00
to FF. 00-00-00 is black and FF-FF-FF is white.
HSB Values of Hue, Saturation, and Brightness, where Hue has a value from 0 to 360 degrees, and
Saturation and Brightness have a value from 0 to 100%.
CMY Values of Cyan, Magenta, and Yellow, where each component has a value from 0 to 255. 0-0-0
is white and 255-255-255 is black.
Grayscale A percentage of black. The single Black (K) component has a value from 0 to 100%, where 0 is
white, 100 is black, and values in between are shades of gray.
ADOBE FIREWORKS CS3
User Guide
131
To pick a color from the Color Mixer:
1Deselect all objects before mixing a color to prevent unwanted object editing as you mix colors.
2Click either the Stroke Color or Fill Color box to make it the destination for the new color.
3Select a color model from the Color Mixer Options menu.
4Do any of the following to specify color component values:
•Enter values in the color component text boxes.
•Use the pop-up sliders.
•Pick a color from the color bar.
You can add this color to the Swatches panel to reuse. For more information, see “Customizing the Swatches panel”
on page 128.
To cycle the color bar through the color models:
❖Shift-click the color bar at the bottom of the Color Mixer.
Note: The options in the Color Mixer do not change.
Creating colors using the system color pickers
You can create colors using the Windows System or the Macintosh System dialog boxes, instead of using the Color
Mixer and Swatches panel.
To pick a color from the system color picker:
1Click any color box.
2Select Windows OS or Mac OS from any color pop-up window Options menu.
The system color swatches are displayed in the pop-up window.
3Select a color from the system color picker.
The color becomes the new stroke or fill color.
For information on adding a color to the Swatches panel from the color picker, see “Customizing the Swatches panel”
on page 128.
Viewing color values
In addition to the Color Mixer and color pop-up window, you can use the Info panel to identify color values.
To view the color value of any part of your document using the Info panel:
1Click the Eyedropper tool in the Tools panel.
2Select Window > Info to display the Info panel.
3Move the pointer over the object containing the color you want to view (Windows only).
To view the color value of the active stroke or fill color, do one of the following:
•Select Window > Color Mixer for RGB or other color system values.
•Click a color box to open the color pop-up window and view the hexadecimal value at the top of the window.
•Place the pointer over a color box and read the tool tip (Windows only).
ADOBE FIREWORKS CS3
User Guide
132
Note: By default, the color’s RGB values appear in the Info panel and the Color Mixer, and its hexadecimal value appears
in the color pop-up window, as well as the color box tool tip in Windows. However, you can change the color model
displayed in the Color Mixer or the Info panel anytime.
To display color information for another color model:
❖Select another color model from the Info panel Options menu or the Color Mixer Options menu.
Dithering with websafe colors
Sometimes you might need to use a color that is not a websafe color. For example, your company logo may use a color
that is not websafe. To approximate a websafe color that doesn’t shift or dither when exported with a websafe palette,
you use a web dither fill.
Note: Web dithering can increase the size of the file.
Two websafe colors create a web dither fill.
To use the web dither fill:
1Select an object containing a non-websafe color.
2Select Web Dither from the Fill Options pop-up menu in the Property inspector.
3Click the Fill Color box in the Property inspector.
The color pop-up window opens, displaying options for web dither fills. The object’s non-websafe color appears in
the Source color box in the Fill Options window. The two websafe dither colors appear in the color boxes to the right.
The web dither appears on the object and becomes the active fill color.
Note: Setting the edge of a web dither fill to Anti-Alias or Feather results in colors that are not websafe.
4Click outside the pop-up window to close it.
To create the illusion of a true transparent fill in a web browser:
1Select the object to which you want to apply a transparent fill.
2Select Web Dither from the Fill Options pop-up menu in the Property inspector.
3Click the Fill Color box in the Property inspector. The color pop-up window opens, displaying options for web
dither fills.
4Click the Transparent option.
The color boxes on the right side of the pop-up window change to reflect your selection, and the object on the canvas
becomes semi-opaque, or translucent.
5Click outside the pop-up window to close it.
6Export the object as a GIF or PNG file with Index Transparency or Alpha Channel Transparency set. For more
information on exporting files with transparency, see “Making areas transparent” on page 271.
ADOBE FIREWORKS CS3
User Guide
133
When you view the graphic in a web browser, the web page background shows through every other pixel of the trans-
parent web dither fill, creating the appearance of transparency.
Note: Not all browsers support PNG files.
Color management using the Color Palette panel
The Color Palette panel gives you the ability to create and swap color palettes, export custom ACT color swatches,
explore various color schemes and access commonly used controls for choosing colors.
The palette contains three tabs: Selector, Mixers, and Blender.
To open the Color Palette panel:
❖Select Window > Others > Color Palette
To find the nearest web safe color for any color value:
1Click the fill color box on the Selector tab of the Color Palette panel to make it active.
2Use the eyedropper pointer to click anywhere inside any Fireworks Document window to sample a color.
The color appears in the active fill color box and the nearest web safe color is displayed below it.
On the Selector tab you can also convert colors between color models such as RGB and CMYK, and select the mode
for displaying colors such as by byte or percentage.
ADOBE FIREWORKS CS3
User Guide
134
To create and swap color palettes for your document:
1Select the Mixers tab in the Color Palette panel.
2Use the four fill color boxes at the bottom of the panel to set the four base colors for your document. A palette is
automatically created.
3If needed, use the HSB color wheel in the lower right corner of the panel to modify the hue, saturation, or
brightness of your palette. Each change is automatically applied to the entire palette.
4If you would like to try out two different palettes in your document, click Palette2 on the left side of the panel and
pick out the base colors for your second palette.
5After creating your palettes, click on the two Replace color icons in the lower left section of the panel to switch
back and forth between the two palettes.
Note: The swap palette function replaces fills, strokes, and gradients in vector elements, but not in bitmap elements or
graphic symbols.
To export a palette:
1Select the palette you want to export (either Palette 1 or Palette 2).
2Click the Export as bitmap icon to export the palette as a bitmap file, or click the Export as color table icon to
export the palette as an ACT file.
ADOBE FIREWORKS CS3
User Guide
135
To create a color gradation series using the Blender tab:
1Select the Blender tab in the Color Palette panel.
2Use the fill color boxes at the bottom of the panel to select beginning and ending colors for the series.
3Use the Steps pop-up slider to select the number of steps in the series.
After you have created the gradation series, you can apply any of the colors within your document. You can also place
your mouse pointer over any color swatch to see the hexidecimal value of the color.
Using color boxes and color pop-up windows
Throughout Fireworks you will find color boxes—from the Colors section of the Tools panel to the Property
inspector to the Color Mixer. Each displays the current color assigned to the associated object property.
Selecting colors from a color pop-up window
When you click any color box, a color pop-up window similar to the Swatches panel opens. You can choose to display
the same swatches in a color pop-up window as those that are displayed in the Swatches panel, or you can display
different swatches.
To select a color for a color box:
1Click the color box.
The color pop-up window opens.
2Do one of the following:
•Click a swatch to apply it to the color box.
•Click the eyedropper pointer on a color anywhere on the screen to apply it to the color box.
•Click the Transparent button in the pop-up window to make the stroke or fill transparent.
To display the current Swatches panel swatch group in the color pop-up window:
❖Select Swatches Panel from the color pop-up window Options menu.
ADOBE FIREWORKS CS3
User Guide
136
To display a different swatch group in the color pop-up window:
❖Select a swatch group from the color pop-up window Options menu. Selecting a swatch group here does not affect
the Swatches panel.
Sampling colors from a color pop-up window
When a color pop-up window is open, the pointer becomes a special eyedropper that can take up colors from almost
anywhere on the screen. This is known as sampling.
To sample a color from anywhere on the screen for the current color box:
1Click any color box.
The color pop-up window opens, and the pointer changes to an eyedropper.
2Click anywhere in the Fireworks workspace to select a color for the color box.
The color is applied to the characteristic or feature associated with the color box, and the color pop-up window
closes.
Shift-click to select a websafe color.
Working with strokes
Using the Property inspector, the Stroke Options pop-up menu, and the Edit Stroke dialog box, you can have full
control of every brush nuance, including ink amount, tip size and shape, texture, edge effect, and aspect.
Applying strokes
You can change the stroke attributes of the Pen and Brush tools so that the next vector object you draw has the new
stroke attributes, or you can apply stroke attributes to an object or path after you draw it.
The current stroke color appears in the Stroke Color box in the Tools panel, the Property inspector, and the Color
Mixer. You can change the stroke color of a drawing tool or selected object from any of these three panels.
The pencil icon indicates the Stroke Color box in the Tools panel, the Property inspector, and the Color Mixer.
To change stroke attributes of selected objects, do one of the following:
•Select from among the stroke attributes in the Stroke Category pop-up menu in the Property inspector.
•Select Stroke Options from the Stroke Category pop-up menu to see more options. Select from among the stroke
attributes in the Stroke Options pop-up window.
ADOBE FIREWORKS CS3
User Guide
137
Use the options in the Property inspector or the Stroke Options pop-up window to change the stroke applied to an object.
To change the stroke color of a drawing tool:
1Press Control+D (Windows) or Command+D (Macintosh) to deselect all objects.
2Select a drawing tool in the Tools panel.
3Click the Stroke Color box in the Tools panel or Property inspector to open the color pop-up window.
4Select a color for the stroke from the set of swatches.
5Drag to draw the object.
Note: A newly created stroke assumes the color currently displayed in the Stroke Color box.
To remove all stroke attributes from a selected object, do one of the following:
•Select None from the Stroke Category pop-up menu in the Property inspector or the Stroke Options pop-up
window.
• Click the Stroke Color box in either the Tools panel or the Property inspector and click the Transparent
button.
ADOBE FIREWORKS CS3
User Guide
138
Creating custom strokes
You can use the Edit Stroke dialog box to change specific stroke characteristics.
The Edit Stroke dialog box has three tabs: Options, Shape, and Sensitivity.
The stroke preview at the bottom of each tab shows the current brush with the current settings. The current pressure-
and speed-sensitivity settings are reflected in the preview by a stroke that tapers or fades or otherwise changes from
left to right.
To open the Edit Stroke dialog box:
1Select Stroke Options from the Stroke Category pop-up menu in the Property inspector.
2Click Advanced.
The Edit Stroke dialog box opens.
To set general brush stroke options:
1On the Options tab of the Edit Stroke dialog box, set the ink amount, spacing, and flow rate. Higher flow rates
create brush strokes that flow over time, as with an airbrush.
2To overlap brush strokes for dense strokes, select Build-up.
3To set the stroke texture, change the Texture option. The higher the number, the more apparent the texture
becomes.
4To set texture on the edges, enter a number in the Edge Texture text box and select an edge effect from the Edge
Effect pop-up menu.
5Set the number of tips you want the brush stroke to have. For multiple tips, enter a Tip Spacing value and select
the color variation method. You can select Random, Uniform, Complementary, Hue, or Shadow.
ADOBE FIREWORKS CS3
User Guide
139
6To select a dotted or dashed line, select an option from the Dash pop-up menu.
7To set the lengths of dashes and spaces for a dotted line, use the three sets of On and Off text input boxes to control
the first, second, and third dashes, respectively.
8Click Apply to apply the settings to selected strokes, then click OK.
To modify the brush tip:
1On the Shape tab of the Edit Stroke dialog box, select Square for a square tip, or deselect it for a round tip.
2Enter values for the brush tip size, edge softness, tip aspect, and tip angle.
3Click Apply, then click OK.
Fireworks has stroke settings for fine-tuning the stroke attributes controlled by speed and pressure when you use a
Wacom pressure-sensitive tablet and pen. You can select the stroke attribute to control with the pen.
To set stroke sensitivity:
1On the Sensitivity tab of the Edit Stroke dialog box, select a stroke property such as Size, Ink Amount, or
Saturation from the Stroke Property pop-up menu.
2From the Affected By options, select the degree to which sensitivity data affects the current stroke property.
3Click OK.
Placing strokes on paths
By default, an object’s brush stroke is centered on a path. You have the option of placing the brush stroke completely
inside or outside the path. This allows you to control the overall size of stroked objects and to create effects such as
strokes on the edges of beveled buttons.
Centered stroke, stroke inside, and stroke outside
You can use the Stroke pop-up menu in the Stroke Options window to reorient brush strokes.
To move a brush stroke inside or outside the selected path:
1Click the Stroke Color box in the Tools panel or the Property inspector to open the color box pop-up window.
2Select an option from the Location of Stroke Relative to Path pop-up menu: Inside, Centered, or Outside.
3Optionally, select the Fill over Stroke option.
Normally, the stroke overlaps the fill. Selecting Fill over Stroke draws the fill over the stroke. If you select this option
for an object with an opaque fill, any part of the stroke that falls inside the path is obscured. A fill with a degree of
transparency may tint or blend with a brush stroke inside a path.
ADOBE FIREWORKS CS3
User Guide
140
Creating stroke styles
You can change specific stroke characteristics such as ink amount, tip shape, and tip sensitivity, and save the custom
stroke as a style for reuse across many documents.
To create custom strokes:
1Do one of the following:
•Click the Stroke Color box in the Tools panel and then click Stroke Options.
•Select Stroke Options from the Stroke Options pop-up menu in the Property inspector.
The Stroke Options pop-up window opens.
2Edit the desired brush stroke attributes.
3Save your custom stroke attributes as a style. For more information, see “Creating and deleting styles” on page 184.
Working with fills
Using the Property inspector, the Fill Options pop-up menu, the Fill Options pop-up window, and the Gradient pop-
up window, as well as a collection of bitmap textures and patterns, you can create a wide variety of fills for vector
objects and text. Using the Paint Bucket or Gradient tool, you can also fill pixel selections based on current fill
settings.
Setting fill attributes of the drawing tools
You can set the fill attributes of the Rectangle, Rounded Rectangle, Ellipse, Polygon, and Auto Shape drawing tools
that are applied to objects as you draw. The current fill appears in the Fill Color box in the Property inspector, the
Tools panel, and the Color Mixer. You can use any of these panels to change a drawing tool’s fill.
The paint bucket icon indicates the Fill Color box in the Tools panel, the Property inspector, and the Color Mixer.
To change the solid fill color of applicable vector drawing tools and the Paint Bucket tool:
1Select a vector drawing tool or the Paint Bucket tool.
2Do one of the following:
•Press Control+D (Windows) or Command+D (Macintosh) to deselect all objects, and then click the Fill Color box
in the Property inspector to open the Fill Color pop-up window.
•Click the Fill Color box in the Tools panel or Color Mixer to open the color pop-up window.
3Select a color for the fill from the set of swatches, or sample a color from anywhere on the screen using the
eyedropper pointer.
4Use the tool as desired.
Note: Selecting the Text tool always causes the Fill Color box to revert to the last solid text color used by the Text tool.
ADOBE FIREWORKS CS3
User Guide
141
Editing solid fills
A solid fill is a solid color that fills the interior of an object. You can change an object’s fill color in the Tools panel,
Property inspector, or Color Mixer.
To edit a selected vector object’s solid fill:
1Click the Fill Color box in the Property inspector, Tools panel, or Color Mixer to open the color pop-up window.
2Select a swatch from the color pop-up window.
The fill appears in the selected object and becomes the active fill color.
Applying gradient and pattern fills
You can change fills to display a variety of solid, dithered, pattern, or gradient characteristics that range from solid
colors to gradients. These characteristics resemble satin, ripples, folds, or gradients that conform to the contour of
the object to which you apply them. Additionally, you can change various attributes of a fill, such as color, edge,
texture, and transparency.
You can select from a number of preset gradient and pattern fills, or you can create your own.
Note: A newly created fill assumes the current color displayed in the Fill Color box in the Tools panel.
Use the Fill options in the Property inspector or the Fill Options pop-up window to edit fill attributes.
Applying a pattern fill
You can fill a path object with a bitmap graphic, known as a pattern fill. Fireworks ships with more than a dozen
pattern fills, including Berber, Leaves, and Wood.
To apply a pattern fill to a selected object:
1Do one of the following:
•Select Pattern from the Fill Options pop-up menu in the Property inspector.
•Click the Fill Color box in the Tools panel, click Fill Options, and select Pattern from the Fill Options pop-up
menu.
2Select a pattern from the Pattern Name pop-up menu.
The pattern fill appears in the selected object and becomes the active fill color.
ADOBE FIREWORKS CS3
User Guide
142
Adding a custom pattern
You can set a bitmap file as a new pattern fill. You can use files with these formats as patterns: PNG, GIF, JPEG, BMP,
TIFF, and PICT (Macintosh only). When a pattern fill is a 32-bit transparent image, the transparency affects the fill
when used in Fireworks. If an image is not 32-bit, it becomes opaque.
When you add a new pattern, its name appears in the Pattern Name pop-up menu of the Fill Options pop-up
window.
To create a new pattern from an external file:
1With vector object properties displayed in the Property inspector, select Pattern from the Fill Options pop-up
menu.
2Click the Fill Color box and select Other from the Pattern Name pop-up menu.
3Navigate to the bitmap file you want to use as the new pattern, and click Open.
The new pattern is added to the Pattern Name list in alphabetical order.
Applying a gradient fill
Fill categories other than None, Solid, Pattern, and Web Dither are gradient fills. These fills blend colors to create
various effects.
Objects with various gradient fills
To apply a gradient fill to a selected object:
❖Select a gradient from the Fill Options pop-up menu in the Property inspector. The fill appears in the selected
object and becomes the active fill.
Editing a gradient fill
You can edit the current gradient fill by clicking any Fill Color box and then using the Edit Gradient pop-up window.
ADOBE FIREWORKS CS3
User Guide
143
Edit Gradient pop-up window
To open the Edit Gradient pop-up window:
1Select an object that has a gradient fill or select a gradient fill from the Fill Options pop-up menu in the Property
inspector.
2Click the Fill Color box in the Property inspector or Tools panel to open the pop-up window.
The Edit Gradient pop-up window opens with the current gradient in the color ramp and preview.
To add a new color or opacity swatch to the gradient, do one of the following:
•To add a color swatch, click the area below the gradient color ramp.
•To add an opacity swatch, click the area above the gradient color ramp.
To remove a color or opacity swatch from the gradient:
❖Drag the swatch away from the Edit Gradient pop-up window.
To set or change the color of a color swatch:
1Click the color swatch.
2Select a color from the pop-up window.
To set or change the transparency of an opacity swatch:
1Click the opacity swatch.
2Do one of the following:
•Drag the slider to the percentage of transparency, where 0 is completely transparent and 100 is completely opaque.
•Enter a numeric value from 0 to 100 to set the opacity value.
Note: The transparency checkerboard shows through the gradient in transparent areas.
3When you have finished editing the gradient, press Enter or click outside the Edit Gradient pop-up window. The
gradient fill appears in any selected objects and becomes the active fill.
To adjust the transition between colors in the fill:
❖Drag color swatches left or right.
Creating fills with the Gradient tool
The Gradient tool is in the same tool group as the Paint Bucket tool. This tool works much as the Paint Bucket tool
does, but it fills an object with a gradient instead of a solid color. Like the Paint Bucket tool, it retains the properties
of the last-used element.
ADOBE FIREWORKS CS3
User Guide
144
To use the Gradient tool:
1Click the Paint Bucket tool in the Tools panel and select the Gradient tool from the pop-up menu.
2Select from the following attributes in the Property inspector:
Fill Options is a pop-up menu from which you can select a gradient type.
Fill Color box when clicked, displays the Edit Gradient pop-up window, from which you can set a variety of color
and transparency options.
Edge determines if the gradient has a hard, anti-aliased, or feathered fill edge. If you select a feathered edge, you can
specify the amount of the feathering.
Texture gives you many options to select from, including Grain, Metal, Hatch, Mesh, or Sandpaper.
3Click and drag the pointer to establish a starting point of the gradient as well as the direction and length of the
gradient area.
Transforming and distorting fills
You can move, rotate, skew, and change the width of an object’s pattern or gradient fill. When you use the Pointer or
Gradient tools to select an object with a pattern or gradient fill, a set of handles appears on or near the object. You
can drag these handles to adjust the object’s fill.
Use the fill handles to interactively adjust a pattern or gradient fill.
To move the fill within an object:
❖Drag the round handle, or click in a new location in the fill using the Gradient tool.
To rotate the fill:
❖Drag the lines connecting the handles.
To adjust the fill width and skew:
❖Drag a square handle.
Setting hard-edged, anti-aliased, or feathered fill edges
In Fireworks, you can make the edge of a fill a regular hard line or soften the edge by anti-aliasing or feathering it.
By default, edges are anti-aliased. Anti-aliasing smoothes jagged edges that may occur on rounded objects, such as
ellipses and circles, by subtly blending the edge into the background.
Feathering, however, produces a noticeable blending on either side of the edge. This softens the edge, creating an
effect similar to a glow.
To change the edge of a selected object:
1Do one of the following to display the Edge pop-up menu:
•Click the Edge pop-up menu in the Property inspector.
•Click the Fill Color box in the Tools panel, click Fill Options, and click the Edge pop-up menu.
ADOBE FIREWORKS CS3
User Guide
145
2Select an edge option: Hard Edge, Anti-Alias, or Feather.
3For a feathered edge, also select the number of pixels on each side of the edge that are to be feathered.
The default is 10. You can select from 0 to 100. The higher the level, the more feathering occurs.
About saving a custom gradient fill
To save the current gradient settings as a custom gradient for use across many documents, you must create a style.
For more information, see “Creating and deleting styles” on page 184.
Removing a fill
You can easily remove fill attributes from selected objects.
To remove the fill from a selected object, do one of the following:
•Select None from the Fill Options pop-up menu in the Property inspector or from the Fill Options pop-up menu
in the Fill Options pop-up window.
• Click any Fill Color box and click the Transparent button. This option removes only solid fills.
Adding texture to strokes and fills
You can add three-dimensional effects to both strokes and fills by adding texture. Fireworks provides several
textures, or you can use external textures.
Adding texture to a stroke
Textures modify the brightness of the stroke, but not the hue, and give strokes a less mechanical, more organic look,
as if you were applying paint to a textured surface. Textures are more effective when used with wide strokes. You can
add a texture to any stroke. Fireworks ships with several textures to select from, such as Chiffon, Oilslick, and
Sandpaper.
Use the Stroke options in the Property inspector or the Stroke Options pop-up window to add a texture to a brush stroke.
To add texture to the stroke of a selected object:
1Do one of the following to open the Stroke Texture pop-up menu:
•Click the Stroke Texture pop-up menu in the Property inspector.
•Click the Stroke Color box in the Tools panel, click Stroke Options, and click the Texture pop-up menu.
2Do one of the following:
ADOBE FIREWORKS CS3
User Guide
146
•Select a texture from the pop-up menu.
•Select Other from the pop-up menu and navigate to a texture file to use an external texture.
Note: You can apply textures from files with these formats: PNG, GIF, JPEG, BMP, TIFF, and PICT (Macintosh only).
3Enter a percentage from 0 to 100 to control the depth of the texture.
Increasing the percentage increases the texture intensity.
Adding texture to a fill
Textures modify the brightness of a fill, but not the hue, and give fills a less mechanical, more organic look. You can
add a texture to any fill. Fireworks ships with several textures from which to select, such as Chiffon, Oilslick, and
Sandpaper. You can also use bitmap files as textures. This allows you to create almost any type of custom texture.
To add texture to the fill of a selected object:
1Do one of the following to open the Fill Texture pop-up menu:
•Click the Fill Texture pop-up menu in the Property inspector.
•Click the Fill Color box in the Tools panel, click Fill Options, and click the Texture pop-up menu.
2Do one of the following:
•Select a texture from the pop-up menu.
•Select Other from the pop-up menu and navigate to a texture file to use an external texture.
3Enter a percentage from 0 to 100 to control the depth of the texture.
Increasing the percentage increases the texture intensity.
4Select Transparent to introduce a level of transparency to the fill.
The Texture percentage also controls the degree of transparency.
Adding a custom texture
You can use bitmap files from Fireworks and other applications as textures. You can apply textures from files with
these formats: PNG, GIF, JPEG, BMP, TIFF, and PICT (Macintosh only).
When you add a new texture, its name appears in the Texture Name pop-up menu.
To create a new texture from an external file:
1With vector object properties displayed in the Property inspector, select Other from either of the Texture Name
pop-up menus.
2Navigate to the bitmap file you want to use as the new texture, and click Open.
The new texture is added to the Texture Name list in alphabetical order.
147
Chapter 8: Using Live Filters
Fireworks CS3 Live Filters (formerly known as Live Effects) are enhancements that you can apply to vector objects,
bitmap images, and text. Live Filters include bevels and embossing, solid shadows, drop shadows and glows, color
correction, and blurring and sharpening. You can apply Live Filters to selected objects directly from the Property
inspector.
Fireworks automatically updates Live Filters when you edit objects that have them applied. After you apply a Live
Filter, you can change its options anytime, or rearrange the order of filters to experiment with a combined filter. You
can turn Live Filters on and off or delete them in the Property inspector. When you remove a filter, the object or
image returns to its previous appearance.
Some filters now listed among Fireworks Live Filters—such as Auto Levels, Gaussian Blur, and Unsharp Mask—were
once available only as irreversible plug-ins or filters. In addition to these, you can add third-party plug-ins to be used
in Fireworks as Live Filters. If you prefer, you can use these filters in the traditional manner using the Filters menu.
For more information, see “Adjusting bitmap color and tone” on page 71.
This chapter contains the following topics:
•“Applying Live Filters” on page 147
•“Editing Live Filters” on page 152
Applying Live Filters
You can apply one or more Live Filters to selected objects using the Property inspector. Each time you add a new Live
Filter to the object, it is added to the list in the Add Filters pop-up menu in the Property inspector. You can turn each
Live Filter on or off.
Filters pop-up menu in the Property inspector
When you select objects eligible for Live Filters, the location of the Live Filters options differs slightly depending on
whether the Property inspector is at full height or half height:
•When the Property inspector is maximized to full height, use the Add Live Filters button, the Delete Live Filters
button, and the list of applied Live Filters displayed in the Property inspector.
•When the Property inspector is at half height, click Edit Filters to display the Add Live Filters button, the Delete
Live Filters button, and the list of applied Live Filters.
ADOBE FIREWORKS CS3
User Guide
148
Note: A newly created fill assumes the current color displayed in the Fill Color box in the Tools panel.
You can customize each Live Filter to get the look you want. When you select color correction filters, dialog boxes
open containing controls to adjust color characteristics such as auto levels, brightness and contrast, hue and
saturation, invert, curves, and color fill. When you select Bevel, Blur, Emboss, Glow, Shadow, or Sharpen filters,
either a dialog box or a pop-up menu opens in which you can adjust the filter settings. When you select a blur or
sharpen filter, it is applied directly to the object.
Experiment with the settings until you get the look you want. If you want to change the filter settings later, see
“Editing Live Filters” on page 152.
Inner Bevel pop-up window
A. Width of bevel B. Button bevel preset C. Contrast D. Softness E. Angle of bevel
To apply a Live Filter to selected objects:
1Click the Add Live Filters button in the Property inspector, then select a filter from the Add Filters pop-up menu.
The filter is added to the Filters list for the selected object.
To apply a Live Filter so that it appears to affect only a pixel selection within an image, you can cut and paste the
selection in place to create a new bitmap image, select it, and then apply the Live Filter.
2If a pop-up window or dialog box opens, enter the settings for the filter and then do one of the following:
•If the Live Filter has a dialog box, click OK.
•If the Live Filter has a pop-up window, press Enter or click anywhere in the workspace.
3Repeat steps 1 and 2 to apply more Live Filters.
Note: The order in which Live Filters are applied affects the overall filter. You can drag Live Filters to rearrange their
stacking order. For more information, see “Reordering Live Filters” on page 152.
To enable or disable a Live Filter applied to an object:
❖Click the box next to the filter in the Filters list in the Property inspector.
To enable or disable all Live Filters applied to an object:
❖Click the Add Live Filters button in the Property inspector, then select Options > All On or Options > All Off
from the pop-up menu.
For information on permanently removing Live Filters, see “Removing Live Filters” on page 152.
ADOBE FIREWORKS CS3
User Guide
149
Applying beveled edges
Applying a beveled edge to an object gives it a raised look. You can create an inner bevel or an outer bevel.
A rectangle, with Inner Bevel, and with Outer Bevel
To apply a beveled edge to a selected object:
1Click the Add Live Filters button in the Property inspector, then select a bevel option from the pop-up menu:
•Bevel and Emboss > Inner Bevel.
•Bevel and Emboss > Outer Bevel.
2Edit the filter settings in the pop-up window.
3Click outside the window or press Enter to close it.
Applying embossing
You can use the Emboss Live Filter to make an image, object, or text appear inset into or raised from the canvas.
An object, with Inset Emboss, and with Raised Emboss
To apply an Emboss filter:
1Click the Add Live Filters button in the Property inspector, then select an emboss option from the pop-up menu:
•Bevel and Emboss > Inset Emboss.
•Bevel and Emboss > Raised Emboss.
2Edit the filter settings in the pop-up window.
If you want the original object to appear in the embossed area, select Show Object.
3When you finish, click outside the window or press Enter to close it.
Note: For backward compatibility, Emboss Live Filters on objects in older documents open with the Show Object option
deselected.
Applying shadows and glows
Fireworks makes it easy to apply solid shadows, drop shadows, inner shadows, and glows to objects. You can specify
the angle of the shadow to simulate the angle of the light shining on the object.
Drop Shadow, Inner Shadow, and Glow filters
ADOBE FIREWORKS CS3
User Guide
150
To apply a solid shadow:
1In the Property inspector, click the Add Live Filters button, point to Shadow and Glow, and then click Solid
Shadow.
2In the Solid Shadow dialog box, adjust the filter settings:
•Drag the Angle slider to set the direction of the shadow.
•Drag the Distance slider to set the distance of the shadow from the object.
•Select the Solid Color check box to apply solid color to the shadow.
•Select the color box to open the color pop-up window and set the shadow color.
•If you don’t want to see a preview of the solid shadow, clear the Preview check box.
3When you finish, click OK.
To apply a drop shadow or inner shadow:
1Click the Add Live Filters button in the Property inspector, then select a shadow option from the pop-up menu:
•Shadow and Glow > Drop Shadow.
•Shadow and Glow > Inner Shadow.
2Edit the filter settings in the pop-up window:
•Drag the Distance slider to set the distance of the shadow from the object.
•Select the color box to open the color pop-up window and set the shadow color.
•Drag the Opacity slider to set the percentage of transparency in the shadow.
•Drag the Softness slider to set the sharpness of the shadow.
•Drag the Angle dial to set the direction of the shadow.
•Select Knock Out to hide the object and display the shadow only.
3When you finish, click outside the window or press Enter to close it.
To apply a glow:
1Click the Add Filters button in the Property inspector, then select Shadow and Glow > Glow.
2Edit the filter settings in the pop-up window:
•Click the color box to open the color pop-up window and set the glow color.
•Drag the Width slider to set the width of the glow.
•Drag the Opacity slider to set the percentage of transparency in the glow.
•Drag the Softness slider to set the sharpness of the glow.
•Drag the Offset slider to specify the distance of the glow from the object.
3When you finish, click outside the window or press Enter to close it.
Applying filters and Photoshop plug-ins as Live Filters
You can apply all the built-in filters and plug-ins in the Add Filters pop-up menu as Live Filters using the Property
inspector. Applying them as Live Filters ensures that you can edit or remove them from an object anytime.
Note: The menu known as the Xtras menu in some previous versions of Fireworks is called the Filters menu in Fireworks
8 and later. Fireworks Xtra extensions are now known as filters.
ADOBE FIREWORKS CS3
User Guide
151
Plug-ins from the Filters menu
When you install an Adobe Photoshop plug-in in Fireworks, it is added to the Filters menu and to the Property
inspector. You should use the Filters menu to apply filters and Photoshop plug-ins only when you are certain that
you will not want to edit or remove the filter. You can remove a filter only if the Undo command is available.
Installing Photoshop plug-ins
You can use the Property inspector to apply some Photoshop plug-ins as Live Filters. Not all Photoshop plug-ins can
be used as Live Filters. You can also import Photoshop plug-ins by pointing to a plug-ins folder using the Preferences
dialog box. For more information, see “Folders preferences” on page 348.
When you share a Fireworks file in which a Photoshop plug-in is applied as a Live Filter, whoever opens it can view
the filter only on a computer in which the plug-in is installed. Built-in Fireworks filters, however, are saved with the
Fireworks file.
To install Photoshop plug-ins:
1In the Property inspector, click the Add Filters button, then select Options > Locate Plugins.
2Navigate to the folder where the Photoshop plug-ins are installed and click OK.
3Restart Fireworks to load the plug-ins.
Note: If you move the plug-ins to a different folder, repeat the above steps, or select File > Preferences and click the Folders
tab to change the path to the plug-ins. Then restart Fireworks.
To apply a Photoshop plug-in to a selected object as a Live Filter:
❖In the Property inspector, click the Add Live Filters button, then select a filter from the Options submenu.
Applying Photoshop layer effects
You can also apply some Photoshop layer effects using the Add Filters pop-up menu in the Property inspector. If you
import a PSD file, you can also edit layer effects that already exist in the file.
To apply Photoshop layer effects
1In the Property inspector, click the Add Filters button, then select Photoshop Live Effects.
2Select one of the effects in the left-hand pane, and then edit the settings in the right-hand pane. You can select
multiple effects at once.
3Click OK to apply the layer effects.
About applying filters to grouped objects
When you apply a filter to a group, the filter is applied to all objects in the group. If the objects are ungrouped, each
object’s filter settings revert to those applied to the object individually.
You can apply a filter to an individual object within a group by selecting only that object with the Subselection tool.
For information on selecting a group or objects within a group, see “Selecting objects within groups” on page 58.
ADOBE FIREWORKS CS3
User Guide
152
Editing Live Filters
When you click a Live Filter’s info button in the Property inspector, Fireworks opens a pop-up window with the
current settings for the filter, which you can edit.
To edit a Live Filter:
1In the Property inspector, click the info button next to the filter you want to edit.
The corresponding pop-up window or dialog box opens.
2Adjust the filter settings.
Note: If a filter is not editable, the info button is dimmed. For example, you cannot edit Auto Levels.
3Click outside the window or press Enter.
Reordering Live Filters
You can rearrange the order of the filters applied to an object. Reordering filters changes the sequence in which the
filters are applied, which can change the combined filter.
In general, filters that change the interior of an object, such as the Inner Bevel filter, should be applied before filters
that change the object’s exterior. For example, you should apply the Inner Bevel filter before you apply the Outer
Bevel, Glow, or Shadow filter.
To reorder filters applied to a selected object:
❖Drag a filter to the desired position in the list in the Property inspector.
Note: Filters at the top of the list are applied before the filters at the bottom.
Removing Live Filters
You can easily remove individual filters or all filters from an object.
To remove a single filter applied to a selected object:
❖Select the filter you want to remove from the Filters list in the Property inspector, then click the Delete Live Filters
button.
To remove all filters from a selected object:
❖In the Property inspector, click the Add Live Filters button, then select None from the pop-up menu.
Creating custom Live Filters
You can save a particular combination of settings for Live Filters by creating a custom Live Filter. All custom Live
Filters appear in the Add Filters pop-up menu in the Property inspector and in the Styles panel. Custom Live Filters
are actually styles with all property options deselected except for the Filter option.
•You can create a custom Live Filter using the Property inspector or Styles panel.
•You can apply a custom Live Filter to selected objects from the Add Filters pop-up menu or the Styles panel.
•You can rename or delete a custom Live Filter using the Styles panel.
ADOBE FIREWORKS CS3
User Guide
153
To create a custom Live Filter using the Property inspector:
1Apply Live Filter settings to selected objects. For more information, see “Applying Live Filters” on page 147.
2In the Property inspector, click the Add Live Filters button, then select Options > Save As Style.
The New Style dialog box opens.
3Type a name for the style and click OK.
The custom Live Filter name is added to the Add Filters pop-up menu, and a style icon representing the Live Filter
is added to the Styles panel.
To create a custom Live Filter using the Styles panel:
1Apply Live Filter settings to selected objects. For more information, see “Applying Live Filters” on page 147.
2Select New Style from the Styles panel Options menu.
The New Style dialog box opens.
3Deselect all properties except the Filter property, enter a name, and click OK.
The custom Live Filter name is added to the Add Filters pop-up menu, and a style icon representing the Live Filter
is added to the Styles panel.
Note: If you select any additional properties in the Add New Style dialog box, the style will no longer be an item on the
Add Filters pop-up menu in the Property inspector, although it will remain on the Styles panel as a typical style.
To apply a custom Live Filter to selected objects, do one of the following:
•In the Property inspector, click the Add Live Filters button then select the custom Live Filter.
•Click the icon for the custom Live Filter in the Styles panel.
You can rename or delete a custom Live Filter as you would any other style in the Styles panel. For more information,
see “Creating and deleting styles” on page 184 and “Editing styles” on page 185.
Note: You cannot rename or delete a standard Fireworks filter.
Saving Live Filters as commands
You can save and reuse a filter by creating a command based on it. Using the History panel, you can automate all the
Live Filters applied to an object by creating a command available from the Commands menu. You can use these
commands in batch processing. For more information, see “Performing commands with a batch process” on
page 339.
To save filter settings as a command:
1Apply the filters to the object.
2If the History panel is not visible, select Window > History.
3Shift-click the range of actions you want to save as a command.
4Do one of the following:
•Select Save as Command from the History panel Options menu.
•Click the Save button at the bottom of the History panel.
ADOBE FIREWORKS CS3
User Guide
154
A. Save button
5Enter a command name and click OK to add the command to the Commands menu.
155
Chapter 9: Pages, Layers, Masking,
and Blending
Fireworks CS3 added the capability to create a single PNG file that contains multiple pages. Each page contains its
own settings for canvas, size, color, image resolution, and guides. These settings can be set on a per-page basis, or
globally across all pages in the document. You can also create a master page for common elements.
Layers and pages can be used together if you have elements that you want to appear on more than one page. Layers
can apply to a single page, or can be shared across multiple pages. Once shared, the layers are displayed in yellow to
differentiate from unshared Layers. Only the top most parent layer can be shared across pages.
Layers divide a Fireworks document into discrete planes, as though the components of the illustration were drawn
on separate tracing paper overlays. A document can be made up of many layers, and each layer can contain many
sub-layers or objects. In Fireworks, the Layers panel lists layers and the objects contained in each layer. Fireworks
layers are similar to layer sets in Adobe Photoshop. Photoshop layers are similar to individual Fireworks objects.
Masking gives you creative control over layers and objects. You can apply masks and blending modes from the Layers
panel. You can also create masks using options on the Select and Modify menus. You can use a vector object or a
bitmap object to block out part of the underlying image. For example, if you want to block out part of a photograph
so that it appears to have an elliptical frame around it, you can paste an elliptical shape as a mask on top of the photo-
graph. All areas outside the ellipse disappear as if cropped, showing only the part of the picture inside the ellipse.
Blending techniques give you another level of creative control. You can create unique effects by blending the colors
in overlapping objects. Fireworks has several blending modes to help you achieve the look you want.
This chapter contains the following topics:
•“Working with pages” on page 155
•“Working with layers” on page 159
•“Masking images” on page 164
•“Blending and transparency” on page 179
Working with pages
A Fireworks CS3 document (PNG) file can contain one or more pages. You can either create all of the pages before
you start to draw, or you can add pages as needed. If you do not create any new pages, all of the elements of your file
reside on a single page (Page 1).
You can view the pages in your file in the Pages panel. Pages are added in the order in which they are created.
The name of the active page is highlighted in the Pages panel and shown in the pages pop-up menu in the active
document bar below the active document. The objects on each page are displayed in a thumbnail next to the page
name in the Pages panel.
Each page has an independent hierarchy including the Web layer and general layers, which can be shared across
different pages. You can also create a master page to hold common elements. The objects and layer hierarchy on the
master page are inherited by all other pages.
ADOBE FIREWORKS CS3
User Guide
156
Adding and removing pages
Using the Pages panel, you can add new pages, delete unwanted pages, and duplicate existing pages.
When you create a new page, a blank page is inserted at the end of the list of pages. The new page becomes the active
page and is highlighted in the Pages panel. When you delete a page, the page above it becomes the active page.
Creating a duplicate page adds a new page that contains the same objects and layer hierarchy as the currently
selected one. Duplicated objects retain the opacity and blending mode of the objects from which they were copied.
You can make changes to the duplicated objects without affecting the originals.
To add a page, do one of the following:
• Click the New/Duplicate Page button on the Pages panel.
•Select Edit > Insert > Page.
•Select New Page from the Pages panel Options menu, and click OK.
To delete a page, do one of the following:
• Drag the page to the trash can icon in the Pages panel.
•Select the page and click the trash can icon in the Pages panel.
•Select Delete Page from the Pages panel Options menu.
To duplicate a page, do one of the following:
•Drag a page to the New/Duplicate Page button.
•Select a page and select Duplicate Page from the Pages panel Options menu.
To move between pages, do one of the following:
•Select the desired page in the Pages panel.
•Use the Page Up and Page Down buttons on the keyboard.
•Choose the desired page from the pages pop-up menu at the bottom of the document window.
An asterisk next to the page name in the pages pop-up menu indicates the master page.
Editing pages
Each page is a different canvas document. The canvas size, color, and image resolution can be customized for each
individual page as needed.
To edit a page’s canvas size, color, or image resolution:
1Select a page from the Pages panel or the pages pop-up menu at the bottom of the document window.
2Select Modify > Canvas > Image Size, Modify > Canvas > Canvas Color, or Modify > Canvas > Canvas Size.
3Make the desired changes. These changes can also be made using the Properties panel when the canvas for a page
is selected.
4To apply the changes to only the selected page, leave the Current Page Only check box selected. To apply the
changes to all pages, deselect the check box.
ADOBE FIREWORKS CS3
User Guide
157
Using a master page
If you have some elements that you want to be common across all of your pages, you can use a master page. When
you convert an ordinary page to a master page it moves to the top of the list in the Pages panel and it is colored gray.
When a master page is created, a Master Page Layer is added at the bottom of the layer hierarchy for each page. This
layer can be removed by selecting Remove Master Page Layer from the Options menu in the Layers panel.
The visibility of the master page layer can be toggled by clicking on the eye icon to the left of the master page layer
in the Layers panel. If you change the master visibility on one page, this change is reflected across all of the pages.
For more information about controlling the visibility of layers see “Protecting layers and objects” on page 162.
To create a master page
❖In the Pages panel, select a page that you have already created and choose Set As Master Page from the Options
menu.
A Master Page cannot have shared layers, so when you make a page into a Master Page, any shared layers are removed
from it and changed to ordinary (non-shared) layers.
To link pages to the master page
After a master page is created, any additional pages that are created inherit the master page settings such as canvas
color and size. Pages that already exist do not inherit these settings unless they are “linked” to the master page. In
addition, if the master page settings are later changed, none of the other pages will inherit these changes unless they
are linked to the master page.
Do one of the following to permanently link a page to the master page:
•Select the page in the Pages panel and choose Link to Master Page from the Options menu.
•Click in the column to the left of the page thumbnail in the Pages panel. A link icon displays to show that the page
is linked to the master page.
Note: If you change a setting, such as canvas color, on a page that has been linked to the master page, the setting overrides
the master page setting and the link to the master page is automatically broken.
To remove master page layers
When you upgrade an ordinary page to a master page, the master page layer hierarchy is automatically added at the
bottom of layers hierarchy in other existing pages. To remove these Master Page layers:
•Select the Remove Master Page Layer option from the Layers panel Options menu.
If you later want to add the master page layers back into the page, select Add Master Page Layer from the Layers panel
Options menu.
To change a master page back into a normal page
❖Select the master page in the Pages panel, and then choose Reset Master Page from the Options menu.
Exporting pages to HTML
You can export all of your pages at once as multiple HTML files. If you would like to preview your pages before
exporting them, select Edit > Preview in browser > Preview all pages in browser.
To expor t your pages to HTML
1Select File > Export.
ADOBE FIREWORKS CS3
User Guide
158
Note: If you use the Quick Export button to export the file, only the currently selected page is exported.
2Choose the location for the export files.
3Select HTML and Images from the Export pop-up menu.
4Click the Options button and select your HTML editor from the HTML Style pop-up menu on the General tab of
the HTML Setup dialog box. If your HTML editor is not listed, select Generic.
5Click OK to return to the Export dialog box.
6Select Export HTML file from the HTML pop-up menu. Choosing Export HTML generates an HTML file and
the associated image files in the location you specify.
7Select Export Slices from the Slices pop-up menu if your document contains slices.
8If you want to export all of the pages in the file, deselect the Current page only check box.
9Select Put Images in Subfolder if you want images stored in a separate folder. You can select a specific folder or
use the Fireworks default, which is a folder named images.
10 Click Export.
After export, you’ll see the files Fireworks exported on your hard drive. If you chose to export all of the pages, a
separate HTML file for each page is created. The images and HTML files are generated in the location you specified
in the Export dialog box.
Note: For more detailed information about exporting from Fireworks, see “Optimizing and Exporting” on page 257.
Exporting pages as image files
1Select File > Export.
2Choose the location for the export files.
3Do one of the following:
•Select Images Only from the Export pop-up menu, and choose whether to export the current page or all pages by
selecting or deselecting the Current page only check box. The pages are exported to the default image format,
which is set using the Optimize panel.
•Select Pages to Files in the Export pop-up menu, and select Images in the Export As pop-up menu. All of the pages
are exported in the default image format, which is set using the Optimize panel.
•Select Pages to Files in the Export pop-up menu, and select Fireworks PNG in the Export As pop-up menu. Each
page is exported as a separate file in the PNG format. Use this method to create PNG files that are backward
compatible with Fireworks 8.
ADOBE FIREWORKS CS3
User Guide
159
Working with layers
Each object in a document resides on a layer. You can either create layers before you draw or add layers as needed.
The canvas is below all layers and is not itself a layer. For information on working with the canvas, see “Changing the
canvas” on page 34.
You can view the stacking order of layers, sub-layers, and objects in the Layers panel. This is the order in which they
appear in the document. Fireworks stacks layers based on the order in which you created them, placing the most
recently created layer on the top of the stack. The stacking order determines how objects on one layer overlap objects
on another. You can rearrange the order of layers and of objects within layers, and you can create sub-layers and move
objects onto them.
The Layers panel displays the current state of all layers in the current frame or page of a document. To view other
frames or pages, you can use the Frames or Pages panel, or select an option from the Frame pop-up menu at the
bottom of the Layers panel, or the Pages pop-up menu at the bottom of the document window. For more infor-
mation, see “Working with frames” on page 242 and “Working with pages” on page 155.
The name of the active layer is highlighted in the Layers panel. You can expand a layer to view a list of all the objects
on it. By default, the objects are displayed in thumbnails.
Masks are also shown in the Layers panel. Selecting the mask thumbnail allows you to edit the mask. You can also
create new bitmap masks using the Layers panel. For more information about masking, see “Masking images” on
page 164.
Opacity and blend mode controls are at the top of the Layers panel. For more information, see “Adjusting opacity
and applying blends” on page 181.
A. Expand/Collapse Layer B. Lock/Unlock Layer C. Show/Hide Layer D. Active Layer E. Delete Layer F. New/Duplicate Layer G. New Sub
Layer H. Add Mask I. New Bitmap Image
Activating layers
When you click a layer or an object on a layer, that layer becomes the active layer. Objects that you subsequently draw,
paste, or import reside initially at the top of the active layer.
ADOBE FIREWORKS CS3
User Guide
160
To activate a layer, do one of the following:
•Click the layer name in the Layers panel.
•Select an object on that layer.
Adding and removing layers
Using the Layers panel, you can add new layers, add new sub-layers, delete unwanted layers, and duplicate existing
layers and objects.
When you create a new layer, a blank layer is inserted above the currently selected layer. The new layer becomes the
active layer and is highlighted in the Layers panel. When you delete a layer, the layer above it becomes the active
layer, unless it is the last remaining layer, in which case a new empty layer is created.
Creating a duplicate layer adds a new layer that contains the same objects as the currently selected one. Duplicated
objects retain the opacity and blending mode of the objects from which they were copied. You can make changes to
the duplicated objects without affecting the originals.
To add a layer, do one of the following:
•Click the New/Duplicate Layer button .
•Select Edit > Insert > Layer.
•Select New Layer or New Sub Layer from the Layers panel Options menu, and click OK.
To delete a layer, do one of the following:
• Drag the layer to the trash can icon in the Layers panel.
•Select the layer and click the trash can icon in the Layers panel.
•Select the layer and choose Delete Layer from the Layers panel Options menu.
To duplicate a layer, do one of the following:
•Drag a layer to the New/Duplicate Layer button.
•Select a layer and select Duplicate Layer from the Layers panel Options menu. Then select the number of duplicate
layers to insert and where to place them in the stacking order:
At the Top places the new layer or layers at the top of the Layers panel. The Web Layer is always the top layer, so
selecting At the Top places the duplicate layer below the Web Layer.
Before Current Layer places the new layer or layers above the selected layer.
After Current Layer places the new layer or layers below the selected layer.
At the Bottom places the new layer or layers at the bottom of the Layers panel.
•Alt-drag (Windows) or Option-drag (Macintosh) the layer to the desired location.
To duplicate an object:
❖Alt-drag (Windows) or Option-drag (Macintosh) the object to the desired location.
ADOBE FIREWORKS CS3
User Guide
161
Viewing layers
The Layers panel displays objects and layers in a hierarchical structure. If a document contains many objects and
layers, the Layers panel can become cluttered and difficult to navigate. Collapsing the display of layers helps eliminate
clutter. When you need to view or select specific objects on a layer, you can expand that layer. You can also expand
or collapse all layers at once.
To expand or collapse a layer:
❖Click the triangle to the left of the layer name in the Layers panel.
To expand or collapse all layers:
❖Alt-click (Windows) or Option-click (Macintosh) the triangle to the left of the layer name in the Layers panel.
Organizing layers
You can organize layers and objects in a document by naming them and rearranging them in the Layers panel.
Objects can be moved within a layer or between layers.
Moving layers and objects in the Layers panel changes the order in which objects appear on the canvas. Objects at
the top of a layer appear above other objects in that layer on the canvas. Objects on the topmost layer appear in front
of objects on lower layers.
Note: The Layers panel auto-scrolls when you drag a layer or object up or down beyond the bounds of the viewable area.
To name a layer or object:
1Double-click a layer or object in the Layers panel.
2Type a new name for the layer or object and press Enter.
Note: The Web Layer cannot be renamed. However, you can rename sub-layers of the Web Layer and web objects on the
Web Layer, such as slices and hotspots. For more information, see “Using the Web Layer” on page 163.
To move a layer or object:
❖Drag the layer or object to the desired location in the Layers panel.
To move all selected objects on a layer to another location, do one of the following:
•Drag the layer’s blue selection indicator to another layer.
•After selecting the objects, click once in the right-hand column (where the blue selection indicator would
normally appear) of the destination layer.
All selected objects on the layer move to the other layer simultaneously.
Note: A parent layer cannot be dragged into its child layer.
To copy all selected objects on a layer to another location, do one of the following:
•Alt-drag (Windows) or Option-drag (Macintosh) the layer’s blue selection indicator to another layer.
•After selecting the objects, Alt-click (Windows) or Option-click (Macintosh) once in the right-hand column
(where the blue selection indicator would normally appear) of the destination layer.
Fireworks copies all selected objects on the layer to the other layer.
ADOBE FIREWORKS CS3
User Guide
162
Protecting layers and objects
The Layers panel offers a number of options that let you control the accessibility of objects.
You can protect objects in your document from inadvertent selection and editing. Locking an individual object
prevents that object from being selected or edited. Locking a layer prevents all objects on that layer from being
selected or edited. The Single Layer Editing feature protects objects on all but the active layer and sub layers from
unwanted selection or changes. You can also use the Layers panel to control the visibility of objects and layers on the
canvas. When an object or layer is hidden in the Layers panel, it does not appear on the canvas, so it cannot be
inadvertently changed or selected.
Note: Hidden layers and objects are not included when you export your document. Objects on the Web Layer can always
be exported, however, whether they are hidden or not. For more information about exporting, see “Exporting from
Fireworks” on page 276.
To lock an object:
❖Click the square in the column immediately to the left of the object name.
A padlock icon indicates that the object is locked.
To lock a layer:
❖Click the square in the column immediately to the left of the layer name.
A padlock icon indicates that the layer is locked.
To lock multiple layers:
❖Drag the pointer along the Lock column in the Layers panel.
To lock or unlock all layers:
❖Select Lock All or Unlock All from the Layers panel Options menu.
To turn on or off Single Layer Editing:
❖Select Single Layer Editing from the Layers panel Options menu.
A check mark indicates that Single Layer Editing is active.
To show or hide a layer or objects on a layer:
❖Click the square in the column farthest to the left of a layer or object name.
The eye icon indicates that a layer is visible.
To show or hide multiple layers or objects:
❖Drag the pointer along the Eye column in the Layers panel.
To show or hide all layers and objects:
❖Select Show All or Hide All from the Layers panel Options menu.
Merging objects in the Layers panel
If you work with bitmap objects, you may find that the Layers panel easily becomes cluttered. You can merge objects
in the Layers panel, if the bottommost selected object is immediately above a bitmap object. Objects and bitmaps to
be merged do not have to be adjacent in the Layers panel or reside on the same layer.
ADOBE FIREWORKS CS3
User Guide
163
Merging down causes all selected vector objects and bitmap objects to be flattened into the bitmap object that lies
just beneath the bottommost selected object. The result is a single bitmap object. Vector objects and bitmap objects
cannot be edited separately once merged, and editability for vector objects is lost.
To merge objects:
1Select the object or objects on the Layers panel that you want to merge with a bitmap object. Shift-click or Ctrl-
click to select more than one object.
You can merge the contents of a selected layer into a bitmap object that is the topmost object on the layer immedi-
ately beneath the selected layer.
2Do one of the following:
•Select Merge Down from the Layers panel Options menu.
•Select Modify > Merge Down.
•Select Merge Down from the context menu that appears when you right-click (Windows) or Control-click
(Macintosh) the selected objects on the canvas.
The selected object or objects merge with the bitmap object. The result is a single bitmap object.
Note: Merge Down does not affect slices, hotspots, or buttons.
Sharing layers
You can share a layer across all pages or all frames in a document. This allows you to update an object on a layer and
have that object be updated automatically in all pages or frames. This is useful when you want objects such as
background elements to appear on all pages of a website or all frames of an animation.
Note: Sub-layers cannot be shared across pages or frames; you must select the parent layer to share.
To share a selected layer across frames, do one of the following:
•Select Share Layer to Frames from the Layers panel Options menu.
•Double-click the layer name in the Layers panel, and select Share Across Frames.
To share a selected layer across pages, do the following:
❖Select Share Layer to Pages... from the Layers panel Options menu.
When a layer has been shared across one or more pages, it is displayed in yellow to differentiate it from unshared
layers.
Only a parent layer can be shared across pages. Sub-layers cannot be shared.
Using the Web Layer
The Web Layer is a special layer that appears as the top layer in each document. The Web Layer contains web
objects, such as slices and hotspots, used for assigning interactivity to exported Fireworks documents. For more
information on web objects, see “Slices, Rollovers, and Hotspots” on page 200.
You cannot unshare, delete, duplicate, move, or rename the Web Layer. You also cannot merge objects that reside
on the Web Layer. It is always shared across all pages and frames, and web objects are visible on every page or frame.
To rename a slice or hotspot in the Web Layer:
1Double-click the slice or hotspot in the Layers panel.
ADOBE FIREWORKS CS3
User Guide
164
2Type the new name, and then click outside the window or press Enter.
Note: When you rename a slice, that name is used when the slice is exported.
About importing Photoshop grouped layers
Photoshop files that contain layers are imported with each layer placed as a separate object on a single Fireworks
layer. Grouped layers are imported as individual layers, as if the layers were ungrouped in Photoshop before being
imported into Fireworks. The clipping effect on Photoshop grouped layers is lost on import.
Masking images
As the name suggests, masks hide or show parts of an object or image. You can use several masking techniques to
achieve many kinds of creative effects with objects.
You can create a mask that acts as a cookie cutter, cropping or clipping underlying objects or images. Or you can
create a mask that gives the effect of a foggy window, revealing or hiding portions of the objects beneath it. This type
of mask uses grayscale to make selected objects less visible or more so. Or you can create a mask that uses its own
transparency to affect visibility.
You can create a mask using the Layers panel or the Edit, Select, or Modify menus. After you create a mask, you can
adjust the position of the masked selection on the canvas or modify the appearance of a mask by editing the mask
object. You can also apply transformations to the mask as a whole or to the components of a mask individually.
About masks
You can create a mask object from either a vector object (a vector mask) or a bitmap object (a bitmap mask). You can
also use multiple objects or grouped objects to create a mask.
About vector masks
If you have used other vector-illustration applications such as Adobe FreeHand, you may be familiar with vector
masks, which are sometimes called clipping paths or paste insides. The vector mask object crops or clips the under-
lying objects to the shape of its path, creating a cookie-cutter effect.
A vector mask applied using its path outline
When you create a vector mask, a mask thumbnail with a pen icon appears in the Layers panel to indicate you’ve
created a vector mask.
A vector mask thumbnail in the Layers panel
ADOBE FIREWORKS CS3
User Guide
165
When a vector mask is selected, the Property inspector displays information about how the mask is applied. The
bottom half of the Property inspector displays additional properties that allow you to edit the mask object’s stroke
and fill.
Vector mask properties in the Property inspector
By default, vector masks are applied using their path outline, but you can also apply them in other ways. For more
information, see “Changing the way masks are applied” on page 176.
About bitmap masks
If you’re a Photoshop user, you may be familiar with layer masks. Fireworks bitmap masks are similar to layer masks
in that the pixels of a mask object affect the visibility of underlying objects. However, Fireworks bitmap masks are
much more versatile: you can easily change how they are applied, whether using their grayscale appearance or their
own transparency. In addition, the Fireworks Property inspector makes mask properties and bitmap tool options
more readily available, greatly simplifying the mask-editing process. When a mask is selected, the Property
inspector displays a variety of properties not only for a selected mask but also for any bitmap tools you might use to
edit the mask.
Original objects and a bitmap mask applied using its grayscale appearance
You can apply bitmap masks in two ways:
•Using an existing object to mask other objects. This technique is similar to applying a vector mask.
•Creating what’s known as an empty mask. Empty masks start out as either totally transparent or totally opaque. A
transparent (or white) mask shows the masked object in its entirety, and an opaque (or black) mask hides the
masked object completely. You can use the bitmap tools to draw on or modify the mask object, revealing or hiding
the underlying masked objects.
When you create a bitmap mask, the Property inspector displays information about how the mask is applied. If you
select a bitmap tool when a bitmap mask is selected, the Property inspector displays the mask’s properties and
options for the selected tool, simplifying the mask-editing process.
ADOBE FIREWORKS CS3
User Guide
166
Bitmap mask properties in the Property inspector when a bitmap tool is selected
By default, most bitmap masks are applied using their grayscale appearance, but you can also apply them using their
alpha channel. For more information, see “Changing the way masks are applied” on page 176.
Creating a mask from an existing object
You can create a mask from an existing object. When used as a mask, a vector object’s path outline can be used to
clip or crop other objects. When a bitmap object is used as a mask, either the brightness of its pixels or its trans-
parency affects the visibility of other objects.
Masking objects using the Paste as Mask command
Using the Paste as Mask command, you can create masks by masking an object or group of objects with another
object. Paste as Mask creates either a vector mask or a bitmap mask. When you use a vector object as the mask, Paste
as Mask creates a vector mask that crops or clips masked objects using the path outline of the vector object. When
you use a bitmap image as the mask, Paste as Mask creates a bitmap mask that affects the visibility of masked objects
using the grayscale color values of the bitmap object.
To create a mask with the Paste as Mask command:
1Select the object you want to use as the mask. Shift-click to select multiple objects.
Note: If you use multiple objects as the mask, Fireworks always creates a vector mask, even if both objects are bitmaps.
2Position the selection so that it overlaps the object or group of objects to be masked.
The object or objects you want to use as the mask can be either in front of or behind the objects or group to be
masked.
3Select Edit > Cut to cut the object or objects you want to use as the mask.
4Select the object or group you want to mask.
ADOBE FIREWORKS CS3
User Guide
167
If you are masking multiple objects, the objects must be grouped. For more information about grouping objects, see
“Grouping objects” on page 58.
5Do one of the following to paste the mask:
•Select Edit > Paste as Mask.
•Select Modify > Mask > Paste as Mask.
A mask applied to an image with a black canvas
Masking objects using the Paste Inside command
If you are a FreeHand user, you may be familiar with the Paste Inside method of creating masks. Paste Inside creates
either a vector mask or a bitmap mask, depending on the type of mask object you use. The Paste Inside command
creates a mask by filling a closed path or bitmap object with other objects: vector graphics, text, or bitmap images.
The path itself is sometimes referred to as a clipping path, and the items it contains are called contents or paste
insides. Contents extending beyond the clipping path are hidden.
The Paste Inside command in Fireworks produces a similar effect to the Paste as Mask command, with a couple of
differences:
•With Paste Inside, the object you cut and paste is the object to be masked. Compare this with Paste as Mask, where
the object you cut and paste is the mask object.
•With vector masks, Paste Inside shows the fill and stroke of the mask object itself. A vector mask object’s fill and
stroke are not visible by default with Paste as Mask. You can turn a vector mask’s fill and stroke on or off, however,
using the Property inspector. For more information, see “Changing the way masks are applied” on page 176.
ADOBE FIREWORKS CS3
User Guide
168
To create a mask using the Paste Inside command:
1Select the object or objects to use as the paste inside contents.
2Position the object or objects so that they overlap the object into which you want to paste the contents.
Note: Stacking order is not important, as long as the objects you want to use as the paste inside contents remain selected.
These objects can be above or below the mask object in the Layers panel.
3Select Edit > Cut to move the objects to the Clipboard.
4Select the object into which you want to paste the contents. This object will be used as the mask, or clipping path.
5Select Edit > Paste Inside.
The objects you pasted appear to be inside or clipped by the mask object.
ADOBE FIREWORKS CS3
User Guide
169
Using text as a mask
Text masks are a type of vector mask. You apply text masks just as you apply masks using existing objects: you simply
use text as the mask object. The usual way to apply a text mask is to use its path outline, but you can apply a text mask
using its grayscale appearance as well.
A text mask applied using its path outline
For more information, see “Creating a mask from an existing object” on page 166. For more information about the
different ways masks can be applied, see “Changing the way masks are applied” on page 176.
Masking objects using the Layers panel
The quickest way to add an empty, transparent bitmap mask is through the Layers panel. The Layers panel adds a
white mask to an object, which you can customize by drawing on it with the bitmap tools.
Note: For details on creating empty, opaque (or black) masks, see “Masking objects using the Reveal and Hide
commands” on page 170.
To create a bitmap mask using the Layers panel:
1Select the object you want to mask.
2Click the Add Mask button at the bottom of the Layers panel.
Fireworks applies an empty mask to the selected object. The Layers panel displays a mask thumbnail representing
the empty mask.
3Optionally, if the masked object is a bitmap, use one of the marquee or lasso tools to create a pixel selection.
4Select a bitmap painting tool from the Tools panel, such as the Brush, Pencil, Paint Bucket, or Gradient tool.
5Set the desired tool options in the Property inspector.
6With the mask still selected, draw on the empty mask. In the areas where you draw, the underlying masked object
is hidden.
ADOBE FIREWORKS CS3
User Guide
170
Image with mask applied
The mask as it appears in the Layers panel
Note: For more information about modifying a bitmap mask’s appearance by drawing on it, see “Modifying a mask’s
appearance” on page 175.
Masking objects using the Reveal and Hide commands
The Modify > Mask submenu has several options for applying empty bitmap masks to objects:
Reveal All applies an empty, transparent mask to an object, revealing the entire object. To achieve the same effect,
click the Add Mask button in the Layers panel.
Hide All applies an empty, opaque mask to an object, which hides the entire object.
Reveal Selection can be used only with pixel selections. It applies a transparent pixel mask using the current pixel
selection. The other pixels in the bitmap object are hidden. To achieve the same effect, make a pixel selection, then
click the Add Mask button.
Hide Selection can be used only with pixel selections. It applies an opaque pixel mask using the current pixel
selection. The other pixels in the bitmap object are shown. To achieve the same effect, make a pixel selection, then
Alt-click (Windows) or Option-click (Macintosh) the Add Mask button.
To use the Reveal All and Hide All commands to create a mask:
1Select the object you want to mask.
2Do one of the following to create the mask:
•Select Modify > Mask > Reveal All to show the object.
•Select Modify > Mask > Hide All to hide the object.
3Select a bitmap painting tool from the Tools panel, such as the Brush, Pencil, or Paint Bucket.
4Set the desired tool options in the Property inspector.
If you’ve applied a Hide All mask, you must select a color other than black.
ADOBE FIREWORKS CS3
User Guide
171
5Draw on the empty mask. In the areas where you draw, the underlying masked object is either hidden or shown,
depending on the type of mask you applied.
Note: For more information about modifying a bitmap mask’s appearance by drawing on it, see “Modifying a mask’s
appearance” on page 175.
To use Reveal Selection and Hide Selection commands to create a mask:
1Select the Magic Wand or any marquee or lasso tool from the Tools panel.
2Select pixels in a bitmap.
Original image; pixels selected with the Magic Wand
3Do one of the following to create the mask:
•Select Modify > Mask > Reveal Selection to show the area defined by the pixel selection.
•Select Modify > Mask > Hide Selection to hide the area defined by the pixel selection.
The results of Reveal Selection and Hide Selection
A bitmap mask is applied using the pixel selection. You can further edit the mask to reveal or hide the remaining
pixels of the masked object using the bitmap tools in the Tools panel. For more information about modifying a
bitmap mask’s appearance by drawing on it, see “Modifying a mask’s appearance” on page 175.
About importing and exporting Photoshop layer masks
In Photoshop, you can mask images using layer masks or grouped layers. Fireworks lets you successfully import
images that employ layer masks without losing the ability to edit them. Layer masks are imported as bitmap masks.
ADOBE FIREWORKS CS3
User Guide
172
Fireworks masks can also be exported to Photoshop. They are converted into Photoshop layer masks. If the masked
objects include text and you want to maintain text editability in Photoshop, you must select Maintain Editability over
Appearance when exporting.
Note: If text is used as the mask object, it is converted to a bitmap and is no longer editable as text after it is imported
into Photoshop.
Grouping objects to form a mask
You can group two or more objects to create a mask. The topmost object becomes the mask object.
You can group objects as either bitmap masks or vector masks. The stacking order determines the type of mask
applied. If the top object is a vector object, the result is a vector mask. If the top object is a bitmap object, the result
is a bitmap mask.
Note: For more information about vector and bitmap masks, see “About masks” on page 164.
To group objects to form a mask:
1Shift-click two or more overlapping objects.
You can select objects from different layers.
2Select Modify > Mask > Group as Mask.
ADOBE FIREWORKS CS3
User Guide
173
Editing masks
You can modify masks in many ways. By modifying a mask’s position, shape, and color, you can change the visibility
of masked objects. You can also change a mask’s type and the way it is applied. In addition, masks can be replaced,
disabled, or deleted.
The results of editing a mask are immediately visible, even if the mask object itself is not visible on the canvas. The
mask thumbnail in the Layers panel displays the edits you make to the mask.
Masked objects can also be modified. You can rearrange masked objects without moving the mask. You can also add
additional masked objects to an existing mask group.
Selecting masks and masked objects using mask thumbnails
Masks and masked objects can be easily identified and selected using the thumbnails in the Layers panel. Thumbnails
allow you to easily select and edit just the mask or the masked objects, without affecting the other objects.
When you select the mask thumbnail, the mask icon appears beside it in the Layers panel, and the mask’s properties
show in the Property inspector, where they can be changed if desired.
To select a mask:
❖Click the mask thumbnail in the Layers panel.
The Layers panel displays a green highlight around a mask thumbnail when it is selected.
To select masked objects:
❖Click the masked object thumbnail in the Layers panel.
The Layers panel displays a blue highlight around a masked object’s thumbnail when it is selected.
Selecting masks and masked objects using the Subselection tool
You can use the Subselection tool to select individual masks and masked objects on the canvas without selecting the
other components of the mask.
When you select a mask or a masked object with the Subselection tool, the Property inspector shows the properties
for the selected object.
To select a mask or masked object independently:
❖Click the object on the canvas with the Subselection tool.
ADOBE FIREWORKS CS3
User Guide
174
When selected, masks have a green highlight and masked objects have a blue highlight.
Moving masks and masked objects
You can reposition masks and masked objects. They can be moved together or independently.
To move a mask and its masked objects together:
1Select the mask on the canvas using the Pointer tool.
2Drag the mask to a new location, but don’t drag the move handle unless you want to move the masked object
separately from the mask.
To move masks and masked objects independently by unlinking:
1Click the link icon on the mask in the Layers panel.
This unlinks masks from masked objects so that they can be moved independently.
A. Link icon
2Select the thumbnail of the object you want to move: the mask or the masked objects.
3Drag the object or objects on the canvas with the Pointer tool.
Note: If there is more than one masked object, all masked objects move together.
4Click between the mask thumbnails in the Layers panel. This relinks the masked objects to the mask.
To move a mask independently using its move handle:
1Select the mask on the canvas using the Pointer tool.
ADOBE FIREWORKS CS3
User Guide
175
2Select the Subselection tool and drag the mask’s move handle to a new location.
To move masked objects independently of the mask using the move handle:
1Select the mask on the canvas using the Pointer tool.
2Drag the move handle to a new location.
The objects move without affecting the position of the mask.
Note: If there is more than one masked object, all masked objects move together.
To move masked objects independently of each other:
❖Click the object with the Subselection tool to select it, then drag the object.
This is the only way to select and move an individual masked object without moving other masked objects.
Modifying a mask’s appearance
By modifying a mask’s shape and color, you can change the visibility of masked objects.
You change the shape of a bitmap mask by drawing on it with the bitmap tools. You change the shape of a vector mask
by moving the mask object’s points.
If a mask is applied using its grayscale appearance, you can modify its colors to affect the opacity of the underlying
masked objects. Using midtone colors on a grayscale mask gives masked objects a translucent appearance. Use lighter
colors to display the masked objects, and darker colors to hide masked objects and show the background.
You can also alter a mask by adding mask objects to it or using the transformation tools.
To modify a selected mask’s shape, do one of the following:
•Draw on a bitmap mask with any of the bitmap drawing tools.
•Move the points of a vector mask object with the Subselection tool.
ADOBE FIREWORKS CS3
User Guide
176
To modify a selected mask’s color, do one of the following:
•For grayscale bitmap masks, use the bitmap tools to draw on the mask using various grayscale color values.
•For grayscale vector masks, change the color of the mask object.
Note: Use lighter colors to display the masked objects and darker colors to hide the masked objects.
To modify a mask by adding more mask objects:
1Select Edit > Cut to cut the selected object or objects you want to add.
2Select the thumbnail of the masked object in the Layers panel.
3Select Edit > Paste as Mask.
4Select Add when asked whether to replace the existing mask or add to it.
The object or objects are added to the mask.
To modify a mask using the transformation tools:
1Select the mask on the canvas using the Pointer tool.
2Use a transformation tool or a command from the Modify > Transform submenu to apply a transformation to the
mask. For more information about using the transformation tools, see “Transforming and distorting selected objects
and selections” on page 54.
The transformation is applied to the mask and its masked objects.
Note: You can apply a transformation to the mask object alone by first unlinking the mask from the mask objects in the
Layers panel and then performing the transformation.
Changing the way masks are applied
You can use the Property inspector to ensure that you are editing a mask and to identify the type of mask you are
working on. When a mask is selected, the Property inspector lets you change the way the mask is applied. If the
Property inspector is minimized, click the expander arrow to see all properties.
Vector masks are applied using their path outline by default. The outline of the path or text is used as the mask.
Optionally, you can show the mask’s fill and stroke. This produces the same result as using Paste Inside to create
masks. For more information, see “Creating a mask from an existing object” on page 166.
A vector mask applied using its path outline with Show Fill and Stroke enabled
By applying a bitmap mask using its alpha channel, you can create a mask that looks similar to a vector mask applied
using its path outline. When you apply a mask using its alpha channel, the transparency of the mask object affects
the visibility of the object being masked.
ADOBE FIREWORKS CS3
User Guide
177
A bitmap mask applied using its alpha channel
Both vector and bitmap masks can be applied using their grayscale appearance. Bitmap masks are applied using their
grayscale appearance by default. When a mask is applied using its grayscale appearance, the lightness of its pixels
determines how much of the masked object is displayed. Light pixels display the masked object. Darker pixels in the
mask knock out the image and show the background. Applying masks using their grayscale appearance creates inter-
esting effects if the mask object contains a pattern or gradient fill.
A vector mask with a pattern fill applied using its grayscale appearance
You can also convert vector masks into bitmap masks. Bitmap masks cannot be converted into vector masks,
however.
For more information about vector and bitmap masks, see “About masks” on page 164.
To apply a vector mask using its path outline:
❖Select Path Outline in the Property inspector when a vector mask is selected.
To show a vector mask’s fill and stroke:
❖Select Show Fill and Stroke in the Property inspector when a vector mask that has been applied using its path
outline is selected.
To apply a bitmap mask using its alpha channel:
❖Select Alpha Channel in the Property inspector when a bitmap mask is selected.
To apply a vector or bitmap mask using its grayscale appearance:
❖Select Grayscale Appearance in the Property inspector when a mask is selected.
To convert a vector mask to a bitmap mask:
1In the Layers panel, select the thumbnail of the mask object.
ADOBE FIREWORKS CS3
User Guide
178
2Select Modify > Flatten Selection.
Adding objects to a masked selection
You can add more objects to an existing masked selection.
To add masked objects to a masked selection:
1Select Edit > Cut to cut the selected object or objects you want to add.
2Select the thumbnail of the masked object in the Layers panel.
3Select Edit > Paste Inside.
The object or objects are added to the masked objects.
Note: Using the Paste Inside command on an existing mask won’t show the mask object’s stroke and fill unless the original
mask was applied using its stroke and fill.
Replacing, disabling, and deleting masks
You can replace a mask with a new mask object. You can also disable or delete a mask. Disabling a mask temporarily
hides it. Deleting a mask permanently removes it.
To replace a mask:
1Select Edit > Cut to cut the selected object or objects you want to use as the mask.
2Select the thumbnail of the masked object in the Layers panel and select Edit > Paste as Mask.
3Click Replace when asked whether to replace the existing mask or add to it.
The existing mask object is replaced with the new one.
To disable or enable a selected mask, do one of the following:
•Select Disable Mask or Enable Mask from the Layers panel Options menu.
•Select Modify > Mask > Disable Mask or Modify > Mask > Enable Mask.
A red X appears on the mask thumbnail when it is disabled. Clicking the X enables the mask.
To delete a selected mask:
1Do one of the following to delete the mask:
•Select Delete Mask from the Layers panel Options menu.
•Select Modify > Mask > Delete Mask.
•Drag the mask thumbnail to the trash can icon in the Layers panel.
2Choose whether you want to apply or discard the effect of the mask on the masked objects before deleting the
mask:
Apply keeps the changes you have made to the object, but the mask is no longer editable. If the object being masked
is a vector object, the mask and vector object are converted into a single bitmap image.
Discard gets rid of the changes you have made and restores the object to its original form.
Cancel stops the delete operation and leaves the mask intact.
ADOBE FIREWORKS CS3
User Guide
179
Blending and transparency
Compositing is the process of varying the transparency or color interaction of two or more overlapping objects. In
Fireworks, blending modes allow you to create composite images. Blending modes also add a dimension of control
to the opacity of objects and images.
About blending modes
When you select a blending mode, Fireworks applies it to the selected objects in their entirety. Objects in a single
document or on a single layer can have blending modes that differ from those of other objects in the document or
on the layer.
When objects with different blending modes are grouped, the group’s blending mode overrides individual blending
modes. Ungrouping the objects restores each object’s individual blending mode.
Note: Layer blending modes will not work within symbol documents.
A blending mode contains these elements:
Blend color is the color to which the blending mode is applied.
Opacity is the degree of transparency to which the blending mode is applied.
Base color is the color of pixels underneath the blend color.
Result color is the result of the blending mode’s effect on the base color.
Here are some of the blending modes in Fireworks:
Normal applies no blending mode.
Dissolve randomly chooses colors between the current and background layer to create the blend effect.
Multiply multiplies the base color by the blend color, resulting in darker colors.
Screen multiplies the inverse of the blend color by the base color, resulting in a bleaching effect.
Darken selects the darker of the blend color and base color to use as the result color. This replaces only pixels that
are lighter than the blend color.
Linear Burn inspects each channel of the current and background layers and darkens the background color to reflect
the blend color by decreasing the brightness. The overall effect is to darken the image. The neutral color is white, so
Linear Burn blending with white has no effect.
Lighten selects the lighter of the blend color and base color to use as the result color. This replaces only pixels that
are darker than the blend color.
Linear Dodge inspects each channel of the current and background layers and lightens the background color to
reflect the blend color by increasing the brightness. The overall effect is to lighten the image. The neutral color is
black, so Linear Dodge blending with black has no effect.
Vivid Light a contrast-increasing blend mode that combines the effects of Color Burn and Color Dodge modes. If
the blend color is darker than mid-gray, Vivid Light darkens or burns the image by increasing the contrast.
Otherwise, the image is lightened or dodged by decreasing the contrast.
Linear Light differs from Vivid Light in that Linear light is a combination of Linear Burn and Linear Dodge, and
adjusts brightness rather than contrast. If the blend layer color is darker than mid-gray, Linear Light darkens the
image by decreasing the brightness. If the blend layer color is lighter than mid-gray, the result is a brighter image due
to increased brightness.
ADOBE FIREWORKS CS3
User Guide
180
Pin Light replaces the color, depending on the blend color. If the blend color is lighter than 50% gray, pixels darker
than the blend color are replaced, and pixels lighter than the blend color do not change. If the blend color is darker
than 50% gray, pixels lighter than the blend color are replaced, and pixels darker than the blend color do not change.
Hard Mix reduces the colors in an image to just eight pure colors.
Difference subtracts the blend color from the base color or the base color from the blend color. The color with less
brightness is subtracted from the color with more brightness.
Hue combines the hue value of the blend color with the luminance and saturation of the base color to create the
result color.
Saturation combines the saturation of the blend color with the luminance and hue of the base color to create the
result color.
Color combines the hue and saturation of the blend color with the luminance of the base color to create the result
color, preserving the gray levels for coloring monochrome images and tinting color images.
Luminosity combines the luminance of the blend color with the hue and saturation of the base color.
Invert inverts the base color.
Tint adds gray to the base color.
Erase removes all base color pixels, including those in the background image.
For general information about blending modes—in particular, Photoshop blending modes—see the following
website: www.pegtop.net/delphi/articles/blendmodes/.
Blending mode examples
Here are examples of some of the blending modes in Fireworks. For additional examples, see the following website:
www.pegtop.net/delphi/articles/blendmodes/.
Original image Normal Multiply
Screen Darken Lighten
ADOBE FIREWORKS CS3
User Guide
181
Adjusting opacity and applying blends
You can use the Property inspector or the Layers panel to adjust the opacity of selected objects and to apply blending
modes. An Opacity setting of 100 renders an object completely opaque. A setting of 0 (zero) renders an object
completely transparent.
You can also specify a blending mode and opacity before you draw an object.
To specify a blending mode and opacity before you draw an object:
❖With the desired tool selected in the Tools panel, set blend and opacity options in the Property inspector before
you draw the object.
Note: Blend and opacity options are not available for all tools.
To set a blending mode and opacity level for existing objects:
1With two objects overlapping, select the top object.
2Select a blending option from the Blend Mode pop-up menu in the Property inspector or the Layers panel.
3Select a setting from the Opacity pop-up slider or type a value in the text box.
To set a default blending mode and opacity level to be applied to objects as you draw them:
1Choose Select > Deselect to avoid inadvertently applying a blending mode and opacity.
2With a vector or bitmap drawing tool selected, select a blending mode and opacity level in the Property inspector.
The blending mode and opacity level you select are used as the default for any objects you subsequently draw with
that tool.
Difference Hue Saturation
Color Luminosity Invert
Tint Erase
ADOBE FIREWORKS CS3
User Guide
182
About the Color Fill Live Filter
Fireworks also offers a Live Filter that allows you to adjust the color of an object by altering the object’s opacity and
blend mode. This Live Filter, called Color Fill, produces the same effect as overlapping an object with one that has a
different opacity and blend mode. For more details on using the Color Fill Live Filter, see “Using Live Filters” on
page 147.
183
Chapter 10: Using Styles, Symbols,
and URLs
Fireworks provides three panels in which you can store and reuse styles, symbols, and URLs. Styles are stored in the
Styles panel, symbols for the current document are stored in the Library panel, and URLs are stored in the URL
panel. By default, all three panels are organized in the Assets panel group.
The Styles panel contains a set of predefined Fireworks styles to select from. In addition, if you have created a combi-
nation of strokes, fills, filters, and text attributes and want to reuse it, you can save the attributes as a style. Rather
than rebuilding attributes each time, you can simply save them in the Styles panel and then apply that combination
of attributes to other objects.
Fireworks has three types of symbols: graphic, animation, and button. Each has unique characteristics for its specific
use. You can create new symbols, as well as duplicate, import, and edit symbols, using the Library panel. For infor-
mation on specific features built into the animation and button symbols, see “Creating Animations” on page 238 and
“Creating Buttons and Pop-up Menus” on page 220.
A URL, or Uniform Resource Locator, is an address of a specific page or file on the Internet. If you are using the same
URL many times, you can add it to the URL panel. You can organize and group your URLs in URL libraries.
This chapter contains the following topics:
•“Using styles” on page 183
•“Using symbols” on page 186
•“Working with URLs” on page 196
Using styles
You can save and reapply a set of predefined fill, stroke, filter, and text attributes by creating a style. When you apply
a style to an object, that object takes on the style’s characteristics.
Fireworks has many predefined styles. You can add, change, and remove styles. The Fireworks DVD and the Adobe
website have many more predefined styles that you can import into Fireworks. You can also export styles and share
them with other Fireworks users or import styles from other Fireworks documents.
Note: You cannot apply styles to bitmap objects.
Applying a style
You can use the Styles panel to create, store, and apply styles to objects or text.
ADOBE FIREWORKS CS3
User Guide
184
Styles panel
When you apply a style to an object, you can later update the style without affecting the original object. Fireworks
does not keep track of which style you applied to an object. If you delete a custom style, you cannot recover it;
however, any object currently using the style retains its attributes. If you delete a style supplied in Fireworks, you can
recover it and all other deleted styles using the Reset Styles command in the Styles panel Options menu. However,
resetting styles also deletes your custom styles.
To apply a style to a selected object or text block:
1Select Window > Styles to open the Styles panel.
2Click a style in the Styles panel.
Creating and deleting styles
You can create a style based on the attributes of a selected object. The style is displayed in the Styles panel.
You can also delete styles from the Styles panel.
The following attributes can be saved in a style:
•Fill type and color, including patterns, textures, and vector gradient attributes such as angle, position, and opacity
•Stroke type and color
•Filters
•Text attributes such as font, point size, style (bold, italic, or underline), alignment, anti-aliasing, auto-kerning,
horizontal scale, range kerning, and leading
To create a new style:
1Create or select a vector object or text with the stroke, fill, filter, or text attributes you want.
2 Click the New Style button at the bottom of the Styles panel.
3Select the attributes you want to be part of the style from the New Style dialog box.
Note: To save other text attributes not listed, such as alignment, anti-aliasing, auto-kerning, horizontal scale, range
kerning, and leading, select the Text Other option.
ADOBE FIREWORKS CS3
User Guide
185
4Name the style if you want, and click OK.
An icon depicting the style appears in the Styles panel.
To base a new style on an existing style:
1Apply the existing style to a selected object.
2Edit the attributes of the object.
3Save the attributes by creating a new style, as described in the previous procedure.
To delete a style:
1Select a style from the Styles panel.
Shift-click to select multiple styles; Control-click (Windows) or Command-click (Macintosh) to select multiple
noncontiguous styles.
2 Click the Delete Style button in the Styles panel.
Editing styles
If you want to change the attributes that a style contains, you can edit the style from the Styles panel.
To edit a style:
1Choose Select > Deselect to deselect any objects on the canvas.
2Double-click a style in the Styles panel.
3In the Edit Style dialog box, select or deselect components of the attributes you wish to apply. The Edit Style dialog
box contains the same options as the New Style dialog box. For details on choosing attributes to include in a style,
see “Creating and deleting styles” on page 184.
4Click OK to apply the changes to the style.
Exporting and importing styles
You may want to share styles with other Fireworks users to save time and maintain consistency. You can share styles
by exporting them for use on other computers.
To expor t styles:
1Select a style from the Styles panel.
Shift-click to select multiple styles; Control-click (Windows) or Command-click (Macintosh) to select multiple
noncontiguous styles.
2Select Export Styles from the Styles panel Options menu.
3Enter a name and location for the document that will contain the saved styles.
4Click Save.
To import styles:
1Select Import Styles from the Styles panel Options menu.
2Select a styles document to import.
All styles in the styles document are imported and placed directly after the selected style in the Styles panel.
ADOBE FIREWORKS CS3
User Guide
186
Using style defaults
If you want to delete all custom styles from the Styles panel and restore any deleted default styles, you can reset the
Styles panel to its default state. You can also change the size of the icons displayed in the Styles panel.
To reset the Styles panel to the default styles:
❖Select Reset Styles from the Styles panel Options menu.
Note: Resetting styles to the default removes any custom styles you may have saved.
To change the size of the style preview icons:
❖Select Large Icons from the Styles panel Options menu to switch between large and small preview sizes.
Applying attributes without creating a style
You can copy attributes from one object and apply them to other objects, without creating a new style in the Styles
panel. You can use this method to quickly apply attributes to an object when you are not planning to reapply those
attributes to other objects. Attributes that can be copied and applied include fills, strokes, filters, and text attributes.
To copy attributes from one object and apply them to other objects:
1Select the object whose attributes you want to copy.
2Select Edit > Copy.
3Deselect the original object, then select the object or objects to which you want to apply the new attributes.
4Select Edit > Paste Attributes.
The selected objects take on the same attributes as the original object.
Using symbols
Fireworks has three types of symbols: graphic, animation, and button. Each has unique characteristics for its specific
use. Instances are representations of a Fireworks symbol. When the symbol object (the original) is edited, the
instances (copies) automatically change to reflect the modifications to the symbol.
Symbols are useful whenever you want to reuse a graphic element. You can place instances in multiple Fireworks
documents and retain the association with the symbol. Symbols are helpful for creating buttons and animating
objects across multiple frames. For more information about the additional features built into animation and button
features, see “Creating animation symbols” on page 239 and “Creating button symbols” on page 220.
Creating a symbol
You can create symbols using the Edit > Insert submenu. You can create a symbol from any object, text block, or
group, and then organize them in the Library tab of the Assets panel. To place instances in a document, you simply
drag them from the Library tab onto the canvas. After creating an instance of the symbol in the current document,
it resides in the Library tab of the Assets panel and can be edited from there.
To create a new symbol from a selected object:
1Select the object and select Modify > Symbol > Convert to Symbol.
2Type a name for the symbol in the Name text box of the Convert to Symbol dialog box.
ADOBE FIREWORKS CS3
User Guide
187
3Select a symbol type: Graphic, Animation, or Button.
4If you want to use 9-slice scaling guides to scale the symbol, select the Enable 9-slice scaling guides check box. For
more information on the 9-slice scaling feature see “Using 9-slice scaling” on page 188.
5To add the symbol to the Common Library panel so that it can be used in multiple documents, select the Save to
Common Library check box.
6Click OK to save the symbol.
The symbol appears in the Library tab of the Assets panel, and in the Common Library panel if that option was
chosen. The selected object becomes an instance of the symbol, and the Property inspector displays symbol options.
To create a symbol from scratch:
1Do one of the following:
•Select Edit > Insert > New Symbol.
•Select New Symbol from the Library panel Options menu.
2Select a symbol type: Graphic, Animation, or Button.
3If you want to use 9-slice scaling guides to scale the symbol, select the Enable 9-slice scaling guides check box.
Then click OK.
Depending on which symbol type you select, the Symbol Editor or Button Editor opens.
4Create the symbol using the tools in the Tools panel, then close the editor.
For more information, see “Creating button symbols” on page 220, “To swap a symbol:” on page 188, and “Creating
animation symbols” on page 239.
Placing instances
You can place instances of a symbol in the current document.
To place an instance:
❖Drag a symbol from the Library panel to the current document.
An instance of a symbol on the canvas
Editing symbols
You can modify a symbol in the Symbol Editor, which automatically updates all associated instances when you finish
editing.
Note: For most types of edits, modifying an instance affects the symbol and all other instances. There are some excep-
tions, however. For more information, see “Editing instances” on page 193.
To edit a symbol and all its instances:
1Do one of the following to open the Symbol Editor:
•Double-click an instance.
ADOBE FIREWORKS CS3
User Guide
188
•Select an instance and select Modify > Symbol > Edit Symbol.
•Select a symbol in the Library panel and choose Edit Symbol from the Options menu.
2Make changes to the symbol and close the window.
The symbol and all instances reflect the modifications.
Note: Use the 9-slice scaling guides in the symbol editor to make sure the symbol shape is not distorted when it is resized.
For more information see “Using 9-slice scaling” on page 188.
To rename a symbol:
1Double-click the symbol name in the Library panel.
2Change the name in the Symbol Properties dialog box and click OK.
To duplicate a symbol:
1In the Library panel, select the symbol.
2Select Duplicate from the Library panel Options menu.
To change a symbol’s type:
1Double-click the symbol name in the Library.
2Select a different Symbol Type option.
To select all unused symbols in the Library panel:
❖Choose Select Unused Items from the Library panel Options menu.
To delete a symbol:
1In the Library panel, select the symbol.
2Select Delete from the Library panel Options menu.
3Click Delete. The symbol and all its instances are deleted.
To swap a symbol:
1Select a symbol that has already been placed on the canvas.
2Right-click and select Swap Symbol.
3In the Swap Symbol dialog box, select another existing symbol instance.
4Click OK.
Using 9-slice scaling
The 9-slice scaling feature, introduced in Fireworks CS3, allows you to scale vector and bitmap symbols up or down
without distorting their geometry. The symbol can be scaled using 3 or 9 regions, depending on the shape of the
symbol.
ADOBE FIREWORKS CS3
User Guide
189
The following figure shows how images are scaled using the 9-slice scaling feature.
The 9-slice scaling guides are enabled in the Symbol Editor and Button Editor for all symbols by default.
To scale a symbol using 9-slice scaling:
1Double click the symbol or button to open the Symbol Editor or Button Editor.
2Edit the 9-slice scaling guides as follows:
aEnable or disable the guides by selecting or deselecting the Enable 9-slice scaling guides check box.
bMove the guides and place them appropriately on the button or symbol. Make sure that the parts of the symbol
that you don’t want to be distorted when scaling (for example the corners) are outside the guides, as represented
by the yellow areas in the graphic above.
The 9-slice scaling guides are positioned on this button so that the corners will not be distorted when the button size is changed.
c(Optional) Lock the guides by checking the Lock 9-slice scaling guides check box to keep them from being moved
accidentally.
3When you have finished placing the 9-slice scaling guides, click Done in the symbol or button editor.
4Resize the symbol as needed by using the scale tool.
The button is scaled without distorting the shape of the corners.
ADOBE FIREWORKS CS3
User Guide
190
Creating and using rich graphic symbols
Rich symbols are a type of graphic symbol that can be intelligently scaled and given specific attributes using a JavaS-
cript (JSF) file. These attributes can then be controlled by using the Symbol Properties panel (Window > Symbol
Properties).
Rich symbols can be used to create a user interface or website design quickly by just dragging symbols on to the
document and editing the parameters associated with them from the Symbol Properties panel.
To view or use a rich symbol:
1Select Common Library from the Window menu to open the Common Library panel.
2To use a symbol, drag and drop the symbol from the Common Library panel to the Fireworks canvas.
A pre-designed library of rich symbols has been included in Fireworks CS3. These may easily be customized to
accommodate the look and feel of a particular website or user interface.
As with all symbols, an instance of the rich symbol type can be edited by using the Property inspector, which has no
effect on other instances of the symbol. You can also change the symbol properties using the Symbol Properties
panel.
To edit the symbol itself, you can double-click the symbol instance and edit the symbol in the Symbol Editor. These
edits affect the current symbol and all other instances of the symbol.
Note: For most types of edits, modifying an instance affects the symbol and all other instances. There are some excep-
tions, however. For more information, see “Editing instances” on page 193.
To create a rich graphic symbol:
1Create an object with attributes that may need to be customized.
This symbol could have the bullet color and the bullet number as customizable options.
2When creating the object, customize the names of the features that you want to be editable by typing a name into
the Layers panel. For example, an editable text field could be named “label.” This name will be used in the JavaScript
file.
Note: When naming features, do not include any spaces in the name. This will cause a JavaScript error. So, for example,
“number label” cannot be used as a name, but “number_label” can.
3Select the objects and select Modify > Symbol > Convert to Symbol.
4Type a name for the symbol in the Name text box of the Convert to Symbol dialog box.
5Select Graphic as the symbol type, and select Save to Common Library. Then click OK.
The software prompts you for a location to save your new symbol. By default the software creates a “Custom
Symbols” folder. You can save your new symbol here or create another folder at the same level as the Custom Symbols
folder.
Note: Rich symbols must be saved in a folder within the Common Library.
After being saved, the symbol is removed from the canvas and appears in the Common Library.
6Open the Create Symbol Script panel by selecting Create Symbol Script from the Commands menu.
ADOBE FIREWORKS CS3
User Guide
191
7Click the browse button in the upper right corner of the panel and browse to the symbol PNG file. This is saved
in the <user settings>\Application Data\Adobe\Fireworks 9\Common Library\Custom Symbols (Windows), or
<user name>/Application Support/Adobe/Fireworks9/Common Library/Custom Symbols (Macintosh) directory,
by default.
8Click the plus button to add an element name.
9Add the name of the element that you want to customize. For example, type “label” into the Element Name field
if you want to customize the text field named “label.”
10 In the Attribute field, select the name of the attribute you want to customize. For example, to customize the text
in the label, select the textChars attribute, or to customize the fill color of an object, select the fillColor attribute.
Note: For more information about these attribute options see Extending Fireworks.
11 In the Property Name field, type the name of the customizable property, for example, “Label” or “Number.” This
is the property name that appears in the Symbol Properties panel.
12 In the Value field, type in a default value for the property. This will be the default value when an instance of the
symbol is first placed into a document.
13 Add additional elements as needed.
14 Click Save to save the selected options and create a JavaScript file.
15 Select Reload from the Common Library panel Options menu to reload the new symbol.
After the JavaScript file has been created, you can create a new instance of the symbol by dragging it to the canvas,
and then you can update its attributes by changing them in the Symbol Properties panel.
Editing symbol properties using the Symbol Properties panel
Note: After creating the JavaScript file, errors will be generated by the Symbol Properties panel if you remove or rename
an object within the symbol that is referenced by the script.
To save an existing symbol as a rich symbol:
1Select a symbol in the Library panel.
2Select Save to Common Library from the Library panel Options menu.
3Create a JavaScript file to control the symbol properties.
Creating editable symbol parameters using JavaScript:
When a symbol is saved as a rich symbol, a PNG file is saved by default in the <user settings>\Application
Data\Adobe\Fireworks 9\Common Library\Custom Symbols folder (Windows), or <user name>/Application
Support/Adobe/Fireworks9/Common Library/Custom Symbols (Macintosh).
To create a rich symbol, a JavaScript file must be created and saved with a .JSF extension in the same location and
with the same name as the symbol. For example, mybutton.graphic.png would have a JavaScript file named
mybutton.jsf.
ADOBE FIREWORKS CS3
User Guide
192
The Create Symbol Script panel allows non-programmers to assign some simple symbol attributes and create the
JavaScript file automatically. To open this panel, select Create Symbol Script from the Commands menu.
The JavaScript file
Two functions in the JavaScript file must be defined in order to add editable parameters to the symbol:
•function setDefaultValues() –defines the parameters that can be edited and the default values of these parameters.
•function applyCurrentValues() –applies the values entered through the Symbol Properties panel to the graphic
symbol.
The following is a sample .JSF file for creating a custom symbol:
function setDefaultValues()
{
var currValues = new Array();
//to build symbol properties
currValues.push({name:"Selected", value:"true", type:"Boolean"});
Widget.elem.customData["currentValues"] = currValues;
}
function applyCurrentValues()
{
var currValues = Widget.elem.customData["currentValues"];
// Get symbol object name
var Check = Widget.GetObjectByName("Check");
Check.visible = currValues[0].value;
}
switch (Widget.opCode)
{
case 1: setDefaultValues(); break;
case 2: applyCurrentValues(); break;
default: break;
}
This sample JavaScript shows a rich symbol that can change colors:
function setDefaultValues()
{
var currValues = new Array();
//Name is the Parameter name that will be displayed in the Symbol Properties Panel
//Value is the default Value that is displayed when Rich symbol loads first time. In this case, Blue will be the default
color when the Rich symbol is used.
//Color is the Type of Parameter that is displayed. Color will invoke the Color Popup box in the Symbol Properties
Panel.
currValues.push({name:"BG Color", value:"#003366", type:"Color"});
Widget.elem.customData["currentValues"] = currValues;
}
ADOBE FIREWORKS CS3
User Guide
193
function applyCurrentValues()
{
var currValues = Widget.elem.customData["currentValues"];
//color_bg is the Layer name in the PNG that will change colors
var color_bg = Widget.GetObjectByName("color_bg");
color_bg.pathAttributes.fillColor = currValues[0].value;
}
switch (Widget.opCode)
{
case 1: setDefaultValues(); break;
case 2: applyCurrentValues(); break;
default: break;
}
To better understand how the .JSF file can be used to customize symbol properties, explore the sample components
that have been included with the software.
Editing instances
When you double-click an instance to edit it, you’re actually editing the symbol itself in the Symbol Editor or Button
Editor. To edit only the current instance, you need to break the link between the instance and the symbol. This
permanently breaks the relationship between the two, however, and any future edits you make to the symbol won’t
be reflected in the former instance.
Button symbols have several convenient features that allow you to retain the symbol-instance relationship for a group
of buttons, while assigning unique button text and URLs to each instance. For more information, see “Editing button
symbols” on page 224.
Editing rich symbols
If you are editing a rich symbol that has JavaScript behavior associated with it, you cannot edit the JavaScript
properties using the Symbol Editor. In order to change these symbol properties, the values need to be changed using
the Symbol Properties panel. If you want to add customizable properties to the Symbol Properties panel, you must
edit the JavaScript file associated with the symbol.
Breaking symbol links
You can modify an instance without affecting the symbol or other instances by first breaking the link between it and
the symbol.
To release an instance from a symbol:
1Select the instance.
2Select Modify > Symbol > Break Apart.
The selected instance becomes a group. The symbol in the Library panel is no longer associated with that group.
After separation from the symbol, a former button instance loses its button symbol characteristics and a former
animation instance loses its animation symbol characteristics.
Editing instance properties
These instance properties can be modified in the Property inspector without affecting the symbol or other instances:
•Blending mode
ADOBE FIREWORKS CS3
User Guide
194
•Opacity
•Filters
•Width and height
•x and y coordinates
Note: Button instances have additional properties that can be edited without affecting the symbol. For more information
about editing button instances, see “Editing button symbols” on page 224.
To edit instance properties without affecting the symbol or breaking the symbol link:
1Select the instance.
2Modify instance properties in the Property inspector.
Importing and exporting symbols
The Library panel stores animation, graphic, and button symbols that you create in the current document. It also
stores symbols that you import into the current document. The Library panel is specific to the current document,
but you can use the symbols from one library in more than one Fireworks document by importing and exporting,
cutting and pasting, or dragging and dropping.
You can import symbols from other libraries, including libraries containing symbols prepared in Fireworks and
libraries containing symbols that you or someone else previously exported. Conversely, if you have created symbols
that you would like to reuse or share, you can export your own symbol libraries. When you export a symbol library,
it is exported as a PNG file.
Importing symbols
Fireworks has symbol libraries in the Common Library panel from which you can import prepared animation
symbols, graphic symbols, and button symbols, as well as navigation bars and multi-symbol themes. Using these
symbols, you can quickly create a sophisticated web page containing advanced navigation elements without having
to spend time creating original symbols.
To import one or more prepared symbols from a Fireworks symbol library:
1Open a Fireworks document.
2Select a folder in the Common Library panel. These folders contain various pre-created symbols such as anima-
tions and bullets.
In addition, you can import symbols from previously exported library PNG files located on your hard disk, on a CD,
or on a network. For more information about exporting symbols, see “Exporting symbols” on page 195.
To import symbols from another file into the current document:
1Do one of the following:
•Select Import Symbols from the Library panel Options menu.
•Select Edit > Libraries > Other.
2Navigate to the folder containing the file, select the file, and click Open.
3Select the symbols to import and click Import.
ADOBE FIREWORKS CS3
User Guide
195
The imported symbols appear in the Library panel.
You can also import and export individual symbols into and out of the Library panels of multiple documents by
dragging and dropping or copying and pasting instances.
To import a symbol by dragging and dropping or copying and pasting, do one of the following:
•Drag a symbol instance from the document containing the symbol into the destination document.
•Copy a symbol instance in the document containing the symbol, then paste it into the destination document.
The symbol is imported into the Library panel of the destination document and retains a relationship to the symbol
in the original document. For more information, see “Updating exported symbols and instances in multiple
documents” on page 195.
Exporting symbols
If you have created or imported symbols in a Fireworks document and want to save them to reuse in other
documents or share with others, you can use the Library panel Options menu to export them in a PNG file. You can
then import the symbols by navigating to the PNG file that contains the symbols using the Edit > Libraries submenu.
For more information, see “Importing symbols” on page 194.
To export symbols:
1Select Export Symbols from the Library panel Options menu.
2Select the symbols to export, and click Export.
3Navigate to a folder, type a name for the symbol file, and click Save.
Fireworks saves the symbols in a single PNG file.
Updating exported symbols and instances in multiple documents
Imported symbols maintain their link to their original symbol document. You can edit the original symbol
document, and then update the target documents to reflect the edits.
To update all exported symbols and instances:
1In the original document, double-click an instance or select an instance and select Modify > Symbol > Edit
Symbol to open the appropriate symbol editor.
2Modify the symbol, and close the editor.
3Save the file.
4In the document into which the symbol was imported, select the symbol in the Library panel.
ADOBE FIREWORKS CS3
User Guide
196
5Select Update from the Library panel Options menu.
Note: To update all imported symbols, select all the symbols in the Library panel and select Update.
Working with URLs
Assigning a URL to a web object creates a link to a file such as a web page. You can assign URLs to hotspots, buttons,
and slice objects. When you intend to use the same URLs several times, you can create a URL library in the URL
panel and store the URLs in the library. You use the URL panel to add, edit, and organize your URLs.
For example, if your website contains several navigation buttons to return to your home page, you can add the URL
for your home page to the URL panel. Then you assign this URL to each navigation button by selecting it in the URL
library. You can use the Find and Replace feature to change a URL across multiple documents (see “Finding and
replacing” on page 330).
URL libraries are available for all Fireworks documents and are saved between sessions.
URL panel
About absolute and relative URLs
When you enter a URL in the URL panel, you can enter an absolute or relative URL:
•If you are linking to a web page that is beyond your own website, you must use an absolute URL.
•If you are linking to a web page within your website, you can use an absolute URL or a relative URL.
Absolute URLs are complete URLs that include the server protocol, which is usually http:// for web pages. For
example, http://www.adobe.com/support/fireworks is the absolute URL for the Fireworks Support web page.
Absolute URLs remain accurate regardless of the location of the source document, but they do not link correctly if
the target document is moved.
Relative URLs are relative to the folder containing the source document. These examples show the navigation syntax
of relative URLs:
•file.htm links to a file located in the same folder as the source document.
•../../file.htm links to a file located in the folder two levels above the folder containing the source document. Each
../ represents one level.
•htmldocs/file.htm links to a file located in a folder named htmldocs, which is in the folder containing the source
document.
ADOBE FIREWORKS CS3
User Guide
197
Relative URLs are usually the simplest ones to use for links to files that will always remain in the same folder as the
current document.
Working with pages
If your Fireworks document contains a number of pages, you can automatically create links between the pages by
using the URLs for each page. The pop-up menu in the Link field in either the Property inspector or the URL panel
contains a list of URLs for each page in your document. Just select one of these page URLs to create a link to that page.
If you would like your default page URLs to have an extension other than “.htm”, use the following procedure:
1) With your document open, select File > Export.
2) Select HTML and images in the Export pop-up menu.
3) Click the Options button.
4) On the General tab, select the desired file extension from the Extension pop-up menu and click OK.
5) Click Cancel in the Export dialog. The file extension for the URLs in the Links pop-up menu is changed to the
new extension.
Assigning a URL to a web object
To assign a URL to a web object:
1Enter the URL in the Link text box.
2Click the Plus (+) button to add the URL.
3Select a web object.
4Select the URL from the URL preview pane.
Creating a URL library
You can group URLs in libraries. This keeps related URLs together, making them easier to access. You can save URLs
in the default URL library, URLs.htm, or in new URL libraries that you create. You can also import an existing HTML
document’s URLs and then create a library of them.
URLs.htm and any new libraries you create are stored in the URL Libraries folder in the Adobe/Fireworks folder in
your user-specific Application Data (Windows) or Application Support (Macintosh) folder. For information on
locating this folder, see “Working with configuration files” on page 350.
To create a new URL library:
1Select New URL Library from the URL panel Options menu.
2Enter the library name in the text box and click OK.
The new library name appears in the Library pop-up menu in the URL panel.
To add a new URL to a URL library:
1Select a library from the Library pop-up menu.
2Enter a URL in the Link text box.
3Click the Plus (+) button.
The Plus (+) button adds the current URL to the library.
You can further organize your URLs by adding only those that are in use in your document.
ADOBE FIREWORKS CS3
User Guide
198
To simultaneously add a URL to the library while assigning it to a web object:
1Select the object.
2Do one of the following to enter the URL:
•Select Add URL from the URL panel Options menu, enter an absolute or relative URL, and click OK.
•Enter a URL in the Link text box. Click the Plus (+) button.
The URL appears in the URL preview pane. See “Assigning URLs” on page 212 and “Setting the URL for a button
symbol or instance” on page 226.
To add used URLs to a URL library:
1Select a library from the Library pop-up menu.
2Select Add Used URLs to Library from the URL panel Options menu.
To delete a selected URL from the URL preview panel:
❖ Click the Delete URL from Library button at the bottom of the URL panel.
To delete all unused URLs from the library:
1Select Clear Unused URLs from the URL panel Options menu.
2Click OK.
Editing URLs
You can easily edit URLs using the URLs panel. You can edit just a single occurrence of a URL, or you can make your
changes ripple throughout the document.
To edit a URL:
1Select the URL to be edited from the URL preview pane.
2Select Edit URL from the URL panel Options menu.
3Edit the URL. Select Change All Occurrences in Document if you want to update this link throughout the entire
document.
Importing and exporting URLs
If the URL panel contains URLs that you want to use again in other Fireworks documents, you can export them for
later use. You can then easily import them into any of your other Fireworks documents for easy access.
You can also import all URLs referenced in any existing HTML document.
To export URLs:
1Select Export URLs from the URL panel Options menu.
2Enter a filename and click Save.
An HTML file is created. This file contains the URLs you have exported.
To import URLs:
1Select Import URLs from the URL panel Options menu.
ADOBE FIREWORKS CS3
User Guide
199
2Select an HTML file and click Open.
All URLs in this file are imported.
200
Chapter 11: Slices, Rollovers,
and Hotspots
Slices are the basic building blocks for creating interactivity in Fireworks. Slices are web objects—they exist not as
images, but ultimately as HTML code. You can view, select, and rename them through the Web Layer in the Layers
panel. This chapter discusses the concepts central to slicing and gives procedures for using slices to incorporate
interactivity into your web pages.
Using the drag-and-drop rollover method of attaching interactivity to slices, you can quickly create rollover and
swap-image effects in the workspace. You can view the assigned behaviors in the Behaviors panel and create more
complex interactions using this panel.
You can also incorporate interactivity into your web pages with hotspots. Hotspots are used to create an image map,
which is HTML code that defines a hot region in an HTML document. These regions do not necessarily link
anywhere; they could just trigger a behavior or define alternate text. Hotspots can also receive mouse events,
allowing JavaScript behaviors to be acted on in slices.
This chapter contains the following topics:
•“Creating and editing slices” on page 200
•“Making slices interactive” on page 205
•“Preparing slices for export” on page 211
•“Working with hotspots and image maps” on page 216
Creating and editing slices
Slicing cuts up a Fireworks document into smaller pieces and exports each piece as a separate file. Upon export,
Fireworks also creates an HTML file containing table code to reassemble the graphic in a browser.
Slicing cuts a document into multiple pieces, which are exported as separate files.
Slicing an image has at least three major advantages:
Optimizing One challenge of web graphic design is ensuring that images download quickly without sacrificing
quality. Slicing enables you to optimize each individual slice using the most appropriate file format and compression
settings. For more information, see “Optimizing and Exporting” on page 257.
Interactivity You can use slices to create areas that respond to mouse events. For information on attaching inter-
activity to slices, see “Making slices interactive” on page 205.
ADOBE FIREWORKS CS3
User Guide
201
Updating parts of a web page Slicing allows you to easily update parts of a web page that change frequently. For
example, your company’s web page might have an employee-of-the-month section that changes monthly. Slicing
enables you to quickly change just the employee’s name and photo without replacing the entire page.
Creating slice objects
You can create a slice object by drawing it with the Slice tool or by inserting a slice based on a selected object.
The lines extending from the slice object are slice guides, which determine the boundaries of the separate image files
into which the document is split on export. These guides are red by default.
To insert a rectangular slice based on a selected object:
1Select Edit > Insert > Slice. The slice is a rectangle whose area includes the outermost edges of the selected object.
2If more than one object is selected, select how to apply slices:
Single creates a single slice object that covers all selected objects.
Multiple creates a slice object for each selected object.
To draw a rectangular slice object:
1 Select the Slice tool.
2Drag to draw the slice object. The slice object appears on the Web Layer, and the slice guides appear in the
document.
Note: You can adjust the position of a slice as you drag to draw it. While holding down the mouse button, simply press
and hold down the Spacebar, then drag the slice to another location on the canvas. Release the Spacebar to continue
drawing the slice.
Creating HTML slices
An HTML slice designates an area where ordinary HTML text appears in the browser. An HTML slice does not
export an image; it exports HTML text that appears in the table cell defined by the slice.
HTML slices are useful if you want to quickly update text that appears on your website without having to create new
graphics.
ADOBE FIREWORKS CS3
User Guide
202
To create an HTML slice:
1Draw a slice object and leave it selected.
2In the Property inspector, select HTML from the Type pop-up menu.
3Click Edit.
4Type text in the Edit HTML Slice window, and format the text if desired by adding HTML text-formatting tags.
Note: Alternatively, you can add HTML text-formatting tags to the HTML after it has been exported using a text editor
or HTML editor such as Adobe Dreamweaver.
5Click OK to apply your changes and close the Edit HTML Slice window.
The text and HTML tags you entered appear in your Fireworks PNG file on the body of the slice as raw HTML code.
Note: HTML text slices may vary in appearance when viewed in different browsers and on different operating systems,
because font size and type can be set in the browser.
Creating nonrectangular slices
Rectangular slices may not be sufficient when you’re trying to attach interactivity to a nonrectangular image. If you
plan to attach a rollover behavior to a slice, for example, and your slice objects overlap or have irregular shapes, then
a rectangular slice may swap unwanted background graphics along with the swap image. Fireworks solves this
problem by allowing you to draw slices in any polygonal shape using the Polygon Slice tool.
You can also insert a slice on top of a vector path to create irregular slice shapes.
To draw a polygon slice object:
1 Select the Polygon Slice tool.
2Click to place the vector points of the polygon. The Polygon Slice tool draws only straight line segments.
3When drawing a polygon slice object around objects with soft edges, be sure to include the entire object to avoid
creating unwanted hard edges in the slice graphic.
4To stop using the Polygon Slice tool, select another tool from the Tools panel. You do not have to click the first
point again to close the polygon.
Note: Be careful not to overuse polygon slices, because they require more JavaScript code than similar rectangular
slices. Using too many polygon slices can increase web browser processing time.
To create a rectangular slice or polygon slice from a vector object or path:
1Select a vector path.
2Select Edit > Insert > Insert Rectangular Slice or Insert Polygon Slice (depending on the shape you want).
ADOBE FIREWORKS CS3
User Guide
203
Viewing and displaying slices and slice guides
You can control the visibility of slices and other web objects in your document using the Layers panel and the Tools
panel. When you turn slice visibility off for the whole document, slice guides are hidden too.
Using the Property inspector, you can organize slices by assigning a unique color to each slice object. You can also
change the color of slice guides through the View menu.
Viewing slices in the Layers panel
The Web Layer displays all the web objects in the document so that you can select and view each one.
To view and select a slice in the Layers panel:
1Select Window > Layers to open the Layers panel.
2Expand the Web Layer by clicking the Plus (+) button (Windows) or triangle (Macintosh).
The Web Layer displays the full list of web objects currently in your document.
3Click a slice name to select it.
The slice is highlighted in the Web Layer and is selected on the canvas.
Showing and hiding slices
Hiding a slice renders the slice invisible in the Fireworks PNG file. You can turn off all or some web objects. Because
slices are web objects, they are listed beneath the Web Layer in the Layers panel, where visibility can be turned on
or off for a selected slice. You can also control slice visibility through the Tools panel. Hiding a slice object does not
prevent the slice from being exported in the HTML.
To hide and show particular slices and hotspots:
1 Click the eye icon next to the individual web objects in the Layers panel.
2Click in the Eye column to turn visibility back on. The eye icon reappears when web objects are visible again.
To hide or show all hotspots, slices, and guides, do one of the following:
•Click the appropriate Hide/Show Slices button in the Web tools section of the Tools panel.
•Click the eye icon next to the Web Layer in the Layers panel.
To hide or show slice guides in any document view:
❖Select View > Slice Guides.
Changing slice and slice guide color
If the colors used in a document are similar to the slice color, it can be difficult to see slices against the objects in the
document. For ease of viewing, you can assign a new color to selected slices. Assigning unique colors to individual
slices also helps you organize them. You can alter slice guide color as well.
Note: When you preview your document, deselected slices are visible as a white overlay.
ADOBE FIREWORKS CS3
User Guide
204
To change the color of a selected slice object:
❖In the Property inspector, select a new color from the color box.
To change the color of slice guides:
1Select View > Guides > Edit Guides.
2Select a new color from the Slice Color section of the Guides dialog box and click OK.
Editing slices
In Fireworks you can work with a slice layout as if it were a table in a word-processing application. When you drag
a slice guide to resize a slice, Fireworks automatically resizes all adjacent rectangular slices as well. In addition, you
can use the Property inspector to resize and transform slices as you would vector and bitmap objects.
Moving slice guides to edit slices
Slice guides define the perimeter and position of slices. Slice guides extending beyond slice objects define how the
rest of the document is sliced upon export. You can change the shape of a rectangular slice object by dragging the
slice guides that surround it. Nonrectangular slice objects cannot be resized by moving slice guides.
Resizing a slice object by dragging its slice guides
Note: If you drag slice guides that surround a Fireworks button in the Document window, Fireworks resizes the slice
that defines the active area for that button. However, you cannot delete the active area for a Fireworks button by
dragging the slice guides that surround it.
If multiple slice objects are aligned along a single slice guide, you can drag that slice guide to resize all the slice objects
simultaneously.
Resizing multiple slice objects by dragging a single guide
In addition, if you drag one guide along a given coordinate, all other guides on that same coordinate move with it.
To resize one or more slices:
1Position the Pointer or Subselection tool over a slice guide.
ADOBE FIREWORKS CS3
User Guide
205
The pointer changes to the guide movement pointer.
2Drag the slice guide to the desired location.
The slices are resized, and all adjacent slices are automatically resized as well.
To reposition a slice guide to the far edge of the canvas,
❖Use the Pointer or Subselection tool to drag the slice guide beyond the edge of the canvas.
To move adjacent slice guides:
1Shift-drag a slice guide across adjacent slices guides.
2Release the slice guide in the desired location.
All slice guides that you dragged across are moved to this location.
You can cancel this operation by releasing the Shift key before you release the mouse button. All slice guides that
were picked up snap back to their original positions.
Using tools to edit slice objects
You can use the Pointer, Subselection, and Transform tools to reshape or resize a slice. You can skew and distort
only polygon slices.
Note: Resizing and reshaping slices using these tools can create overlapping slices, because the size of adjacent slice
objects is not automatically adjusted. When slices overlap, the topmost slice takes precedence if interactivity is involved.
To avoid overlapping slices, use slice guides to edit slices. For more information, see “Moving slice guides to edit slices”
on page 204.
To edit the shape of a selected slice, do one of the following:
•Select the Pointer or Subselection tool and drag the slice’s corner points to modify its shape.
•Use a transformation tool to perform the desired transformation.
For more information on using the transformation tools, see “Transforming and distorting selected objects and
selections” on page 54.
Note: Transforming a rectangular slice may change its shape, position, or dimensions, but the slice itself
remains rectangular.
About using the Property inspector or Info panel to edit slice objects
You can also change a slice object’s position and size numerically using the Property inspector. For more infor-
mation about changing an object’s dimensions numerically, see “Transforming objects numerically” on page 57. For
more information about changing an object’s position numerically, see “Editing selected objects” on page 53.
Making slices interactive
The basic building blocks for creating interactivity in Fireworks are slice objects. Fireworks offers two ways to make
slices interactive:
•The drag-and-drop rollover method is the easiest way to make a slice interactive. By merely dragging a slice’s
behavior handle and dropping it onto a target slice, you can quickly create simple interactivity.
ADOBE FIREWORKS CS3
User Guide
206
•The Behaviors panel allows you to create more complex interactivity. The Behaviors panel contains a variety of
interactive behaviors you can attach to slices. By attaching multiple behaviors to a single slice, you can create
interesting effects. You can also select from a variety of mouse events that trigger interactive behaviors.
Behaviors in Fireworks are compatible with Dreamweaver behaviors. When you export a Fireworks rollover to
Dreamweaver, you can edit Fireworks behaviors using the Dreamweaver Behaviors panel.
Adding simple interactivity to slices
The drag-and-drop rollover method is a fast and efficient way to create rollover and swap-image effects.
Specifically, the drag-and-drop rollover method allows you to determine what happens to a slice when the pointer
passes over it. The end result is commonly referred to as a rollover image. Rollover images are graphics that change
appearance in a web browser when you move the pointer over them.
When a slice is selected, a round circle with cross hairs appears in the center of the slice. This is called a behavior
handle.
A. Slice name B. Behavior handle C. Selection handle
By dragging the behavior handle from a triggering slice and dropping it onto a target slice, you can easily create
rollover and swap-image effects. The trigger and target can be the same slice.
Hotspots also have behavior handles for incorporating rollover effects. For more information, see “Creating
hotspots” on page 216.
About rollovers
Rollovers all work the same way. One graphic triggers the display of another when the pointer rolls over it. The
trigger is always a web object—a slice, hotspot, or button.
ADOBE FIREWORKS CS3
User Guide
207
The simplest rollover swaps an image in Frame 1 with an image directly below it in Frame 2. You can build more
complicated rollovers as well. Swap-image rollovers can swap in images from any frame; disjoint rollovers swap in
an image from a slice other than the trigger slice.
In Fireworks, when you select a trigger web object created using a behavior handle or the Behaviors panel, all of its
behavior relationships are displayed. By default, a rollover interaction is represented by a blue behavior line.
Creating a simple rollover
A simple rollover swaps in the frame directly under the top frame and involves only one slice.
To attach a simple rollover to a slice:
1Ensure that the trigger object is not on a shared layer. For more information, see “Sharing layers” on page 163.
2Select Edit > Insert > Slice to create a slice on top of the trigger object.
3Create a new frame in the Frames panel by clicking the New/Duplicate Frame button.
4Create, paste, or import an image to use as the swap image on the new frame.
Position the image beneath the slice you created in step 2, which is still visible even though you’re in Frame 2. Slices
are visible across all frames.
5Select Frame 1 in the Frames panel to return to the frame that has the original image.
6Select the slice and place the pointer over the behavior handle. The pointer changes to a hand.
ADOBE FIREWORKS CS3
User Guide
208
Note: You can select the slice while in any frame.
7Click the behavior handle and select Simple Rollover from the menu.
8Click the Preview tab and test the simple rollover, or press F12 to preview it in a browser.
Creating a disjoint rollover
A disjoint rollover swaps in an image under a web object when the pointer rolls over another web object. In response
to a pointer rolling over or clicking a trigger image, an image appears in a different location on the web page. The
image that is rolled over is considered the trigger; the image that changes is considered the target.
As with simple rollovers that use just one slice, you first have to set up the trigger and target slices and the frame in
which the swap image resides. Then you can link the trigger to the target slice with a behavior line.
Note: The trigger for a disjoint rollover doesn’t have to be a slice. Hotspots and buttons also have behavior handles that
can be used to create disjoint rollovers. For more information on hotspots, see “Creating hotspots” on page 216. For more
information about buttons, see “Creating button symbols” on page 220.
To attach a disjoint rollover to a selected image:
1Select Edit > Insert > Slice or Hotspot to attach a slice or hotspot to the trigger image.
Note: This step is not necessary if the selected object is a button or if a slice or hotspot already covers the image.
2Create a new frame by clicking the New/Duplicate Frame button in the Frames panel.
3Place a second image, to be used as the target, in the new frame in the desired location on the canvas. You can
place the image anywhere other than beneath the slice you created in step 1.
4Select the image, and then select Edit > Insert > Slice to attach a slice to the image.
5Select Frame 1 in the Frames panel to return to the frame that has the original image.
6Select the slice, hotspot, or button that covers the trigger area (the original image) and place the pointer over the
behavior handle. The pointer changes to a hand.
7Drag the behavior handle for the trigger slice or hotspot to the target slice you created in step 4.
The behavior line extends from the center of the trigger to the upper-left corner of the target slice, and the Swap
Image dialog box opens.
8From the Swap Image From pop-up menu, select the frame you created in step 2, and click OK.
9Click the Preview button to preview and test the disjoint rollover.
Applying multiple rollovers to a slice
You can drag more than one behavior handle from a single slice to create multiple swap behaviors. For example, you
can trigger a rollover and a disjoint rollover from the same slice.
ADOBE FIREWORKS CS3
User Guide
209
A slice triggering a rollover behavior and a disjoint rollover behavior
Note: You can also add multiple behaviors using the Behaviors panel. For more information, see “Using the Behaviors
panel to add interactivity to slices” on page 209.
To apply more than one rollover to a selected slice:
1Drag a behavior handle from the selected slice to the edge of the same slice or onto another slice.
Dragging the handle to the upper-left edge of the same slice creates a swap image, and dragging it to another slice
creates a disjoint rollover.
2Select the frame of the swap image and click OK.
3Create more rollovers by repeating steps 1 and 2 as many times as desired.
Removing a drag-and-drop rollover
You can easily remove a drag-and-drop rollover from a slice, hotspot, or button.
To remove a drag-and-drop rollover from a selected web object or button:
1Click on the blue behavior line you want to remove.
2Click OK to remove the swap image behavior.
Using the Behaviors panel to add interactivity to slices
In addition to rollovers, you can attach other types of interactivity to slices using the Behaviors panel. You can create
custom interactions by editing existing behaviors.
Note: Although you can create simple, disjoint, and complex rollovers with the Behaviors panel, the drag-and-drop
rollover method is recommended. For more information, see “Adding simple interactivity to slices” on page 206.
The following behaviors are available in Fireworks:
Simple Rollover adds a rollover behavior to the selected slice using Frame 1 as the Up state and Frame 2 as the Over
state. After you select this behavior, you need to create an image in the second frame, under the same slice, to create
the Over state. The Simple Rollover option is actually a behavior group containing the Swap Image and Swap Image
Restore behaviors.
Swap Image replaces the image under the specified slice with the contents of another frame or the contents of an
external file.
Swap Image Restore restores the target object to its default appearance in Frame 1.
ADOBE FIREWORKS CS3
User Guide
210
Set Nav Bar Image sets a slice to be a part of a Fireworks navigation bar. Each slice that is part of the navigation bar
must have this behavior. The Set Nav Bar Image option is actually a behavior group containing the Nav Bar Over,
Nav Bar Down, and Nav Bar Restore behaviors. This behavior is automatically set for you by default when you use
the Button Editor to create a button that includes an Include Over While Down state or Show Down Image Upon
Load state. When you create a two-state button, a simple rollover behavior is assigned to its slice. When you create
a three- or four-state button, a Set Nav Bar Image behavior is assigned to its slice. For more information on buttons,
see “Creating button symbols” on page 220.
Nav Bar Over specifies the Over state for the currently selected slice when it is part of a navigation bar and optionally
specifies the Preload images state and Include Over While Down state.
Nav Bar Down specifies a Down state for the currently selected slice when it is part of a navigation bar and
optionally specifies a Preload images state.
Nav Bar Restore restores all the other slices in the navigation bar to their Up state.
Set Pop-up Menu attaches a pop-up menu to a slice or hotspot. When you apply a pop-up menu behavior, you can
use the Pop-up Menu Editor. For more information, see “Creating pop-up menus” on page 229.
Set Text of Status Bar lets you define text for display in the status bar at the bottom of most browser windows.
Attaching behaviors
Using the Behaviors panel, you can attach a behavior to a slice. You can also attach more than one behavior.
To attach a behavior to a selected slice using the Behaviors panel:
1Click the Add Behavior button (the Plus button) in the Behaviors panel.
A. Add Behavior button B. Remove Behavior button
2Select a behavior from the Add Behavior button. For an explanation of each behavior, see “Using the Behaviors
panel to add interactivity to slices” on page 209.
Editing behaviors
The Behaviors panel also gives you the ability to edit existing behaviors. You can specify the type of mouse event
(such as onClick) that triggers the behavior.
Note: You cannot change the event for Simple Rollover and Set Nav Bar Image.
To change the mouse event that activates the behavior:
1Select the trigger slice or hotspot containing the behavior you want to modify.
All behaviors associated with that slice or hotspot are displayed in the Behaviors panel.
2Select the behavior you want to edit.
ADOBE FIREWORKS CS3
User Guide
211
3Click the arrow beside the event and select a new event from the pop-up menu:
onMouseOver triggers the behavior when the pointer rolls over the trigger area.
onMouseOut triggers the behavior when the pointer leaves the trigger area.
onClick triggers the behavior when the trigger object is clicked.
onLoad triggers the behavior when the web page is loaded.
Using external image files for swap image
You can use an image outside the current Fireworks document as the source for a swap image. Source images can
be in GIF, animated GIF, JPEG, or PNG format. When you select an external file as the image source, Fireworks
swaps that file with the target slice when the swap image is triggered in a web browser.
The file must have the same width and height as the slice it is swapping into. If it does not, the browser resizes the
file to fit within the slice object. Resizing the file may reduce its quality, especially in the case of an animated GIF.
To select an external image file as the source for a swap image:
1While in the Swap Image, Nav Bar Over, or Nav Bar Down dialog box, select Image File and click the folder icon.
Note: If you don’t see this option in the Swap Image dialog box, select More Options and then perform step 1.
2Navigate to the file you want to use, and click Open.
3If necessary, deselect Preload Images (if the external file is an animated GIF).
Pre-caching can interrupt the display of animated GIFs as rollover states. To avoid this problem, deselect Preload
Images when setting up the rollover.
Note: If you plan to export your document for use on the web, be sure that your external image file is accessible from
the exported Fireworks HTML. Fireworks creates document-relative paths to image files. It is a good idea to place
external files in your local site before using them as swap images in Fireworks. When you upload your files to the web,
be sure that the external image file is uploaded as well. For more information on Fireworks HTML, see “Exporting
HTML” on page 280.
Preparing slices for export
Using the Property inspector, you can make slices interactive by assigning links and targets to the slices. You can
also specify alternate text to be displayed in a browser while an image is loading. In addition, you can select an export
file format to optimize a selected slice. If the Property inspector is minimized, click the expander arrow in the lower-
right corner to see all slice properties.
Slice properties in the Property inspector
ADOBE FIREWORKS CS3
User Guide
212
Using the Property inspector or the Layers panel, you can give slices unique names. Fireworks uses the name you
specify to name the files that are generated from slicing upon export. If you don’t enter a slice name in the Property
inspector or the Layers panel, Fireworks automatically names slices for you upon export. You can change the auto-
naming convention that Fireworks uses through the HTML Setup dialog box.
Fireworks exports a sliced Fireworks document as an HTML file and a series of graphic files. You can define
properties for the exported HTML file using the HTML Setup dialog box.
Assigning URLs
A URL, or Uniform Resource Locator, is the address of a specific page or file on the Internet. When you assign a
URL to a slice, users can navigate to that address by clicking the area defined by the slice in their web browser.
If your file contains a number of pages that you will be exporting, you open the Link pop-up menu and select one
of the pages for the URL. After the pages are exported, this link will automatically take the user to the specified page.
To assign a URL to a selected slice:
❖Enter a URL in the Link text box of the Property inspector.
If you intend to reuse URLs, you can create a URL library in the URL panel and then store URLs in the URL
library. For more information, see “Working with URLs” on page 196.
Entering alternate text
Alternate, or alt, text appears on the image placeholder while the image is downloading from the web; it also substi-
tutes for graphics that fail to download. In some newer versions of browsers, the text also appears next to the pointer
as a tool tip.
Entering brief, meaningful alternate text has become increasingly important in web design. A growing number of
visually impaired people are using screen-reading applications, which read alternate text in a computer-generated
voice as the pointer passes over graphics on a web page.
To specify alt text for a selected slice or hotspot:
❖In the Property inspector, type the text in the Alt Text box.
Assigning a target
A target is an alternate web page frame or web browser window in which the linked document opens. You can
specify a target for a selected slice in the Property inspector. If the Property inspector is minimized, click the
expander arrow to see all properties.
To specify a target for a selected slice or hotspot in the Property inspector:
❖Type the name of the HTML frame in the Target text box or select a reserved target from the Target pop-up menu:
_blank loads the linked documents in a new, unnamed browser window.
_parent loads the linked document in the parent frameset or window of the frame that contains the link. If the
frame containing the link is not nested, then the linked document loads into the full browser window.
_self loads the linked document in the same frame or window as the link. This target is implied, so you usually need
not specify it.
_top loads the linked document in the full browser window, thereby removing all frames.
ADOBE FIREWORKS CS3
User Guide
213
Export settings
You can optimize a slice by selecting an option from the Export Settings pop-up menu in the Property inspector or
Optimize panel. You can select from common export settings to quickly set a file format and apply several format-
specific settings. For more information on using and customizing these settings, see “Using optimization settings”
on page 262.
Naming slices
Slicing cuts an image into pieces. Fireworks exports each piece on each frame as a separate file, so each file must have
a name.
Fireworks automatically names each slice file upon export. You can accept the default naming convention, change
the convention, or enter a custom name for each slice.
Custom-naming slice files
You can assign names to slices so that you can easily identify slice files in your website file structure. For example,
if you have a button on a navigation bar that returns to the home page, you could name the slice Home.
To enter a custom slice name, do one of the following:
•Select the slice on the canvas, enter a name in the Object Name box in the Property inspector, and press Enter.
•Double-click the name of the slice in the Web Layer, enter a new name, and press Enter.
Do not add a file extension to the base name. Fireworks automatically adds file extensions to slice files upon export.
Auto-naming slice files
If you do not enter a slice name in either the Property inspector or the Layers panel, Fireworks reverts to auto-
naming. Auto-naming assigns a unique name to each slice file automatically based on the default naming
convention.
To auto-name a slice file:
❖When you export your sliced image, enter a name in the File Name (Windows) or Name (Macintosh) text box in
the Export dialog box. Do not add a file extension. Fireworks automatically adds file extensions to slice files upon
export.
Changing the default auto-naming convention
You can change the naming convention for slices from the Document Specific tab in the HTML Setup dialog box.
Fireworks lets you specify your own naming convention using a wide range of naming options. You can create a
naming convention that contains up to eight elements. An element can consist of any of the following auto-naming
options.
Option Description
None No name is applied to the element.
doc.name The element takes the name of the document.
“slice” You can insert the word “slice” into the naming convention.
ADOBE FIREWORKS CS3
User Guide
214
For example, if the document name is mydoc, the naming convention doc.name + “slice” + Slice # (A,B,C...) results
in a slice called mydocsliceA. Chances are that you will never require a naming convention that uses all eight
elements.
If a slice has more than one frame, by default Fireworks adds a number to each frame’s file. For example, if you enter
the custom slice filename home for a three-state button, then Fireworks names the Up state graphic home.gif, the
Over state graphic home_f2.gif, and the Down state graphic home_f3.gif. You can create your own naming
convention for multiframe slices using the HTML Setup dialog box.
To change the default auto-naming convention:
1Select File > HTML Setup to open the HTML Setup dialog box.
2Click the Document Specific tab.
3In the File Names section, create your new naming convention by selecting from the lists.
4(Optional) To set this information as the default for all new Fireworks documents, click Set Defaults.
Slice # (1,2,3...)
Slice # (01,02,03...)
Slice # (A,B,C...)
Slice # (a,b,c...)
The element is labeled numerically or alphabetically, according to the style you
select.
row/column (r3_c2, r4_c7...) Row (r##) and Col (c##) designate the rows and columns of the table that web
browsers use to reconstruct a sliced image. You can use this information in the
naming convention.
Underscore
Period
Space
Hyphen
The element uses any of these characters typically as separators between other
elements.
Option Description
ADOBE FIREWORKS CS3
User Guide
215
Note: Use caution when selecting None as a menu option for slice auto-naming. If you select None as the option for
any of the first three menus, Fireworks exports slice files that overwrite one another, resulting in a single exported
graphic and a table that displays this graphic in every cell.
Defining how HTML tables are exported
Slicing defines how the HTML table structure appears when a Fireworks document is exported for use on the web.
When you export a sliced Fireworks document to HTML, your document is reassembled using an HTML table.
Each sliced element from the Fireworks document resides in a table cell. Once exported, a Fireworks slice translates
to a table cell in HTML.
You can specify how a Fireworks table is reconstructed in a browser. Among other options, you can choose whether
to use spacers or nested tables when exporting to HTML:
•Spacers are images that help table cells align properly when viewed in a browser.
•A nested table is a table within a table. Nested tables do not use spacers. They may load more slowly in browsers,
but because there are no spacers, it is easier to edit their HTML.
For more information about HTML, see “Exporting HTML” on page 280.
To define how Fireworks exports HTML tables:
1Select File > HTML Setup, or click the Options button in the Export dialog box.
2Click the Table tab.
3Select a spacing option from the Space With pop-up menu:
Nested Tables — No Spacers creates a nested table with no spacers.
Single Table — No Spacers creates a single table with no spacers. This option can cause tables to be displayed incor-
rectly in some cases.
1-Pixel Transparent Spacer uses a 1-pixel-by-1-pixel transparent GIF as a spacer that is resized as needed in the
HTML. This generates a 1-pixel-high row across the top of the table and a 1-pixel-wide column down the right side.
4Select a cell color for HTML slices:
•To give cells the same background color as the document canvas, select Use Canvas Color.
•To select a different color, deselect Use Canvas Color and select a color from the color pop-up window.
Note: If you select a color from the color pop-up window, it applies only to HTML slices; image slices continue to use
the canvas color.
5Select what to place in empty cells from the Contents pop-up menu:
None causes empty cells to remain blank.
Spacer Image places a small transparent image called spacer.gif in empty cells.
Non-breaking Space places an HTML space tag in empty cells. The cell appears hollow.
Note: Empty cells occur only if you deselect Include Areas Without Slices in the Export dialog box during export.
6Click OK.
For more information about specifying HTML export options, see “Setting HTML export options” on page 287.
Note: You can specify unique table export settings for sliced objects for each document. Or you can use the Set Defaults
button on the Document Specific tab of the HTML Setup dialog box to apply defaults for all new documents.
ADOBE FIREWORKS CS3
User Guide
216
Working with hotspots and image maps
Web designers can use hotspots to make small parts of a larger graphic interactive, linking areas of web graphics to
a URL. You can create an image map in Fireworks by exporting HTML from a document that contains hotspots.
An image map with hotspots
Hotspots and image maps are often less resource-intensive than sliced graphics. Slicing can be more resource-
intensive to web browsers because of the additional HTML code they must download and the processing power
required to reassemble sliced graphics.
Note: It is possible to create a sliced image map. Exporting a sliced image map typically generates many graphic files.
For more information about slicing, see “Creating slice objects” on page 201.
Hotspots are ideal when you want areas of an image to link to other web pages, but you don’t need those areas to
highlight or produce rollover effects in response to mouse movement or actions. Hotspots and image maps are also
ideal when the graphic onto which you’ve placed your hotspots would be best exported as a single graphic file—in
other words, the entire graphic would best be exported using the same file format and optimization settings.
Creating hotspots
After you identify areas on a source graphic that would make good navigation points, you create the hotspots and
then assign URL links, pop-up menus, status bar messages, and alt text to them. There are two ways to create
hotspots:
•You can draw the hotspot around a target area in the graphic using the Rectangle, Circle, or Polygon (odd-
shaped) Hotspot tools.
•You can select an object and insert the hotspot over it.
A hotspot need not always be a rectangle or a circle. You can also create polygon hotspots composed of many points.
This can be a good approach when working with intricate images.
To create a rectangular or circular hotspot:
1Select the Rectangle Hotspot or Circle Hotspot tool from the Web section of the Tools panel.
ADOBE FIREWORKS CS3
User Guide
217
2Drag the hotspot tool to draw a hotspot over an area of the graphic. Hold down Alt (Windows) or Option
(Macintosh) to draw from a center point.
Note: You can adjust the position of a hotspot as you drag to draw it. While holding down the mouse button, simply
press and hold down the Spacebar, then drag the hotspot to another location on the canvas. Release the Spacebar to
continue drawing the hotspot.
To create an odd-shaped hotspot:
1 Select the Polygon Hotspot tool.
2Click to place vector points, much as you would draw straight line segments with the Pen tool. Whether the path
is open or closed, the fill defines the hotspot area.
To create a hotspot by tracing one or more selected objects:
1Select Edit > Insert > Hotspot.
If you selected more than one object, a message appears asking whether you want to create a single rectangular
hotspot covering all objects or multiple hotspots, one for each object.
2Click Single or Multiple. The Web Layer displays the new hotspot or hotspots.
Editing hotspots
Hotspots are web objects, and like many other objects, they can be edited using the Pointer, Subselection, and
Transform tools. For more information on using these tools to edit a web object, see “Using tools to edit slice objects”
on page 205.
You can change a hotspot’s position and size numerically using the Property inspector or the Info panel. For more
information about changing an object’s dimensions numerically, see “Transforming objects numerically” on page 57.
For more information about changing an object’s position numerically, see “Editing selected objects” on page 53.
You can also change a hotspot’s shape using the Property inspector.
To convert a selected hotspot to a rectangle, circle, or polygon hotspot:
❖In the Property inspector, select Rectangle, Circle, or Polygon from the Hotspot Shape pop-up menu.
Preparing hotspots for export
You can use the Property inspector to assign URLs, alternate text, targets, and custom names to hotspots. If the
Property inspector is minimized, click the expander arrow in the lower-right corner to see all properties.
You assign hotspot properties the same way you assign slice properties. For more information on using the Property
inspector to assign URLs, alt text, target frames, and custom names, see “Preparing slices for export” on page 211.
ADOBE FIREWORKS CS3
User Guide
218
Creating image maps
After you’ve inserted several hotspots on top of a desired graphic, you must export the graphic as an image map so
it will function in a web browser. Exporting an image map generates the graphics and the HTML containing map
information for hotspots and corresponding URL links.
Note: Fireworks produces only client-side image maps when exporting.
As an alternative to exporting, you can copy your image map to the Clipboard and paste it into Dreamweaver or
another HTML editor.
To export an image map or copy it to the Clipboard:
1Optimize the graphic to prepare it for export.
For more information, see “About optimizing” on page 257.
2Select File > Export.
3If you are exporting your image (as opposed to copying it to the Clipboard), navigate to the folder where you want
to place the HTML file, and name the file.
If you have already built a local file structure for your website, you can save the graphic in the appropriate folder for
the site from here.
4In the Save as Type pop-up menu, select HTML and Images.
5Select an option from the HTML pop-up menu:
Export HTML File generates the required HTML file and corresponding graphics files, which you can later import
into Dreamweaver or another HTML editor.
Copy to Clipboard copies all required HTML, including a table if the document is sliced, to the Clipboard so that
you can later paste it into Dreamweaver or another HTML editor.
6For Slices, select None only if the document contains no slices.
7If necessary, select Put Images in Subfolder and browse to the appropriate folder.
Note: If you select Copy to Clipboard, this step is not required, and thus the option is disabled.
8Click Save to close the Export dialog box.
When you are exporting files, Fireworks can use HTML comments to clearly label the beginning and end of code
for image maps and other web features created in Fireworks. By default, HTML comments are not included in
the code. To include them, select Include HTML Comments on the General tab of the HTML Setup dialog box.
For information on placing exported Fireworks content into Dreamweaver, see “Working with Dreamweaver” on
page 292.
Creating rollovers with hotspots
Using the drag-and-drop rollover method of creating interactivity, you can easily attach a disjoint rollover effect to
a hotspot if the target area is defined by a slice. Rollover effects are applied to hotspots the same way that they are to
slices. For more information, see “Adding simple interactivity to slices” on page 206.
ADOBE FIREWORKS CS3
User Guide
219
Note: A hotspot can trigger only a disjoint rollover. It cannot be the target of a rollover coming from another hotspot or
slice.
After you create a disjoint rollover with a hotspot, the connecting blue line remains visible only while the hotspot is
selected.
Using hotspots on top of slices
You can place a hotspot on top of a slice to trigger an action or behavior. You may want to do this if you have a large
graphic and you want only a small portion of it to act as the trigger for an action.
For example, perhaps you have a large graphic with text on it, and you want just the text to trigger an action or
behavior, such as a rollover effect. You could place a slice on top of the graphic, and then a hotspot on top of the
text. Rolling over just the text triggers the rollover effect, yet the entire graphic beneath the slice swaps out when the
rollover effect occurs. Avoid creating hotspots that overlap more than one slice, or unpredictable behavior may
result.
To create a trigger for a rollover effect using a hotspot on top of a slice:
1Insert a slice on top of the image you want to swap out.
2Create a new frame in the Frames panel, and insert an image that you will use as your swapped image. Be sure to
place it beneath the slice you inserted in step 1.
3Drag a behavior line from the hotspot to the slice that contains the image you want to swap.
The Swap Image dialog box opens.
4Select the frame holding the rollover image from the Swap Image From list, and click OK.
220
Chapter 12: Creating Buttons and Pop-up
Menus
In Fireworks you can create a variety of JavaScript buttons and Cascading Style Sheet (CSS) or JavaScript pop-up
menus, even if you know nothing about JavaScript and CSS code.
The Fireworks Button Editor leads you through the button-creation process, automating many button-making tasks.
The result is a convenient button symbol. After you’ve created a button symbol, you can easily create instances of the
symbol to make a navigation bar, or nav bar.
Fireworks also has a Pop-up Menu Editor, which allows you to quickly and easily create vertical or horizontal pop-
up menus. The Advanced tab of the Pop-up Menu Editor gives you creative control over cell spacing and padding,
text indention, cell borders, and other properties.
When you export a button or pop-up menu, Fireworks automatically generates the CSS code or JavaScript necessary
to display it in a web browser. In Adobe Dreamweaver, you can easily insert CSS code, JavaScript, and HTML code
from Fireworks into your web pages, or you can cut and paste the code into any HTML or CSS file.
This chapter contains the following topics:
•“Creating button symbols” on page 220
•“Creating navigation bars” on page 228
•“Creating pop-up menus” on page 229
Creating button symbols
Buttons are navigation elements for a web page. Buttons created in the Button Editor have the following character-
istics:
•You can make almost any graphic or text object into a button.
•You can create a button from scratch, convert an existing object into a button, or import already created buttons.
•A button is a special type of symbol. You can drag instances of it from the symbol library into your document.
This allows you to change the graphical appearance of a single button and automatically update the appearance of all
button instances in a nav bar. For more information on symbols, see “Using symbols” on page 186.
•You can edit the text, URL, and target for one button instance without affecting other instances of the same button,
and without breaking the symbol-instance relationship.
•A button instance is encapsulated. When you drag the button instance in the document, Fireworks moves all the
components and states associated with it, so there is no need for multiframe editing.
•A button is easy to edit. Double-click the instance on the canvas, and you can change it in the Button Editor or the
Property inspector.
•Like other symbols, buttons have a registration point. The registration point is a center point that helps you align
text and the different button states while in the Button Editor.
ADOBE FIREWORKS CS3
User Guide
221
About button states
A button can have up to four different states. Each state represents the button’s appearance in response to a mouse
event:
The Up state is the default or at-rest appearance of the button.
The Over state is the way the button appears when the pointer is moved over it. This state alerts the user that clicking
the mouse is likely to result in an action.
The Down state represents the button after it is clicked. Often a concave image of the button is used to signify that
it has been pressed. This button state typically represents the current web page on multibutton navigation bars.
The Over While Down state is the appearance when the user moves the pointer over a button that is in the Down
state. This button state typically shows that the pointer is over the button for the current web page on multibutton
navigation bars.
With the Button Editor, you can create all of these different button states, as well as an area for triggering the button
action.
Using the Button Editor
The Button Editor is where you create and edit a JavaScript button symbol in Fireworks. The tabs along the top of
the Button Editor correspond to the four button states and the active area. The tips on each option in the Button
Editor help you make design decisions for all four button states.
Creating a simple two-state button
With the Button Editor, you can create custom buttons by drawing shapes, importing graphic images, or dragging
objects from the Document window. The Button Editor then takes you through the steps to control the button’s
behavior.
To create an Up state:
1Select Edit > Insert > New Button to open the Button Editor.
The Button Editor opens to the Up state tab.
2Import or create the Up state graphic:
•Drag and drop or import the graphic that will appear as the button’s Up state into the work area of the Button
Editor.
•Use the drawing tools to create a graphic or use the Text tool to create a button from text.
•Set the 9-slice scaling guides to keep the button shape from being distorted when it is resized. For more infor-
mation, see “Using 9-slice scaling” on page 188.
•Click Import a Button and select a ready-made editable button from the Button Import library. If you select this
option, you won’t have to worry about creating the remaining states for your button. Each of the button’s states will
be automatically filled with the appropriate graphics and text.
3If desired, select the Text tool and create text for the button.
To create an Over state:
1With the Button Editor open, click the Over tab.
2Do one of the following to create the button’s Over state:
ADOBE FIREWORKS CS3
User Guide
222
•Click Copy Up Graphic to paste a copy of the Up state button into the Over window, and then edit it to change its
appearance or text.
•Drag and drop, import, or draw a graphic.
Creating a three- or four-state button
When creating a button, you may want to add a Down state and an Over While Down state in addition to the Up and
Over states. These states give web page users additional visual cues.
You can create a nav bar using two-state or three-state buttons, but only a button with all four states qualifies as a real
nav bar button in Fireworks. Fireworks has several Nav Bar behaviors that make buttons act as though they are
related to each other. For example, you can create nav bar buttons that act like the push buttons on an old car radio:
when the user clicks a button, it remains down until another button is clicked.
Although four-state buttons are not mandatory in a nav bar, using them allows you to take advantage of the built-in
Nav Bar behaviors in Fireworks.
For details about creating the Up and Over states for a button, see “Creating a simple two-state button” on page 221.
To create a Down state:
1With a two-state button open in the Button Editor, click the Down tab.
2Do one of the following to create the button’s Down state:
•Click Copy Over Graphic to paste a copy of the Over state button into the Down window, and then edit it to change
its appearance.
•Drag and drop, import, or draw a graphic.
Note: When you insert or create a graphic for the Down state, the Include Nav Bar Down State option is automatically
chosen. This button state is for buttons that are part of navigation bars.
To create an Over While Down state:
1With a three-state button open in the Button Editor, click the Over While Down tab.
2Do one of the following to create the button’s Over While Down state:
•Click Copy Down Graphic to paste a copy of the Down state graphic into the Over While Down window, and then
edit it to change its appearance.
•Drag and drop, import, or draw a graphic.
Note: When you insert or create a graphic for the Over While Down State, the Include Nav Bar Over While Down State
option is automatically chosen. This button state is for buttons that are part of navigation bars.
Using bevel filters to draw button states
As you create graphics for each button state, you can apply preset Live Filters to create common appearances for each
state. For example, if you are creating a four-state button, you can apply the Raised filter to the Up state graphic, the
Highlighted filter to the Down state graphic, and so on.
To apply preset Live Filters to a button symbol:
1With the desired button symbol open in the Button Editor, select the graphic to which you want to add a Live
Filter.
2Click the Add Filters button in the Property inspector.
ADOBE FIREWORKS CS3
User Guide
223
3In the pop-up menu that appears, do one of the following:
•Select Bevel and Emboss > Inner Bevel.
•Select Bevel and Emboss > Outer Bevel.
4In the pop-up window that appears, select a button preset filter. These are described below.
5Repeat steps 1 through 4 for the remaining button states, giving each state a different button preset filter.
Converting Fireworks rollovers into buttons
You can create buttons from rollovers that you created in previous versions of Fireworks. The components convert
to a button, and the new button is placed in the library.
For more information about rollovers, see “Making slices interactive” on page 205.
To convert a Fireworks rollover into a button:
1Delete the slice or hotspot covering the rollover images.
2Select Show All Frames from the Onion Skinning pop-up menu in the Frames panel.
3Select all the objects to be included in the button.
Use the Select Behind tool to select objects that are hidden behind others. For more information, see “Using the
Select Behind tool” on page 42.
4Select Modify > Symbol > Convert to Symbol.
The Symbol Properties dialog box opens.
5Enter a name for the symbol in the Name text box.
6Select the Button symbol type.
7Click OK.
The new button is added to the library.
You can also convert four-frame animations to buttons. Simply select all four objects, and each is placed on its own
button state.
Inserting buttons into a document
You can insert instances of button symbols into a document from the Library panel.
Button preset filter Description
Raised The bevel appears to rise from the underlying objects.
Highlighted The button’s colors lighten.
Inset The bevel appears to sink into the underlying objects.
Inverted The bevel appears to sink into the underlying objects, and the colors
lighten.
ADOBE FIREWORKS CS3
User Guide
224
To place instances of a button symbol in a document:
1Open the Library panel.
2Drag the button symbol to the document.
To place additional instances of a button symbol in a document, do one of the following:
•Select an instance, and then select Edit > Clone to place another instance directly in front of the selected instance.
The new instance becomes the selected object.
Cloning button instances is convenient when you create an aligned nav bar, because you can move the clones in
one direction with the arrow keys while maintaining alignment with the other position coordinate.
•Drag another button instance from the Library panel to the document.
•Alt-drag (Windows) or Option-drag (Macintosh) an instance on the canvas to create another button instance.
•Copy an instance and then paste additional instances.
Importing button symbols
Button symbols in the Library panel are document-specific. If you have an open document with symbols in the
Library panel and then create a new document, the Library panel in the new document will be empty. However, there
are several ways to import button symbols into a document’s Library panel, either from a library or from another
Fireworks document.
To import button symbols into a document’s Library panel, do one of the following:
•Drag and drop a button instance from another Fireworks document into the document.
•Cut and paste a button instance from another Fireworks document into the document.
•Import button symbols from a Fireworks PNG file.
•Export button symbols from another Fireworks document to a PNG library file, and then import button symbols
from the PNG library file into the document.
•Select Edit > Libraries and import button symbols into the document’s Library panel from the button libraries on
the submenu. These libraries contain a wide variety of premade button symbols prepared by Adobe.
You import and export button symbols just as you import and export animation and graphic symbols. For more
information, see “Importing symbols” on page 194 and “Exporting symbols” on page 195.
Editing button symbols
Fireworks button symbols are a special kind of symbol. They have two kinds of properties: some properties change
in all instances when you edit an instance of the symbol, and other properties affect only the current instance.
Fireworks button symbols let you take advantage of the convenience of symbols yet allow you to edit certain
properties of a button instance, such as text, without affecting other instances.
Editing symbol-level properties
You edit button symbols in the Button Editor. The instance properties that you can modify are those that are
typically consistent among buttons in a nav bar:
•Modifications to graphical appearance such as stroke color and type, fill color and type, path shape, and images
•Live Filters or opacity applied to individual objects in the button symbol
ADOBE FIREWORKS CS3
User Guide
225
•Size and position of the active area
•Core button behavior
•Optimization and export settings
•URL link (also available as an instance-level property)
•Target frame (also available as an instance-level property)
To edit button properties at the symbol level:
1Do one of the following to open the button in the Button Editor:
•Double-click a button instance in the workspace.
•In the Library panel, double-click the button preview or the symbol icon beside the button symbol.
2Make changes to the button’s characteristics, and click Done.
Changes are applied to all instances of the button symbol.
Editing instance-level properties
Instance-level properties are edited in the Property inspector when a single instance is selected. You change these
properties for an instance without affecting the associated symbol or any other instances of that symbol. These
properties typically differ from button to button in a series of buttons:
•An instance’s object name, which appears in the Layers panel and is used for naming the exported slices for the
button instance upon export
•Live Filters or opacity applied to the entire instance
•Text characters and text formatting, such as font, size, orientation, and color
•URL link (overrides any URL that exists as a symbol-level property)
•Alternate (alt) image description
•Target frame (overrides any target frame that exists as a symbol-level property)
•Additional behaviors assigned to an instance using the Behaviors panel
•The Show Down State on Load option in the Property inspector for instances in a nav bar
Note: You need not select the Show Down State on Load option for every button instance in a nav bar. The Document
Specific section of the HTML Setup dialog box contains an option called Export Multiple Files. When you select this
option and then export a nav bar, Fireworks CS3 exports each HTML page with the corresponding button’s Down state.
For more information, see “Setting HTML export options” on page 287.
To edit instance-level properties of a single button symbol instance:
1Select the button instance in the work area.
2Set the properties in the Property inspector.
ADOBE FIREWORKS CS3
User Guide
226
Setting interactive button properties
With Fireworks, you can control the interactive elements of a button, including the active area, URL, target, and
alternative (alt) image description.
Modifying the active area of a button symbol
The active area of a button symbol triggers interactivity when a user moves the pointer over it or clicks it in a web
browser. The active area of a button is a symbol-level property and is unique to button symbols.
When a button symbol is created, Fireworks automatically creates a special slice large enough to enclose all the states
of a button. You can edit a button slice only in the Active Area tab of the Button Editor. Each button can have only
one slice. If you draw a slice using a slice tool in the active area, the previous slice is replaced by the newly drawn
slice. You can draw hotspot objects in the Active Area tab, but you can edit those hotspots only in the Button Editor.
Note: Web objects that define a button symbol’s active area appear in the document when slices and hotspots are not
hidden, but a button’s web objects are not listed in the Layers panel and cannot be edited in the workspace.
To edit a slice or hotspot in a button symbol’s active area:
1Do one of the following to open the button symbol in the Button Editor:
•Double-click a button instance in the workspace.
•In the Library panel, double-click the button preview or the symbol icon beside the button symbol.
2Click the Active Area tab.
3Do one of the following:
•Use the Pointer tool to move or reshape the slice or move a slice guide.
•Use any of the slice or hotspot tools to draw a new active area.
Setting the URL for a button symbol or instance
A URL, or Uniform Resource Locator, is a link to another web page, website, or anchor on the same web page. The
URL can be a symbol- or instance-level button property. You can attach a URL to a selected button instance in the
Property inspector or in the URL panel.
You can attach a URL to a symbol, so that the same URL appears in the Link text box in the Property inspector for
each instance. This is helpful when entering absolute URLs within a site; you need only complete the last part of the
URL in each instance’s Link text box in the Property inspector to link the button instances.
Note: For information on absolute versus relative URLs, see “About absolute and relative URLs” on page 196.
To set the URL for a button symbol in the Button Editor:
1Do one of the following to open the button in the Button Editor:
•Double-click a button instance in the workspace.
•In the Library panel, double-click the button preview or the symbol icon beside the button symbol.
2Click the Active Area tab in the Button Editor.
3Select the Active Area slice or hotspot.
4Do one of the following:
•Enter the URL in the Link text box in the Property inspector, or select a page from the pop-up menu. This list
contains all of the pages in the current document.
ADOBE FIREWORKS CS3
User Guide
227
•Select a URL from the URL panel.
Note: Changing the URL for a button symbol won’t change the URL for existing button instances of that symbol that
already have unique URLs assigned to them. This also applies to changes made to a button symbol’s target and alt text.
To set the URL for a selected button instance in the workspace, do one of the following:
•Enter the URL in the Link text box in the Property inspector, or select a page from the drop down list. This list
contains all of the pages in the current document.
•Select a URL from the URL panel.
Setting the target for a button
The target is the window or frame in which the destination web page appears when a button instance is clicked. If
you don’t enter a target in the Property inspector, the web page appears in the same frame or window as the link that
called it. The target can be a symbol- or instance-level button property. You can set the target for a symbol, so that
all instances of the symbol have the same target option.
To set the target for a button symbol in the Button Editor:
1Do one of the following to open the button in the Button Editor:
•Double-click a button instance in the workspace.
•In the Library panel, double-click the button preview or the symbol icon beside the button symbol.
2Do one of the following in the Property inspector:
•Select a preset target from the Target pop-up menu:
None or _self loads the web page into the same frame or window as the link.
_blank loads the web page into a new, unnamed browser window.
_parent loads the web page into the parent frameset or window of the frame that contains the link.
_top loads the web page into the full browser window, removing all frames.
•Enter a target in the Target text box.
Note: Changing the target for a button symbol won’t change the target for existing button instances of that symbol that
already have unique targets assigned to them. This also applies to changes made to a button symbol’s URL and alt text.
To set the target for a button instance in the workspace:
1Select the button instance in the workspace.
2Do one of the following in the Property inspector:
•Select a preset target from the Target pop-up menu:
None or _self loads the web page into the same frame or window as the link.
_blank loads the web page into a new, unnamed browser window.
_parent loads the web page into the parent frameset or window of the frame that contains the link.
_top loads the web page into the full browser window, removing all frames.
•Enter a target in the Target text box.
ADOBE FIREWORKS CS3
User Guide
228
Setting the alternate (alt) text for a button symbol or instance
Alternate (alt) text appears on or near an image placeholder while an image is downloading from the web or in place
of an image if it fails to download. It also replaces graphics if the user has the browser set to refrain from displaying
images. Alt text can be a symbol- or instance-level button property. You can set alternate text for a button symbol or
instance in the Property inspector.
Applications that assist the visually impaired audibly read the alternate text for graphics on web pages in a browser.
For your alternate text, use concise, meaningful descriptions of graphical elements.
To set the alt text for a button symbol in the Button Editor:
1Do one of the following to open the button in the Button Editor:
•Double-click a button instance in the workspace.
•In the Library panel, double-click the button preview or the symbol icon beside the button symbol.
2In the Property inspector, enter the text that you wish to appear as alt text in a browser.
Note: Changing the alt text for a button symbol won’t change the alt text for existing button instances of that symbol that
already have unique alt text assigned to them. This also applies to changes made to a button symbol’s target and URL.
To set the alt text for a button instance in the workspace:
1Select the button instance in the workspace.
2Enter the description in the Alt Text box in the Property inspector.
Creating navigation bars
A navigation bar, or nav bar, is a group of buttons that provide links to different areas of a website. It generally
remains consistent throughout the site, providing a constant method of navigation, no matter where the user is
within the site. The nav bar looks the same from web page to web page, but in some cases, the links may be specific
to the function of each page.
In Fireworks, you make a nav bar by creating a button symbol in the Button Editor and then placing instances of that
symbol in the workspace.
To create a basic nav bar:
1Create a button symbol. For more information, see “Creating button symbols” on page 220.
2Drag an instance (copy) of the symbol from the Library panel to the workspace.
3Do one of the following to make a copy of the button instance:
•Select the button instance and select Edit > Clone.
•Alt-drag (Windows) or Option-drag (Macintosh) the button instance.
4Shift-drag a button to align it horizontally or vertically. For more precise control, use the arrow keys to move the
instance.
5Repeat steps 3 and 4 to create additional button instances.
6Select each instance and assign it unique text, a URL, and other properties using the Property inspector.
ADOBE FIREWORKS CS3
User Guide
229
Creating pop-up menus
Pop-up menus are displayed in a browser when the user moves a pointer over or clicks a triggering web object, such
as a slice or hotspot. You can attach URL links to pop-up menu items for navigation. For example, you can use pop-
up menus to organize several navigation options that are related to a button in a nav bar. You can create as many
submenu levels as you like in pop-up menus.
Each pop-up menu item appears as an HTML or image cell, which has an Up state, an Over state, and text in both
states. To preview a pop-up menu, press F12 to preview it in a browser. The previews in the Fireworks workspace do
not display pop-up menus.
About the Pop-up Menu Editor
The Pop-up Menu Editor is a tabbed dialog box that guides you through the creation of a pop-up menu. Its many
options for controlling the characteristics of a pop-up menu are organized in four tabs:
Content has options for determining the basic menu structure, as well as the text, URL link, and target for each menu
item.
Appearance contains options that determine the appearance of each menu cell’s Up state and Over state, as well as
the menu’s vertical and horizontal orientation.
Advanced contains options that determine the cell dimensions, padding, and spacing; the cell border width and
color; menu delay; and text indention.
Position contains options that determine the menu and submenu placement:
•The Menu setting places the pop-up menu relative to the slice. Preset positions include bottom, lower right, top,
and upper right of a slice.
•The Submenu setting places the pop-up submenu to the right or lower right of the parent menu, or below it.
ADOBE FIREWORKS CS3
User Guide
230
Depending on the design of the pop-up menu, you may not use all the tabs or options in the Pop-up Menu Editor.
You can edit settings in any tab anytime, but you must add at least one menu item in the Content tab to create a menu
that you can preview in a browser.
Creating a basic pop-up menu
The Content tab of the Pop-up Menu Editor is where you determine the basic structure and content of the pop-up
menu. The current or default settings for the options on the other Pop-up Menu Editor tabs are applied to the menu
when you create it.
To create a simple pop-up menu:
1Select a hotspot or slice that will be the trigger area for the pop-up menu.
2Do one of the following to open the Pop-up Menu Editor:
•Select Modify > Pop-up Menu > Add Pop-up Menu.
•Click the behavior handle in the middle of the slice and select Add Pop-up Menu.
3Click the Content tab if it is not already visible.
4 Click the Add Menu button to add an empty menu item.
You can add, delete, and edit cells at any time.
5Double-click each cell and enter or select the appropriate information:
Text specifies the text for the menu item.
Link determines the URL of the menu item. You can enter a custom link, or select one from the Link pop-up menu,
if any are available. If you’ve entered URLs for other web objects in the document, those URLs appear in the Link
pop-up menu.
Target designates the target for the URL. You can enter a custom target, or select a preset one from the Target pop-
up menu.
Entering content on the last line in the window adds an empty line below it.
To navigate from an active cell to another cell and continue entering information, press the Tab key to move
between cells and the Up Arrow and Down Arrow keys to scroll through the list vertically.
6Repeat steps 4 and 5 until you have added all menu items.
7Optionally, to delete a menu item, highlight it and click the Delete Menu button.
8Do one of the following:
•Click Next to move to the Appearance tab or select another tab to continue building the pop-up menu.
•Create submenu entries for the pop-up menu. For information, see “Creating submenus within a pop-up menu”
on page 231.
•Click Done to complete the pop-up menu by closing the Pop-up Menu Editor.
In the workspace, the hotspot or slice on which you built the pop-up menu displays a blue behavior line attached to
an outline of the top level of the pop-up menu.
Note: To view a pop-up menu, you must press F12 to preview it in a browser. The previews in the Fireworks workspace
do not display pop-up menus.
ADOBE FIREWORKS CS3
User Guide
231
Creating submenus within a pop-up menu
Using the Indent Menu and Outdent Menu buttons on the Content tab of the Pop-up Menu Editor, you can create
submenus—pop-up menus that appear when the user moves the pointer over or clicks another pop-up menu item.
You can create as many levels of submenus as you want.
To create a pop-up submenu:
1Open the Content tab of the Pop-up Menu Editor and create menu items. Create the menu items that you wish to
use for the submenu as well, placing them directly under the menu item for which they will be a submenu. For more
information, see “Creating a basic pop-up menu” on page 230.
2Click to highlight a pop-up menu item that you wish to make a submenu item.
3 Click the Indent Menu button to designate the item as a submenu item under the item directly above it on the
menu item list.
4To add the next item to the submenu, highlight it and click Indent Menu.
All items that are contiguously indented at the same level constitute a single pop-up submenu.
5Optionally, highlight a menu or submenu item and click Add Menu to insert a new item just below the highlighted
item.
6Do one of the following:
•Click Next to move to the next tab or select another tab to continue building the pop-up menu.
•Click Done to close the Pop-up Menu Editor.
To create a pop-up submenu within a pop-up submenu:
1Highlight a submenu item in the Content tab of the Pop-up Menu Editor. For more information, see the previous
procedure.
2Click the Indent Menu button to indent it again, so that it is indented from the submenu item directly above it.
You can continue indenting to create as many levels of nested submenus as you want.
To move a menu item into a higher-ranking submenu or into the main pop-up menu:
1Highlight the menu item in the Content tab of the Pop-up Menu Editor.
2 Click the Outdent Menu button.
For more information about positioning submenus, see “Positioning pop-up menus and submenus” on page 235.
3Do one of the following to complete the pop-up menu or continue building it:
•Click Next to move to the Appearance tab or select another tab to continue building the pop-up menu.
•Click Done to close the Pop-up Menu Editor.
In the workspace, the hotspot or slice on which you built the pop-up menu displays a blue behavior line attached to
an outline of the top level of the pop-up menu.
Note: To view a pop-up menu, press F12 to preview it in a browser. The previews in the Fireworks workspace do not
display pop-up menus.
To move an entry in the pop-up menu:
1With the desired pop-up menu displayed in the Pop-up Menu Editor, click the Content tab.
2Drag the menu item to a new location in the list.
ADOBE FIREWORKS CS3
User Guide
232
3Click Done.
Designing the appearance of a pop-up menu
After you create a basic menu and optional submenus, you can format the text, apply graphic styles to the Over and
Up states, and select vertical or horizontal orientation in the Appearance tab of the Pop-up Menu Editor.
To set the orientation of a pop-up menu:
1With the desired pop-up menu open in the Pop-up Menu Editor, click the Appearance tab.
For information on opening an existing pop-up menu in the Pop-up Menu Editor, see “Editing pop-up menus” on
page 236.
2Select Vertical or Horizontal from the Orientation pop-up menu.
To set whether a pop-up menu is HTML- or image-based:
1With the desired pop-up menu open in the Pop-up Menu Editor, click the Appearance tab.
For information on opening an existing pop-up menu in the Pop-up Menu Editor, see “Editing pop-up menus” on
page 236.
2Select a Cells option:
HTML sets the menu’s appearance using HTML code only. This setting produces pages with smaller file sizes.
Image gives you a selection of graphic image styles to use as the cell background. This setting produces pages with
larger file sizes.
Note: You can add to this selection of styles by creating custom pop-up menu styles. For more information, see “Adding
pop-up menu styles” on page 233.
To format text in the current pop-up menu:
1With the desired pop-up menu open in the Pop-up Menu Editor, click the Appearance tab.
ADOBE FIREWORKS CS3
User Guide
233
For information on opening an existing pop-up menu in the Pop-up Menu Editor, see “Editing pop-up menus” on
page 236.
2Select a preset size from the Size pop-up menu or enter a value in the Size text box.
Note: When cell width and height are set to Automatic in the Advanced tab of the Pop-up Menu Editor, text size deter-
mines the size of graphics associated with the menu item.
3Select a system font group from the Font pop-up menu or enter the name of a custom font.
Note: Be careful when selecting a font. If users who will view your web page don’t have the font you select installed on
their system, a replacement font will be displayed in their web browser.
4Optionally, click a text style button to apply a bold or italic style.
5Click a justification button to align text to the left or right or center it.
6Select a text color from the Text Color box.
To set the appearance of the menu cells:
1With the desired pop-up menu open in the Pop-up Menu Editor, click the Appearance tab.
For information on opening an existing pop-up menu in the Pop-up Menu Editor, see “Editing pop-up menus” on
page 236.
2Select the text and cell colors for each state.
3If Image is selected as the cell type, select a graphical style for each state.
4Do one of the following:
•Click Next to move to the Advanced tab or select another tab to continue building the pop-up menu.
•Click Done to close the Pop-up Menu Editor.
In the workspace, the hotspot or slice on which you built the pop-up menu displays a blue behavior line attached to
an outline of the top level of the pop-up menu.
Note: To view a pop-up menu, press F12 to preview it in a browser. The previews in the Fireworks workspace do not
display pop-up menus.
Adding pop-up menu styles
You can add custom cell styles to the Pop-up Menu Editor. Custom cell styles are available along with the preset
choices on the Appearance tab when you select the Image option as the cell type, which sets pop-up menus to use
graphical backgrounds in their cells.
To add a custom cell style to the Pop-up Menu Editor:
1Apply any combination of stroke, fill, texture, and Live Filters to an object, and save it as a style using the Styles
panel. For more information, see “Creating and deleting styles” on page 184.
2Select the new style in the Styles panel, and then select Export Style from the Styles panel Options menu.
3Navigate to the Nav Menu folder on your hard disk, rename the style file if you wish, and click Save.
Note: The exact location of the Nav Menu folder varies depending on your operating system. For more information,
see “Working with configuration files” on page 350.
When you return to the Appearance tab of the Pop-up Menu Editor and select the Image Cell background option,
the new style is available along with the preset styles for the Up and Over states of the pop-up menu cells.
ADOBE FIREWORKS CS3
User Guide
234
Setting advanced pop-up menu properties
The Advanced tab of the Pop-up Menu Editor offers additional settings to control cell size, padding, and spacing;
text indention; menu disappearance delay; and border width, color, shadow, and highlight.
To set advanced cell properties for the current pop-up menu:
1With the desired pop-up menu open in the Pop-up Menu Editor, click the Advanced tab.
For information on opening an existing pop-up menu in the Pop-up Menu Editor, see “Editing pop-up menus” on
page 236.
2Select a width or height constraint from the Automatic/Pixels pop-up menu:
Automatic forces the cell height to conform to the text size set in the Appearance tab of the Pop-up Menu Editor and
the cell width to conform to the menu item that contains the longest text.
Pixels allows you to enter specific measurements in pixels in the Cell Width and Cell Height text boxes.
3Enter a value in the Cell Padding text box to determine the distance between pop-up menu text and the edge of
the cell.
4Enter a value in the Cell Spacing text box to set the amount of space between menu cells.
5Enter a value in the Text Indent text box to set the amount of indention for pop-up menu text.
6Enter a value in the Menu Delay text box to set the amount of time in milliseconds that the menu remains visible
after the pointer is moved away from it.
7Set pop-up border properties:
Show Borders allows you to show or hide pop-up menu borders. If this option is not selected, the following options
are disabled.
Border Width sets the width of the pop-up menu border.
Border Color, Shadow, and Highlight allow you to modify the color of pop-up menu borders.
Note: Many of these options are disabled if the Image Cell type is selected on the Appearance tab.
ADOBE FIREWORKS CS3
User Guide
235
8Do one of the following to complete the pop-up menu or continue building it:
•Click Next to move to the Position tab or select another tab to continue building the pop-up menu.
•Click Done to close the Pop-up Menu Editor. In the workspace, the hotspot or slice on which you built the pop-
up menu displays a blue behavior line attached to an outline of the top level of the pop-up menu.
Note: To view a pop-up menu, press F12 to preview it in a browser. The previews in the Fireworks workspace do not
display pop-up menus.
Positioning pop-up menus and submenus
The Position tab of the Pop-up Menu Editor lets you specify a pop-up menu’s position. You can also position a top-
level pop-up menu by dragging its outline in the workspace when the Web Layer is visible.
To set the position for a pop-up menu using the Pop-up Menu Editor:
1With the desired pop-up menu open in the Pop-up Menu Editor, click the Position tab.
For information on opening an existing pop-up menu in the Pop-up Menu Editor, see “Editing pop-up menus” on
page 236.
2Do one of the following to define the menu position:
•Click a Position button to position the pop-up menu relative to the slice that triggers it.
•Enter x and y coordinates. Coordinates of 0,0 align the upper left corner of the pop-up menu with the upper left
corner of the slice or hotspot that triggers it.
3Do one of the following:
•If you have submenus, position them as described in the next procedure.
•Click Back to modify properties on other tabs.
•Click Done to close the Pop-up Menu Editor.
ADOBE FIREWORKS CS3
User Guide
236
To set the position for a pop-up submenu using the Pop-up Menu Editor:
1With the desired pop-up menu open in the Pop-up Menu Editor, click the Position tab.
For information on opening an existing pop-up menu in the Pop-up Menu Editor, see “Editing pop-up menus” on
page 236.
2Do one of the following to define the submenu position:
•Click a Submenu Position button to position the submenu relative to the pop-up menu item that triggers it.
•Enter x and y coordinates. Coordinates of 0,0 align the upper left corner of the pop-up submenu with the upper
right corner of the menu or menu item that triggers it.
3Do one of the following:
•To make each submenu’s position relative to the parent menu item that triggers it, deselect the Place in Same
Position option for the submenu position.
•To make each submenu’s position relative to the parent pop-up menu, select Place in Same Position.
4Click Done to close the Pop-up Menu Editor or click Back to modify properties on other tabs.
To set the position for a pop-up menu by dragging it:
1If necessary, do one of the following to display the Web Layer:
•Click the Show Slices and Hotspots button in the Tools panel.
•Click the Eye column in the Layers panel.
2Select the web object that is the trigger for the pop-up menu.
3Drag the pop-up menu outline to another location in the workspace.
Editing pop-up menus
In the Pop-up Menu Editor, you can edit or update the contents of a pop-up menu, rearrange the menu items, or
change other properties on any of the four tabs.
To edit a pop-up menu in the Pop-up Menu Editor:
1If necessary, do one of the following to display the Web Layer:
•Click the Show Slices and Hotspots button in the Tools panel.
•Click the Eye column in the Layers panel.
2Select the slice to which the pop-up menu is attached.
3Double-click the pop-up menu’s blue outline in the workspace.
The Pop-up Menu Editor opens with your pop-up menu entries displayed.
4Make the desired modifications on any of the four tabs and click Done.
To change a pop-up menu entry:
1With the desired pop-up menu displayed in the Pop-up Menu Editor, click the Content tab.
2Double-click the Text, Link, or Target text boxes and edit the menu text.
3Click outside the entry list to apply the change.
4Click Done.
ADOBE FIREWORKS CS3
User Guide
237
To move an entry in the pop-up menu:
1With the desired pop-up menu displayed in the Pop-up Menu Editor, click the Content tab.
2Drag the menu item to a new location in the list.
3Click Done.
About exporting pop-up menus
Fireworks generates all the CSS code or JavaScript (depending on which option you select) necessary to view pop-
up menus in web browsers.
If you choose to use CSS code for your pop-up menus, a Fireworks document containing pop-up menus is exported
to HTML using CSS code. You can also choose to have the CSS code written to an external .css file, and export that
file along with an mm_css_menu.js file to the same location as the HTML file.
If you do not choose to use CSS code for your pop-up menus, then JavaScript will be used. In this case, a Fireworks
document containing pop-up menus is exported to HTML, and a JavaScript file called mm_menu.js is exported to
the same location as the HTML file.
When you upload your files, you should upload mm_css_menu.js (or mm_menu.js, for JavaScript) to the same
directory location as the web page containing the pop-up menu. If you want to post the file to a different location,
you must update the hyperlink referencing mm_css_menu.js and the .css file (or mm_menu.js) in the Fireworks
HTML code to reflect the custom location. For every document containing CSS pop-up menus that you export as
HTML and images from Fireworks, a unique .css file is exported. For example, let’s say fred.png and frida.png both
contained pop-up menus, and you exported them both to the same folder, using CSS code for the pop-up menus.
The result would be a single mm_css_menu.js file and two .css files: one named fred.css and another named frida.css.
When you include submenus, Fireworks generates an image file called arrows.gif. This image is the tiny arrow that
appears next to a menu entry that tells users a submenu exists. No matter how many submenus a document contains,
Fireworks always uses the same arrows.gif file.
For more information about exporting HTML, see “Exporting HTML” on page 280.
238
Chapter 13: Creating Animations
Animated graphics add an exciting, sophisticated look to your website. In Fireworks, you can create animated
graphics with banner ads, logos, and cartoons that move. For example, you can make your company mascot dance
across a page while the logo fades in and out.
One way to create animations in Fireworks is by creating symbols and changing their properties over time to produce
the illusion of motion. A symbol is like an actor whose movements you choreograph. The action of each symbol is
stored in a frame. When you play all the frames together in a sequence, you get animation.
You can apply different settings to the symbol to gradually change the content of successive frames. You can make a
symbol appear to move across the canvas, fade in or out, get bigger or smaller, or rotate.
Because you can have multiple symbols in a single file, you can create a complex animation in which different types
of action occur all at once.
The Optimize panel lets you set optimization and export settings to control how your file is created. Fireworks can
export animations as animated GIF or Adobe Flash SWF files. You can also import Fireworks animations directly
into Flash for further editing.
This chapter contains the following topics:
•“Building animation” on page 238
•“Working with animation symbols” on page 239
•“Working with frames” on page 242
•“Tweening” on page 246
•“Previewing an animation” on page 246
•“Exporting your animation” on page 247
•“Working with existing animations” on page 248
•“Using multiple files as one animation” on page 249
Building animation
In Fireworks, you can create animation by assigning properties to objects called animation symbols. The animation
of a symbol is broken down into frames, which contain the images and objects that make up each step of the
animation. You can have more than one symbol in an animation, and each symbol can have a different action.
Different symbols can contain differing numbers of frames. The animation ends when all the action of all the
symbols is complete.
To build an animation using animation symbols in Fireworks:
1Create an animation symbol, either by creating a symbol from scratch or by converting an existing object into a
symbol. For more information, see “Creating animation symbols” on page 239.
2Use the Property inspector or the Animate dialog box to enter settings for the animation symbol. You can set the
degree and direction of movement, scaling, opacity (fading in or out), and angle and direction of rotation. For more
information, see “Editing animation symbols” on page 240.
ADOBE FIREWORKS CS3
User Guide
239
Note: Degree and direction of movement options are found only in the Animate dialog box.
3Use the Frame Delay controls in the Frames panel to set the speed of the animated motion. For more information,
see “Setting the frame delay” on page 242.
4Optimize the document as an animated GIF. For more information, see “Optimizing an animation” on page 248.
5Export the document as an Animated GIF or SWF, or save it as a Fireworks PNG and import it into Flash for
further editing. For more information, see “Animation export formats” on page 248.
Working with animation symbols
Animation symbols perform the action in your Fireworks file like actors in a movie. For example, in an animation
of three geese flying across the sky, each goose is a cast member.
An animation symbol can be any object you create or import, and you can have many symbols in one file. Each
symbol has its own properties and animates independently. So you can create symbols that move across the screen
while others fade or shrink.
You do not need to use symbols for every aspect of your animation. However, using symbols and instances for
graphics that appear in multiple frames keeps your animation file size smaller, in addition to the other advantages
discussed in this chapter.
You can change animation symbol properties at any time using the Animate dialog box or the Property inspector.
You can also edit symbol artwork in the Symbol Editor. The Symbol Editor lets you edit your symbol without
affecting the rest of the document. You can also change a symbol’s motion by moving its motion path.
Because animation symbols are automatically placed in the library, you can reuse them to create other animations.
Creating animation symbols
After you create an animation symbol, you can set properties that determine the number of frames in the animation
and the type of action, such as scaling or rotation. By default, a new animation symbol has five frames, each with a
delay time of 0.07 seconds.
To create an animation symbol:
1Select Edit > Insert > New Symbol.
2In the Symbol Properties dialog box, enter a name for the new symbol.
3Select Animation and click OK.
4In the Symbol Editor, use the drawing or text tools to create a new object.
You can draw either vector or bitmap objects.
5Close the Symbol Editor window.
Fireworks places the symbol in the library and a copy in the center of the document.
You can add new frames to the symbol using the Frames slider in the Property inspector. Select Window > Properties
to open the Property inspector, if it’s not already open.
To convert an object to an animation symbol:
1Select the object.
ADOBE FIREWORKS CS3
User Guide
240
2Select Modify > Animation > Animate selection.
3Enter the desired settings in the dialog box. For more information on settings, see “Editing animation symbols”
on page 240.
Animation controls appear on the object’s bounding box, and a copy of the symbol is added to the library.
Editing animation symbols
You can manipulate the properties of animation symbols to make your website come alive. You can change a variety
of properties in a symbol, from the animation speed to the opacity and rotation. By manipulating these properties,
you can make a symbol appear to rotate, speed up, fade in and out, or any combination of these.
A key property for any animation symbol is number of frames. This property determines how many steps it takes
the symbol to complete its animation. When you set the number of frames for a symbol, Fireworks automatically
adds the required number of frames to the document to complete the action. If the symbol requires more frames
than currently exist in the animation, Fireworks asks if you want to add extra frames.
Changing animation properties
You can change animation properties using either the Animate dialog box or the Property inspector.
Animation symbol properties in the Property inspector
You can edit any of the following properties for an animation symbol:
Frames is the number of frames you want to include in the animation. Although the slider limits you to a maximum
of 250, you can enter any number you wish in the Frames text box. The default is 5.
Move is the distance, in pixels, that you want each object to move. This option is available only in the Animate dialog
box. Although the default is 72, you can enter any number you wish in the Move text box. Movement is linear, and
there are no keyframes (unlike in Flash and Adobe Director).
Direction is the direction, in degrees, in which you want the object to move. Values range from 0 to 360º. This option
is available only in the Animate dialog box.
You can also change Movement and Direction values by dragging the object’s animation handles (see “Editing
symbol motion paths” on page 241).
Scaling is the percent change in size from start to finish. Although the default is 100%, you can enter any number
you wish in the Scaling text box. To scale an object from 0 to 100%, the original object must be very small; vector
objects are recommended.
Opacity is the degree of fading in or out from start to finish. Values range from 0 to 100, and the default is 100%.
Creating a fade in/fade out requires two instances of the same symbol—one to play the fade in, and the other to play
the fade out.
Rotation is the amount, in degrees, that the symbol rotates from start to finish. Values range from 0 to 360º. You can
enter higher values for more than one rotation. The default is 0º.
CW and CCW indicate the direction in which the object rotates. CW indicates clockwise and CCW indicates counter-
clockwise rotation.
ADOBE FIREWORKS CS3
User Guide
241
To change animation symbol properties:
1Select an animation symbol.
2Select Modify > Animation > Settings to open the Animate dialog box or Window > Properties to open the
Property inspector if it is not already open.
3Change the desired properties.
4If you’re using the Animate dialog box, click OK to accept the changed properties.
Removing animations
You can remove animations either by deleting the animation symbol from the library or by removing the animation
from the symbol.
To remove a symbol from the library:
1In the Library panel, select the animation symbol you want to remove.
2Drag the symbol to the trash can icon in the lower right corner.
To remove the animation from a selected animation symbol:
❖Select Modify > Animation > Remove Animation.
The symbol becomes a graphic symbol and is no longer animated. If you later convert the symbol back into an
animation symbol, the previous animation settings return.
Editing symbol graphics
You can change the graphic your symbol is based on as well as its properties. You edit symbol graphics in the Symbol
Editor. The Symbol Editor lets you use any of the drawing, text, or color tools to edit the graphic. While you’re
working in the Symbol Editor, only the selected symbol is affected.
The symbol is a library item. Thus, if you change the appearance of one of its instances, all the other instances change
as well.
To change a selected symbol’s graphic attributes:
1Do one of the following to open the Symbol Editor:
•Double-click the symbol object.
•Select Modify > Symbol > Edit Symbol.
•Click the Edit button in the Animate dialog box.
2Modify the animation symbol and change any text, strokes, fills, and effects as appropriate.
3Close the Symbol Editor.
Editing symbol motion paths
When you select an animation symbol, it has a unique bounding box and a motion path attached that indicates the
direction in which the symbol moves.
The green dot on the motion path indicates the starting point, and the red dot shows the end point. The blue points
on the path represent frames. For example, a symbol with five frames would have one green dot, three blue dots, and
one red dot on its path. The position of the object on the path indicates the current frame. So, if the object appears
at the third dot, Frame 3 is the current frame.
ADOBE FIREWORKS CS3
User Guide
242
You can change the direction of the motion by changing the angle of the path.
To change movement or direction:
❖Drag one of the symbol’s animation start or end handles to a new location. The green point indicates the starting
point; the red indicates the ending point.
Shift-drag to constrain the direction of movement to 45° increments.
Working with frames
You build animations by creating a number of frames. You can see the contents of each frame using the Frames
panel. The Frames panel is where you create and organize frames. You can name the frames, reorganize them,
manually set the timing of the animation, and move objects from one frame to another.
Each frame also has a number of associated properties. By setting the frame delay or hiding a frame, you can make
your animation look the way you want during the building and editing process.
Setting the frame delay
The frame delay determines how long the current frame is displayed. It is specified in hundredths of a second. For
example, a setting of 50 displays the frame for half a second, and a setting of 300 displays it for three seconds.
To set the frame delay value:
1Select one or more frames:
•To select a contiguous range of frames, Shift-click the first and last frame names.
•To select a noncontiguous range of frames, hold down Control (Windows) or Command (Macintosh) and click
each frame name.
2Do one of the following:
•Select Properties from the Frames panel Options menu.
•Double-click the frame delay column.
The Frame Properties pop-up window appears.
ADOBE FIREWORKS CS3
User Guide
243
3Enter a value for the frame delay.
4Press Enter, or click outside the panel to close the pop-up window.
Showing and hiding frames for playback
You can show or hide frames for playback. If a frame is hidden, it is not displayed during playback and it is not
exported.
To show or hide a frame:
1Do one of the following:
•Select Properties from the Frames panel Options menu.
•Double-click the frame delay column.
The Frame Properties pop-up window appears.
2Deselect Include when Exporting.
A red X is displayed in place of the frame delay time.
3Press Enter or click outside the Frame Properties pop-up window to close it.
Naming animation frames
As you set up an animation, Fireworks creates the appropriate number of frames and displays them in the Frames
panel. By default the frames are named Frame 1, Frame 2, and so on. When you move a frame in the panel, Fireworks
renames each one to reflect the new order.
It’s a good idea to name your frames for easy reference and to keep track of them. That way you always know which
frame contains which part of the animation. Moving a renamed frame has no effect on the name; it remains the same.
To change a frame’s name:
1In the Frames panel, double-click the frame’s name.
2In the pop-up text box, type a new name and press Enter.
Adding, moving, copying, and deleting frames
You can add, copy, delete, and change the order of frames in the Frames panel.
To add a new frame:
❖ Click the New/Duplicate Frame button at the bottom of the Frames panel.
To add frames to a specific place in the sequence:
1Select Add Frames from the Frames panel Options menu.
2Enter the number of frames to add.
3Select where to insert the frames: before the current frame, after it, or at the beginning or end. Then click OK.
To make a copy of a frame:
❖Drag an existing frame to the New/Duplicate Frame button at the bottom of the Frames panel.
ADOBE FIREWORKS CS3
User Guide
244
To copy a selected frame and place it in a sequence:
1Select Duplicate Frame from the Frames panel Options menu.
2Enter the number of duplicates to create for the selected frame, select where the duplicate frames are to be
inserted, and click OK.
Duplicating a frame is useful when you want objects to reappear in another part of the animation.
To reorder frames:
❖Drag the frames one by one to a new location in the list.
To delete the selected frame, do one of the following:
• Click the Delete Frame button in the Frames panel.
•Drag the frame to the Delete Frame button.
•Select Delete Frame from the Frames panel Options menu.
Moving selected objects in the Frames panel
You can use the Frames panel to move objects to a different frame. Objects that appear in only a single frame appear
to vanish as the animation plays. You can move objects to make them appear or disappear at different points in the
movie.
To move a selected object to a different frame:
❖In the Frames panel, drag the selection indicator (the small blue square at the right of the frame delay time) to the
new frame.
Sharing layers across frames
Layers divide a Fireworks document into discrete planes, like separate tracing paper overlays. With animations, you
can use layers to organize objects that are part of the scenery or backdrop for the animation. This gives you the
convenience of being able to edit objects on one layer so that they don’t affect the rest of your animation. For more
information, see “Working with layers” on page 159.
If you want objects to appear throughout an animation, you can place them on a layer and then use the Layers panel
to share the layer across frames. When a layer is shared across frames, all objects on that layer are visible in every
frame.
You can edit objects on shared layers from any frame; those edits are reflected in all other frames.
In this example, the red square layer is shared across frames.
ADOBE FIREWORKS CS3
User Guide
245
To share a layer across frames:
1Click the layer to select it.
2Select Share Across Frames.
Note: All the contents in a shared layer appear in every frame.
To disable the sharing of a layer across frames:
1Click the shared layer to select it.
2Deselect Share Across Frames.
3Select one of the following options for how to copy objects to frames:
•Leave the contents of the shared layer in the current frame only.
•Copy the contents of the shared layer to all frames.
Viewing objects in a specific frame
You can easily view objects in a specific frame using the Frame pop-up menu in the Layers panel.
To view objects in a specific frame:
❖Select the desired frame from the Frame pop-up menu at the bottom of the Layers panel.
All objects in the selected frame are listed in the Layers panel and displayed on the canvas.
Using onion skinning
Onion skinning lets you view the contents of frames preceding and following the currently selected frame. You can
smoothly animate objects without having to flip back and forth through them. The term onion skinning comes from
a traditional animation technique of using thin, translucent tracing paper to view animated sequences.
When onion skinning is turned on, objects in frames before or after the current frame are dimmed so that you can
distinguish them from objects in the current frame.
By default, Multi-Frame Editing is enabled, which means you can select and edit dimmed objects in other frames
without leaving the current frame. You can use the Select Behind tool to select objects in frames in sequential order.
To adjust the number of frames visible before and after the current frame:
1In the Frames panel, click the Onion Skinning button.
2Select a display option:
ADOBE FIREWORKS CS3
User Guide
246
No Onion Skinning turns off onion skinning and displays only the contents of the current frame.
Show Next Frame displays the contents of the current frame and the next frame.
Before and After displays the contents of the current and adjacent frames.
Show All Frames displays the contents of all frames.
Custom sets a custom number of frames and controls the opacity of onion skinning.
Multi-Frame Editing lets you select and edit all visible objects. Deselect this option to select and edit only objects in
the current frame.
Tweening
Tweening is a traditional animation term that describes the process in which a lead animator draws only the
keyframes (frames containing major changes) while assistants draw the frames in between.
In Fireworks, tweening blends two or more instances of the same symbol, creating interim instances with interpo-
lated attributes. Tweening is a manual process useful for more sophisticated movement of an object across the canvas
and for objects whose Live Filters change in each frame of the animation.
For example, you can tween an object so that it seems to move along a linear path.
To tween instances:
1Select two or more instances of the same graphic symbol on the canvas. Do not select instances of different
symbols.
2Select Modify > Symbol > Tween Instances.
3Enter the number of tween steps to be inserted between the original pair in the Tween Instances dialog box.
4To distribute the tweened objects to separate frames, select Distribute to Frames and click OK.
If you choose not to distribute the objects to separate frames, you can do it later by selecting all instances and
clicking the Distribute to Frames button in the Frames panel.
Note: In most cases, using animation symbols is preferable to tweening. For more information, see “Working with
animation symbols” on page 239.
Previewing an animation
You can preview an animation while you are working on it to check its progress. You can also preview an animation
after optimization to see how it will look in a web browser.
To preview an animation in the workspace:
❖Use the frame controls that appear at the bottom of the Document window.
Frame controls
Keep the following in mind when previewing animations:
ADOBE FIREWORKS CS3
User Guide
247
•To set how long each frame appears in the Document window, enter frame delay settings in the Frames panel.
•Frames excluded from the export do not appear in the preview.
•Previewing the animation in the Original view displays the full-resolution source graphic, not the optimized
preview used for the exported file.
To preview an animation in Preview view:
1Click the Preview button at the upper left of the Document window.
2Use the frame controls.
Note: Previewing animations in 2-Up or 4-Up view is not recommended.
To preview an animation in a web browser:
❖Select File > Preview in Browser, and select a browser from the submenu.
Note: Animated GIF must be selected as the Export file format in the Optimize panel, or no motion will be visible when
you preview the document in your browser. This is required even if you plan to import your animation into Flash as a
SWF or Fireworks PNG file.
Exporting your animation
After you set up the symbols and frames that make up your animation, you are ready to export the file as an
animation. Before you export the files, you need to enter a few settings to make your animation load more easily and
play more smoothly. You can set playback settings like looping and transparency and then use optimization to make
your exported file smaller and easier to download.
Note: If you plan to import your animation into Flash for further editing, you do not need to export it. Flash can directly
import Fireworks PNG source files. For more information, see “Working with Flash” on page 305.
Setting the animation repetition
The Loop setting in the Frames panel determines how many times the animation repeats. This feature loops frames
over and over so you can minimize the number of frames needed to build the animation.
To set the selected animation to repeat:
1Select Window > Frames to display the Frames panel.
2 Click the GIF Animation Looping button at the bottom of the panel.
3Select the number of times to repeat the animation after the first time.
If you select 4, for example, the animation plays five times in all. Forever repeats the animation continuously.
Setting transparency
As part of the optimization process, you can have one or more colors in an animated GIF be displayed as transparent
in a web browser. This is useful when you want a web page background color or image to show through the
animation.
To display a color as transparent in a web browser:
1Select Window > Optimize if the Optimize panel is not visible.
ADOBE FIREWORKS CS3
User Guide
248
2From the Transparency pop-up menu in the Optimize panel, select either Index Transparency or Alpha Trans-
parency. For a description of these options, see “Making areas transparent” on page 271.
3Use the transparency tools in the Optimize panel to select colors for transparency.
Optimizing an animation
Optimization compresses your file into the smallest package for fast loading and exporting, making downloading
time much quicker on your website.
To optimize an animation:
1If you plan to export your animation as an animated GIF, select Animated GIF as the Export file format in the
Optimize panel.
If the panel is not visible, select Window > Optimize.
2Set the Palette, Dither, or Transparency options. For more information on optimizing options, see “Optimizing
GIF, PNG, TIFF, BMP, and PICT files” on page 265.
3In the Frames panel, set the frame delay. For more information, see “Setting the frame delay” on page 242.
Animation export formats
After you create and optimize an animation, it is ready to export.
Animated GIFs give the best results for clip art and cartoon-like graphics. For information about exporting
animated GIFs, see “Exporting an animation” on page 279.
You can export the animation as a Flash SWF file, and then import it into Flash. Or you can skip the export step and
import your Fireworks PNG source file directly into Flash. This option gives you the most control over how your
animation is imported. You can import all layers and frames of your animation if desired, and then further edit them
within Flash. For more information, see “Working with Flash” on page 305.
You can also export frames or layers from your animations as multiple files. This can be useful when you have many
symbols on different layers for the same object. For example, you can export a banner ad as multiple files if each letter
of a company name is animated in a graphic. Each letter is separate from the others. For more information about
exporting layers or frames to multiple files, see “Exporting frames or layers” on page 279.
Working with existing animations
You can use an existing animated GIF file as part of your Fireworks animation. There are two ways of using the file:
you can import the GIF into an existing Fireworks file, or you can open the GIF as a new file.
When you import an animated GIF, Fireworks converts it to an animation symbol and places it in the currently
selected frame. If the animation has more frames than the current movie does, you can choose to automatically add
more frames.
ADOBE FIREWORKS CS3
User Guide
249
Imported GIFs lose their original frame delay settings and assume the frame delay of the current document. Because
the imported file is an animation symbol, you can apply additional motion to it. For example, you can import an
animation of a man walking in place and then apply direction and motion properties to have the man walk across
the screen.
When you open an animated GIF in Fireworks, a new file is created and each frame in the GIF is placed in a separate
frame. Although the GIF is not an animation symbol, it does retain all the frame delay settings from the original file.
After the file is imported, you need to set its file format to Animated GIF to export the motion from Fireworks.
To import an animated GIF:
1Select File > Import.
2Locate the file and click Open.
3Click Yes to add additional frames to your animation.
If you click Cancel, only the first frame of the animated GIF is displayed. Although the whole document is imported,
you must add additional frames to view it.
To open an animated GIF:
❖Select File > Open and locate the GIF file.
Using multiple files as one animation
Fireworks can create an animation based on a group of image files. For example, you can create a banner ad based
on several existing graphics by opening each graphic and placing it in a separate frame in the same document.
To open multiple files as an animation:
1Select File > Open.
2Shift-click to select multiple files.
3Select Open as Animation and click OK.
Fireworks opens the files in a new single document, placing each file in a separate frame in the order in which you
selected it.
250
Chapter 14: Creating Slideshows
Create Slideshow is a built-in Flash command that gives you the ability to generate Flash or HTML/SPRY-based
slideshows by simply selecting a folder with images, and adding slideshow options.
This chapter contains the following topics:
•“The Create Slideshow command” on page 250
•“Building or editing a slideshow” on page 250
•“Slideshow properties” on page 252
•“Creating a custom Fireworks album player” on page 254
The Create Slideshow command
Use the Create Slideshow command to carry out the following tasks:
•Export full-sized and thumbnail images at the same time
•Automatically generate an XML file with multiple albums or export an XML file without a slideshow by specifying
a directory of images
•Export full-sized and thumbnail images without creating a slideshow
•Edit an existing slideshow’s properties and add multiple albums to a slideshow
•Add additional images to an existing album
•View and rotate images in the Create Slideshow preview window
•Sort images within an album
•Remove unwanted images and/or albums
•Apply image intervals (how long the image stays on screen) in seconds for a specific album or for all albums
•Apply slide transitions to images in the album
•Export the slideshow to a specific folder
•Use a default Fireworks album player for your slideshow, or find more players on the Fireworks Adobe Exchange
site
The Create Slideshow output is built so that any Flash designer/developer can build a Fireworks Album Player in
Flash that uses the generated XML output.
Building or editing a slideshow
The Create Slideshow command allows you to create a Flash-based (or non-Flash) slideshow by selecting a folder
with images, adding slideshow options, and then generating a slideshow for use on the web. You can edit existing
slideshows by adding or deleting images, or by adding multiple albums to a single slideshow.
ADOBE FIREWORKS CS3
User Guide
251
If you are a Flash designer or developer, you can also build a custom album player in Flash to display the Fireworks
Album Creator’s XML output. For more information, see “Creating a custom Fireworks album player” on page 254.
To create a slideshow:
1Select Commands > Create Slideshow.
2Click the Add an album button (the plus sign) next to Albums.
3Choose the image files to include in the slideshow. Then click OK.
4Fill in the AlbumBook Properties and the Album Properties for the slideshow. For more information about these
properties, see “AlbumBook Properties panel” on page 252
5Select each of the panels on the right to configure the slideshow properties. For more information about the
available slideshow properties, see “Slideshow properties” on page 252.
6Choose the location for the completed slideshow in the Export Options panel.
7After configuring all of the slideshow settings, click Create.
8When the slideshow has finished processing, you can select the Launch slideshow in browser check box and click
Close to display the slideshow in your default browser.
To open an existing slideshow:
1Select Commands > Create Slideshow.
2In the Create Slideshow window, select Albums > Open an existing AlbumBook.
3Browse to the folder that contains the existing slideshow XML file and click Open.
Note: You can also open an existing slideshow by clicking the Browse button (…) next to Albums.
ADOBE FIREWORKS CS3
User Guide
252
To delete an album:
1Select Commands > Create Slideshow.
2In the Create Slideshow window, select Albums > Open an existing AlbumBook.
3Browse to the folder that contains the existing slideshow XML file and click Open.
4Select the album in the Albums lists, and then click the Remove an album button (the minus sign).
To add additional images to an album:
1Select Commands > Create Slideshow.
2In the Create Slideshow window, create a new album, or select Albums > Open an existing AlbumBook to open
an existing album.
3If you are opening an existing album, browse to the folder that contains the existing slideshow XML file and click
Open.
4Click on the album in the Albums list to select it.
5Click the Add image(s) button (the plus sign) next to Images.
6Click the Browse button (…) and select one or multiple images to add to the album, then click Done. The new
images are added at the end of the album image list.
To change the order of images in an album:
1Select Commands > Create Slideshow.
2In the Create Slideshow window, create a new album, or select Albums > Open an existing AlbumBook to open
an existing album.
3If you are opening an existing album, browse to the folder that contains the existing slideshow XML file and click
Open.
4Click on the album in the Albums list to select it.
5Select individual images and click on the up or down arrow buttons at the top of the image list to move the images
up or down within the list.
Slideshow properties
The following the properties can be used to customize your slideshows. Click on each property panel on the right
side of the Create Slideshow window to open the panel and change the properties.
AlbumBook Properties panel
AlbumBook properties apply to an AlbumBook, which can contain multiple albums.
Title: Title of the AlbumBook.
Description: Description of the AlbumBook.
Player: The type of slideshow player that displays the images (by default the choices are Player_Black, Player_White,
DW PhotoAlbum, Simple, Sliver Silver, or Flex Blue)
Info icon (next to Player): When this icon is enabled, you can click it to see additional information about the player,
including what album and AlbumBook properties the selected player type will support.
ADOBE FIREWORKS CS3
User Guide
253
Auto-Start Slideshow: Starts the slideshow automatically when the player opens.
Allow clicking images: Allows the viewer to click and open the image in a new browser window. This allows the
viewer of the slideshow to save images, view them in new tab, or view the full-sized version of the image.
First Album: Select which album in the AlbumBook is loaded when the player starts.
Album Properties panel
The following properties apply only to the individual selected album.
Title: Title of Album in Slideshow. (This title can contain whitespace, for example “My Journey.”)
Folder name: Name of the generated folder for the current album. If you intend to upload the slideshow to a web
server, it is recommended that: 1) You do not include special characters or any spaces in the name, and 2) You do
not use uppercase letters.
Description: Description of the current album.
Thumbnail: Thumbnail image preview option for the current album. When selected, a pop-up menu allows you to
choose an image to use for the thumbnail preview in the slideshow.
Background: Background image selection for the current album. Select this option if you would like to have a
custom background image for the slide show. Pop-up menus allow you to select the image to use and select how it
should be scaled.
Captions panel
Use these options to customize the captions in your slideshows.
Apply to all albums: Apply the selected caption options to all albums in the AlbumBook. This is selected by default.
No change: No change is made to the existing captions.
Clear all captions: Clears all captions for all images in the current album when the slideshow is generated.
Use filenames: Use actual name of the file as the caption for each image in the current album, with or without its
extension.
Insert text: Use the specified text as the caption for every image in the current album.
Apply Button: Click to apply the specified caption properties. No change will be made until this button is clicked.
Filters panel
Use these options to apply one of the included filters to modify your slideshow images. You can only apply filters to
a new album.
Apply to all albums: Apply the specified filter(s) to all albums in the AlbumBook or just to the selected album.
Choose Filter: Select a filter to apply. The included filters are Auto Level, Blur, Convert to Grayscale, Convert to
Sepia Tone, Invert, and Sharpen.
Delete button: Delete the selected filter.
Move Filter up button: Move the selected filter up in the list.
Move Filter down button: Move the selected filter down in the list.
ADOBE FIREWORKS CS3
User Guide
254
Slideshow Properties panel
Use these options to customize the currently selected slideshow.
Apply to all albums: Apply the specified options to all albums in the AlbumBook or only to the currently selected
album.
Interval: Number of seconds between each image.
Use Transition: Select this option to use a specified transition effect between images in the slideshow.
First image: Select the image number of the first image that the player displays in the slideshow.
Display sequence: Choose whether to display images in order or randomly.
Export Options panel
Use these options to set up the export of the images.
Export images: Select this option to export the full-sized and thumbnail images with the specified settings. Deselect
this option to export only the XML file.
Generate XML: Select this option to generate the slideshow.xml file for the images and directories selected for the
slideshow. Deselect this option to export only the images.
Export path: Location where the slideshow and associated files will be exported or generated.
Width and Height: Width and height of the exported full-sized images. Images are scaled to fit within the specified
size, while keeping their original aspect ratios.
Export thumbnails: Select this option to export the thumbnails along with the full-sized images.
Width and Height: Width and height of the exported thumbnail images.
Image Quality: Determine the output quality of the exported full-sized and thumbnail images. A setting of 100
indicates the best possible quality.
Enlarge images to fit: If the original image is smaller than the specified width and height, this option will enlarge it
to match the export size.
Creating a custom Fireworks album player
If you want to create your own player, you can create a custom player to work with the Create Slideshow command.
In addition, the source files of the default slideshow players are included with the software so that you can modify
or skin the players. Follow the steps below to add your custom player to Fireworks or share your player with other
users.
When publishing and packaging a Fireworks album player, note the following:
•Publish both the SWF and the HTML file (with either .htm or .html extension). The HTML file is optional.
•Change the extension of the SWF to something other than .swf.
Note: On Macintosh, simply renaming the SWF file in Finder may not work (unless you have set the “show file exten-
sions” option). You may have to rename it using the file's properties dialog, under Name & Extension.
•Create an XML file in the same folder as the SWF file that has the following format:
ADOBE FIREWORKS CS3
User Guide
255
<?xml version=”1.0” encoding=”utf-8”?>
<FWACPlayer>
<Player name=”Player - Black (Flash)” preview=”player_black.jpg” launch=”index.html”>
<File src=”player_black.fap” dst=”player_black.swf ”/>
<File src=”player_black.html” dst=”index.html” />
<Info src=”player_black.info”/>
</Player>
<Player name=”Player - White (Flash)” preview=”player_white.jpg” launch=”index.html”>
<File src=”player_white.fap” dst=”player_white.swf ”/>
<File src=”player_white.html” dst=”index.html” />
<Info src=”player_white.info”/>
</Player>
</FWACPlayer>
•If you have multiple versions of the same basic player, you can list them in the XML (as shown above).
•For each Player node, list the source and destination file names inside File node.
•If you decide to provide additional information for the player, add the Info node, with the src attribute containing
the name of the file. The info file should contain HTML text. If the file contains simple non-HTML text, line feeds,
carriage returns, and tabs will be removed before displaying the text.
•Create/edit the MXI file such that the renamed SWF and HTML get placed in “Configura-
tions/Commands/Create Slideshow/players” folder.
Note: Make sure both the SWF and HTML file have the same name, in order for the Launch in Browser option to work
at the end of a process.
The generated XML file has the following structure:
<AlbumBook... >
<Album ... >
<Slide ... />
<Slide ... />
<Slide ... />
</Album>
<Album ... >
<Slide ... />
<Slide ... />
<Slide ... />
</Album>
</AlbumBook>
Node definitions
AlbumBook node
ver: version of the Create Slideshow command that generated the XML file
title: main title of the slideshow
description: description for the entire slideshow
firstAlbum: zero-based index of the first album to be displayed
width: width of slideshow
height: height of slideshow
ADOBE FIREWORKS CS3
User Guide
256
showThumbnails: whether or not to show thumbnails; or, whether or not thumbnails were exported
thumbWidth: width of thumbnail
thumbHeight: height of thumbnail
autoStart: starts the slideshow automatically
allowClick: whether or not to allow users to click the images
clickAction: which action to take when an image is clicked (open it in new window, new tab, or let the player decide)
Album node
title: title of this particular album
description: description for the album
path: name of folder that contains the images for this album; thumbnails are exported in the “thumbs” folder inside
path
hasThumb: has thumbnail
thumbSrc: album thumbnail image
hasBg: has background image
bgSrc: album background image
bgScale: scaling method for album background
interval: slideshow interval in seconds for this album
useTransition: use transition when switching between images
transType: slideshow transition for this album
transTime: transition time
firstImage: zero-based index of first image to display
dispSequence: order in which to display images (sequential or random)
Slide node
src: name of image file for this slide
caption: caption associated with this slide
width: width of slide
height: height of slide
thumbWidth: width of slide thumbnail
thumbHeight: height of slide thumbnail
257
Chapter 15: Optimizing and Exporting
The ultimate goal in web graphic design is to create great-looking images that download as fast as possible. To do
that, you must select a file format with the best compression for your image while maintaining as much quality as
possible. This balancing act is optimization—finding the right mix of color, compression, and quality.
Exporting graphics from Fireworks is a two-step process:
•First, you prepare a document or individual sliced graphics for export by selecting optimization settings and
comparing previews to determine an acceptable balance between quality and file size.
•Second, you export (or in some cases, save) the document or individual sliced graphics using export settings
suitable for their destination on the web or elsewhere.
If you are new to optimizing and exporting web graphics, you can use the Export Wizard. The wizard guides you
through the export process and suggests settings. It also displays the Image Preview, where you can optimize a
document as part of the export process.
If you are comfortable with the tasks of optimizing and exporting graphics, you’ll want to use the other tools available
in Fireworks for optimizing and exporting. For optimizing, you use the Optimize panel and the preview buttons in
the Document window. They offer you greater control over the optimization process. For exporting, you use the
Export dialog box or the Quick Export button. In some cases, you can simply save the graphic without exporting.
For more information, see “Saving documents in other formats” on page 23.
The Quick Export button makes exporting graphics for use in other applications easy by automatically setting the
appropriate options in the Export dialog box for you. If you use Fireworks with other applications, the Quick Export
button can simplify your design workflow.
This chapter covers the following topics:
•“About optimizing” on page 257
•“Using the Export Wizard” on page 258
•“Optimizing in the workspace” on page 261
•“Exporting from Fireworks” on page 276
•“Sending a Fireworks document as an e-mail attachment” on page 289
•“Using the File Management button” on page 289
About optimizing
Optimizing graphics in Fireworks involves doing the following:
•Choosing the best file format. Each file format has a different method of compressing color information. Choosing
the appropriate format for certain types of graphics can greatly reduce file size.
•Setting format-specific options. Each graphic file format has a unique set of options. You can use options such as
color depth to reduce file size. Some graphic formats such as GIF and JPEG also have options for controlling image
compression.
ADOBE FIREWORKS CS3
User Guide
258
•Adjusting the colors in the graphic (for 8-bit file formats only). You can limit colors by confining the image to a
specific set of colors called a color palette. Then you trim unused colors from the color palette. Fewer colors in the
palette means fewer colors in the image, which results in a smaller file size for paletted image file types.
You should experiment with all optimization controls to find the best balance of quality and size.
Using the Export Wizard
You can use the Export Wizard if you are new to optimizing and exporting web graphics. Using the Export Wizard,
you can easily export graphics without understanding the details of optimizing and exporting.
The Export Wizard takes you step by step through the optimization and export process. Answer questions about the
file destination and intended use, and the Export Wizard suggests file type and optimization settings.
If you prefer to optimize to a target file size, the Export Wizard optimizes the exported file to fit within the size
constraint you set.
Once you are more comfortable with optimizing and exporting, you’ll want to use the Optimize panel and the
preview buttons in the Document window to optimize graphics. They are more convenient than the Export Wizard
and offer more optimization control for users who are familiar with the optimization process. After you optimize
graphics in this manner, you must perform an additional step to export (or in some cases, save) the graphics. For
more information on exporting, see “Optimizing in the workspace” on page 261 or “Exporting from Fireworks” on
page 276. For more information on saving, see “Saving documents in other formats” on page 23.
To export a document using the Export Wizard:
1Select File > Export Wizard.
2Answer any questions that appear and click Continue in each panel.
Fireworks makes recommendations about file formats.
Select Target Export File Size in the first panel to optimize to a maximum file size.
3Click Exit in the Analysis Results window of the wizard.
The Image Preview opens with recommended export options. For more information, see “Using Image Preview” on
page 258.
Using Image Preview
When accessed through the Export Wizard, the Image Preview displays recommended optimization and export
options for the current document. When selected directly from the File menu, the Image Preview displays the
current document export settings as defined in the optimize panel.
The preview area of the Image Preview displays the document or graphic exactly as it will be exported and estimates
file size and download time with the current export settings.
ADOBE FIREWORKS CS3
User Guide
259
A. Saved set of options for the selected export B. File size and download time estimates C. Preview chosen export settings D. Save export
settings in the active view
You can use split views to compare various settings to find the smallest file size that maintains an acceptable level of
quality. You can also constrain the file size using the Optimize to Size wizard.
When you export animated GIFs or JavaScript rollovers, the estimated file size represents the total size across all
frames.
Note: To increase redraw speed of the Image Preview, deselect Preview. To stop the redraw of the preview area when
changing settings, press Escape.
To export using Image Preview:
1Select File > Image Preview to open the Image Preview.
•To edit optimization settings, click the Options tab. For information about the options available on this tab, see
the following procedures.
•To edit the size and area of the exported image, click the File tab and change the desired settings. For information
about the options available on this tab, see the following procedures.
•To edit animation settings for the image, click the Animation tab and change the desired settings. For information
about the options available on this tab, see the following procedures.
2 Use the Zoom button at the bottom of the dialog box to zoom in or out in the preview. Click this button to
activate the Zoom magnification tool and then click in the preview to magnify the preview. Alt-click (Windows) or
Option-click (Macintosh) the button in the preview to zoom out.
3Do one of the following to pan the preview area:
•Click the Pointer button at the bottom of the dialog box and drag in the preview.
•Hold down the Spacebar when the Zoom pointer is active and drag in the preview.
4Click a split-view button to divide the preview area into two or four previews to compare settings.
Each preview window can display a preview of the graphic with different export settings.
ADOBE FIREWORKS CS3
User Guide
260
Note: When you zoom or pan while multiple views are open, all views zoom and pan simultaneously.
5Click Export when you have finished changing settings.
6In the Export dialog box, type a name for the file, select a destination, set any other options if desired, and click
Save.
For more information about the options in the Export dialog box, see “Exporting from Fireworks” on page 276.
To set optimization settings using Image Preview:
1Click the Options tab. Most of the options available here are similar to those in the Optimize panel. For more
about these options, see “Using optimization settings” on page 262.
2 Click the Optimize to Size Wizard button to optimize a graphic based on a target file size.
Enter a file size in kilobytes and click OK.
The Optimize to Size Wizard attempts to match the requested file size using these methods:
•Adjusting JPEG quality
•Modifying JPEG smoothing
•Altering the number of colors in 8-bit images
•Changing dither settings in 8-bit images
•Enabling or disabling optimization settings
To set exported image dimensions using Image Preview:
1Click the File tab.
2Specify a scale percentage or enter the desired width and height in pixels. Select Constrain to scale the width and
height proportionally.
To define only a portion of an image for export using Image Preview:
1Click the File tab.
2Select the Export Area option and do one of the following to specify the export area:
•Drag the dotted border that appears around the preview until it encloses the desired export area. (Drag inside the
preview to move hidden areas into view.)
ADOBE FIREWORKS CS3
User Guide
261
•Enter pixel coordinates for the boundaries of the export area.
To set animation settings using Image Preview:
1Click the Animation tab.
2Use the following techniques to preview animation frames:
•To display a single frame, select the desired frame in the list on the left side of the dialog box, or use the frame
controls in the lower right area of the dialog box.
•To play the animation, click the Play/Stop control in the lower right area of the dialog box.
3Make edits to the animation:
•To specify the frame disposal method, select the desired frame in the list and select an option from the pop-up
menu (indicated by the trash can icon).
•To set the frame delay, select the desired frame in the list and enter the delay time in hundredths of a second in
the Frame Delay field.
•To set the animation to play repeatedly, click the Looping button and select the desired number of repetitions from
the pop-up menu.
•Select the Auto-Crop option to crop each frame as a rectangular area, so that only the image area that differs
between frames is output. Selecting this option reduces file size.
•Select the Auto-Difference option to output only pixels that change between frames. Selecting this option reduces
file size.
Optimizing in the workspace
Exporting graphics for use on the web is a two-step process: optimizing, then exporting (or in some cases, simply
saving). Optimizing graphics ensures they possess the right mix of color, compression, and quality. After you finalize
a graphic’s optimization settings, the graphic is ready for export.
ADOBE FIREWORKS CS3
User Guide
262
You don’t have to use the Export Wizard and Image Preview in Fireworks if you’re comfortable optimizing and
exporting graphics. Fireworks has optimization and export features in the workspace that give you greater control
over how files are exported:
•The Optimize panel contains the key controls for optimizing. For 8-bit file formats, it also contains a color table
that displays the colors in the current export color palette.
Note: When a slice is selected, the Optimize panel displays optimize settings for the selected slice. Likewise, when the
whole document is selected, the Optimize panel displays optimize settings for the whole document. In other words, the
active selection determines what is displayed in the Optimize panel.
•When a slice is selected, the Property inspector has a Slice Export Settings pop-up menu from which you can select
preset or saved optimization settings.
•The preview buttons in the Document window show how the exported graphic would appear with the current
optimization settings.
You can optimize the whole document the same way, or select individual slices or selected areas of a JPEG and assign
different optimization settings for each.
Using optimization settings
You can select from common optimization settings in the Property inspector or the Optimize panel to quickly set a
file format and apply several format-specific settings. When you select an option from the Default export options
pop-up menu in the Property inspector, the rest of the options in the Optimize panel are automatically set for you.
You can further adjust each option individually if desired.
If you need more custom optimization control than the preset options offer, you can create custom optimization
settings in the Optimize panel. You can also modify a graphic’s color palette using the color table in the Optimize
panel.
To select a preset optimization:
❖Select a preset from the Settings pop-up menu in the Property inspector or the Optimize panel:
GIF Web 216 forces all colors to websafe colors. The color palette contains up to 216 colors (see “Optimizing GIF,
PNG, TIFF, BMP, and PICT files” on page 265).
GIF WebSnap 256 converts non-websafe colors to their closest websafe color. The color palette contains up to a
maximum of 256 colors.
GIF WebSnap 128 converts non-websafe colors to their closest websafe color. The color palette contains up to 128
colors.
ADOBE FIREWORKS CS3
User Guide
263
GIF Adaptive 256 is a color palette that contains only the actual colors used in the graphic. The color palette contains
up to a maximum of 256 colors.
JPEG – Better Quality sets quality to 80 and smoothing to 0, resulting in a high-quality but larger graphic.
JPEG – Smaller File sets quality to 60 and smoothing to 2, resulting in a graphic less than half the size of a Better
Quality JPEG but with reduced quality.
Animated GIF Websnap 128 sets the file format to Animated GIF and converts non-websafe colors to their closest
websafe color. The color palette contains up to 128 colors.
For more information about file types, see “Choosing a file type” on page 265.
To specify custom optimization settings:
1In the Optimize panel, select an option from the Export File Format pop-up menu.
2Set format-specific options, such as color depth, dither, and quality.
3Select other optimization settings from the Optimize panel Options menu, as necessary.
For more information about specific optimization controls, see the appropriate sections in “Optimizing in the
workspace” on page 261.
4You can name and save custom optimization settings. Names of saved settings are displayed in the preset optimi-
zation settings in the Settings pop-up menu in the Optimize panel and the Property inspector when slices, buttons,
or the canvas are selected. For more information, see “Saving and reusing optimization settings” on page 275.
To modify the color palette:
❖If the Optimize panel isn’t already open, select Window > Optimize to view and edit a document’s color palette.
For more information, see “Optimizing GIF, PNG, TIFF, BMP, and PICT files” on page 265.
To optimize individual slices:
1Click a slice to select it. Shift-click to select more than one slice.
2Optimize the selected slices using the Optimize panel.
Previewing and comparing optimization settings
The document preview buttons display the graphic as it would appear in a web browser, based on optimization
settings. You can preview rollover and navigation behaviors, as well as animation.
The Original button and the document preview buttons
The document preview buttons display a document’s total size, estimated download time, and file format. The
estimated download time is the average amount of time it would take to download all the document’s slices and
frames on a 56K modem. The 2-Up and 4-Up views display additional information that varies depending on the file
type selected.
You can use the Optimize panel to optimize a document while viewing a preview as if you were in Original view. You
can optimize the entire document at once or only selected slices. The slice overlay helps you differentiate the slices
currently being optimized from the rest of the document. The slice overlay displays areas not currently being
optimized with a dimmed, transparent white tint. You can turn the slice overlay on or off.
ADOBE FIREWORKS CS3
User Guide
264
When you optimize a selected slice, the slices not being optimized are dimmed.
To preview a graphic based on the current optimization settings:
❖Click the Preview button in the upper left of the Document window.
Note: Click Hide Slices in the Tools panel to hide slices and slice guides while previewing.
To compare views with different optimization settings:
1Click the 2-Up or 4-Up button in the upper left of the Document window.
2Click one of the split-view previews to select it.
3Enter settings in the Optimize panel.
4Select the other previews and specify different optimization settings for each preview to compare them.
When you select 2-Up or 4-Up view, the first split-view displays the original Fireworks PNG document so that you
can compare it with optimized versions. You can switch this view with another optimized version.
To switch any optimized view to the Original view from 2-Up or 4-Up view:
1Select an optimized view.
2Select Original (No Preview) from the Preview pop-up menu at the bottom of the preview window.
To switch the Original view to an optimized view from 2-Up or 4-Up view:
1Select the view containing the original.
2Select Image Preview from the Preview pop-up menu.
To hide or show the slice overlay:
❖Select View > Slice Overlay.
Note: This command is useful when you are in either the Preview, 2-Up preview, or 4-Up preview.
ADOBE FIREWORKS CS3
User Guide
265
Choosing a file type
You should base your choice of file format upon the design and use of your graphic. A graphic’s appearance can vary
from one format to another, especially when different types of compression are used. In addition, only certain
graphic file types are accepted by most web browsers. Still other file types are ideal for print publishing or use in
multimedia applications.
The following file types are available:
GIF , or Graphics Interchange Format, is a popular web graphic format. GIFs contain a maximum of 256 colors. GIFs
can also contain a transparent area and multiple frames for animation. Images with areas of solid color compress best
when exported as GIFs. A GIF is usually ideal for cartoons, logos, graphics with transparent areas, and animations.
JPEG was developed by the Joint Photographic Experts Group specifically for photographic or high-color images.
JPEG supports millions of colors (24-bit). The JPEG format is best for scanned photographs, images using textures,
images with gradient color transitions, and any images that require more than 256 colors.
PNG , or Portable Network Graphic, is a versatile web graphic format. However, not all web browsers can view PNG
graphics. A PNG can support up to 32-bit color, can contain transparency or an alpha channel, and can be
progressive. PNG is the native file format for Fireworks. However, Fireworks PNG files contain additional appli-
cation-specific information that is not stored in an exported PNG file or in files created in other applications.
WBMP , or Wireless Bitmap, is a graphic format created for mobile computing devices such as cell phones and PDAs.
This format is used on Wireless Application Protocol (WAP) pages. WBMP is a 1-bit format, so only two colors are
visible: black and white.
TIFF , or Tagged Image File Format, is a graphic format used for storing bitmap images. TIFFs are most commonly
used in print publishing. Many multimedia applications also accept imported TIFF graphics.
BMP , the Microsoft Windows graphic file format, is a common file format used to display bitmap images. BMPs are
used primarily on the Windows operating system. Many applications can import BMP images.
PICT , developed by Apple Computer, is a graphic file format commonly used on Macintosh operating systems. Most
Mac applications are capable of importing PICT images.
Optimizing GIF, PNG, TIFF, BMP, and PICT files
Each graphic file format in Fireworks has a set of optimization options. For the most part, only the 8-bit file types
such as GIF, PNG 8, TIFF 8, BMP 8, and PICT 8 offer a significant amount of optimization control.
Note: JPEG files are an exception. For more on JPEG optimization controls, see “Optimizing JPEGs” on page 272.
Fireworks optimization settings are similar for all 8-bit graphic file formats. For web file formats such as GIF and
PNG, you can also specify the amount of compression you want on the graphic.
You can optimize 8-bit file types by adjusting their color palettes. Fewer colors in the palette means fewer colors in
the image, resulting in a smaller file size. The drawback to reducing colors is that it can also diminish image quality.
As you experiment with different optimization settings, you can use the 2-Up and 4-Up buttons to test and compare
a graphic’s appearance and estimated file size. For more information on using the document preview buttons, see
“Previewing and comparing optimization settings” on page 263.
Note: All file types mentioned above (except PICT, which is only supported on the Macintosh version of Fireworks) can
be saved in their original formats in Fireworks CS3 from within the “Save As” dialog box. This behavior differs from that
in previous versions of Fireworks. For more information, see “Saving documents in other formats” on page 23.
ADOBE FIREWORKS CS3
User Guide
266
Choosing a color palette
GIFs and other 8-bit image formats contain a color palette. A color palette is a list of up to 256 colors available to the
file. Only colors defined in the color palette appear in the graphic; however, some color palettes contain colors that
are not in the graphic.
The following palettes are available in Fireworks:
Adaptive is a custom palette derived from the actual colors in the document. Adaptive palettes most often produce
the highest quality image.
Web Adaptive is an adaptive palette in which colors that are close to websafe colors are converted to the closest
websafe color. Websafe colors are those that come from the Web 216 palette.
Web 216 is a palette of the 216 colors common to both Windows and Macintosh computers. This palette is often
called a websafe or browser-safe palette because it produces fairly consistent results in various web browsers on either
platform when viewed on 8-bit monitors.
Exact contains the exact colors used in the image. Only images containing 256 or fewer colors may use the Exact
palette. If the image contains more than 256 colors, the palette switches to Adaptive.
Windows and Macintosh each contain the 256 colors defined by the Windows or Macintosh platform standards,
respectively.
Grayscale is a palette of 256 or fewer shades of gray. Choosing this palette converts the image to grayscale.
Black and White is a two-color palette consisting only of black and white.
Uniform is a mathematical palette based on RGB pixel values.
Custom is a palette that has been modified or loaded from an external palette (ACT file) or a GIF file.
Adjusting the color palette during optimization affects the colors in the image. You can optimize and customize color
palettes using the color table in the Optimize panel.
To select a color palette:
❖Select an option from the Indexed Palette pop-up menu in the Optimize panel.
To import a custom palette:
1Do one of the following:
•Select Load Palette from the Optimize panel Options menu.
•Select Custom from the Optimize panel Indexed Palette pop-up menu.
2Navigate to an ACT or GIF palette file and click Open.
The colors from the ACT or GIF file are added to the color table in the Optimize panel.
Note: Windows users must select GIF Files from the Files of Type pop-up menu to see files with a .gif extension in the
Open dialog box.
Setting the color depth
Color depth is the number of colors in the graphic. You can make your files smaller by reducing the number of colors
they use. Reducing color depth discards some colors in the image, beginning with those used least. Pixels containing
discarded colors convert to the closest color remaining in the palette. This can reduce the quality of the image.
Note: The color depth option is available only for GIFs and other 8-bit graphic file formats.
ADOBE FIREWORKS CS3
User Guide
267
To select a color depth:
❖Select an option from the Colors pop-up menu in the Optimize panel or type a value in the text box. You can select
from 2 to 256 colors.
Note: The actual colors in the image could be lower than the maximum number of colors you select. The number at the
bottom of the color table indicates the actual number of colors visible in the image. If no number is visible, you’ll see a
Rebuild button, which indicates you should rebuild the color palette. For more information, see “Viewing colors in a
palette” on page 268.
To select a color depth beyond 256 colors:
❖Select a 24- or 32-bit file format from the Export File Format pop-up menu in the Optimize panel.
Note: Higher color depths create larger files and are typically not ideal for web graphics. Use only 24- or 32-bit color
depths when exporting or saving photographic images with continuous tones or complex gradient blends of colors. For
high-color-depth graphics on the web, use JPEG files. For more information, see “Optimizing JPEGs” on page 272.
Removing unused colors
Removing unused colors from an image before exporting or saving makes its file size smaller.
Note: This option is available only for GIFs and other 8-bit graphic file formats.
To remove unused colors:
❖Select Remove Unused Colors from the Optimize panel Options menu.
To include all colors in the palette, including colors that are not present in the exported or saved image:
❖Deselect Remove Unused Colors.
Dithering to approximate lost colors
Dithering approximates colors not in the current palette by alternating similarly colored pixels. From a distance, the
colors blend to create the appearance of the missing color. Dithering is especially helpful when exporting images with
complex blends or gradients or when exporting photographic images to an 8-bit graphic file format such as GIF.
Dithering can greatly increase file size.
Note: The dithering option is available only for GIFs, other 8-bit graphic file formats, and WBMPs.
To dither a graphic:
❖Enter a percentage value in the Dither text box of the Optimize panel.
ADOBE FIREWORKS CS3
User Guide
268
Viewing colors in a palette
The color table in the Optimize panel displays colors in the current preview when you are working in 8-bit color or
less and lets you modify an image’s palette. The color table updates automatically when you are in Preview mode. It
appears empty if you are optimizing more than one slice at a time or if you are not optimizing in an 8-bit format such
as GIF.
Various small symbols appear on some color swatches, indicating certain characteristics of individual colors, as
follows:
If you edit the document, the color table may no longer show all the colors in the document. When this occurs, you
should rebuild the color table. A Rebuild button appears at the bottom of the Optimize panel when you need to
rebuild the color table.
To rebuild the color table to reflect edits in the document:
❖Click Rebuild at the bottom of the Optimize panel.
When the table is rebuilt, the Rebuild button disappears, and the actual number of colors used in the image is
displayed in its place.
To select a color:
❖Click the color in the Optimize panel color table.
To select multiple colors:
❖Control-click (Windows) or Command-click (Macintosh) the colors.
Symbol Meaning
The color has been edited, affecting only the exported document. This does not change the color in
the source document.
The color is locked.
The color is transparent.
The color is websafe.
The color has multiple attributes. In this case, the color is websafe, is locked, and has been edited.
ADOBE FIREWORKS CS3
User Guide
269
To select a range of colors:
1Click a color.
2Hold Shift and click the last color in the range you want to select.
To preview all the pixels in the document that contain a specific color:
1Click the Preview button at the upper left of the Document window.
2Click and hold on a swatch in the Optimize panel color table.
The pixels that contain the selected swatch temporarily change to another highlight color until you release the mouse
button.
Note: When previewing pixels in the document using the 2-Up or 4-Up view, select a view other than the Original view.
Locking colors in a palette
You can lock individual colors so that you cannot remove or change them when changing palettes or when reducing
the number of colors in a palette. If you switch to another palette after colors have been locked, locked colors are
added to the new palette.
To lock a selected color, do one of the following:
• Click the Lock button at the bottom of the Optimize panel.
•Right-click (Windows) or Control-click (Macintosh) the color swatch, and select Lock Color from the context
menu.
To unlock a color:
1Select a locked color in the Optimize panel color table.
2Click the Lock button in the Optimize panel, or right-click (Windows) or Control-click (Macintosh) the color
swatch and select Lock Color.
To unlock all colors:
❖Select Unlock All Colors from the Optimize panel Options menu.
Editing colors in a palette
You can change a color in the current palette by editing it in the Optimize panel color table. Editing a color replaces
all instances of that color in the image to be exported or to be saved as a bitmap. Editing does not replace the color
in the original image, unless you are working with a bitmap and save the image as such; in this case, you should also
save the image as a PNG file to retain an editable version of the original image.
To edit a color:
1Do one of the following to open the system color picker:
• Select a color and click the Edit Color button at the bottom of the Optimize panel.
•Double-click a color in the color table.
2Change the color using the system color picker.
The new color replaces every instance of the replaced color in the preview area.
ADOBE FIREWORKS CS3
User Guide
270
Note: Right-click (Windows) or Control-click (Macintosh) a color in the palette to display a shortcut menu of edit options
for the color.
Using websafe colors
Websafe colors are colors that are common to both Macintosh and Windows platforms. These colors are not dithered
when viewed in a web browser on a computer display set to 256 colors.
Fireworks has several methods of applying and using websafe colors.
To force all colors to be websafe colors:
❖Select Web 216 from the Indexed Palette pop-up menu in the Optimize panel.
To create an adaptive palette that favors websafe colors:
❖Select Web Adaptive from the Indexed Palette pop-up menu in the Optimize panel.
Non-websafe colors that are close to websafe colors are converted to the closest websafe color.
To force a color to its closest websafe equivalent:
1Select a color in the Optimize panel color table.
2 Click the Snap to Web Safe button.
If you save a Fireworks PNG, changing colors to websafe in the Optimize panel affects only the exported version of
the image, not the actual image.
Saving palettes
You can save custom palettes as external palette files. You can use saved palettes with other Fireworks documents or
in other applications that support external palette files, such as Adobe FreeHand, Adobe Flash, and Adobe
Photoshop. Saved palette files have the .act extension.
To save a custom color palette:
1Select Save Palette from the Optimize panel Options menu.
2Type a name for the palette and select a destination folder.
3Click Save.
You can load the saved palette file into the Swatches panel or Optimize panel for use when exporting other
documents.
Adjusting compression
You can compress GIF files to make them even smaller than usual by changing their loss setting. Higher loss settings
can yield smaller files but lower image quality. A loss setting between 5 and 15 typically yields the best results.
Original GIF; loss value of 30; loss value of 100
ADOBE FIREWORKS CS3
User Guide
271
To change a GIF’s compression:
❖Enter a Loss setting in the Optimize panel.
Making areas transparent
You can set transparent areas for GIFs and 8-bit PNGs so that in a web browser the background of the web page is
visible through those areas. In Fireworks, a gray-and-white checkerboard on document previews denotes trans-
parent areas.
Optimized image preview in Fireworks; image exported with transparency and placed on a web page with a colored background
Note: 32-bit PNGs automatically contain transparency, though you won’t see a transparency option for 32-bit PNGs in
the Optimize panel.
You should use index transparency when exporting GIF images that contain transparent areas. With index trans-
parency, you set specific colors to be transparent upon export. Index transparency turns on or turns off pixels with
specific color values. Because GIFs support index transparency, it is the most common form of transparency used
on the web.
Note: GIF images are exported without transparency by default in Fireworks. Even if the canvas behind an image or
object appears transparent in Original view in Fireworks, this does not mean that the background for that image will be
transparent when you export it as a GIF for use on the web. You must select Index Transparency before export.
You can also use alpha transparency, although it is not often used with web graphics because only PNGs support it
and most web browsers do not support PNG format. Alpha transparency is often used in exported graphics that
contain gradient transparency and semi-opaque pixels. Alpha transparency is also useful for exporting files to Flash
or Adobe Director, because both applications support this type of transparency.
Note: Setting colors to transparent affects only the exported version of the image, not the actual image. You can see what
the exported image will look like in a preview. For information about the document preview buttons, see “Previewing
and comparing optimization settings” on page 263.
To select a color for transparency:
1Click the Preview, 2-Up, or 4-Up button at the upper left of the Document window. In 2-Up or 4-Up view, click a
view other than the original.
2In the Optimize panel, select Index Transparency from the Transparency pop-up menu at the bottom of the panel.
The canvas color is made transparent in the preview.
3To select a different color, click the Select Transparency Color button.
The pointer changes to an eyedropper.
4Do one of the following to select the color to make transparent:
•Click a color swatch in the Optimize panel color table.
ADOBE FIREWORKS CS3
User Guide
272
•Click a color in the document.
To add or remove transparent colors:
1Click the Preview, 2-Up, or 4-Up button at the upper left of the Document window. In 2-Up or 4-Up view, click a
view other than the original.
Note: You can add or remove transparent colors in Original view but won’t be able to see your results until you display
a preview.
2In the Optimize panel, click the Add Color to Transparency or Remove Color from Transparency button.
3Do one of the following to select a color to add or remove from transparency:
•Click a color swatch in the Optimize panel color table.
•Click a color in the preview.
To make an image background transparent:
1Click the Preview, 2-Up, or 4-Up button at the upper left of the Document window. In 2-Up or 4-Up view, click a
view other than the original.
2Select GIF as the file format in the Optimize panel, and select Index Transparency from the Transparency pop-up
menu.
The canvas color is made transparent in the preview, and the graphic is ready for export.
Interlacing: Downloading gradually
When viewed in a web browser, interlaced images appear gradually while they are downloading. They display at a
low resolution first and then transition to full resolution by the time the download is complete.
Note: This option is available only for GIF and PNG file formats. You can get similar results with a JPEG by making it
progressive. For more information, see “Optimizing JPEGs” on page 272.
To make a GIF or non-Fireworks PNG interlaced:
❖Select Interlaced from the Optimize panel Options menu.
Optimizing JPEGs
Using the Optimize panel, you can optimize JPEGs by setting compression and smoothing options.
JPEGs are always saved and exported in 24-bit color, so you can’t optimize a JPEG by editing its color palette. The
color table is empty when a JPEG image is selected.
As you experiment with different optimization settings, you can use the 2-Up and 4-Up buttons to test and compare
a JPEG’s appearance and estimated file size. For more information on using the document preview buttons, see
“Previewing and comparing optimization settings” on page 263.
Note: In Fireworks CS3, JPEGs can be saved directly from within the “Save As” dialog box. This behavior differs from
that in previous versions of Fireworks. For more information, see “Saving documents in other formats” on page 23.
ADOBE FIREWORKS CS3
User Guide
273
Adjusting JPEG quality
JPEG is a lossy format, which means that some image data is discarded when it is compressed, reducing the quality
of the final file. However, image data can sometimes be discarded with little or no noticeable difference in quality.
Original image; quality setting of 50; quality setting of 20
To control how much quality is lost when compressing a JPEG file:
❖Adjust the quality with the Quality slider pop-up menu in the Optimize panel.
A high percentage setting maintains image quality but compresses less, producing larger files.
A low percentage setting yields a small file but produces a lower-quality image.
Selectively compressing areas of a JPEG
Selective JPEG compression lets you compress different areas of a JPEG at different levels. Areas of particular interest
in an image can be compressed at a higher quality level. Areas of lesser significance, such as backgrounds, can be
compressed at a lower quality level, reducing the overall size of the image while retaining the quality of the more
important areas.
The selected area in this image is being compressed at a quality level of 90, while the unselected area is being compressed at a quality level of 50.
To compress selected areas of a JPEG:
1In Original view, select an area of the graphic for compression using one of the Marquee tools.
2Select Modify > Selective JPEG > Save Selection as JPEG Mask.
3Select JPEG from the Export File Format pop-up menu in the Optimize panel, if it’s not already selected.
4Click the Edit Selective Quality Options button in the Optimize panel.
The Selective JPEG Settings dialog box opens.
5Select Enable Selective Quality and enter a value in the text box.
Entering a low value compresses the Selective JPEG area more than the rest of the image. Entering a high value
compresses the Selective JPEG area less than the rest of the image.
6Change the Overlay Color for the Selective JPEG area if desired. This does not affect the output.
ADOBE FIREWORKS CS3
User Guide
274
7Select Preserve Text Quality. All text items will automatically be exported at a higher level, regardless of the
Selective Quality value.
8Select Preserve Button Quality. All button symbols will automatically be exported at a higher level.
9Click OK.
To modify the selective JPEG compression area:
1Select Modify > Selective JPEG > Restore JPEG Mask as Selection.
The selection is highlighted.
2Use the Marquee tool or another selection tool to make changes to the size of the area.
3Select Modify > Selective JPEG > Save Selection as JPEG Mask.
4Change selective quality settings in the Optimize panel if desired.
Note: To undo a selection, select Modify > Selective JPEG > Remove JPEG Mask.
Blurring or sharpening detail
You can set Smoothing in the Optimize panel to help decrease the file size of JPEGs. Smoothing blurs hard edges,
which do not compress well in JPEGs. Higher numbers produce more blurring in the exported or saved JPEG,
typically creating smaller files. A smoothing setting of about 3 reduces the size of the image while still maintaining
reasonable quality.
To help preserve fine edges between two colors:
❖Select Sharpen JPEG Edges from the Optimize panel Options menu.
Use Sharpen JPEG Edges when exporting or saving JPEGs with text or fine detail to preserve the sharpness of these
areas. Choosing Sharpen JPEG Edges increases file size.
Using progressive JPEGs
Progressive JPEGs, such as interlaced GIFs and PNGs, are displayed at a low resolution initially and then increase in
quality as they download.
To export or save a progressive JPEG:
❖Select Progressive JPEG from the Optimize panel Options menu.
Note: Some older bitmap-editing applications cannot open progressive JPEGs.
Matching a target background color
Anti-aliasing makes an object appear smoother by blending the color of an object into the background on which it
is placed. For example, if the object is black and the page on which it rests is white, anti-aliasing adds several shades
of gray to the pixels surrounding the object’s border to make a smoother transition between the black and white.
ADOBE FIREWORKS CS3
User Guide
275
By setting the Matte option in the Optimize panel, you can anti-alias objects that lie directly above the canvas to the
Matte color. This is useful when exporting or saving graphics for placement on web pages with colored backgrounds.
To match a target background color:
❖In the Optimize panel, select a color from the Matte pop-up menu. Match it as closely as possible to the target
background color on which the graphic will be placed.
Note: Anti-aliasing is applied only to soft-edged objects that lie directly on top of the canvas.
Removing halos
When you make the canvas color transparent on an image that was previously anti-aliased, the pixels from the anti-
aliasing remain. Then when you export (or in some cases, save) the graphic and place it on a web page with a
different background color, the perimeter pixels of the anti-aliased object may be apparent on the web page’s
background. These form a halo, which is especially noticeable on a dark background.
You can easily prevent halos in native Fireworks PNG files and in imported Photoshop files. For other file types such
as GIF, however, you must remove the halo manually.
To prevent halos in native Fireworks PNG files and imported Photoshop files, do one of the following:
•Set the Canvas Color in the Property inspector or the Matte Color in the Optimize panel to the color of the target
web page background.
•With the object you want to export selected, select Hard from the Edge pop-up menu in the Property inspector.
To remove a halo manually from a GIF or other graphic file:
1With the file open in Fireworks, click the Preview, 2-Up, or 4-Up button at the upper left of the Document window.
In 2-Up or 4-Up view, click a view other than the original.
2In the Optimize panel, select Index Transparency from the Transparency pop-up menu.
3Click the Add Color to Transparency button and click a pixel in the halo.
All pixels of the same color are removed in the preview.
4If the halo is still there, repeat step 3 until the halo is gone.
Saving and reusing optimization settings
Fireworks remembers the last optimization settings you used after you perform any of the following actions:
•File > Save
•File > Save As
•File > Save As/Save as a Copy
ADOBE FIREWORKS CS3
User Guide
276
•File > Export
Fireworks then applies these settings to new documents.
Note: As in previous versions of Fireworks, new slices still get their default optimization settings from the parent
document.
You can also save custom optimization settings for future use in optimization or batch processing. The following
information is saved in custom preset optimizations:
•Settings and color table in the Optimize panel
•Frame delay settings chosen in the Frames panel (for animations only)
To save optimization settings as a preset:
1Select Save Settings from the Optimize panel Options menu.
2Type a name for the optimization preset and click OK.
Saved optimization settings appear at the bottom of the Settings pop-up menu in the Optimize panel and in the
Property inspector. They are available in all subsequent documents. The preset file is saved in the Export Settings
folder in your user-specific Fireworks configuration folder. For information on the location of this folder, see “About
user configuration files” on page 351.
To share saved optimization settings with another Fireworks user:
❖Copy the saved optimization preset file from the Export Settings folder to the same folder on another computer.
Note: The location of the Export Settings folder varies depending on your operating system. For more information, see
the previous procedure.
To delete a custom preset optimization:
1In the Optimize panel Saved Settings pop-up menu, select the optimization setting you want to delete.
2Select Delete Settings from the Optimize panel Options menu.
You cannot delete a Fireworks preset optimization setting.
Exporting from Fireworks
Exporting from Fireworks is a two-step process. First you must prepare your graphic or document for export by
optimizing it. After your graphic or document has been optimized, you can export it (or save it, depending on its
originating file type). For more information on optimizing, see “About optimizing” on page 257. For more infor-
mation on saving, see “Saving documents in other formats” on page 23.
You can export Fireworks graphics in a number of ways. You can export (or in some cases, save) a document as a
single image in GIF, JPEG, or another graphic file format. Or you can export the entire document as an HTML file
and associated image files. Or you can choose to export selected slices only. You can also export only a specified area
of your document. In addition, you can export Fireworks frames and layers as separate image files.
The default location to which Fireworks exports files is determined by the following, in this order:
1The document’s current export preference, which is defined if you’ve ever exported the document and then saved
the PNG
ADOBE FIREWORKS CS3
User Guide
277
2The current export/save location, which is defined anytime you browse away from the default location presented
in a Save, Save As, Save a Copy, or Export dialog box
3The current file’s location
4The default location where new documents or images are saved on your operating system
In contrast, the default location where Fireworks saves a document is determined by a different set of criteria. For
more information, see “Saving Fireworks files” on page 22.
Exporting a single image
You use the File > Export command to export a graphic after you have finished optimizing it in the workspace.
If you are working with an existing image that you opened in Fireworks, you can save it rather than export it. For
more information, see “Saving documents in other formats” on page 23.
Note: To export only certain images in a document, you must first slice your document and then export only the desired
slices. For more information, see “Exporting selected slices” on page 278.
To export a Fireworks document as a single image:
1Select the file format you would like to use for exporting in the Optimize panel and set format-specific options.
2Select File > Export.
3Select a location to export the image file to.
For web graphics, the best location is typically a folder within your local website.
4Enter a filename. You do not need to enter a file extension; Fireworks does that for you upon export using the file
type you specified in your optimization settings. For more information on optimizing, see “About optimizing” on
page 257.
5Select Images Only from the Export pop-up menu.
6Click Export.
Exporting a sliced document
By default, when you export a sliced Fireworks document, an HTML file and associated images are exported. The
exported HTML file can be viewed in a web browser or imported into other applications for further editing.
Note: You can get Fireworks HTML into other applications using any of several techniques. For more about HTML and
the other ways to export Fireworks HTML, see “Exporting HTML” on page 280.
Before export, be sure you have the appropriate HTML style selected in the HTML Setup dialog box. For more infor-
mation, see “Setting HTML export options” on page 287.
To export a sliced Fireworks document:
1Select File > Export.
2Navigate to the desired folder on your hard drive.
3Select HTML and Images from the Export pop-up menu.
4Type a filename in the File Name (Windows) or Save As (Macintosh) box.
5Select Export HTML File from the HTML pop-up menu.
6Select Export Slices from the Slices pop-up menu.
ADOBE FIREWORKS CS3
User Guide
278
7(Optional) Select Put Images in Subfolder.
8Click Export.
The files Fireworks exported appear on your hard disk. Images and an HTML file are generated in the location you
specified in the Export dialog box. For more information about the options available in the Export dialog box when
HTML and Images is selected as the file type, see “Exporting Fireworks HTML” on page 282.
Exporting selected slices
You can export selected slices in a Fireworks document. Shift-click to select multiple slices.
Note: For more information on slicing, see “Creating and editing slices” on page 200.
To export selected slices:
1Do one of the following:
•Select File > Export.
•To export an individual slice, right-click (Windows) or Control-click (Macintosh) the slice and select Export
Selected Slice.
2Select a location in which to store the exported files.
Typically, the best location is a folder within your local website.
3Enter a filename. You do not need to enter an extension; Fireworks does that for you.
If you are exporting multiple slices, Fireworks uses the name you enter as the root name for all exported graphics,
excluding those you have custom-named using the Layers panel or the Property inspector.
4Select Export Slices from the Slices pop-up menu.
5To export only the slices you selected before export, select Selected Slices Only, and ensure that the Include Areas
Without Slices option is not selected.
6Click Export.
Each slice is exported using its optimization settings as defined in the Optimize panel. For more information about
optimizing, see “About optimizing” on page 257.
Updating a slice
If you’ve already exported a sliced document, and you’ve made changes to the original document in Fireworks since
you exported it, you can update just the image or slice that changed without having to export and upload the entire
sliced image. It is recommended that you custom-name slices so that you can easily locate the replacement slice. For
more information, see “Naming slices” on page 213.
To update a single slice:
1Hide the slice and edit the area underneath.
2Show the slice again.
3Right-click (Windows) or Control-click (Macintosh) the slice and select Export Selected Slice from the context
menu.
4Click Export to export the slice into the same folder as the original slice using the same base name.
5Click OK when asked to replace the existing file.
ADOBE FIREWORKS CS3
User Guide
279
If you retain the original filename for the updated slice and upload the slice to the same place on your website where
the original came from, the new slice replaces the original slice in the HTML document.
Note: Avoid resizing the slice beyond its original export size in Fireworks, or you could create unexpected results in the
HTML document after the slice is updated.
Exporting an animation
After you create and optimize an animation, it is ready to export. You can export an animation as an Animated GIF,
as a Flash SWF file, or as multiple files.
If your document contains more than one animation, you can insert slices on top of each animation to export each
using different animation settings, such as looping and frame delay.
For information about exporting to multiple files, see “Exporting frames or layers” on page 279. For information
about exporting animations as Flash SWF files, see “Working with Flash” on page 305.
To export an animation as an animated GIF:
1Select Edit > Deselect to deselect all slices and objects, and select Animated GIF as the file format in the Optimize
panel.
For more information on optimizing, see “Optimizing GIF, PNG, TIFF, BMP, and PICT files” on page 265.
2Select File > Export.
3In the Export dialog box, type a name for the file and select the destination.
4Click Export.
To export multiple animations with different animation settings as animated GIFs:
1Shift-click the animations to select them all.
2Select Edit > Insert > Slice.
A message box appears, asking if you want to insert one slice or multiple slices.
3Click Multiple.
4Select each slice individually and use the Frames panel to set different animation settings for each. For more infor-
mation about animation settings, see “Creating Animations” on page 238.
5Select all the slices you would like to animate, and select Animated GIF as the file format in the Optimize panel.
For more information on optimizing, see “Optimizing GIF, PNG, TIFF, BMP, and PICT files” on page 265.
6Right-click (Windows) or Control-click (Macintosh) each slice and select Export Selected Slice from the context
menu to export each slice individually. In the Export dialog box, type a name for each file, select the destination, and
click Export.
Exporting frames or layers
Fireworks can export each layer or frame in a document as a separate image file, using the optimization settings
specified in the Optimize panel. The name of the layer or frame determines the filename of each exported file. This
export method is sometimes used to export animations.
To export frames or layers as multiple files:
1Select File > Export.
ADOBE FIREWORKS CS3
User Guide
280
2Type a filename and select a destination folder.
3In the Export pop-up menu, select one of the following:
Frames to Files exports frames as multiple files.
Layers to Files exports layers as multiple files.
Note: This exports all layers on the current frame.
4Select Trim Images to automatically crop the exported images to fit the objects on each frame.
If you want to export frames or layers the same size as the document, deselect Trim Images.
5Click Export.
Exporting an area
You can use the Export Area tool to export a portion of a Fireworks document.
To export a portion of a document:
1Select the Export Area tool from the Tools panel.
2Drag a marquee defining the portion of the document to export.
Note: You can adjust the position of the marquee as you drag. While holding down the mouse button, press and hold
down the Spacebar, then drag the marquee to another location on the canvas. Release the Spacebar to continue drawing
the marquee.
When you release the mouse button, the export area remains selected.
3Resize the export area if necessary:
•Shift-drag a handle to resize the export area marquee proportionally.
•Alt-drag (Windows) or Option-drag (Macintosh) a handle to resize the marquee from the center.
•Alt-Shift-drag (Windows) or Option-Shift-drag (Macintosh) a handle to constrain the proportions and resize
from the center.
4Double-click inside the export area marquee to go to Image Preview.
5Adjust settings in the Image Preview, and click Export.
6In the Export dialog box, type a filename and select a destination folder.
7In the Export pop-up menu, select Images Only.
8Click Export.
Note: To cancel without exporting, double-click outside the export area marquee, press Escape, or select another tool.
Exporting HTML
Unless you specify otherwise, when you export a sliced Fireworks document, what you’re actually exporting is an
HTML file and its images.
Fireworks generates pure HTML that can be read by most web browsers and HTML editors. There are a variety of
ways to export Fireworks HTML:
•Export an HTML file, which you can later open for editing in an HTML editor.
ADOBE FIREWORKS CS3
User Guide
281
•Export each page in a Fireworks file to a separate HTML file.
•Copy HTML code to the Clipboard in Fireworks, and then paste that code directly into an existing HTML
document.
•Export an HTML file, open it in an HTML editor, manually copy sections of code from the file, and paste that code
into another HTML document.
•Use the Update HTML command to make changes to an HTML file you’ve previously created.
Note: Adobe Dreamweaver shares a tight integration with Fireworks. Fireworks handles the export of HTML to Dream-
weaver differently than it handles export to other HTML editors. If you are exporting Fireworks HTML to Dreamweaver,
see “Working with Dreamweaver” on page 292.
By default, Fireworks specifies UTF-8 encoding when you export HTML, which ensures that the characters in the
HTML file will be displayed correctly for all languages.
You can also export HTML as Cascading Style Sheet (CSS) layers and XHTML.
To define how Fireworks exports HTML, you use the HTML Setup dialog box. These settings can be document-
specific or used as your default settings for all HTML that Fireworks exports.
About HTML
HTML code is automatically generated by Fireworks when you export, copy, or update HTML. You do not need to
understand it to use it. After it is generated there is no need to change it to make it work, as long as you do not rename
or move files.
HTML, or Hypertext Markup Language, is currently the standard for displaying web pages on the Internet. An
HTML file is a text file that contains these elements:
•Text that will appear on the web page
•HTML tags that define the formatting and structure of that text and of the entire document as well as links to
images and other HTML documents (web pages)
HTML tags are enclosed in brackets and look something like this:
<TAG> affected text </TAG>
The opening tag tells a browser to format the text following in a certain way or to include a graphic. The closing tag
(</TAG>), when there is one, indicates the end of that formatting.
Including comments in HTML
Fireworks HTML is well commented, telling you what the pieces of code relate to. Fireworks HTML comments begin
with <!-- and end with -->. Anything between these two markers is not interpreted as HTML or JavaScript code.
If you want comments included in your HTML, you must tell Fireworks you want this option turned on.
To include comments in exported HTML:
❖Before exporting, select the Include HTML Comments option on the General tab of the HTML Setup dialog box.
Results of exporting
When you export or copy HTML from Fireworks, the following is generated so that your Fireworks image can be re-
created on a web page:
ADOBE FIREWORKS CS3
User Guide
282
•The HTML code necessary to reassemble sliced images and any JavaScript code if the document contains inter-
active elements. Fireworks HTML contains links to the exported images and sets the web page background color
to the canvas color.
•One or more image files, depending on how many slices are in your document and how many states you include
in buttons.
•A file called spacer.gif, if necessary. Spacer.gif is a transparent, 1-pixel-by-1-pixel GIF that Fireworks uses to fix
spacing problems when sliced images are reassembled in an HTML table. You can choose whether Fireworks
exports a spacer. For more information, see “Setting HTML export options” on page 287.
•If your Fireworks document contains pop-up menus, and you export those pop-up menus, the following files are
exported: mm_css_menu.js and a .css file containing the CSS pop-up menu code. If your pop-up menus contain
submenus, an arrows.gif file is also exported.
•If you export or copy HTML to Dreamweaver, notes files are created that facilitate the integration between
Fireworks and Dreamweaver. These files have an .mno extension.
Exporting Fireworks HTML
Fireworks lets you export HTML in Generic, Dreamweaver, FrontPage, and Adobe GoLive formats. Generic HTML
works in most HTML editors. Exporting Fireworks HTML generates an HTML file and the associated image files in
a location you specify.
Note: Fireworks also exports HTML when you export to CSS layers and to Director. For more information about CSS
layers, see “Exporting CSS layers” on page 285. For more about Director, see “Working with Director” on page 317.
The export method of getting Fireworks HTML into other applications is ideal if you are working in a team
environment. Exporting an HTML file divides the workflow into segments so that one person can perform a task in
one application, and another can take over at a later time using another application.
You can set up global HTML export preferences using the HTML Setup dialog box. For more information, see
“Setting HTML export options” on page 287.
Note: Dreamweaver shares a tight integration with Fireworks. Fireworks handles the export of HTML Dreamweaver
differently than that of other HTML editors. If you are exporting Fireworks HTML to Dreamweaver, follow these instruc-
tions, but for additional application-specific notes, also see “Working with Dreamweaver” on page 292.
To export Fireworks HTML:
1Do one of the following to open the Export dialog box:
•Select File > Export.
•Click the Quick Export button at the upper right corner of the Document window, then select an export option
from the destination application’s pop-up menu. Fireworks automatically fills in the text boxes of the Export
dialog box with the appropriate settings for the selected application.
Note: Non-Adobe applications are found in the Quick Export > Other submenu.
2Navigate to the desired site folder on your hard drive.
3Select HTML and Images from the Export pop-up menu.
4Click the Options button and select your HTML editor from the HTML Style pop-up menu on the General tab of
the HTML Setup dialog box. If your HTML editor is not listed, select Generic.
Note: It’s important that you select your HTML editor as the HTML style; if you do not, interactive elements such as
buttons and rollovers may not function correctly when imported into your HTML editor.
ADOBE FIREWORKS CS3
User Guide
283
5Click OK to return to the Export dialog box.
6Select Export HTML file from the HTML pop-up menu.
Choosing Export HTML generates an HTML file and the associated image files in the location you specify.
7Select Export Slices from the Slices pop-up menu if your document contains slices.
8Select Put Images in Subfolder if you want images stored in a separate folder. You can select a specific folder or
use the Fireworks default, which is a folder named images.
9If you are exporting a multi-page Fireworks document, deselect the Current page only check box to export all of
the pages into separate HTML documents.
10 Click Export.
After export, you’ll see the files Fireworks exported on your hard drive. Images and an HTML file are generated in
the location you specified in the Export dialog box.
Copying HTML to the Clipboard
A fast way to export Fireworks-generated HTML is to copy it to the Clipboard.
You can copy HTML code in Fireworks in either of two ways. You can use the Copy HTML Code command, or you
can select Copy to Clipboard as an option in the Export dialog box. Doing so will copy the Fireworks HTML to the
Clipboard and generate the associated image files in the location you specify. You’ll later paste this HTML into a
document in your preferred HTML editor.
Although copying to the Clipboard is a fast way to get Fireworks HTML into other applications, it is not ideal in every
situation. Copying HTML to the Clipboard has the following disadvantages:
•You don’t have the option to save images into a subfolder. They must reside in the same folder as the HTML file
where you paste the copied HTML. An exception is HTML copied to Dreamweaver.
•Any links or paths used in Fireworks pop-up menus will map to your hard drive. HTML copied to Dreamweaver
is an exception.
•If you use an HTML editor other than Dreamweaver or Microsoft FrontPage, JavaScript code associated with
buttons, behaviors, and rollover images is copied but may not function correctly.
If these issues pose a problem for you, use the Export HTML option instead of copying HTML to the Clipboard.
Note: Before you copy HTML code, be sure that you’ve selected the appropriate HTML style and chosen Include HTML
Comments from the General tab of the HTML Setup dialog box. For more information, see “Setting HTML export
options” on page 287.
To copy Fireworks HTML using the Copy HTML Code option:
1Do one of the following:
•Select Edit > Copy HTML Code.
•Click the Quick Export button and select Copy HTML Code from the pop-up menu.
2Follow the wizard as it guides you through the settings for exporting your HTML and images. When prompted,
specify a desired folder as the destination for the exported images. This must be the location where your HTML file
will reside.
Note: If you plan to paste the HTML code into Dreamweaver, it does not matter where you export the images, as long
as they reside in the same Dreamweaver site as the HTML file into which you will paste your code.
The wizard exports the images to the specified destination and copies the HTML code to the Clipboard.
ADOBE FIREWORKS CS3
User Guide
284
To copy Fireworks HTML using the Export dialog box:
1Select File > Export.
Note: Optionally, if you are exporting to Dreamweaver, click the Quick Export button and select Copy HTML
to Clipboard from the Dreamweaver submenu.
2In the Export dialog box, specify a folder as the destination for the exported images. This must be the same
location where your HTML file will reside.
Note: If you plan to paste the HTML code into Dreamweaver, it does not matter where you export the images, as long
as they reside in the same Dreamweaver site as the HTML file into which you will paste your code.
3Select HTML and Images from the Export pop-up menu.
4Select Copy to Clipboard from the HTML pop-up menu.
5If your document contains slices, select Export Slices from the Slices pop-up menu.
6Click the Options button, select your HTML editor from the HTML Setup dialog box, and click OK.
7Click Export in the Export dialog box.
To paste HTML copied from Fireworks into an HTML document:
1In your HTML editor, open an existing HTML document or create a new one. Save the document to the same
location in which you exported your images.
Note: Saving the HTML file to the same location as the exported images is not necessary if you use Dreamweaver. As
long as you export the images from Fireworks to a Dreamweaver site, and save the HTML file to a location somewhere
within that site, Dreamweaver automatically resolves the paths to the associated images.
2View the HTML code, and place the insertion point in the desired location between the <BODY> tags.
Note: HTML code copied from Fireworks does not include the opening or closing <HTML> and <BODY> tags.
3Paste the HTML code. Refer to the help system within your specific HTML editor for instructions on pasting
contents from the Clipboard.
When pasting code into HTML editors, it is important to keep images and HTML files in the correct location, or
links could be broken. If possible when you copy to the Clipboard, make sure images are exported to the final
location where they will reside on the website. Fireworks uses document-relative URLs, so if the HTML or images
are moved, the URL links are broken.
Copying and pasting HTML from an exported Fireworks file
You can open exported Fireworks HTML in an HTML editor and copy and paste sections of code into another
HTML file.
To copy code from an exported Fireworks file and paste it into another HTML document:
1Open the Fireworks HTML file you exported in an HTML editor.
2Highlight the necessary code and copy it to the Clipboard.
3Open an existing HTML document or create a new one.
4Paste the code from the Clipboard at the desired location in the new HTML file. You do not have to copy the
<HTML> and <BODY> tags, because these should already be included in the destination HTML document.
If you chose Include HTML Comments in the HTML Setup dialog box in Fireworks, follow the instructions in the
comments to copy and paste the code into the appropriate location.
ADOBE FIREWORKS CS3
User Guide
285
5If your Fireworks document contains interactive elements, you’ll need to copy the JavaScript code as well.
JavaScript code is surrounded by <SCRIPT> tags and is located in the <HEAD> section of the document. Copy and
paste the entire <SCRIPT> section, unless your destination document already has a <SCRIPT> section. In this case
you should copy and paste only the contents of the <SCRIPT> section into the existing <SCRIPT> section, being
careful not to overwrite the contents of the existing section. Also ensure there are no duplicate JavaScript functions
in the <SCRIPT> section after you paste the code.
Updating exported HTML
The Update HTML command allows you to make changes to a Fireworks HTML document you’ve previously
exported. This feature is useful if you want to update only a portion of a document.
Note: Update HTML works differently with Dreamweaver documents than it does with other HTML documents. For
more information, see “Working with Dreamweaver” on page 292.
When updating Fireworks HTML, you can choose to replace just the images that changed, or overwrite all code and
images. If you choose to replace only the images that changed, any changes you made to the HTML file outside of
Fireworks are preserved.
Note: For considerable changes to document layout, make your changes in Fireworks and re-export the HTML file.
To update HTML using the Update HTML command:
1Do one of the following:
•Select File > Update HTML.
•Click the Quick Export button and select Update HTML from the pop-up menu.
2Select the file to update in the Locate HTML File dialog box.
3Click Open.
4If no Fireworks-generated HTML is found, click OK to insert new HTML at the end of the document.
5If Fireworks-generated HTML is found, select one of the following and click OK:
Replace Images and Their HTML replaces the previous Fireworks HTML.
Update Images Only overwrites only the images.
6If the Select Images Folder dialog box appears, select a folder and click Open.
Exporting CSS layers
Cascading Style Sheets (CSS) give you added control over how web pages are displayed. CSS layers let you create style
sheets or templates that define how different elements, such as headers and links, should appear. With CSS, you can
control the style and layout of multiple web pages at once. CSS layers can overlap and be stacked on top of one
another. In Fireworks, normal HTML output does not overlap.
To export a graphic in CSS layers:
1Select File > Export.
2In the Export dialog box, type a filename and select a destination folder.
3Select CSS Layers from the Export pop-up menu.
4In the Source pop-up menu, select one of the following:
Fireworks Layers exports all layers as CSS layers.
ADOBE FIREWORKS CS3
User Guide
286
Fireworks Frames exports all frames as CSS layers.
Fireworks Slices exports the slices in the document as CSS layers.
5Select Trim Images to automatically crop the exported images and layers to fit the objects.
6Select Put Images in Subfolder to choose a folder for images.
7Click Export.
Exporting XHTML
In the not-too-distant future, XHTML is expected to replace HTML as the standard for displaying web content. Not
only is XHTML backward-compatible—meaning that most current web browsers can view it—but it can also be read
by any device that displays XML content, such as PDAs, mobile phones, and other handheld devices.
XHTML is a combination of HTML, the current standard for formatting and displaying web pages, and XML (Exten-
sible Markup Language). XHTML contains the elements of HTML while adhering to the more strict syntax rules of
XML.
To support this standard, Fireworks allows you to export XHTML.
Note: Fireworks can also import XHTML. For more information, see “Creating Fireworks PNG files from HTML files”
on page 17.
For more information on XHTML, visit the World Wide Web Consortium (W3C) XHTML specification at
www.w3.org.
To export XHTML from Fireworks:
1Select File > HTML Setup, select an XHTML style from the HTML Style pop-up menu on the General tab, and
click OK.
2Export your document using any of the methods available for exporting or copying HTML. For more information
about the various ways you can export and copy HTML from Fireworks, see “Exporting HTML” on page 280.
Note: Fireworks uses UTF-8 encoding when exporting to XHTML. For more information about UTF-8 encoding, see
“Exporting files with and without UTF-8 encoding” on page 286.
Exporting files with and without UTF-8 encoding
Historically, web browsers were not able to display different character sets in a single HTML document. For example,
Chinese text and English text could not be displayed on the same page because web browsers weren’t capable of
displaying different character sets in a single document.
UTF-8, which stands for Universal Character Set Transformation Format-8, is a text-encoding method that allows
web browsers to display different character sets on the same HTML page. Fireworks allows you to export HTML with
UTF-8 encoding.
Note: Fireworks can also import documents that use UTF-8 encoding. For more information, see “Creating Fireworks
PNG files from HTML files” on page 17.
In Fireworks, UTF-8 encoding is turned on by default so that any HTML document you export can display
characters from multiple character sets. You can turn off UTF-8 encoding, if you prefer.
To export documents without UTF-8 encoding:
1Select File > HTML Setup.
2On the Document Specific tab, clear the UTF-8 encoding box and click OK.
ADOBE FIREWORKS CS3
User Guide
287
Note: For more information on HTML setup options, see “Setting HTML export options” on page 287.
3Export your document using any of the methods available for exporting or copying HTML. For information about
the various ways you can export and copy HTML from Fireworks, see “Exporting HTML” on page 280.
Setting HTML export options
The HTML Setup dialog box allows you to define how Fireworks exports HTML. These settings can be document-
specific or can be used as your default setting for all HTML exports. Changes made in the Document Specific tab
affect the current document only, but you can use these settings as defaults for new documents if you click the Set
Defaults button before closing the HTML Setup dialog box. General and Table settings are global preferences and
affect all new documents.
To define how Fireworks exports HTML:
1Select File > HTML Setup or click the Options button in the Export dialog box.
2In the General tab, select from the following options:
•Select an HTML Style to set the style for exported HTML.
Generic HTML works in any HTML editor. However, if your document contains behaviors or other interactive
content, select your specific editor if it appears in the list. Interactive elements export differently from Fireworks
depending on the selected HTML style.
To export your document using the XHTML standard, select the appropriate XHTML style from the pop-up menu.
For more information about XHTML, see “Exporting XHTML” on page 286.
•Select a file extension from the Extension pop-up menu or enter a new one.
•Select Include HTML Comments to include comments regarding where to copy and paste in the HTML. This option
is recommended if your document contains interactive elements such as buttons, behaviors, or rollover images.
HTML comments help you determine which parts of the code to copy and paste.
•Select Lowercase File Name to make the name of the HTML file and the associated image files lowercase on
export.
Note: This will not lowercase the HTML file’s extension if an uppercase extension was selected in the Extension pop-up
menu.
•Select Use CSS for Popup Menus if you want to use CSS rather than JavaScript for your pop-up menu code. This
will make it easier to understand and maintain the code. Also, you’ll be able to index the menus, as well as update
the links within the code using Dreamweaver.
•Select Write CSS to an External File if you want to have the CSS code written to an external .css file that is exported
to the same location as the HTML file. The name of the .css file matches the name of the HTML file (except for
the file extension). Choosing this option also exports a file named mm_css_menu.js to the same location as the
HTML file.
Note: The Write CSS to an external file option is only available if you have chosen the Use CSS for Popup Menus option.
•Select an associated application from the File Creator pop-up menu (Macintosh). When you double-click the
exported HTML file on your hard disk, it automatically opens in the application you specified.
3In the Table tab, select settings for your HTML tables. For information on defining properties for exported
Fireworks HTML tables, see “Defining how HTML tables are exported” on page 215.
4In the Document Specific tab, select from the following options:
ADOBE FIREWORKS CS3
User Guide
288
•Select a formula for auto-naming slices in the Slice Auto-Naming pop-up menus. You can use the default settings,
or choose your own options.
Note: Use caution when selecting None as a menu option for slice auto-naming. If you select None as the option for any
of the first three menus, Fireworks exports slice files that overwrite one another, resulting in a single exported graphic
and a table that displays this graphic in every cell.
•Enter text in the Alternate Image Description text box. This alt text appears in place of all images while they are
downloading from the web and in place of any images that fail to download. In some browsers it may also appear
as a tool tip when the pointer passes over the image. This is also an aid for vision-impaired web users.
•Select Multiple Nav Bar HTML Pages when exporting a navigation bar that links several pages together. When this
option is chosen, Fireworks exports additional pages for each button in the navigation bar.
•UTF-8 Encoding is turned on by default in Fireworks, which allows your exported document to display characters
from multiple character sets. If you want to turn off this option, clear the UTF-8 Encoding box. For more infor-
mation about UTF-8 encoding, see “Exporting files with and without UTF-8 encoding” on page 286.
5Click Set Defaults to save these settings as your global default settings.
6Click OK.
Using the Quick Export button
The Quick Export button, located in the upper right corner of the Document window, offers easy access to
common options for exporting Fireworks files to other applications. Using the Quick Export button, you can export
to a variety of formats, including Dreamweaver and GoLive.
All the export options available through the Quick Export button are also available elsewhere in Fireworks, such as
the Export dialog box and the Edit menu. The Quick Export button provides a shortcut to the most common export
options. For more information on exporting to each format, see “Using Fireworks with Other Applications” on
page 291.
For most formats, several export methods are available. You can export Dreamweaver HTML, for example, or update
existing Dreamweaver HTML. Or you can copy Dreamweaver HTML to the Clipboard. You can export a Flash SWF
file or copy selected objects as vectors.
You can even use the Quick Export button to start other applications, as well as preview Fireworks documents in a
preferred browser. By streamlining the export process, the Quick Export button saves time and improves the design
workflow.
Note: The Quick Export button exports graphics and slices using the settings you specify in the Optimize panel. Be sure
to optimize your graphic before exporting with the Quick Export button. For more information on optimization, see
“About optimizing” on page 257.
To export a Fireworks document or selected graphics using the Quick Export button:
1Click the Quick Export button and select an export option from the pop-up menu displayed.
The appropriate options are automatically set for you in the Export dialog box. Make changes to the options if
desired.
2 Select a location to store the exported files, type a filename, and click Export.
To start another application using the Quick Export button:
❖Click the Quick Export button and select the Launch option from the application submenu.
ADOBE FIREWORKS CS3
User Guide
289
Customizing the Quick Export pop-up menu
You can add additional options to the Quick Export pop-up menu if you know JavaScript and XML.
To add options to the Quick Export pop-up menu:
1Create your own JSF files and drop them into the Quick Export Menu folder on your hard disk.
Note: The exact location of this folder varies depending on your operating system. The Quick Export Menu folder is
located in the English subfolder of the Fireworks application folder on Windows systems. On Macintosh systems, this
folder is located in the Contents/Resources/English.lproj folder in the Fireworks application package. For more infor-
mation about application packages, see “Viewing package contents (Macintosh only)” on page 352.
2Edit the Quick Export Menu.xml file by including references to the new JSF files.
The next time you start Fireworks, the new options you created are added to the Quick Export pop-up menu. For
more information, see Extending Fireworks.
Sending a Fireworks document as an e-mail
attachment
You can easily send documents as e-mail attachments from within Fireworks. You can send a Fireworks PNG, a
compressed JPEG, or a document using other file formats and optimization settings available in the Optimize panel.
To send a document as an e-mail attachment using your default e-mail client:
1Select File > Send to E-mail.
2Select one of the following options:
Fireworks PNG attaches the current PNG document to a new e-mail message.
JPG Compressed attaches the current document to a new e-mail message using the JPEG - Better Quality optimi-
zation setting.
Use Export Settings attaches the current document to an e-mail message using the settings defined in the Optimize
panel.
Note: Mozilla, Netscape 6, and Nisus Emailer are not supported on the Macintosh.
Using the File Management button
The File Management button, located at the top of the Document window next to the Quick Export button,
offers easy access to file-transport commands. You can use the File Management button if your document lives in a
Dreamweaver site folder and if the site has access to a remote server. Fireworks recognizes your folder as a site if you
have used the Manage Site dialog box in Dreamweaver to define the target folder, or a folder that contains the target
folder, as the local root folder for a site.
The File Management button displays the following menu commands:
Get copies the remote version of the file to the local site, overwriting the local file with the remote copy.
ADOBE FIREWORKS CS3
User Guide
290
Check Out checks the file out, overwriting the local file with the remote copy. Check Out is enabled in Fireworks
only if the Enable File Check In and Check Out option is enabled in Dreamweaver for the site in which the document
lives.
Put copies the local version of the file to the remote site, overwriting the remote file with the local copy.
Check In checks the local file in, overwriting the remote file with the local copy. Check In is enabled in Fireworks
only if the Enable File Check In and Check Out option is enabled in Dreamweaver for the site in which the document
lives.
Undo Check Out undoes Check Out of the local file and checks it in, overwriting the local file with the remote copy.
Undo Check Out is enabled in Fireworks only if the Enable File Check In and Check Out option is enabled in
Dreamweaver for the site in which the document lives.
Note: File Management commands are enabled in Fireworks only if your document lives in a Dreamweaver site folder
with a remote server defined. Fireworks File Management commands can be used only for files that live in sites that use
the Local/Network and FTP transport methods. Files in sites that uses FTP or third-party transport methods such as
SourceSafe, WebDAV, and RDS cannot be transported to and from the remote server from within Fireworks.
For more information about the File Management menu, see “Working with Dreamweaver” on page 292.
291
Chapter 16: Using Fireworks with Other
Applications
Whether you’re creating web content or multimedia content, Fireworks is an essential component of any designer’s
toolbox. Fireworks works well with other applications, offering a variety of integration features that streamline the
design process.
You can export Fireworks graphics to many applications, including other Adobe products. When used with other
Adobe applications, Fireworks offers powerful integration features:
•Fireworks can be opened to edit selected graphics from inside many Adobe applications, such as Adobe Dream-
weaver, Adobe Flash, HomeSite, Adobe FreeHand, and Adobe Director.
•Fireworks behaviors are preserved when they are exported to Dreamweaver and Director, allowing you to export
interactive elements such as buttons and rollovers.
•Dreamweaver and Fireworks share a tight integration known as Roundtrip HTML. Roundtrip HTML allows you
to make changes in one application and have those changes seamlessly reflected in the other.
•Dreamweaver and Fireworks share a file-management feature that allows users to check files into and out of a
Dreamweaver website.
•Flash and Fireworks also share a tight integration. You can import Fireworks PNG source files directly into Flash
without having to export to any other graphics format. Flash offers a variety of options that allow you to control
how Fireworks objects and layers are imported.
Fireworks also simplifies the task of working with applications such as Adobe Photoshop and Adobe GoLive. For
example, you can easily import and export Photoshop graphics as fully editable files, or create and edit HTML using
Fireworks and GoLive.
This chapter covers the following topics:
•“Working with Dreamweaver” on page 292
•“Working with Flash” on page 305
•“Working with FreeHand” on page 312
•“Working with Director” on page 317
•“Working with HomeSite” on page 320
•“Working with Photoshop” on page 322
•“About working with Illustrator” on page 326
•“About working with GoLive” on page 327
•“About working with HTML editors” on page 327
•“About extending Fireworks” on page 328
•“About Adobe XMP” on page 328
•“About Adobe Bridge” on page 328
•“Flex integration for rich Internet application layouts (MXML export)” on page 329
ADOBE FIREWORKS CS3
User Guide
292
Working with Dreamweaver
Unique integration features make it easy to work on files interchangeably in Dreamweaver and Fireworks. Dream-
weaver and Fireworks recognize and share many of the same file edits, including changes to links, image maps, table
slices, and more. Together, the two applications provide a streamlined workflow for editing, optimizing, and placing
web graphics files in HTML pages.
If you want to modify Fireworks images and tables placed in a Dreamweaver document, you can start Fireworks from
the Property inspector in Dreamweaver to make edits and then return to the updated document in Dreamweaver. If
you want to make quick optimization edits to images and animations, you can open the Fireworks Export Preview
dialog box from the Dreamweaver Property inspector and enter updated settings. In either case, updates are made
to the placed files in Dreamweaver, as well as to the source Fireworks files, if those source files were opened.
To further streamline the web design workflow, you can create image placeholders in Dreamweaver for future
Fireworks images. You can later select those placeholders and start Fireworks to create desired graphics in the dimen-
sions specified by the Dreamweaver placeholder images. Once in Fireworks, you can change the image dimensions
if desired.
Placing Fireworks images in Dreamweaver files
There are several ways to place Fireworks graphics into a Dreamweaver document. You can place a finished
Fireworks graphic using the Files panel or the Insert menu in Dreamweaver, or you can create a new Fireworks
document from a Dreamweaver image placeholder.
You can insert any graphic file format supported by Fireworks and Dreamweaver directly into a Dreamweaver
document using the Dreamweaver Files panel or Insert menu. You must export the images from Fireworks first. For
more information on exporting images, see Fireworks Help.
To insert a Fireworks image into a Dreamweaver document using the Files panel:
1Export your image from Fireworks to the local site folder as defined in Dreamweaver.
2Open the Dreamweaver document and make sure you are in Design view.
3Drag the image from the Files panel into the Dreamweaver document.
To insert a Fireworks image into a Dreamweaver document using the Insert menu:
1Place the insertion point where you want the image to appear in the Dreamweaver Document window.
2Do one of the following:
•Select Insert > Image.
•Click the Images: Image button in the Common category of the Insert bar.
3Navigate to the image you exported from Fireworks, and click Open.
If the image file is not in the current Dreamweaver site, a message appears asking whether you want to copy the file
to the site folder.
Creating new Fireworks files from Dreamweaver placeholders
Image placeholders combine the power of Fireworks and Dreamweaver by allowing you to experiment with various
web page layouts before creating the final artwork for your page. Image placeholders allow you to specify the size and
position of future Fireworks images to be placed in Dreamweaver.
ADOBE FIREWORKS CS3
User Guide
293
When you create a Fireworks image from a Dreamweaver image placeholder, a new Fireworks document is created
with a canvas of the same dimensions as the selected placeholder. Inside Fireworks, you can use any Fireworks tools
to create your graphic. You can even slice your document and add interactivity using buttons, rollovers, and other
behaviors.
Note: All behaviors applied within Fireworks are preserved upon export back to Dreamweaver. Likewise, most Dream-
weaver behaviors applied to image placeholders are also preserved during launch-and-edit with Fireworks. There is one
exception, however: disjoint rollovers applied to image placeholders in Dreamweaver are not preserved when opened and
edited in Fireworks.
Once the Fireworks session has ended and you’ve returned to Dreamweaver, the new Fireworks graphic you created
takes the place of the image placeholder originally selected.
To create a Fireworks image from an image placeholder in Dreamweaver:
1In Dreamweaver, save the desired HTML document to a location inside your Dreamweaver site folder.
2Position the insertion point in the desired position in your document, and do one of the following:
•Select Insert > Image Objects > Image Placeholder.
•Click the Images: Image pop-up menu in the Common category of the Insert bar and choose Image Placeholder.
The Image Placeholder dialog box appears.
3Enter the name, dimensions, color, and alternate text for the image placeholder, and click OK.
An image placeholder is inserted into the Dreamweaver document.
4Do one of the following:
•Select the image placeholder and click Create in the Property inspector.
•Control-double-click (Windows) or Command-double-click (Macintosh) the image placeholder.
•Right-click (Windows) or Control-click (Macintosh) and choose Create Image in Fireworks.
ADOBE FIREWORKS CS3
User Guide
294
Fireworks is opened with an empty canvas that is exactly the same size as the placeholder image. The Document
window indicates that you are editing an image from Dreamweaver.
5Create an image in Fireworks and click Done when you are finished.
6Specify a name and location for the source PNG file in the Save As dialog box, and click Save.
Note: If you entered a name for the image placeholder from the Property inspector in Dreamweaver, that name is used
as the default filename in Fireworks.
For more information on saving Fireworks PNG files, see Fireworks Help.
7Specify a name for the exported image file or files in the Export dialog box.
These are the image files that are displayed in Dreamweaver.
8Specify a location for the exported image file or files. The location you choose should be within your Dream-
weaver site folder.
For more information on exporting, see Fireworks Help.
9 Click Save.
When you return to Dreamweaver, the image placeholder you originally selected is replaced with the new Fireworks
image or table you created.
Placing Fireworks HTML code in Dreamweaver
There are several ways to place Fireworks-generated HTML code into Dreamweaver. You can export HTML, or you
can copy Fireworks HTML code to the Clipboard. You can also open an exported Fireworks HTML file in Dream-
weaver and copy and paste selected sections of code. You can easily update code you’ve exported to Dreamweaver
using the Update HTML command in Fireworks. You can even export HTML as a Dreamweaver library item.
For more information on exporting HTML, see Fireworks Help.
Note: Before exporting, copying, or updating Fireworks HTML for use in Dreamweaver, make sure to choose Dream-
weaver as the HTML type in the HTML Setup dialog box. For more information, see Fireworks Help.
ADOBE FIREWORKS CS3
User Guide
295
Exporting Fireworks HTML to Dreamweaver
Exporting Fireworks files to Dreamweaver is a two-step process. From Fireworks, you export files directly to a
Dreamweaver site folder. This generates an HTML file and the associated image files in the location you specify. You
then place the HTML code into Dreamweaver using the Insert Fireworks HTML feature.
Note: Before exporting, make sure to choose Dreamweaver as the HTML type in the HTML Setup dialog box. For more
information, see Fireworks Help.
To export Fireworks HTML:
❖Export your document to HTML format. For more information, see Fireworks Help.
To insert Fireworks HTML into a Dreamweaver document:
1In Dreamweaver, save your document in a defined site.
2Place the insertion point in the document where you want the inserted HTML code to begin.
3Do one of the following:
•Select Insert > Image Objects > Fireworks HTML.
•Click the Images: Image pop-up menu in the Common category of the Insert bar and choose Fireworks HTML.
4In the dialog box that appears, click Browse to choose the desired Fireworks HTML file.
5Select Delete File After Insertion to move the HTML file to the Recycle Bin (Windows) or to permanently delete
it (Macintosh) when the operation is complete.
Use this option if you no longer need the Fireworks HTML file after inserting it. This option does not affect the
source PNG file associated with the HTML file.
Note: If the HTML file is on a network drive, it is permanently deleted, not moved to the Recycle Bin (Windows).
6Click OK to insert the HTML code, along with its associated images, slices, and JavaScript, into the Dreamweaver
document.
Copying Fireworks HTML code to the Clipboard for use in Dreamweaver
A fast way to place Fireworks-generated HTML code in Dreamweaver is to copy it to the Clipboard from Fireworks
and paste it directly into a Dreamweaver document. All HTML and JavaScript code associated with the Fireworks
document is copied into the Dreamweaver document, images are exported to a location you specify, and Dream-
weaver updates the HTML with document-relative links to those images.
Note: Before copying to the Clipboard, make sure to choose Dreamweaver as the HTML type in the HTML Setup dialog
box. For more information, see Fireworks Help.
To copy Fireworks HTML to the Clipboard for use in Dreamweaver, do one of the following:
•Copy the HTML to the Clipboard in Fireworks, and then paste it into a Dreamweaver document.
•Click the Quick Export button and choose Copy HTML Code, and then paste it into a Dreamweaver document.
For more information, see Fireworks Help.
Note: This method works only with Dreamweaver and not with other HTML editors. Only Dreamweaver updates the
links to the Fireworks images as document-relative when you paste the HTML code into the Dreamweaver document.
ADOBE FIREWORKS CS3
User Guide
296
Copying code from an exported Fireworks file and pasting it into Dreamweaver
You can open an exported Fireworks HTML file in Dreamweaver and then manually copy and paste only the desired
sections into another Dreamweaver document.
Note: Before exporting from Fireworks, make sure to choose Dreamweaver as the HTML type in the HTML Setup dialog
box. For more information, see Fireworks Help.
To copy code from an exported Fireworks file and paste it into Dreamweaver:
❖Export a Fireworks HTML file, and then copy and paste the code into an existing Dreamweaver document. For
more information, see Fireworks Help.
Updating Fireworks HTML exported to Dreamweaver
The Update HTML command in Fireworks allows you to make changes to an HTML document you’ve previously
exported to Dreamweaver.
Note: While Update HTML is a useful feature for updating HTML you’ve previously exported to Dreamweaver,
Roundtrip HTML provides even more benefits. For more information, see “Editing Fireworks files from Dreamweaver”
on page 297.
With the Update HTML command, you can edit a source PNG image in Fireworks and then automatically update
any exported HTML code and image files placed in a Dreamweaver document. This command lets you update
Dreamweaver files even when Dreamweaver is not running.
Note: Before updating HTML, make sure to choose Dreamweaver as the HTML type in the HTML Setup dialog box.
For more information, see Fireworks Help.
To update Fireworks HTML placed in Dreamweaver:
1Make changes to the desired PNG document in Fireworks.
2Select File > Update HTML, or click the Quick Export button and choose Update HTML from the Dreamweaver
pop-up menu.
3Navigate to the Dreamweaver file containing the HTML you want to update, and click Open.
4Navigate to the folder destination where you want to place the updated image files, and click Open.
Fireworks updates the HTML and JavaScript code in the Dreamweaver document. Fireworks also exports updated
images associated with the HTML and places the images in the specified destination folder.
If Fireworks cannot find matching HTML code to update, it gives you the option of inserting new HTML code into
the Dreamweaver document. Fireworks places the JavaScript section of the new code at the beginning of the
document and places the HTML table or link to the image at the end.
Exporting Fireworks files to Dreamweaver libraries
Dreamweaver library items simplify the process of editing and updating frequently used website components, such
as company logos or other graphics that appear on every page of a site. A library item is a portion of an HTML file
located in a folder named Library in your site root folder. Library items appear as a category in the Dreamweaver
Assets panel. You can drag a library item (a file with the extension.lbi) from the Assets panel to any page in your
website to insert the library item into your Dreamweaver file.
You cannot edit a library item directly in the Dreamweaver document; you can edit only the master library item.
Then, you can have Dreamweaver update every copy of that item as it is placed throughout your website. Dream-
weaver library items are much like Fireworks symbols; changes to the master library (LBI) document are reflected in
all library instances across your site.
ADOBE FIREWORKS CS3
User Guide
297
Note: Dreamweaver library items do not support pop-up menus.
To export a Fireworks document as a Dreamweaver library item:
1Select File > Export.
2Select Dreamweaver Library from the Save as Type pop-up menu.
Select the Library folder in your Dreamweaver site as the location in which to place the files. If this folder does not
exist, use the Select Folder dialog box to create or locate the folder. The folder must be named Library; the case is
important, because Dreamweaver is case-sensitive.
Note: Dreamweaver does not recognize the exported file as a library item unless it is saved into the Library folder.
3In the Export dialog box, type a filename.
4If your image contains slices, choose slicing options. For more information, see Fireworks Help.
5Select Put Images in Subfolder to choose a separate folder for saving images.
6Click Save.
Editing Fireworks files from Dreamweaver
Roundtrip HTML is a powerful feature that tightly integrates Fireworks and Dreamweaver. It allows you to make
changes in one application and have those changes seamlessly reflected in the other. With Roundtrip HTML, you use
launch-and-edit integration to edit Fireworks-generated images and tables placed in a Dreamweaver document.
Dreamweaver automatically opens the Fireworks source PNG file for the placed image or table, letting you make
desired edits in Fireworks. The updates you make in Fireworks are applied to the placed image or table when you
return to Dreamweaver.
Note: Before working with Roundtrip HTML, you should perform some preliminary tasks. For more information, see
“Setting launch-and-edit options” on page 302.
ADOBE FIREWORKS CS3
User Guide
298
About Roundtrip HTML
Fireworks recognizes and preserves most types of edits made to a document in Dreamweaver, including changed
links, edited image maps, edited text and HTML in HTML slices, and behaviors shared between Fireworks and
Dreamweaver. The Property inspector in Dreamweaver helps you identify Fireworks-generated images, table slices,
and tables in a document.
Although Fireworks supports most types of Dreamweaver edits, radical changes made to a table’s structure in
Dreamweaver can create irreconcilable differences between the two applications. If you make radical changes to a
table layout in Dreamweaver and then attempt to launch and edit the table in Fireworks, a message appears warning
you that changes you make in Fireworks will overwrite any edits previously made to the table in Dreamweaver. If you
want to make considerable changes to a table layout, use the Dreamweaver launch-and-edit feature to edit the table
in Fireworks.
Editing Fireworks images
You can start Fireworks to edit individual images placed in a Dreamweaver document.
Note: Before editing Fireworks graphics from Dreamweaver, you should perform some preliminary tasks. For more infor-
mation, see “Setting launch-and-edit options” on page 302.
To open and edit a Fireworks image placed in Dreamweaver:
1In Dreamweaver, choose Window > Properties to open the Property inspector, if it is not already open.
2Do one of the following:
•Select the desired image. (The Property inspector identifies the selection as a Fireworks image and displays the
name of the known PNG source file for the image.) Then click Edit in the Property inspector.
•Control-double-click (Windows) or Command-double-click (Macintosh) the image you want to edit.
•Right-click (Windows) or Control-click (Macintosh) the desired image, and choose Edit with Fireworks from the
context menu.
Dreamweaver starts Fireworks, if it is not already open.
3If prompted, specify whether to locate a source Fireworks file for the placed image. For more information on
Fireworks source PNG files, see Fireworks Help.
4In Fireworks, edit the image. The Document window indicates that you are editing an image from Dreamweaver.
Dreamweaver recognizes and preserves all edits applied to the image in Fireworks.
5When you have finished editing the image, click Done in the Document window.
The image is exported using the current optimization settings, the GIF or JPEG file used by Dreamweaver is updated,
and the PNG source file is saved if a source file was selected.
Note: Using Fireworks technology, Dreamweaver provides basic image-editing features that let you modify images
without having to use an external image-editing application. You can crop, resize, resample, and so on, without leaving
Dreamweaver. Dreamweaver image-editing features apply only to JPEG and GIF image file formats. Other bitmap
image file formats cannot be edited using these image-editing features. For more information on editing images in
Dreamweaver, see Dreamweaver Help.
Note: When you open an image from the Dreamweaver Site panel, the default editor for that image type, which is set in
Dreamweaver Preferences, opens the file. When images are opened from this location, Fireworks does not open the
original PNG file. To use the Fireworks integration features, open images from within the Dreamweaver Document
window.
ADOBE FIREWORKS CS3
User Guide
299
Editing Fireworks tables
When you open and edit an image slice that is part of a placed Fireworks table, Dreamweaver automatically opens
the source PNG file for the entire table.
Before editing Fireworks tables from Dreamweaver, you should perform some preliminary tasks. For more infor-
mation, see “Setting launch-and-edit options” on page 302.
Note: You may get a Dreamweaver error if you nest another table inside the original Fireworks-generated table and then
try to edit the table using Roundtrip editing in Dreamweaver. For more information, see TechNote 19231 on the Adobe
website.
To open and edit a Fireworks table placed in Dreamweaver:
1In Dreamweaver, choose Window > Properties to open the Property inspector, if it is not already open.
2Do one of the following:
•Click inside the table, and click the TABLE tag in the status bar to select the entire table. (The Property inspector
identifies the selection as a Fireworks table and displays the name of the known PNG source file for the table.)
Then click Edit in the Property inspector.
•Click the upper left corner of the table to select it, and then click Edit in the Property inspector.
•Select an image in the table, then click Edit in the Property inspector.
•Control-double-click (Windows) or Command-double-click (Macintosh) the image you want to edit.
•Right-click (Windows) or Control-click (Macintosh) the image, and then choose Edit with Fireworks from the
context menu.
Dreamweaver starts Fireworks, if it is not already open. The source PNG file for the entire table appears in the
Document window.
For more information on Fireworks source PNG files, see Fireworks Help.
3In Fireworks, make the desired edits.
Dreamweaver recognizes and preserves all edits applied to the table in Fireworks.
4When you have finished editing the table, click Done in the Document window.
The HTML and image slice files for the table are exported using the current optimization settings, the table placed
in Dreamweaver is updated, and the PNG source file is saved.
About Dreamweaver behaviors
If a single, unsliced Fireworks graphic is inserted into a Dreamweaver document and a Dreamweaver behavior is
applied, that graphic will have a slice on top of it when it is opened and edited in Fireworks. The slice is not visible
initially, because slices are automatically turned off when you open and edit single, unsliced graphics to which
Dreamweaver behaviors are applied. You can view the slice by turning on its visibility from the Web Layer of the
Layers panel.
When you view properties for a slice in Fireworks that has a Dreamweaver behavior attached, the Link text box in
the Property inspector might display javascript:;. Deleting this text is harmless. You can type over it to enter a
URL if desired, and the behavior will still be intact when you return to Dreamweaver.
When you work with Roundtrip HTML from Dreamweaver, Fireworks supports server-side file formats such as
CFM and PHP.
ADOBE FIREWORKS CS3
User Guide
300
Dreamweaver supports all behaviors applied in Fireworks, including those required for rollovers and buttons. The
following Dreamweaver behaviors are supported by Fireworks during a launch-and-edit session:
•Simple Rollover
•Swap Image
•Swap Image Restore
•Set Text of Status Bar
•Set Nav Bar Image
•Pop-up Menu
Note: Fireworks does not support nonnative behaviors, including server-side behaviors.
Note: Dreamweaver library items do not support pop-up menus.
Optimizing Fireworks images and animations placed in Dreamweaver
You can start Fireworks from Dreamweaver to make quick export changes, such as re-sampling or changing the file
type, to placed Fireworks images and animations. Fireworks lets you make changes to optimization settings,
animation settings, and the size and area of the exported image.
To change optimization settings for a Fireworks image placed in Dreamweaver:
1In Dreamweaver, select the desired image and do one of the following:
•Select Commands > Optimize Image in Fireworks.
•Click the Optimize in Fireworks button in the Property inspector.
•Right-click (Windows) or Control-click (Macintosh) and choose Optimize in Fireworks from the pop-up menu.
2If prompted, specify whether to open a Fireworks source file for the placed image.
ADOBE FIREWORKS CS3
User Guide
301
A dialog box opens. Although the title bar doesn’t display this name, this is actually the Fireworks Export Preview
dialog box.
3Make the desired edits in the Export Preview dialog box:
•To edit optimization settings, click the Options tab.
•To edit the size and area of the exported image, click the File tab and change the desired settings. If you change
image dimensions in Fireworks, you’ll also need to reset the size of the image in the Property inspector when you
return to Dreamweaver.
•To edit animation settings for the image, click the Animation tab and change the desired settings.
For more information about the options available on these tabs, see Fireworks Help.
4When you have finished editing the image, click Update.
The image is exported using the new optimization settings, the GIF or JPEG placed in Dreamweaver is updated, and
the PNG source file is saved if a source file was selected.
If you changed the format of the image, the Dreamweaver link checker prompts you to update references to the
image. For example, if you changed the format of an image called my_image from GIF to JPEG, clicking OK at this
prompt changes all references to my_image.gif in your site to my_image.jpg.
Changing animation settings
If you are opening and optimizing an Animated GIF file, you can also edit the animation settings. The animation
options in the Export Preview dialog box are similar to those available in the Fireworks Frames panel.
Note: You cannot edit individual graphic elements within a Fireworks animation during an optimizing session opened
from Dreamweaver. To edit the graphic elements in an animation, you must open and edit the Fireworks animation. For
more information, see “Editing Fireworks files from Dreamweaver” on page 297.
ADOBE FIREWORKS CS3
User Guide
302
To edit a placed animation’s settings, see “Optimizing Fireworks images and animations placed in Dreamweaver” on
page 300 and “Using Export Preview” in Fireworks Help.
Setting launch-and-edit options
To use Roundtrip HTML effectively, you should perform some preliminary tasks, such as setting Fireworks as your
primary image editor in Dreamweaver and specifying launch-and-edit preferences in Fireworks.
Note: You should also define a local site in Dreamweaver prior to working with Roundtrip HTML. For more infor-
mation, see Using Dreamweaver.
Designating Fireworks as the primary external image editor for Dreamweaver
Dreamweaver provides preferences for automatically starting specific applications to edit specific file types. To use
the Fireworks launch-and-edit features, make sure that Fireworks is set as the primary editor for GIF, JPEG, and PNG
files in Dreamweaver.
Although you can use earlier versions of Fireworks as external image editors, these versions offer limited launch-
and-edit capabilities. When you work with Roundtrip HTML, Fireworks MX and Fireworks 4 do not fully support
edits made to cell properties in Dreamweaver tables, nor does it support behaviors applied in Dreamweaver.
Fireworks 3 does not fully support opening and editing placed tables and slices within tables, while Fireworks 2 does
not support opening and editing source PNG files for placed images.
Note: Since Fireworks is the default external image editor in Dreamweaver, setting this preference is only necessary if
you’re having trouble starting Fireworks CS3 from within Dreamweaver.
To set Fireworks as the primary external image editor for Dreamweaver:
1In Dreamweaver, choose Edit > Preferences and then choose File Types/Editors.
2In the Extensions list, select a web image file extension (.gif, .jpg, or .png).
ADOBE FIREWORKS CS3
User Guide
303
3In the Editors list, if Fireworks appears in the list, select it. If Fireworks is not in the list, click the Plus (+) button,
locate the Fireworks application on your hard disk, and click Open.
4Click Make Primary.
5Repeat steps 2 through 4 to set Fireworks as the primary editor for other web image file types.
About Design Notes and source files
Whenever you export a Fireworks file from a saved source PNG file to a Dreamweaver site, Fireworks writes a Design
Note that contains information about the file. For example, when you export a Fireworks table, Fireworks writes a
Design Note for each exported image. These Design Notes contain references to the source PNG file that spawned
the exported files.
When you open and edit a Fireworks image from within Dreamweaver, Dreamweaver uses the Design Note to locate
a source PNG for that file. For best results, always save your Fireworks source PNG file and exported files in a Dream-
weaver site. This ensures that any user sharing the site can locate the source PNG when starting Fireworks from
within Dreamweaver.
Specifying launch-and-edit preferences for Fireworks source files
The Fireworks launch-and-edit preferences let you specify how to handle source PNG files when opening Fireworks
files from another application.
Dreamweaver recognizes the Fireworks launch-and-edit preferences only in certain cases in which you open and
optimize a Fireworks image. Specifically, you must be opening and optimizing an image that is not part of a
Fireworks table and that does not contain a correct Design Note path to a source PNG file. In all other cases,
including all launch-and-edit cases of Fireworks images, Dreamweaver automatically opens the source PNG file,
prompting you to locate the source file if it cannot be found.
ADOBE FIREWORKS CS3
User Guide
304
To specify launch-and-edit preferences for Fireworks:
1In Fireworks, choose Edit > Preferences.
Note: On Mac OS X, choose Fireworks > Preferences.
2Click the Launch and Edit tab (Windows) or choose Launch and Edit from the pop-up menu (Macintosh).
3Specify the options to use when editing or optimizing Fireworks images placed in an external application:
Always Use Source PNG automatically opens the Fireworks PNG file that is defined in the Design Note as the source
for the placed image. Updates are made to both the source PNG and its corresponding placed image.
Never Use Source PNG automatically opens the placed Fireworks image, whether or not a source PNG file exists.
Updates are made to the placed image only.
Ask When Launching lets you specify each time whether or not to open the source PNG file. When you edit or
optimize a placed image, Fireworks displays a message prompting you to make a launch-and-edit decision. You can
also specify global launch-and-edit preferences from this prompt.
Using the File Management button
The File Management button , located at the top of the Document window next to the Quick Export button,
offers easy access to file-transport commands. You can use the File Management button if your document resides in
a Dreamweaver site folder and if the site has access to a remote server. Fireworks recognizes your folder as a site if
you have used the Manage Site dialog box in Dreamweaver to define the target folder, or a folder that contains the
target folder, as the local root folder for a site.
The File Management button displays the following menu commands:
Get copies the remote version of the file to the local site, overwriting the local file with the remote copy.
Check Out checks the file out, overwriting the local file with the remote copy. Check Out is enabled in Fireworks
only if the Enable File Check In and Check Out option is enabled in Dreamweaver for the site in which the document
resides.
Put copies the local version of the file to the remote site, overwriting the remote file with the local copy.
Check In checks the local file in, overwriting the remote file with the local copy. Check In is enabled in Fireworks
only if the Enable File Check In and Check Out option is enabled in Dreamweaver for the site in which the document
resides.
Undo Check Out undoes Check Out of the local file and checks it in, overwriting the local file with the remote copy.
Undo Check Out is enabled in Fireworks only if the Enable File Check In and Check Out option is enabled in Dream-
weaver for the site in which the document resides.
Note: File Management commands are enabled in Fireworks only if your document resides in a Dreamweaver site folder
with a remote server defined. Fireworks File Management commands can be used only for files that reside in sites that
use the Local/Network and FTP transport methods. Files in sites that use SFTP or third-party transport methods such
as SourceSafe, WebDAV, and RDS cannot be transported to and from the remote server from within Fireworks.
ADOBE FIREWORKS CS3
User Guide
305
Working with Flash
Fireworks integrates well with Flash. You can easily import, copy and paste, or export Fireworks vectors, bitmaps,
animations, and multi-state button graphics for use in Flash. Launch-and-edit functionality also makes it easy to
edit Fireworks graphics from within Flash.
Note: The Flash HTML style does not support pop-up menu code. Fireworks button behaviors and other types of inter-
activity are not imported into Flash.
Placing Fireworks graphics in Flash
You can place Fireworks graphics into Flash in a number of ways. Importing or copying and pasting a Fireworks PNG
file offers you the most control over how graphics and animations are imported into Flash.
Although you have more control when importing or copying and pasting Fireworks PNG files, you can also import
JPEG, GIF, PNG, and SWF files that have been exported from Fireworks.
Note: When Fireworks graphics are imported or copied and pasted into Flash, some attributes are lost, such as Live
Filters and textures. You cannot import or copy and paste a contour gradient effect from Fireworks into a Flash
document. In addition, Flash supports only solid fills, gradient fills, and basic strokes.
Importing Fireworks PNG files into Flash
You can import Fireworks PNG source files directly into Flash, without having to export to any other graphics
format. All Fireworks vectors, bitmaps, animations, and multi-state button graphics can be imported into Flash.
Note: Fireworks button behaviors and other types of interactivity are not imported into Flash because Fireworks
behaviors are enabled by JavaScript that is external to the file format. Flash uses internal ActionScript™ code.
When you import a Fireworks PNG file into Flash, you can choose from a variety of import options. If your PNG
file contains multiple pages, you can import all of the pages into new Flash frames or scenes, or select a specific page
to import into the current frame. You can import the entire contents of a page, including frames, layers and objects,
as a Flash movie clip; or you can import all content onto a single, new layer. With vector and text objects, you can
maintain their editability completely, or you can forgo all editability and choose to import the Fireworks PNG file as
a single, flattened bitmap image.
To import a Fireworks PNG into Flash:
1Save the desired document in Fireworks.
For information on saving files, see Fireworks Help.
2Switch to an open document in Flash.
3(Optional) Click the keyframe and layer onto which you want to import the Fireworks content.
4Select File > Import.
5Navigate to and select the desired PNG file from the Import dialog box, and click OK.
ADOBE FIREWORKS CS3
User Guide
306
The Import Fireworks Document dialog box appears.
Do one of the following:
aSelect the Import as a Single, Flattened Bitmap option if you want to import the file as a single bitmap image and
lose all editability. If the PNG has multiple pages, only the first page is imported.
Note: If this option is selected, none of the other options in the dialog box are available.
bSelect an import option from the two pop-up menus:
Import all pages into new frames as movie clips Imports all of the pages in the PNG file into a new Flash layer that
takes the name of the PNG file. A keyframe is created in the new layer at the current frame’s location, the first page
of the PNG file is placed as a movie clip in this frame, and all the other pages are placed in frames following it as
movie clips. The layer hierarchy and frames within the PNG file are preserved.
Import Page 1 into current frame as movie clip The contents of the selected page are imported as a movie clip, which
is placed in the active frame and layer in the Flash file. The layer hierarchy and frames within the PNG file are
preserved.
Import all pages into new scenes as movie clips Imports all of the pages from the PNG file and maps each one to a
new scene as movie clips. Any layers and frames within the pages are preserved. If scenes already exist in the Flash
file, the import process adds the new scenes after the existing ones.
Import Page 1 into new layer The selected page is imported as new layer. Frames are imported into the timeline as
separate frames.
6Select the way you’d like vector objects imported:
Import as bitmaps to maintain appearance preserves the editability of vector objects, unless they have special fills,
strokes, or effects that Flash does not support. To preserve the appearance of such objects, Flash converts them to
non-editable bitmap images.
Import as editable paths preserves the editability of all vector objects. If objects have special fills, strokes, or effects
that Flash does not support, those properties are either lost or converted to their Flash equivalents, which may not
look the same.
7Select the way you’d like text imported:
Import as bitmaps to maintain appearance preserves the editability of text, unless it has special fills, strokes, or
effects that Flash does not support. To preserve the appearance of such text, Flash converts it to a non-editable
bitmap image.
ADOBE FIREWORKS CS3
User Guide
307
Keep all text editable preserves the editability of all text. If text objects contain special fills, strokes, or effects that
Flash does not support, those properties are either lost or converted to their Flash equivalents, which may not look
the same.
8Click OK.
The Fireworks PNG file is imported into Flash using the import options you chose.
Note: The selections in the Import Fireworks Document dialog box are saved and used as default settings the next time
you import a PNG file.
Copying and pasting Fireworks graphics into Flash
A quick way to place Fireworks graphics into Flash is to copy and paste or drag and drop them.
Note: To copy graphics into versions of Flash earlier than Flash 8, you must choose Edit > Copy Path Outlines.
Note: You may have to ungroup the objects using Modify > Ungroup so that they will be editable as separate vector
objects in Flash.
To copy and paste or drag and drop graphics from Fireworks into a Flash document:
1In Fireworks, select the object or objects to copy.
2Select Edit > Copy or click the Quick Export button and choose Copy from the Flash pop-up menu.
3In Flash, create a new document and choose Edit > Paste, or drag the file directly from Fireworks to Flash.
The Import Fireworks Document dialog box appears.
4Select an option from Into pop-up menu:
Current frame as movie clip The contents being pasted are imported as a movie clip, which is placed in the active
frame and layer in the Flash file. The layer hierarchy and frames within the PNG file are preserved.
New layer The pasted content is imported as new layer. Frames are imported into the timeline as separate frames.
5Select the way you’d like vector objects imported:
Import as bitmaps to maintain appearance preserves the editability of vector objects, unless they have special fills,
strokes, or effects that Flash does not support. To preserve the appearance of such objects, Flash converts them to
non-editable bitmap images.
Import as editable paths preserves the editability of all vector objects. If objects have special fills, strokes, or effects
that Flash does not support, those properties are either lost or converted to their Flash equivalents, which may not
look the same.
ADOBE FIREWORKS CS3
User Guide
308
6Select the way you’d like text imported:
Import as bitmaps to maintain appearance preserves the editability of text, unless it has special fills, strokes, or
effects that Flash does not support. To preserve the appearance of such text, Flash converts it to a non-editable
bitmap image.
Keep all text editable preserves the editability of all text. If text objects contain special fills, strokes, or effects that
Flash does not support, those properties are either lost or converted to their Flash equivalents, which may not look
the same.
7Click OK.
The pasted content is imported into Flash using the import options you chose.
Note: The selections in the Import Fireworks Document dialog box are saved and used as default settings the next time
you copy and paste or drag and drop a PNG file into Flash.
About the Flash library structure
Fireworks objects are imported into a Fireworks Objects Folder in the Flash library. The structure within this folder
is as follows:
File 1 folder // Named with the Fireworks file name
•Page 1 folder // Named with the page name (if more than one page)
— Page 1 // Named with the page name
— — Frame 1 folder // Named with the frame name (if more than one frame)
— — Frame 1 // Named with the frame name
— — — Symbol 1 in Frame 1 // Named based on the symbol name
— — — Symbol 2 in Frame 1
...
— Shared Layers folder // Shared layers across frames in Page 1
— — Shared Layer folder // Named with the name of the shared layer
— — Shared Layer symbol
•Page 2 folder
— Page 2
— Symbol 1 in Page 2 (For a page with no frames)
...
•MasterPage folder
— MasterPage
— Symbol 1 in MasterPage
...
— Shared Layers folder // Shared layers across pages
— — Shared Layer folder // Named with the name of the shared layer
— — Shared Layer symbol
About importing symbols that have 9-slice scaling
When you import a Fireworks symbol that is using 9-slice scaling, the four slice guides are imported and preserved
in Flash.
9-slice scaling is preserved for graphic, rich graphic, and button symbols, but not animations, since it is not
supported for animations in Fireworks. The imported symbols are saved as symbols in the Flash library.
ADOBE FIREWORKS CS3
User Guide
309
About importing rich graphic symbols
When importing rich graphic symbols, such as Flex components, into Flash, there are a few restrictions:
•Soft edits that have been applied to the symbol are lost. The master copy of the symbol is imported.
•Rich graphic symbols are stored as a PNG file and a JSF file. Only the PNG file is imported. If the symbol is made
up of a number of paths, the paths are combined into one symbol.
If you need to have the full functionality of the symbol in Flash, you need to replace it with the Flash version of the
symbol.
About preserving Photoshop layer effects
Fireworks supports the Photoshop layer effects listed below. This list describes how each effect is imported into
Flash.
Photoshop Live effect - DropShadow: Mapping is as follows:
size maps to blurX, blurY
distance maps to distance
color maps to color
angle maps to 180 - (Photoshop Effect angle)
Photoshop Live effect - InnerShadow: Mapping is as follows:
size maps to blurX, blurY
distance maps to distance
color maps to color
angle maps to 180 - (Photoshop Effect angle)
Photoshop Live effect - Outer Glow: Mapping is as follows:
Opacity maps to strength
color maps to color
size maps to blurX, blurY
Photoshop Live effect - Inner Glow: Mapping is as follows:
Opacity maps to strength
color maps to color
size maps to blurX, blurY
Objects with any other Photoshop layer effects are rasterized.
About preserving visibility and locking
Objects and layers that are hidden in the PNG fie are imported and remain hidden in Flash. However non-visible
parts of a rich graphic symbol are not imported (for example, button over or down states).
If a layer is locked or hidden, all objects and sub-layers within the layer inherit this setting and retain it when they
are imported into Flash.
However, if you import a single page into a new layer in Flash, one layer is created for the entire page and all objects
are displayed; visibility and locking attributes are not preserved in this case.
About exporting Fireworks graphics to other formats for use in Flash
You can export Fireworks graphics as JPEG, GIF, PNG, and Adobe Illustrator 7 (AI) files, and then import them into
Flash.
ADOBE FIREWORKS CS3
User Guide
310
For information on exporting JPEG and GIF files, see Fireworks Help. For information on exporting to PNG format,
see “Exporting PNG files with transparency” on page 311. For information on importing any of these formats into
Flash, see “Importing exported Fireworks graphics and animations into Flash” on page 311.
Note: Although PNG is the native file format for Fireworks, PNG graphic files exported from Fireworks are different from
source PNG files you save in Fireworks. Exported PNG files are not different from GIFs or JPEGs; they only contain
image data and don’t contain any additional information such as slicing, layers, interactivity, Live Filters, or other
editable content. For more information on PNG source files, see Fireworks Help.
Exporting Fireworks graphics and animations as SWF files
Fireworks graphics and animations can be exported as Flash SWF files. You can make several choices about how
objects are exported.
Some formatting is lost unless you choose Maintain Appearance in the Flash SWF Export Options dialog box. Stroke
size and stroke color are maintained. The following formatting is lost during export to SWF format:
•Blend mode
•Layers
•Masks (applied before export)
•Slice objects, image maps, and behaviors
•Pattern fills
•Contour gradients
To export a Fireworks graphic or animation as a SWF file:
1Select File > Export or click the Quick Export button and choose Export SWF from the Flash pop-up menu.
2In the Export dialog box, type a filename and choose a destination folder.
3Select Flash SWF from the Save As pop-up menu.
4Click the Options button.
The Flash SWF Export Options dialog box appears.
ADOBE FIREWORKS CS3
User Guide
311
5In the Objects section, choose one of the following:
Maintain Paths allows you to maintain path editability. Effects and formatting are lost.
Maintain Appearance converts vector objects to bitmap objects as needed and preserves the appearance of applied
strokes and fills. Editability is lost.
6In the Text section, choose one of the following:
Maintain Editability allows you to maintain text editability. Effects and formatting are lost.
Convert to Paths converts text to paths, preserving any custom kerning or spacing you entered in Fireworks.
Editability as text is lost.
7Set the quality of JPEG images using the JPEG Quality pop-up slider.
8Select the frames to be exported and the frame rate in seconds.
9Click OK.
10 Click Save in the Export dialog box.
For information on importing an exported SWF file into Flash, see “Importing exported Fireworks graphics and
animations into Flash” on page 311.
Exporting PNG files with transparency
The PNG format supports transparency with 32-bit color images. You can import Fireworks PNG source files
directly into Flash.
You can also create transparency with an 8-bit PNG file. With an 8-bit PNG file, you get excellent transparency
results and better file compression than with the GIF file format. You can export Fireworks 8-bit PNG graphics with
transparency for insertion into Flash.
To export an 8-bit PNG file with transparency:
1In Fireworks, choose Window > Optimize to open the Optimize panel if it isn’t already open.
2Select PNG 8 as the Export file format and Alpha Transparency from the Transparency pop-up menu.
3Select File > Export.
4Select Images Only from the Save as Type pop-up menu. Name the file, then click Save.
For information on importing exported PNG files into Flash, see “Importing exported Fireworks graphics and
animations into Flash” on page 311.
Importing exported Fireworks graphics and animations into Flash
You use the Import command in Flash to import graphics and animations that were exported from Fireworks.
To import Fireworks graphics and animations into Flash:
1Create a new document in Flash.
Note: If you are importing a Fireworks graphic into an existing Flash file, create a new layer in Flash.
2Select File > Import and locate the graphic or animation file.
3Click Open to import the file.
ADOBE FIREWORKS CS3
User Guide
312
Using Fireworks to edit graphics imported into Flash
With launch-and-edit integration, you can use Fireworks to make changes to a graphic that you previously imported
into Flash. You can edit any imported graphic this way, even if the graphic wasn’t exported from Fireworks.
Note: Fireworks native PNG files imported into Flash are an exception, unless you imported the PNG file as a flattened
bitmap image.
If the graphic was exported from Fireworks, and you saved the original PNG file along with the exported graphic
file, you can open the original PNG file in Fireworks from inside Flash to make your changes. When you return to
Flash, both the PNG file and the graphic in Flash are updated.
1In Flash, right-click (Windows) or Control-click (Macintosh) the graphic file in the Library panel.
2Select Edit with Fireworks from the pop-up menu.
Note: If Edit with Fireworks does not appear in the pop-up menu, choose Edit With and locate your
Fireworks application.
3Click Yes in the Find Source box if you want to locate the original PNG file for your Fireworks graphic, and click
Open.
Note: If you have changed Fireworks launch-and-edit preferences, this dialog box might not appear.
The file opens in Fireworks, and the Document window indicates that you are editing a file from Flash.
4Make changes to the image, and click Done when finished.
Fireworks exports a new graphic file to Flash, and if you edited the original PNG file, it is also saved.
Working with FreeHand
Because both applications support vectors, vector graphics can be easily shared between Fireworks and FreeHand.
The appearance of objects may differ between applications, however, because Fireworks and FreeHand do not share
all the same features. For more information, see “Working with other vector graphics applications” on page 316.
The procedures provided in this section apply not only to using Fireworks with FreeHand but also to using
Fireworks with other vector graphics applications, such as Adobe Illustrator and CorelDraw. For more information,
see “Working with other vector graphics applications” on page 316.
Placing FreeHand graphics in Fireworks
You can place FreeHand graphics into Fireworks in a number of ways. You can import them, copy and paste them,
or drag them. Fireworks CS3 supports FreeHand 7 or later graphics.
Importing FreeHand graphics into Fireworks
Fireworks can import vector graphics that were created in FreeHand. You can set the following options when
importing a FreeHand graphic:
Scale specifies the scale percentage for the imported file.
Width and Height specify the width and height of the imported file in pixels, inches, or centimeters.
Resolution specifies the resolution of the imported file.
Anti-Alias smoothes imported objects to avoid jagged edges. You can choose this option separately for paths or text.
ADOBE FIREWORKS CS3
User Guide
313
Note: Use the Property inspector to change selected objects to Anti-Alias or Hard Edge.
File Conversion specifies how multi-page documents are handled when imported:
•The Open a Page option imports only the specified page.
•The Open Pages as Frames option imports all the pages from the document and places each in a separate frame.
•The Ignore Layers option imports all objects on a single layer.
•The Remember Layers option maintains the layer structure of the imported file.
•The Convert Layers to Frames option places each layer of the imported document into a separate frame.
Include Invisible Layers imports objects on layers that have been hidden. Otherwise, invisible layers are ignored.
Include Background Layers imports objects from the document’s background layer. Otherwise, the background
layer is ignored.
Render as Images rasterizes complex groups, blends, or tiled fills and places each as a single bitmap object in a
Fireworks document. Enter a number in the text box to determine how many objects a group, blend, or tiled fill can
contain before it is rasterized during import.
To import vector graphics from a FreeHand file:
1In Fireworks, choose File > Import to navigate to the desired FreeHand file, and click Open.
The Vector File Options dialog box appears.
2Select the desired options.
3Click OK.
Copying and pasting or dragging FreeHand graphics into Fireworks
You can quickly place FreeHand graphics into Fireworks by copying and pasting, or dragging them into your
document.
To copy and paste a selected FreeHand graphic into Fireworks:
1In FreeHand, choose Edit > Copy.
ADOBE FIREWORKS CS3
User Guide
314
2Create a new document in Fireworks or open an existing one.
3Select Edit > Paste.
To drag a FreeHand graphic into Fireworks:
❖Drag the graphic from FreeHand into an open document in Fireworks.
In Windows, if your FreeHand and Fireworks applications are maximized, drag the FreeHand graphic to the
Fireworks button in the taskbar. Hold it there for a few seconds, and the Fireworks document window will be
displayed. Drag the cursor onto the canvas and release.
Placing Fireworks graphics in FreeHand
You can place Fireworks graphics into FreeHand in a number of ways. You can quickly place Fireworks graphics into
FreeHand by importing or copying and pasting them. You can also export Fireworks graphics in a Freehand-
compatible format, and then import them into FreeHand.
Importing Fireworks graphics into FreeHand
FreeHand can import vector graphics that were created in Fireworks. Depending on the options you select when
importing or opening, FreeHand can import Fireworks layers, frames, vectors, text, bitmaps, and some effects that
are shared by both applications. Hidden Fireworks layers are ignored and are not imported. Whether or not the
content you import or open is editable in FreeHand depends on the import options you select in the Fireworks PNG
Import Settings dialog box.
To import a Fireworks PNG file into FreeHand:
1Save the desired document in Fireworks.
For information on saving files, see Fireworks Help.
2Switch to an open document in FreeHand.
3Select File > Import or File > Open.
4Locate and select the desired PNG file from the Import dialog box, and click Open.
The Fireworks PNG Import Settings dialog box appears.
5Select a File Conversion Option:
Open Frames as Pages imports Fireworks frames onto separate FreeHand pages. If you want, select Remember
Layers to convert Fireworks layers to FreeHand layers. Deselecting this option causes the content of all Fireworks
layers to be combined onto a single layer.
ADOBE FIREWORKS CS3
User Guide
315
Open Frames as Layers imports Fireworks frames as separate layers.
6Select a frame to import from the Frame pop-up menu. To import all frames, select All.
Note: The All option is available only if you are opening frames as layers or if you are opening a PNG file (rather than
importing it).\
7Select how to import objects:
Rasterize If Necessary to Maintain Appearance converts some vector objects to uneditable bitmap images. Only
objects with effects, strokes, and fills not shared by FreeHand are converted.
Keep All Paths Editable lets you edit all imported vector objects. Some objects might appear slightly different in
FreeHand than in Fireworks because of differences in the way the two applications interpret information. Also, some
effects not shared by the two applications might be discarded.
8Select how to import text:
Rasterize If Necessary to Maintain Appearance converts some text objects to uneditable bitmap images. Only text
with effects, strokes, and fills not shared by FreeHand is rasterized.
Keep All Text Editable enables you to edit all imported text. Some text might appear slightly different in FreeHand
than in Fireworks, and some effects not shared by the two applications might be discarded.
9Select the Import as a Single Flattened Bitmap option if you want to preserve the look of the entire Fireworks
document. When this option is selected, the rest of the options in the Fireworks PNG Import Settings dialog box are
dimmed. Select this option only if editability is not important to you.
10 Click OK.
11 Click in the FreeHand Document window where you want the Fireworks PNG file to appear.
Copying and pasting Fireworks graphics into Freehand
You can quickly place Fireworks graphics into FreeHand by copying and pasting them.
When Fireworks graphics are placed into FreeHand, some attributes are lost, such as Live Filters and textures. For
more information, see “Unsupported features” on page 316.
Note: The copy-and-paste method of placing Fireworks graphics into other applications also works with Illustrator,
CorelDraw, and Photoshop.
To copy and paste graphics into FreeHand:
1Select the object or objects to copy in Fireworks.
2Select Edit > Copy or click the Quick Export button and choose Copy from the FreeHand pop-up menu.
3Switch to an open document in FreeHand.
4Select Edit > Paste.
The Fireworks PNG Import Settings dialog box appears. For a detailed description of options, see “Importing
Fireworks graphics into FreeHand” on page 314.
5Select the desired options, and click OK.
Copying and pasting Fireworks paths into FreeHand
You can use the Copy Path Outlines command to copy selected Fireworks paths to FreeHand. Using the Copy Path
Outlines command is useful if you want to copy only paths and not the content within them.
ADOBE FIREWORKS CS3
User Guide
316
Note: Use the Copy Path Outlines command with FreeHand 10 and earlier versions. With FreeHand MX, use Edit >
Copy to get full object appearance and improved editability. For more information, see “Copying and pasting Fireworks
graphics into Freehand” on page 315
To copy selected Fireworks paths:
1Select Edit > Copy Path Outlines, or click the Quick Export button and choose Copy Path Outlines from the
FreeHand pop-up menu.
2Switch to an open document in FreeHand.
3Select Edit > Paste to paste the paths.
Exporting Fireworks graphics to FreeHand
You can export Fireworks graphics in a FreeHand-compatible format and import the graphics into FreeHand.
To export a vector graphic to FreeHand:
1In Fireworks, choose File > Export or click the Quick Export button and choose Export to FreeHand from the
FreeHand pop-up menu.
2In the Export dialog box, type a filename and choose a destination folder.
3Select Illustrator 7 from the Save As pop-up menu.
Note: Illustrator 7 is the graphics file format you use when exporting from Fireworks to any other vector graphics appli-
cation, including FreeHand. Most vector applications can read the Illustrator 7 file format.
4Click the Options button.
5In the Illustrator Export Options dialog box, choose one of the following:
Export Current Frame Only preserves layer names and exports only the current frame.
Convert Frames to Layers exports each Fireworks frame as a layer.
6Select FreeHand Compatible to export the file for use in FreeHand.
Choosing FreeHand Compatible omits bitmaps and converts gradient fills to solid fills.
7Click OK.
8Click Save in the Export dialog box.
Note: Upon export, Fireworks sets object edges to Hard.
9Switch to an open document in FreeHand.
10 Select File > Open or File > Import to navigate to the file you exported from Fireworks, and click Open.
Working with other vector graphics applications
Fireworks can share vector graphics with other vector graphics applications, such as Adobe Illustrator. In Fireworks,
you export and import vector graphics from these applications in the same way that you export and import graphics
from FreeHand. For more information, see “Working with FreeHand” on page 312.
Unsupported features
Because Fireworks and other vector graphic editors do not always share the same features, the appearance of objects
will differ between applications.
Most other vector graphic editors, including FreeHand, do not support the following Fireworks features:
ADOBE FIREWORKS CS3
User Guide
317
•Live Filters
•Blending modes
•Textures, pattern fills, web dither fills, and gradient fills
•Slice objects and image maps
•Many text-formatting options
•Guides, grids, and canvas color
•Bitmap images
•Some strokes
Working with Director
You can combine the power of Fireworks and Director. Fireworks lets you export graphics and interactive content
into Director. The export process preserves the behaviors and slices of the graphic. You can safely export sliced
images with rollovers and even layered images. This lets Director users take advantage of the optimization and
graphic design tools of Fireworks without compromising quality.
Note: The Director HTML style does not support pop-up menu code.
Placing Fireworks files in Director
Director can import flattened images from Fireworks, such as JPEG and GIF images. It can also import 32-bit PNG
images with transparency. For sliced, interactive, and animated content, Director can import Fireworks HTML.
For information on exporting flattened Fireworks images such as JPEG and GIF images, see Fireworks Help.
Exporting graphics with transparency
In Director, transparency can be achieved by importing 32-bit PNG images. You can export 32-bit PNG graphics
with transparency from Fireworks.
To export a 32-bit PNG image with transparency:
1In Fireworks, choose Window > Optimize, change the export file format to PNG 32, and set Matte to transparent.
2Select File > Export.
3Select Images Only from the Save as Type pop-up menu. Name the file, then click Save.
Exporting layered and sliced content to Director
By exporting Fireworks slices to Director, you can export sliced and interactive content such as buttons and rollover
images. By exporting layers to Director, you can export layered Fireworks content such as animations.
To export Fireworks files to Director:
1In Fireworks, choose File > Export.
Note: Alternatively, you can click the Quick Export button and choose Source as Layers or Source as Slices from the
Director pop-up menu. Select Source as Layers if you are exporting an animation, and Source as Slices if you are
exporting interactive content such as buttons.
2In the Export dialog box, type a filename and choose a destination folder.
ADOBE FIREWORKS CS3
User Guide
318
3Select Director from the Save As pop-up menu.
4Select an option from the Source pop-up menu:
Fireworks Layers exports each layer in the document. Select this option if you are exporting layered content or an
animation.
Fireworks Slices exports the slices in the document. Select this option if you are exporting sliced or interactive
content such as rollover images and buttons.
5Select Trim Images to automatically crop the exported images to fit the objects on each frame.
6Select Put Images in Subfolder to choose a folder for images.
7Click Save.
Importing Fireworks files into Director
In Director, you can import flattened images that you have exported from Fireworks, such as JPEG, GIF, and 32-bit
PNG images. Or you can import Fireworks layers, slices, and interactive elements by inserting Fireworks HTML.
To import a flattened Fireworks image:
1In Director, choose File > Import.
2Navigate to the desired file and click Import.
3Change options if desired in the Image Options dialog box. For information about each option, see Using Director.
4Click OK.
The imported graphic appears in the cast as a bitmap.
To import layered, sliced, or interactive Fireworks content:
1In Director, choose Insert > Fireworks > Images from Fireworks HTML.
Note: The location and name of this menu command may be different depending on your version of Director.
2Locate the Fireworks HTML file you exported for use in Director.
The Open Fireworks HTML dialog box appears.
ADOBE FIREWORKS CS3
User Guide
319
3Change options if desired:
Color allows you to specify a color depth for the imported graphics. If they contain transparency, choose 32-bit color.
Registration allows you to set the registration point for the imported graphics.
Import Rollover Behaviors as Lingo converts Fireworks behaviors to Lingo code.
Import to Score places cast members into the Score upon import.
4Click Open.
The graphics and code from the Fireworks HTML file are imported.
Note: If you are importing a Fireworks animation, drag keyframes in Director to offset the timing of each imported layer
as necessary.
Editing Director cast members in Fireworks
Using launch-and-edit integration, you can make changes to Director cast members by starting Fireworks to edit
them from inside Director. You can also start Fireworks from inside Director to optimize cast members.
To start Fireworks to edit a Director cast member:
1In Director, right-click (Windows) or Control-click (Macintosh) the graphic in the Cast window.
2Select Launch External Editor from the pop-up menu.
Note: If Fireworks does not start as your external image editor, in Director choose File > Preferences > Editors and set
Fireworks as the external editor for bitmap graphic file types.
The file opens in Fireworks, and the Document window indicates that you are editing a file from Director.
3Make changes to the image, and click Done when finished.
Fireworks exports the new graphic to Director.
Optimizing cast members in Director
You can start Fireworks from Director to preview optimization changes for selected cast members.
To start Fireworks to preview optimization settings for a Director cast member:
1In Director, select the cast member in the Cast window and click Optimize in Fireworks on the Bitmap tab of the
Property inspector.
ADOBE FIREWORKS CS3
User Guide
320
2In Fireworks, change the optimization settings as desired.
3Click Update when finished. Click Done if the MIX Editing dialog box appears.
The image is updated in Director using the new settings.
Working with HomeSite
You can use Fireworks and HomeSite® together to create and edit web pages. Exporting and opening Fireworks
HTML in HomeSite is simple, and inserting Fireworks graphics into HomeSite documents is just as easy. But even
more important, Fireworks and HomeSite share a powerful integration that allows you to start Fireworks from
HomeSite to edit web graphics.
Placing Fireworks images in HomeSite
You can insert Fireworks-generated GIF or JPEG images into a HomeSite document. You must export the images
from Fireworks first. For information on exporting GIF and JPEG images, see Fireworks Help.
To insert a Fireworks image into a HomeSite document:
1In HomeSite, save your document.
Note: HomeSite creates relative paths to images, but it cannot do so unless your document is saved.
2In the Resources window, locate and select the Fireworks image you exported.
3Do one of the following to insert the Fireworks image in your HomeSite document:
•Drag the file from the Resources window to the desired location within the HTML code on the Edit tab of the
Document window.
•On the Edit tab of the Document window, place the insertion point where you want to insert the Fireworks image,
then right-click the file in the Resources window and choose Insert as Link.
A link to the Fireworks image is created in the HTML code. Click the Browse tab to preview your image within the
HomeSite document.
Placing Fireworks HTML in HomeSite
There are a few ways to place Fireworks HTML into HomeSite. You can export Fireworks HTML, or you can copy
HTML to the Clipboard. You can also open an exported Fireworks HTML file in HomeSite and copy and paste
selected sections of code. In addition, you can easily update code you’ve exported to HomeSite using the Update
HTML command in Fireworks.
Note: Before exporting, copying, or updating Fireworks HTML for use in HomeSite, make sure to set the HTML type to
Generic in the HTML Setup dialog box. For more information, see Fireworks Help.
Exporting Fireworks HTML to HomeSite
Exporting HTML from Fireworks generates an HTML file and the associated image files in the location you specify.
You can then open the HTML file in HomeSite for further editing.
Note: Before exporting, make sure to set the HTML type to Generic in the HTML Setup dialog box. For more infor-
mation, see Fireworks Help.
ADOBE FIREWORKS CS3
User Guide
321
To export Fireworks HTML to HomeSite:
❖Export your document to HTML in Fireworks, and then open the exported file in HomeSite by choosing File >
Open. For more information, see Fireworks Help.
Copying Fireworks HTML to the Clipboard for use in HomeSite
A fast way to place Fireworks-generated HTML in HomeSite is to copy it to the Clipboard from Fireworks, and then
paste it directly into a HomeSite document. When you copy Fireworks HTML to the Clipboard, the required images
are exported to a location you specify.
Note: Before copying to the Clipboard, make sure to set the HTML type to Generic in the HTML Setup dialog box. For
more information, see Fireworks Help.
To copy Fireworks HTML for use in HomeSite:
❖Copy HTML to the Clipboard in Fireworks, and then paste it into an new HomeSite document. For more infor-
mation, see Fireworks Help.
Copying code from an exported Fireworks file and pasting it into HomeSite
You can open an exported Fireworks HTML file in HomeSite and then manually copy and paste only the desired
sections into another HomeSite document.
Note: Before exporting, make sure to set the HTML type to Generic in the HTML Setup dialog box. For more infor-
mation, see Fireworks Help.
To copy code from an exported Fireworks file and paste it into HomeSite:
❖Export a Fireworks HTML file, and then copy and paste the desired code into an existing HomeSite document.
For more information, see Fireworks Help.
Updating Fireworks HTML exported to HomeSite
The Update HTML command allows you to make changes to a Fireworks HTML document you’ve previously
exported to HomeSite.
Note: Before updating HTML, make sure to set the HTML type to Generic in the HTML Setup dialog box. For more
information, see Fireworks Help.
To update Fireworks HTML exported to HomeSite:
❖Use the Update HTML command in Fireworks. For more information, see Fireworks Help.
Editing Fireworks images in HomeSite
You can use launch-and-edit integration to edit images in a HomeSite document. HomeSite automatically starts
Fireworks, letting you make the desired edits to the image. When you exit Fireworks, the updates you made are
automatically applied to the placed image in HomeSite. Together, the two applications provide a streamlined
workflow for editing web graphics in HTML pages.
To open and edit Fireworks images placed in HomeSite:
1In HomeSite, save your document.
2Do one of the following:
•Right-click the image file on one of the Files tabs in the Resources window.
ADOBE FIREWORKS CS3
User Guide
322
•Right-click the image on the Thumbnails tab of the Results window.
•Right-click the associated img tag in the HTML code on the Edit tab of the Document window.
3Select Edit in Fireworks from the pop-up menu.
HomeSite starts Fireworks, if it is not already open.
4If prompted, specify whether to locate a Fireworks source file for the placed image. For more information on
Fireworks source PNG files, see Fireworks Help.
5In Fireworks, edit the image.
The Document window indicates that you are editing a Fireworks image from another application.
6When you are finished making edits, click Done in the Document window.
The updated image is exported back to HomeSite, and the PNG source file is saved if a source file was selected.
Working with Photoshop
Fireworks provides excellent support for importing native Photoshop (PSD) files, with options for retaining many
aspects of the imported files, including layers, masks, and editable text. As a result, you can bring Photoshop images
into Fireworks for further editing and web optimization without losing the ability to export the images back into
Photoshop.
Placing Photoshop graphics in Fireworks
You can drag individual Photoshop graphics into Fireworks, or you can import an entire Photoshop file.
Dragging individual Photoshop graphics into Fireworks
You can place Photoshop graphics into Fireworks by dragging them into your document.
To drag a Photoshop graphic into Fireworks:
❖Drag the graphic from Photoshop into an open document in Fireworks.
Each graphic you drag becomes a new bitmap object. Text is also imported as a bitmap object and becomes
uneditable as text. For more information, see “About importing text from Photoshop” on page 323.
Importing Photoshop files into Fireworks
When you import or open a Photoshop file in Fireworks, the Photoshop file is imported into a PNG file using the
import preferences that you have specified. In addition to preserving layers and text as specified by the import
options, Fireworks preserves and converts the following Photoshop features:
•Layer masks convert to Fireworks object masks.
•Layer effects convert to Fireworks Live Filters, if a corresponding Live Filter exists. For example, the Drop Shadow
layer effect converts to a Drop Shadow Live Filter in Fireworks.
Note: Layer effects and Live Filters may vary in appearance slightly.
•Blending modes for layers convert to Fireworks blending modes for corresponding objects, if those blending
modes are supported by Fireworks.
ADOBE FIREWORKS CS3
User Guide
323
•The first alpha channel in the Channels palette converts to transparent areas in the Fireworks image. Fireworks
does not support additional Photoshop alpha channels.
Photoshop adjustment layers, clipping groups, and paths are not supported by Fireworks. Fireworks ignores these
features when importing Photoshop files. However, you can export paths to Illustrator in Photoshop, and then
import the AI file into Fireworks.
Note: In Windows, Photoshop filenames must include a PSD extension for Fireworks to recognize the Photoshop file
type.
To import a Photoshop file into Fireworks:
1Select File > Import or File > Open and navigate to a Photoshop (PSD) file.
2Click Open.
The Photoshop file is imported into a PNG file. If you make changes and want to save the file as a PSD, you must
export it to PSD format. For more information, see “Placing Fireworks graphics in Photoshop” on page 325.
About importing text from Photoshop
You can open or import a Photoshop file containing text.
When opening Photoshop files that contain text, Fireworks checks if you have the necessary fonts on your system. If
you don’t, Fireworks asks if you want to replace the fonts or maintain their appearance. For more information, see
Fireworks Help.
If the text in your Photoshop file has effects applied to it that Fireworks supports, the effects are still applied when
brought into Fireworks. However, because Fireworks and Photoshop apply effects differently, the effects may appear
different in each application.
When Photoshop 6 or 7 files that contain text are opened or imported in Fireworks, with the Maintain Appearance
option selected, a cached image of the text is displayed so its appearance remains the same as it was in Photoshop.
Once you edit the text, the cached image is replaced with actual text that may differ in appearance from the original
text. The original font data is stored in the PNG file so that if the file is on a system that does have the fonts, you can
choose to use those fonts or maintain appearance.
Note: Fireworks cannot export text in Photoshop 6 or 7 format. If you edit a document containing Photoshop 6 or 7 text
and then export the document back to Photoshop, the file is exported in Photoshop 5.5 format. However, if you don’t
make any change to the text, the file is exported in Photoshop 6 format. For more about exporting Photoshop files, see
“Placing Fireworks graphics in Photoshop” on page 325.
Specifying Photoshop file import options
The import preference options in Fireworks let you specify how to handle layers and text in imported Photoshop
files. Depending on the options that you choose, you can control the degree of appearance and editability retained
in imported files.
To specify import options for Photoshop files:
1Select Edit > Preferences.
Note: On Mac OS X, choose Fireworks > Preferences.
2Click the Import tab (Windows) or choose Import from the pop-up menu (Macintosh).
3Specify import options:
ADOBE FIREWORKS CS3
User Guide
324
Layers: Convert to Fireworks Objects imports each layer in the Photoshop file as a separate object on a single layer
in Fireworks.
Layers: Share Layer Between Frames makes the imported layers visible across all frames in the Fireworks file.
Layers: Convert to Frames imports each layer in the Photoshop file as an object on a separate frame in Fireworks.
This option is useful for importing files that you want to use as animations.
Text: Editable converts text in the Photoshop file to editable Fireworks text. This option lets you edit imported text
using the Fireworks Text tool and the Property inspector. The converted text may vary slightly in appearance from
the original.
Text: Maintain Appearance converts text in the Photoshop file to a bitmap object in Fireworks. This option
maintains the original appearance of the text but does not allow you to edit it using the Fireworks Text tool. The
original font data is stored in the PNG file so that if the file is on a system that does have the fonts, you can choose
to use those fonts or maintain appearance.
Use Flat Composite Image imports the Photoshop file as a flattened image without layers.
4Click OK.
Using Photoshop filters and plug-ins
Fireworks lets you use many Photoshop and other third-party filters and plug-ins. You can use plug-ins in either the
Live Filters window or the Filters menu.
Note: Plug-ins and filters for Photoshop 5.5 and earlier versions are supported. Photoshop 6 or later plug-ins and filters
are not compatible with Fireworks CS3.
For more information on the Live Filters window and the Filters menu, see Fireworks Help.
To use Photoshop and other third-party filters and plug-ins using the Preferences dialog box:
1Select Edit > Preferences.
Note: On Mac OS X, choose Fireworks > Preferences.
2Click the Folders tab (Windows) or choose Folders from the pop-up menu (Macintosh).
3Select the Photoshop Plug-ins option.
The Select a Folder (Windows) or Choose a Folder (Macintosh) dialog box opens.
Note: If the dialog box doesn’t automatically open, click Browse.
4Navigate to the folder where the Photoshop or other filters and plug-ins are installed, and click Select (Windows)
or Choose (Macintosh).
5Click OK to close the Preferences dialog box.
6Restart Fireworks to load the filters and plug-ins.
To use Photoshop and other third-party filters and plug-ins using the Live Filters window:
1Select any vector object, bitmap object, or text block on the canvas and click the Add Effects button in the Property
inspector.
Note: The Add Effects button is available only when an object is selected on the canvas.
2Select Options > Locate Plug-ins from the pop-up menu that appears.
ADOBE FIREWORKS CS3
User Guide
325
3Navigate to the folder where the Photoshop or other filters and plug-ins are installed, and click Select (Windows)
or Choose (Macintosh). If a message appears asking if you want to restart Fireworks, click OK.
4Restart Fireworks to load the filters and plug-ins.
Note: Alternately, you can install plug-ins directly into the Fireworks Plug-ins folder.
Placing Fireworks graphics in Photoshop
Fireworks provides extensive support for exporting files in Photoshop (PSD) format. Export settings let you control
which elements in the file remain editable when you reopen it in Photoshop.
A Fireworks image exported into Photoshop maintains the same editability when reopened in Fireworks as other
Photoshop graphics. Export options for editability, appearance, and file size let you determine the best possible
export procedure for your particular graphic. Photoshop users can work with their graphic in Fireworks and then
continue editing in Photoshop.
To export a file in Photoshop format:
1Select File > Export or click the Quick Export button and choose Other > Export to Photoshop.
2In the Export dialog box, name your file and choose Photoshop PSD from the Save As menu.
3To specify grouped export settings, choose an option from the Settings menu. These settings provide preset
combinations of individual export options for objects, effects, and text in the Fireworks file. Individual export
options are described in detail in “Customizing files for export to Photoshop” on page 325.
Maintain Editability over Appearance converts objects to layers, keeps effects editable, and converts the text to
editable Photoshop text layers. Select this option if you plan to edit the image extensively in Photoshop and do not
need to preserve the exact appearance of the Fireworks image.
Maintain Fireworks Appearance converts each object into an individual Photoshop layer, and effects and text
become non-editable. Select this option if you want to maintain control over the Fireworks objects in Photoshop
but also want to maintain the original appearance of the Fireworks image.
Smaller Photoshop File flattens each layer into a fully rendered image. Select this option if you are exporting a file
containing a large number of Fireworks objects.
Custom allows you to choose specific settings for objects, effects, and text.
4Click Save to export the Photoshop file.
Note: Photoshop 5.5 and earlier cannot open files with more than 100 layers. You must delete or merge objects if the
Fireworks document you are exporting contains more than 100 objects.
Customizing files for export to Photoshop
When you export a file to Photoshop, you can choose customized settings for exporting objects, effects, and text.
To customize settings for export to Photoshop:
1In the Export dialog box, with Photoshop PSD selected as the export file type, choose Custom from the Settings
pop-up menu.
2In the Objects pop-up menu, choose one of the following:
Convert to Photoshop Layers converts individual Fireworks objects to Photoshop layers and Fireworks masks to
Photoshop layer masks.
ADOBE FIREWORKS CS3
User Guide
326
Flatten Each Fireworks Layer flattens all objects on each individual Fireworks layer, and each Fireworks layer
becomes a layer in Photoshop. When you choose this option, you lose the ability to edit the Fireworks objects in
Photoshop. You also lose features, such as blending modes, that are associated with the Fireworks objects.
3In the Effects pop-up menu, choose one of the following:
Maintain Editability converts Fireworks Live Filters to their equivalent in Photoshop. If the effects do not exist in
Photoshop, they are discarded.
Render Effects flattens effects into their objects. When you choose this option, you preserve the appearance of the
effects, at expense of the ability to edit them in Photoshop.
4In the Text pop-up menu, choose one of the following:
Maintain Editability converts text to an editable Photoshop layer. Text formatting that is not supported by
Photoshop is lost.
Render Text turns text into an image object. When you choose this option, you preserve the appearance of the text,
at expense of the ability to edit it.
About working with Illustrator
Fireworks provides support for importing native Illustrator (AI) CS2 and CS3 files, with options for retaining many
aspects of the imported files, including layers, patterns, and linked images. As a result, you can bring Illustrator
images into Fireworks for further editing and web optimization. You can also export Illustrator files from Fireworks
that are compatible with the Illustrator 8.0 software.
The following features are preserved when importing Illustrator files:
Bezier Points: The number and position of Bezier points will be preserved.
Colors: Colors will be preserved as closely as possible when importing AI content to Fireworks.
Text Attributes: The following font attributes will be preserved:
•Font
•Size
•Color
•Bold
•Italic
•Align (Left, Right, Center, Justify)
•Orientation (Horizontal, Vertical Left to Right, Vertical Right to Left)
•Letter Spacing
•Character Position (Normal, SuperScript, SubScript)
•Auto kerning
•Kerning pairs
Gradient Fills: Gradients will be imported as native Fireworks gradients. All of the ramp points of the gradient will
be preserved.
ADOBE FIREWORKS CS3
User Guide
327
Images: Illustrator AI files can contain linked files and placed files of the following types: PDF, BMP, EPS, GIF, JPEG,
JPEG2000, PICT, PCX, PCD, PSD, PXR, PNG, TGA and TIFF. Embedded Images are brought into Fireworks as
raster images. Linked images are preserved as linked bitmaps in Fireworks.
Clip Masks: Fireworks supports the import of clipping masks with paths and compound paths.
Filled Strokes: Filled strokes are imported as a single drawing object.
Solid Fills: Filled paths are imported as a single drawing object.
Compound Paths: Compound paths are imported as a single drawing object.
Groups: The group is preserved and the individual grouped objects come in as drawing objects.
Graphs: Graphs are imported as groups, and they lose their special editability as graphs.
Primitives: Illustrator primitives are actually paths, so they are not imported as Fireworks primitives.
Patterns: Patterns are imported as individual tiles. These tiles are imported as a native pattern in Fireworks and the
pattern is assigned to the drawing object.
Brush Strokes: Brush strokes are imported as multiple groups (one group per closed path).
Symbols: Symbols are imported as a normal group objects.
Transparency: Fireworks imports object opacity correctly, preserving object transparency settings at the original
Illustrator values.
Sub Layers: Fireworks imports all sub layers as native Fireworks sub layers.
About working with GoLive
You can use Fireworks and GoLive together to create and edit web pages. You can export and copy Fireworks HTML
to GoLive the same way you can with most other HTML editors. The only exception is that you must choose GoLive
HTML as your HTML style before you export or copy HTML from Fireworks.
For more information about choosing an HTML style and exporting Fireworks HTML, see Fireworks Help.
Note: The GoLive HTML style does not support pop-up menu code. If your Fireworks document contains pop-up
menus, you should choose Generic HTML as the HTML style before exporting.
About working with HTML editors
Fireworks generates pure HTML that can be read by all HTML editors. For general information on placing
Fireworks HTML into HTML editors, see Fireworks Help.
Fireworks can also import HTML content. This is a powerful feature, allowing you to open and edit most any HTML
document within Fireworks. For more information, see Fireworks Help.
ADOBE FIREWORKS CS3
User Guide
328
About extending Fireworks
If you are proficient in JavaScript and Fireworks, you can use JavaScript to write your own objects and commands
that affect Fireworks documents and the elements within them. In addition, you can use Fireworks Cross Product
Communication Architecture to allow ActionScript™ 2.0 and C++ applications to control Fireworks. For more
information, see Extending Fireworks Help.
About Adobe XMP
Adobe XMP (eXtensible Metadata Platform) is a technology that assists the user in adding file information to files
saved in PNG, GIF, JPEG, Photoshop and TIFF formats. XMP facilitates the exchange of metadata between Adobe
applications. For example, users can save metadata from one file as a template and then import the metadata into
other files.
The user can do the following to save metadata as a template or XMP file in order to import the metadata into other
files.
1Choose File > File Info
2Do one of the following:
•To save metadata as a template, click the triangle icon at the top of the dialog box, and choose Save Metadata
Template. Enter a template name, and click Save.
•To save metadata to an XMP file, click Save in the Advanced pane of the dialog box. Type a file name, choose a
location for the file, and click Save.
About Adobe Bridge
Adobe® Bridge is a cross-platform application included with Adobe® Creative Suite® 3 components that helps you
locate, organize, and browse the assets you need to create print, web, video, and audio content. You can start Bridge
from any Creative Suite component (except Acrobat 8), and use it to access both Adobe and non-Adobe assets.
From Adobe Bridge, you can:
•Manage image, footage, and audio files: Preview, search, sort, and process files in Bridge without opening
individual applications. You can also edit metadata for files, and use Bridge to place files into your documents,
projects, or compositions.
•Manage your photos: Generate a web gallery from a group of images, import and edit photos from your digital
camera card, group related photos in stacks, and open or import camera raw files and edit their settings without
starting Photoshop. You can also search leading stock libraries and download royalty-free images by way of
Adobe Stock Photos.
•Work with Adobe Version Cue®-managed assets.
•Perform automated tasks, such as batch commands.
• Synchronize color settings across color-managed Creative Suite components.
•Start a real-time web conference to share your desktop and review documents.
ADOBE FIREWORKS CS3
User Guide
329
Flex integration for rich Internet application layouts
(MXML export)
As designers continue to push the technology envelope, better tools and integration become more important than
ever. Fireworks can help in the development of next-generation rich Internet applications—referred to as RIAs—by
making it possible to export common library assets as known components for use in Adobe Flex™ Builder™.
The best part is there's no work necessary on your part, because Fireworks exports the necessary Flex code (MXML)
for you with styling and absolute positioning maintained. Now you can easily create a Flex application layout in
Fireworks, leveraging Flex common library assets, and export it as MXML for loading into Flex Builder.
To expor t MXML data
1Choose File > Export.
2Choose MXML and Images in the Export pop-up menu.
3Select the Put images in subfolder option if you want to save the images in a separate folder from the MXML code.
4Select the Current page only option to export only the currently selected page.
5Click Save to complete the export.
330
Chapter 17: Automating Repetitive Tasks
Web designers often spend lots of time doing repetitive tasks, such as optimizing images or converting images to fit
within certain constraints. Part of the power of Fireworks CS3 is its capability to automate and simplify many tedious
drawing, editing, and file-conversion tasks.
To speed up your editing process, you can use Find and Replace to search for and replace elements within a file or
elements from multiple files. You can find and replace elements such as URLs, fonts, color, text, and commands
created in the History panel.
You can use the Batch Process feature to convert entire groups of image files into other formats or to change their
color palettes. Batch Process can apply custom optimization settings to groups of files. You can also resize a group of
files, making Batch Process an ideal tool for creating thumbnails.
Using the History panel, you can create commands that are shortcuts for commonly used features or create a script
that can perform a complex series of steps. Fireworks can understand and execute JavaScript, so advanced users can
automate very complex tasks by writing JavaScript commands and then executing them in Fireworks. You can
control nearly every Fireworks command or setting through JavaScript using special JavaScript commands that
Fireworks can interpret.
The Extension Manager lets you import, install, and delete extensions in Adobe applications to extend the capabil-
ities of Fireworks.
This chapter covers the following topics:
•“Finding and replacing” on page 330
•“Batch processing” on page 334
•“Extending Fireworks” on page 341
•“Flash SWF movies used as Fireworks panels” on page 345
Finding and replacing
The Find and Replace feature helps you search for and replace elements, such as text, URLs, fonts, and colors. Find
and Replace can search the current document or multiple files.
Find and Replace works only in Fireworks PNG files or in files containing vector objects, such as Adobe FreeHand,
uncompressed CorelDraw, and Adobe Illustrator files.
ADOBE FIREWORKS CS3
User Guide
331
Find panel A. Search option B. Find option
To select the source for the search:
1Open the document.
2Do one of the following to open the Find panel:
•Select Window > Find.
•Select Edit > Find.
•Press Control+F (Windows) or Command+F (Macintosh).
Note: If the files you select are locked or checked in from an Adobe Dreamweaver site, you are prompted to unlock them
or check them out before proceeding.
3From the Search pop-up menu, select a source for the search:
Search Selection finds and replaces elements only among the currently selected objects and text.
Search Frame finds and replaces elements only in the current frame.
Search Document finds and replaces elements in the active document.
Search Files finds and replaces elements across multiple files. If this option is not already selected in the Search pop-
up menu, selecting it opens a dialog box in which you can select which files to search. If Search Files is already
selected in the Search pop-up menu, you have the option to select which files to search after you begin the search
operation by clicking Find, Replace, or Replace All.
4From the Find pop-up menu, select an attribute to search for. The options in the panel change according to your
selection.
5Set the options for the selected Find attribute.
6Select a find-and-replace operation:
Find locates the next instance of the element. Found elements appear selected in the document.
Replace changes a found element with the contents of the Change To option.
Replace All finds and replaces every occurrence of a found element throughout the search range.
Note: Replacing objects in multiple files automatically saves those files; you cannot reverse the change using Edit > Undo.
For more information, see “Finding and replacing during a batch process” on page 338.
ADOBE FIREWORKS CS3
User Guide
332
Setting options for finding and replacing in multiple files
When finding and replacing among multiple files, you can determine how Fireworks handles multiple open files
after the search.
To save, close, and back up each file after it is searched:
1Select Replace Options from the Find panel Options menu.
2Select Save and Close Files to save and close each file after the find and replace.
Only the originally active documents remain open.
Note: If Save and Close is disabled and you are batch-processing a large number of files, Fireworks may run out of
memory and cancel the batch process.
3Select one of the following from the Backups pop-up menu:
No Backups finds and replaces without backing up original files. The changed files replace the original files.
Overwrite Existing Backups creates and stores only one backup copy of each file changed during a find and replace.
If you perform additional find-and-replace operations, the previous original file always replaces the backup copy.
The backup copies are stored in a subfolder called Original Files.
Incremental Backups saves all backup copies of files changed during a find and replace. The original files are moved
to an Original Files subfolder within their current folder, and an incremental number is appended to each filename.
If you perform additional find-and-replace operations, the original file is copied to the Original Files folder, and the
next higher number is added to its filename. For example, for a file named Drawing.png, the first time you find and
replace, the backup file is named Drawing-1.png. The second time you find and replace, the backup file is named
Drawing-2.png, and so on.
4Click OK.
Finding and replacing text
Fireworks makes it easy to search for and replace text. You have a variety of options to refine your search to consider
case or to find entire words or parts of words.
To search for and replace words, phrases, or text strings:
1Select Find Text from the Find pop-up menu of the Find panel.
2Enter the text to search for in the Find text box.
3Enter the replacement text in the Change To text box.
4If you want, select options to further define the search:
Whole Word finds the text only in the same form in which it appears in the Find option, not as part of any other
word.
Match Case distinguishes between uppercase and lowercase letters during the search.
Regular Expressions matches parts of words or numbers conditionally during a search.
Finding and replacing fonts
You can also quickly find and replace fonts in your Fireworks documents.
ADOBE FIREWORKS CS3
User Guide
333
To search for and replace fonts in one or more Fireworks documents:
1Select Find Font from the Find pop-up menu of the Find panel.
2Select the font and font style to find.
You can restrict your search by minimum and maximum point sizes.
3Specify the font, font style, and point size to use as a replacement in the Change To area.
Finding and replacing colors
You can find all instances of a certain color in your Fireworks documents and then change it to something else.
To search for and replace colors in Fireworks documents:
1Select Find Color from the Find pop-up menu.
2Select an item from the Apply To pop-up menu to determine how the colors found are applied:
Fills & Strokes finds and replaces both fill and stroke colors.
All Properties finds and replaces fill, stroke, and effect colors.
Fills finds and replaces a fill color, except within pattern fills.
Strokes finds and replaces stroke colors only.
Effects finds and replaces effect colors only.
Finding and replacing URLs
In addition to words, typefaces, and colors, Fireworks allows you to find and replace URLs assigned to interactive
elements in your documents.
To search for and replace URLs assigned to web objects:
1Select Find URL from the Find pop-up menu of the Find panel.
2Enter the URL to search for in the Find text box.
3Enter the replacement URL in the Change To text box.
4If you want, select options to further define the search:
Whole Word finds the text only in the same form in which it appears in the Find option, not as part of any other
word.
Match Case distinguishes between uppercase and lowercase letters during the search.
Regular Expressions matches parts of words or numbers conditionally during a search.
Finding and replacing non-websafe colors
A non-websafe color is a color not included in the Web216 color palette. A color is websafe if it dependably appears
to be the same color on both Macintosh and Windows platforms. For more information about websafe colors, see
“Optimizing GIF, PNG, TIFF, BMP, and PICT files” on page 265.
ADOBE FIREWORKS CS3
User Guide
334
To search for all non-websafe colors and replace them with websafe colors:
❖Select Find Non-Web216 from the Find pop-up menu of the Find panel.
Note: Find Non-Web216 does not find or replace pixels within image objects.
Batch processing
Batch processing is a convenient way to automatically convert a group of graphic files. These are the batch-
processing options:
•Convert a selection of files to another format.
•Convert a selection of files to the same format with different optimization settings.
•Scale exported files.
•Find and replace text, colors, URLs, fonts, and non-Web216 colors.
•Rename groups of files by any combination of adding a prefix, adding a suffix, replacing a substring, and replacing
blanks.
•Perform commands on a selection of files.
To batch-process files:
1Select File > Batch Process, and select the files to process. You can select files from different folders, and you can
also include all currently open documents in the batch. As you’re working through the wizard, you can use the Back
button if you need to make any changes to your file selection.
You also have the option of not selecting any files at all while using the wizard if you only want to save the batch-
process script for later use.
ADOBE FIREWORKS CS3
User Guide
335
Note: If the files you select are locked or checked in from a Dreamweaver site, you are prompted to unlock them or check
them out before proceeding.
2Click one of the following in the Batch (Windows) or Batch Process (Macintosh) dialog box:
Add adds selected files and folders to the list of files to batch-process. If a folder is selected, all valid, readable files
in the folder are added to the batch process.
Note: Valid files are files that have been created, named, and saved. If the latest file version is not saved, you are asked
to save it, and you can then continue the batch process. If you don’t save the file, the entire batch process ends.
Add All adds all valid files in the currently selected folder to the list of files to batch-process.
Remove removes selected files from the list of files to batch-process.
3Select Include Current Open Files to add all currently open files.
These files do not appear in the list of files to batch-process, but they are included in the process.
4Click Next, then do one or both of the following:
ADOBE FIREWORKS CS3
User Guide
336
•To add a task to the batch, select it in the Batch Options list and click Add. Each task can be added only once. For
more information on the Scale option, see “Scaling graphics with a batch process” on page 338. For more infor-
mation on the Rename option, see “Changing filenames with a batch process” on page 339. For more information
on adding commands, see “Performing commands with a batch process” on page 339.
•To reorder the list, select the task in the Include in Batch list and click the up and down arrow buttons.
Note: The order in which tasks appear in the Include in Batch list is the order in which the tasks are performed during
the batch process, with the exception of Export and Rename, which are always performed last.
5To view extra options for a task, select the task in the Include in Batch list.
6Select settings for each option as required.
To remove a task from the batch, select the task in the Include in Batch list and click Remove.
7Click Next.
8Select options for saving processed files:
Same Location as Original File saves the file in the same location as its source file and overwrites the source file if the
filenames are the same and in the same format.
Custom Location lets you select a location in which to save the processed files.
9Select Backups to select backup options for the original files.
It is always safer to back up files. For more information, see “Specifying the batch process output location” on
page 340.
ADOBE FIREWORKS CS3
User Guide
337
10 Click Save Script if you want to save the batch process settings for future use.
For more information, see “Saving batch processes as scripts” on page 340.
11 Click Batch to perform your batch process.
At the end of the batch process, if any of the files added to the batch were not able to be processed, a notification
appears that alerts you to the problem.
In addition, a log file named FireworksBatchLog.txt is created during the batch process. It lists all of the files
processed, the specific files that could not be opened (if any), and other information. You can find this log file at:
•\\Documents and Settings\username\Application Data\Adobe\Fireworks 9\FireworksBatchLog.txt (Windows)
•/Users/username/Library/Application Support/Adobe Fireworks 9/FireworksBatchLog.txt (Macintosh)
Changing optimization settings with a batch process
You can change file optimization settings using the Export option in the Batch Process dialog box.
To set export settings for a batch process:
1Select Export from the Batch Options list and click Add.
2From the Settings pop-up menu, select from the following options and click OK:
•Select Use Settings from Each File to keep each file’s previous export settings during the batch process. For
example, when you batch-process a folder of GIFs and JPEGs, the resulting files remain GIFs and JPEGs, and
Fireworks uses the original palette and compression settings when exporting each file.
•Select Custom or click Edit to change settings in the Export Preview dialog box.
•Select a preset export setting such as GIF Web216 or JPEG – Better Quality. All files are converted to this setting.
3Click Next to continue the batch process.
For information on completing the batch process, see “Batch processing” on page 334.
ADOBE FIREWORKS CS3
User Guide
338
Scaling graphics with a batch process
You can alter the height and width of images being exported using the Scale option in the Batch Process dialog box.
To set scaling options for batch-processed files:
1Select Scale from the Batch Options list and click Add.
2In the Scale pop-up menu, select an option:
No Scaling exports files unaltered.
Scale to Size scales images to the exact width and height you specify.
Scale to Fit Area makes images fit proportionally with the maximum width and height range you specify.
Use Scale to Fit Area to convert a group of images to uniformly sized thumbnail images.
Scale to Percentage scales images by a percentage.
3If you have chosen either Scale to Size or Scale to Fit Area in the Scale pop-up menu, you can also choose to scale
only those documents that are currently larger than the target size. To do so, select the Only Scale Documents
Currently Larger Than Target Size option.
4Click Next to continue the batch process.
For information on completing the batch process, see “Batch processing” on page 334.
Finding and replacing during a batch process
You can find and replace text, fonts, colors, or URLs in buttons, hotspots, or slices using the Find and Replace option
in the Batch Process dialog box.
Batch Replace affects only the following file formats: Fireworks PNG, Illustrator, FreeHand, and CorelDraw. Batch
Replace does not affect GIFs and JPEGs.
To select attributes to find and replace during a batch process:
1Select Find and Replace from the Batch Options list and click Add.
2Click Edit.
ADOBE FIREWORKS CS3
User Guide
339
3Select the type of attribute to find and replace from the Find pop-up menu: text, font, color, URL, or Non-
Web216.
4Enter or select the specific element to find in the Find box.
5Enter or select the specific element to replace in the Change To box.
6Click OK to store Find and Replace settings.
7Click Next to continue the batch process.
For information on completing the batch process, see “Batch processing” on page 334. For more information about
Find and Replace options, see “Finding and replacing” on page 330.
Changing filenames with a batch process
You can change the names of files being processed using the Rename option in the Batch Process dialog box.
To set naming options for batch-processed files:
1Select Rename from the Batch Options list and click Add.
2Specify Rename options at the bottom of the Batch Process dialog box:
Replace with lets you replace characters in each filename with a different characters that you specify, or you can
delete characters from each filename. For example, if you have files named Temp_123.jpg, Temp_124.jpg, and
Temp_125.jpg, you might replace “Temp_12” with “Birthday,” thus changing the filenames to Birthday3.jpg,
Birthday4.jpg, and Birthday5.jpg.
Replace blanks with lets you replace existing blanks in the filename with a character or characters you specify, or
you can delete all blanks from each filename. For example, files named Pic nic.jpg and Slap stick.jpg might be
changed to Picnic.jpg and Slapstick.jpg, or Pic-nic.jpg and Slap-stick.jpg.
Add Prefix lets you enter text to add to the beginning of the filename. For example, if you enter “night_”, then the
file Sunrise.gif is renamed night_Sunrise.gif when it is batch processed.
Add Suffix lets you enter text to add to the end of the filename before the file extension. For example, if you enter
“_day”, then the file Sunset.gif is renamed Sunset_day.gif when it is batch-processed.
Note: For each changed filename, you can do any combination of Replace, Replace blanks, Add Prefix, and Add Suffix.
For example, you could replace “Temp” with “Party,” remove all blanks, and add a prefix and a suffix, all at the same
time.
3Click Next to continue the batch process.
For information on completing the batch process, see “Batch processing” on page 334.
Performing commands with a batch process
You can perform JavaScript commands on files using the Commands option in the Batch Process dialog box.
To set command options for batch-processed files:
1Click the Plus (+) button (Windows) or the triangle (Macintosh) beside the Commands option in the Batch
Options list to view the available commands.
2Select a command and click Add to add it to the Include in Batch list.
Note: These commands cannot be edited.
3Click Next to continue the batch process.
ADOBE FIREWORKS CS3
User Guide
340
For information on completing the batch process, see “Batch processing” on page 334. For more information on
creating commands, see “Scripting with the History panel” on page 342.
Note: Some commands do not work during a batch process. Select commands that work within the document without
requiring any object to be selected.
Specifying the batch process output location
After you select all batch options in the Batch Process dialog box, you must select options for saving your files. You
can save backup copies of the original files from a batch process. Backup copies of files are placed in an Original Files
subfolder in the same folder as each original file.
To back up batch-processed files:
1Select a location for the batch output.
2Select Backups to set your backup options.
3Select how you want to back up the files:
Overwrite Existing Backups overwrites the previous backup file.
Incremental Backups keeps copies of all the backup files. When you run a new batch process, a number is appended
to the end of the filename of the new backup copy.
Note: If Backup is deselected, batch processing in the same file format overwrites the original file if the name is the same.
However, batch processing in a different file format creates a new file and does not move or delete the original file.
4Click Batch to finish the batch process, or click Back to return to the Batch Process dialog box.
Saving batch processes as scripts
You can save batch process settings as a script or command to re-create the batch process easily in the future. After
you select all batch options in the Batch dialog box, you are given options for saving your files.
To create a batch script:
1Click Save Script to create a batch script.
2Enter a name and destination for the script.
3Click Save.
Saving your script into the Commands folder on your hard disk adds it to the Commands menu in Fireworks.
ADOBE FIREWORKS CS3
User Guide
341
Note: The exact location of this folder varies from system to system and depends on whether you want the command to
be available just to your user profile or to all users. Commands folders are located in the Configuration folder in the
Fireworks application folder and also in your user-specific Fireworks configuration folder. For more information, see
“Working with configuration files” on page 350.
To run a batch script:
1Do one of the following:
•In Fireworks, select Commands > Run Script.
•Outside Fireworks, double-click the script filename on your hard disk.
2Select a script and click Open.
3Select the files to process with the script:
Current Open Files processes all open documents.
Custom lets you select files to process.
Note: Click the Ellipsis (...) button beside the Files to Process pop-up menu to select files to process.
4Click OK.
For more information on selecting files, see “Batch processing” on page 334.
Running scripts by dragging and dropping
If you have a batch process that you repeat frequently, save it as a script, then drag that script from your hard drive
to the Fireworks icon on your desktop to run the batch process. The Fireworks application launches and runs that
script.
To run a script by dragging and dropping:
1Save a script.
2Do one of the following:
•Drag the script file icon onto the Fireworks desktop icon.
•Drag the script file icon into an open Fireworks document.
Note: Dragging multiple script files and multiple graphic files into Fireworks processes the graphic files multiple times,
once for each script.
Extending Fireworks
Extending Fireworks has never been easier. Fireworks offers a variety of different ways you can create custom
commands that enhance its capabilities.
With the Extension Manager, you can install and manage extensions that augment the functionality of Fireworks. Or
you can write custom JavaScript code and use it as a custom command in Fireworks. You can also use Adobe Flash
SWF movies as custom commands in Fireworks. You can paste color values directly from Flash actionscript into
Fireworks color boxes. In addition, the Fireworks History panel provides an easy-to-use interface that allows you to
create custom commands from a series of recorded tasks.
After you install an extension or create a custom command, Fireworks places it in the Commands menu.
ADOBE FIREWORKS CS3
User Guide
342
Note: If stored as a SWF file in the Command Panels folder on your hard disk, commands are available as panels in the
Window menu. For more information, see “About scripting with Flash SWF files” on page 344.
Using the Adobe Extension Manager
An extension is a command script, command panel, library, filter, pattern, texture, or Auto Shape that can be added
to Fireworks to enhance its capabilities. Fireworks ships with the Adobe Extension Manager, which allows you to
easily install, manage, and delete extensions. Upon installation, Fireworks includes a collection of default extensions
in the Commands menu.
You can also use the Extension Manager to bundle your own extensions and send them to the Adobe Exchange for
Fireworks. Through the Exchange, you can share your extensions with other Fireworks users.
Third-party extensions are stored in subfolders (depending upon the type of extension) in the Configuration folder
in the Fireworks application folder on your hard disk.
Commands that you create and save using the History panel are stored in your user’s Commands folder. For infor-
mation on the location of this folder, see “About user configuration files” on page 351.
To open the Extension Manager from within Fireworks, do one of the following:
•Select Commands > Manage Extensions.
•Select Help > Manage Extensions.
For more information about using the Extension Manager, see Extension Manager Help.
To visit the Adobe Fireworks Exchange, do one of the following:
•From within Fireworks, select Help > Fireworks Exchange.
•From a web browser, go to the Fireworks Exchange at www.adobe.com/go/fireworks_exchange.
Scripting with the History panel
The History panel records a list of the steps you have performed while working in Fireworks. Each step is stored on
a separate line of the History panel, starting with the most recent. By default, the panel remembers 20 steps. However,
you can change this value at any time.
Creating commands
You can save groups of steps in the History panel as a command that you can reuse. You can execute saved commands
in any Fireworks document. They are not document-specific.
Saved commands are stored as JSF files in the Commands folder in your user-specific Fireworks configuration folder.
For information on the location of this folder, see “About user configuration files” on page 351.
To save steps as a command:
1Select the steps to save as a command:
•Click a step, then Shift-click another to select a range of steps to save as a command.
•Control-click (Windows) or Command-click (Macintosh) to select noncontiguous steps.
2Click the Save Steps as Command button at the bottom of the History panel.
3Enter a name for the command and click OK.
The command appears on the Commands menu.
ADOBE FIREWORKS CS3
User Guide
343
To undo or redo steps using the History panel:
1Drag the Undo Marker up the panel until you reach the last step you want to undo or redo.
2Click along the Undo Marker track on the left of the History panel.
Note: Undone steps remain in the History panel highlighted in gray.
To change the number of steps the History panel remembers:
1Select Edit > Preferences (Windows) or Fireworks > Preferences (Macintosh).
2Change Undo Steps to the number of steps you want the History panel to record.
Note: Additional steps require more computer memory.
To clear all steps from the History panel:
❖Select Clear History from the History panel Options menu.
This frees memory and disk space.
Note: Clearing actions from the History panel removes your ability to undo edits.
Playing commands
You can execute recorded commands or a selection of actions in the History panel at any time.
To play back a saved command:
1If necessary, select one or more objects.
2Select the command from the Commands menu.
To replay a selection of steps:
1Select one or more objects.
2Select the steps in the History panel.
3Click the Replay button at the bottom of the History panel.
Steps marked with an X are nonrepeatable and cannot be played back. Separator lines indicate that a different object
has become selected. Commands created from steps that cross a separator line can produce unpredictable results.
To apply selected steps to objects in many documents:
1Select a range of steps.
2Click the Copy Steps to Clipboard button at the bottom of the History panel.
3Select one or more objects in any Fireworks document.
4Select Edit > Paste.
To repeat the last step:
❖Select Edit > Repeat Command Script.
About scripting with JavaScript
You can reduce the tedium of some repetitive tasks by writing your own JavaScript in a text editor to run within
Fireworks. You can control nearly every command or setting in Fireworks through JavaScript.
Dreamweaver also uses JavaScript. You can write scripts that control Fireworks from within Dreamweaver.
ADOBE FIREWORKS CS3
User Guide
344
For documentation on the JavaScript API, see Extending Fireworks.
About scripting with Flash SWF files
With Flash, you can create SWF movies that contain JavaScript code. These movies can be used as Fireworks
commands, accessible from the Commands menu in Fireworks.
You can even create a SWF movie and use it as a Fireworks panel, accessible from the Window menu. The Align panel
in Fireworks is an example of a Flash movie imported as a panel.
SWF movies that are used as commands are stored in the Commands folder on your hard disk, and SWF movies that
are used as panels are stored in the Command Panels folder.
Note: The exact location of these folders varies from system to system and depends on whether you want the command
or panel to be available just to your user profile or to all users. Commands and Command Panels folders are located in
the Configuration folder in the Fireworks application folder and also in your user-specific Fireworks configuration folder.
For more information, see “Working with configuration files” on page 350.
For more detailed instructions about creating commands or panels from Flash SWF movies, see Extending Fireworks.
Managing commands
You can rename or delete any commands that appear in the Commands menu.
You can rename or delete any commands that you create using the Manage Saved Commands option in Fireworks.
You must use the Extension Manager for other commands and extensions that were installed with Fireworks or that
you downloaded and installed from the Adobe Exchange website.
To rename a custom command that you created:
1Select Commands > Manage Saved Commands.
2Select the command.
3Click Rename, enter a new name, and click OK.
To delete a custom command that you created, do one of the following:
•In Fireworks, select Commands > Manage Saved Commands. Then select the command and click Delete.
•On your hard disk, delete the JSF file for the command from the Commands folder in your user-specific Fireworks
configuration folder. For information on locating this folder, see “About user configuration files” on page 351.
To rename or delete a command that shipped with Fireworks or that you downloaded from the Adobe
Exchange:
•Select Command > Manage Extensions.
•Select Help > Manage Extensions.
The Extension Manager opens. For information about how to manage extensions, see Extension Manager Help.
Editing or customizing a command script
Command scripts are saved as JavaScript. If you know JavaScript, you can open and edit commands in any text
editor, such as Notepad (Windows) or TextEdit (Macintosh).
ADOBE FIREWORKS CS3
User Guide
345
To edit a command using JavaScript:
1From your desktop, navigate to the appropriate Commands or Command Panels folder on your hard disk.
Note: The exact location of these folders varies from system to system and depends on whether you want the command
or panel to be available just to your user profile or to all users. Commands and Command Panels folders are located
in the Configuration folder in the Fireworks application folder and also in your user-specific Fireworks configuration
folder. For more information, see “Working with configuration files” on page 350.
2Open the desired script file in a text editor and modify the JavaScript code.
3Save and close the script.
To edit selected actions from the History panel using JavaScript:
1In Fireworks, select a range of steps in the History panel.
2Click the Copy Steps to Clipboard button at the bottom of the History panel.
3Create a new document in a text-editing application.
4Paste the steps into the new text document.
5Modify the steps as desired.
6Save and close the script.
7Copy the script to the Commands folder on your hard disk.
Note: The exact location of this folder varies from system to system and depends on whether you want the command
to be available just to your user profile or to all users. Commands folders are located in the Configuration folder in the
Fireworks application folder and also in your user-specific Fireworks configuration folder. For more information, see
“Working with configuration files” on page 350.
Commands saved directly into the Commands folder, as well as those saved in the History panel, appear in the
Commands menu as soon as you save them, so restarting Fireworks is not necessary. However, commands saved in
the Command Panels folder will be available in the Window menu only after you restart Fireworks.
Flash SWF movies used as Fireworks panels
Some panels in Fireworks, such as the Align panel, are actually Flash SWF movies.
If you know JavaScript or ActionScript, you can create your own Fireworks panel by designing and coding it in Flash
and exporting it as a SWF movie. If dropped into the Command Panels folder on your hard disk, the movie will
appear as a panel in the Fireworks Window menu.
Note: The exact location of this folder varies from system to system and depends on whether you want the panel to be
available just to your user profile or to all users. Command Panels folders are located in the Configuration folder in
the Fireworks application folder and also in your user-specific Fireworks configuration folder. For more information,
see “Working with configuration files” on page 350.
For more information about using Flash SWFs as Fireworks panels, see Extending Fireworks.
346
Chapter 18: Preferences and Keyboard
Shortcuts
Fireworks CS3 preference settings let you control the general appearance of the user interface, as well as editing and
folder aspects. In addition, Fireworks allows you to customize your keyboard shortcuts. This means that you can
customize your shortcuts and standardize them among your favorite software programs.
This chapter covers the following topics:
•“Setting preferences” on page 346
•“Changing keyboard shortcut sets” on page 349
•“Working with configuration files” on page 350
•“About reinstalling Fireworks” on page 351
•“Viewing package contents (Macintosh only)” on page 352
Setting preferences
Fireworks has preference settings that control the general appearance of the user interface as well as options related
to specific features such as default colors, tool options, folder locations, and file conversions.
To set preferences:
1Select Edit > Preferences (Windows) or Fireworks > Preferences (Macintosh).
2Select the preferences group you wish to modify: General, Editing, Launch and Edit, Folders, or Import.
3Make your changes and click OK.
General preferences
The following options are on the General preferences tab:
Undo Steps sets undo/redo steps to a number between 0 and 1009. This setting applies to both the Edit > Undo
command and the History panel. A large number of undos can increase the amount of memory Fireworks requires.
You must restart Fireworks for the change in this setting to take effect.
Color Defaults sets the default colors for brush strokes, fills, and highlight paths. The Stroke and Fill options do not
automatically change the colors displayed in the color boxes of the Tools panel; they allow you to change the default
colors that are specified by the Set Default Stroke/Fill Colors button in the Tools panel.
Interpolation sets one of four different scaling methods that Fireworks uses to interpolate pixels when images are
scaled:
•Bicubic interpolation gives the sharpest and highest quality most of the time and is the default scaling method.
•Bilinear interpolation gives sharper results than Soft interpolation but not as sharp as Bicubic.
•Soft interpolation, which was used in Fireworks 1, gives a soft blur and eliminates sharp details. This method is
useful when others produce unwanted artifacts.
ADOBE FIREWORKS CS3
User Guide
347
•Nearest Neighbor interpolation results in jagged edges and sharp contrasts with no blurring. The effect is similar
to zooming in or out on an image with the Zoom tool.
Faster but less accurate resampling is deselected by default. It allows you to control the speed of resampling within
Fireworks.
Launch options The Show start page option controls whether the Fireworks startup page displays when you open
the application. If this option is deselected, the application opens directly into the workspace.
Saving files: Add Preview Icons (Macintosh only) allows you to display or hide thumbnails of Fireworks PNG files on
your hard disk. Deselecting this option displays the traditional Fireworks icon used for Fireworks PNG files. This
option takes effect after you save the file.
Editing preferences
The editing preferences control pointer appearance and visual cues for working with bitmap objects.
Delete objects when cropping permanently deletes pixels or objects that are outside the bounding box of a selection
when you select Edit > Crop Document or Modify > Canvas > Canvas Size.
Delete paths when converting to marquee permanently deletes the path after it has been converted to a marquee
Brush-size painting cursors sets the size and shape of the Brush, Eraser, Blur, Sharpen, Dodge, Burn, and Smudge
tool pointers to accurately reflect what you are about to draw or erase. For certain large multi-tipped brushes, the
cross-hair pointer is used by default. When this option and Precise Cursors are turned off, tool icon pointers are
displayed.
Precise cursors replaces tool icon pointers with the cross-hair pointer.
Turn off “hide edges” automatically disables Hide Edges when the selection changes.
Show pen preview provides a preview of the next path segment that will be created if you click at that moment with
the Pen tool.
Show solid points shows selected points as hollow and deselected points as solid.
Mouse highlight Highlights what you would select if you were to click on the object that is currently beneath the
mouse.
Preview drag Shows a preview of the new object location when dragging.
Show fill handles Allows the onscreen editing of fills.
Pick distance lets you specify how close to an object the pointer must be before you can select it. Pick Distance can
be between 1 and 10 pixels.
Snap distance lets you specify how close the object you are moving must be before it snaps to a grid or guide line.
Snap Distance works when Snap to Grid or Snap to Guides is turned on. Snap Distance can be between 1 and 10
pixels.
Launch and Edit preferences
By setting launch-and-edit preferences, you can control how external applications, such as Adobe Flash and Adobe
Director launch and edit graphics in Fireworks.
In most cases, Fireworks attempts to locate the source PNG for a graphic on its own. When it can’t locate the source
PNG, Fireworks uses the launch-and-edit preferences that you set to determine how it will handle locating the source
PNG file.
ADOBE FIREWORKS CS3
User Guide
348
Note: Flash is an exception. When launching and editing graphics in Flash, Fireworks always uses the preferences you
set in the Launch and Edit section of the Preferences dialog box.
When editing from external application determines whether the original Fireworks PNG file opens when you use
Fireworks to edit images from within other applications.
When optimizing from external application determines whether the original Fireworks PNG file opens when you
optimize a graphic.
Note: This setting does not apply to Director, which always automatically opens and optimizes a graphic without asking
for a source PNG, even if you set this preference differently in Fireworks.
For more information on working with Fireworks graphics within Flash, see “Working with Flash” on page 305.
For more information on working with Fireworks graphics in Director, see “Working with Director” on page 317.
Note: Adobe Dreamweaver handles launch-and-edit settings differently. Dreamweaver always opens the source PNG,
even if you set launch-and-edit preferences differently in Fireworks. If no Design Note exists or if the path to the source
PNG is broken, Dreamweaver always prompts you to locate the source PNG file. For more information on working with
Fireworks graphics and interactive elements within Dreamweaver, see “Working with Dreamweaver” on page 292.
Folders preferences
The folders preferences give you access to additional Adobe Photoshop plug-ins, texture files, and pattern files from
external sources.
Additional Materials (Photoshop Plug-Ins, Textures, and Patterns) targets folders containing plug-ins, textures, and
patterns. The folders can be in another folder on your hard disk, on a CD-ROM or other external drive, or on a
network volume.
Photoshop plug-ins appear in the Fireworks Filters menu and the Property inspector’s Add Effects menu. Textures
or patterns stored as PNG, JPEG, and GIF files appear as options in the Pattern and Texture pop-up menus in the
Property inspector.
For more information about textures and patterns, see “Adding texture to a fill” on page 146.
Photoshop Import preferences
The preferences in the Import tab let you manage Photoshop file conversions:
•You can convert layers as objects or new frames.
•You can choose between editing imported text or maintaining its appearance.
•You can import a Photoshop file as a flattened bitmap object.
For more information on the Import preferences, see “Working with Photoshop” on page 322.
Restoring preferences
You can restore preferences to their original settings by deleting the preferences file. The first time Fireworks is
launched after the preferences file has been deleted, a new preferences file is created, restoring Fireworks to its
original configuration.
To restore default preferences:
1Quit Fireworks.
ADOBE FIREWORKS CS3
User Guide
349
2Locate the Fireworks CS3 Preferences file on your hard disk and delete it.
The exact location of this file varies from system to system. For more information, see “Location of the Fireworks
preferences file” on page 351.
3Restart Fireworks.
Changing keyboard shortcut sets
Fireworks lets you use keyboard shortcuts to select menu commands, select tools from the Tools panel, and speed
up miscellaneous tasks that do not exist as menu commands. Using shortcuts increases your productivity by allowing
you to perform simple actions quickly. If you are accustomed to using shortcuts from other applications such as
Adobe FreeHand, Adobe Illustrator, Photoshop, or products that use a different standard, you can switch to the
shortcut set you prefer.
To change the current shortcut set:
1Select Edit > Keyboard Shortcuts (Windows) or Fireworks > Keyboard Shortcuts (Macintosh) to open the
Keyboard Shortcuts dialog box.
2Select the shortcut set you prefer from the Current Set pop-up menu and click OK.
Creating custom and secondary shortcuts
You can create your own custom keyboard shortcuts, and you can create secondary shortcuts if you need to have
several different ways to perform an action. A custom shortcut set is always based on a preinstalled set.
Note: In Fireworks, shortcuts to tools cannot include modifier keys: Control, Shift, and Alt (Windows) or Command,
Shift, Option, and Control (Macintosh). Tool shortcuts consist of a single letter or number key.
To create a custom or secondary shortcut for a menu command, tool, or miscellaneous action:
1Select Edit > Keyboard Shortcuts to open the Keyboard Shortcuts dialog box.
2Click the Duplicate Set button.
3Enter a name for the custom set in the Duplicate Set dialog box and click OK.
The name of the new custom menu appears in the Current Set text box.
4Select the appropriate shortcut category from the Commands list:
Menu Commands •creates a custom shortcut for any command accessed through the menu bar.
Tools •creates a custom shortcut for any tool on the Tools panel.
Miscellaneous •creates a custom shortcut for a range of predefined actions.
Once selected, all possible shortcuts in the particular category appear in the Commands scroll list.
5Select the command whose shortcut you want to modify from the Commands list.
If a shortcut exists, it is displayed in the Shortcuts list.
6Click in the Press Key text box, and press the desired keys for the new shortcut on the keyboard.
If the key combination you select is already used by another shortcut, a warning message appears below the Press
Key text box.
ADOBE FIREWORKS CS3
User Guide
350
7Do one of the following:
•Click the Add a New Shortcut (+) button to add a secondary shortcut to the shortcut list.
•Click Change to replace the selected shortcut.
Deleting custom shortcuts and custom shortcut sets
You can delete any custom shortcut or any custom shortcut set.
To delete a custom shortcut set:
1Select Edit > Keyboard Shortcuts to open the Keyboard Shortcuts dialog box.
2Click the Delete Set button (trash can icon).
3Select the shortcut set you want to delete from the Delete Set dialog box.
4Click the Delete button.
To delete a custom shortcut:
1Select the command in the Commands list.
2Select the custom shortcut from the Shortcuts list.
3Click the Delete a Selected Shortcut (-) button.
Creating a reference sheet for the current shortcut set
A reference sheet is a record of the current shortcut set stored in HTML table format. You can view the reference
sheet in a web browser or print it.
Note: Reference sheets exported from Fireworks are UTF-8 encoded.
To create a reference sheet:
1Select Edit > Keyboard Shortcuts to open the Keyboard Shortcuts dialog box.
2Click the Export Set as HTML button beside the Current Set text box.
The Save As (Windows) or Save (Macintosh) dialog box is displayed.
3Enter the name for the reference sheet, and select the appropriate location for the file.
4Click Save.
Working with configuration files
To accommodate multiuser systems, Fireworks supports user-specific configuration files. This lets you customize
features in Fireworks such as styles, keyboard shortcuts, commands, and so forth, without affecting the configu-
ration of Fireworks for other users.
Fireworks creates a different set of configuration files for each user. Fireworks also installs master configuration files
in the Fireworks application folder. Master configuration files contain the default settings for Fireworks and affect
all users. Some configuration files, such as Fireworks plug-ins, are located only in the Fireworks application folder.
On some systems, only system administrators have access to the master configuration files in the Fireworks appli-
cation folder.
ADOBE FIREWORKS CS3
User Guide
351
Note: Windows systems often hide certain files and folders by default. Ensure that your Folder View options are set to
display all files and folders. On some systems, you may also need to click Show Files once you get to a folder in order to
see its contents. For information about viewing all files and folders, see Windows Help.
About user configuration files
Fireworks user configuration files are stored in the Adobe/Fireworks 9 folder in your user-specific Application Data
folder (Windows) or Application Support folder (Macintosh). The location of this folder varies depending on what
operating system you use and on whether your system is a multiuser system or a single-user system. For information
on locating this folder, see your operating system documentation.
Note: The names of some system folders may vary on localized and customized systems.
About master configuration files that affect all users
Master configuration files that affect all users are located in the Fireworks application folder, which is the location
on your hard disk where you installed Fireworks.
Note: Many configuration files are stored in subfolders within the Fireworks application folder. Their location varies
depending on your operating system. Also, Macintosh users should be familiar with the package concept from Apple. For
more information see “Viewing package contents (Macintosh only)” on page 352.
Whether you’re on a multiuser or a single-user system, Fireworks changes your user-specific configuration files and
not the master configuration files in the Fireworks application folder when you save most settings. This is because
many users don’t have access to all files if they are on multiuser systems.
Users with administrator-level access can customize features for all users by modifying the master configuration files
in the Fireworks application folder.
To save a master configuration setting for all users:
❖Save or drag a copy of the file into the appropriate location in the Fireworks application folder.
Location of the Fireworks preferences file
Fireworks preferences are stored in a file named Fireworks 9 Preferences.txt (Windows) or Fireworks 9 Preferences
(Macintosh). The location of this file varies depending on your operating system.
•In Windows, preferences are in your user-specific Fireworks configuration folder. For more information about
locating this folder, see “About user configuration files” on page 351.
•On the Macintosh, preferences are in the Library/Preferences folder in your user folder. For information about
locating your Macintosh user folder, see Apple Help.
Note: On the Macintosh, most Fireworks user-specific configuration files are stored in a different folder, your user-
specific Application Support folder. The Fireworks 9 Preferences file is an exception.
About reinstalling Fireworks
When you uninstall or reinstall Fireworks, your user-specific configuration files are left untouched on most systems.
If you want to reinstall Fireworks using the default settings, you must manually delete your user-specific configu-
ration files before reinstalling the application.
ADOBE FIREWORKS CS3
User Guide
352
Note: Your user-specific configuration files are located in your user-specific Application Data (Windows) or Application
Support (Macintosh) folder. For information on locating this folder, see “About user configuration files” on page 351.
You will be asked during the uninstall process if you want to remove preferences and user-specific configuration files.
Doing so will remove these files for all users on the system.
Viewing package contents (Macintosh only)
On the Macintosh, Fireworks is installed in a format called the application program package. This is a feature from
Apple that allows applications to be installed in a self-contained package.
The application package is where the Fireworks application file is stored, along with all default configuration files
that come with Fireworks. Package contents are hidden by default.
After you open the package, you’ll notice a number of files and folders.
To show or hide the contents of the Fireworks application program package:
1Navigate to the location on your hard disk where you installed Fireworks.
2Control-click the Fireworks CS3 icon and select Show Package Contents from the context menu.
A new window opens displaying the package contents.
353
Index
Numerics
24-bit color 267
32-bit color 267
A
absolute URLs, entering 196
accessibility
of Help 3
ACT file format, swatches 128
ACT file, exporting 133
activation of software 1
Add Filters pop-up menu 147
Add Noise filter 83
Add Preview Icons preference 347
adding
frames 243
pages 156
styles 184
adjusting
hue or saturation 77
tonal range using eyedropper 75
Adobe Bridge 328
Adobe Bridge Home 6
Adobe Design Center 6
Adobe Fireworks
system requirements 1
Adobe Flex Builder 329
Adobe GoLive 288
Adobe Help 2
Adobe Video Workshop 4
Adobe XMP 328
Align panel 28
aligning objects 59
alpha channel of an object,
selecting 48
alpha, converting images to 81
alt (alternate) text 212
assigning to buttons or
instances 228
animation 238
adding frames 243
creating from multiple files 249
custom frame viewing 246
deleting frames 244
disabling layer sharing 245
editing 301
exporting 248
frames 240
inserting frames 243
looping 247
managing frames 242
movement 240
moving objects to another
frame 244
multiframe editing 246
naming frames 243
onion skinning 245
opacity 240
opening 248
optimizing 248
playing 246
previewing 246
properties 239
removing 241
reordering frames 244
rotation 240
scaling 240
setting frame delay 242
sharing layers across frames 244
transparency 247
turning frames on and off 243
viewing all frames 246
viewing current and adjacent
frames 246
viewing multiple frames 245
viewing next frame 246
anti-aliasing
edges 144
removing halos 275
smoothing text edges 118
target background color 274
application program package 352
arranging frames 244
Arrow tool 86
Auto Levels feature for adjusting
tonal range 72
Auto Shapes 86, 87, 88, 92
Auto Shapes Properties panel 28
auto-naming slices 213
changing default naming
convention 214
B
backing up during Find and
Replace 332
baseline shift 119
Batch Process dialog box 334
batch processing 334
backing up files 340
commands 339
export settings 337
filenames 339
Find and Replace 338
optimization settings 337
saving as scripts 340
saving files 336
scaling graphics 338
batch scripts 340
dragging and dropping 341
running 341
behaviors 210
Behaviors panel 209
Dreamweaver 206
Nav Bar Down 210
Nav Bar Over 210
Nav Bar Restore 210
Set Nav Bar Image 210
Set Pop-up Menu 210
Set Text of Status Bar 210
Simple Rollover 209
Swap Image 209
Behaviors panel 28, 209
beveled edges 149
Beveled Rectangle tool 86
bicubic interpolation scaling
method 346
bilinear interpolation scaling
method 346
bitmap graphics 14
bitmap masks 164, 165
creating 169
using an existing object as 167, 169
bitmap mode 12
applying with tools 25
INDEX 354
switching to 61
bitmaps
adjusting brightness and
contrast 76
adjusting color and tone 71
adjusting hue and saturation 77
blurring and sharpening 79
erasing 65
retouching 66
blending
applying 181
colors of overlapping objects 179
objects 246
setting blending mode 181
blending colors 135
blending modes 179
Color 180
Darken 179
Difference 180
Erase 180
Hard Mix 180
Hue 180
Invert 180
Lighten 179
Linear Burn 179
Linear Dodge 179
Linear Light 179
Luminosity 180
Multiply 179
Pin Light 180
Saturation 180
Screen 179
Tint 180
Vivid Light 179
Blur filter 79
Blur More filter 79
Blur tool 66
blurring 79
bitmap areas 66
images 67
BMP file format 265
BMP, saving 23
bold text 112
Border command 50
boundaries 136
Bridge Home 6
Bridge, Adobe 328
brightness 76
Brightness/Contrast filter 76
Bring Forward command 59
Bring to Front command 59
Brush tool 64, 93
brushes
saving settings 140
setting tip 139
stroke options 138
Brush-size Painting Cursors
preference 347
Burn tool 66
Button Editor 221
creating symbols in 187
editing symbols in 193
button states
Down 221, 222
Over 221
Over While Down 221, 222
Up 221
button symbols
editing 224
inserting in a document 223
buttons
active area 226
Button Editor 220
creating 220
defined 221
Live Filters 222
navigation bars 228
overview 220
setting a target 227
C
canvas 34
modifying characteristics 34
modifying resolution 35
rotating 36
trimming 36
cell border properties 234
cellular phone graphics. See WBMP
files
center point and axis of rotation 56
Chamfer Rectangle tool 87
character spacing. See kerning
Check Spelling command 124
cloning
bitmap areas 66
images 66
objects 54
CMY color model 130
collapsing layers 161
color
adjusting 71
applying from Swatches panel 127
changing 64
changing stroke 137
choosing color depth 266
choosing swatch group 128
choosing using Eyedropper
tool 136
color models 130
creating in Color Mixer 131
creating with system color
picker 131
deleting from Swatches panel 129
dithering with websafe 132
fills 76
finding and replacing 333
finding and replacing non-
websafe 333
gradient fills 142
inverting values 78
picking from color bar 130
pop-up window 135
removing unused 267
replacing a swatch 129
resetting default 127
sampling 64, 136
saving custom swatches 129
setting preferences 346
viewing color values 131
color bar 127, 129
choosing a color with 130
cycling through color models 131
color blending 135
color correction
brightness and contrast 76
Curves 74
Levels 72
using eyedropper 75
Color Mixer 28, 129, 130
creating colors with 131
displaying 130
mixing colors in 130
resetting default colors in 127
swapping stroke and fill colors
in 127
color models
CMY 130
Grayscale 130
INDEX 355
Hexadecimal 130
HSB 130
RGB 130
Color Palette panel 133
color palettes
Adaptive 266
appending to current swatches 128
Black and White 266
Custom 266
editing 269
Exact 266
Grayscale 266
importing 266
locking colors 269
optimizing 269
saving 270
setting number of colors 266
System (Macintosh) 266
System (Windows) 266
Uniform 266
viewing 268
Web 216 266
WebSnap Adaptive 266
color palettes, swapping 134
color picker, system 131
color table 268
edited swatch in 268
locked swatch in 268
selecting colors in 268
swatch with multiple attributes
in 268
transparent swatch in 268
updating 268
websafe swatch in 268
colorizing images 77
command scripts, editing 344
commands
batch processing 339
creating 342
deleting custom 344
editing 344
renaming custom 344
renaming or deleting Adobe
Fireworks commands 344
saving 40
Commands menu 343
managing saved commands 344
composite paths 104
compositing 179
compression
adjusting 270
and optimization 261
blurring edges 274
choosing a file type 265
selective 273
configuration files 350
customizing for all users 351
for all users 351
location of 351
master 350, 351
configuring Adobe Fireworks 346
Connector Line tool 87
Constrain Proportions option 17
constraining rotation 56
context menus 37
Contract command 49
contracting paths 106
contrast 76
Convert to Symbol dialog box 186
converting paths 104
copying
all selected objects on a layer 161
bitmaps 53
frames 243
HTML 283
object attributes 186
objects 53
pixels 44
copying and pasting
Adobe Fireworks HTML 283
symbol instances 195
copying and pasting objects from
other applications 19
corner points 94
Create Symbol Script panel 28
creating
master pages 157
rich graphic symbols 190
slideshows 250
Crop command 105
cropping
canvas 37
documents 37
CSS layers, exporting 285
curve points 95
curve segments, editing 96
custom shortcut sets. See keyboard
shortcuts
cutting paths 103
D
darkening
bitmap areas 66
images 68
default preferences 348
Delete Objects While Cropping
preference 347
Delete Paths When Converting to
Marquee preference 347
deleting
frames 244
layers 160
Live Filters 152
masks 178
pages 156
points 99
points on curves 75
selected objects 54
styles 185
swatches 129
Deselect command 47
deselecting all objects 43
Design Center 6
Design Notes for Dreamweaver and
Adobe Fireworks
integration 303
Director
cast members 319
exporting to 317
placing Adobe Fireworks files
in 317
disjoint rollovers 208
applying to a slice 208
attaching to hotspots 218
creating 208
display modes, switching 34
Distort tool 57
distorting objects 57
dithering 267
with websafe colors 132
docking panels 28
in panel group 29
document tabs 31
documents
creating new 15
default mode 84
multiple views 33
opening 16
INDEX 356
recent 16
saving 22
switching 31
tiling views 33
Dodge tool 66
Doughnut tool 87
Down button state 221
downloads
updates, plug-ins, and tryouts 7
downsampling 36
drag-and-drop behaviors
blue line 207
definition 207
deleting 208, 209
dragging and dropping 18
drawing 87
arrows 86
bending adjacent segments 99
beveled rectangles 86
chamfer rectangles 87
changing adjacent segments 99
connector lines 87
converting straight paths to
curved 97
distorting objects 57
doughnuts 87
ellipses 84
lines 84
L-shapes 87
pie charts 87
polygons 85, 87
rectangles 84
rounded rectangles 85, 87
selecting a point 98
spirals 87
splitting paths 104
stars 85
drawing area. See canvas
Dreamweaver
behaviors 206, 299
editing Adobe Fireworks images
in 297
exporting to 288, 296
files 292
libraries 296
making Adobe Fireworks the
default image editor 302
placeholders 292
Dreamweaver and Adobe Fireworks
integration
Design Notes 303
editing Adobe Fireworks
animations 301
external editor preference 303
Launch and Edit preferences 304
launching and editing Adobe
Fireworks images 298
launching and editing Adobe
Fireworks tables 299
launching and optimizing Adobe
Fireworks images 300
Optimize Image in Adobe
Fireworks command 300
updating Adobe Fireworks
HTML 296
drop shadows 150
duplicating
selected objects 53
E
edges
beveled 149
showing and hiding 43
Edit Gradient dialog box 143
Edit Stroke dialog box 138
editing
actions in the History panel 345
animation symbols 240
behaviors 210
bitmap objects 63
gradient fills 142
images 63
Live Filters 152
pages 156
paths 100
pixels 44
pop-up menus 236
selected objects 53
single layer 162
solid fills 141
styles 185
editing paths 107
effects
editing 152
finding and replacing 333
glow 150
Live Filters 147
plug-ins 151
removing 152
setting defaults 153
ellipse 84
e-mail 289
embossing 149
EPS files, opening in Adobe
Fireworks 17
Eraser tool 65
erasing bitmaps 65
Expand command 49
Expand Stroke command 106
expanding
layers 161
strokes 106
Export Area tool 280
Export Preview 258
comparing optimization
settings 259
optimizing 258
panning area 259
previewing 258
previewing optimization 258
zooming 259
exporting 276
Adobe Fireworks files to
Dreamweaver 321
an area 280
animated GIFs 248
animations 247, 279
batch process settings 337
CSS layers 285
customizing files for
Photoshop 325
default location for 276
frames as multiple files 279
hotspots 217
HTML 280
images 277
layers as multiple files 279
pages as image files 158
pages to HTML 157
results 281
slices 211, 278
styles 185
symbols 195
to Director 317
to Dreamweaver 296
to Flash 305, 310
to FreeHand 314
to Illustrator 314
to Photoshop 325
to WBMP files 265
INDEX 357
UTF-8 286
XHTML 286
exporting graphics 13
Extension Manager 341
external editor preference 303
external files, converting to swap
image 211
Extras 5
eyedropper pointer 130, 135, 136, 140
Eyedropper tool 64, 128
F
Feather command 65
feathering 65
creating feathered edges 144
pixel selections 49
features, new 8
file formats
BMP 265
GIF 265
JPEG 265
PNG 265
TIFF 265
File Management button 289, 304
File Management menu 289, 304
file size
reducing quality 273
setting loss to reduce size 270
filenames, changing in a batch
process 339
files, unlocking 289, 304
Fill Color box 64
Fill Color Live Filter 182
fills
adding texture to 146
adjusting 144
applying color fills 76
applying gradient 64, 142
applying pattern 141
applying solid 141
changing color for basic shape
tools 140
changing edges 144
drawing over strokes 139
editing gradient 142
editing solid 141
feathering or anti-aliasing 144
finding and replacing 333
moving 144
resetting default color 127
rotating 144
saving custom gradient 145
saving gradient 145
swapping stroke and fill colors 127
transforming gradient 144
transforming pattern 144
transparency illusion 132
web dither fill 132
filters
Add Noise 83
Blur 79
Blur More 79
Brightness/Contrast 76
Find Edges 80
Gaussian Blur 79
Hue/Saturation 77
Invert 78
Motion Blur 79
Photoshop plug-ins 150
Radial Blur 80
Sharpen 81
Sharpen More 81
Unsharp Mask 82
Zoom Blur 80
Find and Replace panel 331, 332
Find Edges filter 80
Find panel 28
finding and replacing 331
batch processed files 338
colors 333
fonts 332
multiple files 332
non-websafe colors 333
selecting source for search 331
text 332
URLs 333
uses 330
Fireworks 327
Fireworks. See Adobe Fireworks
Fit to Canvas 36
Flash
exporting to 305, 310
importing Adobe Fireworks PNG
to 305
Flash SWF movies 345
Flatten Selection command 62
Flex integration 329
flipping objects 56
floating pixel selections
creating 52
moving 52
font installation 2
fonts
finding and replacing 332
handling missing 123
styles 112, 113
type sizes 112, 113
frame delay
animations 242
frame delay, default setting 17
frames
adding 243
custom viewing 246
deleting 244
disabling layer sharing 245
exporting 279
inserting 243
managing 242
moving objects to another
frame 244
multiframe editing 246
names in animation 243
onion skinning 245
reordering 244
setting delay 242
sharing layers for animation 244
turning off onion skinning 246
turning on and off 243
viewing all 246
viewing current and adjacent 246
viewing next 246
Frames panel 27, 242
freeform paths 93
FreeHand
exporting to 314
placing Adobe Fireworks graphics
in 312
Full Screen with Menus mode 33
G
Gaussian Blur filter 79
GIF file format
choosing 265
choosing a color palette 266
swatches 128
GIF, saving 23
glow effects 150
GoLive 288, 327
INDEX 358
gradient fills 64
adding new color 143
adjusting 144
adjusting color transition 143
applying 142
changing colors 143
converting images to
transparency 81
Edit Gradient dialog box 143
editing 142
moving 144
removing colors from 143
rotating 144
saving custom 145
transforming 144
Grayscale color model 130
grid
altering cell size 40
changing default color 39
showing/hiding 39
snapping objects to 39
grouping objects 58
guides 38
locking 39
snapping objects to 39
H
halos, removing 275
handles, transform 54
Help 2
Hexadecimal color model 130
Hide All command 170
Hide Panels command 29
Hide Selection command 170
hiding
edges 43
layers 162
objects on layers 162
panels 29
toolbars 31
highlights 72
Histogram 72
History panel 27, 40
changing the number of steps
in 343
clearing all steps from 343
editing actions with 345
replaying steps 343
HomeSite
placing Adobe Fireworks HTML
in 320
placing Adobe Fireworks images
in 320
hotspots 13
applying drag-and-drop
rollovers 218
assigning URLs 212
creating 216
editing shape 217
irregular 217
on top of slices 219
HSB color model 130
HTML 281
copying and pasting from Adobe
Fireworks to Dreamweaver 283
exporting 280, 282
inserting from Adobe Fireworks
into Dreamweaver 295
replacing older version 285
Roundtrip 298
Setup 287
updating Adobe Fireworks HTML
placed in Dreamweaver 296
working with editors 327
HTML, opening tables 18
hue, adjusting 71, 77
Hue/Saturation filter 77
I
icon images. See thumbnails
Illustrator
exporting to 314
importing files into Adobe
Fireworks 326
Image Editing panel 28, 63
image maps 216
creating 216
exporting 218
images
exporting 277
Image Editing panel 63
painting 63
saving 277
selecting 44
selecting pixels 44
images as fills. See Paste Inside
command
import text 122
ASCII text 123
Photoshop files 123, 323
RTF files 123
importing
from digital camera 20
Photoshop files 323
Photoshop import preferences 348
PNG files 20
styles 185
symbols 195
indenting text 117
Info panel 28
inserting
Adobe Fireworks HTML into
Dreamweaver 295
Adobe Fireworks images into
Dreamweaver 292
Inset Path command 106
installing Photoshop plug-ins 151
instance-level properties 225
instances
defined 186
editing 193
placing in document 187
tweening 246
integration with other
applications 291
interactive button properties 226
interactivity 13
interlacing graphics 272
interpolation (scaling) 346
Intersect command 105
Invert filter 78
italic text 112
J
JPEG files
choosing JPEG format 265
editing selected areas 274
optimization settings 272
progressive 274
Selective JPEG compression 273
Sharpen JPEG Edges
command 274
JPEG, saving 23
K
kerning 114
keyboard shortcuts 349
changing current set 349
custom shortcut sets 349
deleting custom shortcut sets 350
INDEX 359
reference sheet for current set 350
secondary shortcuts 349
UTF-8 encoded reference
sheets 350
keyboard shortcuts in Help 3
Knife tool 103
L
Launch and Edit preferences 304
Launch options 347
layer effects, Photoshop 151
layers
activating 159
adding and removing 160
disabling sharing across
frames 245
duplicating 160
expanding or collapsing 161
exporting 279
locking 162
moving 161
naming 161
organizing 161
removing from master pages 157
sharing 163
sharing across frames for
animation 244
viewing 161
Layers panel 27, 159
naming slices 213
viewing slices 203
leading 115
letter spacing. See kerning
Levels feature for adjusting tonal
range 72
Library panel 186
inserting button symbols 223
lightening
bitmap areas 66
images 68
line spacing 115
See also leading
lines 84
See also strokes
linking to master pages 157
Live Filters
applying 153
applying to objects 148
creating 152
editing 152
enabling or disabling 148
Fill Color 182
in buttons 222
Photoshop plug-ins 150
removing 152
renaming 153
reordering 152
LiveDocs 2
locked files 289, 304
locking layers 162
L-shape tool 87
M
macros 343
marquees 44
adjusting 47
contracting 49
deleting 52
deselecting 47
expanding 49
moving 47
removing 47
saving and restoring 51
selecting area around 50
selecting pixels by intersecting 48
smoothing 50
transferring to another object 50
masks 164
adding objects to a masked
selection 178
bitmap 165
creating empty 170
deleting 178
disabling 178
enabling 178
grouping objects to form a
mask 172
modifying 175
moving with masked objects 174
replacing 178
text as a mask 169
using an existing object as 167, 169
vector 164
master pages
changing to normal page 157
creating 157
linking to 157
removing layers 157
merging paths 99, 103
midtones 72
mirroring. See flipping objects
mobile phone graphics 17
mobile phone graphics. See WBMP
files
modes
entering bitmap 12
entering vector 12
vector 84
Motion Blur filter 79
mouse events 210
Mouse Highlight preference 347
MXML export 329
N
nav (navigation) bars
creating 228
Down state 210
Over state 210
Restore behavior 210
navigating a document 31
navigation shortcuts 3
nearest neighbor interpolation
scaling method 347
nested tables 215
new document, matching Clipboard
size 15
new features 8
Numeric Transform command 57
O
object-oriented graphics 14
objects
converting to animation 239
creating bitmaps 62
distorting 57
grouping 58
merging 162
moving selected 53
removing an effect 152
selecting 41
selecting alpha channel 48
skewing 56
slanting 56
stacking 59
ungrouping 58
objects, locating pasted 19
onion skinning
Button Editor 220
custom viewing 246
INDEX 360
defined 245
multiframe editing 246
turning off 246
viewing all frames 246
viewing current and adjacent
frames 246
viewing next frame 246
opacity, adjusting 181, 271
See also transparency
opening
animated GIFs 17, 248
documents 16
graphics created in other
applications 16
multiple document views 33
multiple files as animations 249
PSD files 17
recent files 16
WBMP files 17
optimization settings
changing in a batch process 337
comparing two or four settings 264
deleting preset settings 276
JPEG 272
preset 213, 262
reusing 263, 275
saving 263, 275
sharing with another user 276
Optimize Image in Adobe Fireworks
command 300
Optimize panel 27
Optimize to Size wizard 260
optimizing 258
Adobe Fireworks images from
Dreamweaver 300
animations 248
basics 257
using Export Wizard 258
optimizing graphics 13
Options menu in panels 30
outlines 136
See also strokes
Over button state 221
Over While Down button state 221
overlapping slices 205
P
package contents, viewing 352
pages
adding and removing 156
creating links between 197
duplicating 156
editing 156
exporting as image files 158
exporting to HTML 157
master 157
moving between 156
Pages panel 27
panels 27
Align 28
Auto Shapes Properties 28
Behaviors 28, 209
Create Symbol Script 28
docking 28
docking in panel group 29
Find 28
Find and Replace 331, 332
Frames 27, 242
hiding 29
History 27, 40
Image Editing 28
Info 28
Layer 159
Layers 27
Library 186
moving 28
opening custom layouts 30
Optimize 27
Options menu in 30
organizing 28
Pages 27
restoring default positions 29
saving custom layouts 30
Shapes 27
Special Characters 28
Styles 27, 183
Swatches 28, 127
Symbol Properties 28
Tools 25
undocking 28
undocking from panel group 28
URL 27, 196
using SWF movies as 345
panning 33
paragraph spacing 117
Paste Inside command 168
pasted images 19
pasting HTML 284
Path panel 107
paths 103
adding stroke texture 145
bending adjacent segments 99
changing adjacent segments 99
changing shape 99
converting straight to curved 97
copying and pasting 315
creating custom strokes 138
cropping 105
editing strokes 136
pulling 101
pushing 101
resetting default colors 127
selecting a point 98
splitting 104
swapping stroke and fill colors 127
pattern fills
adjusting 144
applying 141
moving 144
rotating 144
transforming 144
Pen tool 94
adding points with 99
curved segments 95
deleting points with 99
resuming path 99
straight segments 94
Pencil tool 63
perspective illusion 57
Photoshop
applying layer effects 151
applying plug-ins 151
customizing files for export 325
exporting to 325
grouped layers 164
import preferences 348
importing files into Adobe
Fireworks 322
installing plug-ins 151
layer masks 171
patterns 348
plug-ins 324, 348
textures 348
Photoshop Acquire installation plug-
ins 20
Photoshop and Adobe Fireworks
exporting PSD files from Adobe
Fireworks 325
INDEX 361
importing PSD files into Adobe
Fireworks 323
Pick Distance preference 347
PICT file format 265
pie chart 87
Pie tool 87
pixels 14
adjusting tonal range using
eyedropper 75
cloning 66
contracting selection border 49
copying 44
cutting 44
expanding selection border 49
feathering 65
moving 44
painting 63
selecting 44
selecting area around a marquee 50
selecting freeform area 45
selecting polygonal area 45
selecting similar colors 46
smoothing a marquee border 50
tonal range 72
playing
animations 246
macros 343
saved commands 343
plotting points 94
plug-ins 5, 324
in Adobe Store 7
PNG file format
choosing 265
choosing a color palette 266
transparency 311
point handles 96
displaying 98
Pointer tool 41, 44
points
adding 99
bending adjacent segments 99
changing adjacent segments 99
converting 97
converting straight to curved 97
deleting 99
moving 98
selecting 98
polygons 85, 87
pop-up menus 229
advanced properties 234
description 229
designing appearance 232
editing 236
entering menu text 230, 231
exporting 237
setting position 235
Precise Cursors preference 347
preferences 346
color defaults 346
default 348
editing options 347
Faster but less accurate sampling
options 347
folder options 348
Import 323
import options 348
interpolation options 346
Launch and Edit 304
launch and edit options 347
Launch options 347
location of file 351
restoring defaults 348
setting 346
Undo Steps 346
Preview button 263
Preview Drag preference 347
previewing
documents in a browser 288
optimization settings 263, 264
pixels containing specific color 269
strokes 138
with Export Preview 258
previewing documents on different
platforms 34
progressive JPEGs 274
properties, viewing in Property
inspector 26
Property inspector 26, 43
collapsing 27
docking 26
expanding 26
masking with 176
reducing 26
selection information 42
undocking 26
working with text in 109
PSD files 17
opening from Adobe Fireworks 17
Punch command 105
Q
Quick Export button 31, 288
Quick Export pop-up menu 289
R
Radial Blur filter 80
raster images 61
read me file 2
rectangles 84
rounded corners 89
Red-eye Removal tool 66, 69
redoing using History panel 343
Redraw Path tool 102
redrawing paths 102
reducing points 105
registration of software 1
reinstalling Adobe Fireworks 352
relative URLs, entering 196
removing
effects 152
master page layers 157
parts of a path 105
renaming symbols 188
repeating actions 40
Replace color tool 66, 69, 70
replacing elements 330
replaying animations 246
resampling 19
bitmap objects 36
described 36
downsampling 36
resampling up 36
speed 347
vector objects 36
reshaping vector objects 102
Reveal All command 170
Reveal Selection command 170
RGB color model 130
rich graphic symbols 190
creating 190
viewing 190
rollovers 13
active area 226
converting to buttons 223
creating 220
defined 206
navigation bars 228
odd-shaped 202
simple 209
INDEX 362
Simple Rollover behavior 209
swap image 207
rotating
constraining 56
objects 55
relocating axis of rotation 56
Rounded Rectangle tool 87, 89
rounded rectangles 85
Rubber Stamp tool 66
rulers 38
S
saturation, adjusting 71
saving 276
animations 279
images 277
saving documents 22, 23
Scale tool 55
scaling
graphics 338
interpolation options 346
objects 55
scripting 343
editing scripts 344
Flash SWF files 344
scrolling the canvas 33
See also panning
searching 330
See also finding and replacing
segments, converting 97
selecting
adding to a pixel selection 47, 48
additional objects 43
alpha area 48
area around a marquee 50
canceling a selection 54
contracting a marquee border 49
deselecting a marquee 47
deselecting an object 43
expanding a marquee border 49
feathering a pixel selection 49
feathering edges 65
floating pixel selection 52
freeform area of pixels 45
grouped objects 58
images 44
inverting a pixel selection 49
overlapping areas of bitmaps 48
pixel areas 45
pixels 44
points 98
polygonal area of pixels 45
similar colors 46
smoothing a marquee border 50
subtracting from a pixel
selection 47, 48
Selective JPEG compression 273
Enable Selective Quality 273
overlay color 273
preserve button quality 274
preserve text quality 274
Selective Quality button 273
Send Backward command 59
Send to Back command 59
sending documents as e-mail
attachments 289
Set Nav Bar Image behavior 210
Set Pop-up Menu behavior 210
Set Text of Status Bar behavior 210
shadows 72, 150
shapes 14
Shapes panel 27
sharing layers 163
Sharpen filter 81
Sharpen More filter 81
Sharpen tool 66
sharpening 81
bitmap areas 66
images 67
shortcut sets 350
See also keyboard shortcuts
Show Fill Handles preference 347
Show Pen Preview preference 347
Show Solid Points preference 347
Show/Hide hotspots and slices 203
showing
edges 43
panels 29
rulers 38
toolbars 31
Simple Rollover behavior 209
simple rollovers 207
creating 209
Simplify command 106
simplifying paths 105
Skew tool 56
skewing objects 56
slanting objects 56
slice guides
changing color 203
removing 205
viewing 203
slices 13
auto-naming 213
changing color 203
creating 201
editing Adobe Fireworks table
slices from Dreamweaver 299
exporting 277, 278
overlapping 205
polygon 202
resizing 204
showing or hiding slice overlay 264
text 201
updating 278
using nested tables 215
using spacer 215
slicing
definition 200
for interactivity 200
slideshow properties 252
slideshows, creating 250
Smart Polygon tool 87
Smooth command 50
Smudge tool 66
smudging
bitmap areas 66
images 68
Snap Distance preference 347
soft interpolation scaling method 346
software
activation 1
registration 1
software downloads 7
solid fills
adding texture to 146
applying 141
spacers 215
Special Characters panel 28
spell checking 124
Spiral tool 87
Split command 104
stacking objects 59
Standard Screen mode 33
Star tool 87
stars 85, 87
Start page 24
INDEX 363
straight segments, editing 95
Stroke Color box 136
strokes 136
adding texture 145
changing centering 139
changing color of drawing
tools 137
choosing 136
creating custom 138
drawing fill over 139
edges of 136
editing 136
finding and replacing 333
reorienting 139
resetting default color 127
saving settings 140
setting sensitivity 139
swapping stroke and fill colors 127
textures 136
styles
adding 184
applying 184
basing on existing styles 185
defined 183
deleting 185
editing 185
enlarging preview icons 186
exporting 185
importing 185
new 184
resetting to defaults 186
Styles panel 27, 183
Subselection tool
auto-joining paths with 100
selecting masks with 173
swap color palettes 134
Swap Image behavior 209
swap image rollovers
creating disjoint rollovers 208
with single slice 207
swap image, external images for 211
swatch group, choosing custom 128
Swatches panel 28, 127
appending swatches 128
deleting a color 129
replacing a color 129
saving custom 129
Windows system colors 128
swatches, choosing custom 128
SWF movies 345
symbol library 186
Symbol Properties panel 28
symbols
breaking a link 193
creating 186
defined 186
deleting 188
duplicating 188
editing 187, 193
editing graphics 241
exporting 195
importing 195
modifying 187
placing instances 187
placing instances in document 187
rich graphic 190
saving as rich graphic symbols 191
swapping 188
tweening 246
using 9-slice scaling 188
system color picker 131
system requirements 1
T
text
adjusting character width 118
alignment 116
attributes, saving 119
checking spelling 124
color 113
direction of 116
entering 109
finding and replacing 332
formatting 112
indenting 117
orientation 116
overview 109
paragraph spacing 117
slices 201
Text Editor 125
text blocks
auto-sizing 111
fixed-width 111
moving 111
naming 110
resizing 111
text paths
attaching text to path 120
changing shape of path 120
converting text to path 122
detaching from path 120
editing text attached to a path 120
moving starting point of text 121
placing text on a path 121
text styles
bold 113
effects 119
fills 119
italic 113
strokes 119
underline 113
Text tool 109
texture
adding to fills 146
adding to strokes 145
thumbnails
in Layers panel 159
selecting masks with 173
TIFF file format, choosing 265
TIFF, saving 23
tonal range 72
adjusting with Curves 74
adjusting with Levels 72
tone, adjusting 71
toolbars
docking 31
showing and hiding 31
undocking 31
unlocking 31
tools
Blur 66
Brush 64
Burn 66
changing options 25
changing stroke color 137
Colors section in Tools panel 126
Distort 57
Dodge 66
Eraser 65
Eyedropper 64
Lasso 44
Magic Wand 44
Marquee 44
Oval Marquee 44
Pencil 63
Pointer 41, 44
Polygon Lasso 44
INDEX 364
Red-eye Removal 66, 69
Replace Color 66, 69, 70
Rubber Stamp 66
Scale 55
Sharpen 66
Skew 56
Smudge 66
Subselection 100, 173
Text 109
tool group pop-up menus 26
Transform 54
Zoom 32
Tools panel 25
transformation tools
Distort 57
Scale 55
Skew 56
transforming
by dragging 54
gradient fills 144
numerically 57
objects 54
pattern fills 144
text 122
transparency 181, 271
adding or removing colors 272
animation 247
converting images to gradient
transparency 81
illusion 132
in PNG files 311
selecting a color 271, 272
See also opacity
transparent areas 271
trimming the canvas 36
tryouts 7
Turn off Hide Edges preference 347
Tween Instances command 246
tweening
characteristics 246
defined 246
objects 246
typefaces. See fonts
U
underlined text 112
undocking panels from panel
group 28
undoing 40
setting number of undo steps 346
using History panel 343
ungrouping objects 58
uninstalling Adobe Fireworks 352
Union command 104
Unsharp Mask filter 82
Up button state 221
Update HTML command 285, 296
updates 7
updating slices 278
URL library 196
adding URLs 197
adding used URLs 198
creating 197
entering absolute or relative
URLs 196
URL panel 27, 196
URLs
assigning to a web object 198
assigning to buttons or
instances 226
finding and replacing 333
selecting target options 212
user configuration files 350, 351
user folder 350, 351
UTF-8 encoding 286, 350
V
valid files, defined 335
vector graphics 14
vector masks 164
converting to bitmap mask 177
creating 166
using an existing object as 167, 169
vector mode 12
drawing in 84
switching to 61
vector objects, reshaping 100
Video Workshop 4
view modes 33
viewing rich graphic symbols 190
W
WAP graphics 17
See also WBMP files
WBMP files 17
exporting to 265
opening from Adobe Fireworks 17
saving 23
Web Layer 163
web safe colors 133
websafe colors 270
When Editing From External
Application preference 348
When Optimizing From External
Application preference 348
Windows system colors as a swatch
group 128
work environment 24
workflow in Adobe Fireworks 12
X
XHTML 286
Z
Zoom Blur filter 80
Zoom tool 32
zooming 31
into a specific area 32
using preset increments 32
