Advance Multimedia Internet Technology CDW530AM WiFi Combo Broadband Gateway User Manual
Advance Multimedia Internet Technology Inc. WiFi Combo Broadband Gateway
User manual
無線路由器
WiFi Combo Broadband
Gateway
User Guide
CDW530AM
Copyright
The contents of this publication may not be reproduced in any part or as a whole, stored,
transcribed in an information retrieval system, translated into any language, or transmitted in any
form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or
otherwise, without the prior written permission.
Trademarks
All products, company, brand names are trademarks or registered trademarks of their respective
companies. They are used for identification purpose only. Specifications are subject to be changed
without prior notice.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against radio interference in a commercial environment. This equipment can generate, use and
radiate radio frequency energy and, if not installed and used in accordance with the instructions in
this manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause interference, in which case the user, at his own
expense, will be required to take whatever measures are necessary to correct the interference.
CE Declaration of Conformity
This equipment complies with the requirements relating to electromagnetic compatibility, EN
55022/A1 Class B.
The specification is subject to change without notice.
FCC COMPLIANCE STATEMENT
Table of Contents
FCC Interference Statement...............................................................................2
1. Introduction..................................................................................................4
1.1. Package Contents .........................................................................4
1.2. System Requirements for Configuration.....................................5
1.3. Interfaces - the Rear View.............................................................5
1.4. LEDs– the Front View....................................................................6
1.5. Features .........................................................................................7
2. Configuring WiFi Combo Broadband Router ............................................8
2.1. Installation Considerations ..........................................................8
2.1.1. Installation Instructions- Get Start Networking ..........................8
2.1.2. Establish WiFi Connection ......................................................... 11
3. Using the Configuration Menu..................................................................12
3.1. Wizard setting..............................................................................13
3.2. Administrator’s Main Menu ........................................................21
4. Troubleshooting ........................................................................................58
5. Technical Specifications...........................................................................61
1. Introduction
The WiFi Combo Broadband Router is a high-performance tool that supports wireless
networking at home, work, or in a public place. The WiFi Combo Broadband Router
supports uses a USB 3G modem card, either WCDMA or EVDO and even HSDPA as
well, and supports wireless data transfers up to 300M bps, and wired data transfers up to
100 Mbps.
The WiFi Combo Broadband Router is compatible with industry security features.
1.1. Package Contents
Importance: Check your product package contents FIRST.
The WiFi Combo Broadband Router package should contain the items listed below.
If any of the items are missing, please contact your reseller.
items Description Quantity
1 WiFi Combo Broadband
Router 1
2 RJ-45 Cable 1
3 Power adapter 5V 2.0A 1
4 Quick Installation Guide 1
5 CD 1
6 Cradle set 1
7 Rubber pad and Sponge 1
Caution: Using a power supply with a different voltage rating than the one included
with the WiFi Combo Broadband Router will cause damage and void the warranty
for this product.
1.2. System Requirements for Configuration
• A compatible USB 3G modem card with service
Note: Subject to services and service terms available from your carrier.
• Computers with Windows, Macintosh, or Linux-based operating systems with an
installed Ethernet adapter.
• Internet Explorer version 6.0 or Netscape Navigator version 7.0 and above.
• Wi-Fi System Requirements: An 802.11b, 802.11g, or 802.11n Adapter.

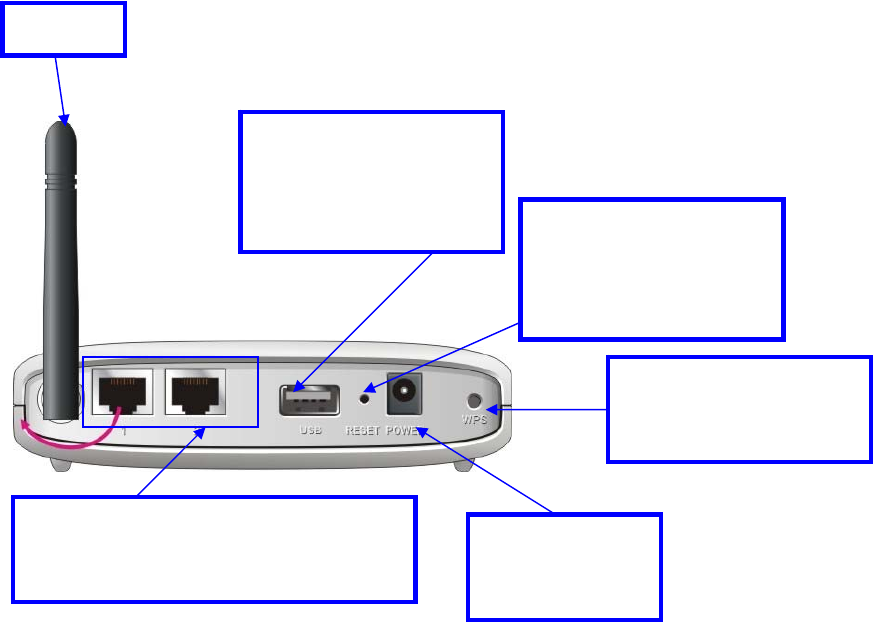

1.3. Interfaces - the Rear View
Note:
Contains a reset button to restore the setting back to original factory defaulted setting as if
your convenience of forgetting your applicable setting
Antenna
Auto MDI/MDIX RJ-45 Ports
Automatically sense the types of WAN
and LAN when connecting to Ethernet
Receptor for
Power adapter
Reset Button
Restore to Original
factory defaulted setting
USB port for connecting
with 3G USB modem
WPS Button
WiFi Network security
setup
1.4. LEDs– the Front View
3G Status LED
A green light as
power is on and
read
y
LAN LED
A green light as connected
to local Ethernet and blinks
durin
g
data is transmission
WAN LED
A green light as
WAN is connected
WiFi LED
A green light as
connection on
WLAN available
1.5. Features
z Automatic take over back up with 3G connection as Ethernet WAN failover.
z Implementation within 3 minutes allows the network to go where wires cannot
go – even outside the home or office.
z Utilizes
OFDM technology (Orthogonal Frequency Division Multiplexing).
z User-friendly configuration and diagnostic utilities.
z Operates in the 2.4GHz frequency range.
z Advanced Firewall features.
z Supports NAT with VPN pass-through, providing added security.
MAC Filtering
IP Filtering
Port Scheduling
z DHCP server enables all networked computers to automatically receive IP
addresses.
z Web-based interface for Managing and Configuring.
z Access Control to manage users on the network.
z Supports special applications that require multiple connections.
z Equipped with 2*10/100 Ethernet ports, for LAN and WAN access, and USB
port for 3G network connection.
z Connects multiple computers to a Broadband either WCDMA or EV-DO even
HSDPA modem to share the Internet connection.
Note: The WiFi Combo Broadband Router is designed to work with either EVDO or
WCDMA (UMTS) even up to 3.5G HSPA PC interface.
Please refer to your service provider for detailed feature information.
2. Configuring WiFi Combo Broadband Router
2.1. Installation Considerations
The WiFi Combo Broadband Router allows you access your network using a
wireless connection, from virtually anywhere within its operating range. Keep in mind
however, that the number, thickness, and location of walls, ceilings, or other objects
that the wireless signals must pass through, may limit this range.
Typical ranges vary depending on the types of materials used, and background RF
(radio frequency) noise in your home or business.
To maximize your wireless range, please follow these guidelines:
1. Keep the number of walls and ceilings between the WiFi Combo Broadband
Router and other network devices to a minimum. Each wall or ceiling can reduce
the WiFi Combo Broadband Router’s range from 3-90 feet (1-30 meters).
Note: The same considerations apply to your broadband EVDO connection.
2. Keep your product aware from electrical devices (such as microwaves, air
conditioners, and televisions) that emit large quantities of RFI (Radio Frequency
Interference).
2.1.1. Installation Instructions- Get Start Networking
Connect the Wireless Router to Your Network
Note: DO NOT connect WiFi Combo Broadband Router to power before
performing the installation steps below.
1. Attach the antenna---picture 2.1
Picture 2.1
a. Remove the antenna from its plastic wrapper.
b. Screw the antenna in a clockwise direction to the back panel of the unit.
c. Once secured, position the antenna upward at its connecting joint. This will
ensure optimal reception.
2. Connect a USB modem with service to the WiFi Combo Broadband Router in
one of the following ways:
Æ You can plug your USB modem into the USB interface---see Picture 2.2
Picture 2.2
Note: The WiFi Combo Broadband Router is designed to work with either
UMTS or EV-DO and even HSDPA 3G card that can be used as a modem
(support tethered data). Please refer to your service provider for detailed
feature information.
3. Insert the Ethernet patch cable into LAN Port on the back panel of the WiFi
Combo Broadband Router, and an available Ethernet port on the network
adapter in the computer you will use to configure the unit.-see Picture 2.3
Picture 2.3
Note: The WiFi Combo Broadband Router LAN Port is “Auto-MDI/MDIX.”
This provides patch Ethernet cable LAN Port access.
4. Connect the power adapter to the receptor on the back panel of your WiFi
Combo Broadband Router. Then plug the other end of the power adapter into
a wall outlet or power strip.---Picture 2.4
Picture 2.4
5. The LEDs (See Picture 2.5)
a. The 3G(Status) LED will turn ON(when 3G modem inserts) or flash(When
3G modem doesn’t insert) to indicate power has been applied.
b. When complete, the following LEDs will illuminate green: 3G(Status), LAN,
and WiFi.
c. Reference the Section 1.4, LEDs– the Front View.
Picture 2.5
2.1.2. Establish WiFi Connection
If you selected either WEP or WPA-PSK encryption, ensure these settings
match your WiFi adapter settings.
WiFi and encryption settings must match for access to the HSPA WiFi Combo
Broadband Router Configuration Menu, and the Internet. Please refer to your
WiFi adapter documentation for additional information.
3. Using the Configuration Menu
Once properly configured, the WiFi Combo Broadband Router will obtain and assign
IP address information automatically. Configuration settings can be established
through the WiFi Combo Broadband Router Configuration Menu. You can access
this interface by performing the steps listed below:
1. Open a web-browser.
2. Type in the
IP Address (http://192.168.123.254) of the WiFi Combo Broadband
Router
Note: If you have changed the default IP Address assigned to the WiFi Combo
Broadband Router, ensure you enter the correct IP Address now.
3. Type “admin” in the Password field.
4. Click “login” button.
3.1. Wizard setting
z Press “Wizard” button Æ for basic settings with simpler way. (Please check section
3.1)
z Or you may click on “Advanced Setup” Æ for advanced settings. (Please check the
section Administrator’s Main Menu. each item from section 3.2)
z Click on “Enter” button to get start.
With wizard setting steps, you could configure the router in a very simple way. This
configuration wizard includes settings of
a. Login Password,
b. WAN Setup
c. Wireless Setup,
Press “Next” button to start configuration.
Step 1: Allow you to change the system password.
You can change Password here.
It is recommended that you change the system password into the one you prefer to on the
basis of security.
1. Key in your Old Password (if it is the first initiation, the “admin” will be the defaulted one.
2: Enter your New Password
3: Enter your Password again for confirmation; it must be the same as the New Password.
4. Then click on “Next” to get into next installation.

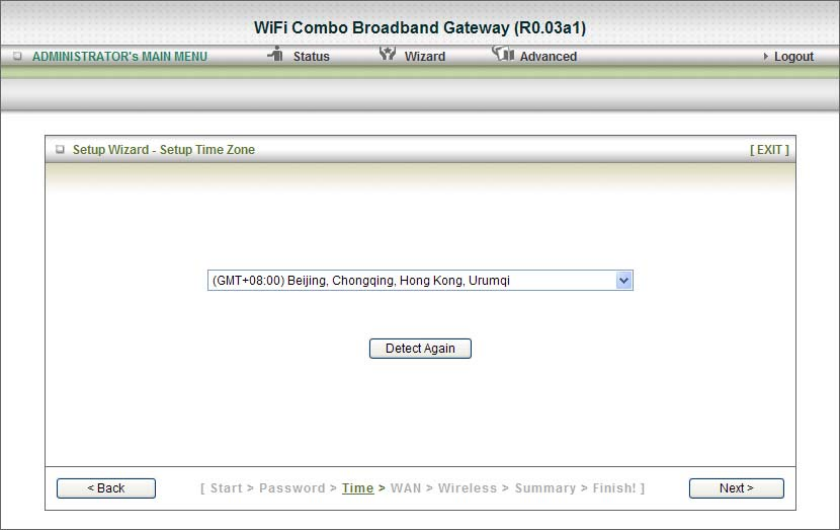

Step 2: Allow you to change the Time Zone.
You can change Time Zone here.
Or you can click the button “Detect Again”, the Time Zone will be changed to same with your
PC.
Step 3: Select WAN Types will be used for Internet connection
Pick up one of types you preferred to.
Click on “Next” button
Step 4: Configure the LAN IP Address, Host Name and WAN MAC Address.
LAN is short for Local Area Network, and is considered your internal network.
These are the IP settings of the LAN interface for the WiFi Combo Broadband
Router, and they may be referred to as Private settings. You may change the LAN
IP address if needed. The LAN IP address is private to your internal network and
cannot be seen on the Internet.
Note: There are 254 addresses available on the WiFi Combo Broadband Router
when using a 255.255.255.0 (Class C) subnet. Example: The router's IP
address is 192.168.123.1. The available client IP range is 192.168.123.2
through 192.168.123.254.
1. LAN IP Address- The IP address of the LAN interface. The default IP address
is: 192.168.123.254
2. Host Name is optional
3. WAN’s MAC Address
If you click the Clone MAC button, you will find the MAC address of your NIC
shown in WAN's MAC Address
4. Click on “Next” to continue.
Step 5: Configure the wireless settings.
1. Select “Enable” or “Disable”. The default setting is “Enable”.
2. Network ID( SSID) will be defaulted.
3. ChannelÆ Select Wireless Channel matching to your local area for Wireless
connection.
4. Click on “Next” to continue.
Step 6: Select the Wireless security method of your wireless configuration.
Click on “Next” to continue.
Step 7: Summary
Click on the “Apply Settings” button
Step 8: System is applying.
Click “Finish” button to back the Status Page.
3.2. Administrator’s Main Menu

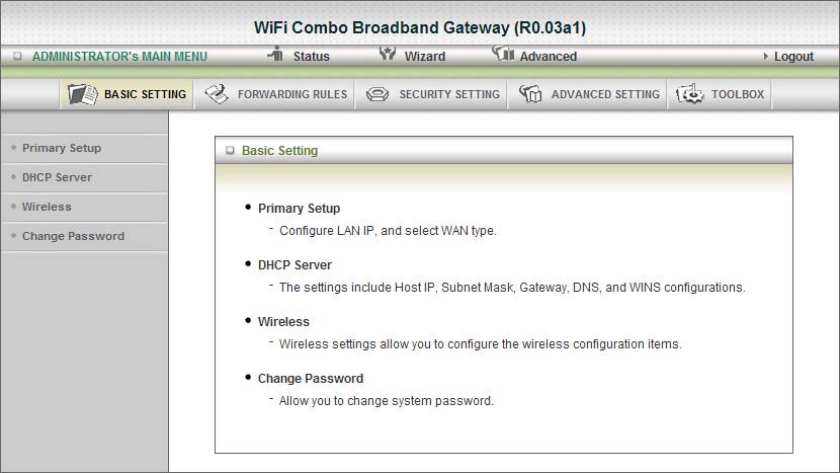

3.2.1 Basic Setting
3.2.1.1 Primary Setup
1. LAP IP Address: the local IP address of this device. The computers on your network
must use the LAN IP address of your product as their Default Gateway. You can change
it if necessary.
2. 3G Auto-Backup: The WAN type will be change to 3G automatically, if the wired-WAN
is defunct.
3. WAN Type: WAN connection type of your ISP. You can click WAN Type Combo button
to choose a correct one from the following options:
Static IP Address:
WAN IP Address, Subnet Mask, Gateway, Primary and Secondary DNS: enter the
proper setting provided by your ISP.
Dynamic IP Address:
1. Host Name: optional, required by some ISPs, for example, @Home.
2. Renew IP Forever: this feature enables this product to renew your IP address
automatically when the lease time is expiring-- even when the system is idle.
PPP over Ethernet
1. PPPoE Account and Password: the account and password your ISP assigned to
you. For security, this field appears blank. If you don't want to change the password,
leave it empty.
2. Connection Control: There are 3 modes to select:
Connect-on-demand: The device will link up with ISP when the clients send
outgoing packets.
Auto Reconnect (Always-on): The device will link with ISP until the connection is
established.
Manually: The device will not make the link until someone clicks the
connect-button in the Status-page.
3. Maximum Idle Time: the amount of time of inactivity before disconnecting your
PPPoE session. Set it to zero or enable Auto-reconnect to disable this feature.
4. PPPoE Service Name: optional. Input the service name if your ISP requires it.
Otherwise, leave it blank.
5. Maximum Transmission Unit (MTU): Most ISP offers MTU value to users. The most
common MTU value is 1492.
PPTP
First, please check your ISP assigned and Select Static IP Address or Dynamic IP
Address.
1. My IP Address and My Subnet Mask: the private IP address and subnet mask your
ISP assigned to you.
2. Server IP Address: the IP address of the PPTP server.
3. PPTP Account and Password: the account and password your ISP assigned to you.
If you don't want to change the password, keep it empty.
4. Connection ID: optional. Input the connection ID if your ISP requires it.
5. Maximum Idle Time: the time of no activity to disconnect your PPTP session. Set it
to zero or enable Auto-reconnect to disable this feature. If Auto-reconnect is
enabled, this product will connect to ISP automatically, after system is restarted or
connection is dropped.
6. Connection Control: There are 3 modes to select:
Connect-on-demand: The device will link up with ISP when the clients send
outgoing packets.
Auto Reconnect (Always-on):The device will link with ISP until the connection is
established.
Manually: The device will not make the link until someone clicks the
connect-button in the Status-page.
L2TP
First, please check your ISP assigned and Select Static IP Address or Dynamic IP
Address. For example: Use Static
1. My IP Address and My Subnet Mask: the private IP address and subnet mask your
ISP assigned to you.
2. Server IP Address: the IP address of the PPTP server.
3. PPTP Account and Password: the account and password your ISP assigned to you.
If you don't want to change the password, keep it empty.
4. Connection ID: optional. Input the connection ID if your ISP requires it.
5. Maximum Idle Time: the time of no activity to disconnect your L2TP session. Set it
to zero or enable Auto-reconnect to disable this feature. If Auto-reconnect is
enabled, this product will connect to ISP automatically, after system is restarted or
connection is dropped.
6. Connection Control: There are 3 modes to select:
Connect-on-demand: The device will link up with ISP when the clients send
outgoing packets.
Auto Reconnect (Always-on): The device will link with ISP until the connection is
established.
Manually: The device will not make the link until someone clicks the
connect-button in the Status-page.
3G
For 3G WAN Networking. The WAN fields may not be necessary for your connection.
The information on this page will only be used when your service provider requires you
to enter a User Name and Password to connect to the 3G network.
Please refer to your documentation or service provider for additional information.
1. APN: Enter the APN for your PC card here.
2. Pin Code: Enter the Pin Code for your SIM card
3. Dial-Number: This field should not be altered except when required by your
service provider.
4. User Name: Enter the new User Name for your PC card here.
5. Password: Enter the new Password for your PC card here.
6. Primary DNS: This feature allows you to assign a Primary DNS Server（Optional）
7. Secondary DNS: This feature allows you to assign a Secondary DNS Server
（Optional）
8. Maximum Idle Time: The Connection will be broken when the idle time arrives.
3.2.1.2 DHCP Server
Press “More>>”,
1. DHCP Server: Choose either Disable or Enable
2. Lease Time: DHCP lease time to the DHCP client
3. IP Pool Starting/Ending Address: Whenever there is a request, the DHCP server will
automatically allocate an unused IP address from the IP address pool to the requesting
computer. You must specify the starting / ending address of the IP address pool
4. Domain Name: Optional, this information will be passed to the client
5. Primary DNS/Secondary DNS: Optional, This feature allows you to assign a DNS
Servers
6. Primary WINS/Secondary WINS: Optional, this feature allows you to assign a WINS
Servers
7. Gateway: Optional, Gateway Address would be the IP address of an alternate Gateway.
This function enables you to assign another gateway to your PC, when DHCP server
offers an IP to your PC.
After you finish your selection then
Either Click on “Save” to store what you just pick or click “Undo” to give up
3.2.1.3 Wireless Settings
Wireless settings allow you to set the wireless configuration items.
1. Wireless: Enabled is the default. Selecting this option will allow you to set your
Wireless Access Point (WAP) settings.
2. Wireless Operation Mode: Choose AP mode or Client mode. The factory default
setting is AP mode.
3. Network ID(SSID): Service Set Identifier (SSID) is the name designated for a
specific wireless local area network (WLAN). The SSID's factory default setting is
default. The SSID can be easily changed to establish a new wireless
network.( Note: SSID names may contain up to 32 ASCII characters).
4. SSID Broadcast: The router will broadcast beacons that have some information,
including ssid so that wireless clients can know how many AP devices by
scanning function in the network. Therefore, this function is disabled; the wireless
clients can not find the device from beacons.
5. Channel: Auto is the default. Devices on the network must share the same channel.
(Note: Wireless adapters automatically scan and match the wireless settings. You
may also select the channel you wish to use).
6. Wireless Mode: Choose B/G Mixed, B only, G only, N only, G/N Mixed or B/G/N mixed.
The factory default setting is B/G/N mixed.
7. Authentication mode: You may select from nine kinds of authentication to secure
your wireless network: Open, Shared, Auto, WPA-PSK, WPA, WPA2-PSK, WPA2,
WPA-PSK/WPA2-PSK, WPA/WPA2.
Open
Open system authentication simply consists of two communications. The first is an
authentication request by the client that contains the station ID (typically the MAC
address). This is followed by an authentication response from the AP/router containing a
success or failure message. An example of when a failure may occur is if the client's MAC
address is explicitly excluded in the AP/router configuration.
Shared
Shared key authentication relies on the fact that both stations taking part in the
authentication process have the same "shared" key or passphrase. The shared key is
manually set on both the client station and the AP/router. Three types of shared key
authentication are available today for home or small office WLAN environments.
Auto
The AP will Select the Open or Shared by the client’s request automatically.
WPA-PSK
Select Encryption and Pre-share Key Mode
If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits.
If you select ASCII, the length of pre-share key is from 8 to 63.
Fill in the key, Ex 12345678
WPA
Check Box was used to switch the function of the WPA. When the WPA function is
enabled, the Wireless user must authenticate to this router first to use the Network
service. RADIUS Server IP address or the 802.1X server’s domain-name.
Select Encryption and RADIUS Shared Key
If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits
If you select ASCII, the length of pre-share key is from 8 to 63.
Key value shared by the RADIUS server and this router. This key value is consistent with
the key value in the RADIUS server.
WPA-PSK2
WPA-PSK2 user AES and TKIP for Same the encryption, the others are same the
WPA-PSK.
WPA2
WPA2 add uses AES and TKIP for encryption, the others are same the WPA.
WPA-PSK/WPA-PSK2
Another encryption options for WPA-PSK-TKIP and WPA-PSK2-AES, the others are same
the WPA-PSK.
WPA/WPA2
Another encryption options for WPA-TKIP and WPA2-AES, the others are same the WPA.
WDS(Wireless Distribution System) Setting
WDS operation as defined by the IEEE802.11 standard has been made available. Using WDS it is
possible to wirelessly connect Access Points, and in doing so extend a wired infrastructure to
locations where cabling is not possible or inefficient to implement.
WPS(Wi-Fi Protection Setup) (OPTION)
WPS is Wi-Fi Protection Setup which is similar to WCN-NET and offers safe and easy way in
Wireless Connection.
Wireless Client List
The list of wireless client is shows here.
3.2.1.4 Change Password
You can change Password here. We strongly recommend you to change the system password for
security reason.
Click on “Save” to store what you just select or “Undo” to give up
3.2.2 Forwarding Rules
3.2.2.1 Virtual Server
This product’s NAT firewall filters out unrecognized packets to protect your Intranet, so all hosts
behind this product are invisible to the outside world. If you wish, you can make some of them
accessible by enabling the Virtual Server Mapping.
A virtual server is defined as a Service Port, and all requests to this port will be redirected to the
computer specified by the Server IP. Virtual Server can work with Scheduling Rules, and give user
more flexibility on Access control. For Detail, please refer to Scheduling Rule.
For example, if you have an FTP server (port 21) at 192.168.123.1, a Web server (port 80) at
192.168.123.2, and a VPN server at 192.168.123.6, then you need to specify the following virtual
server mapping table:
Service Port Server IP Enable
21 192.168.123.1 V
80 192.168.123.2 V
1723 192.168.123.6 V
Click on “Save” to store what you just select or “Undo” to give up
3.2.2.2 Special AP
Some applications require multiple connections, like Internet games, Video conferencing, Internet
telephony, etc. Because of the firewall function, these applications cannot work with a pure NAT
router. The Special Applications feature allows some of these applications to work with this product.
If the mechanism of Special Applications fails to make an application work, try setting your
computer as the DMZ host instead.
1. Trigger: the outbound port number issued by the application.
2. Incoming Ports: when the trigger packet is detected, the inbound packets sent to the
specified port numbers are allowed to pass through the firewall.
This product provides some predefined settings.
1. Select your application and
2. Click “Copy to” to add the predefined setting to your list.
Note! At any given time, only one PC can use each Special Application tunnel.
Click on “Save” to store what you just select or” Undo” to give up
3.2.2.3 Miscellaneous
1. IP Address of DMZ Host
DMZ (Demilitarized Zone) Host is a host without the protection of firewall. It allows a
computer to be exposed to unrestricted 2-way communication for Internet games, Video
conferencing, Internet telephony and other special applications.
2. UPnP Setting
The device also supports this function. If the OS supports this function enable it, like
Windows XP. When the user gets IP from Device and will see icon as below:
3. IGMP setting
Select the “Enable” item to enable the IGMP Multicast.
Click on “Save” to store what you just select or “Undo” to give up
3.2.3 Security Setting
3.2.3.1 Packet Filters
Packet Filter includes both outbound filter and inbound filter. And they have same way to setting.
Packet Filter enables you to control what packets are allowed to pass the router. Outbound filter
applies on all outbound packets. However, inbound filter applies on packets that destined to Virtual
Servers or DMZ host only. You can select one of the two filtering policies:
1. Allow all to pass except those match the specified rules
2. Deny all to pass except those match the specified rules
You can specify 8 rules for each direction: inbound or outbound. For each rule, you can define the
following:
• Source IP address
• Source port
• Destination IP address
• Destination port
• Protocol: TCP or UDP or both.
• Use Rule#
For source or destination IP address, you can define a single IP address (4.3.2.1) or a range of IP
addresses (4.3.2.1-4.3.2.254). An empty implies all IP addresses.
For source or destination port, you can define a single port (80) or a range of ports (1000-1999).
Add prefix "T" or "U" to specify TCP or UDP protocol. For example, T80, U53, U2000-2999, No
prefix indicates both TCP and UDP are defined. An empty implies all port addresses. Packet Filter
can work with Scheduling Rules, and give user more flexibility on Access control. For Detail,
please refer to Scheduling Rule.
Each rule can be enabled or disabled individually.
Click on “Save” to store what you just select or “Undo” to give up
3.2.3.2 Domain Filters
1. Domain Filter
Let you prevent users under this device from accessing specific URLs.
2. Domain Filter Enable
Check if you want to enable Domain Filter.
3. Log DNS Query
Check if you want to log the action when someone accesses the specific URLs.
4. Privilege IP Address Range
Setting a group of hosts and privilege these hosts to access network without restriction.
5. Domain Suffix
A suffix of URL can be restricted, for example, ".com", "xxx.com".
6. Action
When someone is accessing the URL met the domain-suffix, what kind of action you want.
Check drop to block the access. Check “log” to log these access.
7. Enable
Check to enable each rule.
Click on “Save” to store what you just select or “Undo” to give up
3.2.3.3 URL Blocking
URL Blocking will block LAN computers to connect to pre-define Websites. The major difference
between “Domain filter” and “URL Blocking” is Domain filter require user to input suffix (like .com
or .org, etc), while URL Blocking require user to input a keyword only. In other words, Domain filter
can block specific website, while URL Blocking can block hundreds of websites by simply a
keyword.
1. URL Blocking Enable
Check if you want to enable URL Blocking.
2. URL
If any part of the Website's URL matches the pre-defined word, the connection will be
blocked.
For example, you can use pre-defined word "sex" to block all websites if their URLs
contain pre-defined word "sex".
3. Enable
Check to enable each rule.
Click on “Save” to store what you just select or “Undo” to give up
3.2.3.4 MAC Control
MAC Address Control allows you to assign different access right for different users and to assign a
specific IP address to a certain MAC address.
1. MAC Address Control
Check “Enable” to enable the “MAC Address Control”. All of the settings in this page will
take effect only when “Enable” is checked.
2. Connection control
Check "Connection control" to enable the controlling of which wired and wireless clients
can connect to this device. If a client is denied to connect to this device, it means the client
can't access to the Internet either. Choose "allow" or "deny" to allow or deny the clients,
whose MAC addresses are not in the "Control table" (please see below), to connect to this
device.
3. Association control
Check "Association control" to enable the controlling of which wireless client can
associate to the wireless LAN. If a client is denied to associate to the wireless LAN, it
means the client can't send or receive any data via this device. Choose "allow" or "deny"
to allow or deny the clients, whose MAC addresses are not in the "Control table", to
associate to the wireless LAN
Click on “Save” to store what you just select or “Undo” to give up
Click on “Next Page” to go down or “Previous page” back to last page
3.2.3.5 Miscellaneous
1. Administrator Time-out
The time of no activity to logout automatically, you may set it to zero to disable this feature.
2. Remote Administrator Host/Port
In general, only Intranet user can browse the built-in web pages to perform administration
task. This feature enables you to perform administration task from remote host. If this
feature is enabled, only the specified IP address can perform remote administration. If the
specified IP address is 0.0.0.0, any host can connect to this product to perform
administration task. You can use subnet mask bits "/nn" notation to specified a group of
trusted IP addresses for example, "10.1.2.0/24".
NOTE: When Remote Administration is enabled, the web server port will be shifted to 80.
You can change web server port to other port, too.
3. Discard PING from WAN side
When this feature is enabled, any host on the WAN cannot ping this product.
4. DoS Attack Detection
When this feature is enabled, the router will detect and log the DoS attack comes from the
Internet. Currently, the router can detect the following DoS attack: SYN Attack, WinNuke,
Port Scan, Ping of Death, Land Attack etc.
Click on “Save” to store what you just select or” Undo” to give up
3.2.4 Advanced Setting
3.2.4.1 System Log
This page support two methods to export system logs to specific destination by means of syslog
(UDP) and SMTP(TCP). The items you have to setup including:
1. IP Address for Syslog
Host IP of destination where syslog will be sent to.
Check Enable to enable this function.
2. E-mail Alert Enable
Check if you want to enable Email alert (send syslog via email).
3. SMTP Server IP and Port
Input the SMTP server IP and port, which are concated with ':'. If you do not specify port
number, the default value is 25.
For example, "mail.your_url.com" or "192.168.1.100:26".
4. Send E-mail alert to
The recipients who will receive these logs, you can assign more than 1 recipient, using ';'
or ',' to separate these email addresses.
5. E-mail Subject
The subject of email alert, this setting is optional.
Click on “Save” to store what you just select or “Undo” to give up
3.2.4.2 Dynamic DNS
To host your server on a changing IP address, you have to use dynamic domain name service
(DDNS).
So that anyone wishing to reach your host only needs to know the name of it. Dynamic DNS will
map the name of your host to your current IP address, which changes each time you connect your
Internet service provider.
Before you enable Dynamic DNS, you need to register an account on one of these Dynamic DNS
servers that we list in provider field.
To enable Dynamic DNS click the check box next to Enable in the DDNS field.
Next you can enter the appropriate information about your Dynamic DNS Server.
You have to define:
Provider
Host Name
Username/E-mail
Password/Key
You will get this information when you register an account on a Dynamic DNS server.
Click on “Save” to store what you just select or “Undo” to give up
3.2.4.3 QOS
Provide different priority to different users or data flows, or guarantee a certain level of
performance.
1. Enable
This Item enables QoS function or not.
2. Bandwidth of Upstream
Set the limitation of upstream speed.
3. Local: IP
Define the Local IP address of packets here.
4. Local: Ports
Define the Local port of the packets in this field.
5. Remote: IP
Define the Remote IP address of packets here.
6. Remote: Ports
Define the Remote port of the packets in this field.
7. QoS Priority
This defines the priority level of the current Policy Configuration. Packets associated with
this policy will be serviced based upon the priority level set. For critical applications High
or Normal levels are recommended. For non-critical applications select a Low level.
8. User Rule#
The QoS item can work with Scheduling Rule number#. Please reference the section
4.7.7 schedule.
Click on “Save” to store what you just select or “Undo” to give up

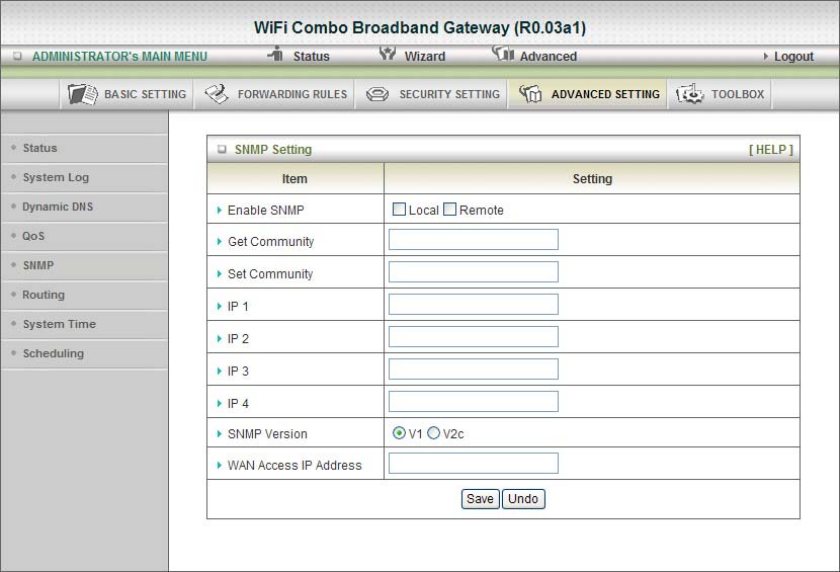

3.2.4.4 SNMP
In brief, SNMP, the Simple Network Management Protocol, is a protocol designed to give a user
the capability to remotely manage a computer network by polling and setting terminal values and
monitoring network events.
1. Enable SNMP
You must check Local, Remote or both to enable SNMP function. If Local is checked, this
device will response request from LAN. If Remote is checked, this device will response
request from WAN.
2. Get Community
Setting the community of GetRequest your device will response.
3. Set Community
Setting the community of SetRequest your device will accept.
IP 1, IP 2, IP 3, IP 4
Input your SNMP Management PC’s IP here. User has to configure to where this device
should send SNMP Trap message.
4. SNMP Version
Please select proper SNMP Version that your SNMP Management software supports.
5. WAN Access IP Address
If the user wants to limit to specific the IP address to access, please input in the item. The
default 0.0.0.0 and means every IP of Internet can get some information of device with
SNMP protocol.
Click on “Save” to store what you just select or “Undo” to give up.
3.2.4.5 Routing
1. Routing Tables
Allow you to determine which physical interface address to use for outgoing IP data grams.
If you have more than one routers and subnets, you will need to enable routing table to
allow packets to find proper routing path and allow different subnets to communicate with
each other.
Routing Table settings are settings used to setup the functions of static and dynamic
routing.
2. Dynamic Routing
Routing Information Protocol (RIP) will exchange information about destinations for
computing routes throughout the network. Please select RIPv2 only if you have different
subnet in your network. Otherwise, please select RIPv1 if you need this protocol.
3. Static Routing
For static routing, you can specify up to 8 routing rules. You can enter the destination IP
address, subnet mask, gateway, hop for each routing rule, and then enable or disable the
rule by checking or un-checking the Enable checkbox.
Click on “Save” to store what you just select or “Undo” to give up.
3.2.4.6 System Time
1. Time Zone
Select a time zone where this device locates.
2. Time Server
Select a NTP time server to consult UTC time
3. Auto-Synchronization
Select the “Enable” item to enable this function.
4. Sync with Time Server
Select if you want to set Date and Time by NTP Protocol.
5. Sync with my PC
Select if you want to set Date and Time using PC’s Date and Time
Click on “Save” to store what you just select or “Undo” to give up.
3.2.4.7 Scheduling
You can set the schedule time to decide which service will be turned on or off.
Select the “Enable” item. Press “Add New Rule” You can write a rule name and set which day and
what time to schedule from “Start Time” to “End Time”. The following example configure “ftp time”
as everyday 14:10 to 16:20
Click on “Save” to store what you just select.

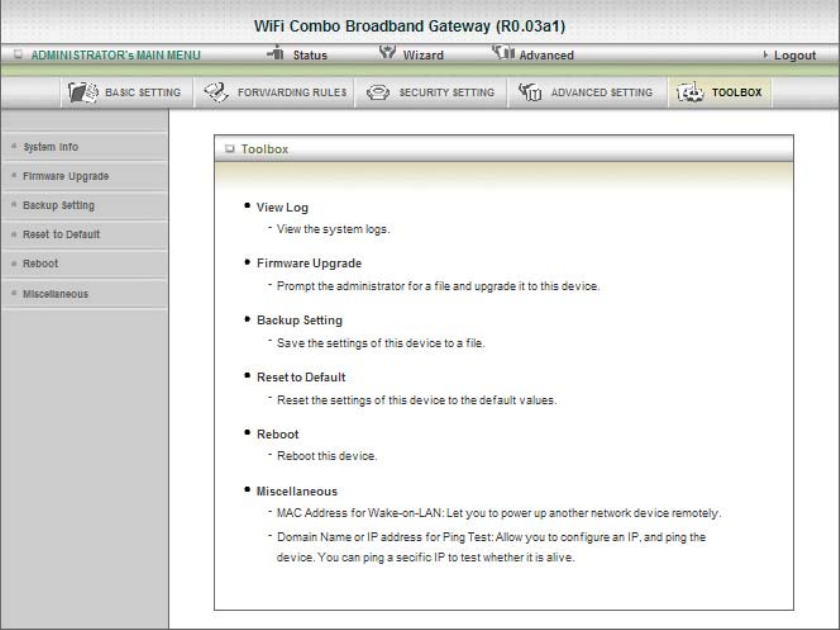

3.2.5 Tool Box
3.2.5.1 System Info
You can view the System Information and System log.
And download/clear the System log, in this page.
3.2.5.2 Firmware Upgrade
You can upgrade firmware by clicking “Upgrade” button.
3.2.5.3 Backup Setting
You can backup your settings by clicking the “Backup Setting” button and save it as a bin file.
Once you want to restore these settings, please reference the Section 3.2.5.2 Firmware
Upgrade.
3.2.5.4 Reset to Default
You can also reset this product to factory default by clicking the Reset to default button.
3.2.5.5 Reboot
You can also reboot this product by clicking the Reboot button.
3.2.5.6 Miscellaneous
1. MAC Address for Wake-on-LAN
Wake-on-LAN is a technology that enables you to power up a networked device remotely.
In order to enjoy this feature, the target device must be Wake-on-LAN enabled and you
have to know the MAC address of this device, say 00-11-22-33-44-55. Clicking "Wake up"
button will make the router to send the wake-up frame to the target device immediately.
2. Domain Name or IP address for Ping Test
You can key in URL or IP address, and then click the “Ping” button for test.
4. Troubleshooting
This section provides an overview of common issues, and possible solutions for the
installation and operation of the WiFi Combo Broadband Router.
1. Unable to access the Configuration Menu when I use my computer to configure the
router. Why?
Note: It is recommended that you use an Ethernet connection to configure the
Ensure that the Ethernet LED on the WiFi Combo Broadband Router is ON.
If the LED is NOT ON, check to see if the cable for the Ethernet connection is securely
inserted.
Note: Ensure that the IP Address is in the same range and subnet as the WiFi
Combo Broadband Router. The IP Address of the WiFi Combo Broadband Router is
192.168.123.254. All the computers on the network must have a unique IP Address
within the same range (e.g., 192.168.123.x). Any computers that have identical IP
Addresses will not be visible on the network. All computers must also have the same
subnet mask (e.g., 255.255.255.0).
Do a Ping test to make sure that the WiFi Combo Broadband Router is responding.
Go to Start > Run.
1:Type cmd.
2:Press Enter.
3:Type “ping 192.168.123.254”. A successful ping shows four replies.
Note: If you have changed the default IP Address, ensure you ping the correct IP
Address assigned to the WiFi Combo Broadband Router.
Ensure that your Ethernet Adapter is working properly, and that all network drivers are
installed properly.
Note: Network adapter names will vary depending on your specific adapter. The
installation steps listed below are applicable for all network adapters.
1. Go to Start > My Computer > Properties.
2. Select the Hardware Tab.
3. Click Device Manager.
4. Double-click on “Network Adapters”.
5. Right-click on Wireless Cardbus Adapter, or your specific network adapter.
6. Select Properties to ensure that all drivers are installed properly.
7. Look under Device Status to see if the device is working properly.
8. Click “OK”.
2. Why my wireless client can NOT access the Internet?
Note: Establish WiFi Connection. As long as you select either WEP or WPA-PSK
encryption, ensure encryption settings match your WiFi settings. Please refer to your
WiFi adapter documentation for additional information.
Ensure that the wireless client is associated and joined with the correct Access Point.
To check this connection, follow the steps below:
1. Right-click on the Local Area Connection icon in the taskbar.
2. Select View Available Wireless Networks in Wireless Configure. The Connect to
Wireless Network screen appears. Ensure you have selected the correct available
network.
Ensure the IP Address assigned to the wireless adapter is within the same subnet as
the Access Point and gateway. The WiFi Combo Broadband Router has an IP Address
of 192.168.123.254. Wireless adapters must have an IP Address in the same range (e.g.,
192.168.123.x). Although the subnet mask must be the same for all the computers on
the network, no two devices may have the same IP Address. Therefore, each device
must have a unique IP Address.
To check the IP Address assigned to the wireless adapter, follow the steps below:
1.Enter ipconfig /all in command mode
2.Enter ping 192.168.123.254.to check if you can access the WiFi Combo Broadband
Router
3. Why does my wireless connection keep dropping?
You may try following steps to solve.
• Antenna Orientation.
1: Try different antenna orientations for the WiFi Combo Broadband Router.
2: Try to keep the antenna at least 6 inches away from the wall or other objects.
• Try changing the channel on the WiFi Combo Broadband Router, and your Access
Point and Wireless adapter to a different channel to avoid interference.
• Keep your product away (at least 3-6 feet) from electrical devices that generate RF
noise, like microwaves, monitors, electric motors, etc.
4. Why I am unable to achieve a wireless connection?
Note: An Ethernet connection is required to troubleshoot the WiFi Combo Broadband
Router.
If you have enabled Encryption on the WiFi Combo Broadband Router, you must also
enable encryption on all wireless clients in order to establish a wireless connection.
• For 802.11g, the encryption settings are: 64 or 128 bit. Ensure that the encryption
bit level is the same for both the WiFi Combo Broadband Router, and your Wireless
Client.
• Ensure that the SSID (Service Set Identifier) on the WiFi Combo Broadband
Router and the Wireless Client are exactly the same.
If they are not, your wireless connection will not be established.
• Move the WiFi Combo Broadband Router and the wireless client into the same
room, and then test the wireless connection.
• Disable all security settings such as WEP, and MAC Address Control.
• Turn off the WiFi Combo Broadband Router and the client.
Turn the WiFi Combo Broadband Router back on again, and then turn on the client.
• Ensure that all devices are set to Infrastructure mode.
• Ensure that the LED indicators are indicating normal activity. If not, ensure that the
AC power and Ethernet cables are firmly connected.
• Ensure that the IP Address, subnet mask, gateway and DNS settings are correctly
entered for the network.
• If you are using 2.4GHz cordless phones, X-10 equipment, or other home security
systems, ceiling fans, or lights, your wireless connection may degrade dramatically,
or drop altogether.
To avoid interference, change the Channel on the WiFi Combo Broadband Router,
and all devices in your network.
• Keep your product at least 3-6 feet away from electrical devices that generate RF
noise. Examples include: microwaves, monitors, electric motors, and so forth.
5. I just do not remember my encryption key. What should I do?
• If you forgot your encryption key, the WiFi card will be unable to establish a proper
connection.
If an encryption key setting has been set for the WiFi Combo Broadband Router, it must
also be set for the WiFi card that will connect to the WiFi Combo Broadband Router.
To reset the encryption key(s), login to the WiFi Combo Broadband Router using a wired
connection. (Please refer to “Basic > Wireless (Security–No Encryption)” on page 10, for
additional information).
6. How do I reset my WiFi Combo Broadband Router to its factory default settings?
If other troubleshooting methods have failed, you may choose to Reset the WiFi Combo
Broadband Router to its factory default settings.
To hard-reset the WiFi Combo Broadband Router its factory default settings, follow the
steps listed below:
1. Ensure the WiFi Combo Broadband Router is powered on
2. Locate the Reset button on the back of the WiFi Combo Broadband Router.
3. Use a paper clip to press the Reset button.
4. Hold for 10 seconds and then release.
5. After the WiFi Combo Broadband Router reboots, it is reset to the factory default
settings.
Note: Please note that this process will take a few minutes.
7. What is VPN?
• VPN stands for “Virtual Private Networking.” VPNs create a "tunnel" through an existing
Internet connection using PPTP (Point-to-Point Tunneling Protocol) or IPSec (IP
Security) protocols with various encryption schemes including Microsoft Challenge
Handshake Authentication Protocol (MS-CHAP) .
• This feature allows you to use your existing Internet connection to connect to a remote
site with added security. If your VPN connection is not functional, verify that your VPN
dial-up configuration is correct.
Note: This information should be provided to you from your VPN provider.
Pressing the Reset Button restores to its original factory default settings.
8. What can I do if my Ethernet cable does not work properly?
• First, ensure that there is a solid cable connection between the Ethernet port on the
Router, and your NIC (Network Interface Card).
• Second, ensure that the settings on your NIC adapter are “Enabled,” and set to accept
an IP address from the DHCP.
• If settings appear to be correct, ensure that you are not using a crossover Ethernet
cable. Although the WiFi Combo Broadband Router is MDI/MDIX compatible, not all NICs
are. Therefore, it is recommended that you use a patch cable when possible.
Technical Support 45
第十二條
型式認證合格之低功率射頻電機，非經許可，公司、商號或
使用者均不得擅自變更頻率、加大功率或變更原設計之特性
及功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通
信；經發現有干擾現象時，應立即停用，並改善至無干擾時
方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波
輻射性電機設備之干擾。
