Advance Security R57 Remote Contriol User Manual IM QR SL 3S rev A

Advance Security Inc Remote Contriol IM QR SL 3S rev A

Users Manual

2 Ignition
controlled door
locks &
unlocks
Ignition controlled
door locks only
Ignition controlled
door unlocks only
Without ignition
controlled door
locks & unlocks
3 0.8-second
Door lock
pulses.
3.5-second Door
lock pulse.
Double pulse
unlock
Comfort
feature
4 3rd Channel
Trunk Pulsed,
3rd Channel
Trunk Momentary
5 + Button =
Silent
Arm/Disarm
Button =
channel 4 AUX 1
6 + Gray Wire =
Trunk (Channel
3) Output
Gray Wire = Two
Step Door Unlock
Output
7. +Horn chirp 20
mS
Horn chirp 50 mS Horn chirp 30 mS Horn chirp 10
mS
SL-3S
QUICK START INSTALLATION MANUAL
If you are not proficient in the installation of this product or would
like a full version of the installation manual, Please visit our web
site @ www.silencer.com
FOR PROFESSIONAL INSTALLATION ONLY! ALARM FEATURE “A” PROGRAMMING:
1. Turn the Ignition 'switch ‘ON/OFF3 TIMES and stay in OFF position.
2. Push the Valet switch 3 times and hold in on the 3
rd
push. When a long chirp is heard,
release the valet switch. You are now in the Alarm feature A programming mode.
3. Press the transmitter button corresponding to the feature you want to program.
4. Press the transmitter button again to change the feature. Simply keep pressing the
transmitter button again until the module advances to your desired setting.
Press
Transmitter
Button
One Chirp /
LED one pulse
Factory Default
Setting
Two Chirps /LED
two pulses
Three Chirps
/LED three
pulses
Four
Chirps
/LED four
pulses
1
Active arming
Passive arming
without passive
door locking
Passive arming
with passive
door locking.
2 Automatic
Rearm off
Automatic Rearm
on
3 45 seconds
delay Door Ajar
error chirp.
Instant Door Ajar
error chirp
4 Siren
Confirmation
chirp on only
All Confirmation
chirps On
Horn
Confirmation
chirp on only
All
Confirmat
ion chirps
off
5 + White wire=
Dome Light
Output
White wire= 4th
Channel pulsed
White =4th
channel
Momentary
White
=4th
channel
Latched
6 + Lock/Arm &
Unlock/Disarm
Confirmation
Chirps
Lock/Arm
Confirmation Chirp
Only
7. + ALARM with
Keyless Entry
Keyless Entry
ONLY
8. + Car Jacking
feature Off
Car Jacking
feature On
Exit: Turn Ignition to 'ON' position, or leave it for 15 seconds. 3 long chirps will confirm
exit.
ALARM FEATURE “B” PROGRAMMING:
1 Turn the Ignition 'switch ‘ON/OFF3 TIMES and stay in OFF position.
2 Push the Valet switch 4 times and hold in on the 4
th
push. When a long chirp is
heard, release the valet switch. You are now in the Alarm feature ʻBʼ programming
mode.
3 Press the transmitter button corresponding to the feature you want to program.
Press
Transmitter
Button
One Chirp / LED
one pulse
Factory Default
Setting
Two Chirps / LED
two pulses
Three Chirps /
LED three pulses
Four
Chirps /
LED four
pulses
1 Pathway
illumination
feature off”
Parking light turns
on” for 30-
second upon an
unlock signal
Parking light turns
on” for 30-
second unlock
signal & 10- lock
ALARM FEATURE “C” PROGRAMMING:
1. Turn the Ignition 'switch ‘ON/OFF 3 TIMES and stay in OFF position.
2. Push the Valet switch 5 times and hold on the 5
th
push until a long chirp is heard then
release the valet switch. You are now in the Alarm feature ‘C programming mode.
3. Press and hold the transmitter button for two seconds to enter shock sensor program
mode.
Press
Transmitter
Button
One Chirp /
LED one pulse Factory Default
Setting
Two Chirps /
LED two pulse
1 Shock Sensor Program Mode
2. ADS DBI protocol Fortin DBI Protocol
3 + No Function DBI start output on channel 4
ADJUST AND TEST THE SENSITIVITY LEVEL OF THE SHOCK SENSOR
Turn the Ignition switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
Push the Valet switch 5 times holding in on the 5th push. until a long chirp will be
heard. Release the valet switch. You are now in the feature ‘Shock Sensor’ programming
mode.
Press and hold button for 2 seconds. One long siren chirp will indicate the unit is ready to
accept adjustments of the shock sensor. Press button on the transmitter once. This will
decrease sensitivity level by one. Each time the button is pushed and a decrease is made
the siren/horn chirp will respond with [1] chirp. Two chirps indicate the minimum sensitivity.
Warn away & full trigger will be deleted when minimum sensitivity is selected. Shock
sensor OFF. Press button on the transmitter once. This will increase sensitivity level by
one. Each time an increase is made the siren/horn chirp will respond with [1] chirp. Two
chirps indicate the maximum sensitivity. Hit the bumper or strong metal part of the vehicle to
test the threshold level of the sensor.
a). Activate the warn-away (first stage the shock sensor), the siren will emit a short chirp.
b). Activate the full alarm (second stage the shock sensor), the siren will emit a long chirp.
When you are satisfied with the setting, press the button to lock in the adjustment. One
long siren chirp will indicate the unit has locked in the adjustment.
Note: If 30 seconds of inactivity expires or you turn ON the ignition during of above steps,
the unit will exit the program mode. Three long chirps will confirm exit.
Button
IM-QR-SL-3S rev A
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Quick Start
OPERATIONS MANUAL
Please register your product at www.silencer.com/manual .

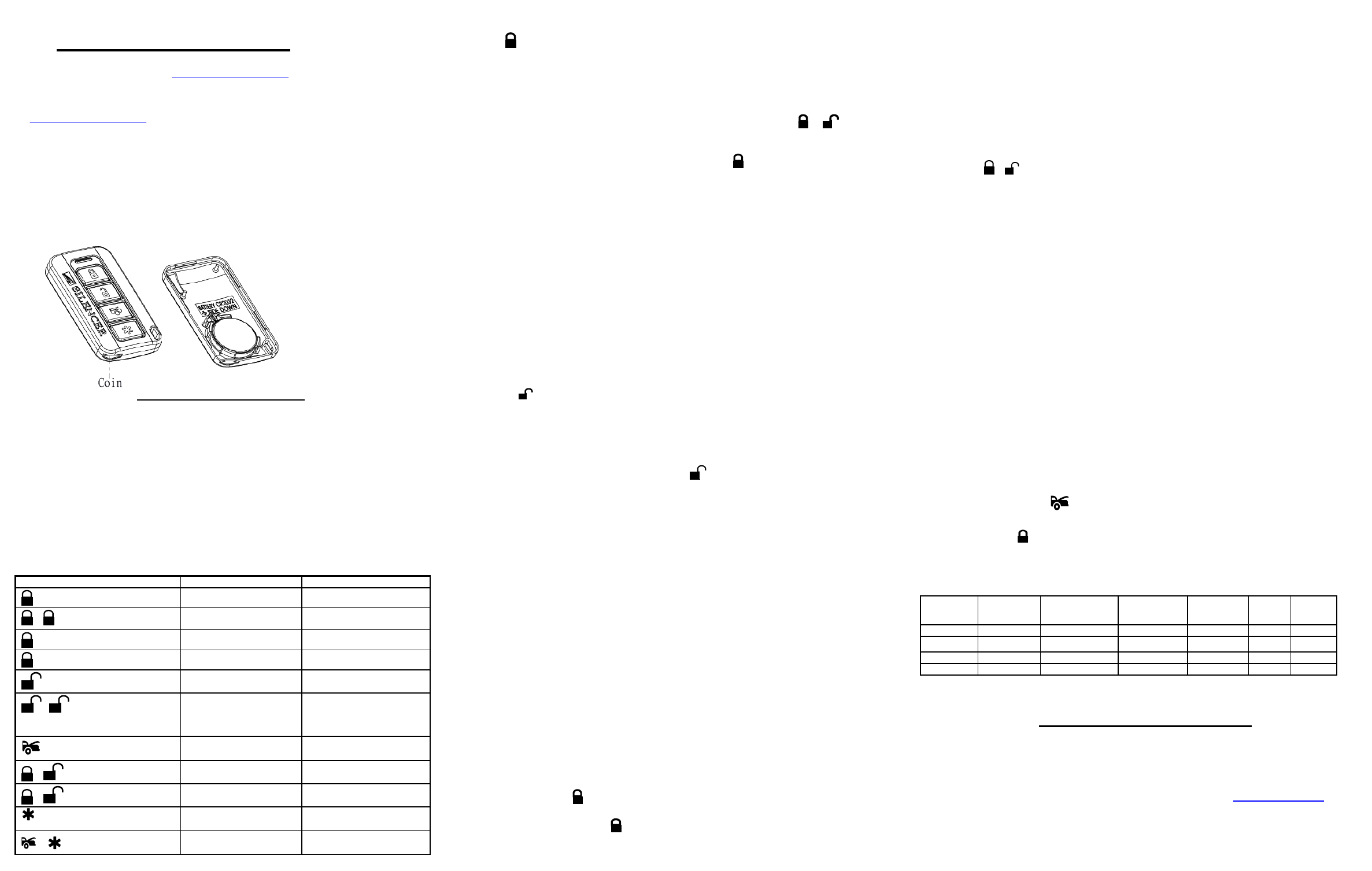

CHANGING THE BATTERY IN YOUR TRANSMITTERS
TRANSMITTER OPERATION
Transmitter Button
System Function
Remark
Button Lock door / ARM ARM (OPTIONAL)
Button Arm and Delete Optional
Sensor
Press twice.
(OPTIONAL)
Button Car Locator While System Armed.
Button for 3 seconds Panic function Press 3 seconds
Button
Unlock Door / DISARM
Button
Two Steps Door Unlock &
Disarm System
Press twice within 3
seconds. (optional
installation and
programming required)
Button for 3 seconds Pop Trunk Release Press 3 seconds
+ Button
Silent LOCK / UNLOCK Ignition in "OFF" position.
+Button for 1 seconds
Activate Car-Jacking
(OPTIONAL)
Ignition in
position.
SILENT LOCK / UNLOCK
Switching code for 2nd
Car Operation
or CH4
ACTIVE LOCKING
LOCK & ARMING:
1. Press button on transmitter.
2. The siren or horn will chirp once and the parking lights will flash once indicating that the system
is now armed. The vehicle doors will lock upon arming when interfaced with the security
system.
Note: Defective sensor reminder: If the siren or horn sounds 3 chirps, then you have left a door,
trunk, or hood lid ajar. (OPTIONAL)
SILENT LOCKING AND UNLOCKING : ARMING / DISARMING: Press the + button
together on the transmitter to LOCK or UNLOCK your security system, No chirp sound will be heard;
arm / disarm confirmation will be through the vehicles parking lights only.
SHOCK SENSOR / OPTIONAL SENSOR BY-PASS: Pressing the button on the transmitter twice
within 3 seconds will arm the security system and by-pass the shock sensor. The system will chirp
one additional time to confirm the sensor bypass mode was activated. The sensor bypass feature is
programmed to activate for one arming cycle only. The security system will return to normal operation
during the next arming cycle
PASSIVE LOCKING OR ARMING: Programmable
Active arming / disarming is controlling your security system via the remote transmitter. This
security system is equipped with an optional Passive Arming feature, which allows the security
system to arm 30 seconds after the last door is closed. Operation is as follows.
1. Turn the ignition to the “OFF” position and exit the vehicle.
2. After all entrances are closed, the security system LED will flash fast for 30 seconds. If you
reopen any door / hood / trunk, the security system LED will stop flashing. It will begin flashing
again once all vehicle entrances are closed.
3. After 30-second timer has elapsed, the security system will automatically “ARM”. The siren or
horn will chirp [1] time and the parking lights will flash [1] time.
PASSIVE DOOR LOCKING: Programmable
The vehicle doors will automatically lock after passive arming cycle has been completed.
ACTIVE UN-LOCKING – UNLOCK & DISARM:
1. Press the button on the transmitter.
2. The siren or horn will chirp twice and parking lights will flash twice to indicate that the security
system is now disarmed. The vehicle doors will unlock when interfaced with the security system.
TAMPER DISARMING: (OPTIONAL). If the alarm is triggered; Upon disarming the system the
siren or horn will chirp 4 times and parking lights will flash 3 times. This will indicate that the alarm
has been triggered while armed.
TWO STEP DOOR UNLOCK: (OPTIONAL) This feature will independently unlock the drivers door
only when disarming the security system. Pushing the button on the transmitter a second time
within 3 seconds will unlock the entire vehicle. (Optional, Additional installation required).
AUTOMATIC RE-LOCKING or RE-ARM: If this feature is selected, the security system will
automatically re-arm itself 60 seconds after disarming with remote transmitter. Automatic rearm will
cancel if any door is opened before the 60 seconds timer has elapsed.
DISARMING WITHOUT A TRANSMITTER
The Override function may be used if the remote transmitter is lost or inoperative.
1. Enter the vehicle and turn the ignition switch to 'ON position. (Alarm will sound.)
2. Within 10 seconds push and release the valet switch
The alarm will stop sounding and enter the disarm mode. You can now start and operate the
vehicle normally.
VALET MODE:
The valet switch allows you to temporarily bypass all alarm functions eliminating the need to hand
your transmitter to parking attendants or garage mechanics. When the system is in valet mode,
all alarm functions are bypassed, however, the remote panic feature and remote door locks will
remain operational.
Enter Valet Mode:
1. Turn the ignition to “ON\OFF\ON position.
2. Push and hold valet switch for 3 seconds or until the LED turns on. The LED will remain on as
long as the system is in 'valet mode'.
Exit Valet Mode:
1. Return to normal operation, turn ignition 'ON\OFF\ON'.
2. Push and hold valet switch for 3 seconds; the LED will turn off indicating the system is exiting
the valet mode.
PANIC FUNCTION:
The transmitter can be used as a remote panic switch to manually trigger the alarm in case of
emergency.
1. Press and hold the button on the transmitter for 3 seconds. The alarm will immediately
sound.
2. To stop the alarm, press the button on the transmitter, the panic mode will be turned off
immediately.
3. If the button is not pressed, the alarm will automatically stop after 30 seconds.
If you are not sure or do not understand any part of the quick start
manual, please download the complete operations manual available
at www.silencer.com/manual .
TRIGGER THE SYSTEM:
(OPTIONAL) If alarm option is installed.
When armed, your vehicle is protected as follows:
1. Light impacts will trigger the warn-away signal. A long chirp from siren /horn.
2. Heavy impacts / Doors open / Hood open / Trunk open / Turning on the ignition switch- All will trigger the
programmed sequence.
The starter disable relay (if installed) prevents the vehicles starter from cranking. The siren or horn and parking
lights will turn on to alert of an intrusion for 30 seconds. Then the siren or horn will stop and automatically reset
and re-arm. If any the sensors or detectors are still active, the alarm system will sound a maximum of 3-30
second cycles.
ANTI CAR-JACKING: (OPTIONAL) If alarm option is installed.
Warning: If you don't need the carjacking function in this alarm system, be sure to set carjacking feature
“OFF”. This system is default setting Car-jacking feature “OFF”.
1. TRANSMITTER ACTIVATES THE CAR JACKING:
Press and hold + button on the transmitter for 1 second while the vehicles ignition is ON. The
parking light will turns on for 1.5” seconds to indicate car jacking activated.
2. DOOR SWITCH ACTIVATE CAR JACKING:
1. Turn the ignition switch to “ON” position, the system is armed.
2. Once the system is armed, if you are forced from the vehicle, the system will active the carjacking trigger
when the door is opened and closed while the ignition is “ON”.
TRIGGER THE CAR JACK MODE:
3-timer circuits will function as follows:
First timer:
a. 50 seconds after the system has been triggered. The siren or horn will start chirping for 15 seconds.
b. During this 15 seconds period of chirping, you will be alerting to push the valet switch once to turn off the
car-jacking feature.
c. If not, it will enter second timer car jacking feature.
Second timer:
65 seconds after the system has been triggered. The siren or horn starts alarming and the parking light
starts flashing.
Third timer:
90 seconds after the system has been triggered
a. The siren or horn will still be alarming and the parking light flashing.
b. The starter disable will activate to prevent the vehicle from starting.
c. It will remain active until the vehicle's battery power exhausted.
OVERRIDE THE SYSTEM TO TURN OFF CAR JACKING:
Turn the ignition switch from OFF to ON, and within 10 seconds push valet switch. The siren or horn will
stop and the system will be disarmed
IGNITION CONTROL DOOR LOCKS.
If the vehicle
s door locks have been interfaced to the security system, the system will automatically lock the
vehicle's doors when the ignition is turned “ON” and /or unlock the vehicles doors when the ignition is turned
“OFF”.
TRUNK RELEASE: Press and hold button on transmitter for three seconds to remote control the trunk
release or other electric devices. ( Note: Vehicle must have an electronic trunk release )
CAR LOCATOR : Press the button on the transmitter when the vehicle is in the armed / locked mode to active
car locator function. The siren or horn will chirp 6 times. The parking light will flash 12 times, allowing you to
easily locate your car.
ALARM OPERATING CONDITI
ON: (
OPTIONAL)
Function Siren or horn
Parking Lights
LED Doors
Starter
Disable
Pager
Option
1. Arm 1 Chirp 1 Flash Slow flash Locking On
2. Disarm 2or4 Chirps 2 or 3 Flashes Off or Fast flash Unlocking Off
3. Trigger Alarming Flashing Slow flash On On
4. Panic Alarming Flashing Slow flash Locking On
TRANSMITTER PROGRAMMING
Enter:
1. Turn the Ignition 'switch 'OFF/ON' 3 TIMES and stay in ON position. Within 15 seconds.
2. Push the Valet switch 3 times and hold in on the 3
rd
push, when a long chirp is heard then release
the valet switch. You are now in the Transmitter programming mode.
Program:
1. Press any button on transmitter 1 until the siren responds with a confirming chirp; the first transmitter
is now programmed.
2. Press any button on the second transmitter until the siren responds with a confirming chirp; the
second transmitter is now programmed.
3. Apply the same procedure to program 3
rd
and 4
th .
Transmitters.
Exit: Turn Ignition to 'OFF' position, or leave it for 15 seconds. 3 long chirps and 3 parking Light flashes
will confirm exit.
Note: If more than 4 transmitters programmed, the system will only keep the last four.
Magnadyne Corporation
1111 W. Victoria Street
Compton CA 90220
(800) 340-3200
For Warranty information: Please visit our website at www.silencer.com
Made in Taiwan. All Rights Reserved
UM-QR-SL-3S rev A
SLRF434: The transmitter uses one 3-volt lithium ion batteries (#CR2032) To replace the battery,
you will need to use a small flat blade screwdriver. Locate the small notch on the lower left side of
the transmitter case next to the key ring. Using the flat blade screwdriver, carefully pry the top case
from the bottom case. It should snap apart after breaking the seal. Before removing the battery note
the direction of the positive (+) terminal. Place the new batteries in exactly the same manner, being
careful not to bend or damage the contact terminal. Snap the cases back together and then test the
transmitter to insure it arms and disarms the alarm.
SLRF434
Transmitter
Battery
Replacement
CR2032 ( 1 )
+ Side DOWN
+
For 1-way TX only, Press
& hold until TX LED on
