RST771IN 1
MODEL RST771
REMOTE ENGINE STARTER
WITH ALARM SYSTEM
INSTALLATION MANUAL
TABLE OF CONTENTS:
MAY/23/ 2003
RST771IN 2
INSTALLATION
DIAGRAM …………….……………………………………………….…………………………. …4
H1: 6 PIN HEAVY GAUGE WIRING
CONNECTION …………………………….………………..…….……. …6
H1/1 Violet Wire – Starter Output ………………….…………………………….……………………….……... 6
H1/2 & H1/3 Red Wire – +12V Power Input ………………………………….…………………...……………. 6
H1/4 Yellow Wire – Ignition 1 Output ……………………….…………………….……..…….…..…….……….
6
H1/5 Pin Wire – Ignition 2 Output ……………………………….…………….……..…….…..…….…………...
6
H1/6 Brown Wire – Accessory Output (Heater /ACC Output) ………………….……..……...….…………….
6
H2: 5 PIN WIRE HARNESS …..………………………………………………………….………………..………….
7
H2/1 Red / White wire – Parking Light Relay Power Input ……………………….……..……...….….……….
7
H2/2 White wire – Parking Light Relay Output ………………………………….……..………….….………….
7
H2/3 Black wire – System Ground ……………………………………………….……..………………...………
7
H2/4 Brown wire – Siren Drive Output ………..………………………………….……..…………..……………
7
H2/5 Red wire – System Power ………………….…………………………….………………..………………..
7
H3: BLACK 4-PIN CONNECTOR FOR TWO-WAY TRANSCEIVER/ANTENNA MODULE ……….…….…...
7
H4: 3-PIN BROWN CONNECTOR FOR OPTIONAL PAGING (KNOCK) SENSOR ……………………....…..
7
H5: 8 PIN MINI BLACK INPUT WIRE CONNECTOR …..………………………………………………….……...
7
H5/1 White / Black wire – Negative Safety Shut Down Input (Hood -) .……….………………….….…..……
7
H5/2 White / Violet wire – Positive Safety Shut Down Input (Brake +) .……………….………………..…… 8
H5/3 Black / White wire – (-) Remote Start Enable Toggle Switch Input …….………………………..……...
8
– (-) Neutral Safety Switch Input ………………….…………………………….……..
8
H5/4 Blue wire – Ground Instant Trigger Input (Zone 2) .……………………….………………...……….…...
8
H5/5 Green wire
– Negative Door Switch Sensing Input (Zone 3) .………….………………..…….….……..
8
H5/6 Violet Wire
– Positive Door Switch Sensing Input (Zone 3) .………….………………..………...……...
8
H5/7 White / Blue wire – (-) Instant Start & Turn Off Input ………………….……………………….…..….….
8
H5/8 White / Red wire – Tachometer Signal Connection ……….……………………..……….………………
8
H7. 4 PIN ORANGE CONNECTOR FOR 2 STAGE SHOCK SENSOR (ZONE 1 / 4) ….…………….…..……
9
H8: 10-PIN MINI WHITE OUTPUT WIRE CONNECTOR ……………………………………………….…..….… 9
H8/1 Yellow wire – (-) 200mA Ignition 3 Output .………………………….………………..……..….….……
9
Transponder Interfacing
GM VATS Key Override
H8/2 Black / Violet wire – (-) 200mA Timer Control Channel 6 Output ……….…………………..…………
10
H8/3 Brown / White wire – (-) 200mA Programmable Output ……………….……………...….…..…...……
10
Horn Output – (Factory Default Setting)
Factory Security Rearm Signal Output
H8/4 White wire – (-) 200mA Dome Light Control Output ……………….………………..……….…....……
10
![](/img.php?id=607397&img=bg3.png)
MAY/23/ 2003
RST771IN 3
H8/5 Black / Red wire – (-) 200mA Timer Control Channel 5 Output ……….………………….…..….……
10
H8/6 Black / Green wire – (-) 200mA Programmable Output …………….….…………….…..………..……
10
Programmable Timer Channel 4 Output – (Factory Default Setting)
Key Sensor By-Pass Output
H8/7 Gray wire – (-) 200mA Channel 3 Output ….…………………………….…………..…………….….. 11
H8/8 Pink wire – (-) 200mA Programmable Output …………………………….……………….……………. 11
2 Steps Unlock Output (Factory default setting)
Factory Security Disarm Signal Output
Start Status (Shock Sensor By-Pass Control) Output ……………….……………..………………. 11
H8/9 Orange / White wire –(-) 200mA Grounded Output When Disarmed ……….………..……………..
11
H8/10 Orange wire – (-) 200mA Grounded Output When Armed ……………….…………..………….……
11
H9. 2 PIN BLUE CONNECTOR FOR THE VALET SWITCH .……………………………… ….………..…….. 12
H10. 2 PIN WHITE CONNECTOR FOR THE LED STATUS INDICATOR ………………….…....…..….…….
12
H6. 3 PIN DOOR LOCK CONNECTOR ………………………..………………………………………..…..……..
12
Install New Door Lock Motors ….…………………………….…………………….……………..…..…..……..
12
Negative Trigger Door Lock System .…………………………….……………………….…………...………..
12
Positive Trigger Door Lock System ….…………………………….…………………….…………….………..
12
Alternating Door Lock System ….………………………………….…………………….……………..………..
12
Vacuum Operate Door Locking System ….…………………………….……………….……………..……….
12
2 Steps Door Unlock Wire Connection For 5 Wires Alternating Door Lock System ….……….….…..……13
2 Steps Door Unlock Wire Connection For Ground Switched Door Lock
System ….………..……….…….13
2 Steps Door Unlock Wire Connection For Positive Switched Door Lock
System ….………..……….……13 PROGRAMMING & TESTING:
A. PROGRAMMING THE REMOTE
TRANSMITTER ………………………………………………………..…...13
B. FEATURES
PROGRAMMING ……..………………………………………………………………………..... …13
Alarm Feature “I” Programming ……………………………………………….………..………..…………..….
14
3 / 30 seconds Delay Door Ajar Error Chirp ………………………………….….………………..…..…...
15
45 second Door By-Pass (With Dome Light Turn On After Ignition Off) …………………..………..…..
15
Alarm Feature “II” Programming ……………………………………………….…………………..………..…..
15
Alarm Feature “III” Programming ……………………………………………….…………………..……….…..
16
Channel 4 (5 / 6) Timer Control Output Programming ………………….…………………...……….…...
16
Key Sensor By-Pass Output Programming ………………….…………………...……………..…….……
17
Password Pin Code Setup ………………………………………………….…………………..……….……
17
Start Feature “I” Programming ……………………………………………….…………………..…………..….
17
Safe Start (Child Safety Mode) ………………………………………………………………..………...…...
18
Start Feature “II” Programming ……………………………………………….…………………..……………..
18
![](/img.php?id=607397&img=bg4.png)
MAY/23/ 2003
RST771IN 4
Tachometer Checking Type – RPM Learning & Testing ………………………………………………….
19
Voltage Checking Type – Start Timer Set-up & Testing ……………………….………………………….
19
Timer Checking Type – Start Timer Set-up & Testing …………….…………….…………………….…..
20
Test Mode ………………………………………………………………………………………..………..…...
20
RETURN TO FACTORY DEFAULT SETTING ………………………………………..……………..…….…….. 21
SHUTDOWN DIAGNOSTICS ………………………………………..……………………….……….………..…...
21
TESTING YOUR INSTALLATION ………………………………………..……………..……………………..…...
22
Test the Brake shutdown circuit…………………………………………….……………………..………………
22
Test the Hood Pin shutdown circuit………………………………………….…………………..……….….……
22
Neutral Start Safety Test ……………..……………………………………….…………………..……….……... 22
Mechanical Neutral Safety Switch Considerations ………………………….…………………..………………
22
Park/Neutral ECM Input ……….……………………………………………….…………………..………………
22
Key In Sensor Circuits ……………………………………………….…………………..…………………..…….
23
INTRODUCTION
INSTALLER WARNINGS
This Remote Starter with Alarm System is designed to be installed on fuel injected vehicles with an
automatic transmission ONLY.
Never install this remote starter on a manual transmission vehicle.
This system must be installed and wired through a safety switch it will not start in any forward or reverse
gear.
Some automatic transmission vehicle [mainly older GM vehicles with a purple starter wire] have a
mechanical-type park safety switch instead of electrical safety switch. The mechanical type does not
interrupt the starter circuit when the transmission is any gear and does not offer the 100% level of safety
required for remote starting purposes. Therefore, our system should never be installed on any vehicle that
uses a mechanical type park safety switch.
Once you install this system, you must verify that the vehicle will not start any forward or reverse gear.
Regardless of the type of vehicle.
Read operation manual for operating and programming routine.
Do not install any component near the brake, gas pedal or steering linkage.
Some vehicles have a factory installed transponder immobilizer system that can severely complicate the
installation. There is possibility that this system can not be installed on some immobilizer equipped
vehicles.
Most vehicles have an SRS air bag system. Use extreme care and do not probe any wires of the SRS
system.
Disconnect the car battery before connecting work on the vehicle.
Check behind panels before drilling any holes. Ensure that no wiring harness or other components are
located behind the panels that would otherwise be damaged.
Use conventional crimp lock, bullet on any wiring. Poor wiring, i.e. taped joints will possibly introduce
unreliability into the alarm system and may result in false alarms or incorrect operation.
Install wiring neatly under carpets or behind trim to prevent possible damage to wires.
For the wire operates the current more than 10A. We suggest soldering all connection point. Do not use
crimp lock type connectors or wire nuts.

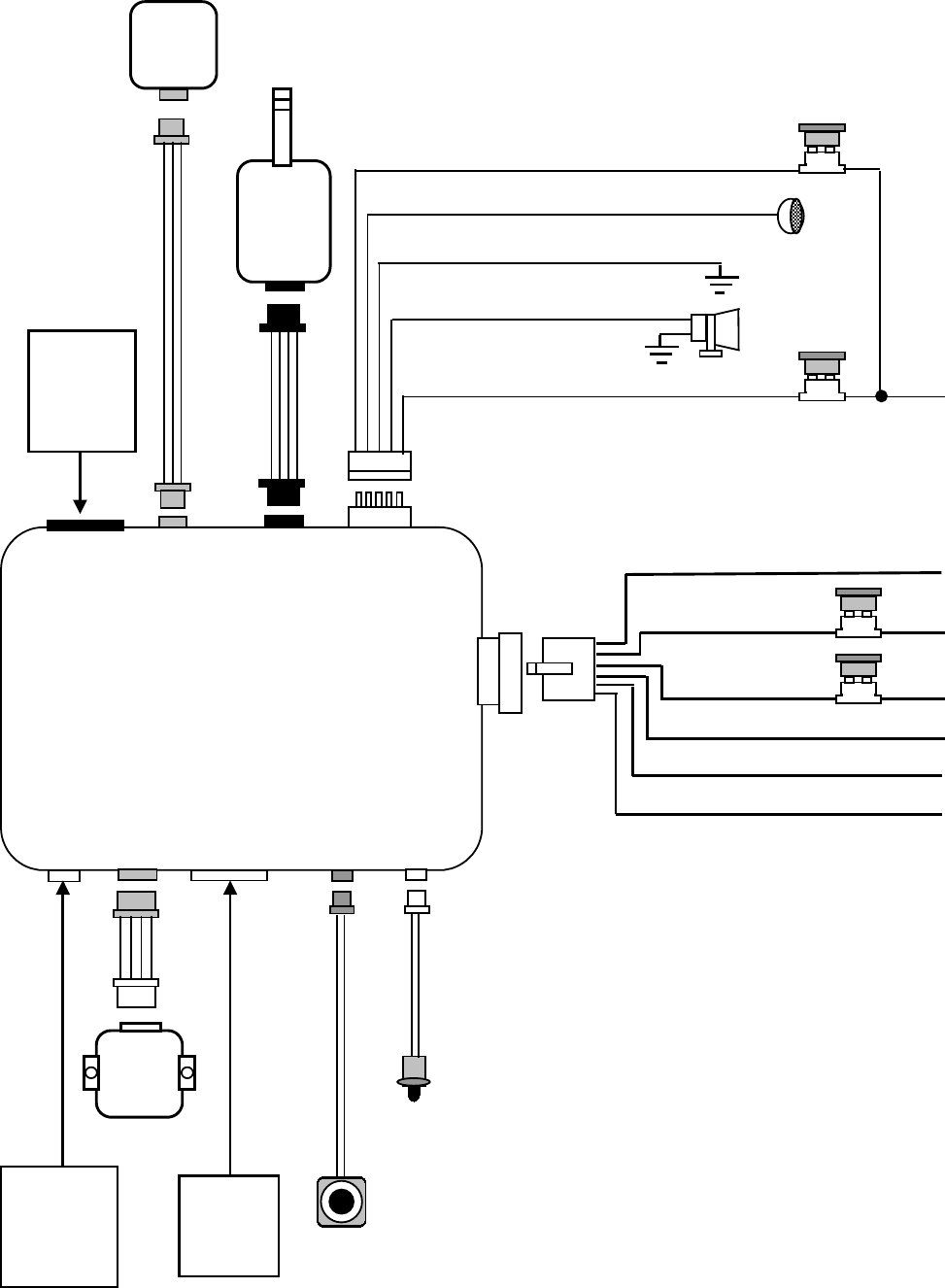

INSTALLATION DIAGRAM
![](/img.php?id=607397&img=bg5.png)
MAY/23/ 2003
RST771IN 5
H 5
8 Pin Black
Connector
For Input
Connection
H 1
6 Pin
White
H 2
5 Pin
White
H 10
2 Pin
White
H 3
4 Pin
Black
H 4
3 Pin
Brown
H 5
8 Pin
Black
VALET
SWITCH
H 8
10 Pin
White
H 9
2 Pin
Blue
1. Red / White: Turn Indicator Relay Power input
2. White: Parking Light Relay Output
3. Black: Ground to Vehicle Frame
4. Brown: Positive Output to Siren
5. Red: +12V Input
Two Way
Transceiver
Antenna
LED
Indicator
3A Fuse
15A Fuse
2. Red: +12V Input
3. Red: +12V Input
4. Yellow: Ignition 1 output
1. Violet: Starter Output
20A
Fuse
20A
Fuse
5. Pink: Ignition 2 Output
H 7
4 Pin
Orange
Dual
Zone
Shock
Sensor
H 6
3 Pin
White
H 8
10 Pin White
Connector
for Output
Connection
H 6
3 Pin White
Connector for
Door Lock &
Door unlock
Connection
Optional
Pager
(Knock)
Sensor
6. Brown: ACC/Heater Output

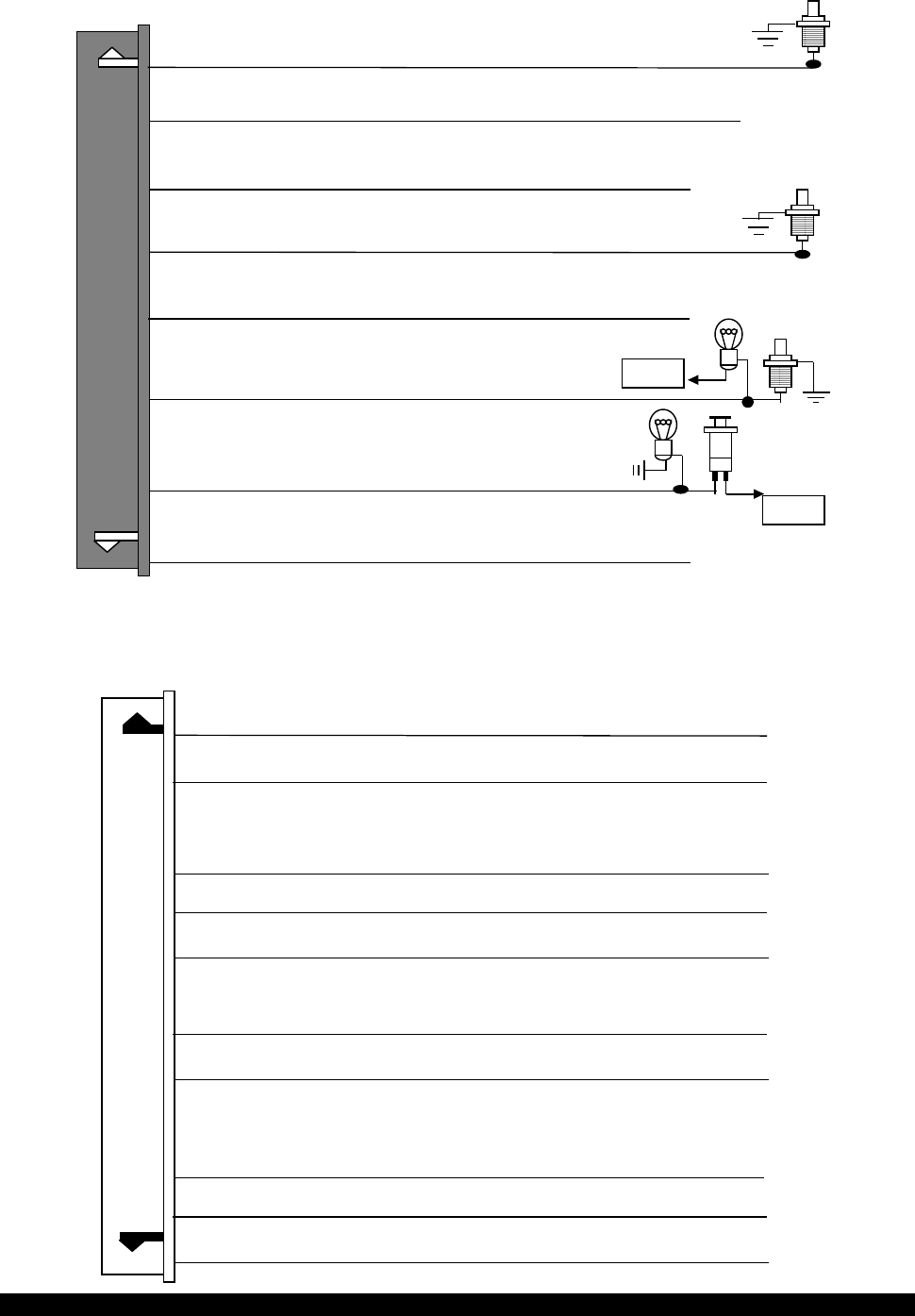

#H5. 8 PIN BLACK CONNECTOR FOR INPUT CONNECTION:
![](/img.php?id=607397&img=bg6.png)
MAY/23/ 2003
RST771IN 6
6. Green Wire: Zone 3 / Negative Door Pin Trigger Input:
4. Blue Wire: Zone 2 / Instant Trigger Ground
7. Violet Wire: Zone 3 / Positive Door Pin Trigger
2. White / Violet Wire: (+) Positive Safety Shut Down Input for Brake switch.
3. Black/White Wire: (-) Neutral Safety Switch Input &
(
-) Remote Start Toggle Switch Input
8. White / Red Wire: Tachometer Signal Input
+12V
1. White / Black Wire: (-) Negative Safety Shut Down Input for Hood pin switch
IMPORTANT NOTE: Directly connect the H5/3 BLACK/WHITE wire to the “GROUND” when this wire
is not used.
+12V
5. White / Blue Wire: (-) Instant Start and Turn Off Input
#H8. 10 PIN WHITE CONNECTOR FOR OUTPUT CONNECTION
4. White Wire: (-) 200mA Dome Light Control Output
7. Gray Wire: (-) 200mA Channel 3 (Trunk) Output
10. Orange Wire: (-) 200mA Grounded Output When Armed
1. Yellow Wire: (-) 200mA Ignition 3 Control Output
8. Pink Wire: (-) 200mA Programmable Output
1. 2 Steps Door Unlock Output (Factory Default Setting) or
2. Factory Security Disarm Signal Output or
3.
Start Status
(
Shock Sensor B
y
-Pass Control
)
Out
p
ut
3. Brown / White Wire: (-) 200mA Programmable Output
1. Horn Output (Factory Default Setting) or
2. Factory Security Rearm Signal Output
6. Black / Green Wire: (-) 200mA Programmable Output
1. Channel 4 Programmable Output (Factory Default Setting) or
2. . Key Sensor By-Pass Output
2. Black / Violet Wire: (-)200mA Channel 6 Programmable Output
5. Black / Red Wire: (-) 200mA Channel 5 Programmable Output
9. Orange / White Wire: (-)200mA Grounded Output When Disarmed
WIRING
![](/img.php?id=607397&img=bg7.png)
MAY/23/ 2003
RST771IN 7
Keep wiring away from moving engine parts, exhaust pipes and high-tension cable. Tape wires that pass
through holes on the firewall to prevent fraying. Watches out sharp edges that may damage wires and
causes short circuit.
CAUTION: Do not connect the wire harness to the control module until all wiring to vehicle is complete.
H1: 6 PIN HEAVY GAUGE WIRING CONNECTIONS:
Remember that the system does to start a vehicle is duplicate the functions of the ignition key switch! Below,
we will explain the three basic functions of the ignition switch. Since this installation will require analysis of
the ignition switch functions, we recommend making the three connections below at the ignition switch
harness directly.
H1/1 Violet wire – Starter Output –
Careful consideration for the connection of this wire must be made to prevent the vehicle from starting
while in gear. Understanding the difference between a mechanical and an electrical Neutral Start Switch
will allow you to properly identify the circuit and select the correct installation method. In addition you will
realize why the connection of the safety wire is required for all mechanical switch configurations.
Failure to make this connection properly can result in personal injury and property damage.
In all installations it is the responsibility of the installing technician to test the remote start unit and assure
that the vehicle can not start via RF control in any gear selection other than park or neutral.
In both mechanical and electrical neutral start switch configurations; the connection of the VIOLET wire
will be made to the low current start solenoid wire of the ignition switch harness. This wire has +12 volts
when the ignition switch is turned to the “START” (CRANK) position only. This wire have 0 volts in all other
ignition switch positions.
NOTE: This wire must be connected to the vehicle side of the starter cut relay (when used). For the
electrical neutral switch configuration, this connection must be made between the starter inhibit relay
(when used) and the neutral safety switch as shown in the following diagram.
Failure to connect this wire to the ignition switch side of the neutral safety switch can result in personal
injury and property damage. SEE NEUTRAL START SAFETY TEST FOR FURTHER DETAILS.

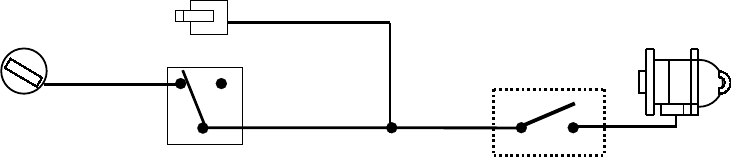

Start Cut Relay
(When Used)
V
IOLET Wire
Closed in Park or
Neutral Only
Ignition
Switch
“Start”
“On” Neutral Safety
Switch
“Acc”
“Off” Starter
H1/2 & H1/3 Red wire – +12V Power Input –
Remove the two 20A fuses prior to connecting these wires and do not replace them until the satellite has
been plugged into the control module. These wires are the source of current for all the circuits the relay
satellite will energize. They must be connected to a high current source. Since the factory supplies (+) 12V
to the key switch that is used to operate the motor, it is recommended that these wires be connected
there.
Note: If the factory supplies two separate (+) 12V feeds to the ignition switch, connect one RED wire of the
satellite to each feed at the switch.
H1/4 Yellow wire – Ignition Output –
Connect the YELLOW wire to the ignition wire from the ignition switch. The ignition wire should receive "12
volts" when the ignition key is in the "ON" or “RUN” and "START" or “CRANK” position. When the ignition
is turned "OFF", the ignition wire should receive "0" voltage. The YELLOW wire must be connected.
H1/5 Pink wire – Ignition 2 Output
Some vehicles have [2] ignition wires that must be power. Connect the PINK wire to the ignition 2 wire
from the ignition switch. The ignition wire should receive "12 volts" when the ignition key is in the "ON" or
“RUN” and "START" or “CRANK” position. When the ignition is turned "OFF", the ignition wire should
receive "0" voltage. If the PINK wire is not used, cap the end of the wire.
H1/6 Brown wire – Accessory Output (Heater /ACC Output) –
Connect the BROWN wire to the accessory wire in the vehicle that powers the climate control system.
An accessory wire will show + 12 volts when the ignition switch is turned to the “ACCESSORY” or “ON”
and “RUN” positions, and will show 0 Volts when the key is turned to the “OFF” and “START” or “CRANK”
position. There will often be more than one accessory wire in the ignition harness. The correct accessory
wire will power the vehicle’s climate control system. Some vehicle may have separate wires for the blower
motor and the air conditioning compressor. In such cases, it will be necessary to add a relay to power the
second accessory wire.
![](/img.php?id=607397&img=bg8.png)
MAY/23/ 2003
RST771IN 8
H2: 5 PIN WIRE HARNESS:
H2/1 Red / White wire – Parking Light Relay Power Input –
The RED/WHITE wire is the input to the flashing parking light relay. The connection of the RED/WHITE
wire will determine the output polarity of the flashing parking light relay.
If the vehicle you are working on has +12volt switched parking light, you don’t need connect this wire. This
wire already connected to +12 volt.
If the vehicle’s parking light are ground switched, cut the RED/WHITE wire, connect the RED/WHITE wire
to chassis ground.
H2/2 White wire – Parking Light Relay Output (10A power output) –
Connect the WHITE wire to the parking light wire coming from the headlight switch. Do not connect the
WHITE wire to the dashboard lighting dimmer switch. (Damage to the dimmer will result). The limitation of
the WHITE wire is 10 AMP max. Do not exceed this limit or damage to the alarm and parking relay will
result.
H2/3 Black wire – System Ground –
This is main ground connection of the alarm module. Make this connection to a solid section of the vehicle
frame. Do not connect this wire to any existing ground wires supplied by the factory wire loom, make the
connection to the vehicle's frame directly.
H2/4 Brown wire – Siren Drive Output – (See Alarm Feature II - 4 Programming)
This is the positive (+) output connection for the siren. Current capacity is 2 Amp. Make connection to
the (+) red wire from the siren. Make the (-) black wire coming from the siren to a good chassis ground.
H2/5 Red wire – System Power (+12V Constant) –
The RED wire supplies power to the system. Connect this wire to a constant +12 volt source.

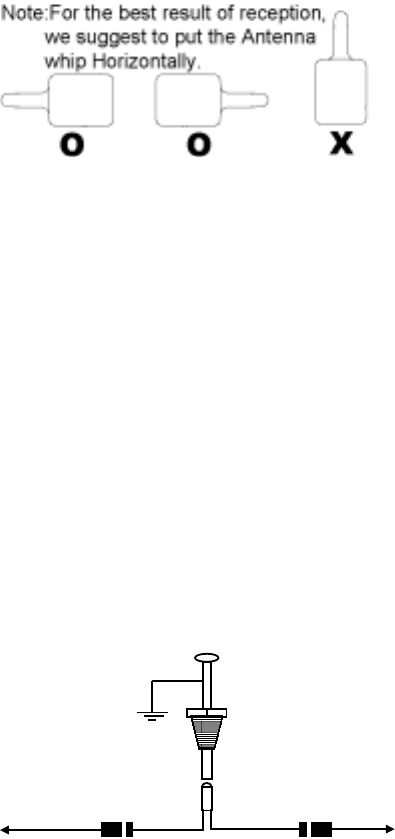

H3. BLACK 4-PIN CONNECTOR. – TWO-WAY TRANSCEIVER/ANTENNA MODULE
The Two-way transceiver/antenna mounts on the
location above the belt line (dashboard) of the vehicle for
best reception. We suggest you mount it on the lower left
or upper left-hand side of windshield.
Warning! Do not mount in such a manner that it obstructs
the driver’s view.
- Remove the protective tape backing.
- Carefully align the two-way transceiver/antenna and apply to windshield.
- Route the black connector wire behind the trim and connect to the two-way transceiver/antenna.
- Connect the other end to the control module.
- Special considerations must be made for windshield glass as some newer vehicles utilize a metallic
shielded window glass that will inhibit or restrict RF reception. In these vehicles, route the two ways
transceiver/antenna module away from metallic shielded window glass as far as possible.
H4. 3-PIN BROWN CONNECTOR FOR OPTIONAL PAGING (KNOCK) SENSOR
The optional Paging (Knock) Sensor can be add on.
1. Detach the protecting paper from the double-sided adhesive tape and attach one side of the
double-sided adhesive tape to the bottom part of the Paging (Knock) Sensor.
2. After cleansing the area around left bottom part of the front window so that it stays attached firmly, the
Paging Sensor should be attached on the front window so that the side on which a sticker with a
printed words “Tap Here Paging Driver” is attached face outward.
3. Hide the wire by carefully pushing it inside the space of the front window’s mold trim.
4. Adjust the sensitivity of the Paging Sensor, If you turn the tuning screw at the center of the Paging
Sensor clockwise, the sensitivity goes sharp and if turned counter-clockwise, the sensitivity goes dull.
H5: 8 PIN MINI BLACK INPUT WIRE CONNECTORS:
H5/1 White / Black wire – Negative Safety Shut Down Input –
The WHITE/BLACK wire provides an instant shutdown
for the remote start, whenever it is grounded. Connect
the wire to the hood pin switch previously installed. This
wire must be routed though a grommet in the firewall
and connected to the hood pin switch. If the pin switch
is to be used with an alarm system, connect this wire
with diode.

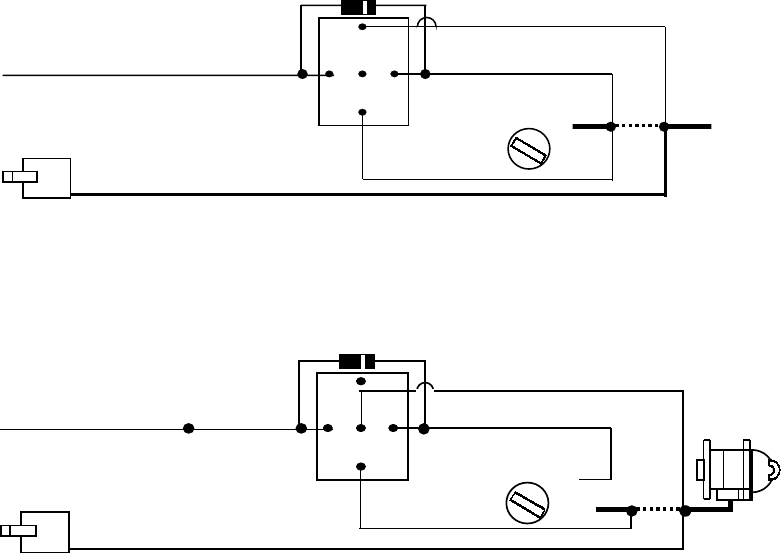

To: White/Black Wire /
Negative safety
To: Alarm instant
trigger
Blue wire
Hood Pin Switch
Diode Diode
![](/img.php?id=607397&img=bg9.png)
MAY/23/ 2003
RST771IN 9
Important! This connection is a safety wire and must be connected as shown and tested as specifiled.
Failure to do so may result in personal injury or property damage. See detail of wiring in the following
diagram. This wire may also be used if the vehicle brake light circuit switches ground to the brake lights.
An isolation diode must be used for ground switched brake light circuits and must be connected to the
output of the brake switch.
H5/2 White / Violet wire – Positive Safety Shut Down Input –
This wire provides an instant shutdown for the remote
start, whenever it gets +12volts. If the brake lights switch
in the vehicle switches +12 volts to the brake light circuit,
connect this wire to the output side of the brake switch.
This will allow the remote start to shut down if an attempt
is made to operate the vehicle without the key while
running under the control of the remote start. In most
vehicles, in order to shift gear, the brake pedal must be
depressed. The brake input will in turn cause the remote
start unit to shut off. See below diagram.

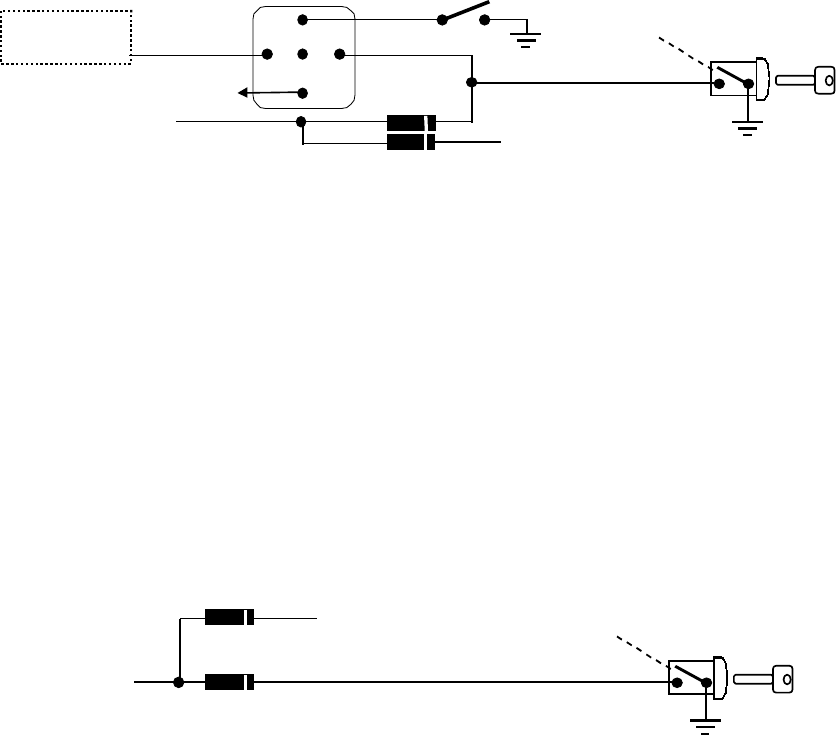

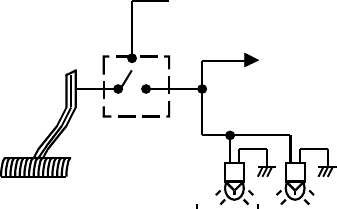

+12 volts from fuse box
To White/ Violet
wire
Brake light bulbs
Switch closes
When brake is
de
p
ress

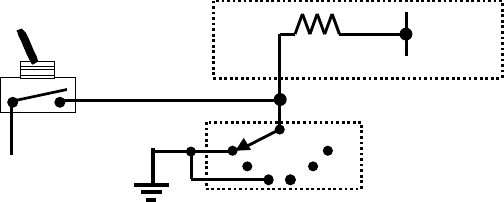

H5/3 Black/White wire – (-) Remote Start Enable Toggle Switch Input –
– (-) Neutral Safety Switch Input –
When the BLACK/WHITE wire is grounded, the remote start unit is operable. When this wire is open from
ground, the remote start is disable.
1. The optional “remote start toggle switch” can be added on to temporarily disable the Remote Start
Device, it can prevent the vehicle from being remote started accidentally. This feature is useful if the
vehicle is being serviced or stored in an enclosed area. To disable the remote start, move the optional
remote start enable toggle switch to the OFF position. To enable the remote start, move the optional
remote start enable toggle switch to the ON position.
2. If needed, This wire can connect to the PARK/NEUTRAL switch in the vehicle. (See the TESTING
YOUR INSTALLATION GUIDE)
IMPORTANT NOTE: Directly connect the BLACK/WHITE wire to the “GROUND” when this wire is
not used.
H5/4 Blue wire – Ground Instant Trigger Input (Zone 2) –
This wire is the ground trigger input wire for hood/trunk pin switches.
H5/5 White / Blue wire – (-) Instant Start & Turn Off Input –(See Start Feature I - 7 Programming)
This wires activates and turns off the remote starter each time it sees a momentary ground signal.
Normally only used for testing during installation or when activating the module from an after-market
system.
H5/6 Green wire – Negative Door Switch Sensing Input (Zone 3) –
This wire is the ground trigger input wire for negative door pin switch. This wire is connection for
"grounding" type factory door pins locate the "common wire" that connects the door pin switches. Make
the connection of the GREEN Wire here.
H5/7 Violet wire – Positive Door Switch Sensing Input (Zone 3)–
This wire is the positive trigger input wire for positive door pin switch. This wire is connection for "positive"
type factory door pins(typical FORD MOTOR). Locate the "common wire" for all door pins and make the
connection of the VIOLET Wire here.
H5/8 White / Red wire – Tachometer Signal Connection –
Note: You should connect this wire if you program the Start Feature II – 2 to “Tachometer checking type”,
otherwise not to connect this wire and tap the end.
Note: No connection of this wire is required, if you use the voltage or timer checking type mode.
This input provides the remote start system with information about the engine’s revolutions per minute
(RPM). It can be connected to the negative side of the coil in vehicle with conventional coils. In multi-coil
and high energy ignition system locating a proper signal may be more difficult. Once connected,
To test for a tachometer wire, a multi-meter capable of test AC voltage must be used. The tachometer wire
will show between 1V and 6V AC at idle, and will increase as engine RPM increases. In multi-coil ignition
system, the system can learn individual coil wire. Individual coil wires in a multi-coil ignition system will
register lower amounts of AC voltage. Also, if necessary, the system can use a fuel injector control wire for
engine speed sensing. Common locations for a tachometer wire are the ignition coil itself, the back of the
gauges, engine computers, and automatic transmission computers.
IMPORTANT! Do not test tachometer wires with a test light or logic probe. The vehicle will be damaged.
How to find a tachometer wire with your multi-meter
1. Set the ACV or AC voltage (12V or 20V is fine.)
2. Attach the (-) probe of the meter to chassis ground.
![](/img.php?id=607397&img=bga.png)
MAY/23/ 2003
RST771IN 10
3. Start and run the vehicle.
4. Probe the wire you suspect of being the tachometer wire with the red probe of the meter.
5. If this is the correct wire the meter will read between 1V and 6V.
H7. 4 PIN ORANGE CONNECTOR FOR 2 STAGE SHOCK SENSOR (ZONE 1 / 4)
1. Green Wire / Zone 1 Warn Away Input
2. Blue Wire / Zone 4 Ground Trigger
3. Black Wire / Negative
4. Red Wire / +12Volts
H8: 10-PIN MINI WHITE OUTPUT WIRE CONNECTOR:
H8/1 Yellow wire – (-) 200mA Ignition 3 Output –
This wire provides a 200mA (-) ground output that becomes active 4 seconds before the remote start unit
initialize, and remains grounded while running.
Ignition 3 output:
Some newer vehicles use a third ignition wire
which is required to start and keep the vehicle’s
engine running. If this is the case, wire an IGN 3
relay (not supplied) as shown below:
Do not connect any vehicle circuits together, they
are isolated for a resaon.
Yellow Wire
87a
Ignition 3 Wire From
Ignition Key Switch
+ 12 V Constant
Fused 25A Capable
30
8586
87

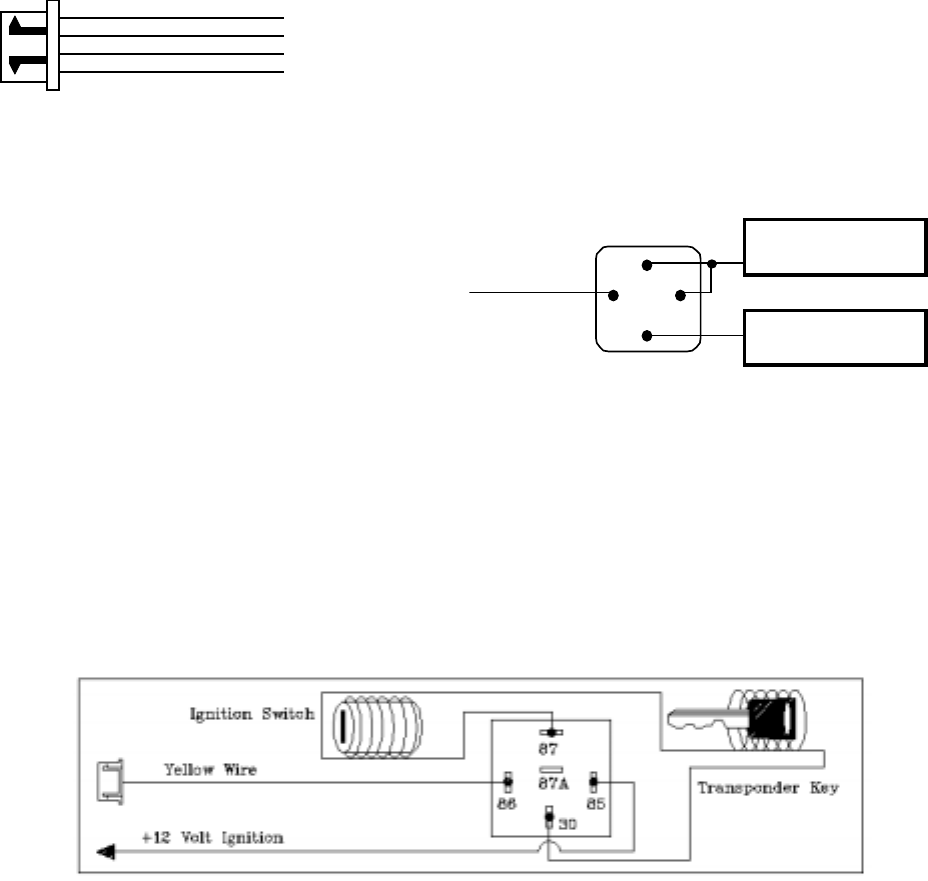

Transponder interfacing using relay:
If the vehicle has transponder system installed, you will need to by-pass the system while the vehicle is
operating under the control of the Remote Start Unit. To do this:
1.You will need a transponder key that's already programmed to the vehicle.
2.Remove the trim around the ignition switch.
3.Wrap a thin (28 - 30awg) wire tightly around ignition switch 6 to 8 times and secure it.
4.About 6"down line make another loop of approximately 2"diameter.
5.Place the key inside this loop and secure it to the loop.
6. Connect on end of the (28 - 30awg) wire to pin (87) of the relay module.
7. Connect the other end of the loop wire to Pin (30) of relay module.
8. Connect the pin (86) of the relay module to the ignition wire from the ignition switch.
9. connect the pin (85) of the relay module to the H8/1 yellow wire of 10-pin mini white connector.
GM VATS KEY OVERRIDE:
If the vehicle has the General Motor VATS system installed, you will need to by-pass the system while the
vehicle is operating under the control of the Remote Start Unit. To do this:
1. Measure the resistance of the resistor pellet on the ignition key then select a resistor within 5% of the
key’s value.
2. Locate the pair of VATS wires in the vehicle, usually a pair of thin gauge wires running from the ignition
switch to the VATS control module.
3. Connect the YELLOW wire from Remote Start Unit to TERMINAL #85 of an external relay. Connect
terminal #86 of the relay to a fused +12 volt.
4. Cut (#1) wire (as shown), and connect the ignition switch side of the cut wire to terminal #87a of the
relay. Connect the other side of the (#1) wire to terminal #30.
5. Connect the previously selseced resistor from terminal #87 to the second(#2) wire (as shown).
![](/img.php?id=607397&img=bgb.png)
MAY/23/ 2003
RST771IN 11
To + 12 V
Ignition
Switch
YELLOW wire
Matching Resistor
VATS control Module
87a 86
30
87
85
VAT wire (#1)
VAT wire
(
#2
)
H8/2. Black / Violet wire – (-) 200mA Timer Control Channel 6 Output –
(See Alarm Feature III – 7 Programming) (Factory default setting on momentary grounded)
This wire is built-in user-programmable timer output provides a ground through this wire. Press the
transmitter and button at the same time. You may program the built-in timer to send a ground
signal for any time interval between 1 second and 2 minutes. For instance, this timer output may be
used to turn on the headlight with the remote control. Also on certain BMW, Mercedes Benz, Jaguar
and Volkswagen cars, you can use this unique timed output to allow remote closure of all power window
and sunroof without the need for an external module!
H8/3 Brown / White wire – (-) 200mA Programmable Output (See Alarm Feature III – 4
Programming)
–

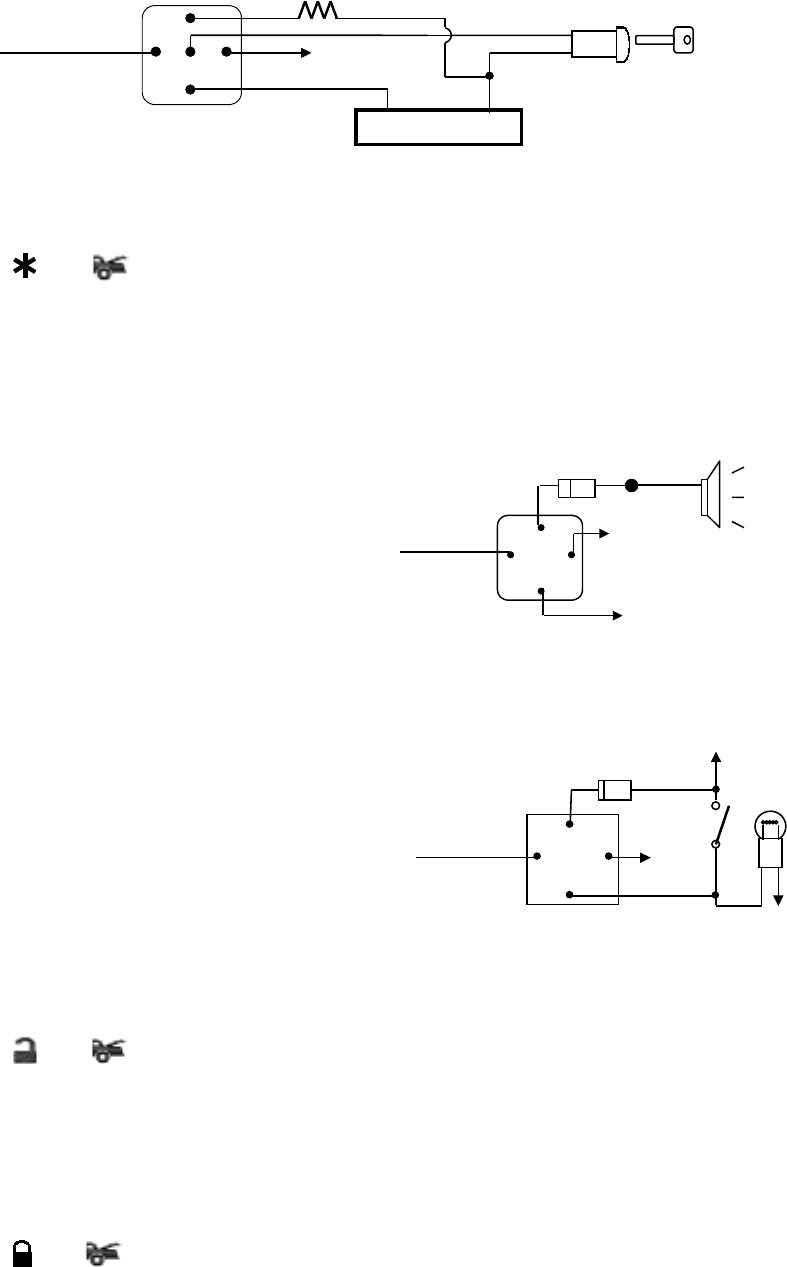

Horn Output – (Factory default setting)
This wire is provided to use the existing vehicle's
horn as the alarm system's optional's warning
audible device. It's a transistorized low current
output, and should only be connected to the low
current ground output from the vehicle's horn
switch. When the system is triggered, the horn
will sound.
85 86
87
87a
30
Brown/White
wire
To horn
+ 12 V
+12V Or Ground
Depending On System
Requirements
FUSE
Factory Security Rearm Signal Output –
This output is programmable. If programmed rearm a factory installed security system. This wire will
supply a pulse whenever the remote start times out or is shut down using the transmitter and remote
door locking..
H8/4 White wire – (-) 200mA Dome Light Control Output –
This wire becomes grounded when the dome
light controls circuit active. The current capacity
of this wire is 200mA. This wire can control the
operation of the interior lights. An optional 10
Amps relay can be used to this system for interior
lights operation.
87a
86
87
30 85
Fuse
White Wire +12V
Door
Switch
Courtesy
Light
a). Upon disarming, the interior lights will remain on for 30 seconds.
b). If the vehicle is violated, the interior light will flash for the same duration as the siren.
H8/5. Black / Red wire – (-) 200mA Timer Control Channel 5 Output –
(See Alarm Feature III – 6 Programming) (Factory default setting on momentary grounded)
This wire is built-in user-programmable timer output provides a ground through this wire. Press the
transmitter and button at the same time. You may program the built-in timer to send a ground
signal for any time interval between 1 second and 2 minutes. For instance, this timer output may be
used to turn on the headlight with the remote control. Also on certain BMW, Mercedes Benz, Jaguar
and Volkswagen cars, you can use this unique timed output to allow remote closure of all power window
and sunroof without the need for an external module!
H8/6 Black / Green wire – (-) 200mA Timer Control Channel 4 / Key Sensor Output –
Channel 4 Output
(See Alarm Feature III – 5 Programming) (Factory default setting on momentary grounded)
This wire is built-in user-programmable timer output provides a ground through this wire. Press the
transmitter and button at the same time. You may program the built-in timer to send a ground
signal for any time interval between 1 second and 2 minutes. For instance, this timer output may be
used to turn on the headlight with the remote control. Also on certain BMW, Mercedes Benz, Jaguar
and Volkswagen cars, you can use this unique timed output to allow remote closure of all power window
and sunroof without the need for an external module!
Key Sensor By-Pass Output –
![](/img.php?id=607397&img=bgc.png)
MAY/23/ 2003
RST771IN 12
This output is for a Key sense wire by-pass that some Chrysler and Toyota vehicles need to activated
remote start. It wire come on when the start is activated and stay on for 20 seconds.
H8/7 Gray wire – (-) 200mA Channel 3 Output –
This will become a 1 second pulse ground by activate channel 3 on transmitter for two seconds, the
current capacity of this wire is 200 mA. This feature allows you to remote control trunk release or other
electric device.
H8/8 Pink wire – (-) 200mA Programmable Output (See Alarm Feature III – 2 Programming) –
2 Steps Unlock Output – (Factory default setting)
The 2 steps unlock feature will work for the most fully electronic door lock circuit. The vehicle must have
an electronic door lock switch (not the lock knob or key switch), which locks and unlocks all of vehicle's
doors. When wired for this feature, press the disarm (or unlock) button one time will disarm the alarm
and unlock the driver's door only. If, press disarm (or unlock) button two times within 3 seconds, the
alarm will disarm and all doors will unlock.
Factory Security Disarm Signal Output –
This wire is designed to disarm a factory installed security system. This wire sends a negative (-) 1
seconds pulse upon a remote start and remote door unlocking. Some factory systems must be disarmed
to allow remote starting. In most cases, this wire may be connected directly to the factory alarm disarm
wire. The correct wire will show nagative ground when the key is used to unlock the doors or trunk. This
wire is usually found in the kick panel area in the wiring harness coming into the car body from the door.
Start Status (Shock Sensor By-Pass Control) Output–
This wire is designed to by-pass shock sensor module. This wire will supply an output at all times the
remote start is operating plus an additional 3 seconds after the remote start unit turn off.
H8/9 Orange / White wire – 200mA Grounded Output when Disarmed – N.O. Disable –
This wire will become grounded when the alarm is disarmed. The current capacity of this wire is 200mA. It
can be connected to optional Ignition disable relay / ECU disable relay / Fuel Pump disable relay.
87
87a
85
30
86
IN4003 Diode
H8/9: Orange/White wire
from control module
“Start”
“On” X
Cut
“Acc”
“Off”
H1/4 Yellow wire (Ignition 1 output)
form Heavy Gauge wire harness
To Ignition Coil
H8/10 Orange wire – (-) 200mA Grounded Output When Armed –
This wire will become grounded when the alarm is armed. The current capacity of this wire is 200mA. This
output can control starter disable, when an intrusion is detected and the system is triggered. The vehicles
prevent from any unauthorized starting.
87
87a
85
30
86
IN4003 Diode
H8/10: ORANGE wire
from control module
“Start”
“On”
White wire
X
Cut
Red wire
Orange wire
“Acc”
“Off”
Starter
H1/1 VIOLET wire (Starter output)
form Heavy Gauge wire harness
Yellow wire to
Ignition Switch
H9. 2 PIN BLUE CONNECTOR FOR THE VALET SWITCH:
Select a mounting location for the switch that is easily accessible to the driver of the vehicle. The switch
does not have to be concealed, however, concealing the switch is always recommended, as this provides
an even higher level of security to the vehicle. Mount the valet switch in a hidden but accessible location.
Route the valet switch wires to the control module.
H10. 2 PIN WHITE CONNECTOR FOR THE LED STATUS INDICATOR:
The led indicator status should be mounted in a highly visible area such as top of the dashboard, on top of
the shifter console or on dashboard face. Leave at least 6mm space behind the mounting location for LED
![](/img.php?id=607397&img=bgd.png)
MAY/23/ 2003
RST771IN 13
housing. Once a suitable location is chosen, drill a 6mm hole. Run the LED wires through the hole then
press the 2 pin LED housing into the place. Route the LED wires to the control module.

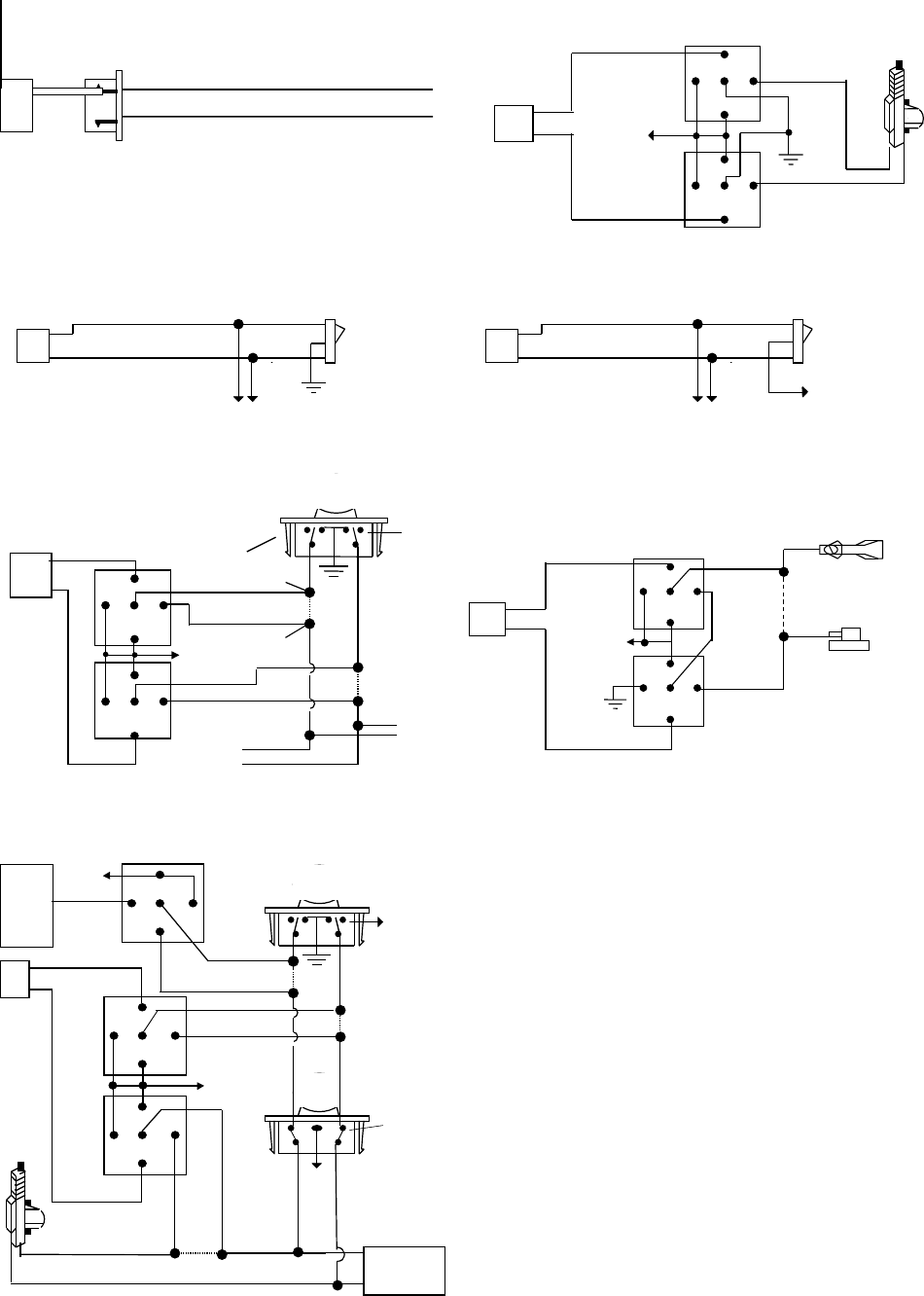

H6. 3 PIN DOOR LOCK CONNECTOR:
Blue Wire
Green Wire ( - ) Lock Pulse
( + ) Unlock Pulse
( - ) Unlock Pulse
(
+
)
Lock Pulse
I
INSTALL NEW DOOR LOCK MOTOR
Blue Wire
Green Wire
+12V
30
86
87a
85
87
30
86
87a
85
87
3 Pin
Plug To
Alarm
NEGATIVE TRIGGER DOOR LOCK SYSTE
Blue Wire Door Unlock
Green Wire Door Lock
Locking
Master
Switch
To Exiting
Door Lock Relay
POSITIVE TRIGGER DOOR LOCK SYSTEM
Blue Wire Door lock
Green Wire Door Unlock
Locking
Master
Switch
To Exiting
Door Lock Relay
+ 12V
+12V
Master Door
Lock Switch
X
X
Splice
Splice
Cut the Existing
Lock Wire
To Door
Lock
Motor
To Slave Door
Lock switches
Cut the Existing
Unlock Wire
3 Pin Plug
To Alarm
5-WIRE ALTERNATING DOOR LOCK
30
86
87a
85
87
30
86
87a
85
87
+12V
Green Wire
Blue Wire
VACUUM OPERATED CENTROL LOCKING
Green Wire
Blue Wire
+12V
XCut
Compressor
Door Switch
30
86
87a
85
87
30
86
87a
85
87
3 Pin
Plug To
Alarm

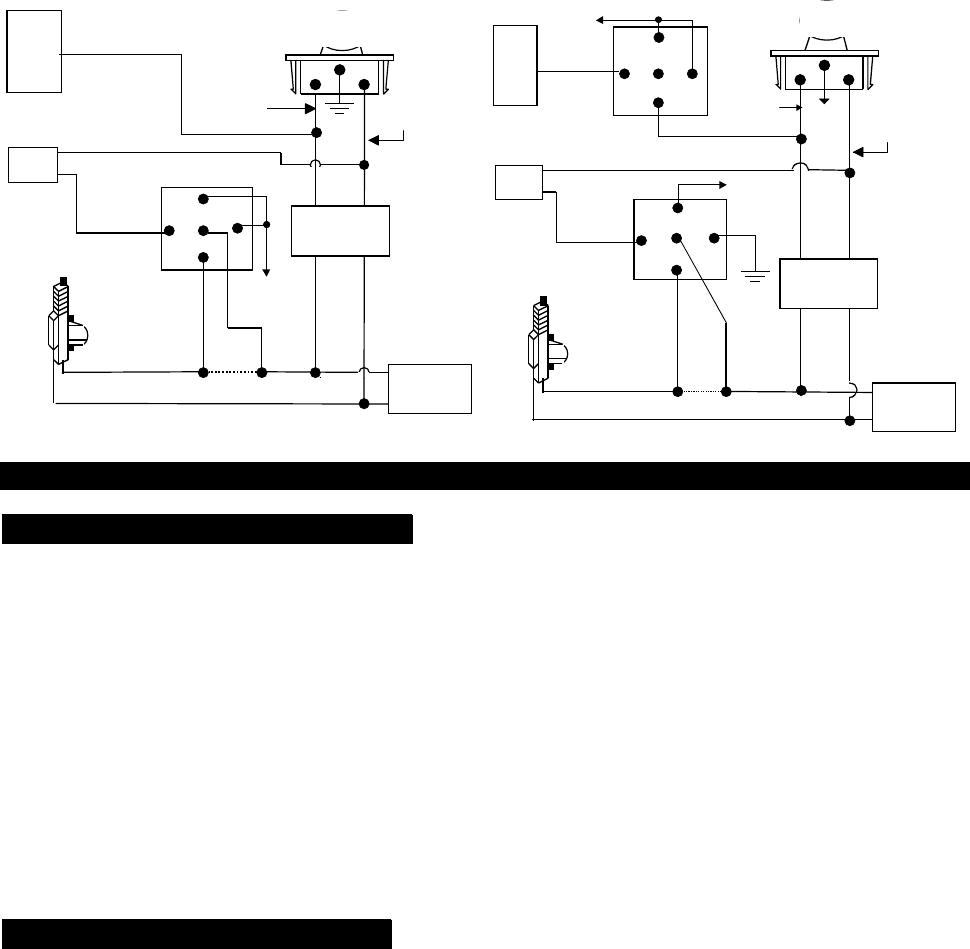

2 STEP DOOR UNLOCK WIRE CONNECTION FOR
5 WIRE ALTERNATING DOOR LOCKS
+12V
Cut the Existing
Lock Wire
Cut Existing Unlock Wire
X
Cut the Unlock Wire
Lock
Unlock
OEM Door Master Lock
OEM Slave
Door Lock
Switch
+12V LockUnlock
To All Other
Door Lock
Motors
H8/8:
10-Pin
Plug
From
Alarm
Pink Wire
x
X
Blue Wire
OEM Driver’s
Door Lock Motor
+ 12V
+ 12V
85
86 87
87A
30
30
87
85
87A
86
30
87
85
87A
86
Green Wire
H6:
3 Pin
Plug
To
Alarm
VACUUM OPERATED DOOR LOCKING SYSTEM:
TYPICAL OF MERCEDES BENZ AND AUDI.
Locate the wire under the driver's kick panel. Use the
voltmeter connecting to ground, verify that you have t
h
correct wire with the doors unlocked, the voltmeter wil
l
receive "12 volts". Lock the doors and the voltmeter w
i
read "0 volt". Move the alligator clip to +12V and the
voltmeter will receive "12 volts". Cut this wire and mak
connections. Be sure to program door lock timer to
3.5 seconds.(See Alarn Feature II – 1 Programming.)
![](/img.php?id=607397&img=bge.png)
MAY/23/ 2003
RST771IN 14
2 STEP DOOR UNLOCK WIRE CONNECTION FOR
GROUND SWITCHED DOOR LOCKS
Cut Existing Unlock Wire
X
LockUnlock
OEM Door Master Lock Switch
To All Other
Door Lock
Motors
Pink Wire
OEM Driver's
Door Lock
Motor
Existing Neg.
Lock Wire
Existing Neg.
Unlock Wire
86
30
85
87
87A
+ 12V
Green Wire
Door Lock
Blue Wire
Door Unlock OEM Door
Lock Relay
H8/8:
10-Pin
Plug
From
Alarm
H6:
3 Pin
Plug
To
Alarm
2 STEP DOOR UNLOCK WIRE CONNECTION FOR
POSITIVE SWITCHED DOOR LOCKS
Cut Existing Unlock Wire
X
LockUnlock
OEM Door Master Lock Switch
To All Other
Door Lock
Motors
Pink Wire
OEM Driver's
Door Lock
Motor
+ 12V Existing Pos.
Lock Wire
Existing Pos.
Unlock Wire
30
87A
87
86 85
+12V
+ 12V
OEM Door
Lock Relay
86
30
85
87
87A
Green Wire
Door Unlock
Blue Wire Door Lock
H8/8:
10-Pin
Plug
From
Alarm
H6:
3 Pin
Plug
To
Alarm
ROGRAMMING
A. PROGRAMMING TRANSMITTER:
PROGRAMMING THE REMOTE TRANSMITTER
Note: This mode will only retain the last 4 remote transmitters programmed. If the transmitter memory is
exceeded, the security system will start deleting transmitters from memory in chronological order.
Enter:
1. Turn the Ignition switch ‘OFF/ON’ 3 TIMES and stay in ON position. Within 15 seconds.
2. Push the Valet switch 3 times and hold it until a long chirp is hearing then release the valet switch. You
are now in the Transmitter programming mode.
Program:
1. Press button on one of the transmitter until the siren responds with a confirming chirp the first transmitter
is now programmed.
2. Press button on the second transmitter until the siren responds with a confirming chirp, the second
transmitter is now programmed.
3. Apply the same procedure to program 3rd and 4th.
Exit: Turn Ignition to 'OFF' position, or leave it for 15 seconds. A 3 long chirps & 3 parking light flashes to
confirm exit.
B. FEATURES PROGRAMMING:
ALARM FEATURE “I” PRORAMMING:
1. Turn the Ignition switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
2. Push the Valet switch 2 times and hold it until one chirp with a long chirp is hearing then release the valet
switch. You are now in the Alarm feature ‘I’ programming mode.
3. Press and release the transmitter button ‘A’ corresponding to the feature ‘A’ you want to program.
a. The siren chirps and LED pause will indicate previously setting.
b. The factory default settings is always [1] LED flash, [1] chirp.
4 Depress the transmitter button ‘A’ again to change the feature. Simple keep re-depressing the transmitter
button ‘A’ again until the module advances to your desired setting.
a. In this case, Press button ‘A’ again, the module would advance to [2] LED flash, [2] chirps.
b. Press button ‘A’ again, the module would advance to [3] LED flash, [3] chirps etc.
5. Depress the transmitter button ‘B’ corresponding to the feature ‘B’ you wants to program.
For example: To program the arming mode form “Active arming” to “Passive Arming with Passive Door
Locking”, After “Arming mode” program, the next program is “Rearm on/off” .……….
1 Turn the Ignition 'switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
2 Push the Valet switch 2 times and hold it until a chirp with a long chirp is hearing then release the valet
switch.
![](/img.php?id=607397&img=bgf.png)
MAY/23/ 2003
RST771IN 15
3 Press and release the transmitter button corresponding to the feature ‘Arming mode’ you want to
program. [1] LED flash, [1] chirp to indicate you are in features “Active Arming”.
4 Depress the transmitter button twice to change the feature. [3] LED flash, [3] chirps to indicate your
are in features “Passive Arming with Passive Door Locking ”.
5 Depress the transmitter button corresponding to the features ”Rearm on/off”’ you want to
program……..
Press
Transmitter
Button
One Chirp /
LED one pulse
Factory Default
Setting
Two Chirps /
LED two pulses
Three Chirps /
LED three pulses
Four Chirps /
LED four pulses
1 All chirps on Siren chirp on only Horn chirp on only All chirps off
2 Active arming Passive arming
without passive door
locking
Passive arming
with passive door
locking.
3 Automatic Rearm
on Automatic Rearm off
4 3 seconds delay
Door Ajar error
chirp
30 seconds delay
Door Ajar error chirp.
5 + Without this feature With Dome light turns
on after ignition off
(45 second door
by-pass)
6 + Without Car-jack
mode Active Car-jack mode Passive Car-jack
mode
7 + Panic with Ignition
off Panic with Ignition on
& off Panic with Ignition
on & off. Panic
with No time limit.
Without Panic
function.
Exit: Turn Ignition to 'ON' position, or leave it for 15 seconds. A 3 long chirps & 3 parking light flashes to
confirm exit.
3 / 30 seconds Delay Door Ajar Error Chirp:
This feature controls the error chirp that is generated if the system is armed with the door trigger active. This
useful in a vehicle that has a long dome light delays after the door has been closed. If the system is armed
before the dome light has turned off, the security system will generate the door trigger error chirp. Use this
feature to disable the door open error chirp.
With Dome light turns on after ignition off:
Some vehicles turn on the dome light when ignition key is turned off. After remote start, with alarm on, a
false alarm may occur when the run time elapses and the dome light comes on. To prevent this from
happing, program Alarm Feature I – 5 to “With Dome light turns on after ignition off (45 second door
by-pass)”.
ALARM FEATURE “II” PRORAMMING:
1 Turn the Ignition switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
2 Push the Valet switch 4 times and hold it until two chirps with a long chirp is hearing then release the
valet
switch. You are now in the Alarm feature ‘II’ programming mode.
3 Press and release the transmitter button ‘A’ corresponding to the feature ‘A’ you want to program.
Press
Transmitter
Button
One Chirp / LED
one pulse
Factory Default
Setting
Two Chirps / LED
two pulses
Three Chirps / LED
three pulses
Four Chirps / LED
four pulses
1 0.8-second Door
lock pulses. 3.5-second Door
lock pulse. Double pulse unlock
![](/img.php?id=607397&img=bg10.png)
MAY/23/ 2003
RST771IN 16
2 Ignition controlled
door locks &
unlocks
Ignition controlled
door locks only Ignition controlled
door unlocks only Without ignition
controlled door
locks & unlocks
3 Pathway illumination
feature “off” Parking light turns
“on” for 30- second
upon an unlock
signal
Parking light turns
“on” for 30- second
upon an unlock
signal & 10-second
upon a lock signal.
4 H2/5 Brown Wire =
Constant Siren
output
H2/5 Brown Wire =
5-second pulse
Siren output
H2/5 Brown Wire =
Random pulse Siren
output
H2/5 Brown Wire =
Horn Output
Exit: Turn Ignition to 'ON' position, or leave it for 15 seconds. A 3 long chirps & 3 parking light flashes to
confirm exit.
ALARM FEATURE “III” PRORAMMING:
1 Turn the Ignition switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
2 Push the Valet switch 6 times and hold it until three chirps with a long chirp is hearing then release the
valet switch. You are now in the Alarm feature ‘III’ programming mode.
3 Press and release the transmitter button ‘A’ corresponding to the feature ‘A’ you want to program.
Press
Transmitter
Button
One Chirp /
LED one pulse
Factory Default
Setting
Two Chirps /
LED two pulses
Three Chirps /
LED three pulses
Four Chirps /
LED four pulses
1 Override Without
Password Pin Code Override With
Password Pin Code
2 H8/8 Pink Wire =
Two step door
unlock output
H8/8 Pink Wire =
Factory Security
Disarm Signal
Output
H8/8 Pink Wire =
Start Status Output
(Shock Sensor
Bypass)
3
4 H8/3 Brown / White
Wire = (-) 200mA
Horn Output
H8/3 Brown / White
Wire = Factory
Security Rearm
Signal Output
H8/6 Black / Green
Wire Channel 4
Output =
Momentary output
H8/6 Black / Green
Wire Channel 4
Output =
Latched output
H8/6 Black / Green
Wire Channel 4
Output =
Latched output and
reset with ignition
“on”
H8/6 Black / Green
Wire Channel 4
Output =
Timer programming
(set to any interval
between 1 second
and 2 minutes.)
5 +
Five Chirps /
LED five pulses H8/6 Black / Green Wire = Key Sensor By-Pass Output (20second
Ground output during the remote start is activated)
6 + H8/5 Black / Red
Wire Channel 5
Output =
Momentary output
H8/5 Black / Red
Wire Channel 5
Output =
Latched output
H8/5 Black / Red
Wire Channel 5
Output =
Latched output and
reset with ignition
“on”
H8/5 Black / Red
Wire Channel 5
Output =
Timer programming
(set to any interval
between 1 second
and 2 minutes.)
![](/img.php?id=607397&img=bg11.png)
MAY/23/ 2003
RST771IN 17
7 + H8/2 Black / Violet
Wire Channel 6
Output =
Momentary output
H8/2 Black / Violet
Wire Channel 6
Output =
Latched output
H8/2 Black / Violet
Wire Channel 6
Output =
Latched output and
reset with ignition
“on”
H8/2 Black / Violet
Wire Channel 6
Output =
Timer programming
(set to any interval
between 1 second
and 2 minutes.)
Exit: Turn Ignition to 'ON' position, or leave it for 15 seconds. A 3 long chirps & 3 parking light flashes to
confirm exit.
Channel 4 (5 / 6) Timer Control Output Programming.
Enter:
1. Turn the Ignition switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
2. Push the Valet switch 6 times and hold it until three chirps with a long chirp is hearing then release the
valet switch. You are now in the Alarm feature ‘III’ programming mode.
Timer Program:
1-a. Press and release the transmitter + button 4 times, [4] LED flash, [4] siren/horn chirp to indicate
your are in features “Channel 4 Timer Programming mode”.
1-b. Press and release the transmitter + button 4 times, [4] LED flash, [4] siren/horn chirp to indicate
your are in features “Channel 5 Timer Programming mode”.
1-c. Press and release the transmitter + button 4 times, [4] LED flash, [4] siren/horn chirp to
indicate
your are in features “Channel 6 Timer Programming mode”.
2. Press and hold the valet switch, the timer will immediately start.
3. When the desired interval has passed, release the valet switch. 1 long chirp for confirmation.
(Set to any interval between 1 second and 2 minutes)
Note 1:
If your built-in timer controls window/sunroof closure in your car DO NOT change the timer setting! This
requires installer-only programming. Changing the value will adversely effect operation and may cause
damage.
Note 2:
Momentary output = The momentary output selection will output a negative signal from the Channel 4 (5/6)
output immediately when the channel 4 (5/6) button is pressed and will continue until the button is release.
Latched output = The latched output selection will output a negative signal as soon as the Channel 4 (5/6)
button is pressed and will continue until the button is pressed again.
Latched output / reset with ignition = The latched / reset with ignition output selection operates just like
the latched output but will reset or stop when the ignition is turned on.
Key Sensor By-Pass Output = The 20 seconds setting is for a Key sense wire by-pass that some Chrysler
and Toyota vehicles need to activated remote start. It wire come on when the start is activated and stay on
for 20 seconds.
Password Pin Code Setup:
Enter:
1. Turn the Ignition switch ‘ON/OFF’ 3 times and stay in OFF position.
2. Push the Valet switch 6 times and hold it until three chirps with a long chirp is hearing then release the
valet switch. You are now in the Alarm feature ‘III’ programming mode. You can program or delete the
password pin code as below:
Program:
1. Press and release the transmitter button twice, [2] LED flash, [2] siren/horn chirp to indicate your are
in features “Password Pin Code Programming mode”.
2. Within 5 seconds, begin to enter your chosen first 9ths digit by pressing and releasing the valet Switch
from 1 – 9 times.
3. Within 15 seconds of the last entered 9ths digit, turn the Ignition switch to “ON” position.
4. Within 15 seconds, enter your chosen second 9ths digit by pressing and releasing the valet Switch from
1 – 9 times.
5. Finish by turning the ignition switch to “OFF” position.
If the new password code was accepted, the unit would report back the newly entered code, by flashing the
LED, first indicating the first digit code has been memorized, pause and then the second digit code. The unit
![](/img.php?id=607397&img=bg12.png)
MAY/23/ 2003
RST771IN 18
will report the new code three times with a one-second’s pause between each code.
Note: If 15 seconds of inactivity expire, or if the ignition switch is turned “ON” for more then 5 seconds during
of above steps, the unit will revert back to the last successfully stored code. A [3] long chirps to confirm exit.
Will revert back to the last successfully stored code
Delete Password Pin Code / Override Without Password Pin Code (Factory default setting):
Within 15 seconds, press and hold the transmitter button for 3 seconds. A one long chirps to confirm
Deleted the Password Pin Code.
Example: To program the Password Code 92, you would;
Enter:
1. Turn the Ignition 'switch ‘ON/OFF’ 3 times and stay in OFF position.
2. Push the Valet switch 6 times and hold it until three chirps with a long chirp is hearing then release the
valet switch. You are now in the Alarm feature ‘III’ programming mode.
Program:
1. Press and release the transmitter button once, [2] LED flash, [2] siren/horn chirp to indicate your are in
features “Password pin code programming mode”.
2. Within 5 seconds, press and release the valet Switch 9 times.
3. Within 15 seconds of the last entered 9ths digit, Turn the Ignition Switch to “ON” position.
4. Within 15 seconds press the valet Switch twice.
5. Turn the Ignition Switch to “OFF’ position.
You will note the LED flashing nine times, pause and then flash two times, pause. This pattern will be
repeated three times indicating the new code (92) has been accepted and stored in memory.
Exit: Press any button (except button) of the transmitter to exit the password pin set up mode. A 3 long
chirps & 3 parking light flashes to confirm exit.
REMOTE START FEATURE PROGRAM MODE.
START FEATURE “I” PRORAMMING:
1. Turn the Ignition switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
2. Push the Valet switch 8 times and hold it until four chirps with a long chirp is hearing then release the
valet switch. You are now in the Start feature ‘I’ programming mode.
3. Press and release the transmitter button ‘A’ corresponding to the feature ‘A’ you want to program.
Press
Transmitter
Button
One Chirp /
LED one pulse
Factory Default
Setting
Two Chirps /
LED two pulses
Three Chirps /
LED three pulses
Four Chirps /
LED four pulses
1 + Gasoline Engine Diesel Engine and
10 seconds warn-up
timer
Diesel Engine and
15 seconds warn-up
timer
Diesel Engine and
20 seconds warn-up
timer
2 10 minutes run time 20 minutes run time 30 minutes run time 5 minutes run time
3 Factory alarm
disarm with channel
3 on
Without this feature
4 Constant parking
light output Flashing parking
light output
5 Door lock before
start Door lock after
shut-down Door lock before
start and Door lock
after shut-down
Without this feature
6 + Press -
button =
Activate Remote
Start.
Press +
button =
Activate Remote
Start.
Press button =
Activate Remote
Start.
7 + H5/5 White / Blue
Wire =
1 pulse activate
H5/5 White / Blue
Wire =
2 pulse activate
H5/5 White / Blue
Wire =
3 pulse activate
Exit: Turn Ignition to 'ON' position, or leave it for 15 seconds. A 3 long chirps & 3 parking light flashes to
confirm exit.
![](/img.php?id=607397&img=bg13.png)
MAY/23/ 2003
RST771IN 19
SAFE START (Child safety mode)
Factory defaults setting to press the button twice to start the vehicle.
Programming this feature to eliminate an accidental remote start, when kids enter this transmitter, it requires:
1. The user press the transmitter and buttons at the same time to start the vehicle.
START FEATURE “II” PRORAMMING:
1. Turn the Ignition switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
2. Push the Valet switch 10 times and hold it until five chirps with a long chirp is hearing then release the
valet switch. You are now in the Start feature ‘II’ programming mode.
3. Press and release the transmitter button ‘A’ corresponding to the feature ‘A’ you want to program.
Press
Transmitter
Button
One Chirp /
LED one pulse
Factory Default
Setting
Two Chirps /
LED two pulses
Three Chirps /
LED three pulses
Four Chirps /
LED four pulses
1 Exit the programming mode. (3 long chirp & 3 parking light flashes to confirm this exit.)
2 + Tachometer
checking type. Voltage checking
type Timer checking type
RPM learning
3 Start Timer:
0.6-second 0.8-second (2 chirps), 1.0-second (3 chirps), 1.2-second (4 chirps),
1.4-second (5 chirps), 1.6-second (6 chirps), 1.8-second (7 chirps),
2.0-second (8 chirps), 3.0-second (9 chirps), 4.0-second (10
chirps),
4 Low check level Hi check level
5 - Start or Stop the system for TESTING & ADJUSTMENT
6 + “TEST” Mode for
Zone 2 / instant
trigger & Zone 3 /
Door trigger
“TEST” Mode for
Zone 1 & Zone 4 (2
Stage Shock
Sensor)
Exit: Press the button on the transmitter. A 3 long chirps & 3 parking light flashes to confirm exit.
TACHOMETER CHECKING TYPE
Enter Start Feature ‘II’ Programming Mode:
1. Turn the Ignition switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
2. Push the Valet switch 10 times and hold it until five chirps with a long chirp is hearing then release the
valet switch. You are now in the Start feature ‘II’ programming mode.
Select “Checking Type”:
3. Press and release the transmitter and button at the same time once to set the “Tachometer
Checking Type”. [1] LED flash, [1] chirp to Confirm this setting.
4. Once you complete step 3, you can program “RPM Learning Mode” as below:
RPM Learning
While the system stay in Start Feature “II” programming mode,
1. Press and release the transmitter button once, [1] LED flash, [1] chirp to indicate your are in features
“RPM Learning mode”.
2. Start the vehicle with the key. (While the engine is running, the parking & LED will flash, If don’t, please
check tachometer White/Red wire connection. (H5/8)
3. Press and hold the valet switch for 2 seconds until a long chirp and the LED light constant for two seconds.
The RPM signal is learned.
4. Once you complete step 3, you can adjust and test “Check Level” as below:
CHECK LEVEL PROGRAMMING: (TEST and ADJUST)
While the system stay in Start Feature “II” programming mode,
1. Press the button twice on the transmitter to start the vehicle.
2. If everything goes well:
![](/img.php?id=607397&img=bg14.png)
MAY/23/ 2003
RST771IN 20
a. Press the button twice on the transmitter to stop engine running. You have been completed this
programming successfully.
b. Press button on the transmitter to exit the program mode. There will be 3 long chirps & 3 parking
light flashes for confirmation.
3. If the crank time is too short, (Engine not running, while stops cranks):
a. Press the button on the transmitter to stop engine running.
Press button on the transmitter to set proper “Check Level ” to Hi position. [2] LED flash,
[2] chirp to confirm this setting
b. Repeat the step1 – 4.
4. If the crank time is too long, (Engine already successfully running, while still cranks):
a. Press the button on the transmitter to stop engine running.
Press button on the transmitter to set proper “ Check Level ” to Low position. [1] LED flash,
[1] chirps to confirm this setting
b. Repeat the step1 – 4.
VOLTAGE CHECKING TYPE
Enter Start Feature ‘II’ Programming Mode:
1. Turn the Ignition 'switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
2. Push the Valet switch 10 times and hold it until five chirps with a long chirp is hearing then release the
valet switch. You are now in the Start feature ‘II’ programming mode.
Select “Checking Type”:
3. Press the transmitter and button at the same time to set the “Voltage Checking Type”. [2] LED
flash, [2] chirp to confirm this setting
4. Once you complete step 3, you can adjust and test “Start Timer” as below:
START TIMER PROGRAMMING: (TEST and ADJUST)
While the system stay in Start Feature “II” programming mode,
1. Press the button twice on the transmitter to start the vehicle.
2. If everything goes well:
Wait for 15 seconds:
a. If the engine still running.
I. Press the button twice on the transmitter to stop engine running. You have been completed this
programming successfully.
II. Press button on the transmitter to exit the program mode. There will be 3 long chirps & 3 parking
light flashes for confirmation.
b. If the engine shut down after the vehicle has been started.
I. Press the ' button twice on the transmitter to stop engine running.
II. Press button on the transmitter to set “Check Level” to LOW position. [1] LED flash,
[1] chirp to confirm this setting
III. Repeat the step1 – 2.
3. If the crank time is too long, (Engine already successfully running, while still cranks):
a. Press the button twice on the transmitter to stop engine running.
b. Press button on the transmitter to set proper “Start Timer”. The chirp & LED pause will confirm this
enter. (Decrease “Start Timer” is necessary.)
c. Repeat the step1 – 4.
4. If the crank time is too short, (Engine not running, while stop crank):
a. Press the button twice on the transmitter to stop engine running.
b. Press button on the transmitter to set proper “Start Timer”. The chirp & LED pause will confirm this
enter. (Increase “Start Timer ” is necessary.)
c. Repeat the step1 – 4.
Timer Checking Type
Enter Start Feature ‘II’ Programming Mode:
1. Turn the Ignition switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
2. Push the Valet switch 10 times and hold it until five chirps with a long chirp is hearing then release the
valet switch. You are now in the Start feature ‘II’ programming mode.
Select “Checking Type”:
![](/img.php?id=607397&img=bg15.png)
MAY/23/ 2003
RST771IN 21
3. Press the transmitter and button at the same time to set the “Timer Checking Type”. [3] LED flash,
[3] chirp to confirm this setting
4. Once you complete step 3, you can adjust and test “Start Timer” as below:
START TIMER PROGRAMMING: (TEST and ADJUST)
While the system stay in Start Feature “II” programming mode,
1. Press the button twice on the transmitter to start the vehicle.
2. If everything goes well:
a. Press the ' button twice on the transmitter to stop engine running. You have been completed this
programming successfully.
b. Press button on the transmitter to exit the program mode. There will be 3 long chirps & 3 parking
light flashes for confirmation.
3. If the crank time is too long, (Engine already successfully running, while still cranks):
a. Press the button twice on the transmitter to stop engine running.
b. Press the button on the transmitter to set proper “Start Timer”. The chirp & LED pause will confirm
this enter. (Decrease “Start Timer” is necessary.)
c. Repeat the step1 – 4.
4. If the crank time is too short, (Engine not running, while stops cranks):
a. Press the button twice on the transmitter to stop engine running.
b. Press button on the transmitter to set proper “Start Timer”. The chirp & LED pause will confirm this
enter. (Increase “Start Timer ” is necessary.)
c. Repeat the step1 – 4.
TEST MODE
In this test mode, this system can test the Zone 2 (Instant ground trigger), the Zone 3 (Door trigger), and the
Zone 1 & Zone 4 (2 stage shock sensor) sensitivity. The installer can save time to test the 2 stage shock
sensor sensitivity and sensor without using the traditional arming/disarming procedures to test the sensors.
Enter:
1. Turn the Ignition switch ‘ON/OFF’ 3 TIMES and stay in OFF position.
2. Push the Valet switch 10 times and hold it until five chirps with a long chirp is hearing then release the
valet switch. You are now in the Start feature ‘II’ programming mode.
a. Test the Zone 2 / Instant Ground Trigger & Zone 3 / Door Trigger:
Press and release the transmitter and button at the same time once. [1] LED flash, [1]
siren/horn chirp to indicate your are in Zone 2 / instant ground trigger and Zone 3 / Door trigger test
mode.
Trigger sensor Siren chirps
Zone 2 / Instant Ground trigger (H5/4 Blue wire) 2
Zone 3 / Door trigger (H5/6 Green or H5/7 Violet wire) 3
b. Test the Zone 1 & Zone 4 / Two Stage Shock Sensor (Connected to H7 4 Pin Plug):
Press and release the transmitter and button at the same time again. [2] LED flash, [2]
siren/horn chirps to indicate your are in the shock sensor (connected to H7 4 pin plug) test mode.
1. Activate the warn-away (first stage of the shock sensor / Zone 1), system will emit a short chirp.
2. Activate the full alarm (second stage of the shock sensor / Zone 4), system will emit a long chirp.
3. Continue to test the shock sensor until reach the proper sensitivity.
RETURN TO FACTORY DEFAULT SETTING:
1. Turn the ignition ON then OFF 3 TIMES and stay in OFF position.
2. Push the Valet switch 12 times and hold it until six chirp with a long chirp is hearing then release the valet
switch. You are now in the “Return To Factory Default Setting” programming mode.
ALARM FEATURE ALL RETURNS TO FACTORY DEFAULT SETTING:
3. Press and hold the and button at the same time on the transmitter for 6 seconds, there will be a
confirmation six chirp with 3 long chirp to confirm the system “Alarm Feature I & II & III Programming all
returns to factory default setting.
START FEATURE ALL RETURNS TO FACTORY DEFAULT SETTING:
4. Press the first, within 3 seconds press and hold the and button at the same time on the
transmitter for 6 seconds, there will be a confirmation six chirp with 3 long chirp to confirm the system
“Start Feature I & II Programming all returns to factory default setting.
![](/img.php?id=607397&img=bg16.png)
MAY/23/ 2003
RST771IN 22
Exit: Turn Ignition to 'ON' position, or leave it for 15 seconds. A 3 long chirps & 3 parking light flashes to
confirm exit.
SHUTDOWN DIAGNOSTICS
The unit has the ability to report the cause of the last shutdown of the remote start system.
Enter:
1. Turn the Ignition 'switch to ‘ON position.
2. Press the button on the transmitter.
3. The LED will now report the last system shutdown by flashing for one minute in the following grouped
patterns:
LED
Flashes Shutdown Mode
2 (-) Safety Shutdown input (Hood) or 1. Close the hood.
2. Check H5/1 White/ Black wire connection.
2 (+) Safety Shutdown input (Brake) or 3. Check H5/2 White/ Violet wire connection.
2 Neutral Safety Switch input fail 4. Move the Enable Toggle Switch to “ON”
position. (If installed.)
5. Move the gear selector to “Park”/ “NEUTRAL”
position.
6. Check H5/3 Black/White wire connection.
3
No RPM or
Low Voltage.
Tachometer Checking Type:
Check H5/8 White/Red wire connection
Voltage Checking Type:
Program the “CHECK LEVEL” from
“Hi Check Level” to “Low Check Level”
5 Over-rev
6 System timed out
7 Transmitter
8 Tach. Signal has not been learned Re-learning the RPM (Start Feature II – 2 / 3)
9 The procedure of the Engine start
memorizing for the vehicle with
standard (manual) transmission gear is
not completed.
Check Operation Manual # Remote Start
Operation
B section.
TESTING YOUR INSTALLATION:
Caution!! The follow procedure must be performed after the installation of the Remote Start Device. It is the
responsibility of the installing technician to complete these tests. Failure to test the unit in the following
manner may result in personal injury, property damage, or both.
1. Test the BRAKE shutdown circuit: With the vehicle in park (P), start the vehicle using the remote
transmitter, Once the engine is running, press the brake pedal. The vehicle should shut down immediately.
If the vehicle continues to run, check the brake circuit WHITE/ VIOLET wire (H5/2) connection.
2. Test the HOOD PIN shutdown circuit: Start the vehicle using the remote transmitter, Once the engine is
running, pull the hood release and raise the hood. The vehicle should shut down immediately. If the
vehicle continues to run, check the hood pin WHITE/ BLACK wire (H5/1) connection.
3. NEUTRAL START SAFETY TEST:
1. Set the vehicle parking brake.
2. Block the drive wheels to prevent vehicle movement.
3. Sitting in the vehicle, turn the ignition switch to “ON” or “RUN” position. But do not start the engine.
4. Step on the brake pedal and shift the gear selector into “DRIVE” (D).
5. Put your foot over the brake pedal but do not press down on it. Be ready to step on the brake to shut
down the Remote Start Device.
6. Start the vehicle using remote transmitter.
a. If the starter does not engage, the test is complete.
b. If the starter engages, immediately step on the brake pedal to shut down the system, recheck your
VIOLET wire (H1/1 starter output wire) connection. The heavy gauge VIOLET wire must be
connected to the ignition switch side of the Neutral Start Switch. If the vehicle you are working on
does not have an Electrical Neutral Safety Switch, it will be necessary to reconfigure the Remote
![](/img.php?id=607397&img=bg17.png)
MAY/23/ 2003
RST771IN 23
Starts Wiring to accommodate this vehicle. The information concerning the Mechanical Neutral Safety
Switch provided below will help you to determine if the vehicle you are working on has this type of
safety switch and will provide alternate wiring methods to accommodate this situation.
MECHANICAL NEUTRAL SAFETY SWITCH CONSIDERATIONS:
Mechanical neutral safety switch configurations differ slightly in that they do not offer the same level of safety
when installing a remote start device. Often when the ignition switch is turned off while the gear selector is in
any position other than park or neutral, the mechanical function will not allow the key to be turned to the start
position or be removed from the ignition cylinder. This configuration prevents mechanical operation while the
vehicle is in gear but offers no consideration for electrical operation. Because of this potential problem, this
installation requires the additional connection of a safety wire from the remote start device to the vehicle
PARK/NEUTRAL ECM input or the vehicle key in sensor. This connection will prevent remote start operation
if the key is left in the ignition switch regardless of the gear selector position.
PARK/NEUTRAL ECM INPUT:
The Park/Neutral ECM input is the preferred method of installation. This not only maintains the integrity of
the factory circuit, it is also the easiest to install, providing the vehicle you are working on has this ECM
input.
The installation required for this application (shown below), indicates in the slight reconfiguration of the
control switch wiring. Shown is a typical GM Park/Neutral ECM input circuit. To connect the Remote Start
unit to the GM Park/Neutral ECM input:
1. Locate the Orange/Black reference wire in the “C2” connector found at the ECM in GM B Body vehicles
or, locate the equivalent reference wire in the vehicle you are installing the Remote Start Unit in.
2. Connect the BLACK/WHITE Neutral Safety Switch wire (H5/3) to this reference wire.
NOTE: If the optional remote starts enable toggle switch is installed, connect the one side the enable switch
to this reference wire and connect the other side of the enable switch to the BLACK/WHITE Neutral Safety
Switch wire (H5/3) of the Remote Start unit.
The reference diagram below shows a typical GM B Body ECM reference wire and how it is to be connected
to the Remote Start Unit.
Ignition
P1
2DNR
Electronic Control Module (ECM)
Solid State, Do Not Measure
Resistance
To Neutral Safety
Switch Input wire
Black/White (H5/3)
Optional Enable Switch
KEY IN SENSOR CIRCUITS:
If the vehicle you are working on does not have or you cannot locate the ECM reference wire, there are two
alternatives available. Although not preferred, the vehicle Key In Sensor may be reconfigured to allow a
margin of safety and will prevent the vehicle with a Mechanical Neutral Start Switch from starting in gear.
WE ADVISES THAT YOU MAINTAIN THE FACTORY CIRCUIT WHENEVER POSSIBLE. The following two
circuits may be used only if the above circuit is not available.
NOTE: When completing an installation using either of the following key in sensor circuits, if the operator
inserts the ignition key while the vehicle is running under the control of the Remote Start, the vehicle will shut
down. This must be explained to the operator as it is in contrast to the normal operation of a vehicle utilizing
an electrical neutral start switch and is inconsistent with the operators manual.
Additional information concerning Key in Sensor methods 1&2 are listed below and should be reviewed
before considering either alternative.
Method 1 will allow the safety required for the remote start unit and prevent the vehicle from starting while in
any gear other than Park or Neutral while the key is in the ignition cylinder however, if the key is left in the
ignition switch and the door is left opened, the added relay will be energized causing a 150mA drain on the
battery.
Method 2 will allow the safety required for the remote start unit and prevent the vehicle from starting while in
any gear other than Park or Neutral while the key is in the ignition cylinder however, the original factory key
in chime module will not alert the owner that the key has been left in the ignition switch. In addition, this may
also effect other warning tones such as the light on reminder.
These situations should be carefully considered before altering the vehicle’s wiring and must be fully
explained to the consumer.
![](/img.php?id=607397&img=bg18.png)
MAY/23/ 2003
RST771IN 24
METHOD 1
+ 12 V
Ignition Key In Sensor
Switch Closes with Key
In Ignition Cylinder
Drivers Door Pin Switch
87a
86
3087
85
Key In
Chime Module
Connected to (-) Negative
Safety Input Wire
White/ Black (H5/1)
To Hood Pin Switch
Safety Shut Down (H5/1)
1N4003
+ 12V
To connect to the key in sensor as shown in method 1:
A. Locate the control wire that connects the drivers door pin switch to the key in sensor switch.
B. Cut this wire and connect the ignition cylinder side to chassis ground.
C. Locate the key in sensor switch wire that connects the chime module to the ignition cylinder.
D. Cut this wire and connect the ignition cylinder side to terminal 30 of a P&B VF45F11 or equivalent relay.
E. Connect the cathode (striped) side of a 4003 series diode to this same wire, and connect the (non
striped) side to the negative safely input wire (WHITE/ BLACK) (H5/1) of the Remote Start Unit.
F. Connect terminal 86 of the relay to a fused + 12 volt constant battery source.
G. Connect terminal 87 of the relay to the Chime Module side of the previously cut wire in step D.
H. Connect terminal 85 of the relay to the Drivers Door side of the pin switch wire previously cut in step B.
Note: A second 4003 series diode may be required to maintain the integrity of the hood open, shut down
circuit. If this is the case, it must be installed as shown in the diagram above. The anode (Non Stripped)
side must be connected to the WHITE/ BLACK wire (H5/1) of the Remote Start Unit. The cathode (Striped)
side must be connected to the hood pin switch. If the hood pin switch is also used for an alarm trigger input,
be certain to use the dual diode assembly packaged with the Remote Start Unit as shown in this installation
guide.
METHOD 2 Ignition Key In Sensor
Switch Closes with Key
In Ignition Cylinder
Connected to (-) Negative
Safety Input Wire
White/ Black (H5/1)
To Hood Pin Switch
Safety Shut Down (H5/1)
1N4003
To connect to the key in sensor circuit as shown for method 2:
A. Locate the control wire that connects the drivers door pin switch to the key in sensor switch.
B. Cut this wire and connect the ignition cylinder side to chassis ground.
C. Locate the key in sensor switch wire that connects the chime module to the ignition cylinder.
D. Cut this wire and connect the ignition cylinder side to the Remote Start Negative Safety Shut down wire
WHITE/ BLACK (H5/1), using a 4003 series diode as shown above.
Note: A second 4003 series diode may be required to maintain the integrity of the hood open, shut down
circuit. If this is the case, it must be installed as shown in the diagram above. The anode (Non Striped) side
must be connected to the WHITE/ BLACK wire (H5/1) of the Remote Start Unit. The cathode (Striped) side
must be connected to the hood pin switch. If the hood pin switch is also used for an alarm trigger input, be
certain to use the dual diode assembly packaged with the Remote Start Unit as shown in this installation
guide.
AFTER THE CONNECTION OF THE NEUTRAL START SAFETY WIRE AS INDICATED IN ANY OF THE
PREVIUOS ALTERNATE CONFIGURATINS, THIS CIRCUIT MUST BE TESTED FOR OPERATION.
Retest by following the steps outlined in the NEUTRAL START SAFETY TEST shown in this manual.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions.
1)•This device may not cause harmful interference, and
2)•This device must accept any interference received, including interference that may cause undesired
operation.
Per FCC 15.21, you are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
