Users Manual
1
REMOTE ENGINE STARTER
WITH ALARM SYSTEM
OWNER’S MANUAL
WARNINGS:
As with any product that performs automatic functions, there are certain safety precautions that you must
practice and be aware of.
1. Keep the transmitter out of children’s reach.
2. Do not leave anyone in the vehicle while running on remote control.
3. Alert servicing personnel that the vehicle can be started automatically.
4. Do not start the vehicle by remote while it’s in an enclosed area or garage.
5. Always apply the parking brake and lock the vehicle as you exit the vehicle.
6. The vehicle windows must be rolled up.
7. Should the unit malfunction, disconnect the fuse until the problem is corrected.
8. The use and operations of this system is the sole responsibility of the operator.
9. Some areas may have local ordinances that prohibit leaving a vehicle running on public streets.
10. Do not start the vehicle by remote while the standard transmission vehicle is parked at a steep place.
OPERATION
A. REMOTE TRANSMITTER OPERATION:
Transmitter Button System Function Remark
Lock Doors & Arm System
- Arm and Delete The 2 Stage Shock Sensor. Press twice within 3 seconds
- Arm System and Hidden Alarm Function Press within 3 seconds
Car Locator Upon armed
(3-second) Panic function Press and Hold for 3 seconds.
+ Silent Arming / Disarming Ignition in "off" position.
+ (2-second) Active Anti Car-Jacking Mode Ignition in "on" position press and
hold for 2 seconds
Unlock Doors & Disarm System
- Two Steps Door Unlock & Disarm System Press twice within 3 seconds.
(2-second) Trunk Release (Channel 3) Press and Hold for 2 seconds
- Passive Arming By-pass While the system Disarmed.
- Activate or Turn Off The Remote Start Press twice within 3 seconds.
+ Turbo Time Mode
+ Channel # 4 Timer Output
B. LED display:
LED Function LED Function
Off Disarmed 2 flashes... pause Zone 2 / Trigger on Trunk/Hood
Slow Flash Armed 3 flashes... pause Zone 3 / Trigger on Door Switch
Fast Flash Passive Arming 4 flashes... pause Zone 4 / Trigger on Shock Sensor
On (Solid) Valet Mode 5 flashes... pause Zone 5 / Trigger on Ignition Switch
C. CHIRP INDICATORS: D. PARKING LIGHT:
Chirp Function Parking light Function
1 chirp Arm 1 flash Arm
2 chirps Disarm 2 flashes Disarm
3 chirps Ajar Warning 3 flashes Disarm / Triggered
4 chirps Disarm / Triggered 12 flashes Car Locator
6 chirps Car Locator Constant On Under Remote Start
2

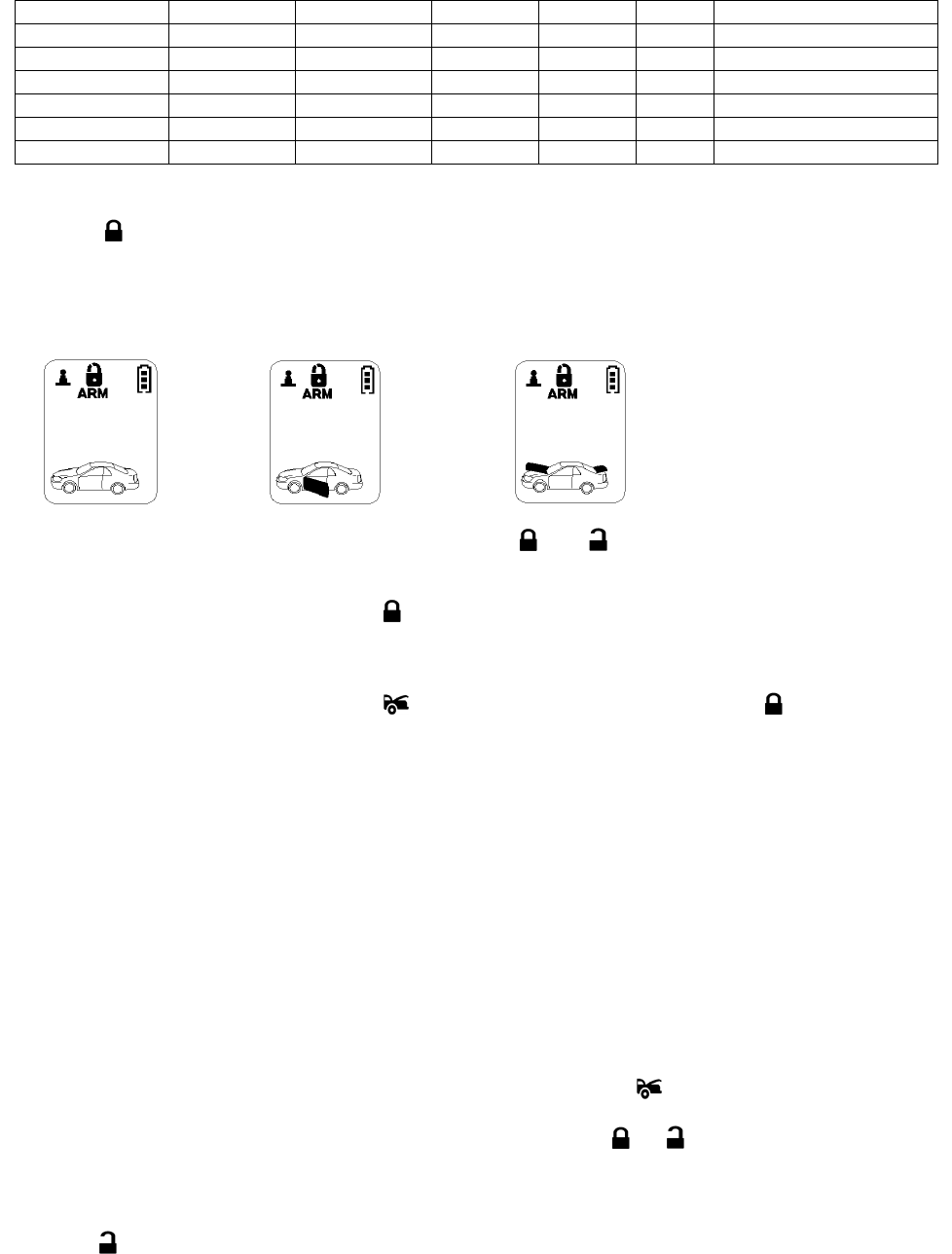

E. ALARM OPERATING CONDITION:
Siren / Horn Parking Light LED Doors Starter Dome Light
1. Arming 1 or 3 Chirps 1 Flash Slow Flash Locking Disable
2. Disarming 2 or 4 Chirps 2 or 3 Flashes Unlocking Turns on for 30 -second
3. Trigger Alarming Flashes Slow Flash Disable Flashes
4. Panic Alarming Flashes Flashes
5. Car-Jacking Alarming Flashes Disable Flashes
6. Car Locator 6 Chirps 12 Flashes Locking
F. ACTIVE ARMING – LOCK & ARM:
1. Press button on the transmitter.
2. The siren will chirp once and parking light will flash once indicating that the system is now armed. The
vehicle door will lock and dome light turns on for 10 seconds upon arming when interfaced with the
security system.
System Arm
Door Ajar
Trunk / Hood Ajar
AJAR WARNING: If the
siren sounds 3 chirps, then
you have left a door, trunk,
or hood lid ajar. (See Alarm
Feature “I - 4
Programming)
SILENT ARMING / DISARMING: Press the transmitter and buttons at the same time will arm or
disarm your security system, No chirp sound will be heard, arm / disarm confirmation will be through the
vehicles parking lights only.
SHOCK SENSOR BY-PASS: Press the button on the transmitter two times within 3 seconds will arm
the security system and by-pass the shock sensor. The system will chirp one additional time to confirm the
sensor bypass mode was activated. The sensor bypass feature is programmed to activate for one arming
cycle only. The security system will return to normal operation during the next arming cycle.
HIDDEN ALARM FUNCTION: Press the button first; within 3 seconds press the button to activate
the hidden alarm function. The security system will arm and with “Hidden Alarm Function”. The siren / horn
will be silenced even if the sensor is triggered in the armed status.
G. PASSIVE ARMING
Active arming / disarming is controlling your security system via the remote transmitter. This security
system is equipped with an optional Passive Arming feature, which allows the security system to arm 30
seconds after the last door is closed. Operation is as follows.
1. Turn the ignition to the “OFF” position and exit the vehicle.
2. After all entrances are closed, the security system LED will flash fast for 30 seconds. If you reopen any
door / hood / trunk, the security system LED will stop flashing. It will begin flashing again once the
vehicle all entrances are closed.
3. After 30-second timer has elapsed, the security system will automatically “ARM”. The siren will chirp [1]
time and the parking lights will flash [1] time.
PASSIVE ARMING WITH PASSIVE DOOR LOCKING (See Alarm Feature “I - 2” Programming):
The vehicle doors will automatically lock after passive arming cycle has been completed.
PASSIVE ARMING BY-PASS: While the system disarmed, Press the button twice, the security will
respond with [1] chirp and LED will turn “ON”. The security system will remain in this temporally state for
as long as you wish. To exit passive by-pass, press the transmitter or button and the system will
return to normal status.
H. ACTIVE DISARMING – UNLOCK & DISARM:
1. Press button on the transmitter.
2. The siren will chirp twice and parking light flash twice to indicating that the security system is now
disarmed. The vehicle’s door will unlock and dome light turns on for 30 seconds upon disarming when
interfaced with the security system.
3

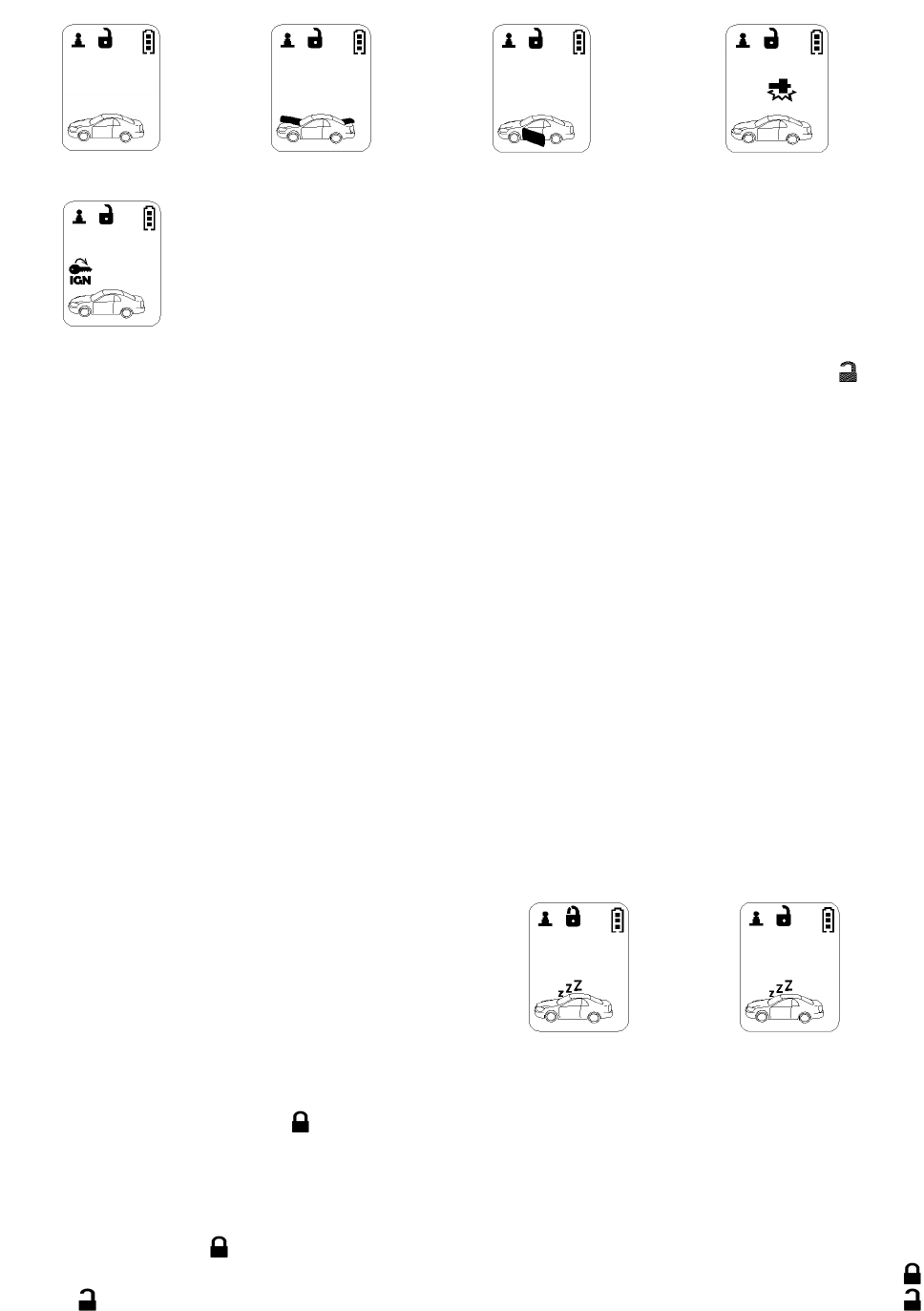

System Disarm
Trunk/Hood Trigger
Doors Trigger
Shock Sensor Trigger
Ignition Trigger
TAMPER DISARMING: If alarm triggered, upon disarm the system, siren chirp 4
times, parking light flash 3 times.
PATHWAY ILLUMINATION (See Alarm Feature “II - 4” Programming): This
feature turns the parking light “ON” for 30 seconds upon a unlock signal and for
10 seconds upon the lock signal.
TWO STEPS DOOR UNLOCK (See Alarm Feature “II - 1” Programming): This feature will
independently unlock the driver’s door only when disarming the security system. Pushing the button
a second time within 3 seconds will unlock the other doors.
AUTOMATIC RE-ARM (See Alarm Feature “I - 3” Programming): If this feature is selected, the security
system will automatically re-arm itself in 60 seconds after disarming with remote transmitter. Automatic
rearm will cancel if any door is opened before the 60 seconds timer has elapsed.
I. DISARMING WITHOUT A TRANSMITTER ( Alarm Feature II - 6 Programming )
OVERRIDES THE ALARM WITHOUT PASSWORD PIN CODE: (Factory Default Setting)
The Override function may be used if the remote transmitter is lost or inoperative.
1. Enter the vehicle and turn the ignition switch to 'ON’ position. (Alarm will sound.)
2. Within 10 seconds push and release the valet switch
The alarm will stop sounding and enter the disarm mode. You can now start and operate the vehicle
normally.
J. VALET MODE: (System in Disarm or Valet mode)
The valet switch allows you to temporarily bypass all alarm function, eliminating the need to hand your
transmitter to parking attendants or garage mechanics. When the system is in valet mode, all alarm
function and remote start functions are bypassed, however the remote panic feature and remote door
locks will remain operational. To use the valet mode, the system must first be disarmed either by using
you remote transmitter, or by operating the Manual override sequence.
Enter Valet Mode:
1. From the disarmed condition, turn the ignition to “ON” position.
2. Push and hold valet switch for 2 seconds until the
LED turns on. The LED wills remain on as long as
the system is in 'valet mode'.
Exit Valet Mode:
1. Return to normal operation, turn ignition 'on'.
2. Push and hold valet switch for 2 seconds, The
LED wills turns off indicate the system are exiting
the valet mode.
Remote Door Lock
Remote Door Unlock
K. CAR LOCATOR
Under armed mode, press the button to active car locator function. The siren will chirp 6 times. The
parking light will flash 12 times, for you to easily locate your car.
L. PANIC FUNCTION:
The transmitter can be used as a remote panic switch to manually trigger the alarm in case emergency.
1. Press and hold the button for 3 second. The alarm will immediately sound.
2. During panic mode, the normal function of this transmitter button will be suspended. The transmitter
and buttons can be used to lock and unlock the door (if the option is installed), however once the
button is pressed, the vehicle’s starter disable device, (where installed) will be enable allowing the
vehicle to start.
4
1. To stop the alarm, press and hold the transmitter or button on the transmitter again for 3
seconds. Also if any transmitter buttons other than or button is pressed and released, the panic
mode will be turned off immediately.
2. If the button is not pressed, the alarm will automatically stop after 30 seconds.

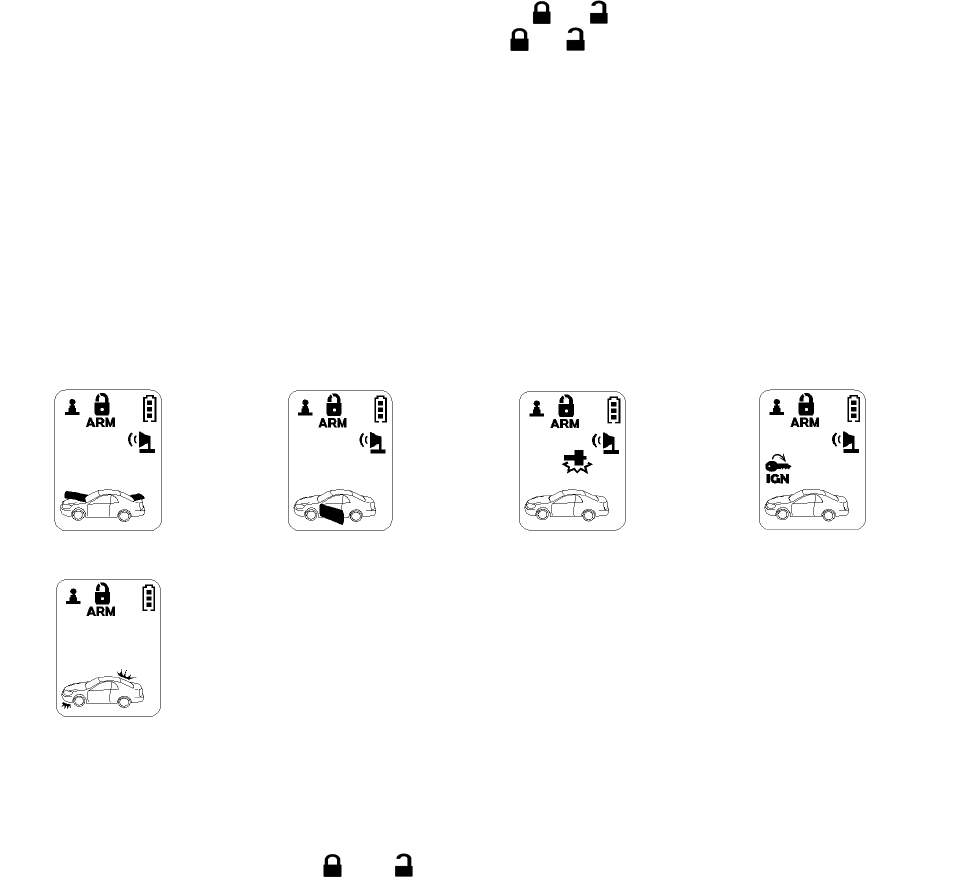

M. TRIGGER THE SYSTEM
When armed, your vehicle is protected as follows:
1. Light impact will trigger the warn-away signal.
2. Heavy impacts / Doors open / Hood open / Trunk open / Turn on the ignition key will trigger the
programmed sequence.
The starter disable relay (if installed) prevents the vehicle’s starter from cranking. The siren, horn, parking
lights, and dome light will turn on to alerting of an intrusion for 30 seconds. Then it will stop and automatic
reset and re-arm. If the one of sensors or detectors still active, the alarm system will sound a maximum of
6 times of 30 seconds cycles.
Trunk/Hood Trigger
Doors Trigger
Shock Sensor Trigger
Ignition Trigger
Warn-away Trigger
N. ANTI CAR- JACKING
Warning: If you don't need the car jacking function in this alarm system, be sure to set car jacking feature
“OFF”. This system is default setting all car-jacking “OFF”. (See Alarm Feature I - 5 Programming.)
ACTIVE ANTI CAR JACKING:
1. Press and hold the transmitter and buttons at the same time for 2 seconds while the vehicle’s
ignition is ON. The parking lights will turns on for 1.5 seconds to indicate the system enters the
car-jacking mode.
2. Once the system in car-jacking mode, If you are forced from the vehicle, the system will be trigger
when the door is opened and closed while the ignition is “ON”.
PASSIVE ANTI CAR- JACKING:
1. Turn the ignition switch to “ON” position; the system enters the car-jacking mode.
2. Once the system in car-jacking mode, If you are forced from the vehicle, the system will trigger when
the door is opened and closed while the ignition is “ON”.
TRIGGER THE ANTI CAR -JACKING MODE:
a). 50 seconds after the system has beer triggered. The siren will start chirping for 15 seconds.
b). During this 15 seconds period of chirping, you will be alerting to push the valet switch once to turn off
the car-jacking feature. If not, it will enter second timer car jacking.
c). 65 seconds after the system has beer triggered. The siren starts alarming and the parking light starts
flashing.
d). 90 seconds after the system has beer triggered
1. The siren still alarming and the parking light flashing, and
2. The starter disable will activate to prevent the vehicle from starting.
3. It will remain active until the vehicle's battery power exhausted.
OVERRIDE THE SYSTEM TO TURN OFF ANTI CAR- JACKING:
Turn the ignition switch from OFF to ON, and within 10 seconds push valet switch, the siren will stop and
the system disarmed
Note: If you use password pin code to double protect the vehicle security, you will need to use it to
completely disarm the system.
5
O. DOME LIGHT CONVENIENCE DELAY & SUPERVISION
The alarm with a unique feature which will turn on your vehicle dome light as following:
1. Upon disarming, the interior light will remain on for 30 seconds.
2. If the vehicle is intruded, the interior light will flash for the same duration as the siren.
Note: Turn on the ignition switch or arm the alarm will turn off the dome light.
P. IGNITION CONTROL DOOR LOCK/UNLOCK. (See Alarm Feature II – 2 Programming).
If the vehicles door locks have been interfaced to the security system, the system will automatically lock
the vehicle's doors when the ignition is turned “ON” and /or unlock the vehicle’s doors when the ignition is
turned “OFF”
Q. TRUNK RELEASE (CHANNEL 3) OUTPUT.
Press and hold button on the transmitter for two seconds to remote control the
trunk release or other electric devices.
R. CHANNEL 4 TIMER CONTROL OUTPUT (See Alarm Feature III – 4 Programming.)
Press the transmitter and buttons at the same time to active Channel 4 function. Channel 4 is
user-programmable timer output. You may program the built-in timer to send a ground signal for any time
duration from 1 second to 120 seconds. For instance, this timer output may be used to turn on the
headlight, power window or sunroof. (Factory defaults setting at momentary output.)

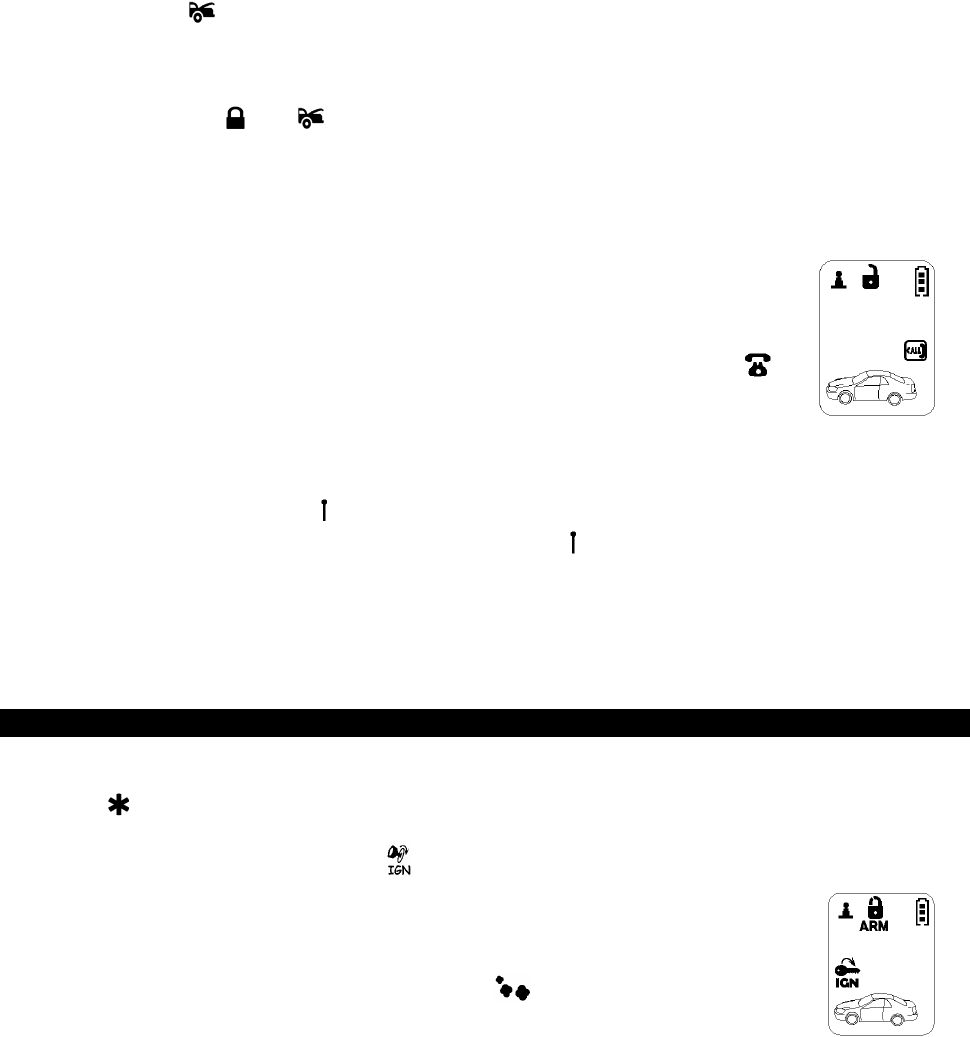

S. DRIVER PAGING / LOSE & FOUND (For two-way transceiver operation only)
It is useful the event that someone wants to page the driver of the parked vehicle or
someone cannot find his LCD remote control transceiver.
Under the ignition switch “off” condition, press and hold the valet switch for 2 seconds
to page the driver, one chirp sound shall be emitted from the vehicle and the paging
melody sound continues sounding from you Remote LCD transceiver and “ ”
indication flashes on the LCD screen.
T. OUT OF RANGE INDICATION: (See Alarm Feature II – 5 Programming.)
If this feature is selected, the system will automatically check the range every 30 minutes after armed.
1. If user is within the range, the icon will display on the LCD screen.
2. If user is out of range, it has five short “bi” sounds and the icon will disappear on the LCD screen.
Note: Programming “out of range indication” will decrease the life expectancy of battery
U. POWER ON MEMONRY:
This security system is equipped with circuitry that will allow the unit to remember its alarm state if the
power is lost and then reconnected.
REMOTE START OPERATION
A. TO REMOTE START THE VEHICLE:
1. Press button twice on the transmitter.
2. The parking light will activate to indicate the remote start received the signal. (A melody sounding from
your Remote LCD transceiver and “ ” icon will flashes on the LCD screen to
confirm the remote start was activated.)
3. The engine will start approximately 5 seconds.
4. Once the engine is running, after couple seconds the parking light will turn on again
and climate controls will activate and adjust the vehicles interior temperature to your
preset setting. (While the vehicle is running, the “ ” icon on the LCD screen will
flash and it will indicate count down timer based on the 5, 10, 20 or 30 minute run
time set up by your installation center.)
5. The vehicle will run for 5 to 30 minute cycle and automatically shut down. (When the
unit shuts off the count down timer will turn off and the transmitter will play a melody.)
Note: The Remote Start Unit will not start the vehicle if any one of the following
conditions exists:
Activate Remote
Start
Engine Running
6
1. The hood is opened.
2. The brake pedal is pressed.
3. Move the optional remote start enable toggle switch to OFF position. (If installed)
4. The gear selector is in any gear other then “PARK” or “NEUTRAL”
SAFE START (Child safety mode) (See Start Feature I – 5 Programming.)
Factory defaults setting to press the button twice on the transmitter to start the vehicle. Programming
this feature to eliminate an accidental remote start, when kids enter this transmitter, it enquires:
The user presses the transmitter and buttons at the same time to start the vehicle.
B. TO OPERATE THE VEHICLE WHILE RUNNING ON THE REMOTE START:
To operate the vehicle while engine running on the remote start.
1. Insert the ignition key and turn it to “ON” (not the start) position.
2. Press the brake pedal.
Note: If the brake pedal is pressed before the key is in the ON position, the engine will shut down.
C. TEMPORARY STOP FEATURE:
This feature allows the vehicle to remain running after the key has been removed from the ignition. This
feature is useful for occasions when you wish to exit and lock the vehicle for short periods of time, but
would like to leave the motor running and the climate control on.
1.Before turning off the engine, press the button twice on the transmitter and the LED indicator will
flash 3 times to confirm enter.
2.Turn the ignition key to OFF position. (The engine will stay running.)
3.The engine will run until the pre-programmed time elapsed or shutdown input is received.
E. TURBO TIMER MODE: (See Start Feature “I - 6” Programming)
Turbo timer mode keeps the engine running after arriving at you destination for a programmable period of
1/ 3 or 5 minutes, This allows the system’s time to conveniently cool down the turbo after you have left the
vehicle. To activate:
1. While engine is running, place the transmission gear in the park position and pull up the hand brake.
2. Before turning off the engine, press and release and buttons at the same time.
-- The parking light wills turn on to indicate the remote start has entered turbo charge mode. --
3. Pull off the “Ignition Key” from the key cylinder.
-- Engine keeps running. --
4. Exit and secure the vehicle.
-- Engine continues running until the pre-programmed time elapsed. --
F. TIMER START: (See Start Feature “I - 7” Programming)
This unit can be programmed to start and run the engine every 3 (2) hours. The engine will run for the
programmed running time and then shut down.
IMPORTANT: Timer Start should be used only in open areas, never start and run the vehicle in on
enclosed space as a garage or carport.
This feature is design for an extreme cold climate usage. The system will auto start the vehicle every 3 (2)
hours, to prevent engine freezing and hard to start.
A MAXIMUM OF SIX CYCLES CAN OCCUR.
ENTER:
1. Press the button twice to remote start the vehicle. As soon as the vehicle is
running and the parking light have turned on or flashing.
2. Immediately depress the button once, within 2 seconds
3. Rapidly depresses the button. The parking light will flash (3) times. The siren or
horn chirps (3) times. The vehicle is now programmed to start every 3 (2) hours.
4. Press the brake pedal to stop the vehicle running.
Exit the timer start:
Timer start can be exited manually as follows:
1. Make sure the remote start system is not operating the engine.
2. Turn the ignition on. The LED and parking light will flash (4) times. The horn chirps (4) times.
Or
7
1. Press the button twice to remote start the vehicle. As soon as the vehicle is running and the parking
light have turned on or flashing.
2. Immediately depress the button then press and hold the button for 2 seconds. The parking light
will flash (4) times. The siren or horn chirps (4) times. The vehicle is no longer programmed to start
automatically.
G. TO TURN OFF THE REMOTE START:
When the engine is running (by remote start), if you want to stop it,
1. Press button twice on the remote transmitter under remote start mode.
2. Move the optional remote start enable toggle switch to OFF position. (If
installed)
3. Press the brake pedal
The vehicle will shut down and turn off the parking light to indicate engine stopped.
H. SHUT-DOWN INPUT FOR REMOTE STARTER:
If any of the following conditions exist while the system is operating, the engine will not start or will shut
down immediately:
1. The hood is opened.
2. The brake pedal is pressed.
3. Engine is over-revved. {“Tachometer checking type” only}
4. The pre-programmed run time (5 /10 / 20 / 30 minutes) has elapsed.
5. Press button twice on the remote transmitter under remote start mode .
6. Move the optional remote start enable toggle switch to OFF position. (If installed)
7. The vehicle refused to start running after {3} unsuccessful attempts.
I. DISABLING THE REMOTE START SYSTEM: (If installed)
This feature allows your system’s remote start unit to be temporarily disabled to prevent the vehicle from
being remote started accidentally. This feature is useful if the vehicle is being serviced or stored in an
enclosed area. To disable the remote start, move the optional remote start enable toggle switch to the
OFF position.

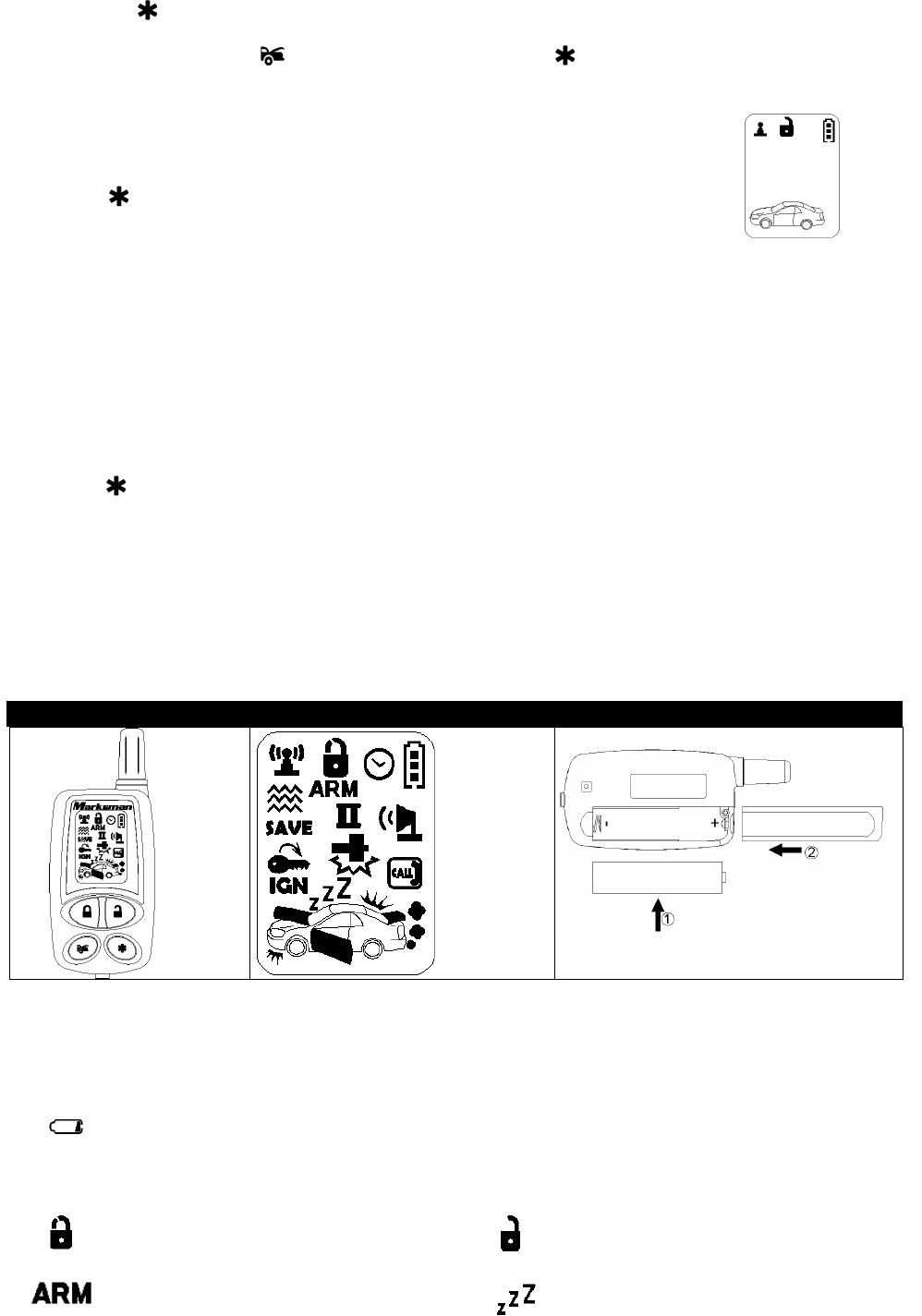

LCD REMOTE CONTROL TRANSCEIVER
Note: If the system is interfered by stronger radio frequency around, sources of high voltage electric
power or such Obstacles like tall buildings and so on, the transmission range may get shorter as
the system uses low out put powered frequency.
A. BATTERY REPLACEMENT:
A 1.5V type AAA Alkaline battery powers the Remote Transmitter. When the power of the battery weakens
a icon shall be displayed on the LCD screen. When the old battery is replaced to new one, there will
be beep sounds indicate the power is up.
B. THE REMORE LCD ICONS WITH FUNCTION:
Door Lock
Your vehicle doors are locked
Door Unlock
Your vehicle doors are unlocked and
the system is Disarmed
Armed Mode
Your vehicle is in armed mode
Valet Mode
All the function shall be temporarily on
hold.
8
Remote Transmission
You are transmitting the signal to
control unit
In – Range Indicator
Your are within the remote control
range.
Trunk/Hood Trigger
Trunk or Hood is illegally opened
(Zone 2)
Door Open Warning
Doors are illegally opened (Zone 3)
Shock Sensor Trigger
Trigger on Shock Sensor (Zone 4)
Ignition Trigger
Trigger on Ignition Switch (Zone 5)
Warn Away trigger
Trigger on Shock Sensor (Zone 1)
Low Battery
You have to replace the battery of
remote control.
Engine Starting
Your vehicle engine starting by remote
control
Engine Running
Your vehicle's engine is running
Timer Control Start
Engine start every 2 / 3-hour.
Driver paging / Lose and Found
Someone is paging you in front of your
vehicle
Vibration Mode
Remote Control vibrates when the
system is triggered
Power Save Mode
Save the battery power
C. PROGRAM MODE FOT LCD REMOTE CONTROL TRANSCEIVER:
Transceiver Button System Function Remark
+ - Switching code for 2nd / 1st Car
Operation
Press within 5 seconds
+ - Melody / Vibration Mode Press within 5 seconds
+ - Power Save Mode Press within 5 seconds
LCD screen lamp turns on for 5 seconds.
- + System’s Status Check Press within 3 seconds
- + Clear the Flash Icon and Melody Sound Press within 3 seconds
1. Second Vehicle Security Operation: Your remote transmitter can be utilized to control a second
vehicle security system. To program the remote control transmitter to a second vehicle, follow the
instructions for Transmitter programming. All programming parameters be the same except for the
following:
For Regular Remote Control Transmitter:
1. Prior to pushing any button on the transmitter. Press the Select II button first on the transmitter.
2. Once II button is pressed the LED on the transmitter will illuminate for 3.5 seconds to indicate the
second transmitter pin code has built-in.
3. While the LED is illuminated, press any button on the remote control transmitter to control a second
vehicle security system.
For 2-way LCD Remote Control Transceiver:
2nd Car Operation: While the “II” icon display on the LCD screen, you can remote control and
communicate with a second vehicle security system. It has two short “bi” sounds while pressing the button
of the LCD screen transceiver.
1. Press and hold and buttons at the same time until one long beep is heard.
Programming has now been entered.
2. Within 5 seconds press and hold button until two beeping sounds is heard and
the “II” icon will display on the LCD screen to indicate the second transceiver pin
code has built-in.
3. To exit programming mode, take no action for five seconds. The remote control will
generate two long beeps to indicate programming mode has been exited.
Back to 1st Car Operation: You can remote control and communicate with a first vehicle security system.
It has one short “bi” sound while pressing the button of the LCD screen transceiver.
9
1. Press and hold and buttons at the same time until one long beep is heard.
Programming has now been entered.
2. Within 5 seconds press and hold button until one beeping sound is heard.
3. To exit programming mode, take no action for five seconds. The remote control will
generate two long beeps to indicate programming mode has been exited.
2. Vibration / Melody Mode: It is useful when you are in a noisy place and difficult to hear beep sound
from the remote control as the remote control in this mode, vibrates it if your security system is triggered.
1. Press and hold and buttons at the same time until one long beep is heard.
Programming has now been entered.
2. Within 5 seconds, press the button to select the mode of vibration or melody, the
icon will displayed on the LCD screen to show the LCD remote transceiver is on
vibration mode.
3. To exit programming mode, take no action for five seconds. The remote control will
generate two long beeps to indicate programming mode has been exited.
3. Power Save Mode: While the power save mode, the LCD remote transceiver “sleep” until a button is
pushed, extending the life of battery. When power save mode is “Off”, the remote control will wake up
periodically to check for messages from the security module..
1. Press and hold and buttons at the same time until one long beep is heard.
Programming has now been entered.
2. Within 5 seconds, press the button to toggle “On” or “Off”. The remote will beep
once for “On”, twice for “Off”. When power save mode is “On”, the icon on
the LCD screens to indicate entry the “power save mode”
3. To exit programming mode, take no action for five seconds. The remote control will
generate two long beeps to indicate programming mode has been exited.
4. Screen Lamp ON: Press the button once, the LCD screen lamp will turns on for 5 seconds
5. System’s Status Check When you want to check the system’s present status
through the LCD screen, Press the transceiver button first, within 3 seconds press
and buttons at the same time. It responds with one melody sound, the LCD
screen should be illuminated.
Note: If it has no responds then you are out of range.

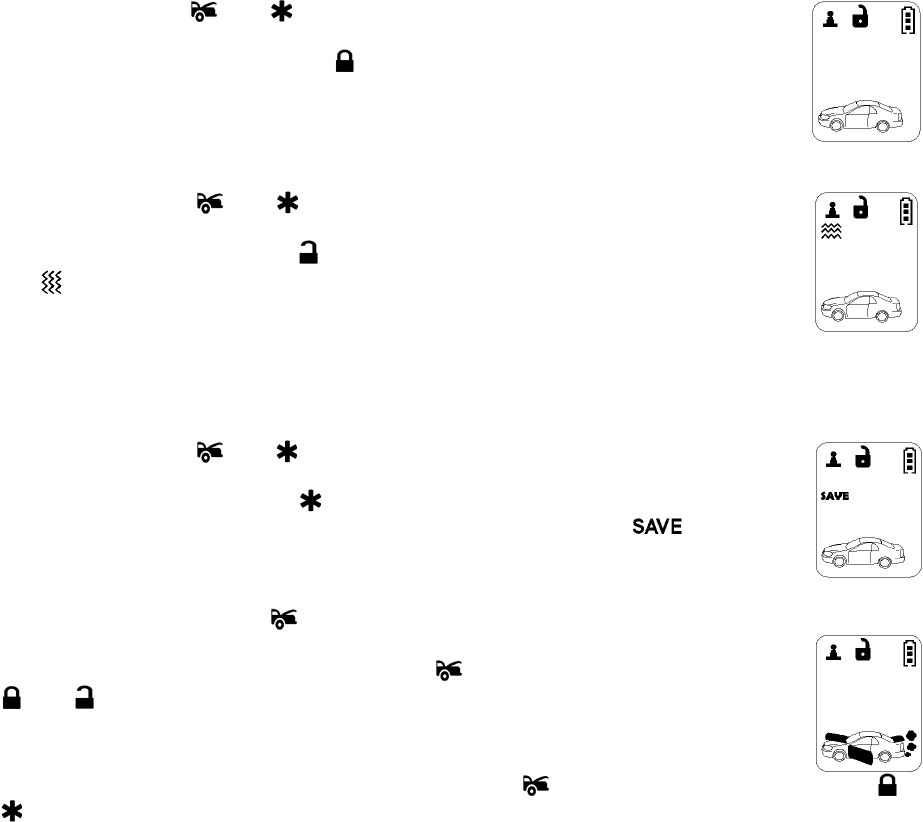

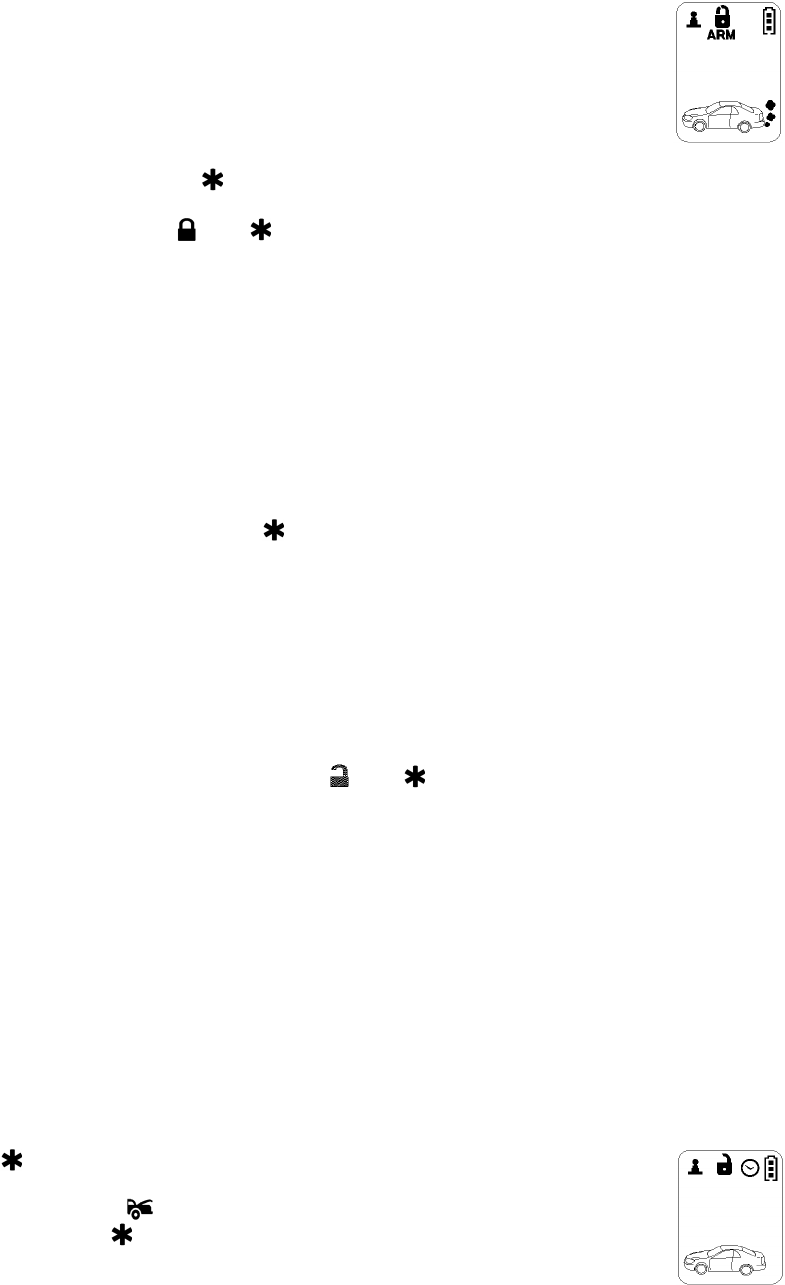

6. Clear the Flash Icon and Melody Sound: Press the button first, within 3 seconds press and
buttons at the same time. It will clear the flash icon and melody sound on the LCD screen transceiver
7. Stop The Trigger Melody Sound: While triggering the alarm the LCD screen will alert user through
melody sound and flashing trigger icon, press any button on the LCD remote transmitter to stop melody
sound only, the remote control buttons will not send a command to the system.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions.
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may cause undesired
operation.
Per FCC 15.21, you are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
