User manual

PROFESSIONAL

SERIES

CA 6550

Owner’s Guide

IMPORTANT NOTE: The operation of the Security and Convenience System as described in this manual is

applicable to most vehicles. However, due to the configuration of some vehicles, some functions AND/OR

SAFETY PRECAUTIONS may not apply. Please see your installing dealer for more information.

2 Way LCD Vehicle Security and

Remote Start System

Table of Contents

Using Your Remote Control ............................................................... 3

Arming the Security System ............................................................ 3

Passive Arming Bypass ................................................................... 3

Bypassing the Shock Sensor .......................................................... 3

Hidden Alarm Function...................................................................... 3

Disarming the Security System........................................................ 3

Two Stage Door Unlock (optional) ................................................... 4

Valet Mode ........................................................................................ 4

Manually Overriding the Security System ....................................... 4

Activating Trunk Release (optional) ................................................ 4

Activating Optional AUX 1 (optional) ............................................... 4

Using the Progressive Car Finder Feature...................................... 5

Using the Personal Protection Alarm ............................................... 5

Eliminating Arm / Disarm Notification Chirps .................................... 5

Car Jack Mode .................................................................................. 5

Using Your Remote Vehicle Starter ................................................. 6

Remote Starting Your Vehicle .......................................................... 6

Entering Your Vehicle while it is Running via Remote Start ........... 6

Preheating or Precooling the Vehicle’s Interior ............................... 6

Using the “Quick-Stop” Feature ....................................................... 6

Operating the 2 / 3 Hour Start Up Timer Mode ................................ 7

Turbo Timer Mode (optional) ............................................................ 7

Operating the Daily Start Timer ........................................................ 8

Remote Start Safety Features ......................................................... 8

LED and Siren/Horn Indications ......................................................... 9

Additional 2-Way LCD Remote Control Functions ...................... 10

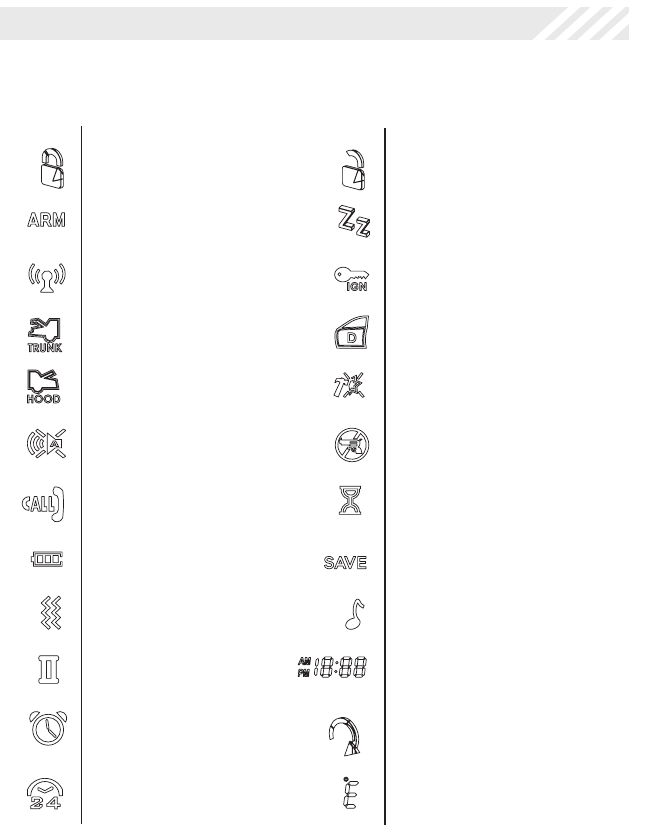

LCD Remote Control ICON’s ............................................................ 12

Transmitter Button Functions ......................................................... 13

Replacing Remote Control Batteries ............................................. 15

Warranty Information......................................................................... 17

Arming the Security System

To arm the system, exit the vehicle, close all doors, then press the button. The

parking lights will flash 2 times, indicating the system is armed, has locked the

doors (if equipped and connected) and activated the starter disable feature. The

LED status indicator will blink steadily, once per second.

NOTE: The system is defaulted with Silent Choice enabled, which requires a

second press of the button to activate an audible arming response from the

vehicle.

Passive Arming Bypass

If passive arming is enabled on your system, while the system is disarmed, press

+ , the system will respond with 1 chirp and the LED will turn on. The

security system will remain in this temporally bypassed state for as long as you

wish. To exit passive bypass, press the or button and the system will return

to normal status.

Bypassing The Shock Sensor

To arm the system and ignore the shock sensor press button, then within 5

seconds press + , the system will respond with 1 long chirp.

NOTE: The system will only change the shock sensor setting for one arm cycle

and will be defaulted back to normal operation the next time the system is armed.

Hidden Alarm Function

Press the button first, within 3 seconds press the button to activate the

hidden alarm function. The security system will arm with “Hidden Alarm Function”

in which the siren / horn will be silenced if the system is triggered.

Disarming the Security System

To disarm the system press the button. The parking lights will flash 1 time,

indicating the system is disarmed and has unlocked the doors (if equipped and

connected).

NOTE: The system is defaulted with Silent Choice enabled, which requires a

second press of the button to activate an audible arming response from the

vehicle.

*Throughout this manual, ‘press’ refers to pressing for less than 1 second; ‘press and hold’ refers to pressing for more

than 2 seconds.

Using Your Remote Control

Valet Mode

To engage valet mode:

1. Turn the ignition key to the ON position.

2. Press and hold the emergency override button.

3. The LED will light solid indicating that the system is in valet mode.

When valet mode is activated the status LED will light solid, and all security and

remote start functions will be disabled.

To disengage valet Mode:

1. Turn the ignition key to the ON position.

2. Press and release the emergency override button.

3. The LED will turn off indicating that the system has exited valet mode.

Two Stage Door Unlock (Optional)

If this feature is enabled on your system, pressing the button one time will

unlock only the driver’s door. Press again within three seconds to unlock the

remaining doors.

Manually Overriding the Security System

Your system can be disarmed without the use of the transmitter. This is

necessary, since you will need the ability to operate your vehicle if the transmitter

is lost or its battery fails. To by-pass the alarm system;

1. Open the vehicle door. The alarm will sound.

2. Turn the ignition key to the ON position.

3. Within 5 seconds, press and release the valet push button switch.

The alarm system will stop sounding and enter the (by-passed) mode. You can

now start and operate the vehicle normally.

Activating the Trunk Release Feature (Optional)

If this feature is enabled on your system, pressing and holding the button for 3

seconds will open the vehicle’s trunk or hatch.

Activating Optional AUX 1 (Optional)

If this feature is enabled on your system, pressing the and buttons

simultaneously will activate an optional feature. This feature can be programmed

for a wide range of functions like power window or sunroof automation, please

consult your installing dealer to determine the functionality of your system.

Using the Progressive Car Finder Feature

Press the button to locate your vehicle. The system will sound 5 times at low

volume, increasing in volume each time the button is pressed.

Using the Personal Protection Alarm (Panic)

Press and hold the button for 3 seconds to activate the personal protection

alarm. During panic mode, the normal function of the transmitter buttons will be

suspended. The transmitter’s and buttons can be used to lock and unlock the

door (if the option is installed). To stop the alarm, press and hold the button on

the transmitter again for 3 seconds. The system will automatically stop after 30

seconds.

Eliminating Arm / Disarm Notification Chirps

System ARM/DISARM chirps can be toggled ON or OFF without entering the

programming feature banks.

1. Turn the ignition ON then OFF.

2. Press and release the valet/programming button 3 times. The system will

respond with 1 chirp for ON or 2 chirps for OFF.

Car Jack Mode

This feature must be turned on in system programming, please consult your

installing dealer.

Car Jack mode ON: Turn the ignition ON, Car Jack mode is automatically entered.

TRIGGERING Car Jack mode: Car Jack mode will be triggered when a door is

opened then closed. When Car Jack mode is on, the system will act as follows;

1. 50 seconds after being triggered the siren will chirp for 15 seconds,

durring this 15 seconds you will be alerted to push the valet button to turn

off Car Jack mode. If Car Jack mode is not turned off at this time it will

advance to the next step.

2. Following the 15 second chirps (total time now 65 seconds) the siren

will go into full sound and the parking lights will start flashing.

3. 90 seconds after trigger in, addition to the siren and parking lights, the

system will activate the starter kill. THE SYSTEM WILL REMAIN IN THIS

STATE UNTIL THE BATTERY IS DEPLETED.

OVERRIDE THE SYSTEM TO TURN OFF CAR JACK MODE: Turn the ignition OFF

then On and press the valet button within 10 seconds. NOTE: If you have activated

the password pin code you will need to use your pin code to override Car Jack

mode. (see your dealer about the password pin code feature).

Preheating or Precooling the Vehicle’s interior

Before exiting the vehicle, set the temperature controls to the desired setting and

operation. After the system starts the vehicle, the heater or air conditioner will

activate and heat or cool the vehicle’s interior to your setting.

Using the “Quick-stop” Feature

If you want to make a short stop and keep your vehicle running (to keep the

interior warm or cool), the quick-stop feature allows you to do this while keeping

your vehicle secure and your keys with you.

To engage quick stop:

1. Stop the vehicle and place the transmission in PARK.

2. With your foot off the brake pedal, press and release the button 2

times within 2 seconds. The LED will flash 3 times to confirm quick stop is

entered.

3. Remove the keys from the ignition and exit the vehicle. Press the

button to lock the vehicle’s doors if desired.

Note: Do not leave children or animals unattended in the vehicle when using the

quick-stop feature.

Using Your Remote Vehicle Starter

Remote Starting Your Vehicle

To activate the remote vehicle start function, press and release the button 2

times within 2 seconds. The system will sound, the parking lights will flash 1 time

and the system will check the vehicle to ensure it is safe to start. If all safety

parameters are correct, the vehicle will start within 5 seconds. The vehicle’s

parking lights will turn on (or flash depending on system settings) as a visual

indication that the vehicle has started and is running. Press and hold the button

for 3 seconds to turn the vehicle off.

If your vehicle stalls or does not start, the system will pause 5 seconds, then try 2

more times to start the vehicle (a total of 3 attempts). The system will pause 5

seconds between each start attempt. If the vehicle does not start after the 3rd

attempt, the system will abort the remote vehicle start process.

Entering the Vehicle while it is Running via Remote Vehicle Start

1. Unlock the vehicle’s doors.

2. Enter the vehicle. DO NOT PRESS THE BRAKE PEDAL!

3. Insert the key into the ignition switch and turn to the ON or RUN position.

4. Press the brake pedal. The remote vehicle starter will disengage and the

vehicle will operate normally.

Operating the 2 / 3 Hour Start Up Timer Mode

The system has the ability to start the vehicle every 2 or 3 hours for a 48 hour

period. This feature is especially useful in cold climates where the only means to

keep the engine and engine fluids warm is to periodically start the engine. The

default setting is 3 hour, Selection between 2 or 3 hour is made in option

programming.

WARNING!

Be certain that the vehicle is outdoors before using this or any remote starting

device. A running engine produces dangerous carbon monoxide fumes which can

be harmful or fatal if prolonged exposure occurs. DO NOT remote start the vehicle

if it is garaged.

To begin the 2 / 3 hour start up timer mode:

1. Turn the vehicle’s ignition ON then OFF.

2. Press and hold the valet button.

3. Press the button 4 times, the system will chirp 2 times and flash the

parking lights 4 times.

4. Release the valet button.

To exit the 2 / 3 hour start up timer mode:

1. Turn the vehicle’s Ignition ON.

1. Activate the remote vehicle start feature using the remote control.

Turbo Timer

This option will keep the engine running to allow the vehicle’s turbo to properly cool

down before shutting the engine off.

To engage the Turbo Timer feature:

1. With the vehicle running via the ignition key and your foot off of the

brake pedal.

2. Engage the vehicle’s parking brake and press the and

buttons simultaneously.

3. The vehicle’s parking lights will turn on to verify the Turbo Timer

feature has been activated.

4. Turn the ignition key OFF, the vehicle will continue to run until the pre-

programmed time has elapsed (1, 3, or 5 minutes)

To disengage the turbo timer feature, press the vehicle’s brake pedal.

Remote Start Safety Features

For safety and security reasons, the system will shutdown or prevent the remote

vehicle starter from activating if any of the following occur:

1. The vehicle hood is open.

2. The brake pedal is pressed prior to turning the ignition key to the ON

position.

3. The engine is over-reved (tach checking only).

4. Valet mode is active.

Operating the Daily Start Timer

The system has the ability to start your vehicle based on a 24-hour countdown

timer. This feature requires a two-part activation sequence. From the remote,

pressing both the & buttons together will activate the 24 hour countdown

timer (the vehicle will start 24 hours from this time). Next, When you are finished

operating the vehicle for the day, perform the following steps to complete the

process.

1. Turn the ignition ON/OFF (vehicle must be disarmed).

2. Within 10 seconds, while pressing the brake, press and release the

button twice.

3. The vehicle will emit 2 chirps.

LED and Siren/Horn Indications

LED Display Indications

LED Function

OFF DISARMED

SLOW FLASH ARMED

FAST FLASH PASSIVE ARMING

ON (SOLID) VALET MODE

2 FLASH... PAUSE ZONE 2 TRIGGER, HOOD/TRUNK

3 FLASH... PAUSE ZONE 3 TRIGGER, DOOR

4 FLASH... PAUSE ZONE 4 TRIGGER, SHOCK

5 FLASH... PAUSE ZONE 5 TRIGGER, IGNITION

Siren/Horn Indications

Chirps Function

1 DISARM

2 ARM

3 DOOR AJAR UPON ARMING

4 DISARM / TRIGGERED

5 CAR LOCATOR

Parking Light Flash Indications

Flashes Function

1 DISARM

2 ARM

3 DISARM / TRIGGERED

5 CAR LOCATOR

ON (SOLID) REMOTE STARTED

Check Vehicle Status

Press and release then press the within 3 seconds, the transmitter will

respond with one melody sound and display the current status of the vehicle.

Display Illumination

Press and release the button. The display will illuminate for 5 seconds.

Melody / Vibration Mode

To have the remote control vibrate or play a melody tone each time it receives a

response from the vehicle press and release then press and hold for 2

seconds.

Button Beeps

To toggle button beeps on or off press and release then press and hold for 2

seconds.

Page Call Out

With the ignition OFF, press the valet programming button for two seconds, the

vehicle will chirp one time and the 2-way transmitter will play the paging melody

and display the call icon.

Battery Save Mode

While in POWER SAVE MODE the 2-way LCD transmitter will NOT look for any

incoming signals from the main unit until a button is pressed. The LCD screen will

display SAVE to indicate that power save mode is ON. To enter power save mode

press and hold for 5 seconds.

Clear Flashing Icons and Melody Sound

Press the button 3 times within 3 seconds. This will clear the melody sound and

flashing icons on the LCD screen.

Stopping LCD Trigger Melody

To stop the alarm trigger melody if the system has been triggered WITHOUT

disarming the system, press any button one time only, this will not send a

command to the vehicle at this time and the alarm will continue to sound.

Additional 2-Way LCD Remote Control Functions

Button Lock

Press and release then press hold the for 2 seconds to toggle the button lock

on or off.

Illumination

Press and release 2 times then press and hold for 2 seconds to toggle

illumination on or off. When on, the display will illuminate when it receives or

sends a command.

2 Car Mode

To control a second security system enter 2 car mode by pressing then press

and together for 3 seconds. When the icon appears on the transmitter’s LCD

screen it will control the second security system. Use the same method to exit 2

car mode and resume control of the original vehicle’s security system.

NOTE: A second security system must be installed and the LCD transmitter must be

learned to it before this feature will operate the additional system.

Parking Meter Countdown

The parking meter countdown timer has 6 preset times, to access the preset times

and begin countdown press and release then press and hold for 2 seconds,

repeating this step to increase the countdown time.

Adjusting the Clock and Timer Settings

The clock, alarm clock and programmable countdown timer are accessed through

the Function Menu. Press and hold for 3 seconds to access the function menu,

once you have accessed the feature menu press and release to scroll through

each feature and follow the steps below to adjust the settings for each. Press and

hold for 2 seconds to exit the menu.

Clock Hour Press to increase or to decrease

Clock Minute Press to increase or to decrease

Alarm Clock Hour Press to increase or to decrease

Alarm Clock Minute Press to increase or to decrease

Alarm Clock ON / OFF Press to turn ON or to turn OFF

Countdown Timer Hour Press to increase or to decrease

Countdown Timer Minute Press to increase or to decrease

Countdown Timer ON / OFF Press to turn ON or to turn OFF

LOCK UNLOCK

SYSTEM ARMED VALET MODE

TRANSMITTING

TRUNK TRIGGER DOOR TRIGGER

FULL SHOCK TRIGGER

IGNITION ON/TRIGGER

ENGINE RUNNING

CELSIUS / FAHRENHEIT

2 CAR MODE

BATTERY INDICATOR BATTERY SAVE MODE

VIBRATE/SILENT MODE

HOOD TRIGGER

CHIRPS ON/OFF

PAGE FROM VEHICLE

CAR JACK MODE

TIME COUNT DOWN

MELODY MODE

TIME DISPLAY

TIMER START MODES

ALARM CLOCK

LCD Remote Control ICON’s

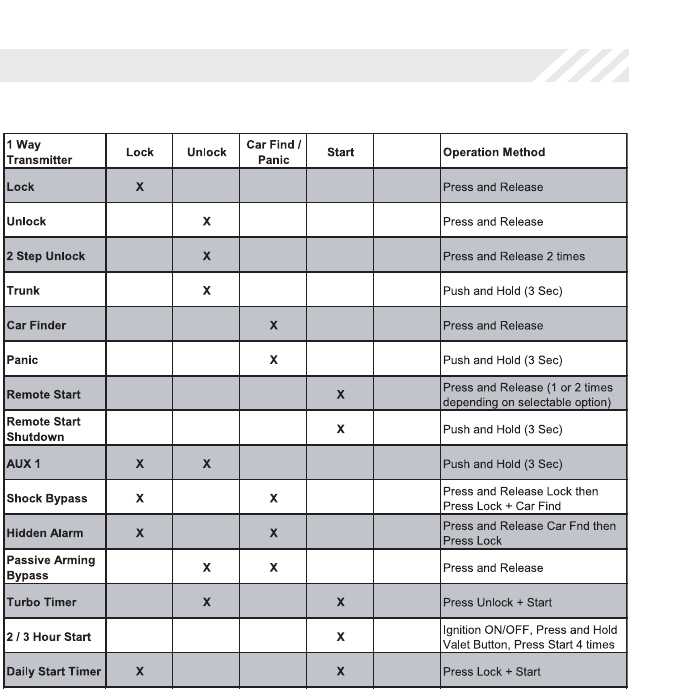

Transmitter Button Functions

Replacing Remote Control Batteries

1-Way 4 Button Remote Control:

The batteries (model CR2016) inside each remote control should last approximately 1

year under normal use. When the batteries become weak you will notice the remote

control range (the distance from the vehicle the remote control will work) deteriorate

and the small LED on the remote control will dim. To replace the remote control

batteries:

1. Remove 3 screws and disassemble the halves of the remote control.

2. Remove the old batteries, observing the +/- symbols on the batteries and

replace with new CR2016 batteries.

3. Reassemble the halves of the remote control and install the 3 screws.

4. Test operation of the remote control.

2-way LCD Remote Control:

The CR2450 battery inside the 2-way LCD remote control should last approximately 6

months under normal use. When the batteries become weak you will notice the

remote control range (the distance from the vehicle the remote control will work)

deteriorate and the BATTERY icon on the LCD remote control will show.

1. Gently slide the battery cover off of the remote control.

2. Remove the old CR2450 battery, observing the +/- symbols on the battery, and

replace with a new CR2450 battery.

3. Gently slide the battery cover on to the back of the remote control.

4. Test operation of the remote control.

Code Systems, Inc. Limited Lifetime Warranty

Code Systems Inc. (“CODE”) warrants to the ORIGINAL PURCHASER of this CODE

vehicle security product (the “Product”), purchased from an authorized CODE dealer, that (except as

provided below) should this Product under normal use and conditions, be proven defective in

material or workmanship DURING THE LIFETIME OF THE VEHICLE IN WHICH IT WAS ORIGI-

NALLY INSTALLED, such defect(s) will be repaired or replaced (at CODE’s option) without charge for

parts directly related to repairs of the defect(s).

Switches, indicator lights, and transmitter cases are similarly warranted to the original

purchaser for a period of one (1) year from the date of purchase of the Product.

CODE accessories, sold separately, are covered by the applicable warranty accompa-

nying the accessory.

This warranty is non-transferable, non-assignable and is voided when: (1) the Product is

removed from the vehicle in which it was originally installed; or (2) the vehicle in which the Product

was originally installed is transferred to another party.

This warranty does not apply to any product damaged by accident, physical or electrical

abuse, improper installation, alteration, or use contrary to its intended function, fire, flood, or other

natural acts.

In order for the Product to be repaired or replaced under the terms of this warranty, the

defective Product must be returned to an authorized CODE dealer and accompanied by a copy of

the retail sales receipt. The date of purchase and year, make and model of the vehicle in which the

Product was originally installed must be clearly indicated on the sales receipt.

This warranty is exclusive and CODE MAKES NO OTHER WARRANTIES EXPRESSED

OR IMPLIED. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MER-

CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE

DURATION OF THIS WRITTEN WARRANTY. IN NO CASE SHALL CODE BE LIABLE FOR ANY

CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WAR-

RANTY, EXPRESS OR IMPLIED, WHATSOEVER.

CODE does not warrant that the Product cannot be compromised or circumvented. THE EXTENT OF

CODE’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT

PROVIDED ABOVE AND, IN NO EVENT SHALL CODE’S LIABILITY EXCEED THE PURCHASE

PRICE PAID BY THE ORIGINAL PURCHASER OF THE PRODUCT WITHOUT INSTALLATION

LABOR.

Some states do not allow the exclusion or limitation of incidental or consequential

damages, so the above limitation may not apply to you. This warranty gives you specific legal

rights and you may also have other rights which vary from state to state

Audiovox Electronics Corporation.

Customer Service 1-800-421-3209

WWW.CODE-ALARM.COM

FCC COMPLIANCE

This device complies with Part 15 of the FCC rules and with RSS-210 of

Industry Canada. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including any interference

that may cause undesired operation.

Warning!

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

Advance Security TR35 Car Alarm Transceiver User Manual CA Elite 6 series Install rev A 4 13 09

Advance Security Inc Car Alarm Transceiver CA Elite 6 series Install rev A 4 13 09

User manual

Navigation menu

Namespaces

Views

Navigation
