Advance Security TR43 Car Alarm Transceiver User Manual
Advance Security Inc Car Alarm Transceiver
User manual
ACTIVE ARMING – LOCK & ARM:
1. Press button on the transmitter.
2. The siren will chirp once and parking light will flash once indicating that
the system is now armed. The vehicle’s doors will lock upon arming if
interfaced with the security system.
DEFECTIVE SENSOR REMINDER: If the siren sounds 3 chirps, then you
have left a door, trunk, or hood lid ajar.
SILENT ARMING / DISARMING: Press the transmitter and buttons
at the same time. This will arm or disarm your security system, No chirp
sound will be heard, arm / disarm confirmation will be through the vehicles
parking lights only.
SENSOR BY-PASS: Press the button two times within 5 seconds will
arm the security system and by-pass the shock sensor.
HIDDEN ALARM FUNCTION: Silent Alarm
Press the button first; within 3 seconds press the button to activate
the hidden alarm function. The security system will arm and with “Hidden
Alarm Mode” The siren / horn will be silenced even if the sensor is
triggered in the armed mode. Alarm indication will only appear on the LCD
Transmitter.
PASSIVE ARMING (Programmable)
Active arming / disarming is controlled by your security system via the
remote transmitter. This security system is equipped with an optional
Passive Arming feature which allows the security system to arm 30
seconds after the last door is closed. Operation is as follows.
1. Turn the ignition to the “OFF” position and exit the vehicle.
2. After all entrances are closed, the security system LED will flash fast for
30 seconds. If you reopen any door / hood / trunk, the security system
LED will stop flashing. It will begin flashing again once all vehicle
entrances are closed.
3. After the 30-second time has elapsed, the security system will
automatically “ARM”. The siren will chirp [1] time and the parking lights
will flash [1] time.
PASSIVE ARMING WITH PASSIVE DOOR LOCKING
The vehicle doors will automatically lock after the passive arming cycle
has been completed.
PASSIVE ARMING BY-PASS: While the system is disarmed, Press the
button twice, the system will respond with [1] chirp and LED will turn
“ON”. The security system will remain in this temporary state for as long
as you wish. To exit passive by-pass, press the transmitter or
buttons and the system will return to normal status.
ACTIVE DISARMING – UNLOCK & DISARM:
1. Press button on the transmitter.
2. The siren will chirp twice and the parking lights will flash twice
indicating that the security system is now disarmed. The vehicle’s
doors will unlock.
TAMPER DISARMING: If the alarm is triggered, upon disarm the system’s
siren will chirp 4 times, and the parking lights will flash 3 times telling you
the alarm has been triggered during the last armed state.
PATHWAY ILLUMINATION: When receiving an unlock /disarm signal, this
feature will turn the parking lights “ON” for 30 seconds and for 10 seconds
upon the lock signal. (Programmable)
AUTOMATIC RE-ARM: If this feature is selected, the security system will
automatically re-arm itself in 60 seconds after disarming with remote
transmitter. Automatic rearm will cancel if any door is opened before the 60
seconds timer has elapsed.
DISARMING WITHOUT A TRANSMITTER:
The Override function may be used if the remote transmitter is lost or
inoperative.
1. Enter the vehicle and turn the ignition switch to the 'ON’ position.
2. (Alarm will sound.)
3. Within 10 seconds push and release the valet switch. The alarm will stop
sounding and enter the disarm mode. You can now start and operate the
vehicle normally.
VALET MODE: (System is in Disarm Mode)
The valet switch allows you to temporarily bypass all alarm function,
eliminating the need to hand your transmitter to parking attendants or
garage mechanics. When the system is in valet mode, all alarm functions
and remote start functions are bypassed, however, the remote panic
feature and remote door locks will remain operational. To use the valet
mode, the system must first be disarmed either by using your remote
transmitter, or by operating the Manual Override sequence.
a). Under disarm mode, turn the ignition to “ON” position.
b). Press and hold valet switch for 2 seconds until the LED turns ON
solid. The LED will remain on as long as the system is in 'valet mode'.
Exit Valet Mode:
a). Turn ignition 'ON'.
b). Push and hold valet switch for 2 seconds, The LED will turn off
indicate the system are exiting the valet mode.
CAR LOCATOR
Under armed mode, press the button to active car locator function. The
siren will chirp 6 times. The parking light will flash 12 times, for you to
easily locate your car.
PANIC FUNCTION:
The transmitter can be used as a remote panic switch to manually trigger
the alarm in case of emergency.
Press and hold the button for 3 second. The alarm will immediately
sound.
To stop the alarm, press the trunk button on the remote control.
If the button is not pressed, the alarm will automatically stop after 30 seconds.
TRIGGER THE SYSTEM
When armed, your vehicle is protected as follows:
Light impact will trigger the warn-away signal.
Heavy impacts / Doors open /(if installed) Hood open / (if installed) Trunk
open / Turning on the ignition key will trigger the programmed sequence.
The starter disable relay (if installed) prevents the vehicle’s starter from
cranking. The siren, horn, parking lights, and dome light will turn on alerting
of an intrusion for 30 seconds. Then it will stop and automatic reset and re-
arm. If the any one of the sensors or detectors is still active, the alarm
system will sound a maximum of 3 times of 30 seconds cycles.
NOISE ABATEMENT CIRCUIT: Your system has a “Noise Abatement
Circuit”. It prevents annoying repetitive trigger sequences due to faulty door
pin switches or environmental conditions such as thunder, jackhammers
airport noise, etc.
Here’s how “Noise Abatement Circuit” works: The alarm triggers five times.
Each time, the same sensor or switch has triggered the alarm; the “Noise
Abatement Circuit” will interpret this pattern of triggers as a false alarm.
After the third trigger, the “Noise Abatement Circuit” ignores, or bypasses,
that sensor or switch until a different sensor or switch is trigger.
SYSTEM’S TRIGGER CHECK (For two-way transceiver operation only)
Press and hold F button of LCD remote until 3 beeps sound , release and
re-press F button again, the LCD remote will show “ALARM “ icon flashing
on text area (see advanced users mode), then press button to activate
system trigger check.
SYSTEM’S STATUS CHECK (For two-way transceiver operation only)
Press F button of LCD remote until 3 beeps sound , the LCD remote will
show “STATUS “ icon flashing in the text area (see advanced users
mode), then press button to activate system status check.
It responds with one melody sound and all vehicles’ status records will
immediately displayed on the LCD screen.
Note: If it has no response then you are out of range.
TRUNK RELEASE: Press and hold button on the transmitter for two
seconds to remotely control the trunk release.
CHANNEL4 TIMER CONTROL OUTPUT:
Press the transmitter and buttons at the same time to active Channel
4 function.
Channel 4 is user-programmable timer output. You may program the built-
in timer to send a ground signal for any time duration from 1 second to 120
seconds. For instance, this timer output may be used to turn on the
headlight, power window or sunroof.
CHANNEL5 TIMER CONTROL OUTPUT:
Press the transmitter and buttons at the same time to active
Channel 4 function.
Channel 5 is user-programmable timer output. You may program the built-
in timer to send a ground signal for any time duration from 1 second to 120
seconds. For instance, this timer output may be used to turn on the
headlight, power window or sunroof.
Clear the Flashing Icon and Melody Sound: The Transmitter will reset the
flashing icons the next time the Ignition is cycled to the ON position.
Stopping The Trigger Melody Sound: When the alarm is triggered, the LCD
screen will alert the user through a melody sound and a flashing trigger icon.
Press any button on the LCD remote transmitter to stop melody sound only.
ANTI CAR- JACKING (Programmable)
Warning: If you don't need the carjacking function in this alarm system, be
sure to set carjacking feature “OFF”. This systems default setting is “OFF” for
all carjacking modes.
Please download the complete manual for this and other
advanced functions.
ADVANCED USER’S MODE:

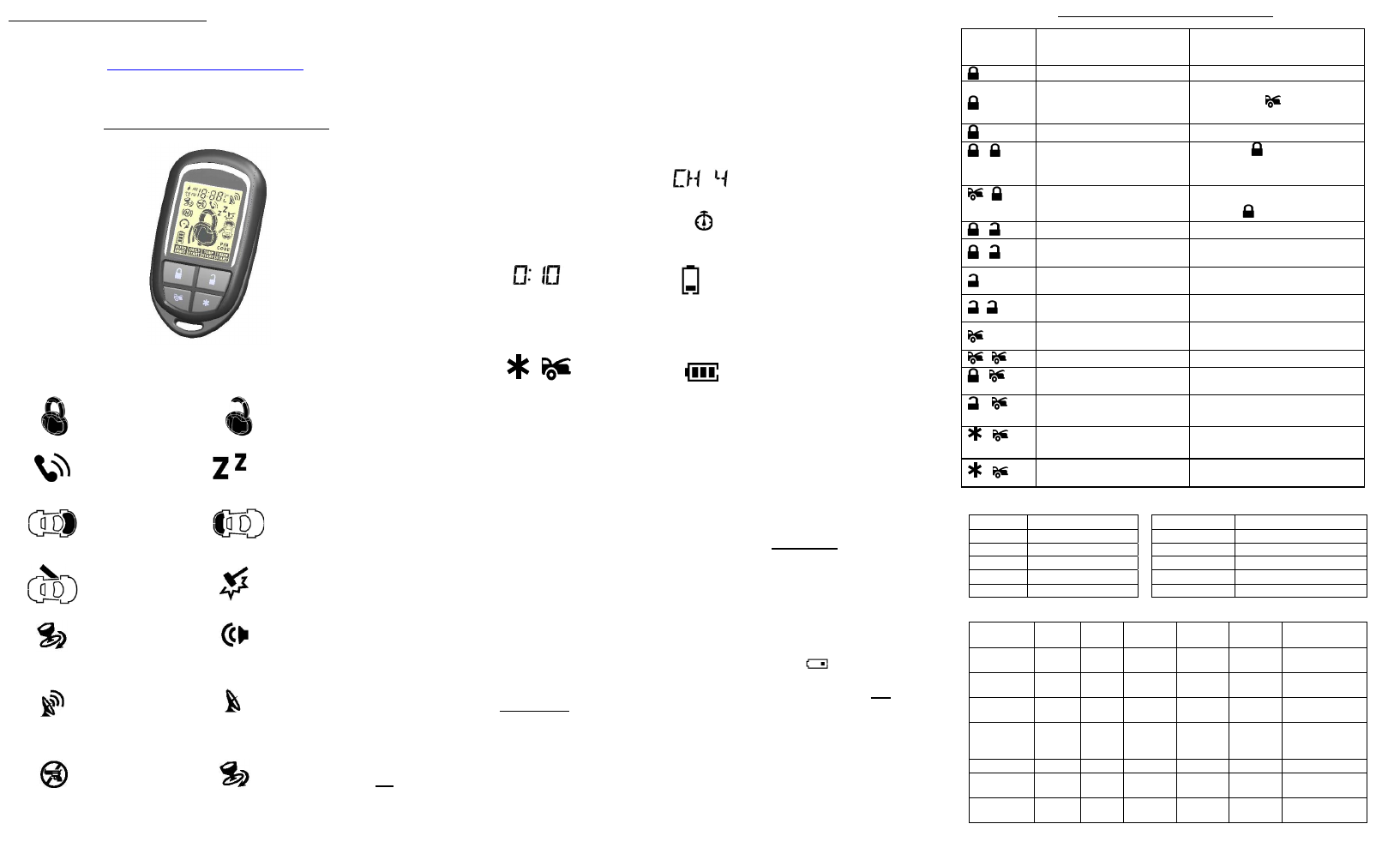

LCD REMOTE TRANSCEIVER OPERATION:
Transmitter button LCD Feature & remark
Press + Backlight turns on for 3 seconds
Press & Hold +
for 2 seconds (until 1
chirp is heard)
U 01 Press & Hold + for 2 seconds
(chirp one time )
LCD display show U: 01 = enter 1
programming of LCD Remote
Press button Press button = check the vehicle’s
status.
Press button Press button = check the system
trigger condition
Press button Press button = check the vehicle’s
temperature.
Press button PRESS button FOR OPTION OF CAR
1 / CAR 2
Press & hold button
for 2 sec. on
= Button
Lock
Press & hold button for 2 sec. Button
Lock On (1 beep) / Off (2 beep, default =
Off)
Press & hold button
for 2 sec.
Press & hold button for 2 sec. Vibrator
or Melody mode selection (default =
Melody)
Press & hold
button for 2 sec.
Press & hold button for 2 sec. Fast
Count Down Timer (Off / 10m/
20m/30m/1HR / 1.5HR / 2HR)
Press & hold button
for 2 sec.
Press & hold button for 2 sec. Button
Beep Sound mode Enable (1 beep) /
Disable (2 beeps, default = disable)
.Table 2: two beeps to confirm
Transmitter button LCD Display System feature & remark
Press & hold button
+ for 3
seconds (Two chirps
will be heard)
12 is flashing
clock time adjust
or button to decrease or
increase “Hour” digit, adjust hour from
0 to 12.
Complete adjust “Hour, “Press
button.
00 is flashing
or button - Adjusts clock
“Minute” from 0 to 59.
Press button complete clock
setting.
Alarm Clock adjust
12 is flashing
or button to decrease or
increase “Hour” digit, adjusts clock
hour from 0 to 12.
Complete adjust “Hour, “Press
button.
00 is flashing
or button - Adjusts clock
“Minute” from 0 to 59.
Press button complete Alarm clock
setting.
Exit : Press + buttons or not press any button within 10 seconds, it will
exit remote programming mode automatically.
Low Battery Indication:
When the power of the battery weakens, it has two short “bi” sound and flash
icon while pressing the button of the LCD screen transceiver.
Stop The Trigger Melody Sound: While triggering the alarm the LCD screen
will alert user through melody sound and flashing trigger icon, press any button
on the LCD remote transmitter to stop melody sound only, the remote control
buttons will not send a command to the system.
Count Down Timer
setting
0 :00
0 is flashing
or adjust parking “Hour”
(value from 0 to 2).
Complete adjust “Hour, “Press
button.
or adjust parking “Minutes”
(value from 0 to 30).
Press button complete count
down timer setting.
Press & hold button
+ for 5
seconds (chirp x 3)
Full battery
icons flash
Power Save mode : ON ? OFF
LCD remote transceiver uses “0”
current to save the battery power.
T
RC746A
A
QUICK START USERS GUIDE
If you do not understand any part of this quick start users
manual and would like the complete version,
The complete manual is necessary for advanced users and
not all user functions are covered in this quick start guide.
&+Activate
Channel 3
Activate
Channel 4
Time Monitor 12:00 Alarm Clock
Alarm clock set.
Parking Meter
Parking meter
reminder time.
Low Battery
You have to
change the
battery of
remote control.
+
Pressing the
Star and trunk
buttons
together Briefly
will turn ON the
Power Save
(battery icon full
bar flash)
Transmitter
Button System Function Remark
Lock Doors & Arm System
Panic function
Press and Hold for 3 seconds.
Press Trunk button to stop
panic function
Car Locator Press when in armed mode
-Arm and Delete The 2
Stage Shock Sensor
Press twice within 3
seconds. Pass will appear on
the remote
-Arm System and Silent
Alarm Function
Press within 3 seconds and
Hold the button
+Silent Arming / Disarming Ignition in "off" position.
+Active Anti Car-Jacking
Mode
Ignition in "on" position press
and hold for 2 seconds
Unlock Doors & Disarm
System
-Two Steps Door Unlock &
Disarm System (optional) Press twice within 3 seconds.
Trunk Release (Channel
3) Press and Hold for 2 seconds
-Passive Arming By-pass While the system Disarmed.
+Channel # 4 Timer Output
(4) Optional
+ Channel # 5 Timer Output
(5)
Optional
+ Turn ON the backlight Two-way remote
+ Switching code For 2nd
Car Operation.
For one way remote
transmitter
Encore E-7 LCD Remote Transceiver
STANDARD LCD ICON CONFIGURATIONS:
The lock icon will be
displayed when
system is ARMED
The unlock icon will be
displayed when the system is
disarmed.
Driver paging
Someone is paging
you in your vehicle
Valet Mode
Remote start and alarm
functions temporarily disabled
Hood Trigger
Hood is illegally
opened (Zone 1)
Trunk Trigger
Trunk is illegally opened (Zone
2)
Door Open Warning
Doors are illegally
opened (Zone 3)
Sensor Trigger
Trigger on shock Sensor 1
(Zone 4)
Ignition Trigger
Ignition switch is
illegally turned on
(Zone 5)
System trigger
Remote
Transmission
You are transmitting to
the control unit.
In – Range Indicator
You are within the range of the
remote control.
Anti Car-Jack Mode
Activated Button Lock (icon on)
BATTERY CHANGING:
Depending on the usage, the remote batteries should be changed at
least once a year in the one way remote and once every 4-8 months for
the two-way remote.
The 1-way remote, (E-7s) is powered by a pair of 3V, CR2016 batteries.
These batteries are available at most locations batteries are sold and can
be replaced by the user.
Battery Level Indicator (2-way remote)
The Battery Level indicator has three level indicators that serve as a visual
indication of battery charge. When the battery reaches a low charge level
that requires changing, the remote control will generate a single
notification chirp, and the Battery Level indicator will flash
continuously. If the battery voltage is LOW, the range of the remote will be
reduced by 50% to conserve battery life. The two way remote requires 2, 3
Volt CR2032 batteries. The operation lives of these batteries are affected
by many factors including, temperature, usage, back-light ON time and
programmable “in range status settings”. Do not allow these batteries to
corrode or become wet for any extended period of time.
REMOTE TRANSMITTER OPERATION:
CHIRP INDICATORS: PARKING LIGHT:
Chirp Function Parking light Function
1 chirp Arm 1 flash Arm
2 chirps Disarm 2 flashes Disarm
3 chirps Defective Reminder 3 flashes Disarm / Triggered
4 chirps Disarm / Triggered 12 flashes Car Locator
6 chirps Car Locator Constant On Under Remote Start
ALARM OPERATING CONDITION:
Siren /
Horn
Parking
Light LED Doors Starter Dome Light
1. Arming 1 or 3
Chirps 1 Flash Slow
Flash Locking Disable
2. Disarming 2 or 4
Chirps
2 or 3
Flashes Unlocking Turns on for 30 -
second
3. Trigger Alarming Flashes Slow
Flash Disable Flashes
4. Passive
Starter
Disable
Fast Flash Disable
5. Panic Alarming Flashes Flashes
6. Car-
Jacking Alarming Flashes Disable Flashes
7. Car
Locator 6 Chirps 12
Flashes Locking
