REMOTE ENGINE STARTER
WITH ALARM SYSTEM
OWNER’S MANUAL
A. BATTERY REPLACEMENT:
This system needs no specific maintenance beyond remote control battery replacement. The 2-way
remote is powered by a 1.5V AAA battery. The 1-way remote is powered by a 3V, CR2032 battery
Battery Level Indicator (2-way remote)
The Battery Level indicator has three level indicators that serve as a visual indication of battery charge.
When the battery reaches a low charge level that requires replacement, the remote control will generate
a single notification chirp, and the Battery Level indicator will flash continuously.
Gently pull the end of the battery door away from the top of the remote control then slide the door up to
expose the battery and remove the expired battery. Place the new battery into the remote. When power is
returned the remote control will display all icons in the LCD and generate all beeper tones once. Press
any button on the remote to terminate the beeper tone review.

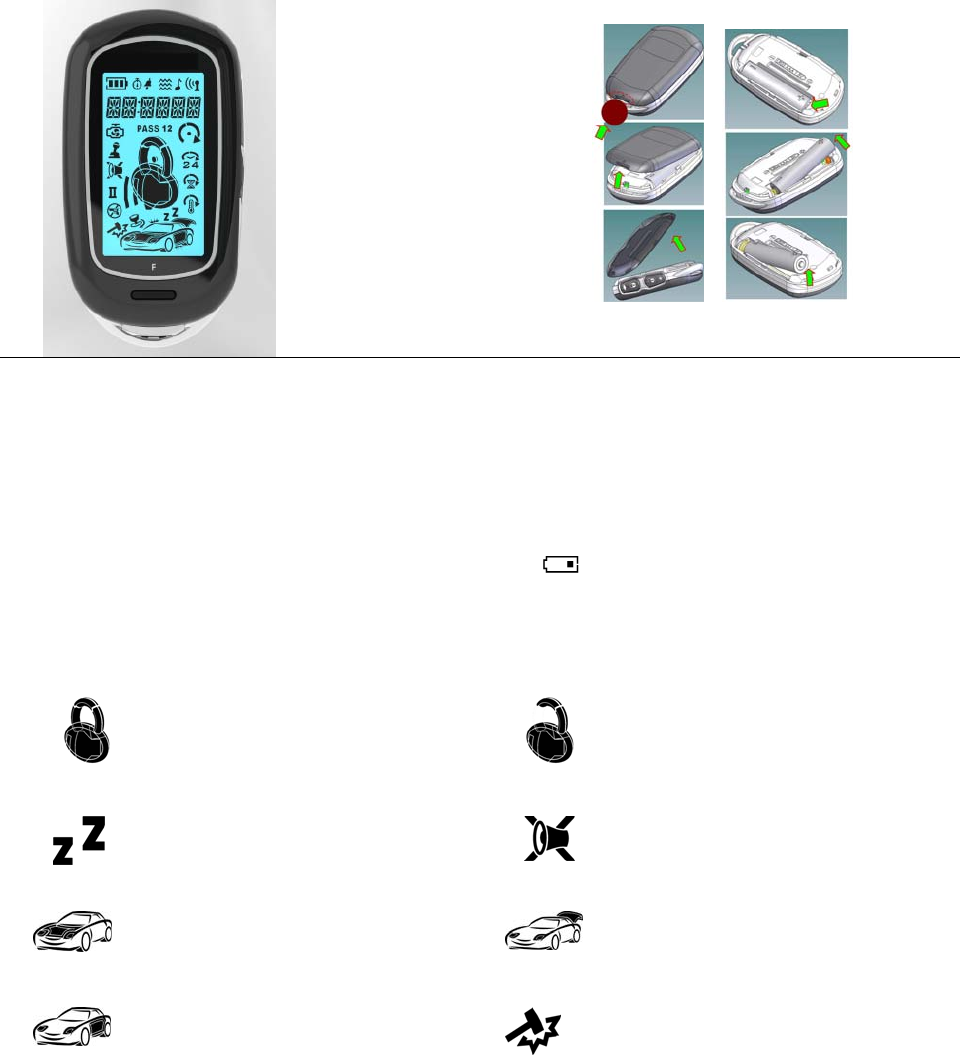

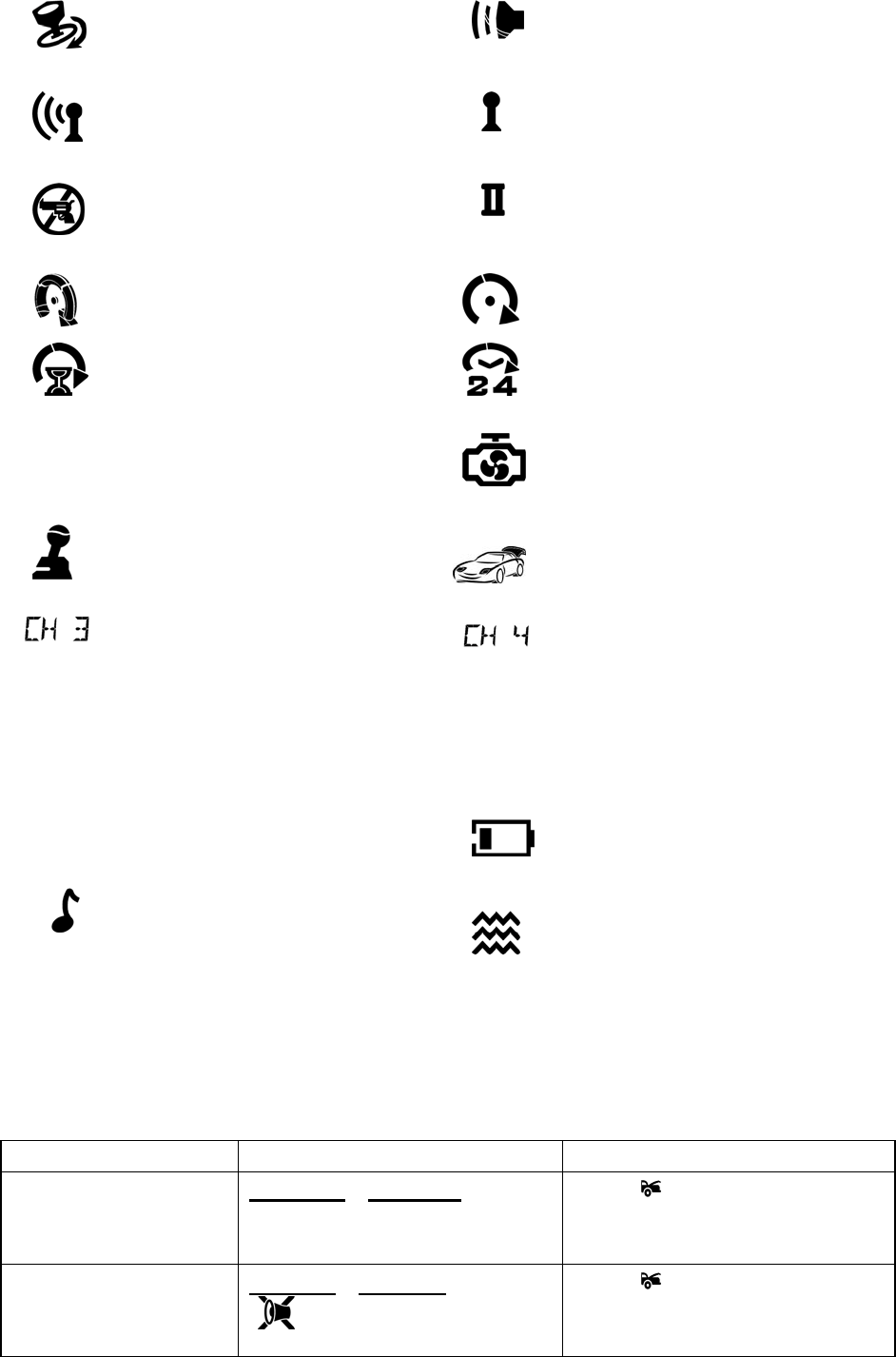

B. STANDARD LCD ICON CONFIGURATIONS:
The lock icon will be displayed when the
door locked.
The unlock icon will be displayed
when the door unlock
Valet Mode
Remote start and alarm functions shall
be temporarily on hold.
Hidden Alarm Mode
The security system arm with hidden
alarm function
Hood Trigger
Hood is illegally opened (Zone 1)
Trunk Trigger
Trunk is illegally opened (Zone 2)
Door Open Warning
Doors are illegally opened (Zone 3)
Sensor Trigger
Trigger on Sensor 1 (Zone 4)
2
Ignition Trigger
Ignition switch is illegally turned on
(Zone 5)
System trigger
Remote Transmission
You are transmitting the signal to
control unit
In – Range Indicator
Your are within the remote control
range.
Anti Car-Jack Mode
Activate the anti car-jacking mode
2nd Car Operation
Engine Cranking
Your vehicle engine Cranking by
remote control
Engine Running
Your vehicle's engine is running
Timer Control Start
Engine start automatically every 2 or
3 hours.
Daily Start
Engine start automatically at the same
time next day
PASS 1
Sensor Bypass
Sensor 1bypass under Arm mode
Turbo Timer
Turbo timer was set up
Manual Gear
Engine Start Memorizing for the car
with manual gear was set up
Activate Channel 3 (Trunk Release).
Activate Channel 3
Activate Channel 4
12:00 Time Monitor
12:00 Alarm Clock
You have set morning call alarm
0:10 P Parking Meter
Reminder when time is up for parking
Low Battery
You have to replace the battery of
remote control.
Melody Mode
Remote Control alert user through
melody sound
Vibration Mode
Remote Control vibrates when the
system is triggered

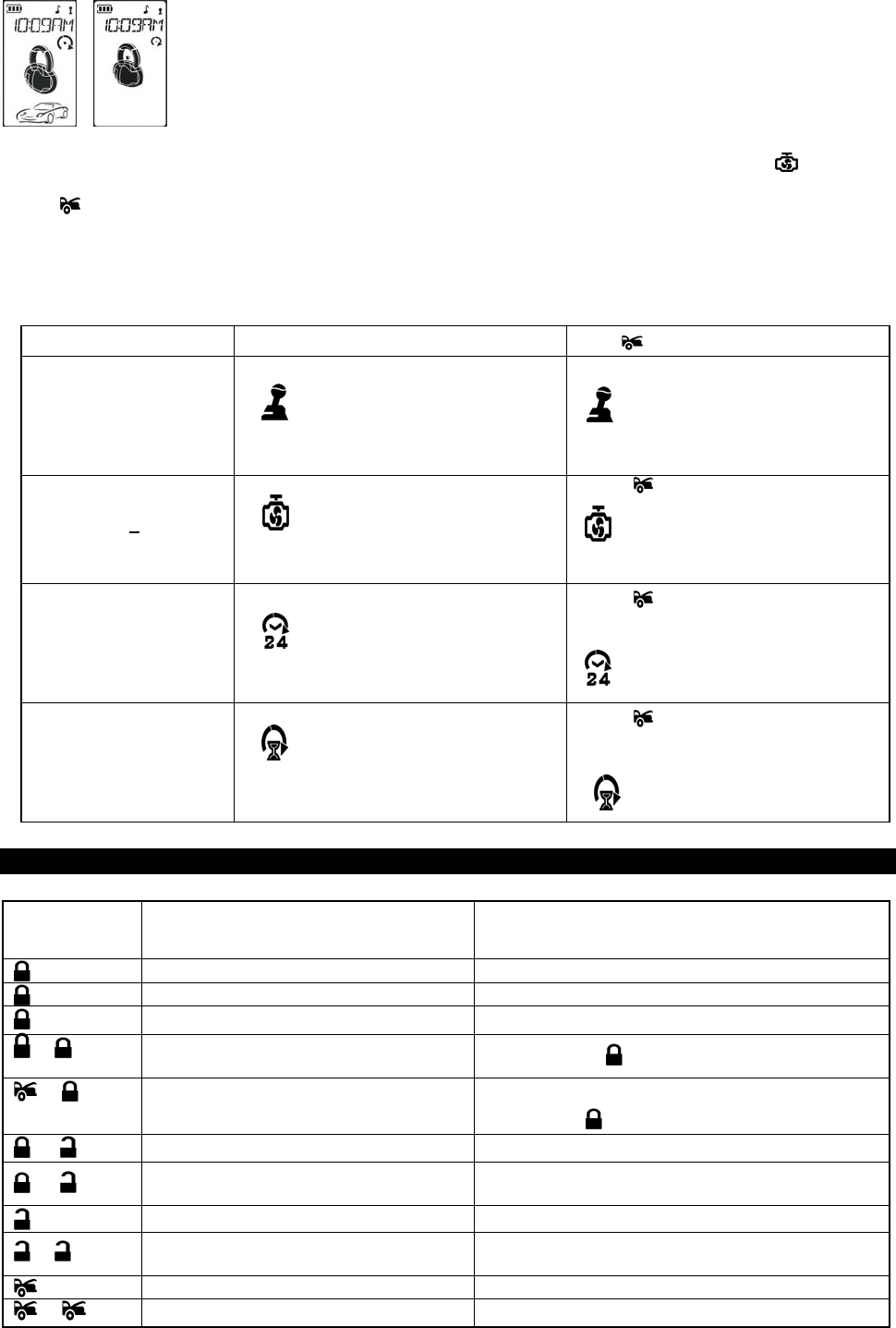

C. 2-way LCD REMOTE CONTROL TRANSCEIVER OPERATION:
Table 1:
Enter : Press & hold “ F “ button until one beep, release F-button and continue press
F button within 5 sec. to move forward to feature option you want to program.
EXIT: Press & hold " F " button for 2 sec. or do nothing wait for 5 sec. automatic exit
2-way LCD (1 beep) => Confirm Exit.
F Button LCD Display Button
Press and hold the F
Button until 1 beeps
sound
SENSOR BYPASS and
PASS 1 icon On
Press button Enable to arm the
alarm and bypass sensor 1.
Press F Button 2nd time
(HHU 1 beep) within 5
seconds
HIDDEN ALARM and
icon On
Press button Enable to arm
system and with Hidden Alarm
Function.
3
Press F Button 3rd time
(HHU 1 beep) within 5
seconds
ANTI- HIJACK and
icon On
Under ignition in "on" position Press
button Enable to activate anti car
jacking functions.
Press F Button 4th time
(HHU 1 beep) within 5
seconds
CH 4 flashing Press button Enable CH#4
output
Note : Press and release F Button 2-way LCD Backlight turns on for 5 seconds
Table 2 :
Enter : Press & hold “ F “ button until 2 beeps heard, release F-button.
Continue press F button within 5 sec. to move forward to feature option
you want to program.
EXIT: Press & hold " F " button for 2 sec. or do nothing wait for 5 sec. automatic exit
2-way LCD (1 beep) => Confirm Exit.
F Button LCD display Button
Press and hold the F
Button until 2 beeps
sounded
MENU flashing Press button to enter 2-way
HHU menu mode
Press F Button 2nd
time (HHU 1 beep)
within 5 seconds
STATUS CHECK
Press button Enable to check
the vehicle’s status.
Press F Button 3rd
times (HHU 1 beep)
within 5 seconds
ALARM CHECK
Press button Enable to check
vehicle’s trigger status.
Press F Button 4th
times (HHU 1 beep)
within 5 seconds
VOLTS CHECK
Press button Enable to check
vehicle’s Voltage.
Press F Button 5th
time (HHU 1 beep)
within 5 seconds
TEMP CHECK
Press button Enable to check
temp. status
Table 4 : Return 2-way HHU to default setting
Enter : Press & hold “ F “ button until 4 beeps heard, release F-button.
EXIT: Press & release " F " button or do nothing wait for 5 sec. automatic exit
2-way LCD (1 beep) => Confirm Exit.
F Button LCD display Button
Press and hold the F
Button until 4 beeps
sounded
RESET flashing Press & hold button for 2
seconds to back to default setting
and 1 chip for confirm
D. 2-way LCD HHU PROGRAMMING (Select and Adjusting Table-2-Menu options):
Enter:
1. Press and hold F button until 2 beeps heard then release the F button.
2. The Matrix show MENU flash, press button to enter HHU menu mode.
(LCD display show Hours of current time set up, set up hour(s) first.)
3. Press
button to increase value, or Enable the selected feature.
4. Press
button to decrease value, or Disable the selected feature .
5. Press button to confirm its selection, move to the next option.
EXIT: Press & hold " F " button or do nothing wait for 15 sec. automatic exit
2-way LCD (1 beep) => Confirm Exit.
4
Order Menu Option LCD display Functions

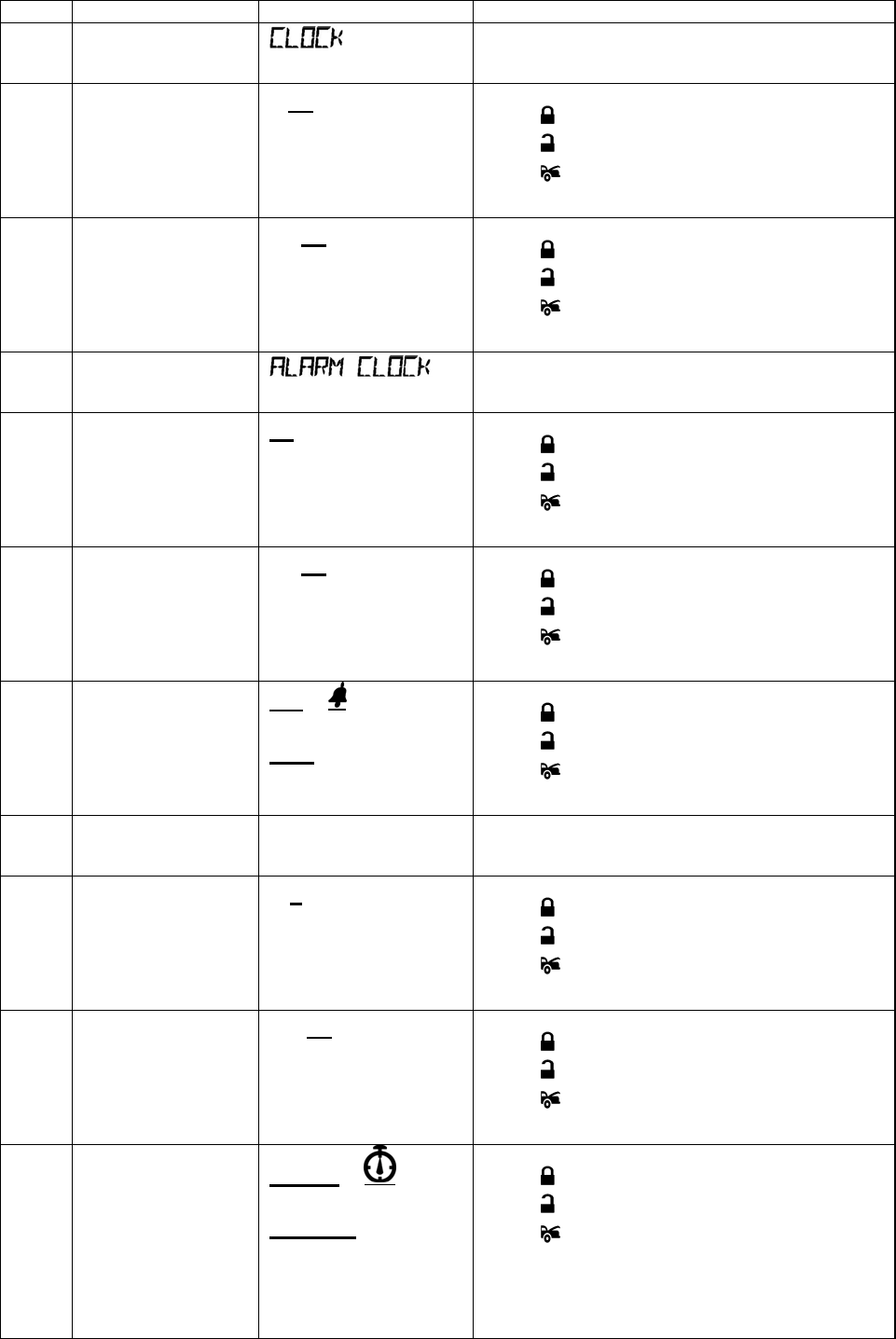

1 Current time set
up
Default is 12:00
Adjust clock hours
from 0 to 12
12 : 00
12 is flashing
Press button = (+) or
Press button = (-)
Press button confirm its selection, move to
next option.
Adjust clock
minutes from 0 to
59
12: 00
00 is flashing
Press button = (+) or
Press button = (-)
Press button confirm its selection, move to
next option.
2 Alarm Clock set
up
Default is OFF
Adjust Alarm Clock
hours from 0 to 12
12 :00
12 is flashing
Press button = (+) or
Press button = (-)
Press button confirm its selection, move to
next option.
Adjust Alarm Clock
minutes from 0 to
59
12: 00
00 is flashing
Press button = (+) or
Press button = (-)
Press button confirm its selection, move to
next option.
Select Alarm Clock
Enable or Disable
ON + or
OFF
Press button = Enable or
Press button = Disable
Press button confirm its selection, move to
next option.
3 Parking Meter
countdown
PARK METER Default is OFF
Adjust Parking
Meter countdown
hours from 0 to 2
0 :00
0 is flashing
Press button = (+) or
Press button = (-)
Press button confirm its selection, move to
next option.
Adjust Parking
Meter countdown
minutes from 0 to
59.
0 : 30
30 is flashing
Press button = (+) or
Press button = (-)
Press button confirm its selection, move to
next option.
Select Parking
meter countdown
Enable or Disable
P-- ON + or
P -- OFF
Press button = Enable or
Press button = Disable
Press button confirm its selection, move to
next option.
There is a beep sound at 5 min. before Parking
countdown reach 0.
5

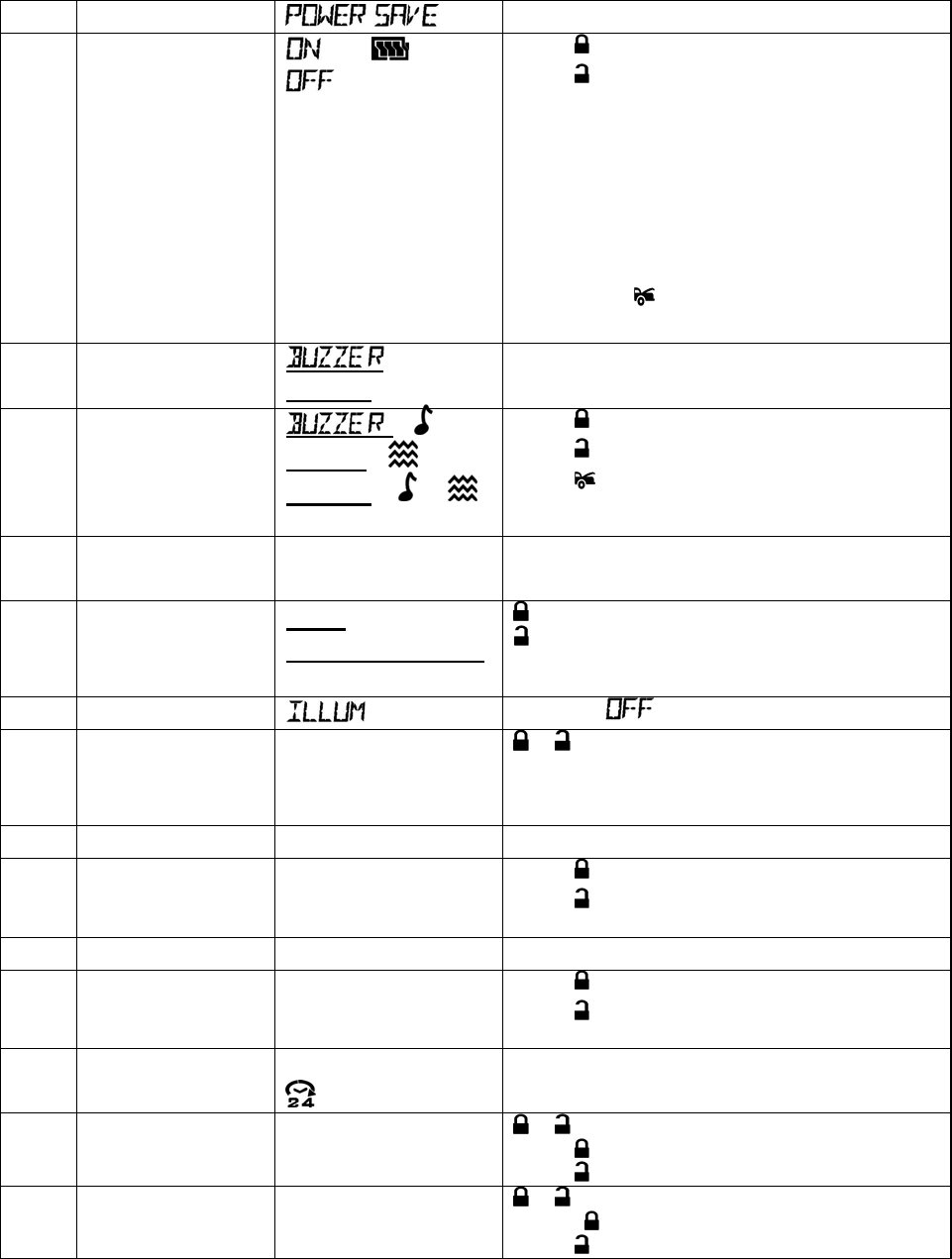

4 Power Save Default is OFF
Select Power Save
Enable or Disable
+ or
Press button = Enable or
Press button = Disable
When power save enable, the LCD remote
transceiver uses “0” current to save the battery
power. LCD show “Save” on text area
Exit: Press any button of LCD remote to exit
the “Power Save Mode”.
Press button confirm its selection,
move to next option.
5 2-way HHU
Response mode
or
VIBRO
Default is Buzzer
Select 2-way HHU
confirmation by
Melody or Vibration
+ or
VIBRO + or
BZ+VIB + +
Press button = Melody or
Press button = Vibration
Press button confirm its selected, move to
next option.
6 Second Car
Security Option
CAR SELECT Default is CAR 1
CAR 1 or
CAR 2 ( II icon On)
- CAR 1 operation.
- CAR 2 operation (II icon On mean 2nd car
operation).
7 Illumination Menu Default is
3 SEC. or
5 SEC. or
OFF
, Basic operation with backlight
Illumination 3 SEC. or 5 SEC.;
OFF – basic operation without backlight
illumination.
8 Key Lock KEY LOCK Default is OFF
Key lock enable or
disable
Press button = Enable or
Press button = Disable
9 CAR LCD* CAR LCD Default is OFF
LCD display show car
icon or not
Press button = Enable or
Press button = Disable
10 (Time adjust for
Daily Start mode)
icon flashing
Default is OFF
1 -12 12 : 00
12 is flashing
, - Program Daily start hour
Press button = (+) hours increase or
Press button = (-) hours decrease
0 - 59 12 : 00
00 is flashing
, - Program Daily start minute
Press button = (+)minutes increase or
Press button = (-)minutes decrease
* Car LCD icon is programmable show car icon on LCD display always or appear it needed as below.
(system trigger / valet mode / zone ajar/ anti car-jacking mode Car LCD will show on LCD display).
6

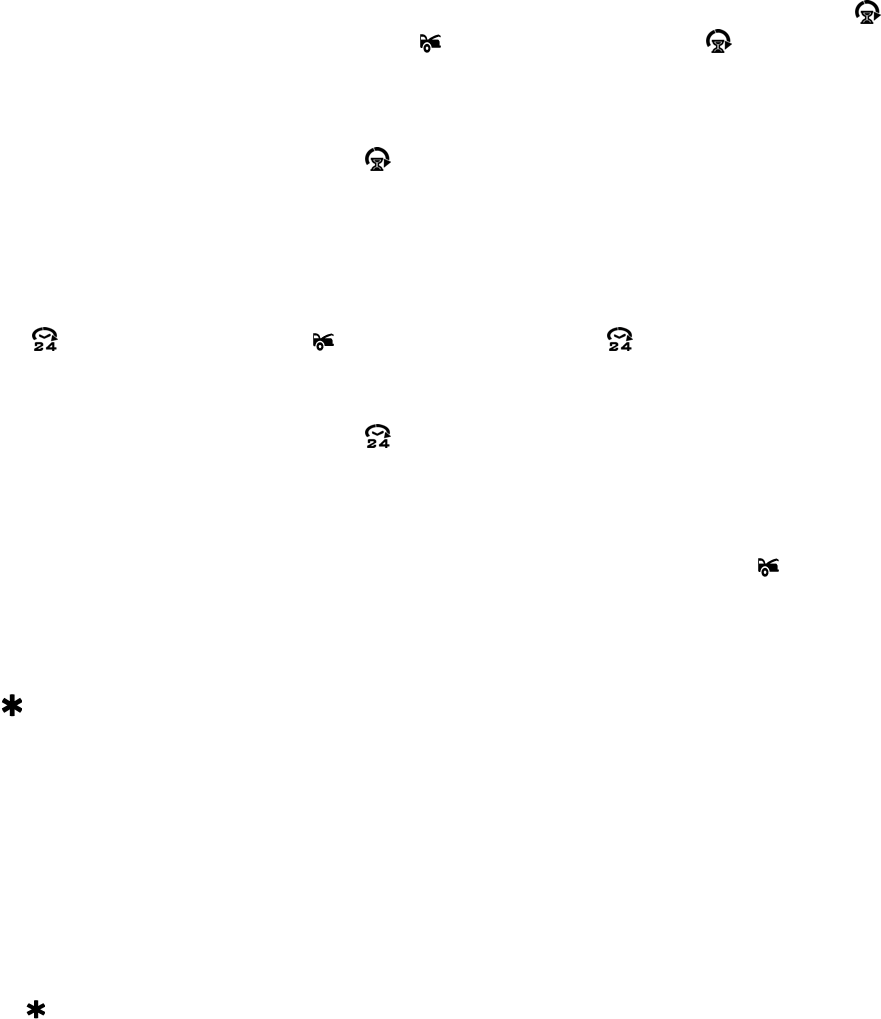

Remote start Quick feature programming
Enter : Press & hold “F” button until 3 beeps heard, release “ F” button LCD highlight flashing icon first,
press and release “F” button to move blinking cursor to the desired icon which you want to program.
Press button means Enable, 2-way LCD HHU
Note:
Cursor method: a constant illumination mean the selected feature enable.
Exit : Press & hold " F " button for 2 sec. or do nothing wait for 5 sec. automatic exit
2-way LCD (1 beep) => Confirm Exit.
F Button LCD display Button
Manual gear reservation
Icon flash
Icon stay On = Enable
Icon Off = Disable.
Press and hold the F
Button until 3 beeps
sounded
Turbo Timer icon flash
Press button Enable Turbo
mode
Icon stay On = Enable
Icon Off = Disable
Press & Release “ F”
button to move cursor
flash to Daily Start icon
Daily start icon flash
Press button Enable Daily start
mode.
Icon On = Enable
Icon Off = Disable
Press & Release “ F”
button to move cursor
flash to TIME START
icon
Timer start icon flash
Press button Enable Timer Start
mode.
Icon On = Enable
Icon Off = Disable
OPERATION:
A. REMOTE TRANSMITTER OPERATION:
Transmitter
Button System Function Remark
Lock Doors & Arm System
Panic function Press and Hold for 3 seconds
Car Locator Under armed mode
- Arm and Delete The 2 Stage Shock
Sensor Press twice within 3 seconds
- Arm System and Hidden Alarm
Function
Press within 3 seconds and Hold
button for 2 seconds
+ Silent Arming / Disarming Ignition in "off" position.
+ Active Anti Car-Jacking Mode Ignition in "on" position press and hold for 2
seconds
Unlock Doors & Disarm System
- Two Steps Door Unlock & Disarm
System Press twice within 3 seconds.
Trunk Release (Channel 3) Press and Hold for 2 seconds
- Passive Arming By-pass While the system Disarmed.
7
Activate or Turn Off The Remote Start Press button once.
+ Channel # 4 Timer Output (4) Optional
+
Switching code For 2nd Car
Operation. For regular XT-37 remote transmitter Only
B CHIRP INDICATORS: C. PARKING LIGHT:
Chirp Function
Parking light Function
1 chirp Arm 1 flash Arm
2 chirps Disarm 2 flashes Disarm
3 chirps Defective Reminder 3 flashes Disarm / Triggered
4 chirps Disarm / Triggered 12 flashes Car Locator
6 chirps Car Locator Constant On Under Remote Start
D. ALARM OPERATING CONDITION:
Siren / Horn Parking Light LED Doors Starter Dome Light
1. Arming 1 or 3 Chirps 1 Flash Slow Flash Locking Disable
2. Disarming 2 or 4 Chirps 2 or 3 Flashes Unlocking Turns on for 30
-second
3. Trigger Alarming Flashes Slow Flash Disable Flashes
4. Passive
Starter
Disable Fast Flash Disable
5. Panic Alarming Flashes Flashes
6. Car-Jacking Alarming Flashes Disable Flashes
7. Car Locator 6 Chirps 12 Flashes Locking
E. ACTIVE ARMING – LOCK & ARM:
1. Press button on the transmitter.
2. The siren will chirp once and parking light will flash once indicating that the system is now armed. The vehicle’s
doors will lock upon arming if interfaced with the security system.
DEFECTIVE SENSOR REMINDER: If the siren sounds 3 chirps and parking light flash one time, then you have left a
door, trunk, or hood lid ajar.
SILENT ARMING / DISARMING: Press the transmitter and buttons at the same time will arm or disarm your
security system, No chirp sound will be heard, arm / disarm confirmation will be through the vehicles parking lights
only.
SENSOR BY-PASS:
The sensor bypass feature is programmed to activate for one arming cycle only. The security system will
return to normal operation during the next arming cycle.
Sensor By-Pass:
By 2-way HHU operation Table – 1 PASS 1 icon on, or press the button two times within 5 seconds will
arm the security system and Bypass sensor 1 (zone 4 shock sensor).
HIDDEN ALARM FUNCTION:
By 2-way HHU operation Table -1-2 icon on, Or by remote operation press the button first; within
3 seconds press the button to activate the hidden alarm function. The security system will arm and with
“Hidden Alarm Function” The siren / horn will be silenced even if the sensor is triggered in the armed
status. Alarm indication will only appear on the LCD.
F. PASSIVE ARMING
Active arming / disarming is controlled by your security system via the remote transmitter. This security system is
equipped with an optional Passive Arming feature, which allows the security system to arm 30 seconds after the last
door is closed. Operation is as follows.
1. Turn the ignition to the “OFF” position and exit the vehicle.
2. After all entrances are closed, the security system LED will flash fast for 30 seconds. If you reopen any door / hood /
trunk, the security system LED will stop flashing. It will begin flashing again once all vehicle entrances are closed.
3. After 30-second timer has elapsed, the security system will automatically “ARM”. The siren will chirp [1] time and the
parking lights will flash [1] time.
PASSIVE ARMING WITH PASSIVE DOOR LOCKING
The vehicle doors will automatically lock after the passive arming cycle has been completed.
PASSIVE ARMING BY-PASS: While the system is disarmed, Press the button twice, the system will respond
with [1] chirp and LED will turn “ON”. The security system will remain in this temporary state for as long as you wish.
To exit passive by-pass, press the transmitter or buttons and the system will return to normal status.
G. ACTIVE DISARMING – UNLOCK & DISARM:
1. Press button on the transmitter.
8
2. The siren will chirp twice and the parking lights will flash twice indicating that the security system is now disarmed.
The vehicle’s doors will unlock and the dome light will turn on for 30 seconds upon disarming. (Note: Power door
locks and dome light must be installed with the security system.)
TAMPER DISARMING: If the alarm is triggered upon disarm, the system’s siren will chirp 4 times, and the parking
lights will flash 3 times.
PATHWAY ILLUMINATION: When receiving an unlock /disarm signal, this feature will turn the parking lights “ON” for
30 seconds and for 10 seconds upon the lock signal.
TWO STEPS DOOR UNLOCK: This feature will independently unlock the driver’s door only when disarming the
security system. Pushing the button a second time within 3 seconds will unlock the other doors.
AUTOMATIC RE-ARM: If this feature is selected, the security system will automatically re-arm itself in 60 seconds
after disarming with remote transmitter. Automatic rearm will cancel if any door is opened before the 60 seconds timer
has elapsed.
H. DISARMING WITHOUT A TRANSMITTER
OVERRIDES THE ALARM WITHOUT PASSWORD PIN CODE:
(Factory Default Setting)
The Override function may be used if the remote transmitter is lost or inoperative.
1. Enter the vehicle and turn the ignition switch to 'ON’ position.
2. (Alarm will sound.)
3. Within 10 seconds push and release the valet switch. The alarm will stop sounding and enter the disarm mode. You
can now start and operate the vehicle normally.
OVERRIDE THE ALARM WITH PASSWORD PIN CODE:
Unlike valet switch easily found, and defeated, this security system allows the consumer to program a password pin
code. Offering a higher level of security.
1. Enter the vehicle and turn the ignition switch to 'ON’ position. (Alarm will sound.)
2. Within 5 seconds, enter your chosen first digit code by pressing and releasing the Valet Switch. (When finished
above procedures, system's siren will stop alarming, lights will stop flashing, but the vehicle can’t be started.)
3. Within 15 seconds of the last digit code enter (the 1st code), then turn the Ignition Switch “OFF” and then “ON”.
4. Within 15 seconds, enter your chosen second digit code by pressing and releasing the Valet Switch.
5. Turn the ignition switch “OFF” position. 4 Chirps from siren/horn and 3 flashes from the parking light indicate the
system has disarmed.
Note : You must override the alarm within 60 seconds. If not, the system will automatically re-arm.
EXAMPLE: To Override the System With The Password Code 83,
1. Enter the vehicle and turn the ignition switch to the 'ON’ position.
(Alarm will sound.)
2. Within 5 seconds, Press and Release the Valet Switch 8 times, (When finished the system's siren will stop alarming,
lights stop flashing, but the vehicle can not be started or driven away.)
3. Within 15 seconds of entering the last digit code enter (the 1st code), turn the Ignition Switch “Off” and then “ON”.
4. Within 15 seconds, Press and Release the Valet Switch 3 times.
5. Turn the Ignition Switch to the “Off” position. 4 Chirps form siren/horn and 3 flashes from the parking lights will
indicate the system has disarmed.
I. VALET MODE:
VALET MODE: (System in Disarm)
The valet switch allows you to temporarily bypass all alarm function, eliminating the need to hand your transmitter to
parking attendants or garage mechanics. When the system is in valet mode, all alarm functions and remote start
functions are bypassed, however, the remote panic feature and remote door locks will remain operational. To use the
valet mode, the system must first be disarmed either by using your remote transmitter, or by operating the Manual
Override sequence.
Get into/out valet mode using the ignition key.
Enter Valet Mode:
a). Under disarm mode, turn the ignition to “ON” position.
b). Press and hold valet switch for 2 seconds until the LED turns on. The LED will remain on as long as
the system is in 'valet mode'.
Exit Valet Mode:
a). Turn ignition 'on'.
b). Push and hold valet switch for 2 seconds, The LED will turn off indicate the system are exiting the
valet mode.
J. CAR LOCATOR
Under armed mode, press the button to active car locator function. The siren will chirp 6 times. The
parking light will flash 12 times, for you to easily locate your car.
K. PANIC FUNCTION:
The transmitter can be used as a remote panic switch to manually trigger the alarm in case of emergency.
1. Press and hold the button for 3 second. The alarm will immediately sound.
2. During panic mode, the normal function of this transmitter button will be disabled. The transmitter and
buttons can be used to lock and unlock the door (if the option is installed), however once the button is pressed,
the vehicle’s starter disable device, (where installed) will be disengaged allowing the vehicle to start.
9
3. To stop the alarm, press and hold the transmitter or button on the transmitter again for 3 seconds. Also, if
any transmitter buttons other than or button is pressed and released, the panic mode will be turned off
immediately.
4. If the button is not pressed, the alarm will automatically stop after 30 seconds.
L. TRIGGER THE SYSTEM
When armed, your vehicle is protected as follows:
Light impact will trigger the warn-away signal.
Heavy impacts / Doors open /(if installed) Hood open / (if installed) Trunk open / Turning on the ignition
key will trigger the programmed sequence.
The starter disable relay (if installed) prevents the vehicle’s starter from cranking. The siren, horn, parking
lights, and dome light will turn on alerting of an intrusion for 30 seconds. Then it will stop and automatic
reset and re-arm. If the any one of the sensors or detectors is still active, the alarm system will sound a
maximum of 3 times of 30 seconds cycles
NOISE ABATEMENT CIRCUIT: Your system has a “Noise Abatement Circuit”. It prevents annoying repetitive
trigger sequences due to faulty door pin switches or environmental conditions such as thunder,
jackhammers airport noise, etc.
Here’s how “Noise Abatement Circuit” works: The alarm triggers five times. Each time, the same sensor
or switch has triggered the alarm; the “Noise Abatement Circuit” will interpret this pattern of triggers as a
false alarm. After the third trigger, the “Noise Abatement Circuit” ignores, or bypasses, that sensor or
switch until a different sensor or switch is trigger.
“Noise Abatement Circuit” covers doors (Hood/Trunk) differently: If the alarm is triggered by an open door
for 3 full cycles, the doors will be bypassed until the trigger ceases.
M. ANTI HI - JACKING
Warning: If you don't need the car jacking function in this alarm system, be sure to set car jacking feature
“OFF”. This system is default setting all cars jacking “OFF”.
ACTIVE ANTI CAR JACKING:
1.Under ignition on press F button four times while CAR JACK” flash on text area(see Table 1), then
press button for 2 seconds to activate Anti Car-Jacking mode or
Under ignition on press and hold the and buttons at the same time for 2 seconds. The parking
lights will turn on for 1.5 seconds to indicate the system enter the anti car-jacking mode.
2. Once the system is in anti car-jacking mode, the system will be triggered when the door is opened
and closed while the ignition is “ON”.
PASSIVE ANTI CAR- JACKING:
It will operate as noted below:
1. Turn the ignition switch to the “ON” position and the system will arm.
2. Once the system is armed, if you are forced from the vehicle, the system will trigger when the door is opened and
closed while the ignition is “ON”.
TRIGGER THE ANTI CAR -JACKING MODE:
a). 50 seconds after the system has been triggered. The siren will start chirping for 15 seconds.
b). During this 15 second period of chirping, you will be alerted to push the valet switch once to turn off the car-jacking
feature. If not, it will enter a second timer for car jacking.
c). 65 seconds after the system has been triggered, the siren will start sounding and the parking lights will start
flashing.
d). 90 seconds after the system has been triggered,
1. The siren will sound and the parking lights will flash, and
2. The starter disable will activate to prevent the vehicle from starting.
3. It will remain active until the vehicle's battery power is exhausted.
OVERRIDE THE SYSTEM TO TURN OFF ANTI CAR- JACKING:
Turn the ignition switch from OFF to ON, and within 10 seconds push valet switch, the siren will stop and the system
disarmed
Note: If you use password pin code to double protect the vehicle security, you will need to use it to completely disarm
the system.
N. SYSTEM’S TRIGGER CHECK (For two-way transceiver operation only)
By Table – 2, press and hold F button of LCD remote until 2 beeps heard, release and re-press F button
2 more times, the LCD display show “ALARM CHECK “ on text field (see Table 2), then press
button to activate system trigger check.
Note: If it has no response then you are out of range.
O. SYSTEM’S STATUS CHECK (For two-way transceiver operation only)
By Table – 2 press and hold F button of LCD remote until 2 beeps heard, release and re-press F button
one more time, the LCD display show “STATUS CHECK “ on text field (see Table 2) then press
button to activate system status check.
Note: If it has no response then you are out of range.
10
P. DRIVER PAGING / LOSE & FOUND (For two-way transceiver operation only)
It is useful the event that someone wants to page the driver of the parked vehicle or someone cannot find
his LCD remote transceiver.
Under the ignition switch “off” condition, press and hold the valet switch for 3 seconds to page the driver,
one chirp sound shall be emitted from the vehicle and the paging melody sound continues sounding from
you Remote LCD transceiver.
Q. DOME LIGHT CONVENIENCE SUPERVISION (Optional Feature)
The alarm has a unique feature that will turn on your vehicle dome light as follows:
1. Upon disarming, the interior light will remain on for 30 seconds.
2. If the vehicle is intruded, the interior light will flash for the same duration as the siren.
Note: Turning on the ignition switch or arming the alarm will turn off the dome light.
R. IGNITION CONTROL DOOR LOCK/UNLOCK. (Programmable Feature)
If the vehicles door locks have been interfaced to the security system, the system will automatically lock the vehicle's
doors when the ignition is turned “ON” and /or unlock the vehicle’s doors when the ignition is turned “OFF”.
(Default is “OFF”)
S. TRUNK RELEASE (CHANNEL 3) OUTPUT.
Press and hold button on the transmitter for two seconds to remote control the trunk release or other
electric devices.
T. CHANNEL 4 TIMER CONTROL OUTPUT
By Table – 1, Press and hold F button of LCD remote until 1 beep sound , release and re-press F button
3 more times the LCD display show “CH 4“ on text field (see Table 1) then press button to activate
channel 4 function. Or press remote transmitter and buttons at the same time to active Channel 4 function.
Channel 4 is user-programmable timer output. You may program the built-in timer to send a ground signal for any time
duration from 1 second to 120 seconds. For instance, this timer output may be used to turn on the headlight, power
window or sunroof. (Factory defaults setting at 1 sec. pulse output.)
U. POWER SAVER MODE (Default OFF)
By table - 2 -1– 4 under Menu mode while “POWER SAVE” icon flash press button, LCD HHU show
Save” unit under power save mode, the LCD remote transceiver use “0” current to save the battery power, LCD
indicate “SAVE “.
Exit: Press any button of the LCD remote transmitter to exit “Power Save Mode”.
V. POWER ON MEMONRY:
This security system is equipped with circuitry that will allow the unit to remember its alarm state if the
power is lost and then reconnected.
W. SECOND VEHICLE SECURITY OPERATION:
Your 1-way remote transmitter can be utilized to control a second vehicle security system, To program the remote
control transmitter to a second vehicle, follow the instructions
* For 1-way transmitter press button + for 2 seconds until transmitter LED (flash 2 times ) as a shift button.
1. Once shift button ( + ) is pressed the LED flash 2 times to indicate the second transmitter pin code has
built-in.
2. Press any button on the remote control transmitter to control a second vehicle security system LED on Transmitter
will flash 2 times indicate it’s 2nd car operation no matter which button is pressed.
** For LCD transceiver – 2nd car operation:
a. By table-2-1-6 Press and hold F button until 2 beeps heard, release F button
b. flash on the text field of LCD screen, press button to enter the menu mode.
c. Press & release button to move down the menu to #6, CAR SELECT
d. Select CAR 1 or CAR 2 by pressing or button (text field show CAR 1 or CAR 2).
X. CHECK VEHICLE’S VOLTAGE:
Press and hold F button of LCD remote until 2 beeps sound , release and re-press F button for three times,
the LCD remote will show “VOLTS CHECK“ icon flash on text area (see Table 2), then press button to
activate system Voltage check. Please note that this data is for your reference only. Please check the
exact data on vehicle.
REMOTE START OPERATION:
A. TO REMOTE START THE VEHICLE:
When you want to start your vehicle,
1. Press button once on the transmitter.
2. The parking light will activate to indicate the remote start received the signal.
3. The engine will start in approximately 5 seconds.
11
4. Once the engine is running, after couple seconds the parking lights will turn on and the climate controls
will activate and adjust the vehicle’s interior temperature to your presetting. (While the vehicle is running,
the “minutes” digit on the LCD screen will flash and the will indicate count down timer based on the 5, 10,
20 or 30 minute run time set up by your installation center.)
5. The vehicle will run for a programmable 5 to 30 minute cycle before shutting down. (When the unit
shuts off the count down timer will turn off and the transmitter will play a melody.)
NOTE: The Remote Start Unit will not start the vehicle if any one of the following conditions exists:
1. The hood is opened.
2. The brake pedal is pressed.
3. The optional remote start enable toggle is switched to the “OFF” position. (If installed)
4. The gear selector is in any gear other then “PARK” or “NEUTRAL”
SAFE START (Child safety mode)
Factory default is set to press the button once on the transmitter to start the vehicle. You can program this feature
to eliminate an accidental remote start:
1. The user presses the transmitter buttons twice within 3 seconds to start the vehicle. or
2. The user presses the transmitter and button at the same time to start the vehicle.
NOTE: Contact your installing dealer to activate this feature.
B. OPERATE THE VEHICLE WHILE RUNNING FROM THE REMOTE START:
To operate the vehicle while engine running from the remote start,
1. Insert the ignition key and turn it to “ON” (not the start) position.
2. Press the brake pedal.
Note: If the brake pedal is pressed before the key is in the ON position, the engine will shut down.
C. TEMPORARY STOP FEATURE:
This feature allows the vehicle to remain running after the key has been removed from the ignition. This feature is
useful for occasions when you wish to exit and lock the vehicle for short periods of time, but would like to leave the
motor running and the climate control on.
1.Before turning off the engine, press the button once on the transmitter and the LED indicator will flash 3 times to
confirm.
2.Turn the ignition key to OFF position. (The engine will stay running.)
3.The engine will run until the pre-programmed time elapsed or shutdown input is received.
D. TURBO CHARGE MODE:
Turbo charge mode keeps the engine running after arriving at your destination for a programmable period of 1, 3 or 5
minutes, This allows the vehicle’s engine time to conveniently cool down the turbo after you have left the vehicle. To
activate:
1. While the engine is running, pull up the hand brake and place the transmission gear in the park position.
2. Before turning off the engine, press and release and buttons at the same time.
-- The LED will flash indicating the remote start has entered the turbo charge mode appear on LCD remote.
3. Take the “Ignition Key” from the key cylinder.
-- Engine keeps running. --
4. Exit and secure the vehicle.
-- Engine continues running until the pre-programmed time elapsed. --
Or
1. While the engine is running, pull up the hand brake and place the transmission gear in the park position.
2. Before turning off the engine, ref.2-way HHU quick feature programming (page 6) enable Turbo mode feature
turn on LCD remote.
3. Take the “Ignition Key” from the key cylinder.
-- Engine keeps running. --
4. Exit and secure the vehicle.
-- Engine continues running until the pre-programmed time elapsed. --
NOTE: This feature only applies to vehicles with Turbo Engines.
E. TIMER & DAILY START:
This unit can be programmed to start and run the engine every 3 / 2 hours the engine will run for the programmed
running time and then shut down.
IMPORTANT: Timer Start should be used only in open areas, never start and run the vehicle in on enclosed space as
a garage or carport.
Daily Timer Start: The feature is very useful for the driver who wants to run the vehicle punctually at the same time
next morning. Before set-up of the “Daily Timer Start”, you should pre-set the time you intend to start engine (Hour /
Minutes) by Table-2 -1 -7 set up Daily start first.
TIMER START:
Enter :
12
1. Turn Ignition On => Off
2. After above (1) within 15 seconds, (ref. page-6 2-way HHU quick feature programming => Enable Time start.) press
and hold F button of LCD remote until 3 beeps sound , release and re-press F button until LCD show “
“ icon flash on LCD remote (see Table 3), then press button to activate Time Start. icon illuminate
on LCD display, parking light flash / siren chirp 3 or 2 times confirm. The vehicle is now programmed to start every 3
or 2 hours
Exit : Turn Ignition On (LED and parking light flash 4 times, and siren chirp 4 times confirm exit Time Start).
(p.s. press lock or unlock button to turn off icon on 2-way remote)
Daily Start :
Enter :
1. Turn Ignition On => Off
2. After above (1), within 15 sec. ref. page-6 2-way HHU quick feature programming => Enable Daily Start (Press &
hold F button of LCD remote until 3 beeps heard, release and re-press F button to move blinking
cursor to “ “ (see Table 3), then press button to activate Daily Start. icon illuminate on LCD
display, parking light flash / siren chirp 6 times confirm Daily Start programmed.
Exit : Turn Ignition On (LED and parking light flash 4 times, and siren chirp 4 times confirm exit Daily Start).
(p.s. press lock or unlock button to turn off icon on 2-way remote)
F. TEMPERATURE CHECK
The unit can monitor the present indoor temperature of the passenger compartment before cooling or heating your
vehicle. Press and hold F button of LCD remote until 2 beeps sound , release and re-press F button for
4 more times, the LCD remote will show TEMP CHECKicon (see Table 2- 5), then press button; the
in-door temperature will be shown on the LCD screen. This reading may be higher than actual ambient temperature
due to the greenhouse and is relative only the inside vehicle temperature.
G. TO TURN OFF THE REMOTE START:
When the engine is running (by remote start), if you want to stop it,
1. Press button once on the remote transmitter under remote start mode.
2. Move the optional remote start enable toggle switch to OFF position. (If installed)
3. Press the brake pedal
The vehicle will shut down and turn off the parking light to indicate engine stopped.
H. SHUT-DOWN INPUT FOR REMOTE STARTER:
If any of the following conditions exist while the system is operating, the engine will not start or will shut
down immediately:
1. The hood is opened.
2. The brake pedal is pressed.
3. The parking (hand) brake is released (For Standard Transmission Gear Vehicle or Turbo Timer Mode)
4. Engine is over-reviewed. {“Tachometer checking type” only}
5. The pre-programmed run time (5 /10 / 20 / 30 minutes) has elapsed.
6. Press button twice on the remote transmitter under remote start mode.
7. The system trigger.
8. The vehicle refused to start running after {3} unsuccessful attempts.
I. DISABLING THE REMOTE START SYSTEM: (If installed)
This feature allows your system’s remote start unit to be temporarily disabled to prevent the vehicle from being remote
started accidentally. This feature is useful if the vehicle is being serviced or stored in an enclosed area. To disable the
remote start, move the optional remote start enable toggle switch to the OFF position.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, any changes or modifications not
expressly approved by the party responsible for compliance could void the user's
authority to operate this equipment. (Example - use only shielded interface cables
when connecting to computer or peripheral devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired operation.

Navigation menu
