Users Manual

4250 Rev.A
RF-4250
PROFESSIONAL VEHICLE SECURITY SYSTEM
OPERATION MANUAL
THIS PRODUCT IS DESIGNED FOR PROFESSIONAL INSTALLATION ONLY
2016/7/19
4250 Rev.A
2

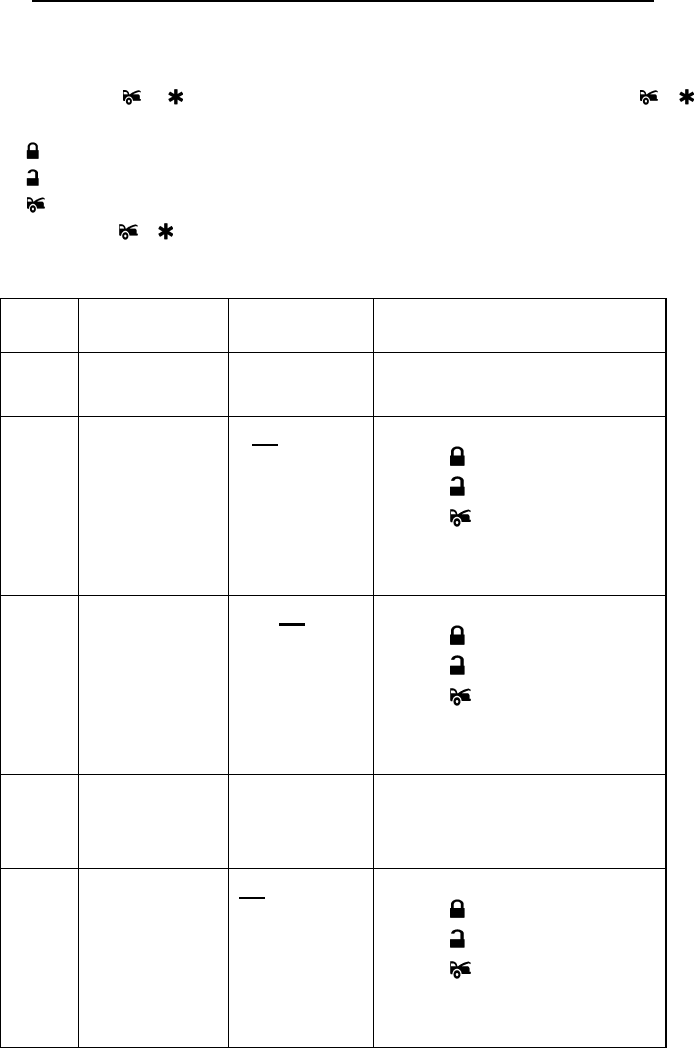

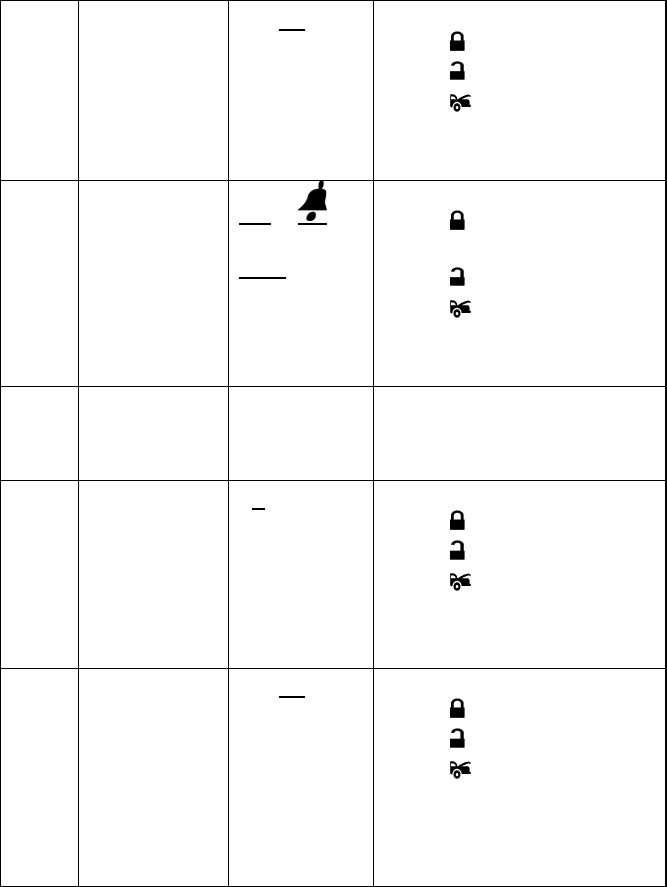

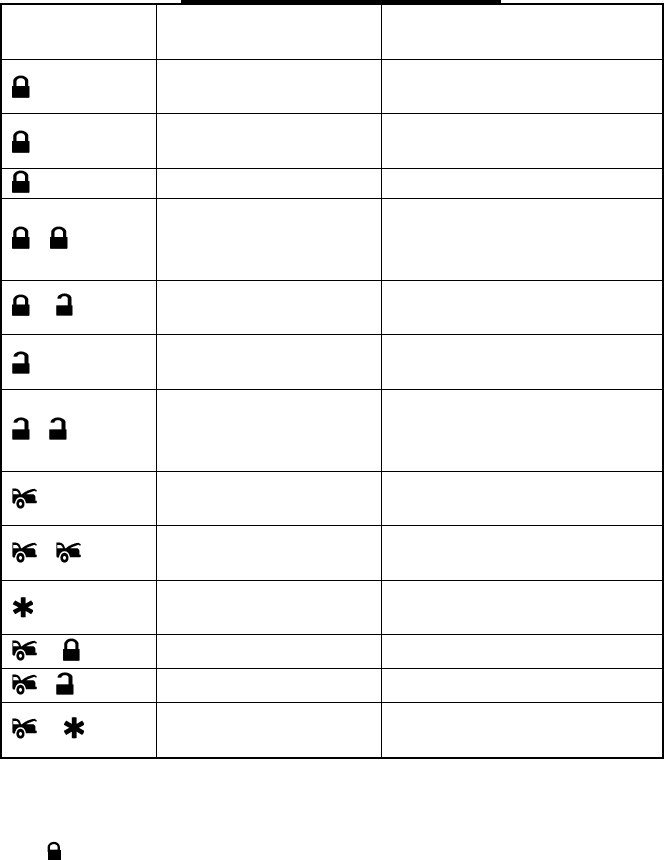

TRANSMITTER OPERATION:
Transmitter
Button System Function Remark
Lock Doors & Arm
System
Panic function Press and Hold for 3
seconds
Car Locator Under armed mode
- Arm and Delete
The 2 Stage Shock
Sensor
Press twice within 3
seconds
+ Silent Arming /
Disarming Ignition in "off" position.
Unlock Doors &
Disarm System
- Two Step Door
Unlock & Disarm
System
Press twice within 3
seconds.
Trunk Release
(Channel 3) Press and Hold for 2
seconds
- Passive Arming
By-pass While the system
Disarmed.
Silent
Arming/Disarming
+ 4th Channel Press buttons together
+ 5th Channel Press buttons together
+ Switching code For
2nd Car Operation. For XT-57 regular
transmitter Only
ACTIVE ARMING – LOCK & ARM:
1. Press
button on transmitter.
2. The siren will chirp once and parking light will flash once indicating that the
system is now armed. The vehicle doors will lock upon arming when interfaced
with the security system.
Note: Defective sensor reminder:
If the siren sounds 3 chirps, then you have left a door, trunk, or hood lid ajar.
2016/7/19
4250 Rev.A
3
AJAR
WARNING:
If the siren
sounds 3 chirps,
then you have
left a door, trunk,
or hood lid ajar.

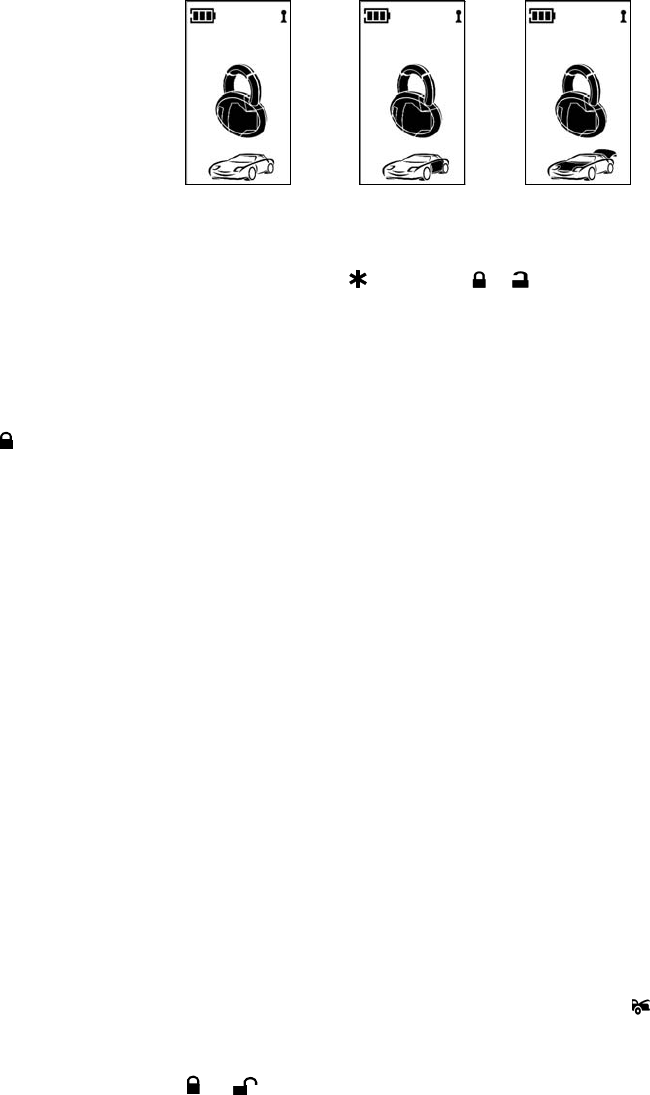

System Arm
Door Ajar
Trunk / Hood Ajar

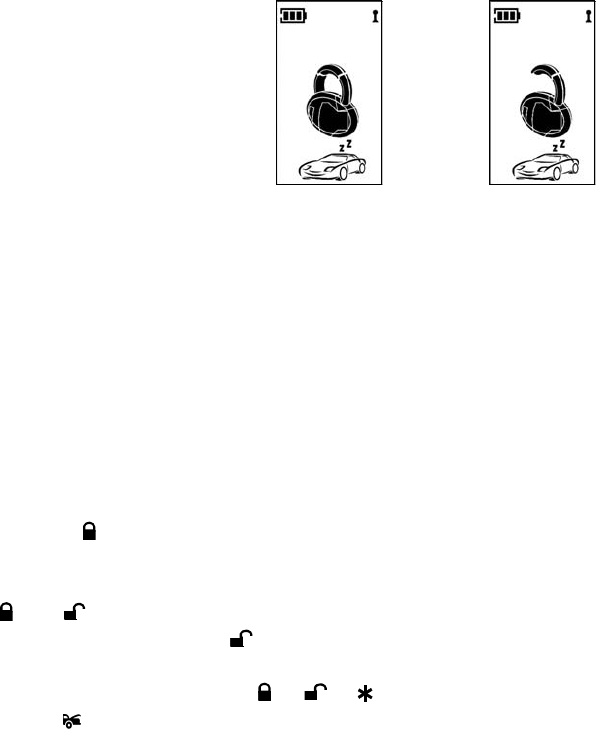

SILENT ARMING / DISARMING: Press the button or + buttons
together on the transmitter on the transmitter to arm or disarm your security system
with no chirp sound heard; arm / disarm confirmation will be through the vehicles
parking lights only.
SHOCK SENSOR / OPTIONAL SENSOR BY-PASS:
Press the button on the transmitter twice within 3 seconds will arm the security
system, by-pass the shock sensor or the optional sensor connected to 4 pin plug.
The system will chirp one additional time to confirm the sensor bypass mode was
activated. The sensor bypass feature is programmed to activate for one arming
cycle only. The security system will return to normal operation during the next
arming cycle.
PASSIVE ARMING:
Active arming / disarming is controlling your security system via the remote
transmitter. This security system is equipped with an optional Passive Arming
feature, which allows the security system to arm 30 seconds after the last door is
closed. Operation is as follows.
1. Turn the ignition to the “OFF” position and exit the vehicle.
2. After all entrances are closed, the security system LED will flash fast for 30
seconds. If you reopen any door / hood / trunk, the security system LED will stop
flashing. It will begin flashing again once all vehicle entrances are closed.
3. After 30-second timer has elapsed, the security system will automatically “ARM”.
The siren will chirp [1] time and the parking lights will flash [1] time.
PASSIVE DOOR LOCKING:
The vehicle doors will automatically lock after passive arming cycle has been
completed.
PASSIVE ARMING BY-PASS: While the system disarmed, press the buttons
twice, the security will respond with [1] chirp and LED will turn “ON”. The security
system will remain in this temporarily state for as long as you wish. To exit
passive by-pass, press the
or button and the system will return to normal
status.

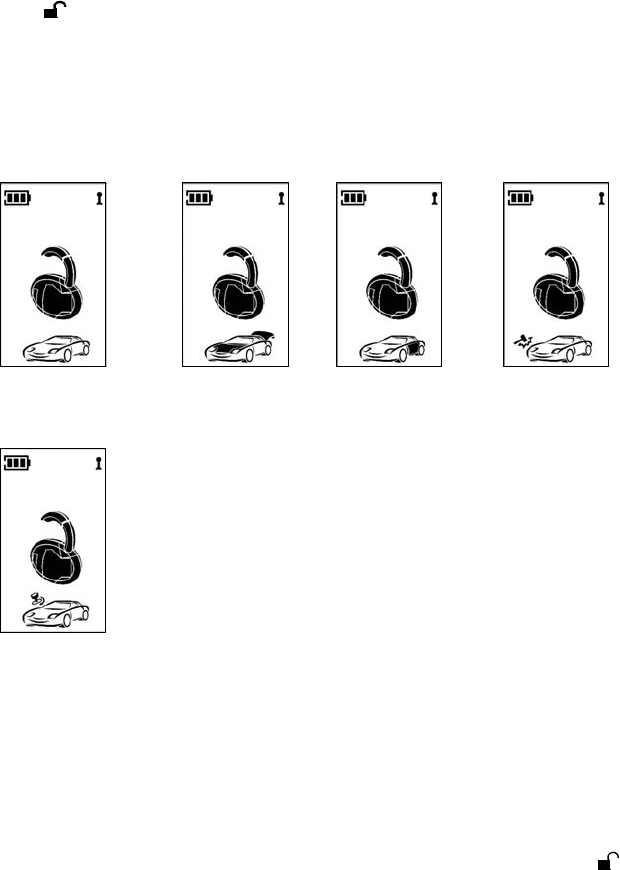

ACTIVE DISARMING – UNLOCK & DISARM:
2016/7/19
4250 Rev.A
4
1. Press the button on the transmitter.
2. The siren will chirp twice and parking lights will flash twice to indicate that the
security system is now disarmed. The vehicle doors will unlock and disarm when
interfaced with the security system

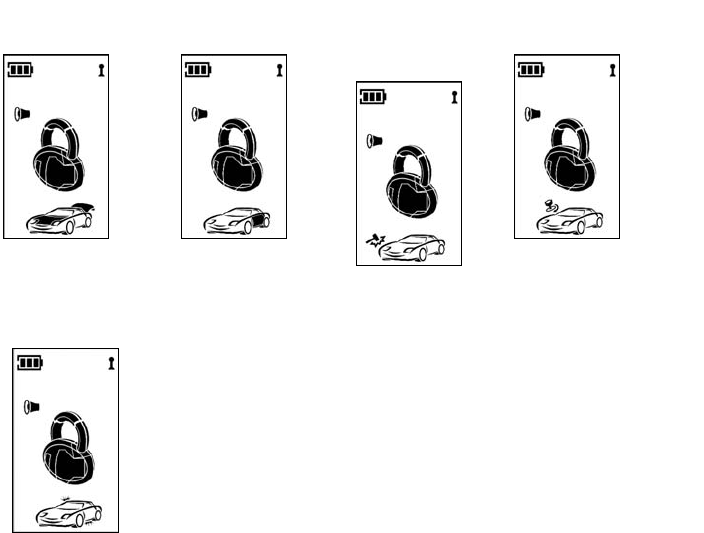

. System
Disarm
Trunk/Hood
Trigger
Doors
Trigger
Shock Sensor
Trigger
Ignition
Trigger
TAMPER DISARMING: If the alarm is triggered; upon disarming of the system, the
siren will chirp 4 times and parking lights will flash 3 times.
PATHWAY ILLUMINATION: This feature turns the parking light “ON” for 30
seconds upon a unlock signal and for 10 seconds upon the lock signal if
programmed.
TWO STEP DOOR UNLOCK: This feature will independently unlock the driver’s
door only when disarming the security system. Pushing the button on the
transmitter a second time within 3 seconds will unlock the entire vehicle.
(Additional installation required)
AUTOMATIC RE-ARM: If this feature is selected, the security system will
automatically re-arm itself 60 seconds after disarming with remote transmitter.
Automatic rearm will cancel if any door is opened before the 60 seconds timer has
elapsed.
DISARMING WITHOUT A TRANSMITTER
2016/7/19
4250 Rev.A
5
The Override function may be used if the remote transmitter is lost or inoperative.
1. Enter the vehicle and turn the ignition switch to 'ON’ position. (Alarm will
sound.)
2. Within 10 seconds push and release the valet switch
The alarm will stop sounding and enter the disarm mode. You can now start and
operate the vehicle normally.
VALET MODE:
The valet switch allows you to temporarily bypass all alarm function, eliminating the
need to hand your transmitter to parking attendants or garage mechanics. When
the system is in valet mode, all alarm functions are bypassed, however, the remote
panic feature and remote door locks will remain operational.
Enter Valet Mode:
1. From the disarmed condition,
turn the ignition to “ON”
position.
2. Push and hold valet switch for
2 seconds until the LED turns
on. The LED wills remain on
as long as the system is in
'valet mode'.
Remote Door Lock
Remote Door Unlock
Exit Valet Mode: Return to normal operation, turn ignition 'ON'.
1. Push and hold valet switch for 2 seconds; the LED will turn off indicating the
system is exiting the valet mode.
POWER ON MEMORY:
This security system is equipped with circuitry that will allow the unit to remember
its alarm state if the power is lost and then reconnected.
PANIC FUNCTION:
The transmitter can be used as a remote panic switch to manually trigger the alarm
in case of emergency.
1. Press and hold the button on the transmitter for 3 seconds. The alarm will
immediately sound.
2. During panic mode, the normal function of this transmitter button will be
suspended. The and buttons can be used to lock and unlock the doors (if the
option is installed), however once the button is pressed, the vehicle’s starter
disable device, (where installed) will be enable allowing the vehicle to start.
3. To stop the alarm, press and hold the or or button on the transmitter for
3 seconds. Also if the button is pressed and released, the panic mode will be
turned off immediately.
4. If the button is not pressed, the alarm will automatically stop after 30
seconds.
2016/7/19
4250 Rev.A
6
TRIGGER THE SYSTEM
When armed, your vehicle is protected as follows:
1. Light impacts will trigger the warn-away signal.
2. Heavy impacts / Doors open / Hood open / Trunk open / Turning on the
ignition switch- All will trigger the programmed sequence.
The starter disable relay (if installed) prevents the vehicle’s starter from cranking.
The siren and parking lights will turn on to alert of an intrusion for 30 seconds.
Then the siren will stop and automatically reset and re-arm. If any the sensors or
detectors are still active, the alarm system will sound a maximum of three-30
second cycles.
Trunk/Hood
Trigger
Doors
Trigger
Shock
Sensor
Trigger
Ignition
Trigger
Warn-away
Trigger
NOISE ABATEMENT CIRCUIT:
Your system has “Noise Abatement Circuit”. It prevents annoying repetitive trigger
sequences due to faulty door pin switches or environmental condition such as
thunder, jackhammers, airport noise, etc. Here’s how “Noise Abatement Circuit”
works: The alarm triggers five times. Each time, the same sensor or switch is
triggering the alarm. “Noise Abatement Circuit” will interpret this pattern of triggers
as false alarm. After the fifth trigger, “Noise Abatement Circuit” ignores, or
bypasses, that sensor or switch until the other sensor or switch is trigger.
“Noise Abatement Circuit” covers doors (Hood/Trunk) differently: If the alarm is
triggered by an open door for three full cycles, the doors will be bypassed until the
trigger ceases.
2016/7/19
4250 Rev.A
7
Driver Paging (For 2-way remote operation only)
It is useful in the even that someone wants to page the driver of the parked
vehicle, with the ignition switch in the “ off” condition, press the button
on the windshield antenna once to page the driver, one chirp sounds shall be
emitted from the vehicle and the paging melody continues sounding from
your LCD remote, AND “CAL” show on the LCD remote.
IGNITION CONTROL DOOR LOCKS.
If the vehicle’s door locks have been interfaced to the security system, the system
will automatically lock the vehicle's doors when the ignition is turned “ON” and /or
unlock the vehicle’s doors when the ignition is turned “OFF”.
TRUNK RELEASE
Press and hold button on transmitter for two seconds to remote control the trunk
release or other electric devices.
CHANNEL 4 CONTROL OUTPUT
Press the + buttons on the transmitter to active Channel 3 function
CHANNEL 5 CONTROL OUTPUT
Press the +
buttons on the transmitter to active Channel 4 function.
CAR LOCATOR
Under Armed mode, press the
button on the transmitter to active car locator
function.
The siren will chirp 6 times. The parking light will flash 12 times, for you to easily
locate
your car.
DOME LIGHT CONVENIENCE DELAY & SUPERVISION
The alarm with a unique feature which will turn on your vehicle dome light as
following:
1. Upon disarming, the interior lights will remain on for 30 seconds.
2. If the vehicle is intruded, the interior light will flash for the same duration as
the siren.
Note: Turn ON the ignition switch or arm the alarm will turn off the dome light.
(Additional installation required)
LCD REMOTE CONTROL TRANSMITTER: XT- 67 LCD
2016/7/19
4250 Rev.A
8
BATTERY REPLACEMENT:
A 1.5V type AAA Alkaline battery
powers the Remote Transmitter.
When the power of the battery
weakens a icon shall be
displayed on the LCD screen.
When the old battery is replaced
to new one, there will be beep
sounds indicate the power is up.
Note: Press the button two
times when the battery
compartment is empty, and
then insert the new battery.
AAA

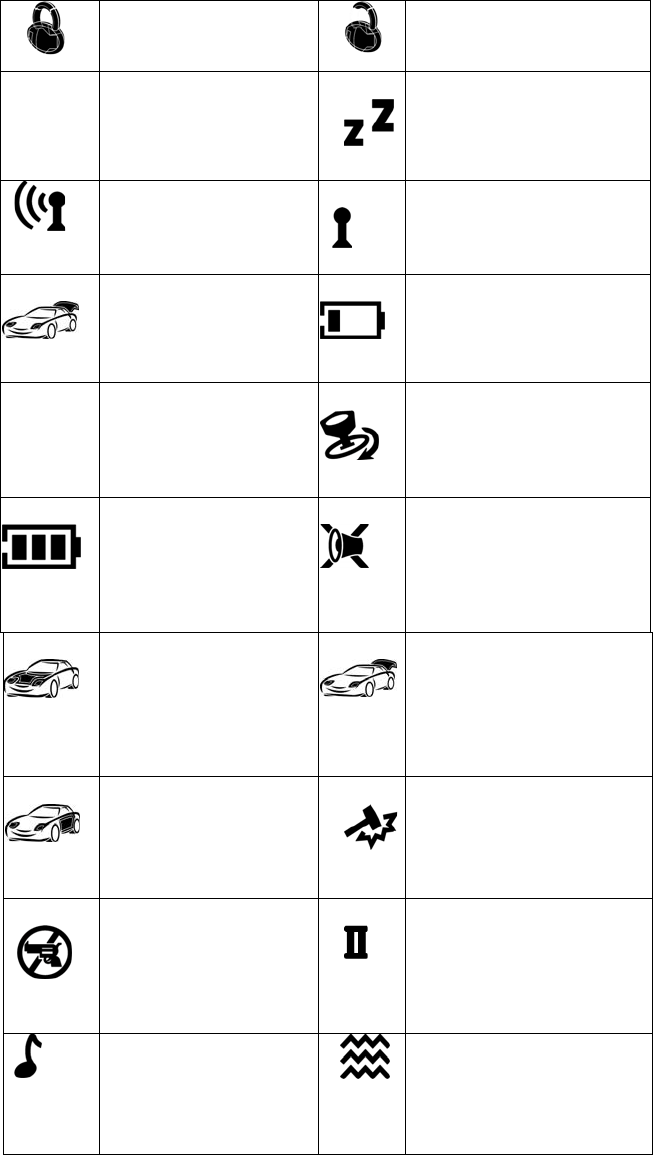

THE REMOTE LCD ICONS & FUNCTION:
Note: If the system is interfered by
stronger radio
frequency around, sources of high
voltage electric
power or such Obstacles like tall
buildings and so
on, the transmission range may get
shorter as the
system uses low out put powered
frequency.
2016/7/19
4250 Rev.A
9
Door Lock
Your vehicle doors
are locked.
Door Unlock Your
vehicle doors are
unlocked
PASS 1
Sensor Bypass
Sensor 1 bypass
under Arm mode
Valet Mode
All the function shall
be temporarily on hold.
Remote
Transmission You
are transmitting the
signal to control unit
* In – Range Indicator
You are within the
remote control range.
Trunk Release
Trunk open. Trunk
symbol only.
Low Battery
You have to replace
the battery of remote
control.
0:10 Parking Meter
Reminder when
time is up for
parking
Ignition On
Power Save Mode
Save the battery
power (Full bar icon
flash)
Hidden Alarm Mode
The security system
arm with hidden alarm
function
Hood Trigger
(Zone 1)
Hood is illegally
opened
Trunk Trigger
(Zone 2)
Trunk is illegally
opened
Door Trigger
(Zone 3)
Doors are illegally
opened
Sensor Trigger
(Zone 4)
Trigger on Sensor 1
Anti Car-Jack
Mode
Activate the anti car-
jacking mode

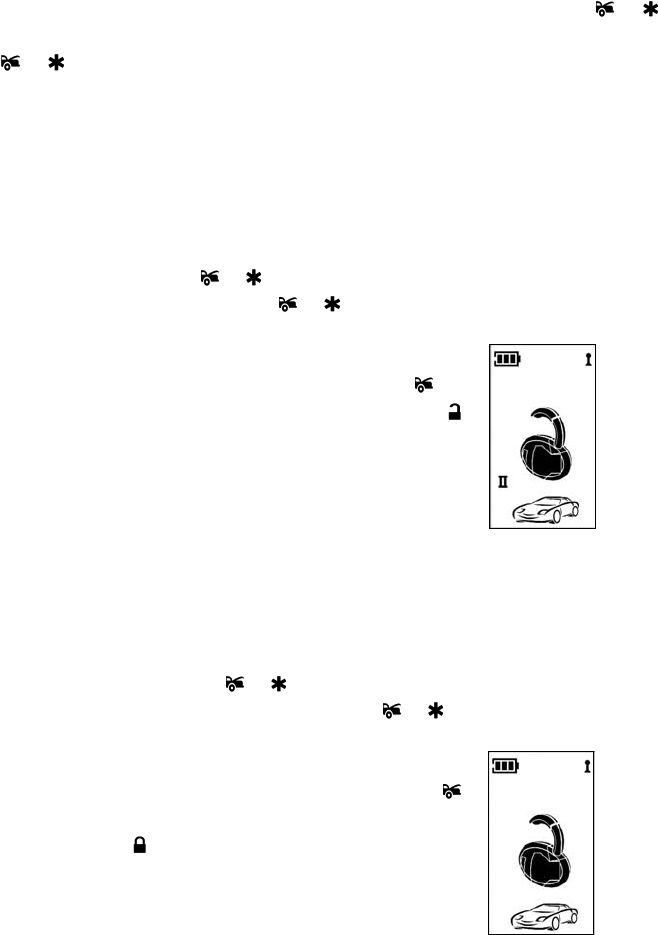

2nd Car Operation
Melody Mode
Remote Control
alert
user through melody
sound
Vibration Mode
Remote Control
vibrates when the
system is triggered
2016/7/19
4250 Rev.A
10
* The unit will automatic perform one time HHU in range check, indicate proper
icon on LCD display, after that you need to operate HHU for them.
PROGRAM MODE 2-WAY LCD REMOTE TRANSCEIVER:
PROGRAMMING 2-way LCD HHU:
Enter:
1. Press and hold + button until 2 beeps heard then release the + button.
(LCD display show Hours of current time set up, set up hour(s) first.)
2. Press
button to increase value, or Enable the selected feature.
3. Press
button to decrease value, or Disable the selected feature.
4. Press button to confirm its selection, move to the next option.
EXIT: Press & hold + button or do nothing wait for 5 sec.
exit 2-way LCD programming mode automatically (1 beep) Confirm Exit.

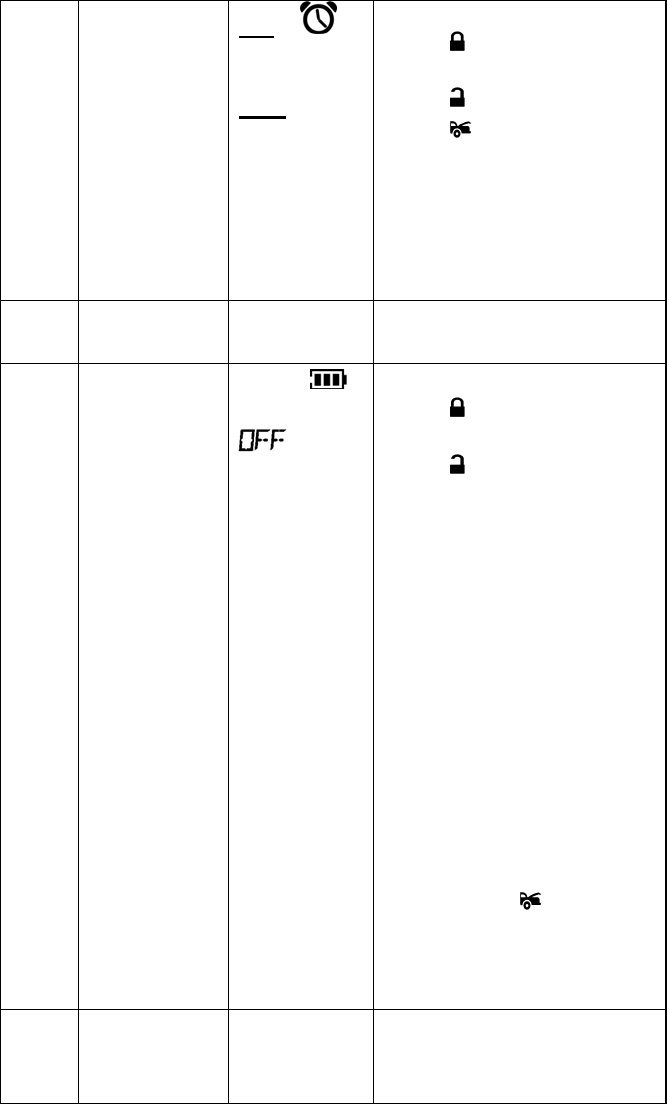

Item Menu
Option LCD
display Functions
1 Current
time set up
Default is 12:00
Adjust clock
hours from
0 to 12
12 : 00
12 is
flashing
Press button => (+) or
Press button = > (-)
Press button confirm its
selection, move to next
option.
Adjust clock
minutes
from 0 to 59
12: 00
00 is
flashing
Press button => (+) or
Press button => (-)
Press button confirm its
selection, move to next
option.
2 Alarm
Clock set
up
Default is OFF
Adjust
Alarm Clock
hours from
0 to 12
12 :00
12 is
flashing
Press button => (+) or
Press button => (-)
Press button confirm its
selection, move to next
option.
2016/7/19
4250 Rev.A
11
Adjust
Alarm Clock
minutes
from 0 to 59
12: 00
00 is
flashing
Press button => (+) or
Press button => (-)
Press button confirm its
selection, move to next
option.
Select
Alarm Clock
Enable or
Disable
On + or
OFF
Press button => Enable
or
Press button => Disable
Press button confirm its
selection, move to next
option.
3 Parking
Meter
countdown
Default is OFF
Adjust
Parking
Meter
countdown
hours from
0 to 2
0 :00
0 is flashing
Press button = (+) or
Press button = (-)
Press button confirm its
selection, move to next
option.
Adjust
Parking
Meter
countdown
minutes
from 0 to
59.
0 : 30
30 is
flashing
Press button => (+) or
Press button => (-)
Press button confirm its
selection, move to next
option.
2016/7/19
4250 Rev.A
12
Select
Parking
meter
countdown
Enable or
Disable
ON +
or
OFF
Press button => Enable
or
Press button => Disable
Press button confirm its
selection, move to next
option.
There is a beep sound at
5 min. before Parking
countdown reach 0.
4 Power
Save
Default is OFF
Select
Power Save
Enable or
Disable
On +
or
Press button => Enable
or
Press button => Disable
When power save enable,
the LCD remote
transceiver uses “0”
current to save the
battery power. LCD show
“Save” on text area
Exit: Press any button of
the LCD remote
transmitter to exit
the “Power Save
Mode”.
Press button
confirm its
selection, move to
next option.
5 2-way HHU
Response
mode
Default is Buzzer
2016/7/19
4250 Rev.A
13
Select 2-
way HHU
confirmation
by Melody
or Vibration
or or
+
Press button => Melody
or
Press button =>
Vibration
Press button confirm its
selected, move to next
option.
6 Second Car
Security
Option
C1 or C2 Default is CAR 1
Car Select CAR 1 or
CAR 2 ( II
icon On)
- CAR 1 operation.
- CAR 2 operation (II
icon On mean 2nd car
operation). Press
button confirm its
selected, move to next
option.
Key lock (by 2-way LCD HHU programming)
Enter : Press & hold + button until 1 beep heard, release + button to
icon.
Press or button to Enable or Disable the key lock feature on your 2-way LCD
HHU.
Exit : Press & hold + button for 2 sec. or do nothing wait for 5 sec. automatic
exit 2-way LCD (1 beep) Confirm Exit.
F Button LCD display or Button
Press and
hold the +
Button until 3
beep sound
Key lock icon flash
Press button Enable,
sound “ Do-Re-Mi “or
button Disable Key lock
mode, sound “ Mi-Re-Do
Icon On = Enable
Icon Off =
Disable
Second Vehicle Operation: Your remote transmitter can be utilized to control a
second vehicle Autopage security system. To program the remote control
2016/7/19
4250 Rev.A
14
transmitter to a second vehicle, follow the instructions for Transmitter programming.
All programming parameters are the same except for the following:
For Regular Remote Control Transmitter:
Prior to press any button on the transmitter. Press the + first on the
standard transmitter.
Once + button is pressed the LED on the transmitter will illuminate for 3.5
seconds. While the LED is illuminated, press the button for the function you want to
operate on the standard remote transmitter to control a second vehicle security
system.
For 2-way LCD Remote Control Transceiver:
2nd Car Operation: While the “II” icon display on the LCD screen, you can remote
control and communicate with a second Autopage security system by same 2-way
LCD remote.
1. Press and hold + button until 2 beeps
heard then release the + button.
See 2-way LCD HHU program mode –
2nd car option.
2. Within 5 seconds press and release
button, C2 show on LCD display, press
confirm CAR 2 operation (II icon On
mean 2nd car operation).
3. To exit programming mode, take no
action for five seconds. The remote
control will exit automatically.
Back to first Car Operation:
This will allow you to control and communicate with the first Autopage system.
1. Press and hold + button until 2
beeps heard then release the +
button.
See 2-way LCD HHU program mode
2. Within 5 seconds press and release
button until C1 show on LCD display,
press button confirm CAR 1
operation (II icon disappear from LCD
display).
3. To exit programming mode, take no
action for five seconds. The remote
control will exited automatically.
Power Save Mode:
2016/7/19
4250 Rev.A
15
While the power save mode, the LCD remote transceiver “sleep” until a button is
pushed, extends the life of battery. When power save mode is “Off”, the remote
control will wake up periodically to check for messages from the security module.
Stop The Trigger Melody Sound:
While triggering the alarm the LCD screen will alert user through melody sound
and flashing trigger icon, press any button on the LCD remote transmitter to stop
melody sound only, the remote control buttons will not send a command to the
system.
ALARM OPERATING CONDITION:
Function Siren Parking
Lights LED Doors Starter
Disable Dome
Light
1. Arm 1 Chirp 1 Flash Slow
flash Locking On
2. Disarm 2 or 4
Chirps 2 or 3
Flashes Off or
fast
flash
Unlocking Off On for
30 sec
3. Trigger Alarming Flashing Slow
flash On flashes
4. Panic Alarming Flashing Slow
flash Locking On flashes
5.Car
Locator 6 Chirps 12
Flashes
ALARM INDICATORS
CHIRP INDICATORS: PARKING LIGHTS:
Chirp Function Parking Light Function
1 chirp Arm 1 flash Arm
2 chirps Disarm 2 flashes Disarm
3 chirps Defective
reminder 3 flashes Disarm/
Intrusion
4 chirps Disarm/
Intrusion 12 flashes Car
Locator
6 chirps Car Locator
LED INDICATORS:
LED Function LED Function
Off Disarmed 2 flashes... Trigger on trunk/hood
2016/7/19
4250 Rev.A
16
pause
Slow
flash Armed 3 flashes...
pause Trigger on door
switch
Fast
flash Passive
arming 4 flashes...
pause Trigger on Dual Zone
Shock Sensor
On
(solid) Valet mode 5 flashes...
pause Trigger on Ignition
switch
FCC statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.

Navigation menu
