Advanced Card Systems ACM1252U-Z2 Smart Card Reader Module User Manual

Advanced Card Systems Limited Smart Card Reader Module Users Manual

Users Manual

Subject to change without prior notice
info@acs.com.hk
www.acs.com.hk
ACM1252U-Z2 User Manual V1.00
User Manual
ACM1252U-Z2
AdvancedCardSystemsLimited
ACM1252U-Z2 User Manual
info@acs.com.hk
Version 1.00
www.acs.com.hk
Page 2 of 13
Version History
Date By Changes Version
2016-09-19 Keith Mo Initial Version 1.00
AdvancedCardSystemsLimited
ACM1252U-Z2 User Manual
info@acs.com.hk
Version 1.00
www.acs.com.hk
Page 3 of 13
Table of Contents
1.0.
INTRODUCTION .................................................................................................................................... 4
2.0.
FEATURES ............................................................................................................................................. 5
3.0.
ARCHITECTURE ..................................................................................................................................... 6
4.0.
ACM1252U-Z2 OPERATING PROCEDURE .............................................................................................. 7
4.1.
DRIVER INSTALLATION PROCEDURE ................................................................................................................ 7
4.2.
OPERATION EXAMPLE ................................................................................................................................ 10
AdvancedCardSystemsLimited
ACM1252U-Z2 User Manual
info@acs.com.hk
Version 1.00
www.acs.com.hk
Page 4 of 13

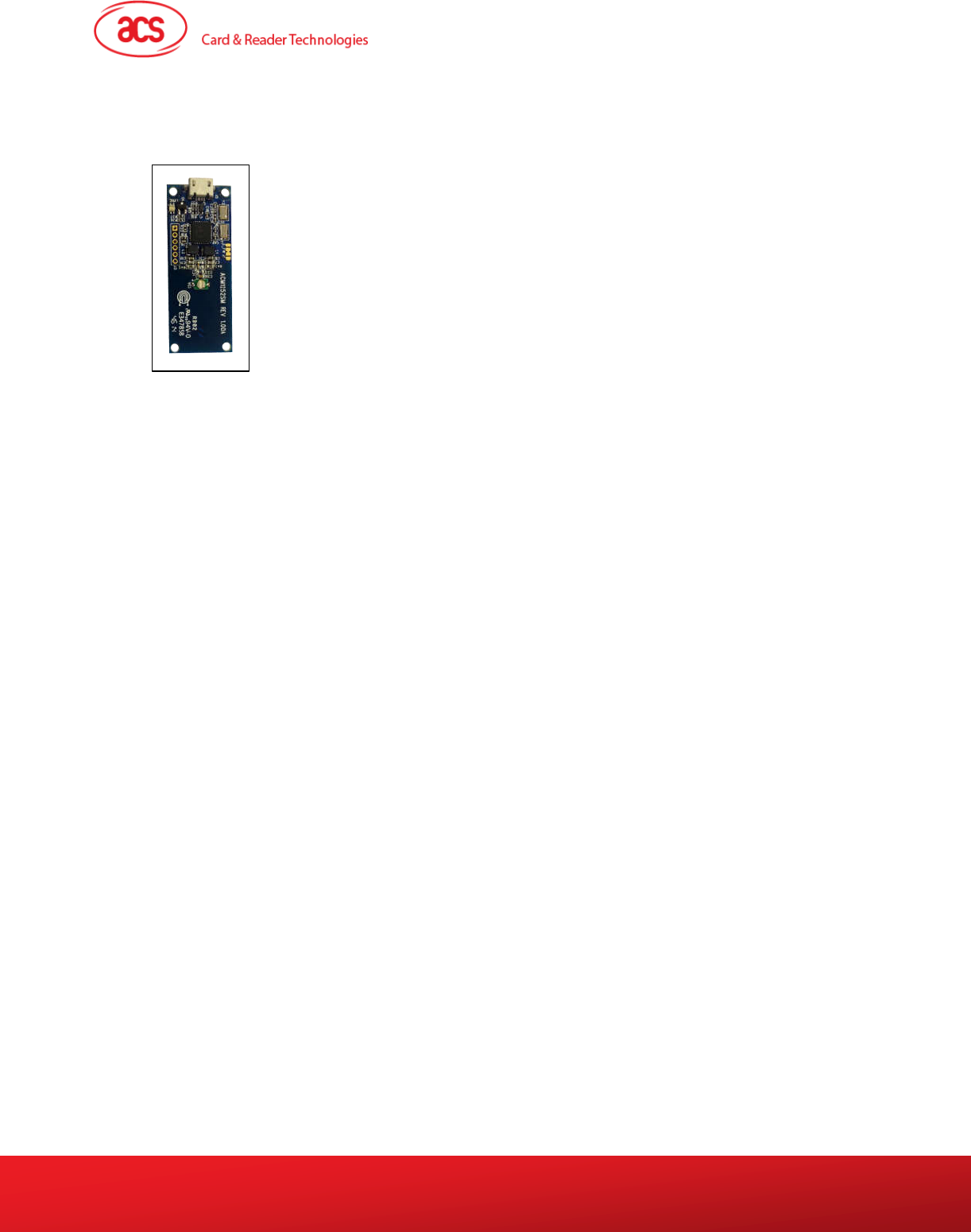

1.0. Introduction
The ACM1252U-Z2 is a reader (IFD and PCD) module that support contactless (PICC) smart cards.
The ACM1252U-Z2 is an NFC reader module developed based on the 13.56 MHz
contactless technology. This NFC Reader Module supports all three NFC modes
namely card reader/writer, card emulation, and peer-to-peer communication.
The ACM1252U-Z2 supports ISO 14443 Type A and B cards, MIFARE®, FeliCa,
and ISO 18092–compliant NFC tags. It also supports other NFC devices with an
access speed of up to 424 Kbps and proximity operating distance of up to 30 mm
(depending on tag type used).
It is PC/SC–compliant for interoperability across different applications and platforms
and provides high-speed communication ability for contactless cards and NFC
tags/devices. Post-deployment firmware upgrade is also supported, eliminating the
need for additional hardware modification.
AdvancedCardSystemsLimited
ACM1252U-Z2 User Manual
info@acs.com.hk
Version 1.00
www.acs.com.hk
Page 5 of 13
2.0. Features
ISO 14443 Parts 1-4 Compliant for Contactless Smart Card Interface.
ISO 18092 Compliant for Contactless Smart Card Interface.
An external antenna for PICC contactless access applications.
The ACM1252U-Z2 supports the following Tag Types:
o
MIFARE Classic. E.g. MIFARE 1K, 4K, MINI and Ultralight.
o
ISO14443-4 Type A and B.
o
ISO18092 FeliCa, NFC tag
T=CL emulation for MIFare 1K/4K PICCs
High Speed (424 kbps) Communication for PICCs
Energy saving modes for turning off the antenna field whenever the PICC is inactive,
or no PICC is found. It prevents the PICC from exposing to the field all the time.
User-Controllable Peripherals. E.g. LED.
PCSC Compliant for Contact and Contactless Interfaces.
USB V2.0 Interface. (12M bps)
Device Firmware Upgradeable through the USB Interface.
AdvancedCardSystemsLimited
ACM1252U-Z2 User Manual
info@acs.com.hk
Version 1.00
www.acs.com.hk
Page 6 of 13
3.0. Architecture
NXP’s LPC11U37 is for main processor for communication with PC, and control the contactless chip
and peripherals. PN512 act as a contactless chip to perform the communication between contactless
tags and LPC11U37
For communication architecture, the protocol between ACM1252U-Z2 and PC is using CCID protocol.
All the communication between PICC is PCSC Compliant
AdvancedCardSystemsLimited
ACM1252U-Z2 User Manual
info@acs.com.hk
Version 1.00
www.acs.com.hk
Page 7 of 13
4.0. ACM1252U-Z2 Operating Procedure
4.1. Driver installation Procedure
Hardware requires:
ACM1252U-Z2
PC with OS window XP or above
Software requires:
Driver installer “ACS_Unified_PCSC_Driver_Installer_bin-4.0.6.0-20141114_all.zip”
Steps:

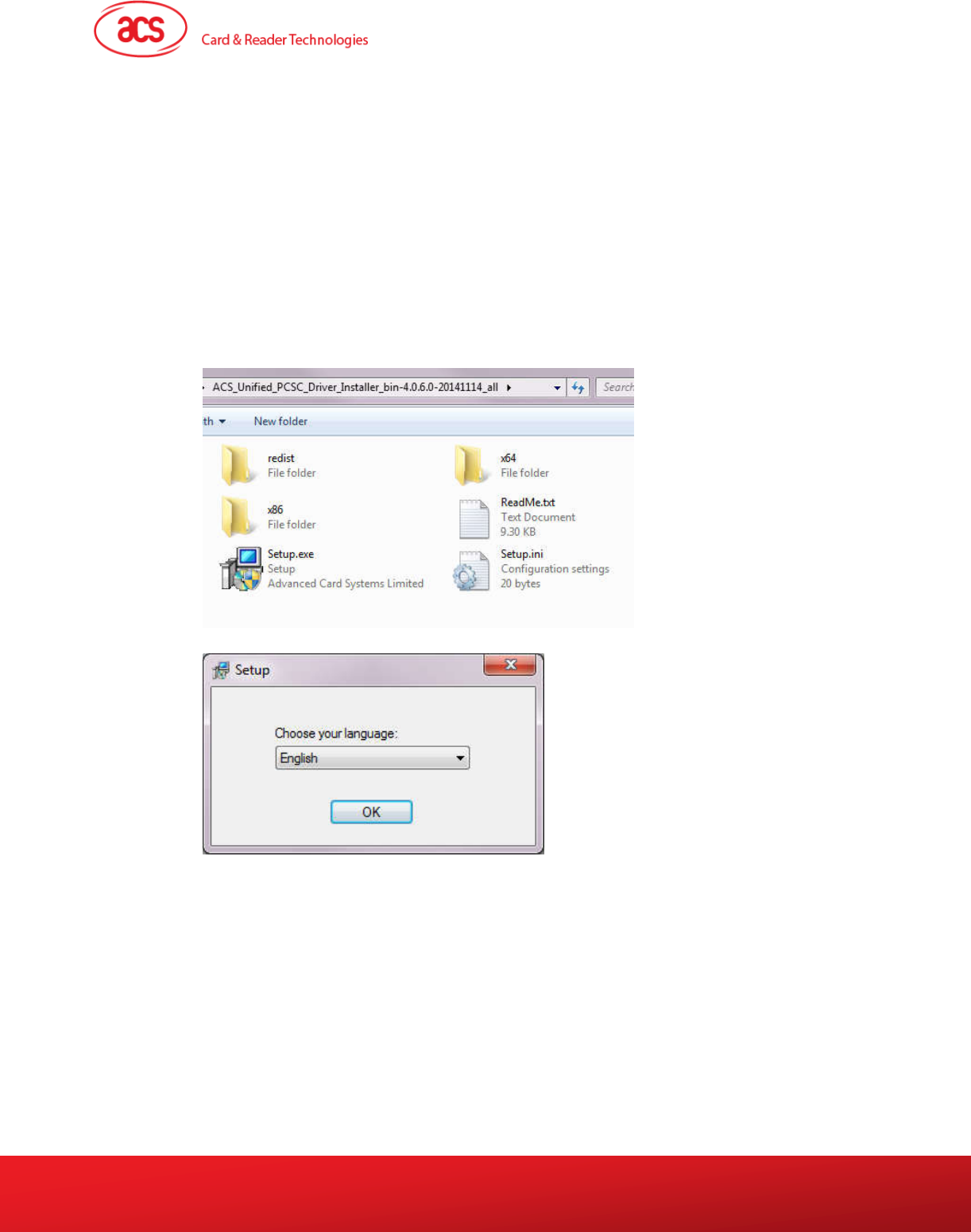

1. Extract the file “ACS_Unified_PCSC_Driver_Installer_bin-4.0.6.0-20141114_all.zip”
2. Execute “Setup.exe”
3. Below screen will be shown
Select the language, then Click “OK”
AdvancedCardSystemsLimited
ACM1252U-Z2 User Manual
info@acs.com.hk
Version 1.00
www.acs.com.hk
Page 8 of 13

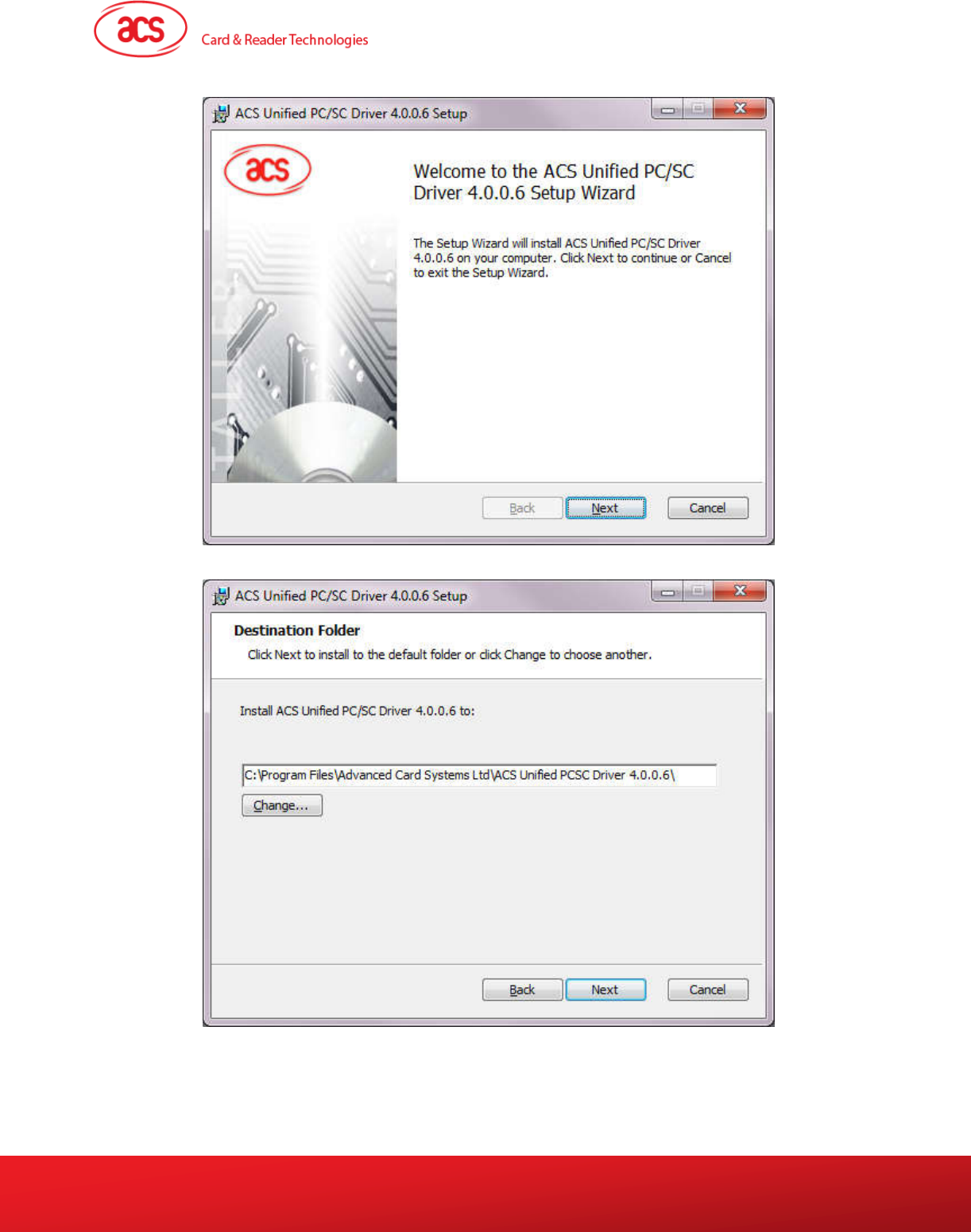

4. Below screen will be shown, “Next” to continue
5. Below screen will be shown, configure the installation path, then “Next” to continue
AdvancedCardSystemsLimited
ACM1252U-Z2 User Manual
info@acs.com.hk
Version 1.00
www.acs.com.hk
Page 9 of 13

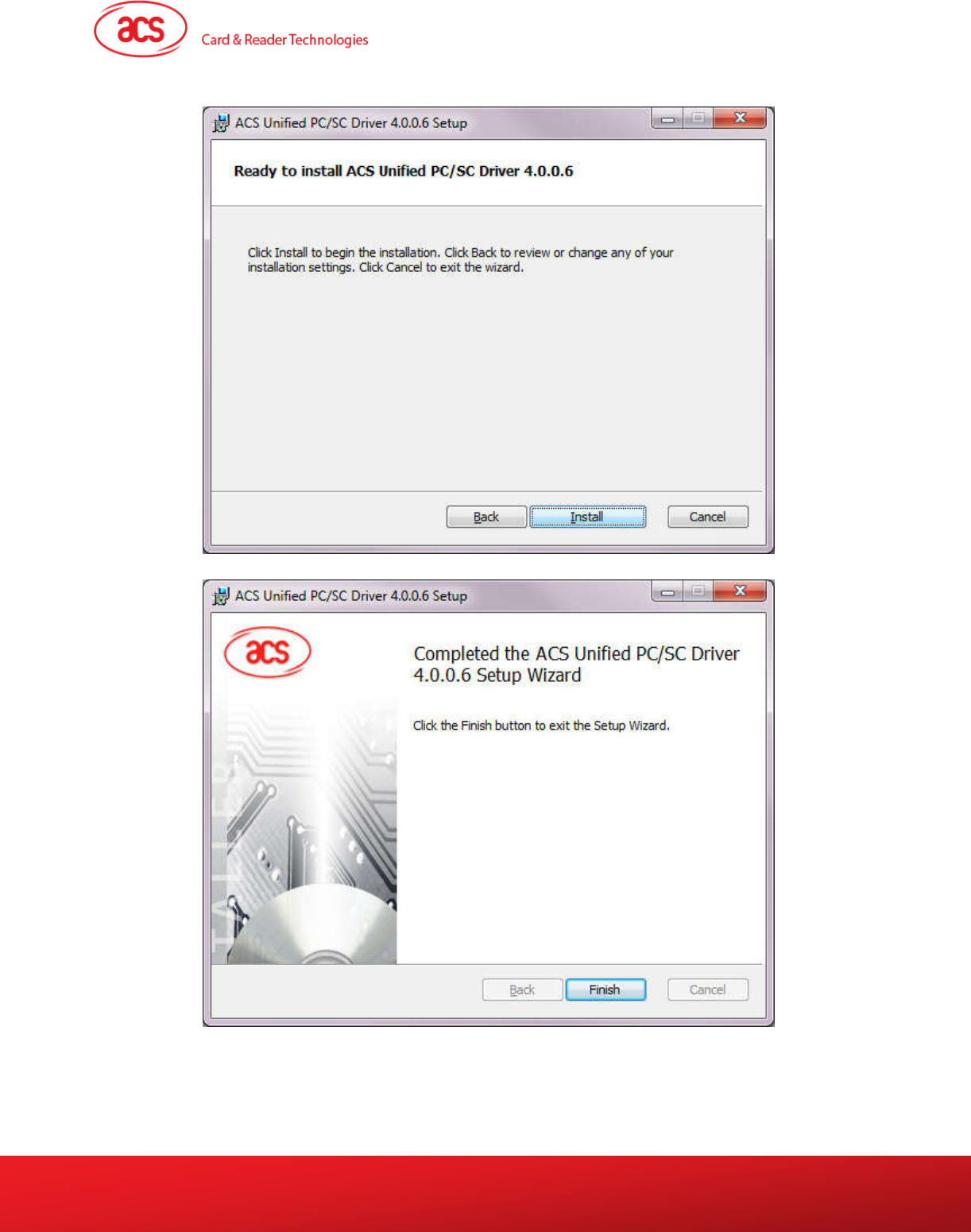

6. Below screen will be shown, “Install” to continue
7. Waiting until below screen shown
Click “Finish”
8. Driver Installation Complete
AdvancedCardSystemsLimited
ACM1252U-Z2 User Manual
info@acs.com.hk
Version 1.00
www.acs.com.hk
Page 10 of 13
4.2. Operation Example
Hardware requires:
ACM1252U-Z2
PC with OS window XP or above
Test card x 1 (provided by ACS)
Software requires:
APDU.exe (for example)
Steps:
1. Plug in the reader into the PC
2. Place the Test Card on the top of the reader about 5cm
3. Open “APDU.exe”
4. Click “1. Select reader”, Chose “ACS ACR1252 CL Reader PICC 0”, then click “OK”
AdvancedCardSystemsLimited
ACM1252U-Z2 User Manual
info@acs.com.hk
Version 1.00
www.acs.com.hk
Page 11 of 13

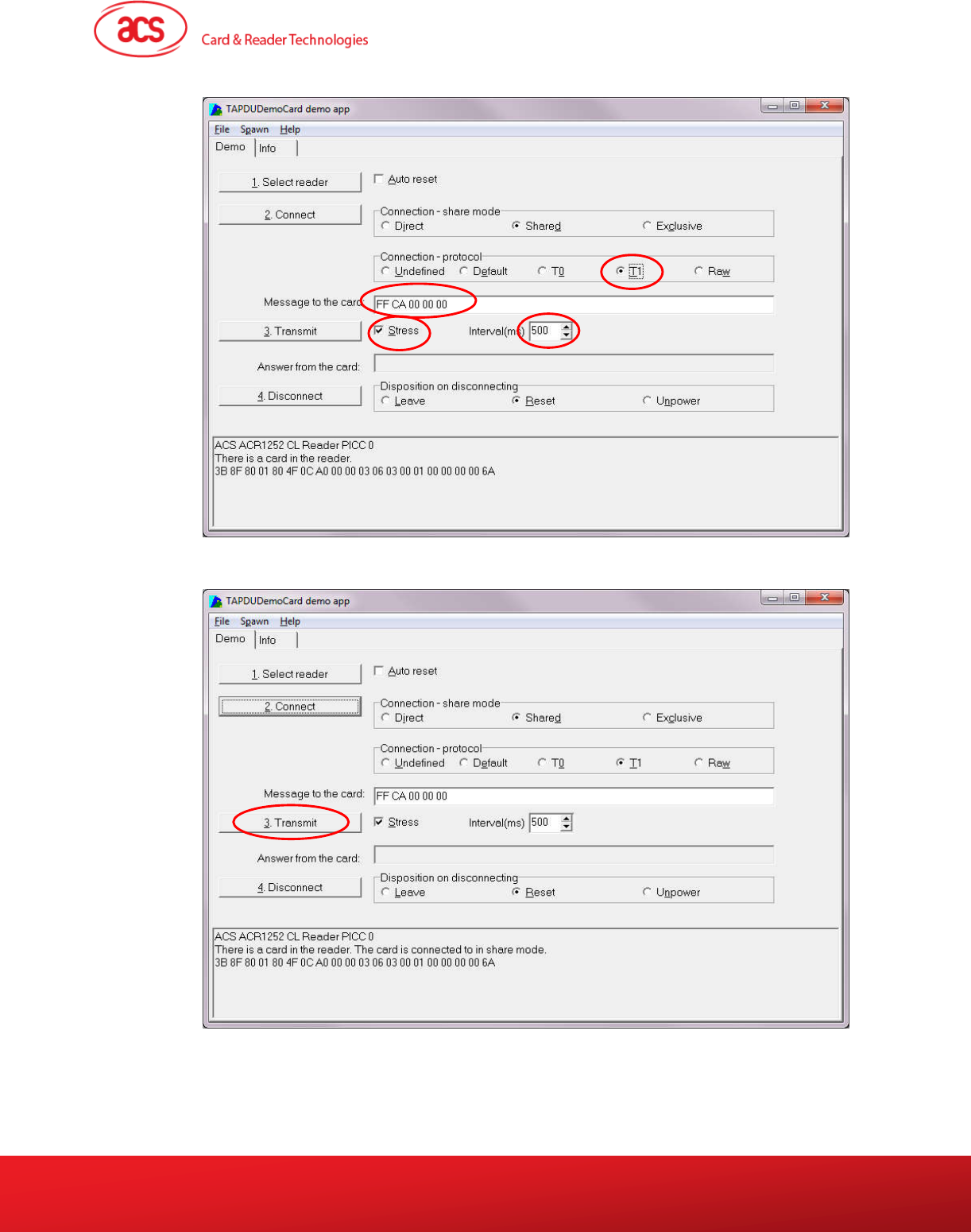

5. Select “T1”, “Stress”, Message = “FF CA 00 00 00”, Interval = “500”
6. Press “Connect”
7. Press “Transmit” to start the testing
8. Below screen will be shown
AdvancedCardSystemsLimited
ACM1252U-Z2 User Manual
info@acs.com.hk
Version 1.00
www.acs.com.hk
Page 12 of 13
9. Can start the Lab Test
AdvancedCardSystemsLimited
ACM1252U-Z2 User Manual
info@acs.com.hk
Version 1.00
www.acs.com.hk
Page 13 of 13
Appendix A. Technical Specifications
Universal Serial Bus Interface
Power Source................................. From USB
Speed ............................................. 12 Mbps (Full Speed)
Supply Voltage ............................... Regulated 5 V DC
Supply Current .............................. Max. 200 mA
Contactless Smart Card Interface
Standard ........................................ ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE, FeliCa
Protocol .......................................... ISO 14443 T=CL for ISO 14443-4 compliant cards and T=CL Emulation for
MIFARE 1K/4K, ISO 18092, FeliCa and NFC tags
Smart Card Read/Write Speed....... 106 Kbps, 212 Kbps, 424 Kbps
Operating Frequency ..................... 13.56 MHz
Operating Distance ........................ Up to 30 mm (depending on card type)
SAM Card Interface (Optional)
Standard ........................................ ISO 7816
Protocol .......................................... T=0 and T=1 protocol
Built-in Peripherals
Bi-Color LED .................................. Red and Green

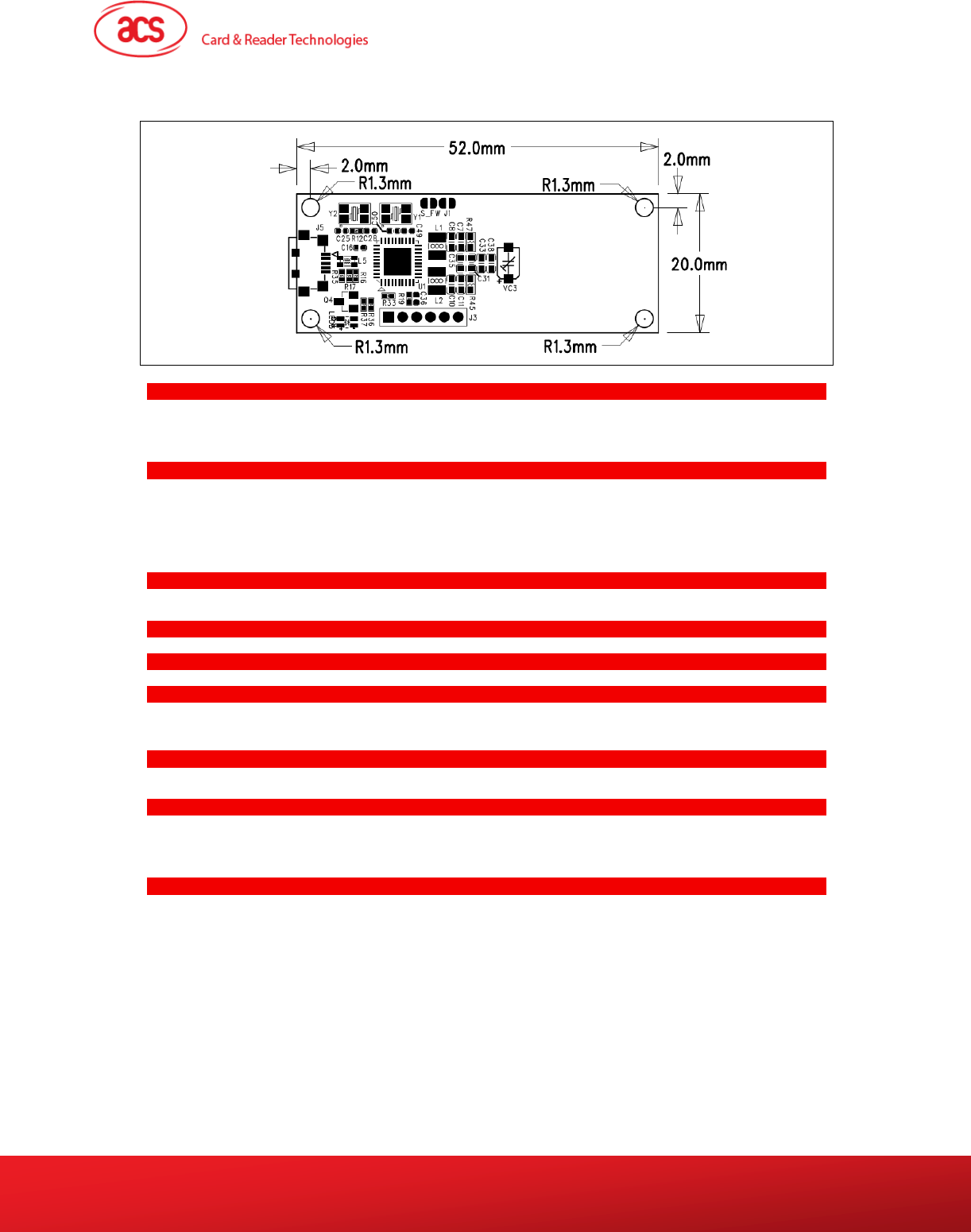

Physical Specifications
Dimensions .................................... 52.0 mm (L) × 20.0 mm (W) × 6.0 mm (H)
Operating Conditions
Temperature................................... 0 C – 50 C
Humidity ......................................... Max. 90% (non-condensing)
MTBF ............................................. 500,000 hrs
Application Programming Interface
PC/SC
CT-API (through wrapper on top of PC/SC)
Certifications/Compliance
ISO 14443, ISO 18092, ISO 7816 (upon request), CE, PC/SC, CCID, RoHS 2, USB Full Speed
Microsoft® WHQL for Windows® 2000, Windows® XP, Windows Vista®, Windows® 7, Windows® 8,
Windows® 8.1, Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2,
Windows® Server 2012, Windows® Server 2012 R2
Device Driver Operating System Support
Windows® 2000, Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1,
Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012,
Windows® Server 2012 R2
Linux®, Mac OS®, Android™ 3.1 and above
AdvancedCardSystemsLimited
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This equipment can be used in member states of the European Union once the
corresponding administrative licence is obtained.
**End Product Labeling:
The Final end product label must contain the following statement on the product label:
“Contains FCC ID: V5MACM1252U-Z2"
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment .This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
