I. ACR120 Contactless Reader/Writer

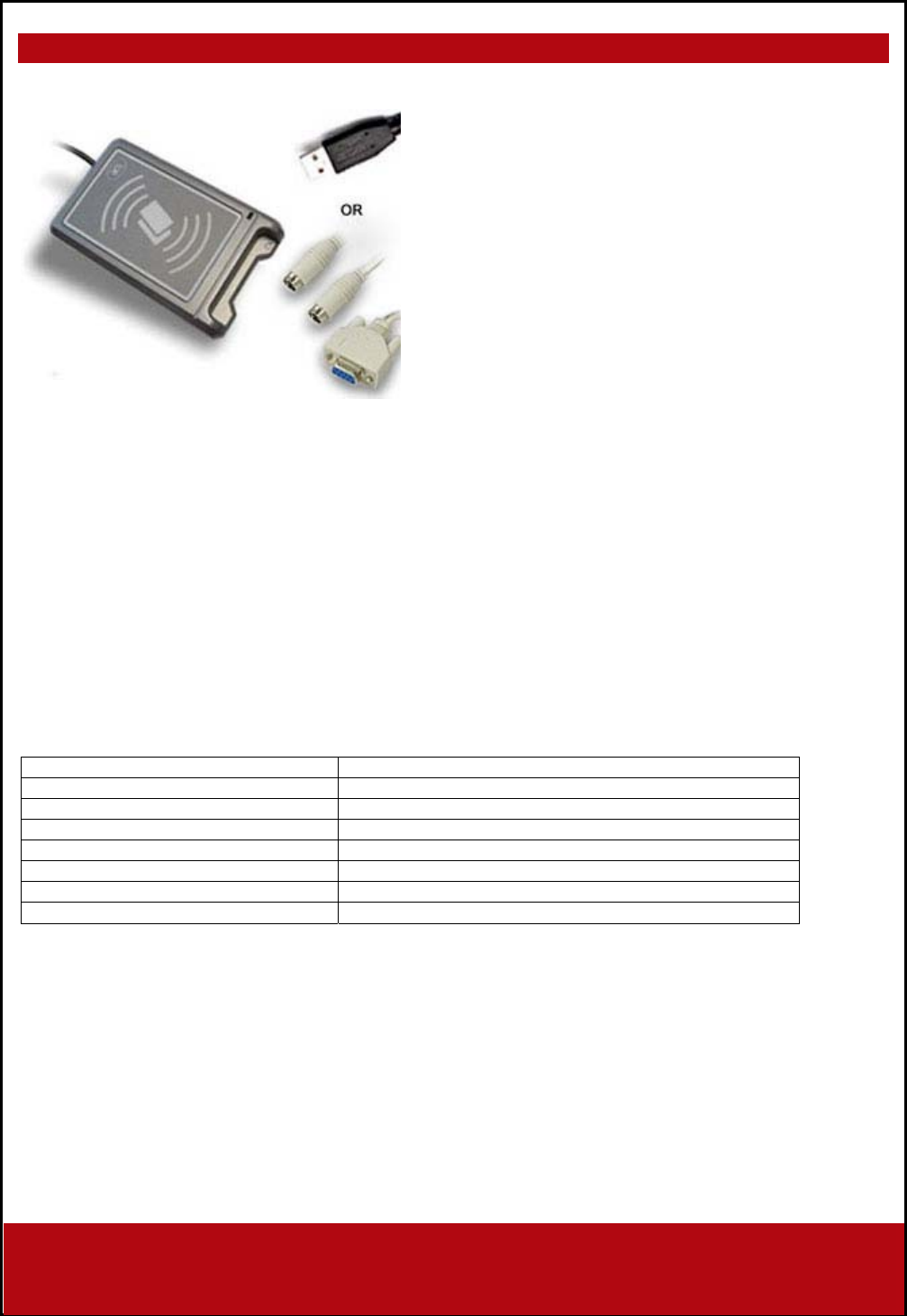

The ACR120 is a compact and cost-effective contactless reader
and writer. It is developed on the 13.56MHz contactless smart
card (RFID) technology, supporting Mifare® (Classics, DESFire),
ISO 14443 A and B cards. Its proximity operating distance is up
to 5 cm, depending on the type of contactless tag in use.
The versatile reader is available in both USB and Serial interface
version, which can be easily integrated into PC environment as
well as other systems in a snap. It is ideal for a board range of
applications, including public transport terminals, physical and
logical access controls, and even vending machines.
The operation of ACR120 is extremely easy, quick and
convenient. All read/write operations can be done via waving the
contactless card to the device. Moreover, its compact design
enables it to be mounted and located in anywhere with ease.
In addition, ACR120 also available in a module form, which is extremely easy to design-in giving you maximum design
and development flexibility. Own casing, logo, color, size can all now be materialized.
Features
USB PnP or serial interface (RS232)
Read and write functionality
Built-in Antenna
Fully tested and compliant with major contactless smart cards that conform to ISO14443 A/B in the market.
Operation LED
High-speed transactions
Wall mountable
Built-in contact/contactless smart card slots (on request)
SAM slot (on request)
Technical Specifications
Interface USB/Serial
Smart Card Interface (optional) Contact
Mifare Card Interface Contactless
Supply Voltage 5V DC
Physical Dimension 120 mm (L) x 73 mm (W) x 20 mm (H)
CLK Frequency 4 MHz
Standards / Certifications CE, FCC
Operating System Support Windows 98, ME, NT - Serial interface (RS232), 2000 and XP
Typical Applications
Public transportation Terminals
Automatic fare collection
Vending machines
Physical access control
Time attendance
Contactless public phones
Metering
Windows Logon
Advanced Card Systems Ltd. Page 3 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.
II. ACR38DT DualKey
Due to the rising demand of e-working methods (remote office,
home office...) and snowballing hacking likeliness, it is the time to
properly secure access to PCs, desktops, Intranet & Extranet
networks and physical access control. ACR38DT offers both
solutions based on SIM-sized combi smart card (contactless and
contact card) for logical and physical access control.
The ACR38DT Contactless/Contact DualKey is an extension of
ACR38T SIMTracker II. It has full ACR38T functionalities with
contactless value-added feature.

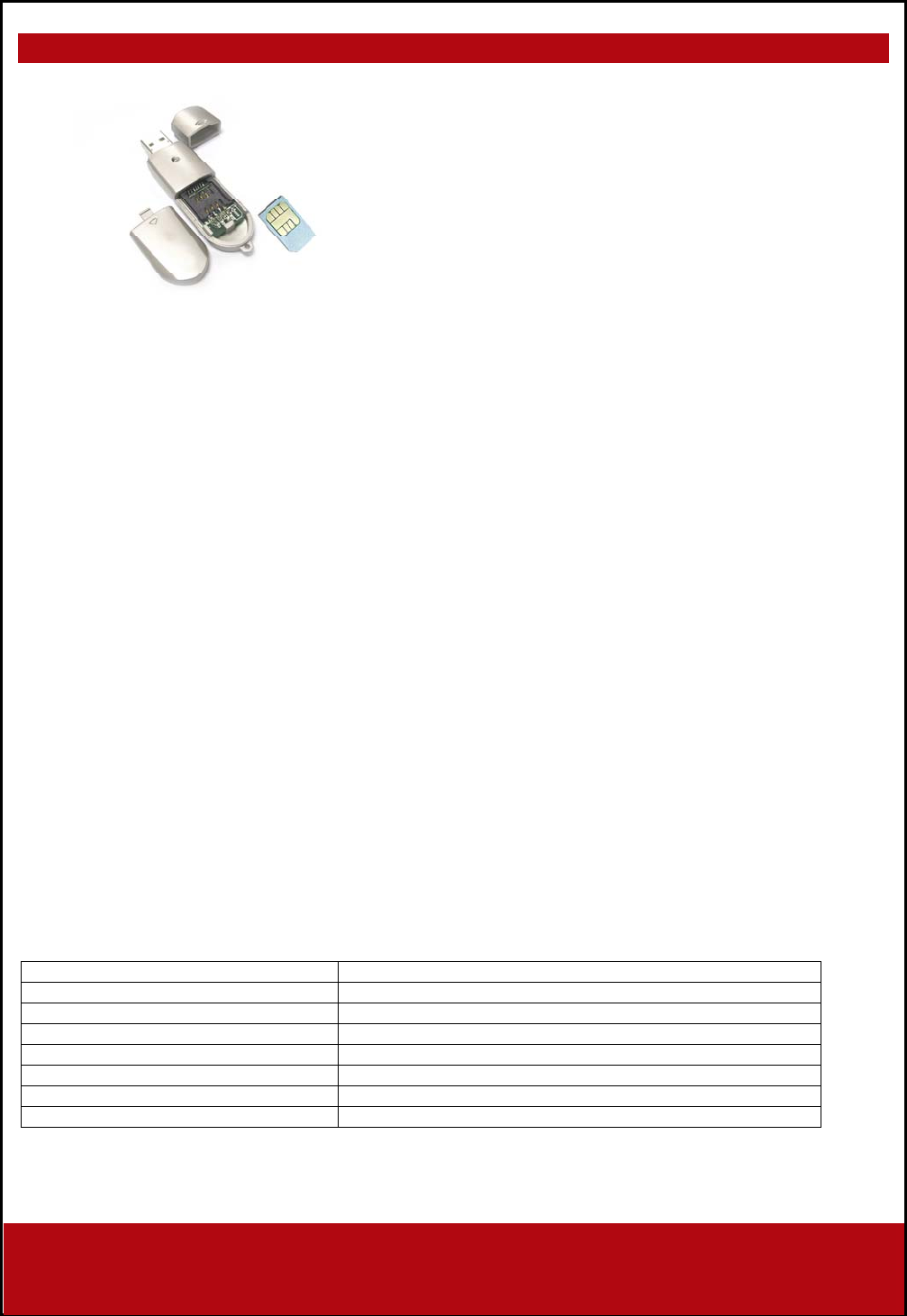

i) Serves as a plug-in (SIM-sized) card reader:
It is an extremely compact USB full speed device completely
compatible with the ACR38 smart card reader and is designed to
access SIM-sized smart cards (Plug-in card). With a size of only 82.5 mm x 21.3 mm x 9.4 mm, the ACR38DT is highly
suitable for portable applications, as it plugs into the USB port and requires no additional cable or wiring. It also fulfils the
GSM 11.11 specification. It is designed for PC environment, ultimate smart card peripheral for a PC.
Combi card
ii) Serves as a contactless card:
While the ACR38DT serves as a contactless card, the embedded antenna coil enables the contactless part of the SIM-
sized combi card to work as a contactless card to communicate with contactless readers.
ACR38DT DualKey is a good quality, reliable and effective reader with designs focusing on convenient use and harmony
with other PC peripherals in terms of shapes and colors. It is ideal for electronic commerce, physical access control,
home banking or e-purse facilities, secure computer access, transportation and GSM application tool.
Features
USB full speed interface to PC with simple command structure
Support Plug-in SIM-sized card
Read and write all microprocessor cards with T=0 or T=1 protocol
Supports SLE 4418/28/32/42 memory cards
Supports the most common memory-based smart cards, including I2C bus protocol cards (from 1k bits up to
1024k bits) and secure memory cards (Atmel AT88SC153 and AT88SC1608)
Support GSM 11.11 specification
Require no additional cable
Short Circuit Protection
EN 60950/IEC 60950, ISO-7816, PC/SC, CE, FCC
Support ISO-7816 Class A, B and C (5V, 3V, 1.8V) cards
Embedded antenna coil
Full functionality with SIM-sized Combi card in contact and contactless interface
Support PPS (Protocol and Parameters Selection) with 1,743 – 250,000 bps in reading and writing smart cards
A patented technology combines physical and logical access control capabilities
Technical Specifications
Interface USB full speed
Supply Voltage Regulated 5V DC
Supply Current max. 50mA
Physical Dimension 78.73 mm (L) x 21.50 mm (W) x 11.00 mm (H)
Operating Temperature 0 - 50 °C
CLK Frequency 4 MHz
Standards / Certifications EN 60950/IEC 60950, ISO-7816, PC/SC, CE, FCC
Operating System Support Windows 98, ME, 2000 and XP
Advanced Card Systems Ltd. Page 4 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.
Typical Applications
Home Banking
E-commerce
Network access control
Digital signature
Identification
Ticketing
Parking and toll collection
Online gaming
Transportation
Physical access control
Advanced Card Systems Ltd. Page 5 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.
III. Installation
A. Connection Diagram

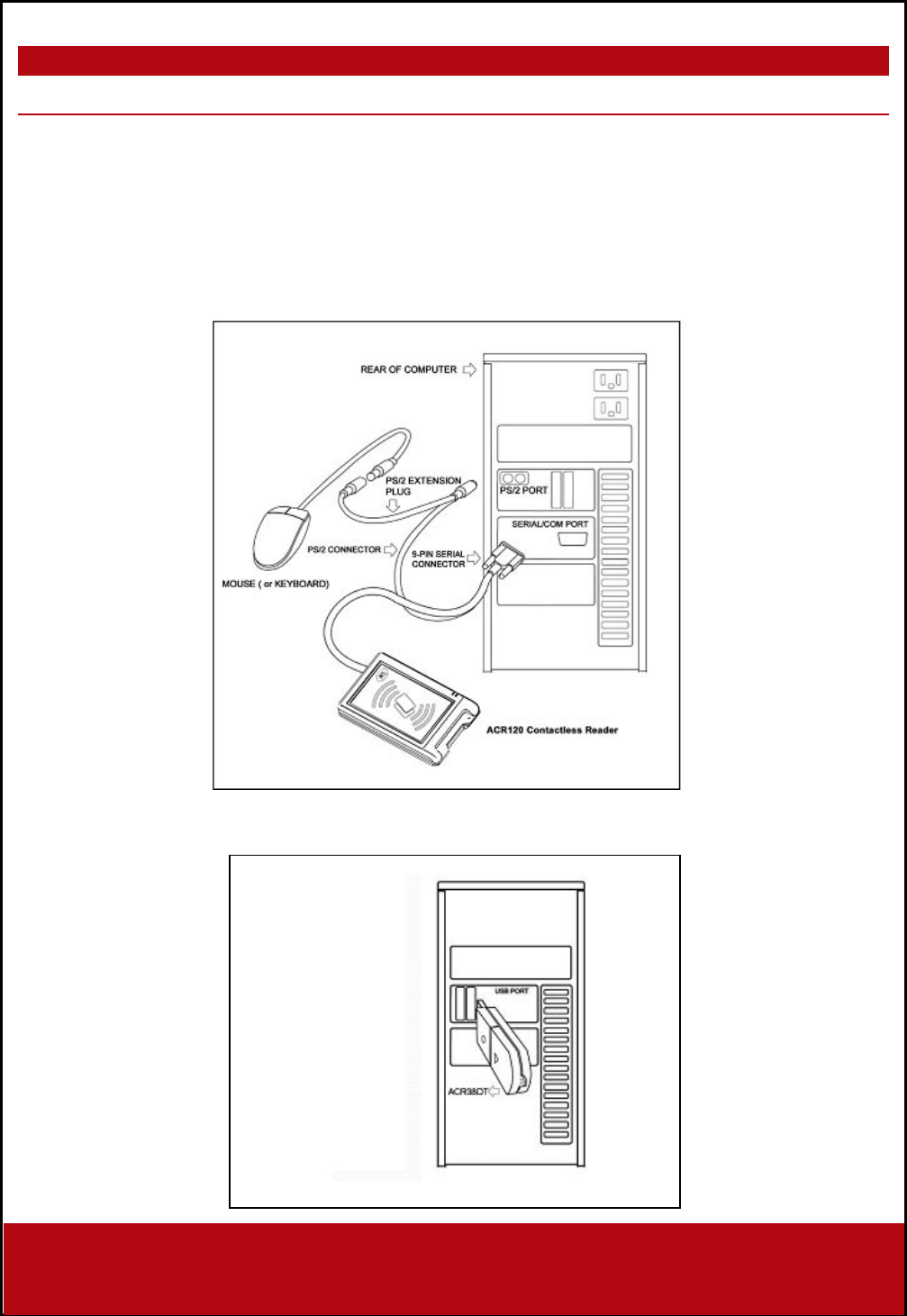

Note: You can connect the ACR120S Contactless Reader and ACR38DT DualKey devices to your PC
anytime AFTER the drivers has been loaded.
To connect the ACR120S Device to your PC, connect the PS/2 Extension Plug to your Mouse (or Keyboard)
and plug the PS/2 Connector to the PS/2 Port on the rear of the computer.
Connect the 9-PIN Serial Connection cable to the Serial/COM Port on the rear of the computer.
To connect your ACR38DT to your PC, plug in the USB end of the device into the USB Port of your
computer.
Advanced Card Systems Ltd. Page 6 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.
B. Driver Installation
Insert the ACR120 SDK CDROM into your CDROM drive. If the screen below does not appear, run
x:\ACR120SDK.EXE where x is the drive letter of your CDROM.
Advanced Card Systems Ltd. Page 7 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.

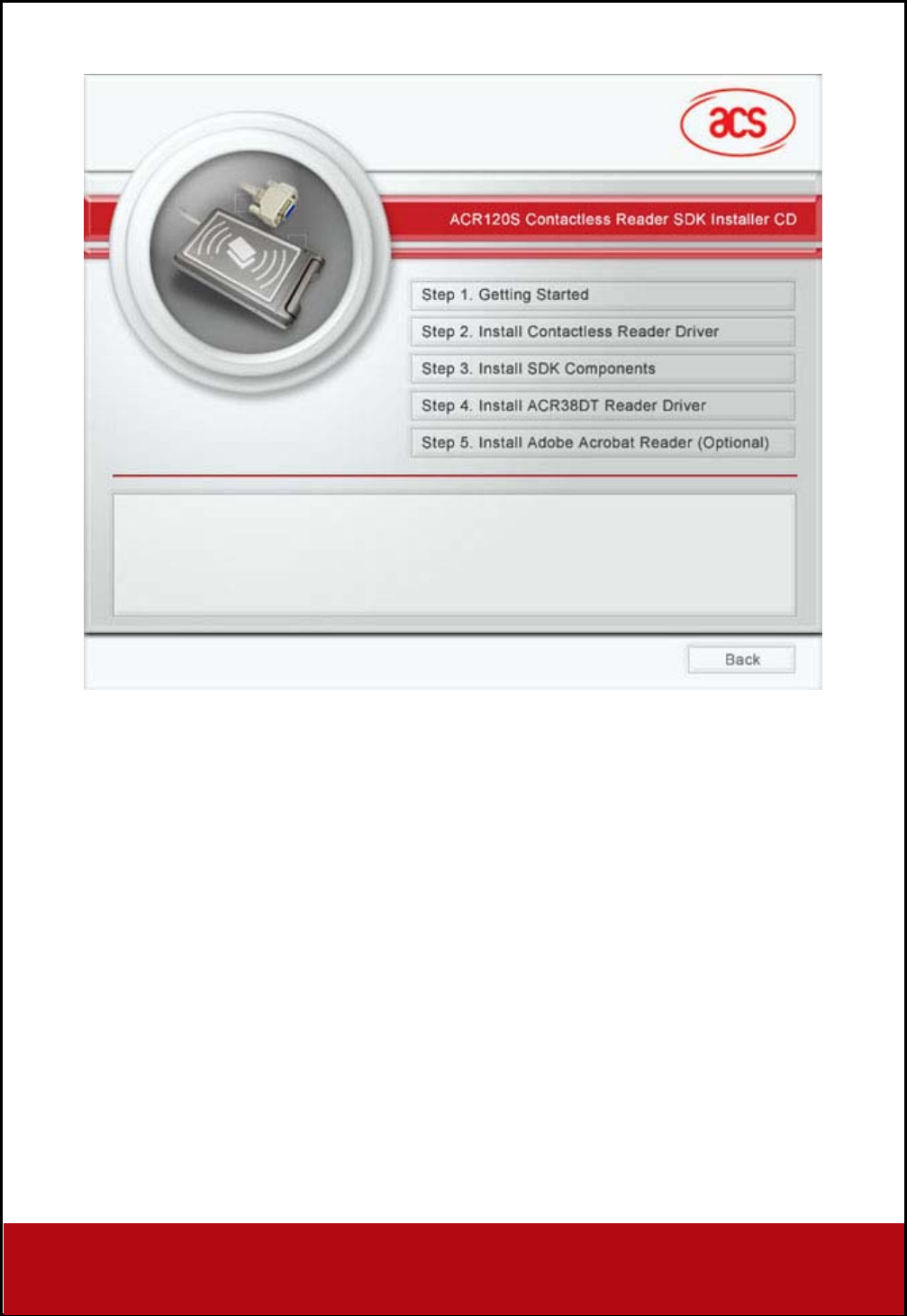

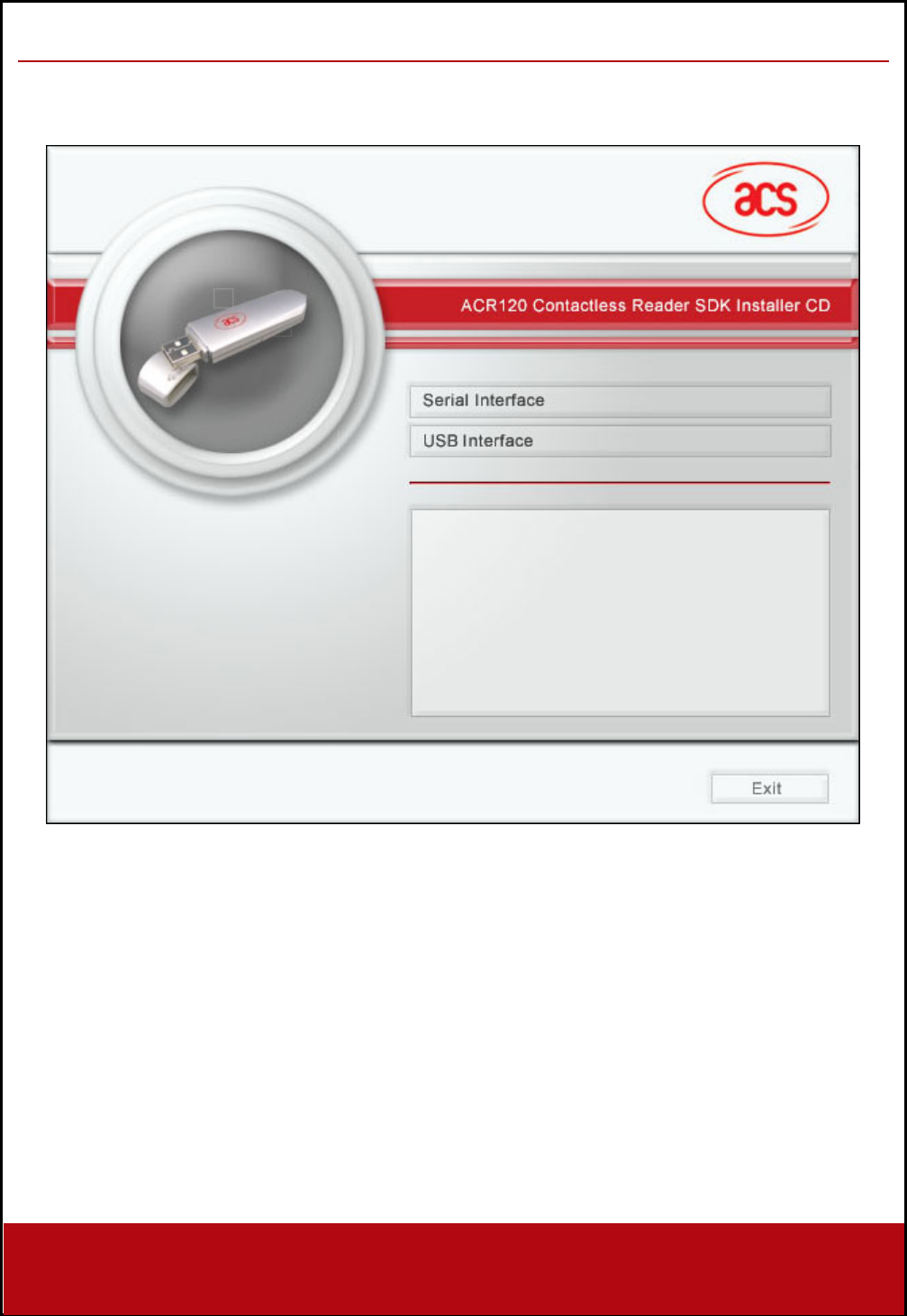

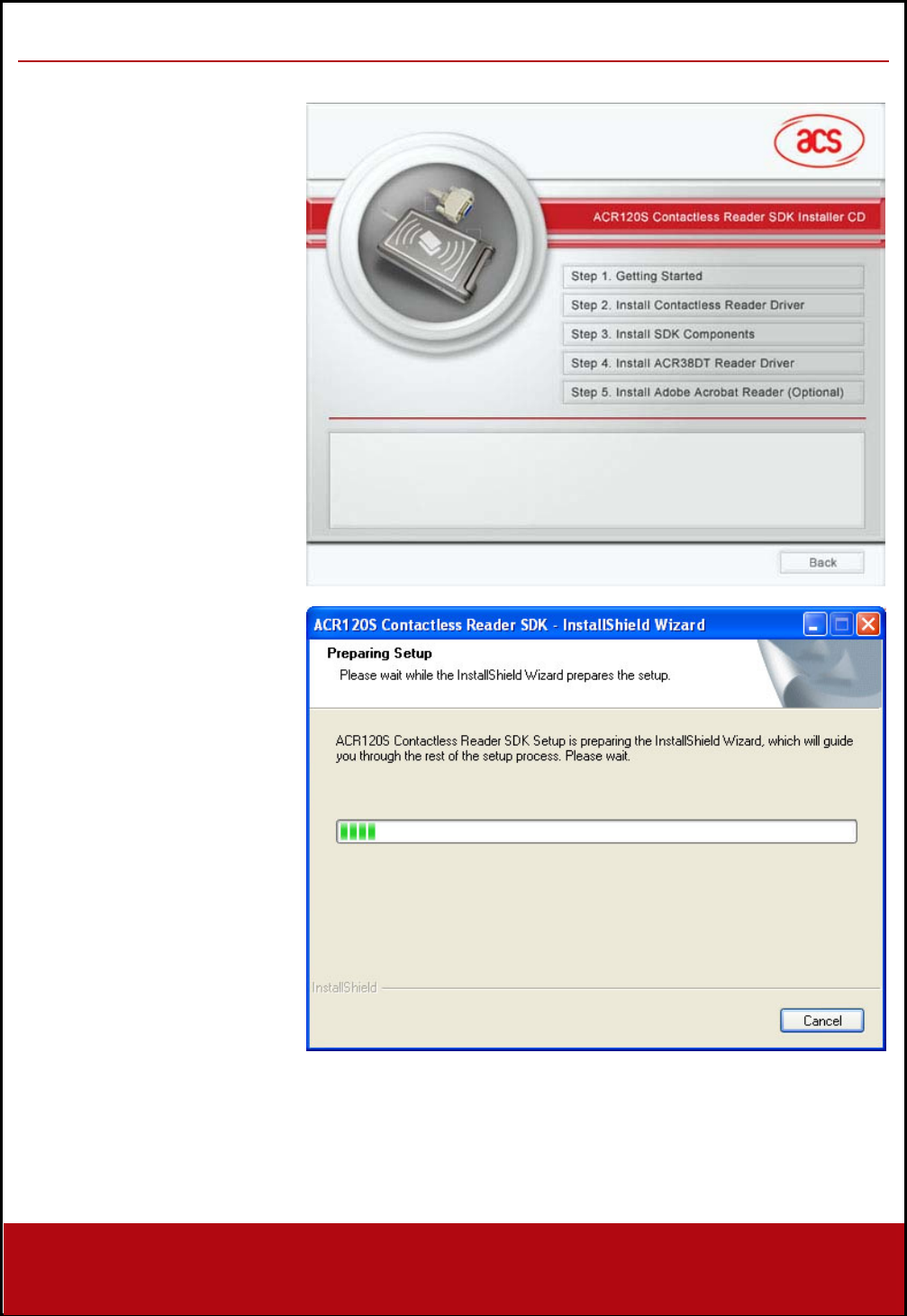

Select the Serial Interface and follow the instructions as described below:
Choose the Install Contactless Reader Driver from step 2 of the SDK Installer.
Advanced Card Systems Ltd. Page 8 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.
B.1 ACR120S Driver Installation on Windows XP / 2000 / NT / ME / 98SE
1. When you see the “Proprietary
Driver Installation Wizard” window,
click “Install”.
To check the driver version or read
installation tips, click on the note
icon (located at the left of the
buttons) to view Readme File.
2. When prompted whether you
want to install the drivers, click
“Yes”.
Advanced Card Systems Ltd. Page 9 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.

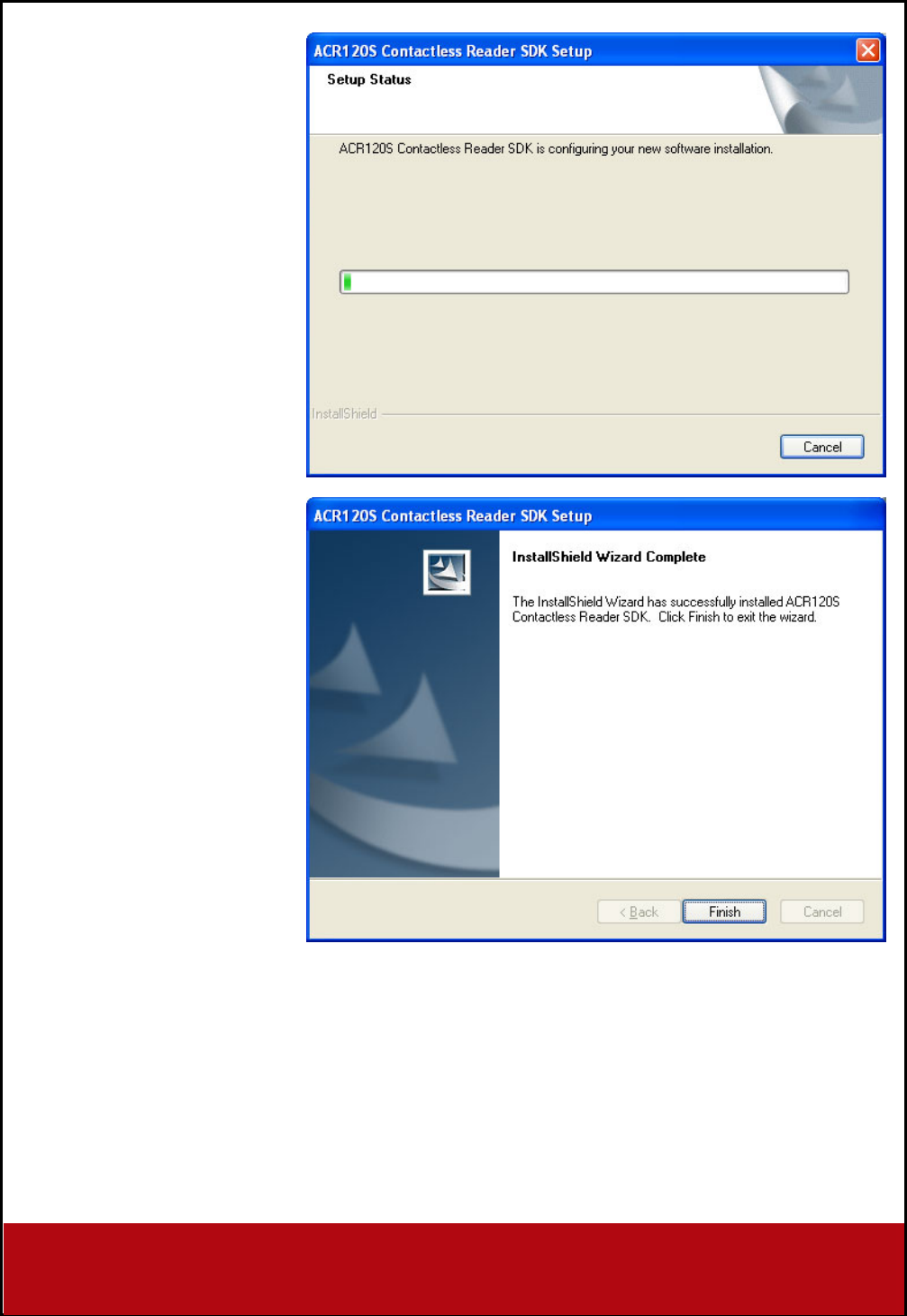

3. When you are prompted that
the driver setup is complete, click
“Finish”. Device will be ready for
use once you connect it.
Advanced Card Systems Ltd. Page 10 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.

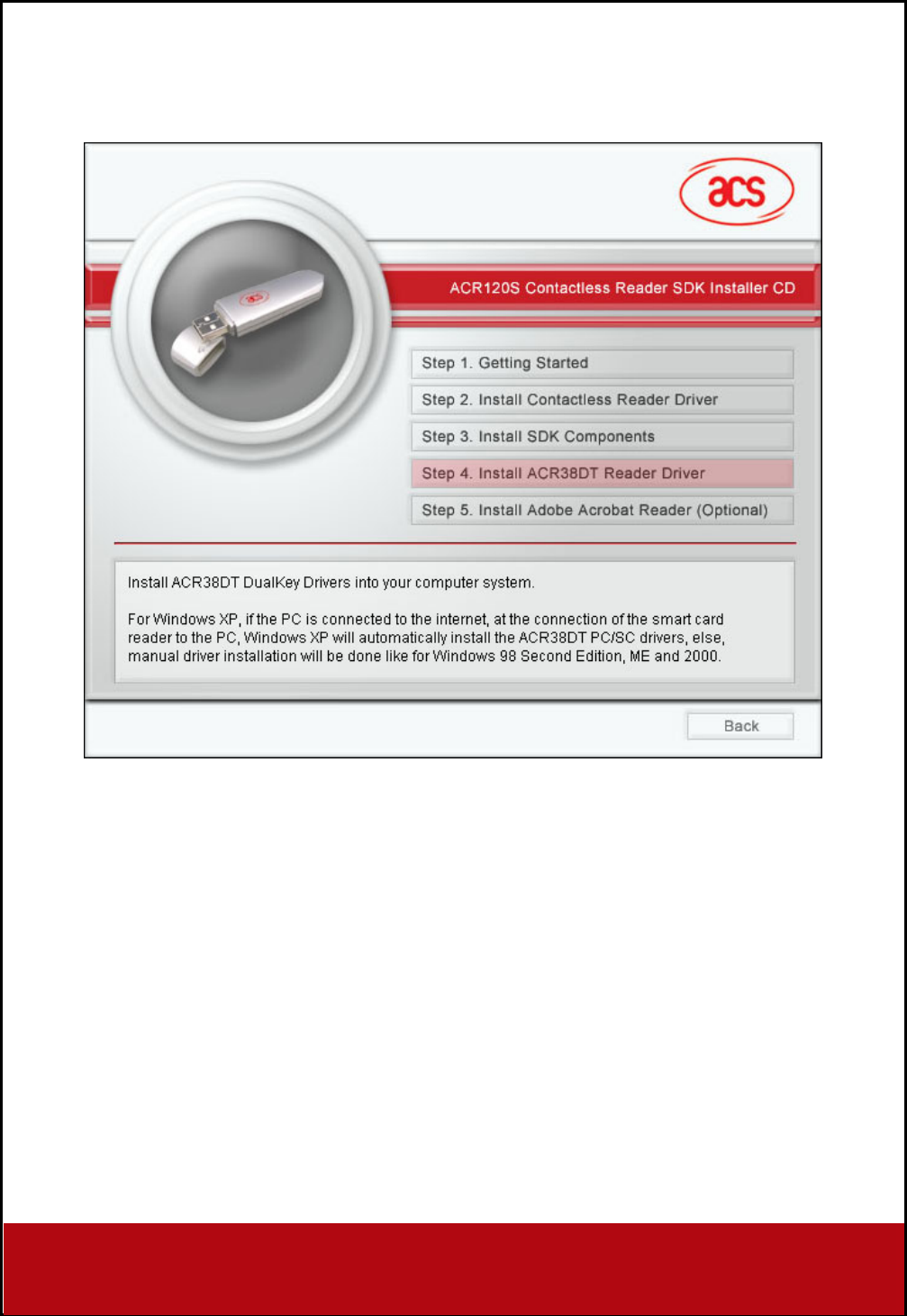

B.2 ACR38DT Driver Installation on Windows XP/2000
Click on “Step 4. Install ACR38DT Reader Driver” from the ACR120S Contactless Reader SDK Setup GUI and follow
the instructions below.
Advanced Card Systems Ltd. Page 11 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.
First Stage Installation

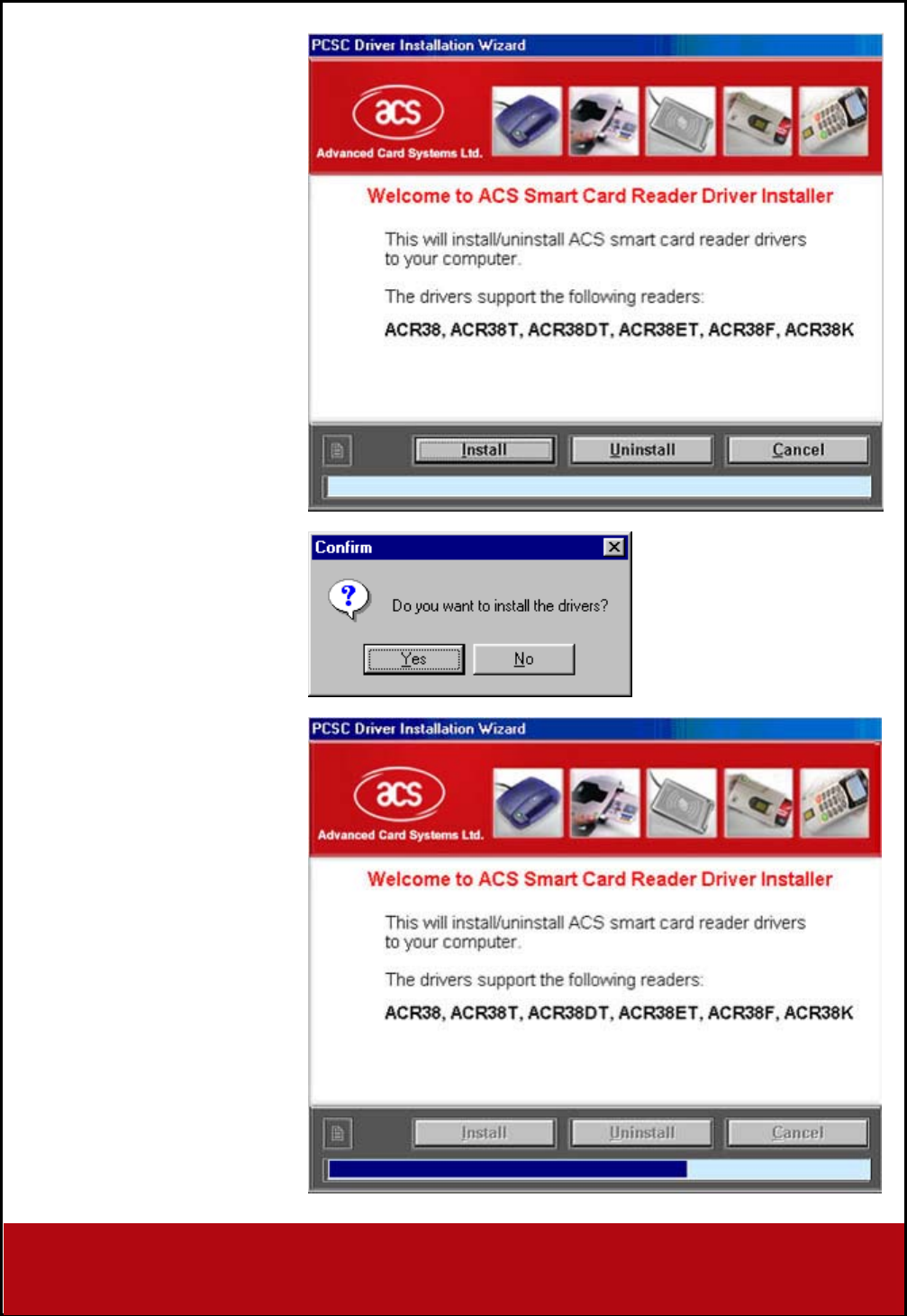

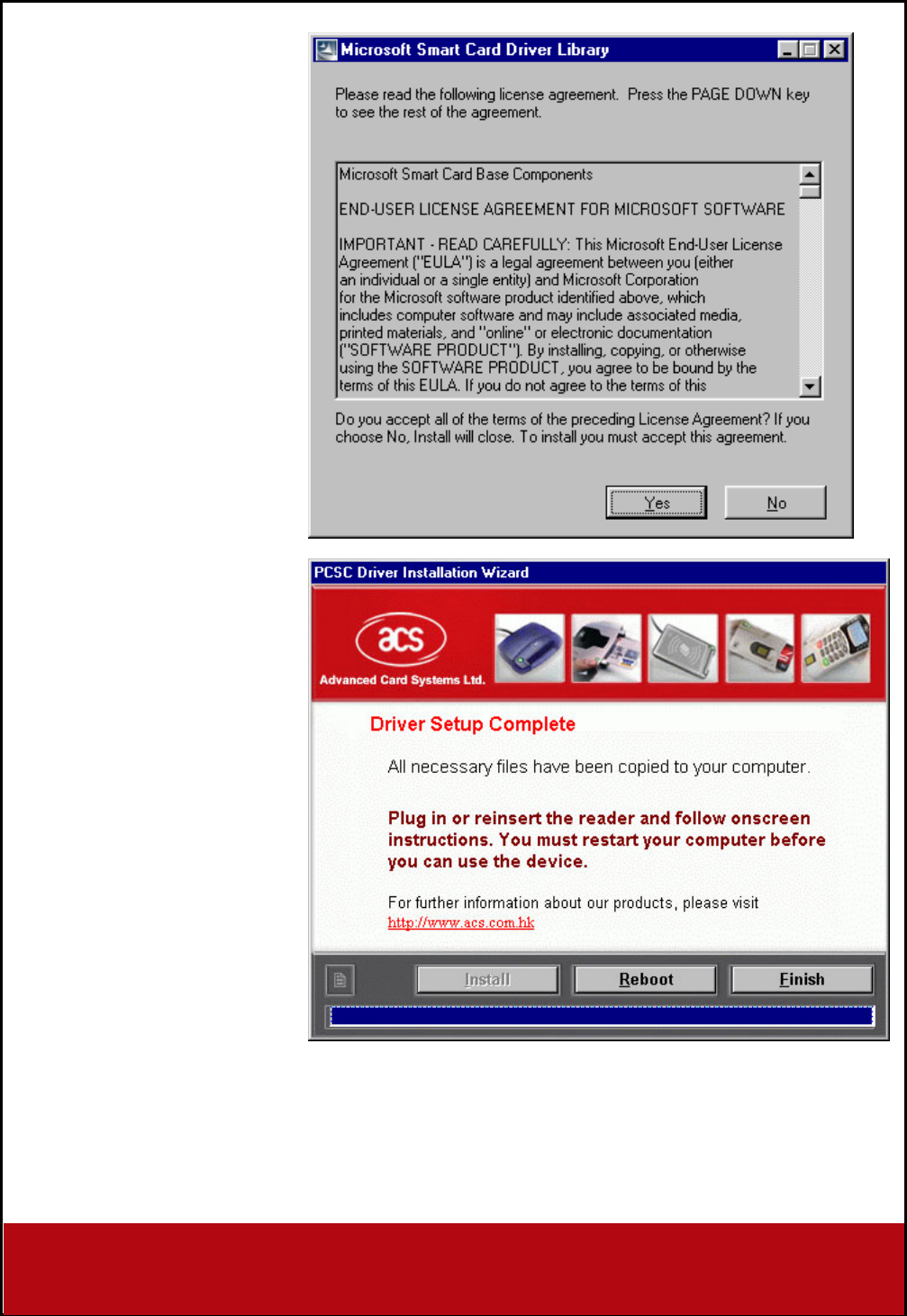

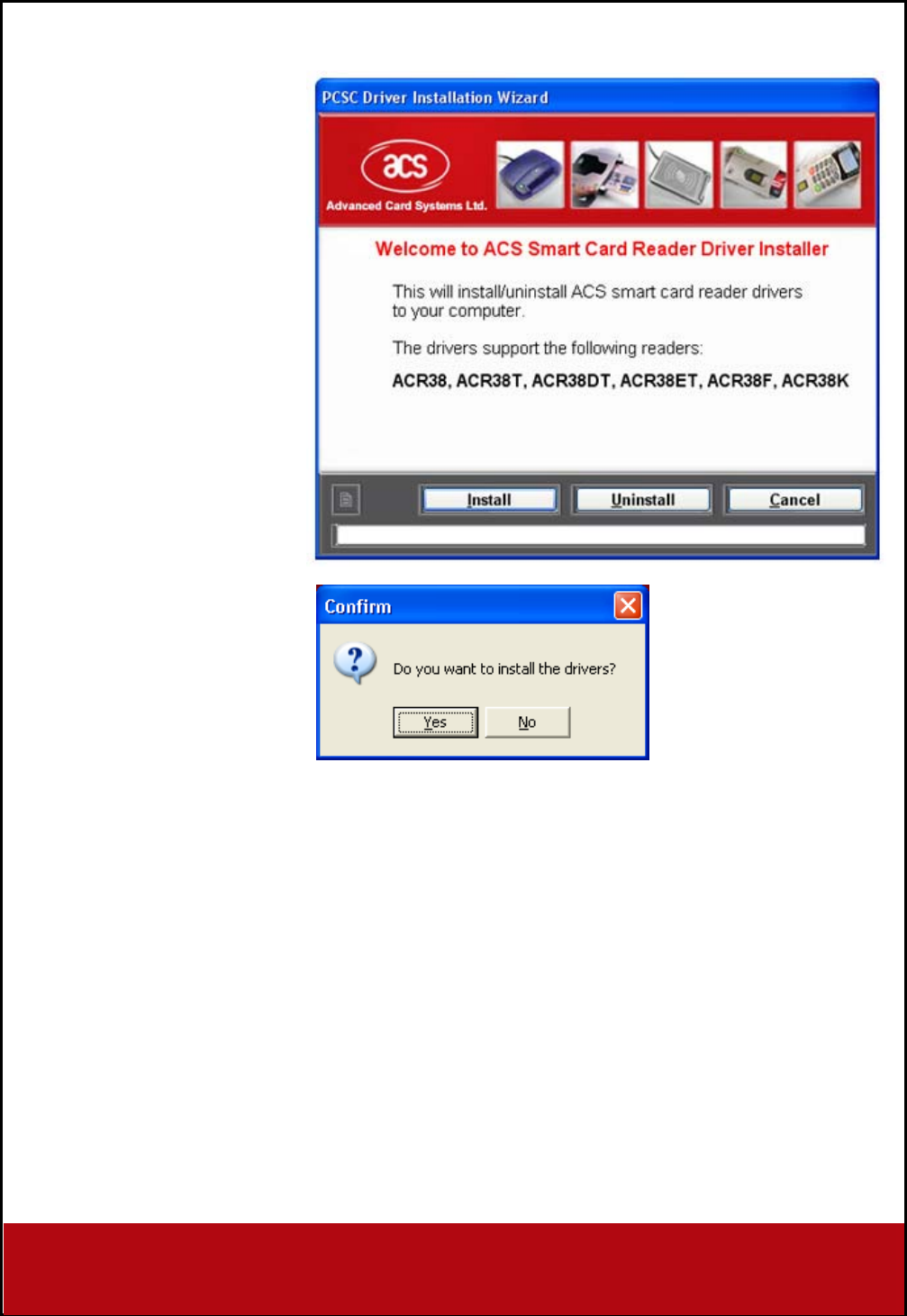

1. When you see the “PC/SC
Driver Installation Wizard”
window, click on “Install”. To
check the driver version or read
installation tips, click on the note
icon (located at the left of the
buttons) to view Readme File.
2. When prompted whether you
want to install the drivers, click
“Yes”.
Advanced Card Systems Ltd. Page 12 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.
3. Please wait while the PC/SC
Driver Installation Wizard prepares
the installation.
4. Please plug in or reinsert the
reader then proceed to Second
Stage Installation. When done,
click on "Finish" to exit program.
Advanced Card Systems Ltd. Page 13 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.
Second Stage Installation
Note: This stage will always be encountered if it is the first time the device is plugged into the USB slot.

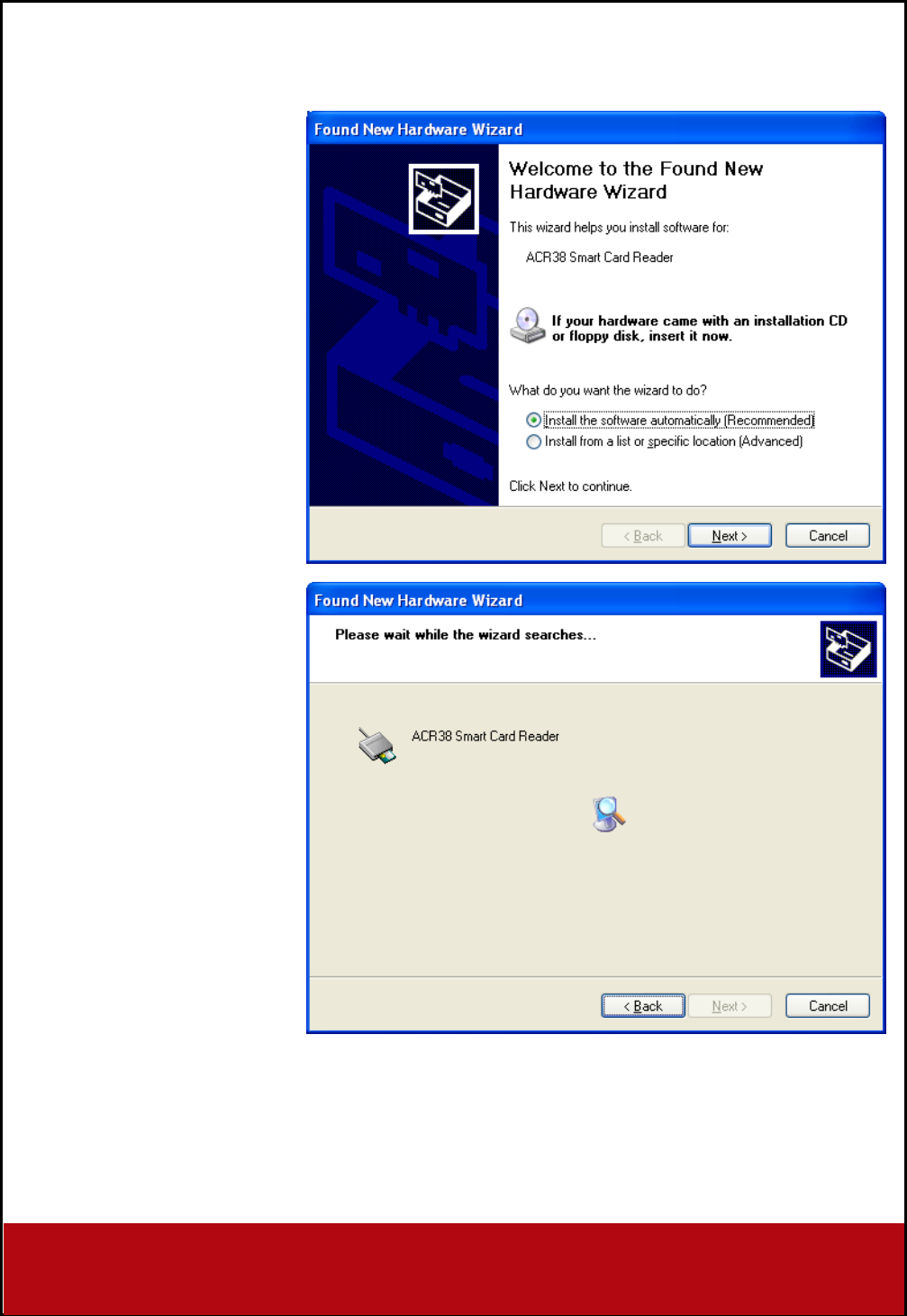

1. The Found New Hardware
dialog will appear at the bottom right
corner. In the Found New
Hardware Wizard window, leave the
“Install the software automatically
(Recommended)” option selected
then click “Next >”.
2. Please wait while the wizard
searches for the ACR38 Smart Card
Reader device driver.
Advanced Card Systems Ltd. Page 14 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.

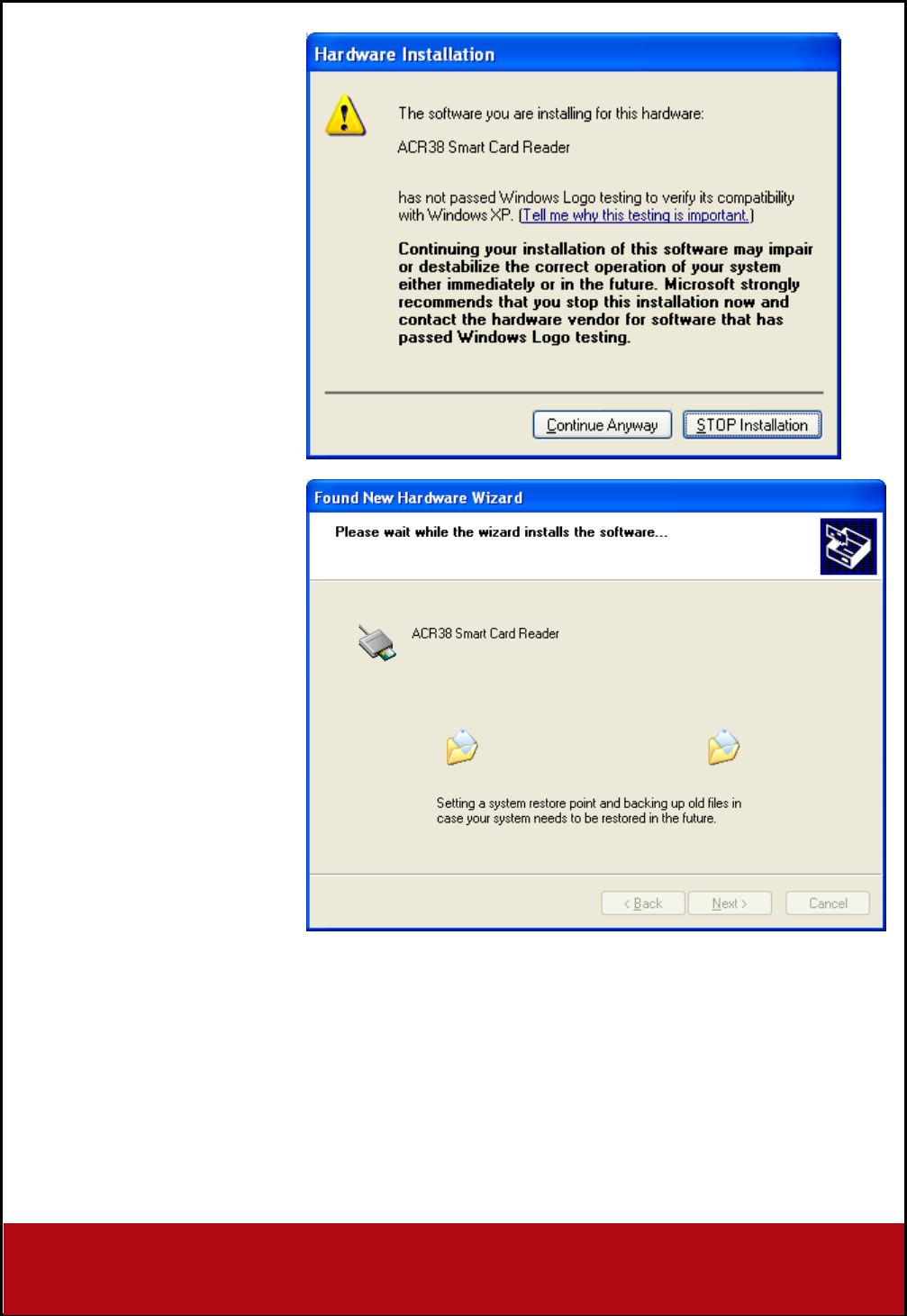

3. On “Hardware Installation”
window, you are prompted with the
following message:
“ACR38 Smart Card Reader has
not passed Windows Logo testing
to verify its compatibility with
Windows XP.”
Click “Continue Anyway”. The
drivers are tested and should work
correctly with Windows.
4. Please wait while the wizard
installs the software.
Advanced Card Systems Ltd. Page 15 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.

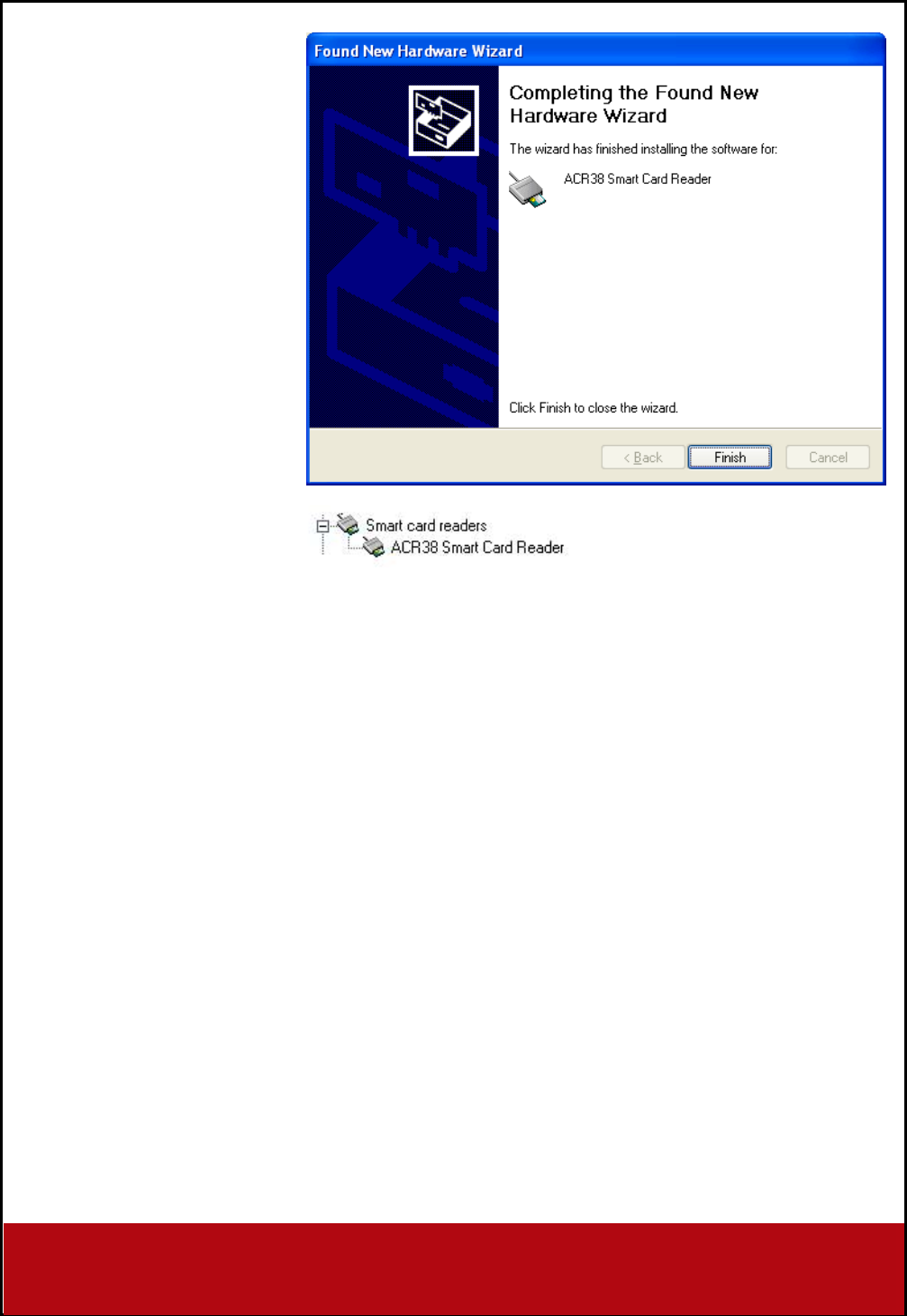

5. Click “Finish” to close the
wizard.
6. To check whether you have
successfully installed the drivers, go
to:
Start → Settings → Control Panel
→ System → Hardware → Device
Manager

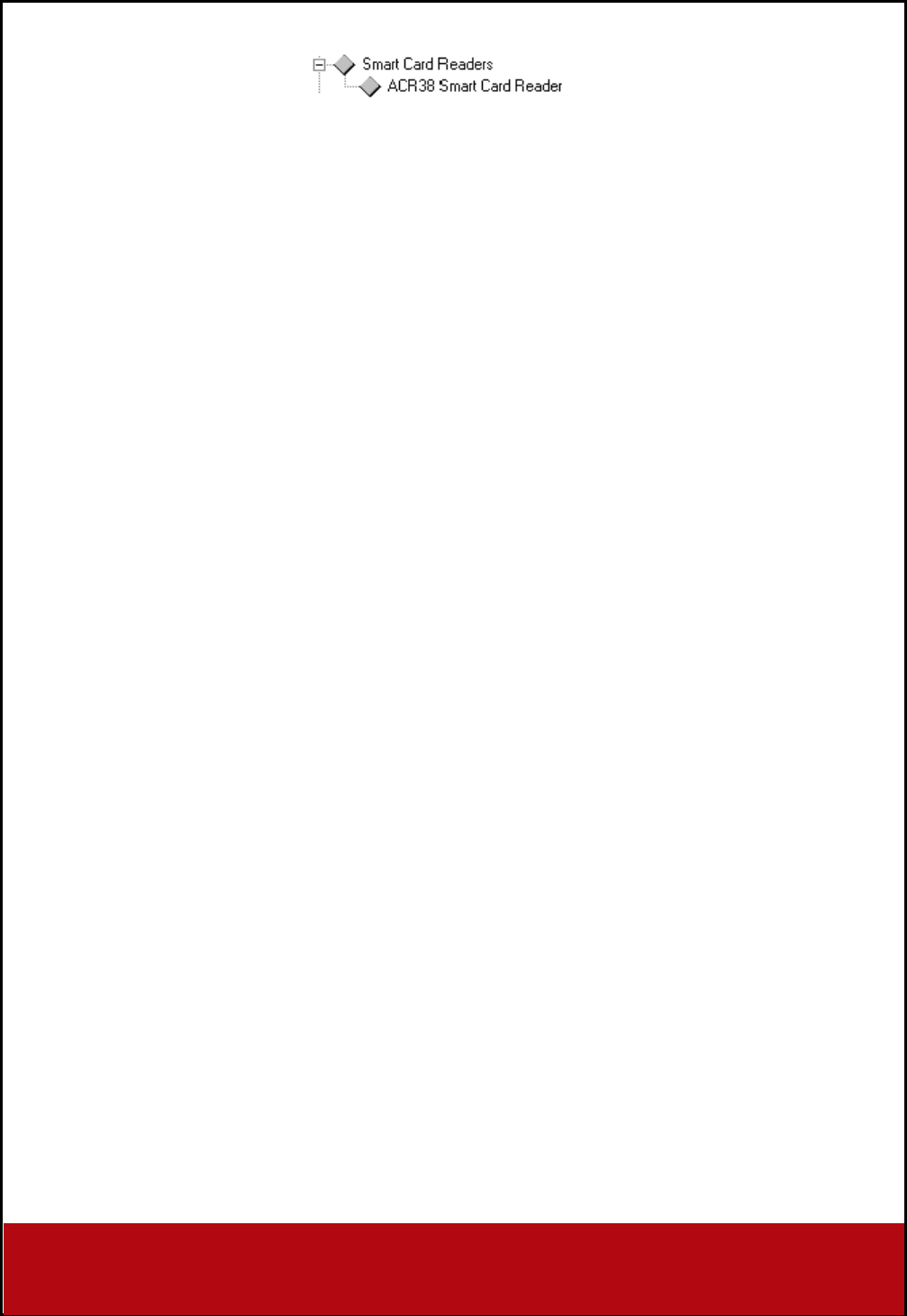

The Windows Device Manager
should list the ACR38 Smart Card
Reader device under the Smart card
readers’ device type.
Advanced Card Systems Ltd. Page 16 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.
B.3 ACR38DT Driver Installation on Windows 98SE/ME
Click on “Step 4. Install ACR38DT Reader Driver” from the ACR120S Contactless Reader SDK Setup GUI and follow
the instructions below.
Advanced Card Systems Ltd. Page 17 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.

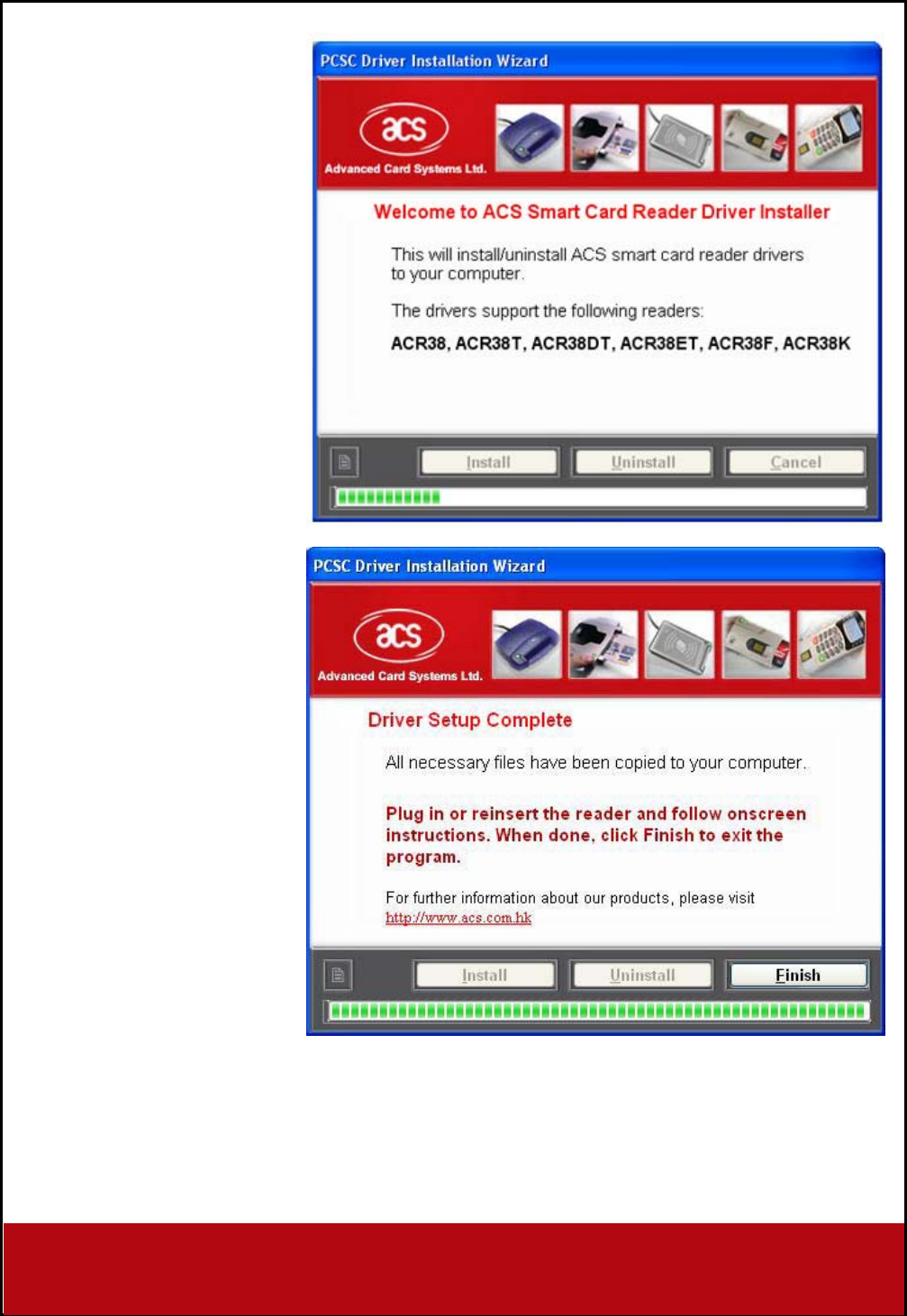

1. When you see the “PC/SC
Driver Installation Wizard”
window, click on “Install”.
To check the driver version or read
installation tips, click on the note
icon (located at the left of the
buttons) to view Readme File.
2. When prompted whether you
want to install the drivers, click
“Yes”.
3. Please wait while the PC/SC
Driver Installation Wizard
prepares the installation.
Advanced Card Systems Ltd. Page 18 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.
4. The driver installer will
automatically install the
Microsoft Smart Card Base
Components.
Click “Yes” to accept license
agreement.
Note:
PC/SC components are already
installed on Windows XP/2000 so
you will not encounter this instruction
during installation.
5. Before clicking the “Reboot”
button, connect the ACR38
device first into an available
USB port. Wait until the New
Hardware Found window
disappears. You may now click
on “Reboot” button for the
changes to take effect.
Advanced Card Systems Ltd. Page 19 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.
6. To check whether you have
successfully installed the
drivers, go to:
Start → Settings → Control Panel
→ System → Device Manager
The Windows Device Manager
should list the ACR38 Smart Card
Reader device under the Smart Card
Readers’ device type.
Advanced Card Systems Ltd. Page 20 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.
C. SDK Installation

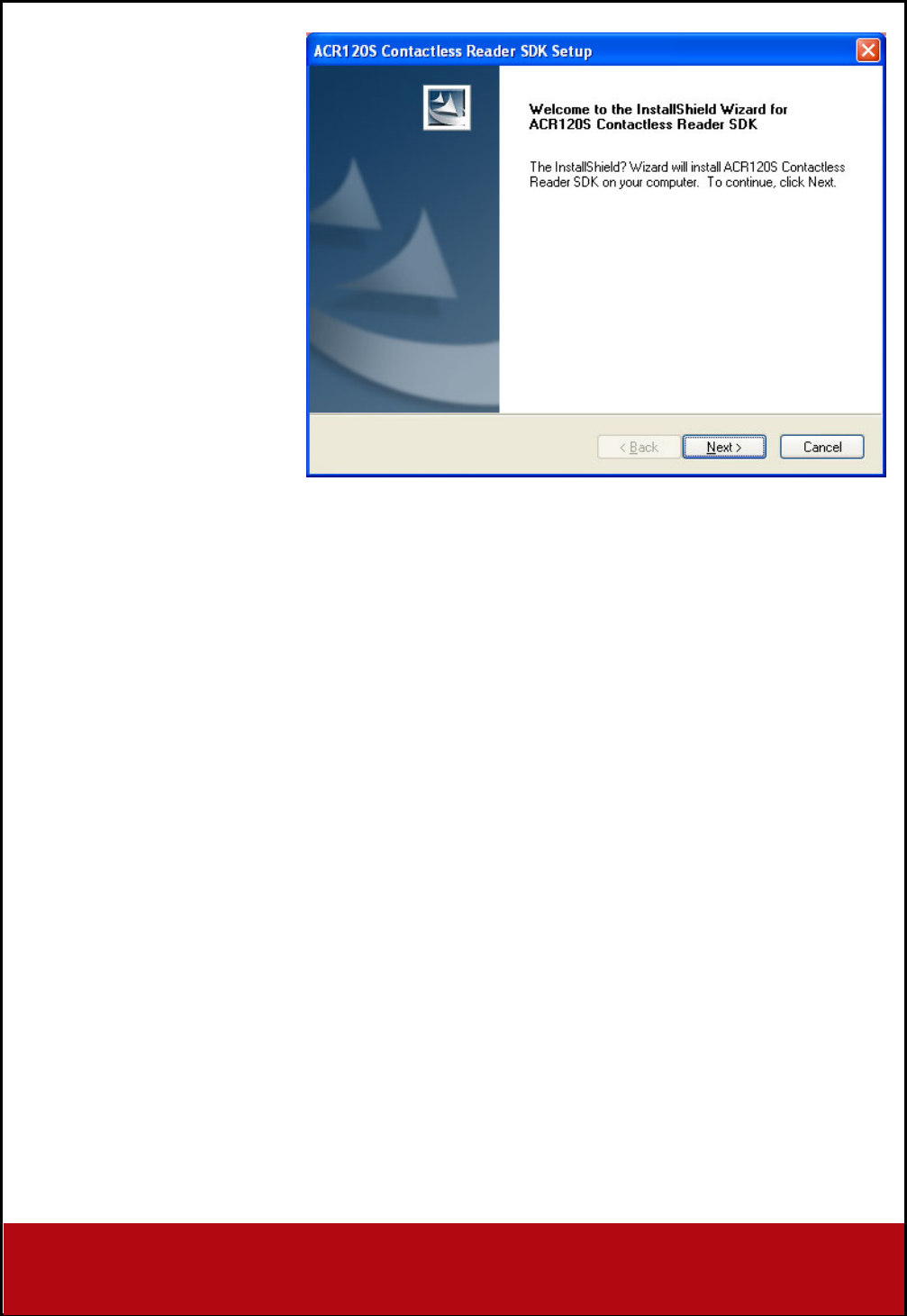

1. Click on “Step 3. Install
SDK Components” and you will
be prompted with the
InstallShield Wizard for
ACR120S Contactless Reader
SDK.
2. Please wait while
InstallShield Wizard prepares
the setup.
Advanced Card Systems Ltd. Page 21 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.
3. Click “Next>” to continue
installation.
Advanced Card Systems Ltd. Page 22 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.

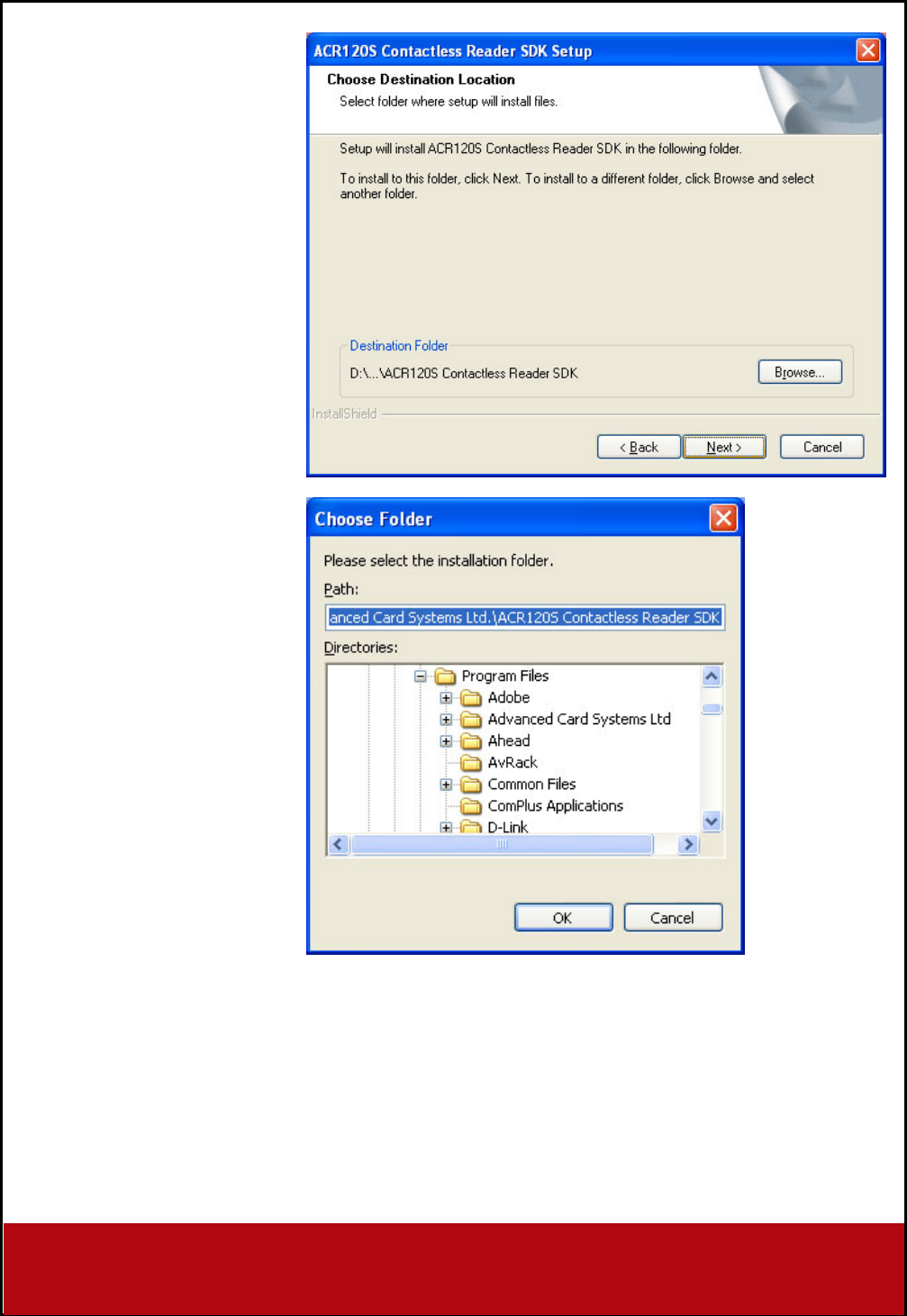

4. When prompted to choose
the destination location, click on
“Next>”. The default installation
path is X:\Program
Files\Advanced Card Systems
Ltd\ACR120S Contactless
Reader SDK, where X is the
drive letter of your local
Windows drive.
Note: If you want to change the
destination path, click on
“Browse….” When the Choose
Folder window appears, change
the path to your preferred folder
then, click “OK”.
Advanced Card Systems Ltd. Page 23 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.

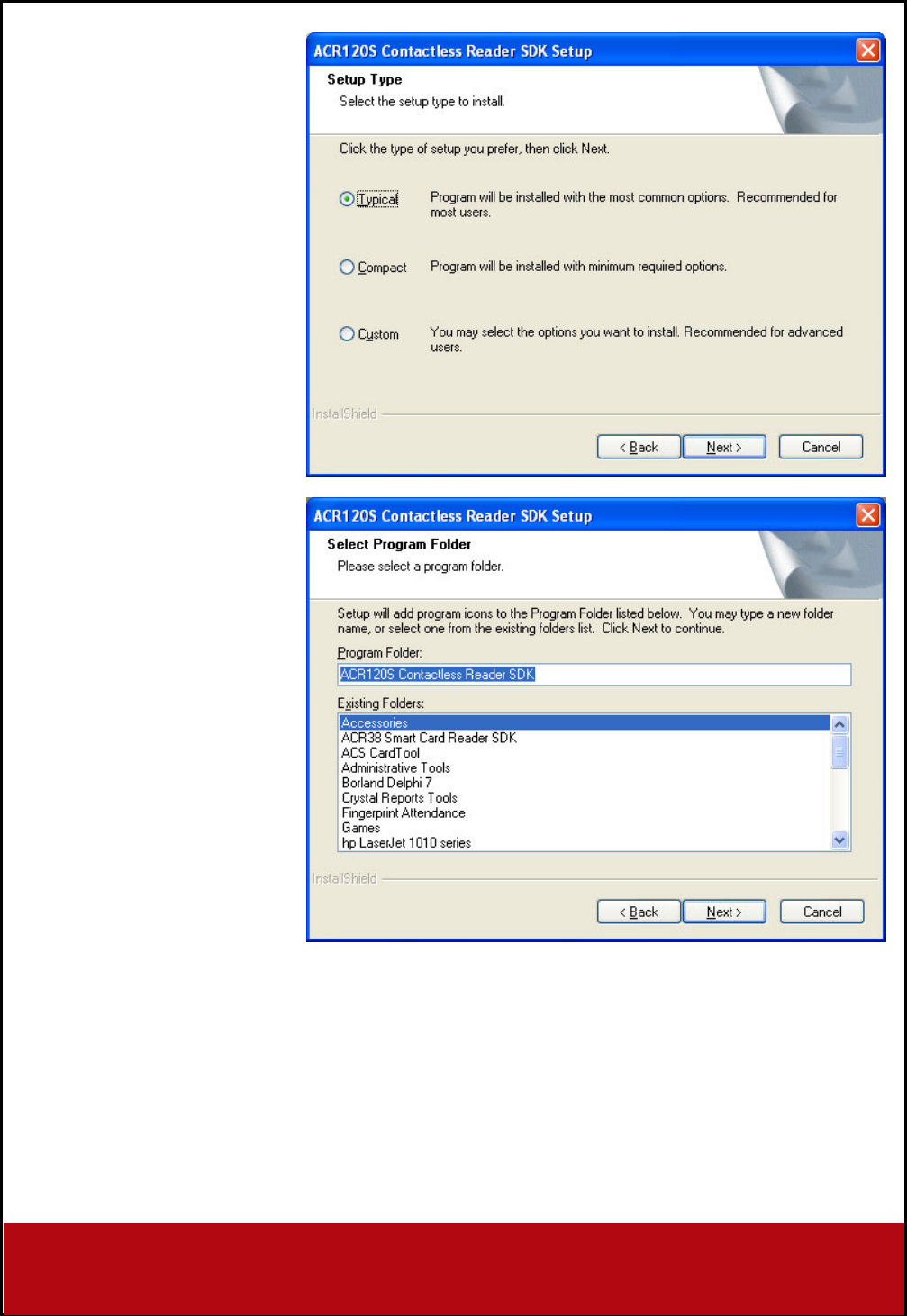

5. In the Setup Type window,
leave the Typical option
selected then, click “Next>”.
6. When prompted with the
Select Program Folder window,
click “Next>”. Default program
folder that will be created is
ACR120S Contactless Reader
SDK. If you want a different
folder, type a new program
folder name.
Advanced Card Systems Ltd. Page 24 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.
7. Please wait while the
software is being configured.
8. ACR120S Contactless
Reader SDK installation has
been successfully installed. Click
“Finish” to complete setup.
Advanced Card Systems Ltd. Page 25 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.
IV. SDK Components
A. Sample Application
A.1 Multi-Application Demo
This demo program shows how the ACR120S is used in real-world applications. The Mifare card /
ACR38DT is used as stored-value for:
Parking
Train Ticket
Vending Machine
Weighing Machine
Loyalty Application
For detailed explanation on how to use the ACR120 Multi-Application Demo, please refer to the ACR120
Demo Guide.
B. Sample Codes
The sample codes provided in the SDK Kit are written in 3 programming languages: Delphi (Borland Delphi
7.0), C (Microsoft Visual C++ 6.0), and Visual Basic (Microsoft Visual Basic 6.0).
Advanced Card Systems Ltd. Page 26 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.
C. Tools and Utilities
The following tools are included in the SDK CD-ROM:
C.1 ACR120 Tool
ACR120 Tool is an application utility that allows you to examine and manipulate contents inside a
contactless smart card. It can also be used for different ISO 14443 contactless smart cards available in the
market.
This utility supports two interface types of ACR120 readers, the ACR120S (Serial Interface) and ACR120U
(USB Interface).
Also, the utility does not support Windows NT.
Note:

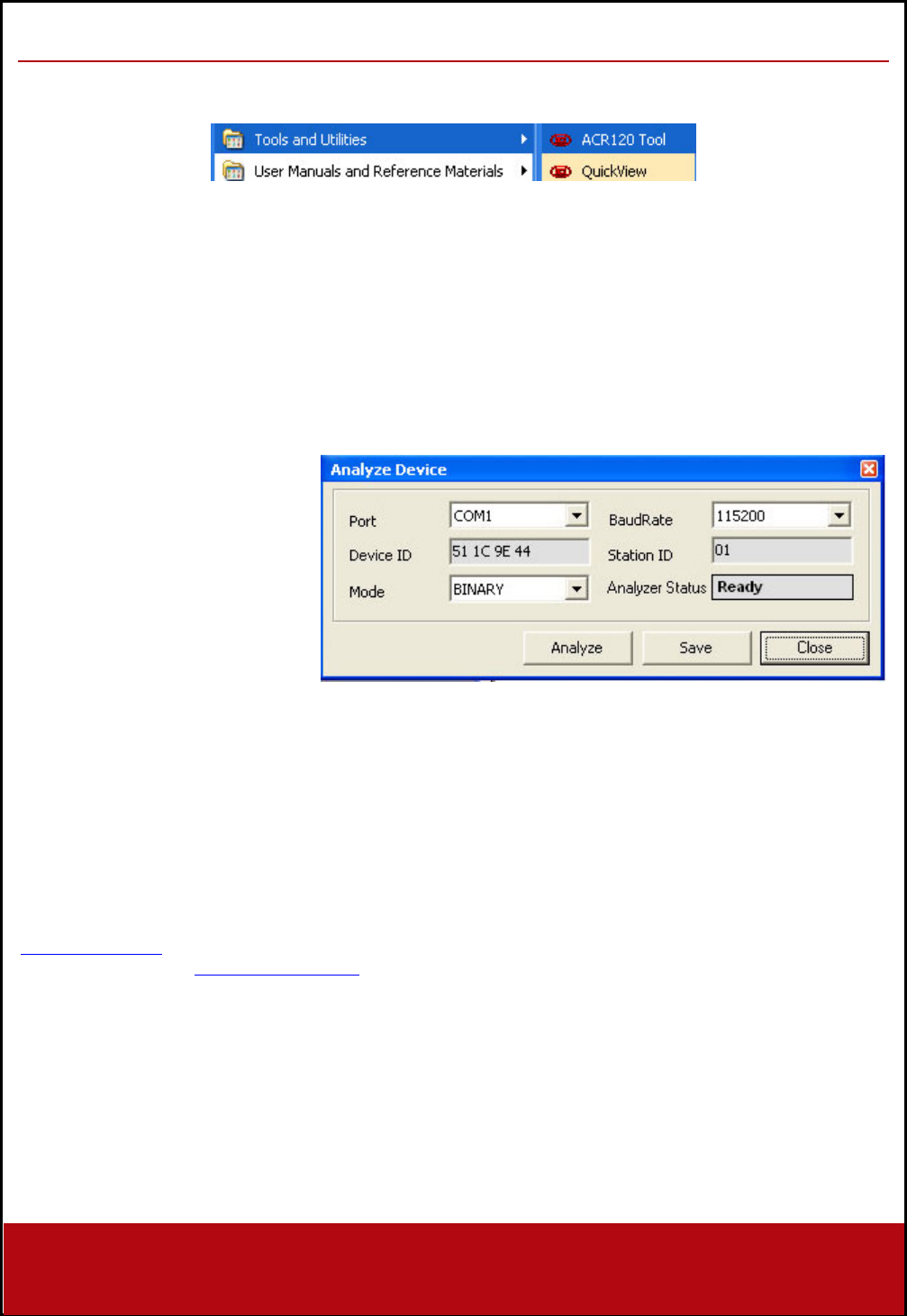

In the Analyze Device command,
make sure the reader Mode is set
to Binary for the ACR120S Tool to
work properly.
For detailed explanation on how to
use the ACR120 Tool, please refer
to its Help file.
C.2 QuickView
This is a utility program that checks if you have properly installed your ACR3x readers. This tool works with
your ACR38DT DualKey only.
To use this tool, make sure you have properly installed and connected the ACR38DT to your PC. Check the
Driver Installation Section on how to install device driver then plug your ACR38DT into an available USB
Port on your PC (see Connection Diagram Section).
For detailed explanation on how to use this tool, you may check the Help menu on the program.
Advanced Card Systems Ltd. Page 27 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
ACR120S SDK User Manual version 2.2 April 2006
Advanced Card Systems Ltd.
D. User Manuals and Reference Materials
The SDK includes the following Technical and Reference Manuals:
ACR120S SDK User Manual
ACR120S API
ACR38DT Technical Specifications
ACR120 Technical Specifications
ACR120S Communication Protocol
Mifare 1K Card Reference Manual
Mifare 4K Card Reference Manual
ACR120S - ACR120U Porting Guide
ACR120 Wall Mounting Procedures
ACS Product Guide
Advanced Card Systems Ltd. Page 28 of 28
Tel: +852 2796 7873 Fax: +852 2796 1286
Website: www.acs.com.hk Email: info@acs.com.hk
Unit 1008, 10th Floor
Hongkong International Trade and Exhibition Centre
1 Trademart Drive, Kowloon Bay, Hong Kong
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
