Advanced Card Systems ACR1251T USB Token NFC Reader User Manual ProjectName Design Specifications Va bb
Advanced Card Systems Limited USB Token NFC Reader ProjectName Design Specifications Va bb
User Manual
Subject to change without prior notice info@acs.com.hk
www.acs.com.hk
ACR1251T User Manual V1.00
User Manual
ACR1251T
ACR1251T User Manual info@acs.com.hk
Version 1.00 www.acs.com.hk
Page 2 of 12
www.acs.com
.hk
Table of Contents
1.0. INTRODUCTION .................................................................................................................................... 3
2.0. FEATURES ............................................................................................................................................. 4
3.0. ARCHITECTURE ..................................................................................................................................... 5
4.0. ACR1251T OPERATING PROCEDURE ..................................................................................................... 7
4.1. DRIVER INSTALLATION PROCEDURE ................................................................................................................ 7
4.2. OPERATION EXAMPLE ................................................................................................................................ 10
ACR1251T User Manual info@acs.com.hk
Version 1.00 www.acs.com.hk
Page 3 of 12
www.acs.com
.hk
1.0. Introduction
The ACR1251T is a reader (IFD and PCD) reader which supports contactless (PICC) smart cards.
ACR1251T User Manual info@acs.com.hk
Version 1.00 www.acs.com.hk
Page 4 of 12
www.acs.com
.hk
2.0. Features
ISO 14443 Parts 1-4 Compliant for Contactless Smart Card Interface.
ISO 18092 Compliant for Contactless Smart Card Interface.
An external antenna for PICC contactless access applications.
Supports the following Tag Types:
o MIFARE Classic. E.g. MIFARE 1K, 4K, MINI and Ultralight.
o ISO14443-4 Type A and B.
o ISO18092 FeliCa, NFC tag
T=CL emulation for MIFare 1K/4K PICCs
High Speed (424 kbps) Communication for PICCs
Energy saving modes for turning off the antenna field whenever the PICC is inactive,
or no PICC is found. It prevents the PICC from exposing to the field all the time.
User-Controllable Peripherals. E.g. LED.
PCSC Compliant for Contact and Contactless Interfaces.
USB V2.0 Interface. (12M bps)
Device Firmware Upgradeable through the USB Interface.
ACR1251T User Manual info@acs.com.hk
Version 1.00 www.acs.com.hk
Page 5 of 12
www.acs.com
.hk
3.0. Architecture
AT90SCR is for main processor for communication with PC, and control the contactless chip and
peripherals. PN512 acts as a contactless chip to perform the communication between contactless
tags and AT90SCR.
For communication architecture, the protocol between ACR1251T and PC is using CCID protocol. All
the communication between PICC is PCSC Compliant.
ACR1251T
Antenna
AT90SCR200H Host
Controller
LEDs
PN512
NFC
Interface
chip
PC
Operation
System
PICC
Contactless
Tag
Contactless Interface
Carrier Frequency = 13.56MHz
ACR1251T User Manual info@acs.com.hk
Version 1.00 www.acs.com.hk
Page 6 of 12
www.acs.com
.hk
PCSC Layer
ISO 14443 Parts 1-4
/ ISO 18092
PICC Interface
PICC
(Built-in Antenna)
USB
Interface
(CCID)
Physical
Interface
ACR1251T
ACR1251T PCSC
PICC Interface
T=CL & T=1
Emulation
ACR1251T User Manual info@acs.com.hk
Version 1.00 www.acs.com.hk
Page 7 of 12
www.acs.com
.hk
4.0. ACR1251T Operating Procedure
4.1. Driver installation Procedure
Hardware requires:
ACR1251T
PC with OS window XP or above
Software requires:
Driver installer “ACS_Unified_PCSC_Driver_Installer_bin-4.0.6.0-20141114_all.zip”
Steps:

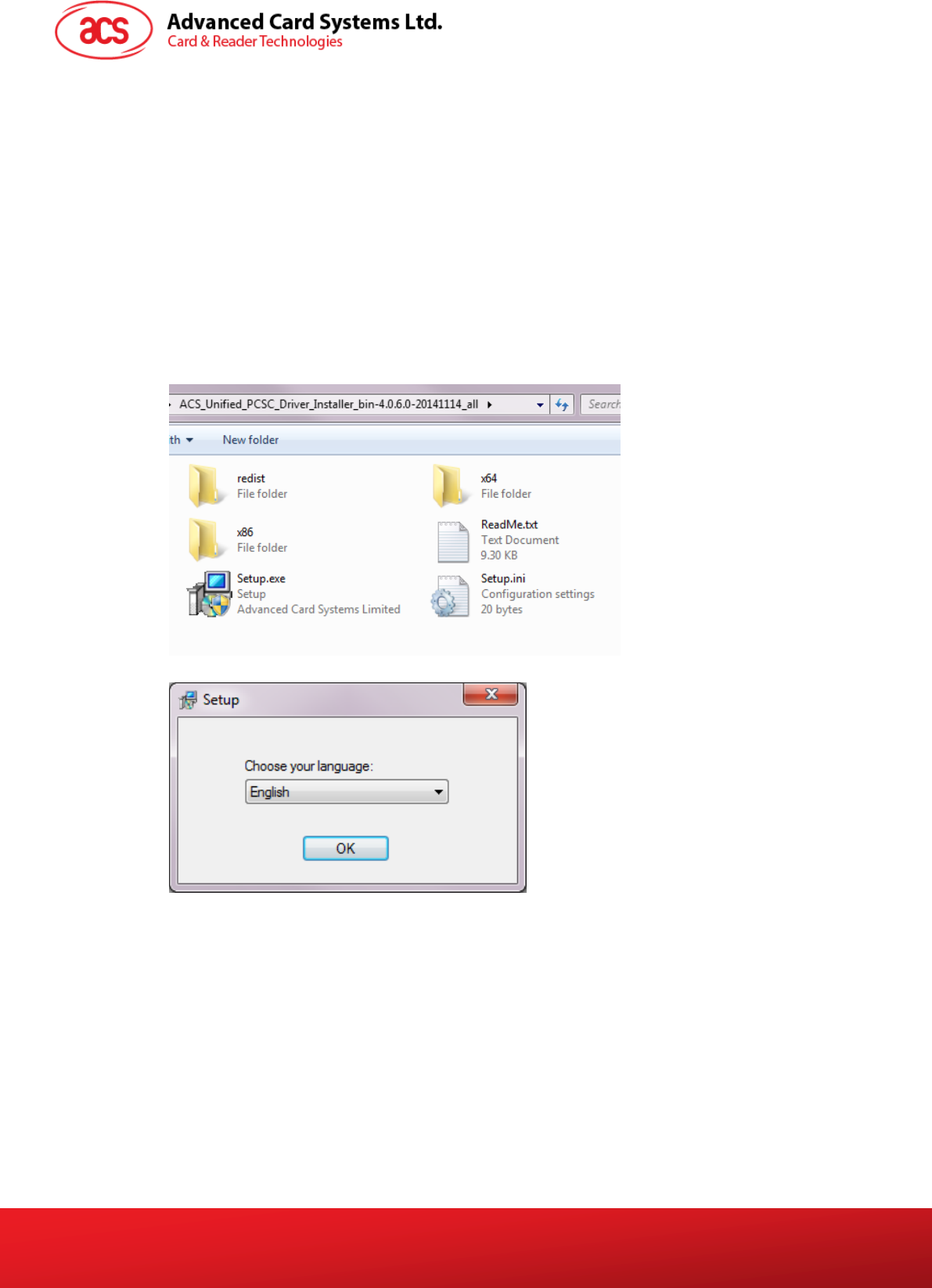

1. Extract the file “ACS_Unified_PCSC_Driver_Installer_bin-4.0.6.0-20141114_all.zip”
2. Execute “Setup.exe”
3. Below screen will be shown
Select the language, then Click “OK”
ACR1251T User Manual info@acs.com.hk
Version 1.00 www.acs.com.hk
Page 8 of 12
www.acs.com
.hk

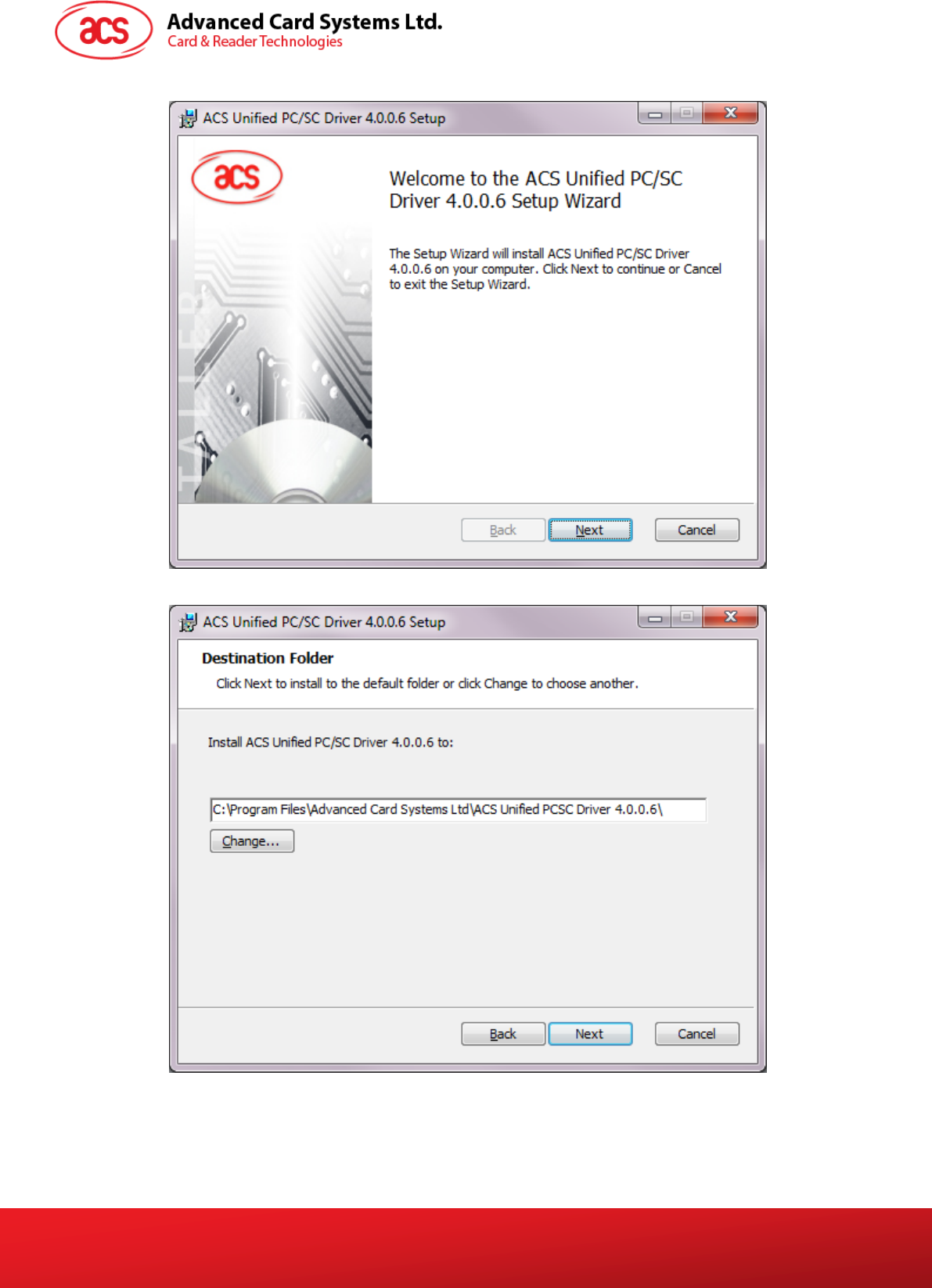

4. Below screen will be shown, “Next” to continue
5. Below screen will be shown, configure the installation path, then “Next” to continue
ACR1251T User Manual info@acs.com.hk
Version 1.00 www.acs.com.hk
Page 9 of 12
www.acs.com
.hk

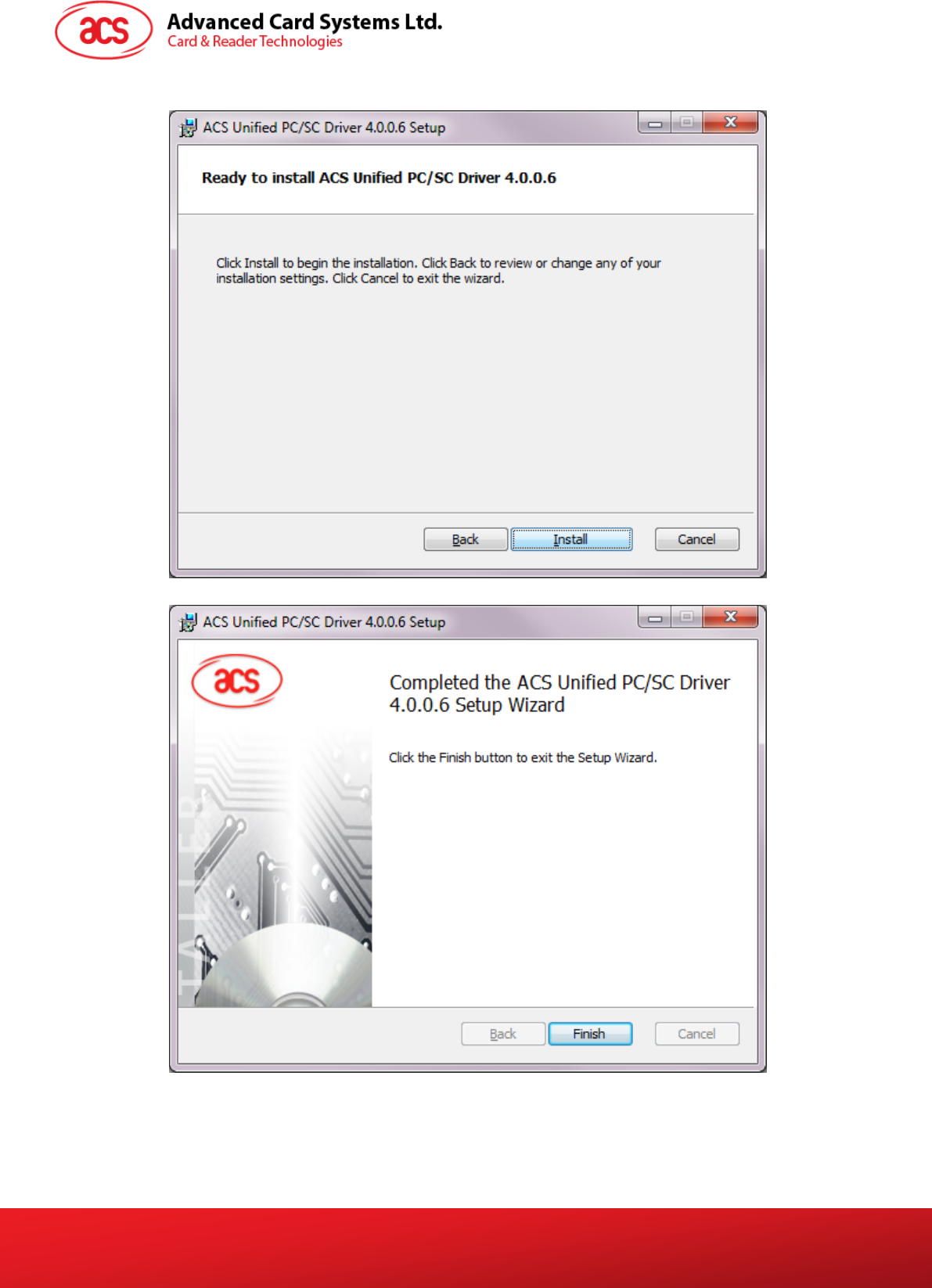

6. Below screen will be shown, “Install” to continue
7. Waiting until below screen shown
Click “Finish”
8. Driver Installation Complete
ACR1251T User Manual info@acs.com.hk
Version 1.00 www.acs.com.hk
Page 10 of 12
www.acs.com
.hk
4.2. Operation Example
Hardware requires:
ACR1251T
PC with OS window XP or above
Test card x 1 (provided by ACS)
Software requires:
APDU.exe (for example)
Steps:
1. Plug in the reader into the PC
2. Place the Test Card on the top of the reader about 5cm
3. Open “APDU.exe”

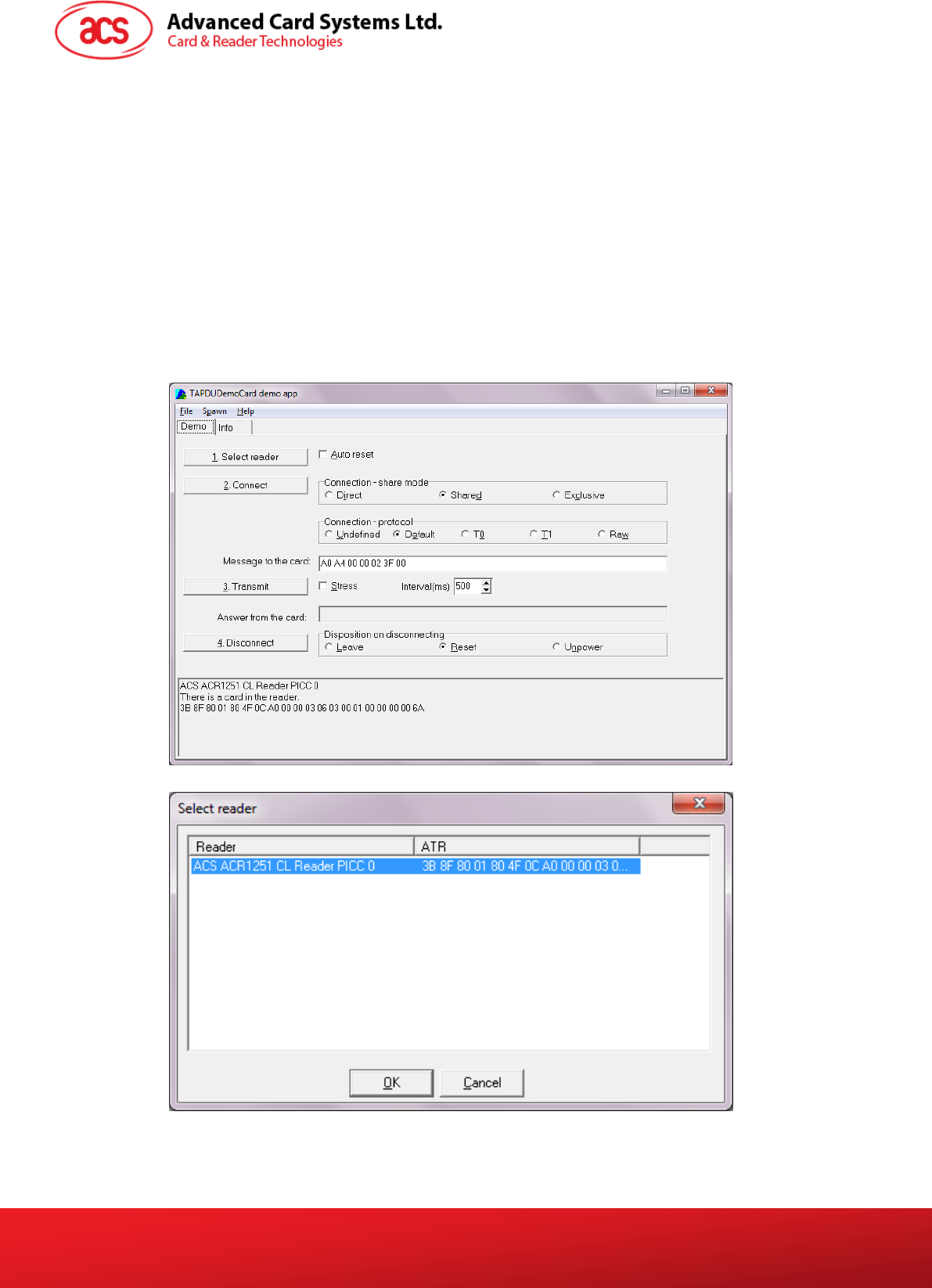

4. Click “1. Select reader”, Chose “ACS ACR1251 CL Reader PICC 0”, then click “OK”
5. Select “T1”, “Stress”, Message = “FF CA 00 00 00”, Interval = “500”
ACR1251T User Manual info@acs.com.hk
Version 1.00 www.acs.com.hk
Page 11 of 12
www.acs.com
.hk

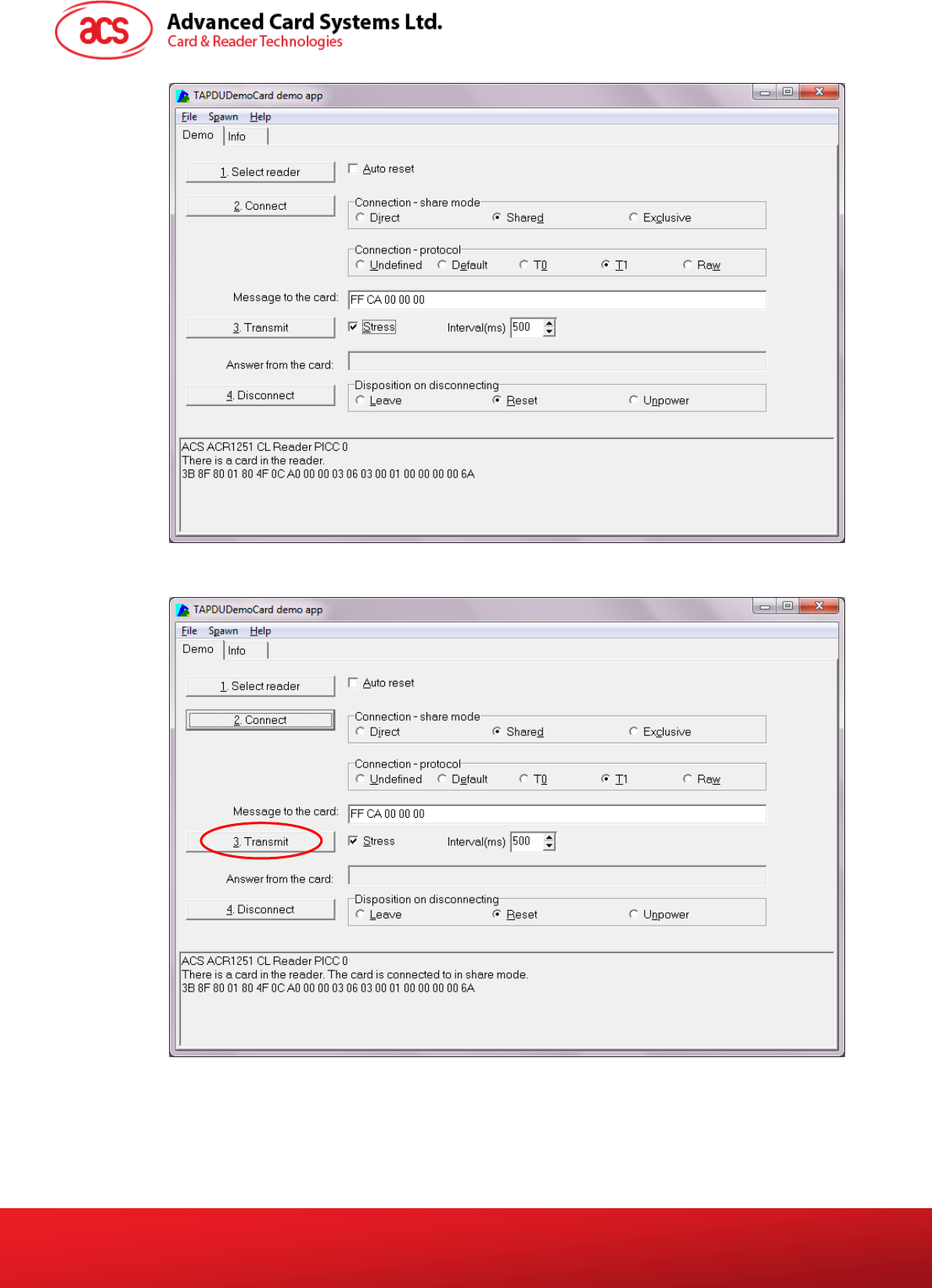

6. Press “Connect”
7. Press “Transmit” to start the testing

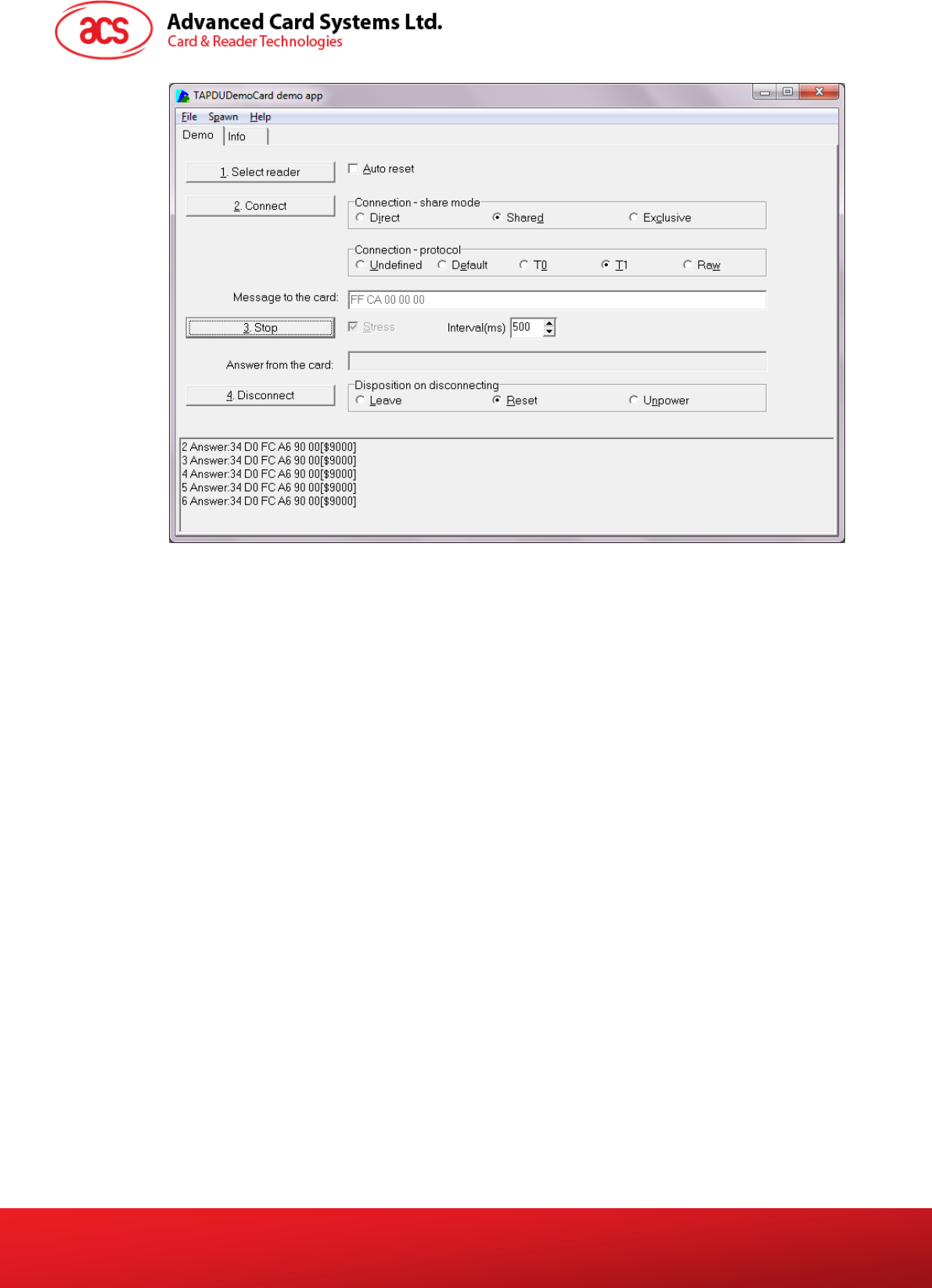

8. Below screen will be shown
ACR1251T User Manual info@acs.com.hk
Version 1.00 www.acs.com.hk
Page 12 of 12
www.acs.com
.hk
9. Can start the Lab Test
FCC Warning：
Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe
followingtwoconditions:
(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptany
interferencereceived,includinginterferencethatmaycauseundesiredoperation.Any
Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB
digitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedto
providereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.
Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnot
installedandusedinaccordancewiththeinstructions,maycauseharmfulinterference
toradiocommunications.However,thereisnoguaranteethatinterferencewillnot
occurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferenceto
radioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff
andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe
followingmeasures:
—Reorientorrelocatethereceivingantenna.
—Increasetheseparationbetweentheequipmentandreceiver.
—Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe
receiverisconnected.
—Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
