Advanced Card Systems ACR1251U-C Smart Card Reader User Manual
Advanced Card Systems Limited Smart Card Reader Users Manual
Users Manual
Subject to change without prior notice info@acs.com.hk
www.acs.com.hk
Name Signature Date
Prepared by: Kit Au 2013-03-27
Reviewed by:
Approved by:
ACR1251U-C User Manual V1.00
ACR1251U-C
User Manual
ACR1251U-C User Manual info@acs.com.hk
Version 1.00.00 www.acs.com.hk
Page 2 of 13
Version History
Date By Changes Version
2013-06-26 Kit Au ● First Release 1.00.00
●
ACR1251U-C User Manual info@acs.com.hk
Version 1.00.00 www.acs.com.hk
Page 3 of 13
Table of Contents
1.0. Introduction ............................................................................................................. 4
2.0. Features ................................................................................................................... 5
3.0. Architecture ............................................................................................................. 5
4.0. ACR1251U-C Operating Procedur e ...................................................................... 7
4.1. Driver installation Procedure .................................................................................................. 7
4.2. Operation Example .............................................................................................................. 10
Appendix A. Parameter sheet ........................................................................................ 12
ACR1251U-C User Manual info@acs.com.hk
Version 1.00.00 www.acs.com.hk
Page 4 of 13
1.0. Introduction
The ACR1251U-C is a dual-interface reader (IFD and PCD) that supports contact
(ICC), sim size contact (SAM) and contactless (PICC) smart cards.
ACR1251U-C User Manual info@acs.com.hk
Version 1.00.00 www.acs.com.hk
Page 5 of 13
2.0. Features
One standard ICC landing type card acceptor.
One SAM socket
ISO 7816 Parts 1-4 Compliant for Contact Smart Card Interface.
The ACR1251U-C supports contact memory cards (refer to appendix D).
ISO 14443 Parts 1-4 Compliant for Contactless Smart Card Interface.
A built-in antenna for PICC contactless access applications.
The ACR1251U-C supports the following Tag Types:
o MIFARE Classic. E.g. MIFARE 1K, 4K, MINI and Ultralight.
o ISO14443-4 Type A and B.
o ISO18092 FeliCa, NFC tag
T=CL emulation for MIFare 1K/4K PICCs
High Speed (424 kbps) Communication for PICCs. #Maximum 848 kbps.
Energy saving modes for turning off the antenna field whenever the PICC is inactive,
or no PICC is found. It prevents the PICC from exposing to the field all the time.
User-Controllable Peripherals. E.g. LED, Buzzer.
PCSC Compliant for Contact and Contactless Interfaces.
USB V2.0 Interface. (12M bps)
Device Firmware Upgradeable through the USB Interface.
ACR1251U-C User Manual info@acs.com.hk
Version 1.00.00 www.acs.com.hk
Page 6 of 13

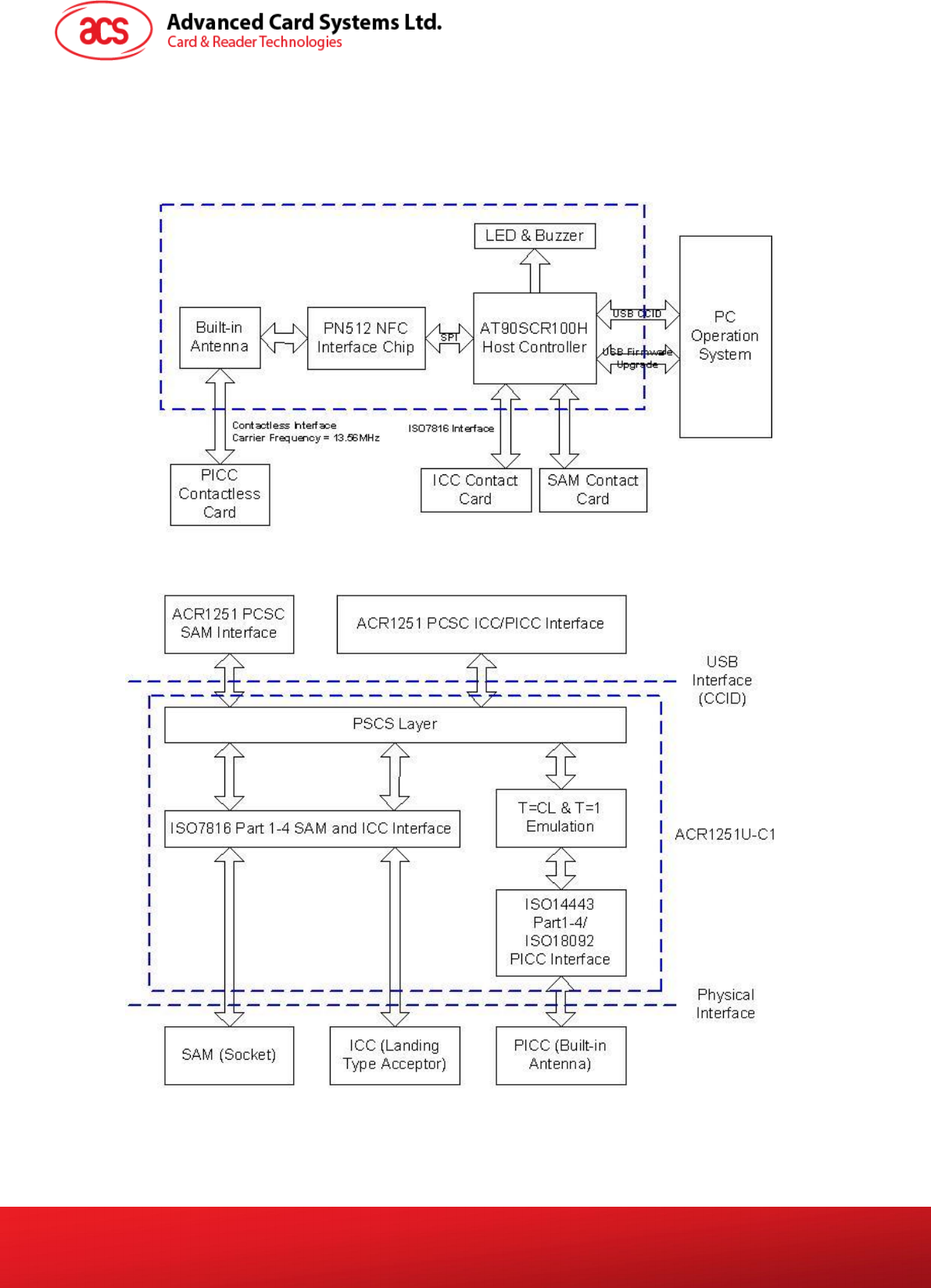

3.0. Architecture
AT90SCR is for main processor for communication with PC, and control the contactless chip,
communication with ICC contact card and peripherals. PN512 act as a contactless chip to
perform the communication between contactless tags and AT90SCR
For communication architecture, the protocol between ACR1251U-C and PC is using CCID protocol.
All the communication between ICC and PICC are PCSC Compliant
PICC and ICC are working exclusively, when ICC inserted, PICC will be disabled.
ACR1251U-C User Manual info@acs.com.hk
Version 1.00.00 www.acs.com.hk
Page 7 of 13
4.0. ACR1251U-C Operating Procedure
4.1. Driver installation Procedure
Hardware requires:
ACR1251U-C
PC with OS windows XP or above
Software requires:
Driver “Microsoft CCID Driver Version 5.2.3790.2724.rar”
Steps:
1. Extract the file “Microsoft CCID Driver Version 5.2.3790.2724.rar”
2. Plug-in the ACR1251U-C1 to PC’s USB
3. Wait for driver install message

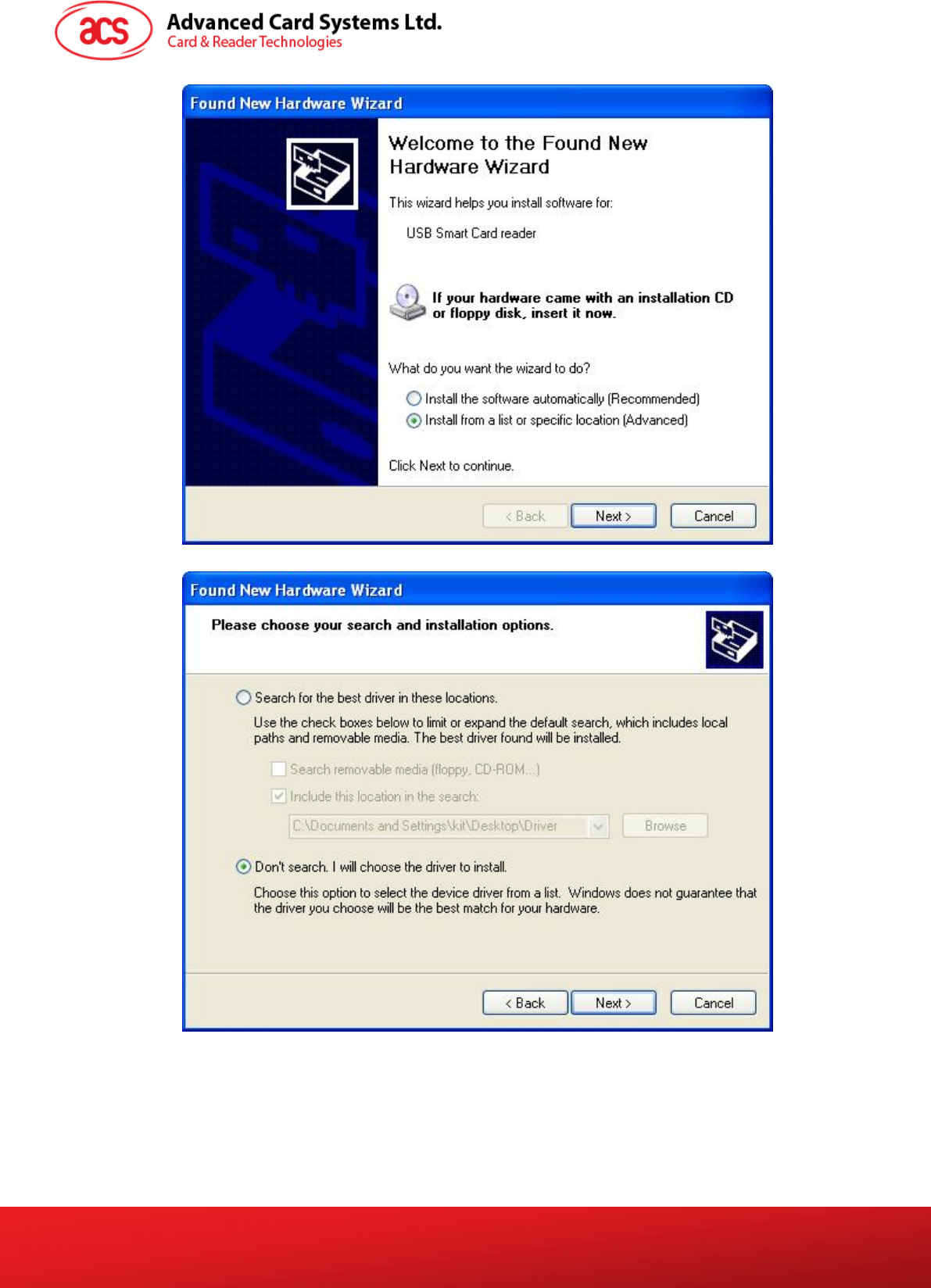

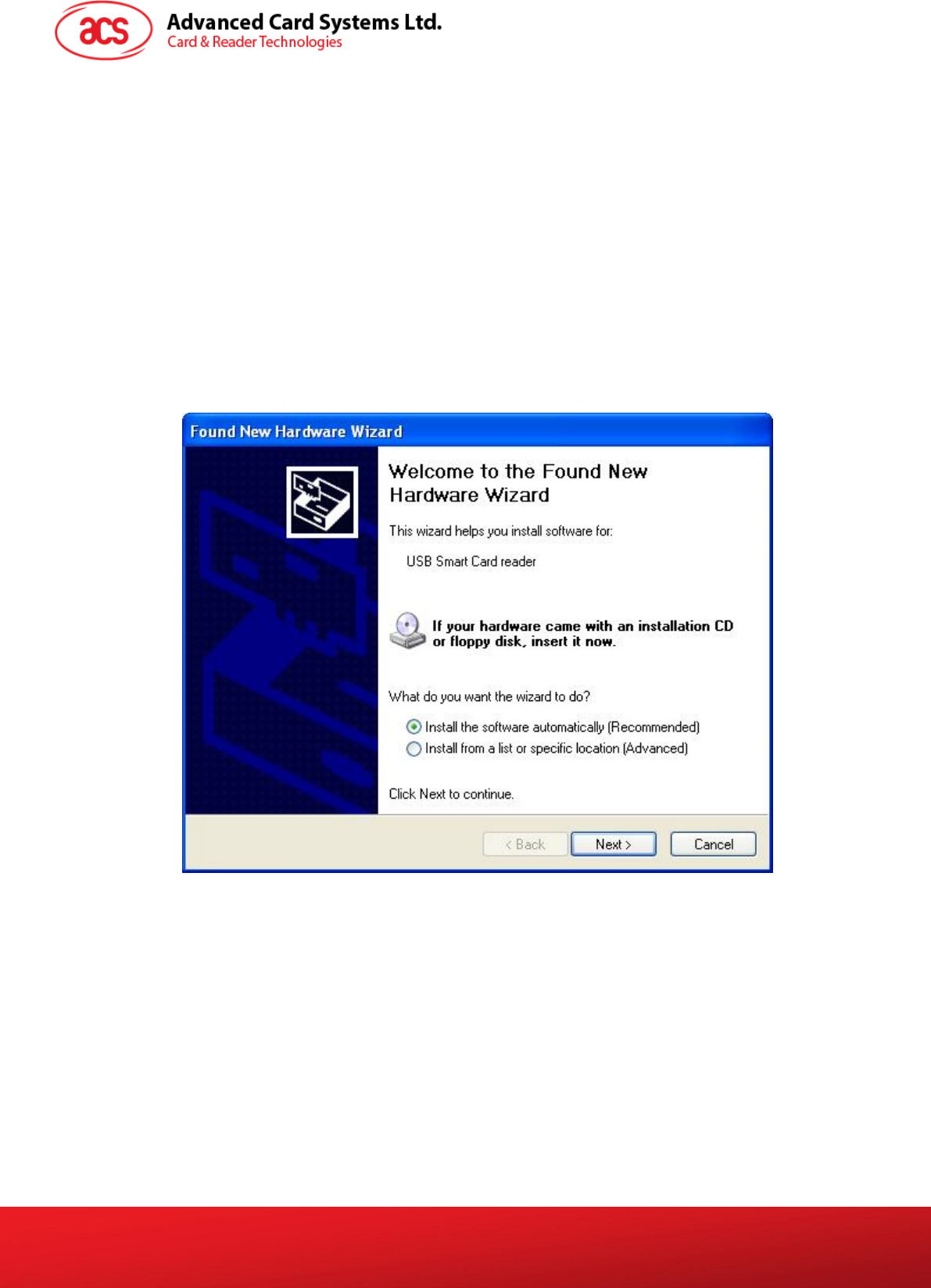

4. Select “Install from a list or specific location (Advanced)”, then “Next>”
ACR1251U-C User Manual info@acs.com.hk
Version 1.00.00 www.acs.com.hk
Page 8 of 13
5. Select “Don’t search. I will choose the driver to install”, then “Next>”
6. if present “USB Smart Card reader”, select it and then “Next>”
ACR1251U-C User Manual info@acs.com.hk
Version 1.00.00 www.acs.com.hk
Page 9 of 13
if No, click “Have Disk…”
Click “Browse…” to locate the driver (usbccid.inf) location, click “Open”
Select “USB Smart Card reader”, and then “Next>”

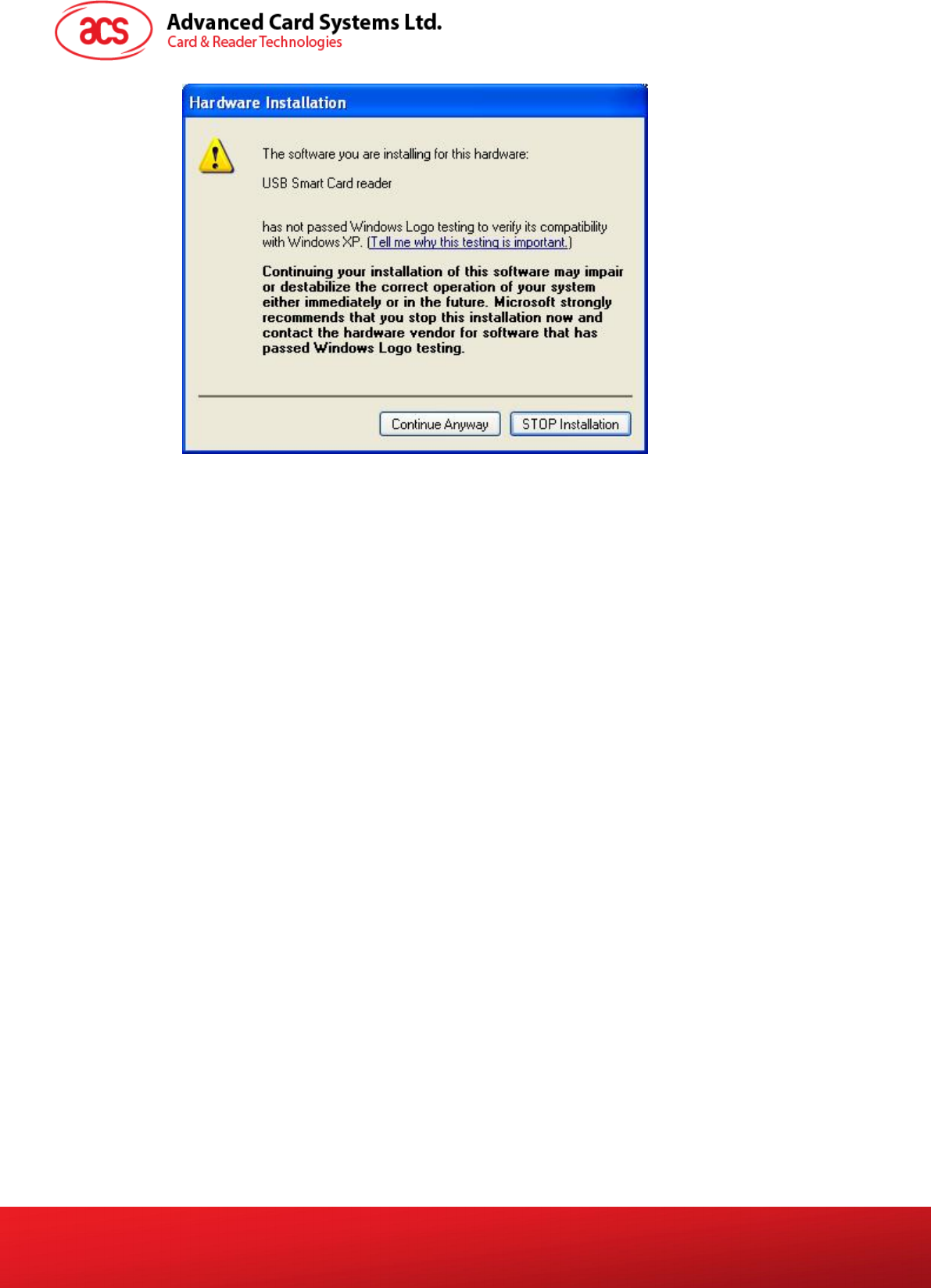

7. Click “Continue Anyway”
ACR1251U-C User Manual info@acs.com.hk
Version 1.00.00 www.acs.com.hk
Page 10 of 13
8. Wait until the below screen appear, click “Finish” to complete
9. Driver Installation Complete
4.2. Operation Example
Hardware requires:
ACR1251U-C1 x 1
PC with OS windows XP or above
Test card x 1 (provided by ACS)
Software requires:
APDU.exe (for example)
Steps:
1. Plug in the reader into the PC
2. Place the Card on the top of the reader
3. Open “APDU.exe”
ACR1251U-C User Manual info@acs.com.hk
Version 1.00.00 www.acs.com.hk
Page 11 of 13
4. Select “T1”, and enter the APDU into Message Felid
5. Press “Connect”
6. Press “Transmit” to start the testing
7. Complete the operation
Message Felid
ACR1251U-C User Manual info@acs.com.hk
Version 1.00.00 www.acs.com.hk
Page 12 of 13
Appendix A. Parameter sheet
Device
ACR1251U-C Smart Card Reader/Writer
Power supply
Supply voltage................................ Regulated 5V DC
Supply current ................................ <200mA
Universal Serial Bus Interface
Type ............................................... USB, four lines: +5V, GND, D+ and D-
Connector ...................................... supplied together with the reader
Speed ............................................. Full Speed Device, 12 Mbps
Contact Smart Card Interface
Standard ........................................ ISO 7816 1/2/3/4, T=0 and T=1
Supply current ................................ max. 50mA
Smart card voltage ......................... 5V / 3V / 1.8V
Smart card read / write speed ........ 9600 – 344kbps
Short circuit protection .................. +5V / GND on all pins
CLK frequency ............................... 4.8 MHz
Card connector............................... Landing
Card insertion cycles ...................... min. 100,000
SAM Smart Card Interface
Standard ........................................ ISO 7816 1/2/3, T=0 and T=1
Supply current ................................ max. 50mA
Smart card voltage ......................... 5V
Smart card read / write speed ........ 9600 – 344kbps
Short circuit protection .................. +5V / GND on all pins
CLK frequency ............................... 4.0MHz
Contactless Smart Card Interface
Standard ............................................. ISO 14443 A & B Parts 1-4, ISO 18092
Protocol .............................................. ISO14443 T=CL for ISO14443-4 compliant cards and T=CL Emulation for MIFARE
1K/4K
Smart card read / write speed ............... 106 kbps, 212 kbps, 424 kbps
Operating Frequency for Contactless Cards Access
Operating Frequency ............................ 13.56 MHz
Antenna
Antenna Size ........................................ 64mm x 55mm
Operating distance ............................... up to 50 mm (Depend on Card Type)
Built-in peripherals
Monotone buzzer
2x Single Color LED
ACR1251U-C User Manual info@acs.com.hk
Version 1.00.00 www.acs.com.hk
Page 13 of 13
Case
Dimensions .................................... 120.48 mm (L) x 71.97 mm (W) x 20.4 mm (H)
Color .............................................. Black
Operating Conditions
Temperature................................... 0 - 50 C
Humidity ......................................... 10% - 80%
Cable Connector
Length .................................................. 1.5m (USB)
Standard/Certifications
CE, FCC, VCCI, RoHS
OS
Windows 98, ME, 2K, XP, 7
OEM
OEM-Logo possible, customer-specific colors, casing, and card connector
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may
cause undesired operation.
