ACR1252 Test Operating Procedure
1. Driver installation Procedure
2. Testing Environment Setup
3. Testing Procedure
Driver installation Procedure
Hardware requires:
ACR1252
PC with OS windows XP or above
Software requires:
Driver “ACS_Unified_PCSC_Driver-4.0.0.0.rar”
Steps:
1. Extract the file “ACS_Unified_PCSC_Driver-4.0.0.0.rar”
2. Run “Setup.exe”

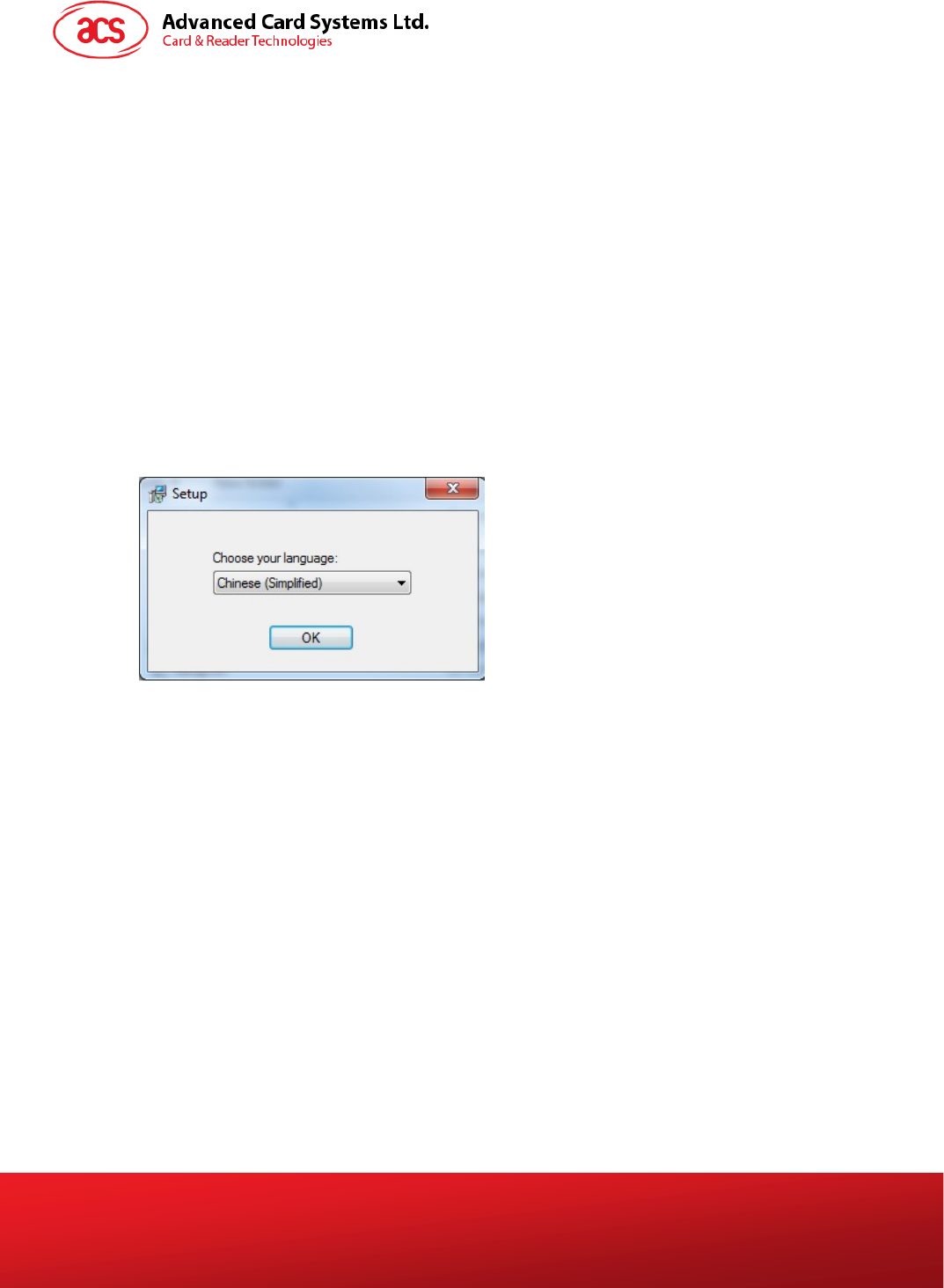

3. Click OK, then “Next>”
info@acs.com.hk
2013-2-21 www.acs.com.hk
Page 2 of 7

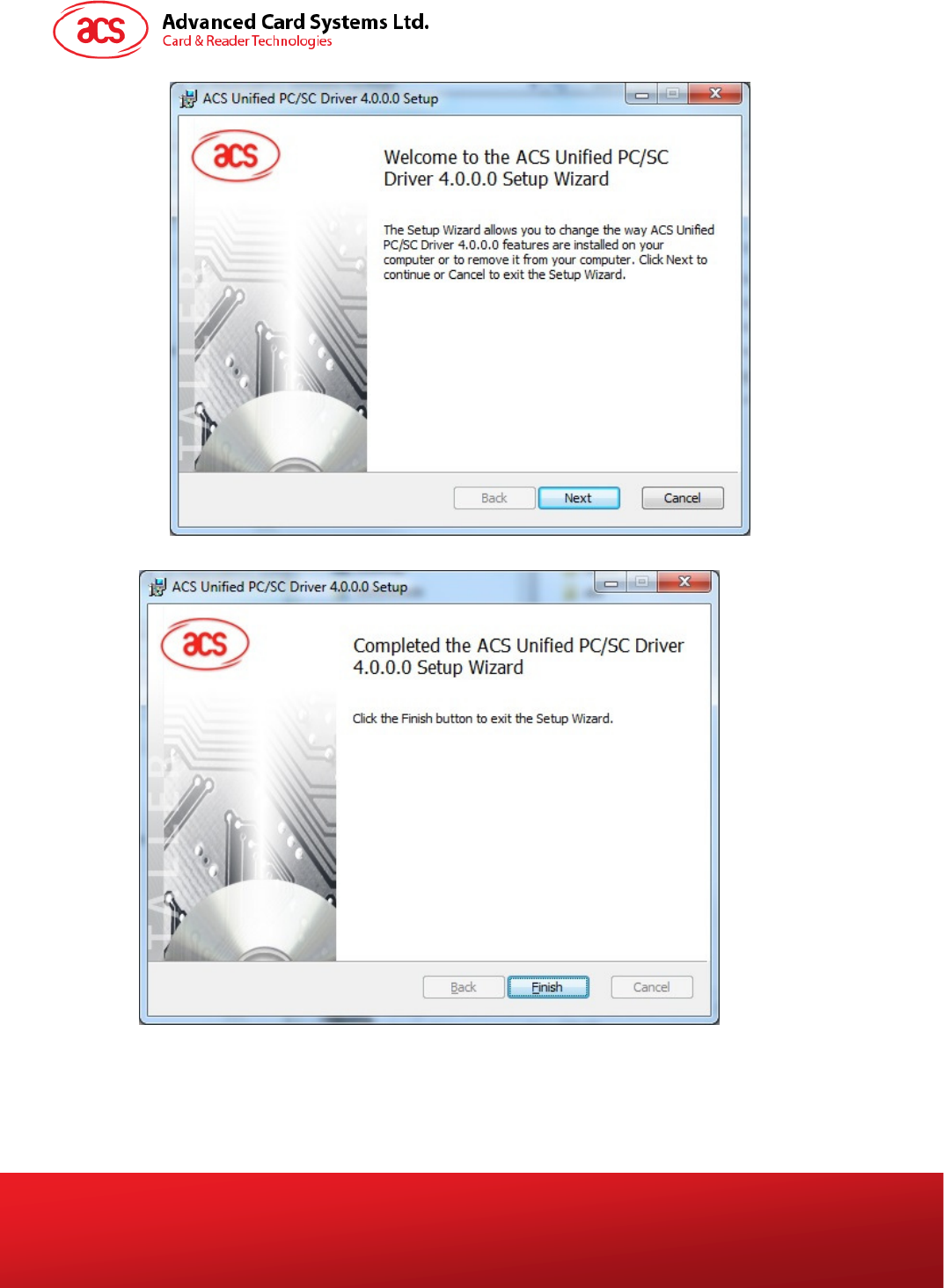

4. Click “Next>”, and install finished:
5. Driver Installation Complete
info@acs.com.hk
2013-2-21 www.acs.com.hk
Page 3 of 7
Testing Environment Setup
Hardware requires:
ACR1252 x 1
PC with OS windows XP or above
Test card x 1 (provided by ACS)
Software requires:
APDU.exe
Steps:
1. Plug in the reader into the PC
2. Place the Test Card on the top of the reader about 1.5cm
Open “APDU.exe”
info@acs.com.hk
2013-2-21 www.acs.com.hk
Page 4 of 7

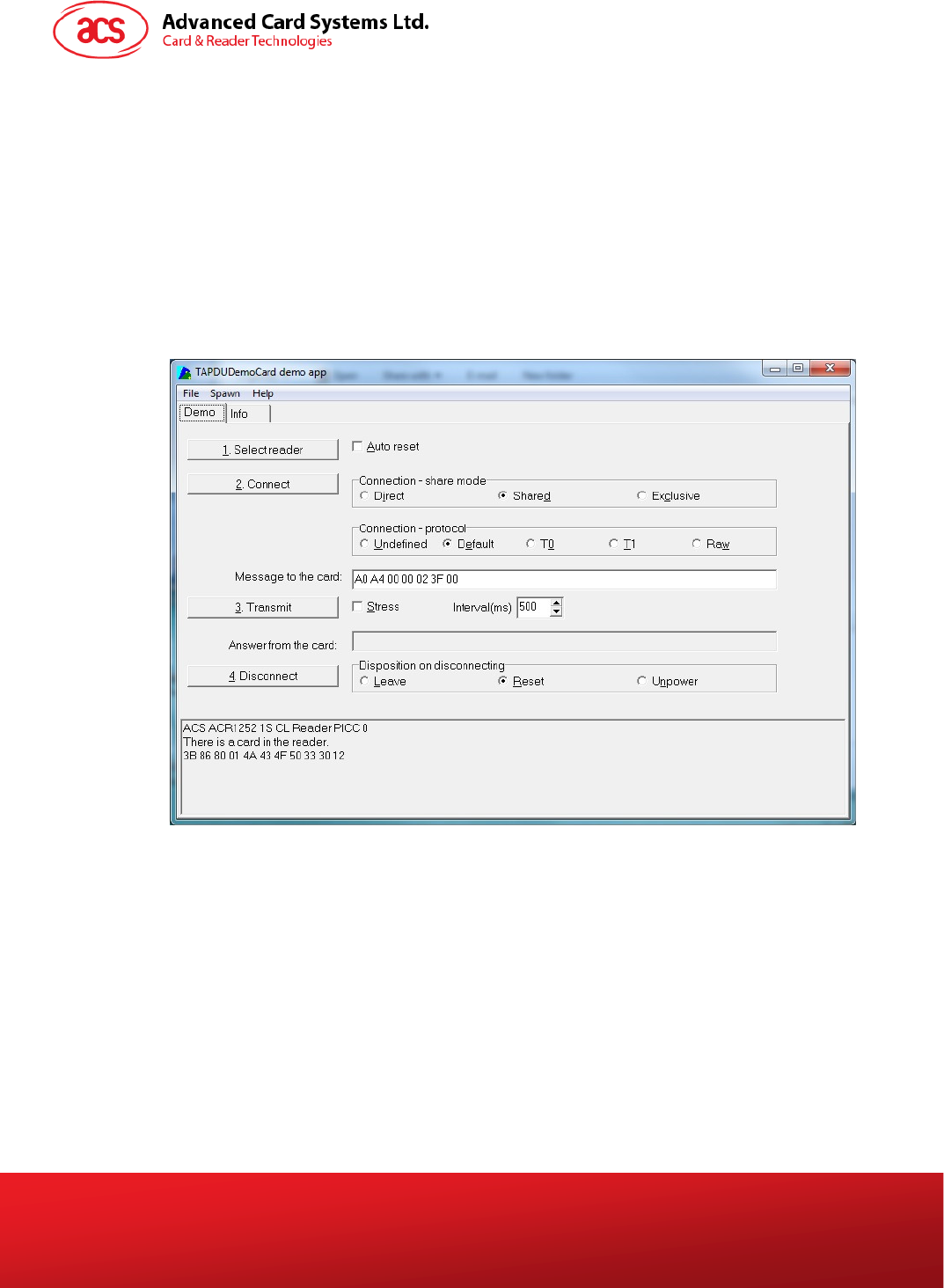

3. Select “T1”, “Stress”, Message = “FF CA 00 00 00”, Interval = “500”
4. Press “Connect”
5. Complete the Testing Environment Setup
Testing Procedure
Hardware requires:
ACR1252 x 1
PC with OS windows XP or above
Test card x 1
Software requires:
APDU.exe
Steps:
1. Complete Testing Environment Setup procedure
2. Press “Transmit” to start the testing
info@acs.com.hk
2013-2-21 www.acs.com.hk
Page 5 of 7
3. The below will be shown
4. Can start to Lab Test
info@acs.com.hk
2013-2-21 www.acs.com.hk
Page 6 of 7
Appendix A. Parameter sheet
Device
ACR1252 Smart Card Reader
Power supply
Supply voltage................................ Regulated 5V DC
Supply current................................ <200mA (without smart card)
Universal Serial Bus Interface
Type ............................................... USB, four lines: +5V, GND, D+ and D-
Connector ...................................... supplied together with the reader
Speed............................................. Full Speed Device, 12 Mbps
Contact Smart Card Interface
Standard ........................................ ISO 7816 1/2/3, T=0 and T=1
Supply current................................ max. 50mA
Smart card voltage ......................... 5V / 3V
Smart card read / write speed ........ 9600 – 307kbps
Short circuit protection .................. +5V / GND on all pins
CLK frequency ............................... 3.6 MHz
Card connector............................... SIM Connector
Contactless Smart Card Interface
Standard
............................................. ISO 14443 A & B Parts 1-4, ISO18092
Protocol
.............................................. ISO14443 T=CL for ISO14443-4 compliant cards and T=CL Emulation for MIFARE
1K/4K, ISO 18092 FeliCa and NFC tag
Smart card read / write speed............... 106 kbps, 212 kbps, 424 kbps
Operating Frequency for Contactless Cards Access
Operating Frequency............................ 13.56 MHz
Antenna
Antenna Size ........................................ 50mm x 40mm
Operating distance ............................... up to 50 mm (Depend on Card Type)
Built-in peripherals
Monotone buzzer
Bi-Color LED
Case
Dimensions ....................................
98 mm (L) x 65 mm (W) x 12.8 mm (H)
Color .............................................. Black
Operating Conditions
Temperature...................................-20 - 55° C
Humidity ......................................... 10% - 80%
Cable Connector
Length .................................................. 1.5m (USB)
Comment [u1]: Modify
arranging to actual value
info@acs.com.hk
2013-2-21 www.acs.com.hk
Page 7 of 7
Standard/Certifications
CE, FCC,VCCI, N-Mark
OS
Windows 2000, XP and up
Mac 10.5 and up
Linux
Android 3.1 and above
OEM
OEM-Logo possible, customer-specific colors, casing, and card connector
Revision History
Date By Changes Version
2013-12-20 Edmond Ho • First Release 1.00
