Advanced Card Systems ACR128U Contact and Contactless Smart Card Reader and Writer User Manual ACR128U V1 0
Advanced Card Systems Limited Contact and Contactless Smart Card Reader and Writer ACR128U V1 0
Users Manual
Advanced Card Systems Ltd.
Website: www.acs.com.hk
Email: info@acs.com.hk
User Manual
A
AC
CR
R1
12
28
8U
U
C
Co
on
nt
ta
ac
ct
t
a
an
nd
d
C
Co
on
nt
ta
ac
ct
tl
le
es
ss
s
C
Ca
ar
rd
d
R
Re
ea
ad
de
er
r
a
an
nd
d
W
Wr
ri
it
te
er
r
V2.0 interface and the speed up to 12Mbps. This device Firmware Upgradeable through
USB V2.0 Interface. (12Mbps)
The ACR128U is a Contact and Contacless Smart Card Reader and Writer
Page 2 of 5
Universal Terminal UT1
Version 0.03 Oct 2008
\
1.0
INTRODUCTION
developed on the 13.56MHz Contactless Technology. This device is a dual-interface
reader (IFD and PCD) that supports both contact (ICC) and contactless (PICC) smart
cards. It is designed to support ISO 7816 Parts 1-4 and ISO14443 Type A and B Cards,
Hybrid Cards and Combi Cards but not FeliCa tags.
High-speed (424 kbps) communication for PICCs (Maximum 848 kbps). Energy saving
modes for turning off the antenna field whenever the PICC is inactive, or no PICC is
found. It prevents the PICC from exposing to the field all the time. I t can support USB
the RS232 Interface with a special cable can more easily.
2.0
FEATURES
• One standard ICC landing type card acceptor.
• One SAM socket is provided for highly secure applications.
• A built-in antenna for PICC contactless access applications.
• ISO 7816 Parts 1-4 Compliant for Contact Smart Card Interface.
• ISO 14443 Parts 1-4 Compliant for Contactless Smart Card Interface.
• T=CL emulation for MIFare 1K/4K PICCs. Multi-Blocks Transfer Mode is provided for
efficient PICC access.
• High Speed (424 kbps) Communication for PICCs. #Maximum 848 kbps.
• Intelligent Support for Hybrid Cards and Combi Cards.
• Energy saving modes for turning off the antenna field whenever the PICC is inactive, or
no PICC is found. It prevents the PICC from exposing to the field all the time.
• User-Controllable Peripherals. E.g. LED, Buzzer.
• CCID Compliant.
• PCSC Compliant for Contact, Contactless and SAM Interfaces.
•
• Device Firmware Upgradeable through the RS232 Interface with a special cable.
ACR128U Contact and Contactless Smart Card Reader and Writer
Advanced Card Systems Ltd.
Website: www.acs.com.hk
Email: info@acs.com.hk
3.0
Typical Applications
• Network access control
• Micro-payment
• Public Transportation Terminals
• Automatic Fare Collection
• Physical access control
• Customer Loyalty
• Time attendance
• Contactless public phones
• Vending machines
• ICAO E-Passport
4.0
Installation Procedure
Plug the ACR128U USB cable into the USB port. When the reader connects to the PC,
then the user must be install the driver to start up the reader.
5.0
Hardware Interfaces
5.1 Bi-Color LED Indicator
The LEDs are used for showing the state of the contact and contactless interfaces.
Reader States Red LED
PICC Indicator
Green LED
ICC Indicator
1. No PICC Found A single pulse per
~ 10 seconds
2. PICC is present but not activated Toggling ~ 0.3 Hz
3. PICC is present and activated ON
4. PICC is operating Blinking
5. ICC is present and activated ON
6. ICC is absent or not activated OFF
7. ICC is operating Blinking
activated). E.g. 424kbps High Speed Mode
Advanced Card Systems Ltd.
Website: www.acs.com.hk
Email: info@acs.com.hk
5.2 Buzzer
A monotone buzzer is used to show the “Card Insertion” and “Card Removal” events
Events Buzzer
1. Card Insertion Event (ICC or PICC) Beep
2. Card Removal Event (ICC or PICC) Beep
3. Combi Card (support both ICC and PICC
interfaces) is inserted in the contact card
acceptor
2 Beeps
4. PICC is activated 1 beep per second
(Default = Disabled)
5. PICC is activated (PPS Mode is 2 beeps per second
(Default = Disabled)
5.3 SAM Interface
• One SAM socket is provided.
5.4 Built-in Antenna
• 3 turns symmetric loop antenna. Center tapped.
• The estimated size = 65mm x 60mm.
• The loop inductance should be around ~ 1.6uH to 2.5uH
• Operating Distance for different Tags ~ up to 50mm (depend on the Tag)
12Mbps
and MFRC531 chips.
This device complies with part 15 of the FCC Rules.
Page 5 of 5
Universal Terminal UT1
Version 0.03 Oct 2008
\
6.0
Implementation
The ACR128U is built based on the
TDK73S1121F
FCC Warning:
Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
TDK73S1121F
Controller
Built-In
Antenna
Host
Controller
USB
Interface
Contactless
Tag
Contactless Interface
Carrier = 13.56MHz
Serial Interface
115200 Kbps

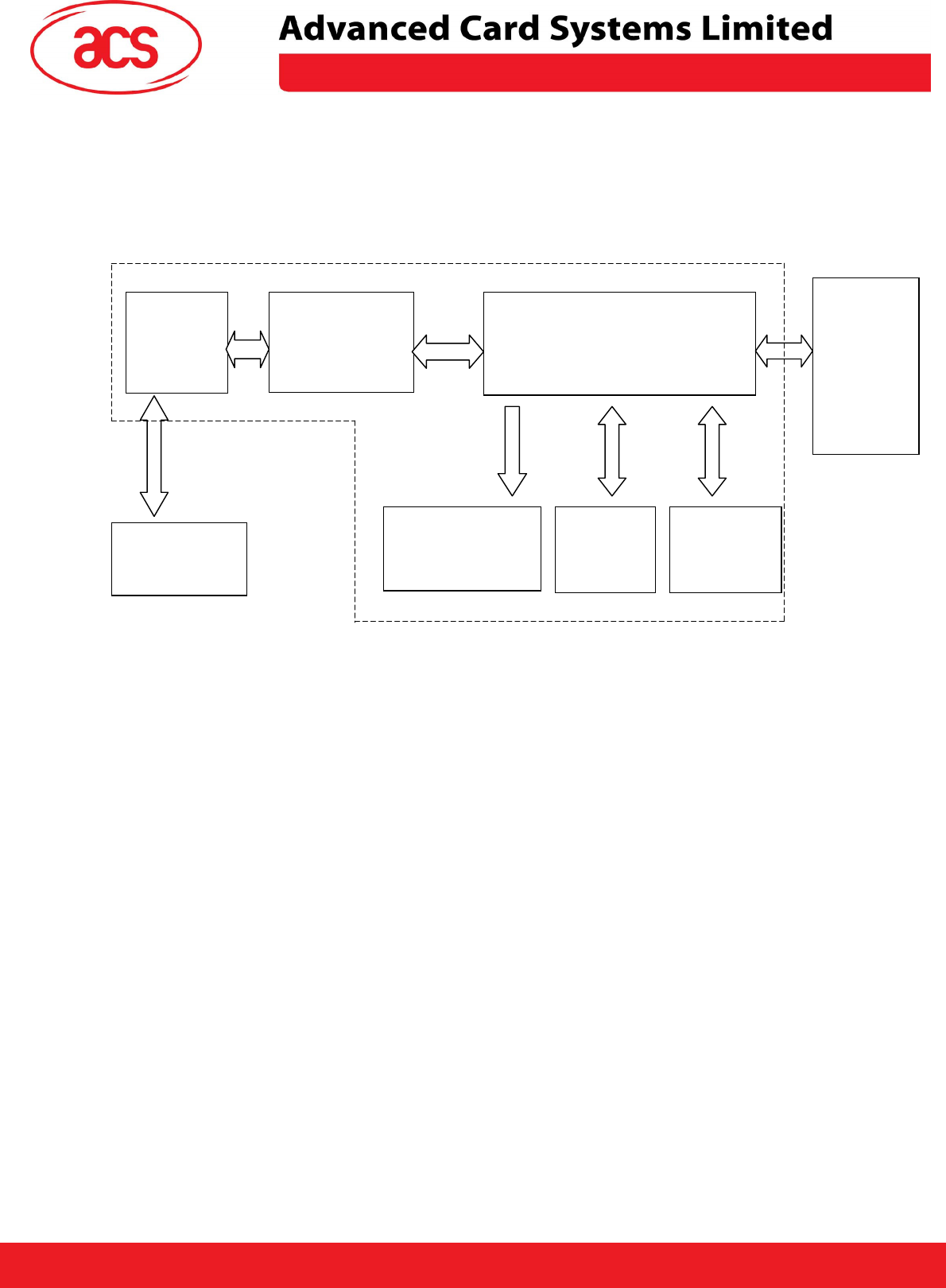

ACR128U System Block Diagram
SAM
(optional)
<Peripherals>
- Bi-Color LED
- Buzzer
Contactl
Tag
ACR128U Contact and Contactless Smart Card Reader and Writer
U3
12MHz
MFRC531
Parallel
uController
Interface Crystal:
Crystal: 13.56MHz
