1.0. Introduction
ACR321 – Ticket Validator is designed specifically for the use in
Automatic Fare Collection (AFC) systems for public transport, e.g.
for buses, ferries, trams, railway and other transportation means.
ACR321 supports all smart cards/tags compliant to ISO14443 Type
A & B, Mifare, and Near Field Communication (NFC) standard. By
virtue of the embedded powerful 32bit ARM 11 processor, ACR321
enables a high speed transaction processing and transaction records
collection. ACR321 supports varies advance connection modes for
data transfer, including Wi-Fi, WCDMA, GSM/GPRS and USB
thumb drive for data collection. It also equips with GPS enabling you
to locate the vehicle, fleet management and set fare flexibly with
reference to distance.
There are four SAM card slots for holding Purchase SAM cards to
ensure the security and integrity of the transactions. This allows
users to use their own unique secret encryption algorithm.
With its compact, light and trendy design, ACR321 allows users to
operate it by mounting on the pole or as a handheld ticket validator
powered by rechargeable lithium-ion battery.
ACR321 is furthermore integrated with a 640 x 480 high resolution
VGA 5.7” LCD, speaker, 4 LED indicators with different colors, 4
backlit buttons. Adding to a strict shocking, vibration, water and
dust Ingress protection and reliability testing, ACR321 is the best
choice of your AFC projects application.
Touch Screen could be an option to further enhance the features of ACR321 that enables it suitable to
be a Driver console and POS terminal.
Document Title Here
Document Title Here
Document Title Here
ACR32
1
-
User Manual
Version 1.00
Page 4 of 11
info@acs.com.hk
www.acs.com.hk
2.0. Specifications
• 32-Bit ARM11 Processor running embedded Linux
• Flash 512 MB and RAM 256 MB
• 5.7 inches TFT-LCD Color Screen
• 4 LED for transaction Indicators (1 Blue, 1 Yellow, 1 Green and 1 Red)
• 4 Buttons with Backlight
• Speaker with loud around 70dB in 1-meter distance
• Tamper Detection Switch to Protect Against Unauthorized Intrusion
• Supports Micro-SD memory card expansion slot
• Input : 10V to 36V unregulated DC power
• With Rechargeable Lithium-ion Battery
• Operating temperature -20 to 60 degree C
• Humidity 15% to 95% non-condensing
• Communications
o Quad-band GSM/GPRS: 850/900/1800/1900 MHz
o WCDMA (3G)
o Wifi: IEEE 802.11 b/g
o Built-in 10/100-base-T Ethernet
o USB
o Serial – RS232,RS485
o GPIO
• Supported Card Types
o Contactless cards
ISO 14443 Compliant Type A & B standard
Mifare classics, Ultralight, Ultralight C, Mifare Plus, Mifare Desfire
o 4 SAM cards and 1 SIM card
Support T=0,1 and ISO 7816 Parts 1-3
• Certification / Compliance
o CE
o FCC
o RoHS
o EMV contactless
o PBOC 3.0 contactless
Document Title Here
Document Title Here
Document Title Here
ACR32
1
-
User Manual
Version 1.00
Page 5 of 11
info@acs.com.hk
www.acs.com.hk

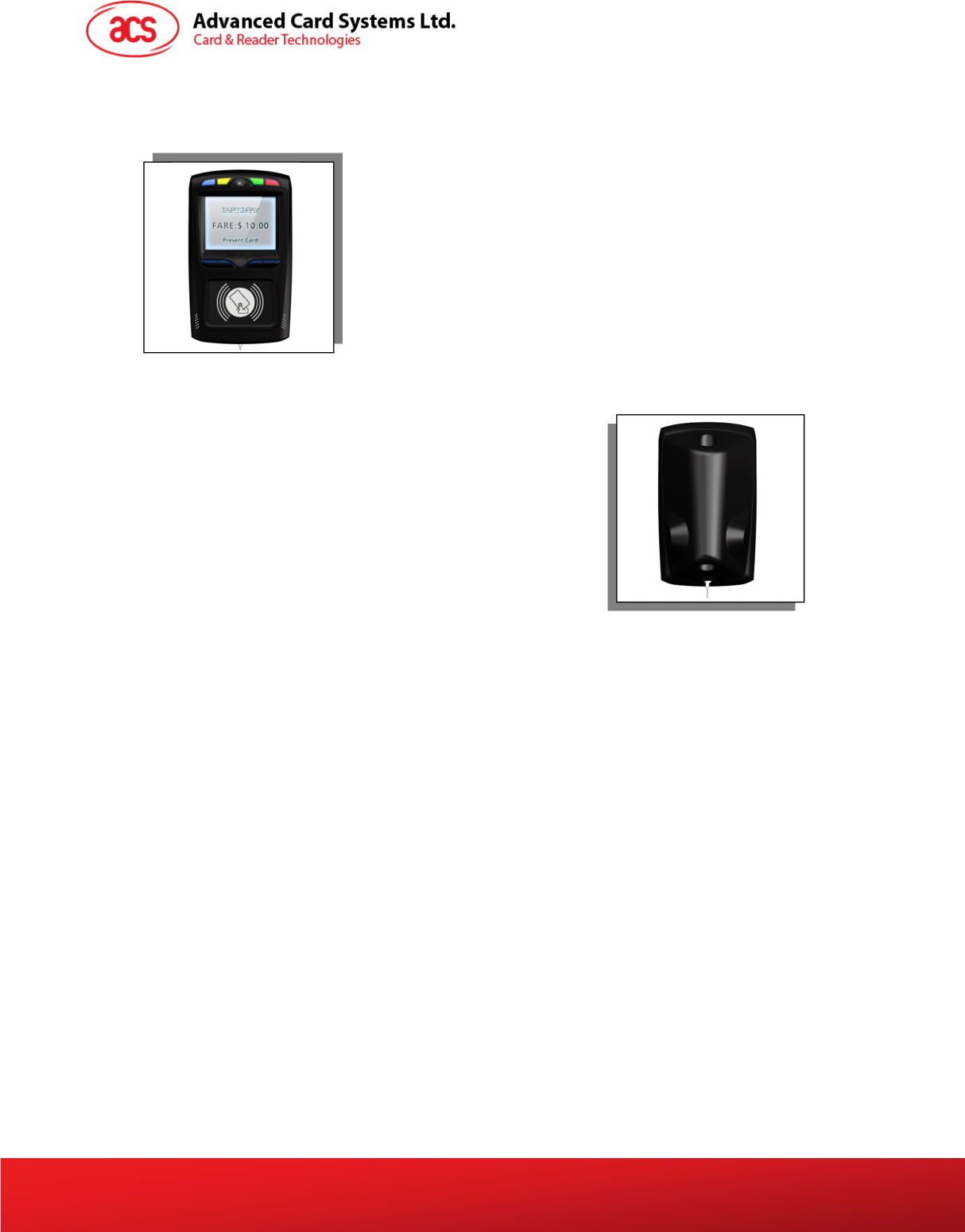

3.0. Illustration

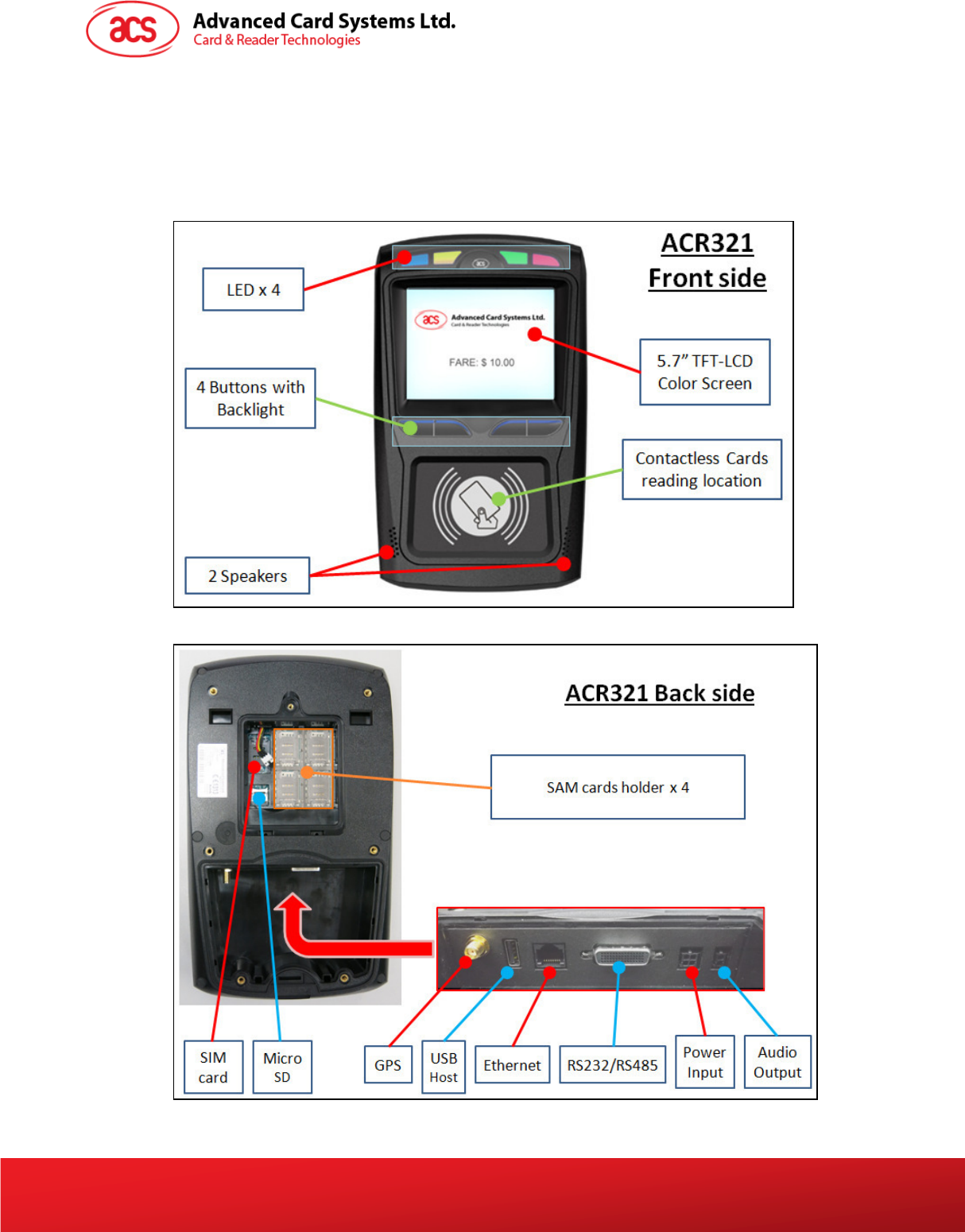

3.1. ACR321 device and parts
The main components on the front side of the ACR320 are shown below:
Document Title Here
Document Title Here
Document Title Here
ACR32
1
-
User Manual
Version 1.00
Page 6 of 11
info@acs.com.hk
www.acs.com.hk

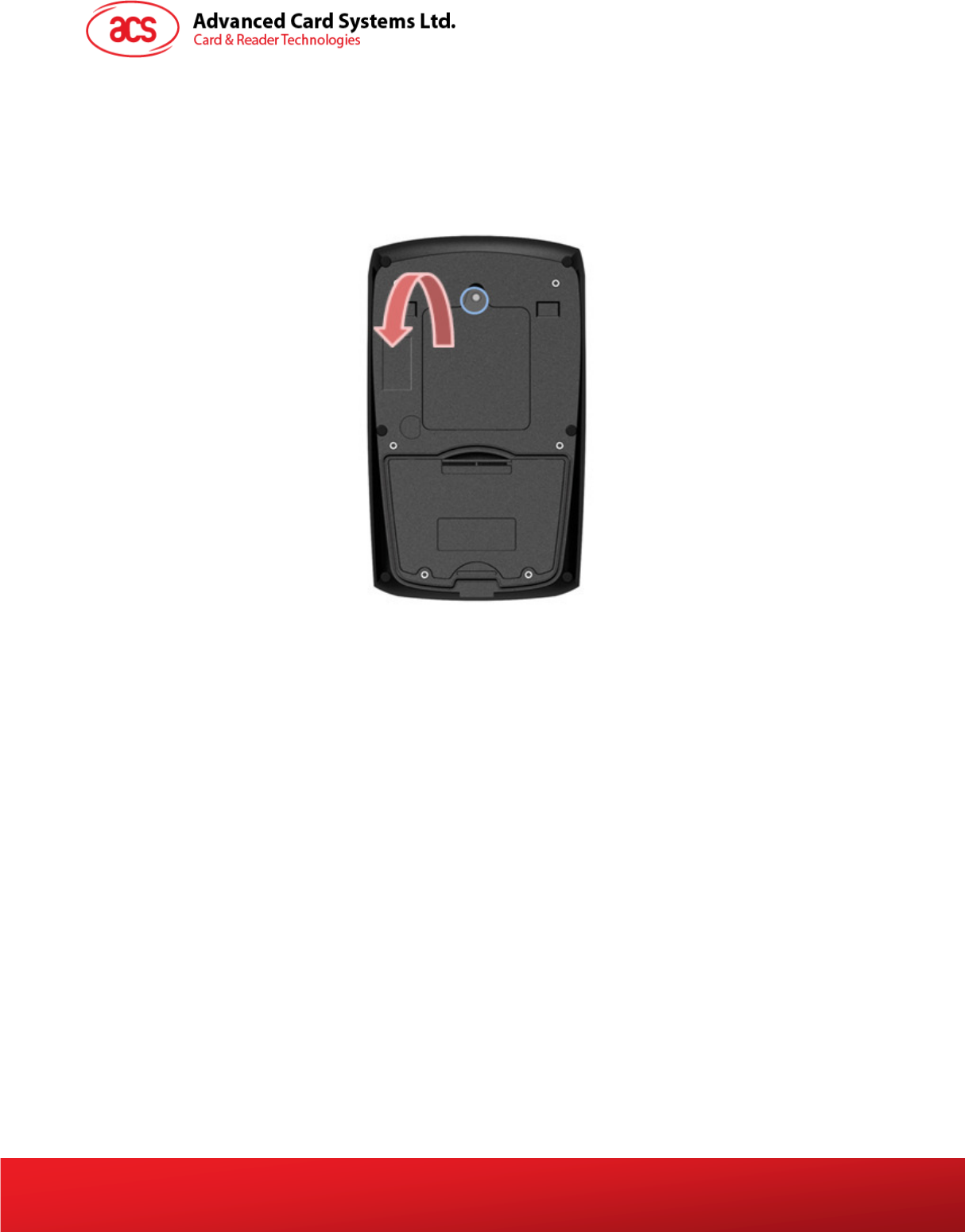

3.2. Battery
A rechargeable Li-ion battery supplies energy to the device once the external power source
cannot supply power to the device. So, transactions can still be processed even the power
supply of the bus is out of order. The battery locates at back of the device. In order to change the
battery, turn the screw in the circle in the figure below to left to remove the battery cover. Follow
the direction of the red arrow to take away the cover.
Then, unplug the battery and a new battery can be replaced in the carrier.
The battery is recharged once the external power source resumes supplying power to the device.
Document Title Here
Document Title Here
Document Title Here
ACR32
1
-
User Manual
Version 1.00
Page 7 of 11
info@acs.com.hk
www.acs.com.hk

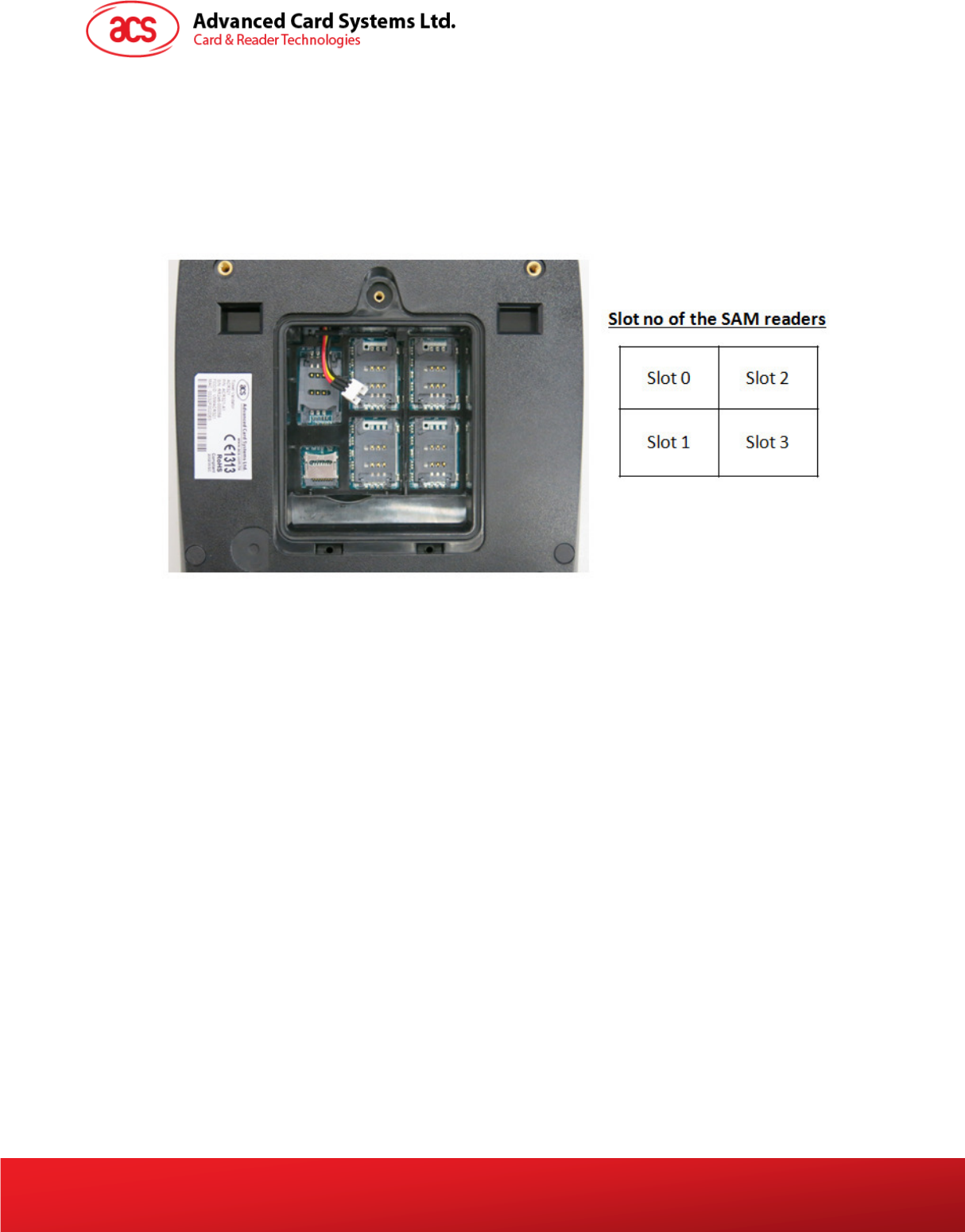

3.3. SAM card slots
There are 4 SAM card holders on ACR320. Each holder can contain 1 SAM card, so ACR320
has 4 SAM card slots in total. They are located behind the battery. In order to insert or change
SAM cards, please follow some simple steps below.
1. Follow the instruction in chapter 3.2 to remove the battery cover
2. Unplug and remove the Li-ion battery and the SAM card slots will be seen
Document Title Here
Document Title Here
Document Title Here
ACR32
1
-
User Manual
Version 1.00
Page 8 of 11
info@acs.com.hk
www.acs.com.hk
3.4. Pin assignment
GPIO is provided for reading status like door open/close and driving devices such as external
buzzer or release a turnstile. Here is the pin assignment and some input/output circuit examples.

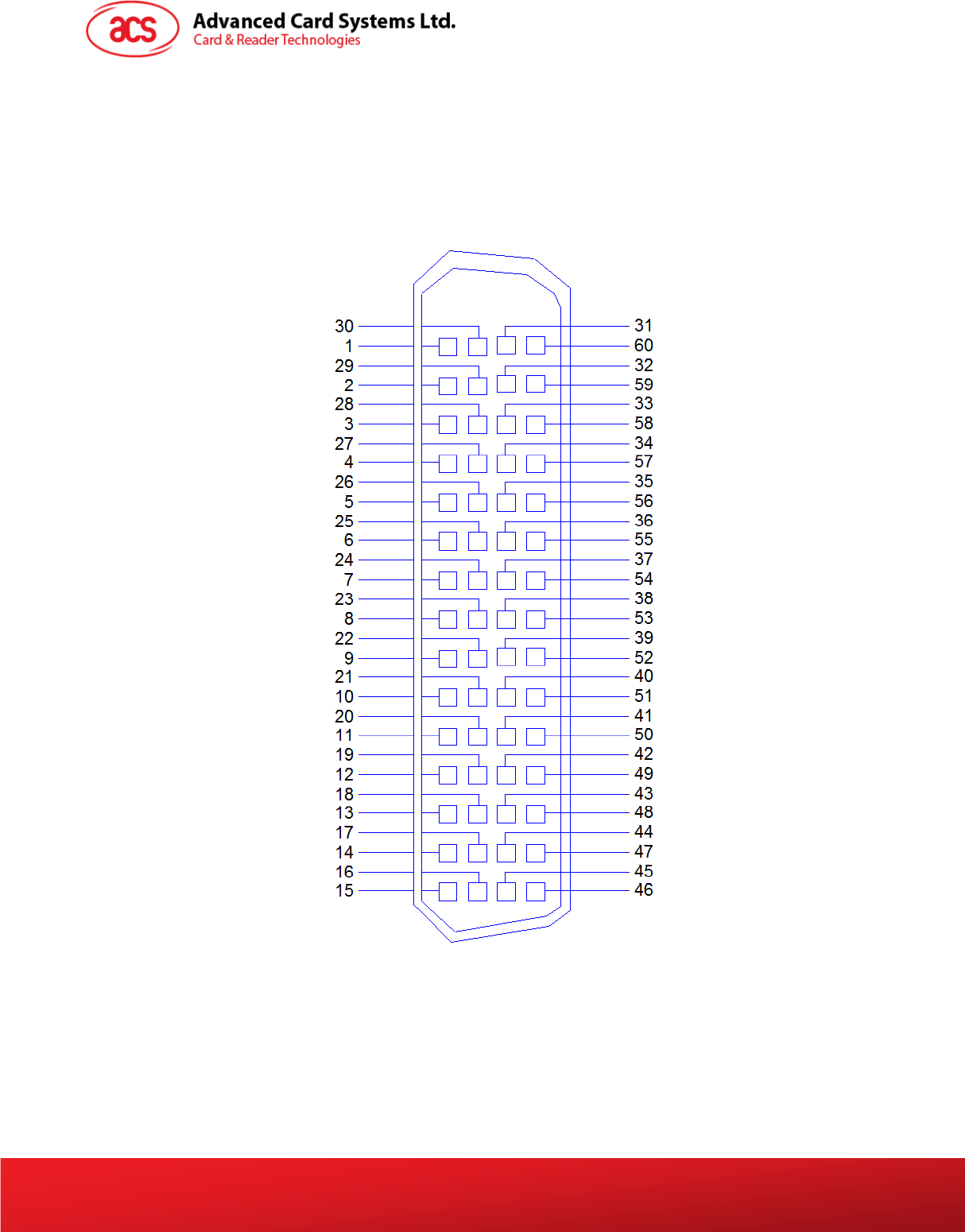

Figure 1: 60-pin connector layout
Document Title Here
Document Title Here
Document Title Here
ACR32
1
-
User Manual
Version 1.00
Page 9 of 11
info@acs.com.hk
www.acs.com.hk
Signal Signal Name Signal Description Signal Level
1 RS232/485 Port 1: 3.3V or open->RS232, 0V-> RS485 3.3V logic
2 TXD1 RS232 Port 1, Data Transmit RS-232 signal standard
3 RXD1 RS232 Port 1, Data Receive RS-232 signal standard
4 RS485-A RS485 Non-inverting, Port 1 RS485 signal standard
5 RS485-B RS485 Inverting, Port 1 RS485 signal standard
6 GND Digital Ground Digital Ground for Serial port interface
7 TXD2 RS232 Port 2, Data Transmit RS-232 signal standard
8 RXD2 RS232 Port 2, Data Receive RS-232 signal standard
9 GND Digital Ground Digital Ground for Serial port interface
10 N.C. No connection
11 N.C. No connection
12 N.C. No connection
13 N.C. No connection
14 N.C. No connection
15 Reserved (Don't connect)
16 N.C. No connection
17 N.C. No connection
18 N.C. No connection
19 Reserved (Don't connect)
20 Reserved (Don't connect)
21 Reserved (Don't connect)
22 Reserved (Don't connect)
23 OUTPUT-8 OUTPUT port 8 3V/5V Logic Level
24 OUTPUT-7 OUTPUT port 7 3V/5V Logic Level
25 OUTPUT-6 OUTPUT port 6 3V/5V Logic Level
26 OUTPUT-5 OUTPUT port 5 3V/5V Logic Level
27 N.C. No connection
28 N.C. No connection
29 N.C. No connection
30 N.C. No connection
Document Title Here
Document Title Here
Document Title Here
ACR32
1
-
User Manual
Version 1.00
Page 10 of 11
info@acs.com.hk
www.acs.com.hk
31 Reserved (Don't connect)
32 Reserved (Don't connect)
33 Reserved (Don't connect)
34 Reserved (Don't connect)
35 V_EXTIN2 Isolated power-in for Input port 5-8 3V/5V
36 V_EXTIN2 Isolated power-in for Input port 5-8 3V/5V
37 G_EXTIN2 Isolated GND for Input port 5-8 Ground signal for input port
38 G_EXTIN2 Isolated GND for Input port 5-8 Ground signal for input port
39 V_EXTOUT2 Isolated power-in for Output port 5-8 3V/5V
40 V_EXTOUT2 Isolated power-in for Output port 5-8 3V/5V
41 N.C. No connection
42 N.C. No connection
43 CAR-GND CAR Battery Ground Car battery Ground
44 CAR-GND CAR Battery Ground Car battery Ground
45 CAR-GND CAR Battery Ground Car battery Ground
46 CAR-DC Car Battery + Car Battery Positive (12V~24V)
47 CAR-DC Car Battery + Car Battery Positive (12V~24V)
48 CAR-DC Car Battery + Car Battery Positive (12V~24V)
49 N.C. No connection
50 G_EXTOUT2 Isolated GND for Output port 5-8 Ground signal for output port
51 G_EXTOUT2 Isolated GND for Output port 5-8 Ground signal for output port
52 TACHOMETER_IN INPUT port 8, Tachometer 3V/5V Logic Level
53 EXT_IO_IN7A INPUT port 7 3V/5V Logic Level
54 EXT_IO_IN6A INPUT port 6 3V/5V Logic Level
55 EXT_IO_IN5A INPUT port 5 3V/5V Logic Level
56 N.C. No connection
57 N.C. No connection
58 N.C. No connection
59 N.C. No connection
60 N.C. No connection
Table 1: 60-way connector signal level and description
Document Title Here
Document Title Here
Document Title Here
ACR32
1
-
User Manual
Version 1.00
Page 11 of 11
info@acs.com.hk
www.acs.com.hk

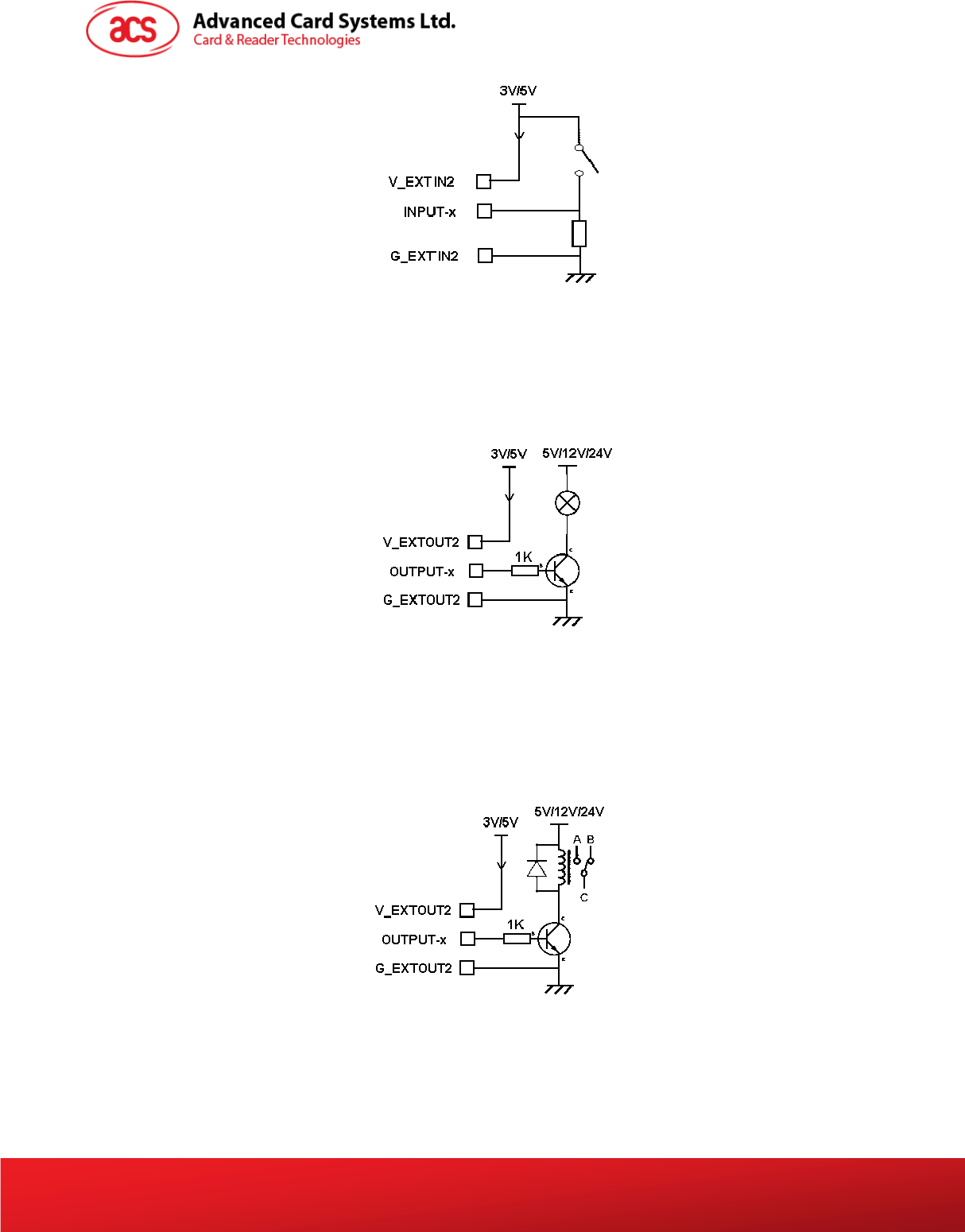

Figure 2: Input circuit example
Figure 3: Output controlling example - Lamp
Figure 4: Output controlling example - Relay
