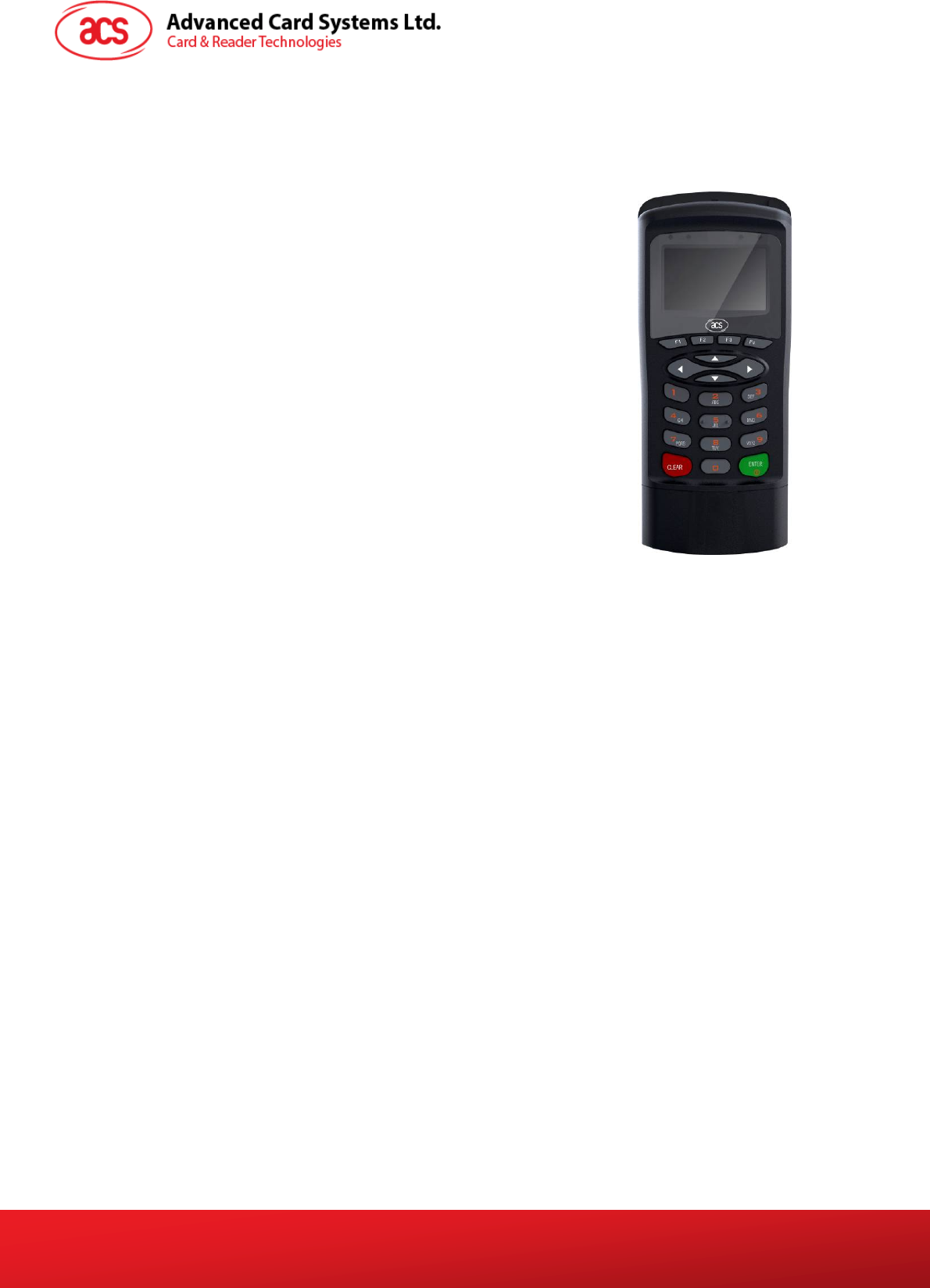

Advanced Card Systems ACR89UA2 ACR89 Handheld Smart Card Reader User Manual ACR89U User Manual
Advanced Card Systems Limited ACR89 Handheld Smart Card Reader ACR89U User Manual
Users Manual
Subject to change without prior notice
info@acs.com.hk
www.acs.com.hk
Document Name:
03-USR-ACR89

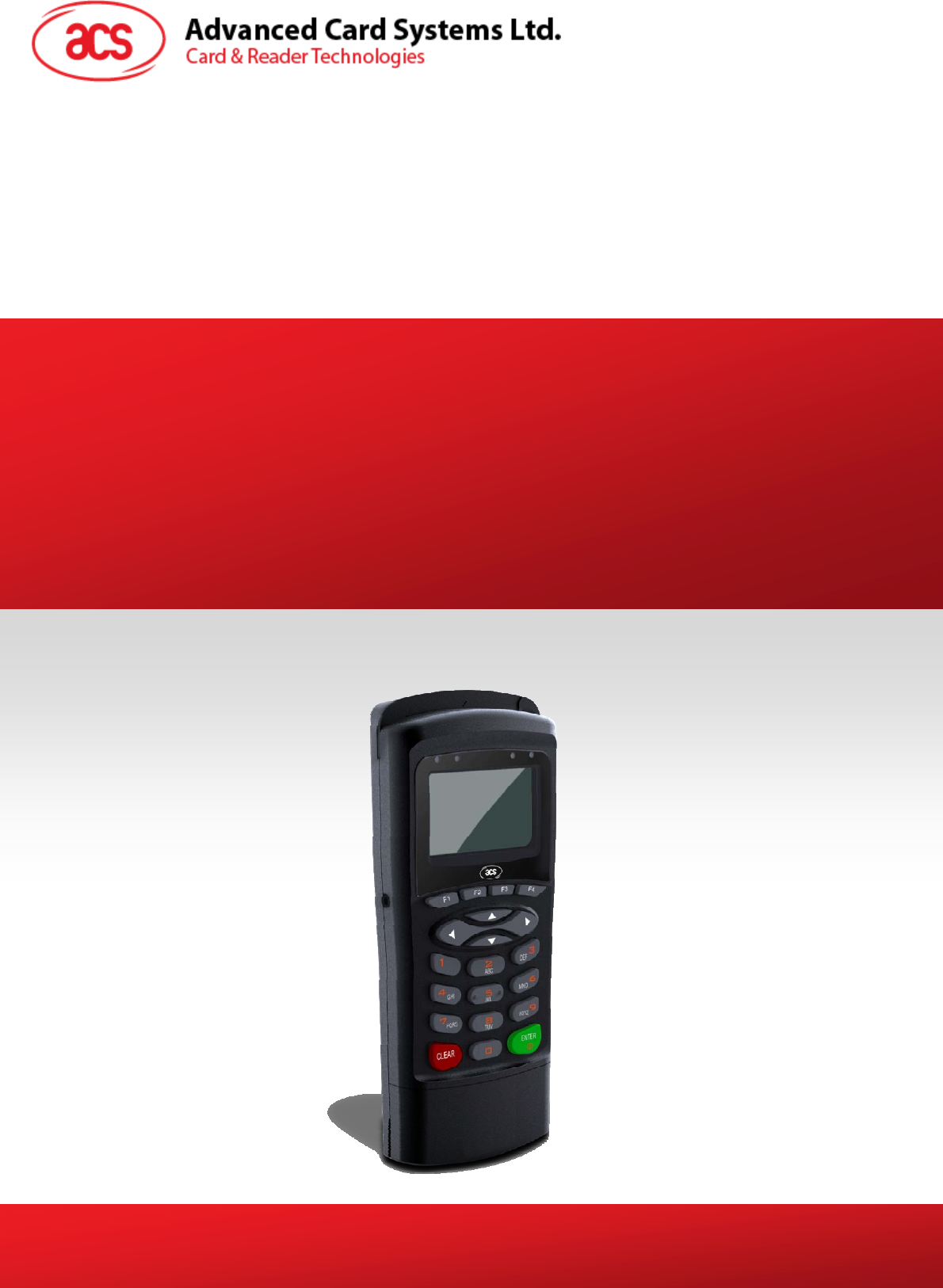

ACR89
Portable Smar
t
card Reader
User Manual
Version 0.00.01
Document Title Here
Document Title Here
Document Title Here
ACR89 - User Manual
Version 0.00.01
Page 2 of 14
info@acs.com.hk
www.acs.com.hk
Version History
Date By Changes Version
2011-11-30 Jack Tse Initiator 0.00.01
Document Title Here
Document Title Here
Document Title Here
ACR89 - User Manual
Version 0.00.01
Page 3 of 14
info@acs.com.hk
www.acs.com.hk
Table of Contents
1.0.Introduction ...............................................................................................................4
2.0.Specifications............................................................................................................5
3.0.Scope and Limitations.............................................................................................. 6
4.0.Illustration..................................................................................................................7
4.1.ACR89 device and parts.....................................................................................................7
4.2.Battery ................................................................................................................................7
4.3.SAM card slots....................................................................................................................8
5.0.ACR89 Driver Installation.........................................................................................9
5.1.Device Driver Download Location ......................................................................................9
5.2.Windows Driver Installation ................................................................................................9
5.3.Checking the Installation ..................................................................................................11
Figures
No table of figures entries found.
Tables
No table of figures entries found.
Document Title Here
Document Title Here
Document Title Here
ACR89 - User Manual
Version 0.00.01
Page 4 of 14
info@acs.com.hk
www.acs.com.hk
1.0. Introduction
As smart card technology becomes widely accepted in the market,
integration of different components such as keypad and fingerprint
scanner becomes necessary. This allow for an optimization of
security and offers convenience sought after in many applications.
ACR89 is an electronic device designed primarily to operate under
low energy consumption. It comes with a built-in keypad, LCD,
rechargeable battery and large programmable memory features,
which allow ACR89 to perform secure transaction between the
user and the card both in PC-linked and stand-alone modes.
ACR89 is a powerful tool that offers a low-power and high
performance solution.
It also supports Secure PIN Entry (SPE). We can securely input
the sensitive data through the PIN pad of the device to the PC
terminal. This successfully eliminates the possibility of a
Virus/Trojan or USB Sniffer getting hold of the PIN, as PIN codes
are never exposed to the vulnerable PC or workstation.
Furthermore, ACR89 introduces user firmware upgrade via USB:
users are allowed to upgrade the firmware, which can be easily
loaded to the ACR89 platform through the USB. This capability
makes ACR89 very accessible and ideal for many applications.
This document will guide the user on proper connection of the
device and how to install the reader driver.
Document Title Here
Document Title Here
Document Title Here
ACR89 - User Manual
Version 0.00.01
Page 5 of 14
info@acs.com.hk
www.acs.com.hk
2.0. Specifications
• 32-Bit RISC Processor running Embedded FreeRTOS
• Dual Operation Modes (PC-Linked/Standalone)
• 2 Full-Size Contact Card Slots
• 3 SAM-Size Card Slots
• Easy-to-Read, High Resolution Backlit LCD
• Highly Durable Chemical Resistant Keypad
• 4 LED Status Indicators
• Monotone buzzer
• Hand-held size and light weight
• Tamper Detection Switch to Protect Against Unauthorized Intrusion
• Real-Time Clock (RTC) with Independent Backup Battery
• Supports Secure PIN Entry (SPE)
• User Programmable by C
• Firmware Upgradeable by USB
• Supports PPS (Protocol And Parameters Selection) with 115,200 – 344,086 Bps In Reading and
Writing Smart Cards
• (Optional) Contactless OR Fingerprint version
• (On Request) Detachable Printer Cradle
• Supported Card Types
o MCU card
T=0 or T=1 protocol
ISO 7816 Compliant Class A,B,C (5V, 3V, 1.8V)
o Memory-based Smart Cards
I2C bus protocol (free memory cards)
SLE4432/5542 intelligent 256 bytes EEPROM with write protect function
SLE4418/5528 intelligent 1K bytes EEPROM with write protect with function
o (Optional) Contactless cards
ISO 14443 Compliant Type A & B standard, part 1 to 4
T=CL protocol
Mifare classics
Felica cards
• Certification / Compliance
o PC/SC
o USB Full Speed
o CE
o FCC
o EMV Level 1
o RoHS
o Microsoft® WHQL
Document Title Here
Document Title Here
Document Title Here
ACR89 - User Manual
Version 0.00.01
Page 6 of 14
info@acs.com.hk
www.acs.com.hk
3.0. Scope and Limitations
The ACR89 allows working in two modes, stand-alone mode and PC-linked mode. It is embedded
with Real Time OS to allow stand-alone operations and it also allows the device to be operated by a
computer (running on Windows, Mac and Linux OS) connecting through an USB cable.
When used as a stand-alone terminal, the ACR89 device is fully functional with the Pin-Pad for user
input and the LCD screen for display output. The device can be accessed or programmed through a
computer (running on Windows, Mac and Linux OS) using USB communication protocol.
Document Title Here
Document Title Here
Document Title Here
ACR89 - User Manual
Version 0.00.01
Page 7 of 14
info@acs.com.hk
www.acs.com.hk
4.0. Illustration

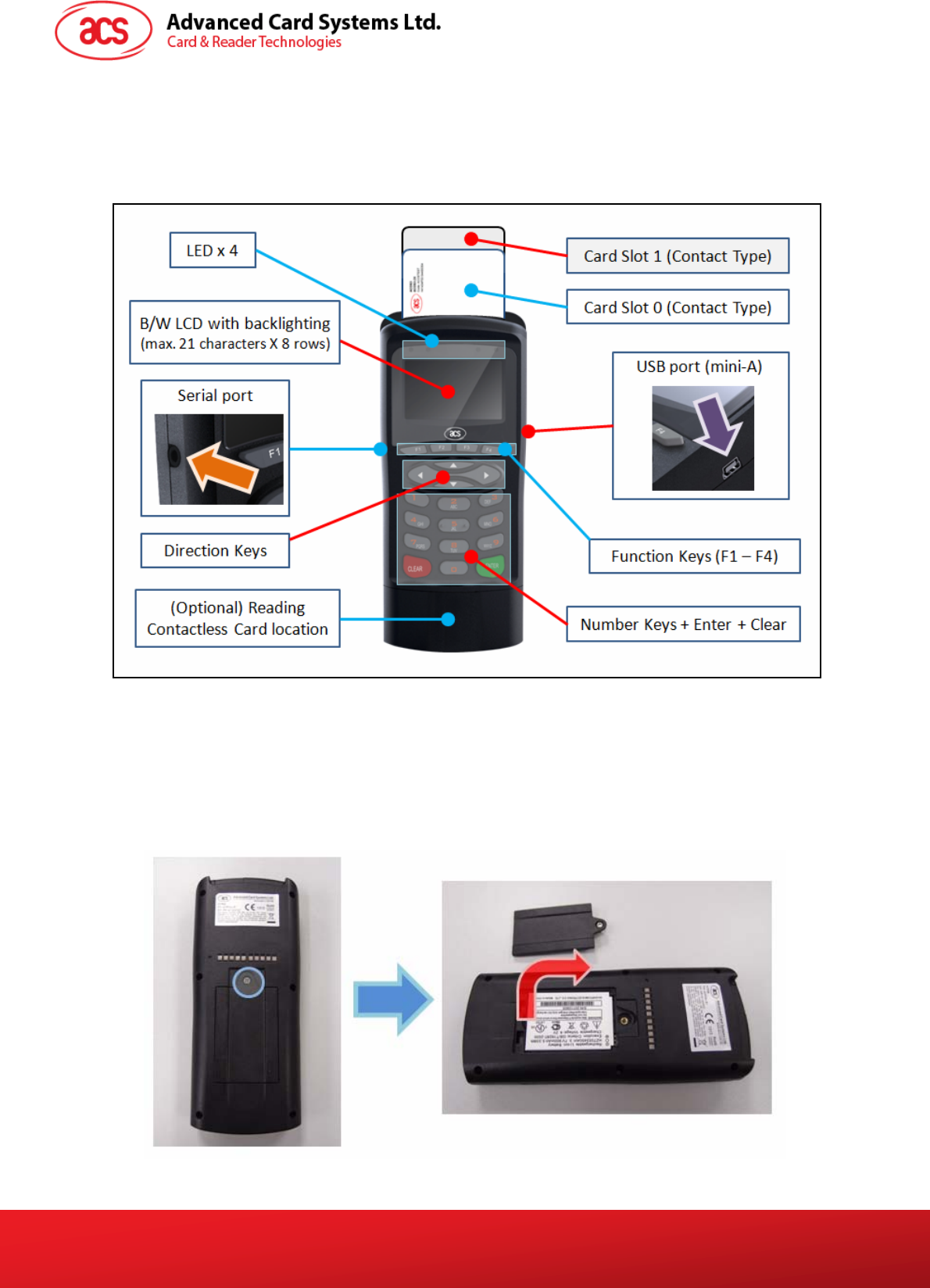

4.1. ACR89 device and parts
The main components of ACR89 are shown below:
4.2. Battery
ACR89 runs on a rechargeable Li-ion battery (3.7V, 900mAh, 3.33Wh). It locates at back of the
device. In order to change a battery, turn the screw in the circle to the left figure below to left to
remove the battery cover. Follow the direction of the red arrow to take out the battery.
Document Title Here
Document Title Here
Document Title Here
ACR89 - User Manual
Version 0.00.01
Page 8 of 14
info@acs.com.hk
www.acs.com.hk

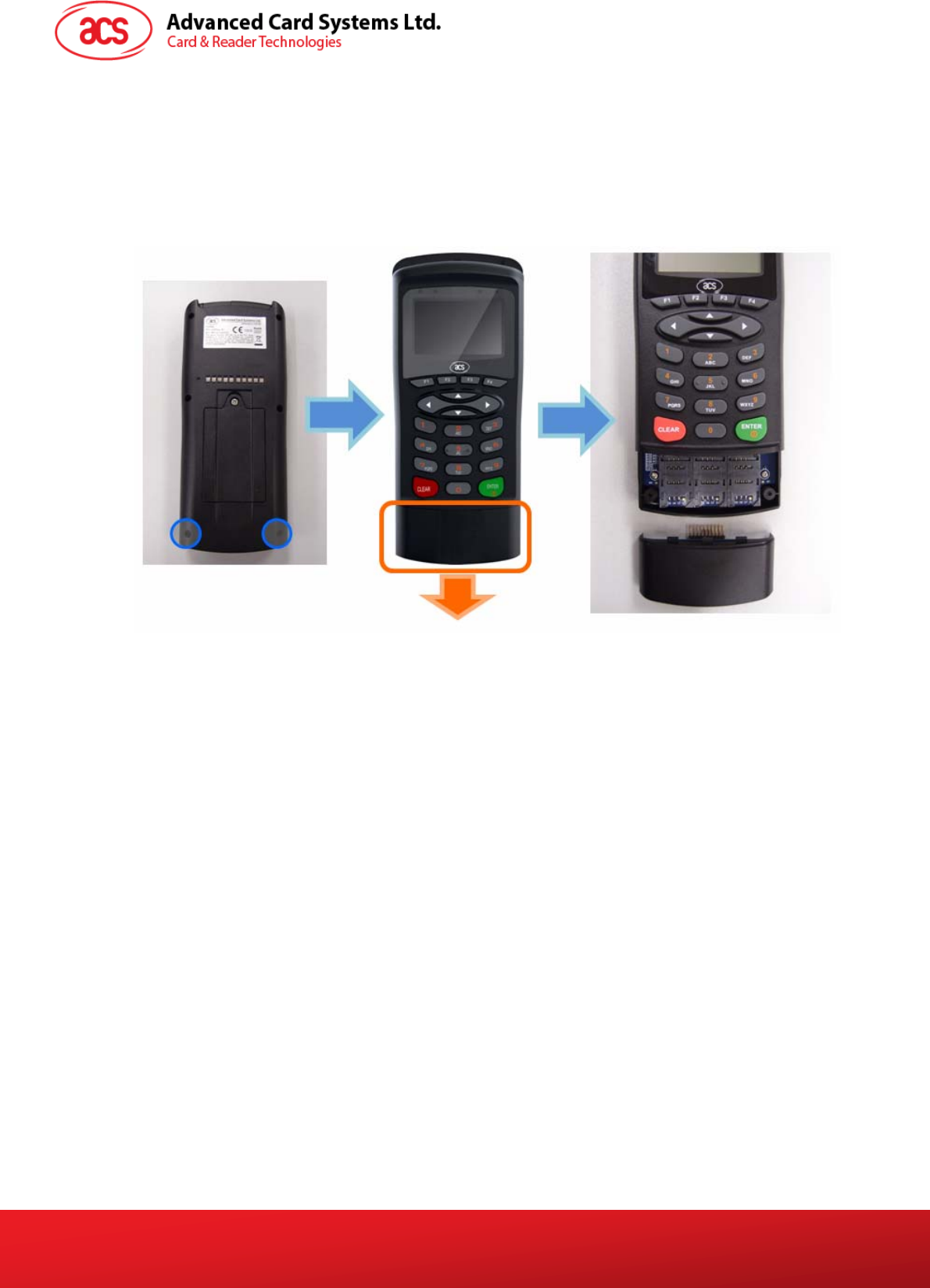

4.3. SAM card slots
There are 3 SAM card slots on ACR89. They are located in the bottom part of the device. In
order to insert or change SAM cards, please follow some simple steps below.
1. Turn the two screws on the back bottom part of the device to the left
2. Slide down the cover on front bottom of the device and the SAM card slots will be seen
Document Title Here
Document Title Here
Document Title Here
ACR89 - User Manual
Version 0.00.01
Page 9 of 14
info@acs.com.hk
www.acs.com.hk
5.0. ACR89 Driver Installation
5.1. Device Driver Download Location
The device drivers of the ACR89U Handheld Smart Card Reader are available in the following
locations:
• ACS Driver Download Webpage (http://acs.com.hk/index.php?pid=drivers)
• Windows Update for Windows XP and 2000
It is strongly recommended that the user installs/uninstalls the driver using the device driver
installer.

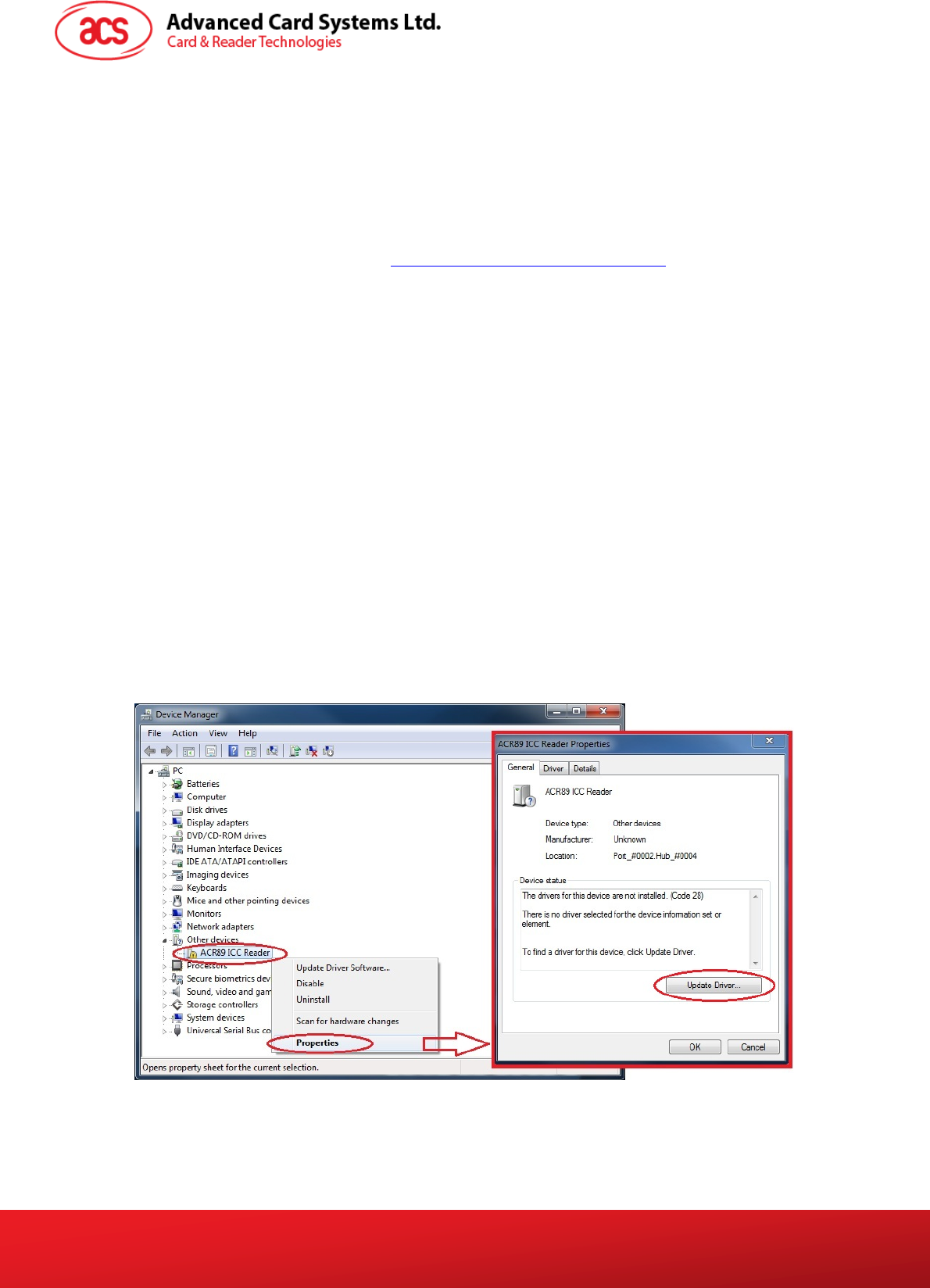

5.2. Windows Driver Installation
Please following the steps below to install the Driver for ACR89
1. Unzip the Reader Driver rar file
2. Plug the ACR89 to your PC with USB cable
3. Go to “Control Panel”, select “Device Manager”
4. Expand “Other devices” and “ACR89 ICC Reader” would be shown
5. Right click “ACR89 ICC Reader” and select “Properties”
Document Title Here
Document Title Here
Document Title Here
ACR89 - User Manual
Version 0.00.01
Page 10 of 14
info@acs.com.hk
www.acs.com.hk

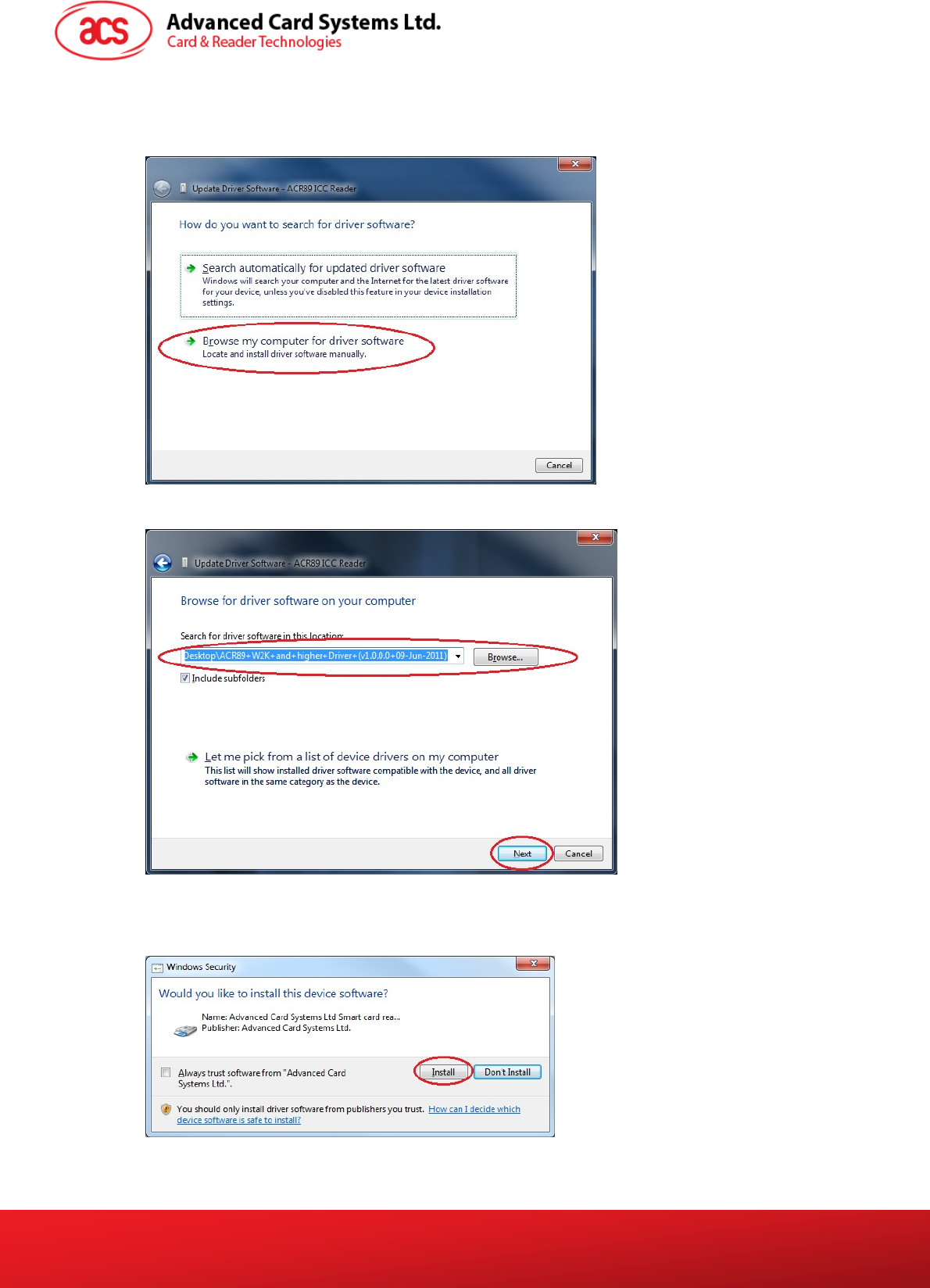

6. Click “Update Driver…”
7. Select “Browse my computer for driver software”
8. Browse the location of the driver folder and click “Next”
9. Click “Install” for Windows Security
Document Title Here
Document Title Here
Document Title Here
ACR89 - User Manual
Version 0.00.01
Page 11 of 14
info@acs.com.hk
www.acs.com.hk

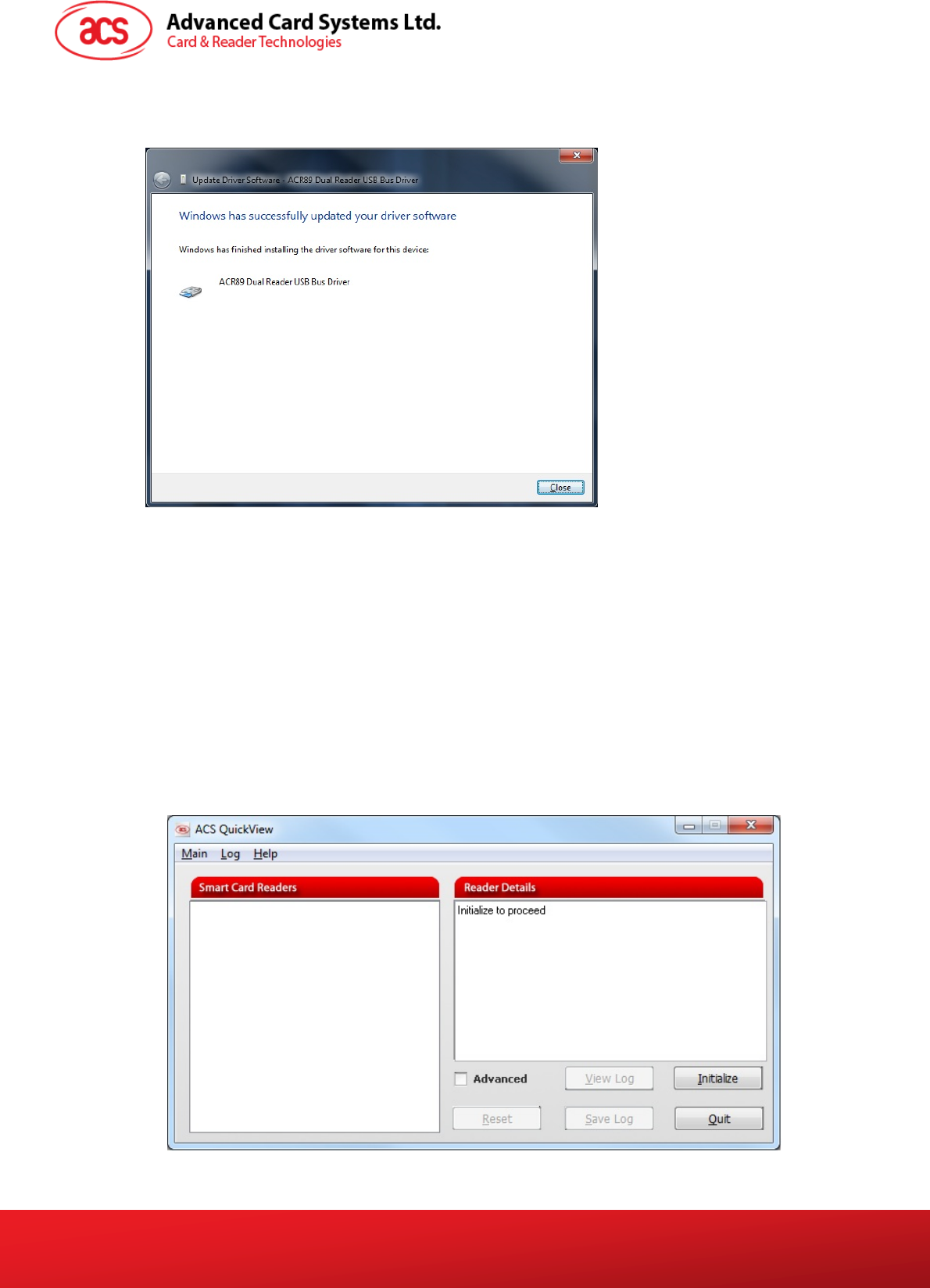

10. The below message will show after install successfully
5.3. Checking the Installation
To check if the ACR89U Handheld Smart Card Reader driver was installed properly, check the
ACS Diagnostic Tool – QuickView – or the Device Manager in Microsoft Windows.
5.3.1 Using QuickView
1. Connect the ACR89U Handheld Smart Card Reader to the PC. Run Quickview.exe then click
Initialize to start the driver diagnosis.
Document Title Here
Document Title Here
Document Title Here
ACR89 - User Manual
Version 0.00.01
Page 12 of 14
info@acs.com.hk
www.acs.com.hk

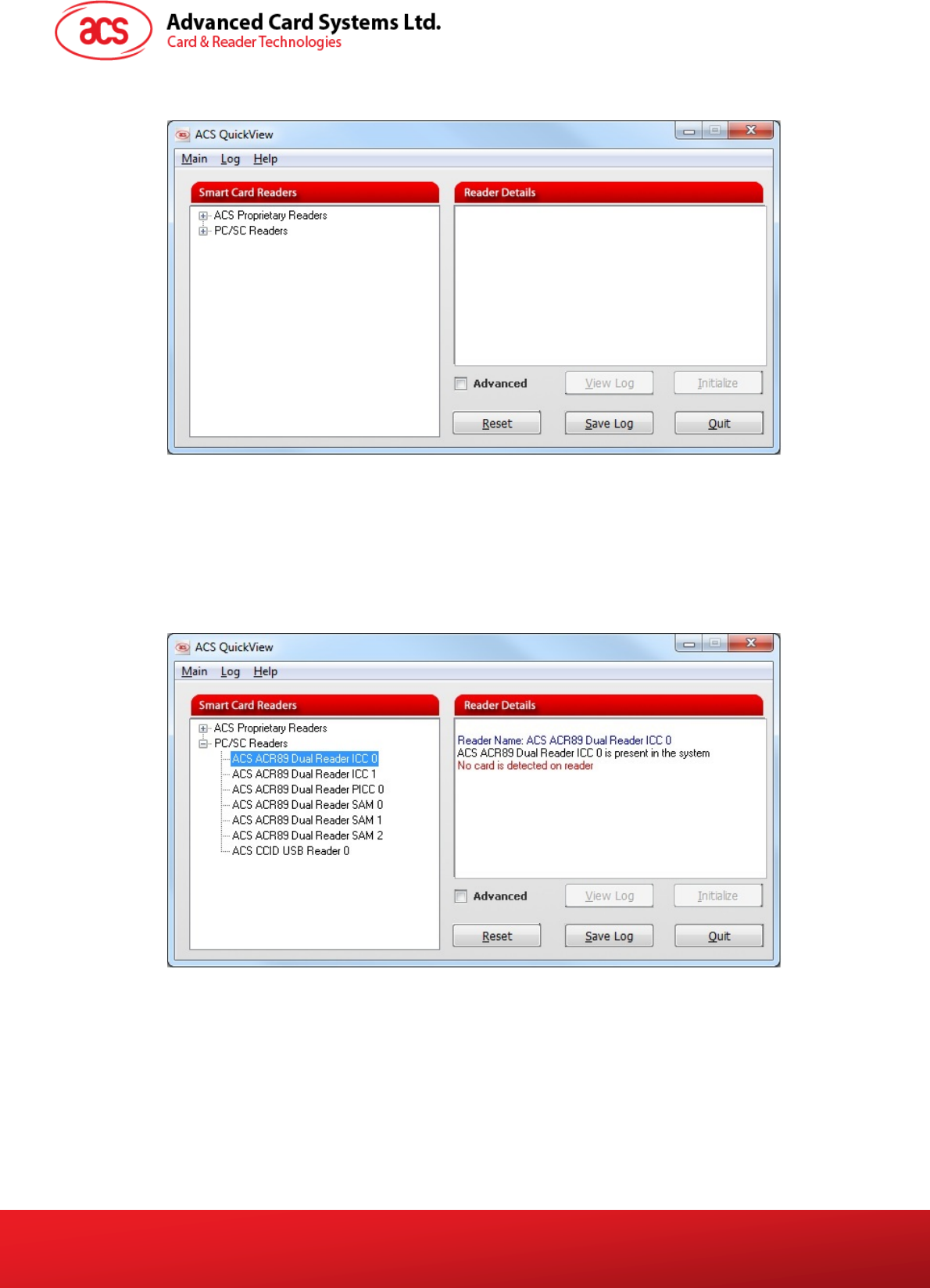

2. After initialization, the interface shows like below. Expand he PS/SC Reader.
3. If the ACR89U Smart Card Reader was successfully installed in the PC, the reader details will
be displayed. Click a particular card slot, the “Reader Details” in the program shows if the slot
detects a card.
In this example, there is no card inserted in the slot ICC 0, so it shows “No card is detected on
reader”.
Document Title Here
Document Title Here
Document Title Here
ACR89 - User Manual
Version 0.00.01
Page 13 of 14
info@acs.com.hk
www.acs.com.hk

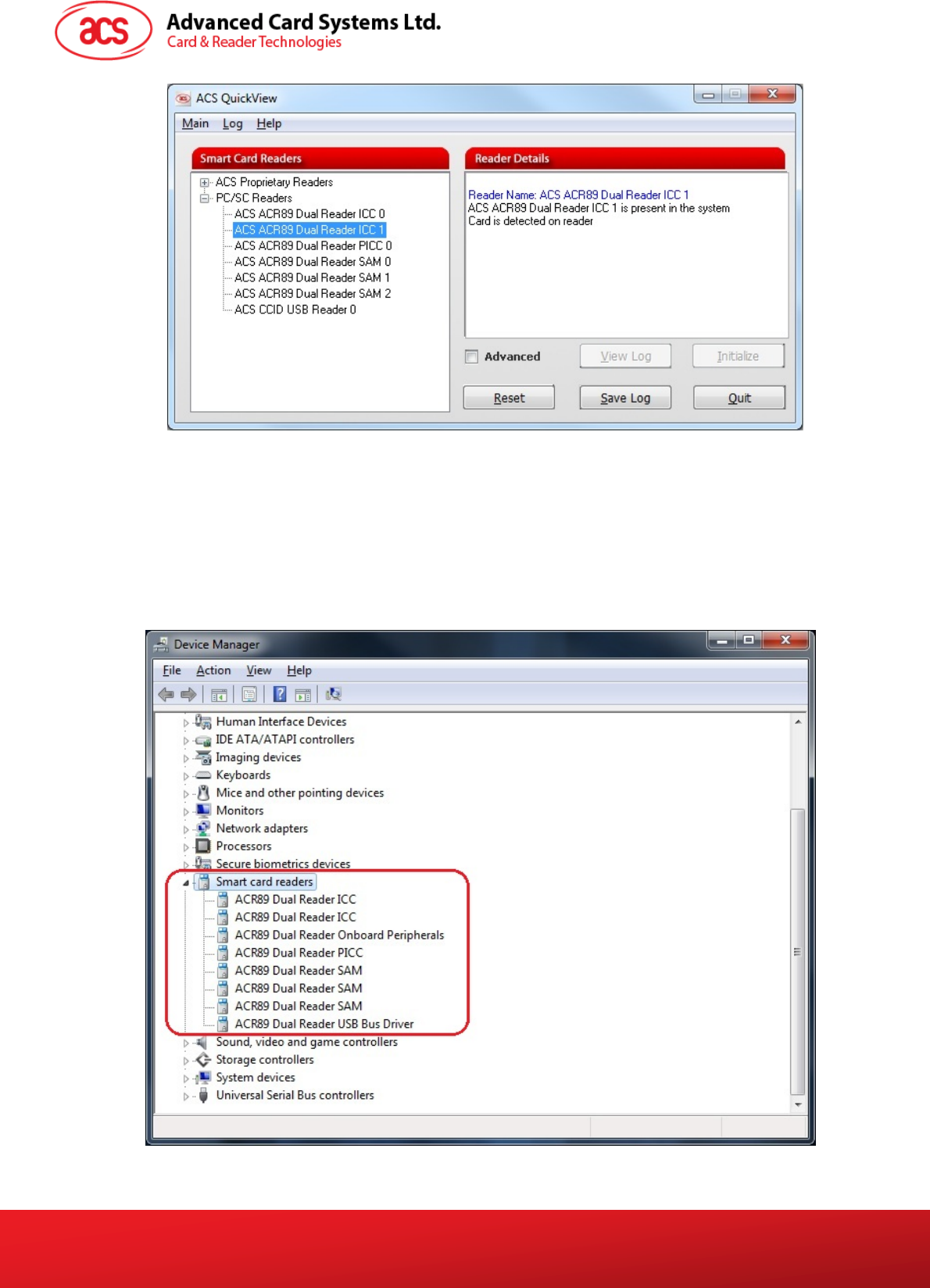

There is a card inserted in the slot ICC 1, so it shows “Card is detected on reader”.
5.3.2 Using Device Manager
To start the Device Manager, select Start → Settings → Control Panel and then double click on
the System, then click the Device Manager.
Document Title Here
Document Title Here
Document Title Here
ACR89 - User Manual
Version 0.00.01
Page 14 of 14
info@acs.com.hk
www.acs.com.hk
Warning：
Any Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
