ZTH100 Operating Instructions
060902
HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
1
BEFORE YOU BEGIN...
READ ALL INSTRUCTIONS
Remove battery cover on rear of transmitter. Install two (2) AA alkaline batteries (included).
There are no field repairable assemblies on this unit. It is covered by a two year limited warranty. If service is needed,
the unit must be returned where purchased.

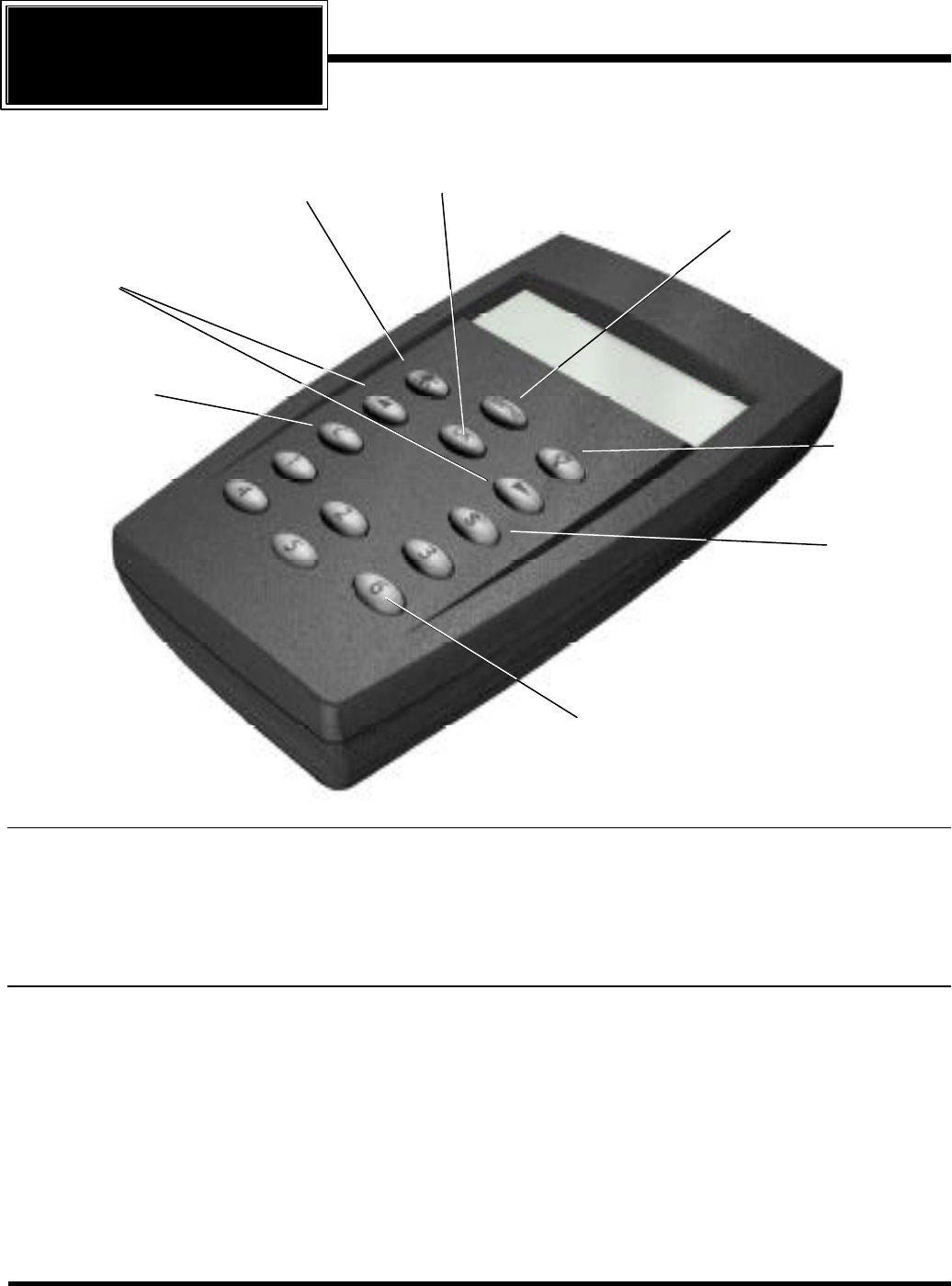

BUTTON LAYOUT
MENU - ACTIVATES THE MENU DISPLAY.
OK - ACCEPTS CHOICES ON THE DISPLAY.
“LIGHT BULB” ON - ALL GROUPS ON.
“LIGHT BULB OFF”- ALL GROUPS OFF.
LEFT ARROW - MENU NAVIGATION BUTTON, LEFT.
RIGHT ARROW - MENU NAVIGATION BUTTON, RIGHT.
C- CLEAR. CANCELS ACTIONS.
S- SCENE BUTTON. TURNS SCENES ON/OFF (PREDETERMINED GROUPS OF
APPLIANCE AND LAMP MODULES AND WALL SWITCHES).
“1” TO “6” - SPEED BUTTONS. GRANTS QUICK ACCESS TO USER DEFINED GROUPS AND
SCENES.
Programmable Radio Frequency Control
Remote Transmitter
Operating Instructions
ALL OFF
Button
OK Button
Navigation Buttons
(toggle left or right thru menus)
Scene button
(Brings up scene menu)
Numbered Speed Buttons
(Grants quick access to groups and scenes)
Cancel Button
(cancels actions)
ALL ON
Button Menu Button
(Activates menu display)
ZTH100
HomePro
RF Home Automation
ZTH100 Operating Instructions
060902 HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
2
Table of Contents
1. INTRODUCTION PAGE
1.1 Getting Started................................................................................................................ 3
2. HOMEPRO PRODUCTS
2.1 Other HomePro Lighting and Appliance Products.................................................................. 3
3. GENERAL OPERATION
3.1 System Description. ................................................................................................................ 3
3.2 Remote Transmitter Software features. .................................................................................. 3
3.3 Powerdown and Display Timeout............................................................................................ 3
4. HOW TO USE THE ZTH100 FEATURES
4.1 Menu navigation and selection .............................................................................................. 4
4.2 Groups/scenes........................................................................................................................ 4
4.2.1 Add module to group ............................................................................................................ 4
4.2.2 Add module to scene. ........................................................................................................ 5
4.2.3 Exceeding node limit. ............................................................................................................. 6
4.2.4 Adding unsupported device types to the network.................................................................... 6
4.2.5 Name a group/scene............................................................................................................... 6
4.2.5.1 Character set. ......................................................................................................................... 6
4.2.6 Remove module from group/scene......................................................................................... 7
4.2.7 Delete group/scene................................................................................................................. 7
4.3 Timer ...................................................................................................................................... 8
4.3.1 Create/Edit a timer .................................................................................................................. 8
4.3.2 Delete timer ............................................................................................................................ 10
4.4 Child protection ..................................................................................................................... 10
4.5 Burglar deterrent.................................................................................................................... 11
4.5.1 Activate burglar deterrent ..................................................................................................... 12
4.5.2 Exclude module .................................................................................................................... 13
4.5.3 Include module ....................................................................................................................... 13
4.6 Setup....................................................................................................................................... 14
4.6.1 Set time .................................................................................................................................. 14
4.6.2 Display contrast ...................................................................................................................... 14
4.6.3 Setup All On/Off ..................................................................................................................... 15
4.6.4 Copy configuration to another remote transmitter................................................................... 16
4.6.4.1 Sending information to another remote transmitter................................................................. 17
4.6.4.2 Receive information from Master remote transmitter............................................................. 17
4.6.5 Resetting lamp and appliance modules................................................................................... 18
4.6.6 Reset remote transmitter......................................................................................................... 18
5. OPERATION MODE
5.1 Operation display.................................................................................................................... 19
5.1.1 Secondary remote indication ................................................................................................. 19
5.1.2 Scene indication...................................................................................................................... 19
5.1.3 Low battery indication. ............................................................................................................ 19
5.2 Using operation mode............................................................................................................. 19
5.2.1 Controlling groups using speed buttons.................................................................................. 19
5.2.1.1 Pressing a speed button briefly. ............................................................................................. 19
5.2.1.2 Holding a speed button down.................................................................................................. 20
5.2.2 Controlling groups using navigation keys. .............................................................................. 22
5.2.3 Controlling scenes .................................................................................................................. 22
5.2.4 All ON/All OFF ........................................................................................................................ 23
6. OTHER INFORMATION
Other Z-Wave devices and Warranty................................................................................. 23
FCC Notice.................................................................................................................... 24
ZTH100 Operating Instructions
060902
HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
3
1. INTRODUCTION
1.1 GETTING STARTED
Congratulations on your purchase of the ZTH100 and other HomePro components. This manual will guide
you in understaning the full capabilities of the HomePro Sytem and operation of the Remote Transmitter.
2. HOMEPRO RF PRODUCTS
2.1 OTHER HOMEPRO LIGHTING AND APPLIANCE PRODUCTS
The remote is designed to work with HomePro lamp and appliance controls, and thus control the following products:
ZDP100 RF Lamp Module Plug-in, 300W, 120VAC
ZDW100 RF Wall Mounted Dimmer Wall-mount, 500W, 120VAC
ZRP100 RF Appliance Module Plug-in, 15A, 120VAC
ZRW100 RF Wall Switch Wall-mount, 15A, 120VAC
Z-Wave modules of other types can be added to the system and will also act as repeaters if they support this
functionality. However they cannot be controlled with this controller.
3. GENERAL OPERATION
3.1 SYSTEM DESCRIPTION
The HomePro product line from Advanced Control Technologies includes several products that are intended
to work together to provide convenient control of all of your home lighting and appliances. By using the
ZTH100 remote control transmitter, all of these HomePro devices are linked by a state of the art wireless
communications network featuring patented Z-Wave technology. This technology insures that the commands
that you give through the remote transmitter are reliably communicated by radio to the intended HomePro
device.
The remote transmitter controls up to 64 HomePro devices, which include both plug-in and wall mounted
dimmers and switches. The remote transmitter finds a way to route your commands to the intended device
through other HomePro dimmers and switches. This is possible because each of these devices are designed
to retransmit the commands that are sent thru them to adjacent devices that might otherwise be out of range
of the remote transmitter. The Z-Wave system provides that a command can be routed if necessary through
as many as three different devices in route to the intended device.
Communications with devices employing Z-Wave technology is bi-directional. That is, when a command is
sent from a remote transmitter, an acknowledgement is sent back to it by the affected devices to confirm that
the command was received. In the unusual situation in which a command is not properly received, a mes-
sage will appear on the remote transmitter’s display to inform the User.
3.2 REMOTE TRANSMITTER SOFTWARE FEATURES.
• Provides user level control for 64 modules.
• Allows configuring of 64 groups with up to 64 modules in each.
• Allows configuring of 32 scenes with up to 64 modules in each.
• Eight (8) timers are available to the user. Each timer can be used to control any one of the existing groups.
• Burglar deterrent mode that randomly turns individual modules ON/OFF in the network.
• Displays the time in 12 hour AM/PM format
• Allows multiple remote transmitters (one master and two or more secondary ones) in various locations for
convenience.
3.3 POWER DOWN AND DISPLAY TIME-OUT
The ZTH100 goies into a power saving mode after a period of inactivity in order to conserve battery life.
pressing any key will cause the unit to “wake up” and process any of your commands. The display is blank
in the power down mode.
ZTH100 Operating Instructions
060902 HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
4
1. HOW TO USE THE ZTH100 FEATURES
4.1 MENU NAVIGATION AND SELECTION
Pushing the “Menu” button will activate the menu display.:
a. and keys are used to navigate through the menu. All menu levels wrap
around.
b. activates the currently selected menu item.
c. (or Clear) cancels the currently selected item and will in most instances step back to the
previously selected menu level. If used from top menu level the Remote will return to clock
display.

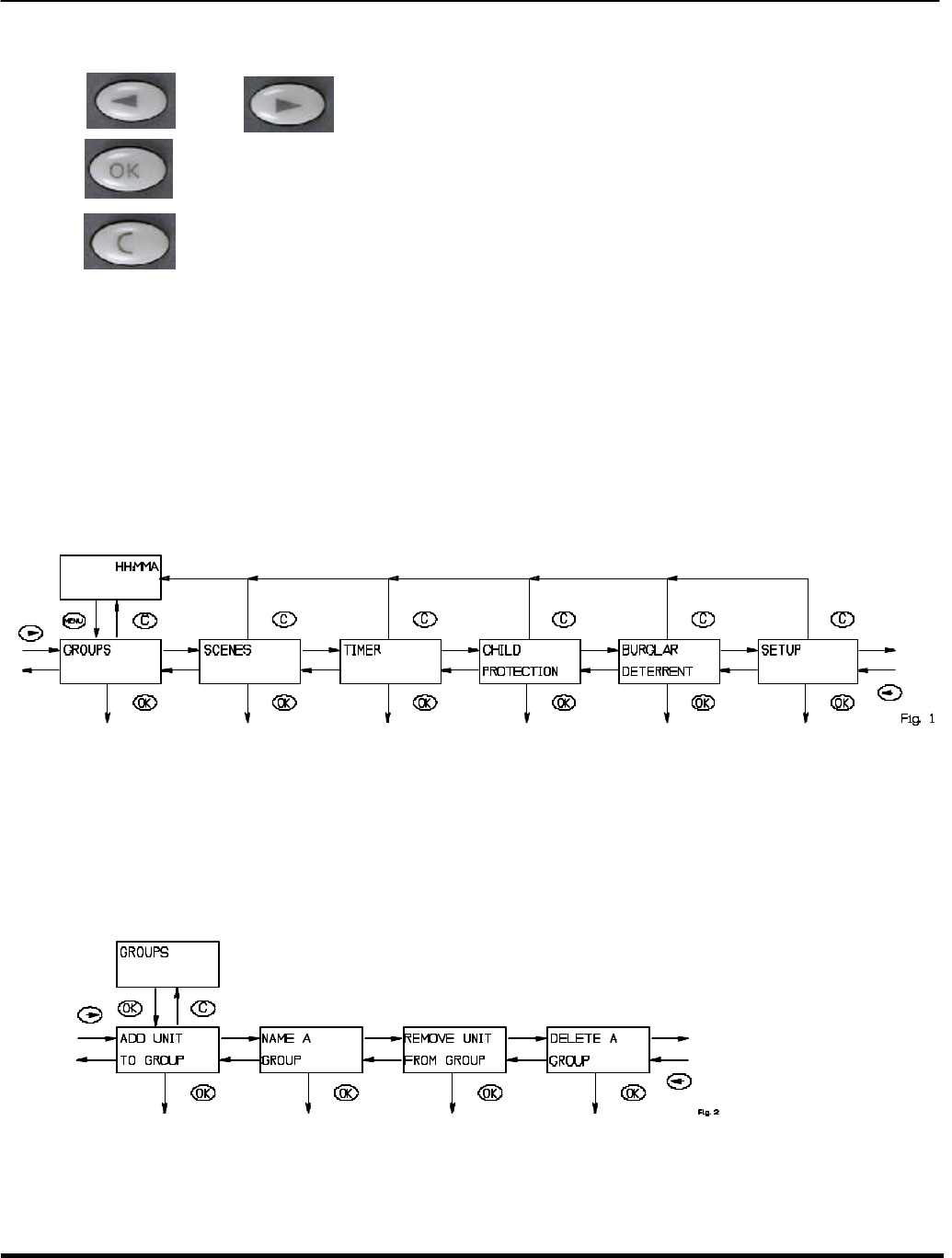

The top menu level behaves like this: Using the right and left arrow buttons you can toggle right or left through the
menu selections of : GROUPS
SCENES
TIMER
CHILD PROTECTION
BURGLAR DETERRENT
SETUP
Top level menus wrap around, so arrow buttons in any direction will repeat menu selections.
Select any one by pressing OK. Follow instructions to set up that function (explained in following paragraphs). Using
the Clear button (C) at any time will take you back to the Time (which will auto-off after 10 seconds)
4.2 GROUPS/SCENES
The layout and behavior of the “groups” and “scenes” menus are very similar. Where they are identical, “groups” is
used as an example.
ZTH100 Operating Instructions
060902
HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
5

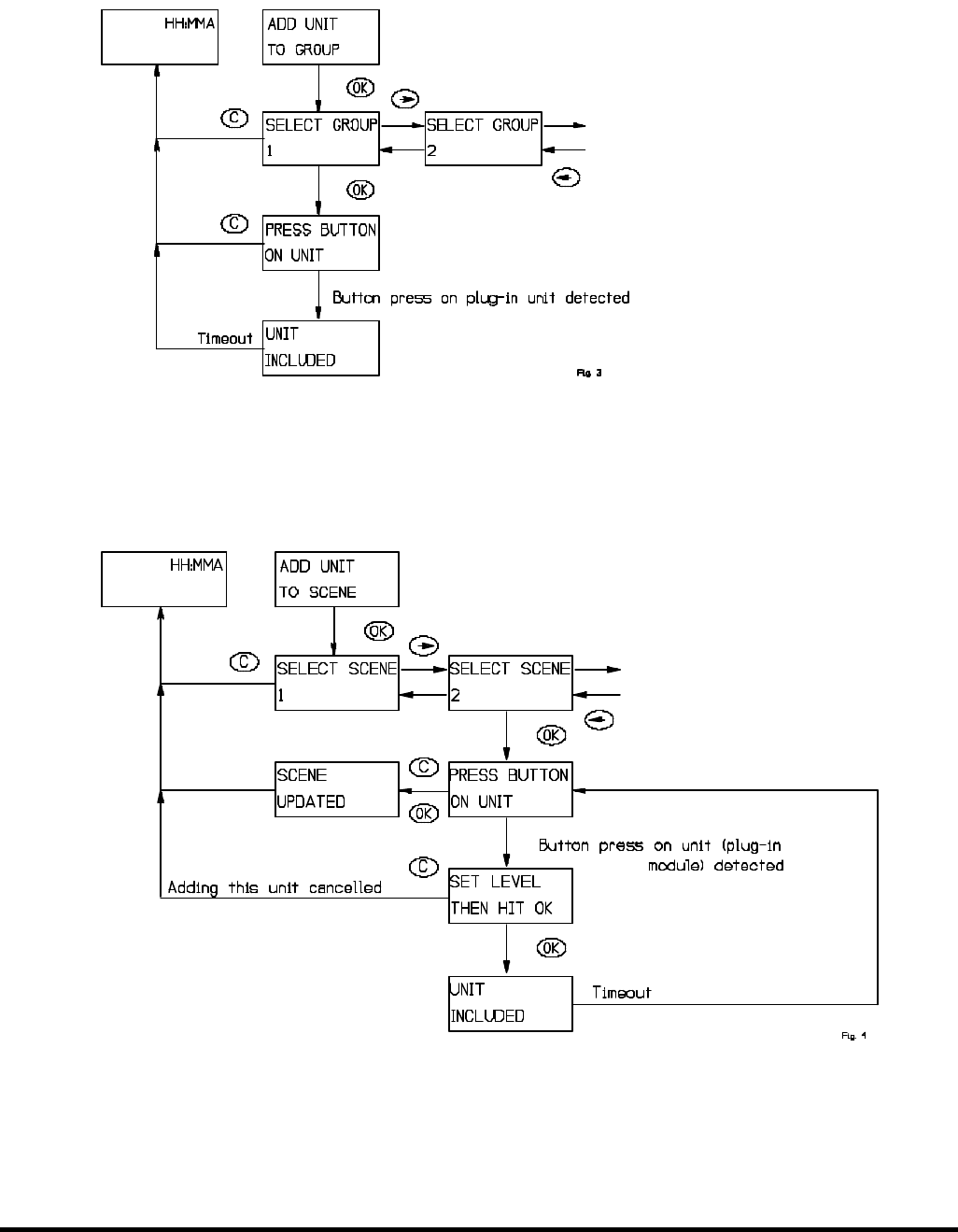

4.2.1 ADD MODULE TO GROUP
Adding a module to a group using the menu is done this way:
Alternatively if the group has been named, the name shows up instead of the number. To add more units repeat
the procedure “ADD UNIT TO GROUP”
4.2.2 ADD MODULE TO SCENE.
Adding a module to a scene is done this way:
Note that hitting “C” will not clear units that already have been stored in the selected scene. A module is stored when
“Switch included” is shown in the display.
ZTH100 Operating Instructions
060902 HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
6
4.2.3 EXCEEDING NODE LIMIT.
This application supports up to 64 modules. If the user tries to add more than 64 modules to a group or scene this
message will be displayed:
However the module will be given a valid ID and it will be used as a repeater if it supports this functionality, but it cannot
be directly controlled by this remote.
4.2.4 ADDING UNSUPPORTED DEVICE TYPES TO THE NETWORK
As mentioned elsewhere devices of other types than multilevel and binary switches can be included into the network
and will be used by the protocol; they cannot be controlled by this application. If the user adds an unknown device to
the network this information will be displayed:

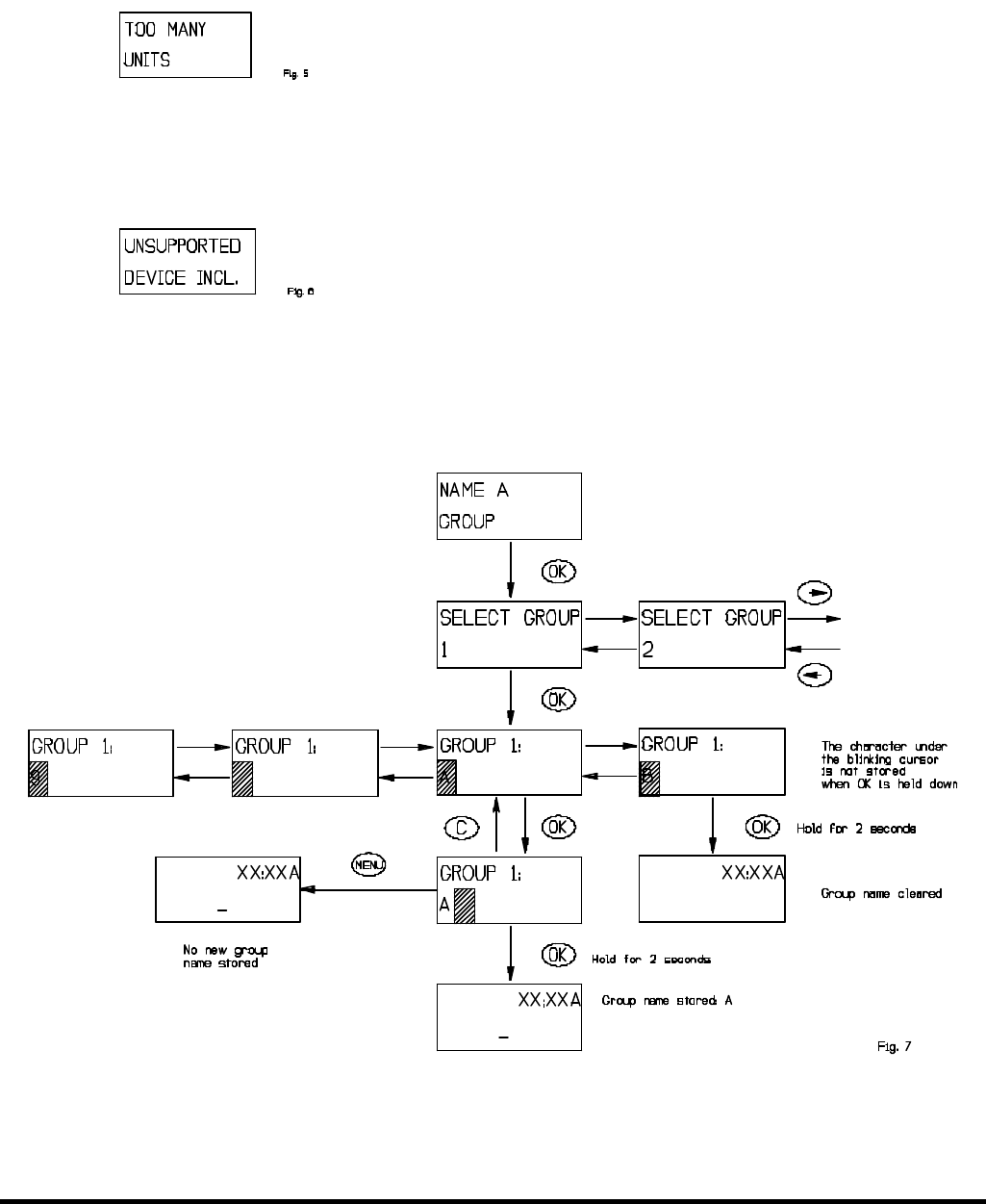

4.2.5 NAME A GROUP/SCENE
To name a group or scene enter the relevant menu. Then select the group/scene name to be edited.
In order to delete a name, just select the group/scene and clear the old name using “C”.
Note: Shaded area indicates “blinking” cursor.
4.2.5.1 CHARACTER SET.
The characters available for naming are: ‘A’,’B’,’C’,’D’,..,’Z’, and ’0',’1',’2',..,’9',’ ‘
Note that no lower case letters are available to the user.
ZTH100 Operating Instructions
060902
HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
7

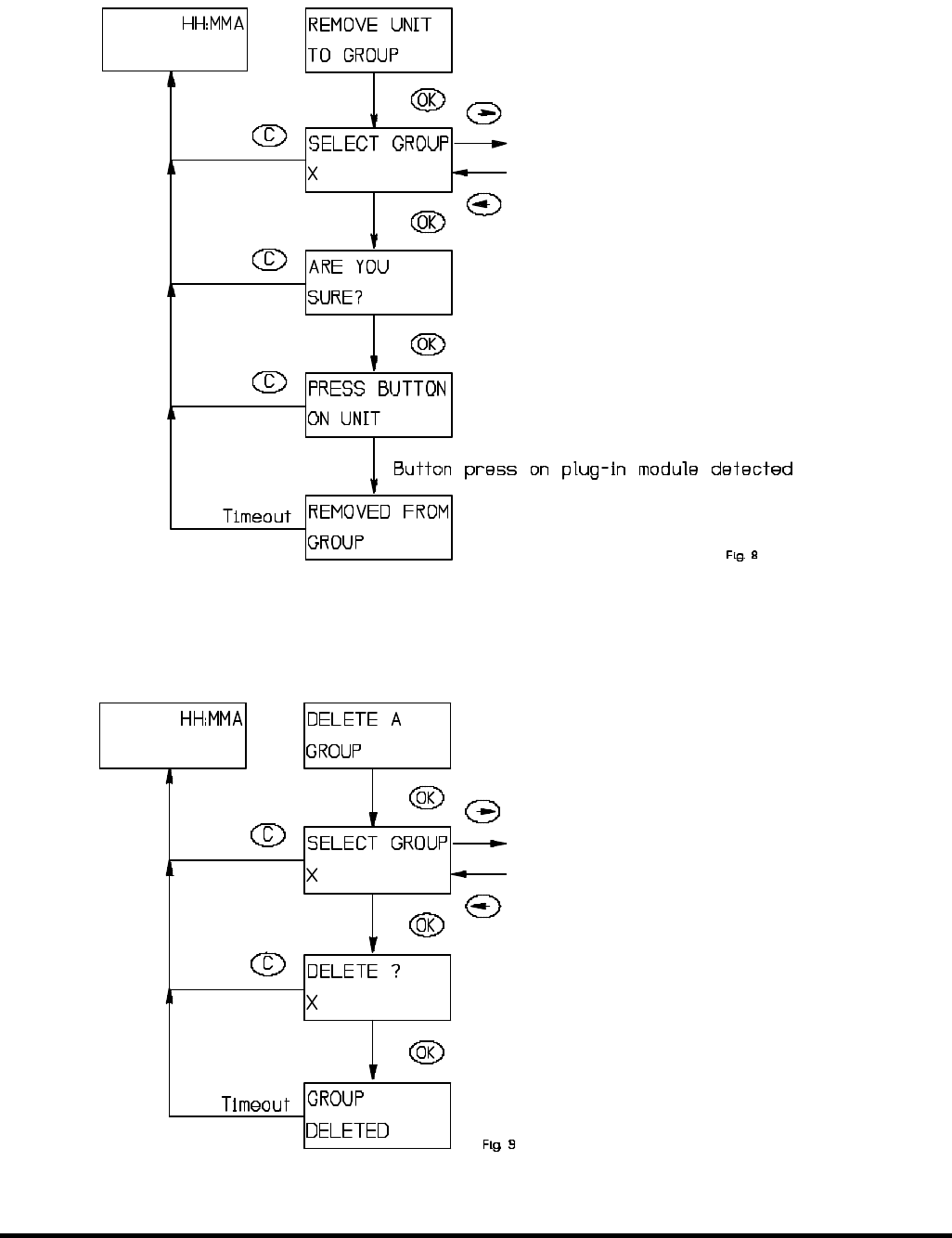

4.2.6 REMOVE MODULES FROM GROUP/SCENE.
Clear cancels the current selection. Navigation keys only work if more than one group or scene exists.
4.2.7 DELETE GROUP/SCENE
Scroll left or right to find scene.
ZTH100 Operating Instructions
060902 HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
8

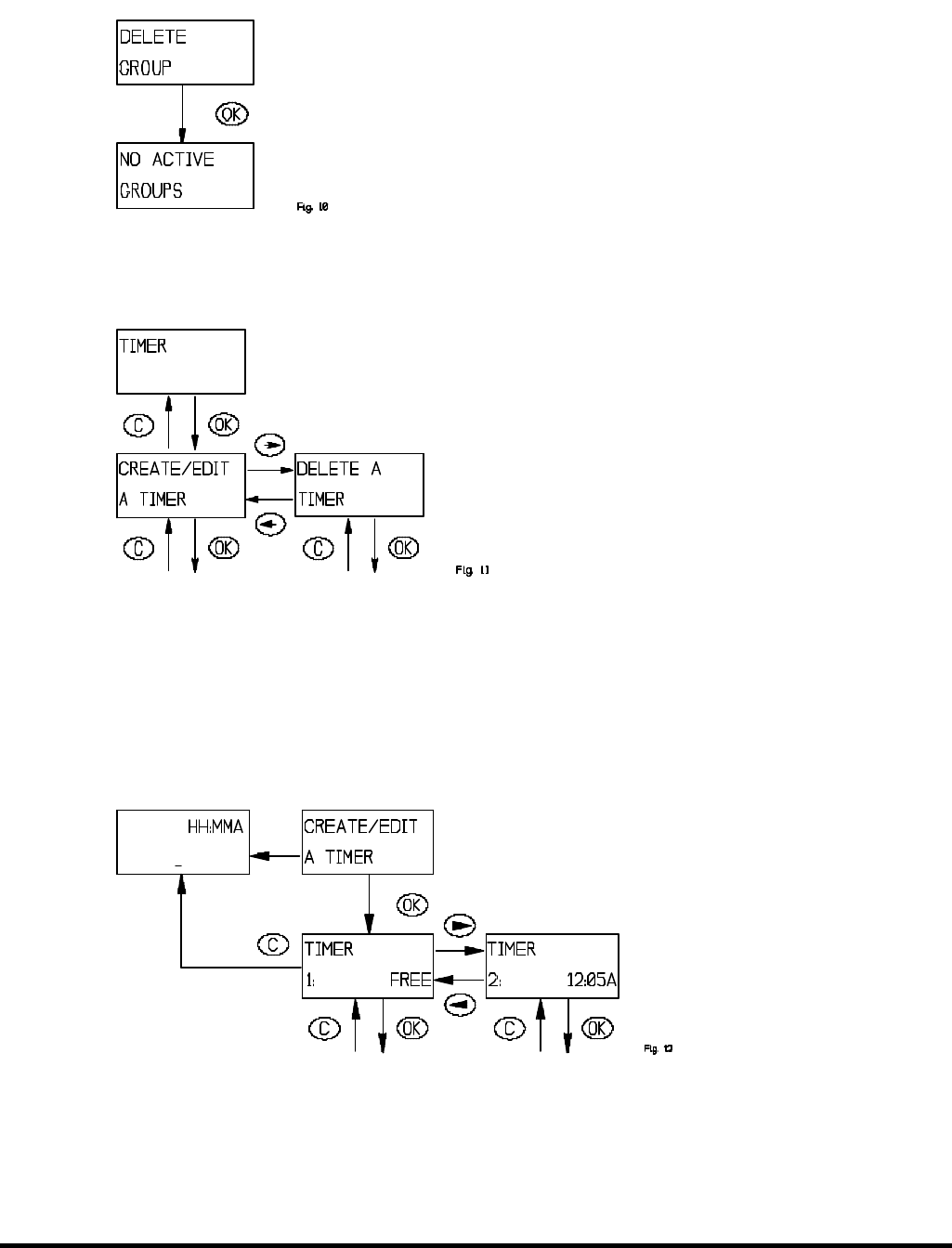

If no active groups or scenes exists the following occurs:
4.3 TIMER
The timer menu consists of the following menus:
Timer information is stored in the remote transmitter – not in the plug-in module.
4.3.1 CREATE/EDIT A TIMER
There are eight timers available for the user. Each timer controls one of the existing groups as chosen by the user.
If an existing timer is selected that timer will be edited. Pressing the clear button will cancel the editing and leave the
timer as it was. The time indicated when selecting a timer is the start time of that timer.
ZTH100 Operating Instructions
060902
HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
9

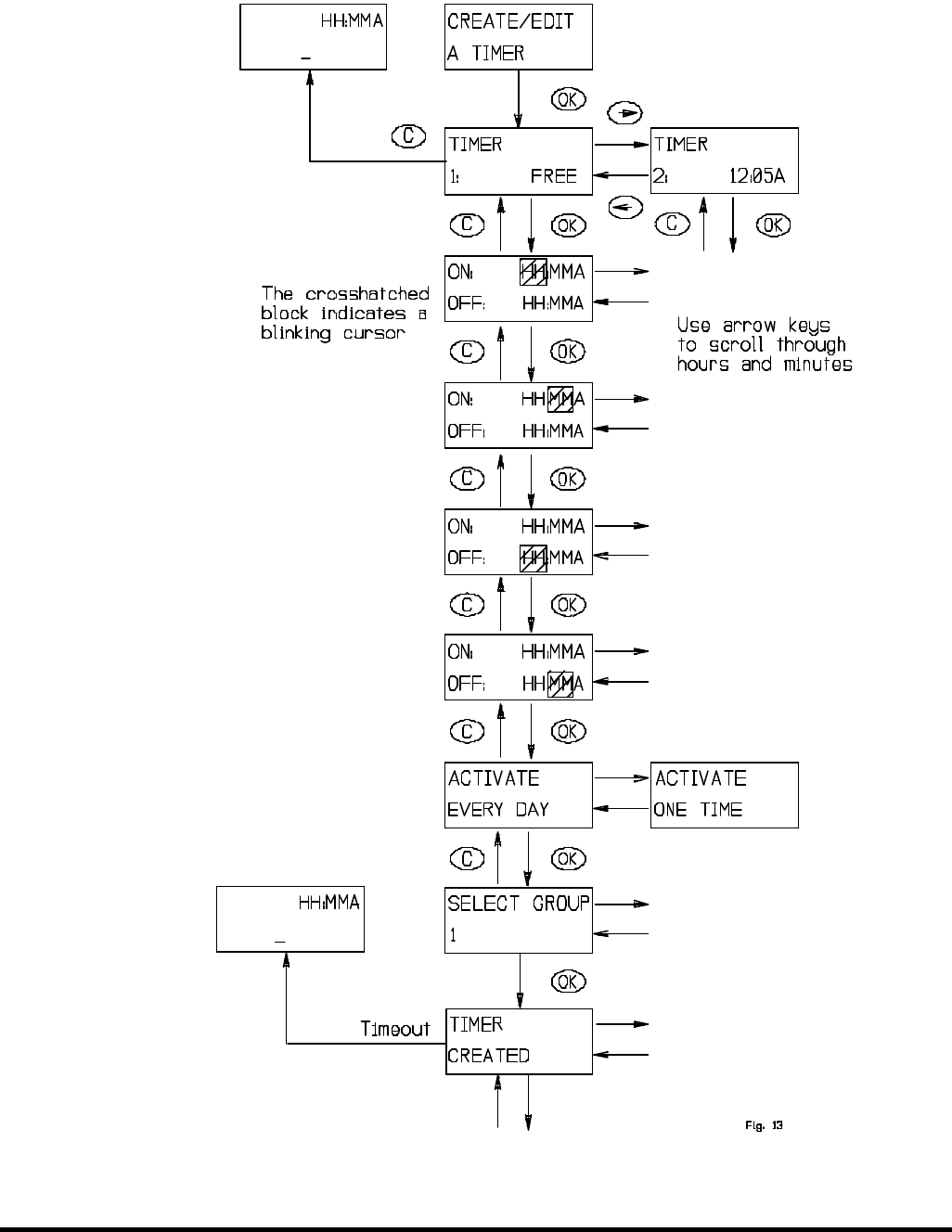

Once a timer has been selected the following flow is executed when creating/editing a timer:
If a group is named the group name will be shown.
ZTH100 Operating Instructions
060902 HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
10

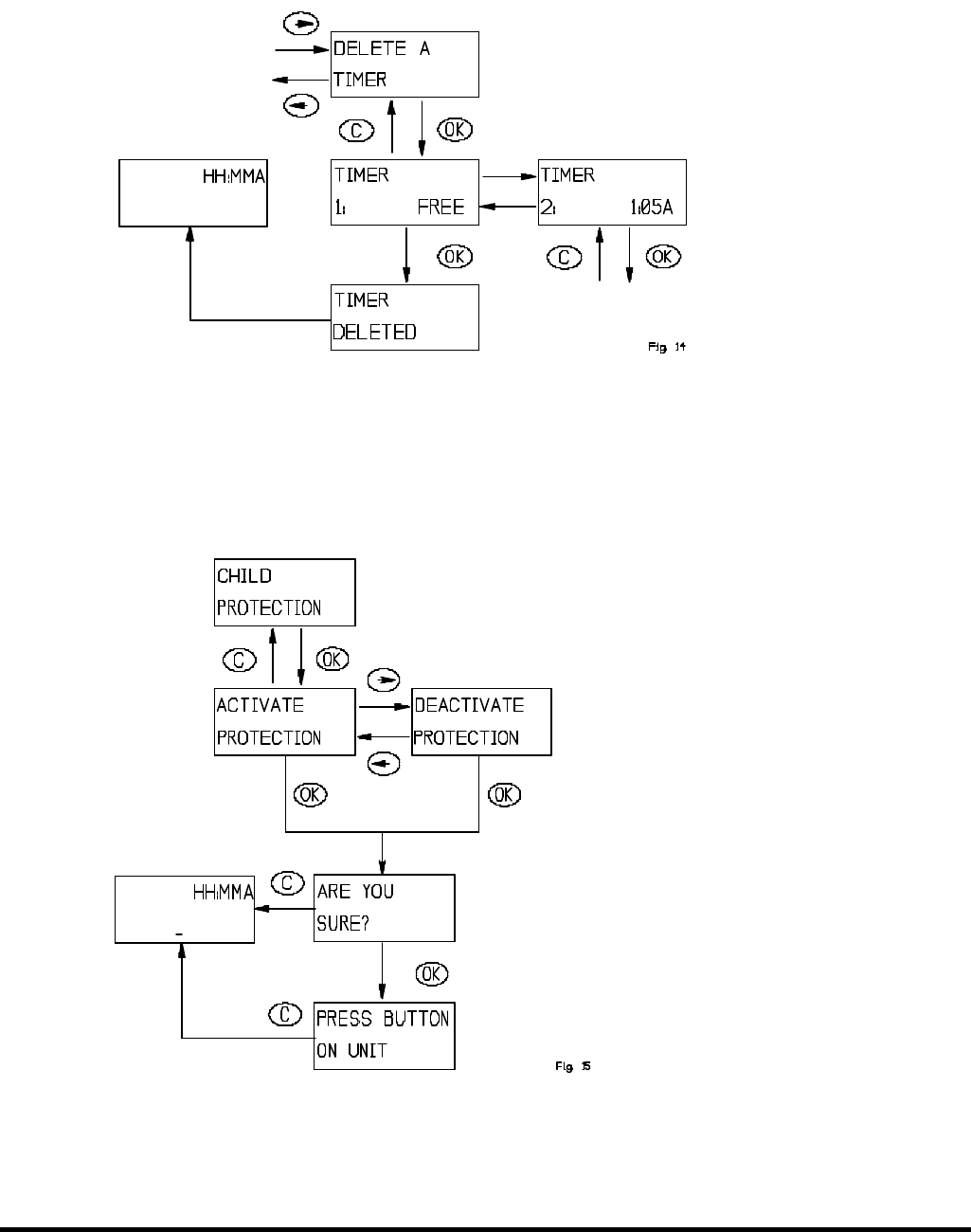

4.3.2 DELETE TIMER
When a timer is no longer needed it can be deleted using “Delete a timer” menu.
4.4 CHILD PROTECTION
Child protection is a feature that protects against unintended use of a module. For this feature to work the module
must support it.
ZTH100 Operating Instructions
060902
HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
11
If a module button is pressed you will get:
or
depending on which of the two options you selected.

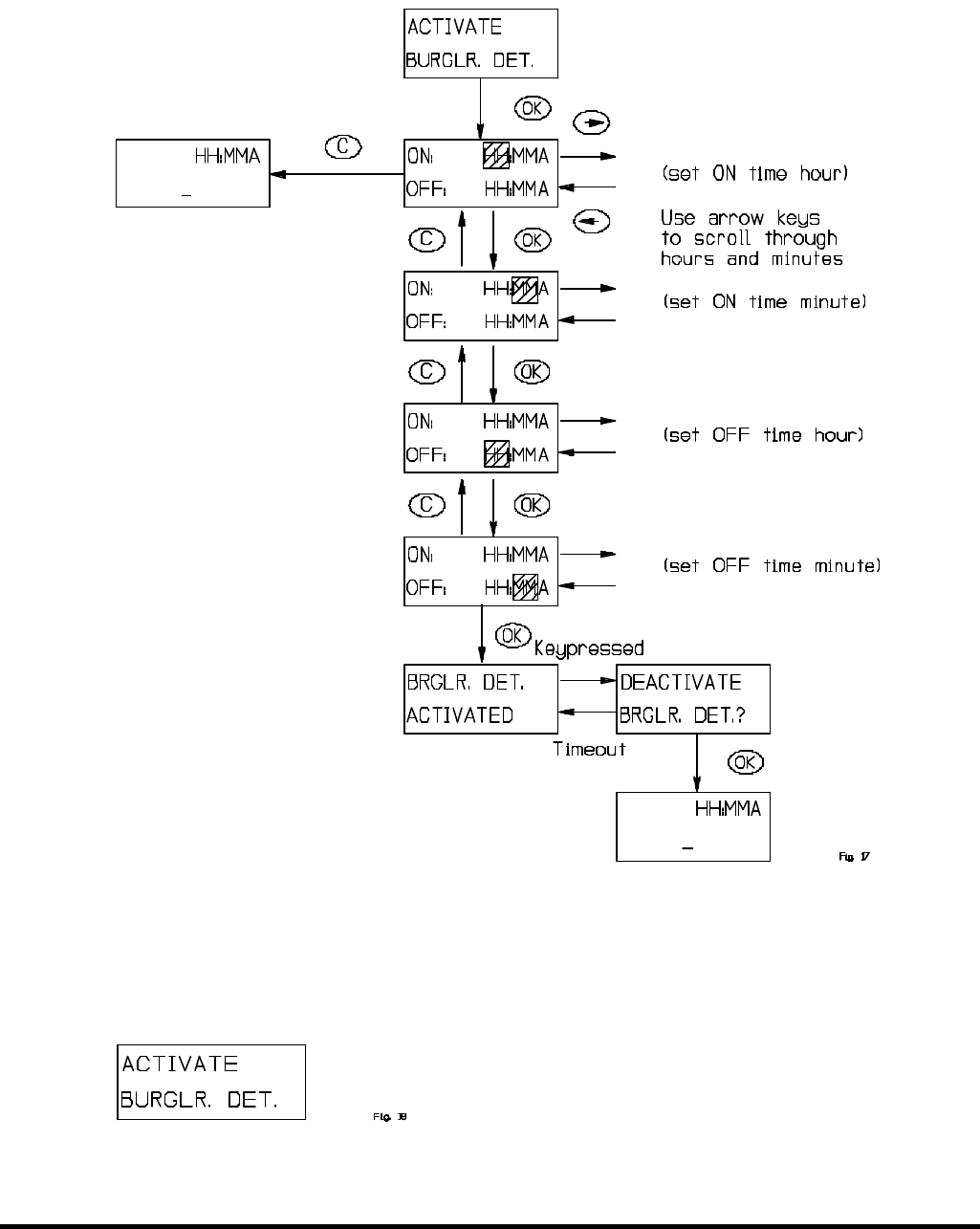

4.5 BURGLAR DETERRENT
When in burglar deterrent mode the remote will randomly turn module on and off in the time interval set by the user
in the “customize time” menu. By default no modules are included in the burglar deterrent mode. So the first step
the user should perform, is to include the units that should be used during burglar deterrent. See section 4.5.3 for
information about how to include units in burglar deterrent.
The following issues should be noted:
1. When the burglar deterrent period expires or is exited by the user, the remote will turn off all the modules
it currently has marked as activated. This may include units that already were ON before burglar deter-
rent was started.
2. Because of the randomness involved the actual start time when burglar deterrent activates the first
module will vary from the start time with +/-15 minutes.
3. After burglar deterrent has activated the first module it will make sure that at least one module is on
during the burglar deterrent period.
4. If only one module is included in burglar deterrent this module will be turned on when burglar deterrent
activates the first time and not be turned off until burglar deterrent ends. Refer to paragraph 3.
5. When the end time is reached it will take from 0 to 59 minutes before it turns off the modules it activated.
6. Burglar deterrent information is only stored in the remote.
ZTH100 Operating Instructions
060902 HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
12
4.5.1 ACTIVATE BURGLAR DETERRENT
Activating burglar deterrent will will take the user through a time period customization and put the remote into a special
mode where it will stay until burgular deterrent is cancelled.
By default no units are included in burglar deterrent. This message will be shown when the user tries to activate burglar
deterrent:
ZTH100 Operating Instructions
060902
HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
13

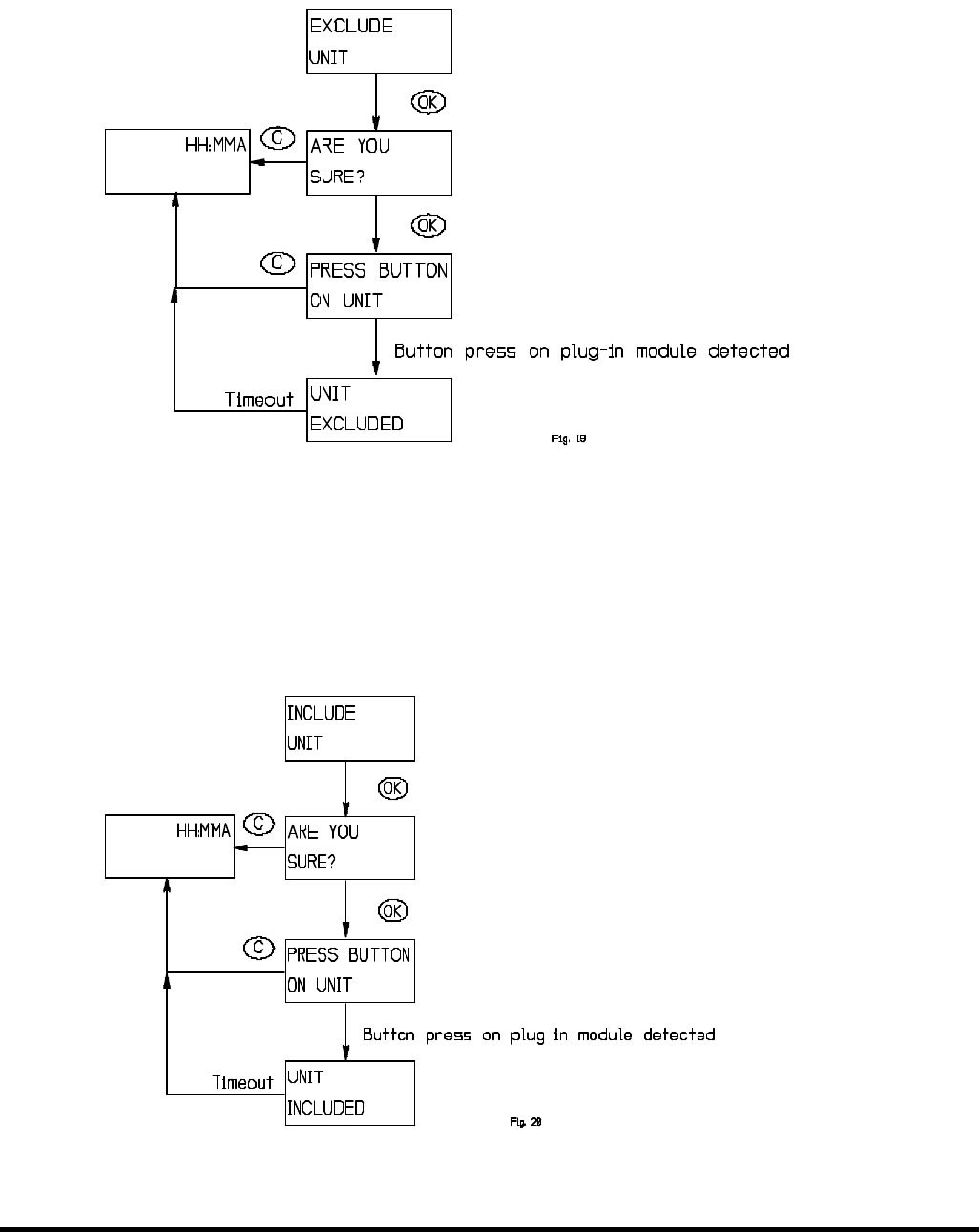

4.5.2 EXCLUDE UNIT
An included module can be excluded once again using this menu. Note that by default no modules are included in
the burglar deterrent mode.
4.5.3 INCLUDE UNIT
When first activating burglar deterrent the modules that the user wants to use should be included using this menu.
In addition an excluded module can be included once again using this menu.
ZTH100 Operating Instructions
060902 HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
14

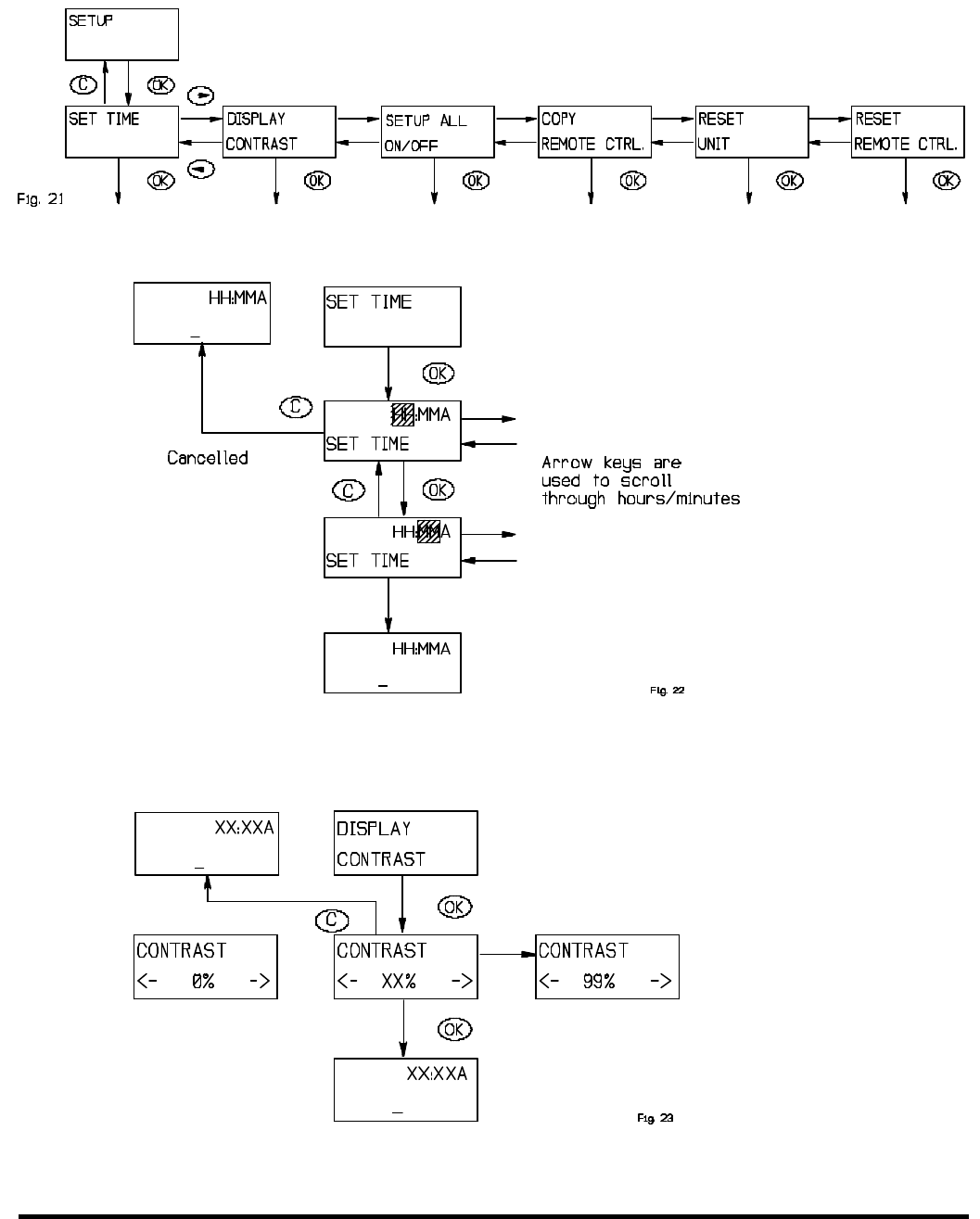

4.6 SETUP
The setup menu is used to access system functions. The layout is as follows:
4.6.1 SET TIME
4.6.2 DISPLAY CONTRAST
“C” cancels the contrast adjustment and returns to idle. Default contrast is 50% which is restored whenever the
batteries have been removed.
ZTH100 Operating Instructions
060902
HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
15
4.6.3 SETUP ALL ON/OFF
Using this menu it is possible to customize the way All on/off works. Units can be included or
excluded from all on/off commands (units are included first time they are added to the network).
ZTH100 Operating Instructions
060902 HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
16

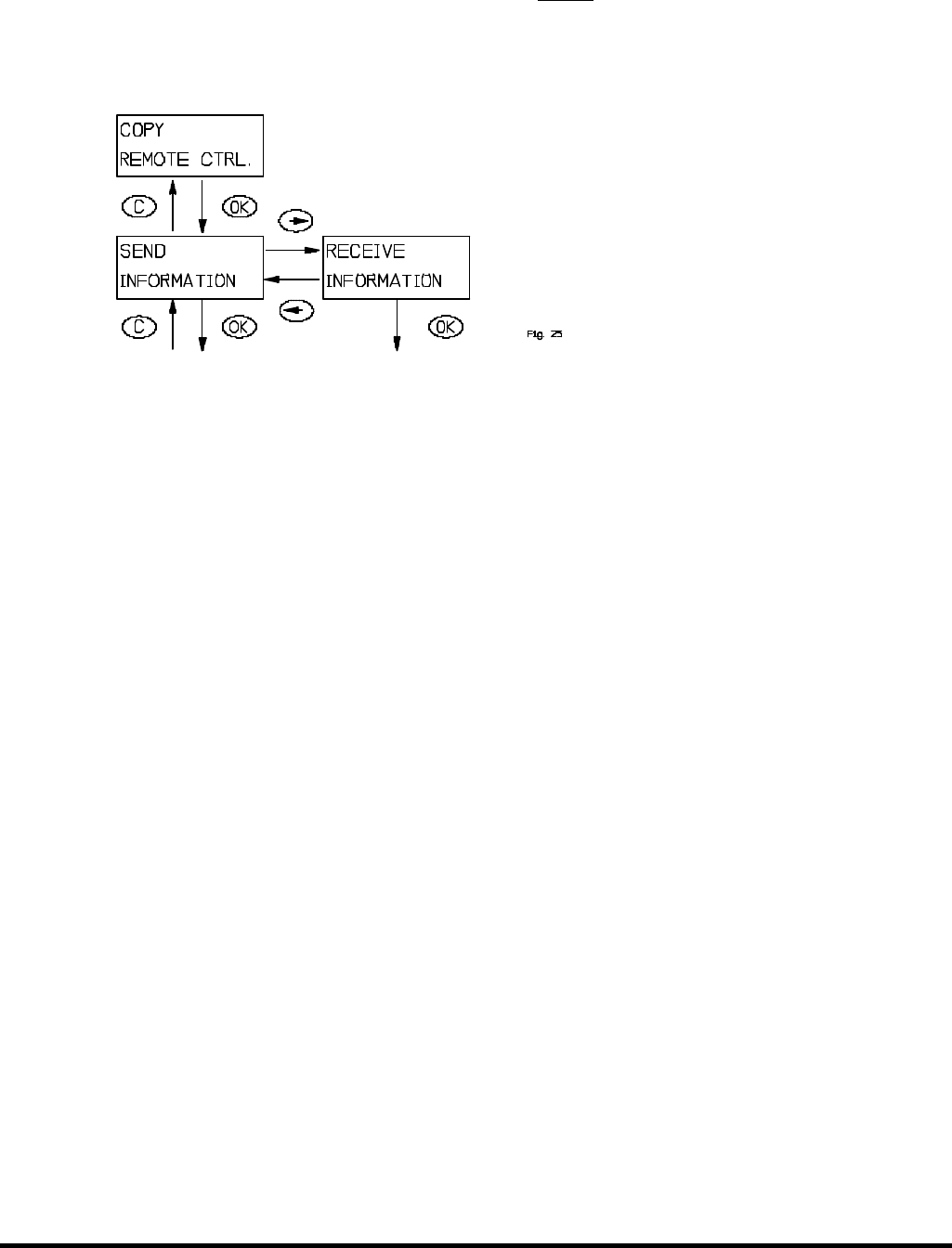

4.6.4 COPY REMOTE TRANSMITTER.
This menu is used to copy information from the Master Remote A master remote must be used to include new modules
to the network and to reset modules. Transmitter to other remote transmitters, so that they may control units known
by the Master Remote Transmitter.
A replication of a remote is done as follows:
1. Select “Receive information” on the remote which should receive the information (i.e. the Secondary
Remote)
2. Select “Send information” and either “Identical copy” or “Only system information” on the remote that is to
send the information (i.e. the Master Remote).
3. Wait until transmission is completed and both the remote transmitters return to clock display.
4. If a transmission error occur. Please repeat from 1.
Considerations:
1. It is important to note that all information on the receiving remote will be deleted before any information is
received.
2. Burglar deterrent and timer information is not copied to the secondary remote.
3. Slave remote transmitters can not be used to add newly acquired or reset modules to the network
4. If a secondary remote is added as one of the first 64 units, it will take up a node ID thus limiting the number
of units that can be controlled from the master remote.
5. If modules are moved physically it should be done as mentioned in 4.6.5 and the replication should be
repeated
6. New modules added to the network are not automatically known by the secondary remote transmitters.
They have to be transferred from the Master Remote by the replication process, or by adding the new
node to a group or scene on the secondary remote before it is known by the Master Remote.
ZTH100 Operating Instructions
060902
HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
17

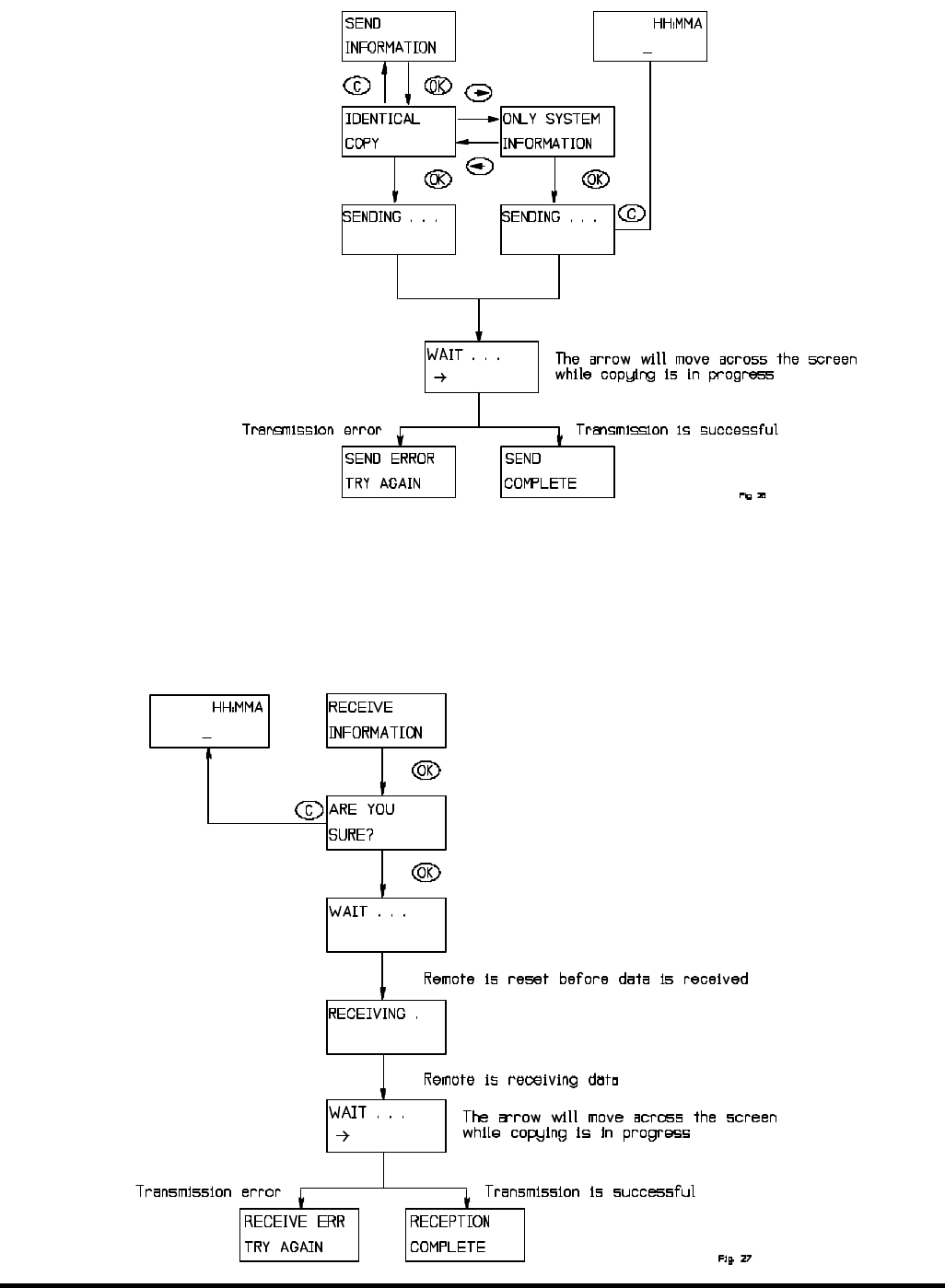

4.6.4.1 SEND INFORMATION
There are two options. If the user wants an exact copy of the master remote including groups, scenes,
names and so forth “Identical copy” should be selected. If the user wants to create groups, scenes and
names from scratch “Only system information” should be selected. When sending is activated the master remote
will wait for a secondary remote to respond to its node information broadcast.
4.6.4.2 RECEIVE INFORMATION
The flow of the “Receive information” menu is shown below.
ZTH100 Operating Instructions
060902 HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
18
4.6.5 RESETTING LAMP AND APPLIANCE MODULES (INCLUDES PLUG IN AND WALL MOUNT)
If a switch is to be moved to a new position or added to a new network, it has to be reset before doing so. This is done
using this menu.
4.6.6 RESET REMOTE TRANSMITTER
The remote transmitter can be reset in two different ways. User data only and factory default. User data only, will only
reset groups, scenes and names. The Remote Transmitter will still information about the modules that have been
added to the network. Factory default will clear the remote of all information, and it will clear groups, scenes, names
and will delete all modules from the network. A factory default reset should be used with extreme care.
ZTH100 Operating Instructions
060902
HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
19
5. OPERATION MODE
5.1 OPERATION DISPLAY
When the clock is displayed the remote control is in operation mode. It is from this mode the known units can be
controlled through either groups or scenes.
5.1.1 SLAVE REMOTE INDICATION
When an underscore is shown in the left bottom corner the remote transmitteris a secondary remote with the limitations
mentioned in these instructions.
5.1.2 SCENE INDICATION.
From the operation mode press the scene prefix button “S”. The display will change to:
This indicates that the next key press will be used to control a scene (if any available).
5.1.3 LOW BATTERY INDICATION.
This message indicates that it is time to replace the batteries. It will go away when the batteries have been replaced.
5.2 USING OPERATION MODE
Operation mode is the mode where the following display is indicated:
This mode is also the idle mode to which the remote returns after performing operations.
In this chapter the functions available in operation mode will be described.
5.2.1 CONTROLLING GROUPS USING SPEED BUTTONS.
Groups are controlled by either using the keys 1 through 6 or by using the navigation keys (‘<‘ or ‘>’) to select the group
that is to be controlled. Note that dimming a group never displays any failures that might have happened during
transmission as does an ON/OFF command.
5.2.1.1 PRESSING A SPEED BUTTON BRIEFLY.
The buttons marked 1 through 6 are used for speed access to the first 6 groups or scenes. Pressing the number button
briefly will toggle the selected group on or off. Even if the remote is powered down (display is off) a key press on a speed
button will toggle the group. The display will show the following message:
ZTH100 Operating Instructions
060902 HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
20
Alternatively, if the group is named, the name will be displayed:
The text is displayed for a few seconds or until transmission is complete depending on which of these actions occurs
last.
If no group of the selected number is defined, the following message will be shown for a few seconds:
If for some reason the transmission fails, the following message will be shown until the user presses a key:

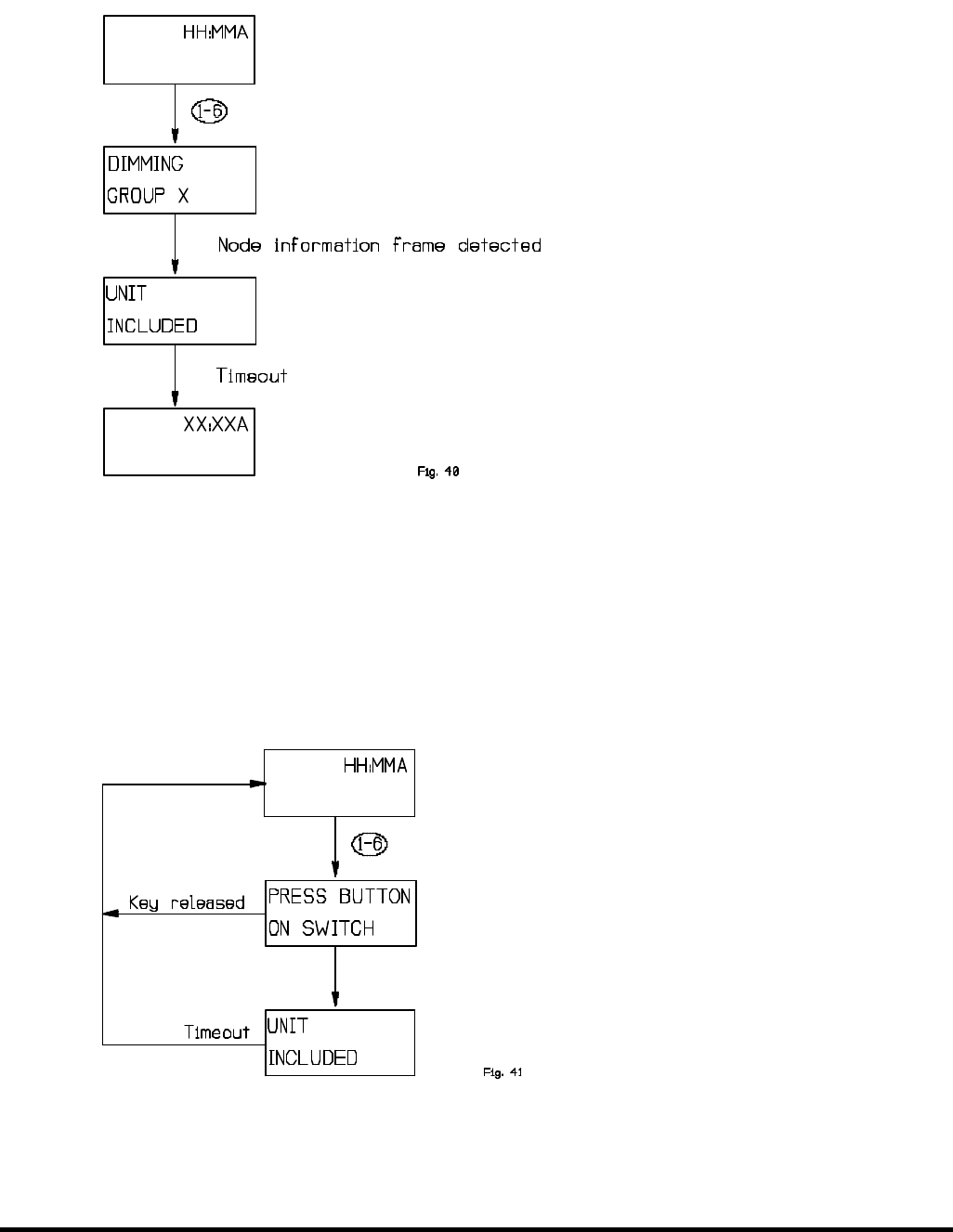

5.2.1.2 HOLDING A SPEED BUTTON DOWN.
Once a group is created on a speed button, it will start dimming when the speed button is held down.
The remote will listen for node information frames while the button is held down. If it detects a node-information frame
from a valid (reset/valid ID) node, it will add this node to the group being dimmed.
This figure illustrates the display during dimming:
Note that once a module is at maximum or minimum dim level the dimming will stop. The button must be released
and held down again in order to change dim direction. If a node information frame is detected during dimming, the
ZTH100 Operating Instructions
060902
HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
21
sequence is as follows:
NOTE: If the group on the speed button is unused the user will be presented with the option to include a module
when holding down a speed button. This is done with the following display:

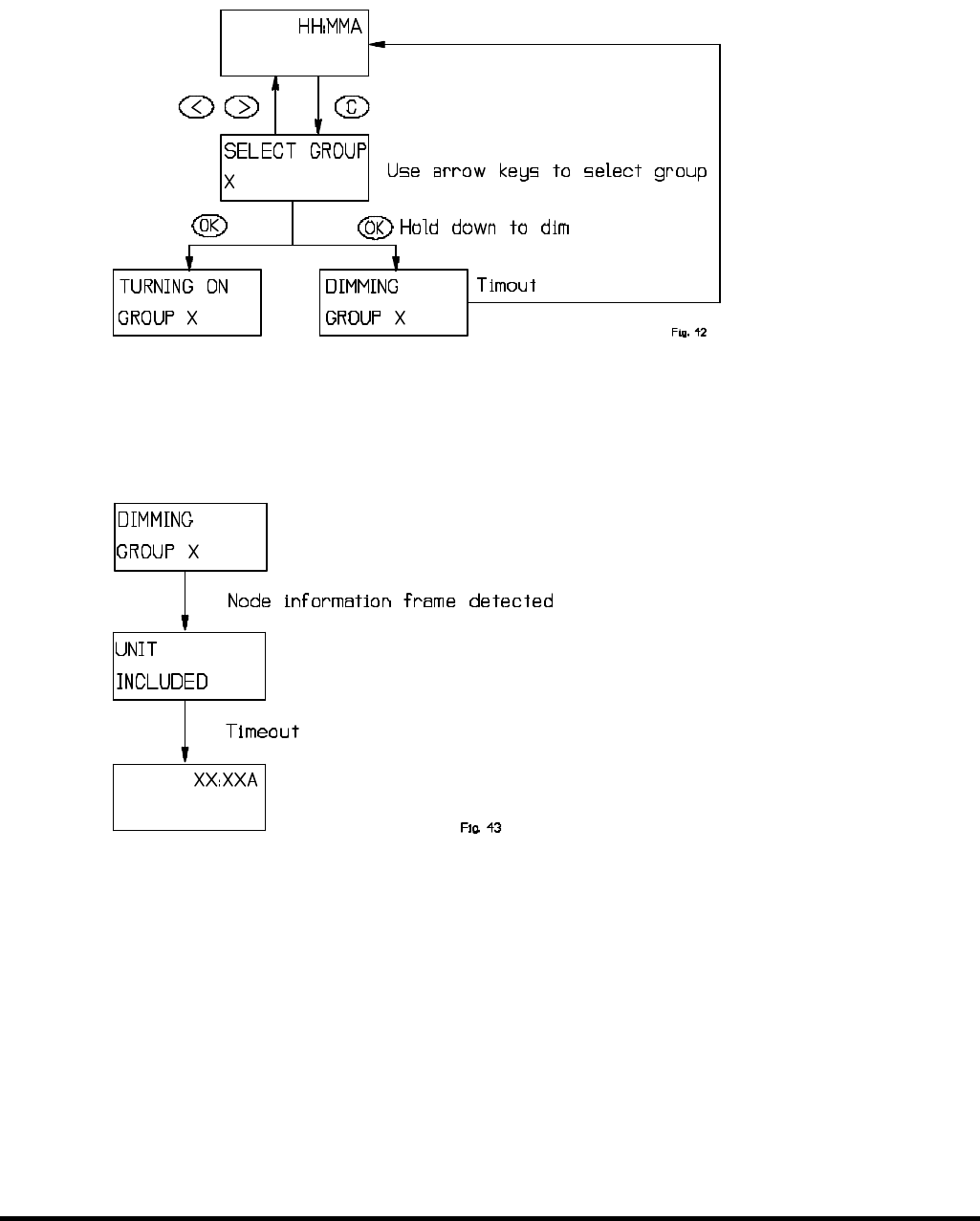

5.2.2 CONTROLLING GROUPS USING NAVIGATION KEYS.
Another way to access groups is to use the navigation keys (‘<‘,’>’) from operation state. This is the only way to control
the groups from 7 to 64. Also note that it is only the existing groups that show up when the user toggles through the
ZTH100 Operating Instructions
060902 HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
22
list. If a group is named the name will be shown instead of the number. In order to switch a group ON or OFF the “OK”
button is pressed briefly. If the “OK” button is held down the group will be dimmed and it will be possible to add module
to the group being dimmed like mentioned in 5.2.1.2
It looks like this:
If a node information frame is detected the flow is like this:
5.2.3 CONTROLLING SCENES
Scenes are accessed through the scene prefix button (“S”). The remote transmitter will indicate that it is in scene
selecting mode by the display shown in 5.1.2.
When in this mode the arrow or number keys can be used to select a scene as mentioned in 5.2.1 except for the fact
that scenes will be activated. Once a scene has been activated the remote returns to group mode. Note that scenes
can only be activated, not dimmed or deactivated.
However they can include switched off modules and also note that setting a scene will never return a failure message.
ZTH100 Operating Instructions
060902
HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
23

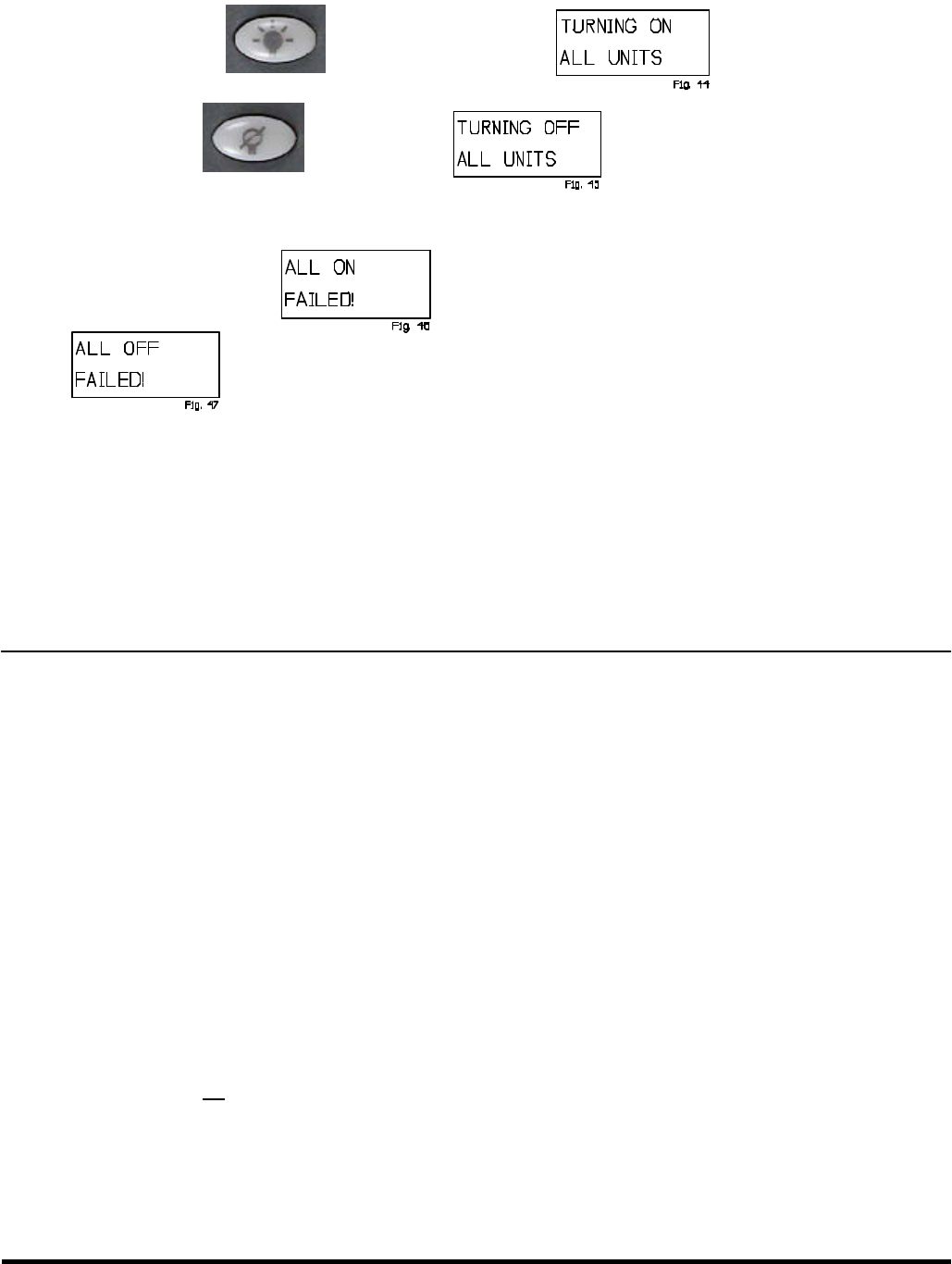

5.2.4 ALL ON/ALL OFF
Hitting “all on” button will show this display
and “all off” button will result in
This display will be shown for the duration of the transmission, which for larger setups can be a while.
If the transmission fails either
or will be shown until the user presses a key.
6. OTHER INFORMATION
The remote transmitter supports 64 modules. If the user adds Z-Wave devices other than HomePro to the network,
those modules will use one of these modules identification, if they are assigned as one of the first 64 modules.
However since the protocol supports up to 232 modules it is possible to create a setup with 64 modules and numerous
modules of other types. The modules must be added to the network before other types of modules are included. The
remote application will ignore the modules that are added after the 64th, but the protocol will make sure that they get
a valid home/module identification and that they are used as repeaters if they support this functionality.
WARRANTY
Advanced Control Technologies, Inc. gives this expressed warranty (along with extended warranty endorsements, where applicable)
in lieu of all other warranties, express or implied, including (without limitation), warranties of merchantability and fitness for a
particular purpose. This constitutes Advanced Control Technologies, Inc.’s sole warranty and obligation with regard to our products
as well as the Customer’s sole remedy.
Advanced Control Technologies, Inc. expressly disclaims all liability and responsibility for any special, indirect or consequential
damages or any further loss of any kind whatsoever resulting from the use of our product. The Customer’s sole and exclusive remedy
and the limit of Advanced Control Technologies, Inc.’s liability for any loss whatsoever, shall not exceed the purchase price paid
by the Customer for the product to which a claim is made.
Some states do not allow limitations of incidental or consequential damages or on how long an implied warranty lasts, so the above limitations
may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
All products manufactured by Advanced Control Technologies, Inc. are warranted to be free from defects in material and workmanship in
accordance with and subject to the following terms and conditions:
1. This warranty is limited to the original Customer only. It cannot be transferred or assigned to third parties unless the intent
to transfer to a third party is expressly indicated in a purchase order and/or warranty processing arrangements have been
agreed upon in writing by Advanced Control Technologies, Inc.
2. Advanced Control Technologies, Inc. will correct any defects in material or workmanship which appear within one (1) year
from the date of purchase. Advanced Control Technologies, Inc. will repair or replace, at our option, any defective prod-
ucts, provided that our inspection discloses that such defects developed under normal and proper use. This warranty does
not extend to goods subjected to misuse, neglect, accident or improper installation, or to maintenance or repair of products
which have been altered or repaired by anyone except Advanced Control Technologies, Inc. unless otherwise stated in
writing.
3. An appropriate charge (50% of product list price) will be made for testing, repairs, replacement and shipping for returned
product which is not defective or found to be defective as the result of improper use, maintenance or neglect.
5. Information in our descriptive literature is based on product specifications that are current at the time of publication.
Product specifications, designs and descriptive literature are subject to change as improvements are introduced. Although
we announce changes as they occur, we cannot guarantee notification to every Customer. Advanced Control Technolo-
gies, Inc. warrants delivered product to conform to the most current specifications, designs and descriptive literature.
ZTH100 Operating Instructions
060902 HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
24
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer-
ence in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC NOTICE
