Advanced Control Technologies 0763-03 Wireless Switch User Manual ZRW103 S300 R3 1 instr p65
Advanced Control Technologies, Inc. Wireless Switch ZRW103 S300 R3 1 instr p65
Contents
- 1. Manual 1
- 2. Manual LSM-20 (300 Series)
Manual 1
Z-Wave ZRW103 Series 300 Instructions, Release 3.1
P/D 010510
HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
0763-03
1
Z-Wave Radio Frequency (RF) Controlled, 120 VAC,
Wall Mounted Switch, 3-Way,
Series 300, Release 3.1
ZRW103
HomePro
RF Home Automation
ZRW103 WALL MOUNTED SWITCH
The ZRW103 Wall Mounted 3-Way Switch is a component of the HomePro lighting control system. Wire the Wall
Mounted Switch in place of the standard wall switch according to the diagram above and program from the Wireless
Controller to operate loads. Inclusion of this Switch on the ZTH100 Wireless Controller menu allows remote ON/OFF
control of lamps connected.
This Wall Mounted Switch is designed to work with other Z-Wave enabled devices. Z-Wave nodes of other types can
be added to the system and will also act as repeaters if they support this function of repeating the signal received to
other modules in the system.
As part of a Z-Wave network, the ZRW103 will also act as a wireless repeater to insure that commands intended for
another device in the network are received. This is useful when the device would otherwise be out of the radio range
of the wireless controller.
There are no field repairable assemblies on this unit.. If service is needed, the unit must be returned where purchased.
DANGER! SHOCK HAZARD. Read and understand these instructions before installing. This device is intended for
installation in accordance with the National Electric code and local regulations in the United States, or the Canadian
Electrical Code and local regulations in Canada. It is recommended that a qualified electrician perform this installation.
Make sure the load controlled by the switch does not exceed 2400 watts. For indoor use only. Retain instructions
for future use.
INSTALLATION

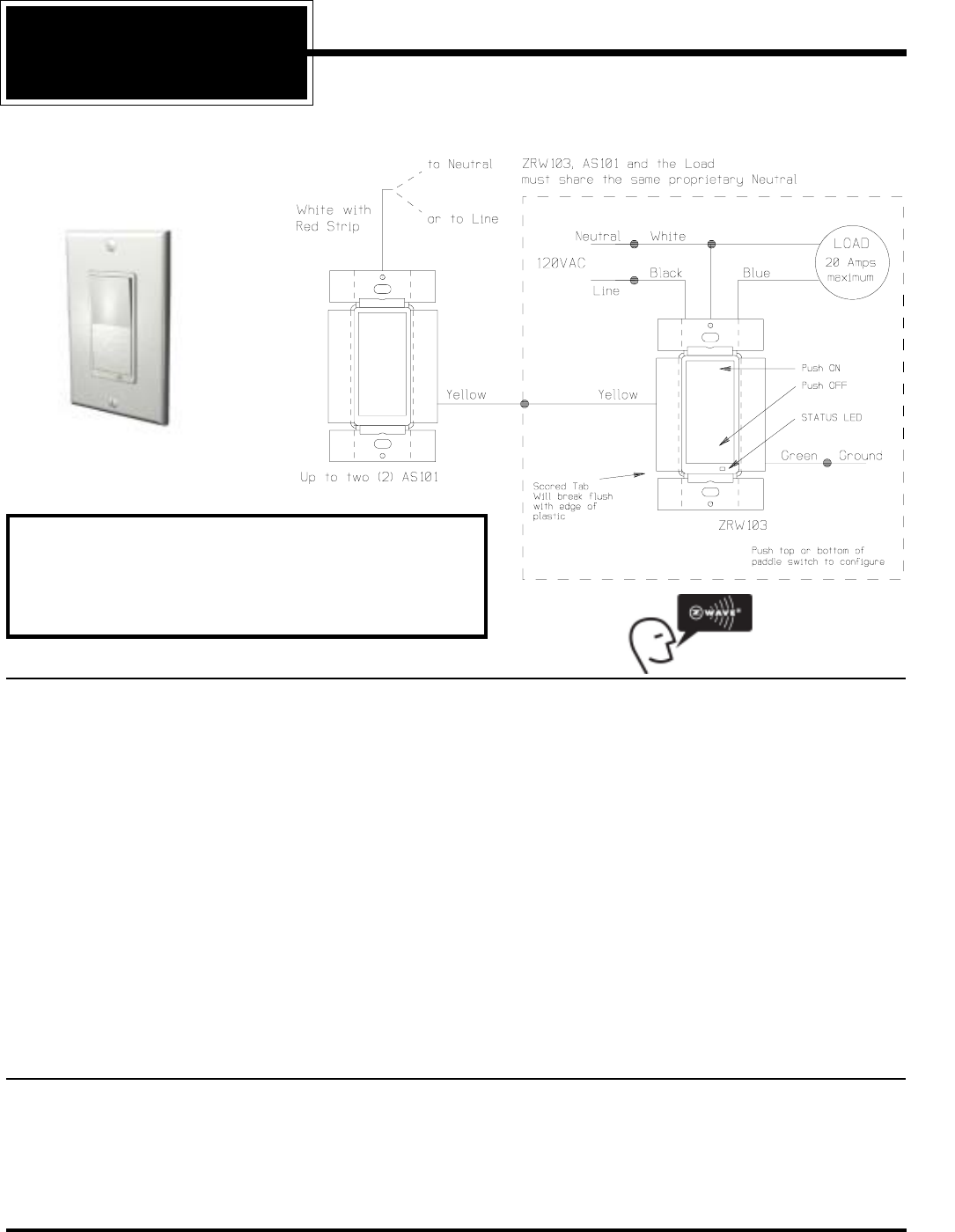

Wire this Switch in place of a current wall switch according to the diagram above.
When used, AS101’s are required to be wired to the same line (or neutral) which is also wired to the master unit
as well as the load being controlled, and not wired to any other neutral. If multiple neutrals are tied together in one
box, separate the neutrals to preserve the integrity of the ZRW103 circuit. Caution! Do not wire unit “live” (with power
on the circuit) and do not allow the yellow wire to contact line voltage, neutral or ground or you will damage the device.
Refer to your Controller operating instructions to add this module under the command of the Wireless Controller.
Shown with supplied
DecoraTM trim plate
Note: This module must be “Included in the Network” only
where it will be permanently installed. The proper opera-
tion of this node in the mesh network is dependent on it
knowing its location with respect to other nodes. You cannot
“test bench” configure this module, then install.
• This product supports Zensor Net Beam technology.
Z-Wave ZRW103 Series 300 Instructions, Release 3.1
P/D 010510
HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
0763-03
2
INCLUDING ZRW103 TO THE NETWORK
STEP 1. Prepare the Controller to include a unit to the network by adding it to a group (method of adding a
node to the network). Refer to controller instructions.
STEP 2. The ZRW103 must be in its permanently installed location. Tap either the top or bottom of the
ZRW103 once.
STEP 3. You should see an indication on your Controller that the “DEVICE WAS INCLUDED” in the network.
NOTE: If you have trouble adding the ZRW103 to a group it may be that the Home ID and Node ID
were not cleared from it after testing. You must first “RESET UNIT” with your controller to remove it
from the network. If using the ZTH100, select “SETUP” and scroll to “RESET UNIT”
Although adding it to a group includes it in the network, removing it from a group does not remove it from the
network. If removed from a group, it functions as a repeater (only). “RESET UNIT” removes it completely
from the network.
BASIC OPERATION
(Local Control)
The switch paddle on the ZRW103 allows the user to:
• Turn the attached load on or off.
• Include or exclude the module from the Z-Wave system
• Control other Z-Wave enabled devices.
Also, when a controller prompts you to “Send Node ID” or to “Press Button on Unit”, quickly tap the switch on or
off once to satisfy those instructions.
• Tapping top of switch turns the load attached ON.
• Tapping bottom of switch turns the load attached OFF.
• Pressing and holding switch does not effect the load attached to the ZRW103, but will allow dimming and
brightening of Z-Wave dimmers if associated (see below for details).
LED indication
The LED on the ZRW103 will turn on when the load attached is ON. The LED can be user configured however
to turn ON when the load attached is OFF, if so desired, to act as a night light. See ADVANCED OPERATION
section.
The ZRW103 will flicker its LED when it is transmitting to any of its 2 groups. This can be changed if desired. See
ADVANCED OPERATION section.
Auxiliary Switch
The ZRW103 supports the AS101 auxiliary switch to provide 3-way or 4-way operation.
Remote Control
The ZRW103 will respond to BASIC and BINARY commands that are part of the Z-Wave system. Refer to your
controller’s instructions as to whether your controller can transmit those commands.
Internal circuit protection
The ZRW103 internal circuitry is protected by an internal fuse. This internal fuse is factory serviceable only. Check
your home circuit breakers before concluding that the product must be returned to manufacturer for repair at a
nominal charge.
ADVANCED OPERATION
All On/All Off
The ZRW103 supports the ALL ON/ ALL OFF commands.
The ZRW103 can be set to respond to ALL ON and ALL OFF commands four different ways.
Refer to your controller for information on how to set the ZRW103 to operate in the manner you desire. Some
controllers may be only able to set certain settings of ALL ON/ALL OFF response.
Z-Wave ZRW103 Series 300 Instructions, Release 3.1
P/D 010510
HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
0763-03
3
The four different ways the ZRW103 can be setup to respond to ALL ON and ALL OFF commands are:
1. ZRW103 will not respond to ALL ON or the ALL OFF command.
2. ZRW103 will respond to ALL OFF command but will not respond to ALL ON command.
3. ZRW103 will respond to ALL ON command but will not respond to ALL OFF command.
4. ZRW103 will respond to ALL ON and the ALL OFF command.
Association
The ZRW103 supports the Association command.
The ZRW103 can be set to control other Z-Wave devices. You can turn on and off, and even dim other Z-Wave
devices once they are “associated” into either of 2 groups with the ZRW103.
A NOTE ABOUT DIMMERS IN A GROUP: If you combine Z-Wave enabled dimmers and other types of Z-Wave
devices in a group, place a Z-Wave enabled dimmer into the empty group first to ensure that the dimming operates
correctly.
Each group is turned on or off (or dimmed by tapping or holding) the switch a differing amount of times.
If you associate a Z-Wave device into Group 2, you can turn that device on and off by tapping the switch on or
off twice. You can brighten or dim devices by tapping the switch on or off once and then holding the switch down.
The load attached to the ZRW103 is not affected.
If you associate a Z-Wave device into Group 3, you can turn that device on and off by tapping the switch on or off
three times. You can brighten or dim devices by tapping the switch on or off twice and then hold the top or bottom
of the switch down. The load attached to the ZRW103 is not affected.
You can associate up to 5 Z-Wave devices into each of these groups.
For instructions on how to “associate” a Z-Wave device into one of these groups, refer to your wireless controller
instructions. (If you are using the ZTH100 controller, refer to the Setup Menu, Association section).
Configuration
The ZRW103 supports the Configuration command.
The ZRW103 can be configured to operate slightly differently than how it works when you first install it. Using the
Configuration command you can configure the following:
You can use a ZTH100 to send Configuration commands. (Refer to the Setup Menu, Configuration section)
Set Ignore Start Level Bit When Transmitting Dim Commands
The ZRW103 can send Dim commands to Z-Wave enabled dimmers. The Dim command has a start level
embedded in it. A dimmer receiving this command will start dimming from that start level if this bit is set to 0.
If the bit is set to 1, the dimmer will ignore the start level and instead start dimming from its current level.
• Parameter No: 1
• Length: 1 Byte
• Valid Values = 0 or 1 (default 1)
Night Light
The LED on the ZRW103 will by default, turn ON when the load attached is turned ON. To make the LED turn
ON when the load attached is turned OFF instead, set parameter 3 to a value of 1.
• Parameter No: 3
• Length: 1 Byte
• Valid Values = 0 or 1 (default 0)
Invert Switch
To change the top of the switch to OFF and the bottom of the switch ON , set parameter 4 to 1.
• Parameter No: 4
• Length: 1 Byte
• Valid Values = 0 or 1 (default 0)
Z-Wave ZRW103 Series 300 Instructions, Release 3.1
P/D 010510
HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
0763-03
4
Enable Shade Control Group 2
The ZRW103 can control shade control devices via its group 2 if this configuration parameter is set to 1.
• Parameter 14
• Length: 1 Byte
• Valid Values: 0 or 1 (default 0)
Enable Shade Control Group 3
The ZRW103 can control shade control devices via its group 3 if this configuration parameter is set to 1.
• Parameter 15
• Length: 1 Byte
• Valid Values: 0 or 1 (default 0)
LED Transmission Indication
The ZRW103 will flicker its LED when it is transmitting to any of its groups. This flickering can be set to not
flicker at all (set to 0), to flicker the entire time it is transmitting (set to 1), or to flicker for only 1 second when
it begins transmitting (set to 2). By default, the ZRW103 is set to flicker for only 1 second.
• Parameter No: 19
• Length: 1 Byte
• Valid Values = 0, 1 or 2 (default 2)
Each Configuration Parameter can be set to its default setting by setting the default bit in the Configuration Set
command. See your controller’s instructions on how to do this (and if it supports it).
All Configuration commands will be reset to their default state when the ZRW103 is excluded from the Z-Wave
network by using the controller to reset the node (on the ZTH100 select “SETUP” and scroll to “RESET UNIT”).
SUC Support
There must be a Static Update Controller in your Z-Wave system for this feature to work. The Static Controller
can act as a gateway in the system, since other nodes always know its position (not moved after addition to the
network. The “always listening” advantage of the Static Controller is that other nodes can transmit information
frames to it whenever needed.
You can assign an “SUC Route” to the ZRW103. Refer to your controller’s instructions on how to do this (if it
supports it). Assigning an SUC Route to the ZRW103 allows it to request an update of the Z-Wave devices that
are between it and the Z-Wave device to which it was trying to transmit. The ZRW103 will only request an update
when a transmission fails.
SPECIFICATIONS
Power: 120 VAC, 60 Hz
Signal (Frequency): 908.42 MHz, 9.6Kbps or 40Kbps capable
Maximum Load: Resistive : 20 amps (2400 watts) maximum, 120 VAC
Motor: 1 H.P. maximum, 120 VAC
Incandescent: 960W maximum, 120 VAC
Range: Up to 100 feet line of sight between the Wireless Controller and /or the closest
HomePro Receiver Module
INTEROPERABILITY WITH Z-WAVE™ DEVICES
A Z-Wave™ network can integrate devices of various classes, and these devices can be made by different
manufacturers, just as the ZRW103 can be incorporated into existing Z-Wave™ networks.
The top or bottom of the ZRW103 switch paddle can be used to carry out inclusion (inclusion to the network by
adding to a group), association (operate simultaneously with other nodes), exclusion (remove from a group) or
reset (remove from the network). Controllers can be replicated in order to provide operation from other locations.
WARRANTY
For warranty and general product information visit our web site at www.act-solutions.com
Z-Wave ZRW103 Series 300 Instructions, Release 3.1
P/D 010510
HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
0763-03
5
ABOUT ZRW103’S CERTIFICATION
The ZRW103 is certified to comply with applicable FCC and IC
rules and regulations governing RF and EMI emissions.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) This device must accept any interfer-
ence received, including interference that may cause undesired
operation.
FCC NOTICE
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment.
IC NOTICE
This Class B digital apparatus complies with Canadian ICES-003
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the device.
Z-Wave® is a registered trademark of Zensys, Inc. and/or its subsidiaries.
