Advanced Vehicle Electronic Technology AVE-TPMS-T100 Tire Pressure Monitoring System (TPMS) User Manual
Advanced Vehicle Electronic Technology Co., Ltd. Tire Pressure Monitoring System (TPMS) Users Manual
Users Manual
華麗科技股份有限公司 Phone: 886-07-3310885
Advanced Vehicle Electronic Technology Co., Ltd. Fax: 886-07-3311351
B-2, 23F-2, No.29, Haibian Road, Lingya District, Kaohsiung 802, Taiwan E-mail: sales@avetecnology.com
802 高雄市海邊路 29 號 23 樓之 2, B-2 Website: www.avetechnology.com
Installation and Operation Manual
操作說明書
華麗科技股份有限公司 2007 出版
Copyright 2007 Advanced Vehicle
Electronics Technologies Co. Ltd
1 www.avetechnology.com
TABLE OF CONTENTS 目錄
1. AVE 胎壓偵測系統 (TPMS) ………..……………………..…………… 2
2. 注意事項 …………………………………………………………………… 2
3. 可預防的事項 …………………………………………………………… 3
4. 規格 …………………………………………………………………… 3
5. 零件 …………………………………………………………………… 4
6. 系統裝配步驟 …………………………………………………………… 5
7. 輪胎感測發射器設置 …………………………………………………… 6
8. 顯示器介紹 …………………………………………………………… 7
9. AVE TPMS 操作 …………………………………………………… 10
操作方法 …………………………………………………………… 10
功能模式 …………………………………………………………… 10
單位模式 Unit mode ………………………………………………… 11
胎壓設定方法 ……..………….…………………………....………… 12
輪胎設定方法 (換胎或感測發射器互換位置時) .…………………… 16
Tire Rotation or Sensor Replacement) …… 16
10. 警報反應 Reacting to Alerts …………………………………………… 18
11. AVE 胎壓監測系統選購配件 AVE TPMS Optional Accessories……… 22
12. 保固 Warranty …………………………………………………………… 23
13. 附錄 Appendixes ………………………………………………… 24
2 www.avetechnology.com
AVE 胎壓監測系統(AVE TPMS)
AVE Tire Pressure Monitoring System, AVE TPMS
謝謝您購買 AVE 胎壓偵測系統(TPMS)。AVE 胎壓監測系統是為了提供您在駕駛
時有多一層的保護而設計。他會提前警示車子輪胎狀況。安裝後，可以即時監控輪
胎的壓力及溫度。若偵測到不正常的胎壓及溫度時，會立刻送出警示聲及閃燈告知
駕駛者。即時的處理問題旣可避免交通意外的發生亦可確保駕駛及乘客的安全。
Thank you for purchasing AVE’s Tire Pressure Monitoring System (TPMS). AVE TPMS
was design to ensure extra protection to you when driving. Our TPMS serves as an early
warning system for your vehicle. Once installed, AVE TPMS will monitor your vehicle
tires pressure and temperature in real time. If it detected any irregularities with the tires’
pressure and temperature, it will send out signal to notify the driver. Prompt actions needs
to be taken to avoid accidents and ensure safety to the driver and his passenger.
注意事項 Notice
FCC 注意事項 FCC Notice
此裝置已經遵守美國 FCC 法規第 15 條標準要求。操作使用時仍需注意下列注意事
項。
• 該產品可能因為其他的干擾而導致系統無法動作。
• 該系統不正常的操作可能進而導致系統失效。
此設備已經經過測試並遵守數位 Class B 的限制，根據 FCC 第15 條規定，這些規
定是設計提供合理的保護以防止干擾訊號。這種設備將會產生無線射頻訊號，如果
未依照安裝及正確使用會導致產生一些訊號源干擾無線通訊。然而，縱使正確安裝
也無法完全確保外界不會有干擾源產生。
如果該產品會干擾到收音機或無線電視的收訊時，可以由使用者自行決定是否關閉
該產品。使用者也可以自行調整正確頻率解決問題，可能方法如下:
• 重新調整天線
• 增加設備與該系統的距離
3 www.avetechnology.com
• 變更接收器的位置與連接方式
This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that
may cause undesired operations.
This equipment has been tested and found to comply with the limits for Class B device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference. This equipment generates, uses, and can radiate
radio frequency energy and if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio and television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the factoring measures.
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment an receiver
• Connect the equipment into outlet on a circuit different from that to which the
receiver is connected
警告 Caution
任何的自行修改或變更系統本體將無法保障操作者的權益。必須遵從 FCC RF 列出
的規定,此設備的天線不能和其它的天線或發射器設置在相同的地方或連接。
Any changes or modifications in construction of this device which are not expressly
approved by the manufacturer could void the user’s authority to operate the equipment.
To comply with the FCC RF exposure compliance requirements, this device and its
antenna must not be co-located or operating to conjunction with any other antenna or
transmitter.
4 www.avetechnology.com
預防 Precaution
• 胎壓偵測系統是為了偵測輪胎的狀態，及當不正常的情況發生時可以及時警
示駕駛者而設計
TPMS system is designed to monitor tires condition and alert the user if there is any
irregularities are detected. It is the user’s responsibilities to react promptly and
discretion to alerts.
• 補胎時所使用化學接著劑或是輪胎不正常充氣，可能會造成感測器功能的損
害
Use of chemical sealants for temporary resealing or re-inflation in tire assembly
may affect or even damage the sensors function.
• 為了您切身的安全，請在安裝前閱讀此一說明書
For your own safety， please read manual before proceeding to installation and
setup.
• 請專業人士安裝,不可自行安裝
Please seek qualified personnel for proper tire sensors installation.
• TPMS 胎壓偵測系統安裝後，仍需要準備備胎
Balancing tire is necessary after TPMS is installed.
• 請使用華麗科技所提供的汽車點煙器電源線
Use only power cord cigarette adapter supplied by AVE Technology.
• 請勿將華麗科技所提供的 USB 接線使用在其它的 USB 上， 會損害你的
USB 裝置，它不是一般市售的 USB 線，並不相容於其它 USB 裝置
Do not attempt to use AVE Technology power cord into other USB device. It is NOT
USB compatible and may damage your USB device.
• 若使用者自行使用 USB 線在非 TPMS 上而造成任何損害時，華麗科技則無
法提供保固
AVE TECHNOLOGY shall not be held responsible for the damage cause on the
USB device due to this incompatibility and also from user’s action.
• 當拔出電源線時，請不要拉扯電線，它會造成電線損壞
When unplug the power cord, do not pull from the cord. It may damage the cord.
• 若電源線於保固期間損壞時請聯絡當地的販賣商
Contact your dealer for new power cord or exchange (if under warranty) if the power
cord is damaged.
• 請勿自行拆解或修理此一產品
Never try to disassemble or repair the product by yourself.
5 www.avetechnology.com
AVE TPMS 規格
Specifications of AVE TPMS
感測器與發射器規格
Sensors and transmitter specification
• 電池壽命 在正常使用下可使用 8年
Battery life Estimated 8 years (normal operating condition)
• 電池電壓
Battery voltage 3.6 V
• 儲藏溫度
Storage Temperature -55°C ~ 125°C
• 操作溫度
Operating Temperature -40°C ~ 125°C
• 溫度解析度
Temperature Resolution ±1°C
• 壓力範圍
Pressure range 450kPa, 700kPa, 1400kPa
• 壓力解析度
Pressure Resolution 1.38kPa, 2.35kPa, 5.50kPa
• 操作濕度
Operating Humidity 100%
• 操作頻率
Operating Frequency 434 MHz
6 www.avetechnology.com
接收器規格
Receivers Specifications
• 操作電壓
Operating Voltage 9V ~ 30V
• 操作溫度
Operating Temperature -40°C ~ 85°C
• 監控溫度
Monitored Temperature -40°C ~ 125°C
AVE 無線胎壓偵測系統配件表
AVE TPMS Components
項目
ITEM 配件 Accessory 數量
Quantity
A 輪胎感測發射器 Tire’s Sensor 4
B 顯示器 Display Unit 1
C 汽車點煙電源線
Power cord Cigarette adapter 1
D 標準氣嘴 Common valve 4
E 冷氣夾 Air conditioner adapter 2
F 使用說明書 User manual 1
G 顯示器黏著墊 Base Adhesive 1
7 www.avetechnology.com
AVE TPMS 包裝圖 Picture of AVE TPMS inside packaging
8 www.avetechnology.com
系統設定 System Setup
1. 汽車點煙電源線的 USB 接頭連接到顯示器
Connect cigarette lighter power cord (mini USB
end) to display unit.
2. 可安裝顯示器至任何想要放置的地方，
AVE TPMS 可以嵌入汽車儀表板或冷氣孔
Install the display unit into desired location. AVE
TPMS can be mounted on the dashboard or air-con
vent.
• 安裝冷器孔夾至冷氣出風口
Install the air-con adapter for air-con vent mounting
• 提供顯示器黏著墊可鑲在汽車儀表板上
Apply adhesive cushion to the base of Display Unit for
dashboard mounting.
3. 汽車點煙電源線另一端的點煙器連接到車
內的點煙器插座
Connect the other end (cigarette lighter
adapter) to vehicles cigarette lighter socket.
4. 顯示器已經安裝完成了， 安裝感測器及輪
胎充氣後，顯示器便可以開始接收從感測
器發出的訊號 AVE
TPMS display unit setup is complete.
AVE TPMS will start receiving signals from
tire sensors the moment tire sensor is installed
and tire is being inflated.
5. 請按照步驟安裝輪胎
備註: 在輪胎廠時不需重新設定輪胎的位置
務必依照感測器上的標籤來安裝輪胎
Please proceed to set up the tire.
9 www.avetechnology.com
Note: There is no need to set the tire position as it is pre-set in the
factory.
It is important to install the tire according to the position in
the sensors label.
10 www.avetechnology.com
輪胎感測器安裝方法
Tire Sensors Installation
步驟
Step 過程 Process 圖示 Photo
1
從車體拆下輪胎 Remove tire from the vehicle.
將輪胎放氣後，拆掉輪胎及鋁圈 eflate the tire and
disassemble the tire and rim.
如有需要，請尋找合格的技工幫助 Seek assistance from
qualified personnel if necessary.
2
每一個感測器都有標籤標示組裝的位置
Each sensor has a label attached showing its position to be
assemble;
i. Front Left 前左輪 ii. Front Right 前右輪
iii. Rear Left 後左輪 iv. Rear Right 後左輪
.
11 www.avetechnology.com
3
將感測器安裝到輪胎上 Install the sensor into the wheel.
確認輪胎是否有完全安裝到預設的輪胎 Identify if the tire’s
sensor is properly install into the intended tire.

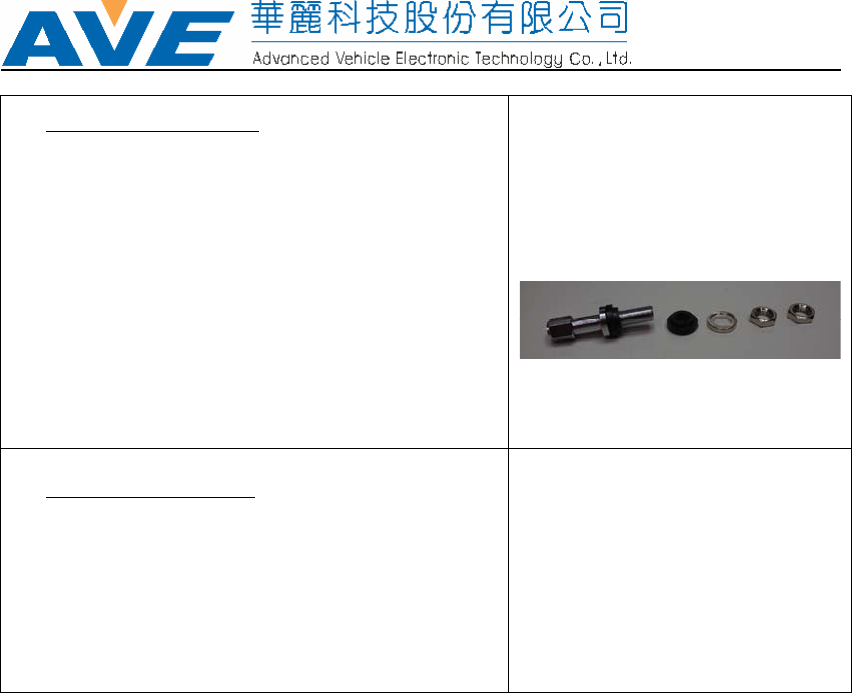

備註: AVE TPMS 使用標準的氣嘴，它可以很方便的在任何
輪胎行更換
Note: AVE TPMS uses common valve on its product.
This common valve is available anywhere.
4
確認輪胎皮有完全的與氣嘴與鋁圈密封 Be sure the rubber
seal is properly positioned between rim and valve.
Tighten the valve using the socket wrench.
5
清潔輪胎的內部灰塵並將輪胎充氣
Clean the inside tire from dust and inflate the tire to proper
pressure.
6
備胎
Balance the tire.
請合格的技工安裝輪胎到合適的位置
Seeks assistance from qualified personnel is necessary.
Install the tire into the proper location.
7
按照相同的方法，安裝其它 3顆輪胎
Set up the other three tires in the same manner.
12 www.avetechnology.com
8
發動引擎
Turn on the ignition.
連接顯示器至汽車點煙電源線
Connect the display unit to vehicles cigarette lighter power.
AVE TPMS 稍候就可以從感測器偵測出訊號
AVE TPMS will take a moment to detect signals from tire
sensors.
假如 5秒後還未偵測到訊號，請重新設定顯示器(請參考安裝
方法)
If there is no signal after 5 minutes, please reset the display unit
system. (Please refer to Tire Setup Mode)
備註:在輪胎廠時不需重新設定輪胎的位置，按照感測器上的標籤來安裝輪
胎是很重要
Note: There is no need to setup up the tires location as it is being pre set
in the factory. This is only applicable if the tire installation is
according to the position on the sensors labels.

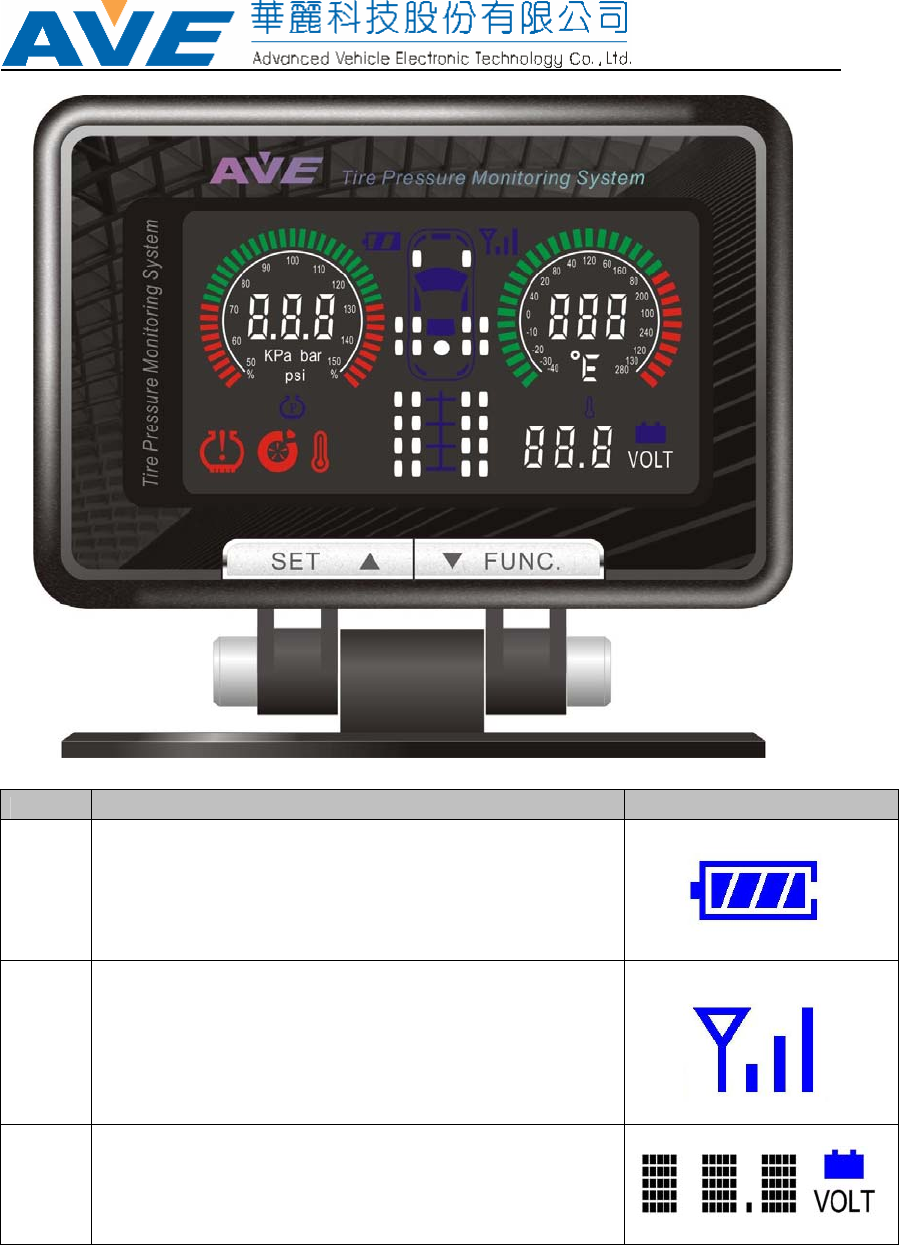

顯示器介紹 Display Unit Introduction
13 www.avetechnology.com
No. Description Photo
1
感測器電池圖示
Sensor battery icon
測量感測器電池容量
Measure the sensors battery level
2
訊號強弱圖示
Signals strength icon
測量輪胎感測器發出訊號接收強弱
Measures the strength of the signal received from the tires
sensor.
3
車用電池讀數 Vehicles battery readings
監控車用電池(操作模式下)Monitor user vehicles battery (in
operating mode)
Also serve as message area (in setup mode)
14 www.avetechnology.com

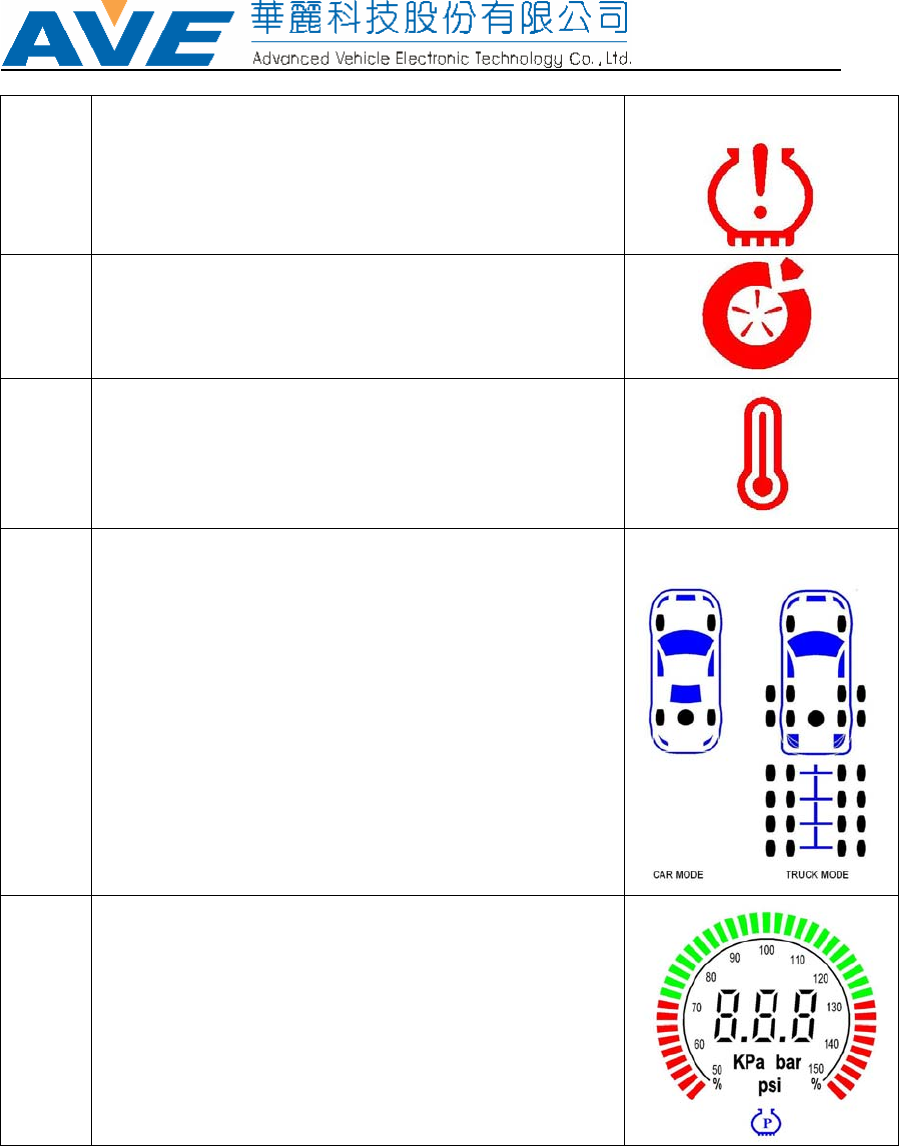

4

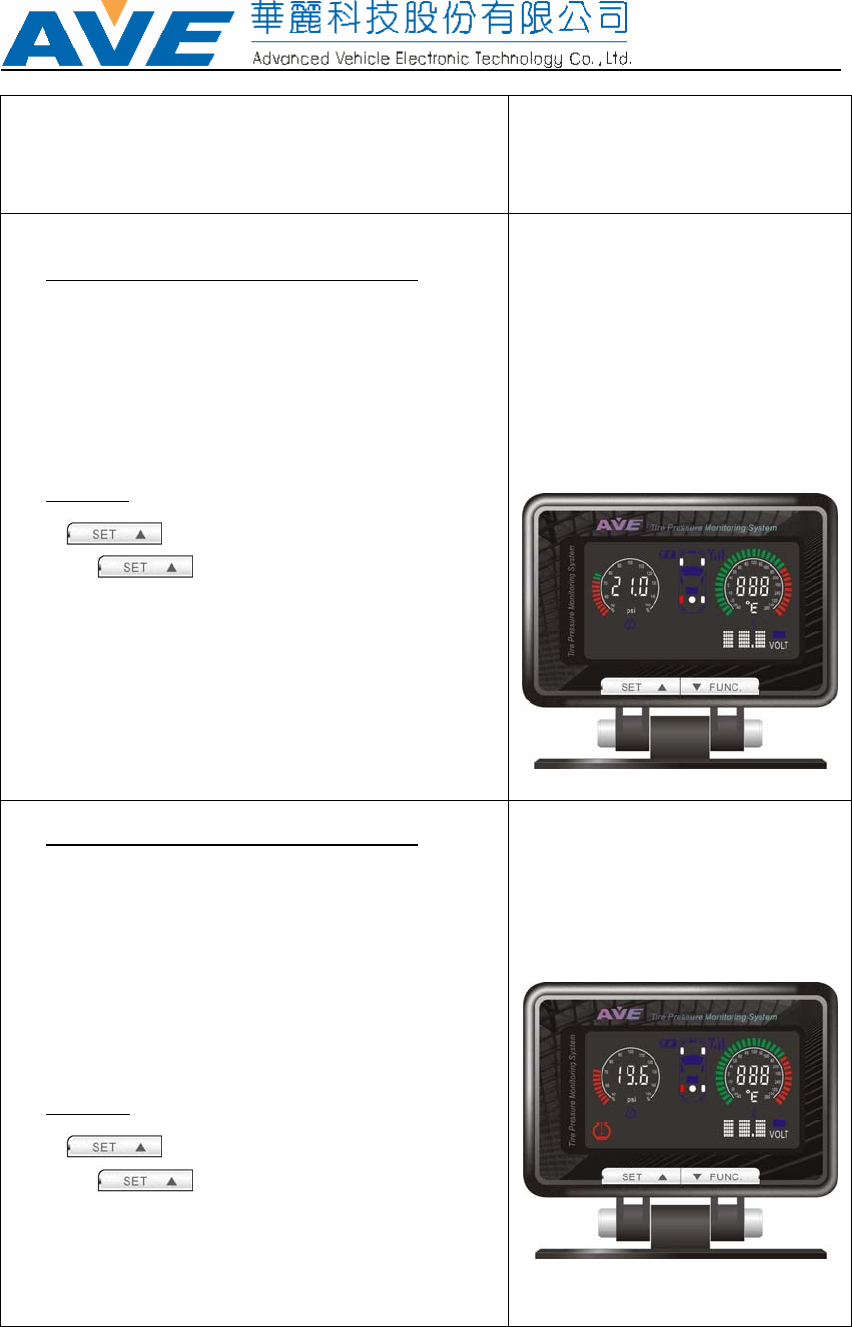

胎壓警示圖示 Pressure Warning icon
當偵測到胎壓不正常時，燈即亮 Will light when detected
pressure irregularities in tire
如: 漏氣或胎壓低於標準的 30%時
Ex. fast leak, tire below 30% of recommended pressure
5
胎壓不足圖示 Flat tire icon
當偵測出胎壓不足時，圖示燈亮 Will light when flat tire is
detected.
6

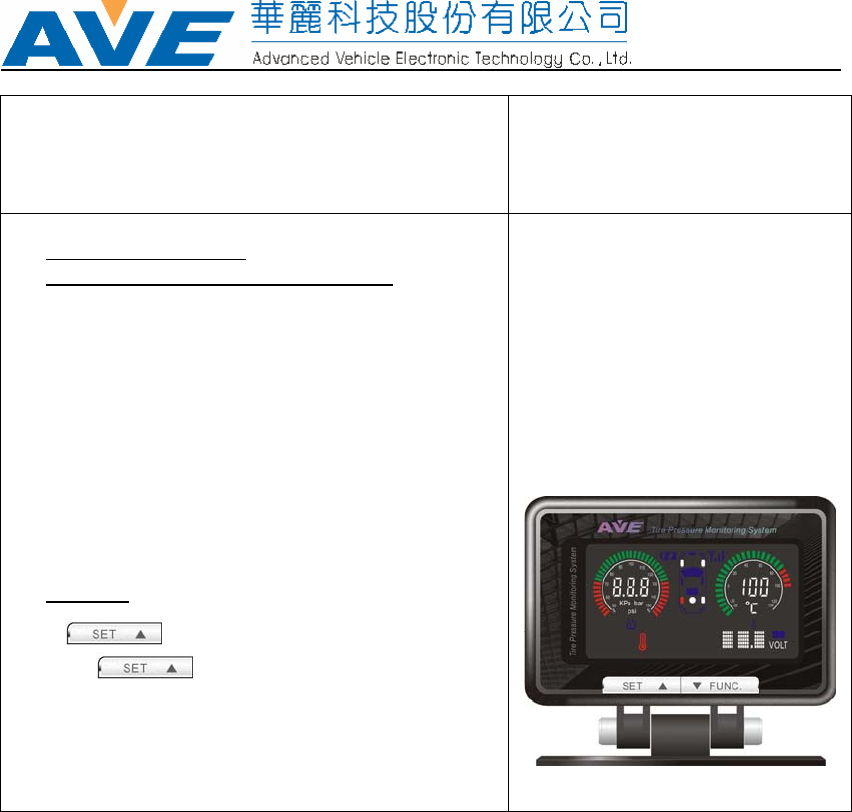

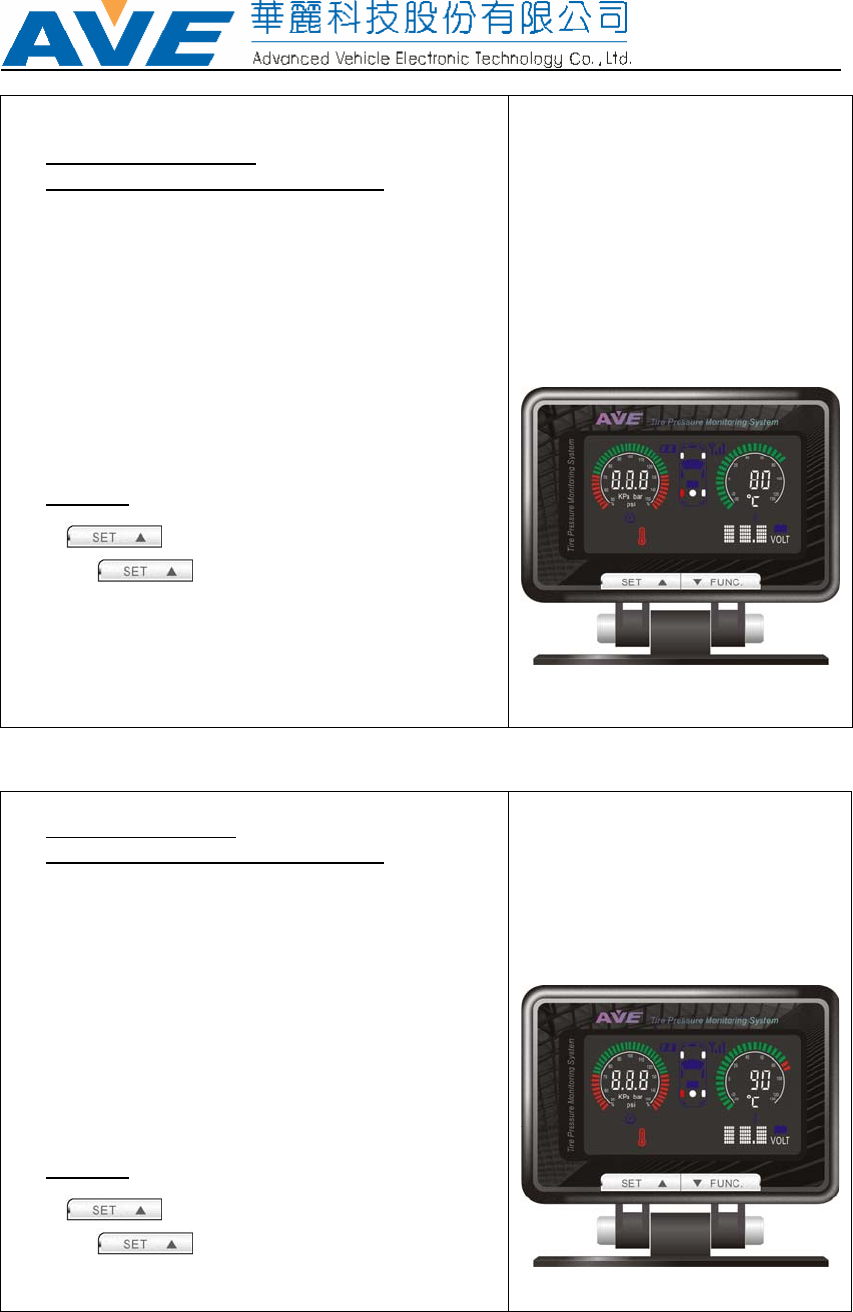

高溫圖示 High Temperature Icon
當輪胎內部溫度高於 85°C時，圖示燈亮 Will light when
temperature inside tire is above 85°C
7
輪胎的型式(轎車模式或卡車模式)
Customable vehicle type (car mode or truck mode)
有8種以上車種可供選擇
Up to 8 vehicle modes of vehicle type selection
可設定到 27 個輪胎
Programmable tires up to 27 wheels.
可選擇監控備胎
Optional monitoring for spare tire.
備註: 只適用於 AVE TPMS (卡車)
只適用於 AVE TPMS (汽車)，限安裝於 5輪車種
Note: Only applicable to AVE TPMS (truck version)
AVE TPMS (car version) limited to 5 wheels setup
8
胎壓計量表
Pressure Meter
可測量 3個不同壓力質(KPa, bar, psi)
Measures 3 different pressure unit (KPa, bar, psi)
以顏色來區分正常與警示的情形
Color difference to differentiate between normal and
warning condition
顯示器會顯示目前的壓力質
Display actual pressure value
15 www.avetechnology.com

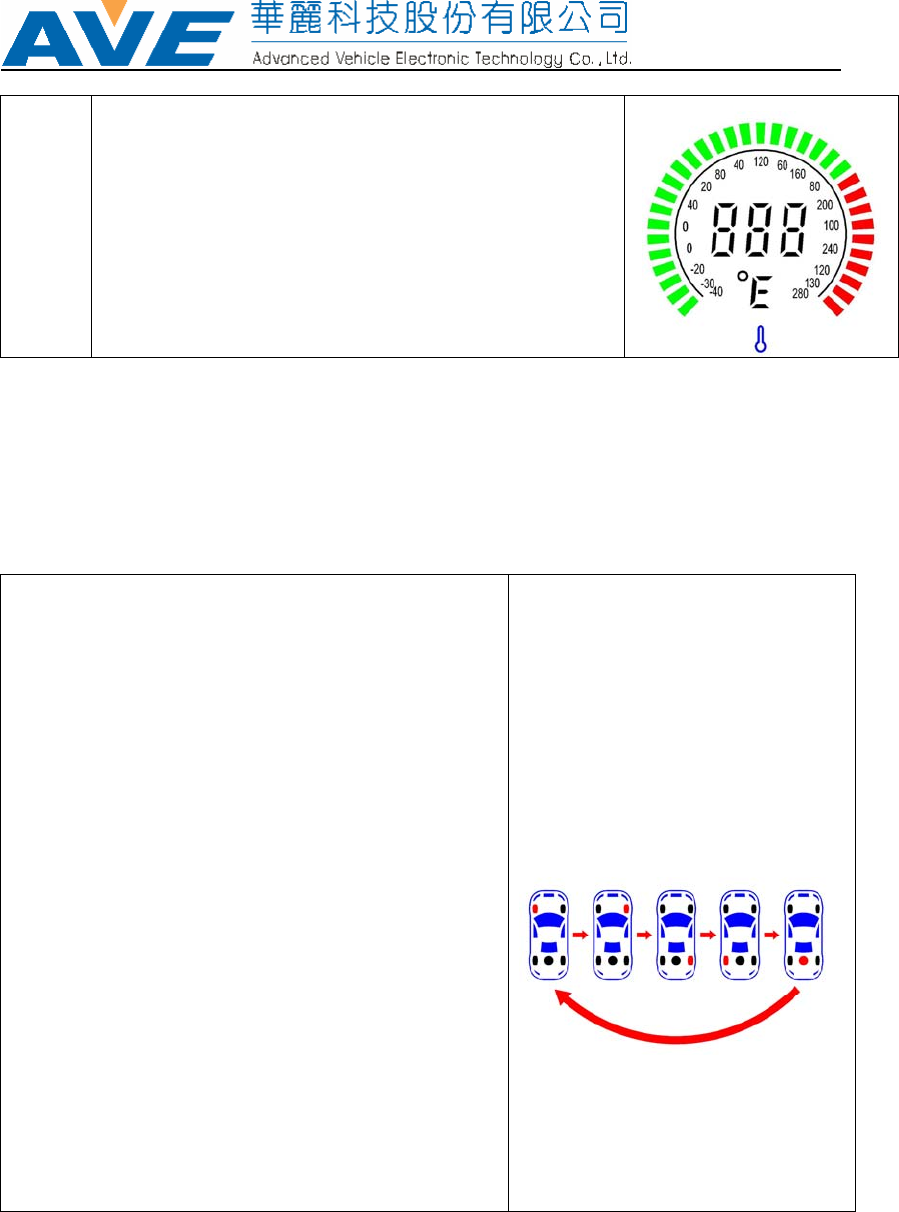

9
溫度計量表
Temperature Meter
測量攝氏溫度(°C)及華氏溫度(°F)
Measures in degree Celsius (°C) or Fahrenheit (°F)
以顏色來區分常溫與高溫
Color difference to differentiate between normal and high
temperature
顯示器會顯示目前的溫度
Display actual temperature value

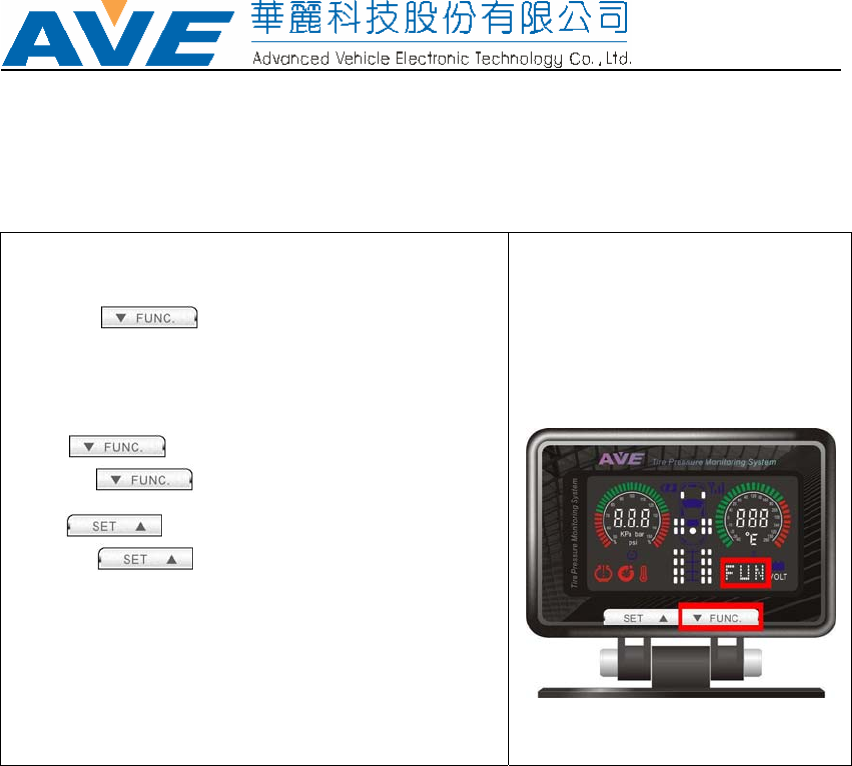

操作 AVE TPMS Operating AVE TPMS
操作模式 OPERATING MODE
AVE TPMS 顯示器每 10 秒會監控每個輪胎，輪流監
控每個輪胎。
AVE TPMS display unit will monitor each tire for 10
seconds before proceeding to next tire. It will monitor the
tire in a rotation manner.
有問題的輪胎每 15 秒鐘會監控一次。顯示器會一直
警示駕駛，直到解決問題為止。
Problematic tire will be monitored for 15 seconds before
proceeding to next tire. It will keep display its warning
code the moment it reaches it turn until the problem is
being taken care by user.
若有警示聲或警示訊號，請參考顯示器上所亮燈警示
的部份
For the alert / warnings code, please refer to Reacting to
Alerts section.
顯示器上被監控的輪胎圖示燈會亮起
The monitored tire will light and its information will be
displayed.
(如：壓力、溫度、電池容量、訊號強弱)
( i.e. pressure, temperature, batteries level and signal strength)
16 www.avetechnology.com

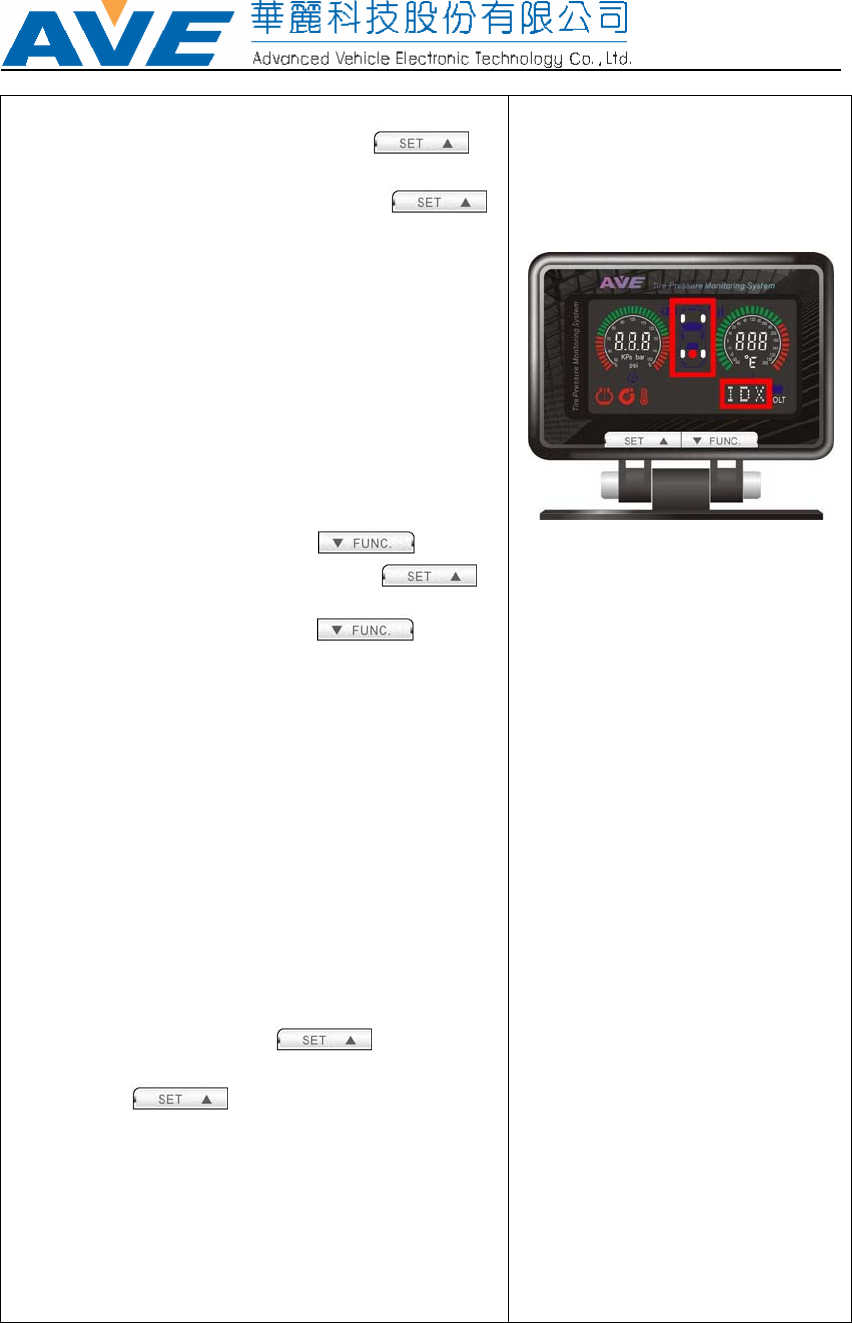

功能模式 FUNCTION MODE
按功能鍵進入功能模式
Press button once to enter FUNCTION
MODE.
顯示器會顯示 FUN
Message area display FUN.
按 可以進入下一個選單
Press for next tire selection.
按可以進入上一層選單
Press for previous tire selection.
不按任何按揵 20 秒就會自動退出
To quit, leave the display unit for 20 seconds.
備註: 只要靜止 20 秒，系統就會自動離開功能模式進入操作模式
Note: Any inactivity more than 20 seconds, system will quit
FUNCTION MODE and return to OPERATING MODE.
17 www.avetechnology.com
單位模式 UNIT MODE
按住 3 秒以進入單位模式
Press and hold button for 3 seconds to enter
UNIT MODE.
1) 顯示器顯示 ΔP
Message area display ΔP
2) psi 的圖示燈亮 (顯示預設的壓力單位或之前設定
的單位)
psi icon will light (default pressure unit or previously
setup unit).
3) 按以改變壓力單位
Press to change pressure unit.
4) 再按 以選擇壓力單位
Continue to press for pressure unit
selection.
5) 按 確認所選擇的壓力單位，並儲存
Press to confirm the selection. Pressure
unit saved.
備註 Note:
若要再重新設定壓力單位時，可省略步驟
(3)
，
(4)
，
直接按照步驟
(5)
確認預設的單位，預設的單位是
psi
To bypass pressure unit change, skip step (3) & (4).
Go to step (5) to confirm the default unit settings.
Default pressure unit in psi.
靜止
20
秒後系統會自動退出壓力單位設定模式，所
有設定將不會被儲存，系統將會使用預設的壓力單位
To quit, leave the display unit for 20 seconds.
Changes will not be saved (before step 5) and the system
will use the default pressure unit.
6) 在步驟(5)後，顯示器就會顯示 ΔT
Immediately after step (5), message area will display
ΔT.
7) °C圖示燈量 (顯示預設的溫度單位或之前設定的
單位)
°C icon will light (default temperature unit or
previously setup unit).
8) 按 以改變溫度單位
18 www.avetechnology.com
Press to change temperature unit.
9) 再按 以選擇溫度單位
Continue to press for temperature unit
selection.
10) 按 確認所選擇的溫度單位，並儲存
Press to confirm the selection.
Temperature unit saved.
11) 單位模式己完全設定後，系統會自動回到操作模
式UNIT MODE setup complete. System will return
to OPERATING MODE.
注意 Note:
若要再重新設定溫度單位時，可省略步驟
(8)
，
(9)
，
直接按照步驟
(10)
確認預設的單位，預設的單位是攝
氏
To bypass temperature unit change, skip step (8) & (9).
Go to step (10) to confirm the default unit settings.
Default temperature unit in Celsius.
靜止
20
秒後系統會自動退出溫度單位設定模式，所
有設定將不會被儲存，系統將會使用預設的溫度單位
To quit, leave the display unit for 20 seconds.
Any changes after step (5) will not be saved and the
system will use the default temperature unit.
靜止
20
秒後，系統會離開單位模式自動回到操作模
式
Any inactivity more than 20 seconds, the system will
quit UNIT MODE and return to OPERATING MODE

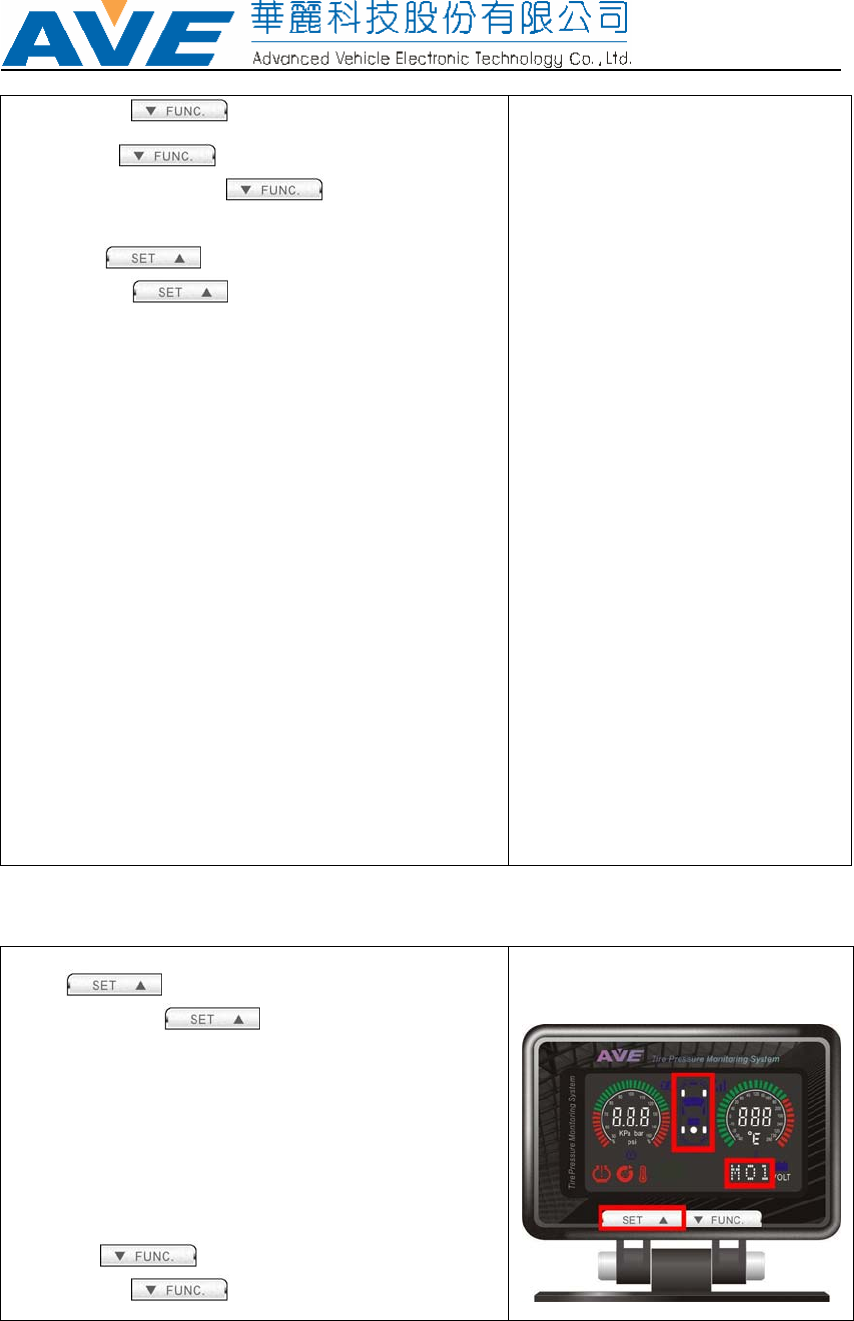

壓力設定模式 (車體為卡車時) PRESSURE SETUP MODE (for TRUCK version)
按 鍵3秒鐘以進入設定模式
Press and hold button for 3 seconds to enter
SETUP MODE.
1) 顯示器顯示 M01
Message area display M01.
2) M01 訊號閃爍，車種也會顯示在顯示器上(顯示
預設車種)
M01 message will flash and vehicle mode will be
displayed. (Default vehicle type).
3) 按 以改變車種
Press to change vehicle mode.
19 www.avetechnology.com
4) 再按 以選擇車種
Continue to press for vehicle mode
selection.
5) 按 確認車種，並儲存
Press to confirm the selection. Vehicle
mode saved.
Note:
若要再重新設定車種時，可省略步驟
(3)
，
(4)
，直接
按照步驟
(5)
確認預設的車種，預設的車種是
M01
To bypass vehicle mode change, skip step (3) & (4).
Go to step (5) to confirm the default vehicle mode.
Default vehicle mode is M01.
靜止
20
秒後系統會自動退出車種設定模式，所有設
定將不會被儲存，系統將會使用預設的車種
To quit, leave the display unit for 20 seconds.
Changes will not be saved (before step 5) and the system
will use the default vehicle mode.
在步驟(5)後，顯示器就會顯示預設的壓力質
pressure value.
6) Immediately after step (5), message area will display
default pressure value.
注意: 預設的壓力質是按照車種所選擇的
Note: Default pressure value depends on the vehicle mode selection.
7) 按 確認預設的壓力質，跳過步驟
(8)~(14)，到步驟(15)
Press to accept default pressure value.
Skip step (8) to (14). Go to step (15).
8) 按 以改變壓力質
Press to change pressure value.
9) 進入第３個壓力值－顯示器第３個壓力值會閃燈
Message Area will prompt for input ‗‗ will flash on
3rd digit message area.
10) 按 確認第３個壓力質，跳過步驟
(11)~(12)
Press to accept the displayed value on
3rd digit. Step (11) to (12) will be skipped.
11) 要更改壓力質，按 。當每次按
時， 顯示器所顯示的數字便會增加
1，可以一直按到所需要的壓力質為止，它的範
圍在 0~9，9~0
To change the pressure value, press
button. The displayed number will increase by 1
車種 Vehicle Mode 預設的壓力值
Default pressure
(psi)
M01 028
M02 035
M03 035
M04 038
M05 038
M06 038
M07 045
M08 045

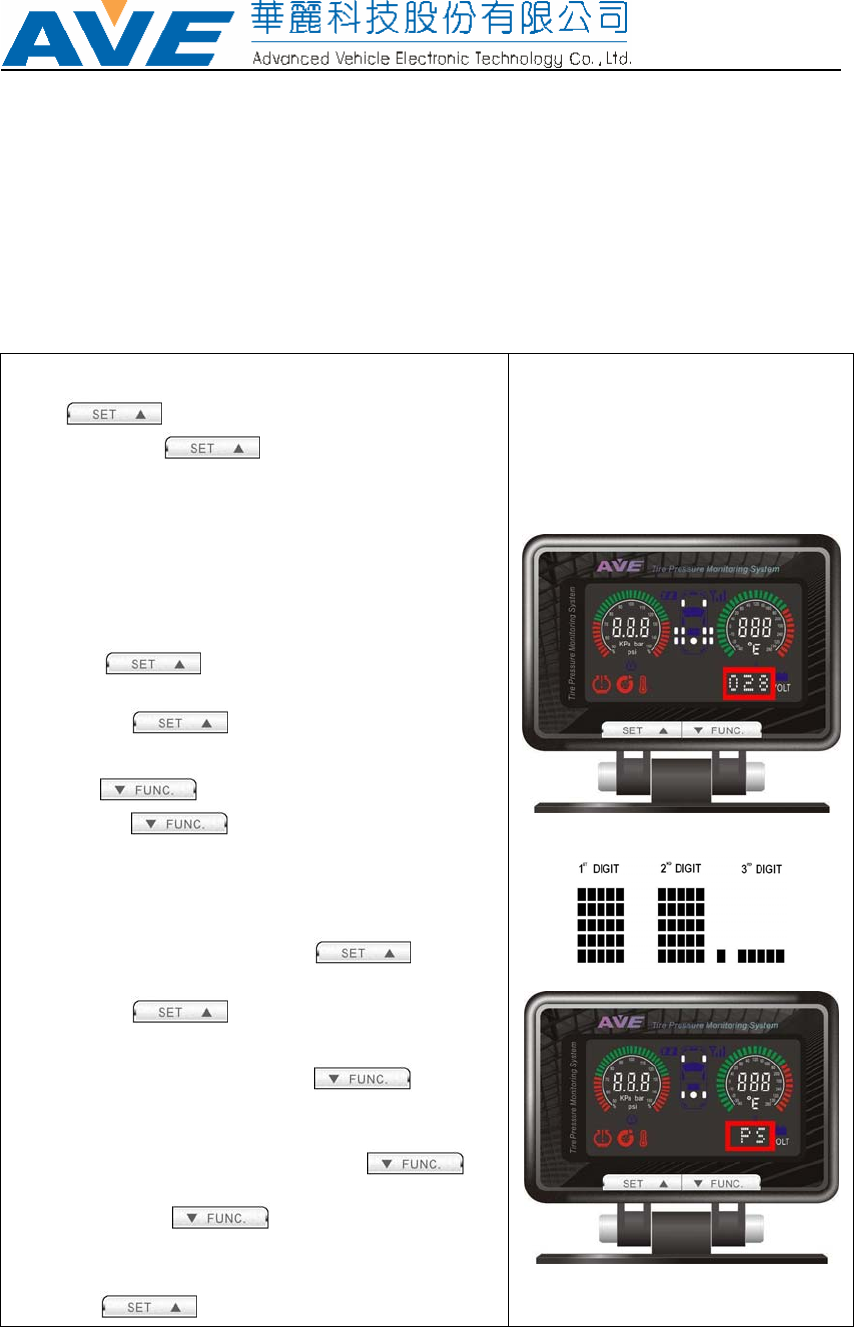

壓力值設定正確時
Correctly Enter Pressure
20 www.avetechnology.com
every time button is pressed. Continue
pressing the button until your wanted value. The
number will be looping from 0 to 9 back to 0.
12) 按 確認輸入壓力質
Press to accept the input value.
13) 顯示器會進入第２個數值－顯示器第２個壓力值
會閃燈
Message Area will proceed to 2nd digit for input.
‗‗ will flash on 2nd digit message area.
14) 重覆(10)~(12)設定第２，第３個壓力值
Repeat step (10) to (12) for 2nd and 3rd digit.
備註: 當加入的壓力數質為 28psi 時，請輸入 028psi
Note: When entering the pressure as 28 psi please enter as 028
psi.
15) 當完成後，系統會自動檢查所輸入的壓力數質，
可以避免目前的車種有不當的壓力值設定
Once done, the system will perform a check on
pressure entered. This is to avoid improper pressure
setup for selected vehicle mode.
16) 假如輸入了合適的壓力值
If proper pressure in being entered,
• 顯示器會顯示 PS (壓力儲存)
Message area will display PS (Pressure Saved).
• 系統會嗶一聲確認
Buzzer will beep once
• 輸入的壓力會儲存
Entered pressure will be saved
17) 假如輸入不合適的壓力值
If improper pressure is being entered,
• 顯示器會顯示 ERR (壓力錯誤)
Message area will display ERR (Pressure Error).
• 系統會嗶二聲警示
Buzzer will beep twice
• 使用者必需回到步驟(6)重新設定
User will be return to step (6) for re-setup.
• 假如不當的輸入(ERR)發生第二次，系統將會自動
以預設的壓力質來取代使用者的設定
• If improper error (ERR) occurs for the second time,
the system will replace the pressure to default value.
• 請參考所屬車種允許的最大壓力質
Please refer to maximum allowable pressure table for
the maximum pressure for vehicle mode type.
備注:Note:
第二次不當的壓力設定時，顯示器會顯示 ERR(壓力錯
誤)，且自動回到預設的壓力質並儲存(儲存預設的壓力

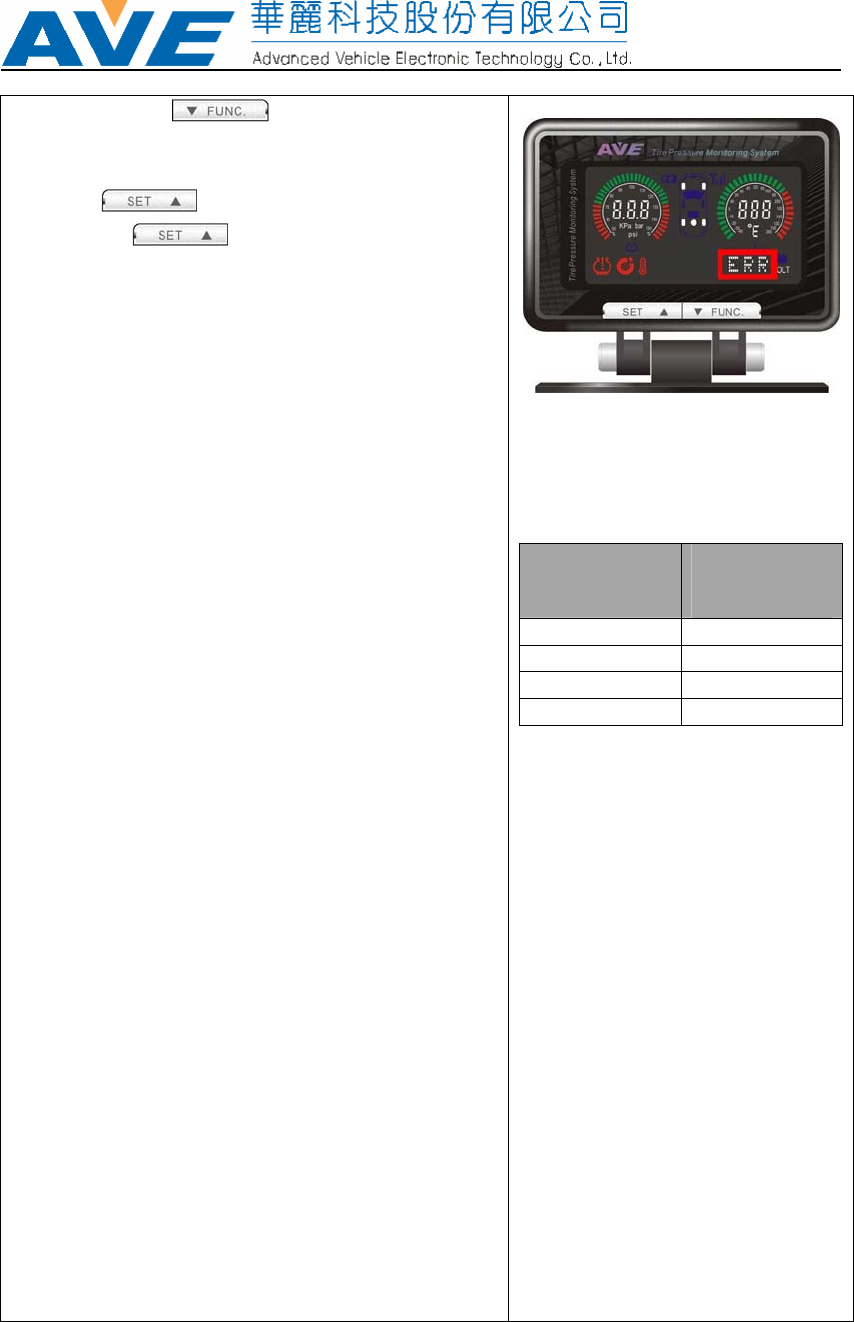

壓力值設定錯誤時
Error in pressure
車種 Vehicle Mode 最大的壓力值
Maximum allowable
pressure
(psi)
M01 044
M02, M03, M04 049
M05, M06 055
M07, M08 065
21 www.avetechnology.com
質以取代不合適的加入質
For improper pressure setup in second time,
Message area will display ERR (Pressure Error).
Followed by default pressure value and PS.
(Saving default pressure value instead of improper entered
value)
18) 壓力設定完後後，系統將會自動返回操作模式
PRESSURE SETUP MODE is complete. The
system will return to OPERATING MODE.
備注 Note:
靜止
20
秒後，會自動退出，在步驟
(5)
前所設定的內
容將不會被儲存，系統將會使用預設的壓力單位
To quit, leave the display for 20 seconds.
Any changes after step (5) will not be saved and the
system will use the default pressure unit.
靜止
20
秒後，系統將會自動退出壓力設定模式並返
回操作模式
Any inactivity more than 20 seconds, the system will quit
PRESSURE SETUP MODE and return to
OPERATING MODE
22 www.avetechnology.com
壓力設定模式 (汽車車種) PRESSURE SETUP MODE
(for CAR version)
按 3秒以進入壓力設定模式
Press and hold button for 3 seconds to enter
PRESSURE SETUP MODE.
1) 顯示器會顯示預設壓力值或之前設定的壓力質
Message Area will display default pressure value
or previously set-up pressure.
備注:汽車預設的壓力質是 028psi
Note: Default pressure value for car mode is 028 psi.
2) 按 確認預設的壓力值，跳過步驟
(3)~(9)，到步驟(10)
Press to accept default pressure value.
Skip step (3) to (9). Go to step (10).
3) 按 以改變壓力值
Press to change pressure value.
4) 顯示器右下角第 3個壓力值會閃燈
Message Area will prompt for input
‗‗ will flash on 3rd digit message area.
5) 若要確認現在的壓力值，按 即可跳過
步驟(6)~(7)
Press to accept the displayed value on
3rd digit. Step (6) to (7) will be skipped.
6) 若要更改第３個壓力值，按 會增加
1，可以一直按到所需要的壓力質為止，它的數
值範圍在 0~9
To change the pressure value, press
button. The displayed number will increase by 1
every time button is pressed. Continue
pressing the button until your wanted value. The
number will be looping from 0 to 9 back to 0.
7) 按 確認輸入的第３個壓力數值
Correctly Enter Pressure
23 www.avetechnology.com
Press to accept the input value.
8) 然後顯示器會進入第２個壓力數值並閃爍
Message Area will proceed to 2nd digit for input.
‗‗ will flash on 2nd digit message area.
9) 重覆(5)~(7)設定第２，第３個壓力值
Repeat step (5) to (7) for 2nd and 3rd digit.
注意: 當加入的壓力質為 28psi 時，請輸入 028psi
Note: When entering the pressure as 28 psi please enter as 028 psi.
10) 當完成後，系統會自動檢查輸入的壓力值，這可
以避免目前的車種設定有不當的壓力值
Once done, the system will perform a check on
pressure entered. This is to avoid improper pressure
setup for selected vehicle mode.
11) 假如輸入了合適的壓力
If proper pressure in being entered,
• 顯示器會顯示 PS(壓力值儲存)
Message area will display PS (Pressure Saved).
• 系統會嗶一聲確認
Buzzer will beep once
• 設定的壓力值會儲存
Entered pressure will be saved
12) 假如輸入了不合適的壓力
If improper pressure is being entered,
• 顯示器會顯示 ERR (壓力值設定錯誤)
Message area will display ERR (Pressure Error).
• 系統會嗶二聲警示
Buzzer will beep twice
• 使用者必需回到步驟(6)重新設定 User
will be return to step (6) for re-setup.
• 假如不當的錯誤(ERR)發生第二次，系統會以預設
的壓力值取代使用者所設定的
If improper error (ERR) occurs for the second time,
the system will replace the pressure to default value.
• 請參考所屬車種允許的最大壓力質
Please refer to maximum allowable pressure table for
the maximum pressure for car mode.
備註:Note:
第二次不當的壓力數值設定後，顯示器會顯示 ERR(壓
力數值設定錯誤)，且會返回預設的壓力數值(028)並自
動儲存來取代不正確當的輸入壓力值
For improper pressure setup in second time,
Message area will display ERR (Pressure Error).
Followed by default pressure value and PS.
(Saving default pressure value instead of improper entered
value)
Error in pressure
Vehicle Mode
車 種 Maximum allowable
pressure (psi)
允許的最大壓力數值
Car mode 汽車 044
24 www.avetechnology.com
13) 壓力值設定完成後，系統將會自動返回操作模式
PRESSURE SETUP MODE is complete. The
system will return to OPERATING MODE.
備註:Note:
若沒有操作任何按鍵，系統將在靜止
20
秒後自動返
回操作模式，並回到預設的壓力值
To quit, leave the display unit for 20 seconds.
Any changes after step (5) will not be saved and the
system will use the default pressure unit.
Any inactivity more than 20 seconds, the system will quit
PRESSURE SETUP MODE and return to
OPERATING MODE.
25 www.avetechnology.com

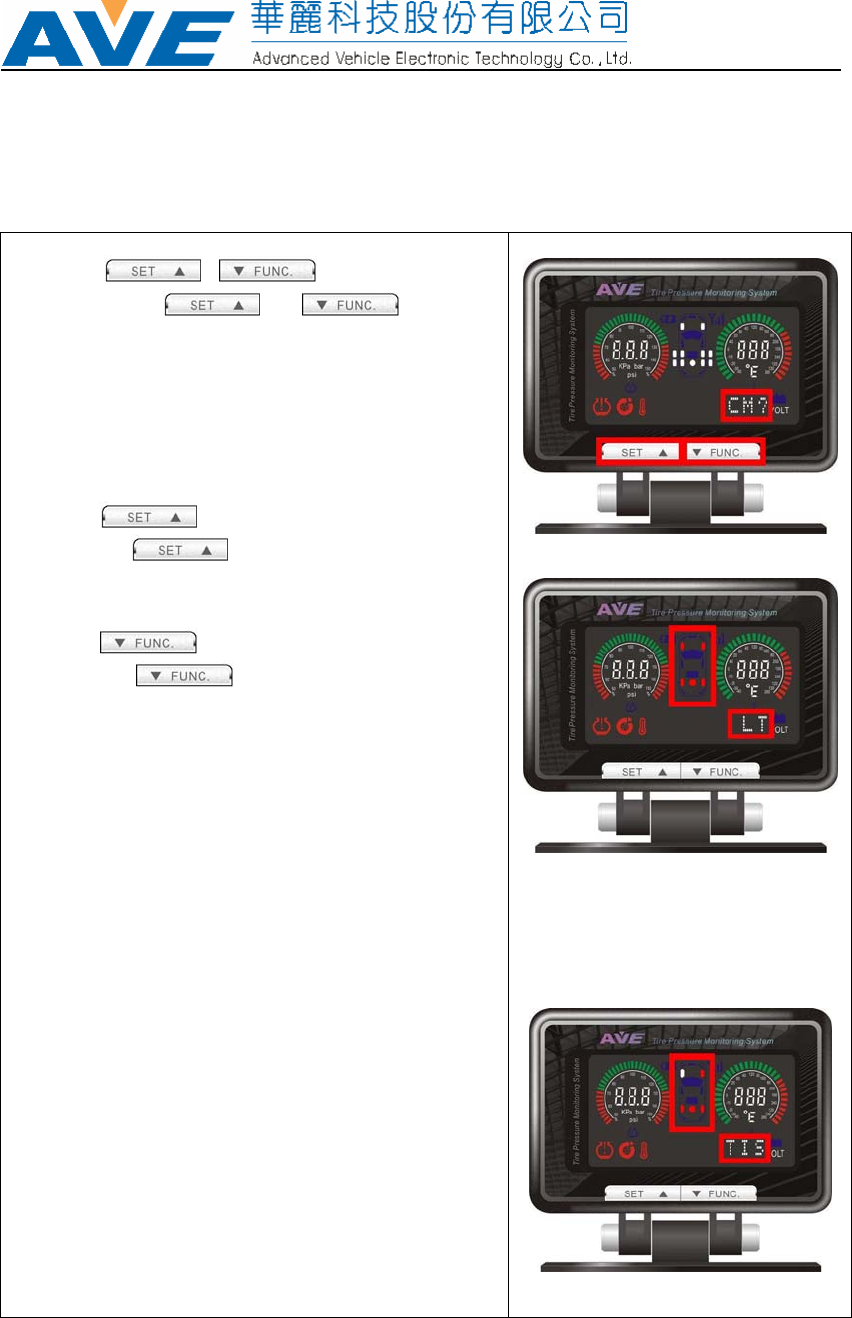

TIRE SETUP MODE 輪胎設定模式
一起按 及以進入輪胎設定模式
Press and hold and button for
together to enter TIRE SETUP MODE.
1) 顯示器將會清除之前記憶在感測器 ID 中的設
定， 顯示器會顯示 CM? 並閃爍
Message Area will prompt to clear the previous
memory (sensors ID) stored in the system.
Message area will display CM? (flash).
按以清除記憶
Press to clear the memory.
備註:當換胎時需要操作此功能
Note: Select this option when performing tire rotation.
按維持記憶
Press to keep the memory.
備註:當換置固障的感測器時需選擇操作此功能
Note: Select this option when replacing broken sensor.
2) 所有輪胎圖示燈亮
All tires (depending on the vehicle mode) will light.
左前輪胎閃爍
Front left tire will flash.
顯示器顯示 LT(輪胎滲漏測試)
Message area will display LT (Leak Test)
使用者有 4分鐘的時間可以測試目前閃爍燈號的
輪胎是否有滲漏的情形
User will have 240 seconds (4 minute) to perform the
leak test on the flashed tire.
備註:Note:
輪胎滲漏測試是使用者在輪胎漏氣或充氣 5秒到 10 秒內基本
的動作。突然的胎壓改變會引起感測器不斷的發送訊號
Leak Test is basically user action to deflate or inflate the air in the
tire for 5 to 10 seconds. A sudden change in tire pressure will
cause tire’s sensor to transmit signal continuously.
輪胎滲漏測試是不需的 Optional to leak test.
若使用 AVE TPMS 感測控制器便不需執行滲漏測試，AVE
TPMS 感測控制器在沒有漏氣或充氣的情形下仍會強迫感測器
傳送訊號，此一控制器可以選購
User can avoid performing leak test on the tire by using AVE
TPMS sensor’s remote control. AVE TPMS sensor’s remote
control will force sensor to transmit signal without inflating or
deflating tire’s pressure.
26 www.avetechnology.com
This sensor’s remote control is available as an optional accessory.
3) 若要退出某一個輪胎滲漏測試可按 跳
過 步驟(4)~(5)，到步驟(7)
To quit leak test on particular tire press
button.
Skip step (4) to (5). Go to step (7).
備註:Note:
當要換置固障的感測器時，此一步驟才可實行
This is applicable when replacing broken tire’s sensor.
4) 當收到訊號時，顯示器會嗶一聲。輪胎圖示燈會
關掉(表示輪胎已成功定位)。顯示器會顯示
TIS(已記憶輪胎位置)
Display unit will beep once if signal is received.
The light on flashed tire will turn off (indicating tire
successfully setup)
Message Area will display TIS. (Tire ID saved)
5) 繼續設定下一個輪胎，請按
To exit TIRE SETUP MODE, press
button.
To continue to next tire, press button.
6) 再重覆其它輪胎的滲漏測試
Repeat the leak test for the rest of tire.
備註:Note:
當所有輪胎設定完全後(所有輪胎圖示燈會關掉)，系統會自動
返回操作模式
Once the setup is complete will all tires (all tire light turned off),
the system will exit TIRE SETUP MODE.
7) From step (3).
系統會提示使用者是否裝有備胎，顯示器此時會
顯示 ST? (是否有備胎)
System will prompt user if the flashed tire is a spare
/ reserve tire.
Message area will display ST? (Spare Tire?)
8) 假如沒有備胎時，請按 ，顯示器會
顯示 IDX(輪胎位置並未記憶)，警示器會嗶一聲
Press button if not a spare tire.
Message area will display IDX. (ID not saved)
Buzzer will beep once.
備註:Note:
假如輪胎定位記憶已清除，輪胎圖示燈亮 (請參考步驟一)
The tire’s light will remain light if memory is cleared (step 1)
假如輪胎定位記憶未清除，輪胎圖示燈會關掉 (請參考步驟
一) ， 因為系統會使用上一次感測器裡的輪胎定位記憶
The tire’s light will turn off if memory is not cleared (step 1).
This is due to the system is using previous sensors ID.
27 www.avetechnology.com
9) 假如有備胎，請按 ，顯示器會顯示
IDX(輪胎位置並未記憶)。在輪胎圖示燈關掉前，
輪胎圖示燈會閃 3次，警示器會嗶 2聲
Press button if it is a spare tire.
Message area will display IDX. (ID not saved)
Tire’s light will flash 3 times before turned off.
Buzzer will beep twice.
備註:Note:
因為大多數的備胎都沒有裝置感測器，所以此一選項可以允
許使用者關掉監控備胎功能
This option allows user option to turn off the monitoring spare tire
as most spare tire are not equipped with the tire’s sensor.
10) 系統會直接進入下一個輪胎做設定
System will proceed to the next tire to set up.
備註:Note:
假如所有輪胎設定完成後(所有輪胎圖示燈滅)，系統將會自動
退出輪胎設定模式
If the setup is complete will all tires (all tire light turned off), the
system will exit TIRE SETUP MODE.
當沒有操作任何按鍵時，系統將在靜止
4
分鐘後，自
動返回操作模式並儲存儲存最後的設定
To quit, leave the display unit for 240 seconds.
Any changes will only be reflected onto the last saved
data.
Any inactivity more than 240 seconds, the system will quit
TIRE SETUP MODE and return to OPERATING
MODE.
28 www.avetechnology.com

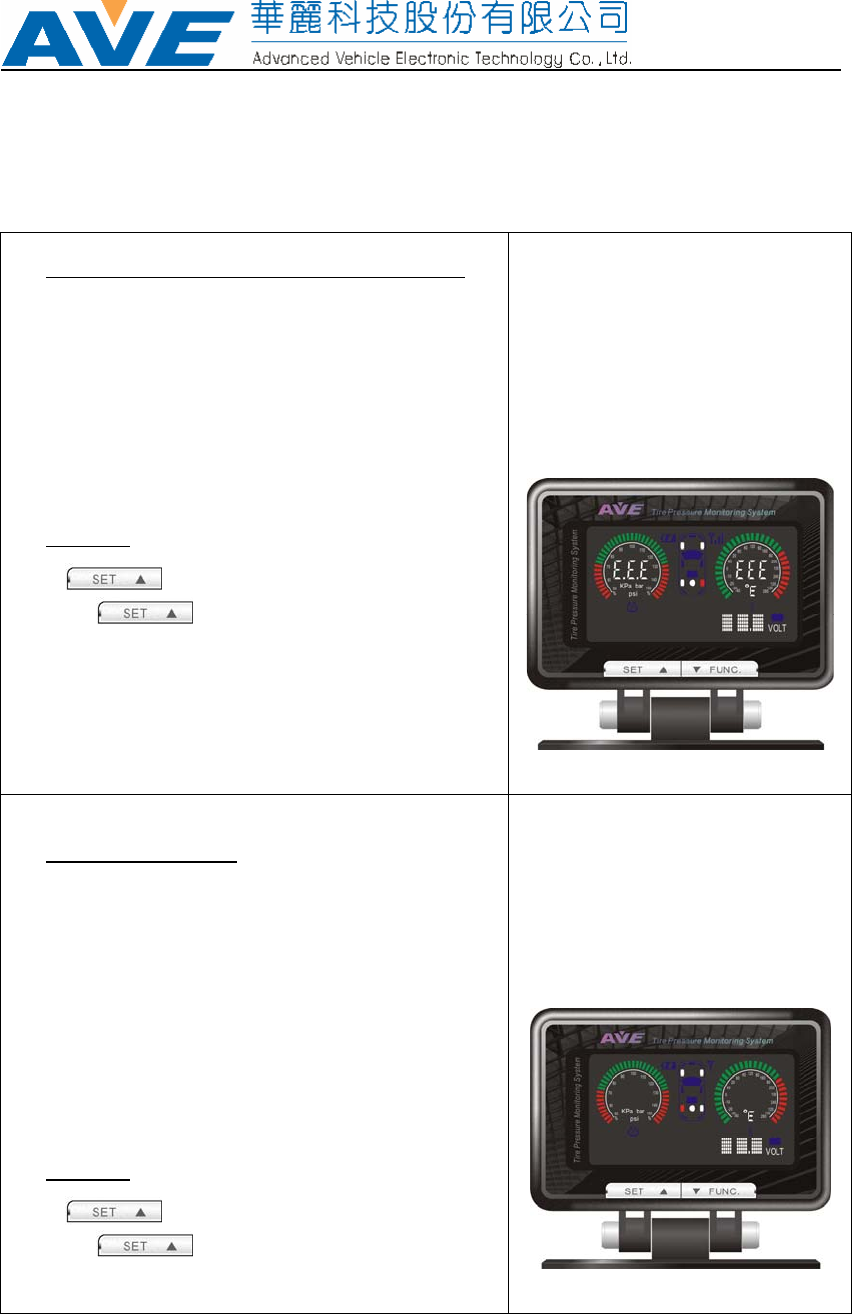

警示反應 Reacting to Alerts
當設定不正確或不完整時 INCOMPLETE SETUP
• 在操作模式下，受到影響的輪胎圖示會亮燈
Affected tire will light during its turn on operating
mode
• 系統每 3秒會發出警示嗶聲 1次
Buzzer will beep once every 3 seconds.
• 壓力及溫度計量表表燈會持續閃爍
Pressure and Temperature bar indicator will flash
• 壓力及溫度數字表會顯示英文字 E並持續閃爍
Pressure and Temperature digits will flash
備註:Note
按以關掉警示聲
Press to turn off the sound.
當警示聲被關掉時，直到使用者正確設定前，燈號仍
會持續閃爍以警示使用者目前的設定並不正確或不完
整
Warning will remain if sound is turn off until it is taken
care by user.
沒有訊號 NO SIGNAL
• 在操作模式下，受到影響的輪胎圖示燈會閃爍
Affected tire will flash during its turn on operating
mode.
• 系統每 1秒會發出警示嗶聲 1次
Buzzer will beep once every 1 second.
• 天線訊號圖示只會顯示 Y，而不會顯示訊號格數
Antenna signal Icon shows Y only without the bar.
• 壓力及溫度計量表表燈會亮
Pressure and Temperature bar indicator will light.
• 壓力及溫度數字表燈將不會顯示
Pressure and Temperature digits if off.
備註:Note
按以關掉警示聲
Press to turn off the sound.
當警示聲被關掉時，直到使用者正確設定前，燈號仍
會持續閃爍以警示使用者目前的設定並不正確或不完
29 www.avetechnology.com
整
Warning will remain if sound is turn off until it is taken
care by user.

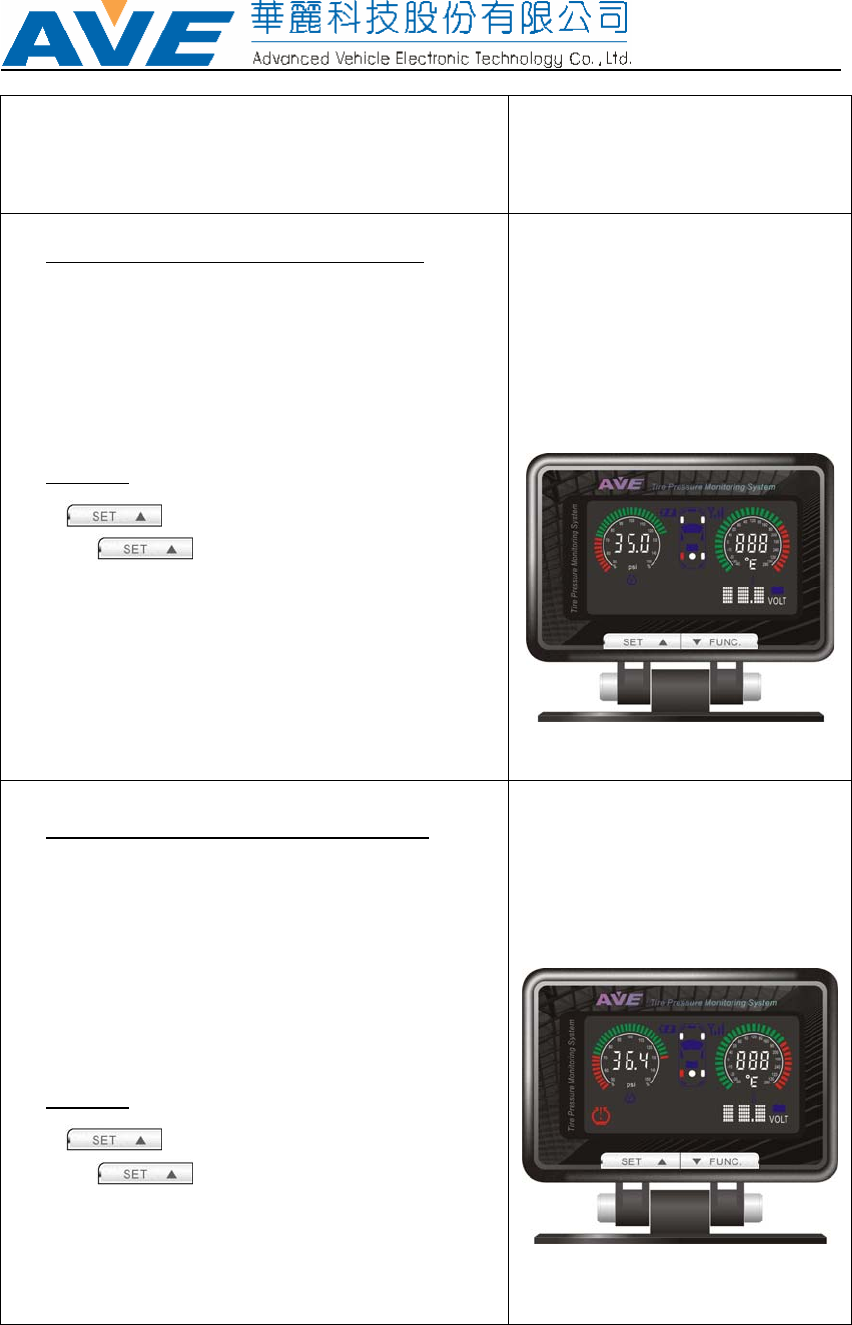

胎壓不足(25%)UNDER-INFLATION (25%)
• 在操作模式下，受到影響的輪胎圖示燈會閃爍
Affected tire will flash during its turn on operating
mode
• 系統每 2秒會發出警示嗶聲 1次
Buzzer will beep once every 2 seconds
• 胎壓在 75%時，壓力計量表表燈會閃爍
Pressure bar indicator will flash at 75%
備註 Note
按以關掉警示聲
Press to turn off the sound.
當警報聲被關掉時，直到使用者處理胎壓不足的問題
前，警示燈號仍會閃爍
Warning will remain if sound is turn off until it is taken
care by user.
備註:Note:
胎壓不足 25%是指在預設的壓力質 28psi 基礎下
The 25% under-inflation value in pressure display is based on default
28 psi.
胎壓不足(30%)UNDER-INFLATION (30%)
• 在操作模式下，受到影響的輪胎圖示燈會閃爍
Affected tire will flash during its turn on operating
mode
• 系統每 2秒會發出警示嗶聲 1次
Buzzer will beep twice every 2 seconds
• 胎壓在 70%時，壓力計量表表燈會閃爍
Pressure bar indicator will flash at 70%
• 輪胎漏氣圖示燈亮
Tire leak icon will light
備註:Note
按以關掉警示聲
Press to turn off the sound.
當警報聲被關掉時，直到使用者處理胎壓不足的問題
前，警示燈號仍會閃爍
Warning will remain if sound is turn off until it is taken
care by user.
備註:Note:
30 www.avetechnology.com
胎壓不足 30%是指在預設的壓力質 28psi 基礎下
The 30% under-inflation value in pressure display is based on default 28
psi.
胎壓過高(125%)OVER-INFLATION (125%)
• 在操作模式下，受到影響的輪胎圖示亮會閃爍
Affected tire will flash during its turn on operating
mode
• 系統每 2秒會發出警示嗶聲 1次
Buzzer will beep once every 2 seconds
• 胎壓在 125%時，壓力計量表表燈會閃爍
Pressure bar indicator will flash at 125%
備註 Note
按以關掉警示聲
Press to turn off the sound.
當警報聲被關掉時，直到使用者處理胎壓過高的問題
前，警示燈號仍會閃爍
Warning will remain if sound is turn off until it is taken
care by user.
Note:
胎壓過高 125%是指在預設的壓力質 28psi 基礎下
The 125% over-inflation value in pressure display is based on default 28
psi.
胎壓過高(130%) OVER-INFLATION (130%)
• 在操作模式下，受到影響的輪胎圖示燈會閃爍
Affected tire will flash during its turn on operating
mode
• 系統每 2秒會發出警示嗶聲 1次
Buzzer will beep twice every 2 seconds
• 胎壓在 130%時，壓力計量表表燈會閃爍
Pressure bar indicator will flash at 130%
• 輪胎漏氣圖示燈亮
Tire leak icon will light
備註 Note
按以關掉警示聲
Press to turn off the sound.
當警報聲被關掉時，直到使用者處理胎壓過高的問題
前，警示燈號仍會閃爍
Warning will remain if sound is turn off until it is taken
care by user.
備註:Note:
31 www.avetechnology.com
胎壓過高 130%是指在預設的壓力質 28psi 基礎下
The 130% under-inflation value in pressure display is based on default
28 psi.
漏氣 FAST LEAK
• 在操作模式下，受到影響的輪胎圖示燈會閃爍
Affected tire will flash during its turn on operating
mode
• 系統每 1秒會發出警示嗶聲 2次
Buzzer will beep twice every 1 seconds
• 輪胎漏氣圖示燈亮
Tire leak icon will light
備註 Note
按以關掉警示聲
Press to turn off the sound.
當警報聲被關掉時，直到使用者處理漏氣問題前，警
示燈號仍會閃爍
Warning will remain if sound is turn off until it is taken
care by user.
爆胎 FLAT TIRE
• 在操作模式下，受到影響的輪胎圖示燈會閃爍
Affected tire will flash during its turn on operating
mode
• 系統每 1秒會發出警示嗶聲 2次
Buzzer will beep twice every 1 seconds
• 輪胎漏氣圖示燈亮
• Tire flat icon will light
備註 Note
按以關掉警示聲
Press to turn off the sound.
當警報聲被關掉時，直到使用者處理爆胎問題前，警
示燈號仍會閃爍
Warning will remain if sound is turn off until it is taken
care by user.
32 www.avetechnology.com
溫度高於 80°C (176°F)時
TEMPERATURE ABOVE 80°C (176°F)
• 在操作模式下，受到影響的輪胎圖示燈會閃爍
Affected tire will flash during its turn on operating
mode
• 系統會發出 1長警示嗶聲，間隔一秒後再發出 1
長警示嗶聲，警示聲會一直持續
Buzzer will beep one long beep followed by 1 second
delay
• 溫度數字表燈亮
Temperature icon will light
• 溫度刻度表燈會閃爍
Temperature bar indicator will flash
備註 Note
按以關掉警示聲
Press to turn off the sound.
當警報聲被關掉時，直到使用者處理問題前，警示燈
號仍會閃爍
Warning will remain if sound is turn off until it is taken
care by user.
溫度高於 90°C (194°F)
TEMPERATURE ABOVE 90°C (194°F)
• 在操作模式下，受到影響的輪胎圖示燈會閃爍
Affected tire will flash during its turn on operating
mode
• 系統會發出 1長1短警示嗶聲，間隔一秒後再警
示1長1短警示嗶聲，警示聲會一直持續
Buzzer will beep one long beep follow by one short
beep and 1 second delay.
• 溫度數字表燈亮
Temperature icon will light.
• 溫度刻度表燈會閃爍
Temperature bar indicator will flash.
備註 Note
按以關掉警示聲
Press to turn off the sound.
當警報聲被關掉時，直到使用者處理問題前，警示燈
號仍會閃爍
33 www.avetechnology.com
Warning will remain if sound is turn off until it is taken
care by user.
溫度高於 100°C (212°F)
TEMPERATURE ABOVE 100°C (212°F)
• 在操作模式下，受到影響的輪胎圖示會燈亮
Affected tire will flash during its turn on operating
mode
• 系統會發出 1長2短警示嗶聲，間隔 1秒後再發
出1長2短警示嗶聲，警示聲會一直持續
• Buzzer will beep one long beep follow by two short
beep and 1 second delay.
• 溫度數字表燈亮
Temperature icon will light.
• 溫度刻度表燈會閃爍
Temperature bar indicator will flash.
備註 Note
按以關掉警示聲
Press to turn off the sound.
當警報聲被關掉時，直到使用者處理問題前，警示燈
號仍會閃爍
Warning will remain if sound is turn off until it is taken
care by user.
34 www.avetechnology.com
AVE TPMS Optional Accessories
電池盒(8AA)
Battery Pack (8AA )
• 攜帶式電池盒更易於安裝
Battery Pack allows display unit to be carried around
for easier setup.
• 使用者不需依賴車上的汽車點煙電源線
Users need not have to rely on power from vehicles
(cigarette lighter power cord)
• 方便用於設定多輪車種
Useful when set up especially when setting up
vehicles with a lot of wheels.
• AVE TPMS 可支援至 27 個輪胎
AVE TPMS support up to 27 wheels
感測控制器 Remote controls for sensor
• 感測控制器有控制感測器的功能，4個主要的功
能包含
The remote control will have function to control sensor. 4
main function includes;
o 喚醒模式 WAKE UP mode
o 睡眠模式 SLEEP mode
o 正常模式 NORMAL mode
o 強迫訊號模式 FORCE SIGNAL mode
• 有助於設定輪胎。強迫感測器傳送訊號以取代滲
漏測試
This is useful when setup up the tire. Force tire’s
sensor to transmit signal instead of performing leak
test.
• 假如感測器傳送訊號，就會使用診斷工具來測試
輪胎感測器 Use as a diagnostic tool to test the tire’s
sensor if sensor is transmitting signal.
• 可以更節省輪胎感測器電池的電源
Power saving on tire’s sensors battery.
強迫輪胎感測器進入睡眠模式(當車子或輪胎有一
段時間未使用時這是有幫助的)
Force tire’s sensor to go into SLEEP mode (useful
when vehicle / tire is not being used for a period of
time)
35 www.avetechnology.com
標準氣嘴 Standard Valve
• AVE TPMS 使用標準氣嘴
AVE TPMS uses standard valve.
• 任何輪胎行均有銷售
It is available anywhere.
• 假如固障時，可置換氣嘴即可，而不需置換整個
感測器 Replace only the valve if it is broken but not
the sensor.
• 不像其它的 TPMS，不管氣嘴或感測器壞掉，要
全部更換 Unlike other TPMS, replace both
irregardless if either valve or sensor is broken.
輪胎感測器 Tire’s sensor
• 備胎也可使用感測器
Tire sensors is available in for spare tire
• 若有需要，可洽詢華麗科技經銷商
Please inquire from AVE Technology authorized
center.
36 www.avetechnology.com
保證策略 Warranty Policy
華麗科技自購買日開始起算提供一年之產品免費保固。在保固期間，若產品在正常
使用操作下故障時，華麗科技將免費提供替換品或修復。華麗科技保留更換其它新
產品或同等價值產品的權利。
AVE Technology warrants to the original end user that the product purchased is free from
defects in material and workmanship for a period of one (1) year from the date of original
purchase. Should the product fail within the warranty period, it will be replaced or
repaired at the option of AVE Technology. AVE Technology reserves the right to replace
defect products with either new or refurbished to be functionally equivalent to new.
若有以下情形，則無法提供原有的保固： The Warranty is void and inapplicable if:
1. 產品未依照說明手冊操作
the product has been used or handled other than accordance with the instructions
in user manual
2. 產品因為意外或疏忽而被濫用、誤用而遭致損壞時
the product is abused, misused, damaged by accident or neglect
3. 在本公司或本公司授權的維修處之外維修而導致損壞時
the damage is due from being repaired or tampered with by anyone other than
AVE Technology or an authorized AVE Technology repair center.
4. 由於運送而導致的損壞
the damage is due from during transit.
所有故障品都需送到本公司或本公司授權的維修處維修，並附上故障的明細及出示
原始購買發票。此保固需在當地購買的國家始能生效。
The damaged product must be delivered prepaid to AVE Technology or its authorized
AVE Technology repair center. The RETURN PRODUCT MUST BE ACCOMPANIED
BY A WRITTEN DESCRIPTION OF THE DEFECT AND A PHOTOCOPY OF THE
ORIGINAL PURCHASE RECEIPT. This warranty is valid in the country of purchase
此保固僅限于在此說明的條件，本公司將不對與出售本產品有關的任何特別，次要
或者隨之發生的損害負責。 此保固書提供您具體的法定權利，但也可能因國家而
不同的其他權利
This warranty is limited to the terms stated herein. AVE Technology shall not be liable
for any special, incidental or consequential damages relating to the product sold. This
Warranty gives you specific legal rights and you may also have other rights which vary
from state to state.
37 www.avetechnology.com
Appendix 附件
Pressure conversion table 壓力單位對照表
KPa psi bar KPa psi bar KPa psi bar KPa psi bar
10 1.5 0.1 310 45.0 3.1 610 88.5 6.1 910 132.0 9.1
20 2.9 0.2 320 46.4 3.2 620 89.9 6.2 920 133.4 9.2
30 4.4 0.3 330 47.9 3.3 630 91.4 6.3 930 134.9 9.3
40 5.8 0.4 340 49.3 3.4 640 92.8 6.4 940 136.3 9.4
50 7.3 0.5 350 50.8 3.5 650 94.3 6.5 950 137.8 9.5
60 8.7 0.6 360 52.2 3.6 660 95.7 6.6 960 139.2 9.6
70 10.2 0.7 370 53.7 3.7 670 97.2 6.7 970 140.7 9.7
80 11.6 0.8 380 55.1 3.8 680 98.6 6.8 980 142.1 9.8
90 13.1 0.9 390 56.6 3.9 690 100.1 6.9 990 143.6 9.9
100 14.5 1.0 400 58.0 4.0 700 101.5 7.0 1000 145.0 10.0
110 16.0 1.1 410 59.5 4.1 710 103.0 7.1 1010 146.5 10.1
120 17.4 1.2 420 60.9 4.2 720 104.4 7.2 1020 147.9 10.2
130 18.9 1.3 430 62.4 4.3 730 105.9 7.3 1030 149.4 10.3
140 20.3 1.4 440 63.8 4.4 740 107.3 7.4 1040 150.8 10.4
150 21.8 1.5 450 65.3 4.5 750 108.8 7.5 1050 152.3 10.5
160 23.2 1.6 460 66.7 4.6 760 110.2 7.6 1060 153.7 10.6
170 24.7 1.7 470 68.2 4.7 770 111.7 7.7 1070 155.2 10.7
180 26.1 1.8 480 69.6 4.8 780 113.1 7.8 1080 156.6 10.8
190 27.6 1.9 490 71.1 4.9 790 114.6 7.9 1090 158.1 10.9
200 29.0 2.0 500 72.5 5.0 800 116.0 8.0 1100 159.5 11.0
210 30.5 2.1 510 74.0 5.1 810 117.5 8.1 1110 161.0 11.1
220 31.9 2.2 520 75.4 5.2 820 118.9 8.2 1120 162.4 11.2
230 33.4 2.3 530 76.9 5.3 830 120.4 8.3 1130 163.9 11.3
240 34.8 2.4 540 78.3 5.4 840 121.8 8.4 1140 165.3 11.4
250 36.3 2.5 550 79.8 5.5 850 123.3 8.5 1150 166.8 11.5
260 37.7 2.6 560 81.2 5.6 860 124.7 8.6 1160 168.2 11.6
270 39.2 2.7 570 82.7 5.7 870 126.2 8.7 1170 169.7 11.7
280 40.6 2.8 580 84.1 5.8 880 127.6 8.8 1180 171.1 11.8
290 42.1 2.9 590 85.6 5.9 890 129.1 8.9 1190 172.6 11.9
300 43.5 3.0 600 87.0 6.0 900 130.5 9.0 1200 174.0 12.0
Temperature conversion table 溫度單位對照表
°C °F °C °F
°C °F
-40 -40.0 20 68.0 80 176.0
-30 -22.0 30 86.0 90 194.0
-20 -4.0 40 104.0 100 212.0
-10 14.0 50 122.0 110 230.0
0 32.0 60 140.0 120 248.0
10 50.0 70 158.0 125 257.0
38 www.avetechnology.com
