Advantech Co ARK1124 Computer User Manual rev 2
Advantech Co Ltd Computer Users Manual rev 2
Users Manual_rev 2.pdf
Page 1
ARK-1124/EIS-D210W
Computer
Fanless PC with 4x USB 3.0, AC mode/Wifi
Page 2

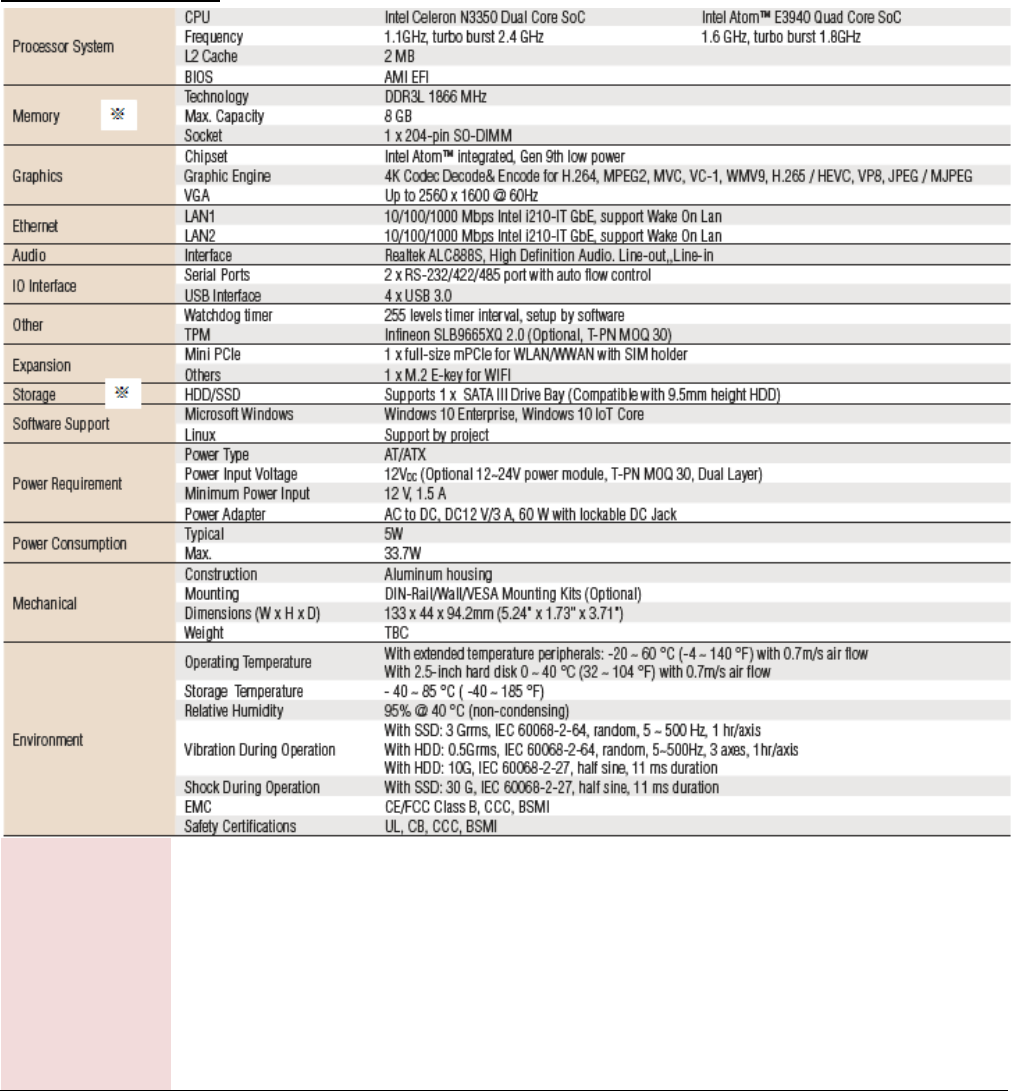

Product Specification
ARK-1124U/EIS-D210W
Wifi Operation
WLAN:
2.4GHz: 2412 ~ 2472MHz
5.0GHz: 5180 ~ 5240MHz
5260 ~ 5320MHz
5500 ~ 5720MHz
5745 ~ 5825MHz
BT: 2402~2480MHz
※ Optional Peripherals.
ARK-1124U/EIS-D210W: Power Input 12V ; Dimension 133 x 46.4 x 94.2mm ; Adapter : FSP060-DIBAN2 (100-240V 50-60Hz
1.5A O/P:12VDC 5A)
ARK-1124DU/EIS-D210DW : Power Input 12V ; Dimension 133 x 83.6 x 94.2mm ; Option adapter : FSP060-DIBAN2(100-240V
50-60Hz 1.5A O/P:12VDC 5A)
ARK-1124FU/EIS-D210FW : Power Input 12-24V ; Dimension 133 x 83.6 x 94.2mm
Page 3

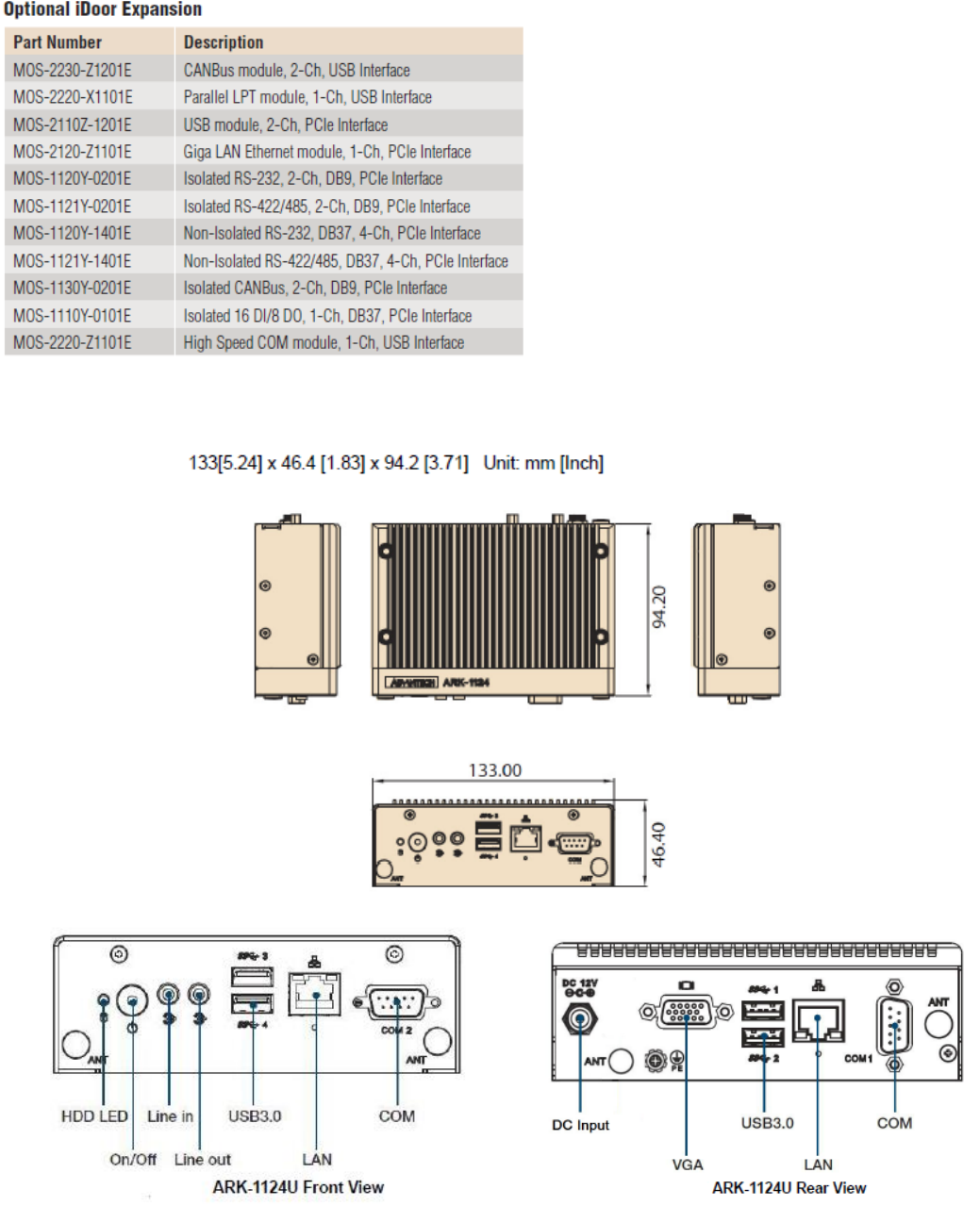

Dimension
Page 4
Page 5
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules.
Radiation Exposure Statement:
The product comply with the FCC portable RF exposure limit set forth for an uncontrolled environment and are
safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the
product can be kept as far as possible from the user body or set the device to lower output power if such function
is available.
Note: The country code selection is for non-US model only and is not available to all US model. Per FCC
regulation, all WiFi product marketed in US must fixed to US operation channels only.
