Advantech Co HIT-W121 Computer User Manual
Advantech Co Ltd Computer
User Manual
User Manual
HIT-W121
Computer
Copyright
The documentation and the software included with this product are copyrighted 2011
by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right
to make improvements in the products described in this manual at any time without
notice. No part of this manual may be reproduced, copied, translated or transmitted
in any form or by any means without the prior written permission of Advantech Co.,
Ltd. Information provided in this manual is intended to be accurate and reliable. How-
ever, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringe-
ments of the rights of third parties, which may result from its use.
Acknowledgements
Intel and Pentium are trademarks of Intel Corporation.
Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.
All other product names or trademarks are properties of their respective owners.
Declaration of Conformity
FCC Class B
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful inter-
ference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interfer-
ence to radio or television reception, which can be determined by turning the equip-
ment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
f Reorient or relocate the receiving antenna.
f Increase the separation between the equipment and receiver.
f Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
f Consult the dealer or an experienced radio/TV technician for help.
Warning! Any changes or modifications made to the equipment which are not
expressly approved by the relevant standards authority could void your
authority to operate the equipment.
Caution! Danger of explosion if battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer. Dis-
pose of used batteries according to the manufacturer’s instructions.
Part No. 2008W15100 Edition 1
Printed in Taiwan March 2011
HIT-W121 User Manual ii
Technical Support and Assistance
1. Visit the Advantech web site at www.advantech.com/support where you can find
the latest information about the product.
2. Contact your distributor, sales representative, or Advantech's customer service
center for technical support if you need additional assistance. Please have the
following information ready before you call:
- Product name and serial number
- Description of your peripheral attachments
- Description of your software (operating system, version, application software,
etc)
- A complete description of the problem
- The exact wording of any error messages
Warning! 1. Packing: Please carry the unit with both hands; handle with care.
2. Maintenance: to properly maintain and clean the surfaces, use only
approved products or clean with a dry applicator.
iii HIT-W121 User Manual
Safety Instructions
1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp
cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equip-
ment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting
it fall may cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment
from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the
equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source
to avoid damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be
opened only by qualified service personnel.
14. If one of the following situations arises, get the equipment checked by service
personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work according to
the user's manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
15. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE
STORAGE TEMPERATURE MAY GO BELOW -20° C (-4° F) OR ABOVE 60° C
(140° F). THIS COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT
SHOULD BE IN A CONTROLLED ENVIRONMENT.
16. If your computer clock loses a significant amount of time or the BIOS configura-
tion resets to default, the battery has no power.
Caution! 1.
2.
3.
4.
HIT-W121 User Manual
Do not replace power adaptor yourself. Please contact a qualified
technician or your retail.
The computer is provided with a battery-powered real-time clock
circuit. There is a danger of explosion if battery is incorrectly
replaced. Replace only with same or equivalent type recom-
mended by the manufacture. Discard used batteries according to
the manufacturer’s instructions
Cleaning: During normal use of the HIT-W121 may become soiled
and should, therefore, be cleaned regularly. Agents: Alcohol or
water.
End of Product: for Environmental protection, please follow
national requirements to dispose of unit.
iv
17. CLASSIFICATION:
- Supplied by Class I adapter
- No applied parts
- Continuous operation
- No AP or APG category
18. Follow national requirements to dispose of unit.
19. Maintenance: To properly maintain and clean the surfaces, use only approved
products or clean with a dry cloth.
20. Contact information:
No.1, Alley 20, Lane 26, Rueiguang Road Neihu District, Taipei, Taiwan 114,
R.O.C
TEL: (02) 2792-7818
21.
22. This equipment is not to be used as a life support system.
23. Accessory equipment connected to the analog and digital interfaces must be in
compliance with the respective nationally harmonized IEC standards (i.e. IEC
60950 for data processing equipment, IEC 60065 for video equipment, IEC
61010-1 for laboratory equipment, and IEC 60601-1 for medical equipment.)
Furthermore all configurations must comply with the system standard IEC
60601-1-1. Anyone who connects additional equipment to the signal input part
or signal output part is configuring a medical system, and is therefore, responsi-
ble that the system complies with the requirements of the system standard IEC
60601-1-1. The unit is for exclusive interconnection with IEC 60601-1 certified
equipment in the patient environment and IEC 60XXX certified equipment out-
side of the patient environment. If in doubt, consult the technical services
department or your local representative.
24. A user must not allow SIP/SOPs and the patient to come into contact with one
another at the same time.
25. The sound pressure level at the operator's position according to IEC 704-1:1982
is no more than 70dB (A).
DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech
disclaims all responsibility for the accuracy of any statements contained herein.
Note! Attention, please thoroughly consult the accompanying documentation.
Caution! This product: HIT-W121 is only used with the qualified & certificated
power adapter listed below:
Medical: SINPRO ELECTRONICS CO LTD, model: MPU50-107, Output:
16-21Vdc, 50W max (SET UP19Vdc, 2.63A).
ITE: FSP GROUP INC, model: FSP065-RAB, Output: 19Vdc, 3.42A.
ITE: FSP GROUP INC, model: FSP040-RAB, Output: 19Vdc, 2.1A .
ISO 7010-M002 : Refer to instruction manual/booklet
IEC 60878 : Follow operating instructions or Consult instructions for use
Environmental protection
x Follow national requirements to dispose of unit.
v HIT-W121 User Manual
HIT-W121 User Manual vi
Contents
Chapter 1 Introduction........................................ ...
1.1 Overview ... ................................................................................................... ...
1.2 System Configuration... ................................................................................. ..
Chapter 2 Hardware Description ......................... .
2.1 General Specifications ..................................................................................
2.2 Mechanical Specifications... ......................................................................... .
2.2.1 Mechanical Specifications (Terminal) ... ..........................................
2.2.2 Mechanical Drawing for Rear I/O... ..................................................
2.3 External View ... ........................................................................................... ..
2.3.1 Front View... ......................................................................................
2.3.2 Side & Bottom View ... ..................................................................... .
2.3.3 Rear View .........................................................................................
Chapter 3 Software Description......................... .
3.1 Windows XP Embedded Software Specifications... ...................................
Chapter 4 Design Requirements...................... ...
4.1 Environmental Specifications... ...................................................................
4.2 Reliability......................................................................................................
Annex
vii HIT-W121 User Manual
HIT-W121 User Manual viii
1
Chapter
1
Introduction
This chapter briefly introduces the
HIT-W121 product.
f Overview
f System Configuration
1.1 Overview
The HIT-W121 Healthcare Infotainment Terminal is Advantech's standard product
with a built-in Windows XP Embedded OS. In addition to providing hospital bedside
patient information, remote monitoring, and care functions, the CPU and the LAN-
enabled architecture of the HIT-W121 terminal also serves as an integrated hospital
gateway device. The HIT-W121 equipped with an Intel Atom 1.6GHz Dual-core pro-
cessor, 11.6" W Full-Flat touch screen, onboard isolated Giga-LAN port and COM port,
plus with other common IO such like USB and Line-in & MIC..etc. which
plays a key
role as a hospital bedside care and monitoring solution. It connects the service calls and
LED light signals of a hospital room through the LAN to the hospital.

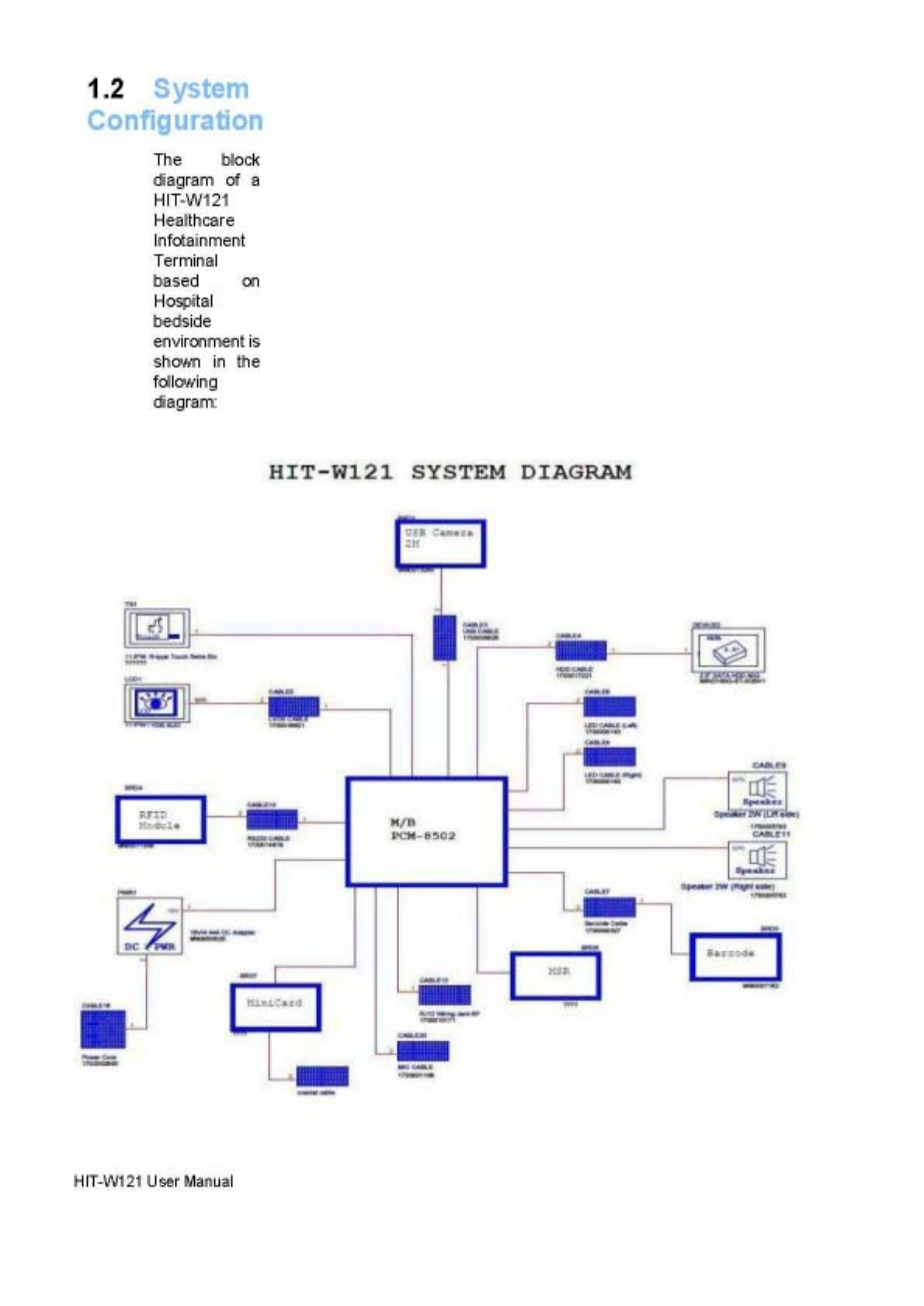

HIT-W121 User Manual 2
HIT-W121 User Manual 4
2
Chapter
2
Hardware Description
This Chapter describes the hard-
ware features of the HIT-W121.
f General Specifications
f Mechanical Specifications f
External View

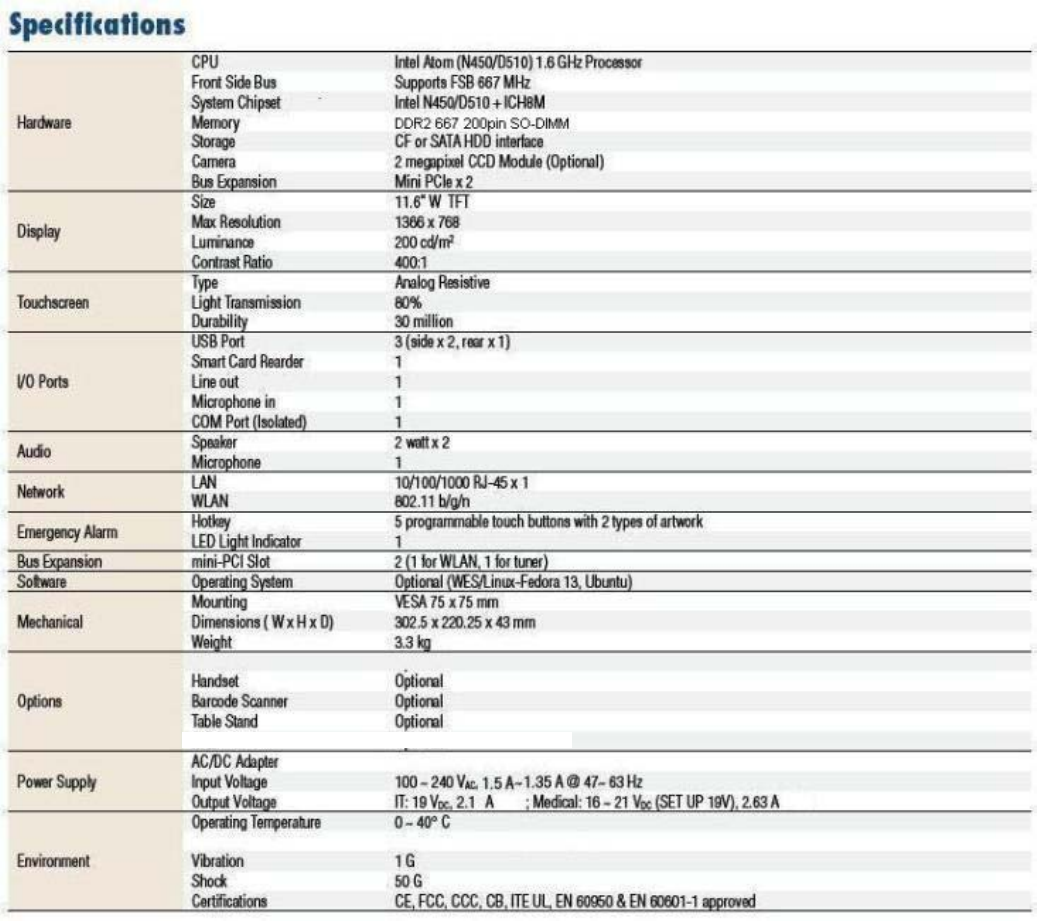

2.1 General Specifications
Operating Humidity: 20% to 90% (No Condensation)
Operating Atmospheric Pressure: 700 to 1060 hPa
Storage Humidity: 10% to 95% (No Condensation)
Storage Atmospheric Pressure: 700 to 1060 hPa
Transportation Temperature: Ͳ20к to 60к
Transportation Humidity: 10% to 95% (No Condensation)
Transportation Atmospheric Pressure: 700 to 1060 hPa
2.2 Mechanical Specifications
2.2.1 Mechanical Specifications (Terminal)
f System Dimensions: 302.5 (W) x 220.25 (H) x 43.00 (D) mm
f Carton Dimensions: 500 (W) x 385 (H) x 160
f Mounting System: VESA 75*75mm standard mounting hole
f
Net Weight:
3 kg
VESA Mount: 75*75 mm or 100*100 mm
SCREWS:
M4*10 mm
Caution
Use suitable mounting apparatus to avoid risk of injury.
7 HIT-W121 User Manual

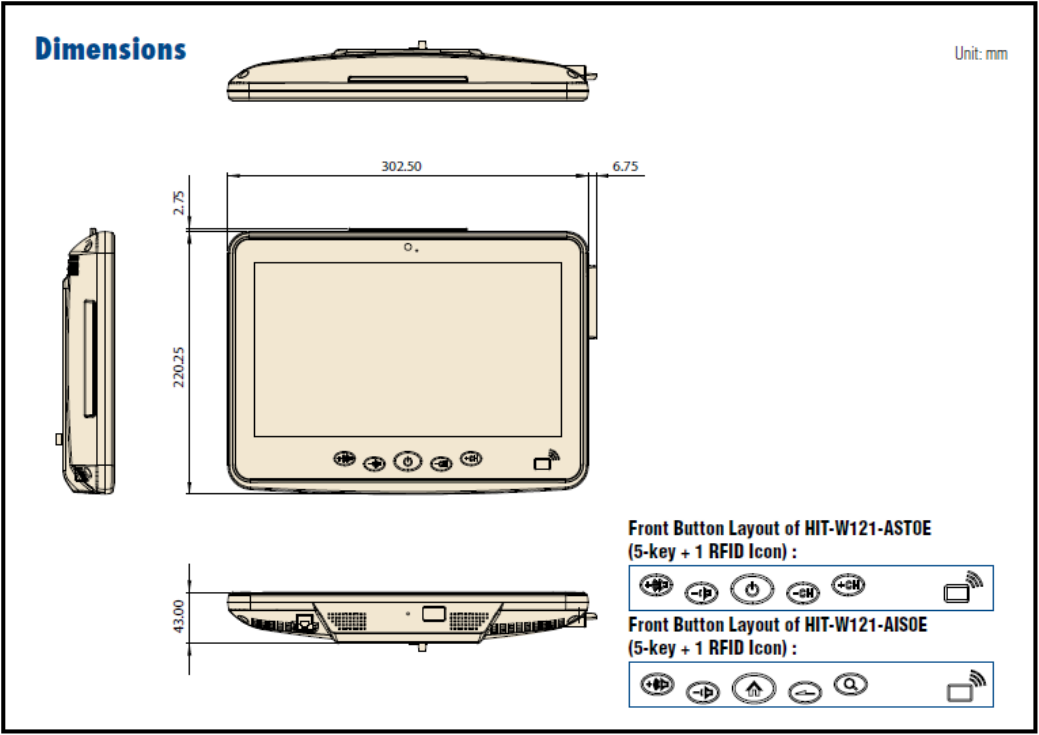

2.2.2 Mechanical Drawing for Rear I/O
2.3 External View

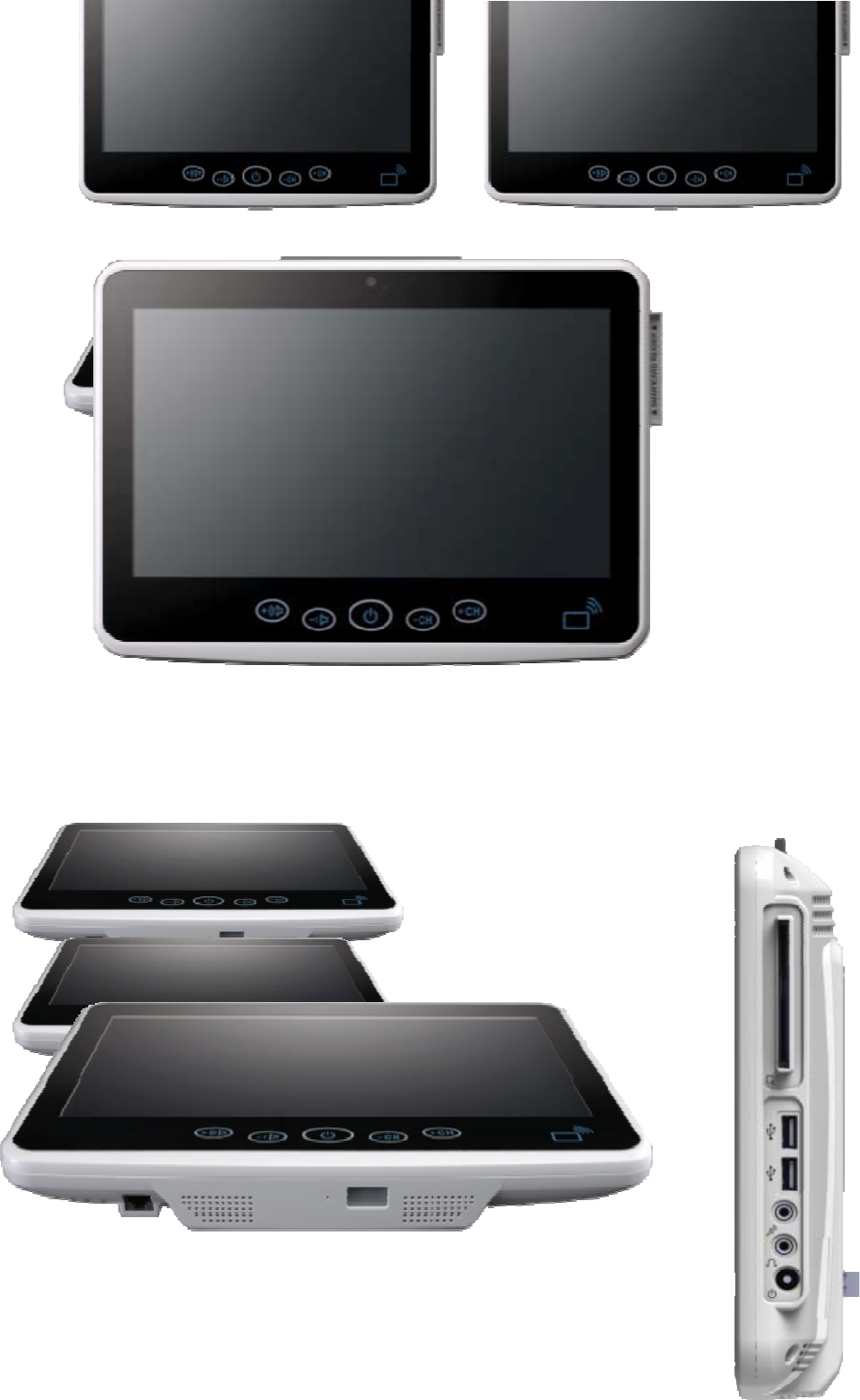

2.3.1 Front View
Front View (Terminal)
2.3.2 Side & Bottom View

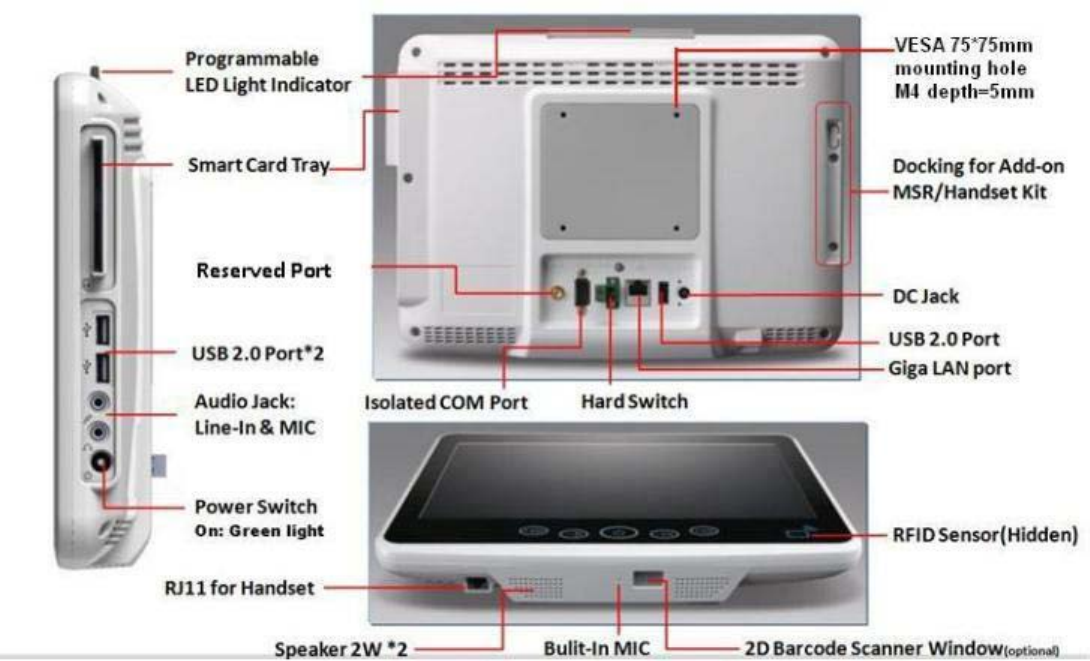

2.3.3 Rear View
Rear View (Terminal)
9
3
Chapter
3
Software Description
This Chapter describes the soft-
ware features of the HIT-W121.
f Windows XP Embedded
Software Specifications
3.1 Windows XP Embedded Software Specifications
Real-Time OS Kernel
f Windows XPE 7 Language Version
Driver List
f Chipset Intel ICH8M Rev:
f Graphics Intel GMA500 Rev:
f Audio Realtek Audio ALC880 Rev: 5.10.0.5512
f LAN Marvell Yukon Ethernet Controller Rev: 8.61.7.3
f Camera D-Max UVC Webcam Rev: 6.11.200.4
f Smartcard reader ALCOR micro USB smartcard reader Rev: 5.11.9520.7
f Touch Elo TtouchSys. 2216 AccuTouch@USB Rev: 4.4.0.0
f WLAN SParkLan WIFI module Rev:1.2.3.0
Embedded Application Software
f Advantech SUSI
SUSI Demo Program
1. LED Indicator Control.
HIT-W121 User Manual 12
13 HIT-W121 User Manual
HIT-W121 User Manual 14
4
Chapter
4
Design Requirements
This Chapter describes the design
requirements of the HIT-W121.
f Environmental Specifications
f Reliability
4.1 Environmental Specifications
Temperature & Humidity
f Operating Temperature: 0 ~ 40° C
f Storage Temperature: 0 ~ 60° C
f Relative Humidity: 0 ~ 95% RH (Non-condensed)
Case / Panel Temperature
f Less than 40° C @ 25° C ambient temperature (front bezel)
Safety
f
CE
EMI
f
FCC class B approved
Vibration:
f 10 ~ 18 Hz, 1.5 mm peak-to-peak displacement
f 18 ~ 500 Hz, 1 G acceleration
4.2 Reliability
MTBF
f 30,000 hours
Touchscreen
f 10 million touch actuation times on a single point
f Power Requirements
f DC Input Voltage: 19 V
f Power Consumption: less than 60 W
HIT-W121 User Manual 16
Annex
Guidance and manufacturer’s declaration – electromagnetic emissions
The model HIT-W121 is intended for use in the electromagnetic environment specified below. The customer or the user of
the model HIT-W121 should assure that it is used in such an environment.
Emissions test Compliance Electromagnetic environment –guidance
RF emissions
CISPR 11
Group 1 The model HIT-W121 uses RF energy only for
its internal function. Therefore, its RF
emissions are very low and are not likely to
cause any interference in nearby electronic
equipment.
RF emissions
CISPR 11
Class B
Harmonic emissions
IEC 61000-3-2
Class A
Voltage fluctuations/
flicker emissions
IEC 61000-3-3
Not applicable
The model HIT-W121 is suitable for use in all
establishments, including domestic
establishments and those directly connected to
the public low-voltage power supply network
that supplies buildings used for domestic
purposes.
Recommended separation distances between
portable and mobile RF communications equipment and the model HIT-W121
The model HIT-W121 is intended for use in an electromagnetic environment in which radiated RF disturbances are
controlled. The customer or the user of the model HIT-W121 can help prevent electromagnetic interference by maintaining
a minimum distance between portable and mobile RF communications equipment (transmitters) and the model HIT-W121
as recommended below, according to the maximum output power of the communications equipment.
Separation distance according to frequency of transmitter
m
Rated maximum output
power of transmitter
W150 kHz to 80 MHz
d = 1,2 P
80 MHz to 800 MHz
d = 1,2 P
800 MHz to 2,5 GHz
d = 2,3 P
0,01 0,12 0,12 0,23
0,1 0,38 0,38 0,73
1 1,2 1,2 2,3
10 3,8 3,8 7,3
100 12 12 23
For transmitters rated at a maximum output power not listed above, the recommended separation distance din metres (m)
can be estimated using the equation applicable to the frequency of the transmitter, where Pis the maximum output power
rating of the transmitter in watts (W) according to the transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and
reflection from structures, objects and people.
Information on potential electromagnetic interference and advice on
how to avoid or minimize such interference (IEC/EN 60601-1-2:2007)
Guidance and manufacturer’s declaration – electromagnetic immunity
The model HIT-W121 is intended for use in the electromagnetic environment specified below. The customer or the user of
the model HIT-W121 should assure that it is used in such an environment.
Immunity test IEC 60601
test level
Compliance level Electromagnetic environment –
guidance
Electrostatic
discharge (ESD)
IEC 61000-4-2
r6 kV contact
r8 kV air
r6 kV contact
r8 kV air
Floors should be wood, concrete
or ceramic tile. If floors are
covered with synthetic material,
the relative humidity should be at
least 30 %.
Electrical fast
transient/burst
IEC 61000-4-4
r2 kV for power
supply lines
r1 kV for input/output
lines
r2 kV for power
supply lines
r1 kV for input/output
lines
Mains power quality should be
that of a typical commercial or
hospital environment.
Surge
IEC 61000-4-5
r1 kV line(s) to line(s)
r2 kV line(s) to earth
r1 kV line(s) to line(s)
r2 kV line(s) to earth
Mains power quality should be
that of a typical commercial or
hospital environment.
interruptions and
voltage variations
on power supply
input lines
IEC 61000-4-11
<5 % UT
(>95 % dip in UT)
for 0,5 cycle
40 % UT
(60 % dip in UT)
for 5 cycles
70 % UT
(30 % dip in UT)
for 25 cycles
<5 % UT
(>95 % dip in UT)
for 5 sec
<5 % UT
(>95 % dip in UT)
for 0,5 cycle
40 % UT
(60 % dip in UT)
for 5 cycles
70 % UT
(30 % dip in UT)
for 25 cycles
<5 % UT
(>95 % dip in UT)
for 5 sec
Mains power quality should be
that of a typical commercial or
hospital environment. If the user
of the model HIT-W121 requires
continued operation during power
mains interruptions, it is
recommended that the model
HIT-W121 be powered from an
uninterruptible power supply or a
battery.
Power frequency
(50/60 Hz)
magnetic field
IEC 61000-4-8
3 A/m 3 A/m Power frequency magnetic fields
should be at levels characteristic
of a typical location in a typical
commercial or hospital
environment.
NOTE UT is the a.c. mains voltage prior to application of the test level.
Information on potential electromagnetic interference and advice on
how to avoid or minimize such interference (IEC/EN 60601-1-2:2007)
Guidance and manufacturer’s declaration – electromagnetic immunity
The model HIT-W121 is intended for use in the electromagnetic environment specified below. The customer or the user of
the model HIT-W121 should assure that it is used in such an environment.
Immunity test IEC 60601 test level Compliance
level
Electromagnetic environment –guidance
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
3 Vrms
150 kHz to 80 MHz
3 V/m
80 MHz to 2,5 GHz
3 Vrms
3 V/m
Portable and mobile RF communications
equipment should be used no closer to any part
of the model HIT-W121, including cables, than
the recommended separation distance calculated
from the equation applicable to the frequency of
the transmitter.
Recommended separation distance
d = 1,2 P
d = 1,2 P 80 MHz to 800 MHz
d = 2,3 P 800 MHz to 2,5 GHz
where Pis the maximum output power rating of
the transmitter in watts (W) according to the
transmitter manufacturer and dis the
recommended separation distance in metres (m).
Field strengths from fixed RF transmitters, as
determined by an electromagnetic site survey, a
should be less than the compliance level in each
frequency range. b
Interference may occur in the vicinity of
equipment marked with the following symbol:
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption
and reflection from structures, objects and people.
a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile
radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To
assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be
considered. If the measured field strength in the location in which the model HIT-W121 is used exceeds the applicable RF
compliance level above, the model HIT-W121 should be observed to verify normal operation. If abnormal performance is
observed, additional measures may be necessary, such as reorienting or relocating the model HIT-W121.
b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
FCC RF Radiation Exposure Statement:
1.•This Transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
2.•This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
